Electrolux EX601SC User Manual

user manual

Dishwasher

EX601SC

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

Contents

Safety information 2
Product description 4
Control panel 5
First use 7
Use of rinse aid 7
Daily use 8
Load cutlery and dishes 9
Use of detergent 11
Tablet function 12
Select and start a washing programme

13

Unloading the dishwasher 14
Washing programmes 15
Care and cleaning 16
What to do if… 17
Technical data 19
Hints for test institutes 19
Installation 20
Water connection 22
Electrical connection 23
Environment concerns 24
Warranty 25

Subject to change without notice

Safety information

In the interest of your safety and to en­sure the correct use, before installing
and first using the appliance, read this
user manual carefully, including its hints
and warnings. To avoid unnecessary
mistakes and accidents, it is important
to ensure that all people using the appli­ance are thoroughly familiar with its op­eration and safety features. Save these
instructions and make sure that they re­main with the appliance if it is moved or
sold, so that everyone using it through
its life will be properly informed on appli­ance use and safety.

Correct use

• This dishwasher is only intended for wash­ing household utensils suitable for ma­chine washing.

• Do not put any solvents in the dishwasher.
This could cause an explosion.

• Knives and other items with sharp points
must be loaded in the cutlery basket with
their points down or placed in a horizontal
position in the upper basket.

• Only use products (detergent, cleaners,
rinse aid etc.) suitable for dishwashers.

• Hot steam may escape. Avoid opening the
door whilst the appliance is in operation.

• Do not take any dishes out of the dish­washer before the end of the washing cy­cle.

• If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent or a similarly qualified person in or­der to avoid a hazard.

• This product must be serviced only by an
authorized service engineer, and only gen­uine spare parts must be used.

General safety

• Dishwasher detergents are very alkaline
and extremely dangerous if swallowed. Be
careful to: keep them away from your eyes
and skin, keep children from the dish­washer when the door is opened and only
put detergent in the dispenser when you
are ready to wash.

• Make sure that the detergent receptacle in
the dispenser is empty after the comple­tion of a wash cycle.

• Water in the dishwasher is not for drinking
purposes. Detergent residue may still be
present in your machine.

• Ensure that the door of the dishwasher is
always closed when it is not being loaded
or unloaded. In this way you will avoid any­body tripping over the open door and hurt­ing themselves.

• Do not sit or stand on the open door.

2 electrolux

Child safety

• This appliance is not intended for use by
young children or infirm persons unless
they have been adequately supervised by
a responsible person to ensure that they
can use the appliance safety.

• Young children must be supervised to en­sure that they do not play with the appli­ance.

• Keep all packaging well away from chil­dren. There is a risk of suffocation.

• Keep all detergents in a safe place out of
children’s reach.

• Keep children well away from the dish­washer when the door is open.

Installation

• Check your dishwasher for any transport
damage. Never connect a damaged ma­chine. If your dishwasher is damaged con­tact your supplier.

• All packaging must be removed before
use.

• Any electrical and plumbing work required
to install this appliance must be carried out
by a qualified and competent person.

• For safety reasons it is dangerous to alter
the specifications or attempt to modify this
product in any way.

• Never use the dishwasher if the electrical
supply cable and water hoses are dam­aged; or if the control panel, work top or
plinth area are damaged such that the in­side of the appliance is freely accessible.
Contact your local Customer Care Centre,
in order to avoid hazard.

• All sides of the dishwasher must never be
drilled to prevent damage to hydraulic and
electric components.

Warning! FOR ELECTRICAL AND
WATER CONNECTIONS CAREFULLY
FOLLOW THE INSTRUCTIONS GIVEN
IN THE SPECIFIC PARAGRAPHS.

electrolux 3

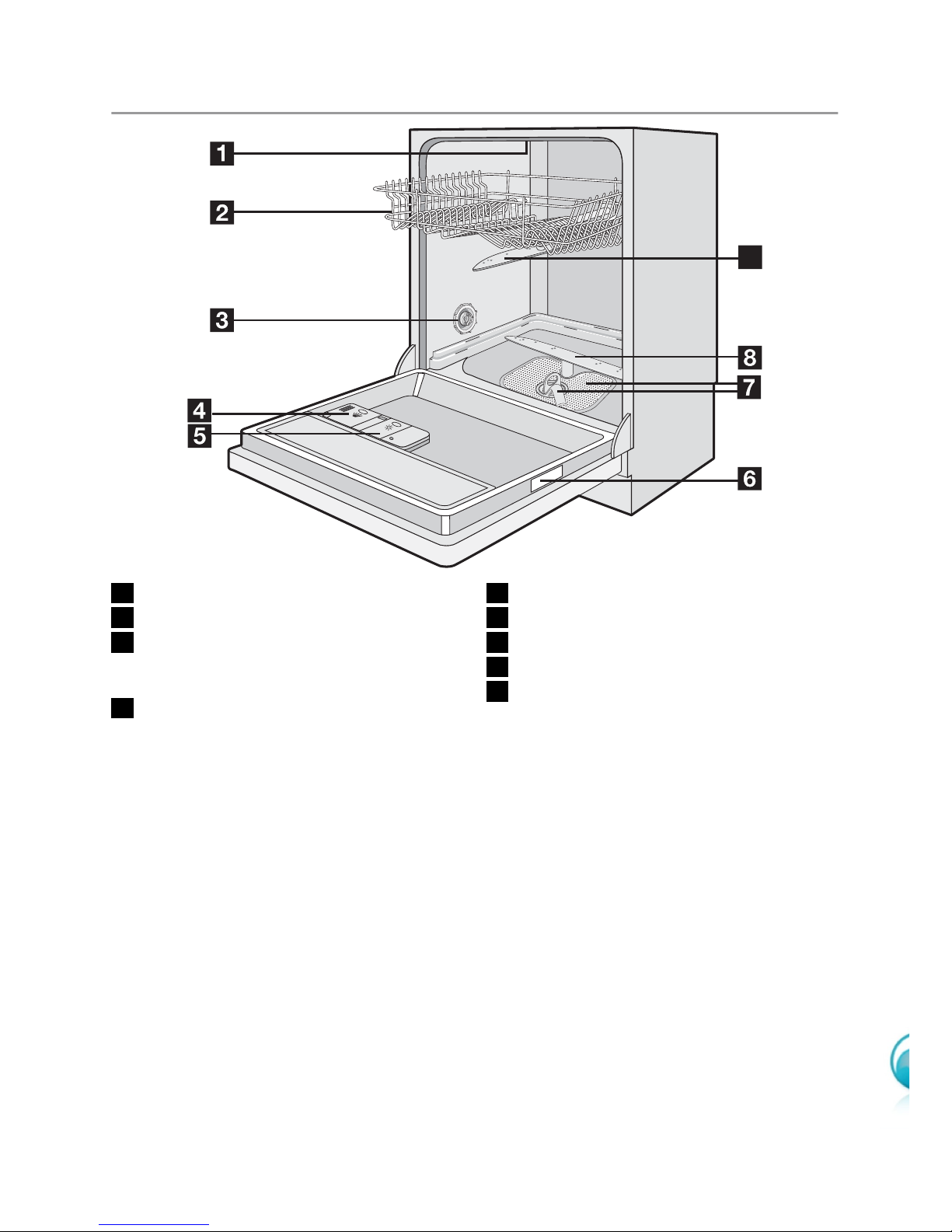

Product description

9

1 Top shower
2 Upper basket
3 Air vent and water hardness dial (the dial

is only functional for dishwashers with a
water softener)

4 Detergent dispenser

5 Rinse aid dispenser
6 Rating plate
7 Filters
8 Lower spray arm
9 Upper spray arm

4 electrolux

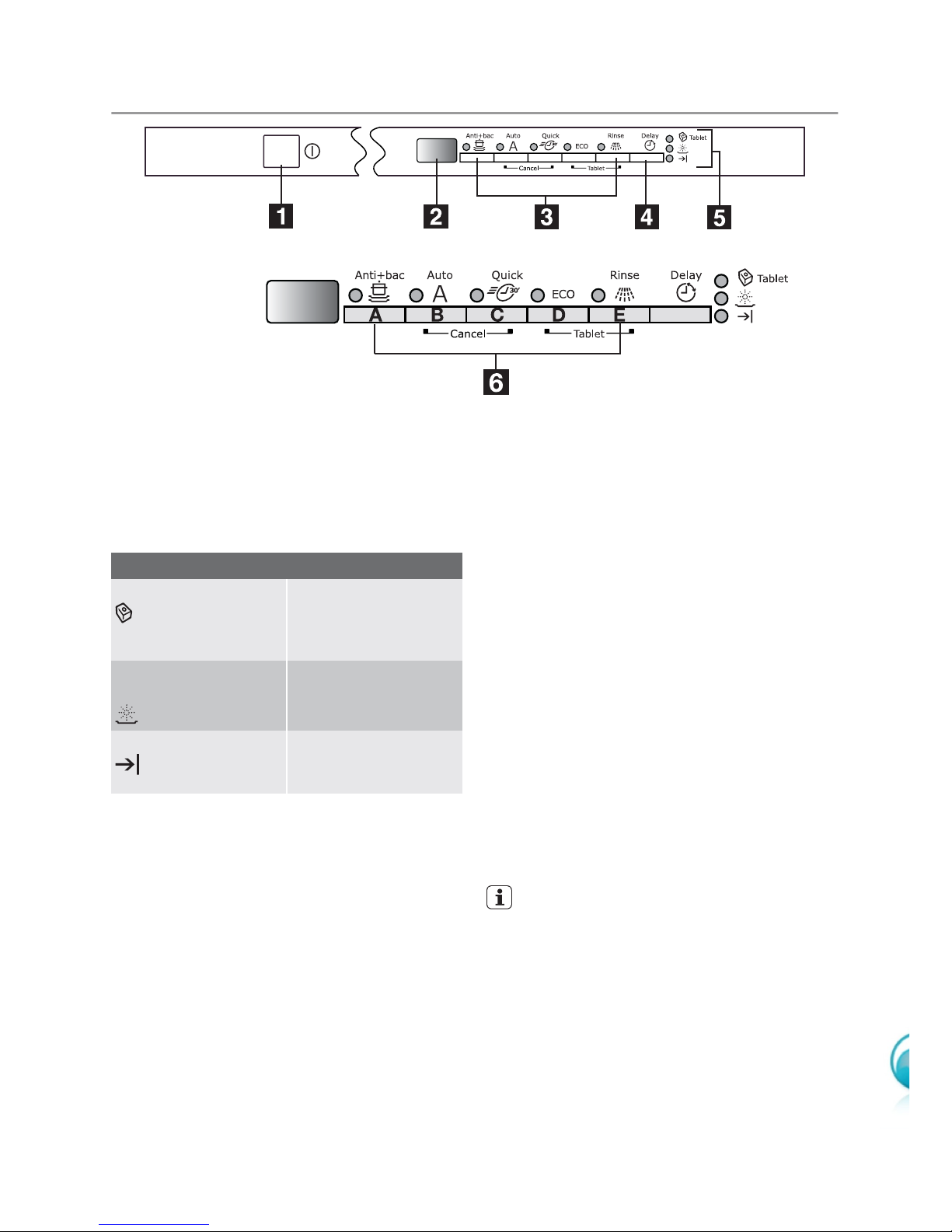

Control panel

1. On/Off button

2. Digital display

3. Programme selection buttons

4. Delay start button

5. Indicator lights

6. Function buttons

Indicator lights

Tablet function Indicates the activa-

tion/deactivation of the
'Tablet function' (refer
to 'Tablet function' ).

Rinse aid

1)

Comes on when the
rinse aid has run out.

End Comes on when a

washing programme
has ended.

1) The rinse aid indicator light never comes on
while a washing programme is running even if
filling with rinse aid is necessary.

The digital display

The digital display indicates:

• the approximate remaining time of the run-

ning programme,

• activation/deactivation of the rinse aid dis-

penser ( ONLY with the 'Tablet function'
active),

• the end of a washing programme (the dig-

ital display shows a zero),

• the countdown for the delay start,

• fault codes concerning malfunction of the

dishwasher,

• if the audible signals are activated/deacti-

vated.

Function buttons

The following functions can be set using
these buttons:

• cancelling a washing programme or a de­lay start in progress,

• activation/deactivation of the 'Tablet func­tion',

• activation/deactivation of the rinse aid dis­penser when the 'Tablet function' is active,

• activation/deactivation of the audible sig­nals.

Setting mode

Press the On/Off button; if ALL programme
button lights are on, the appliance is in set­ting mode.

Always remember that when performing
the following operations:
– selecting a washing programme,
– activating/deactivating the rinse aid,
– activating/deactivating the audible

signals,

the appliance MUST be in setting mode.

Press the On/Off button; if a programme but­ton light is on, the last performed or selected
programme is still set. In this case, to return
to setting mode, the programme has to be
cancelled.

electrolux 5

To cancel a set programme or a
programme in progress

Simultaneously press and hold the two func­tion buttons B and C until all the programme
button lights come on. The programme has
been cancelled and the machine is now in
setting mode.

Audible signals

Audible signals have been introduced to help
indicate which operations the dishwasher is
performing:
– end of the washing programme,
– intervention of an alarm due to malfunction

of the machine.

Factory setting: audible signals activated
It is possible to deactivate the audible
signals.

Deactivation/activation of the audible
signals

1. Press the On/Off button. The dishwasher
must be in setting mode.

2. Simultaneously press and hold function

buttons B and C until the lights of function
buttons A , B and C start flashing.

3. Press function button C , the lights of
function buttons A and B go off while the
light of function button C continues to
flash. The digital display shows the cur­rent level.

Audible signals deactivated

Audible signals activated

4. To change the setting, press function
button C again; the digital display shows
the new setting.

5. 5. To memorize the operation, switch off
the dishwasher.

6 electrolux

First use

Before using your dishwasher for the first
time:

• Ensure that the electrical and water con­nections comply with the installation in­structions.

• Remove all packaging from inside the ap­pliance.

• Fill the rinse aid dispenser.

If you want to use the multi benefit
tablets set the 'Tablet' function. (Re­fer to 'Tablet function').

Use of rinse aid

Warning! Only use branded rinse aid for
dishwashers.
Never fill the rinse aid dispenser with any
other substances (e.g. dishwasher
cleaning agent, liquid detergent). This
would damage the appliance.

Rinse aid ensures thorough rinsing, and
spot and streak free drying.
Rinse aid is automatically added during
the last rinse.

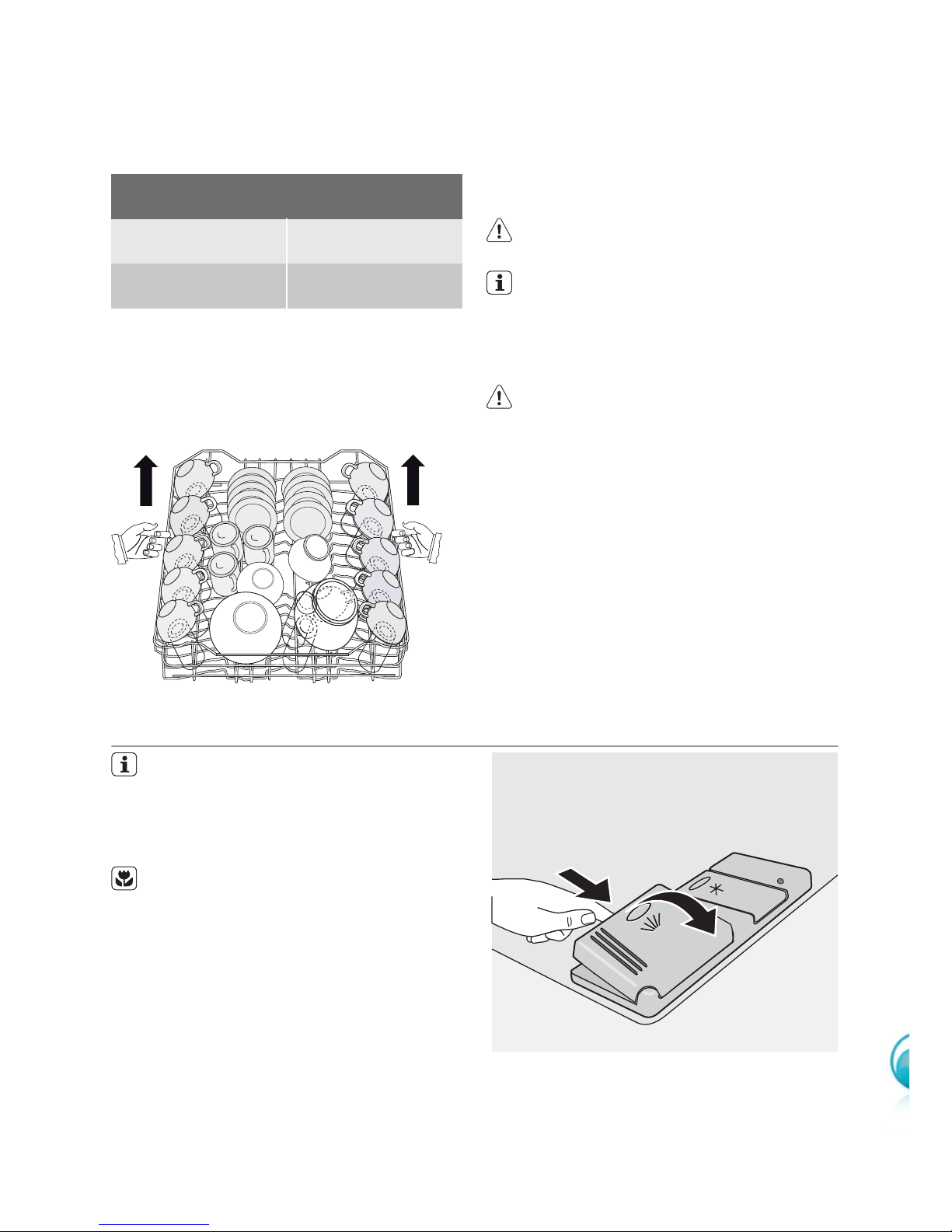

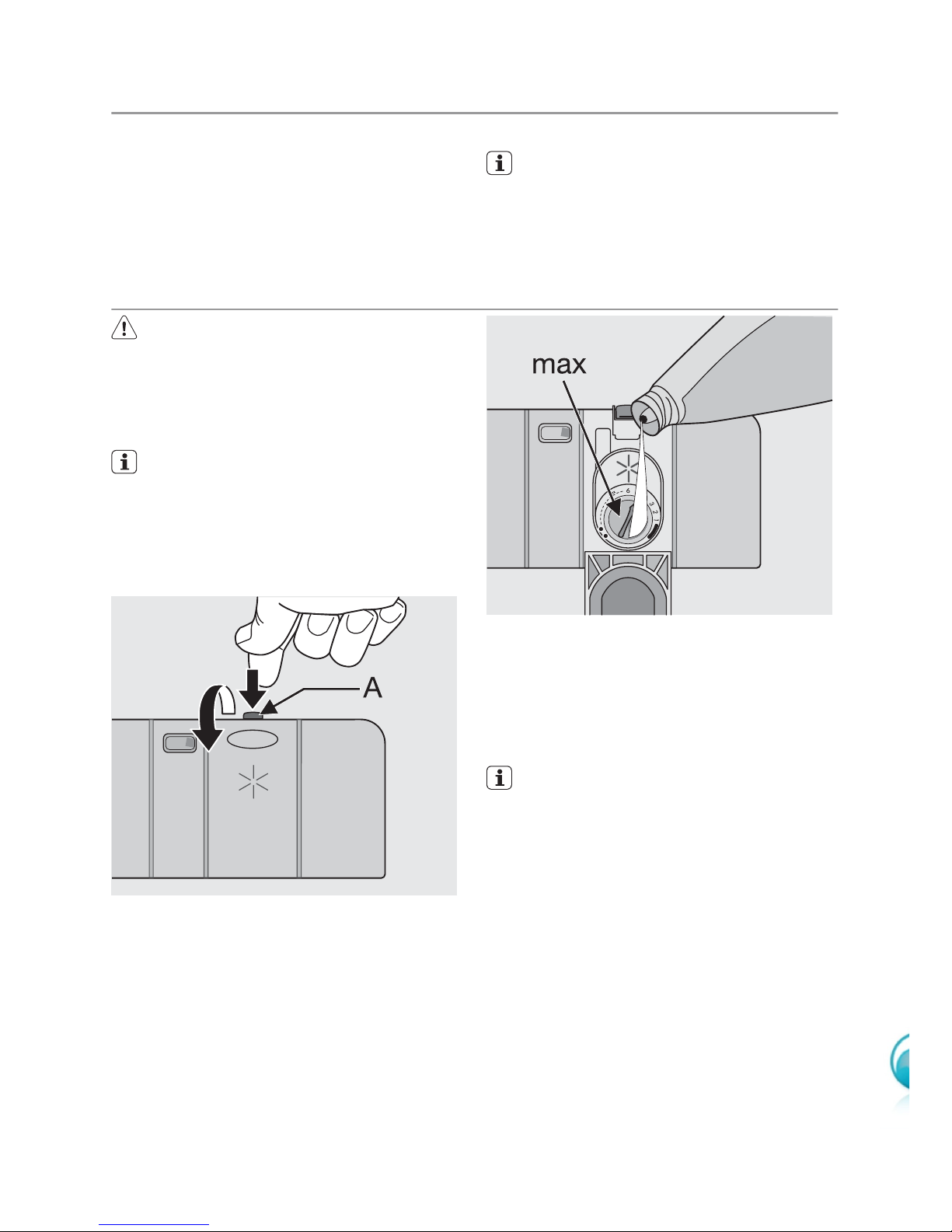

1. Open the container by pressing the re-

lease button (A).

2. Add the rinse aid in the container. The

maximum level for filling is indicated by
"max".

The dispenser holds about 110 ml of rinse
aid, which is sufficient for between 16 and
40 washing cycles, depending upon the
dosage setting.

3. Ensure that the lid is closed after every
refill.

Clean up any rinse aid spilt during filling
with an absorbent cloth to avoid excess
foaming during the next wash.

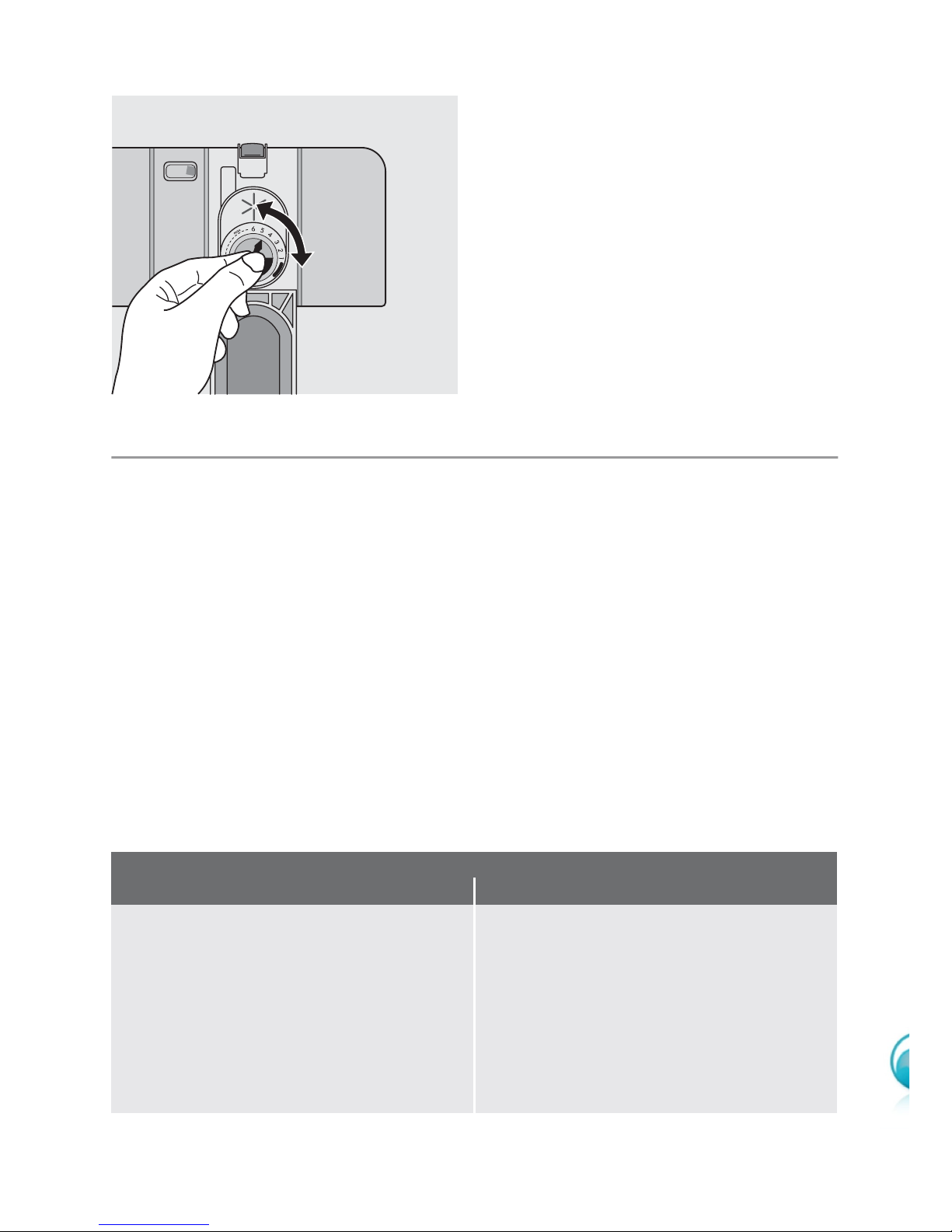

According to the finish and drying results ob­tained, adjust the dose of rinse aid by means
of the 6 position selector (position 1 minimum
dosage, position 6 maximum dosage).
The dose is factory set in position 4.
Increase the dose if there are drops of water
or lime spots on the dishes after washing.
Reduce it if there are sticky whitish streaks
on the dishes or a bluish film on glassware or
knife blades.

electrolux 7

Daily use

• Check if it’s necessary to refill with rinse
aid.

• Load cutlery and dishes into the dishwash­er.

• Add required amount of detergent just pri­or to wash.

• Select a wash programme suitable for the
cutlery and dishes.

• Start the wash programme.

Helpful hints and tips

Sponges, household cloths and any object
that can absorb water may not be washed in
the dishwasher.

• Before loading the dishes, you should:
– Remove all left over food and debris.
– Soften remnants of burnt food in pans

• When loading the dishes and cutlery,
please note:

– Dishes and cutlery must not impede the

rotation of the spray arms.

– Load hollow items such as cups,

glasses, pans, etc. with the opening
downwards so that water cannot collect
in the container or a deep base.

– Dishes and items of cutlery must not lie

inside one another, or cover each other.

– To avoid damage to glasses, they must

not touch.

– Lay small objects in the cutlery basket.

• Plastic items and pans with non stick coat­ings have a tendency to retain water
drops; these items will not dry as well as
porcelain and steel items.

• Light items (plastic bowls etc.) must be
loaded in the upper basket and arranged
so they do not move.

For washing in the dishwasher the following cutlery and dishes

are not suitable: are of limited suitability:

• Cutlery with wooden, horn, china or mother-of­pearls handles.

• Plastic items that are not heat resistant.

• Older cutlery with glued parts that are not tem­perature resistant.

• Bonded cutlery items or dishes.

• Pewter or copper items.

• Lead crystal glass.

• Steel items prone to rusting.

• Wooden platters.

• Items made from synthetics fibres.

• Only wash stoneware in the dishwasher if it is
specially marked as being dishwasher-safe by
the manufacturer.

• Glazed patterns may fade if machine washed
frequently.

• Silver and aluminium parts have a tendency to
discolour during washing: Residues, e.g. egg
white, egg yolk and mustard often cause dis­colouring and staining on silver. Therefore al­ways clean left-overs from silver immediately, if
it is not to be washed straight after use.

8 electrolux

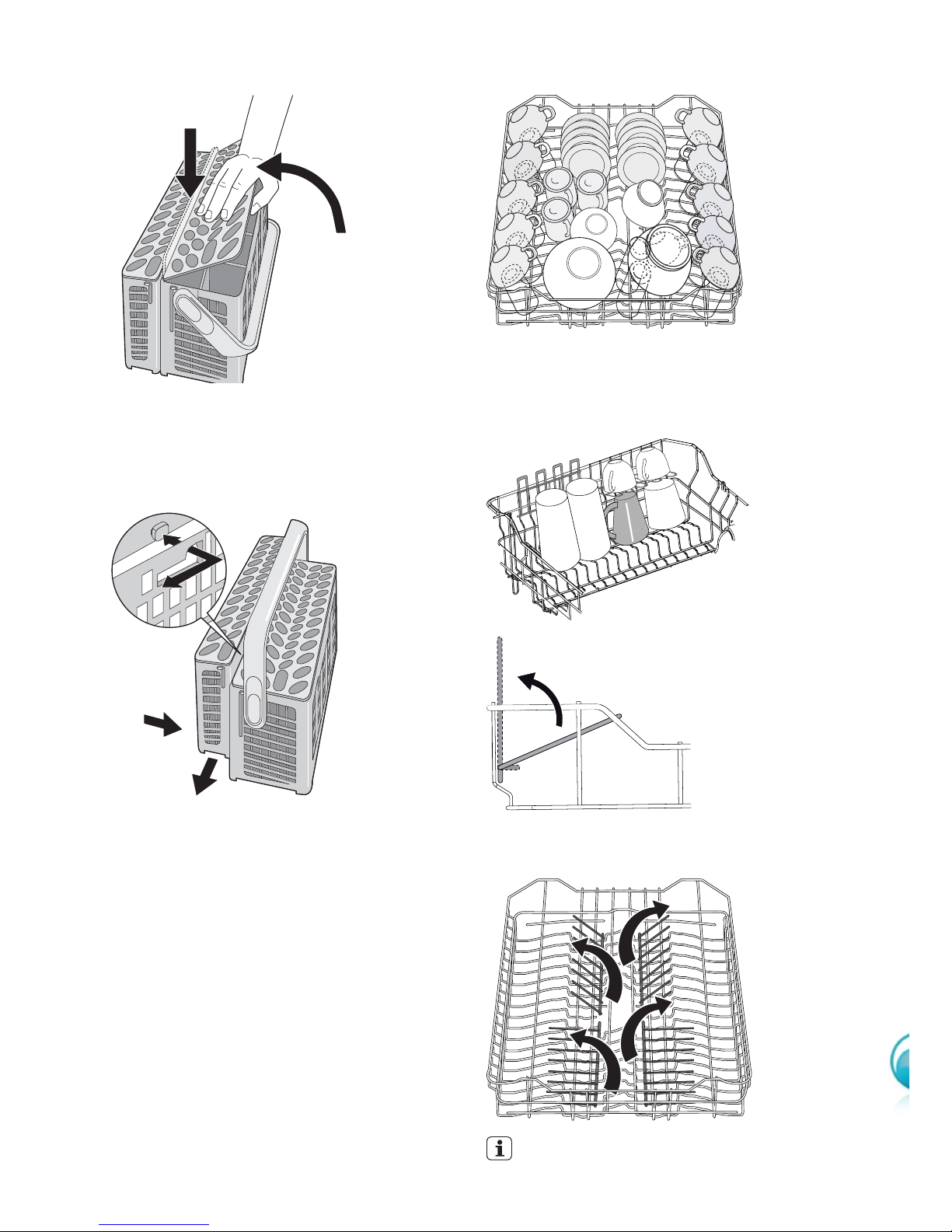

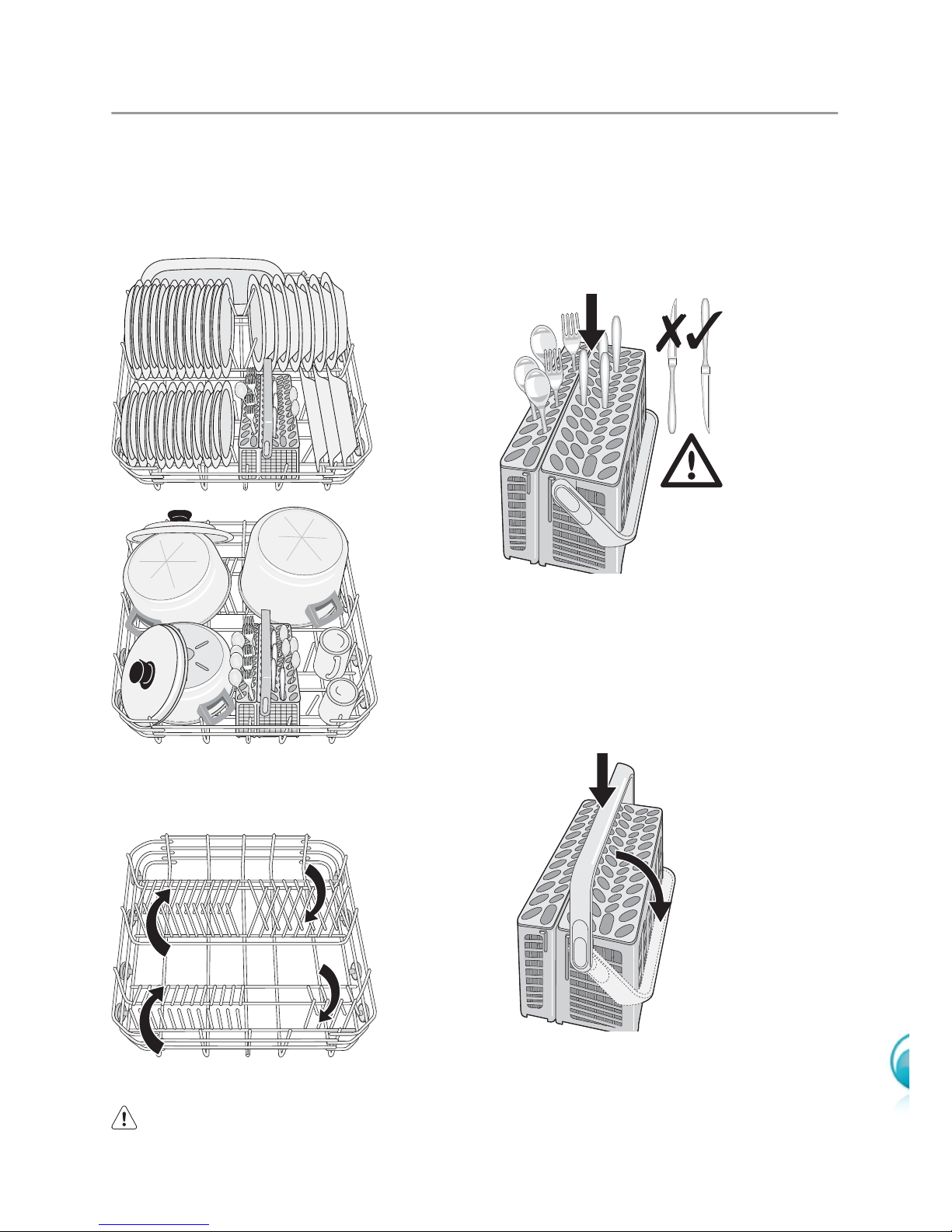

Load cutlery and dishes

The lower basket

The lower basket is designed to take sauce­pan, lids, plates, salad bowls, cutlery etc.
Service dishes and large lids should be ar­ranged around the edge of the basket, en­suring that the spray arms can turn freely.

The rows of prongs in the lower basket can
lie flat to allow you to load pots, pans and
bowls.

The cutlery basket

Long bladed knives stored in an upright
position are a potential hazard. Long
and/or sharp items of cutlery such as
carving knives must be positioned

horizontally in the upper basket. Take
care when loading or unloading sharp
items such as knives.

Forks and spoons should be placed in the
removable cutlery basket with the handles
facing downwards and the knives with their
handles facing upwards.

If the handles protrude from the bottom of the
basket, obstructing the lower spray arm, load
the cutlery with the handles facing upwards.
Mix spoons with other cutlery to prevent
them from sticking together.

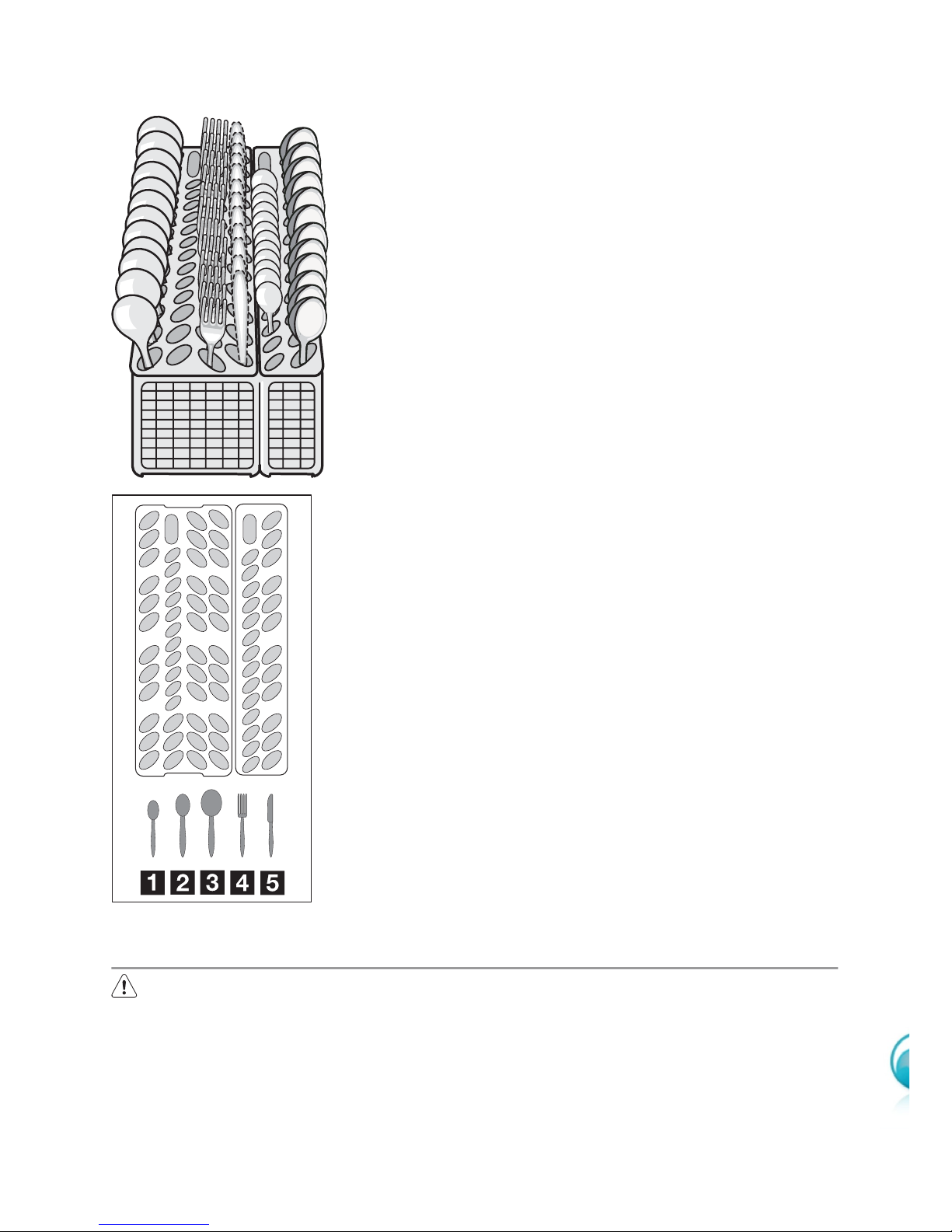

To make loading of the cutlery basket easier,
lower the cutlery basket handle.

For best results we recommend that you use
the cutlery grids.
If the size and dimensions of the cutlery do
not allow the use of the grids, they can be
easily hidden.

electrolux 9

The cutlery basket is in two parts which can
be separated to give greater loading flexibili­ty. To separate the two parts, slide them hor­izontally in opposite directions and pull them
apart.

To reassemble, reverse the procedure.

The upper basket

The upper basket is designed for saucers,
salad bowls, cups, glasses, pots and lids.
Arrange items on and underneath the cup
racks so that water can reach all surfaces.

Glasses with long stems can be placed up­side down in the cup racks.
For taller items, the cup racks can be folded
upwards.

The central rows of prongs can be easily low­ered to improve loading flexibility.

Before closing the door, ensured that
the spray arms can rotate freely.

10 electrolux

Adjusting the height of the upper basket

If washing very large plates you can load
them in the lower basket after moving the
upper basket to the higher position.

Maximum height of the dishes in the lower

basket

With upper basket
raised

31 cm

With upper basket
lowered

27 cm

To move to the higher position proceed
as follows:

1. Pull out the basket until it stops.

2. Carefully lift both sides upwards until the
mechanism is engaged and the basket is
stable.

To lower the basket to the original posi­tion proceed as follows:

1. Pull out the basket until it stops.

2. Carefully lift both sides upwards and then
allow the mechanism to drop back down
slowly, keeping hold of it.

Caution! Never lift or lower the basket
on one side only.

When the basket is in the higher posi­tion:

• do not load cups on the cup racks,

• make sure that the cup racks are lied
down and not folded upwards.

After loading your machine always
close the door, as an open door can
be a hazard.

Use of detergent

Only use detergents specifically de­signed for use in dishwashers.
Please observe the manufacturer’s dos­ing and storage recommendations as
stated on the detergent packaging.

Using no more than the correct amount
of detergent contributes to reducing pol­lution.

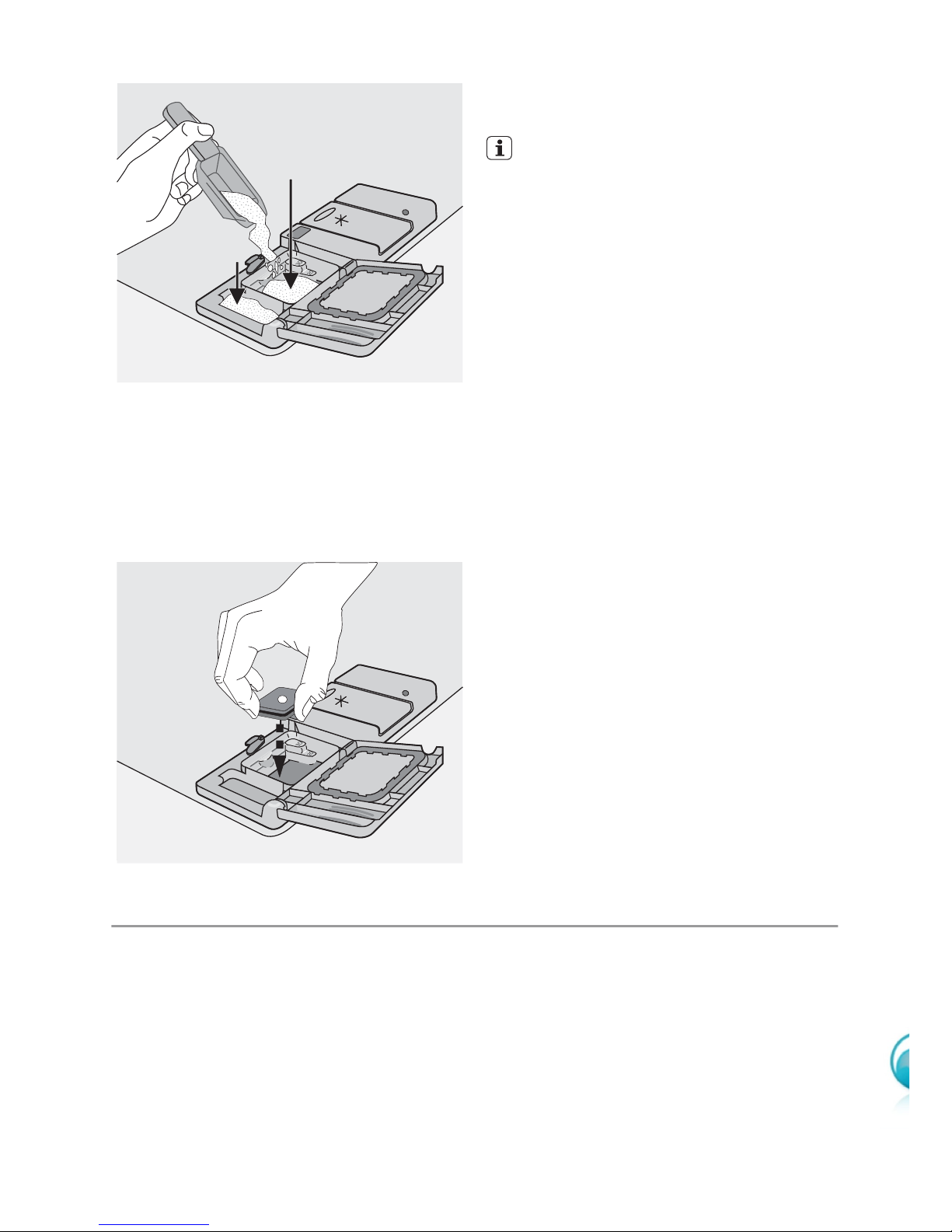

Fill with detergent

1. Open the lid.

2. Fill the detergent dispenser (1) with de­tergent. The marking indicates the dosing
levels:
20 = approximately 20 g of detergent
30 = approximately 30 g of detergent.

electrolux 11

3. All programmes with prewash need an
additional detergent dose (5/10 g) that
must be placed in the prewash detergent
chamber (2).
This detergent will be used during the
prewash phase.
When using detergent tablets; place the
tablet in compartment (1)

1

2

4. Close the lid and press until it locks in
place.

Detergent tablets from different manu­facturers dissolve at different rates. For
this reason, some detergent tablets do
not attain their full cleaning power during
short washing programmes. Therefore,
please use long washing programmes
when using detergent tablets, to ensure
the complete removal of detergent re­siduals.

Tablet function

This appliance is equipped with the 'Tablet
function that allows the use of the detergent
tablets.
These products are detergents with a com­bined cleaning and rinsing functions. They
can also contain other different agents de­pending on which kind of tablets you choose.
Once this function is selected it will remain
active for all following wash programmes.
With the selection of this function the inflow
of rinse aid is automatically deactivated and

also the indicator light for rinse aid is deacti­vated.
When using the 'Tablet function', the cycle
duration may change. If this is the case, the
running time for the programme is automat­ically updated on the digital display.

12 electrolux

Activate/deactivate the 'Tablet function'
before the start of a washing pro­gramme.
Once the programme is running, the set
of the 'Tablet function' can NO longer be
changed. You must cancel the set pro­gramme and then change the set of the
'Tablet function'.
Remember to set the washing pro­gramme again.

Activation/deactivation of the Tablet
function

Simultaneously press and hold the two Tab­let buttons (function buttons D and E ) until
the Tablet indicator light comes on. This
means that the function is active.
To deactivate the function press the same
buttons again until the Tablet indicator light
goes off.

If the drying results are not satisfac­tory we suggest that you:

1. Fill up the rinse aid dispenser with
rinse aid.

2. Activate the rinse aid dispenser.

3. Set the rinse aid dosage to position

2.

• The activation/deactivation of the

rinse aid is only possible with the 'Tab­let function' active.

Activation/deactivation of the rinse aid
dispenser

1. Press the On/Off button. The dishwasher
must be in setting mode.

2. Simultaneously press and hold function
buttons B and C , until the lights of func­tion buttons A , B , and C start flashing.

3. Press function button B , the lights of
function buttons A and C go off while the
light of function button B continues to
flash. The digital display shows the cur­rent setting.

Rinse aid dispenser deactivated

Rinse aid dispenser activated

4. To change the setting, press button B
again, the digital display shows the new
setting.

5. To memorize the operation, switch off the
dishwasher by pressing the On/Off but­ton.

If you decide to revert back to the
use of individual detergents we ad­vise that you:

1. Deactivate the 'Tablet function'.

2. Fill up the rinse aid dispenser again.

3. Adjust the rinse aid dosage.

Select and start a washing programme

Select the washing programme and
delay start with the door slightly
opened. The start of the programme
or the countdown of the delay start
will occur only after the closure of
the door. Until then it is possible to
modify the settings

1. Check that the baskets have been loaded
correctly and that the spray arms are free
to rotate.

2. Check that the water tap is opened.

3. Press the On/Off button. The dishwasher
must be in setting mode.

4. Press the button corresponding to the re­quired programme (refer to 'Washing
programmes' chart).
Close the dishwasher door, the pro­gramme starts automatically.

Setting and starting the programme with
delay start

1. After having selected the washing pro­gramme, press the delay start button until
the flashing number of hours for the delay
start shows in the digital display.
The start of the selected washing pro­gramme can be delayed for between 1
and 19 hours.

2. Close the dishwasher door, the count­down starts automatically.

3. The countdown will decrease with steps
of 1 hour.

4. The opening of the door will interrupt the
countdown. Close the door; the count­down will continue from the point at
which it was interrupted.

5. Once the delay start has elapsed the pro­gramme will start automatically.

electrolux 13

Warning! Interrupt or cancel a
washing programme in progress
ONLY if it's absolutely necessary.
Attention! Hot steam may escape
when the door is opened. Open the
door carefully.

Interrupt a washing programme in
progress

• Open the dishwasher door; the pro­gramme will stop. Close the door; the pro­gramme will start from the point at which
it was interrupted.

Cancel a delay start or a washing
programme in progress

• Simultaneously press and hold the two
function buttons B and C until all the pro­gramme lights come on.

• Cancelling a delay start will also cancel the
washing programme. You have to select
the washing programme again.

• If a new washing programme is to be se­lected, check that there is detergent in the
detergent dispenser.

End of the washing programme

• The dishwasher will automatically stop and
an audible signal informs you of the end of
the washing programme.

1. Open the dishwasher door.

– The digital display shows zero.
– End indicator light is on.

2. Switch of the dishwasher.

3. Leave the dishwasher door ajar for a few

minutes before removing the dishes; this
way they will be cooler and the drying will
be improved.

Unloading the dishwasher

• Hot dishes are sensitive to knocks. The
dishes should therefore be allowed to cool
down before removing from the appliance.

•Empty the lower basket first and then the
upper one; this will avoid water dripping
from the upper basket onto the dishes in
the lower one.

• Water may appear on the sides and the
door of the dishwasher as the stainless

steel will eventually become cooler than
the dishes.

When the washing programme has
finished, it is recommended that the
dishwasher is unplugged and the
water tap turned off.

14 electrolux

Washing programmes

Washing programmes

Programme Degree of soil Type of load Programme description

Anti+bac

1)

Heavy soil

Crockery, cutlery,

pots and pans

Prewash
Main wash
2 intermediate rinses
Final rinse
Drying

Auto

2)

Any

Crockery, cutlery,

pots and pans

Prewash
Main wash
1 or 2 intermediate rinses
Final rinse
Drying

Quick

3)

Normal or light

soil

Crockery and

cutlery

Main wash
Final rinse

ECO

4)

Normal soil

Crockery and

cutlery

Prewash
Main wash
Final rinse
Drying

Rinse

Any. Partial load (to be

completed later in

the day).

1 cold rinse (to avoid food scraps from
sticking).
This programme does not require the use
of detergent.

1) The 'Anti+bac' programme provides a sanitising final rinse.

2) During the 'Auto' washing programme the level of soiling on the dishes is determined by how cloudy

the water is. The programme duration, water and energy consumption levels can vary; this depends
upon whether the appliance is fully or partially loaded and if the dishes are lightly or heavily soiled. The
temperature of the water is automatically adjusted between 50° C and 65° C.

3) Ideal for washing a partially loaded dishwasher. This is the perfect daily programme, made to meet

the needs of a family of 4 persons who only wish to load breakfast and dinner crockery and cutlery.

4) The 'ECO' programme is recommended to wash a full 12 place setting load of normally soiled dishes.

It saves energy and water. Because it runs at a lower temperature, it is not suitable for heavily soiled
wash loads. To save energy, dry performance is reduced so you have to open the door at the end of
the wash cycle or even towel dry some dishes.

Consumption values

Programme Programme duration

(in minutes)

1)

Energy consumption

(in kWh)

Water consumption

(in litres)

Anti+bac - 1,9 - 2,1 23 - 25

Auto - 1,1 - 1,8 12 - 25

Quick - 0,9 9

ECO

2)

- 0,8 - 0,88 11 - 12

Rinse - 0,1 4

1) The digital display shows the programme duration.

2) Test programme for test institutes

The consumption values are intended as
a guide and depend on the pressure and
the temperature of the water and also by

the variations of the power supply and
the amount of dishes.

electrolux 15

Care and cleaning

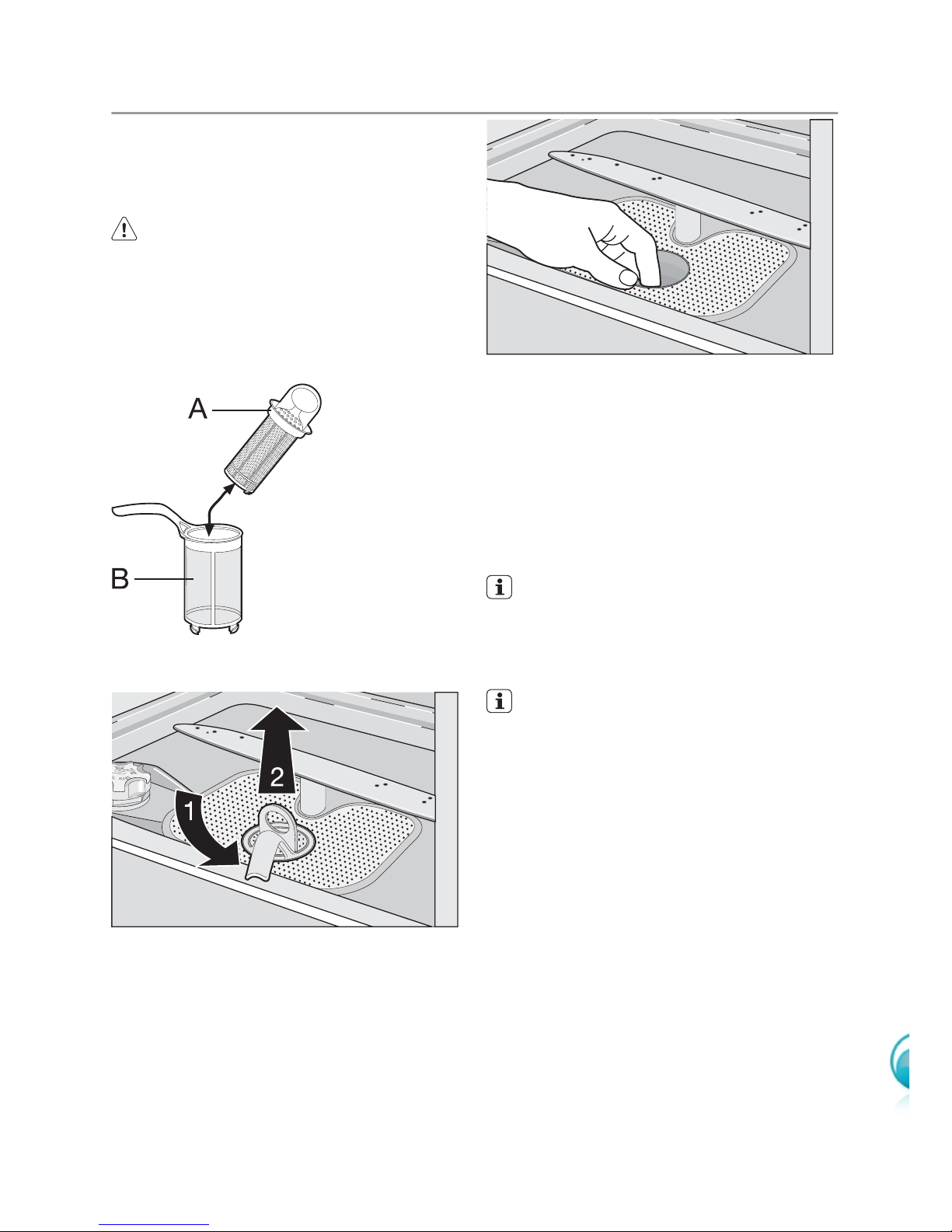

Cleaning the filters

The filters must be checked and cleaned
from time to time. Dirty filters will degrade the
washing result.

Warning! Before cleaning the filters
ensure that the machine is switched off.

1. Open the door, remove the lower basket.

2. The dishwasher filter system comprises a

coarse filter ( A ), a microfilter ( B ) and a
flat filter. Unlock the filter system using the
handle on the microfilter.

3. Turn the handle about 1/4 a turn anti-

clockwise and remove the filter system

4. Take hold of the coarse filter ( A ) by the

handle with the hole and remove from the
microfilter ( B ).

5. Clean all filters thoroughly under running

water.

6. Remove the flat filter from the base of the

washing compartment and clean both
faces thoroughly.

7. Put the flat filter back in the base of the
washing compartment and ensure that it
fits perfectly.

8. Place the coarse filter ( A ) in the microfil­ter ( B ) and press together.

9. Put the filter combination in place and
lock by turning the handle clockwise to
the stop. During this process ensure that
the flat filter does not protrude above the
base of the washing compartment.

NEVER use the dishwasher without
filters. Incorrect repositioning and
fitting of the filters will produce poor
washing results and will result in
damage to the appliance.

NEVER try to remove the spray
arms.

If residues of soil have clogged the holes
in the spray arms, remove the debris
with a cocktail stick.

External cleaning

Clean the external surfaces of the machine
and control panel with a damp soft cloth. If
necessary use only neutral detergents. Never
use abrasive products, scouring pads or sol­vent (acetone, trichloroethylene etc...).

Internal cleaning

Ensure that the seals around the door, the
detergent and rinse aid dispensers are
cleaned regularly with a damp cloth.
We recommend every 3 months you run the
wash programme for heavy soiled dishes us­ing detergent but without dishes.

Prolonged periods of non-operation

If you are not using the machine for a pro­longed period of time you are advised to:

16 electrolux

1. Unplug the appliance and then turn off
the water.

2. Leave the door ajar to prevent the forma­tion of any unpleasant smells.

3. Leave the inside of the machine clean.

Frost precautions

Avoid placing the machine in a location
where the temperature is below 0°C. If this is
unavoidable, empty the machine, close the
appliance door, disconnect the water inlet
pipe and empty it.

Moving the machine

If you have to move the machine (moving
house etc...):

1. Unplug it.

2. Turn the water tap off.

3. Remove the water inlet and discharge
hoses.

4. Pull the machine out together with the
hoses.

Avoid over tilting the machine during trans­portation.

What to do if…

The appliance will not start or stops during
operation.
Certain problems can be due to the lack of
simple maintenance or oversights, which can
be solved with the help of the indications de­scribed in the chart, without calling out a
service technician.

With the appliance door closed an inter­mittent audible signal informs you that a
malfunction has occurred.

Open the door and check which fault code
the digital display shows. Switch off the ap­pliance and carry out the suggested correc­tive actions given in the following chart.
For fault codes not described in the chart,
please contact your Customer Care Centre.

Fault codes and malfunction Possible cause and solution

• continuous flashing of the running programme
light

•

The digital display shows

The dishwasher does not fill with water

• The water tap is blocked or furred with lime­scale.
Clean the water tap.

• The water tap is turned off.
Turn the water tap on.

• The filter (where present) in the water inlet hose
is blocked.
Clean the filter.

• The water inlet hose has not been correctly laid
or it is kinked or squashed.
Check the water inlet hose connection.

• continuous flashing of the running programme
light

•

The digital display shows

The dishwasher will not drain

• The sink spigot is blocked.
Clean out the sink spigot.

• The water drain hose has not been correctly laid
or it is kinked or squashed.
Check the water drain hose connection.

• continuous flashing of the running programme
light

•

The digital display shows

appears in the

digital display

Anti-flood device is activated

• Close the water tap and contact your Customer
Care Centre.

electrolux 17

Malfunction Possible cause and solution

The programme does not start

• The dishwasher door has not been properly
closed.
Close the door.

• The main plug is not plugged in.
Insert the main plug

• The fuse has blown out in the household fuse
box.
Replace the fuse.

• Delay start has been set.
If dishes are to be washed immediately, cancel
the delay start.

Once these checks have been carried out
switch on the appliance and close the door.
The programme will continue from the point
at which it was interrupted.
If the malfunction or fault code reappears
contact your Customer Care Centre, quoting
the model (Mod.), product number (PNC)
and serial number (S.N.).
This information can be found on the rating
plate located on the side of the dishwasher
door.

So that you always have these numbers at
hand, we recommend you to make a note of
them here:

Mod. : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PNC : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

S.N. : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

The wash results are not satisfactory

The dishes are not
clean

• The wrong washing programme has been selected.

• The dishes are arranged in such a way as to stop water reaching all parts
of the surface. The baskets must not be overloaded.

• The spray arms do not rotate freely due to incorrect arrangement of the
load.

• The filters in the base of the washing compartment are dirty or incorrectly
positioned.

• Too little or no detergent has been used.

• The drain hose connection is not correct.

The dishes are wet
and dull

• Rinse aid was not used.

• The rinse aid dispenser is empty.

There are streaks,
milky spots or a blu­ish coating on
glasses and dishes

• Decrease rinse aid dosage.

Water drops have
dried onto glasses
and dishes

• Increase rinse aid dosage.

• The detergent may be the cause. Contact the detergent manufacturer con­sumer care line.

If after all these checks, the problem persists,
contact your Customer Care Centre.

18 electrolux

Technical data

Dimensions Width 59,6 cm

Height 82 - 88 cm

Depth 58 cm

Electrical connection - Voltage ­Overall power - Fuse

Information on the electrical connection is given on the rating plate
on the inner edge of the dishwasher door.

Water supply pressure Minimum 50 kPa (7 psi)

Maximum cold water 800 kPa (116 psi)

Maximum hot water 350 kPa (51 psi)

Capacity Place settings 12

Hints for test institutes

Testing in accordance with AS/NZS 2007
must be carried out with appliance fully loa­ded and using the test programme ( refer to
'Washing programmes' - 'Consumption val­ues' ).

The rinse aid dispenser must be filled and the
door must be opened at the end of cycle for
30 minutes for drying assessment.

Full load: 12 standard place settings

Amount of detergent required: 10 g + 20 g ( AS/NZS )

Rinse aid setting position 4 ( AS/NZS )

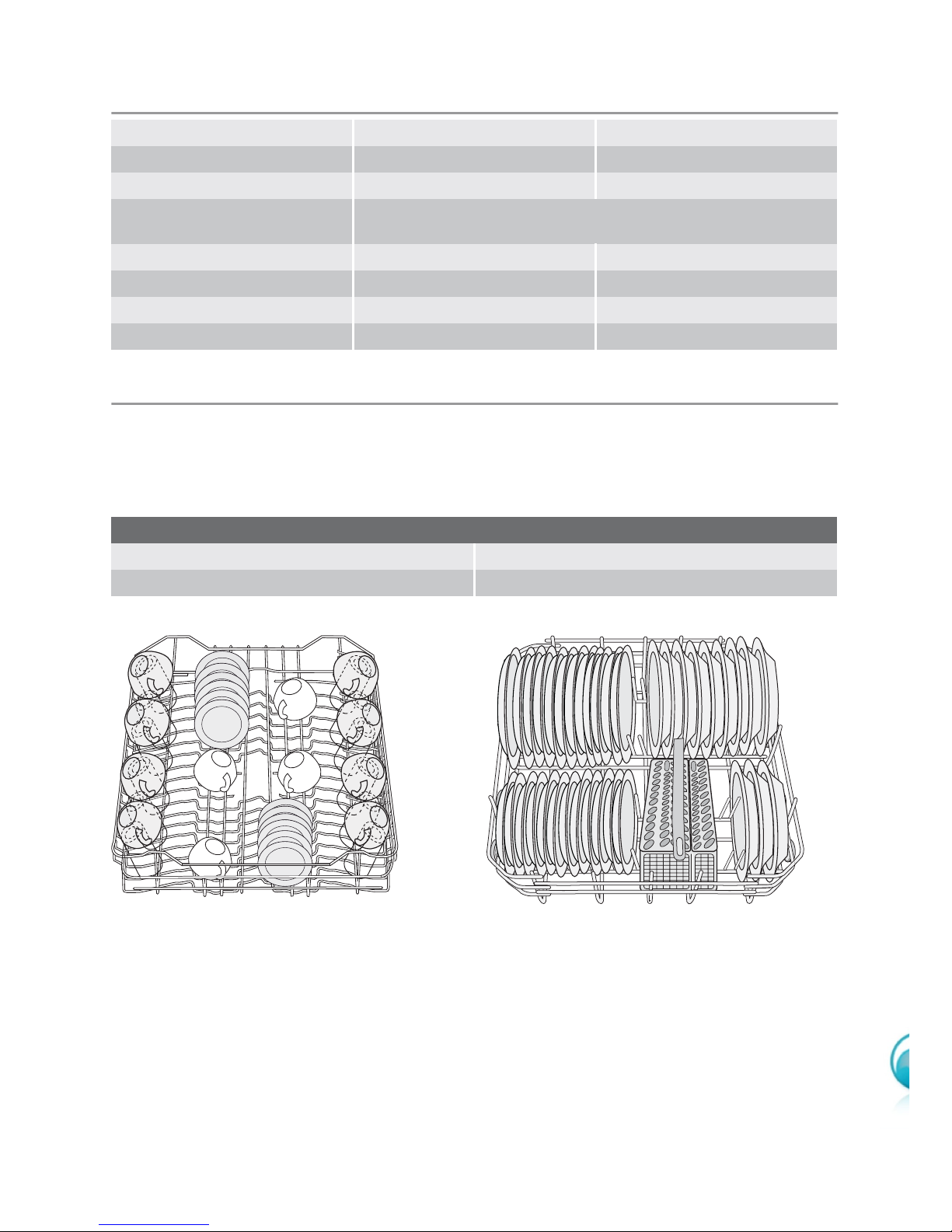

Arrangement upper basket Arrangement lower basket

electrolux 19

Arrangement cutlery basket

5

5

5

5

5

5

5

5

5

5

5

5

4

4

4

4

4

4

4

4

4

4

4

4

1

1

1

1

1

1
1
1

1
1
1
1

2

2

2

2

2

2

2

2

2

2

2

2

3

3

3

3

3

3

3

3

3

3

3

3

Installation

Warning! ANY ELECTRICAL AND/OR
PLUMBING WORK REQUIRED TO
INSTALL THIS APPLIANCE MUST BE
CARRIED OUT BY A QUALIFIED
ELECTRICIAN AND/OR PLUMBER OR
COMPETENT PERSON.

Remove all packaging before positioning the
appliance.
If possible, position the appliance next to a
water tap and a drain.

During all operations that involve accessibility
to internal components the appliance must
be unplugged.
When inserting the appliance, ensure that the
water inlet hose, the drain hose and the
mains cable are not kinked or squashed.

20 electrolux

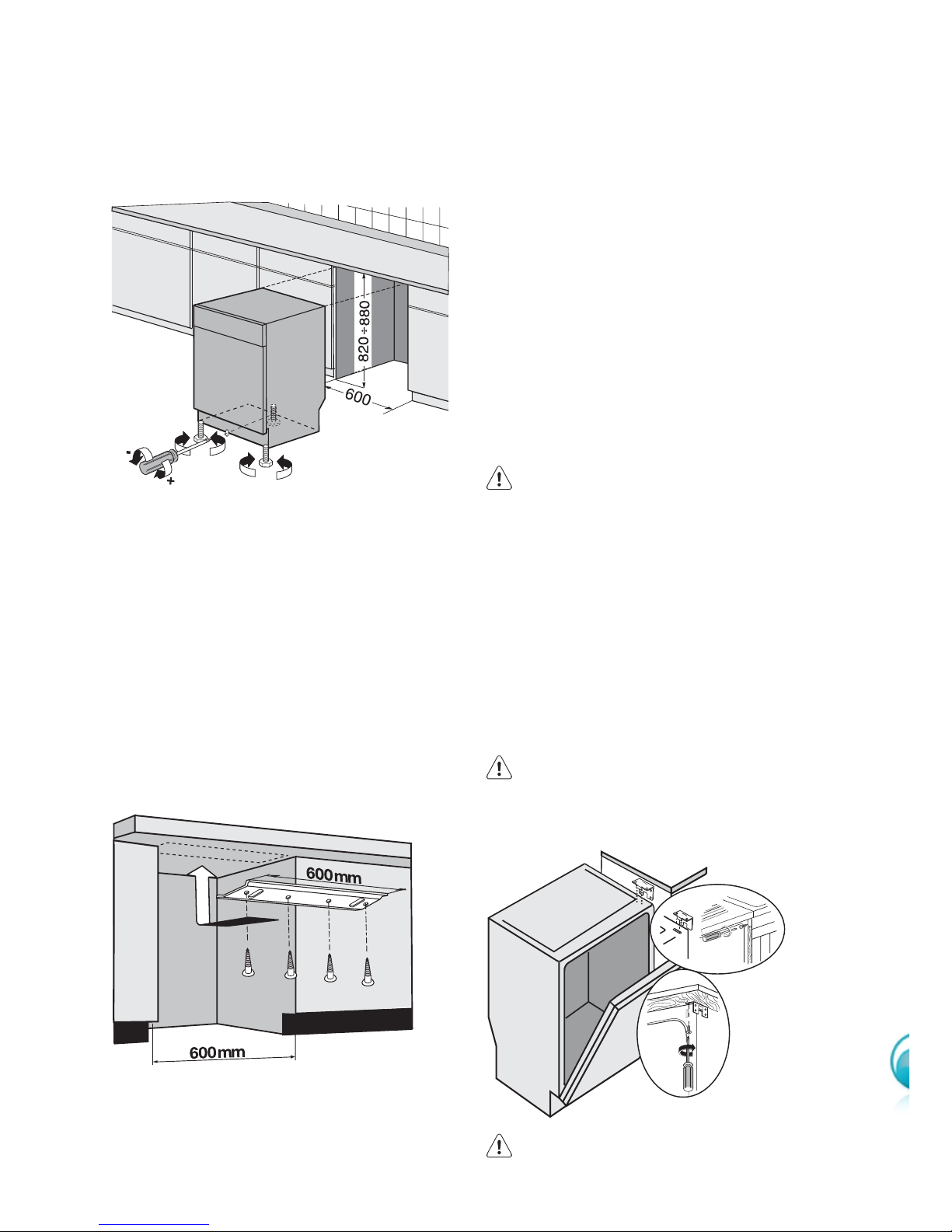

Building-in

This appliance must be fitted under a kitchen
counter or work surface.
The dimensions of the recess must be the
same as shown in the figure.

No further openings for the venting of the ap­pliance are required, but only to let the water
inlet hose, the drain hose and the mains ca­ble pass through.
The appliance is fitted with adjustable feet
(max. 60 mm) so the height of the recess can
vary between 820 mm and 880 mm from the
floor.
Leave a space of 2 mm between the top of
the appliance and the underside of the kitch­en counter.

Steam protection

Fit the steam protection onto the front part of
the work top using the screws provided.

Adjusting the height of the appliance

It is important that the appliance absolutely
stands level so that the door closes and seals
properly.
If the appliance is not perfectly level the door
will catch on the levelling spacers on the right
and left side of the cabinet.
Turn the adjustable feet to the left or the right
until the appliance stands level.

To adjust the height proceed as follows:

1. Remove the adjustable plinth.

2. Adjust the height of the 2 front feet.

3. Adjust the rear foot by turning the screw
in the middle of the front kick plate to the
left or to the right.

4. Replace the adjustable plinth.

Fix to the adjacent units

Warning! THE APPLIANCE MUST BE

SECURED UNDER THE WORK TOP OR
TO THE ADJACENT UNITS USING THE
SUPPLIED BRACKETS.
FAILURE TO DO THIS WILL CAUSE IN­JURY OR DAMAGE.

1. Locate the supplied angular brackets in
the slots on the top of the appliance.

2. Adjust the height of the appliance.

3. Secure the appliance in position (up­wards or sideways) by using the supplied
screws. Make sure the screws are tight­ened.

Caution! Do not secure the brackets
upwards if the top of the appliance is not
within 2 mm of the underside of the work
top.

Caution! Never drill holes through the
sides of the appliance. This will cause
damage to the hydraulic components.

electrolux 21

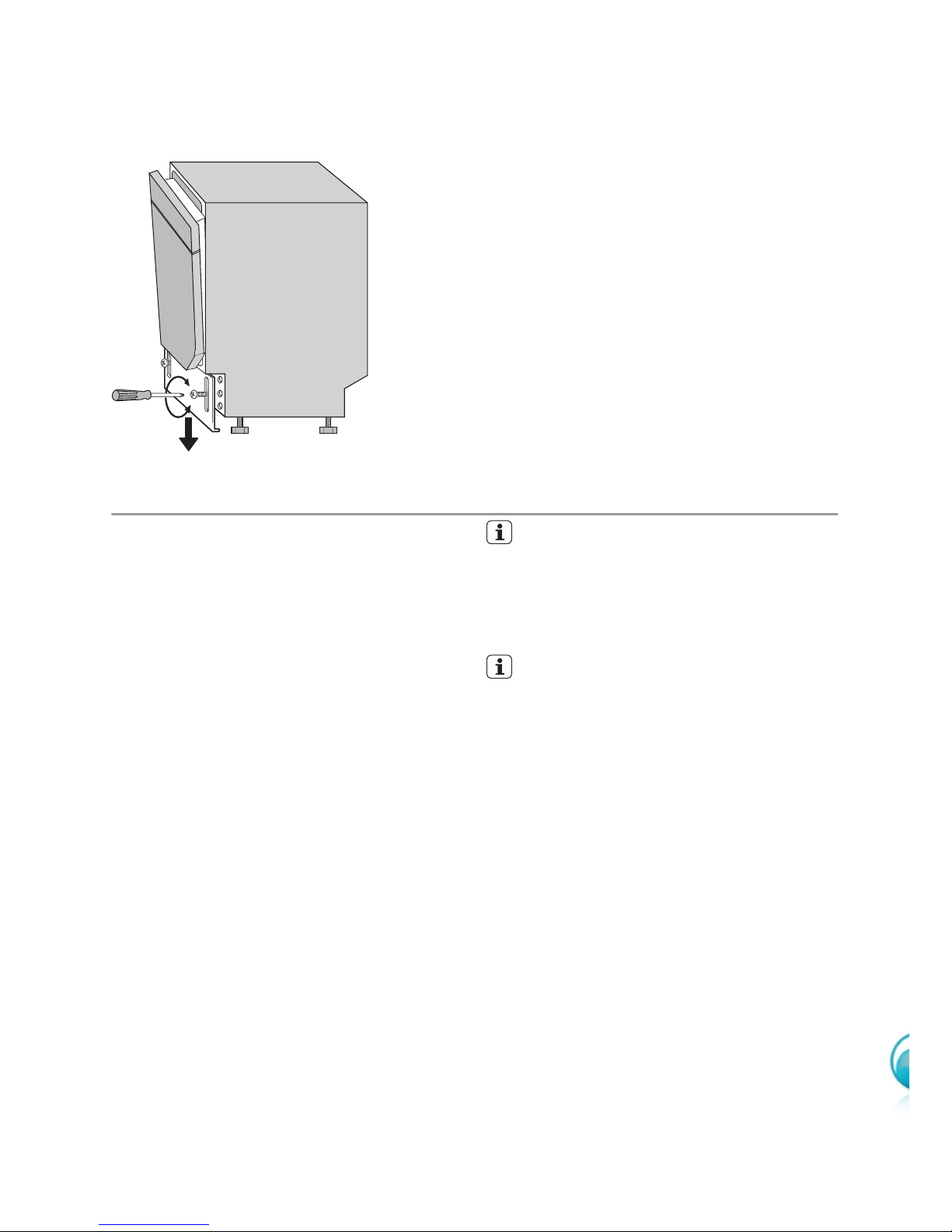

Adjustment of the plinth

Space at the bottom of the appliance can be
covered by lowering the plinth.

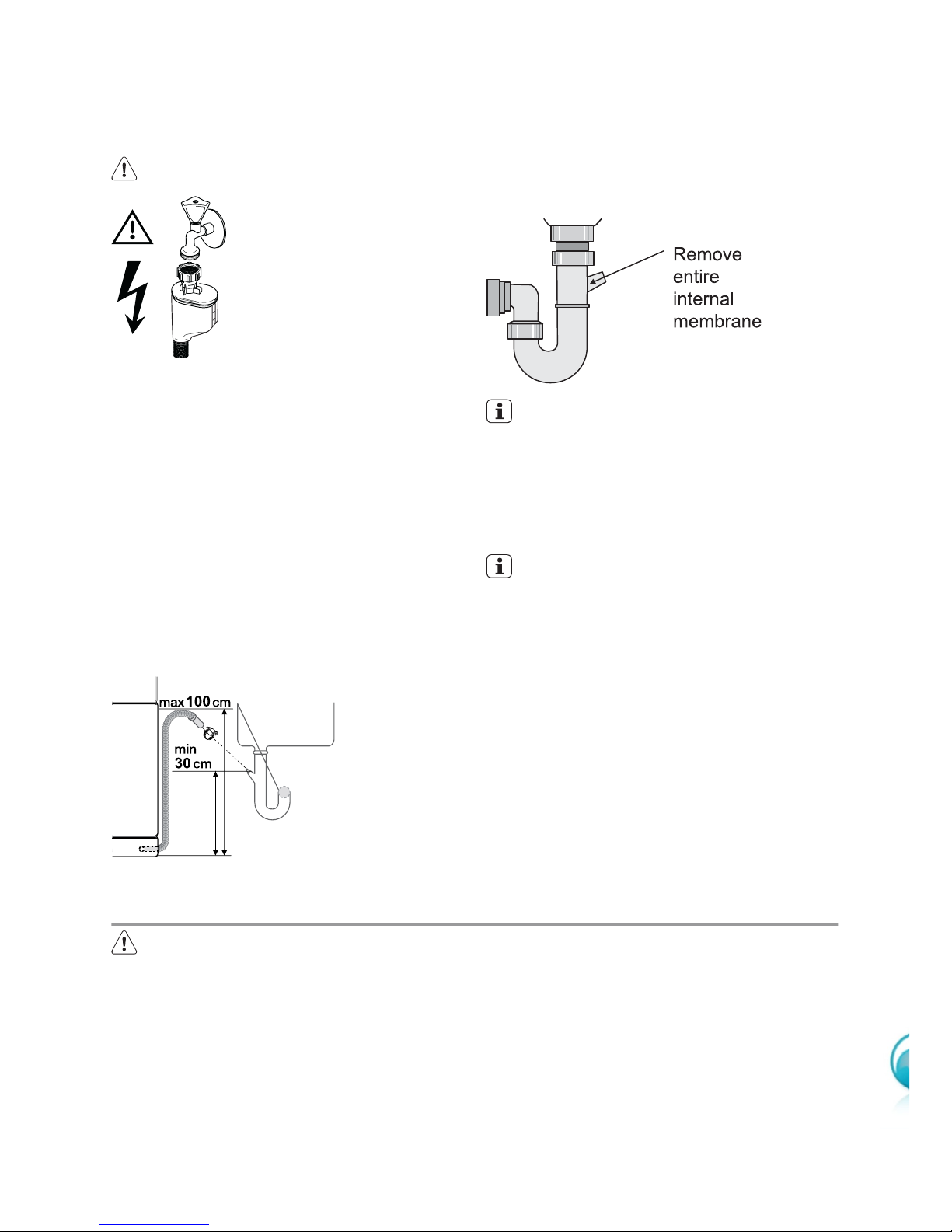

Water connection

Water inlet connection

This dishwasher may be fed with either hot
(max. 60°) or cold water. However a hot wa­ter supply is not always efficient with heavily
soiled crockery as it shortens the washing
programmes a lot. Therefore we recommend
connection to a cold water supply.
The water coupling nut fitted to the appliance
water inlet hose is designed to screw onto a
3/4" BSP thread spout.
The water pressure must be within the limits
given in the 'Technical data'. Your local Wa­ter Authority will advise you on the average
mains pressure in your area.
A water temperature tempering-valve must
be installed when the dishwasher is likely to
be connected to a solar hot water system,
drip heater, or any other supply where tem­peratures in excess of 60° are anticipated.
A pressure reducing valve must be fitted if the
hot water supply pressure exceeds 350 kPa
or the cold water supply pressure exceeds
800 kPa.
The water inlet hose must not be kinked,
crushed, or entangled when it is being con­nected.
The dishwasher features inlet and drain ho­ses which can be turned either to the left or
the right to suit the installation by means of
the locknut. The locknut must be correct-

ly fitted to avoid water leaks.

Always use a new hose-set when con­necting the appliance to the water
mains. An old hose-set must not be
reused. The water inlet hose should be
inspected every 12 months for deterio­ration and replaced if necessary.

This appliance has been fitted with safe­ty features which will prevent the water
used in the appliance from returning
back into the drinking water system. This
appliance complies with the applicable
plumbing regulations.

Water inlet hose with safety valve

After connecting the double-walled water in­let hose, the safety valve is next to the tap.
Therefore the water inlet hose is only under
pressure while the water is running. If the wa­ter inlet hose starts to leak during this oper­ation, the safety valve cuts off the running
water.
Please take care when installing the water
inlet hose:

• The electrical cable for the safety valve is

in the double-walled water inlet hose. Do
not immerse the water inlet hose or the
safety valve in water.

• If water inlet hose or the safety valve is

damaged, remove the mains plug imme­diately.

22 electrolux

• A water inlet hose with safety valve must
only be replaced by the Customer Care
Centre.

Warning! Dangerous voltage

Water drain connection

– Connect the water drain hose to the sink.

Secure it with the supplied hose clamp.

– Required height: 30 to 100 cm above bot-

tom of the dishwasher.

– If you use a drain hose extension the total

length must be no longer than 4 metres.
Likewise the internal diameter of the cou­plings used for connections to the waste
outlet must be no smaller than the diame­ter of the hose provided. Ensure the drain
hose is not bent or squashed as this could
prevent or slow down the discharge of wa­ter.

When connecting the drain hose to an under
sink trap spigot, the entire plastic mem-
brane must be removed. Failure to remove
all the membrane will result in food particles
building up over time eventually blocking the
appliance drain hose spigot

Our appliances are supplied with a se­curity device to protect against the re­turn of dirty water back into the machine.
If the spigot of your sink has a 'no return
valve' incorporated this can prevent the
correct draining of your dishwasher. We
therefore advise you to remove it.

To avoid water leakage after installation
make sure that the water couplings are
tight.

Electrical connection

Warning! Safety standards require
the appliance to be earthed.
Prior to using the appliance for the
first time, ensure that the rated volt­age and type of supply on the rating
plate match that of the supply where
the appliance is to be installed. The
electrical rating data is also to be
found on the rating plate.
Always plug the mains plug into a
correctly installed shockproof sock­et.

Multi-way plugs, connectors and ex­tension cables must not be used.
This could constitute a fire hazard
through overheating.
If necessary, have the domestic wir­ing system socket replaced. In case
that the mains cable has to be re­placed, contact your Customer Care
Centre.
The plug must be accessible after
the appliance has been installed.

electrolux 23

Never unplug the appliance by pull­ing on the cable. Always pull the
plug.

The manufacturer accepts no liabil­ity for failure to observe the above
safety precautions.

Environment concerns

Packaging material

The packaging materials are environmentally
friendly and can be recycled. The plastic
components are identified by markings, e.g.
>PE<, >PS<, etc. Please dispose of the
packaging materials in the appropriate con­tainer at the community waste disposal fa­cilities.

Warning! When a unit is no longer being
used:

• Pull the plug out of the socket.

• Cut off the cable and plug and dispose
of them.

• Dispose of the door catch. This pre­vents children from trapping them­selves inside and endangering their
lives.

Old appliance

This appliance must be handed over to the
applicable collection point for recycling.
Ensure that this product is disposed of cor­rectly. You will help prevent potential nega­tive consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product.
For more detailed information about recy­cling of this product, please contact your lo­cal city office, your household waste disposal
service or the shop where you purchased the
product.

24 electrolux

Warranty

FOR SALES IN AUSTRALIA AND NEW ZEA­LAND

This document sets out the terms and
conditions of product warranties for
Electrolux branded appliances. It is an
important document. Please keep it with
your proof of purchase documents in a
safe place for future reference should
you require service for your Electrolux
appliance. General Terms and Condi­tions

1. In this warranty
– Electrolux' means Electrolux Home

Products Pty Ltd ABN 51 004 762 341
in respect of Appliances purchased in
Australia and Electrolux (NZ) Limited in
respect of Appliances purchased in
New Zealand;

– 'Appliance' means any Electrolux

product purchased by you accompa­nied by this document;

– 'Warranty Period' means

i) where you use the Appliance for per­sonal, domestic or household purpo­ses in Australia the period of 24
months and in New Zealand the peri­od of 24 months;
ii) where you use the Appliance for
commercial purposes, in Australia the
period of 3 months and in New Zea­land the period of 3 months, (if the pe­riod stated is 0 months you are not
covered by this product warranty) fol­lowing the date of original purchase of
the Appliance;

– 'you' means the purchaser of the Ap-

pliance not having purchased the ap­pliance for re-sale, and 'your' has a
corresponding meaning.

2. This warranty only applies to Appliances
purchased and used in Australia or New
Zealand and is in addition to (and does
not exclude, restrict, or modify in any
way) any non-excludable statutory war­ranties in Australia or New Zealand.

3. Electrolux warrants that, when dispatch­ed from an Electrolux warehouse, the
Appliance is free from defects in materi­als and workmanship for the Warranty
Period.

4. During the Warranty Period Electrolux or
its Authorised Service Centre will, at no

extra charge if your appliance is readily
accessible without special equipment,
and subject to these terms and condi­tions, repair or replace any parts which it
considers to be defective. You agree that
any replaced Appliances or parts be­come the property of Electrolux. This
warranty does not apply to light globes,
batteries, filters or similar perishable
parts.

5. Parts and Appliances not supplied by
Electrolux are not covered by this war­ranty.

6. Where you are within an Electrolux serv­ice area, this warranty covers the cost of
transport of the Appliance to and from
Authorised Service Centres of Electrolux
and travelling costs for representatives of
the Authorised Service Centre to and
from your home or business. If you are
outside an Electrolux service area, you
will bear these costs. For information
about whether you are within an Electro­lux service area, please phone 13 13 49
in Australia, or 0800 10 66 10 in New
Zealand.

7. Proof of purchase is required before you
can make a claim under this warranty.

8. You may not make a claim under this
warranty unless the defect claimed is
due to faulty or defective parts or work­manship. Electrolux is not liable in the
following situations (which are not ex­haustive):
– The Appliance is damaged by

i) accident
ii) misuse or abuse, including failure to
properly maintain or service
iii) normal wear and tear
iv) power surges, electrical storm
damage or incorrect power supply
v) incomplete or improper installation
vi) incorrect, improper or inappropriate
operation
vii) insect or vermin infestation.

– The Appliance is modified without au-

thority from Electrolux in writing.

– The Appliance's serial number or war-

ranty seal has been removed or de­faced.

electrolux 25

– The Appliance was serviced or re-

paired by anyone other than Electrolux
or its Authorised Service Centres.

9. This warranty, the contract to which it
relates and the relationship between you
and Electrolux are governed by the law
applicable in the Australian State where
the Appliance was purchased or the law
applicable in New Zealand if the Appli­ance was purchased in New Zealand.
Where the Appliance was purchased in
New Zealand for business purposes the
Consumer Guarantee Act does not ap­ply.

Limitation of Liability

10. To the extent permitted by law:
– Electrolux excludes all warranties oth-

er than as contained in this document;

– Electrolux shall not be liable for any

loss or damage whether direct or in­direct or consequential arising from
your purchase, use or non-use of the
Appliance.

11. Provisions of the Trade Practices Act
and State consumer legislation in Aus­tralia, and the Consumer Guarantees
Act, the Sale of Goods Act and the Fair
Trading Act in New Zealand, imply war­ranties or conditions, or impose obliga­tions, upon Electrolux which cannot be
excluded, restricted or modified. To the
extent permitted by law, the liability of
Electrolux (if any) arising out of or in re-

lation to the Appliance or any services
supplied by Electrolux shall be limited
(where it is fair and reasonable to do so),:
– in the case of Appliances, at its option,

to the replacement or repair of the Ap­pliances or the supply of equivalent
products or the payment of the cost of
replacing the Appliances or having the
Appliances repaired or of acquiring
equivalent Appliances. Upon being re­placed, parts and Appliances become
the property of Electrolux; or

– in the case of services, at its option, to

the supply of the services again or the
payment of the cost of having the

services re-supplied;
and in the case of Appliances or services
supplied in New Zealand, loss or dam­age whether direct or indirect or conse­quential that is reasonably foreseeable.

Privacy

You acknowledge that in the event that you
make a warranty claim it will be necessary for
Electrolux and its Authorised Service Centres
to exchange information in relation to you to
enable Electrolux to meet its obligations un­der this warranty.

Important Notice

Before Calling a Service Technician please
check carefully the operating instructions,
service booklet and the warranty terms and
conditions.

FOR SERVICE

OR TO FIND THE ADDRESS OF
YOUR NEAREST STATE SERV­ICE CENTRE IN AUSTRALIA

Please call 13 13 4 9

For the cost of a local call (Australia only)

SERVICE AUSTRALIA
ELECTROLUX HOME PROD­UCTS

FOR SPARE PARTS

OR TO FIND THE ADDRESS OF
YOUR NEAREST STATE
SPARE PARTS CENTRE IN
AUSTRALIA

Please call 13 13 50

For the cost of a local call (Australia only)

FOR SERVICE

OR TO FIND THE ADDRESS OF
YOUR NEAREST AUTHORISED
SERVICE CENTRE IN NEW
ZEALAND

Free call 0800 10 66 10

SERVICE NEW ZEALAND
ELECTROLUX HOME PROD­UCTS

FOR SPARE PARTS

OR TO FIND THE ADDRESS OF
YOUR NEAREST SPARE
PARTS CENTRE IN NEW ZEA­LAND

Free call 0800 10 66 20

26 electrolux

electrolux 27

117968331 - 01 - 112008

www.electrolux.com

www.electrolux.com.au
