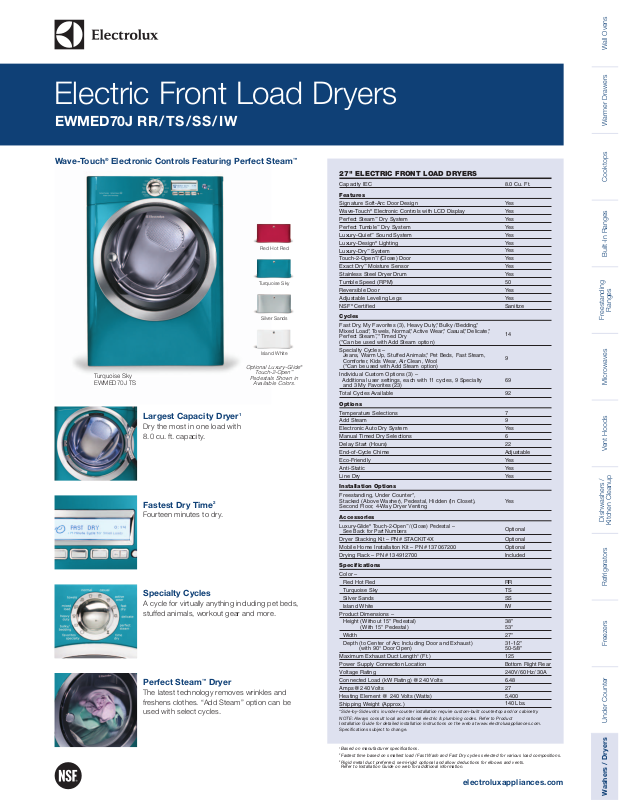

Electrolux EWMED70J RR, EWMED70JTS, EWMED70JIW Specification Sheet

Electric Front Load Dryers

EWMED70J RR/TS/SS/IW

Wave-Touch® Electronic Controls Featuring Perfect Steam™

		Red Hot Red
		Turquoise Sky
		Silver Sands
		Island White
		Optional Luxury-Glide®
	Turquoise Sky	Touch-2-Open™
		Pedestals Shown in
	EWMED70J TS
		Available Colors.

Largest Capacity Dryer1

Dry the most in one load with 8.0 cu. ft. capacity.

Fastest Dry Time2

Fourteen minutes to dry.

Specialty Cycles

A cycle for virtually anything including pet beds, stuffed animals, workout gear and more.

Perfect Steam™ Dryer

The latest technology removes wrinkles and freshens clothes. “Add Steam” option can be used with select cycles.

27" ELECTRIC FRONT LOAD DRYERS

	Capacity IEC	8.0 Cu. Ft.
	Features
	Signature Soft-Arc Door Design	Yes
	Wave-Touch® Electronic Controls with LCD Display	Yes
	Perfect Steam™ Dry System	Yes
	Perfect Tumble™ Dry System	Yes
	Luxury-Quiet™ Sound System	Yes
	Luxury-Design® Lighting	Yes
	Luxury-Dry™ System	Yes
	Touch-2-Open™/(Close) Door	Yes
	Exact Dry™ Moisture Sensor	Yes
	Stainless Steel Dryer Drum	Yes
	Tumble Speed (RPM)	50
	Reversible Door	Yes
	Adjustable Leveling Legs	Yes
	NSF® Certified	Sanitize
	Cycles
	Fast Dry, My Favorites (3), Heavy Duty*, Bulky/Bedding*,
	Mixed Load*, Towels, Normal*, Active Wear*, Casual*, Delicate*,	14
	™
	Perfect Steam ,* Timed Dry
	(*Can be used with Add Steam option)
	Specialty Cycles –
	Jeans, Warm Up, Stuffed Animals*, Pet Beds, Fast Steam,	9
	Comforter, Kids Wear, Air Clean, Wool
	(*Can be used with Add Steam option)
	Individual Custom Options (3) –	69
	Additional user settings, each with 11 cycles, 9 Specialty
	and 3 My Favorites (23)
	Total Cycles Available	92
	Options
	Temperature Selections	7
	Add Steam	9
	Electronic Auto Dry System	Yes
	Manual Timed Dry Selections	6
	Delay Start (Hours)	22
	End-of-Cycle Chime	Adjustable
	Eco-Friendly	Yes
	Anti-Static	Yes
	Line Dry	Yes
	Installation Options
	Freestanding, Under Counter*,	Yes
	Stacked (Above Washer), Pedestal, Hidden (In Closet),
	Second Floor, 4-Way Dryer Venting
	Accessories
	Luxury-Glide® Touch-2-Open™/(Close) Pedestal –	Optional
	See Back for Part Numbers
	Dryer Stacking Kit – PN# STACKIT4X	Optional
	Mobile Home Installation Kit – PN# 137067200	Optional
	Drying Rack – PN# 134912700	Included
	Specifications
	Color –
	Red Hot Red	RR
	Turquoise Sky	TS
	Silver Sands	SS
	Island White	IW
	Product Dimensions –
	Height (Without 15" Pedestal)	38"
	(With 15" Pedestal)	53"
	Width	27"
	Depth (to Center of Arc Including Door and Exhaust)	31-1/2"
	(with 90° Door Open)	50-5/8"
	Maximum Exhaust Duct Length3 (Ft.)	125
	Power Supply Connection Location	Bottom Right Rear
	Voltage Rating	240V/60Hz/30A
	Connected Load (kW Rating) @240 Volts	6.48
	Amps@240 Volts	27
	Heating Element @ 240 Volts (Watts)	5,400
	Shipping Weight (Approx.)	140 Lbs.

*Side-by-Side units in under-counter installation require custom-built countertop and/or cabinetry.

NOTE: Always consult local and national electric & plumbing codes. Refer to Product

Installation Guide for detailed installation instructions on the web at www.electroluxappliances.com.

Specifications subject to change.

1 Based on manufacturer specifications.

2Fastest time based on smallest load / Fast Wash and Fast Dry cycles selected for various load compositions.

3Rigid metal duct preferred, semi-rigid optional and allow deductions for elbows and vents. Refer to Installation Guide on web for additional information.

electroluxappliances.com

	<![if ! IE]> <![endif]>Wall Ovens
	<![if ! IE]> <![endif]>Warmer Drawers
	<![if ! IE]> <![endif]>Cooktops
	<![if ! IE]> <![endif]>Built-In Ranges
	<![if ! IE]> <![endif]>Freestanding	<![if ! IE]> <![endif]>Ranges
	<![if ! IE]> <![endif]>Microwaves
	<![if ! IE]> <![endif]>Vent Hoods
	<![if ! IE]> <![endif]>Dishwashers /	<![if ! IE]> <![endif]>Kitchen Cleanup
	<![if ! IE]> <![endif]>Refrigerators
	<![if ! IE]> <![endif]>Freezers
	<![if ! IE]> <![endif]>Under Counter
	<![if ! IE]> <![endif]>Washers / Dryers

Electric Front Load Dryers

EWMED70J RR/TS/SS/IW

Electric Dryer Specifications

•Product Weight – 130 Lbs.

•Voltage Rating – 240V/60Hz/30 Amps

•Single phase 3- or 4-wire cable, 240 Volt, 60 Hertz AC only electrical supply with ground required on separate circuit fused on both sides of line. (Do not use same circuit as washer.)

•Connected Load (kW Rating) @ 240 Volts = 6.48kW

•Amps @ 240 Volts = 27 Amps

•Dryer MUST employ a 3-conductor NEMA 10-30 type SRDT or 4-conductor NEMA 14-30 type SRDT or ST (as required), rated at 240 volt AC minimum, 30 amp power supply cord marked for use with clothes dryers (not supplied).

•Grounding through neutral link prohibited in specific applications and certain locales, requiring use of 4-wire system. (For detailed electrical requirements, refer to Product Installation Guide on web.)

•Always consult local and national electric & plumbing codes.

•Can be installed alone, with or without optional 15" drawer pedestal,

or stacked above matching Electrolux Washer, which requires installation of optional dryer stacking kit. (For installation details, refer to instructions included with optional pedestal or stacking kit or on web.)

•Can be built in with matching Electrolux Washer in under-counter, recessed or closet installation. Installations requiring countertop and/ or cabinetry will require custom building. (Refer to Built-In Installations on this page for cutout dimensions. For additional installation details, refer to Product Installation Guide on web.)

•Closet installation requires vented door with 2 unobstructed louvered openings, minimum 60 sq. in. each, located 3" from top and bottom of door. Full-length120 sq. in. opening also acceptable. Allow 1" clearance between door and fronts of units.

Electrolux Major Appliances, N.A.

•Do NOT install in area exposed to dripping water or outdoor weather conditions, or where gasoline or other flammables, including automobiles, are kept or stored.

•Floor MUST be solid with 1" maximum slope. To ensure vibration or movement does not occur, reinforcement of floor may be necessary. Do NOT install on carpeted surface.

•Dryer MUST exhaust to outside of building, NOT into any concealed space.

•Dryer equipped for 4-way venting and approved for up to 125-foot- equivalent of duct length, determined by length of run and number of elbows needed.

•Exhaust installation requires minimum 4"-diameter rigid or semi-rigid metal duct with approved, unobstructed vent hood having swing-out damper(s). If installing rigid metal duct (preferred), do not exceed MAXIMUM venting run length of 125 ft., allow deductions for elbows and vents. If installing semi-rigid metal duct, do not exceed MAXIMUM venting run length of 8 ft., always allow deductions for elbows and vents (Refer to Product Installation Guide on web for additional information). Do NOT use flexible plastic or metal foil duct and use shortest run possible.

•Leveling legs supplied to level dryer properly and reduce excessive noise and vibration.

•Water inlet hose for steam setting connects to cold water supply with

“Y” connector and requires 3/4" clearance between back of unit and wall.

Note: For planning purposes only. Refer to Product Installation Guide on the web at electroluxappliances.com for detailed instructions.

Optional Accessories

•Drawer Pedestals – Red Hot Red (PN# EPWD15RR),

Turquoise Sky (PN# EPWD15TS), Silver Sands (PN# EPWD15SS), Island White (PN# EPWD15IW).

•Dryer Stacking Kit – (PN# STACKIT4X).

•Mobile Home Installation Kit – (PN# 137067200).

	USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com		High standards of quality at Electrolux Home Products, Inc. mean
			we are constantly working to improve our products. We reserve the right
	CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca
			to change specifications or discontinue models without notice.
	EWMED70J 12/11	© 2011 Electrolux Home Products, Inc.	Printed in the U.S.A.
