Electrolux EWMED70JRR, EWMGD70JRR, EWMED70JSS, EWMGD70JSS, EWMED70JIW Installation Guide

...

Installation Instructions

Electrolux Front-Load Gas & Electric Dryer

Instructions d’installation

Sécheuse à gaz et à l’électricité à chargement frontal Electrolux

Instrucciones de Instalación

Secadora eléctrica y a gas de carga frontal Electrolux

137018200 C (1004)

Important Safety Instructions

WARNING

For your safety the information in this manual must be followed to minimize the risk of ﬁ re or explosion or to prevent property damage, personal injury or loss of life. Do not store or use gasoline or other

ﬂ ammable vapors and liquids in the vicinity of this or any other appliance.

Recognize safety symbols, words and labels

Safety items throughout this manual are labeled with a WARNING or CAUTION based on the risk type as described:

This symbol alerts you to situations that may cause serious body harm, death or property damage.

This symbol alerts you to situations that may cause bodily injury or property damage.

WARNING - RISK OF FIRE

Read all of the following instructions before installing and using this appliance:

Destroy the carton and plastic bags after the dryer is unpacked. Children might use them for play. Cartons • covered with rugs, bedspreads, or plastic sheets can become airtight chambers causing suffocation. Place all materials in a garbage container or make materials inaccessible to children.

Clothes dryer installation and service must be performed by a qualiﬁ ed installer, service agency or the • gas supplier.

Install the clothes dryer according to the manufacturer’s instructions and local codes.• The electrical service to the dryer must conform with local codes and ordinances and the latest edition •

of the National Electrical Code, ANSI/NFPA 70, or in Canada, the Canadian electrical code C22.1 part 1. The gas service to the dryer must conform with local codes and ordinances and the latest edition of •

the National Fuel Gas Code ANSI Z223.1, or in Canada, CAN/ACG B149.1-2000. The dryer is designed under ANSI Z 21.5.1 or ANSI/UL 2158 - CAN/CSA C22.2 No. 112 (latest edi-•

tions) for HOME USE only. This dryer is not recommended for commercial applications such as restaurants, beauty salons, etc.

Do not install a clothes dryer with ﬂ exible plastic venting material. Flexible venting materials are known • to collapse, be easily crushed and trap lint. These conditions will obstruct clothes dryer airﬂ ow and increase the risk of ﬁ re.

Do not stack a dryer on top of washer already installed on pedestal. Do not stack washer on top of • dryer. Do not stack washer on top of another washer.

The instructions in this manual and all other literature included with this dryer are not meant to cover • every possible condition and situation that may occur. Good safe practice and caution MUST be ap-

plied when installing, operating and maintaining any appliance.

WHAT TO DO IF YOU SMELL GAS:

Do not try to light any appliance.• Do not touch any electrical switch; do not use any phone in your building.• Clear the room, building or area of all occupants.• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.• If you cannot reach your gas supplier, call the ﬁ re department.•

Save these instructions for future reference.

Table of contents

Important Safety Instructions ......................................... 2

Installation Requirements ............................................3-9

Installed Dimensions ...................................................... 9

Installation Instructions ...........................................10-18

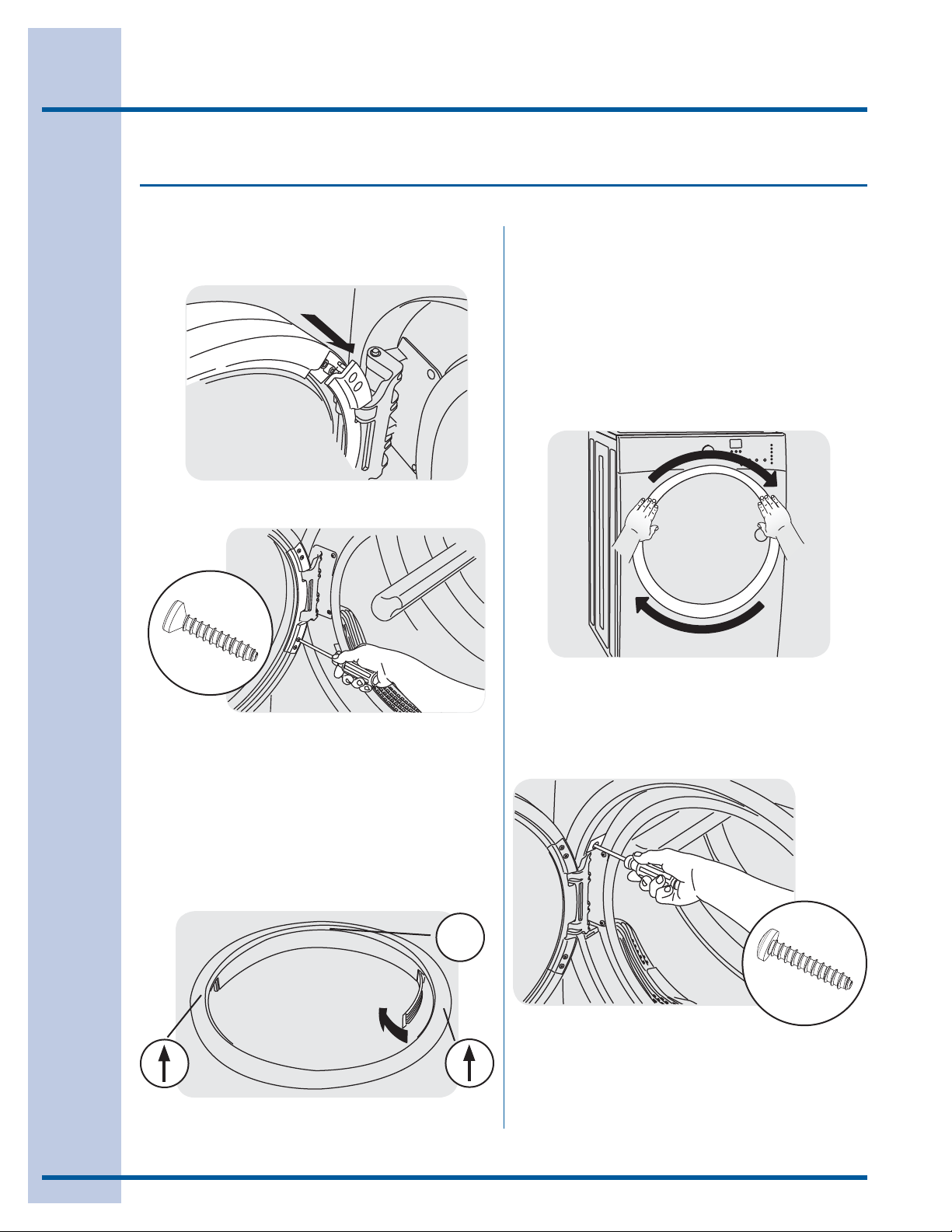

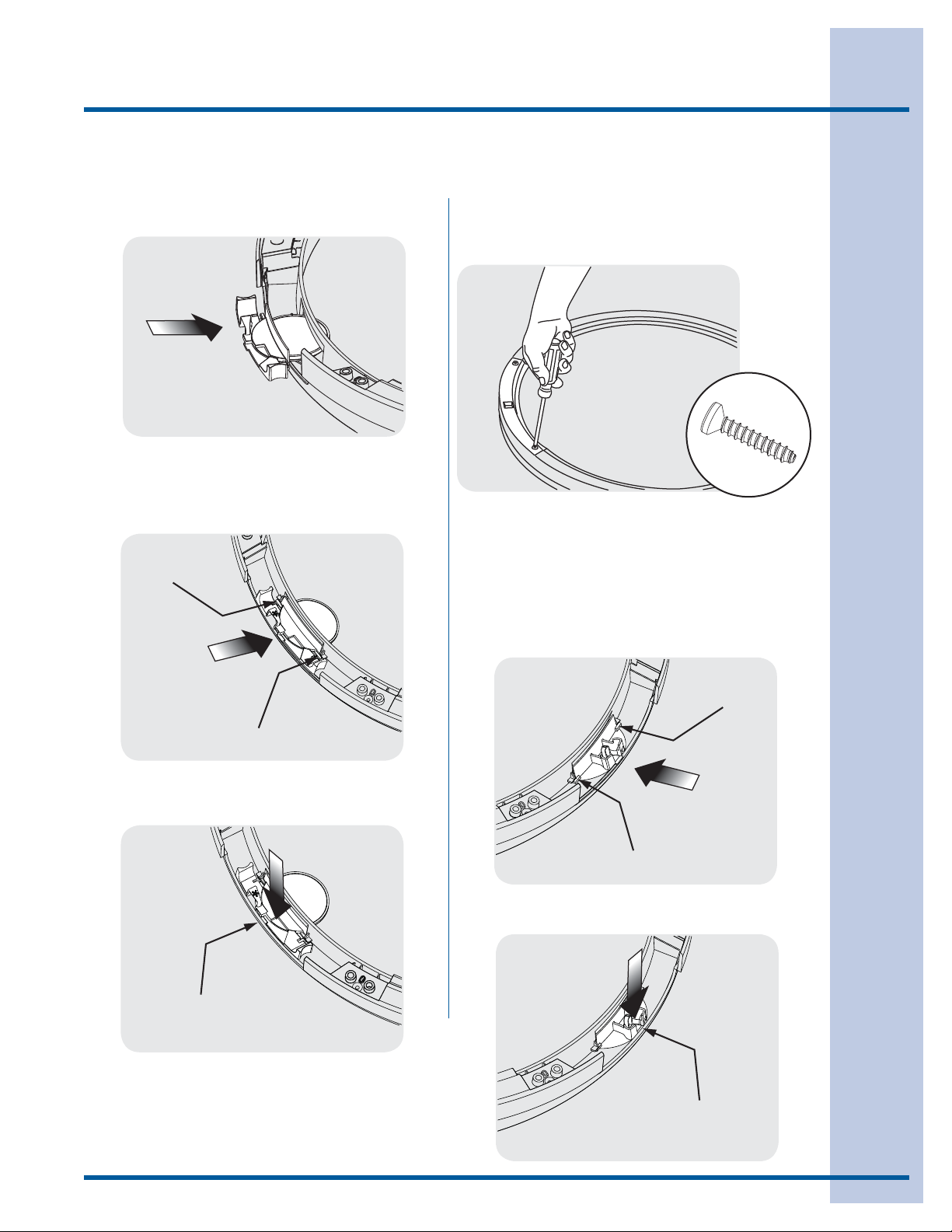

Reversing Door ........................................................ 19-23

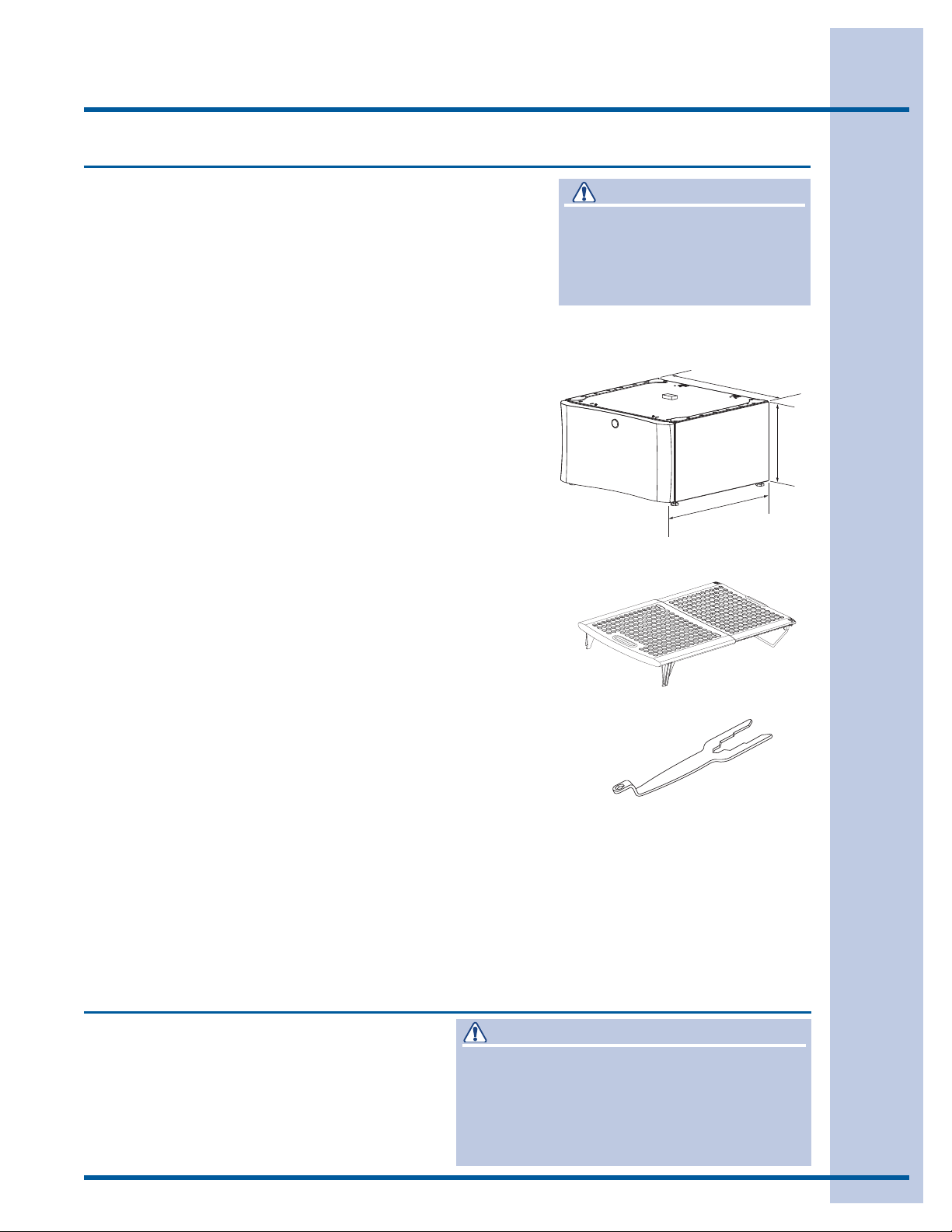

Options ......................................................................... 24

Installation Requirements

Please read and save this guide

Thank you for choosing Electrolux, the new premium brand in home appliances. These Installation Instructions are part of our commitment to customer satisfaction and product quality throughout the life of your new appliance.

Installation Checklist

Exhaust Venting

 Free-ﬂ owing, clear of lint buildup  4 inch (102 mm) rigid or semi-rigid ducting

of minimal length and turns

 NO foil or plastic venting material  Approved vent hood exhausted to outdoors

Leveling



Dryer is level, side-to-side and front-to-back

 Cabinet is setting solid on all corners

Gas Supply (Gas Dryer)

 Manual shutoff valve present in supply  All connections sealed with approved sealer

and wrench tight

 Conversion kit for LP system  Gas supply turned on  No leaks present at all connections -

check with soapy water, NEVER check with ﬂ ame

Questions?

For toll-free telephone support in the U.S. and Canada: 1-877-4ELECTROLUX (1-877-435-3287). For online support and product information visit http://www.electroluxappliances.com.

240v Electric Supply (Electric Dryer)

 Approved NEMA 10-30R or 14-30R service

cord with all screws tight on terminal block

 Approved strain relief installed  Terminal access cover installed before initial

operation

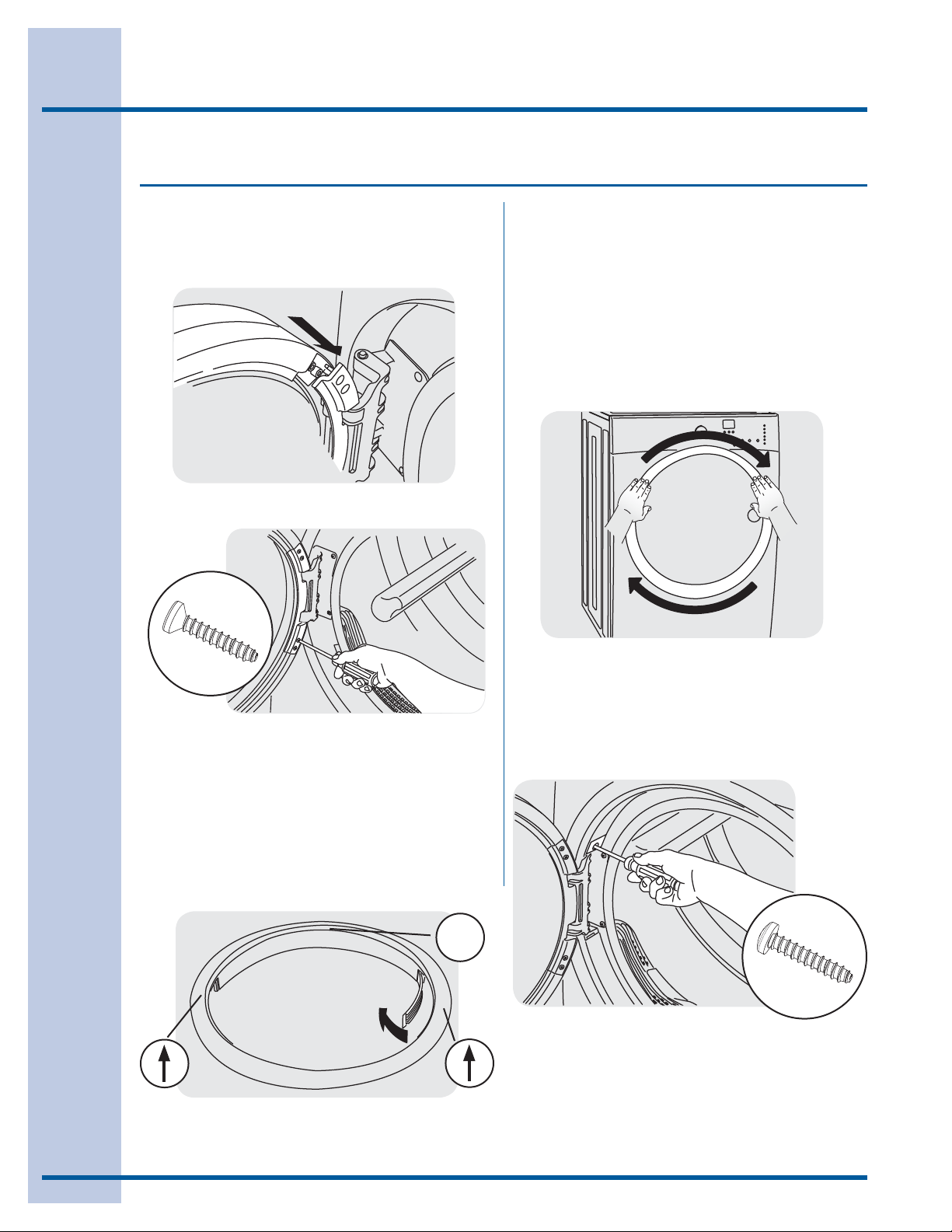

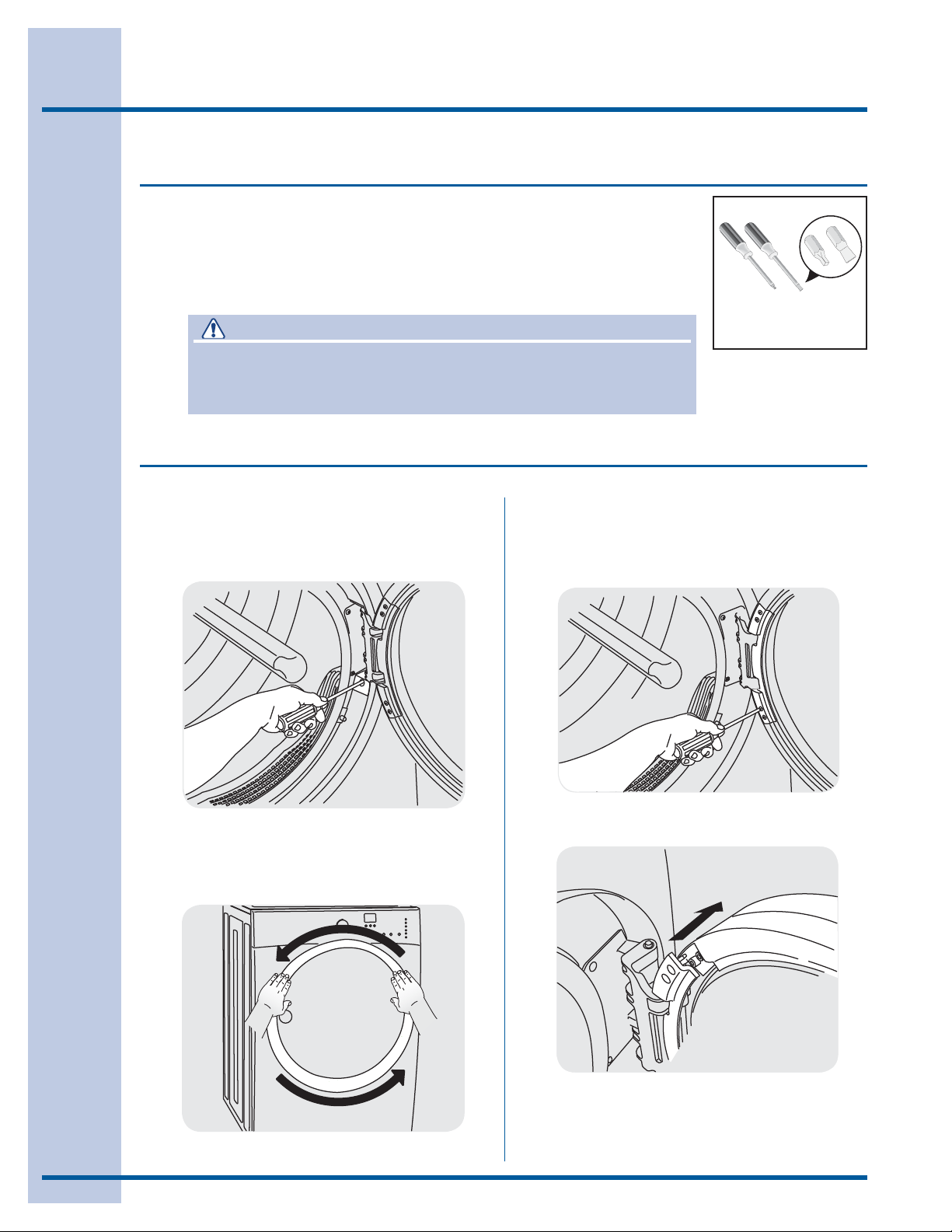

Door Reversal

 Follow detailed instructions in this guide  Test hinge and latch for function

Electrical Power

 House power turned on  Dryer plugged in

Final Checks

 Installation Instructions and Use and Care

Guide read thoroughly

 Door latches and drum tumbles when cycle

starts

 Registration card sent in

Pre-installation requirements

Tools and materials needed for installation:

Adjustable

pliers

Phillips, straight, &

square bit screwdrivers

4 inch, rigid metal or

semi-rigid metal exhaust duct work

Adjustable

wrench

Universal wrench

supplied with

matching washer

3-wire or 4-wire

240 volt cord kit

(electric dryer)

Pipe wrench

for gas supply

4 in.

(10.2 cm)

clamp

LP-resistant thread tape

(for natural gas

or LP supply)

gas line

shutoff valve

(gas dryer)

Carpenter’s level

½” NPT union flare

adapters (x2) and

flexible gas supply line

(gas dryer)

External

vent hood

Metal foil tape (not duct tape)

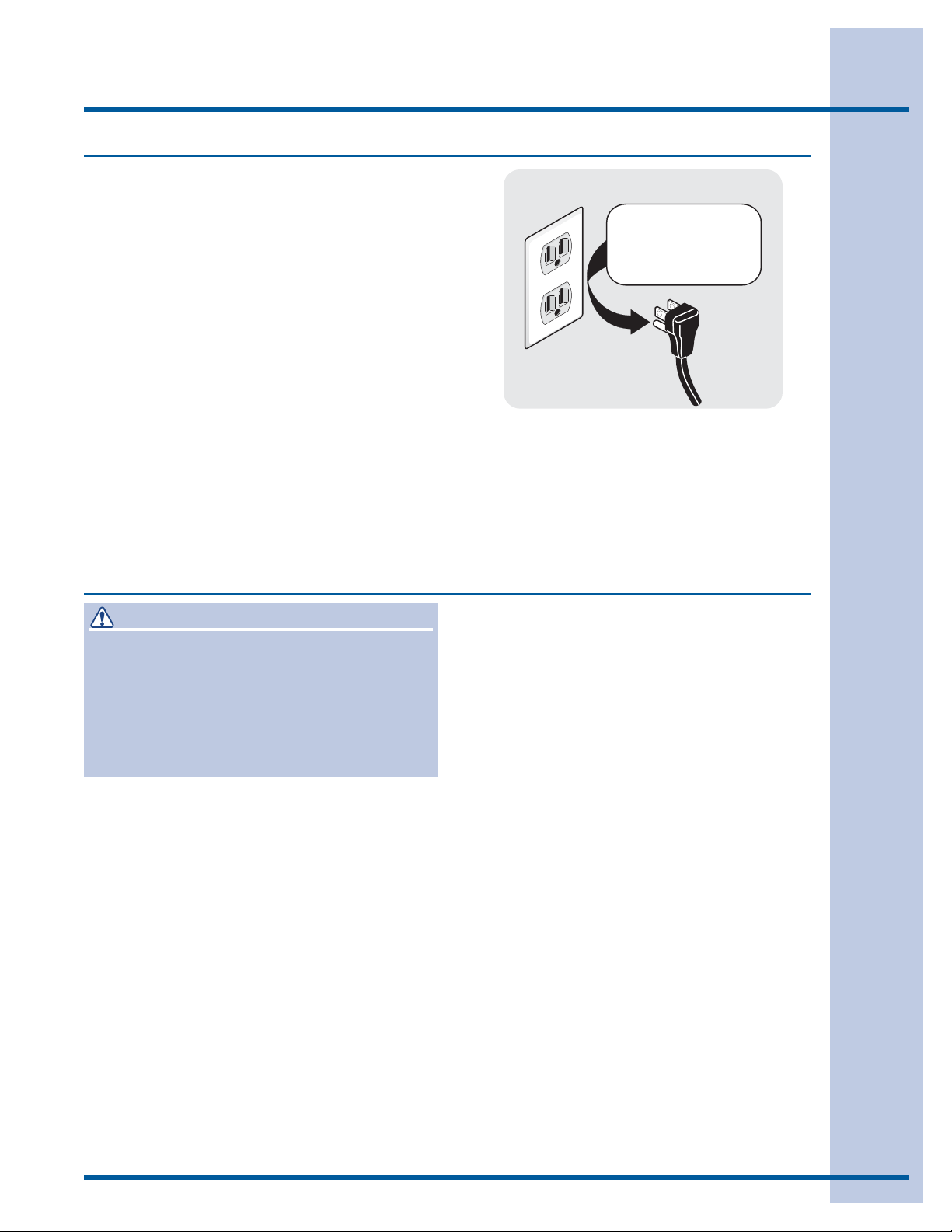

Grounding type

ll receptacle

wer cord with

3-prong grgr

ounded plug

Do not,

under

y cir

cumstances,

cut,

removeve,

or b

ypass the

ounding pr

ong.

Installation Requirements

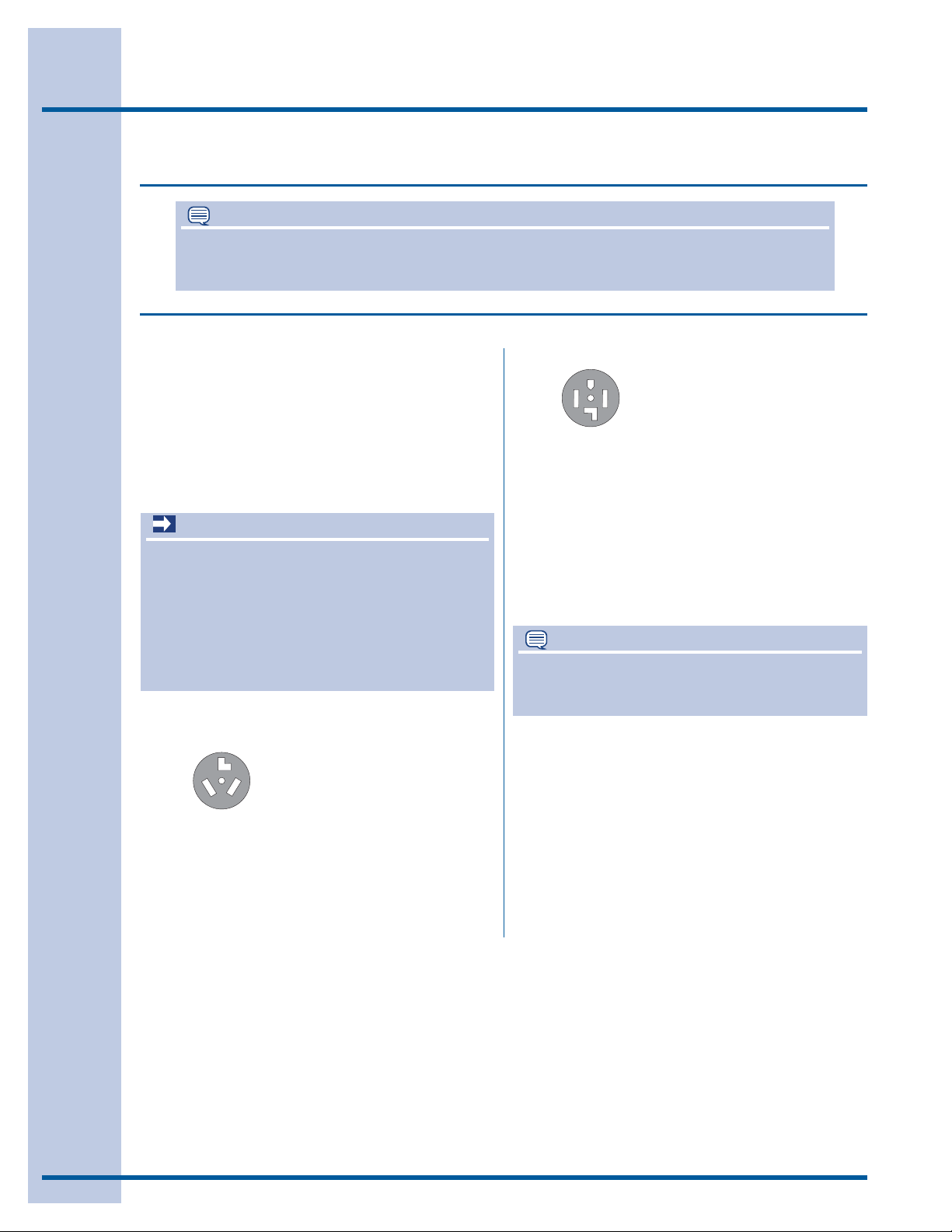

Electrical system requirements

NOTE

Because of potentially inconsistent voltage capabilities, the use of this dryer with power created by gas powered generators, solar powered generators, wind powered generators or any other

generator other than the local utility company is not recommended.

Electrical requirements for electric dryer:

CIRCUIT - Individual 30 amp. branch circuit

fused with 30 amp. time delay fuses or circuit breakers. Use separately fused circuits for washer and dryer. DO NOT operate a washer and a dryer on the same circuit.

POWER SUPPLY - 3-wire or 4-wire, 240 volt,

single phase, 60 Hz, Alternating Current.

with clothes dryers. For 3-wire cord connection instructions see ELECTRICAL CONNECTIONS FOR A 3-WIRE SYSTEM.

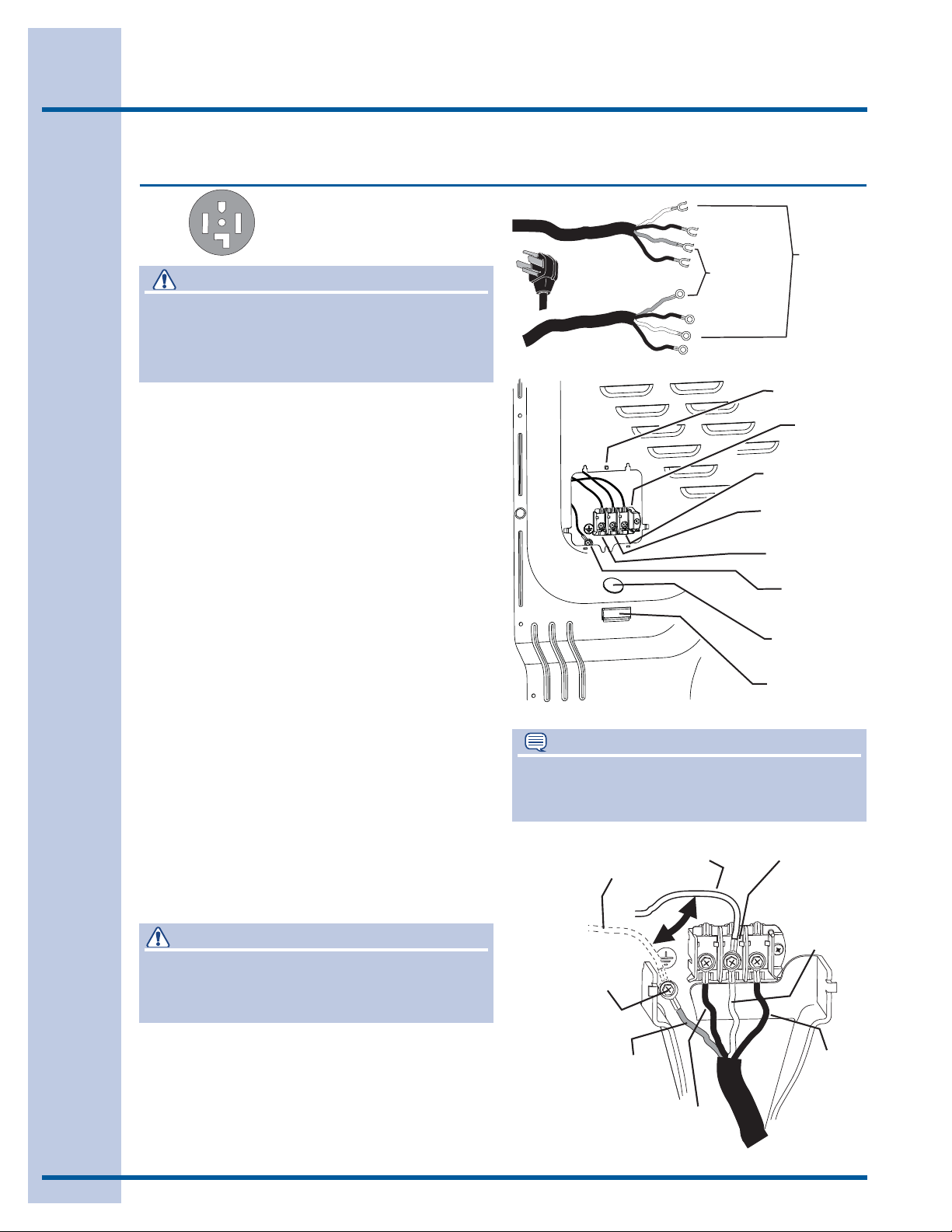

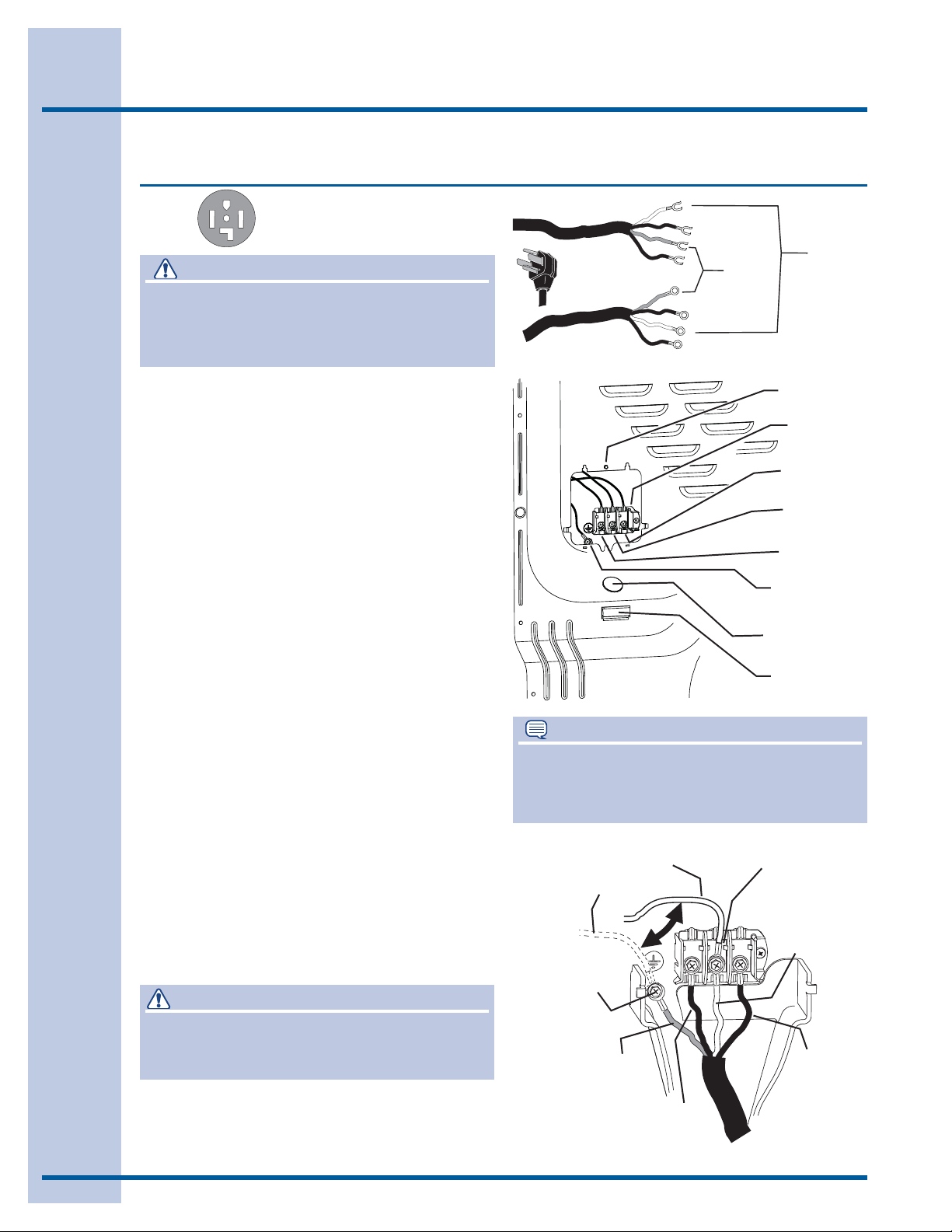

4-WIRE POWER SUPPLY CORD KIT (not supplied)

4-wire receptacle

(NEMA type 14-30R)

IMPORTANT

This dryer is internally grounded to neutral unless it was manufactured for sale in Canada.

Only a 4-conductor cord shall be used when the appliance is installed in a location where grounding through the neutral conductor is prohibited. Grounding through the neutral link is prohibited for: (1) new branch circuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes do not permit grounding through the neutral.

3-WIRE POWER SUPPLY CORD KIT (not supplied)

3-wire receptacle

(NEMA type 10-30R)

The dryer MUST employ a 3-conductor power supply cord NEMA 10-30 type SRDT rated at 240 volt AC minimum, 30 amp, with 3 open end spade lug connectors with upturned ends or closed loop connectors and marked for use

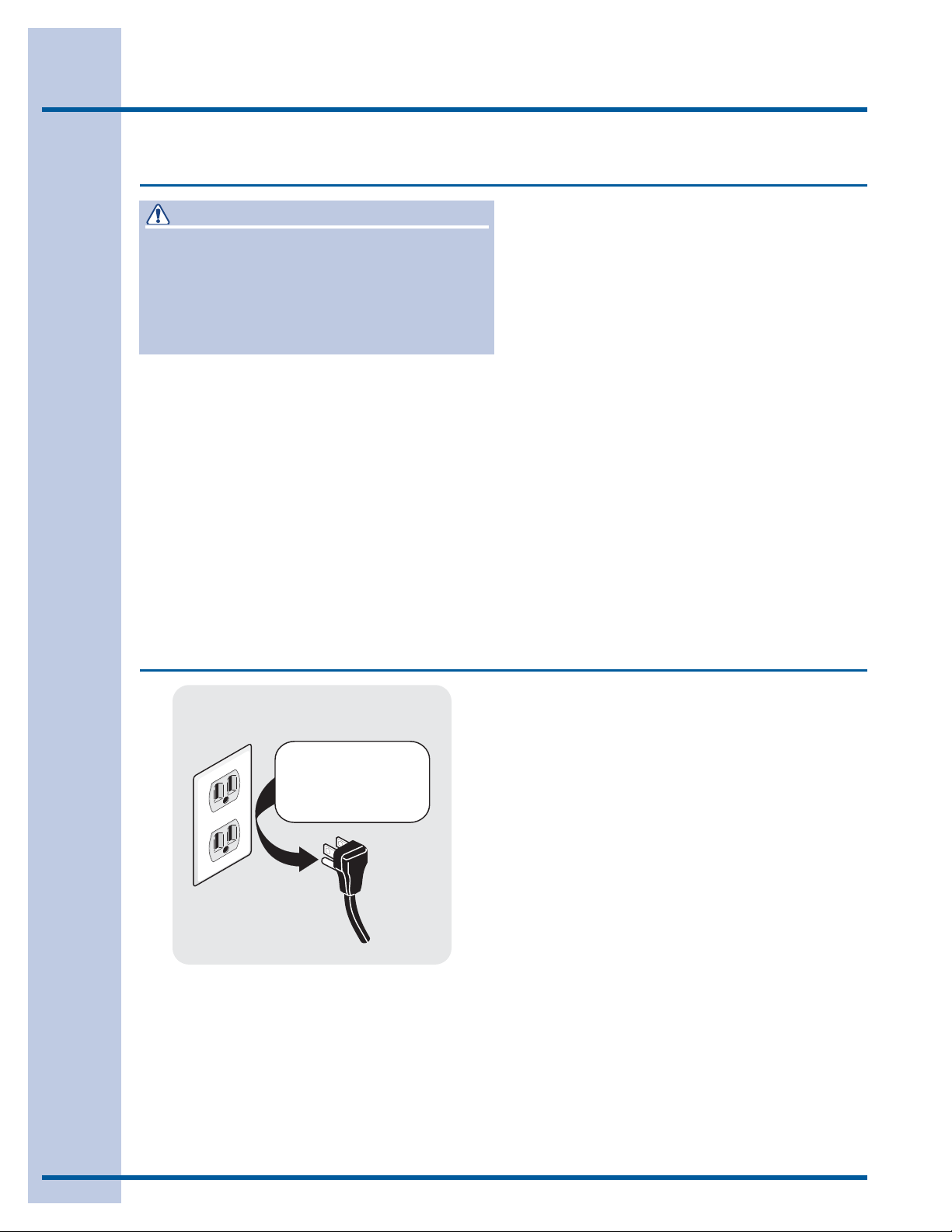

Electrical requirements for gas dryer:

CIRCUIT - Individual, properly polarized and

grounded 15 amp. branch circuit fused with 15 amp. time delay fuse or circuit breaker.

POWER SUPPLY - 2-wire, with ground, 120 volt,

single phase, 60 Hz, Alternating Current.

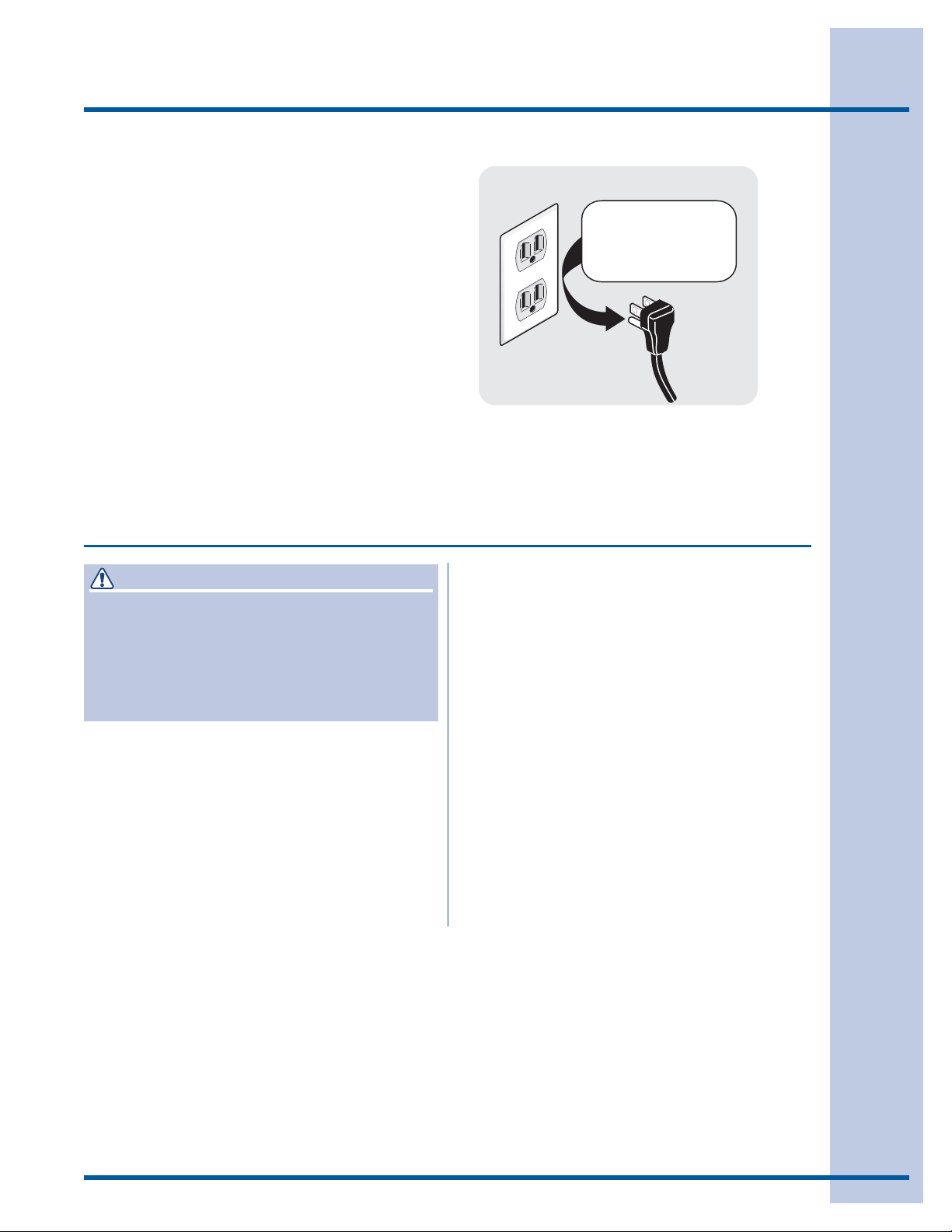

POWER SUPPLY CORD - The dryer is equipped

with a 120 volt 3-wire power cord.

GROUNDING CONNECTION - See “Grounding

requirements” in Electrical Installation section.

The dryer MUST employ a 4-conductor power supply cord NEMA 14-30 type SRDT or ST (as required) rated at 240 volt AC minimum, 30 amp, with 4 open end spade lug connectors with upturned ends or closed loop connectors and marked for use with clothes dryers. For 4-wire cord connection instructions see ELECTRICAL CONNECTIONS FOR A 4-WIRE SYSTEM.

NOTE

Dryers manufactured for sale in Canada have factory-installed, 4-wire power supply cord (NEMA 14-30R).

OUTLET RECEPTACLE - NEMA 10-30R or NEMA

14-30R receptacle to be located so the power supply cord is accessible when the dryer is in the installed position.

GROUNDING CONNECTION - See “Grounding

requirements” in Electrical Installation section.

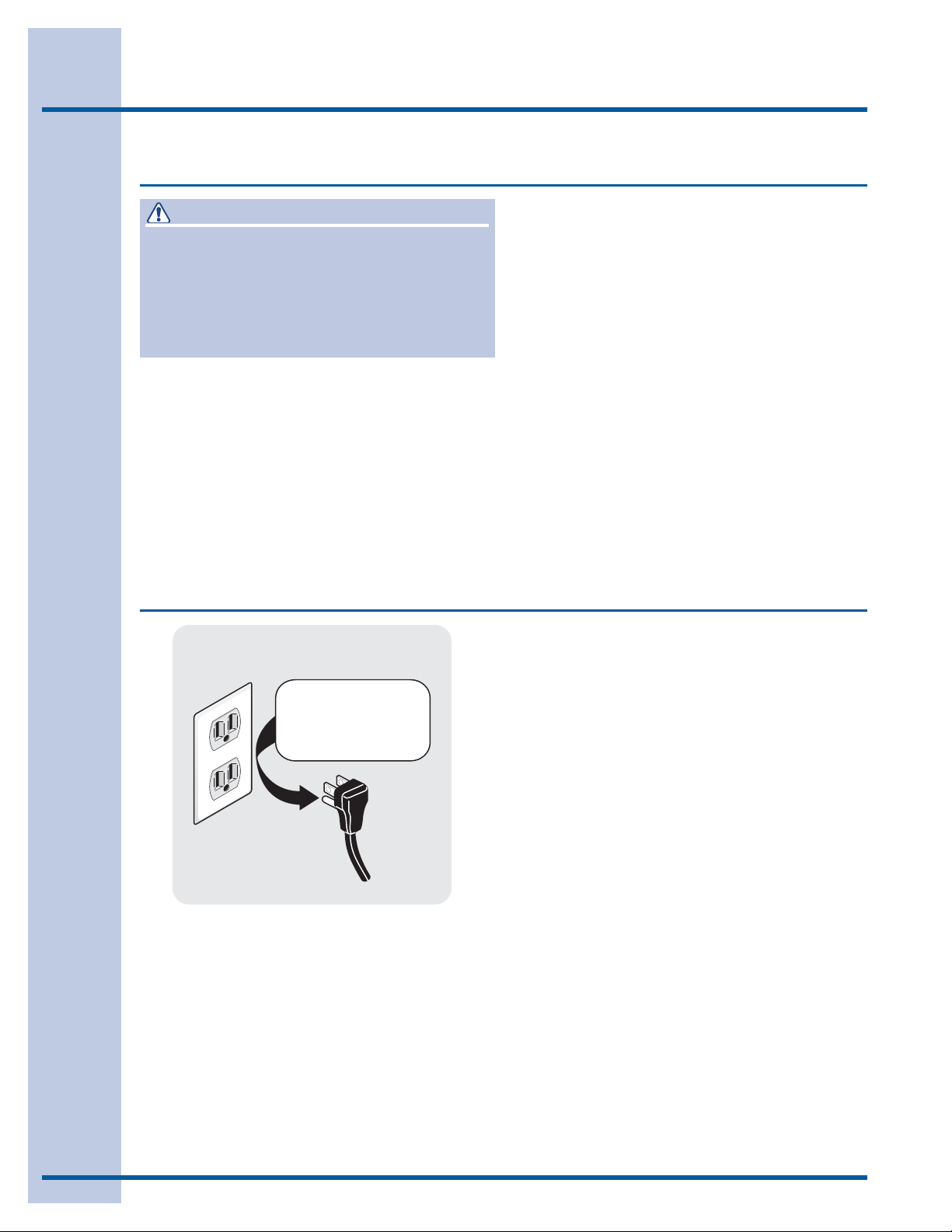

Grounding type wawall receptacl

Do not,

under

anany cir

cumstances,

cut,

remo

or b

ypass th

PoPower cord with 3-prong

ounded plug

grgrounding pr

ong.

Gas supply requirements

Installation Requirements

WARNING

EXPLOSION HAZARD

Uncoated copper tubing will corrode when subjected to natural gas, causing gas leaks. Use ONLY black iron, stainless steel, or plasticcoated brass piping for gas supply.

1. Installation MUST conform with local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1 (latest edition).

2. The gas supply line should be 1/2 inch (1.27 cm) pipe.

3. If codes allow, ﬂ exible metal tubing may be used to connect your dryer to the gas supply line. The tubing MUST be constructed of stainless steel or plastic-coated brass.

Exhaust system requirements

Use only 4 inch (102 mm) diameter (minimum) rigid or ﬂ exible metal duct and approved vent hood which has a swing-out damper(s) that open when the dryer is in operation. When the dryer stops, the dampers automatically close to prevent drafts and the entrance of insects and rodents. To avoid restricting the outlet, maintain a minimum of 12 inches (30.5 cm) clearance between the vent hood and the ground or any other obstruction.

4. The gas supply line MUST have an individual shutoff valve.

5. A 1/8 inch (0.32 cm) N.P.T. plugged tapping, accessible for test gauge connection, MUST be installed immediately upstream of the gas supply connection to the dryer.

6. The dryer MUST be disconnected from the gas supply piping system during any pressure testing of the gas supply piping system at test pressures in excess of 1/2 psig (3.45 kPa).

7. The dryer MUST be isolated from the gas supply piping system during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.45 kPa).

8. Connections for the gas supply must comply with the Standard for Connectors for Gas Appliances, ANSI Z21.24.

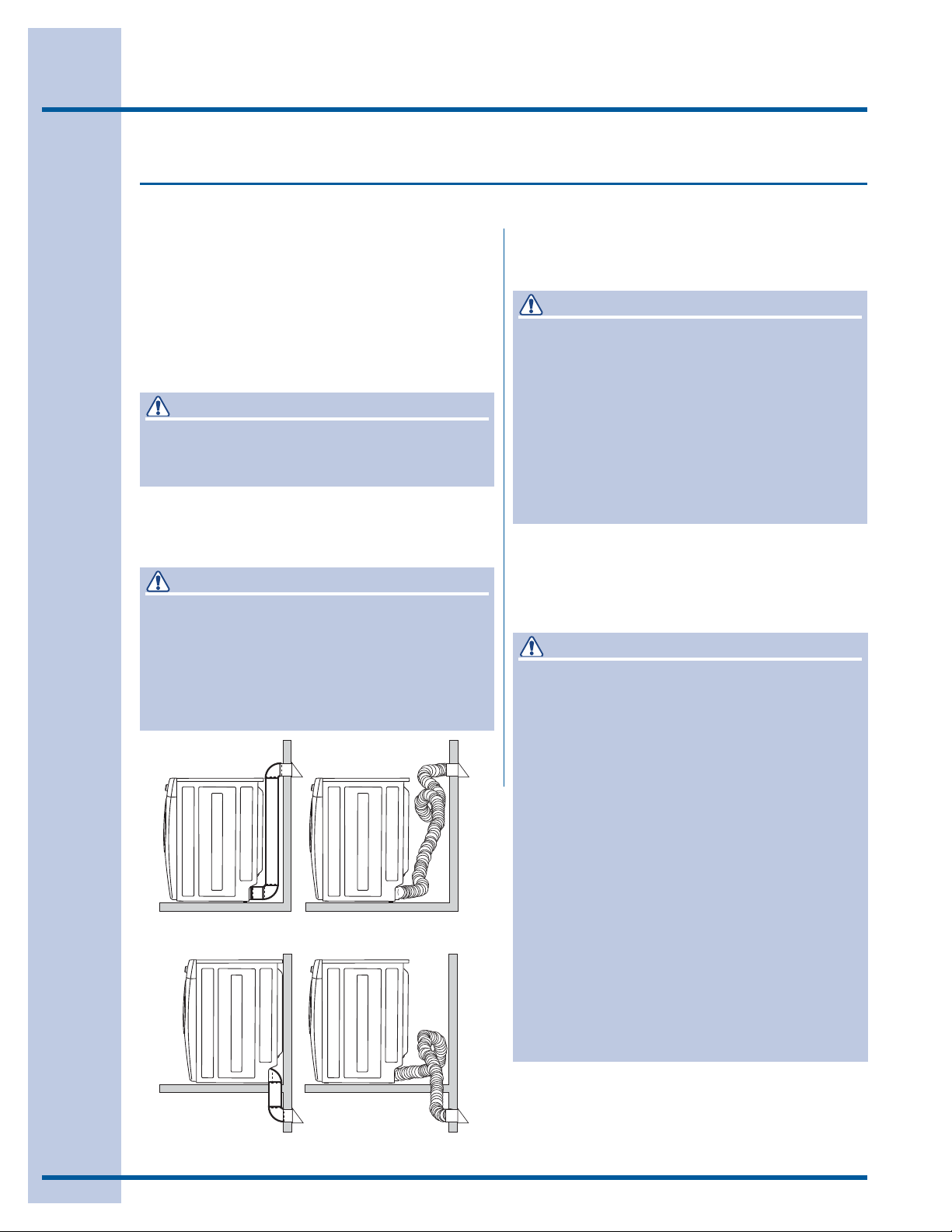

WARNING

FIRE HAZARD

Failure to follow these instructions can create excessive drying times and ﬁ re hazards.

The following are speciﬁ c requirements for proper and safe operation of your dryer.

WARNING

FIRE HAZARD

Do not install a clothes dryer with ﬂ exible plastic or metal foil venting materials. Flexible venting materials are known to collapse, be easily crushed and trap lint. These conditions will obstruct clothes dryer airﬂ ow and increase the risk of ﬁ re.

Correct Incorrect

If your present system is made up of plastic duct or metal foil duct, replace it with a rigid or semirigid metal duct. Also, ensure the present duct is free of any lint prior to installing dryer duct.

Installation Requirements

Exhaust system requirements, continued

WARNING

FIRE HAZARD

A clothes dryer must be exhausted outdoors. Do not exhaust dryer into a chimney, a wall, a ceiling, an attic, a crawl space or any concealed space of a building. A clothes dryer produces combustible lint. If the dryer is not exhausted outdoors, some ﬁ ne lint will be expelled into the laundry area. An accumulation of lint in any area of the home can create a health and ﬁ re hazard.

The dryer must be connected to an exhaust outdoors. Regularly inspect the outdoor exhaust opening and remove any accumulation of lint around the outdoor exhaust opening and in the surrounding area.

WARNING

FIRE HAZARD

Do not allow combustible materials (for • example: clothing, draperies/curtains, paper) to come in contact with exhaust system. The dryer MUST NOT be exhausted into a chimney, a wall, a ceiling, or any concealed space of a building which can accumulate lint, resulting in a ﬁ re hazard.

Do not screen the exhaust ends of the vent • system, or use any screws, rivets or other fasteners that extend into the duct to assemble the exhaust system. Lint can become caught in the screen, on the screws or rivets, clogging the duct work and creating a ﬁ re hazard as well as increasing drying times. Use an approved vent hood to terminate the duct outdoors, and seal all joints with metal foil tape. All male duct pipe ﬁ ttings MUST be installed downstream with the ﬂ ow of air.

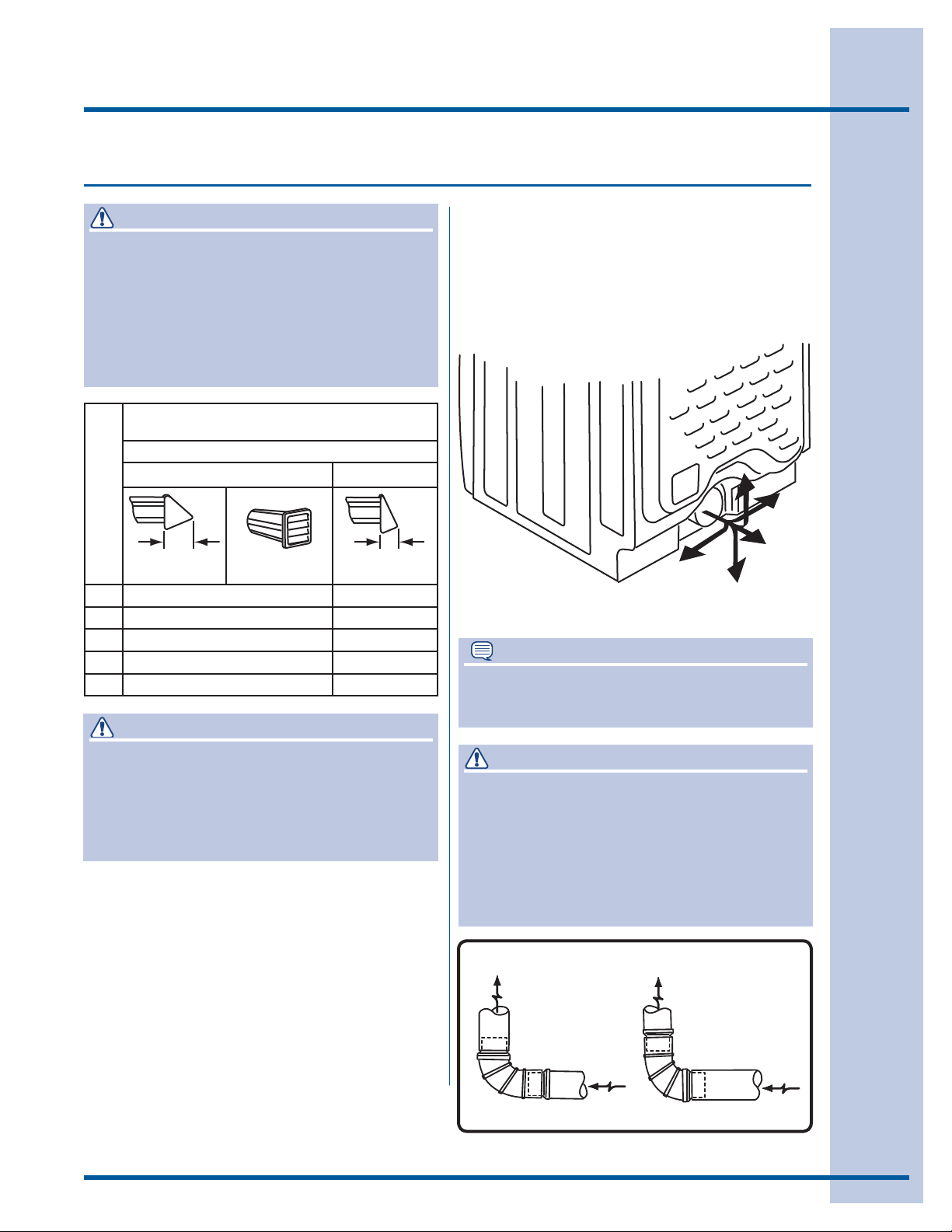

MAXIMUM LENGTH

Number of 90° turns

0 125 ft. (38.10m) 110 ft. (33.53m) 1 115 ft. (35.05m) 100 ft. (30.48m) 2 105 ft. (32.00m) 90 ft. (27.43m) 3 95 ft. (28.96m) 80 ft. (24.38m) 4 85 ft. (25.91m) 70 ft. (21.34m)

of 4” (102mm) Rigid Metal Duct

VENT HOOD TYPE

(Preferred)

4”

(10.2cm) louvered

2.5”

(6.35cm)

WARNING

FIRE HAZARD

Do not install ﬂ exible plastic or ﬂ exible foil • venting material.

If installing semi-rigid venting, do not exceed 8 • ft. (2.4 m) duct length.

Exhaust direction

Directional exhausting can be accomplished by installing a quick-turn 90° dryer vent elbow directly to exhaust outlet of dryer. Dryer vent elbows are available through your local parts distributor or hardware store.

WARNING

FIRE HAZARD

Exceeding the length of duct pipe or number of elbows allowed in the “MAXIMUM LENGTH” charts can cause an accumulation of lint in the exhaust system. Plugging the system could create a ﬁ re hazard, as well as increase drying times.

See also CLEARANCE REQUIREMENTS on the next page.

NOTE

Use of 90° quick-turn elbow required to meet minimum installation depth.

Installation Requirements

Exhaust system requirements, continued

WARNING

EXPLOSION HAZARD

Do not install the dryer where gasoline or other ﬂ ammables are kept or stored. If the dryer is installed in a garage, it must be a minimum of 18 inches (45.7 cm) above the ﬂ oor. Failure to do so can result in death, explosion, ﬁ re or burns.

In installations where the exhaust system is not described in the charts, the following method must be used to determine if the exhaust system is acceptable:

1. Connect an inclined or digital manometer between the dryer and the point the exhaust connects to the dryer.

2. Set the dryer timer and temperature to air ﬂ uff (cool down) and start the dryer.

3. Read the measurement on the manometer.

4. The system back pressure MUST NOT be higher than 1.0 inch of water column. If the system back pressure is less than 1.0 inch of water column, the system is acceptable. If the manometer reading is higher than 1.0 inch of water column, the system is too restrictive and the installation is unacceptable.

Install male ﬁ ttings in correct direction:

CORRECT

Although vertical orientation of the exhaust system is acceptable, certain extenuating circumstances could affect the performance of the dryer:

Only the rigid metal duct work should be used.• Venting vertically through a roof may expose •

the exhaust system to down drafts causing an increase in vent restriction.

Running the exhaust system through an • uninsulated area may cause condensation and faster accumulation of lint.

Compression or crimping of the exhaust system • will cause an increase in vent restriction.

The exhaust system should be inspected and • cleaned a minimum of every 18 months with normal usage. The more the dryer is used, the more often you should check the exhaust system and vent hood for proper operation.

INCORRECT

Manufactured or mobile home installation

Installation MUST conform to current 1. Manufactured Home Construction & Safety Standard, Title 24 CFR, Part 32-80 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD Part 280) or Standard CAN/CSAZ240 MH. Dryer MUST be exhausted outside (outdoors, not 2. beneath the mobile home) using metal ducting that will not support combustion. Metal ducting must be 4 inches (10.16 cm) in diameter with no obstructions. Rigid metal duct is preferred. If dryer is exhausted through the ﬂ oor and 3. area beneath the mobile home is enclosed,

the exhaust system MUST terminate outside the enclosure with the termination securely fastened to the mobile home structure. Refer to previous sections in this guide for other 4. important exhaust venting system requirements. When installing a gas dryer into a mobile home, 5. a provision must be made for outside make up air. This provision is to be not less than twice the area of the dryer exhaust outlet. Installer MUST anchor this (1) dryer or (2) dryer 6. mounted on pedestal to the ﬂ oor with approved Mobile Home Installation Kit - P/N 137067200.

Installation Requirements

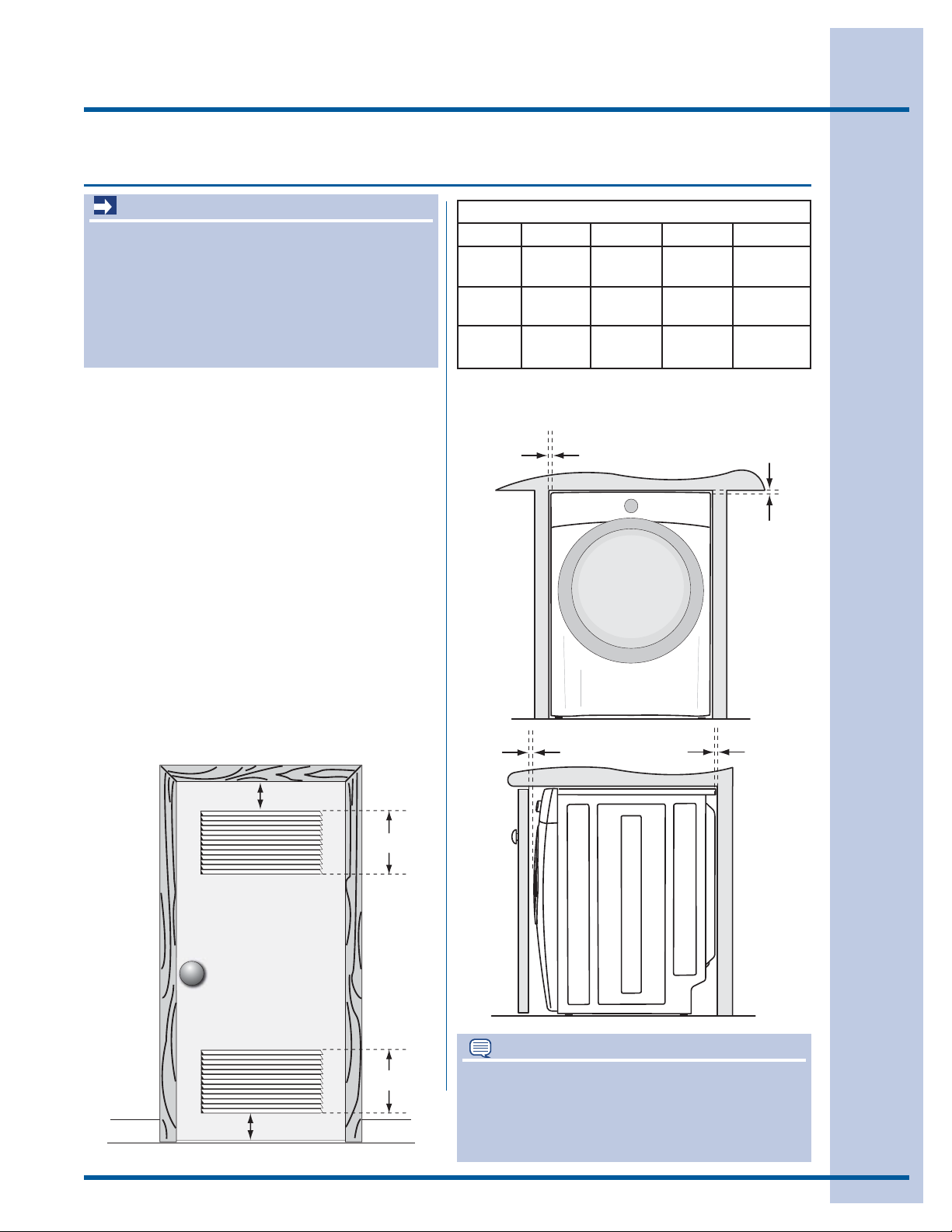

Clearance requirements

IMPORTANT

DO NOT INSTALL YOUR DRYER:

1. In an area exposed to dripping water or outside weather conditions.

2. In an area where it will come in contact with curtains, drapes, or anything that will obstruct the ﬂ ow of combustion and ventilation air.

3. On carpet. Floor MUST be solid with a maximum slope of 1 inch (2.54 cm).

INSTALLATION IN A RECESS OR CLOSET

1. A dryer installed in a bedroom, bathroom, recess or closet, MUST be exhausted outdoors.

2. No other fuel burning appliance shall be installed in the same closet as the gas dryer.

3. Your dryer needs the space around it for proper ventilation.

DO NOT install your dryer in a closet with a solid door.

4. Closet door ventilation required: A minimum of 120 square inches (774.2 cm²) of opening, equally divided at the top and bottom of the door, is required. Openings should be located 3 inches (7.6 cm) from bottom and top of door. Openings are required to be unobstructed when a door is installed. A louvered door with equivalent air openings for the full length of the door is acceptable.

MINIMUM INSTALLATION CLEARANCES - Inches (cm)

SIDES REAR TOP FRONT Alcove 0” (0 cm) 0” (0 cm)* 0” (0 cm) n/a Under-

Counter Closet 0” (0 cm) 0” (0 cm)* 0” (0 cm) 1” (2.54 cm)

F* dryer vent elbow must be installed to achieve 0” (0 cm) installation.

0” (0 cm) 0” (0 cm)* 0” (0 cm) n/a

or other than straight back venting, a quick-turn 90°

0”

(0cm)

0”

(0cm)

1”

(2.54cm)

0”

(0cm)

3”

(7.6cm)

3”

(7.6cm)

closet door

60 sq. in.

(387.1cm²)

60 sq. in.

(387.1cm²)

NOTE

To achieve an installation with 0” (0 cm) clearance for the back of the dryer (for other than straight back venting), a quick-turn 90° dryer vent elbow must be installed as described previously in this manual.

Installation Requirements

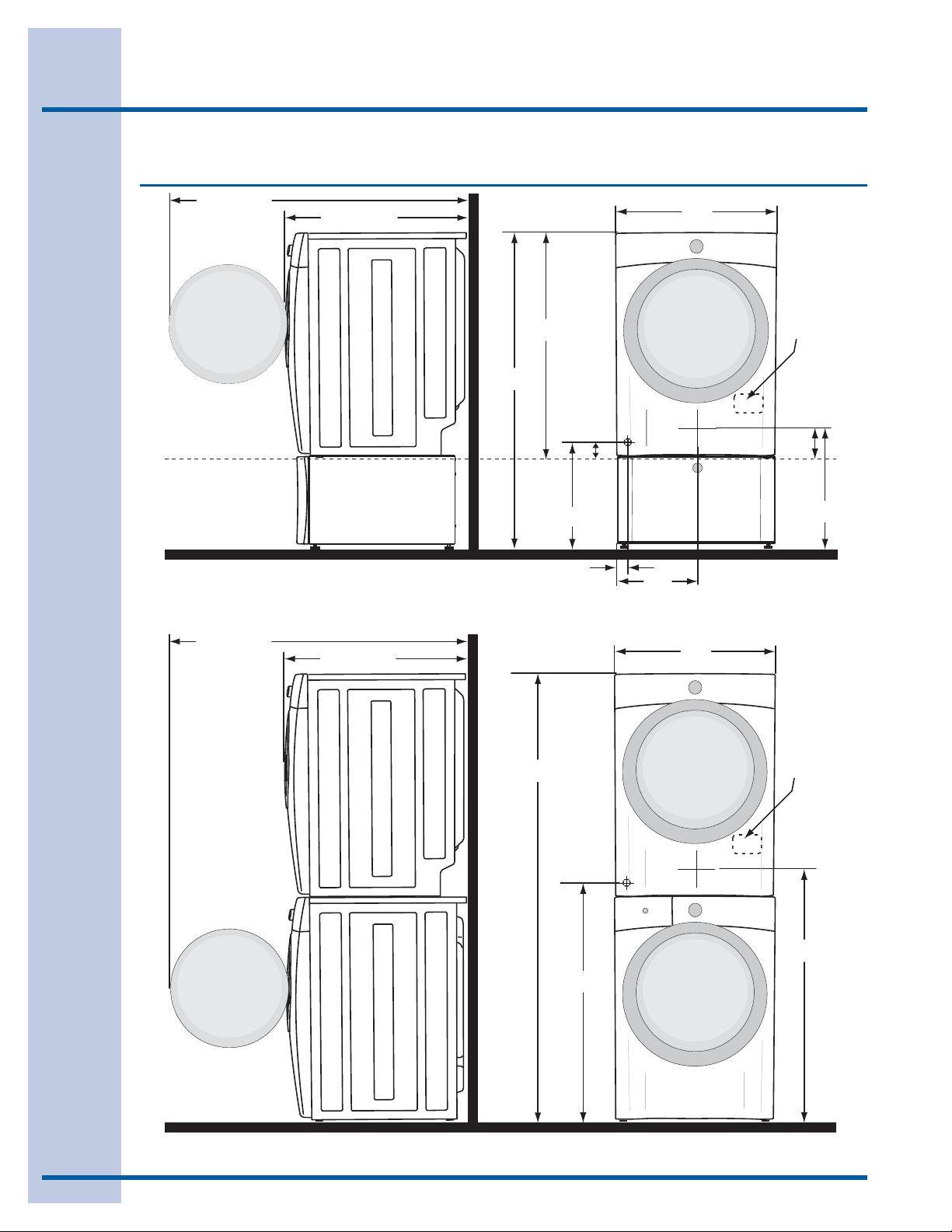

Installed dryer dimensions

50.6” (128.5cm)*

to clear open door

freestand dryer

on floor

floor line

31.50” (80cm)*

to front of closed door

53.00”

(134.5cm)

38.00”

(96.5cm)

gas supply pipe on rear of gas unit

1.4”

(3.5cm)

27.00”

(68.5cm)

electrical supply on rear of unit

centerline height for rear vent

3.40”

(8.5cm)

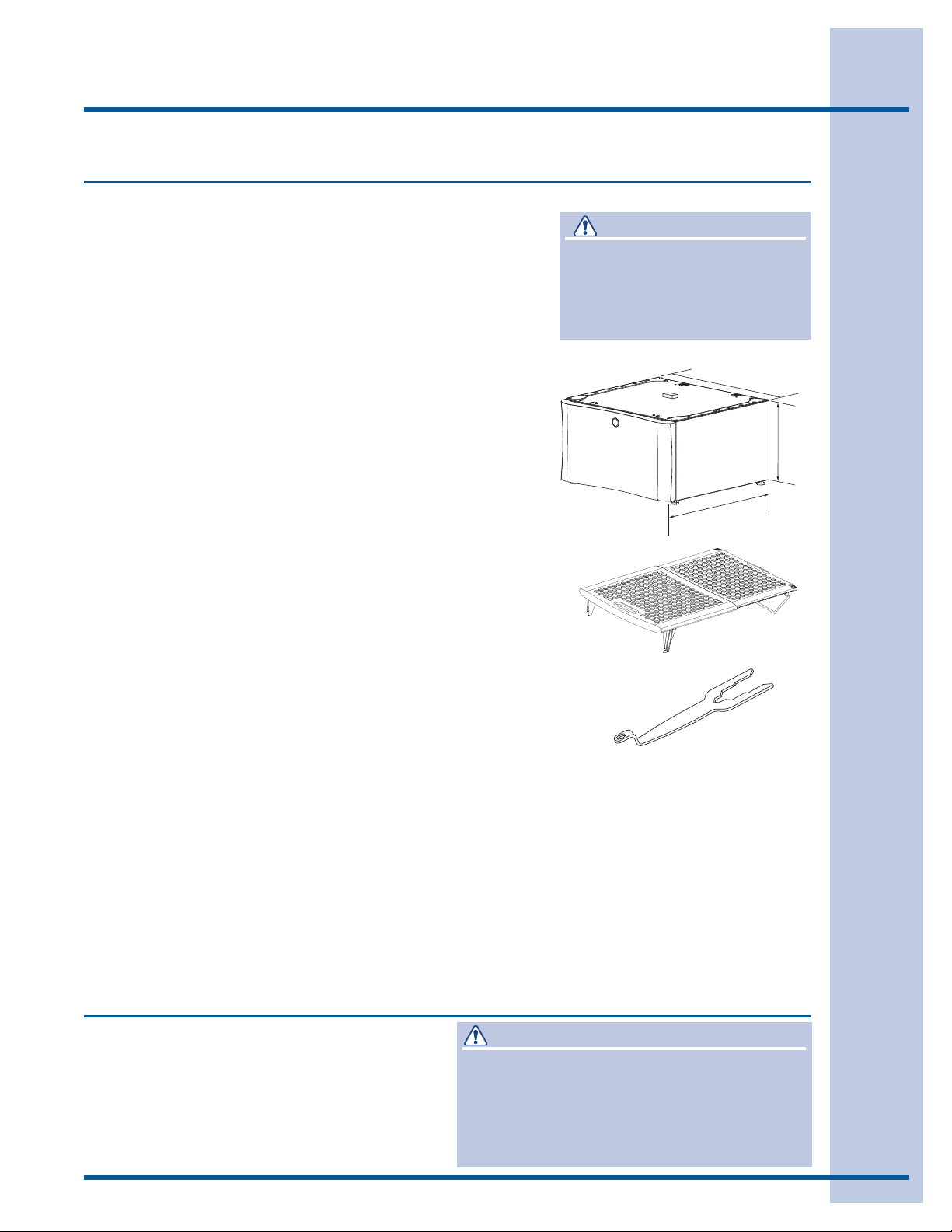

dryer mounted on

optional pedestal

floor line

* To obtain these minimal depth dimensions, dryer must either be vented straight back or with a quick-turn 90° elbow. Connection of water inlet hose on Steam Models adds 3/4 in. (2 cm) to installation depth. Upward venting of exhaust on pedestal-mounted or freestanding dryer adds approximately 4 in. (10.2 cm) to installation depth. Downward venting of exhaust on pedestal-mounted dryer adds approximately 1.7 in. (4.3 cm) to installation depth.

50.6” (128.5cm)*

to clear open door

31.50” (80cm)*

to front of closed door

75.75”

(192.5cm)

16.25”

(41.5cm)

3.75”

(9.5cm)

gas supply pipe on rear of gas unit

39.00” (99cm)

13.50”

(34.5cm)

to center of rear vent

27.00”

(68.5cm)

18.25”

(46.5cm)

electrical supply on rear of unit

centerline height for rear vent

41.00”

(104cm)

* To obtain these minimal depth dimensions, dryer must either be vented straight back or with a quick-turn 90° elbow. Connection of water inlet hose on Steam Models adds 3/4 in. (2 cm) to installation depth. Upward or downward venting of exhaust on stacked dryer adds approximately 4 in. (10.2 cm) to installation depth.

Installation Instructions

Electrical installation

The following are speciﬁ c requirements for proper and safe electrical installation of your dryer. Failure to follow these instructions can create electrical shock and/or a ﬁ re hazard.

WARNING

ELECTRICAL SHOCK HAZARD

This appliance MUST be properly grounded. • Electrical shock can result if the dryer is not properly grounded. Follow the instructions in this manual for proper grounding.

Do not use an extension cord with this dryer. • Some extension cords are not designed to withstand the amounts of electrical current this dryer utilizes and can melt, creating electrical shock and/or ﬁ re hazard. Locate the dryer within reach of the receptacle for the length power cord to be purchased, allowing some slack in the cord. Refer to the pre-installation requirements in this manual for the proper power cord to be purchased.

WARNING

ELECTRICAL SHOCK HAZARD

A U.L.-approved strain relief must be installed • onto power cord. If the strain relief is not attached, the cord can be pulled out of the dryer and can be cut by any movement of the cord, resulting in electrical shock.

Do not use an aluminum wired receptacle with • a copper wired power cord and plug (or vice versa). A chemical reaction occurs between copper and aluminum and can cause electrical shorts. The proper wiring and receptacle is a copper wired power cord with a copper wired receptacle.

NOTE

Dryers operating on 208 volt power supply will have longer drying times than dryers operating on 240 volt power supply.

Grounding requirements - Electric dryer (USA)

WARNING

ELECTRICAL SHOCK HAZARD

Improper connection of the equipment grounding conductor can result in a risk of electrical shock. Check with a licensed electrician if you are in doubt as to whether the appliance is properly grounded.

For a grounded, cord-connected dryer:

1. The dryer MUST be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electrical shock by a path of least resistance for electrical current.

2. After you purchase and install a 3 wire or 4 wire power supply cord having an equipmentgrounding conductor and a grounding plug that matches you wiring system, the plug MUST be plugged into an appropriate, copper wired receptacle that is properly installed and grounded in accordance with all local codes and ordinances. If in doubt, call a licensed electrician.

3. DO NOT modify the plug you’ve installed on this appliance. If it will not ﬁ t the outlet, have a proper outlet installed by a qualiﬁ ed electrician.

For a permanently connected dryer:

1. The dryer MUST be connected to a grounded metal, permanent wiring system; or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

Installation Instructions

Grounding type

ll receptacle

wer cord with

3-prong grgr

ounded plug

Do not,

under

y cir

cumstances,

cut,

removeve,

or b

ypass the

ounding pr

ong.

Grounding requirements - Electric dryer (Canada)

WARNING

ELECTRICAL SHOCK HAZARD

For a grounded, cord-connected dryer:

1. The dryer MUST be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electrical shock by a path of least resistance for electrical current.

2. Since your dryer is equipped with a power supply cord having an equipment-grounding conductor and a grounding plug, the plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. If in doubt, call a licensed electrician.

3. DO NOT modify the plug provided with this appliance. If it will not ﬁ t the outlet, have a proper outlet installed by a qualiﬁ ed electrician.

Grounding requirements - Gas dryer (USA and Canada)

The dryer is equipped with a three-prong 1.

Grounding type wawall receptacl

PoPower cord with 3-prong

ounded plug

Do not,

under

anany cir

cumstances,

cut,

remo

or b

ypass th

grgrounding pr

ong.

(grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle.

The plug must be plugged into an appropriate 2. outlet that is properly installed and grounded in accordance with all local codes and ordinances. If in doubt, call a licensed electrician.

DO NOT modify the plug provided with this 3. appliance. If it will not ﬁ t the outlet, have a proper outlet installed by a qualiﬁ ed electrician.

Internal ground

(GREEN screw)

Install

UL-approved

strain relief here

Terminal screw

recovery slot

Line 1

(BRASS terminal)

Neutral

(SILVER terminal)

Line 2

(BRASS terminal)

Access cover

screw

Terminal

block

Neutral

(center wire)

30 AMP

NEMA 10-30

DO NOT remove

internal ground in

a 3-wire system!!

Neutral

terminal

Installation Instructions

Electrical connection (non-Canada) - 3 wire cord

3-wire receptacle

(NEMA type 10-30R)

30 AMP

WARNING

ELECTRICAL SHOCK HAZARD

Failure to disconnect power source before servicing could result in personal injury or even death.

NEMA 10-30

Neutral

(center wire)

Turn off power supply to outlet. 1.

Remove the screw securing the terminal block 2. access cover in the lower corner on the back of the dryer.

Install a UL-approved strain relief according 3. to the power cord/strain relief manufacturer’s instructions in the power cord entry hole below the access panel. At this time, the strain relief should be loosely in place.

Thread an UNPLUGGED, UL-approved, 30 amp. 4. power cord, NEMA 10-30 type SRDT, through the strain relief.

Attach the power cord neutral (center wire) 5. conductor to the SILVER colored center terminal on the terminal block. Tighten the screw securely.

Attach the remaining two power cord outer 6. conductors to the outer, BRASS colored terminals on the terminal block. Tighten both screws securely.

Access cover

screw

Terminal

block

Line 2

(BRASS terminal)

Neutral

(SILVER terminal)

Line 1

(BRASS terminal)

Internal ground

(GREEN screw)

Install

UL-approved

strain relief here

Terminal screw

recovery slot

NOTE

If a terminal screw falls during cord installation, it can be retrieved in the terminal screw recovery slot below the access panel.

WARNING

ELECTRICAL SHOCK HAZARD

Do not make a sharp bend or crimp wiring/ conductor at connections.

Follow manufacturer’s guidelines for ﬁ rmly 7. securing the strain relief and power cord.

Reinstall the terminal block cover.8.

IMPORTANT

If moving dryer from a 4-wire system and installing it in a 3-wire system, move the internal ground from the center terminal back to the GREEN screw next to the terminal block.

DO NOT remove

internal ground in

a 3-wire system!!

Neutral

terminal

Installation Instructions

Internal ground

(GREEN screw)

Install

UL-approved

strain relief here

Terminal screw

recovery slot

Line 1

(BRASS terminal)

Neutral

(SILVER terminal)

Line 2

(BRASS terminal)

Access cover

screw

Terminal

block

Neutral

(WHITE wire)

30 AMP

NEMA 14-30

Ground

(GREEN wire)

Move internal ground (WHITE)

wire to neutral (SILVER)

terminal for 4-wire system.

Neutral

terminal

GREEN

ground screw

BLACK or

RED power wire

BLACK or RED

power wire

GREEN

ground wire

WHITE

neutral wire

Electrical connection (non-Canada) - 4 wire cord

4-wire receptacle

(NEMA type 14-30R)

WARNING

ELECTRICAL SHOCK HAZARD

Failure to disconnect power source before servicing could result in personal injury or even death.

30 AMP

NEMA 14-30

Ground

(GREEN wire)

Neutral

(WHITE wire)

Turn off power supply to outlet. 1. Remove the screw securing the terminal block 2.

access cover in the lower corner on the back of the dryer.

Thread an UNPLUGGED, UL-approved, 30 4. amp. power cord, NEMA 14-30 type ST or SRDT, through the strain relief.

Disconnect the internal (BLACK) dryer harness 5. ground wire from the (GREEN) ground screw next to the terminal block.

Attach the ground (GREEN) power cord wire 6. to the cabinet with the ground (GREEN) screw. Tighten the screw securely.

Move the internal dryer harness ground 7. (WHITE) wire to the terminal block and attach it along with the neutral (WHITE) power cord wire conductor to the center, SILVER colored terminal on the terminal block. Tighten the screw securely.

Attach the RED and BLACK power cord 8. conductors to the outer, BRASS colored terminals on the terminal block. Tighten both screws securely.

WARNING

ELECTRICAL SHOCK HAZARD

Do not make a sharp bend or crimp wiring/ conductor at connections.

Follow manufacturer’s guidelines for ﬁ rmly 9. securing the strain relief and power cord.

Reinstall the terminal block cover.10.

Access cover

screw

Terminal

block

Line 2

(BRASS terminal)

Neutral

(SILVER terminal)

Line 1

(BRASS terminal)

Internal ground

(GREEN screw)

Install

UL-approved

strain relief here

Terminal screw

recovery slot

NOTE

If a terminal screw falls during cord installation, it can be retrieved in the terminal screw recovery slot below the access panel.

Move internal ground (WHITE)

wire to neutral (SILVER)

terminal for 4-wire system.

GREEN

ground screw

GREEN

ground wire

BLACK or

RED power wire

Neutral

terminal

WHITE

neutral wire

BLACK or RED

power wire

Installation Instructions

Gas connection

Remove the shipping cap from gas pipe at the 1. rear of the dryer.

IMPORTANT

DO NOT connect the dryer to L.P. gas service without converting the gas valve. An L.P. conversion kit must be installed by a qualiﬁ ed gas technician.

Connect a 1/2 inch (1.27 cm) I.D. semi-rigid or 2. approved pipe from gas supply line to the 3/8 inch (0.96 cm) pipe located on the back of the dryer. Use a 1/2 inch to 3/8 inch (1.27 cm to

0.96 cm) reducer for the connection. Apply an approved thread sealer that is resistant to the corrosive action of liqueﬁ ed gases on all pipe connections.

Closed

Manual Shuto

Valve

Open

Flare

Union

All connections must be wrench-tightened

elppiN

GAS FLOW

Flexible

Connector

Flare

Union

Inlet Pipe on

Back of Dryer

Open the shutoff valve in the gas supply line to 3. allow gas to ﬂ ow through the pipe. Wait a few minutes for gas to move through the gas line.

to dryer

from gas supply

Shuto Valve -

Open position

Check for gas system leaks with a manometer. 4. If a manometer is not available, test all connections by brushing on a soapy water solution.

WARNING

EXPLOSION HAZARD

NEVER test for gas leaks with an open ﬂ ame.

IMPORTANT

The supply line must be equipped with an approved manual shutoff valve. This valve should be located in the same room as the dryer and should be in a location that allows ease of opening and closing. Do not block access to the gas shutoff valve.

Installation Instructions

Water connection (Steam Model only)

WATER SUPPLY REQUIREMENTS

Cold water faucet MUST be installed within 42 inches (107 cm) of your dryer’s water inlet. The faucet MUST be 3/4 inch (1.9 cm) with threading for laundry hose connection. Water pressure MUST be between 30 and 120 psi. Your water department can advise you of your water pressure.

Turn off COLD water supply to washer,1. Remove COLD inlet hose from COLD water 2.

supply and inspect for rubber washer. Replace washer if it is torn or worn out.

RUBBER WASHER

MUST BE PRESENT

AND UNDAMAGED

COLD INLET HOSE

TO WASHER

Momentarily turn on COLD supply and run 3. some water into a bucket or container to clear any contaminants in the line.

Remove hose kit from dryer drum and inspect 4. hose couplings for proper placement of rubber washers.

RUBBER WASHERS MUST BE PRESENT

Installation Instructions

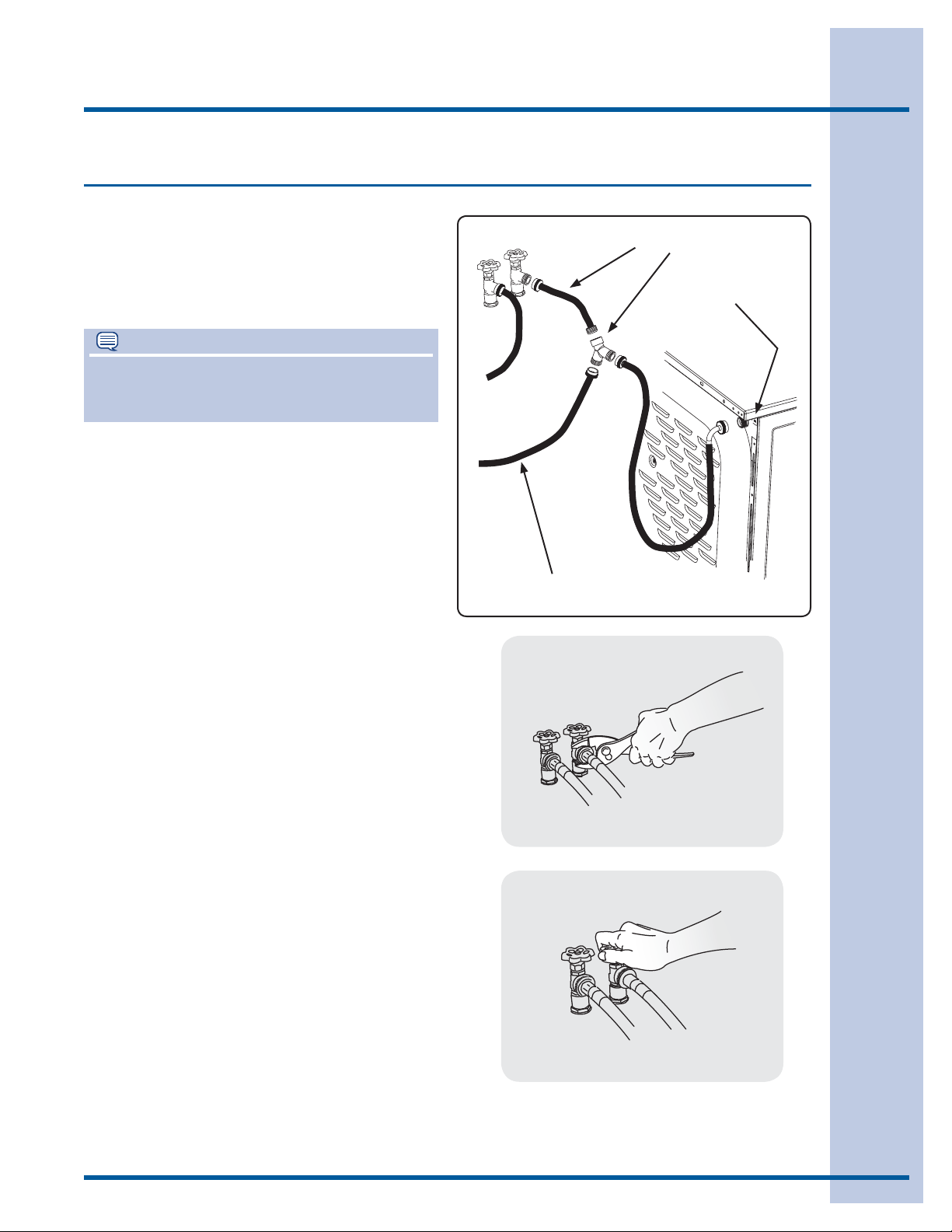

Water connection, con’t (Steam Model only)

If your installation has room for the COLD 1. water supply to accept the “Y” connector directly, thread the “Y” connector to the COLD water supply and snug it by hand; then tighten it another 2/3 turn with pliers.

NOTE

If you were able to install the “Y” connector directly to the COLD water supply, please skip to step 8.

If there is not room to install the “Y” connector 2. directly, thread the short extension hose on to the COLD water supply and snug it by hand; then tighten it another 2/3 turn with pliers.

Thread the “Y” connector to the short 3. extension hose and snug it by hand; then tighten it another 2/3 turn with pliers.

Connect the COLD inlet hose for the washer 4. to the “Y” connector and snug it by hand; then tighten it another 2/3 turn with pliers.

Connect the straight end of the long hose from 5. the kit to the other outlet on the “Y” connector and snug it by hand. Connect the hose’s 90° coupling to the brass water inlet on the back of the dryer and snug it by hand. Tighten each connection of the dryer inlet hose another 2/3 turn with pliers.

Turn on the water and check for leaks at all 6. connections.

DIRECT CONNECTION OR WITH EXTENSION

WATER INLET ON DRYER

COLD WATER SUPPLY HOSE TO WASHER

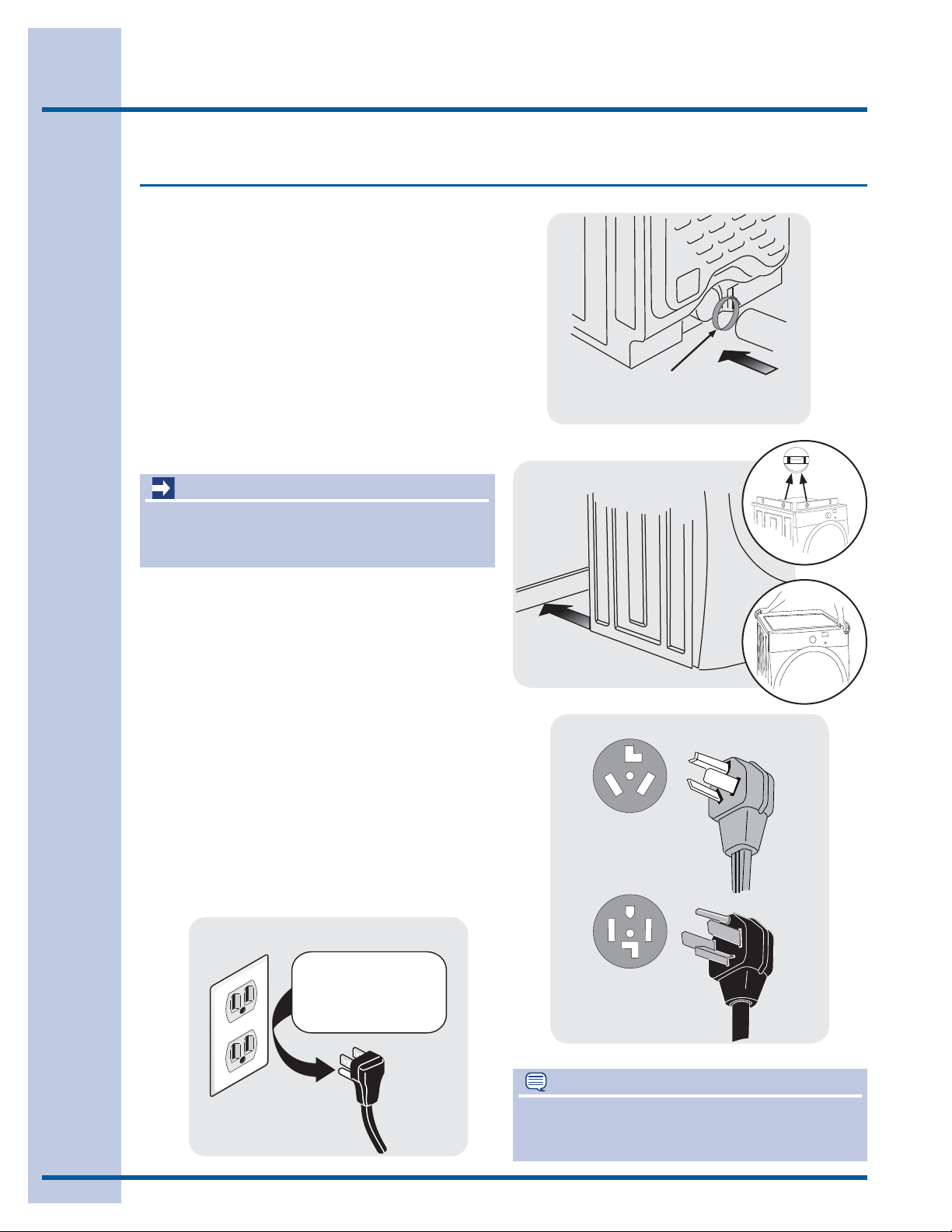

General installation

Grounding type

ll receptacle

wer cord with

3-prong grgr

ounded plug

Do not,

under

y cir

cumstances,

cut,

removeve,

or b

ypass the

ounding pr

ong.

Connect the exhaust duct to the outside exhaust 1. system (see pages 5 through 7). Use of a 4” (102 mm) clamp (item A) is recommended to connect the dryer to the exhaust vent system. Use metal foil tape to seal all other joints.

Carefully slide the dryer to its ﬁ nal position. 2. Adjust one or more of the legs until the dryer is resting solidly on all four legs. Place a level on top of the dryer. The dryer MUST be level and resting solidly on all four legs. Rock alternating corners to check for stability. Remove and discard door tape.

IMPORTANT

Be sure the power is off at a circuit breaker/fuse box before plugging the power cord into an outlet.

Installation Instructions

NOTE

A wiring diagram and technical data sheet are located inside the dryer console.

Plug the power cord into a grounded outlet.3. Turn on the power at the circuit breaker/fuse 4.

box. Read the 5. Use & Care Guide provided with

the dryer. It contains valuable and helpful information that will save you time and money.

See the next page about performing a brief, 6. helpful “Installation Cycle” for your new dryer.

If you have any questions during initial 7. operation, please review the “Avoid Service Checklist” in your Use & Care Guide before calling for service.

Place these instructions in a location near the 8. dryer for future reference.

Grounding type wawall receptacl

Do not,

under

anany cir

cumstances,

cut,

remo

or b

ypass th

PoPower cord with 3-prong

grgrounding pr

ounded plug

ong.

Installation Instructions

WARNING

FIRE HAZARD

Before operating the dryer, make sure the dryer area is clear and free of combustible materials, gasoline, and other ﬂ ammable vapors. Also see that nothing (such as boxes, clothing, etc.) obstructs the ﬂ ow of combustion and ventilation air.

NOTE

On gas dryers, before the burner will light, it is necessary for the gas line to be bled of air. If the burner does not light within 45 seconds the ﬁ rst time the dryer is turned on, the safety switch will shut the burner off. If this happens, press cancel and wait 5 minutes before making another attempt to light.

Performing Installation Cycle

If your dryer has this console:

Empty the dryer drum.1. After you plug in the dryer the ﬁ rst time: wake up the dryer by pressing any button, rotate cycle knob 2.

to touch up cycle, press the start button and then the cancel button. Wake up the dryer again by pressing any button, then immediately and simultaneously press and hold 3.

both the sanitize and my favorite buttons for 5 seconds, or until the LCD display changes. The LCD window will display 4. INSTAL CYCLE and show estimated time of cycle completion. Press the

start button. The Installation Cycle will automatically test for correct cord connection (on electric models) and presence of gas supply (on gas models). At cycle completion, the LCD window may display INSTAL PASS!, meaning your new dryer is properly installed and ready for use. If it prompts an action such as SERVICE CORD, NO GAS or call service 877 435 3287, review the installation steps and make the necessary corrections before you attempt to use the dryer.

Your dryer will exit the Installation Cycle and return to normal operation the next time you wake it up.5.

NOTE

Dryer will stay awake for 3 minutes after the Installation Cycle. If you wish to immediately run the dryer through a drying cycle, press the cancel button to put the unit to sleep and then rewake it immediately to continue the normal operating mode.

Please read the 6. Use & Care Guide and enjoy your new premium dryer!

If your dryer has this console:

After you plug in the dryer the ﬁ rst time: wake up the dryer by pressing any button and follow the 1. prompts on the LCD User Interface, including language selection.

The Installation Cycle will automatically test for correct cord connection (on electric models), pres-2. ence of gas supply (on gas models) and free ﬂ ow of exhaust vent. At cycle completion, the LCD user interface may display INSTAL PASS!, meaning your new dryer is properly installed and ready for use. If it prompts an action such as SERVICE CORD, NO GAS or call service 877 435 3287, review the installation steps and make the necessary corrections before you attempt to use the dryer.

Your dryer will exit the Installation Cycle and return to normal operation the next time you wake it up.3.

NOTE

Please read the 4. Use & Care Guide and enjoy your new premium dryer!

Preparing to reverse door swing

Reversing Door

1 Be sure you have adequate swing area before reversing door. 2 You will need a screw driver with a #2 square bit. 3 Protect ﬂ at work surface, such as top of dryer or ﬂ oor near dryer,

with a soft cloth or towel.

4 Be sure dryer is unplugged from power source!

WARNING

ELECTRICAL SHOCK HAZARD

Failure to disconnect power source before servicing could result in personal injury or even death.

Removing door and hardware

A) Removing Trim Ring

1 Open door to 90 degree angle. 2 Remove and save trim plug and long,

course-thread, panhead screw.

B) Removing Door from Hinge

1 Reopen door to 90 degree angle. 2 Remove 4 long, course-thread, counter-sunk

hinge screws from door.

Tools needed:

Screwdrivers with

#2 square &

straight bit

3 Close door. 4 Rotate door trim approximately ¾” counter-

clockwise and pull ring away from door.

3 While supporting the weight of the door

with both hands, separate the door from the hinge.

4 Gently place door face down on ﬂ at, covered

work surface.

Reversing Door

Reversing door and hardware

C) Removing Hinge from Front Panel

1 With the hinge in open position, remove 2

short, course-thread, panhead screws on hinge plate.

2 Remove 3 short, ﬁ ne-thread, counter-sunk

screws in hinge side.

2 Rotate striker and move to opposite

opening. Attach with 2 short, course-thread, panhead screws.

3 Install plastic hole plugs.

E) Reattaching Hinge to Front Panel

Rotate the hinge and move it to the opposite opening. Use the side locating pins to align the hinge and install 1 short, ﬁ ne-thread, countersunk screw in the center hole of hinge side.

D) Reversing Hardware on Front Panel

1 Remove 2 short, course-thread, panhead

screws from striker and 2 plastic hole plugs.

2 Install the other 2 short, ﬁ ne-thread, counter-

sunk screws in the upper and lower holes of hinge side.

3 Install 2 short, course-thread, panhead

screws through hinge plate.

Reversing Door

F) Removing Striker Plate

1 Remove 2 long, course-thread, counter-sunk

screws and latch plate.

2 Set the latch plate to the side for later.

G) Removing Latch Indicator

H) Removing Hole Plug

1 Insert ﬂ at blade screwdriver into open slot of

hole plug.

2 Gently pry upward to release tab.

1 Insert ﬂ at blade screwdriver into open slot of

latch indicator.

2 Gently pry upward to release tab.

3 Pull the indicator out and set it aside.

3 Pull the hole plug out and set it aside.

insert indicator

through

slot

insert tab

press down

and snap

press down

and snap

Reversing Door

I) Reinserting Latch Indicator

1 Rotate the latch indicator and move it to the

opposite hole in the door.

insert indicator

through

2 Firmly insert the two small tabs on either

side of the latch indicator into the two slots on either side of the hole in the door.

insert tab

slot

J) Reattaching Latch Plate

1 Rotate latch plate and move to opposite side

of door above indicator.

2 Reattach with 2 long, course-thread,

counter-sunk screws.

K) Reinserting Hole Plug

1 Rotate the hole plug and move it to the

opposite hole in the door.

2 Firmly insert the two small tabs on either

side of the hole plug into the two slots on either side of the hole in the door.

insert tab

3 Firmly press downward on the indicator until

the tab snaps in place.

insert tab

3 Firmly press downward on the hole plug until

the tab snaps in place.

press down

and snap

press down

and snap

Reattaching door and hardware

Reversing Door

L) Reattaching Door Assembly

1 Open the hinge to a 90 degree angle. 2 Install the door onto the hinge locating pins.

3 Secure the door with 4 long, course-thread,

counter-sunk screws.

N) Reinstalling Trim Ring

1 Close door. 2 Orient trim so UP position is approximately

¾” to the left of top center. Opening in ring should be on the hinge side.

3 Insert trim ring in slots and rotate clockwise

approximately ¾”.

O) Reinstalling Trim Plug

1 Open door to 90 degree angle. 2 Install trim plug with 1 long, course-thread,

panhead screw.

4 Close the door and test the operation of the

latch.

M) Reversing Trim Ring

1 Trim ring orientation is marked on the back. 2 Remove trim ring cover plate. To remove

plate from left, pivot point is down. To remove plate from right, pivot point is up.

3 Rotate and move trim ring cover plate to

opposite opening in trim and reinsert.

P) Plug in dryer and continue operation.

+ 53 hidden pages
