Warnings and Important Safety Information
Always keep these user instructions with the appliance. Should the
appliance be passed on to third persons or sold, or if you leave this
appliance behind when you move house, it is very important that the new
user has access to these user instructions and the accompanying
information.
These warnings are provided for the safety of the users and those living
with them. So read them carefully before connecting and/or using the
appliance.
Installation
• The installation must be performed by
a qualified person in accordance with
the rules and regulations in force. The
individual operations for installing the
appliance are described under the instructions for the installer.
• Have the appliance installed and con-
nected by a qualified person with specialist knowledge, who will carry it out
in accordance with the directives.
• If any modifications to the power sup-
ply are required because of the installation, these should also be carried out
by a qualified electrician.
Operation
• This oven is designed for cooking food-
stuffs; never use it for other purposes.
• When opening the oven door during
or at the end of cooking be careful of
the stream of hot air, which comes
out of the oven.
• Be very careful when using the cooker.
The extreme heat of the heating elements makes the shelves and other
parts very hot.
• If you should for whatever reason use
aluminium foil to cook food in the oven,
never allow it to come into direct contact with the floor of the oven.
• When cleaning the oven, proceed with
care: never spray anything onto the
grease filter (if fitted), the heating elements and the thermostat sensor.
• If is dangerous to make modifications
of any kind to this appliance or to its
specifications.
• During the baking, roasting and grill-
ing process, the oven window and the
other parts of the appliance get hot, so
children should be kept away from the
appliance. Take care, if connecting electrical appliances to sockets near the
oven, that cables do not come into
contact with hot rings or get caught in
the oven door.
• Always use oven gloves to take hot ov-
enproof dishes or pots out of the oven.
• Regular cleaning prevents the surface
material from deteriorating.
• Before cleaning the oven, either turn the
power off or pull the mains plug out.
• Make sure that the oven is in the “OFF”
position, when the oven is no longer being used.
English
4 electrolux
• This oven was made as a single appli-
ance or as a combination appliance
with electrical hotplate, depending on
the model, for single-phase connection
to 230 V.
• The appliance must not be cleaned with
a superheated steam cleaner or a
steam jet cleaner.
• Do not use abrasive cleaners or sharp
metal scrapers. These can scratch the
glass in the oven door, which may result
in the shattering of the glass.
People Safety
• This appliance is intended for use by
adults. It is dangerous to allow children
to use it or play with it.
• Children should be kept away while the
oven is working. Also, after you have
switched the oven off, it remains hot for a
long time.
• This appliance is not intended for use by
children or other persons whose physical, sensory or mental capabilities or lack
of experience and knowledge prevents
them from using the appliance safely
without supervision or instruction by a
responsible person to ensure that they
can use the appliance safely.
Customer Service
• Have checks and/or repairs carried out
by the manufacturer’s service department
or by a service department authorised
by the manufacturer and use only original spare parts.
• Do not attempt to repair the appliance
yourself in the event of malfunctions or
damage. Repairs carried out by untrained
persons may cause damage or injury.
The symbol
on the product or its
packaging indicates that this product is not
to be treated as normal household waste.
Instead it must be handed over to a collection
point for the recycling of electrical and
electronic equipment. The correct disposal
of this product will help to protect the
environment and human health. Environment
and health are endangered by incorrect
disposal. For more detailed information
about recycling of this product, please contact
your local town hall, your household waste
disposal service or the shop where you
purchased the product.
electrolux 5
Description of the appliance
1
2
3
4
5
6
7
9
10
8
1. Control Panel
2. Oven Light
3. Grill
4. Fan
5. Oven dataplate
6. Steam cooking
warning lights
7. Water loading
drawer
8. Steam intake
9. Water outlet valve
10. Water outlet probe
Shelf Dripping panCake tray
Replaceable
telescopic
runners
Oven accessories
6 electrolux
Control panel
How the electronic Touch Controls on the oven work
The Touch Control buttons
All the oven functions are controlled electronically. You can select any combination
of cooking function, cooking temperature
and automatic timing using the touch controls.
The electronic Touch Controls on the oven
1. - “On/Off” Touch Control
2.
- Touch Control for cooking functions
3.
- Touch Control for the Fast Heat Up function
4.
- Touch Control to Decrease (Time or Temperature)
5. - Touch Control to Increase (Time or Temperature)
6. - Touch Control for the time, Minute Minder, End of cooking time, Cooking
duration time, Time of day
Make sure you touch just one control button
at a time. If you touch the cooking function
control for a longer time, the next cooking
function will be selected.
Cooking functions display
Temperature display
Time display
1 2 5 6 3 4
electrolux 7
Fig. 2
When the oven is first
installed
When the oven is first connected to the
electrical supply, the display will
automatically show the programming
code for one minute, the
symbol
will
flash and after will appear
12:00
.
Set the correct time of day before using
the oven for the first time.

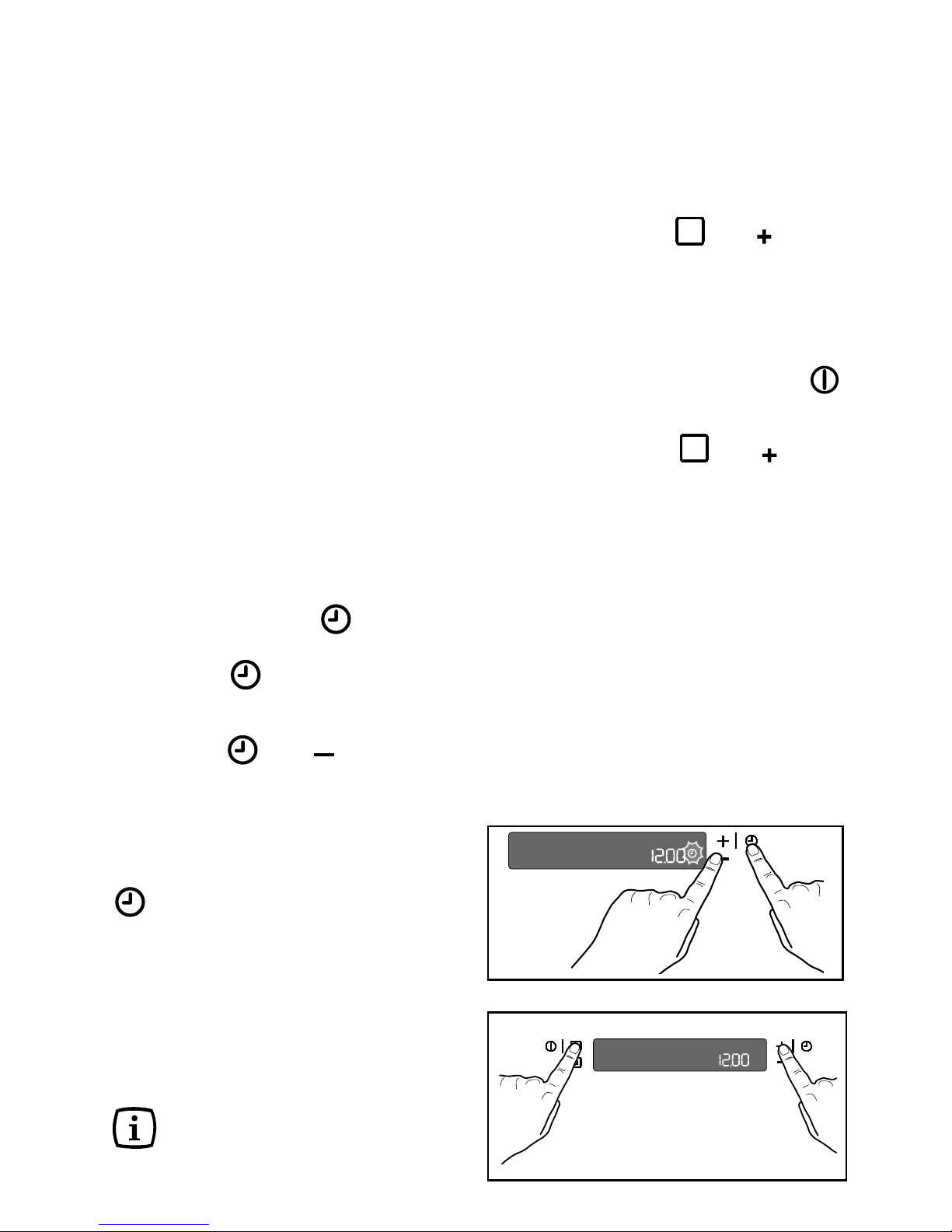

How to set the correct time
of day for the first time:
1. While the symbol is flashing, set the
correct time of day by touching the
controls
“ ”
or
“ ”
.
The time arrow symbol will
disappear about 5 seconds after the
correct time is displayed.
2. If the symbol
stops flashing, touch
the
time control twice.
Then, proceed as described in point 1
(Fig. 2).
It is possible to set the time of
day only when the oven is
switched off.
In the event of a power failure, the
programmer will keep all the settings
(time of day, programme setting or
programme in operation) for about
3 minutes. If power is not restored
within 3 minutes, all the settings will
be cancelled. When the power supply
is restored again, the numbers in the
display flash. If this happens, the time
of day and timer must be re-set.
Special functions
The following functions can be activated by
touching two controls at the same time:
-
Child Safety Function: Touch the con-
trols
and “ ”.
-
Beep on control: Touch the controls
and “ ”.
- Demo mode: Please see the paragraph
“Demo Mode” on page 16.
For further details, see chapter “Safety and
Energy Saving Functions”.
”On/Off“ Touch Control
The oven must be switched on before setting
cooking functions or other programmes. If
you touch the
control , the oven symbol
appears in the display and the oven light
switches itself on (Fig. 1).
To switch off the oven, touch the
control.
All cooking functions or programmes will
stop, the oven light will switch off and the
time display will show only the time of day.
Fig. 1
1
2
8 electrolux
Before using the oven for the first time
Fig. 3
Fig. 4
To open the oven door, always
hold the handle in the centre
(Fig. 4).
Remove all packaging, both inside and outside the oven, before using the oven.
The oven will work only if the
time of day has been set.
Before using for the first time, the oven should
be heated up without food.
During this time, an unpleasant odour may
be emitted. This is absolutely
normal. It is
caused by manufacturing residues.
1. Set the time of day with the electronic
programmer (see paragraph “How to set
the correct time of day for the first time”).
2. Switch the oven on using the
con-
trol.
3. Touch the
control twice and select
the function “Conventional cooking”
(fig. 3).
4. Use the Touch Control “ ” to set the temperature to 250 °C.
5. Now allow the oven to run
empty for
approximately 45 minutes.
6. Open a window for ventilation during this
time.
This procedure should be repeated with the
“Double Grill”
function and the “Fan
Cooking”
function for approximately
5-10 minutes.
Then let the oven cool down. Then
dampen a soft cloth with warm water and a little mild washing-up liquid and use this to clean the oven
cavity.
Before using for the first time, carefully wash the oven accessories as
well.
electrolux 9
How to set the temperature
and cooking time
It is possible to set the temperature and
cooking time while the oven is working.
1. Touch the control and then the “ ”
or “
” control to increase or decrease
the pre-set temperature. The “
°” symbol
will flash while you are doing this (Fig.
6).
2. Touch the
time function control and
then the “
” or “ ” control to increase
or decrease the cooking time. The
symbol (next to the time display) will
flash while you are doing this.

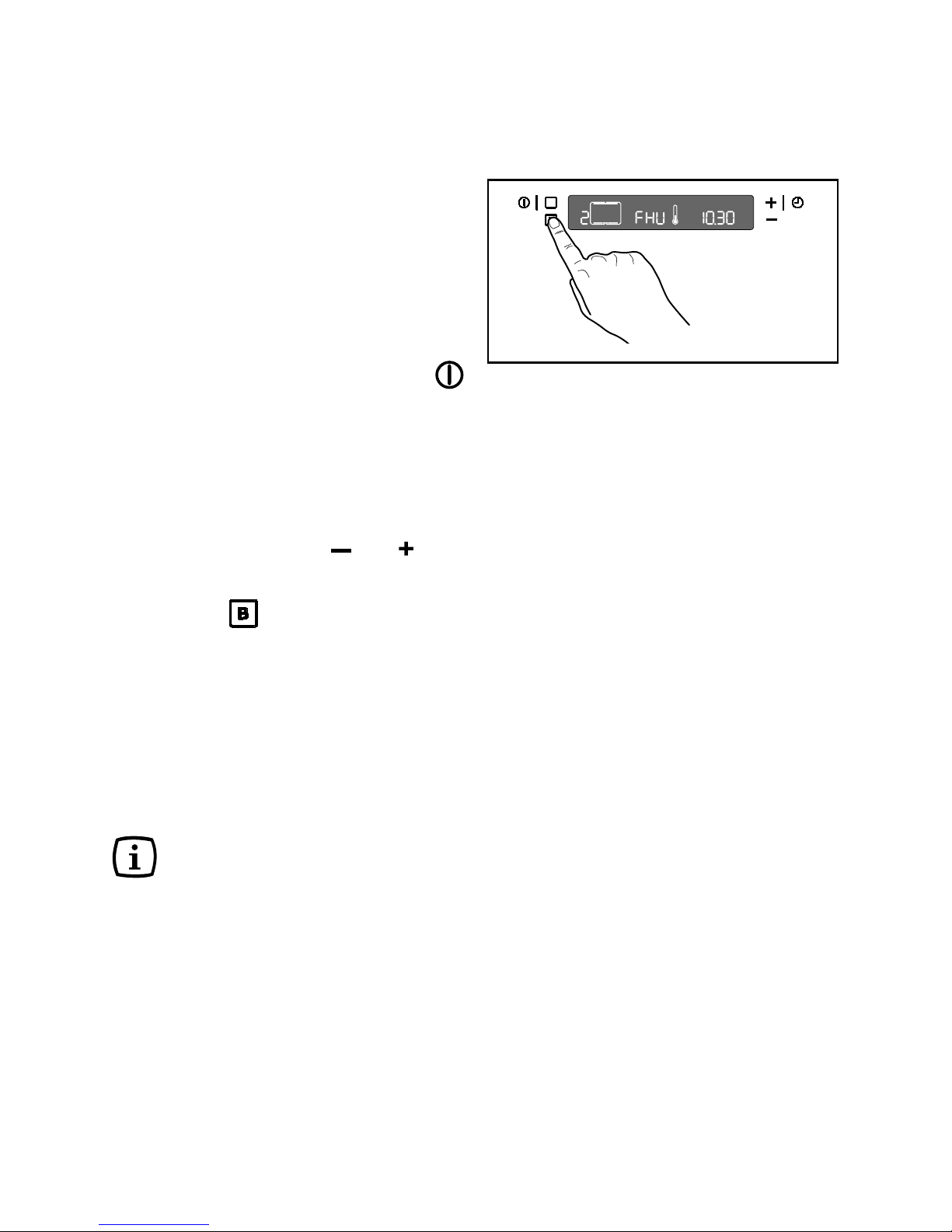

Fig. 6
How to select a Cooking
Function
1. Switch the oven on by touching the
control.
2. Touch the control to select the
required oven function. Each time you
touch the
control, a cooking function
symbol will appear in the display and
the corresponding cooking function
number will appear to the left of the
currently selected cooking function
symbol (Fig. 5).
3. If the pre-set temperature is not suitable,
use the
“ ”
control or
“ ”
control to set
the temperature. The temperature is
adjusted in 5 degree steps.
- As the oven heats up, the thermometer
symbol
rises slowly, indicating the
current oven temperature.
When the required temperature is
reached, an acoustic alarm will sound
for a short time and the thermometer
symbol will light up permanently.
Fig. 5
10 electrolux
1
2
5
Cooking Functions
The following list explains all the available cooking functions in sequence.
3
4
Fan Cooking - This setting
allows you to roast or roast and
bake simultaneously using any
shelf, without flavour
transference. Pre-set temperature: 175°C. Highest temperature: 250°C.
Conventional Cooking - The
heat comes from both the top
and bottom heating elements,
ensuring an even temperature
inside the oven. Pre-set temperature: 200°C. Highest temperature: 250°C.
Grill - Can be used for grilling
smaller quantities. Pre-set temperature: 250°C. Temperature
range: 200 °C - 250°C.
Thermal Grilling - This is an
alternative method of cooking
food items, which are normally
cooked with the normal grill. The
grill element and the oven fan
operate together, circulating hot
air around the food. Pre-set temperature: 180°C.
Highest temperature: 200°C.
Pizza Function - The bottom
heating element provides direct
heat to the base of pizzas,
quiches or pies, while the fan
ensures air is circulated to cook
the topping or filling.
Pre-set temperature: 175°C.
Highest temperature: 250°C.
Double Grill - The entire grill
element is switched on.
Recommended for large
quantities. Pre-set temperature:
250 °C. Temperature range:
200°C - 250°C.
Bottom Heating Element -
The heat comes only from the
heating element in the bottom
of the oven only. This setting is
very good for finishing off dishes.
Pre-set temperature: 250°C.
Top Heating Element - The
heat comes only from the heating
element in the top of the oven.
This setting is very good for
finishing off dishes. Pre-set
temperature: 250°C.
Defrosting - The oven fan
operates without heat and
circulates the air, at room
temperature, inside the oven.
This function is particularly
suitable for defrosting delicate
food which could be damaged
by heat, e.g. cream-filled
gateaux, ice cream cakes,
pastries, bread and other yeast
products.
Steam cooking -The
dishes are steamed.
The preset temperature is
140°C.
6
7
8
9
10
electrolux 11
Programming the Oven
How to set the minute minder
1. Touch the time function control to
select the Minute Minder function. The
relevant symbol will flash and “0.00”
appears in the control panel (Fig. 7).
2. Touch the “
” control and set the desired
time. Maximum time is 23 hours 59
minutes. After the setting is carried out,
the Minute Minder starts to run after a few
seconds. The symbol
will flash during
the programmed time.
3. When the programmed time has elapsed,
an acoustic alarm will be heard.
4. To switch off the acoustic alarm, touch
any control.
The acoustic alarm will switch
off automatically after
approximately one minute and
the current time will be
displayed on the control panel.
The oven will NOT switch off if
in use.
The Minute Minder function
can also be used when the
oven is off.
How to change the Minute Minder
setting:
Touch the time function control
until the
symbols and flash.
It is now possible to change the setting of
the minute minder using the “
” or “ ”
control.
Fig. 7
12 electrolux
How to programme the Oven
to switch off
1. Switch the oven on, place food in the
oven, select the desired cooking
function and adjust the cooking temperature, if necessary.
2. Touch the time function control
and
select the Cooking Duration function.
The Cooking Duration symbol will
flash and “0.00” will appear in the
display (Fig. 9).
3. While the symbol is flashing, set the
desired time using the “ ” control.
Maximum time is 23 hours 59 minutes.
The programmer will wait a few
seconds and then start running.
4. When the programmed time has
elapsed, the oven will be switched off
automatically. An acoustic alarm will
be heard and “0.00” will appear on the
control panel.
5. To switch off the acoustic alarm, touch
the
control.
If you touch any other control, the alarm
will stop and the control panel will
display the symbols indicated in Fig.
10. Then, you need to reset the
programmer display by touching the
control.
The acoustic alarm will switch
off automatically after
approximately two minutes.
Then touch the
control to
reset the programme.
Fig. 9
Fig. 10
How to cancel the Minute Minder:
Touch the time function control until
the symbols and flash.
Touch the “ ” control until “0.00” appears
in the display to re-set the time (Fig. 8).
Fig. 8
electrolux 13
If you want to cancel the
programme, simply cancel the
Cooking Duration that has
been set (see the relevant
section).
The acoustic alarm will switch
off automatically after
approximately two minutes.
Touch the
control to reset
the programme.
How to programme the Oven to
switch on and off
1. Set the Cooking Duration as described in
the relevant section.
2. Touch the time function control
until
the function for the end of the cooking time
is selected and the corresponding symbol
is flashing. The control panel will
display the end of cooking time (that is,
the actual time + cooking duration time)
(Fig. 12).
3. Touch the “ ” control to select the desired
end of the cooking time.
Remember that the cooking
duration time as such will not
change.
4. After the setting is carried out, the
programmer will wait a few seconds and
then start running.
5. The oven will switch on and off
automatically. When it switches itself off,
an acoustic alarm will sound.
6. To switch off the acoustic alarm, touch
the control.
If you touch any other control, the alarm
will stop and the control panel will
display the symbols indicated in Fig. 10.
Then, you need to reset the programmer
display by pressing the
control.
Fig. 12
How to cancel a programmed
Cooking Duration Time:
— Touch the time function control until
the symbol flashes.
— Touch the control “
” to decrease the
time until the display shows “0.00” (Fig.
11).
Fig. 11
14 electrolux
Child Safety Function
To av
oid children switching on the oven
accidentally, it is possible to lock the oven
controls.
1. The child safety function could be actived
only if the oven is switched off.
2. Touch the controls
and “ ” at the
same time for about 3 seconds. An
acoustic signal will be emitted and the
indication “SAFE” will appear in the
display (Fig. 14).
3. The oven is now locked. Neither
individual functions nor temperatures can
be selected.
How to unlock the oven:
Touch the controls and “ ” at the same
time for about 3 seconds. An acoustic signal
will be emitted and the indication ‘SAFE’ will
go out. The oven can now be operated again.
Safety Cut-Off Function
The oven is supplied with an automatic cutoff function. If a cooking time has not been set
and no change of setting has been made, the
oven will switch off automatically according
to the following table (Fig. 13).
Temperature setting: Automatic switch off:
250 °C after 3 hours
200 to 245 °C after 5.5 hours
120 to 195 °C after 8.5 hours
below 120 °C after 12 hours
Fig. 13
Fig. 14
Safety and Energy Saving Functions
Loading...
