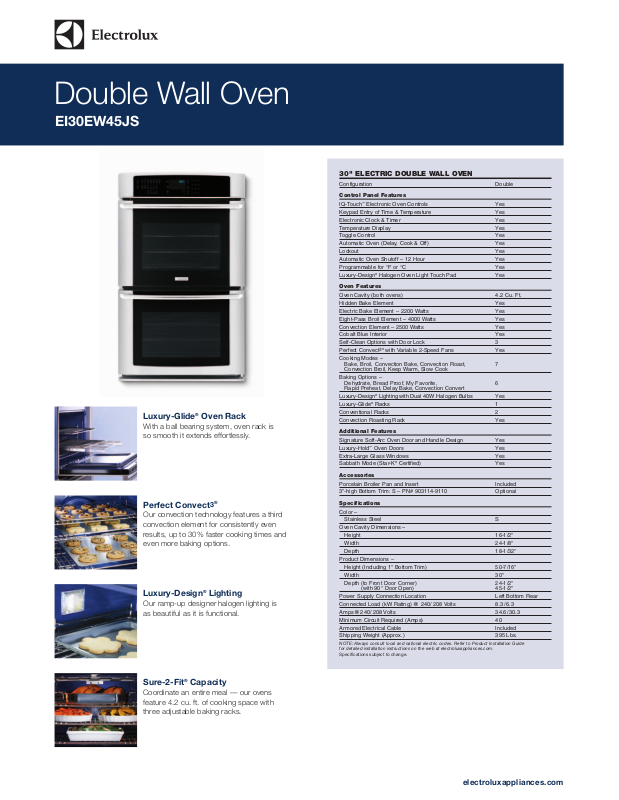

Electrolux EI30EW45JS User Manual

Luxury-Glide®Oven Rack

With a ball bearing system, oven rack is so smooth it extends effortlessly.

Perfect Convect

Our convection technology features a third convection element for consistently even results, up to 30% faster cooking times and even more baking options.

Luxury-Design®Lighting

Our ramp-up designer halogen lighting is as beautiful as it is functional.

Sure-2-Fit®Capacity

Coordinate an entire meal — our ovens feature 4.2 cu. ft. of cooking space with three adjustable baking racks.

Double Wall Oven

EI30EW45JS

30" ELECTRIC DOUBLE WALL OVEN

Configuration

Control Panel Features

IQ-Touch™Electronic Oven Controls Keypad Entry of Time & Temperature Electronic Clock & Timer Temperature Display Toggle Control Automatic Oven (Delay, Cook & Off) Lockout Automatic Oven Shutoff – 12 Hour Programmable for °F or °C Luxury-Design®Halogen Oven Light Touch Pad

Oven Features

Oven Cavity (both ovens) Hidden Bake Element Electric Bake Element – 2200 Watts Eight-Pass Broil Element – 4000 Watts Convection Element – 2500 Watts Cobalt Blue Interior Self-Clean Options with Door Lock Perfect Convect

with Variable 2-Speed Fans

Cooking Modes –

Bake, Broil, Convection Bake, Convection Roast, Convection Broil, Keep Warm, Slow Cook

Baking Options –

Dehydrate, Bread Proof, My Favorite,

Rapid Preheat, Delay Bake, Convection Convert Luxury-Design®Lighting with Dual 40W Halogen Bulbs Luxury-Glide®Racks Conventional Racks Convection Roasting Rack

Additional Features

Signature Soft-Arc Oven Door and Handle Design Luxury-Hold™Oven Doors Extra-Large Glass Windows Sabbath Mode (Star-K®Certified)

Accessories

Porcelain Broiler Pan and Insert 3"-high Bottom Trim: S – PN # 903114-9110

Specifications

Color –

Stainless Steel Oven Cavity Dimensions –

Height

Width

Depth Product Dimensions –

Height (Including 1" Bottom Trim)

Width

Depth (to Front Door Corner)

(with 90° Door Open) Power Supply Connection Location Connected Load (kW Rating) @ 240 / 208 Volts Amps @ 240 / 208 Volts Minimum Circuit Required (Amps) Armored Electrical Cable Shipping Weight (Approx.)

NOTE: Always consult local and national electric codes. Refer to Product Installation Guide for detailed installation instructions on the web at electroluxappliances.com.

Specifications subject to change.

Double

Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

4.2 Cu. Ft. Yes Yes Yes Yes Yes 3 Yes

Yes 1 2 Yes

Yes Yes Yes Yes

Included Optional

16-1/2" 24-1/8" 18-1/32"

50-7/16" 30" 24-1/2"

45-1/2" Left Bottom Rear

8.3/ 6.3

34.6 / 30.3 40 Included 395 Lbs.

electroluxappliances.com

Double Wall Oven

EI30EW45JS

High standards of quality at Electrolux Home Products, Inc. mean

we are constantly working to improve our products. We reserve the right

to change specifications or discontinue models without notice.

Electrolux Major Appliances, N.A.

USA

•

10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287)

•

electroluxappliances.com

CANADA

•

5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352

•

electroluxappliances.ca

30" Electric Double Wall Oven Specifications

•

Product Weight – 375 Lbs.

•

Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz AC only electrical supply with ground required on separate circuit fused on both sides of line.

•

Connected Load (kW Rating) @ 240 / 208 Volts = 8.3/6.3 kW

•

Amps @ 240/208 Volts = 34.6/ 30.3 Amps

•

Recommended Circuit Breaker – 40 Amps

•

Always consult local and national electric codes.

•

Minimum 21" clearance for oven door depth when open.

•

Suggested distance from floor is 11-1/2". Minimum required distance is 4-1/2".

•

Minimum 23-1/2" deep cutout dimension is critical for proper installation, to ensure that oven’s faceplate will fit flush against cabinet front.

•

To adapt oven to fit cutout height between 49-1/8" and 49-3/4", add one 2"-wide wood shim of appropriate height to each side of opening under oven side rails. Lifting oven will hide larger cutout opening at top and oven’s 1"-high bottom trim will hide shims at bottom.

(Standard 1"-High Bottom Trim included.)

•

To adapt oven to fit cutout height between 49-3/4" and 51-1/2", optional 3"-High Bottom Trim available.

•

Full oven base of solid plywood or similar material required, capable of supporting 375 Lbs.

•

Base must be level and cabinet front must be square.

•

Double Wall Ovens are NOT approved to be used in stackable or side-by-side installation.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at electroluxappliances.com for detailed instructions.

Optional Accessories

•

3"-High Bottom Trim: S – (PN # 903114-9110).

* Critical dimension – MUST be applied **For cutout height between 49

/8" and 49

/4", add one 2"-wide wood shim of appropriate height to each side of opening under oven side rails. Lifting oven will hide larger cutout opening at top and oven’s 1"-high bottom trim will hide shims at bottom.

(Optional 3"-high bottom trim

available for cutout height between 49

/4" and 51

/2". )

3" max.

Electrical junction box location

4" x 4" opening to route armored cable

301/8"

min.

/2"

min.

/2"

suggested

distance

/2"

min.

required

/8"

min.

/8"

max.

Full base required to support 375 lbs.

2"-wide wood spacers (if needed)**

/2"min.

29"max.

231/2"min.*

(critical

dimension)

2" min.

485/8"

/4"

Spacers

241/2"

Power supply location (left bottom rear)

507/16"

(includes

1"bottom

trim)

115/16"

30"

Allow at least 21" clearance for door depth

when open
