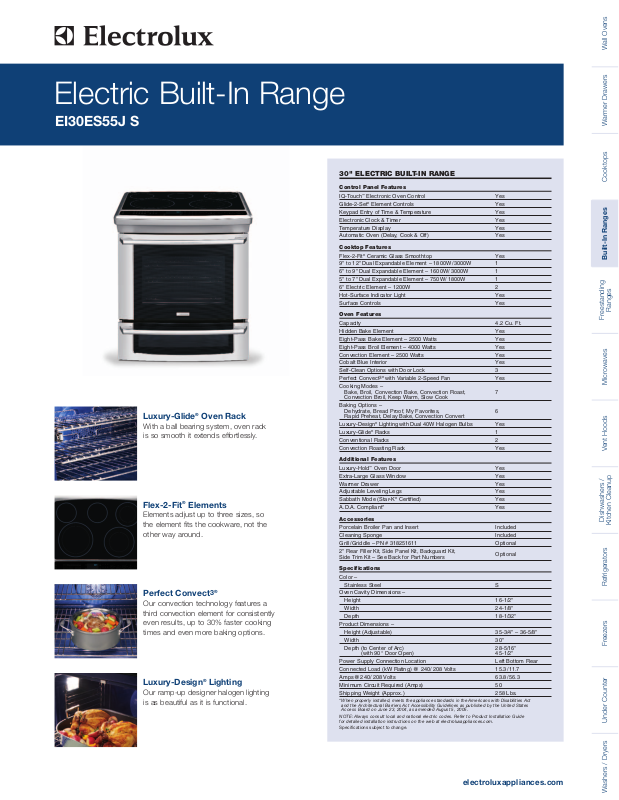

Electrolux EI30ES55JS User Manual
Luxury-Glide®Oven Rack
With a ball bearing system, oven rack
is so smooth it extends effortlessly.
Flex-2-Fit®Elements
Elements adjust up to three sizes, so
the element fits the cookware, not the
other way around.
Perfect Convect
3
®
Our convection technology features a
third convection element for consistently
even results, up to 30% faster cooking
times and even more baking options.
Luxury-Design®Lighting
Our ramp-up designer halogen lighting
is as beautiful as it is functional.
Electric Built-In Range
EI30ES55J S
electroluxappliances.com
Wall OvensRefrigerators Warmer DrawersCooktops
Built-In Ranges
Freestanding
Ranges
MicrowavesVent HoodsFreezersUnder CounterWashers / Dryers
Dishwashers /
Kitchen Cleanup
30" ELECTRIC BUILT-IN RANGE
Control Panel Features
IQ-Touch™Electronic Oven Control
Glide-2-Set®Element Controls
Keypad Entry of Time & Temperature
Electronic Clock & Timer
Temperature Display
Automatic Oven (Delay, Cook & Off)
Cooktop Features
Flex-2-Fit®Ceramic Glass Smoothtop
9" to 12" Dual Expandable Element – 1800W/ 3000W
6" to 9" Dual Expandable Element – 1600W/ 3000W
5" to 7" Dual Expandable Element – 750W/ 1800W
6" Electric Element – 1200W
Hot-Surface Indicator Light
Surface Controls
Oven Features
Capacity
Hidden Bake Element
Eight-Pass Bake Element – 2500 Watts
Eight-Pass Broil Element – 4000 Watts
Convection Element – 2500 Watts
Cobalt Blue Interior
Self-Clean Options with Door Lock
Perfect Convect
3
®
with Variable 2-Speed Fan
Cooking Modes –
Bake, Broil, Convection Bake, Convection Roast,
Convection Broil, Keep Warm, Slow Cook
Baking Options –
Dehydrate, Bread Proof, My Favorites,
Rapid Preheat, Delay Bake, Convection Convert
Luxury-Design®Lighting with Dual 40W Halogen Bulbs
Luxury-Glide®Racks
Conventional Racks
Convection Roasting Rack
Additional Features
Luxury-Hold™Oven Door
Extra-Large Glass Window
Warmer Drawer
Adjustable Leveling Legs
Sabbath Mode (Star-K®Certified)
A.D.A. Compliant*
Accessories
Porcelain Broiler Pan and Insert
Cleaning Sponge
Grill/ Griddle – PN# 318251611
2" Rear Filler Kit,Side Panel Kit, Backguard Kit,
Side TrimKit – See Back for Part Numbers
Specifications
Color –
Stainless Steel
Oven Cavity Dimensions –
Height
Width
Depth
Product Dimensions –
Height (Adjustable)
Width
Depth (to Center of Arc)
(with 90° Door Open)
Power Supply Connection Location
Connected Load (kW Rating) @ 240/ 208 Volts
Amps@ 240/208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
*When properly installed, meets the appliance standards in the Americans with Disabilities Act
and the Architectural Barriers Act Accessibility Guidelines as published by the United States
Access Board on June 23, 2004, as amended August 5, 2005.
NOTE: Always consult local and national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
Yes
Yes
Yes
Yes
Yes
Yes
Yes
1
1
1
2
Yes
Yes
4.2 Cu. Ft.
Yes
Yes
Yes
Yes
Yes
3
Yes
7
6
Yes
1
2
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Included
Included
Optional
Optional
S
16-1/2"
24-1/8"
18-1/32"
35-3/4" – 36-5/8"
30"
28-5/16"
45-1/2"
Left Bottom Rear
15.3/ 11.7
63.8/ 56.3
50
258 Lbs.
Electric Built-In Range
EI30ES55J S
30" Electric Built-In Range Specifications
•
Product Weight – 238 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz,
fused on both sides of line with ground. (If local code permits, range may
be connected by hard-wiring or by means of power supply cord kit.)
•
Connected Load (kW Rating) @ 240/208 Volts = 15.3/ 11.7 kW
•
Amps @ 240/208 Volts = 63.8/ 56.3 Amps
•
Recommended Circuit Breaker – 50 Amps
•
Always consult local and national electric codes.
•
Countertop MUST be level in all directions and adjustable range
height at least 1/16" greater than tallest cabinet height, to ensure metal
rangetop flange will fit properly on countertop edge.
•
When installing optional Backguard Kit, cutout depth of 21-3/4"
minimum / 22-1/8" maximum needs increased to 24".
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum width
of appliance.
•
Allow 24" minimum clearance between rangetop and bottom of cabinet
when bottom of wood or metal cabinet is protected by not less than 1/4"
flame-retardant millboard covered with not less than No. 28 MGS sheet
steel, 0.015" stainless steel, 0.024" aluminum or 0.020" copper. Allow
30" minimum clearance when cabinet is unprotected.
•
To reduce risk of fire when using overhead cabinetry, install range hood
that projects horizontally a recommended minimum of 5" beyond bottom
of cabinets.
•
When installing range into existing cutout depth greater than 22-1/8",
optional 2" Rear Filler Kit available.
Countertop Preparation
For detailed preparation instructions, refer to installation guide on the web.
•
Flat square-finish (flat) countertop requires no preparation since rangetop
flange lays directly on countertop edge.
•
Formed front-edged countertops require front molded edge to be shaved
flat 3/4" from each front corner of opening.
•
Tile countertops may need cut back 3/4" from each front corner of
opening and/or rounded edge flattened.
•
For existing cutout width greater than 30-1/16" reduce the 3/4" overlap
dimension or for cutout width of 29", replace actual side trim panels with
smaller side trim panels, available with optional Side Trim Kit (refer to
detailed kit installation instructions).
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
•
Grill/Griddle – (PN# 318251611).
•
2" Rear Filler Kit: S – (PN# 903113-901S).
•
Side Panel Kit: S – (PN# 903102-901S).
•
Backguard Kit: S – (PN# 903111-901S).
•
Side Trim Kit: S – (PN# 903110-901S).
Electrolux Major Appliances, N.A.
USA
•
10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287)
•
electroluxappliances.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxappliances.ca
EI30ES55J 05/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
