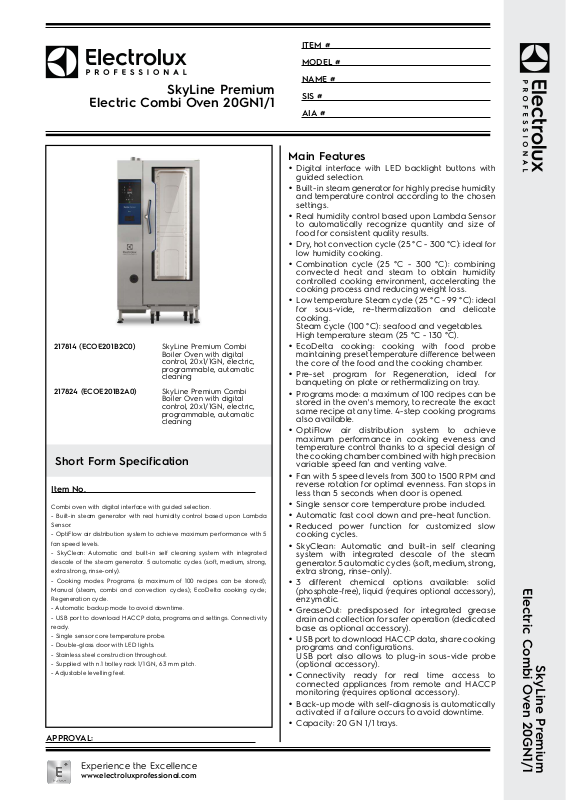

Electrolux ECOE201B2C0, ECOE201B2A0 Datasheet

SkyLine Premium

Electric Combi Oven 20GN1/1

217814 (ECOE201B2C0)SkyLine Premium Combi

217824 (ECOE201B2A0)SkyLine Premium Combi

Short Form Specification

Item No.

Combi oven with digital interface with guided selection.

- Built-in steam generator with real humidity control based upon Lambda
Sensor.

- OptiFlow air distribution system to achieve maximum performance with 5
fan speed levels.

- SkyClean: Automatic and built-in self cleaning system with integr ated
descale of the steam generator. 5 automatic cycles (soft, medium, strong,
extra str ong, rinse-only).

- Cooking modes: Programs (a maximum of 100 recipes can be stored);
Manual (steam, combi and convection cycles); EcoDelta cooking cycle;
Regeneration cycle.

- Automatic backup mode to avoid downtime.

- USB port to download HACCP data, programs and settings. Connectivity
ready.

- Single sensor core temperature probe.

- Double-glass door with LED lights.

- Stainless steel construction throughout.

- Supplied with n.1 trolley rack 1/1 GN, 63 mm pitch.

- Adjustable levelling feet.

APPROV AL:

Boiler Oven with digital
control, 20x1/1GN, electric,
programmable, automatic
cleaning

Boiler Oven with digital
control, 20x1/1GN, electric,
programmable, automatic
cleaning

ITEM #

MODEL #

NAME #

SIS #

AIA #

Main Features

•Digital interface with LED backlight buttons with

guided selection.

•Built-in steam generator for highly precise humidity

and temperature control according to the chosen
settings.

•Real humidity control based upon Lambda Sensor

to automatically recognize quantity and size of
food for consistent quality results.

•Dry, hot convection cycle (25 °C - 300 °C): ideal for

low humidity cooking.

•Combination cycle (25 °C - 300 °C): combining

convected heat and steam to obtain humidity
controlled cooking environment, accelerating the
cooking process and reducing weight loss.

•Low temperature Steam cycle (25 °C - 99 °C): ideal

for sous-vide, re-thermalization and delicate
cooking.
Steam cycle (100 °C): seafood and vegetables.
High temperature steam (25 °C - 130 °C).

•EcoDelta cooking: cooking with food probe

maintaining preset temperature difference between
the core of the food and the cooking chamber .

•Pre-set program for Regeneration, ideal for

banqueting on plate or rethermalizing on tray.

•Programs mode: a maximum of 100 recipes can be

stored in the oven's memory, to recreate the exact
same recipe at any time. 4-step cooking programs
also available.

•OptiFlow air distribution system to achieve

maximum performance in cooking eveness and
temperature control thanks to a special design of
the cooking chamber combined with high precision
variable speed fan and venting valve.

•Fan with 5 speed levels from 300 to 1500 RPM and

reverse rotation for optimal evenness. Fan stops in
less than 5 seconds when door is opened.

•Single sensor core temperature probe included.

•Automatic fast cool down and pre-heat function.

•Reduced power function for customized slow

cooking cycles.

•SkyClean: Automatic and built-in self cleaning

system with integrated descale of the steam
generator . 5 automatic cycles (soft, medium, strong,
extra strong, rinse-only).

•3 different chemical options available: solid

(phosphate-free), liquid (requires optional accessory),
enzymatic.

•GreaseOut: predisposed for integrated grease

drain and collection for safer operation (dedicated
base as optional accessory).

•USB port to download HACCP data, share cooking

programs and configurations.
USB port also allows to plug-in sous-vide probe
(optional accessory).

•Connectivity ready for real time access to

connected appliances from remote and HACCP
monitoring (requires optional accessory).

•Back-up mode with self-diagnosis is automatically

activated if a failure occurs to avoid downtime.

•Capacity: 20 GN 1/1 trays.

Electric Combi Oven 20GN1/1

SkyLine Premium

Experience the Excellence

www.electroluxprofessional.com

Electric Combi Oven 20GN1/1

SkyLine Premium

•Connectivity ready for real time access to connected

appliances from remote and data monitoring (requires
optional accessory – contact the Company for more details).

Construction

•Human centered design with 4-star certification for

ergonomics and usability.

•Wing-shaped handle with ergonomic design and hands-free

opening with the elbow, making managing trays simpler
(Registered Design at EPO).

•Double thermo-glazed door with open frame construction,

for cool outside door panel. Swing hinged easy-release inner
glass on door for easy cleaning.

•Seamless hygienic internal chamber with all rounded corners

for easy cleaning.

•304 AISI stainless steel construction throughout.

•Front access to control board for easy service.

•IPX 5 spray water protection certification for easy cleaning.

•Supplied with n.1 tray rack 1/1GN, 63 mm pitch.

•Integrated door shield to avoid steam and heat dispersion

from the door, when the roll-in rack is not used.

Included Accessories

•1 of Trolley with tray rack, 20 GN 1/1,

63mm pitch (included)

PNC 922753

Optional Accessories

•Water softener with cartridge and flow

meter (high steam usage)

•Water softener with salt for ovens with

automatic regeneration of resin

•Resin sanitizer for water softener

(921305)

•Pair of AISI 304 stainless steel grids,

GN 1/1

•Pair of grids for whole chicken (8 per

grid - 1,2kg each), GN 1/1

•AISI 304 stainless steel grid, GN 1/1PNC 922062❑

•Grid for whole chicken (4 per grid -

1,2kg each), GN 1/2

•External side spray unit (needs to be

mounted outside and includes support
to be mounted on the oven)

•Baking tray for 5 baguettes in

perforated aluminum with silicon
coating, 400x600x38mm

•Baking tray with 4 edges in perforated

aluminum, 400x600x20mm

•Baking tray with 4 edges in aluminum,

400x600x20mm

•Pair of frying basketsPNC 922239❑

•AISI 304 stainless steel bakery/pastry

grid 400x600mm

•Grid for whole chicken (8 per grid -

1,2kg each), GN 1/1

•Grease collection tray , GN 1/1, H=100

mm

•Kit universal skewer rack and 4 long

skewers for Lenghtwise ovens

•Universal skewer rackPNC 922326❑

•4 long skewersPNC 922327❑

•Volcano Smoker for lengthwise and

crosswise oven

PNC 920003❑
PNC 921305❑
PNC 921306❑
PNC 922017❑
PNC 922036❑

PNC 922086❑
PNC 922171❑

PNC 922189❑

PNC 922190❑
PNC 922191❑

PNC 922264❑
PNC 922266❑
PNC 922321❑
PNC 922324❑

PNC 922338❑

•Water nanofilter for 10 GN 2/1 & 20 GN

1/1 & 2/1 ovens

•External reverse osmosis filter for ovens

10 GN 2/1 & 20 GN 1/1 & 2/1 ovens

•Multipurpose hookPNC 922348❑

•Grid for whole duck (8 per grid - 1,8kg

each), GN 1/1

•Thermal cover for 20 GN 1/1 oven and

blast chiller freezer

•Wall mounted detergent tank holderPNC 922386❑

•USB single point probePNC 922390❑

•External connection kit for liquid

detergent and rinse aid

•Dehydration tray, GN 1/1, H=20mmPNC 922651❑

•Flat dehydration tray, GN 1/1PNC 922652❑

•Heat shield for 20 GN 1/1 ovenPNC 922659❑

•Trolley with tray rack, 15 GN 1/1, 84mm

pitch

•Kit to fix oven to the wallPNC 922687❑

•Connectivity WiFi board (NIU-HACL)

for SkyLine/Magistar and Rapido

•Ethernet board (NIU-LAN) for Ovens

and green&clean Rack Type
Dishwashers

•4 flanged feet for 20 GN , 2",

100-130mm

•Mesh grilling grid, GN 1/1PNC 922713❑

•Probe holder for liquidsPNC 922714❑

•Odour reduction hood with fan for 20

GN 1/1 electric oven

•Condensation hood with fan for 20 GN

1/1 electric oven

•Exhaust hood with fan for 20 GN 1/1

oven

•Exhaust hood without fan for 20 1/1GN

oven

•Holder for trolley handle (when trolley is

in the oven) for 20 GN oven

•Tray for traditional static cooking,

H=100mm

•Double-face griddle, one side ribbed

and one side smooth, 400x600mm

•Trolley with tray rack, 20 GN 1/1, 63mm

pitch (included)

•Trolley with tray rack, 16 GN 1/1, 80mm

pitch

•Banquet trolley with rack holding 54

plates for 20 GN 1/1 oven and blast
chiller freezer, 74mm pitch

•Bakery/pastry trolley with rack holding

600x400mm grids for 20 GN 1/1 oven
and blast chiller freezer, 80mm pitch (16
runners)

•Banquet trolley with rack holding 45

plates for 20 GN 1/1 oven and blast
chiller freezer, 90mm pitch

•Kit compatibility for aos/easyline trolley

(produced till 2019) with SkyLine/
Magistar 20 GN 1/1 combi oven

•Kit compatibility for aos/easyline 20 GN

oven with SkyLine/Magistar trolleys

•Water inlet pressure reducerPNC 922773❑

•Extension for condensation tube, 37cmPNC 922776❑

PNC 922344❑
PNC 922345❑

PNC 922362❑
PNC 922365❑

PNC 922618❑

PNC 922683❑

PNC 922695❑
PNC 922696❑

PNC 922707❑

PNC 922720❑
PNC 922725❑
PNC 922730❑
PNC 922735❑
PNC 9227 43❑
PNC 9227 46❑
PNC 9227 47❑
PNC 922753❑
PNC 922754❑
PNC 922756❑

PNC 922761❑

PNC 922763❑

PNC 922769❑

PNC 922771❑

Electric Combi Oven 20GN1/1

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

SkyLine Premium

2021.08.20
