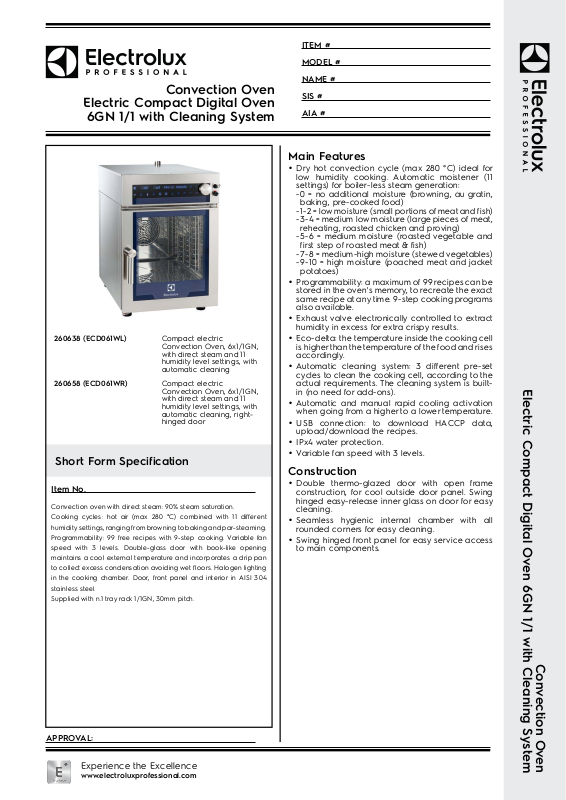

Electrolux ECD061WL, ECD061WR Datasheet

Convection Oven

Electric Compact Digital Oven

6GN 1/1 with Cleaning System

260638 (ECD061WL)Compact electric

260658 (ECD061WR)Compact electric

Short Form Specification

Item No.

Convection oven with direct steam: 90% steam saturation.
Cooking cycles: hot air (max 280 °C) combined with 11 different
humidity settings, ranging from browning to baking and par-steaming.
Programmability: 99 free recipes with 9-step cooking. Variable fan
speed with 3 levels. Double-glass door with book-like opening
maintains a cool external temperature and incorporates a drip pan
to collect e xcess condensation avoiding wet floors. Halogen lighting
in the cooking chamber. Door, front panel and interior in AISI 304
stainless steel.
Supplied with n.1 tray rack 1/1GN, 30mm pitch.

Convection Oven, 6x1/1GN,
with direct steam and 11
humidity level settings, with
automatic cleaning

Convection Oven, 6x1/1GN,
with direct steam and 11
humidity level settings, with
automatic cleaning, right­hinged door

ITEM #

MODEL #

NAME #

SIS #

AIA #

Main Features

•Dry hot convection cycle (max 280 °C) ideal for

low humidity cooking. Automatic moistener (11
settings) for boiler-less steam generation:

-0 = no additional moisture (browning, au gratin,
baking, pre-cooked food)

-1-2 = low moisture (small portions of meat and fish)

-3-4 = medium low moisture (large pieces of meat,
reheating, roasted chicken and proving)

-5-6 = medium moisture (roasted vegetable and
first step of roasted meat & fish)

-7-8 = medium-high moisture (stewed vegetables)

-9-10 = high moisture (poached meat and jacket
potatoes)

•Programmability: a maximum of 99 recipes can be

stored in the oven's memory, to recreate the exact
same recipe at any time. 9-step cooking programs
also available.

•Exhaust valve electronically controlled to extract

humidity in excess for extra crispy results.

•Eco-delta: the temperature inside the cooking cell

is higher than the temperature of the food and rises
accordingly.

•Automatic cleaning system: 3 different pre-set

cycles to clean the cooking cell, according to the
actual requirements. The cleaning system is built­in (no need for add-ons).

•Automatic and manual rapid cooling activation

when going from a higher to a lower temperature.

•USB connection: to download HACCP data,

upload/download the recipes.

•IPx4 water protection.

•Variable fan speed with 3 levels.

Construction

•Double thermo-glazed door with open frame

construction, for cool outside door panel. Swing
hinged easy-release inner glass on door for easy
cleaning.

•Seamless hygienic internal chamber with all

rounded corners for easy cleaning.

•Swing hinged front panel for easy service access

to main components.

Electric Compact Digital Oven 6GN 1/1 with Cleaning System

APPROV AL:

Convection Oven

Experience the Excellence

www.electroluxprofessional.com

Optional Accessories

•Pair of AISI 304 stainless steel grids,

GN 1/1

•Grid for whole chicken (4 per grid -

1,2kg each), GN 1/2

•Pair of frying basketsPNC 922239❑

•Grid for whole chicken (8 per grid -

1,2kg each), GN 1/1

•Base support for stacked compact

ovens

•Open base for compact 6x1/1GN

oven

•Tray support for compact 6x1/1GN

oven - open base

•Stacking kit for compact 6x1/1GN

oven

•External spray unit for compact

6x1/1GN oven

•1-sensor core probe for compact

6x1/1GN oven

•Right-hinged door for compact

6x1/1GN oven (only for 260638)

•Double-step door for opening

compact 6x1/1GN oven

•Kit to front air filter for compact

6x1/1GN oven

•Non-stick universal pan, GN 1/1,

H=20mm

•Non-stick universal pan, GN 1/ 1,

H=40mm

•Non-stick universal pan, GN 1/1,

H=60mm

•Double-face griddle, one side

ribbed and one side smooth, GN 1/1

•Aluminum grill, GN 1/1PNC 925004❑

•Frying pan for 8 eggs, pancakes,

hamburgers, GN 1/1

•Flat baking tray with 2 edges, GN 1/1PNC 925006❑

•Baking tray for 4 baguettes, GN 1/1PNC 925007❑

•Non-stick universal pan, GN 1/2,

H=20mm

•Non-stick universal pan, GN 1/2,

H=40mm

•Non-stick universal pan, GN 1/2,

H=60mm

PNC 922017❑
PNC 922086❑

PNC 922266❑
PNC 922368❑
PNC 922369❑
PNC 922370❑
PNC 922371❑
PNC 922372❑
PNC 922373❑
PNC 92237 4❑
PNC 922377❑
PNC 922379❑
PNC 925000❑
PNC 925001❑
PNC 925002❑
PNC 925003❑

PNC 925005❑

PNC 925009❑
PNC 925010❑
PNC 925011❑

Convection Oven

Electric Compact Digital Oven 6GN

1/1 with Cleaning System

Electric Compact Digital Oven 6GN 1/1 with Cleaning System

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

Convection Oven

2021.06.15
