ETE4607, ETE5407,
EBE4507, EBE5307,
EBE5367, EHE5267,
EFE4227, ERE5047,
EBE5007,EBE4302,
EBE5002
EN
Refrigeration
User manual
Page 2
CONGRATULATIONS
2 electrolux.com.au
Dear customer,
Congratulations and thank you for choosing our
refrigerator. We are sure you will find your new
refrigerator a pleasure to use. Before you use the
refrigerator we recommend that you read through the
relevant sections of this manual, which provides a
description of your refrigerator and its functions.
To avoid the risks that are always present when you use
an electric appliance, it is important that the refrigerator
is installed correctly and that you read the safety
instructions carefully to avoid misuse and hazards.
We recommend that you keep this instruction booklet
for future reference and pass it on to any future owners.
After unpacking the refrigerator, please check it is not
damaged. If in doubt, do not use the refrigerator but
contact your local customer care centre.
The symbols you will see in this booklet have these
meanings:
WARNING
This symbol indicates information concerning your
personal safety.
CAUTION
This symbol indicates information on how to avoid
damaging the refrigerator.
IMPORTANT
This symbol indicates tips and information about use
of the refrigerator.
ENVIRONMENT
This symbol indicates tips and information about
economical and ecological use of the refrigerator.
CONDITIONS OF USE
This refrigerator is designed and intended to be used in
normal domestic applications only.
Record model and serial number here:
Model number: ....................................................................
CONTENTS
Important safety instructions ......................................................3
Refrigerator features ......................................................................4
Top mount refrigerator features ....................................4
Bottom mount refrigerator features ..............................5
Ice & Water ...........................................................................7
French door ice & water features .................................8
Single door features ............................................................9
Installing your new refrigerator ...............................................11
Unpacking your refrigerator ..........................................11
Locating your refrigerator. ..............................................11
Installing your refrigerator................................................11
Fitting the handles ...............................................................12
Ice & Water models ......................................................................12
Installation ..............................................................................13
Changing the water filter .................................................15
Using your refrigerator ................................................................16
Removing Features ............................................................16
AHC (Auto humidity control)...........................................16
Freezer Shelves ....................................................................16
Drawers with telescopic slides ......................................16
Twist & Serve ice .................................................................17
LED Lighting ..........................................................................17
Controlling..........................................................................................18
About the User Interface .................................................18
Functions of the user interface ......................................19
The freezer user interface ..............................................21
Error Codes ...........................................................................22
General information .....................................................................23
Cleaning the refrigerator ................................................23
Food storage guide ..........................................................24
Troubleshooting ...................................................................25
Ice maker troubleshooting .............................................27
Noises ......................................................................................28
Warranty Information ...................................................................29
Serial number: .....................................................................
Page 3
NOTE: You must read these warnings carefully before
IMPORTANT SAFETY INSTRUCTIONS
3
installing or using the refrigerator. If you need
assistance, contact your customer care centre. The
manufacturer will not accept liability, should these
instructions or any other safety instructions
incorporated in this book be ignored.
WARNING
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should
be supervised to ensure that they do not play with
the appliance.
• I t is essential the power point is properly earthed to
ground. Consult a qualified electrician if you
are unsure.
• Do not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
• Unplug the refrigerator before cleaning or moving it
to avoid electric shock.
• Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
• I f the power cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
• Don’t use a steam cleaner. If live components come
into contact with condensing steam, they may shortcircuit or cause an electric shock.
• Do not store explosive substances
such as aerosol cans with a flammable
propellant in this appliance. If
pressurised aerosol containers bear
the word ‘flammable’ and/or a small
flame symbol, do not store them inside
any refrigerator or freezer. If you do so
you may cause an explosion.
• Do not damage the refrigerant circuit.
• This appliance contains insulation formed with
flammable blowing gases. Avoid safety hazards by
carefully disposing of this appliance.
• I f you wish to discard this refrigerator, please contact
your local authorities and ask for the correct method
of disposal.
• When you dispose of your old refrigerators and
freezers, remove any doors. Children can suffocate if
they get trapped inside.
• The plug must be accessible when the appliance is in
position.
• Never try to repair the refrigerator yourself, only use
a qualified or authorised service person for repairs.
• When positioning the appliance, ensure the supply
cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
WARNING
R600a refrigerant warning
This appliance contains flammable
R600a refrigerant. Avoid safety
hazards by carefully installing,
handling, servicing and disposing of
this appliance.
• Ensure that the tubing of the refrigerant circuit is not
damaged during transportation and installation.
• Leaking refrigerant may cause eye injuries or ignite.
• The room for installing appliance must be at least
1m3 per 8g of refrigerant. The amount of refrigerant
in the appliance can be found on the rating plate
inside the appliance.
• If you are unsure of the refrigerant check the rating
plate inside the refrigerator compartment.
• It is hazardous for anyone other than an Authorised
Service Person to service this appliance. In
Queensland Australia the Authorisation Service
Person MUST hold a Gas Work Authorisation for
hydrocarbon refrigerants to carry out servicing or
repairs which involve the removal of covers.
• Keep ventilation openings in the appliance
enclosure or in the built-in structure, clear of
obstruction.
• Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
Important Information that may impact your
Manufacturer's Warranty
Adherence to the directions for use in this manual
is extremely important for health and safety. Failure
to strictly adhere to the requirements in this manual
may result in personal injury, property damage and
affect your ability to make a claim under the
Electrolux manufacturer’s warranty provided with
your product. Products must be used, installed and
operated in accordance with this manual. You may
not be able to claim on the Electrolux
manufacturer’s warranty in the event that your
product fault is due to failure to adhere to this
manual.
Page 4
REFRIGERATOR FEATURES
4 electrolux.com.au

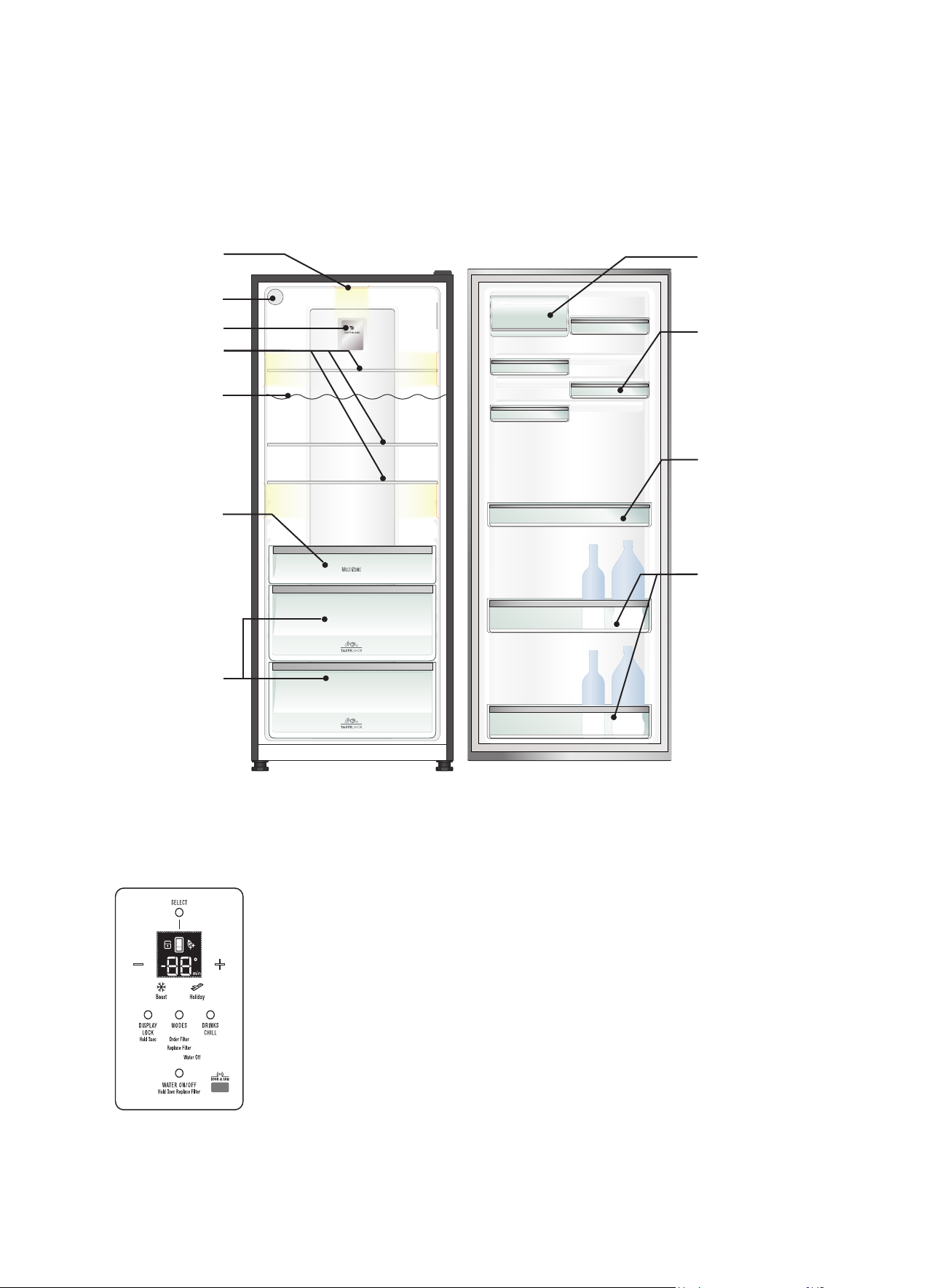

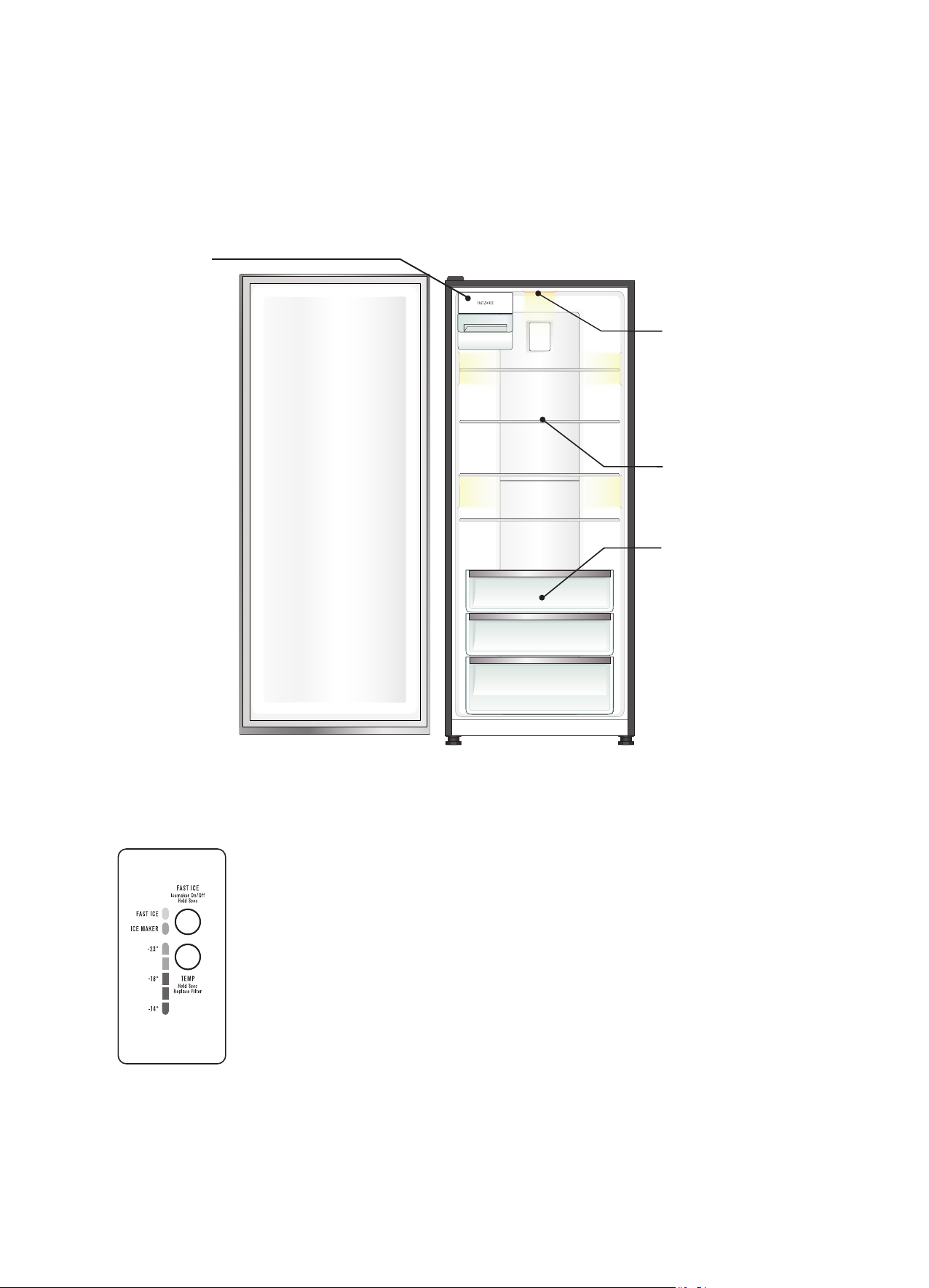

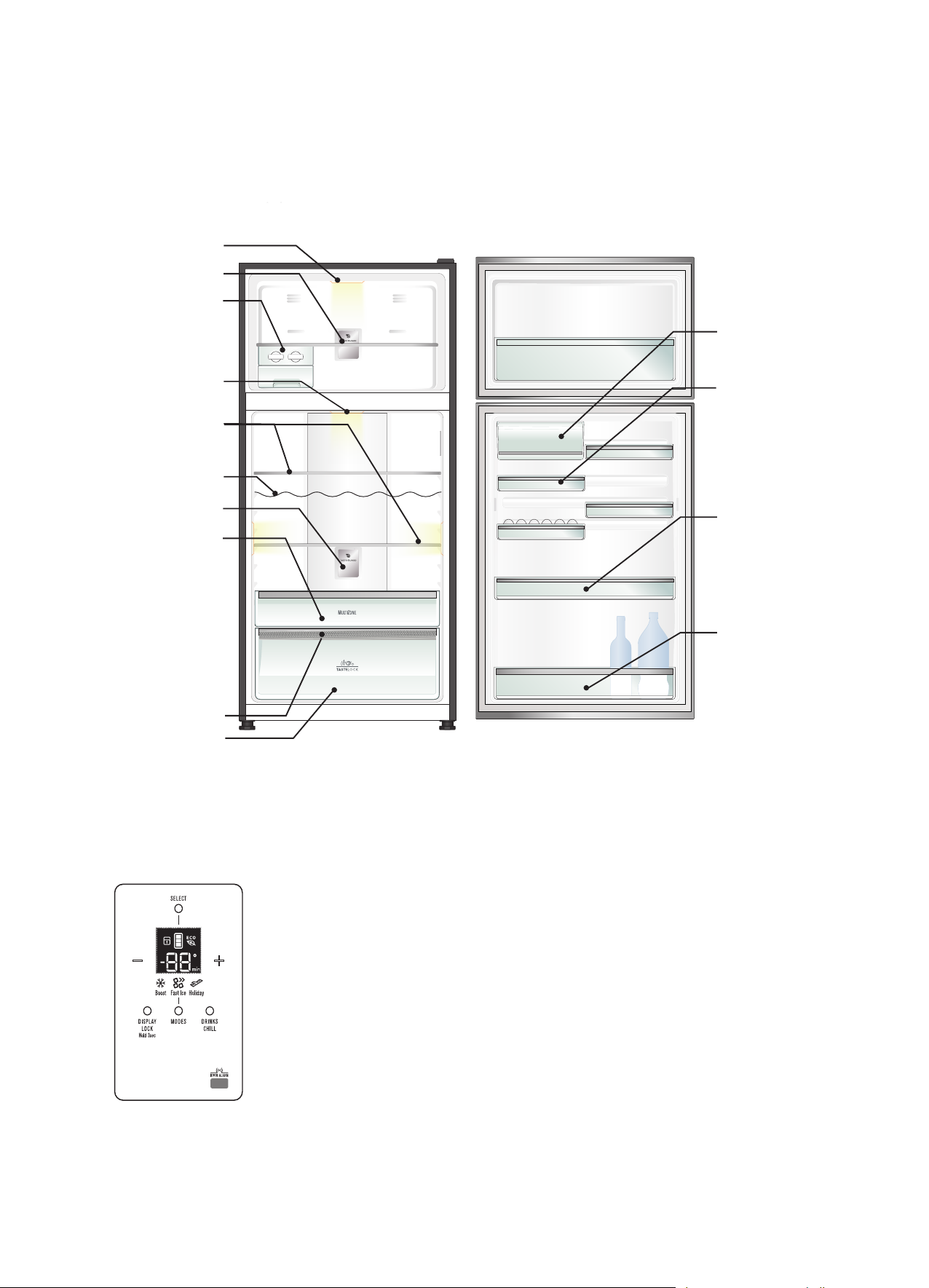

TOP MOUNT
LED light
TasteGuard Deodoriser
Twist & Serve Ice
Refer to the section
“Using your Refrigerator”
for details on removing,
relocating and using this
feature.
LED lighting
Your refrigerator is fitted
with LED lighting.
Glass shelves
The glass shelves
improve visibility.
Wire shelf
Dairy compartment
This
compartment can be
used to store dairy.
FlexStor™ door bins
Slide the bins to meet
different storage needs.
To remove, lift and tilt.
To replace, tilt the top
and push down until
locked in place.
TasteGuard Deodoriser
MultiZone™ deli drawer
Use the MultiZone™ deli
drawer to store foods like
small goods, fresh or
cooked meat and cheese,
or as an additional
crisper. The drawer will
prevent strong food
odours from impacting the
rest of the refrigerator. To
remove the deli drawer,
pull it forward, then lift it
up and pull it further
forward.
Auto humidity control
TasteLock™ crisper
Use the crisper to store
vegetables, fruit or small
goods.
ETE5407 illustrated
Door storage bin
The door bin can be
removed by lifting it up
over the support lugs.
To replace, push down
over the support lugs to
lock in place.
Bottle storage bin
Use the bottle bin for tall
bottle storage. The bottle
bin can be removed by
lifting it up over the
support lugs. To replace,
push down over the
support lugs to lock in
place.
Refrigerator/freezer control panel
From this panel you can control the temperature of the
refrigerator and freezer compartments as well as setting
the Boost function or resetting the door alarm.
For further information on how to use this feature refer to
the section “About the User Interface”.
Features may vary depending on model. Not all models will have features listed.
Page 5

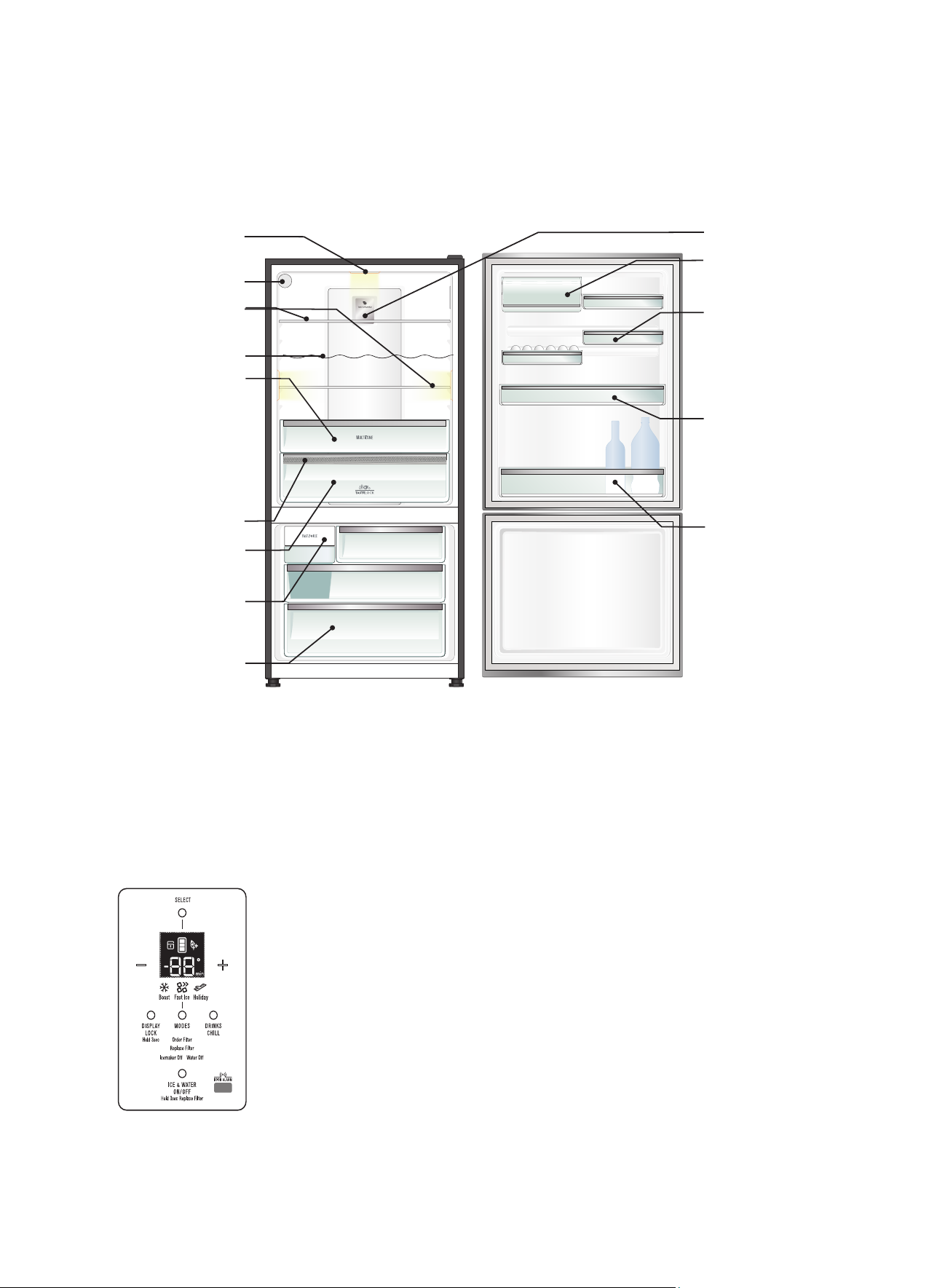

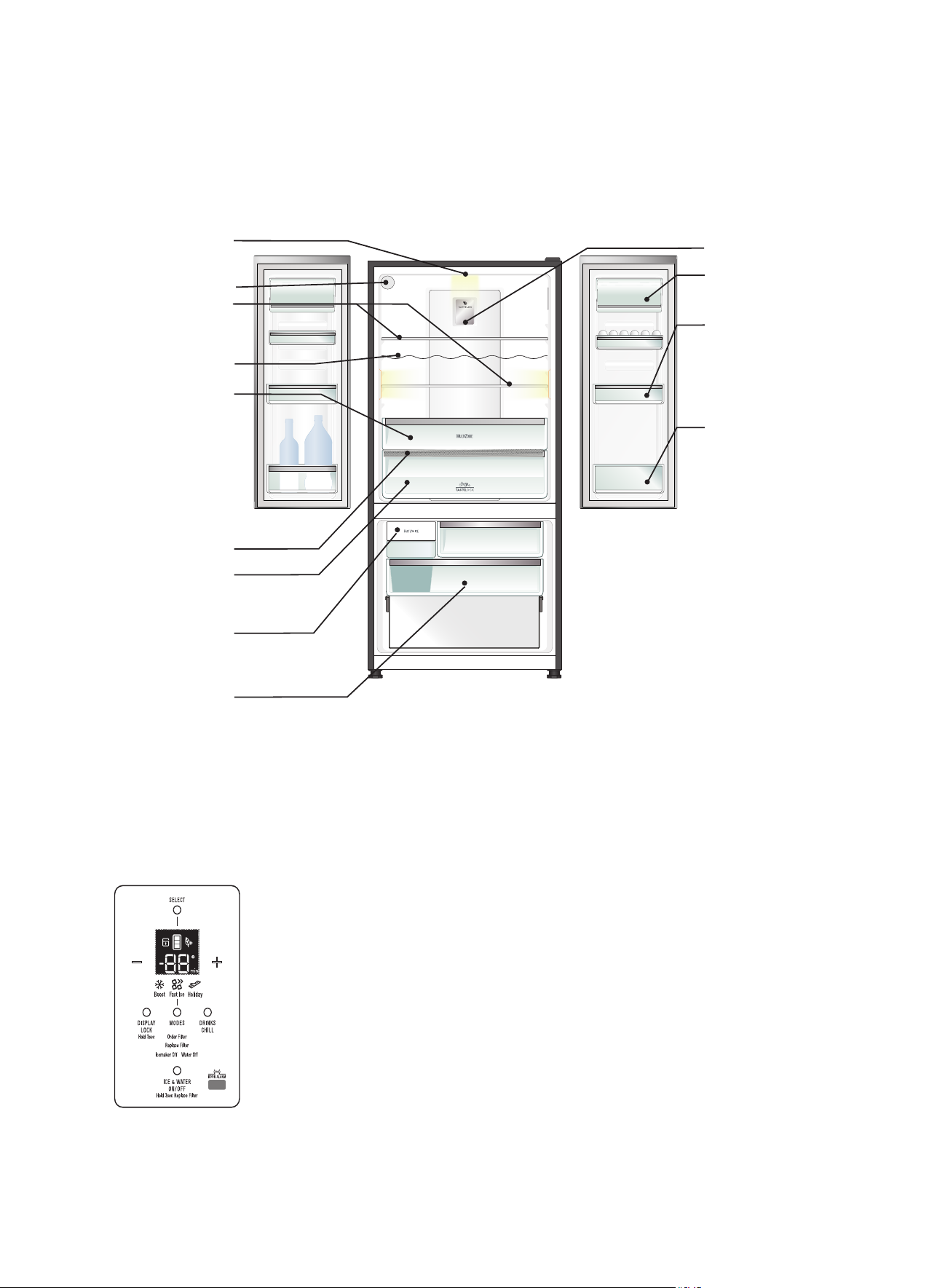

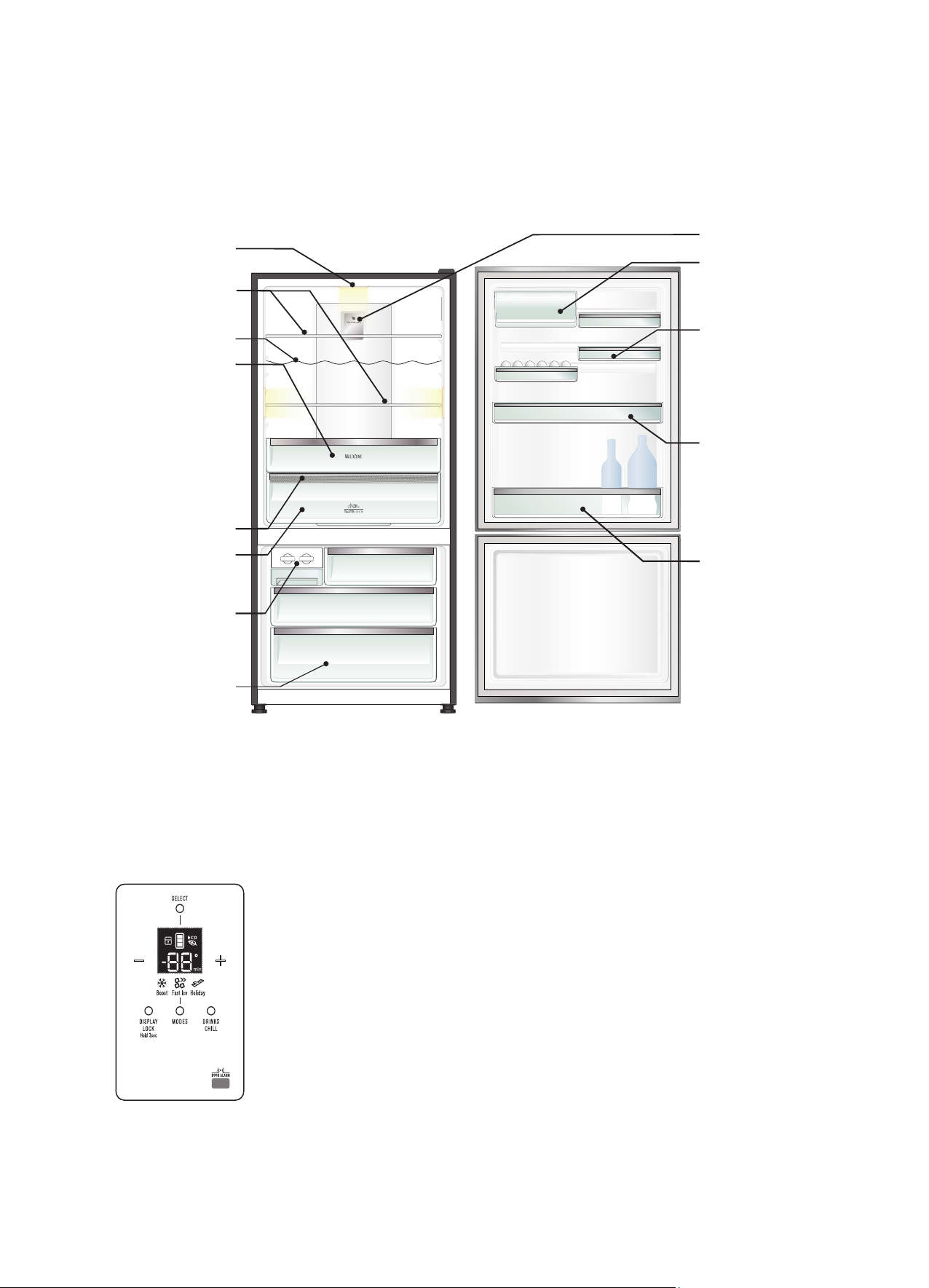

BOTTOM MOUNT
5
Your refrigerator is fitted with
LED lighting
LED lighting.
Glass shelves
The glass shelves improve
visibility.
Wire shelf
MultiZone™ deli drawer
Use the deli drawer to store
foods like small goods, fresh
or cooked meat and cheese,
or as an additional crisper.
The drawer will prevent
strong food odours from
impacting the rest of the
refrigerator. To remove the
deli drawer, pull it forward,
then lift it up and pull it
further forward.
Auto humidity control
TasteLock™ crisper
Use the crisper to store
vegetables, fruit or small
goods.
Twist & Serve ice
Refer to the section “Using
your Refrigerator” for
details on removing and
using this feature.
Freezer storage bin
Refer to the section “Using
your Refrigerator” for
details on removing, and
using this feature.
EBE5307 illustrated
TasteGuard Deodoriser
Dairy compartment
This compartment can be
used to store dairy.
FlexStor™ door bins
Slide the bins to meet
different storage needs.
To remove, lift and tilt.
To replace, tilt
and push down until
locked in place.
Door storage bin
The door bin can be
removed by lifting it up
over the support lugs.
To replace, push down
over the support lugs to
lock in place.
Bottle storage bin
Use the bottle bin for tall
bottle storage. The bottle
bin can be removed by
lifting it up over the
support lugs. To replace,
push down over the
support lugs to lock in
place.
the top
Refrigerator/freezer control panel
From this panel you can control the temperature of the
refrigerator and freezer compartments as well as setting
the Boost function or resetting the door alarm.
For further information on how to use this feature refer to
the section “About the User Interface”.
Features may vary depending on model. Not all models will have features listed.
Page 6
6 electrolux.com.au
REFRIGERATOR FEATURES
Your refrigerator is fitted with
LED lighting
LED lighting.
Glass shelves
The glass shelves improve
visibility.
MultiZone™ deli drawer
Use the deli drawer to store
foods like small goods, fresh
or cooked meat and cheese,
or as an additional crisper.
The drawer will prevent
strong food odours from
impacting the rest of the
refrigerator. To remove the
deli drawer, pull it forward,
then lift it up and pull it
further forward.
Auto humidity control
TasteLock™ crisper
Use the crisper to store
vegetables, fruit or small
goods.
Twist & Serve ice
Refer to the section “Using
your Refrigerator” for
details on removing and
using this feature.
Freezer storage bin
Refer to the section “Using
your Refrigerator” for
details on removing, and
using this feature.
TasteGuard Deodoriser
Dairy compartment
This compartment can be
used to store dairy.
FlexStor™ door bins
Slide the bins to meet
different storage needs.
To remove, lift and tilt.
To replace, tilt the top
and push down until
locked in place.
Door storage bin
The door bin can be
removed by lifting it up
over the support lugs.
To replace, push down
over the support lugs to
lock in place.
Bottle storage bin
Use the bottle bin for tall
bottle storage. The bottle
bin can be removed by
lifting it up over the
support lugs. To replace,
push down over the
support lugs to lock in
place.
EBE4302,EBE5002,EBE5007 illustrated
Refrigerator/freezer control panel
From this panel you can control the temperature of the
refrigerator and freezer compartments as well as setting
the Boost function or resetting the door alarm.
For further information on how to use this feature refer to
the section “About the User Interface”.
Features may vary depending on model. Not all models will have features listed.
Page 7
ICE & WATER
7
Your refrigerator is fitted
LED lighting
with LED lighting.
Replaceable water filter
Glass shelves
The glass shelves improve
visibility.
Wire shelf
MultiZone™ deli drawer
Use the deli drawer to store
foods like small goods, fresh or
cooked meat and cheese, or
as an additional crisper. The
drawer will prevent strong
food odours from impacting
the rest of the refrigerator. To
remove the deli drawer, pull it
forward, then lift it up and pull
it further forward.
Auto humidity control
TasteLock™ crisper
Use the crisper to store
vegetables, fruit or small goods.
Automatic ice maker
Refer to the section “Using
your Refrigerator” for details
on using this feature.
TasteGuard Deodoriser
Dairy compartment
This compartment can be
used to store dairy.
lexStor™ door bins
F
Slide the bins to meet
different storage needs.
To remove, lift and tilt.
To replace, tilt the top
and push down until
locked in place.
Door storage bin
The door bin can be
removed by lifting it up
over the support lugs.
To replace, push
down over the support
lugs to lock in place.
Bottle storage bin
Use the bottle bin for tall
bottle storage. The bottle
bin can be removed by
lifting it up over the
support lugs. To replace,
push down over the
support lugs to lock in
place.
Freezer storage bin
Refer to the section “Using
your Refrigerator” for details
on removing, and using this
feature.
EBE5367 illustrated
Refrigerator/freezer control panel
From this panel you can control the temperature of the
refrigerator and freezer compartments as well as setting
the Boost function controlling the Ice Maker or resetting
the door alarm.
For further information on how to use this feature refer to
the section “About the User Interface”.
Features may vary depending on model. Not all models will have features listed.
Page 8
8 electrolux.com.au
REFRIGERATOR FE
ATURES
FRENCH DOOR ICE & WATER
Your refrigerator is fitted
Replaceable water filter
The glass shelves improve
MultiZone™ deli drawer
Use the deli drawer to store
foods like small goods, fresh
or cooked meat and cheese,
or as an additional crisper.
The drawer will prevent
strong food odours from
impacting the rest of the
refrigerator. To remove the
deli drawer, pull it forward,
then lift it up and pull it further
LED lighting
with LED lighting.
Glass shelves
visibility.
Wire shelf
forward.
TasteGuard Deodoriser
Dairy compartments
These compartments can
be used to store dairy.
FlexStor™ door bins
Slide the bins to meet
different storage needs.
To remove, lift and tilt.
To replace, tilt the top
and push down until
locked in place.
Bottle storage bin
Use the bottle bin for tall
bottle storage. The bottle
bin can be removed by
lifting it up over the
support lugs. To replace,
push down over the
support lugs to lock in
place.
Auto humidity control
TasteLock™ crisper
Use the crisper to store
vegetables, fruit or small
goods.
Automatic ice maker
Refer to the section “Using
your Refrigerator” for details
on using this feature.
Freezer storage bin
Refer to the section “Using
your Refrigerator” for details
on removing, and using this
feature.
EHE5267S illustrated
Refrigerator/freezer control panel
From this panel you can control the temperature of the
refrigerator and freezer compartments as well as setting
the Boost function controlling the Ice Maker or resetting
the door alarm.
For further information on how to use this feature refer to
the section “About the User Interface”.
Features may vary depending on model. Not all models will have features listed.
Page 9
SINGLE DOOR
9
Your refrigerator is fitted
LED lighting
with LED lighting.
Replaceable water filter
TasteGuard Deodoriser
Glass shelves
The glass shelves improve
visibility.
Wire shelf
MultiZone™ Deli drawer
Use the deli drawer to
store foods like small
goods, fresh or cooked
meat and cheese, or as an
additional crisper. The
drawer will prevent strong
food odours from
impacting the rest of the
refrigerator. To remove the
deli drawer, pull it forward,
then lift it up and pull it
further forward.
FreshZone™ crispers
Use the crisper to store
vegetables, fruit or small
goods.
Dairy compartment
This compartment can be
used to store dairy.
FlexStore™ door bins
Slide the bins to meet
different storage needs. To
remove, lift and tilt. To
replace, tilt the top and
push down until locked in
place.
Door storage bin
The door bin can be
removed by lifting it up
over the support lugs.
To replace, push down
over the support lugs to
lock in place.
Bottle storage bins
Use the bottle bin for tall
bottle storage. The bottle
bin can be removed by
lifting it up over the
support lugs. To replace,
push down over the
support lugs to lock in
place.
Refrigerator control panel
From this panel you can control the temperature of the
refrigerator compartments as well as setting the Boost
function or resetting the door alarm.
For further information on how to use this feature refer to
the section “About the User Interface”.
Features may vary depending on model. Not all models will have features listed.
ERE5047 illustrated
Page 10
10 electrolux.com.au
FREEZER FEATURES
SINGLE DOOR
Automatic ice maker
Refer to the section
“Using your
Refrigerator” for details
on using this feature.
LED lighting
Your freezer is fitted with
LED lighting.
Glass shelves
The glass shelves improve visibility.
EFE4227 illustrated
Freezer control panel
From this panel you can control the temperature of the
freezer as well as setting the fast ice function or reset the
door alarm.
urther information on how to use this feature refer to
For f
the section “About the User Interface”.
Storage bins
Refer to the section “Using your
Refrigerator” for details on
removing, and using this feature.
Features may vary depending on model. Not all models will have features listed.
Page 11
ENVIRONMENTAL TIPS
INSTALLING YOUR NEW APPLIANCE
11
UNPACKING
ENVIRONMENT
Most of the packing materials are recyclable. Please
dispose of those materials through your local recycling
depot or by placing them in appropriate collection
containers.
Important – check for any damages or marks. If you find
the refrigerator is damaged or marked, you must report
it within 7 days should you wish to claim for damage/
marks under the manufacturers warranty. This does not
affect your statutory rights.
Clean your refrigerator thoroughly following the
instructions in the “Cleaning” section and wipe off any
dust that has accumulated during shipping.
LOCATING THE REFRIGERATOR
CAUTION
Automatic aerosol systems (such as insect control)
should not be located adjacent to the product as the
spray may cause long term damage to the external
surfaces of the appliance.

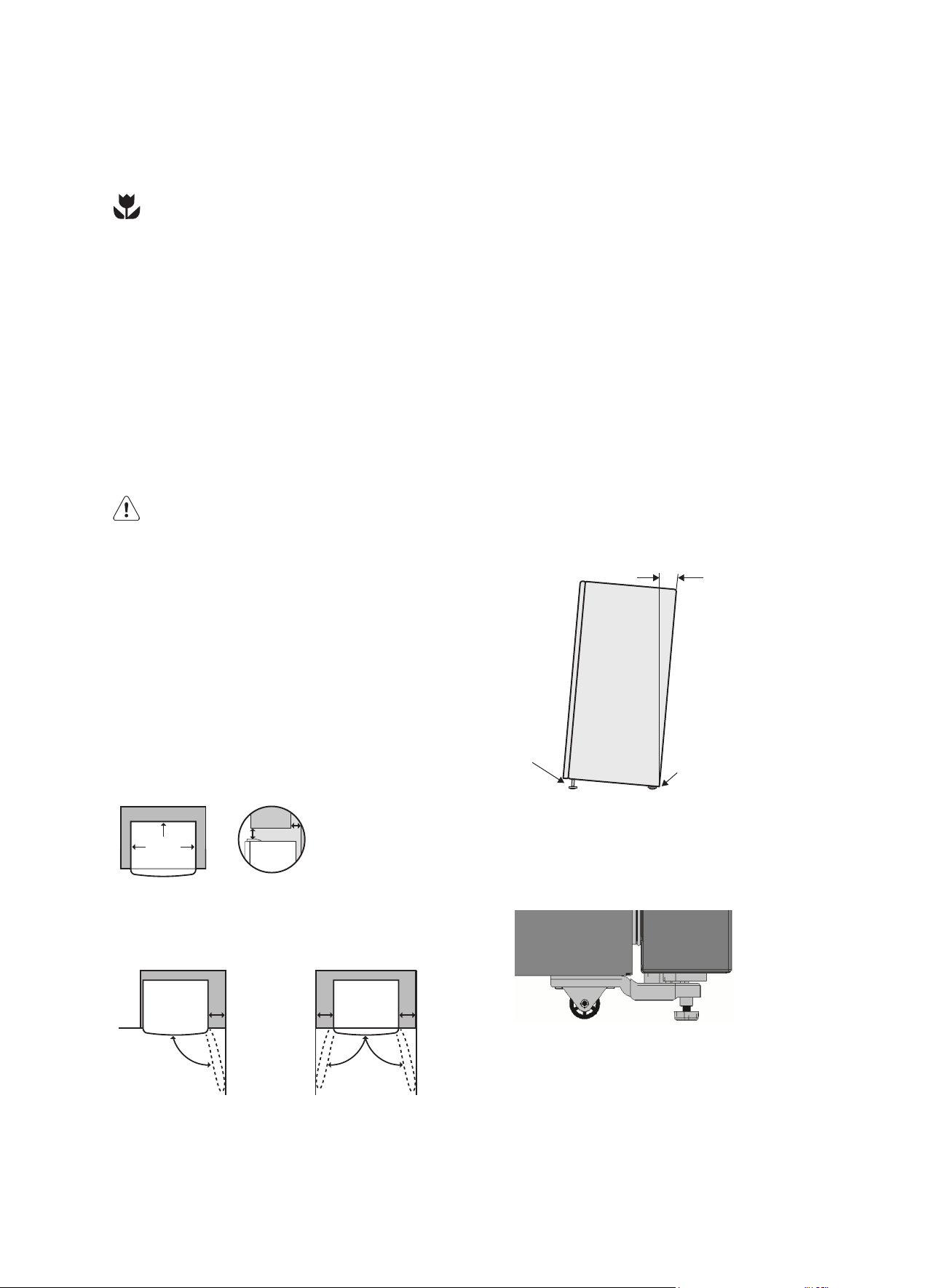

When positioned in a corner area, spacing of at least
350mm (300mm for EHE5267 model) on the hinge side
will allow the doors to open enough to enable the
removal of bins and shelves.
NOTE: Doors are designed to sit proud of cabinetry (not
flush). The clearances shown above are the
recommended minimum clearances.
The clearance at the rear must not exceed 75mm.
INSTALLING YOUR REFRIGERATOR
1. Roll the refrigerator into place.
The rollers are designed for forward or backward
movement only. They are not castors. Moving the
refrigerator sideways may damage your floor and
the rollers. Before moving your refrigerator ensure
height adjusting nut and the stability foot are fully
wound up off the floor.
2. Stabili
ty foot adjusting nut under door hinge down
until the refrigerator is tilted back by 10mm
(see diagram).
10 - 15mm
Do not put the refrigerator in a location that is too cold
or is unprotected, for example in a garage or on a
veranda. The ambient temperature should be above
10°C.
Put the refrigerator in a dry place avoiding areas of
high moisture or humidity.
Ensure the refrigerator is located on an even surface.
Adequate ventilation around your refrigerator
The diagram below shows the recommended airspace
to allow for ventilation of your refrigerator.
50mm
Y
Recommended
30mm
airspace
CABINET
DOOR
30mm
X
If you have a cupboard above the refrigerator with a rear
gap of less than 100 mm (Y), recommended clearance at the
top of the refrigerator increases from 30mm to 70mm (X)
minimum.
350mm
300mm
300mm
Height adjusting nut
Fixed rear rollers
3. Stability
foot adjusting nut on the handle side down
until the refrigerator is level and stable. If you have
difficulty winding the nut or height adjusting foot down
(recommend 20 mm wrench) , have someone tilt the
refrigerator back so you have better access.
stability foot
wound up
ETB4607,ETE5407
EHE5267
EBE4507,EBE5307
EBE5367,EFE4227
ERE5047,EBE5007
EBE4302,EBE5002
Page 12
12 electrolux.com.au
4. Check the alignment of the refrigerator to the
surrounding cupboards to see if it is level. You can
adjust the level as detailed in step 2 and 3.
aligned to
cupboards
ie even gap.
top of refrigerator is
level ie horizontal.
adjust front feet for
uneveness of floor
eg. wind this foot
down or up.
5. I f you find your refrigerator rocks from corner to
corner, it means your floor is uneven. Find a piece
of plastic or hardboard etc. and pack it firmly
under the roller.
6. You may now need to fine-tune the installation by
repeating steps 3, 4 and 5.
7. When you have the appliance in its final position,
it needs to be stabilised. Wind the stability foot
under the door hinge down to the floor until it just
makes contact with the floor. Lift the front of the
appliance to take the weight off the stability foot,
then turn it half a turn further to ensure firm
contact with the floor. Stability foot adjusting nut
back up to ensure all the weight is now on the
front stability foot.
8. Repeat step 7 for the stability foot on the handle
side. Whenever you need to move the appliance,
be sure to wind the feet back up so that the
appliance can roll freely and be sure to reset it
when reinstalling.
Front view
ICE AND WATER MODELS
WARNING
Connect to potable water supply only, if using tank or
bore water in a model with an internal filter it is
recommended to also use an external filter
(not supplied).
The new hose sets supplied with the appliances must be
used and old hose sets should not
be reused.
Never connect the appliance to a hot water supply.
WATER FILTER
Do not use with water that is microbiologically unsafe or
with water of unknown quality without adequate
disinfection. The service life of the filter may be reduced
in water supplies that contain an excess of particles or
other impurities. Reduced flow rate is an indication that
a new filter is required. Failure to replace the filter when
required can affect the function of the ice maker. Service
calls caused by a failure to replace the filter are not
covered by warranty. Replacement water filters
are available from Electrolux Home Products Spare Parts
Centres and can be posted to you for your convenience
(refer to spare parts contact numbers on the warranty
page).

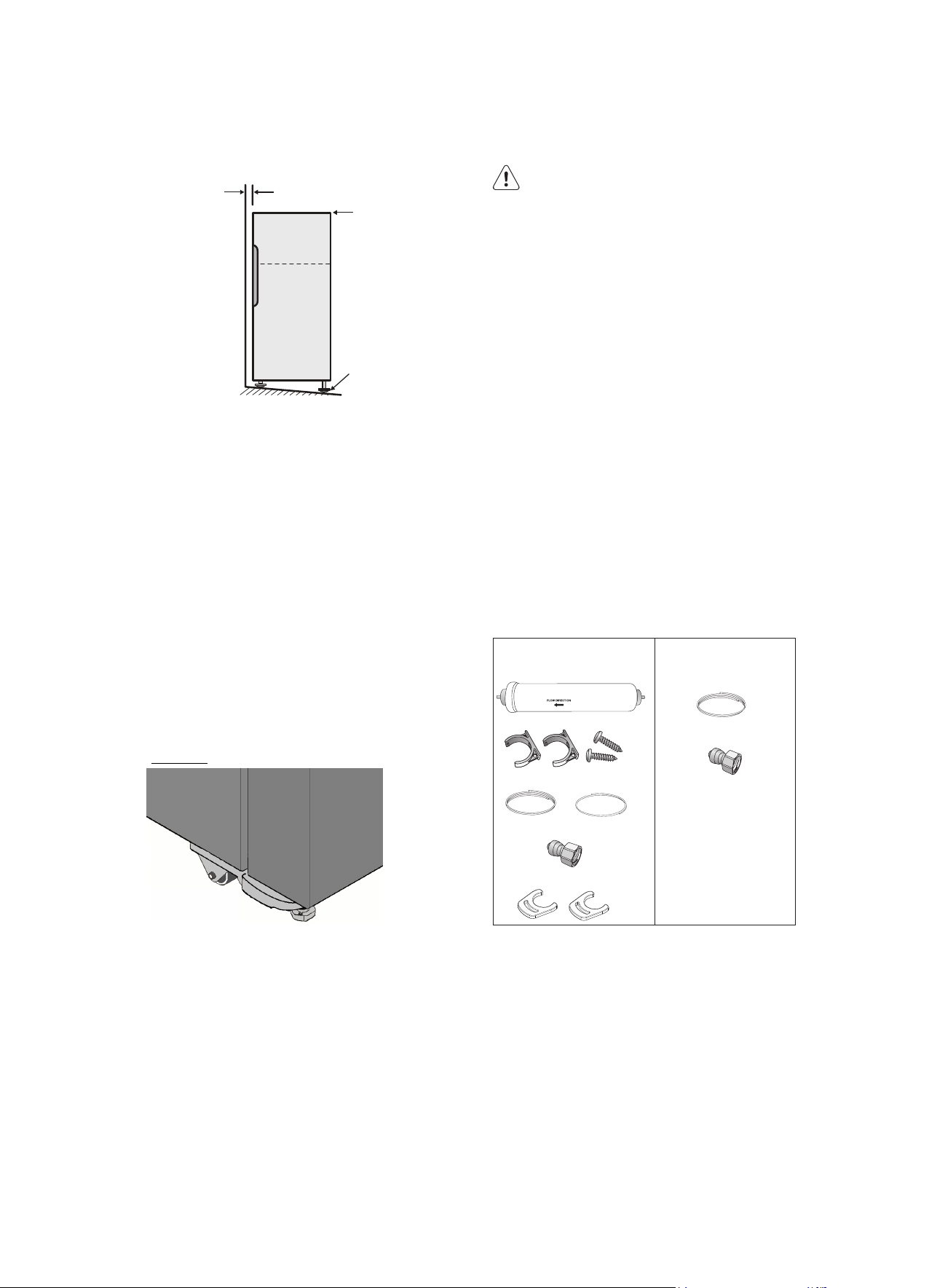

Contents of installation kits
Filter Kit for single door freezer
1 x water filter with push fit connections
DATE FITTED___/___/___
2 x mounting brackets and screws
4 + 1 metres of water tubing
Installation Kit
Bottom mount &
single door all refrigerator)
4 metres of water tubing
1 x 1/2” tap fitting
stability foot
wound down
9. Plug your refrigerator straight into its own power
point and never use a double adapter. If you
need to roll the refrigerator to get to the plug,
remember to raise the stability foot first.
10. Before you put any food in your refrigerator, it’s
recommended you leave it on for 2 or 3 hours to
check it is running properly.
FITTING THE HANDLES
For models with ‘Pole’ handles, the handles are
supplied prepackaged with your refrigerator and will
require fitting.
Refer to the instructions provided in the pack.
Congratulations! You have successfully installed your
new refrigerator.
1 x 1/2” tap fitting
2 x circlips
Water supply and plumbing
A drinkable water supply to suit a 1/2” tap fitting is
required adjacent to the refrigerator. It is
recommended that a licensed plumber install a new
water supply outlet nearer to the appliance should the
tubing supplied not be long enough. It is not
recommended that the tubing be extended as this
could adversely affect the flow of water to the ice
maker or water dispenser. If there is a risk of flow rate
higher than the maximum flow rate 2.46 L/min, a flow
controller should be installed.
The water dispenser and automatic ice maker require
a drinkable water supply with a pressure range of
between 206kPa and 689kPa (30PSI and 100PSI).
If the water supply is above 100psi a pressure limiting
valve should be installed.
Page 13
13
It is recommended that a noise reduction valve also
be fitted in the water supply line. This will reduce water
hammer and its effects from quick action household
taps and fast acting valves on appliances.
The refrigerator water valve is pre-fitted with a push-fit
connector for inserting the water tube. When the tap
connection is other than 1/2”, adapters can be
purchased from plumbing supply stores or good
hardware stores.
INSTALLATION
Please read before beginning installation.
The appliance complies with the relevant backflow
prevention requirements specified in AS/NZS 2845.1.
The water connection to your ice and water product
can be self installed. However, it is recommended that
you seek advice from a licensed plumber before
commencing the installation.
IMPORTANT
Check for water leaks at all water connection points in
the first 2 to 3 hours after installation, and correct it in
case of any water leak. Recheck after 24 hours; if a leak
still occurs, it is recommended to contact a licensed
plumber for advice.

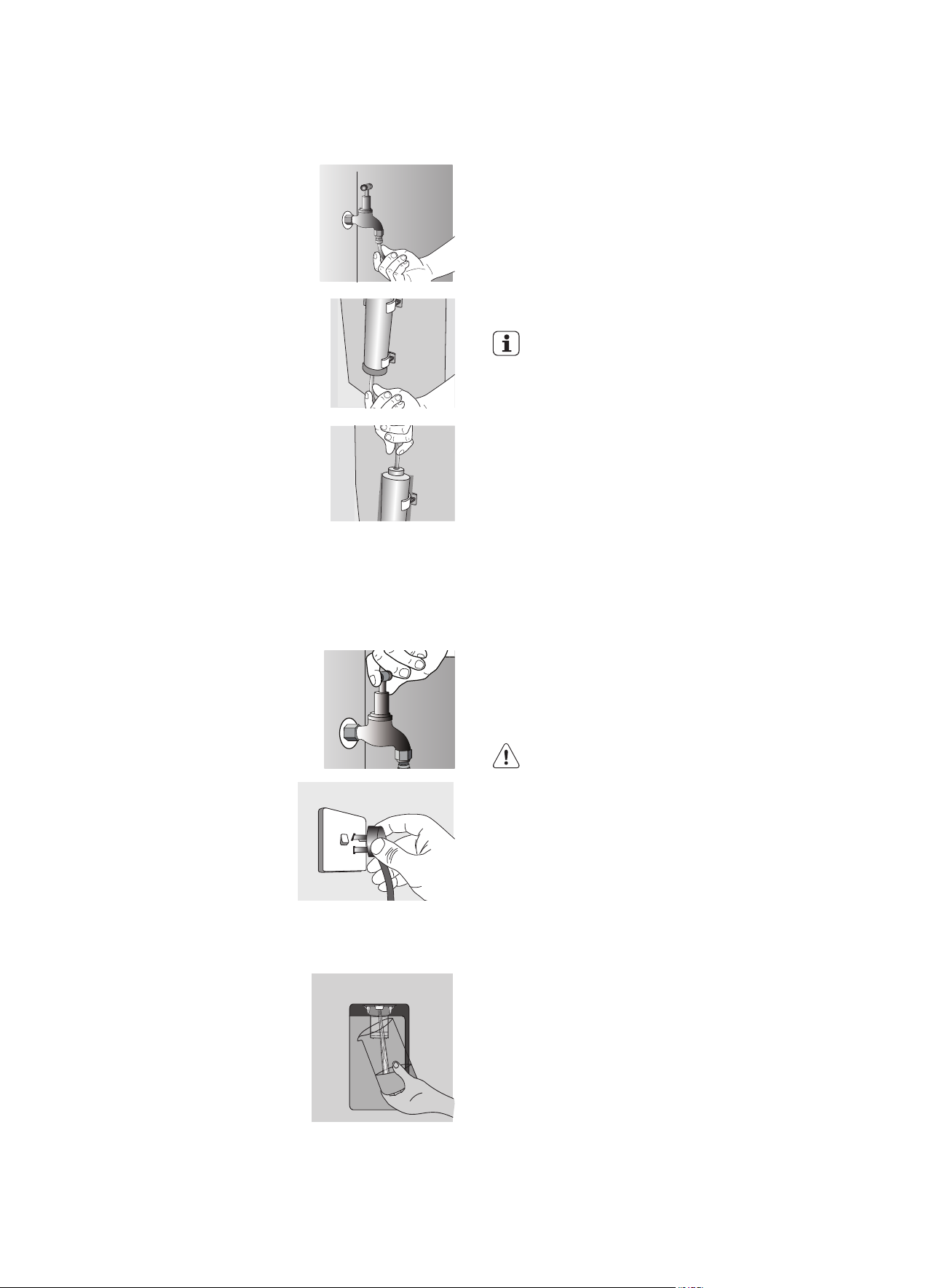

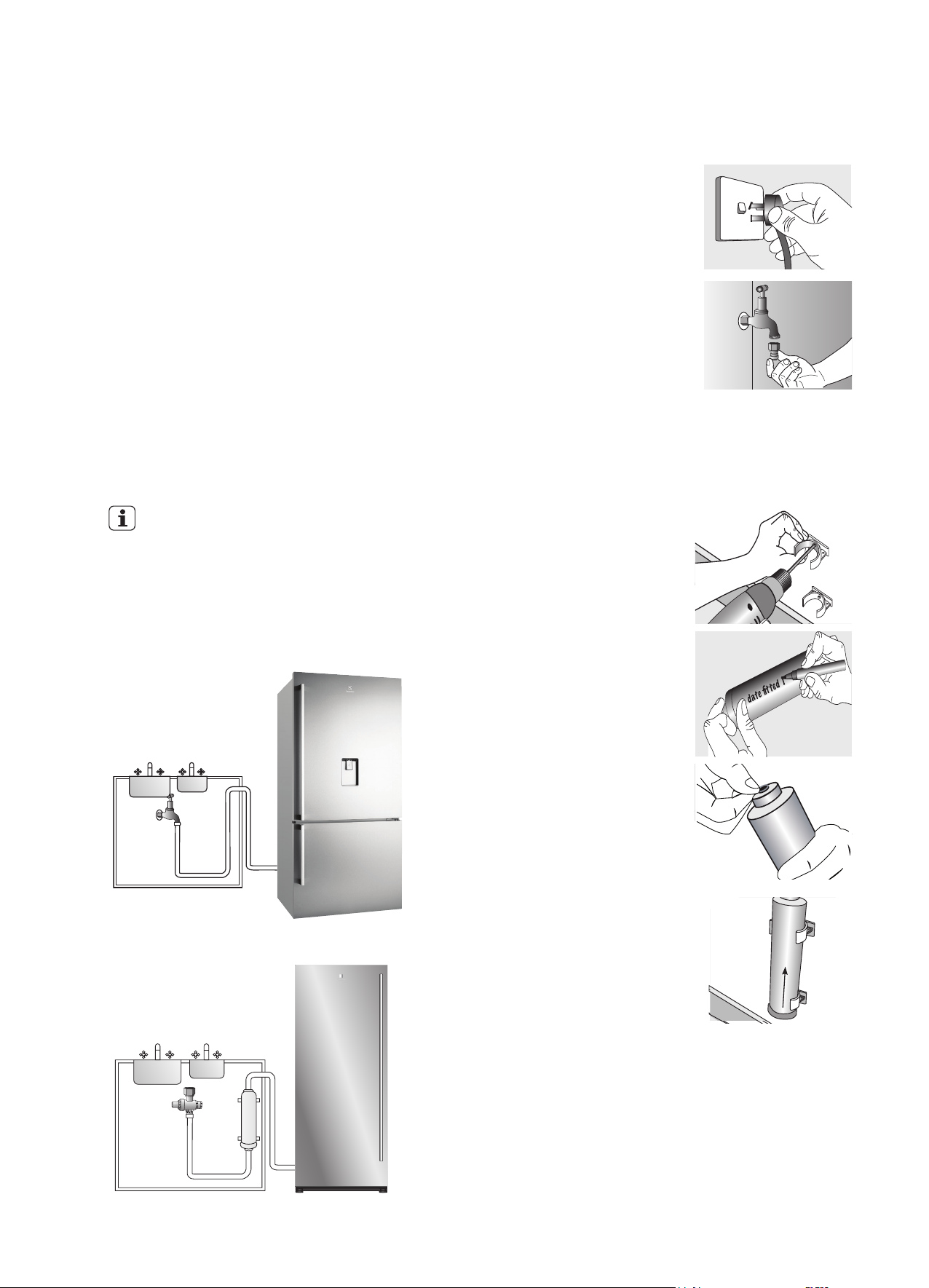

Water is to be connected as per diagrams below.
Internal Filter
Step 1.
Ensure that the refrigerator is
disconnected from
power supply.
Step 2.
Connect tap fitting to water
supply tap. Tap must be close
to the refrigerator.
Step 3.
Push the tube into tap fitting past insertion mark.
(NOTE: step 4 to step 10 relate to models with
an external filter only).
Step 4.
Install brackets for filter close
to tap. Plan to leave as much
tubing as possible behind the
refrigerator to enable it to be
moved easily for cleaning
or service.
Do not screw the brackets
into the refrigerator as this
may void your warranty
and permanently damage
the refrigerator.
Single door freezer with external filter
sink
mains
water inlet
brackets
filter
Step 5.
Write date on fi
lter. The filter
will need to be replaced
every 6 months.
Step 6.
Extend the collar and clip a
circlip around the collar at
both ends of the filter.
Step 7.
Fit the filter to brackets with
water flow arrow pointing
up.
water
flow
direction
kitchen
cupboard
Page 14
14 electrolux.com.au
ICE AND WATER MODELS (CONTINUED)
Step 8.
Push shorter tube into tap
fitting past insertion mark.
Step 9.
Push other end into filter INLET.
Step 10.
Connect remaining tube length
into filter OUTLET. Water filter
contains carbon dust which
is non-toxic. Using a large
container, turn on water and
purge the residual carbon dust
from filter until water runs
clear.
Step 11.
Connect other end of
remaining tube length to inlet
on bottom right hand side of
refrigerator.
Step 12.
Turn on water and check all
joints and tubes for leaks.
be black in colour. This is residual carbon dust from the
filter and is non-toxic. If the water is slow to shut off or
the dispenser is dripping, air may still be in the lines.
Either purge more water through the system to remove
this air or allow some time for the air to be removed over
subsequent dispensing. For normal use, water dispenser
will automatically shut off after 2 minutes of continuous
operation.
IMPORTANT
As the water cut off is not instant, leave the glass under
the dispenser briefly until the water has stopped flowing
to avoid spills.
Clean and empty the dispenser drip tray regularly to
avoid overflow.
Flushing system about 2 minutes after period of nonuse exceeding 30 days
Step 15.
Switch ON Ice Maker. (except model ERE504
Refer to Controlling section
Once the refrigerator has been running for at least 24
hours remove the ice bin and dispose of the first few
batches of ice to ensure that impurities have been flushed
from the system.
Party Ice (except model EFE4227)
When the Ice Bin is removed from the cabinet the
Auto Ice Maker will continue to dispense ice into the top
freezer drawer.
7.)
Step 13.
Reconnect the power.
Step 14.
Switch On Water Dispenser (except model EFE4227.)
Using a large container, run the water dispenser to clear
air from lines. This may take a few minutes. Purge and
dispense a minimum of 2 litres of water. Initial water may
CAUTION
Water dispenser should not be used for extended
periods of time. After 2 minutes of continuous use the
water dispenser will automatically shut off.
Page 15
15
CHANGING THE WATER FILTER
IMPORTANT
• Always fit the filter as per
manufacturer’s instructions.
• If you need to replace water tube, only use
approved water quality piping that meets the
pressure requirements.
• Make sure your refrigerator is level to avoid
uneven ice cubes.
• Replace filter at suggested intervals to avoid
water/ice reduction and irregularities in taste.
• Remove and clean ice bin once a month,
discarding unused ice cubes. This will ensure fresh,
clean ice and smooth operation of your ice maker.
• Clean and empty the dispenser drip tray regularly
to avoid overflow.
WARNING
• Use the appliance with water filter supplied by
Electrolux Home Products Pty Ltd or its authorized
service agent only.
• For correct operation of this appliance it is
essential to observe the manufacturer’s instructions
6. Press a drinking glass against the water dispenser
while checking for any leaks at the filter housing. Any
spurts and sputters that occur as the system purges
air out of the dispenser system are normal.
7. After filling one glass of water, continue flushing t he
system for about four minutes.
8. Turn on the ice maker. (Diagram 5).
9. When the filter has been replaced press and hold
the ‘Ice and Water’ button for three seconds to
reset the filter replace timer.
DDiiaaggrraamm 1
DDiiaaggrraamm 2
NOTE: A backflow prevention device compliant to
AS/NZS 2845.1 for low hazard situations must be
installed upstream of the connection in accordance
to NCC volume 3.
Internal Water filter
The water filter is located at the top left side of the fresh
food compartment.

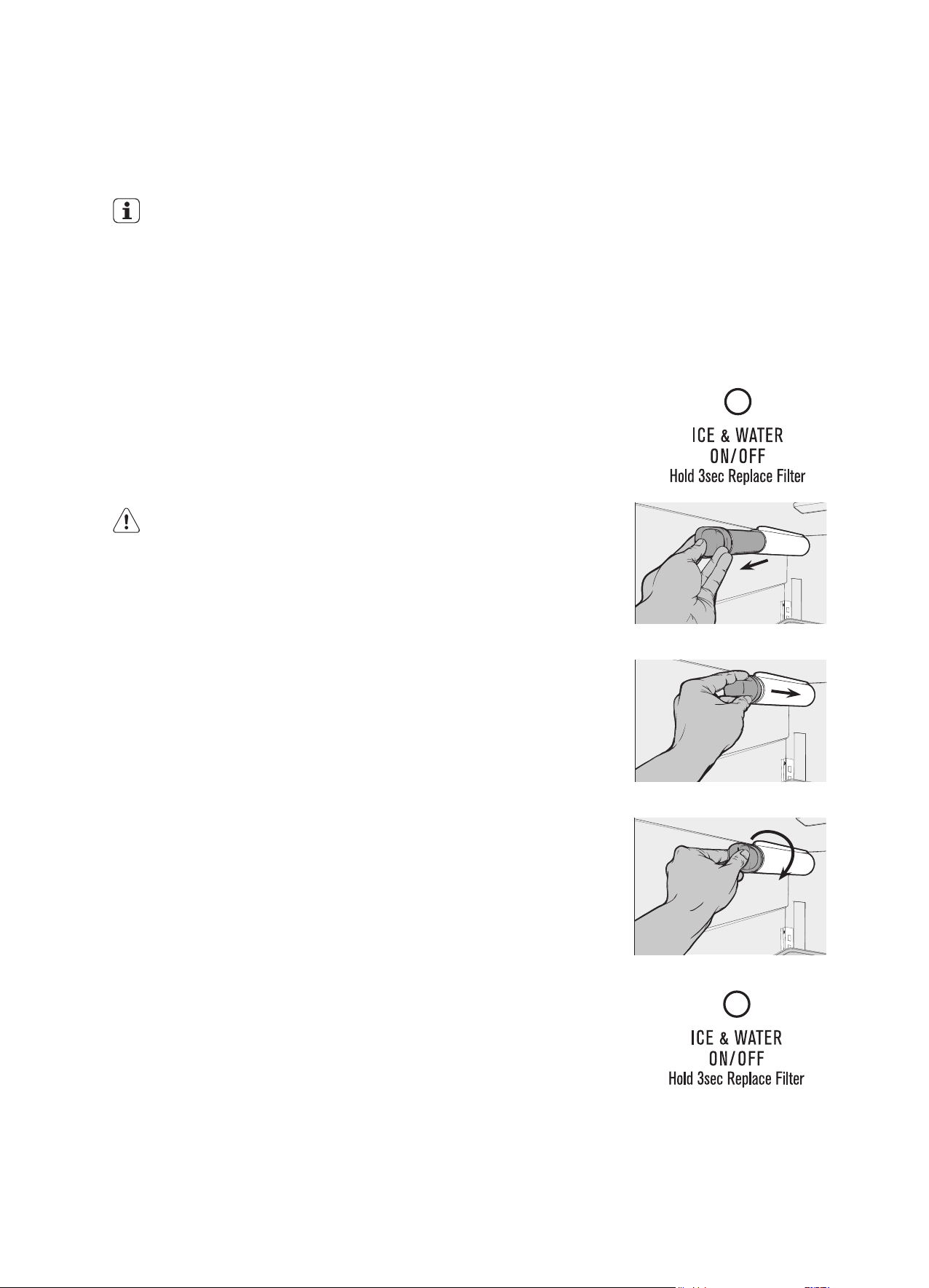

Replacing the water filter
You should change the water filter every six months to
ensure the highest possible water quality.
If your refrigerator has not been used for a period of
time (during a house move for example), change the
filter before reinstalling the refrigerator.
It is not necessary to turn the water supply off to
change the filter. Be ready to wipe up any small
amounts of water released during the filter replacement.
1. Ensure that the ice maker is turned off (Diagram 1).
2. Remove the filter by turning anti-clockwise 180˚.
3. Slide the old water filter cartridge straight out of the
housing and discard it. (Diagram 2).
4. Unwrap the new filter cartridge and using the
alignment guide, slide it gently into filter housing
until it stops against the filter connection at the back
of the housing. (Diagram 3).
5. Engage the filter by firmly rotating clockwise until
the filter snaps into position (once engaged the filter
cannot be rotated further). (Diagram 4).
DDiiaaggrraamm 3
DDiiaaggrraamm 4
DDiiaaggrraamm 5
Page 16
16 electrolux.com.au
USING Y
Refrigerators work by transferring heat from the food
inside to the outside air. This operation makes the back
and sides of the refrigerator feel warm or even hot
particularly at start-up and on warm days – this is
normal.
Avoid placing food against the air vents in the
refrigerator as it affects efficient circulation. If the door
is opened frequently, a light frosting will occasionally
occur on the freezer’s interior. This is normal and will
clear after a few days. If the freezer door is accidentally
kept open, a heavy frost will coat the inside walls and
should be removed.
Your new refrigerator uses a high-speed compressor,
along with other energy-efficient components, which
may make unusual sounds and be more noticeable at
night and quieter times. These sounds simply indicate

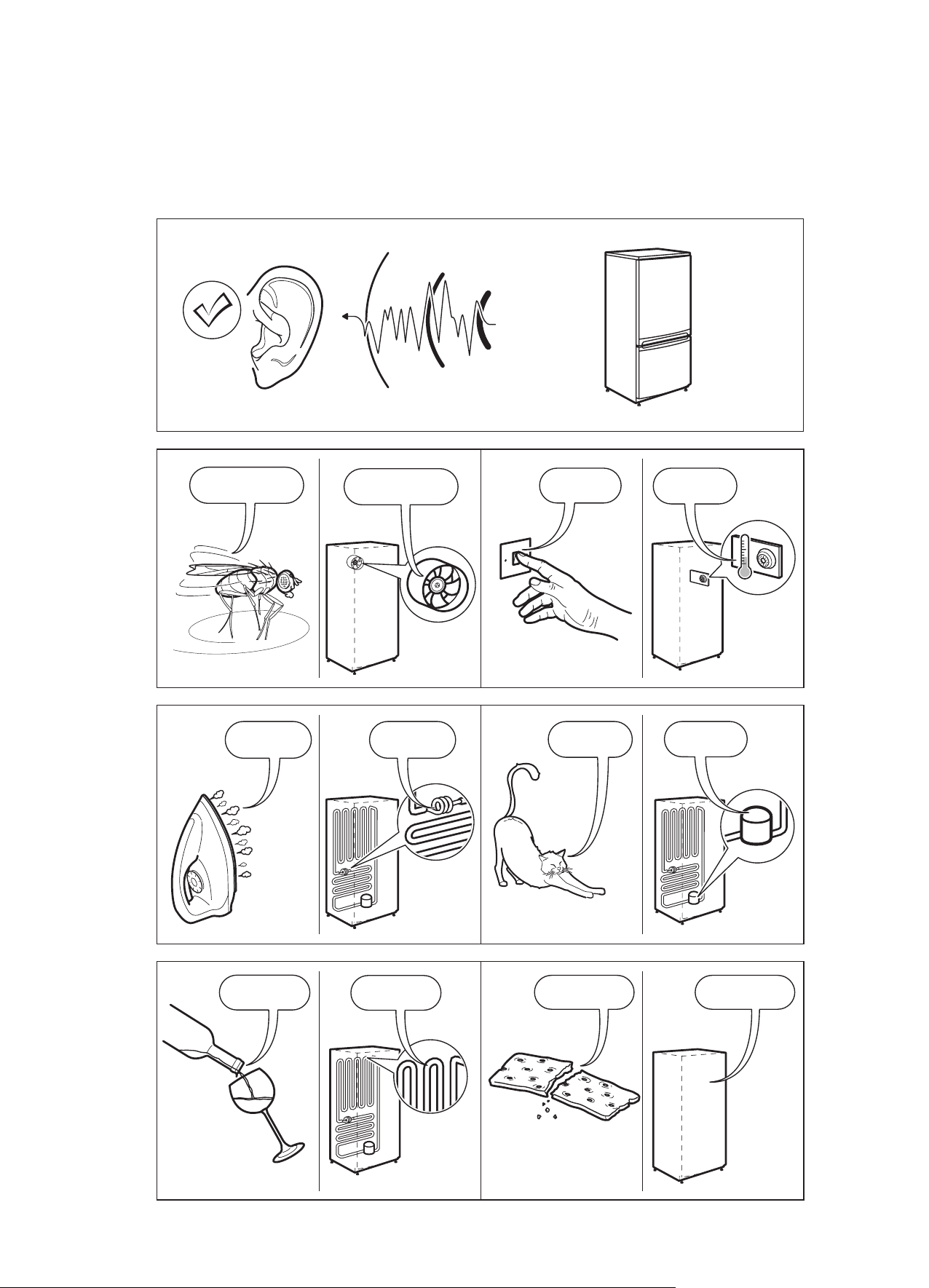

your refrigerator is working how it should. They include:
For top mount refrigerators (where the freezer is on
top of the fresh food compartment).
OUR REFRIGERATOR
• Compressor running noises;
• Air movement noise from the small fan motor;
• A gurgling sound, similar to water boiling;
• A popping noise, heard during automatic
defrosting; and
• A clicking noise, prior to compressor start-up.
Further details can be found in the
Troubleshooting Guide.
IMPORTANT
REMOVING FEATURES
AHC (Auto Humidity Control)
Auto Humidity Filter Cartridge
Auto Humidity Control automatically releases excess
moisture & maintains optimal humidity for your fresh
vegetables, maintaining the taste, texture and
freshness.
Recommended to replace filter once a year*
Replacing Filter Cartridge
Auto Humidity Filter is located at the back of the
crisper handle.
• Hold the tabs of the filter cartridge.
• Slide to the Right to release the filter.
• Replace a new filter and slide to the Left to lock
in place.
Freezer shelf
• Don’t place food forward of the ribs on the
freezer floor, as it will keep the door open.
Ribs
For bottom mount refrigerators (where freezer is below
the fresh food compartment):
• Ensure all freezer drawers and shelves are
pushed back completely to prevent them from
keeping the door open.

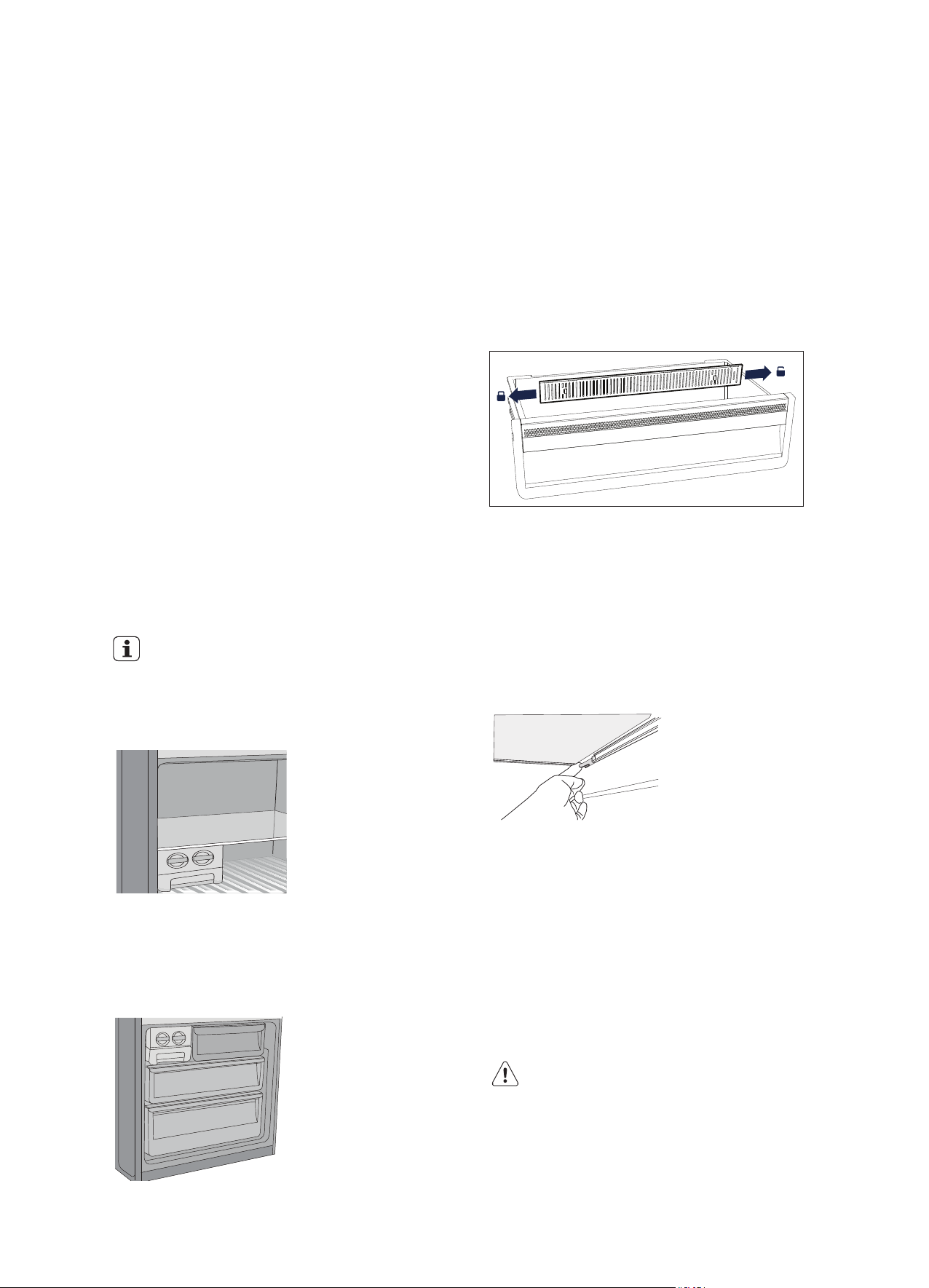

Remove the freezer shelf by lifting the catches on
the right and left underside of the shelf to release
the shelf then pull the shelf toward you.

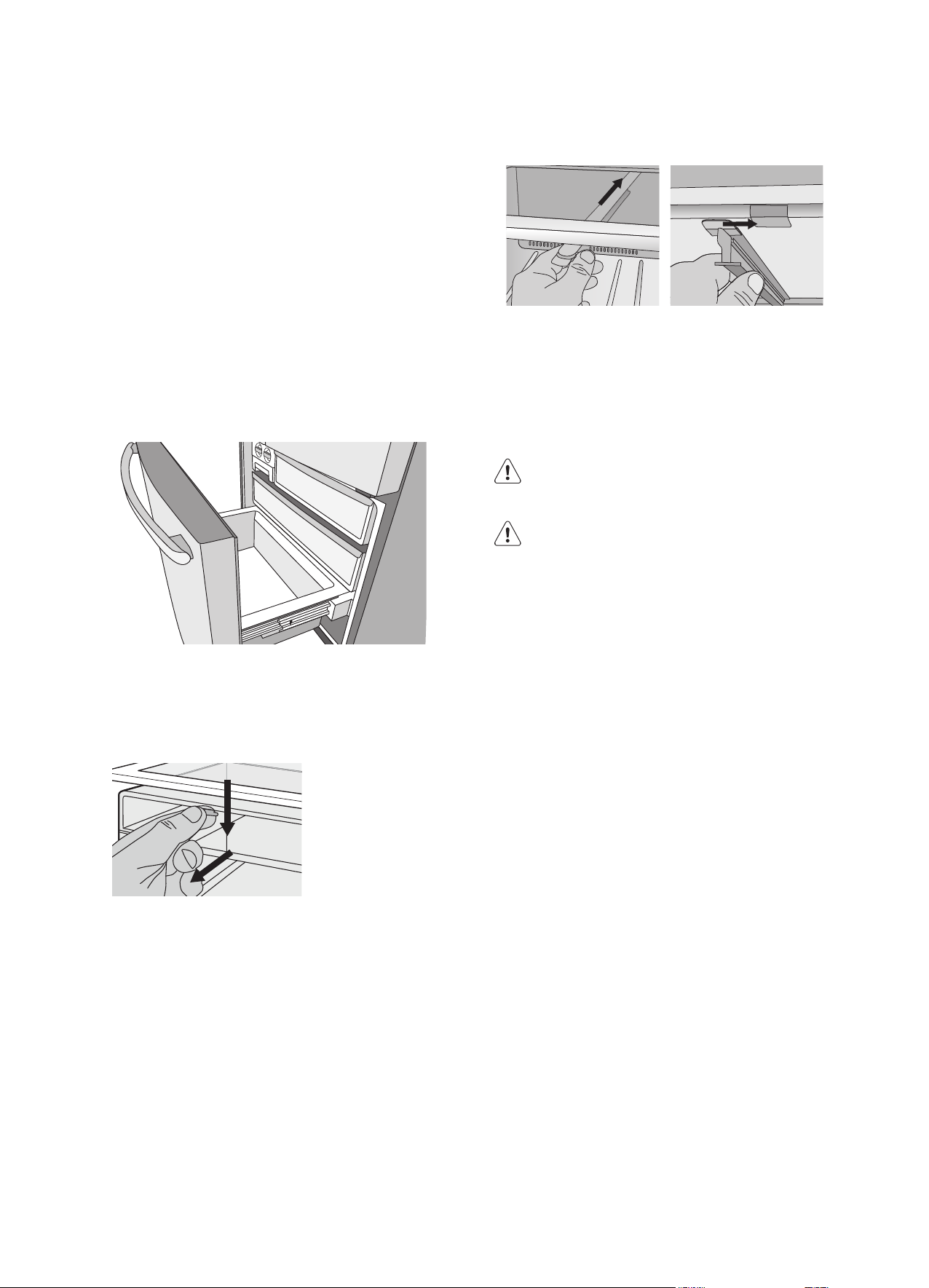

Drawers fitted with telescopic slides
To remove the drawer for cleaning.
1. Empty food from the drawer.
2 . Remove the drawer by pulling it forward and lifting
the front to unhook it from the slides. Once you
have removed the drawer, ensure the slides are
pushed back so they are fully closed.
WARNING
Never close the door while the telescopic slides are
extended. This may damage the slide and/
or refrigerator or cause the slide to become
disengaged from the refrigerator.
Page 17
To replace the drawer:
1. Ensure the telescopic slides are pushed in all the
way.
2. Slide the drawer into place over the slides and push
the bin in until it stops.
3. Drop drawer into position.
17
Freezer bottom bin
To remove the bin, pull the drawer out until it is open all
the way then lift bin out from the front of the bin. When
refitting insert the rear of the bin first then lower into
position.
When replacing the bins after cleaning, we recommend
fitting the lower bin first.
Twist and Serve Ice
Mounting the twist & serve dispenser to the other side
of the freezer.
NOTE: This is only possible on top mount models.
Insert into the slot at the rear of the shelf Then engage into the front of the shelf
1. Refit the runner into the rear of the shelf on the
right hand side and then engage the front.
2. Fit the carriage by sliding it into the runners until
the front if the carriage engages with the shelf.
3. Refit the ice tray and ice bin.
WARNING
Fill the ice cube tray with potable water only.
CAUTION
LED lighting
Your appliance is fitted with long life LED lighting. In the
unlikely event the LED lights should fail, then the LED
lights should be serviced by the manufacturer.
Refer to the warranty page for contact details.
1. R emove the ice bin and ice cube tray. If the ice tray
assembly is frozen to the carriage, simply squeeze the
tray and shelf together to break the ice.
2. Before you remove The ice carriage, remember to
disengage it from the glass shelf as it may result in
damage to the assembly.
3. Remove the centre runner by disengaging it at the
front of the shelf,and removing it from the rear.
Page 18
18 electrolux.com.au
CONT
ROLLING
ABOUT THE USER INTERFACE
The following pages explain the various functions of the
user interface to help you better understand how to get
the most out of your new refrigerator.
IMPORTANT
NOTE: When you set a temperature, you set an average
temperature for the whole refrigerator cabinet. Ensuring
that you make only small adjustments and wait at least
24 hours to see if the new temperature is correct to your
liking.
Checking the softness of ice cream is a good indication
that your freezer is the right temperature, while checking
the temperature of water kept in the refrigerator is a
good way of checking the temperature of the food
compartment.
Temperatures inside each compartment may vary,
depending on how much food you store and where you
place it.
High or low room temperature may also affect the
actual temperature inside the refrigerator.
Page 19

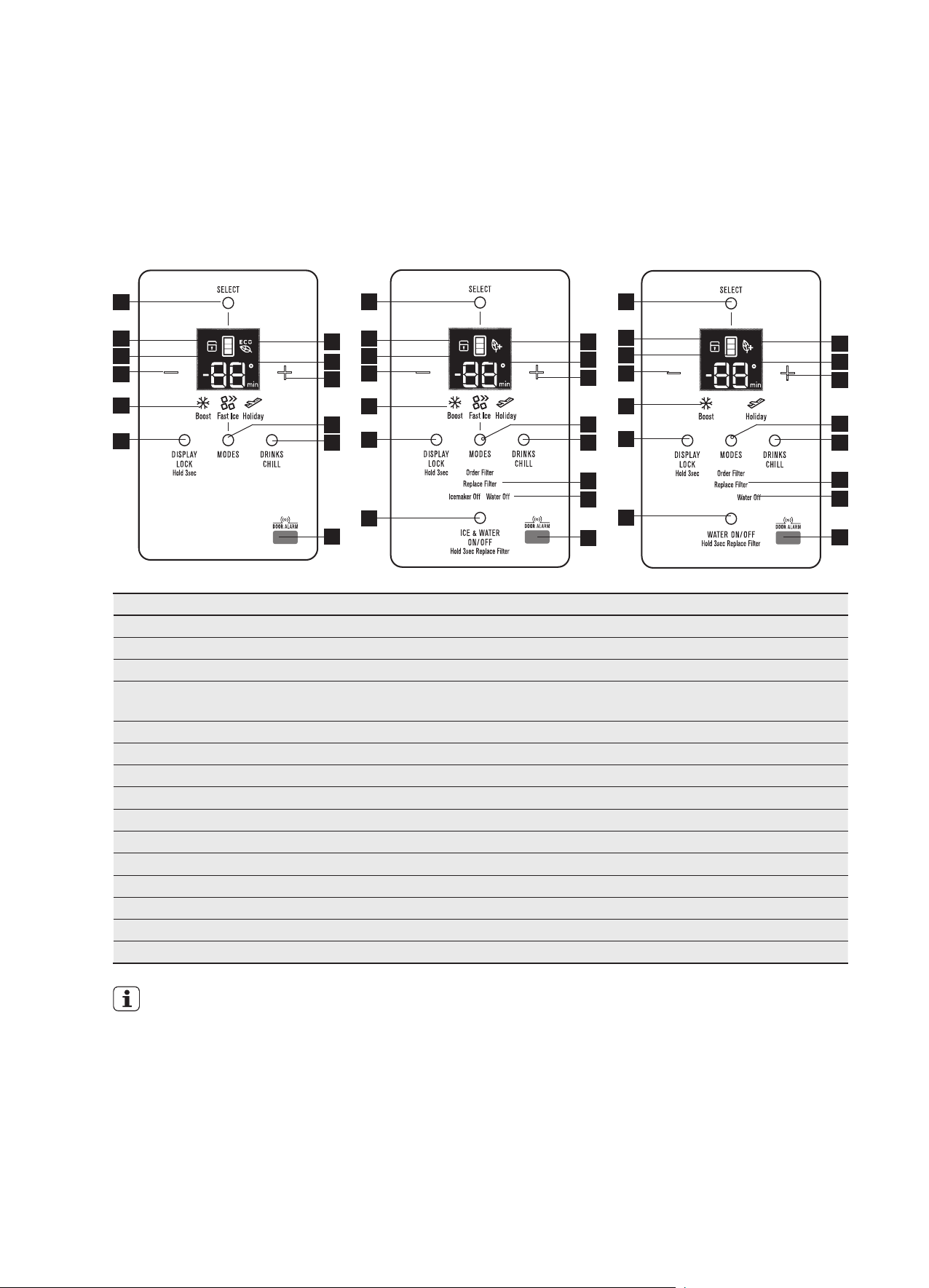

FUNCTIONS OF THE USER INTERFACE
19
ETE4607,ETE5407,EBE4507,
EBE5367, EHE5267 ERE5047
EBE5300,EBE5307,EBE5007,
EBE4302,EBE5002
1
2
3
6
8
9
9

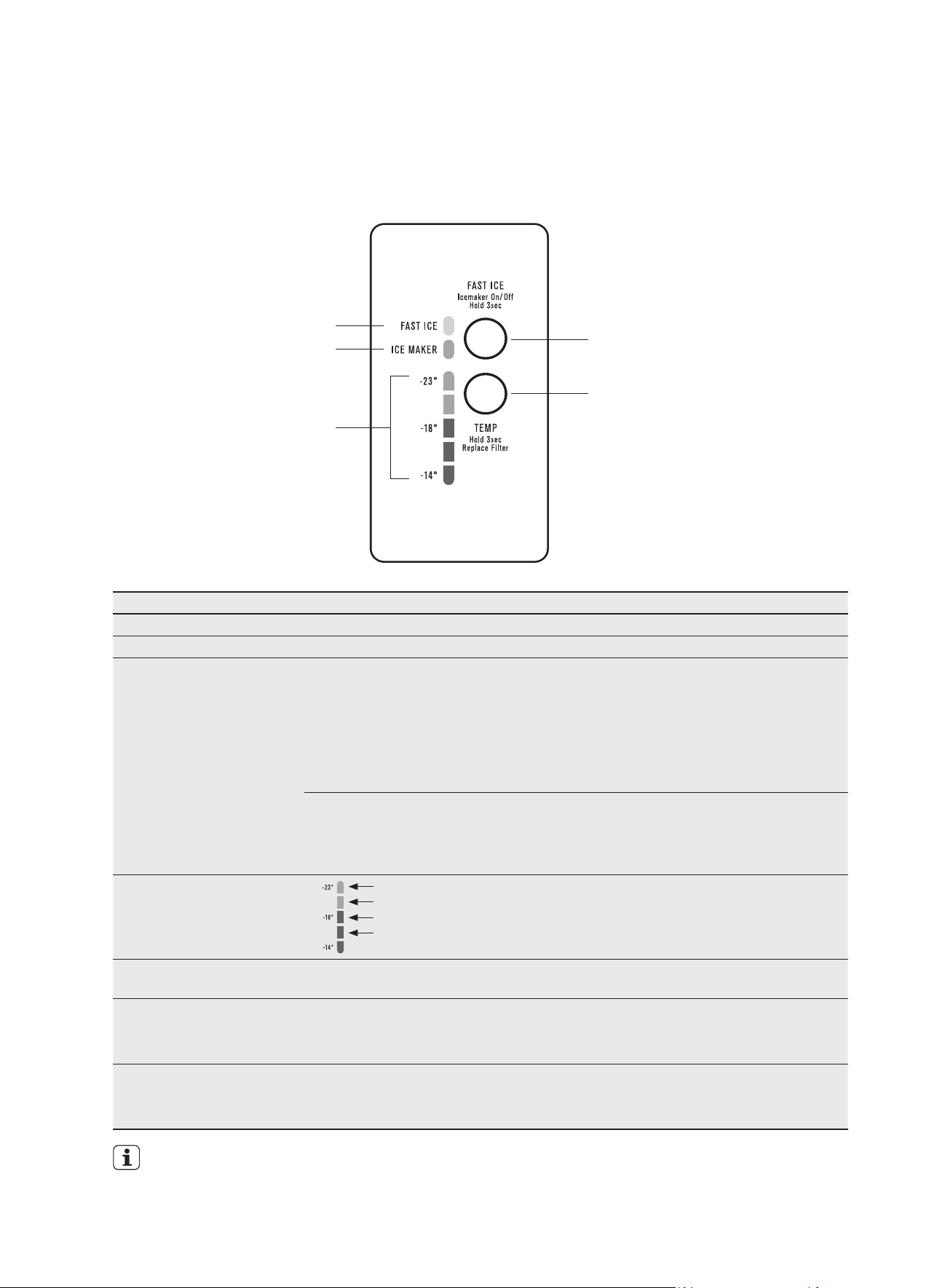

Button / Icon Description Primary Function
1 Compartment Selector button Selects controllable compartment.
2 Lock Icon Indicates if the user interface is locked.
3 Compartment Icon Indicates controllable compartment.
4
ECO Icon
5 Digital display Indicates temperature of selected compartment.
6 Decrease button Decreases temperature of selected compartment.
7 Increase button Increases temperature of selected compartment.
8 Mode indicators (Boost, Fast Ice, Holiday) Indicates appliance operation mode.
9 Display Lock button Selects lock state of user interface.
10 Mode select button Selects operation mode of appliance.
11 Drinks Chill button Selects drinks chill timer.
12 Filter status indicators Indicates filter replacement timing.
13 Icemaker and Water on off indicators Shows operational status.
14 Ice & Water or Water on/off button Selects operation status.
15 Door sensor Senses door state (open or closed).
1 1
2
4
3
5
6
7
8
10
9
11
14
15
Indicates if the appliance is operating in its most energy
efficient mode.
10
11
12
13
15
2
4
3
5
6
7
8
9
14
4
5
7
10
11
12
13
15
IMPORTANT
The factory default settings for the refrigerator is “3°
C” and “-18°C” for the freezer. If you want to change
the temperature, remember to make only small
adjustments and wait 24 hours to see if it’s correct.
Page 20
TIPS & INFORMATION
20 electrolux.com.au
CONT
ROLLING (CONTINUED)

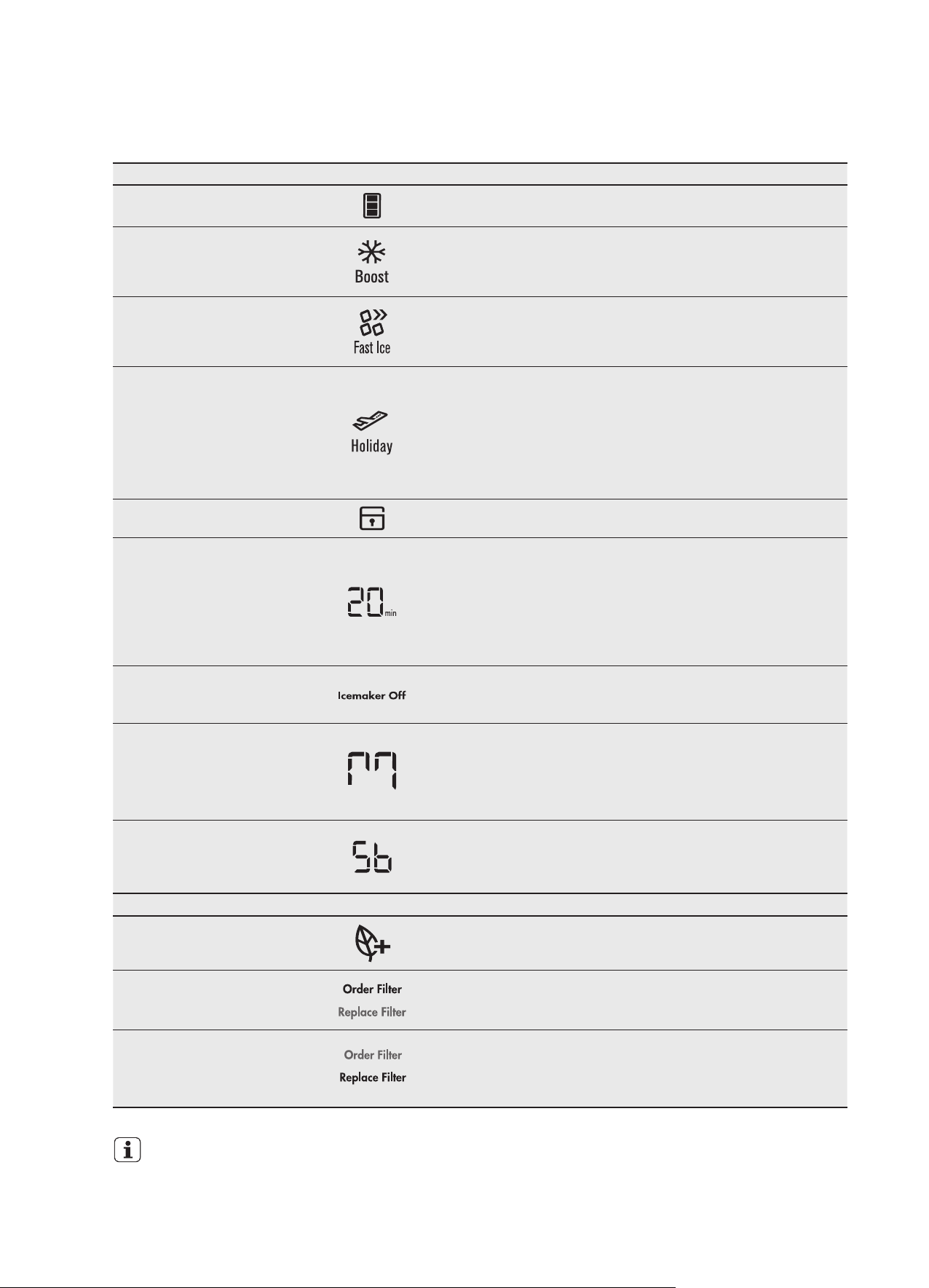

Function Ic
Setting the temperature
Boost mode
Increases the chill rate of the
refrigerator for 90mins before returning
to pre-set mode.
Fast Ice
Decreases the freezer temperature to
-23°C for 12 hours before returning to
pre-set mode.
Holiday mode
The r
efrigerator mi
to save energy when doors remain
closed for an extended period.
Display Lock
Deactivates th
Drinks Chill
Sets a timer for between 1 and 30
minutes as a reminder for when drinks
are placed in the freezer for quick chill.
nimises d
e user interfa
efrosting
ce controls.
on
O
peration (depending on model)
Press button 1 to select compartment on icon 3 Press buttons 6 or 7 to adjust
temperature up or down.
Press button 10 until the snowflake icon is illuminated. Boost mode can be
deselected using button 10.
Press button
deselected using button 10.
Press button 10 until the holiday icon is illuminated.
When holiday mode is enabled the temperature settings will be set to 3°C for
the refrigerator and -18°C for the freezer.
Holiday mode can be deselected using button 10 or opening the fridge door.
When holiday mode is disabled the temperature settings will revert to the
previous settings.
Holiday mode can be deselected using button 10 or opening the fridge door.
To turn on/off press and hold button 9 for 3 seconds,
the lock icon is illuminated when activated.
To turn on press button 11 and initial time of 20 mins will appear on digital display.
To adjust time use buttons 6 and 7.
Alarm will sound when time is finished.
Press button 11 to turn off during or after countdown. The time taken to chill
depends on the size of your bottle.
Do not leave the bottle inside the freezer longer than the time needed
for chilling.
10 until the fast ice icon is illuminated. Fast ice mode can be
Ice Maker on/off
Enables/disables ice maker and water
dispensing features.
Ice Cube Size
Ice cube size can be adjusted for
personal preference or to s
water pressure.
Sabbath Mode
Disables all lights and other electrical
activity from occurring when the
refrigerator door is opened.
Indicator Icon Operation
Eco Mode
Enabled when appliance set to energy
efficient operating temperatures.
Order Filter
Reminder when the water filter
periodically requires replacement.
Replace Filter
Reminder when the water filter
replacement.
uit supply
requires
To enable/disable press button 14 to cycle through on/off modes.
Indicator 13 will illuminate when either the ice maker or water dispenser are
deactivated.
Press and hold buttons 10 and 14 for 3 seconds.
Press button 6 to cycle through cube sizes, small (S), medium (M), large (L) &
extra large (EL). Medium symbol shown.
To confirm the setting press button 10.
The display will return to the preset mode after 45 seconds.
To enable and disable Sabbath mode, press and hold buttons 6 and 9 for
3 seconds.
When enabled/disabled an alarm will beep 4 times and “Sb” will appear
on digital display when active.
ECO icon automatically appears when refrigerator is set between +3°C and
+7°C and freezer is set between -14°C and -18°C
Order filter icon will appear as a reminder to order a replacement water filter.
When the filter has been replaced press and hold button 14 for 3 seconds to
reset the filter replacement timer.
Replace filter icon and alarm will activate as a reminder to replace the water filter.
Mute alarm for 1 week by pressing any button on the user interface.
When the filter has been replaced press and hold button 14 for 3 seconds to reset
the filter replacement timer.
IMPORTANT
The factory default settings for the refrigerator is “3°C” and “-18°C” for the freezer. If you want to change the
temperature, remember to make only small adjustments and wait 24 hours to see if it’s correct.
Page 21
THE FREEZER USER INTERFACE
21
EFE4227
Fast Ice on/off LED
Ice Maker on/off LED
Freezer temperature
scale LEDs
Description Operation / Primary Function
Fast Ice on/off LED Indicates the status of the Fast Ice function.
Ice Maker on/ off LED Indicates the status of the Ice Maker function.
Fast Ice/Ice Maker button
Use the Fast Ice function when you add a large amount of food to the freezer
compartment;
• Press the ‘Fast Ice/Ice Maker’ button. The Fast Ice icon will flash indicating that the
Fast Ice is active. and the compressor will run continuously for 12 hours
• After 12 hours the freezer will automatically return to normal mode.
• Th e Fast Ice function can be cancelled anytime by pressing the button again.
Fast Ice/ Ice maker on/off button
Temperature adjust/Replace filter button
Turning Automatic Ice Maker
On/Off
• Press and hold the ‘Fast Ice’/Ice Maker button for 3 seconds.
The Ice Maker LED will activate indicating that the Ice Maker is active.
• I ce Maker can be turned off at any time. Press and hold the 'Fast Ice'/Ice Maker
button for 3 seconds.
Ice cube size
Ice cube size can be adjusted
for personal preference or to
suit supply water pressure
Freezer temperature scale
Extra large
Large
Medium
Small
Indicates the temperature setting of the freezer compartment.
Press “Temp” and “Fast Ice” buttons together for 3 seconds within
first 12 seconds of appliance starting. Four pre-set ice cube sizes
can be selected by the user. Press “Fast Ice” button to scroll
through options and press “
Temp” button to confirm.
icons
Temperature adjust button Press any button to awaken control.
Press the ‘Temp’ button to decrease the compartment temperature. Once the coldest
temperature is reached the display will return to the warmest setting with the next press.
Replace filter
Reminder for when the water
filter requires replacement.
Replace filter alarm will activate as a reminder to replace the water filter.
An alarm will sound and the Fast Ice on/off icon will flash. Hold "TEMP" button for
3 seconds to reset.
IMPORTANT
The factory default settings for the freezer is “-18°C”. If you want to change the temperature, remember
to make only small adjustments and wait 24 hours to see if it’s correct.
Page 22
22 electrolux.com.au
CO
NTROLLING (CONTINUED)

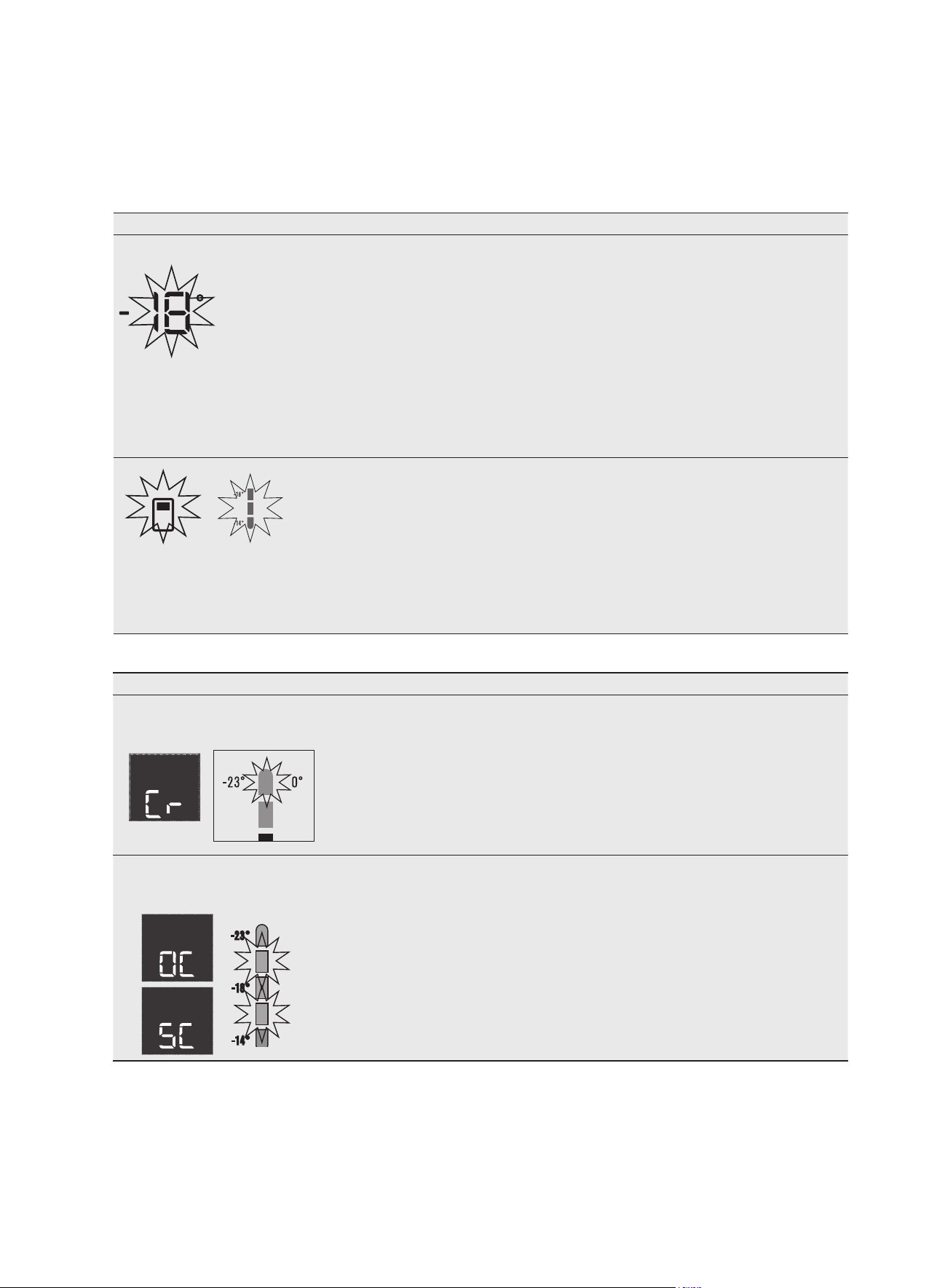

ERROR CODES & ALARMS
Alarms
Alarm Icon What it means Operation
Freezer Temperature Alarm
(Except Single door freezer)
Activates if the freezer temperature
is
10°C over set temperature for a
period of 50 minutes (except during
a defrost).
An alarm will sound the temperature
icons will flash.
Door Alarm
Activates if the refrigerator or
freezer doors are left open for
longer than 2 m
An alarm will sound the affected
compartment icon will flash and the
temperature and icons will fade on
and off.
All Freezer Model
inutes.
To deactivate the alarm for 50 minutes press
any button.
To deactivate alarm for 12 hrs on the ice &
water model press and hold Select Mode for
10 seconds for non ice and water models
press and hold any button for 10 seconds.
• Alarm will sound and icon will flash
indicating
(Ice & water models)
• To silence the alarm for 8 minutes while
the door is open press any button (the
icons will continue to flash until door is
closed).
which door is open.
Error codes
Error code What it means… What to do…
Communication Error
Sensor
– Open Circuit /Short Circuit
If you see this icon displayed (electronic
display models) or the top temperature
icon is flashing it means that the control
has lost contact with the main
board.
control
The appliance will operate at its last
known setting, all auxiliary functions will
not work.
If you see this icon displayed (electronic
display models) or any combination of
th
e second and fourth temperature icons
are flashing it means that an error has
been detected on a sensor.
The refrigerator will run in a default cycle
to prevent food spoilage.
Turn the unit off at the power point for 5
minutes and then turn it back
Under most circumstances this will reset
the display enabling normal function to
continue.
If the error re-occurs then call
for service.
Call for service.
on.
Page 23
GENERAL INFORMATION
23
CLEANING YOUR REFRIGERATOR
WARNING
BEFORE CLEANING: Turn the refrigerator off at the
power point and unplug the cord to prevent any
chance of electrocuting yourself.
Your stainless steel refrigerator is manufactured from
mark-resistant stainless steel. This stainless steel has a
special advanced protective coating that eases the
removal of marks such
as fingerprints and water spots. To keep its
appearance, clean it regularly with lukewarm soapy
water and a soft cloth.
CAUTION
Never use stainless steel cleaners, abrasive pads or
other cleaners that will scratch the surface. Damage to
the appliance after delivery is not covered by your
warranty.
Interior
Clean the inside of your refrigerator regularly with a soft
cloth, unscented mild soap and lukewarm water.
Thoroughly dry all surfaces and removable parts and
avoid getting water on the controls. Replace removable
parts, plug power cord in and switch the power on
before returning the food.
Many commercially available cleaning products and
detergents contain solvents that will damage your
refrigerator. Use only a soft cloth with an unscented
mild soap and lukewarm water.
CAUTION
To clean a crisper or freezer bin with telescopic
extension slides, simply wipe with a damp cloth and
warm soapy water.
Never immerse the cover in water, as this could affect
the operation of the slide.
Switching off your refrigerator
If you switch off your refrigerator for an extended
period, follow these steps to reduce the chances of
mould:
1 . Remove all food.
2 . Remove the power plug from the power point.
3. Thoroughly clean and dry the interior.
4. Ensure that all the doors are wedged open
slightly for air circulation.
Ice and Water
Clean the components of the ice maker /water
dispenser regularly with a soft cloth, unscented mild
soap and rinsing thoroughly with lukewarm water.
For further information on the care and cleaning of your
Icemaker, Ice dispenser of water dispenser refer to the
section "Ice and Water Models"
Door seals
Always keep door seals clean by washing them with a
mild detergent and warm water, followed by a thorough
drying. Sticky food and drink can cause seals to stick to
the cabinet and tear when you open the door.
Never use hot water, solvents, commercial kitchen
cleaners, aerosol cleaners, metal polishes, caustic or
abrasive cleaners, or scourers to clean your refrigerator.
Page 24
TIPS & INFORMATION
24 electrolux.com.au
GENERAL INFORMATION (CONTINUED)
FOOD STORAGE GUIDE
Category Product Refrigerator Freezer Storage Tips
Meat
Sausages and Mince 1-2 Days 2-3 Months Keep cold meat at the back of the
Chops and Steak 3-4 Days 4-6 Months
refrigerator where it is coldest.
Poultry
Seafood
Dairy
Cold Meats 3-5 Days 4-6 Months Plastic can cause meat to sweat if stored
Cuts for roasting 3-5 Days 12 Months Cuts for roasting can take up to 48 hours
Chicken 1-2 Days 2 Months If poultry takes on a smell or colour you
Roast Chicken 3-5 Days 12 Months
Eggs 6 Weeks Not Suitable Whole eggs are not suitable for freezing,
Whole fish and fillets 2-3 Days 2 Months Store in an airtight container or foil.
Lobster and crabs 1-2 Days 2 Months
Prawns 1-2 Days 2 Months Never freeze prawns in salty water as this
Milk Until Expiry Date Not Suitable If dairy takes on a smell or colour and you
in refrigerator for more than a day.
to defrost properly. Transfer frozen cuts
to the refrigerator 2 days before use.
are unsure about it is best to throw it
out.
slightly beaten eggs may be frozen for four
months.
will dehydrate the flesh.
are unsure about it, it is best to throw it out.
Fruit &
Vegetables
Yoghurt 7- 10 Days Not Suitable
Hard Cheeses 2 Weeks – 2
Months
Soft Cheeses 1-2 Weeks Not Suitable
Butter 8 Weeks 12 Months
Every fruit and vegetable has a different
shelf life.
Some stay fresh for a couple of days e.g
beans, others can last for a couple of
months e.g. onions.
2 Months (Grated)
8-12 Months
When freezing
chop and blanch in
small portions.
Depending on the variety hard cheese can
last from 2 weeks to 2 months.
Keep vegetables in the crisper and
away from the air vents to avoid
freezing.
If you wash fruit and vegetables before
storing them make sure they are dry or wrap
in absorbent paper before storing in the
refrigerator as this can make them susceptible
to rotting.
Try to keep fruit and vegetables
separated as fruits that give off high levels
of ethylene (the ripening agent) can
prematurely ripen and spoil surrounding
vegetables
IMPORTANT
Please note, use this information as a guide only, actual storage times will vary depending on how you use
your refrigerator, climatic conditions and the freshness of the food.
Page 25
TROUBLESHOOTING
Appliance does not operate at desired temperature
In a modern frost free refrigerator / freezer, cold air is circulated around the various compartments through air vents
using
a high efficiency fan.
Concern What to do
Refrigerator is too warm. Ensure food is allowed to cool before placing inside the refrigerator.
Ensure the appliance is set up as per instructions on page 11.
Ensure that contents are not obstructing the cooling vents.
Ensure the door is not held open or is being opened too frequently.
Freezer is too warm. Adjust temperature to a colder setting.
Ensure food is allowed to cool before placing inside the freezer.
Ensure the appliance is set up as per instructions on page 11.
Ensure that contents are not obstructing the cooling vents.
Ensure the door is not held open or is being opened too frequently.
Food is freezing in the
refrigerator.
Adjust temperature to a warmer setting.
Ensure that fruit and vegetables are stored in the crisper. Items with a high water content
should not be placed near the cooling vents.
25
Unable to change temperature
settings.
Refer to function guide in Controlling Your Refrigerator.
Ensure that user interface is in "awake" mode before trying to adjust temperature settings.
Appliance noise
Your new refrigerator may make sounds that your old one didn’t make. Because the sounds are new to you, you
might be concerned about them. Most of the new sounds are normal. Hard surfaces, like the floor, walls and
cabinets, can make the sounds seem louder than they actually are. The following describes the kinds of sounds and
what may be making them.
Concern What to do
Motor noise (compressor). Nothing. This is normal as your new refrigerator uses a variable speed compressor and fan that
A clicking noise heard just before the
compressor starts.
Occasional gurgling, similar to
water boiling.
Airflow noise.
Rattling and other noises.
at start up and on warm days runs at a high speed to provide additional cooling.
When less cooling is required the compressor and fan will run at a lower speed Note that
the compressor noise may seem louder at the start of the on cycle.
Nothing. This is normal as your new refrigerator has an automatic switching action of the
temperature control, t
Nothing. As each refrigeration cycle ends, you may hear a gurgling sound due to the refrigerant
flowing in your refrigerator system.
Nothing, this is normal as your new refrigerator uses high efficiency fans to circulate air. Fan speed
and noise may increase during periods of heavy usage or hot weather.
Ensure that the cabinet is level and stable, refer to Installation Instructions on page 11.
Check the surrounds of the appliance to ensure there is nothing touching or placed on top of
the appliance.
Ensure that contents of the appliance are not placed in such a way that they are vibrating
(such as bottles).
urning the compressor on and off.
Crisper Operation
Concern What to do
Excess moisture build up in crisper.
normal for there to be some moisture
and humidity
Crisper bin can not be removed.
Freezing items in the crisper. Adjust temperature to a warmer setting.
in the crisper bin.
It is
Ensure that the crisper is not over packed.
Adjust crisper humidity slides.
If crisper bin interferes with the door bins, remove door bins before removing crisper.
Position cabinet so that the door can be fully opened.
Page 26
26 electrolux.com.au
GENERAL INFORMATION (CONTINUED)
TROUBLESHOOTING
Refrigerator operation
Con
cern
Appliance will not run
It is normal for the freezer fan not
to operate during
defrost cycle, or for a short time
after the appliance is switched on.
Compressor motor seems to run
too long
At normal
expect your motor to run about
40% to 80% of the time. Under
warmer conditions, expect it to
run even more often.
The variable speed compressor
and fan that at start up and on
warm days runs at a high speed
to provide additional cooling.
When less cooling is required the
compressor and fan will run at a
lower speed.
The exterior of the appliance is
warm or hot to touch
This is normal because the
appliance transfers heat from the
inside out through the outer panels
and the divider between the doors.
the automatic
room temperatures,
What to do
Ensure that the cord is plugged into a live power outlet and out
Ensure that the household circuit breaker has not tripped or that the fuse has not blown.
The appliance maybe in defrost mode, check again in half an hour.
Ensure that the doors are not held open.
Check that large amounts of warm food have not just been placed inside the appliance.
Note that the appliance will run more than normal just after you install it or when adjusting
to temperature setting changes.
Ensure the appliance has the external clearances recommended in the section “Installing your
new appliance”.
The exterior of the cabinet will be much warmer on warmer days it may even feel hot to touch, as
the appliance is working harder.
let is switched on.
User interface will not respond
To ensure settings are not
accidentally changed
interface will go into sleep mode
when not in use.
Press any button to wake user
interface.
Alarms sounding Check that all doors are fully closed.
Frost build up Check that all doors are fully closed.
Odours The interior may need cleaning, refer to cleaning guide.
Lights not working
The LED lighting is designed to
dim automatically if the door is
pened for more than 5
left o
minutes and turn off completely
if the door is open for more than
7 minutes. Closing the door will
reset the timer.
The LED lighting is also
designed to turn on gradually.
the user
Check that the user interface is in awake mode, refer to section “About the user interface”.
Check that the user interface is not locked, refer to section “About the user interface”.
If the user interface is frozen turn the appliance off for five minutes for the memory to clear, then
back on.
turn
Check that the user interface is not in Sabbath Mode, refer to control
instructions. (I&W mod
Ensure that the over temperature alarm is not being activated
Check if the drinks timer has ended, refer control instructions.
Check if the Filter Replacement alert is activated, refer control instructions. (I&W models only)
Ensure that the doors are not opened too often.
Ensure that the return air vents are not blocked with packaging.
Ensure the seals are clean and not obstructed.
Ensure that food is stored correctly as some food, containers and wrapping
can produce odours.
Check appliance for old or unusual food.
Ensure that the cord is plugged into a live power outlet and outlet is switched on.
Ensure that the household circuit breaker has not tripped or that the fuse has not blown.
Check that the user interface is not in Sabbath Mode, refer to control instructions.
Close and re-open the door. When door has been open for 5 minutes the lights fade to 50%
then after 7 minutes they will turn off.
els only).
by hot food placed in the freezer.
Page 27
TROUBLESHOOTING
Door operation
Concern What to do
Freezer door pops open. This is normal and should re-close. This happens when the refrigerator door is
closed too quickly.
If the freezer door stays open, it indicates that the appliance needs to be tilted
backwards a little further. Refer to section “Installing your new appliance”.
Self close not working. Check if your appliance has self closing hinges as not all models do.
It indicates that the appliance needs to be tilted backwards a little further. Refer to
section “Installing your new appliance”.
27
Door not sealing properly Ensure there is nothing that is preventing the door from closing such as appliance
Door difficult to open and close If the door is difficult to open just after you have closed it this is due to the pressure
contents or items placed near the appliance.
Ensure that the crisper/freezer bin is closed completely. Refit if required as referred to
in the section "Using your refrigerator".
Ensure the appliance is set up as per recommendations.
equalising, the door will open normally after a few minutes.
Automatic Ice maker system
Concern What to do
Ice maker does not produce ice or not
enough ice
The icemaker
of ice approximately every 3 hours,
depending on room temperature and
water temperature..
is designed to produce a tray
Ensure that the cord is plugged into a live power outlet and outlet is switched on.
Ensure that water is connected and turned on and there are no kinks in the water
line.
Ensure that the Ice Maker is switched on at the user interface refer to "About the User
Interface" for details.
Check that the water filter is not blocked or out of date.
Check the water supply flow rate.
If the freezer compartment is too warm, refer to "freezer is too warm" then wait 24
hours for the freezer to reach ideal temperature.
Turn the unit off at the mains and leave for 2 minutes then turn the appliance back
on (this will reset the icemaker unit). Check for ice production after 24 hours.
Check that there is no obstruction under the ice maker and ensure the ice bin is
fitted correctly.
Ice has bad odour or taste Cover food to ensure ice does not absorb foreign odours.
Check that the water filter is not out of date.
Interior of appliance or ice bin may require cleaning, refer to “Cleaning your
refrigerator”.
Discard stale ice monthly and allow ice maker to produce a fresh supply.
If you still require service
If you have a problem, and the problem persists after you
have made the checks mentioned, contact your nearest
Electrolux approved Service Centre or the dealer you
bought the refrigerator from. Be ready to quote the model
number, the 9-digit PNC and 8-digit serial number, which is
stated on the label inside the refrigerator compartment.
Page 28
28 electrolux.com.au
NOISES
SSSRR
R!
CLICK!
OK
SSSRRR!
HISSS!
SSSRRR!
HISSS!
HISSS!
BLUBB!
CLICK!
BRRR!
BRRR
CRACK!
CLICK!
BRRR!
!
BLUBB!
BLUBB!
CRACK!CRACK!
Page 29
Warranty
FOR SALES IN AUSTRALIA AND NEW ZEALAND
APPLIANCE: ELECTROLUX REFRIGERATORS AND FREEZERS
This document sets out the terms and conditions of the product
warranties for Electrolux Appliances. It is an important document.
Please keep it with your proof of purchase documents in a safe place
for future reference should there be a manufacturing defect in your
Appliance. This warranty is in addition to other rights you may have
under the Australian Consumer Law.
1. In this warranty:
(a) ‘ACL’ or ‘Australian Consumer Law’ means Schedule 2 to the
Competition and Consumer Act 2010;
(b) ‘Appliance’ means any Electrolux product purchased by you and
accompanied by this document;
(c) ‘ASC’ means Electrolux’s authorised serviced centres;
(d) ‘Electrolux’ is the brand controlled by Electrolux Home Products Pty
Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762
341 in respect of Appliances purchased in Australia and Electrolux
(NZ) Limited (collectively “Electrolux”) of 3-5 Niall Burgess Road, Mount
Wellington, in respect of Appliances purchased in New Zealand;
(e) ‘WarrantyPeriod’meanstheperiodspeciedinclause3ofthis
warranty;
(f) ‘you’ means the purchaser of the Appliance not having purchased
the Appliance for re-sale, and ‘your’ has a corresponding meaning.
2. Application: This warranty only applies to new Appliances, purchased
and used in Australia or New Zealand and is in addition to (and does not
exclude, restrict, or modify in any way) other rights and remedies under
a law to which the Appliances or services relate, including any nonexcludable statutory guarantees in Australia and New Zealand.
3. Warranty Period: Subject to these terms and conditions, this warranty
continues for in Australia for a period of 24 months and in New Zealand
for a period of 24 months, following the date of original purchase of the
Appliance.Speciccomponentsarewarrantedagainstmanufacturing
defects in Australia and New Zealand for the periods listed below;
• Compressor – Further 3 years parts only,
• External Condenser – Further 3 years parts only
• Evaporator – Further 3 years parts only
• Drier – Further 3 years parts only
4. Repair or replace warranty: During the Warranty Period, Electrolux
or its ASC will, at no extra charge if your Appliance is readily accessible
for service, without special equipment and subject to these terms and
conditions, repair or replace any parts which it considers to be defective.
Electrolux may, in its absolute discretion, choose whether the remedy
oeredforavalidwarrantyclaimisrepairorreplacement.Electroluxorits
ASC may use refurbished parts to repair your Appliance. You agree that
any replaced Appliances or parts become the property of Electrolux.
5. Travel and transportation costs: Subject to clause 7, Electrolux will
bear the reasonable cost of transportation, travel and delivery of the
Appliance to and from Electrolux or its ASC. Travel and transportation will
be arranged by Electrolux as part of any valid warranty claim.
6. Proof of purchase is required before you can make a claim under this
warranty.
7. Exclusions: You may not make a claim under this warranty unless the
defect claimed is due to faulty or defective parts or workmanship. This
warranty does not cover:
29
(a) lightglobes,batteries,ltersorsimilarperishableparts;
(b) parts and Appliances not supplied by Electrolux;
(c) cosmeticdamagewhichdoesnotaecttheoperationofthe
Appliance;
(d) damage to the Appliance caused by:
(i) negligence or accident;
(ii) misuse or abuse, including failure to properly maintain or service;
(iii) improper, negligent or faulty servicing or repair works done by
anyone other than an Electrolux authorised repairer or ASC;
(iv) normal wear and tear;
(v) power surges, electrical storm damage or incorrect power supply;
(vi) incomplete or improper installation;
(vii) incorrect, improper or inappropriate operation;
(viii) insect or vermin infestation;
(ix) failure to comply with any additional instructions supplied with
the Appliance;
In addition, Electrolux is not liable under this warranty if:
(a) the Appliance has been, or Electrolux reasonably believes that the
Appliance has been, used for purposes other than those for which
the Appliance was intended, including where the Appliance has
been used for any non-domestic purpose;
(b) theApplianceismodiedwithoutauthorityfromElectroluxinwriting;
(c) the Appliance’s serial number or warranty seal has been removed
or defaced.
8. How to claim under this warranty: To enquire about claiming under
this warranty, please follow these steps:
(a) carefully check the operating instructions, user manual and the
terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
9. Australia: For Appliances and services provided by Electrolux in
Australia: Electrolux goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to
have the Appliance repaired or replaced if the Appliance fails to be of
acceptable quality and the failure does not amount to a major failure.
‘Acceptable quality’ and ‘major failure’ have the same meaning as
referred to in the ACL.
10. New Zealand: For Appliances and services provided by Electrolux
in New Zealand, the Appliances come with a guarantee by Electrolux
pursuant to the provisions of the Consumer Guarantees Act, the Sale
of Go ods Act and the Fair Trading Act. Where the Appliance was
purchased in New Zealand for commercial purposes the Consumer
Guarantee Act does not apply.
11.Condentiality: You accept that if you make a warranty claim, Electrolux
and its agents including ASC may exchange information in relation to you
to enable Electrolux to meet its obligations under this warranty.
Before calling for service, please ensure that the steps listed in clause 8 above have been followed.
FOR SERVICE
ortondtheaddressofyournearest
authorised service centre in Australia
PLEASE CALL 13 13 49
For the cost of a local call (Australia only)
FOR SERVICE
ortondtheaddressofyournearest
authorised service centre in New Zealand
PLEASE CALL 0800 10 66 10
(New Zealand only)
EFridgeFreezer_Warr_Jun17
Important Notice
AUSTRALIA
ELECTROLUX HOME PRODUCTS
163 O’Riordan Street, Mascot NSW 2020
electrolux.com.au
NEW ZEALAND
ELECTROLUX (NZ) Limited
3-5 Niall Burgess Road, Mount Wellington
electrolux.co.nz
FOR SPARE PARTS
ortondtheaddressofyournearest
spare parts centre in Australia
PLEASE CALL 13 13 50
For the cost of a local call (Australia only)
FOR SPARE PARTS
ortondtheaddressofyournearest
spare parts centre in New Zealand
PLEASE CALL 0800 10 66 20
(New Zealand only)
Page 30
NOTES
Page 31
NOTES
Page 32
telephone: 1300 363 640
Electrolux Home Products Australia
fax:
email:
web:
Electrolux Home Products New Zealand
telephone: 0800 436 245
fax:
email:
web:
1800 350 067
[email protected]
electrolux.com.au
0800 225 088
[email protected]
electrolux.co.nz
To add a touch of professional inspiration to your home,
visit electrolux.com.au or electrolux.co.nz
electrolux.com.au
or electrolux.co.nz
A24336522-A-432023
Loading...
