Page 1
EBCGL70CN
EBCGL70SP
EN STEAMER USER MANUAL
Page 2
CONTENTS
1. SAFETY INFORMATION...................................................................................... 3
2. SAFETY INSTRUCTIONS.....................................................................................4
3. PRODUCT DESCRIPTION................................................................................... 7

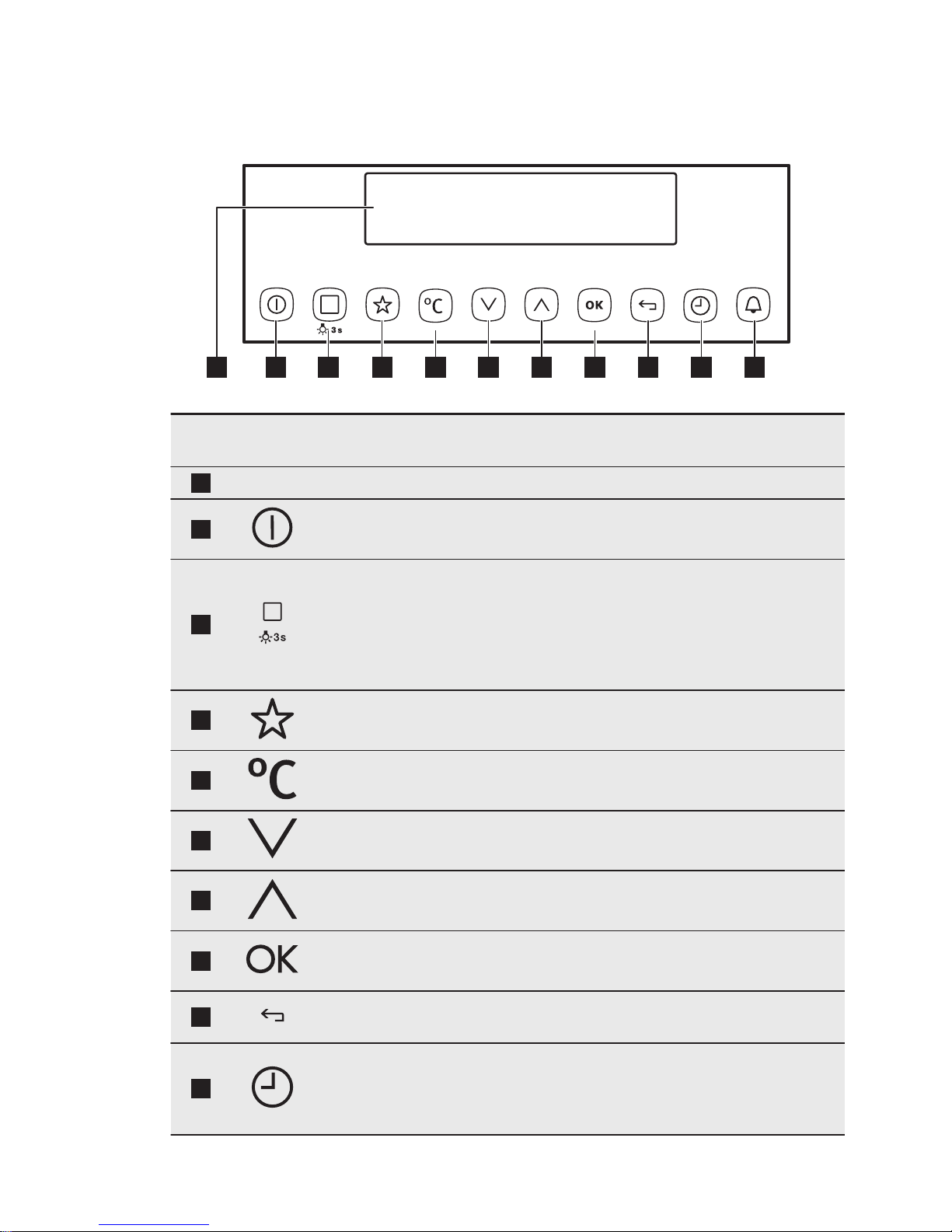

4. CONTROL PANEL............................................................................................... 8
5. BEFORE FIRST USE............................................................................................9
6. DAILY USE........................................................................................................ 10
7. CLOCK FUNCTIONS......................................................................................... 12
8. AUTOMATIC PROGRAMMES............................................................................13
9. USING THE ACCESSORIES.............................................................................. 13
10. ADDITIONAL FUNCTIONS...............................................................................14
11. CARE AND CLEANING....................................................................................15
12. TROUBLESHOOTING......................................................................................17
13. INSTALLATION................................................................................................19
14. GUARANTEE .................................................................................................. 21
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can be
safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
Page 3
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning the use of the appliance in a safe
way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it
appropriately.
• Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are
hot.
• If the appliance has a child safety device, this should be
activated.
• Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
• Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
1.2 General Safety
• Only a qualified person must install this appliance and
replace the cable.
• WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years of
age shall be kept away unless continuously supervised.
• Always use oven gloves to remove or put in accessories
or ovenware.
ENGLISH
3
Page 4
• Before carrying out any maintenance, disconnect the
appliance from the power supply.
• Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric
shock.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can scratch
the surface, which may result in shattering of the glass.
• If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service
Centre or similarly qualified persons to avoid an
electrical hazard.

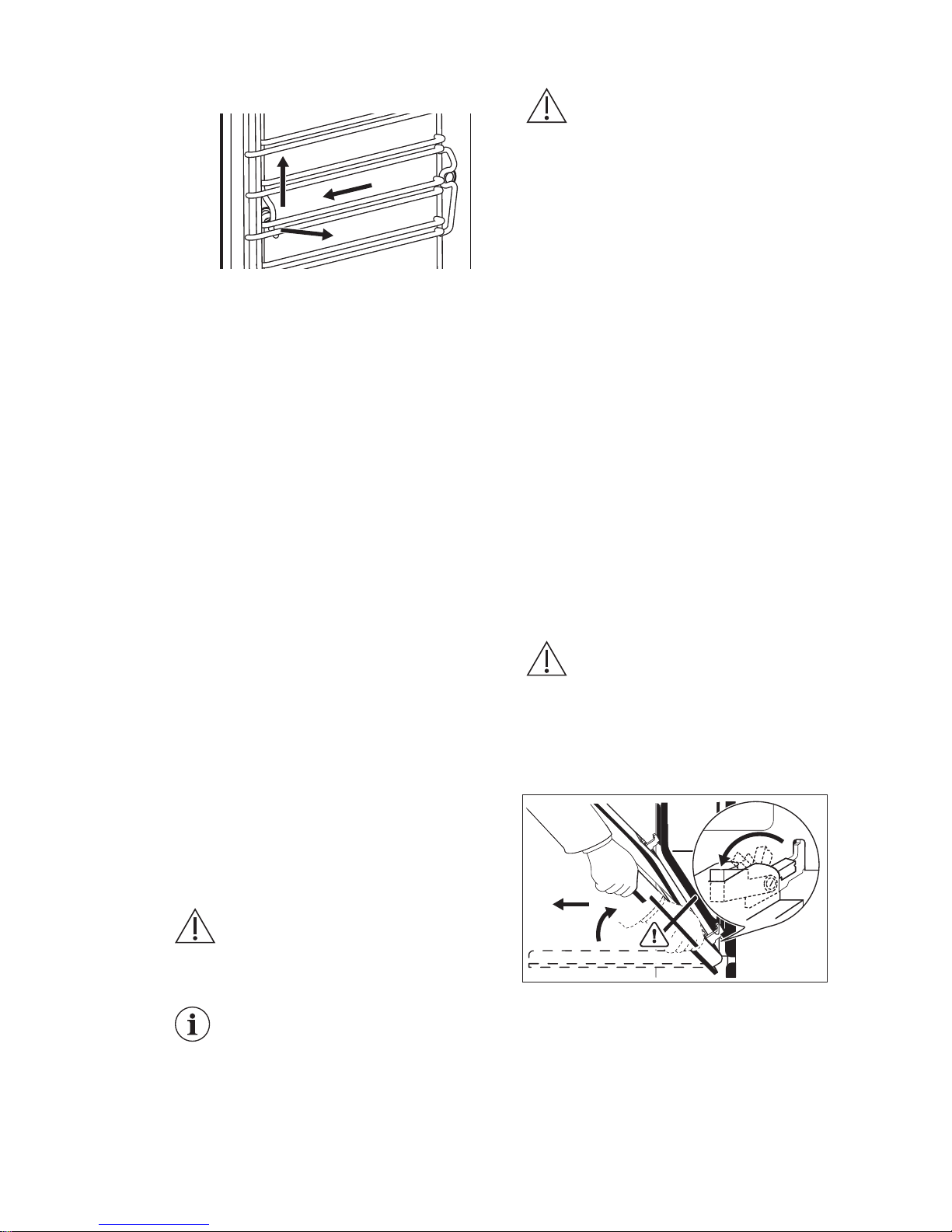

• To remove the shelf supports first pull the front of the
shelf support and then the rear end away from the side
walls. Install the shelf supports in the opposite
sequence.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.

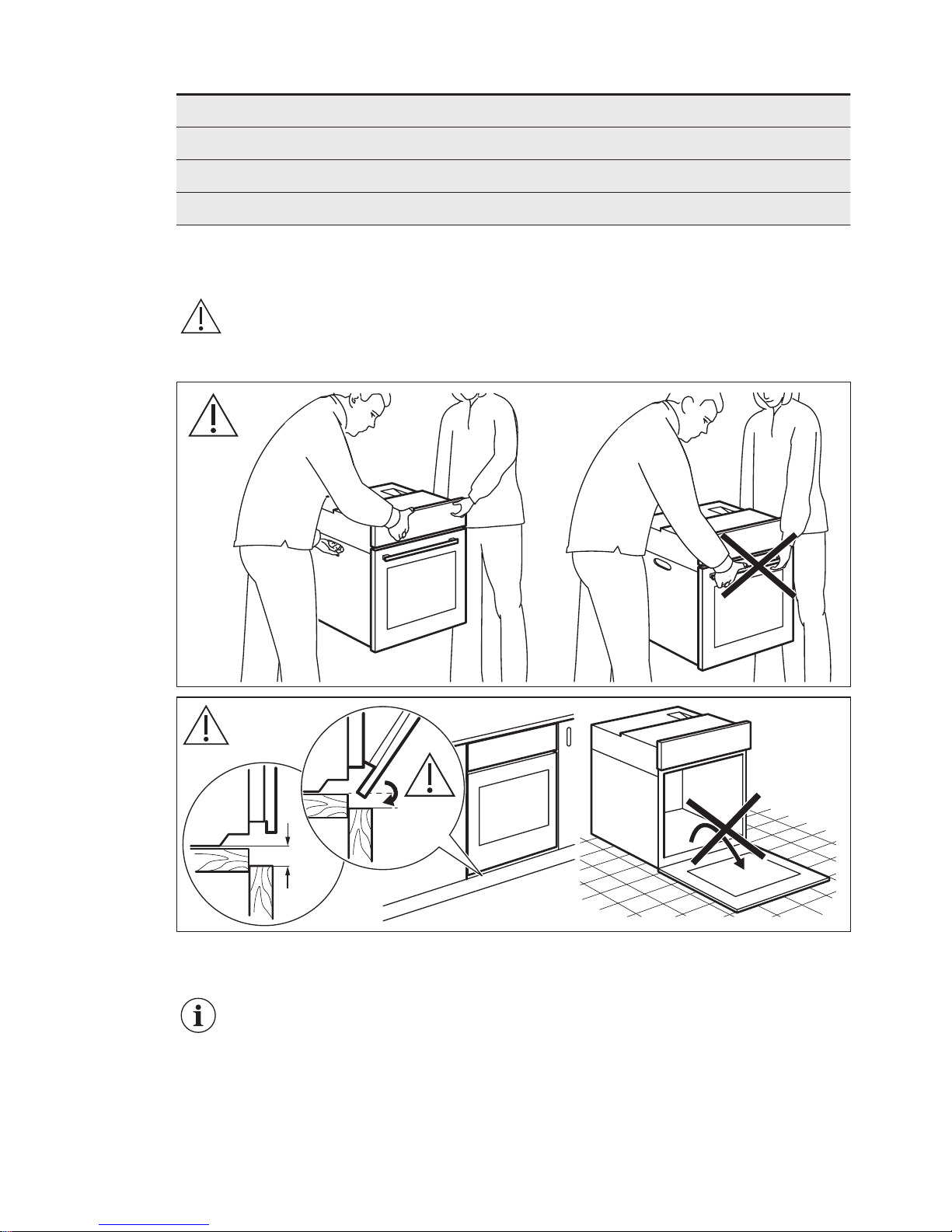

• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the
handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is
installed below and adjacent safe
structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
• The appliance is equipped with an
electric cooling system. It must be
operated with the electric power
supply.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by
our Authorised Service Centre.
www.electrolux.com4
Page 5
• Do not let mains cables touch or come
near the appliance door, especially
when the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation device
must have a contact opening width of
minimum 3 mm.
• This appliance complies with the E.E.C.
Directives.
2.3 Use
WARNING!
Risk of injury, burns and
electrical shock or explosion.
• This appliance is for household use
only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is in
operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can
cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly on
the bottom.
– do not put aluminium foil directly
on the bottom of cavity of the
appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and food
in the appliance after you finish the
cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel or stainless
steel has no effect on the performance
of the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
• Always cook with the oven door
closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make sure
the door is never closed when the
appliance is in operation. Heat and
moisture can build up behind a closed
furniture panel and cause subsequent
damage to the appliance, the housing
unit or the floor. Do not close the
furniture panel until the appliance has
cooled down completely after use.
ENGLISH
5
Page 6
2.4 Steam Cooking
WARNING!
Risk of burns and damage to
the appliance.
• Released Steam can cause burns:
– Do not open the appliance door
during the steam cooking
operation.
– Open the appliance door with care
after the steam cooking operation.
2.5 Care and cleaning
WARNING!
Risk of injury, fire, or damage
to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold. There
is the risk that the glass panels can
break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service Centre.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to
prevent the deterioration of the surface
material.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
• If you use an oven spray, follow the
safety instruction on it's packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
2.6 Internal light
• The type of light bulb or halogen lamp
used for this appliance is only for
household appliances. Do not use it for
house lighting.
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable close
to the appliance and dispose of it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the appliance.
2.8 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
www.electrolux.com6
Page 7

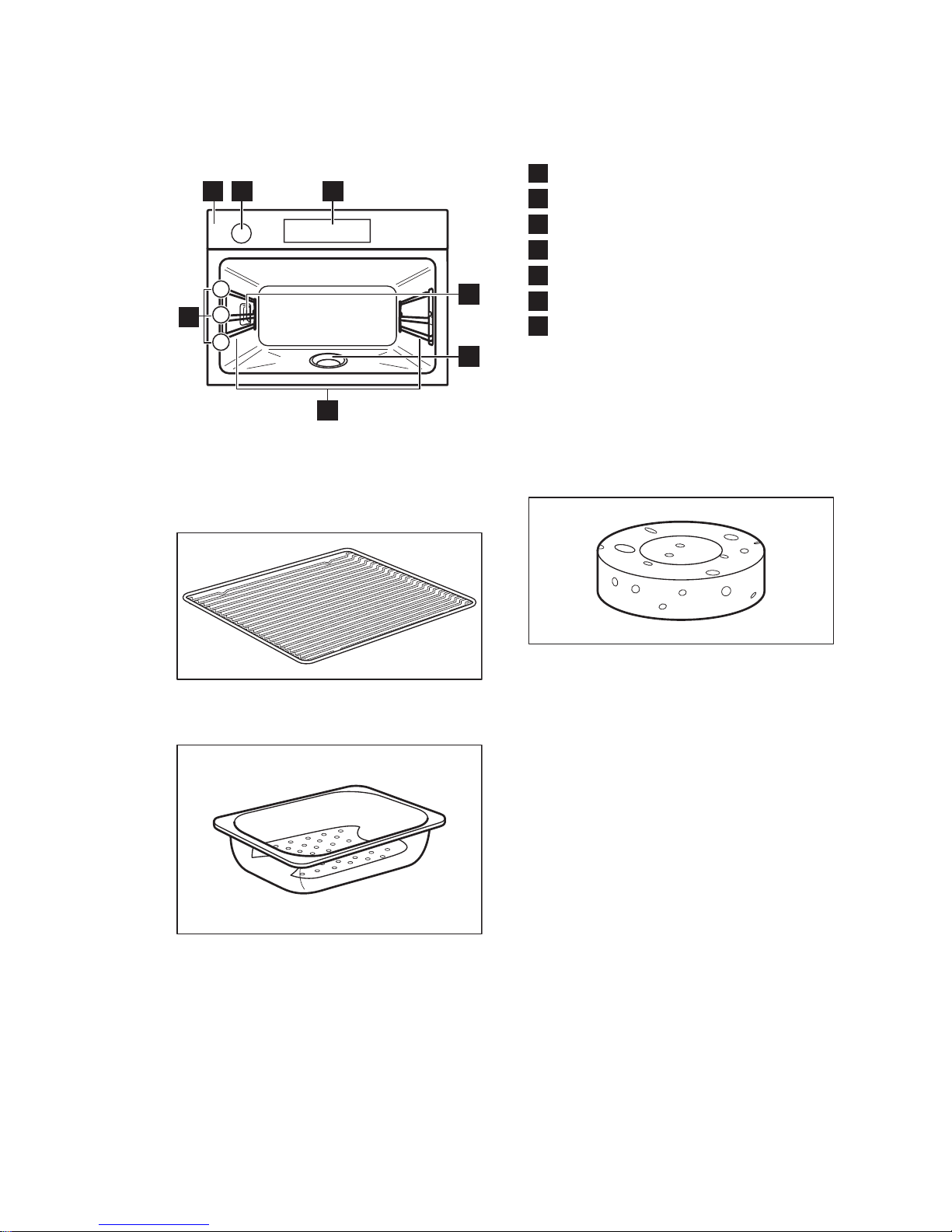

3. PRODUCT DESCRIPTION
3.1 General overview
3
2
1
1 32
7
4
5
6
1
Control panel
2
Water drawer
3
Electronic programmer
4
Lamp
5
Steam generator with cover
6
Shelf support, removable
7
Shelf positions
3.2 Accessories
Wire shelf
For cookware, cake tins, roasts.
Glass dish with 1 grill insert
Sponge
For absorbing the remaining water from
the steam generator.
ENGLISH
7
Page 8
4. CONTROL PANEL
4.1 Electronic programmer
1110987654321
Use the sensor fields to operate the appliance.
Sensor
field
Function Comment
1
- Display Shows the current settings of the appliance.
2
ON / OFF To turn on and off the appliance.
3
Full Steam or
Recipes
Press the sensor field once to choose a heating
function or the menu: Recipes. Press the sensor
field again to switch between the functions: Full
Steam, Recipes. To turn on or turn off the light,
press the field for 3 seconds. You can turn on
the light also when the appliance is turned off.
4
Favourites To save and access your favourite programmes.
5
Temperature selection
To set the temperature or show the current temperature in the appliance.
6
Down key To move down in the menu.
7
Up key To move up in the menu.
8
OK To confirm the selection or setting.
9
Back key To go back one level in the menu. To show the
main menu, press the field for 3 seconds.
10
Time and additional functions
To set different functions. When a heating function operates, press the sensor field to set the
timer or the functions: Function Lock, Favourites,
Set + Go.
www.electrolux.com8
Page 9
Sensor
field
Function Comment
11
Minute Minder To set the function: Minute Minder.

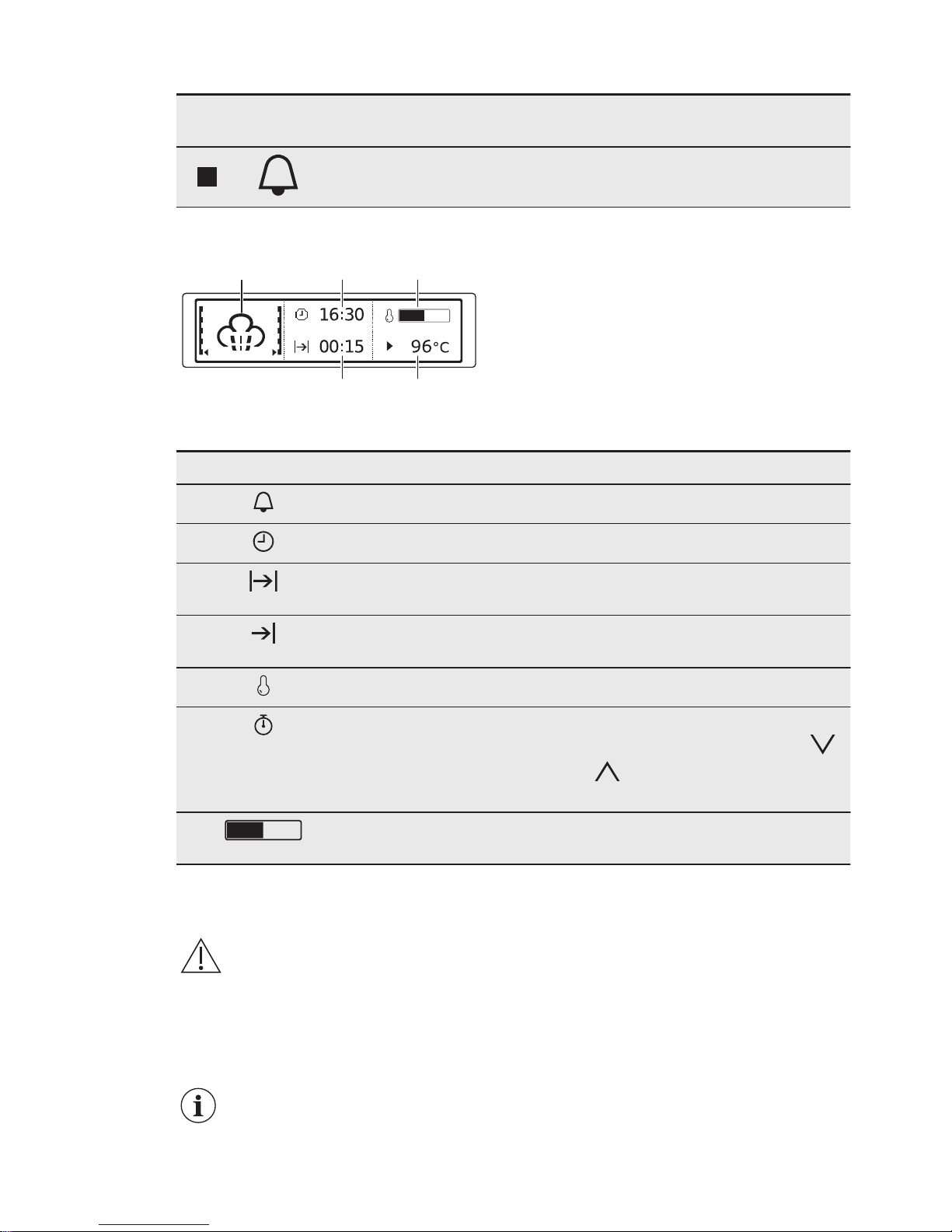

4.2 Display
A
DE
B C
A. Heating function
B. Time of day
C. Heat-up indicator
D. Temperature
E. Duration time or end time of a function
Other indicators of the display:
Symbol Function
Minute Minder The function operates.
Time of day The display shows the current time.
Duration The display shows the necessary
time for cooking.
End Time The display shows when the cooking
time is complete.
Temperature The display shows the temperature.
Time Indication The display shows how long the
heating function operates. Press
and at the same time to reset the
time.
Heat-up Indicator The display shows the temperature in
the appliance.
5. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
5.1 Initial Cleaning
Remove all accessories and removable
shelf supports from the appliance.
Refer to "Care and cleaning"
chapter.
Clean the appliance and the accessories
before first use.
Put the accessories and the removable
shelf supports back to their initial position.
5.2 First Connection
When you connect the appliance to the
mains or after the power cut, you have to
set the language, the display contrast, the
display brightness and the time of the day.
ENGLISH
9
Page 10
1. Press or to set the value. 2. Press to confirm.
6. DAILY USE
WARNING!
Refer to Safety chapters.
6.1 Navigating the menus
1. Activate the appliance.
2. Press or to select the menu
option.
3. Press to move to the submenu or
accept the setting.
At each point you can go
back to the main menu with
.
6.2 The menus in overview
Main menu
Symbol
Menu item Application
Full Steam A heating function for vegetables, fish, potatoes,
rice, pasta or special side dishes.
Recipes Contains a list of automatic programmes.
Steam Cleaning Cleaning the appliance with steam.
Basic Settings Used to set the appliance configuration.
Favourites Contains a list of favourite cooking programmes
created by the user.
Submenu for: Basic Settings
Symbol
Submenu Description
Set Time of Day Sets the current time on the clock.
Time Indication When ON, the display shows the current time
when you deactivate the appliance.
Set + Go To set a function and activate it later with a
press of any symbol on the control panel.
Display Contrast Adjusts the display contrast by degrees.
Display Brightness Adjusts the display brightness by degrees.
Set Language Sets the language for the display.
Buzzer Volume Adjusts the volume of press-tones and signals
by degrees.
www.electrolux.com10
Page 11
Symbol
Submenu Description
Key Tones Activates and deactivates the tone of the touch
fields. It is not possible to deactivate the tone of
the ON / OFF touch field.
Alarm/Error Tones Activates and deactivates the alarm tones.
Service Shows the software version and configuration.
Factory Settings Resets all settings to factory settings.
6.3 Activating a heating function
1. Activate the appliance.
2. Select the function: Full Steam.
3. Press to confirm.
4. Set the temperature.
5. Press
to confirm.
6.4 Steam cooking
The water drawer cover is in the control
panel.
WARNING!
Do not put water directly into
the steam generator.
Use only cold tap water. Do
not use filtered
(demineralised) or distilled
water. Do not use other
liquids. Do not put flammable
or alcoholic liquids into the
water drawer.
1. Press the cover of the water drawer to
open it.
2. Fill the water drawer with 700 ml of
water.
The water supply is sufficient for
approximately 30 minutes.
3. Push the water drawer to its initial
position.
4. Turn on the appliance.
5. Set a steam heating function and the
temperature.
6. If necessary, set the function: Duration
or: End Time .
The steam appears after
approximately 2 minutes. When the
appliance reaches the set
temperature, the signal sounds.
When the steam generator is
empty, the signal sounds.
The signal sounds at the end of the
cooking time.
7. Turn off the appliance.
CAUTION!
The appliance is hot.
There is a risk of burns.
Be careful when you
empty the water tank.
8. After Steam Cooking steam can
condensate on the bottom of the
cavity. Always dry the bottom of the
cavity when the appliance is cool.
Let the appliance dry fully with the door
open.
When the appliance cools down, soak up
all remaining water from the steam
generator with the sponge. If necessary,
clean the steam generator with some
vinegar.
6.5 Heat-up indicator
When you activate a heating function, the
bar on the display comes on. The bar
shows that the temperature increases.
When temperature is reached the buzzer
sounds 3 times and the bar flashes and
then disappears.
6.6 Residual heat
When you turn off the oven, the display
shows the residual heat. You can use the
heat to keep the food warm.
ENGLISH
11
Page 12
6.7 Energy saving
The appliance contains
features which help you save
energy during everyday
cooking.
General hints
Make sure that the oven door is closed
properly when the appliance operates and
keep it closed as much as possible during
the cooking.
Use metal dishes to improve energy
saving.
When possible, do not preheat the oven
before you put the food inside.
When the cooking duration is longer than
30 minutes, reduce the oven temperature
to minimum 3 - 10 minutes before the end
of the cooking time, depending on the
duration of the cooking. The residual heat
inside the oven will continue to cook.
Use the residual heat to warm up other
dishes.
Residual heat
If a programme with the Duration or End
Time selection is activated and the
cooking time is longer than 30 minutes,
the heating elements deactivate
automatically 10% faster in some oven
functions.
The lamp continues to operate.
Keep food warm
Choose the lowest possible temperature
setting to use residual heat and keep a
meal warm. The display shows the
residual heat indicator or temperature.
Cooking with the lamp off
Deactivate the lamp during cooking and
activate only when you need it.
7. CLOCK FUNCTIONS
7.1 Clock functions table
Clock function Application
Minute Minder To set a countdown (max. 2 h 30 min). This
function has no effect on the operation of
the appliance. You can also activate it when
the appliance is deactivated.
Use to activate the function. Press
or to set the minutes and to start.
Duration To set the length of an operation (max. 23 h
59 min).
End Time To set the switch-off time for a heating
function (max. 23 h 59 min).
If you set the time for a clock function, the
time starts to count down after 5 seconds.
If you use the clock functions:
Duration, End Time, the
appliance deactivates the
heating elements after 90 %
of the set time. The appliance
uses the residual heat to
continue the cooking process
until the time ends (3 - 20
minutes).
www.electrolux.com12
Page 13
7.2 Setting the clock functions
Before you use the functions:
Duration, End Time, you must
set a heating function and
temperature first. The
appliance deactivates
automatically.
You can use the functions:
Duration and End Time at the
same time if you want to
automatically activate and
deactivate the appliance on a
given time later.
1. Set a heating function.
2. Press again and again until the
display shows the necessary clock
function and the related symbol.
3. Press or to set the necessary
time.
4. Press to confirm.
When the time ends, an acoustic signal
sounds. The appliance deactivates. The
display shows a message.
5. Press any symbol to stop the signal.
8. AUTOMATIC PROGRAMMES
WARNING!
Refer to Safety chapters.
8.1 Recipes with Recipe
Automatic
This appliance has a set of recipes you
can use. The recipes are fixed and you
cannot change them.
1. Activate the appliance.
2. Select the menu: Recipes. Press
to confirm.
3. Select the category and dish. Press
to confirm.
4. Select a recipe. Press to confirm.
When you use the function:
Manual, the appliance uses
the automatic settings. You
can change them as with
other functions.
9. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.

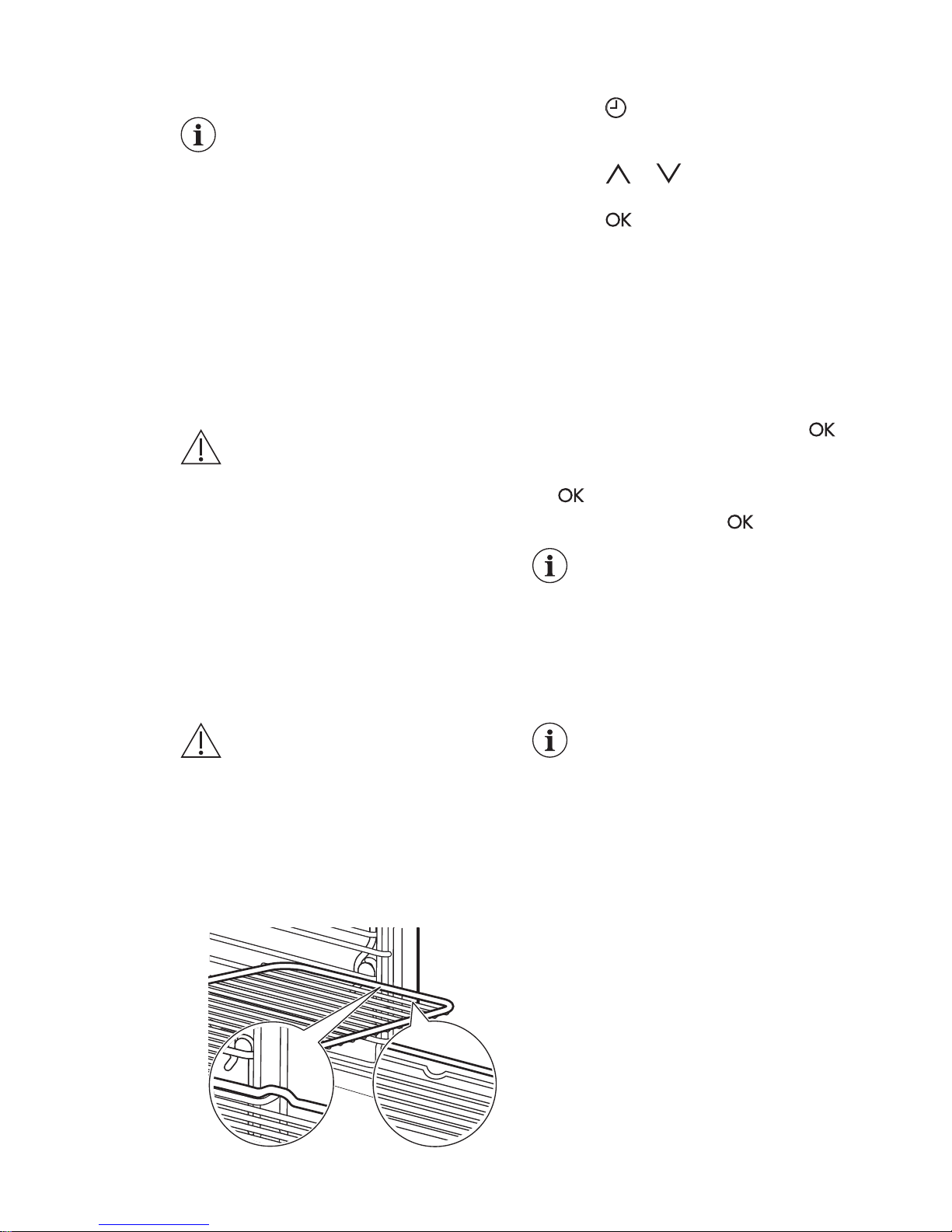

9.1 Inserting the accessories
Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
All accessories have small
indentations at the bottom of
the right and left edges to
increase safety. Always make
sure that these indentations
are at the rear of the
appliance. The indentations
are also anti-tip devices.
The high rim around the shelf
prevents cookware from
slipping of the shelf.
ENGLISH
13
Page 14
10. ADDITIONAL FUNCTIONS
10.1 Favourites
You can save your favourite settings, such
as duration, temperature or heating
function. They are available in the menu:
Favourites. You can save 20 programmes.
Saving a programme
1. Activate the appliance.
2. Set a heating function or an automatic
programme.
3. Touch again and again until the
display shows: SAVE.
4. Press to confirm.
The display shows the first free memory
position.
5. Press to confirm.
6. Enter the name of the programme.
The first letter flashes.
7. Touch or to change the letter.
8. Press
.
The next letter flashes.
9. Do step 7 again as necessary.
10. Press and hold to save.
You can overwrite a memory position.
When the display shows the first free
memory position, touch or and
press to overwrite an existing
programme.
You can change the name of a
programme in the menu: Edit Programme
Name.
Activating the programme
1. Activate the appliance.
2. Select the menu: Favourites.
3. Press
to confirm.
4. Select your favourite programme
name.
5. Press to confirm.
Press to go directly to menu:
Favourites.
10.2 Using the Child Lock
When the Child Lock is on, the appliance
cannot be activated accidentally.
1. Touch to activate the display.
2. Touch and at the same time
until the display shows a message.
To deactivate the Child Lock function
repeat step 2.
10.3 Function Lock
This function prevents an accidental
change of the heating function. You can
activate it only when the appliance
operates.
1. Activate the appliance.
2. Set a heating function or setting.
3. Press
again and again until the
display shows: Function Lock.
4. Press to confirm.
To deactivate the function, press
. The
display shows a message. Press again
and then to confirm.
When you deactivate the
appliance, the function also
deactivates.
10.4 Set + Go
The function lets you set a heating
function (or a programme) and use it later
with one press of any symbol.
1. Activate the appliance.
2. Set a heating function.
3. Press
again and again until the
display shows: Duration.
4. Set the time.
5. Press again and again until the
display shows: Set + Go.
6. Press to confirm.
Press any symbol (except for ) to start
the function: Set + Go. The set heating
function starts.
When the heating function ends, an
acoustic signal sounds.
www.electrolux.com14
Page 15
• Function Lock is on when
the heating function
operates.
• The menu: Basic Settings
lets you activate and
deactivate the function:
Set + Go.
10.5 Automatic Switch-off
For safety reasons the appliance turns off
automatically after some time if a heating
function operates and you do not change
any settings.
Temperature (°C) Switch-off time
(h)
50 - 96 12.5
The Automatic switch-off
does not work with the
functions: Light, Duration,
End Time.
10.6 Brightness of the display
There are two modes of display
brightness:
• Night brightness - when the appliance
is deactivated, the brightness of the
display is lower between 10 PM and 6
AM.
• Day brightness:
– when the appliance is activated.
– if you touch a symbol during the
night brightness (apart from ON /
OFF), the display goes back to the
day brightness mode for the next
10 seconds.
– if the appliance is deactivated and
you set the function: Minute
Minder. When the function ends,
the display goes back to the night
brightness.
10.7 Cooling fan
When the appliance operates, the cooling
fan activates automatically to keep the
surfaces of the appliance cool.
11. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
11.1 Notes on cleaning
• Clean the front of the appliance with a
soft cloth with warm water and a
cleaning agent.
• To clean metal surfaces, use a
dedicated cleaning agent.
• Clean the appliance interior after each
use. Fat accumulation or other food
remains may result in a fire.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all accessories after each use
and let them dry. Use a soft cloth with
warm water and a cleaning agent.
• If you have nonstick accessories, do
not clean them using aggressive
agents, sharp-edged objects or a
dishwasher. It can cause damage to
the nonstick coating.
• Dry the oven when the cavity is wet
after usage.
11.2 Removing the shelf
supports
Before maintenance, make sure that the
appliance is cool. There is a risk of burns.
To clean the appliance, remove the shelf
supports.
1. Pull carefully the supports up and out
of the front catch.
ENGLISH
15
Page 16
2
3
1
2. Pull the front end of the shelf support
away from the side wall.
3. Pull the supports out of the rear catch.
Install the shelf supports in the opposite
sequence.
11.3 Steam Cleaning
Remove the worst dirt manually.
1. Put 250 ml of water with 3
tablespoons of vinegar directly into the
steam generator.
2. Activate the function: Steam Cleaning.
The display shows the duration of the
function. An acoustic signal sounds when
the programme is completed.
3. Touch any symbol to deactivate the
signal.
4. Wipe out the appliance with a soft
cloth. Remove the water from the
steam generator.
Keep the appliance door open for
approximately 1 hour. Wait until the
appliance is dry. To speed up the drying
you can heat up the appliance with hot air
at temperature 150 °C for approximately
15 minutes.
11.4 Steam generation system
CAUTION!
Dry the steam generator after
each use. Remove the water
with the sponge.
Remove the limescale with
water and vinegar.
CAUTION!
Chemical de-scaling agents
can cause damage to the
enamel. Follow the
instructions of the
manufacturer.
1. To clean the water drawer and the
steam generator, put the water and
vinegar mixture (approximately 250 ml)
through the water drawer into the
steam generator. Wait for
approximately 10 minutes.
2. Remove the water and vinegar with
the sponge.
3. Put clean water (100 - 200 ml) into the
water drawer to flush the steam
generation system.
4. Remove the water from the steam
generator with the sponge and rub it
dry.
5. Keep the door open to let the
appliance dry fully.
11.5 Removing the oven door
Remove the door to clean the inner side of
the appliance more easily.
WARNING!
Be careful when you remove
the door from the appliance.
The door is heavy.
1. Open the door fully.
2. Fully release the clamping levers on
the hinges.
3
4
2
3. Hold the door on the two sides and
close it approximately 3/4 of the way.
4. Pull the door away from the appliance.
5. Put the door with the outer side down
on a soft cloth on a stable surface.
This is to prevent scratches.
www.electrolux.com16
Page 17

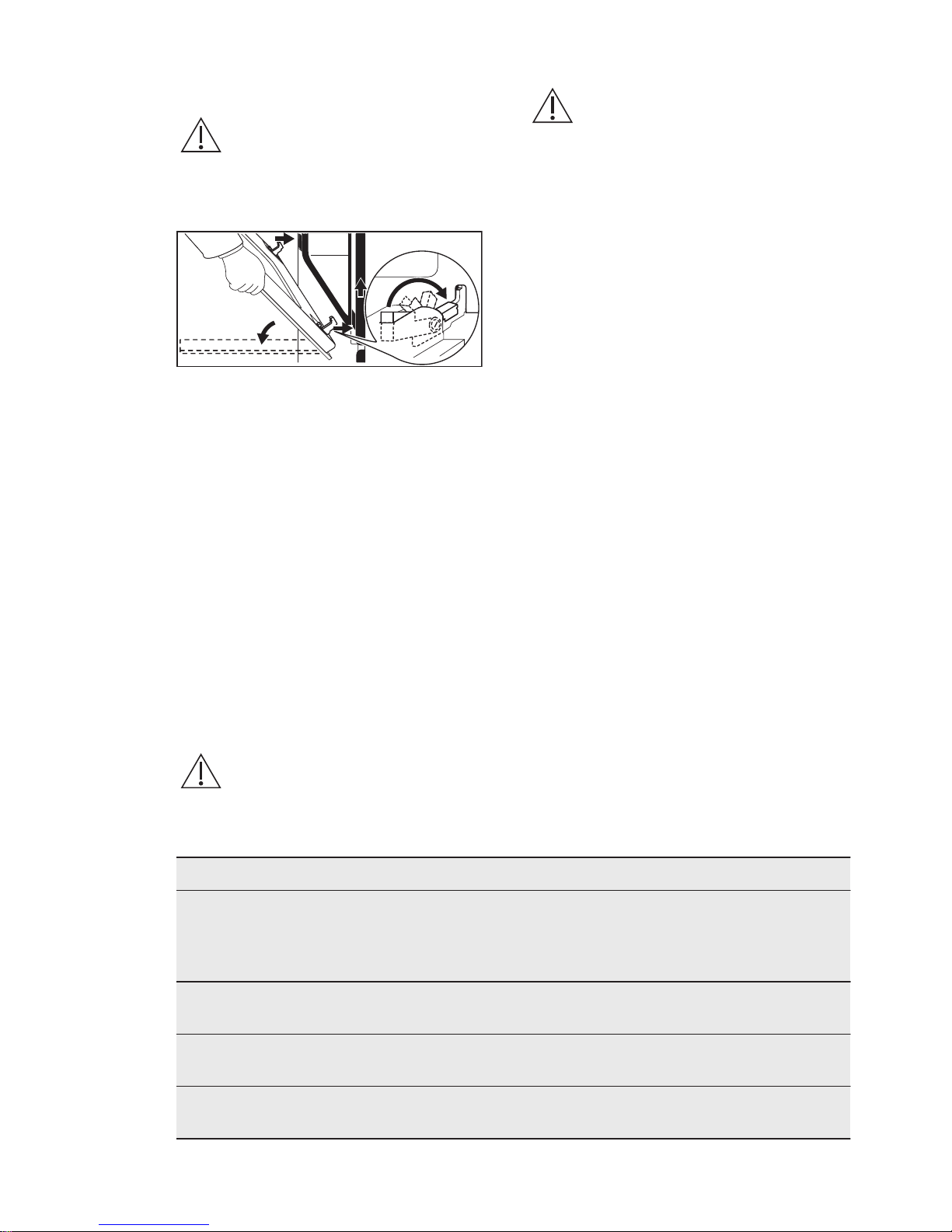

11.6 Installing the oven door
WARNING!
Be careful when you install
the door. The door is heavy.
1. Hold the door on the two sides at an
angle of approximately 60°.
3
4
4
60º
5
2. At the same time push the door
hinges as far as they can go into the
two recesses at the bottom of the
appliance on the left and the right.
3. Lift the door up until you are at the
point of resistance and then open it as
far as possible.
4. Fully lock the clamping levers on the
hinges.
5. Close the door of the appliance.
11.7 Replacing the lamp
Put a cloth on the bottom of the interior of
the appliance. It prevents damage to the
lamp glass cover and the cavity.
WARNING!
Danger of electrocution!
Disconnect the fuse before
you replace the lamp.
The lamp and the lamp glass
cover can be hot.
1. Deactivate the appliance.
2. Remove the fuses from the fuse box
or deactivate the circuit breaker.
The side lamp
1. Remove the left shelf support to get
access to the lamp.
2. Use a Torx 20 screwdriver to remove
the cover.
3. Remove and clean the metal frame
and the seal.
4. Replace the lamp with a halogen, 230
V, 40 W, 300 °C heat resistant lamp.
5. Install the metal frame and the seal.
Tighten the screws.
6. Install the left shelf support.
12. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
12.1 What to do if...
Problem Possible cause Remedy
You cannot activate or operate the oven.
The oven is not connected
to an electrical supply or it
is connected incorrectly.
Check if the oven is correctly connected to the electrical supply (refer to the connection diagram if available).
The appliance does not
heat up.
The appliance is deactivated.
Activate the appliance.
The appliance does not
heat up.
The clock is not set. Set the clock.
The appliance does not
heat up.
The necessary settings are
not set.
Make sure that the settings
are correct.
ENGLISH
17
Page 18
Problem Possible cause Remedy
The appliance does not
heat up.
The automatic switch-off is
activated.
Refer to "Automatic switchoff".
The appliance does not
heat up.
The Child Lock is on. Refer to "Using the Child
Lock".
The appliance does not
heat up.
The door is not closed correctly.
Fully close the door.
The appliance does not
heat up.
The fuse is blown. Make sure that the fuse is
the cause of the malfunction. If the fuse is blown
again and again, contact a
qualified electrician.
The lamp does not operate. The lamp is defective. Replace the lamp.
The display shows an error
code that is not in this table.
There is an electrical fault. • Deactivate the appliance
with the house fuse or
the safety switch in the
fuse box and activate it
again.
• If the display shows the
error code again, contact the Customer Care
Department.
Steam and condensation
settle on the food and in the
cavity of the appliance.
You left the dish in the appliance for too long.
Do not leave the dishes in
the appliance for longer
than 15 - 20 minutes after
the cooking process ends.
The appliance is activated
and does not heat up. The
fan does not operate. The
display shows "Demo".
The demo mode is activated.
1. Deactivate the appli-
ance.
2. Touch and hold until
the appliance activates
and deactivates.
3. Touch and hold and
at the same time until an acoustic signal
sounds. "Demo" goes
out.
12.2 Service data
If you cannot find a solution to the
problem yourself, contact your dealer or
an Authorised Service Centre.
The necessary data for the service centre
is on the rating plate. The rating plate is on
the front frame of the appliance cavity. Do
not remove the rating plate from the
appliance cavity.
www.electrolux.com18
Page 19
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
13. INSTALLATION
WARNING!
Refer to Safety chapters.
13.1 Lifting the appliance
To lift the appliance, do not use the door
handle.
min.
3 mm

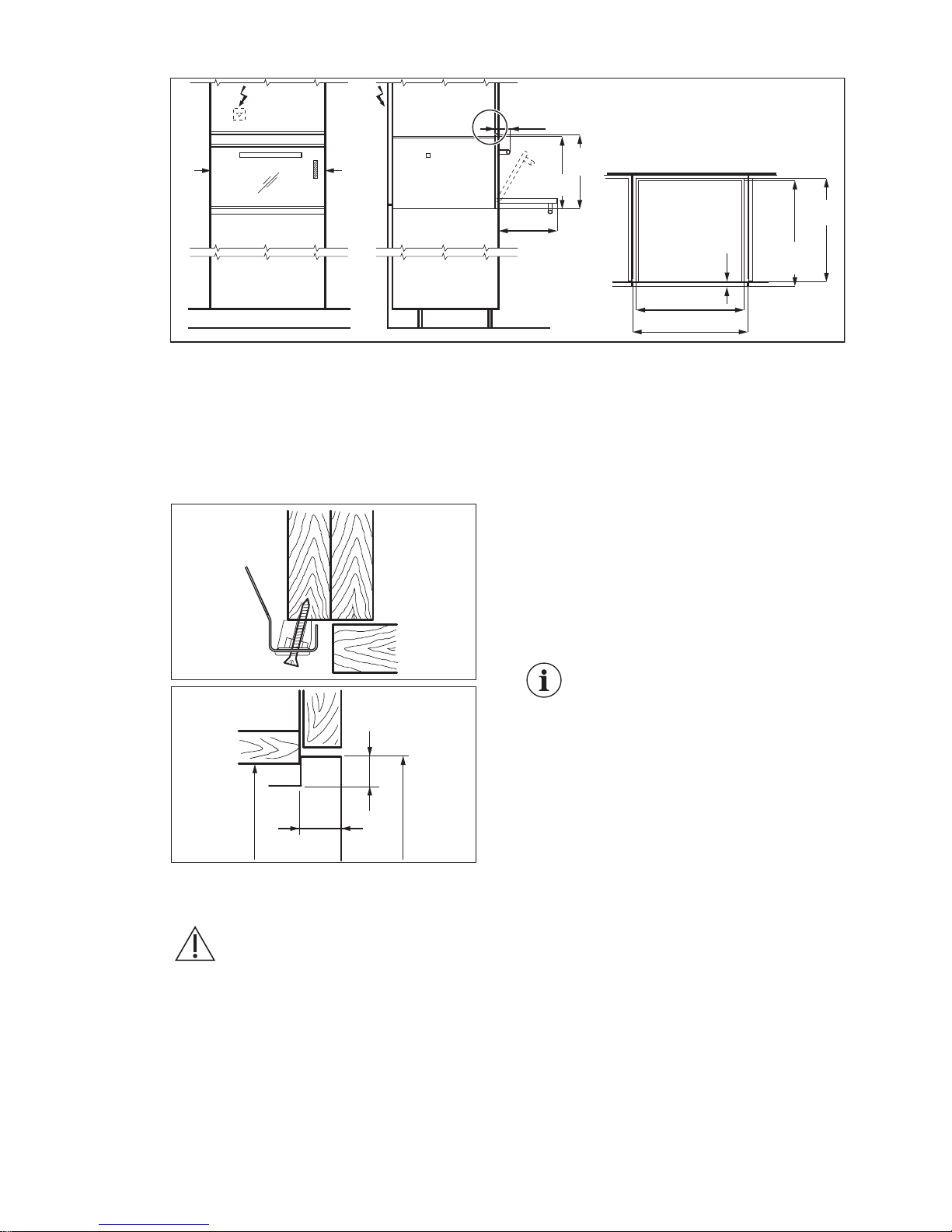

13.2 Building in
During installation in
combustible matter, NIN SEV
1000 and fire protection
guidelines and regulations of
the Association of Cantonal
Fire Insurance shall be strictly
adhered to.
• Cable length: 2.50 m from appliance
• Plug: version 12
A = Appliance, N = Recess
ENGLISH
19
Page 20
A A A
B
N 380-388
mm
A 388
mm
252 mm
N 560 mm
N min.
550 mm
A 567
mm
20
mm
A 592 mm
~50 mm
1. Place the appliance in front of the
recess and connect the mains plug.
Make sure the cable is free when you
slide the appliance.
2. Push the appliance into the recess.
3. Use a minimum of 2 screws to attach
the oven on the 2 sides (A).
A
20 mm
N
13 mm
A
B
13.3 Electrical connection
WARNING!
If service is required always
disconnect the appliance
from the power supply.
Use a power cable of H05VV-F or higher.
Install the appliance with a socket supply
line. If there is no socket supply line, the
fixed home electrical system must include
an isolating device with at least a 3 mmcontact separation to enable a
simultaneous and all-pole cut off from the
mains (according to NIN SEV 1000). The
customer must have a socket for the
electrical connection that is accessible
and outside the coordination room. The
length of the connection cable must be
approximately 120 cm with lines
connected directly to the mains.
Only a qualified person can
connect the appliance to the
electricity supply.
1. Do the electrical connections as in the
connection illustration.
2. Secure the cable grip.
www.electrolux.com20
Page 21
14. CH GUARANTEE
Customer Service Centres
Point of Service
Industriestrasse 10
5506 Mägenwil
Le Trési 6
1028 Préverenges
Via Violino 11
6928 Manno
Morgenstrasse 131
3018 Bern
Zürcherstrasse 204E
9000 St. Gallen
Seetalstrasse 11
6020 Emmenbrücke
Schlossstrasse 1
4133 Pratteln
Comercialstrasse 19
7000 Chur
Spare parts service Industriestrasse 10,
5506 Mägenwil, Tel. 0848 848 111
Specialist advice/Sale Badenerstrasse
587, 8048 Zürich, Tel. 044 405 81 11
Warranty For each product we provide a
two-year guarantee from the date of
purchase or delivery to the consumer (with
a guarantee certificate, invoice or sales
receipt serving as proof). The guarantee
covers the costs of materials, labour and
travel. The guarantee will lapse if the
operating instructions and conditions of
use are not adhered to, if the product is
incorrectly installed, or in the event of
damage caused by external influences,
force majeure, intervention by third parties
or the use of non-genuine components.
15. ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do
not dispose appliances marked with the
symbol with the household waste.
Return the product to your local recycling
facility or contact your municipal office.
For Switzerland:
Where should you take your
old equipment?
Anywhere that sells new
equipment or hand it in to
official SENS collection points
or official SENS recycling
firms.
The list of official SENS
collection points can be
found at www.erecycling.ch
*
ENGLISH
21
