Electrolux E30EC70FSS1, E30EC70FSS2, E36EC70FSS1, E36EC70FSS2 Installation Guide

iNSTALLATiON AND SERVICE MUST BE PERFORMED BY A QUALiFiED iNSTALLER.

iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.

READ AND SAVE THESE iNSTRUCTiONS FOR FUTURE REFERENCE.

FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in

the vicinity of this or any other appliance.

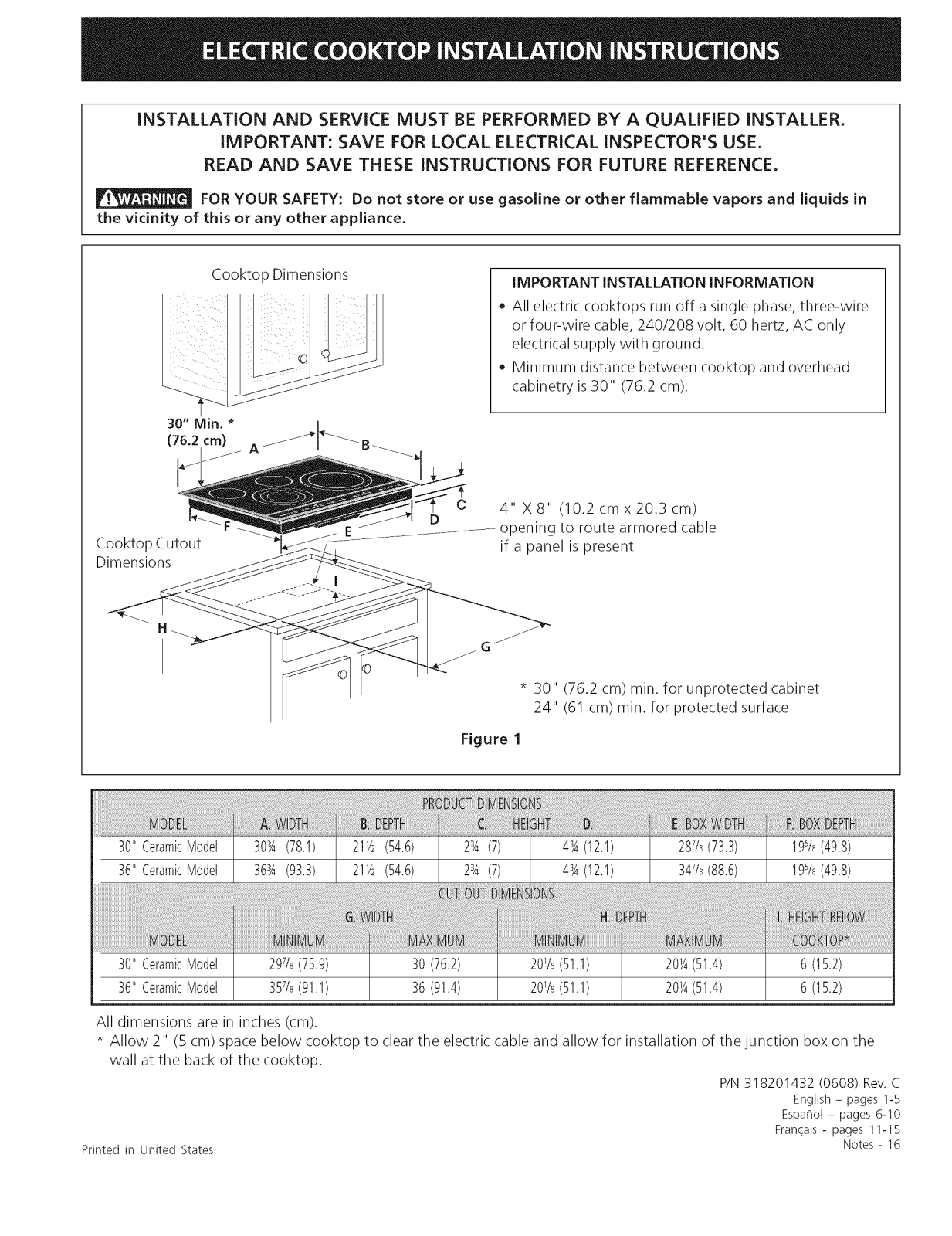

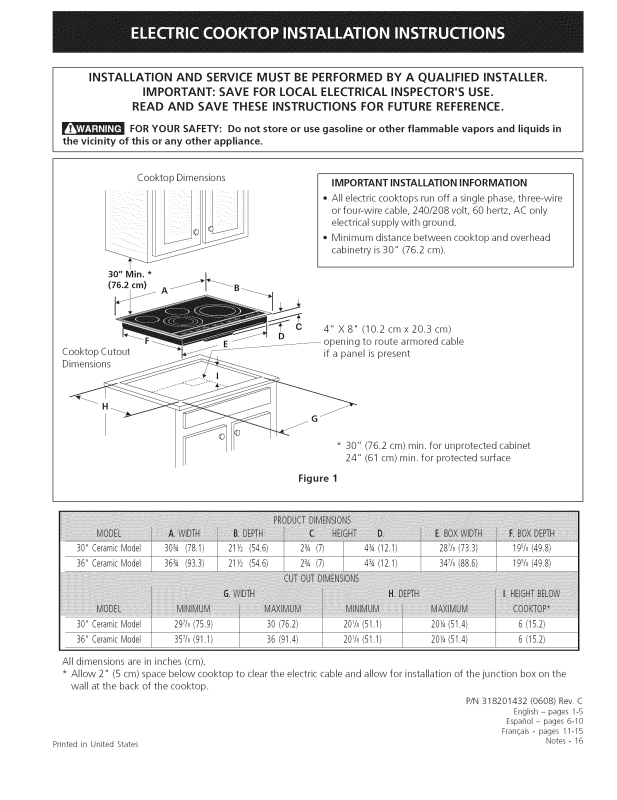

Cooktop Cutout
Dimensions

Cooktop Dimensions

IMPORTANT INSTALLATION INFORMATION
All electric cooktops run off a single phase, three-wire

or four-wire cable, 240/208 volt, 60 hertz, AC only
electrical supply with ground.

• Minimum distance between cooktop and overhead
cabinetry is30" (76.2 cm).

4"XS"(10.2cmx20.3cm)

opening to route armored cable
if a panel is present

* 30" (76.2 cm) min. for unprotected cabinet

24" (61 cm) min. for protected surface

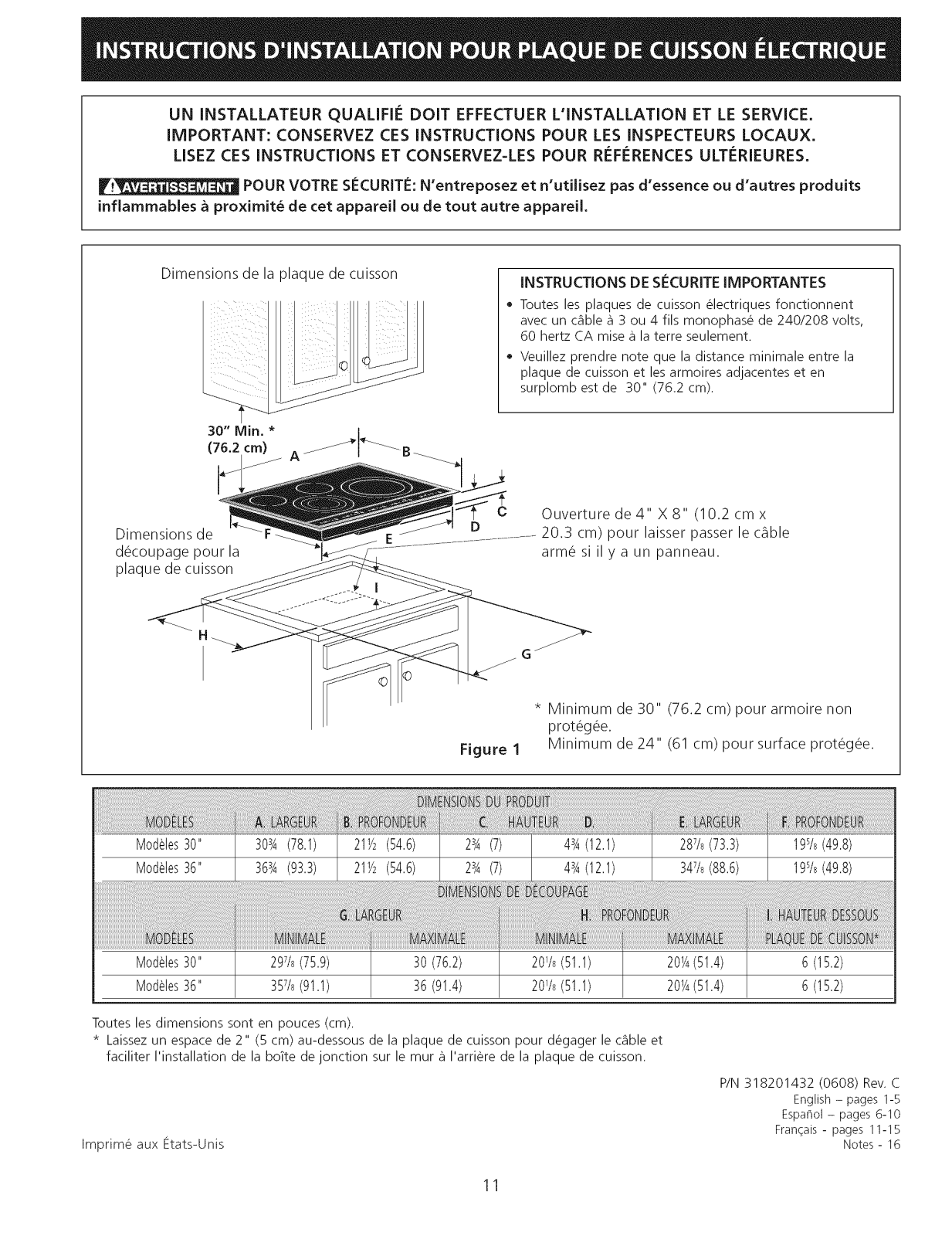

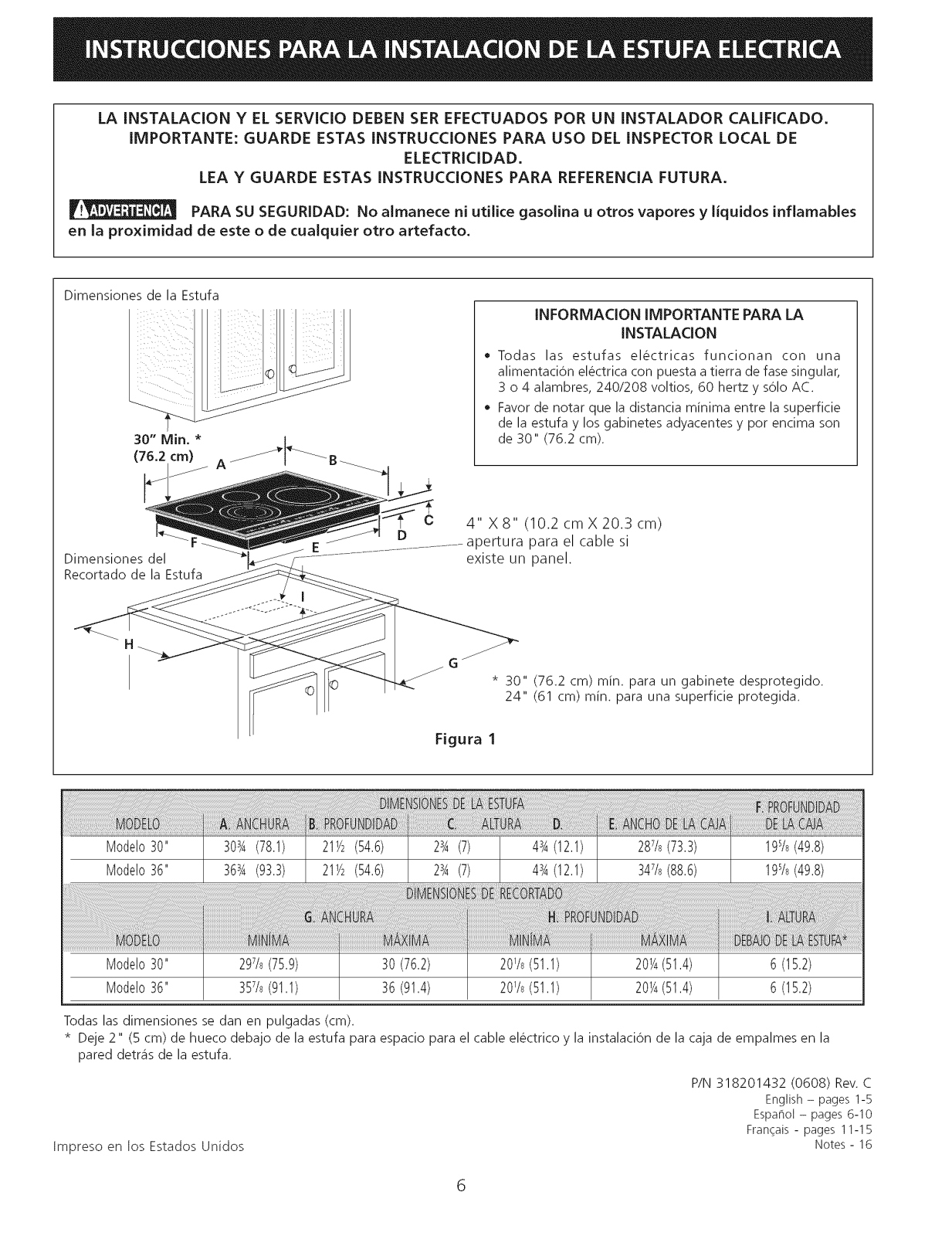

Figure 1

30"CeramicModel 30_A(78.1) 211/2(54.6) 2_A(7) 4_A(12.1) 287/o(73.3) 19s/o(49.8)
36"CeramicModel 363A(93.3) 21V2(54.6) 2_A(7) 4_A(12.1) 347/_(88.6) 19s/_(49.8)

u U iiM£:liN

MM

30" CeramicModel 297/_(75.9) 30 (76.2) 20_/_(51.1) 20_ (51.4) 6 (15.2)
36" CeramicModel 357/_(91.1) 36 (91.4) 20_/_(51.1) 20_ (51.4) 6 (15.2)

All dimensions are in inches (cm).
* Allow 2" (5 cm)space below cooktop to clear the electric cable and allow for installation of the junction box on the

wall at the back of the cooktop.

P/N318201432 (0608) Rev.C

English - pages 1-5

Espar]ol- pages 6-10

FranCais - pages 11-15

Printed in United States

Notes - 16

Overhead Cabinet Should Not Exceed a
Maximum Depth of 13" (33 cm)

30" (76.2 cm) Min.
Clearance Between the

Top of the Cooking

Platform and the Bottom
of an Unprotected Wood

or Metal Cabinet.

Distance Between Rear _ __J

of Cutout and

Nearest Combustible 10"

25.4 cm)

24" (61 cm) Min. when_
Bottom of Wood or lw

Metal Cabinet is
Protected by Not Less

Than 1/8" (0.3 cm) Flame

Retardant Millboard
Covered With Not Less

Than No. 28 MGS Sheet

Steel, 0.015" (0.4 ram)
Stainless Steel, 0.024"

(0.6 mm) Aluminum or

0.020" (0.5 mm) Copper.

2 1/2" (6.4 cm) Min. From E Jge
of Cutout to Front Edge of
Countertop

F

Approximate Location
of Junction Box

Letterson this figure refer to chart on front pageexcept for J & K.

_To eliminate the risk of burns or

fire by reaching over heated surfaces,cabinet

storage space located above the cooktop
should be avoided. If cabinet storage is
provided, risk can be reduced by installing a
range hood that projects horizontally a
minimum of 5" (12.7 cm) beyond the bottom

of the cabinets.

30" Ceramic Glass 7V2' (19.1 cm)

36" Ceramic Glass 7Y2' (19.1 cm)

J Min. From Edge of

,p to Nearest

Combustible Wall
(Either Side of Unit).

It is not recommended to use

drawer underneath cooktop. Empty
space is needed for installation

purpose.

I i

2" (5.1 cm)
2" (5.1 cm)

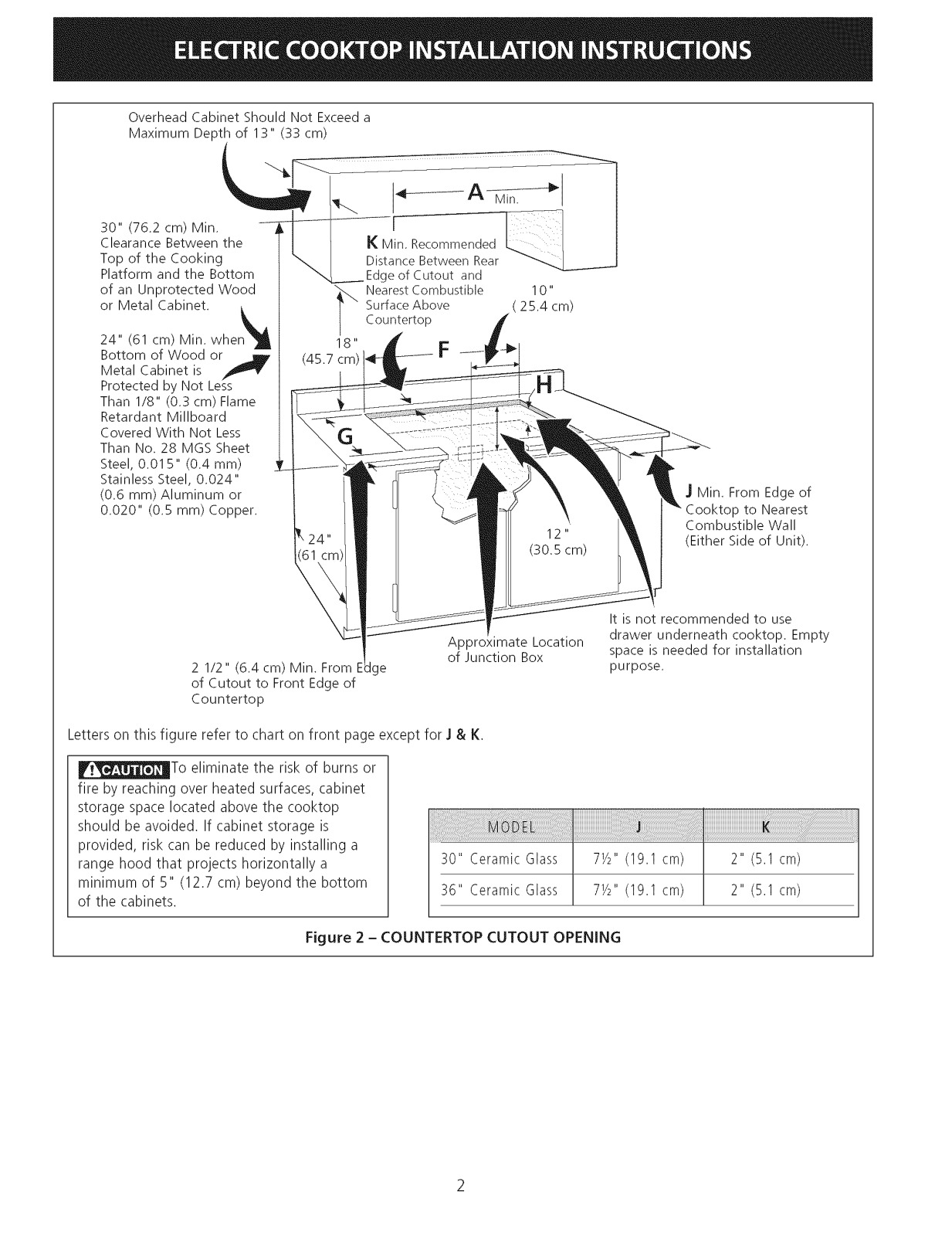

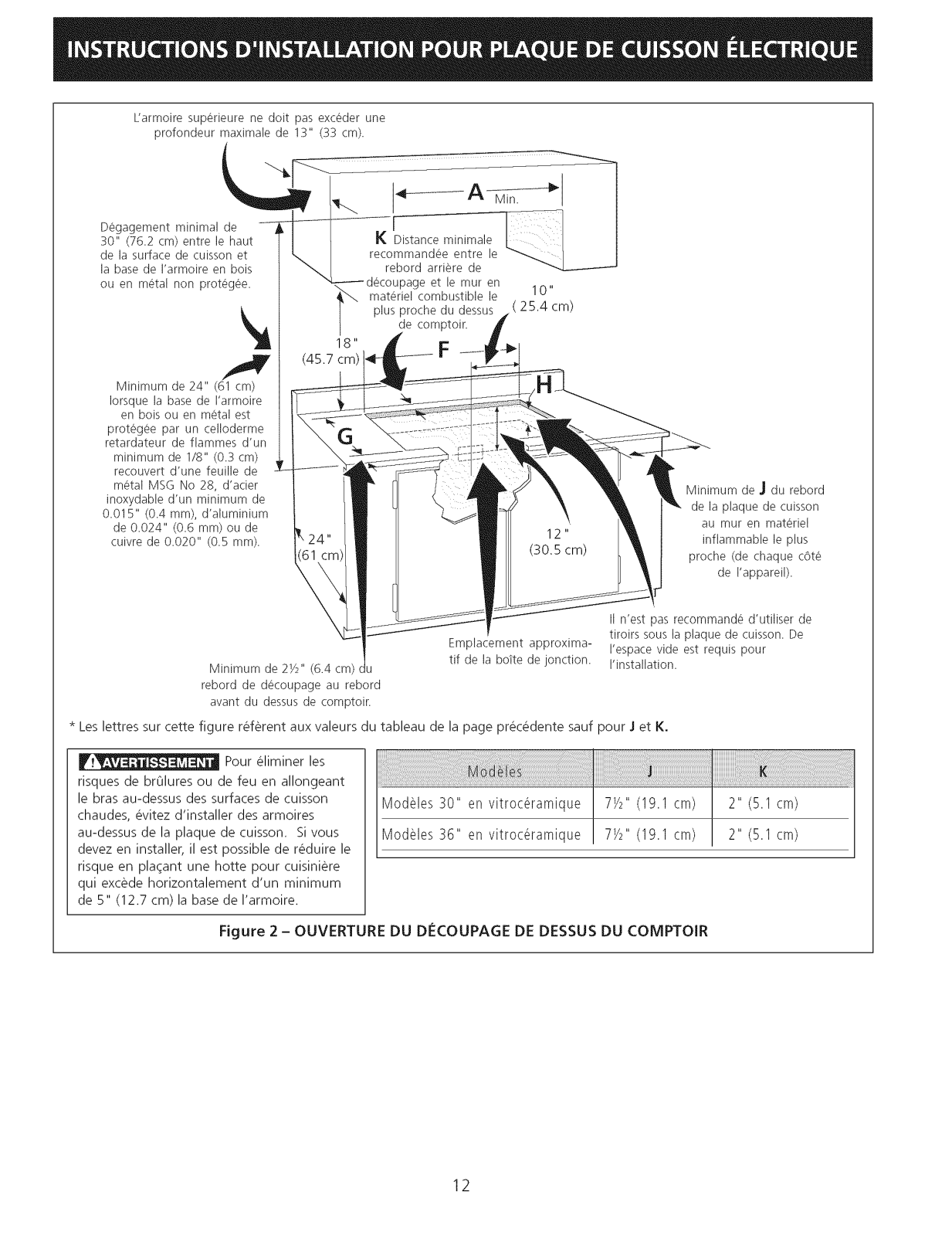

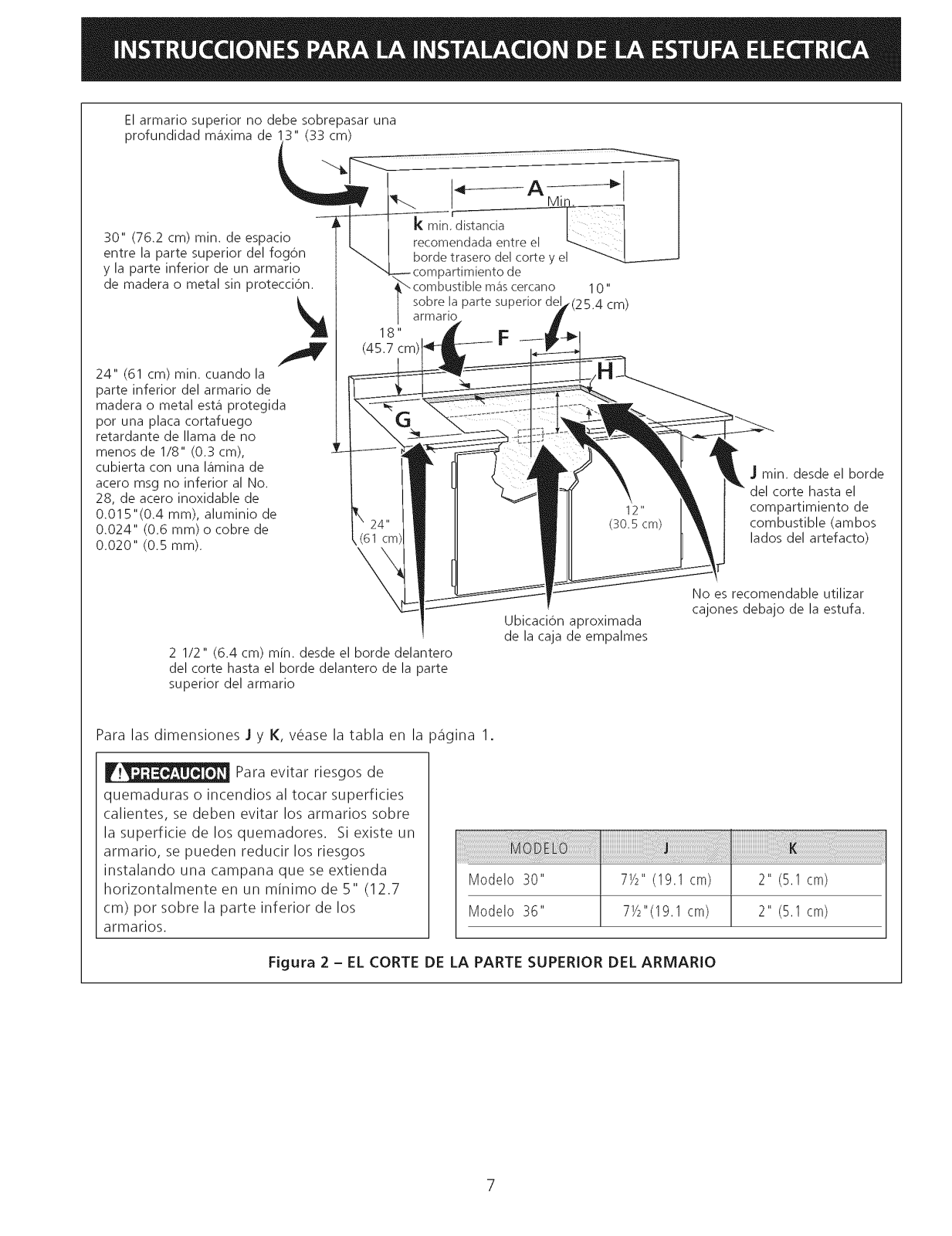

Figure 2 - COUNTERTOP CUTOUT OPENING

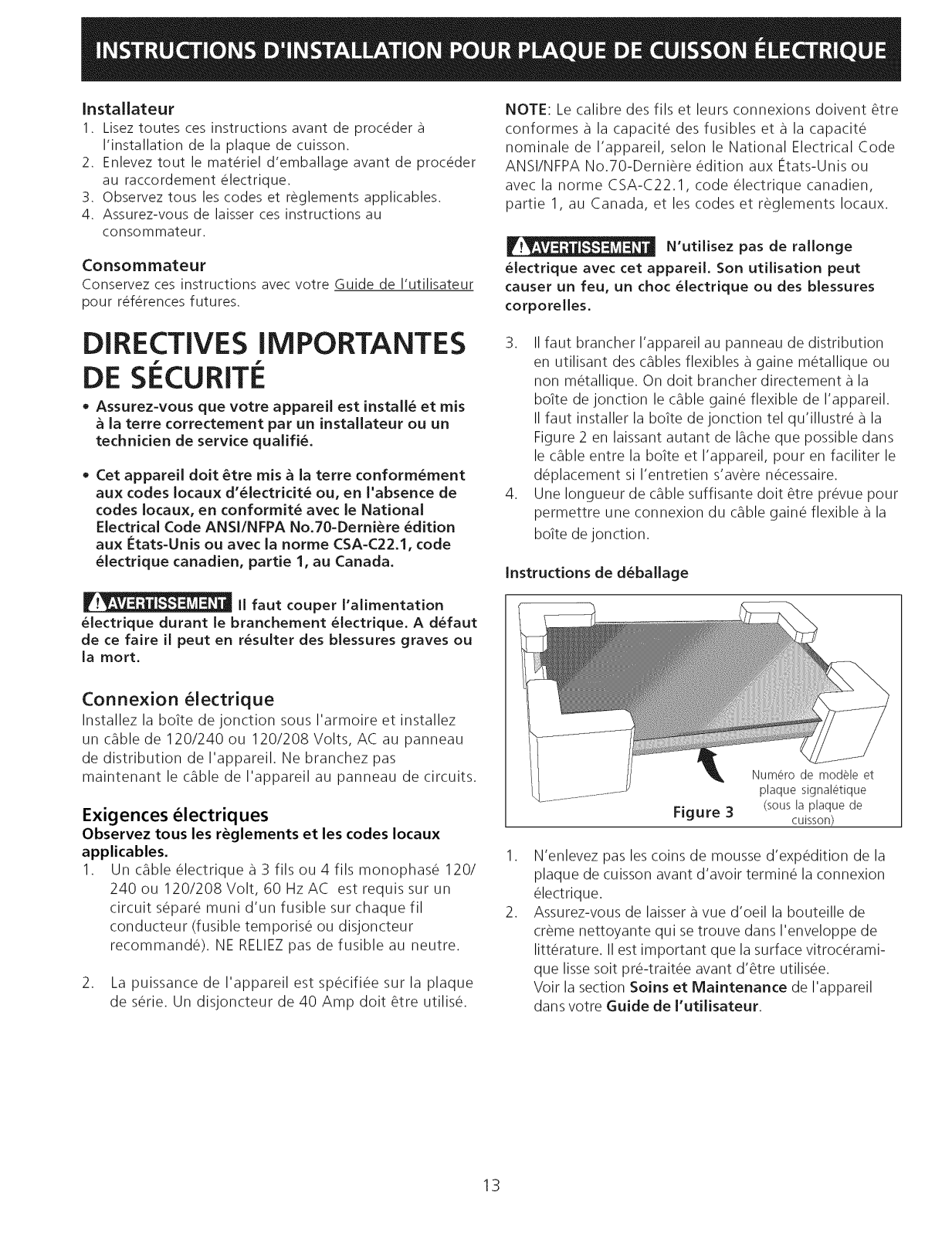

Important Notes to the Installer

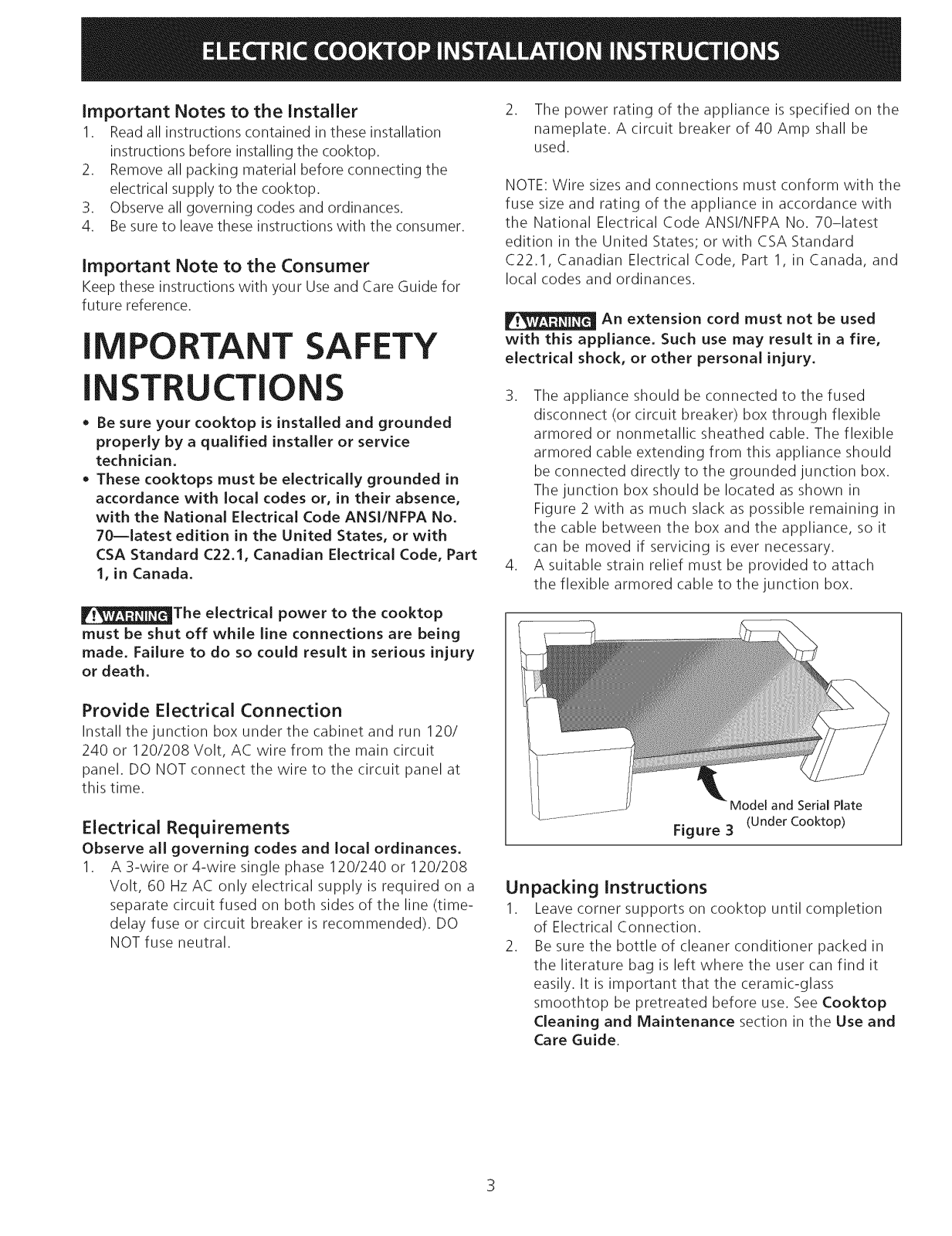

I. Readallinstructionscontainedintheseinstallation

instructionsbeforeinstallingthecooktop.

2. Removeallpackingmaterialbeforeconnectingthe
electricalsupplytothecooktop.

3. Observeallgoverningcodesandordinances.

4. Besuretoleavetheseinstructionswiththeconsumer.

Important Note to the Consumer

Keep these instructions with your Use and Care Guide for
future reference.

IMPORTANT SAFETY

2. The power rating of the appliance is specified on the
nameplate. A circuit breaker of 40 Amp shall be

used.

NOTE: Wire sizesand connections must conform with the
fuse size and rating of the appliance in accordance with

the National Electrical Code ANSI/NFPA No. 70-latest
edition in the United States; or with CSA Standard

C22.1, Canadian Electrical Code, Part I, in Canada, and
local codes and ordinances.

An extension cord must not be used
with this appliance. Such use may result in a fire,
electrical shock, or other personal injury.

INSTRUCTIONS

• Be sure your cooktop is instaJJed and grounded
properly by a quaJified instaJJer or service

technician.

• These cooktops must be electricalJy grounded in
accordance with IocaJ codes or, in their absence,

with the National Electrical Code ANSI/NFPA No.
70--latest edition in the United States, or with

CSA Standard C22.1, Canadian EJectricaJ Code, Part
1, in Canada.

_The eJectrJcaJ power to the cooktop

must be shut off while line connections are being
made. FaiJure to do so couJd resuJt in serious injury

or death.

Provide Electrical Connection

Install the junction box under the cabinet and run 120/
240 or 120/208 Volt, AC wire from the main circuit

panel. DO NOT connect the wire to the circuit panel at
this time.

Electrical Requirements

Observe alJ governing codes and Jocal ordinances.

1. A 3-wire or 4-wire single phase 120/240 or 120/208
Volt, 60 Hz AC only electrical supply is required on a

separate circuit fused on both sides of the line (time-
delay fuse or circuit breaker is recommended). DO
NOT fuse neutral.

3. The appliance should be connected to the fused
disconnect (or circuit breaker) box through flexible

armored or nonmetallic sheathed cable. The flexible
armored cable extending from this appliance should

be connected directly to the grounded junction box.
The junction box should be located as shown in
Figure 2 with as much slack as possible remaining in
the cable between the box and the appliance, so it
can be moved if servicing is ever necessary.

4. A suitable strain relief must be provided to attach
the flexible armored cable to the junction box.

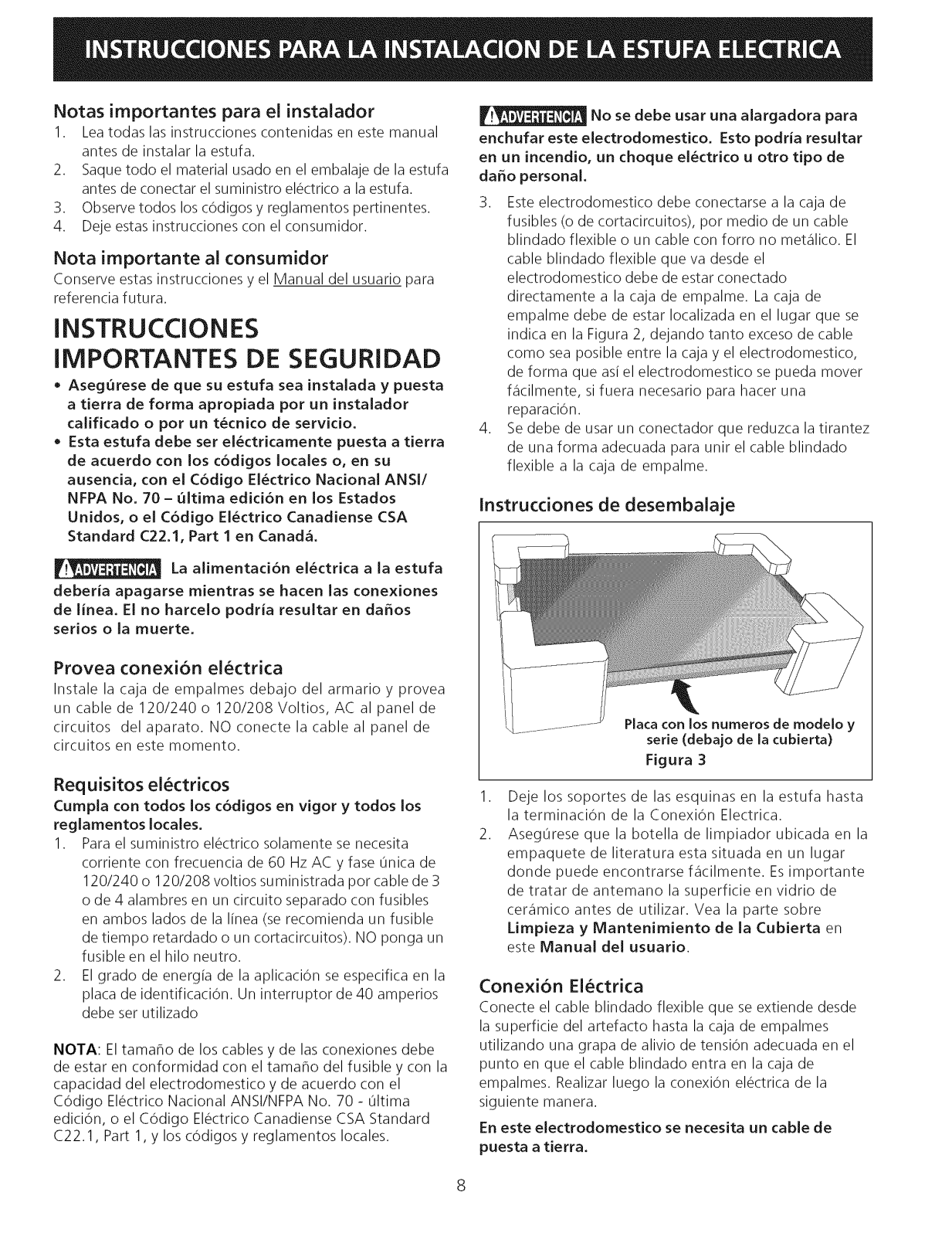

Model and Serial Plate

Figure 3 (Under Cooktop)

Unpacking Instructions

1. Leave corner supports on cooktop until completion
of Electrical Connection.

2. Be sure the bottle of cleaner conditioner packed in
the literature bag is left where the user can find it
easily. It is important that the ceramic-glass
smoothtop be pretreated before use. See Cooktop
Cleaning and Maintenance section in the Use and

Care Guide.

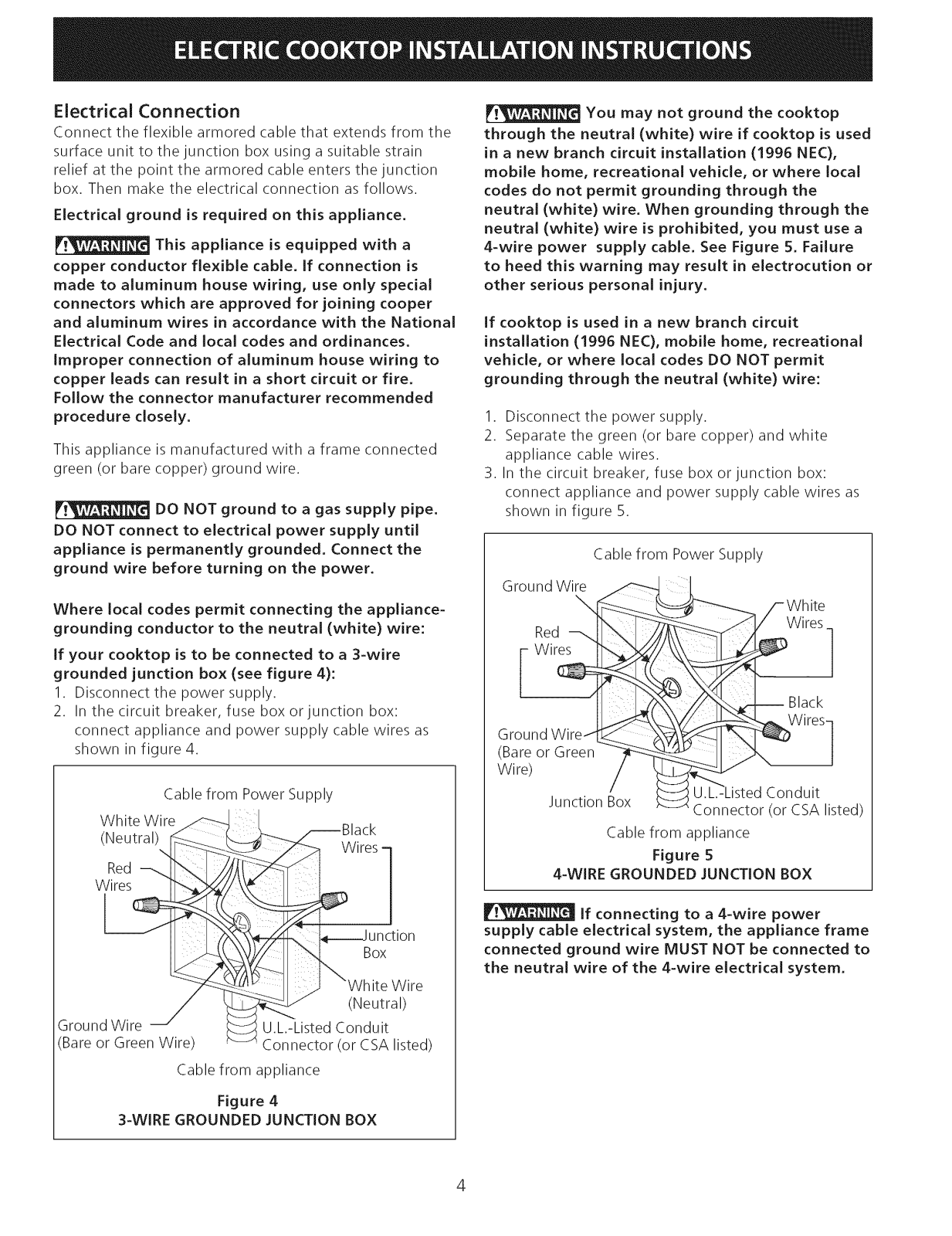

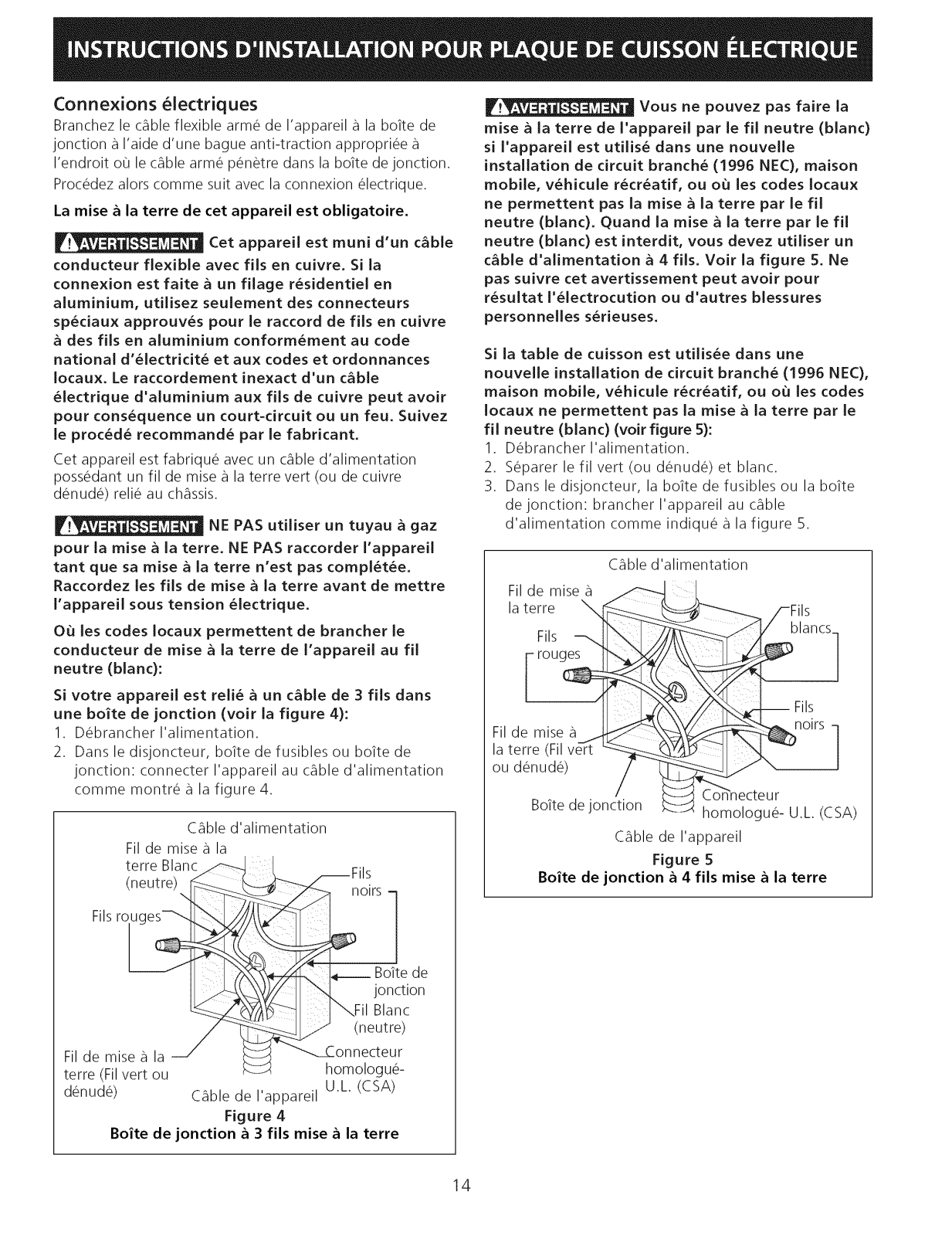

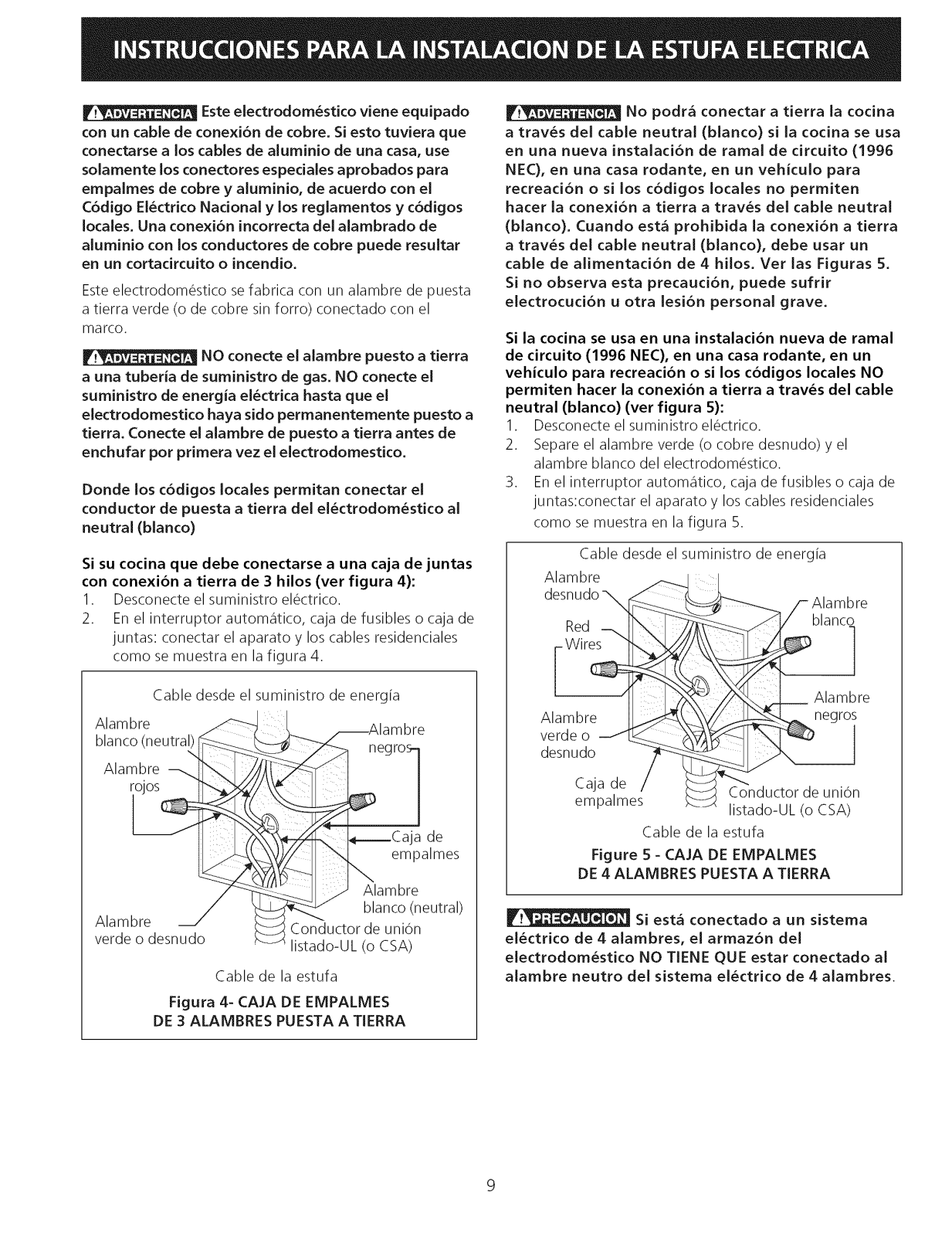

EJectricaJ Connection

Connect the flexible armored cable that extends from the
surface unit to the junction box using a suitable strain

relief at the point the armored cable enters the junction
box. Then make the electrical connection as follows.

Electrical ground is required on this appJiance.

This appJiance is equipped with a

copper conductor fJexibie cabJe. Jf connection is
made to aJuminum house wiring, use only speciaJ
connectors which are approved for joining cooper

and aJuminum wires in accordance with the National
EiectricaJ Code and JocaJ codes and ordinances.

improper connection of aJuminum house wiring to
copper Jeads can result in a short circuit or fire.

Follow the connector manufacturer recommended
procedure closely.

This appliance is manufactured with a frame connected
green (or bare copper) ground wire.

DO NOT ground to a gas supply pipe.

DO NOT connect to eJectricaJ power suppJy untiJ
appJiance is permanentJy grounded. Connect the
ground wire before turning on the power.

Where local codes permit connecting the appliance-
grounding conductor to the neutraJ (white) wire:

if your cooktop is to be connected to a 3-wire
grounded junction box (see figure 4):

1. Disconnect the power supply.

2. In the circuit breaker, fuse box or junction box:
connect appliance and power supply cable wires as
shown in figure 4.

Cable from Power Supply

White Wire

(Neutral)

Wires

Red Wires ]

Box

You may not ground the cooktop

through the neutral (white) wire if cooktop is used

in a new branch circuit instaiJatJon (1996 NEC),
mobiJe home, recreational vehicJe, or where local

codes do not permit grounding through the

neutraJ (white) wire. When grounding through the

neutraJ (white) wire is prohibited, you must use a
4-wire power suppJy cabJe. See Figure 5. Failure
to heed this warning may result in electrocution or
other serious personal injury.

if cooktop is used in a new branch circuit

installation (1996 NEC), mobiJe home, recreational

vehicle, or where JocaJ codes DO NOT permit
grounding through the neutral (white) wire:

1. Disconnect the power supply.

2. Separate the green (or bare copper) and white
appliance cable wires.

3. In the circuit breaker, fuse box or junction box:
connect appliance and power supply cable wires as
shown in figure 5.

Cable from Power Supply

Ground Wire

Red

-- Black

(Bare or Green
Wire)

Conduit

Junction Box Connector (or CSA listed)

Cable from appliance

Figure 5

4-WIRE GROUNDED JUNCTION BOX

Jfconnecting to a 4-wire power

suppJy cabJe eJectricaJ system, the appliance frame
connected ground wire MUST NOT be connected to
the neutral wire of the 4-wire electrical system.

(Neutral)

Ground Wire U.L-Listed Conduit

Bare or Green Wire) Connector (or CSA listed)

Cable from appliance

Figure 4

3-WIRE GROUNDED JUNCTION BOX

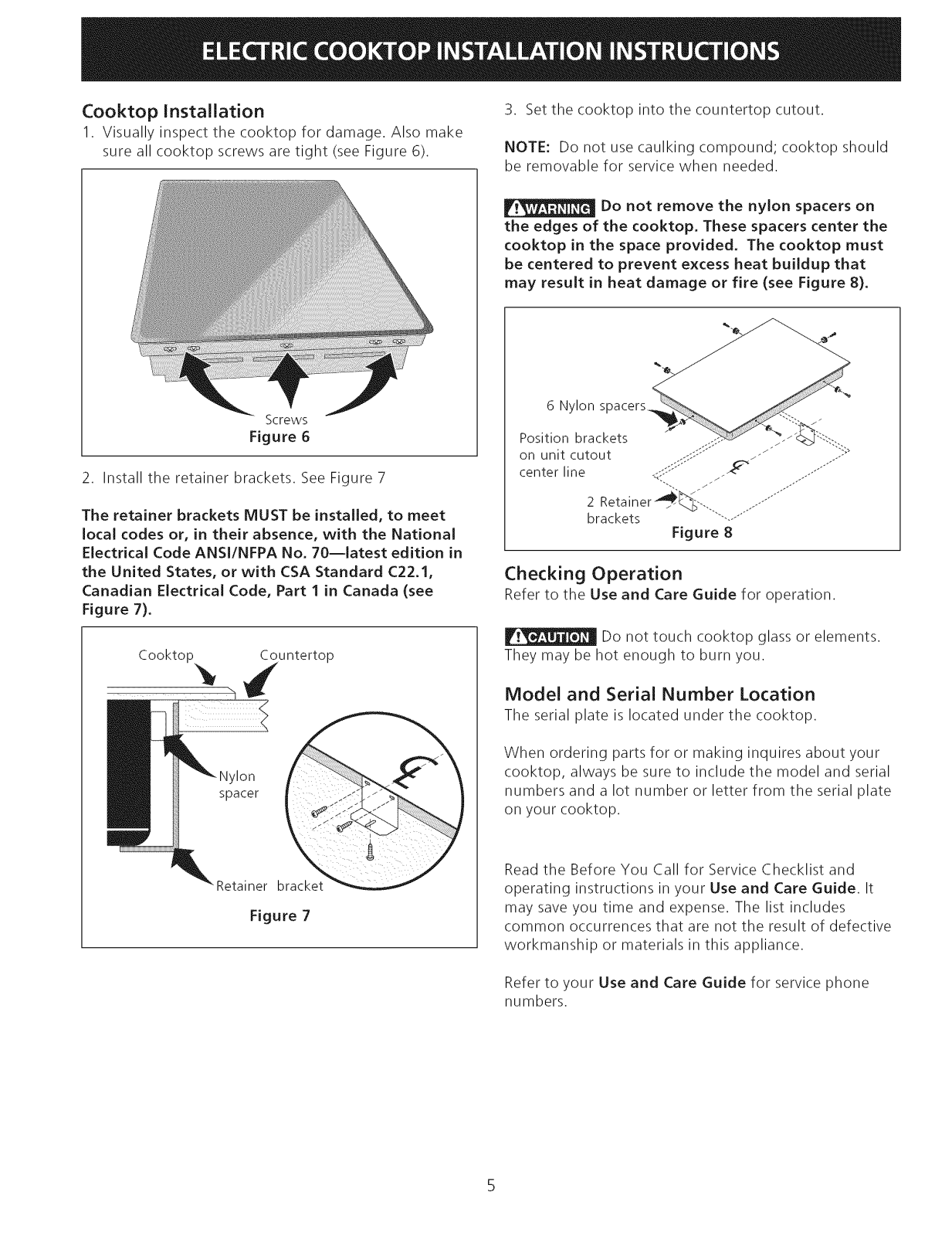

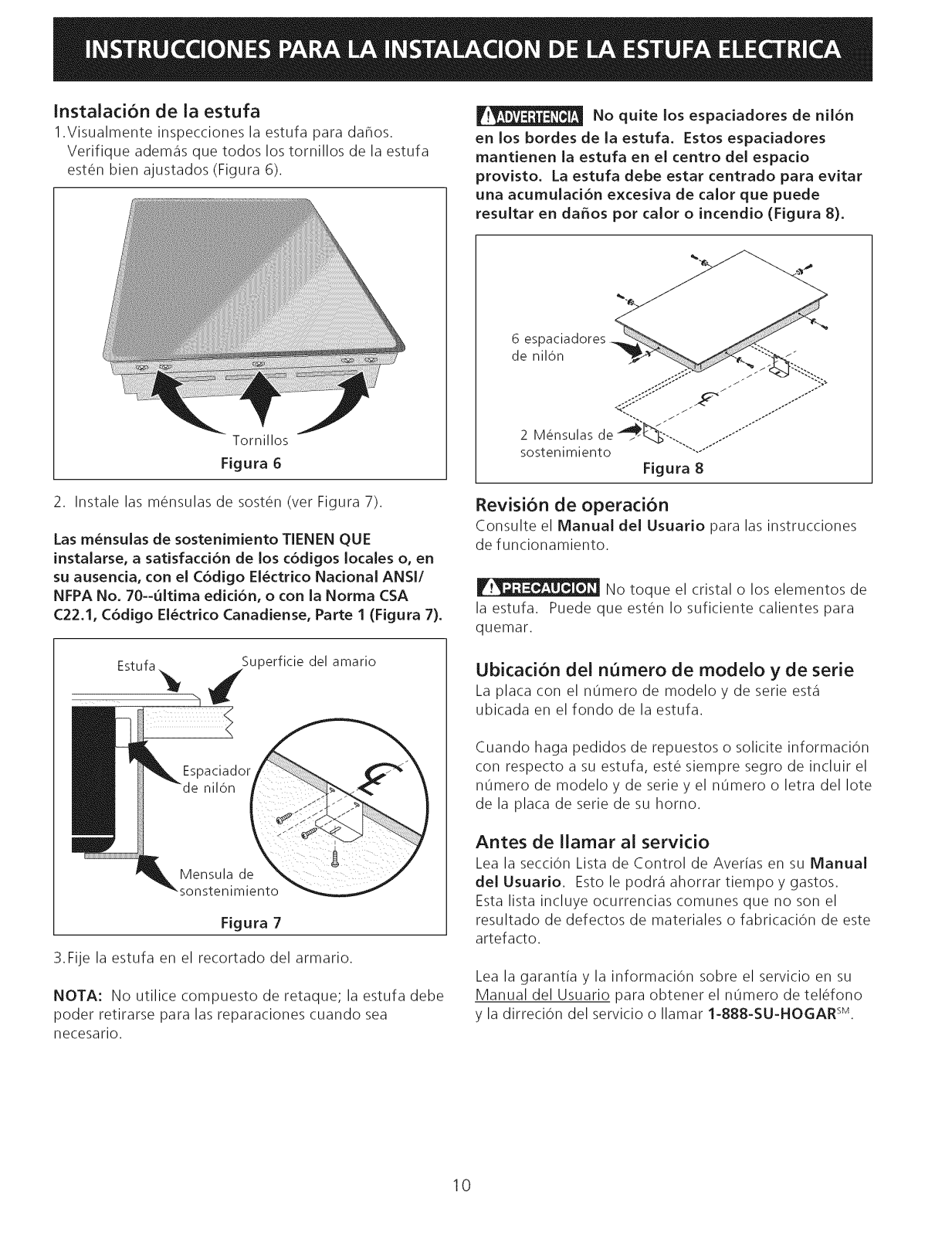

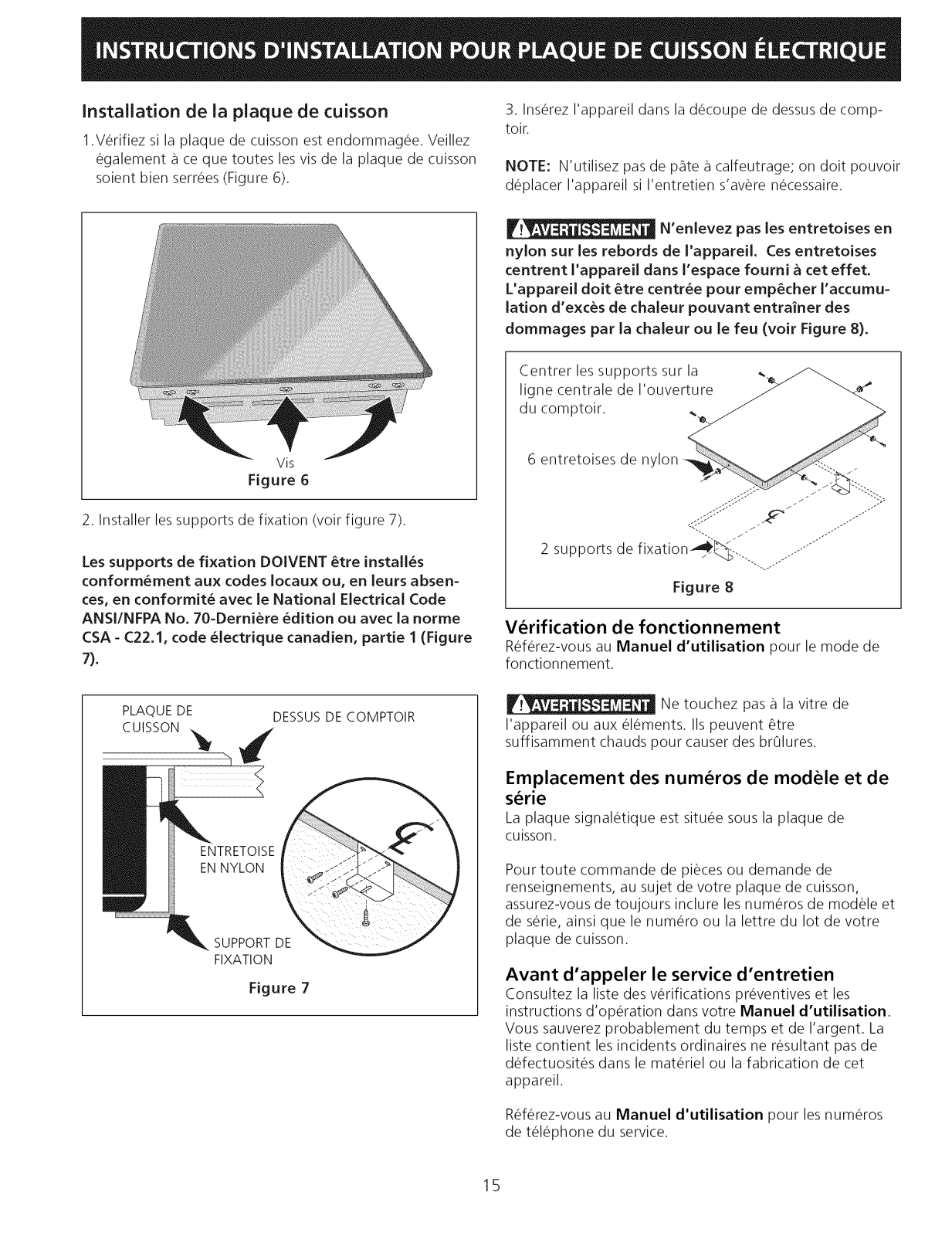

Cooktop Installation

I. Visually inspect the cooktop for damage. Also make

sure all cooktop screws are tight (see Figure 6).

3. Set the cooktop into the countertop cutout,

NOTE: Do not use caulking compound; cooktop should

be removable for service when needed.

Do not remove the nylon spacers on
the edges of the cooktop. These spacers center the
cooktop in the space provided. The cooktop must
be centered to prevent excess heat buildup that
may result in heat damage or fire (see Figure 8).

Screws

Figure 6

2. Install the retainer brackets. See Figure 7

The retainer brackets MUST be installed, to meet
local codes or, in their absence, with the National

Electrical Code ANSI/NFPA No. 70--latest edition in
the United States, or with CSA Standard C22.1,

Canadian Electrical Code, Part 1 in Canada (see
Figure 7).

Cooktoplj _ #C°untert°p

spacer

6 Nylon spacers.

Position brackets

on unit cutout -<>" / /
center line -':¢¢:'" _ "'i-

<-t'.... /z" ...-'""

2 Retainer_/ ................. ..

brackets ...........

Figure 8

Checking Operation

Refer to the Use and Care Guide for operation.

Do not touch cooktop glass or elements.

They may be hot enough to burn you.

Model and Serial Number Location

The serial plate is located under the cooktop.

When ordering parts for or making inquires about your
cooktop, always be sure to include the model and serial

numbers and a lot number or letter from the serial plate

on your cooktop.

Retainer

Figure 7

Read the Before You Call for Service Checklist and

operating instructions in your Use and Care Guide. It

may save you time and expense. The list includes

common occurrences that are not the result of defective
workmanship or materials in this appliance.

Refer to your Use and Care Guide for service phone
numbers.
