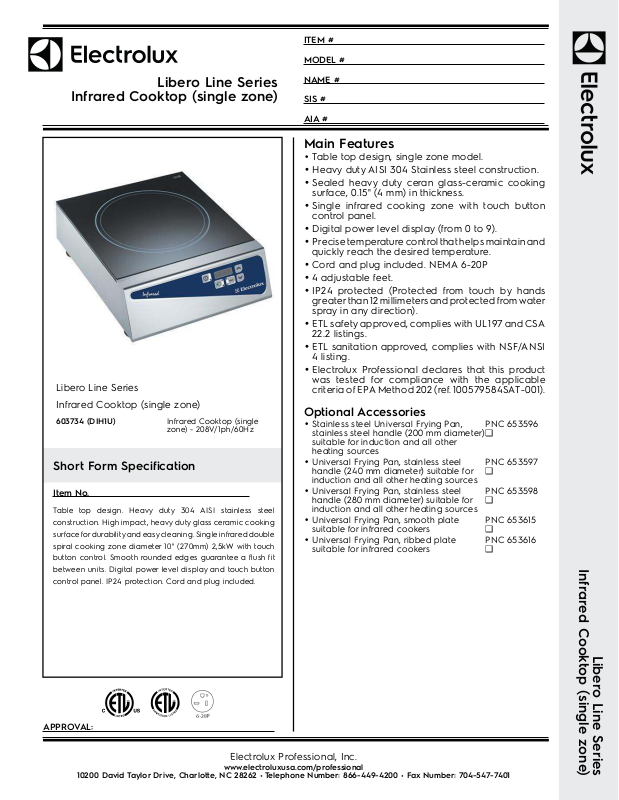

Electrolux DIH1U User Manual

ITEM #

MODEL #

Libero Line Series

Infrared Cooktop (single zone)

Libero Line Series

Infrared Cooktop (single zone)

603734 (DIH1U)Infrared Cooktop (single

Short Form Specification

Item No.

Table top design. Heavy duty 304 AISI stainless steel
construction. High impact, heavy duty glass ceramic cooking
surface for durability and easy cleaning. Single infrared double
spiral cooking zone diameter 10" (270mm) 2,5kW with touch
button control. Smooth rounded edges guarantee a flush fit
between units. Digital power level display and touch button
control panel. IP24 protection. Cord and plug included.

zone) - 208V/1ph/60Hz

NAME #

SIS #

AIA #

Main Features

•Table top design, single zone model.

•Heavy duty AISI 304 Stainless steel construction.

•Sealed heavy duty ceran glass-ceramic cooking

surface, 0.15" (4 mm) in thickness.

•Single infrared cooking zone with touch button

control panel.

•Digital power level display (from 0 to 9).

•Precise temperature control that helps maintain and

quickly reach the desired temperature.

•Cord and plug included. NEMA 6-20P

•4 adjustable feet.

•IP24 protected (Protected from touch by hands

greater than 12 millimeters and protected from water
spray in any direction).

•ETL safety approved, complies with UL 197 and CSA

22.2 listings.

•ETL sanitation approved, complies with NSF/ ANSI

4 listing.

•Electrolux Professional declares that this product

was tested for compliance with the applicable
criteria of EPA Method 202 (ref . 100579584SAT-001).

Optional Accessories

•Stainless steel Universal Frying Pan,

stainless steel handle (200 mm diameter)
suitable for induction and all other
heating sources

•Universal Frying Pan, stainless steel

handle (240 mm diameter) suitable for
induction and all other heating sources

•Universal Frying Pan, stainless steel

handle (280 mm diameter) suitable for
induction and all other heating sources

•Universal Frying Pan, smooth plate

suitable for infrared cookers

•Universal Frying Pan, ribbed plate

suitable for infrared cookers

PNC 653596

❑

PNC 653597

❑

PNC 653598

❑

PNC 653615

❑

PNC 653616

❑

Infrared Cooktop (single zone)

APPROV AL:

Libero Line Series

Electrolux Professional, Inc.

www.electroluxusa.com/professional

10200 David T aylor Drive, Charlotte, NC 28262 • T elephone Number: 866-449-4200 • Fax Number: 704-547-7401

Libero Line Series

Infrared Cooktop (single zone)

Front

Electric

Supply Voltage:

603734 (DIH1U)208V /1ph/60Hz
Amps:9.8 A
Total Watts:2.5 kW
Plug Type:NEMA 6-20P

Key Information:

Back Plates Power:
External dimensions, Width:12 13/16" (325 mm)
External dimensions, Depth:15 3/ 4" (400 mm)

Top

External dimensions, Height:5 5/16" (135 mm)
Net weight:22 lbs (10 kg)
Shipping width:15 3/16" (385 mm)
Shipping depth:18 1/2" (470 mm)
Shipping height:9 1/16" (230 mm)
Shipping weight:24 lbs (11 kg)
Shipping volume:1.47 ft³ (0.04 m³)

2.5 - 0 kW (8522.5 - 0 Btu/
hr)

EI=Electrical connection

Side

Infrared Cooktop (single zone)

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

Libero Line Series

2016.03.08
