Elation Professional Power Spot 700 CMY II User Manual

Power Spot 700 CMY II
5.66” (144mm)
12.87” (327mm)
25.78” (655mm)
18” (459mm)
24.8” (630mm)
19.01” (483mm)
14.9” (379mm)
11.3” (287mm)
5.2” (132mm)
9.5” (241mm)
Power Spot 700 CMY II Dimensions
The Power Spot 700 CMY II by Elation Professional is a 700W CMY color mixing moving head hybrid (spot or wash in one) with use of the variable frost effect. Featuring CMY color system plus a fixed color wheel with 8 static colors as well as variable CTO, two gobo wheels with 9 fixed and 7 rotating gobos featuring the new Quick Snap™ rotating gobo and animation wheel system. The animation wheel can simulate effects such as running water, fire, clouds, etc. Additional effects include rotating 3-facet prism, Iris, mechanical dimmer / shutter system. This unit includes a motorized variable zoom beam angle from 14° to 32° and is equipped with unique modular internal construction allowing for easy access to key components. Control data input is via 3 pin or 5 pin DMX data connections first in and out cables. The unit’s lamp fuse housing holds a 250v/10A GMA fuse (120v operation). The Power Spot 700 CMY II is equipped with the Philips MSR700 SA/2 Gold lamp and is IP20 rated, designed for indoor applications only and and features a multi-voltage electronic ballast and power supply. Rigging for this unit includes 2 x 1/4 turn omega brackets. Additional gobos and animation wheels are supplied.
FEATURES
• 700W short arch discharge lamp moving head hybrid
• Full Color mixing with Cyan Magenta Yellow ag system + 8 dichroic lters plus white
• 2 gobo wheels with 9 xed and 7 rotating and interchangeable
• 1 variable speed replaceable rotating animation wheel
• 4 extra animation wheels included
• 8 optional animation wheels available
• Variable frost control hard edge to soft edge
• 3-facet rotating/Indexing Prism
• Sound active mode - built in mic. lamp on/off power con mains
• Motor driven focus from near to far
• Maximum PAN-movement 540° 16-bit resolution
• TILT-movement 280° 16-bit resolution
• 4 digit L.E.D. display
• On board menu settings
• DMX control via 24 channels
• Modular design allows easy access to key components
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free (866) 245-6726
TECHNICAL SPECIFICATIONS
• DMX Channels: 24 DMX Channels, RDMX - Remote DMX Addressing
• Control: USITT DMX-512 (16-bit resolution), 3-pin and 5-Pin XLR serial input/output
• Dimmer: Dual Flag mechanical dimming system
• Strobe: Variable speed strobe effect
(1-10) ashes per second
• IP Rating: IP 20
• Iris: Beam narrow to wide (4% - 100%)
Zoom: 14° - 32° linear zoom
• Power Supply: AC 90-260V 50/60Hz
• Power Consumption: 900W
• Fuse: Electronic ballast
• Lamp: Phillips MSR 700 SADE/2
• Lamp life: 700W, 72V, 7500°K, 1000 HRS
• Dimensions: ( L x W x H ) 19” x 14” x 29” /
482.6 x 355.6 x 736.6 mm
• Weight: 63 lbs. / 28.5 kg
• Rigging: 2 x 1/4 Turn omega brackets
4 x M-10 threaded holes for clamps
Power Spot 700 CMY II
CMY
CO LOR M IX IN G
OPEN
29.8mm
COLORS / GOBOS
COLORS (16 Bit) + CMY COLOR MIXING
• Full Color mixing with Cyan Magenta Yellow ag system + 8 dichroic lters plus white
• Color wheel 1: 8 dichroic lters plus white, 9 half colors
• Continuous, variable speed, color scrolling in both directions (rainbow effect)
• 0-100% 3,200K CTC ag system for variable color correction
GOBOS (16 Bit)
• Gobo-wheel 1: 9 xed exchangeable standard gobos plus “open”
• Gobo-wheel 2: 7 exchangeable, rotating Quick-Snap™ gobos plus “open”
• Gobo outside diameter 26.9 mm, image size 23 mm
• Gobo thickness: glass = 1.1 - 3.0 mm, steel = 0.3 mm
• Gobo Overlay (Gobo Morphing)
Gobo Wheel 1 - Fixed Gobo Wheel 2 - Rotating
ANIMATION WHEELS
• 1 variable speed replaceable rotating animation wheel
• 4 extra animation wheels included
• 8 optional animation wheels available
Standard (included
) Optional (
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
included
) Optional (
www.ElationLighting.com • Toll Free (866) 245-6726
included
) Optional (
included
) Optional (
included
)
Power Spot 700 CMY II

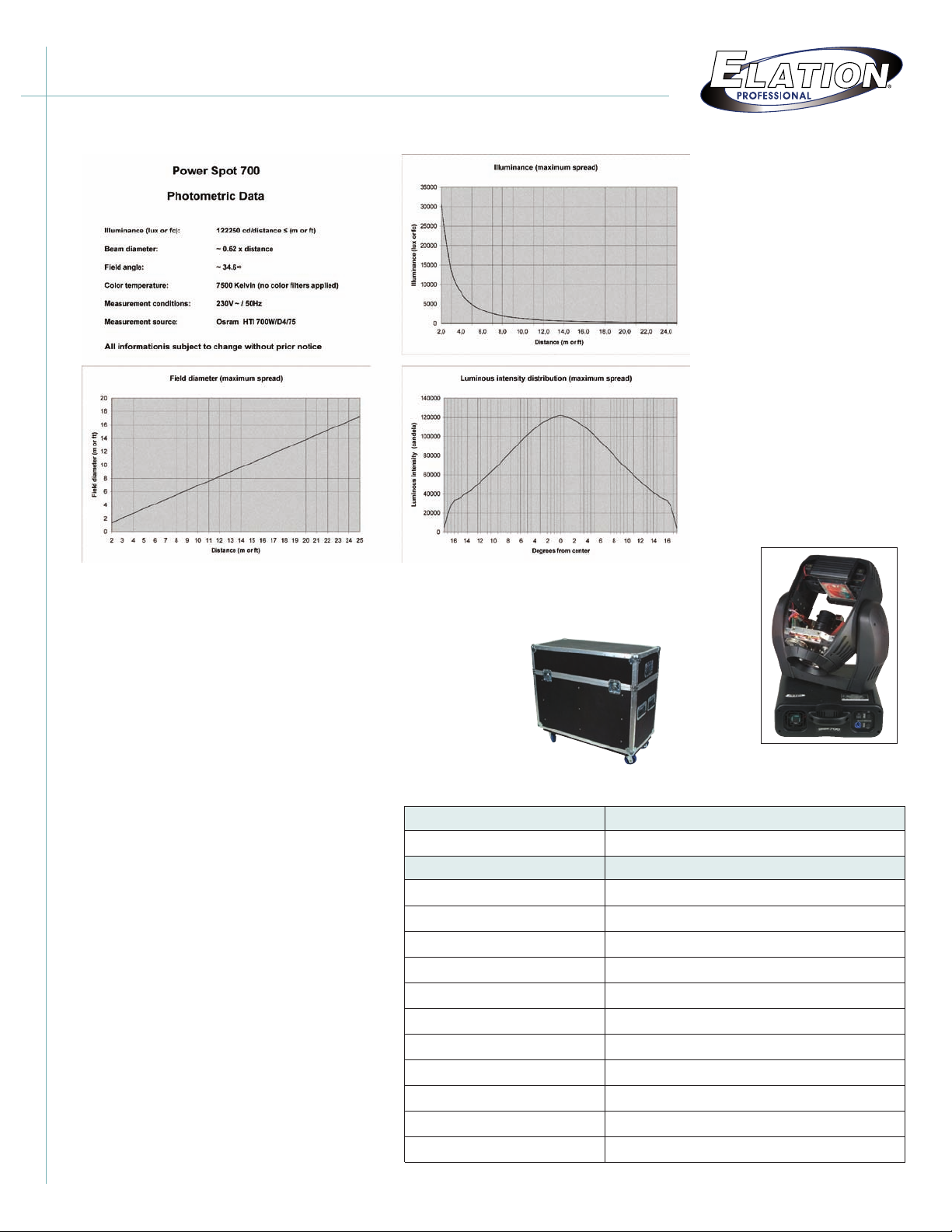

PHOTOMETRICS
DMX TRAITS
Channel 1 - Pan Channel 2 - Pan ne Channel 3 - Tilt Channel 4 - Tilt ne Channel 5 - Color 1(fast) Channel 6 - Cyan Channel 7 - Magenta Channel 8 - Yellow Channel 9 - Gobo 1 (indexed) Channel 10 - Gobo 1 (position/rotation) Channel 11 - Gobo 2 (fast) Channel 12 - Shutter Channel 13 - Dimmer Channel 14 - Focus Channel 15 - Zoom Channel 16 - Frost Channel 17 - Prism Channel 18 - Iris Channel 19 - CTO Channel 20 - Effect wheel swing Channel 21 - Effect wheel (position/rotation) Channel 22 - Special Channel 23 - Movement Channel 24 - Speed Pan/Tilt
MODULAR DESIGN
DRC 700 Road Case for 2 x Power Spot 700 (Sold separately)
Allows easy access to key components
Product Order Code Description
POWER SPOT 700CMY II 700W moving head black
Accessories Order Code Description
25-022-1094 Optional animation wheel (leaves)
25-022-1096 Optional animation wheel (bricks)
25-022-1098 Optional animation wheel (stars)
25-022-1095 Optional animation wheel (fans)
ZB-MSR700/SA/DE Philips Gold 700W lamp double ended
23-001-1202 Hanging Bracket
PRO CLAMP 500Kg 2” wrap around aluming clamp
TRIGGER CLAMP 500Kg 2” aluminum J clamp
DRC 700 Dual road case
DRC 700PRO Dual road case pro
SRC 700 Single Road case
