ELAR 108PAR RGBW
Elation Professional™ 6122 S. Eastern Ave.
Los Angeles, Ca 90040 www.elationlighting.com
Rev. 01/08/2010 – visage |
Version 1.1 |
ELAR 108PAR RGBW™
©Elation Professional, Los Angeles Ca. |
1 |
www.ElationLighting.com |
ELAR 108PAR RGBW™
TABLE OF CONTENS
1.General Information……………………………………………………………………… 3
a.Introduction………………………………………………………………………. 3
b.Unpacking………………………………………………………..…………..… 3
c.Customer Support…………………………………………….………………… 3
d.Warranty Registration……………………………………………………..…… 3
2.Safety Instructions………………………………………………………........…………. 5
3.Features……………………………………………………………………………………7
4.General Guidelines………………………………………………………………………. 8
5.Fixture Overview…………………………………………………………………………. 9
6.Mounting and Installation………………………………………………………….……. 12
7.Understanding DMX……………………………………………………………………... 15
a.DMX Cables……..………………………………………………………………. 15
b.DMX Terminator…………………………………………………………………. 16
c.3-Pin to 5-Pin Conversion……………………………………………………….17
d.Fixture DMX Addressing.………………………..………………………………16
8.Display Indicators….……………………………………………………..……………… 19
9.Display Menu….……………………………………………………..…………………… 20
10.DMX Addressing…………………………………………………….…………………… 25
a.Remote DMX Addressing (RDMX)……………………………………………. 25
11.DMX Traits…………………………………………………………………………………27
12.Working with Built-In programs…………………………………………………………. 35
13.Lens Replacement………………………………………………………………….……. 38
14.Cleaning and Maintenance………………………………………………………………39
15.Warranty…………………………………………………………………………………... 40

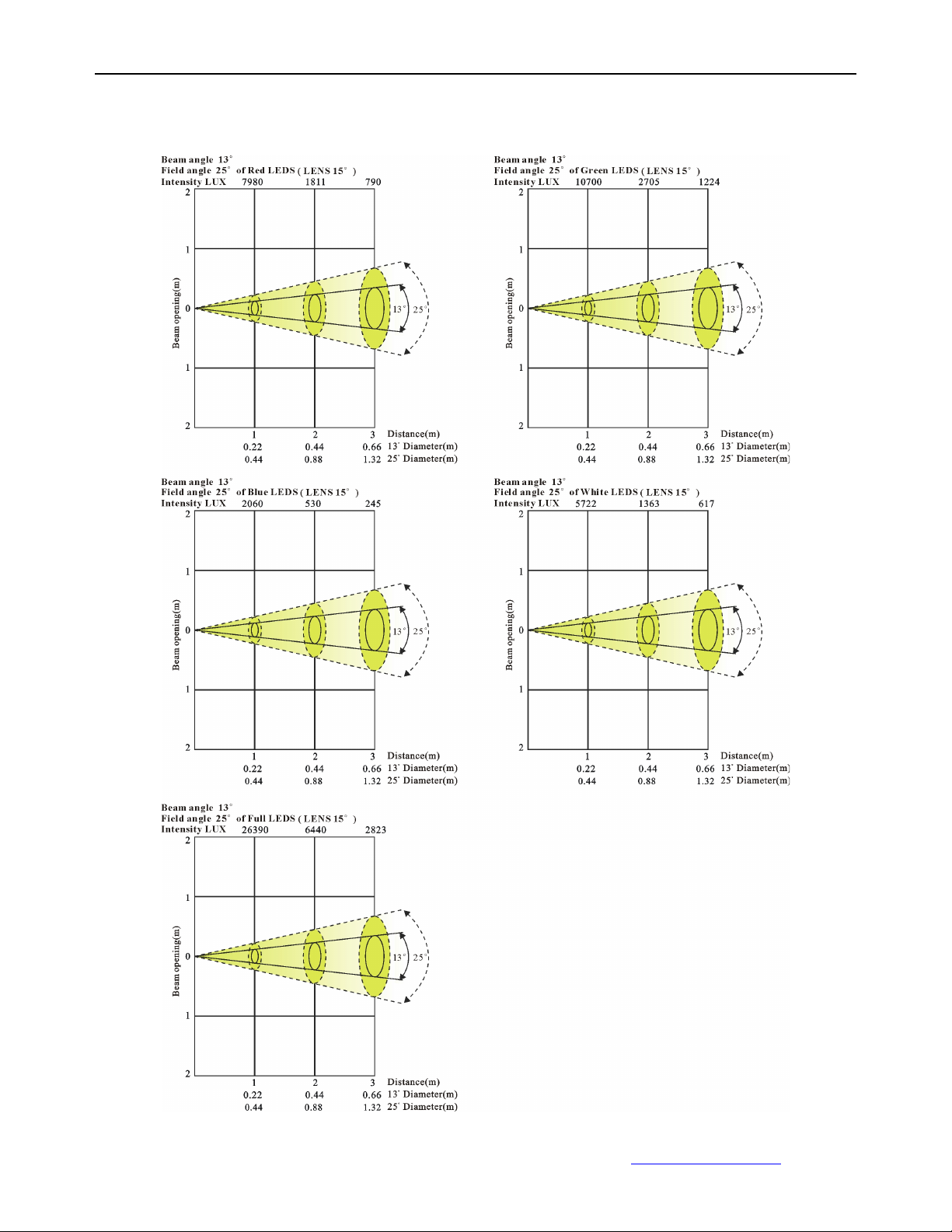

16.Photometric Data………………………………………………………………………… 42

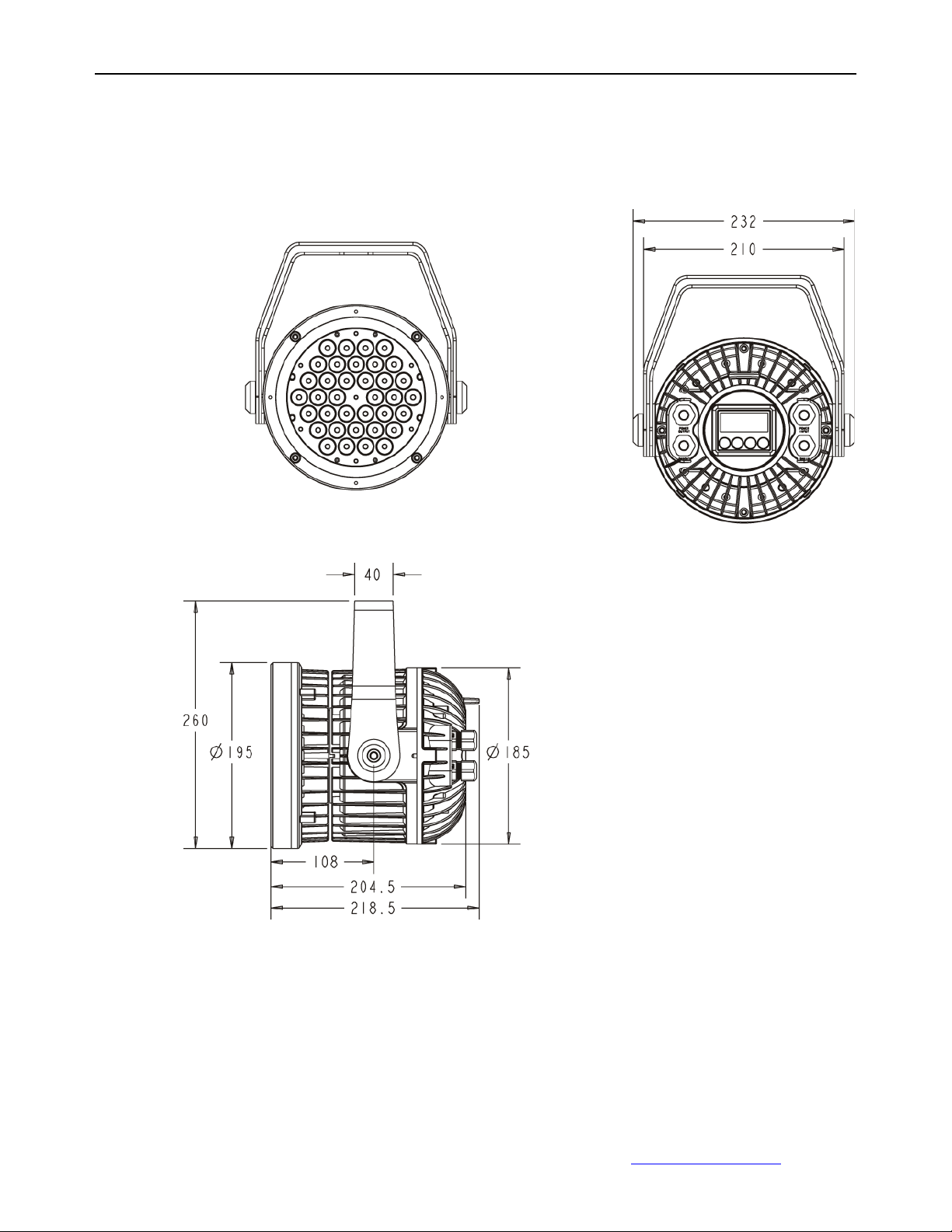

17.Dimensional Drawings………………………………………………….……………….. 43
18.Circuit Schematic………...………………………………………………………………. 44
19.Technical Specifications…………………………………………...………….………… 45
©Elation Professional, Los Angeles Ca. |
2 |
www.ElationLighting.com |
ELAR 108PAR RGBW™
1. GENERAL INFORMATION
INTRODUCTION: Congratulations, you have just purchased one of the most innovative and reliable LED fixtures on the market today! The ELAR 108PAR RGBW™ has been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit. These instructions contain important information regarding safety during use and maintenance.
UNPACKING: Thank you for purchasing the ELAR 108PAR RGBW™ by Elation
Professional®. Every ELAR 108PAR RGBW™ has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for damage and be sure all accessories necessary to operate the fixture have arrived intact. In the event damage has been found or parts are missing, please contact our customer support team for further instructions. Inside the box you should find: the fixture, a DMX XLR cable, a safety cable, and this manual. Please do not return this unit to your dealer without first contacting customer support at the number listed below.
CUSTOMER SUPPORT: Elation Professional® provides a customer support line, to provide set up help and to answer any question should you encounter problems during your set up or initial operation. You may also visit us on the web at www.elationlighting.com for any comments or suggestions. For service related issue please contact Elation Professional®. Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m. Pacific Standard Time.
Voice: |
(323) 582-3322 |
Fax: |
(323) 832-9142 |
E-mail: |
support@elationlighting.com |
Forum: |
www.ElationLighting.com/forum |
Warning! To prevent the risk of fire and reduce the risk electrical shock, do not attempt to operate this fixture with the lens cover removed.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs
©Elation Professional, Los Angeles Ca. |
3 |
www.ElationLighting.com |
ELAR 108PAR RGBW™
yourself. Doing so will void your manufactures warranty.
Please do not discard the shipping carton in the trash. Please recycle whenever possible.
WARRANTY REGISTRATION: The ELAR 108PAR RGBW™ carries a two-year (730 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. A brief description of the problem as well as the R.A. number must also be written down on a piece of paper and included in the shipping container. If the unit is under warranty, you must provide a copy of your proof of purchase invoice. Items returned without a R.A. number clearly marked on the outside of the package will be refused and returned at customer’s expense. You may obtain a R.A. number by contacting customer support at (323) 582-3322.
©Elation Professional, Los Angeles Ca. |
4 |
www.ElationLighting.com |
ELAR 108PAR RGBW™
2. SAFETY INSTRUCTIONS
To guarantee proper and consistent operation, it is important to follow the guidelines in this manual. Elation Professional will not accept responsibility for damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
1.Always be sure that the fan and the air inlets remain clean and are never blocked. Allow about 6” (15cm) between this fixture and other devices or a wall to allow for proper cooling. See page 12.
2.Never touch the fixture during normal operation.
3.Never look directly into the light source. You risk injury to your retina, which may induce blindness.
4.For safe operation, follow the Installation guide described in chapter six of this manual. Operating the ELAR 108PAR RGBW™ without suited safety aids such as safety cables or clamps can increase the risk of damage and/or personal injury.
5.Qualified and certified personnel should only perform installation.
6.When mounting this fixture, use only the original rigging points included with this fixture. Any structural modification will void the original manufactures warranty and may increase the risk of damage and/or personal injury.
7.Do not attempt to operate this fixture if the power cord has become damaged or frayed.
8.Never open this fixture while in use.
9.This device falls under protection-class I. Therefore it is essential that the device be grounded properly.
10.Qualified personnel should perform all electrical connections.
11.Be sure the available voltage matches the voltage requirements of the unit. Be sure the power cord is never crimped or damaged. If the power cord is damaged,
©Elation Professional, Los Angeles Ca. |
5 |
www.ElationLighting.com |
ELAR 108PAR RGBW™
replace it immediately with a new one of similar power rating.
12.Always disconnect from main power before performing any type of service or any cleaning procedure.
13.Only handle the power cord by the plug. Never pull out the plug by tugging the wire portion of the cord.
14.Please be aware that damages caused by modifications to the device are not subject to warranty.
Important Notice: Damages resulting from the disregard of safety and general user instructions found in this user manual are not subject to any warranty claims.
©Elation Professional, Los Angeles Ca. |
6 |
www.ElationLighting.com |
ELAR 108PAR RGBW™
3.FEATURES
•IP65 Rated Fixture
•Low power consumption
•Minimal heat emission
•Maintenance free operation
•Equipped with 36 3-Watt (12 x red, 9 x green, 9 x blue, 6 x white)
•Silent Operation, convection cooled, no fans
•100,000 hours rated LED life
•Linear RGBW Color Mixing, infinite color possibilities
•13˚ Beam Angle/25˚ Field Angle (15˚ Lens)
•USITT DMX-512 Complaint
•Preprogrammed colored macros
•Strobe-effect with a maximum flash rate of 18fps
•DMX-controlled operation or stand-alone operation with Master/Slave-function
•7 built-in programs can be called up via DMX-controller
~48 preprogrammed scenes per program
•Sound-controlled via built-in microphone
•Four DMX Modes:
9 DMX channels
7 DMX channels
5 DMX channels
4 DMX channels (default)
•DMX-control via standard DMX-controller
•Upgradable firmware via Elation “E-Loader” Data Pack
•Electronic Switching Power Supply 100v~240v
•Flicker-free operation for television and film
•Compact design: fits in 12” box truss
•0%~100% Dimming (two dimming options; linear & standard)
©Elation Professional, Los Angeles Ca. |
7 |
www.ElationLighting.com |
ELAR 108PAR RGBW™
4. GENERAL GUIDELINES
This fixture is a professional lighting effect designed for use on stage, in nightclubs, in theatres, and other types of architectural installations. Do not attempt operation or installation without a proper knowledge on how to do so.
Consistent operational breaks will ensure that the fixture will function properly for many years to come.
Do not shake the fixture around. Avoid brute force when installing or operating the fixture.
While choosing an installation location, please be sure that the fixture will not be exposed to extreme heat, moisture, or dust. The minimum distance between the fixture and a wall or flat surface should be at least 0.5 meter (about 1.5ft). See page 12.
Always install the fixture with an appropriately rated safety cable. When installing the fixture in a suspended environment always be sure to use mounting hardware no less than M10 x 25 mm, also be sure the hardware is only inserted in the yoke’s mounting holes.
Do not attempt to operate this fixture until you have familiarized yourself with all of its functions.
Do not permit operation by persons not qualified for operating this type of architectural fixture. Most damages are the result of improper operation.
Please use the original packaging to transport the fixture in for service.
For your own safety, please read this user manual carefully before installing the device.
©Elation Professional, Los Angeles Ca. |
8 |
www.ElationLighting.com |
ELAR 108PAR RGBW™
5. FIXTURE OVERVIEW
©Elation Professional, Los Angeles Ca. |
9 |
www.ElationLighting.com |
ELAR 108PAR RGBW™
1.LED Lens Assembly – The lens assembly may be user replaced in the event repair is needed or a different beam angle is required.
2.LED Display – 4-segment menu display. Used to display the DMX address as well as all other menu functions.
3.Power Output Lead – This lead is used to jump power to another ELAR 108PAR RGBW™. Please do not daisy chain power for more than 16 fixtures. To maintain the integrity of the IP rating, only use proper Elation IP rated power cables.
4.DMX Out Lead – This lead is used to send an incoming DMX signal to the next fixture in the DMX chain. To maintain the integrity of the IP rating, only use proper
Elation IP rated DMX cables.
5.MENU Button – This button is used to access the fixtures menu functions.
6.Up Button – The up button is used to toggle forward through the menu functions and settings.
7.Down Button – The down button is used to toggle backwards through the menu functions and settings.
8.Enter Button – The enter button is used to enter in to a certain menu function or to lock a menu setting in to memory.
9.Yoke Assembly – This yoke is designed to perform two functions; 1) When split it can be used as a floor stand bracket. 2) Used to secure a mounting clamp for truss mounting.
10.Main Power Input Lead – This lead is the main power input lead. When the unit is the first in a chain or the only fixture to be used, be sure to use the power starter
©Elation Professional, Los Angeles Ca. |
10 |
www.ElationLighting.com |
ELAR 108PAR RGBW™
cable that converts a standard Edison 3-prong to the IP rated twist lock connector. When jumping from fixture to fixture be sure to only use Elation IP rated power connectors to maintain the IP rating.
11.DMX In Lead – This lead is the main DMX input lead. When the unit is the first in a chain or the only fixture to be used with a DMX controller, be sure to use the DMX starter cable that converts a standard 3-pin XLR DMX connector to the IP rated twist lock connector that is used on the fixture. When jumping from fixture to fixture be sure to only use Elation IP rated DMX cables to maintain the IP rating.
©Elation Professional, Los Angeles Ca. |
11 |
www.ElationLighting.com |
ELAR 108PAR RGBW™
6. MOUNTING AND INSTALLATION
Cautions:
For added protection mount the fixtures in areas outside walking paths, seating areas, and away from areas were unauthorized personnel might reach the fixture.
Before mounting the fixture to any surface, make sure that the installation area can hold a minimum point load of 10 times the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such as an appropriate safety cable.
To avoid injury, never stand directly below the device when mounting, removing, or servicing the fixture.
Refer to regulations BGV C1 (formerly VBG 70) and DIN VDE0711-217 for proper installation in Europe To ensure proper installation, only qualified staff should attempt installation.
Mounting points
Overhead mounting requires extensive experience, including amongst others calculating working load limits, a fine knowledge of the installation material being used, and periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury.
CAUTION!
Be sure a qualified electrician performs all electrical connections.
Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet.
©Elation Professional, Los Angeles Ca. |
12 |
www.ElationLighting.com |
ELAR 108PAR RGBW™
Mounting
The ELAR 108PAR RGBW™ is fully operational in any mounting position, hanging upside-down, side mounted, or set on a flat level surface, etc. Be sure this fixture is kept at least 0.5m (1.5 feet) away from any flammable materials (decoration etc.). When clamp mounting; always use and install the supplied safety cable as an added safety measure to prevent accidental damage in the event of a clamp failure. See the image below.
Clamp Mounting
The ELAR 108PAR RGBW™ provides a unique mounting bracket assembly that allows the unit to stand on a flat surface or to be hung on truss via a clamp in any safe position (see the illustration above). Regardless of the mounting option you choose please be sure to refer to the safety guidelines in this manual to avoid damage to the unit and/or personal injury.
©Elation Professional, Los Angeles Ca. |
13 |
www.ElationLighting.com |
ELAR 108PAR RGBW™
When mounting this fixture to truss be sure to secure an appropriately rated clamp to the hanging yoke using a M10 screw fitted through the center hole of the hanging yoke. As an added safety measure be sure to attach at least one properly rated safety cable to the fixture.
See illustrations below.
Securing the ELAR 108PAR RGBW™
Always be sure to secure your fixture with a safety cable when suspending the unit from truss or other means. The fixture provides a built-in rigging point for a safety cable as illustrated above. Be sure to only use the designated rigging point for the safety cable and never secure a safety cable to the hanging bracket.
©Elation Professional, Los Angeles Ca. |
14 |
www.ElationLighting.com |
