Thank you very much for choosing an EIZO product.
Please read this User’s Manual carefull
procedures.
Please retain this manual for future reference.
PRECAUTIONS
To ensure personal safety and proper maintenance, please read this section.
to familiarize yourself with safe and effective usage
CAUTION
Do not carry the monitor with attaching the hood.
Doing so may cause the hood to drop or slip off, which may result in in
damage.
Do not put any object on the hood.
Doin
so may cause the hood to drop or monitor to fall, which may result in injury or
equipment damage.
Do not use other screws than the specified ones.
Doing so may cause the hood to drop, which may result in injury or equipment damage.
Attach only to specified EIZO LCD monitors.
Attach only to specified EIZO LCD monitors. Attaching to other monitors may cause the hood
to drop, which may result in injury or equipment damage. For the specified monitors, please
visit our website at http://www.eizo.com.
or equipment
Package Contents
Please contact your local dealer for assistance if any of the listed items are missing or damaged.
Left Hood
Right Hood
Top Hood
User’s Manual
Screws M3×8 4pcs
Screws M3×16 4pcs
Screw Caps 6 pcs (2 pcs for spare)
________________________________
How to install
____________________________________
1.
Put screws into the left and right hoods.
NOTE
Attach the hood by using the specified screws
By over-driving the screws, the hood cannot
with referring to the labels on the packing
bags of the screws.
attach into the monitor.
(1) Put screws into the screw holes (2 places for
each) and drive it until the half-length of
screws coming up from the screw holes.
(2) Put the screw caps on each tips of screws.
Screw holes
(Ex. Right Hood)
2.
Attach the top hood to either the left or
right hood before attaching to the monitor.
Top Hood
3.
Attach the hood to the monitor.
NOTE
Attaching one hood and tightening the screws should be completed before going on to
(1)
the other hood.
Attach the left hood to the monitor from
above and slide it from the side of the
monitor until the hood is firmly positioned
Left Hood
against the monitor.
(2)
Hold the left hood and tighten two screws
on each side.
Right Hood
(3)
Attach the right hood in the same way.
4.
Slide the top hood to close.
Calibration
When calibrating the monitor, the sensor of the
measurement device can be attached by sliding
the top cover without removing the hood.
Specifications
Dimensions(W) × (H) × (D)
(Not including projected part)
Weight 860g (1.9lbs)
______________________________________
Sensor
____________________________________
425.8 (16.8) ～ 483.8 (19) × 344.5 (13.6) × 202.4 (8) mm (inch)
Dimensions
Unit: mm (inch)
NOTE
J
(
)

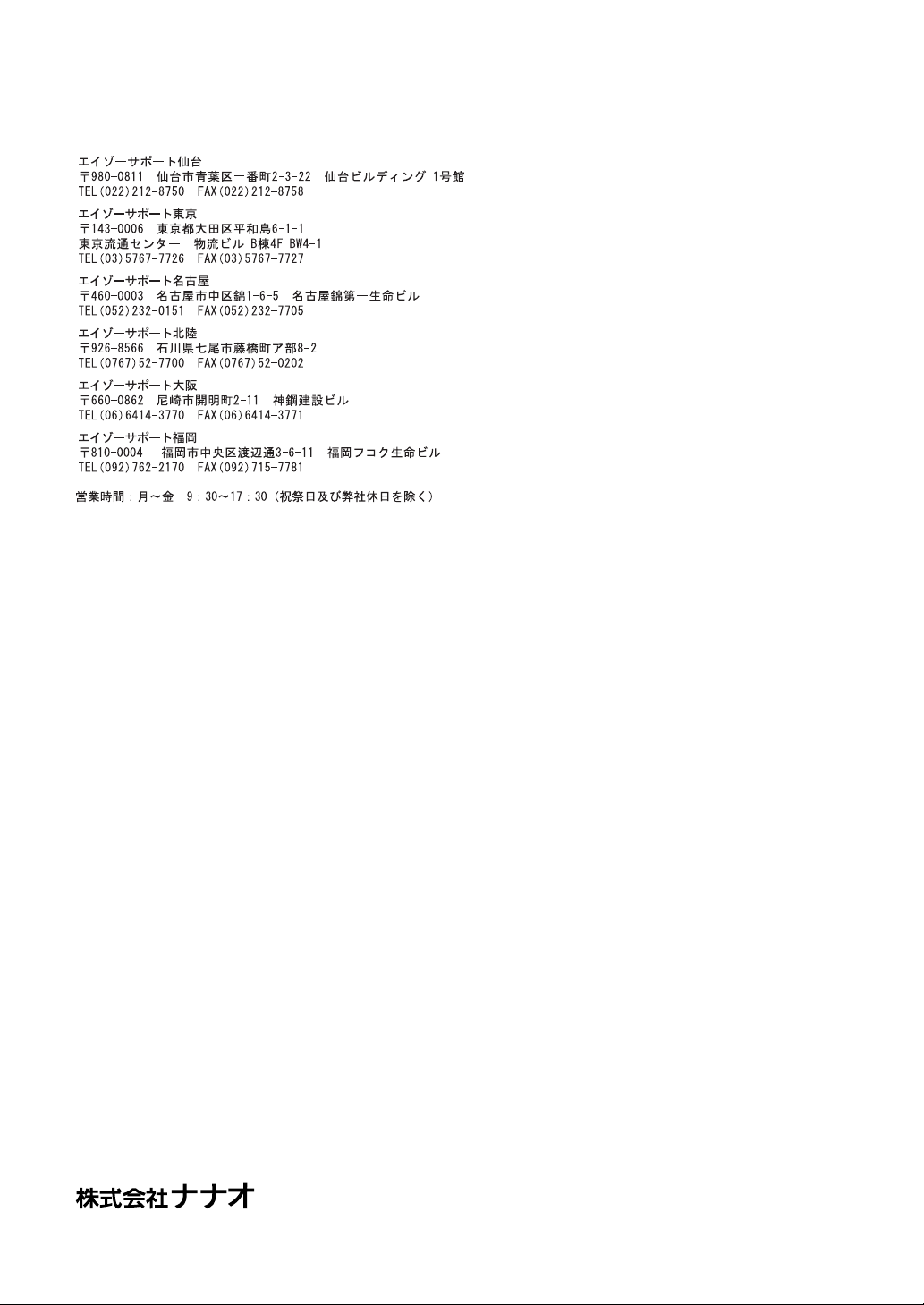

故障/修理に関するお問い合わせ先
最寄りの下記エイゾーサポートにお問い合わせください。
廃棄について
個人のお客様
自治体の指示に従って廃棄してください。
法人のお客様
産業廃棄物として処理してください。
EIZO NANAO CORPORATION
153 Shimokashiwano, Hakusan, Ishikawa 924-8566 Japan
EIZO NANAO TECHNOLOGIES INC.
5710 Warland Drive, Cypress, CA 90630, USA
〒924-8566 石川県白山市下柏野町153番地
http://www.eizo.com
Copyright© 2006 EIZO NANAO CORPORATION All rights reserved.
This document is printed on recycled chlorine free paper.
2nd Edition-October, 2006
