Precision beyond color.

Express your thoughts and inspirations exactly as you envision –

ColorEdge helps to make that a reality. Each detail and nuance is realized

True to Creativity

in the final work, providing you an even greater satisfaction with your

creations. Accurate color, consistent image quality, and ease of use are

why EIZO’s ColorEdge lineup gives creatives around the world the ability

to express their true vision.

Let your imagination soar and your creativity blossom. Your passion will

guide you and ColorEdge will ensure that you can express your ideas

precisely as you have imagined.

2 3

ColorEdge Quality

for Achieving Your

Creative Vision

Ease of Use

ColorEdge meets user needs with a wide range of monitors packed with features for creators of all levels. Designers and printers can rest assured that ColorEdge will ensure a smooth and consistent workflow through to the back-end. Video creators can take advantage of the features that many ColorEdge models include specifically for video creation. Those who want to enjoy working with digital photography can easily carry out color matching using ColorEdge. All of these features and more are included to ensure that ColorEdge is optimal for users’ creative needs.

True Reproducibility

To achieve the most accurate color display, EIZO developed its own application-specific integrated circuit (ASIC) which is equipped in each ColorEdge monitor. With this ASIC, the gamma level of each monitor is adjusted at the factory to ensure that tones are displayed as intended without color banding.

Long-Term Reliability

As more desktop LCD monitor brands outsource development and production to third parties, EIZO remains convinced that the best way to deliver the quality that our customers expect is to maintain an integrated approach. Each ColorEdge monitor is developed, manufactured, and quality-control tested in-house at EIZO’s own factory. This gives us the confidence to back each ColorEdge monitor with the industry’s only five-year manufacturer’s warranty.

4 5

Post Production

Photography

For Professionals

Get the best in both color and convenience for the optimal creative workflow.

NEW

HDR

Design

HDR

NEW

6 7

HDR

For Hobbyists and Prosumers

Create, edit, and enjoy photography, illustration, and more.

NEWNEW

8 9

Common Features

Vivid Colors Reproduced to Industry Standards

The wide color gamut of ColorEdge monitors reproduces almost the

entire Adobe

RGB color space so images shot in Adobe® RGB will be displayed correctly. Photos of vibrant blue skies and lush green forests are reproduced faithfully in a way that monitors limited to an sRGB color space cannot display. The wide color gamut also ensures reproduction of almost the entire ISO-coated and US web-coated CMYK color spaces used in printing.

Not applicable to the CS230.

Adjusted at the Factory for Smooth Color Gradations

The gamma level for each ColorEdge monitor is adjusted at the factory by measuring the R, G, and B gamma values from 0 - 255, then using the monitor's 16-bit look-up-table (LUT) to select the 256 most appropriate tones and achieve the desired value. This ensures the smoothest color gradations in your images.

Color Space Comparison

0.1

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

Gamma Curve

ColorEdge

Other Monitors

Smooth Gradation

Color Seepage

Adobe sRGB DCI-P CG2420 CS242 0

RGB

Tonality Breakup

Adobe® RGB Color Space

sRGB Color Space (representation)

Ideal Gamma

↓

Brightness

Uncorrected

Gamma Curve

↓

(representation)

Curve

256 Tones

Ideal Gamma

Curve

Uniformity from Corner to Corner

Screen Uniformity and Color Temperature Changes

Fluctuations in brightness and chromaticity on different parts of the screen are a common trait of LCD monitors. To counteract this, ColorEdge monitors use EIZO's patented digital uniformity equalizer (DUE) technology to ensure stable image display and counterbalance the influences that a fluctuating temperature may have on color temperature and brightness.

ColorEdge Typical Monitor

Ergonomic Stand for Comfort and Convenience

Adjust the screen to the most comfortable angle and reposition it to show your work to a colleague or client. The monitors come with a versatile stand that offer height, tilt, and swivel adjustments as well as portrait display.

Portrait mode not available with the CG319X stand. CG3145 comes with a non-adjustable stand.

Stand for CG2730, CS2730, CG2420, and CS2420

Height Adjustment

155mm

35°

5°

90°

Swivel

SwivelPortrait ModeTilt

344°

10-Bit Simultaneous Display

Using the DisplayPort or HDMI inputs, ColorEdge monitors offer 10-bit simultaneous color display* from a 16-bit look-up-table (24-bit for CG319X and CG3145) which means they can show more than one billion colors simultaneously. This is 64 times more colors than you get with 8-bit display, resulting in smooth color gradations and reduced Delta-E between two adjacent colors.

*A graphics board and software which support 10-bit output are necessary for 10-bit display. Equipment that supports Deep Color is necessary when using the HDMI input.

8-bit and 10-bit Image Display

Typical Monitor

8-bit display

(8-bit LUT)

ColorEdge 8-bit display (16-bit LUT)

ColorEdge

10-bit display

(16-bit LUT) (24-bit LUT)

Input Output

8-bi t

10-bit

Internal Processing

16-bit LUT

16-bit LUT 24-bit LUT

Multiple Tones

Output Image

8- b i t

10-bit

Brightness

256 Tones

Wide Viewing Angles with IPS Panels

The 178° wide viewing angles afforded by the IPS panel technology allows two or more people to view the screen at once with little change in color or contrast.

Commitment to Quality

5-Year Manufacturer's Warranty

ColorEdge monitors are backed by a manufacturer's 5-year warranty that covers all components including the LCD panel*. EIZO manufactures its products at its own factories to allow close control over production quality and ensure each monitor is built to last.

*Usage time is limited to 30,000 hours (10,000 hours for the CG319X and CG3145 LCD panel).

Brightness and Color Warranty

The brightness and color of the CG Series is warranted for up to 10,000 hours* from the date of purchase.

*Monitor must be used within the recommended brightness of 120 cd/m2 or less and the color temperature between 5000 - 6500 K. For CG3145, a brightness level of 800 cd/m For CG319X, a brightness level of 120 cd/m

or more and a color temperature of 6500 K are warranted.

or more and a color temperature of 5000 - 6500 K are warranted.

Zero Bright Pixels

EIZO guarantees its ColorEdge monitors will be free from bright sub-pixels for six months from the date of purchase.

10 11

Soware Solutions

Color Management Software

To properly manage color in your work, it is necessary to ensure your monitor maintains consistent settings. ColorEdge monitors come bundled with EIZO's own color management software called ColorNavigator 6 which allows you to easily carry out calibration.

For the CS Series, an external calibration sensor is necessary to use ColorNavigator 6.

Quickly Calibrate to Preset or User-Assigned Values

Preset values for web contents, photography, and printing are included in the target values. Simply select the desired preset, click "Adjust", and ColorNavigator 6 will begin calibrating your monitor.

Ma in w ind ow

Experienced users can assign the desired values for brightness, white point, and gamma before calibrating for further improving color matching.

Ma nua l A dju stm e n t S c r e en

Easy Screen-to-Print Color Matching Tool

Even with all the right equipment, color matching can be a tedious process and achieving an accurate print takes a great deal of time. Quick Color Match greatly simplifies the process by automatically adjusting to EIZO's recommended monitor, retouching software, and printer settings. Simply drag and drop your photo and begin retouching and printing with no hassle.

Automatic Adjustment to EIZO's Recommended Settings

Monitor Adjustment

Quick Color Match automatically adjusts your ColorEdge monitor's gain, brightness, gamma, and color space (Adobe and creates a profile for these settings.

RGB)

Retouching Software Settings

Dragging and dropping your photo to the Quick Color Match menu automatically opens Adobe EIZO's recommended settings based on the printer and paper being used.

Photoshop and adjusts to

Printer Settings

With either Canon Print Studio Pro or Epson Print Layout printer plugin installed, Quick Color Match automatically selects the print profile and color and soft proofing options recommended by EIZO.

For Printing

Brightness: 80 cd/m2 Color Temperature: 5,000K Gamma: 2.2 Color Space: Monitor Native

For Creating Web Content

Brightness: 80 cd/m2 Color Temperature: 6,500K Gamma: 2.2 Color Space: sRGB

For Checking and Editing Digital Photos

Brightness: 100 cd/m2 Color Temperature: 5,500K Gamma: 2.2 Color Space: Monitor Native

What is Calibration?

Calibration is a method by which a monitor’s display characteristics are adjusted to a target value using a special sensor. Software calibration modifies the signal from your video card to display more accurate color and can be carried out for conventional monitors. Hardware calibration controls the hardware of the monitor directly by utilizing the LUT (look-up-table) inside the monitor. This method offers higher precision and better gradation characteristics compared to software calibration. With ColorEdge and ColorNavigator 6, you can adjust the monitor’s display directly through hardware calibration.

Easy Recalibration to Maintain Color Consistency

A monitor needs to be recalibrated at regular intervals to maintain color accuracy. ColorNavigator 6 includes a recalibration reminder that will appear after a certain number of user-determined hours. You can also be reminded without starting up ColorNavigator 6 by an LED on the monitor's front panel that lights up.

Ret ur ns t o

ori gi nal s ta te

Color Deviati on

For the CS Series, an external sensor is necessary to carry out calibration.

Recali bration

Recommended Monitors for Quick Color Match

1920 x 12002560 x 1440

For a full list of supported monitors, printers, and software, visit www.eizoglobal.com/products/ce/qcm

ColorNavigator 6 or Quick Color Match?

ColorNavigator 6 is for users who want to fine-tune the monitor's color accuracy and create custom profiles for editing a range of creative works. Quick Color Match offers quick, hassle-free color matching for users who want to streamline the process without worrying about technical details. Both solutions support most ColorEdge monitors so you can build the creative workflow that suits your needs.

For more information visit www.eizoglobal.com/library/management/qcm-cn

12 13

CG Series Features

Built-In Sensors to Automate Your Workflow

CG Series monitors are equipped with a built-in sensor which can be set to calibrate the monitor automatically at designated times. This eliminates the need for a third-party calibration device and ensures your screen stays color-accurate. In addition, the CG319X features the latest sensor technology, which allows you to continue using the monitor even during recalibration. The sensor swings onto the screen, taking up minimal space, so your work remains uninterrupted.

Only CG319X can continue to be operated during recalibration. It is not recommended to carry out color-critical work during this process, as the screen's colors will be adjusted. CG3145 is not equipped with a built-in sensor.

Stable Color in Just 3 Minutes

A typical monitor takes 30 minutes or more for its brightness, chromaticity, and tone characteristics to stabilize. The CG Series* takes a mere 3 minutes. Whether you are working in a studio or taking the monitor with you on location, you get reliable color display soon after turning the monitor on.

*The CG277 takes 7 minutes and CG3145 takes 30 minutes.

CG Series

3 Minutes

Begin color checking soon after turning the monitor on

Typical Monitor

30 Minutes

or More

Automatically calibrates while you work.

Light-Shielding Hood

The CG Series comes bundled with a shading hood that effectively prevents glare on the monitor’s screen caused by ambient lighting. The CG Series* features newly designed shading hoods that attach to the monitor magnetically. This allows users to attach the hood quickly and easily without needing to connect separate parts.

*The CG277 comes with a non-magnetic hood.

TÜV Color Accuracy and FograCert Softproof Monitor Certified

The ColorEdge CG Series Only CG319X can continue to be operated during recalibration. It is not recommended to carry out color-critical work during this process, as the screen's colors will be adjusted. CG3145 is not equipped with a built-in sensor. TÜV Rheinland’s Color Accuracy (Quick Stability grade) certification. TÜV Rheinland Color Accuracy is the first quality and performance criterion to measure the color accuracy of display devices for multiple graphics fields such as photography, post production, design, and printing.

The monitors* are also recognized by Fogra as Class A FograCert Softproof Monitors. Using them in a FograCert Softproofing System ensures designers, print specifiers, and print producers can rely on the softproof for predictable and consistent results. In addition the CG247X is the first monitor to receive Idealliance`s display-based soft proofing certification which confirms that the color stability, tone uniformity, and angular viewing consistency meets global industry standards for high quality proofs.

For more information, visit: http://www.eizoglobal.com/library/management/certifications/ *The CG2730 is under application for Fogra certification.

4K Resolution for Exceptional Detail

e Highest Pixel Density Yet

The CG248-4K offers the highest pixel density yet in the ColorEdge linup at an astonishing 185 ppi for exceptionally smooth image display. The 4K UHD screen (3840 × 2160) makes it ideal for high-resolution photography or as a reference monitor for 4K video creation.

Conventional 23-inch full HD monitor 96 ppi

185ppiCG248-4K

Quadruple the Resolution of Full HD

Wait for the monitor to warmup

and stabilize the display

See How Other Devices Display

The CG319X and CG3145 display the DCI 4K standard (4096 × 2160) which is more than four times that of full HD (1920 × 1080). They are ideal for creating, editing, and referencing with 2D and 3D CGI, VFX, compositing, and color grading.

Full HD

Color with Media Emulation

ColorNavigator 6 emulates the color characteristics of other media devices* such as tablets, smartphones, notebook PCs, and other monitors. With a spectrophotometer, ColorNavigator 6 reads the emulated device's color patches as they appear in the web browser and creates an ICC profile. By using this profile with a ColorEdge monitor, content creators can see how their clients view color on their respective devices.

Media emulation is available for the CG Series only. Not applicable to the CG2730 or CG2420.

14 15

DCI 4K at 60 Hz with a Single Cable

The CG319X supports the DCI 4K resolution at 60 Hz with the DisplayPort 1.2 input or HDMI input. For the CG3145, 60 Hz is supported by both DisplayPort and HDMI inputs.

For more information on compatibility and tips for a more comfortable 4K workstation,visit: http://www.eizoglobal.com/i/4K_guide/

HDMI × 2 DisplayPort × 2 USB Upstream × 1

CG Series Features

For Media and Entertainment

3D LUT for Accurate Color Display

A 3D LUT is included in the CG Series which adjusts colors individually on an RGB cubic table. With the bundled ColorNavigator 6 software's emulation function, the 3D LUT applies a film look to the image so creators can check how it will be seen by their audience. The 3D LUT also improves the monitor's additive color mixture (combination of RGB), which is a key factor in its ability to display neutral gray tones.

Not available with the CG2730 or CG2420.

Multiple Preset Color Modes

CG Series monitors provide quick access to several broadcast-standard preset color modes via a button on the front of the monitor. The available modes are Rec. 709, EBU, SMPTE-C, and DCI. 4K models also include a preset mode for Rec. 2020. In addition, CG319X and CG3145 are equipped with HDR modes for both HLG and PQ gamma curves.

Not available with the CG2730 or CG2420.

Rec. 709 Out of Gamut Warning

ColorEdge 4K monitors include a Gamut Warning preset. When selected, the areas of a Rec. 2020 image that cannot be reproduced using Rec. 709 are clearly indicated by converting them to shades of gray. An additional mode called Rec. 709 Clipping allows the editor to view Rec. 2020 images with the Rec. 709 color space, simulating how it would look to their audience in an HDTV environment.

Rec. 709

Gamut Warning ON Rec. 709 ClippingRec. 2020 Image Content

True Black Display

In compliance with the DCI standard, the ColorEdge CG319X, CG247X, CG2730, and CG2420 offer a high contrast ratio of 1500:1* for producing true blacks that are otherwise difficult to display on a typical LCD monitor.

When viewing the screen from an angle in a dimly lit room, dark tones typically appear washed out due to the display characteristics of LCD backlights. The CG Series is equipped with a retardation film which allows tones to retain their depth even when viewed from an angle.

True HDR

HDR (High Dynamic Range) is a range that approximates the human perception of color and light as content is shown on a display device. The ColorEdge

PROMINENCE CG3145 achieves the 1000 cd/m brightness level (typical) needed for HDR content display. It also offers a typical contrast ratio of 1,000,000:1 for displaying true blacks.

high

HDR Workflow

In addition to the ColorEdge PROMINENCE CG3145 HDR reference monitor, EIZO offers HLG (hybrid log-gamma) and PQ (perceptual quantization) curves for many of its current CG Series monitors. The optimized gamma curves render images to appear more true to how the human eye perceives the real world compared to SDR (standard dynamic range).

ColorEdge PROMINENCE CG3145SDR Monitor

I/P Conversion for Flicker-Free Display

The HDMI input of ColorEdge monitors supports I/P (interlace/progressive) conversion for converting the interlace signals from TV and video into progressive signals for flicker-free display.

Not available with the CS230.

Interlace Signal Progressive Signal

*Typical value when DUE Priority is set to "Brightness".

Typical Monitor

Area Light for Dark Editing Rooms

RadiLight is a lighting solution that easily attaches directly to the monitor and shines a 6,500K light on the wall behind it. This reduces eye fatigue while not impacting the screen's visibility. It is also equipped with a spotlight for conveniently navigating your workspace.

CG 319 X

16 17

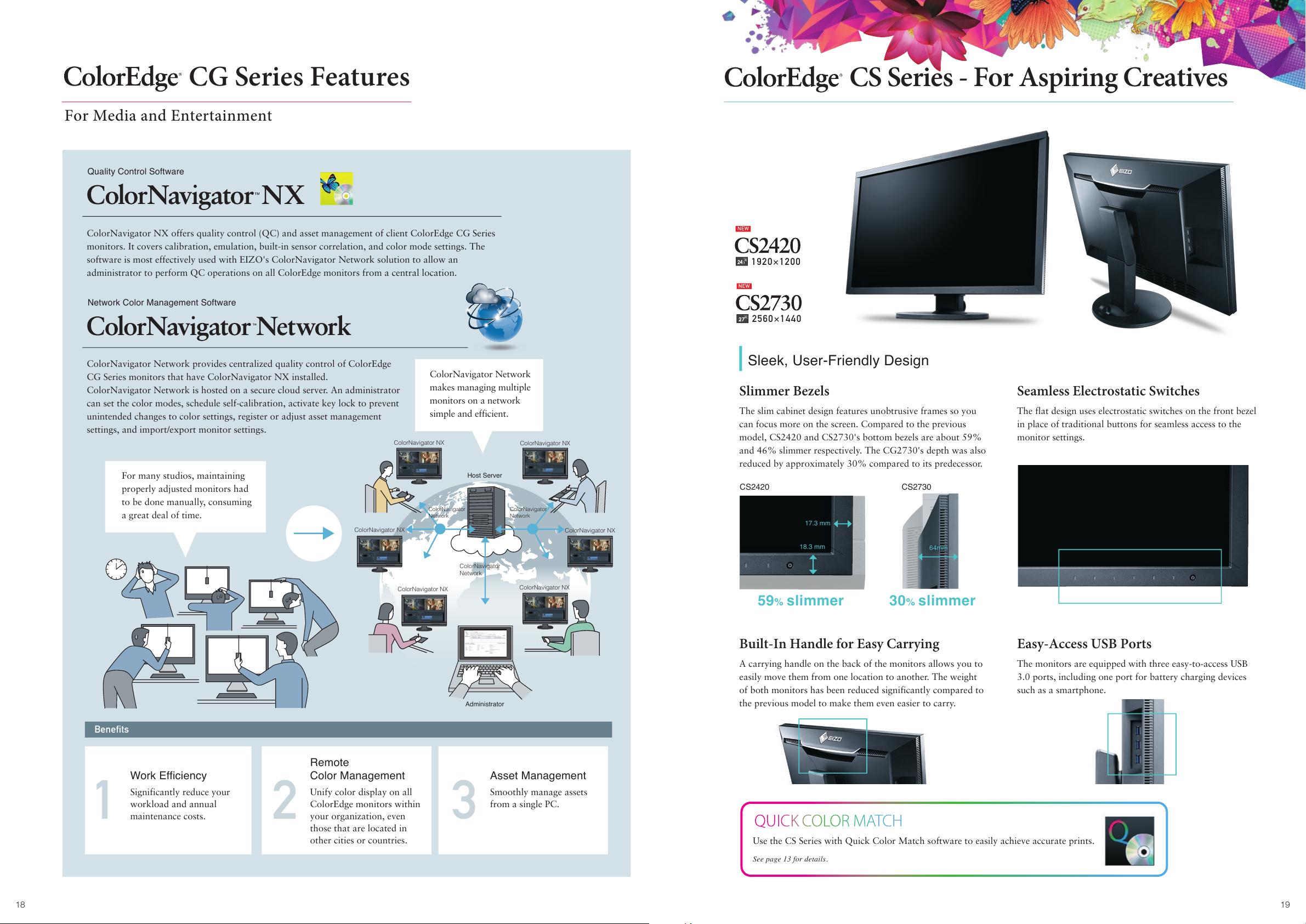

CG Series Features

For Media and Entertainment

Quality Control Software

CS Series - For Aspiring Creatives

ColorNavigator NX offers quality control (QC) and asset management of client ColorEdge CG Series monitors. It covers calibration, emulation, built-in sensor correlation, and color mode settings. The software is most effectively used with EIZO's ColorNavigator Network solution to allow an administrator to perform QC operations on all ColorEdge monitors from a central location.

Network Color Management Software

ColorNavigator Network provides centralized quality control of ColorEdge CG Series monitors that have ColorNavigator NX installed. ColorNavigator Network is hosted on a secure cloud server. An administrator can set the color modes, schedule self-calibration, activate key lock to prevent unintended changes to color settings, register or adjust asset management settings, and import/export monitor settings.

ColorNavigator NX

For many studios, maintaining properly adjusted monitors had to be done manually, consuming a great deal of time.

ColorNavigator NX

ColorNavigator Network makes managing multiple monitors on a network simple and efficient.

ColorNavigator Network

ColorNavigator NX

Host Server

ColorNavigator NX

ColorNavigator Network

ColorNavigator NX

NEW

1920×1200

NEW

2560×1440

Sleek, User-Friendly Design

Slimmer Bezels

The slim cabinet design features unobtrusive frames so you can focus more on the screen. Compared to the previous model, CS2420 and CS2730's bottom bezels are about 59% and 46% slimmer respectively. The CG2730's depth was also reduced by approximately 30% compared to its predecessor.

CS2420 CS2730

17.3 mm

18.3 mm

64mm

59% slimmer 30% slimmer

Seamless Electrostatic Switches

The flat design uses electrostatic switches on the front bezel in place of traditional buttons for seamless access to the monitor settings.

Benefits

Administrator

Built-In Handle for Easy Carrying

A carrying handle on the back of the monitors allows you to easily move them from one location to another. The weight of both monitors has been reduced significantly compared to the previous model to make them even easier to carry.

Easy-Access USB Ports

The monitors are equipped with three easy-to-access USB

3.0 ports, including one port for battery charging devices such as a smartphone.

Remote

Work Efficiency

Significantly reduce your workload and annual

18 19

maintenance costs.

2 3

Color Management Asset Management

Unify color display on all ColorEdge monitors within your organization, even those that are located in other cities or countries.

Smoothly manage assets from a single PC.

Use the CS Series with Quick Color Match software to easily achieve accurate prints.

See page 13 for details.

Built-In Calibration Sensors

Visual

Business Enterprise

Automatically calibrates while you work

IP Decoding Monitors

Technology

Company

Creative Work

PC-less connection

In-House Optical Bonding

Gap Resin Layer

Without Bonding

Market-Focused Cloud Solutions

Air Traffic Control

Creative Work

With Bonding

(Reduces glare)

Healthcare

Research and

Research and Development

Development

ManufacturingManufacturing

／

Healthcare

Global ReachGlobal Reach

Security & Surveillance /

Maritime

CustomizationCustomization

／／

Air Traffic Control

Quality ControlQuality Control

Software for Improved Workflow

Home Entertainment

Use a single mouse across two PCs Synchronized adjustment of multiple monitors

20 21

Simplified CMS with automatic software and

printer settings adjustment

Specifications

Panel

Type Backlight Size Native Resolution Viewable Image Size (H x V) Pixel Pitch Pixel Density Grayscale Tones

Display Colors

Viewing Angles (H / V, typical) Brightness (typical) Recommended Brightness for Calibration Contrast Ratio (typical) HDR Gamma Response Time (typical)

Video Signals

Wide Gamut Coverage (typical) Input Terminals

Digital Scanning Frequency (H / V)

Analog Scanning Frequency (H / V)

USB

Power

Features & Functions

Built-in Calibration Sensor Built-in Correction Sensor Physical Specifications

Environmental Requirements Certifications & Standards (Please contact EIZO for the latest information.)

Warranty Dimensions (Unit: mm)

Function

Standard Power Requirements Maximum Power Consumption Typical Power Consumption Power Save Mode Standby Mode Power Management

Brightness Stabilization Digital Uniformity Equalizer Preset Modes

Dimensions (Landscape, W x H x D) Dimensions (Portrait, W x H x D) Dimensions (Without Stand, W x H x D) Dimensions (Landscape with Hood, W x H x D) Dimensions (Portrait with Hood, W x H x D) Net Weight Net Weight (Without Stand) Net Weight (With Hood) Height Adjustment Range Tilt Swivel Pivot Hole Spacing (VESA Standard) Temperature Humidity (R.H., non condensing)

IPS Wide-Gamut LED

31.1" / 78.9 cm 4096 x 2160 (17:9 aspect ratio)

698.0 x 368.1 mm

0.170 x 0.170 mm 149ppi DisplayPort, HDMI: 1,024 tones (a palette of 65 thousand tones)

DisplayPort, HDMI: 1.07 billion (a 24-bit palette)

178°, 178°

1000 cd/m – 1,000,000:1 HLG, PQ curve 10 ms (Gray-to-gray) DCI-P3: 99% DisplayPort x 2 (with HDCP), HDMI x 2 (HDCP, Deep Color)

DisplayPort: 25 - 137 kHz, 23 - 61 Hz HDMI: 15 - 136 kHz, 23 - 61 Hz

– 1 port for monitor control 3-port USB hub

USB 3.0 AC 100 - 240 V, 50 / 60 Hz 472 W 267 W Less than 1.2 W Less than 0.7 W Power Save (DisplayPort: Rev. 1.2a) Yes Yes Color Mode (REC2020, REC709, DCI, PQ_REC2100, PQ_REC709, PQ_DCI, HLG_REC2100, Calibration) – – 757 × 488 × 236.5 mm – – 778 × 498.5 × 355.6 mm –

25.8 kg / 56.9 lbs –

26.7 kg / 58.9 lbs – – – – 100 × 100 mm 0 - 30 °C 20 - 80 % CB, CE, TUV/GS, cTUVus, FCC-B, CAN ICES-3 (B), VCCI-B, TUV/Ergonomie, RCM, EAC, RoHS, WEEE, China RoHS, CCC, BSMI

1, 2, 3

Five Years

757

236.5

IPS Wide-Gamut LED

31.1" / 79 cm 4096 x 2160 (17:9 aspect ratio) 698 x 368.1 mm

0.170 x 0.170 mm 149ppi DisplayPort, HDMI: 1,024 tones (a palette of 65 thousand tones)

DisplayPort, HDMI: 1.07 billion (a 24-bit palette)

178°, 178°

350 cd/m 120 cd/m2 or less 1500:1 HLG, PQ curve 9 ms (Gray-to-gray) Adobe RGB 99%, DCI-P3: 98% DisplayPort x 2 (with HDCP), HDMI x 2 (HDCP, Deep Color)

DisplayPort: 25 - 137 kHz, 23 - 61 Hz HDMI: 15 - 136 kHz, 23 - 61 Hz

– 1 port for monitor control 3-port USB hub

USB 3.0 AC 100 - 240 V, 50 / 60 Hz 140 W 52 W Less than 1.2 W Less than 1.2 W Power Save (DisplayPort: Rev. 1.2a) Yes Yes Color Mode (REC2020, REC709, DCI, PQ_REC2100, PQ_REC709, PQ_DCI, HLG_REC2100, Adobe RGB, sRGB, Calibration) Yes – 735 × 434 - 588 × 290 mm – 735 × 423 × 71.5 mm

754.4 × 443.6 - 597.6 × 381.5 mm –

12.4 kg / 27.3 lbs

8.3 kg / 18.3 lbs

13.3 kg / 29.3 lbs 154 mm 35 ° Up, 5° Down 344° – 100 × 100 mm 0 - 35 °C 20 - 80 % CB, CE, TUV/GS, cTUVus, FCC-B, CAN ICES-3 (B), VCCI-B, TUV/Ergonomie, TUV/Color Accuracy (Quick Stability), RCM, EAC, RoHS, WEEE, China RoHS, CCC

1, 2, 3

Five Years

735

71.5

IPS Wide-Gamut LED

23.8" / 60 cm 3840 × 2160 (16:9 aspect ratio) 527 × 296.5 mm

0.137 × 0.137 mm 185 ppi DisplayPort, HDMI: 1,024 tones (a palette of 65 thousand)

DisplayPort, HDMI: 1.07 billion (a palette of 278 trillion)

178°, 178°

350 cd/m 120 cd/m2 or less 1000:1 HLG, PQ curve (optional) 14 ms (gray-to-gray) Adobe RGB: 99%, DCI-P3: 93% DisplayPort × 2 (with HDCP), HDMI × 2 (with HDCP, Deep Color) DisplayPort: 24.5 - 137.5 kHz,

22.5 - 71.5 Hz HDMI: 14.5 - 135.5 kHz,

22.5 - 71.5 Hz – 1 port for monitor control 3-port USB hub (including 1 USB battery charge port) USB 3.0 AC 100 - 240 V, 50 / 60 Hz 136 W 52 W Less than 9 W Less than 9 W Power Save (DisplayPort 1.2) Yes Yes Color Mode (Custom, Adobe RGB, sRGB, REC709, EBU, SMPTE-C, DCI, REC2020, Calibration) Yes – 553 × 394 - 544 × 245 mm 345 × 564 - 642 × 245 mm 553 × 345 × 64 mm

572.4 × 403 - 553 × 340 mm –

8.5 kg / 18.7 lbs

5.7 kg / 12.6 lbs

9.2 kg / 20.3 lbs 150 mm 35° Up, 5° Down 344° 90° 100 × 100 mm 0 - 35 °C 20 - 80% CB, CE, TUV/GS, cTUVus, FCC-B, Canadian ICES-003-B, VCCI-B, TUV/Ergonomie, RCM, EAC, RoHS, WEEE,

TUV/Color Accuracy (Quick

Stability)

1, 2, 3

Five Years

553

CG Series CS Series

IPS Wide-Gamut LED 27" / 68 cm 2560 × 1440 (16:9 aspect ratio)

596.7 × 335.6 mm

0.233 x 0.233 mm 109 ppi DisplayPort, HDMI: 1,024 tones (a palette of 65 thousand) DVI: 256 tones (a palette of 65 thousand) DisplayPort, HDMI: 1.07 billion (a palette of 278 trillion) DVI: 16.77 million (a palette of 278 trillion) 178°, 178°

300 cd/m 120 cd/m2 or less 1000:1 HLG, PQ curve (optional) 6 ms (gray-to-gray) Adobe RGB: 99%, DCI-P3: 93% DVI-D 24 pin (with HDCP), DisplayPort (with HDCP), HDMI (with HDCP, Deep Color) DisplayPort, DVI: 26 - 89 kHz,

23.75 - 63 Hz (VGA Text: 69 - 71 Hz) HDMI: 15 - 78 kHz, 23.75 - 61 Hz

– 2 ports for monitor control 2-port USB hub

USB 2.0 AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz 99 W 43 W Less than 0.7 W Less than 0.5 W Power Save (DisplayPort 1.1a, DVI DMPM) Yes Yes Color Mode (Custom, Adobe RGB, sRGB, REC709, EBU, SMPTE-C, DCI, Calibration) Yes – 646 × 425 - 576.5 × 281.5 mm 402 × 671 - 704 × 281.5 mm 646 × 402 × 92 mm 653 × 432.5 - 584 × 379.5 mm

410.5 × 679 - 712 × 379.5 mm

12.8 kg / 28 lbs

8.8 kg / 19.4 lbs

13.8 kg / 30.4 lbs

151.5 mm 25° Up, 0° Down 344° 90° 100 x 100 mm 0 - 35 °C 20 - 80 % CB, TUV/GS, CE, cTUVus, FCC-B, Canadian ICES-003-B, VCCI-B, TUV/Ergonomics, RCM, EAC, RoHS, WEEE, CUDO certified mark, TUV/Color Accuracy (Quick Stability)

1, 2, 3

Five Years

646

IPS Wide-Gamut LED

24.1" / 61 cm 1920 × 1200 (16:10 aspect ratio)

518.4 × 324 mm

0.270 × 0.270 mm 94 ppi DisplayPort, HDMI: 1,024 tones (a palette of 65 thousand) DVI: 256 tones (a palette of 65 thousand) DisplayPort, HDMI: 1.07 billion (a palette of 278 trillion) DVI: 16.77 million (a palette of 278 trillion) 178°, 178°

400 cd/m 120 cd/m2 or less 1500:1 HLG, PQ curve (optional) 10 ms (gray-to-gray) Adobe RGB: 99%, DCI-P3: 98% DVI-D 24 pin (with HDCP), DisplayPort (with HDCP), HDMI (with HDCP, Deep Color) DisplayPort, DVI: 26 - 78 kHz, 23 - 63 Hz (VGA Text: 69 - 71 Hz) HDMI: 15 - 78 kHz, 24 - 61 Hz (VGA Text: 69 - 71 Hz) – 2 ports for monitor control 2-port USB hub

USB 2.0 AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz 60 W 22 W Less than 0.7 W Less than 0.5 W Power Save (DisplayPort 1.1a, DVI DMPM) Yes Yes Color Mode (Custom, Adobe RGB, sRGB, REC709, EBU, SMPTE-C, DCI, Calibration) Yes – 575 × 417 - 545 × 245.5 mm 398 × 594.5 - 642.5 × 245.5 mm 575 × 398 × 75 mm 596 × 427.8 – 555.8 × 356.7 – 380 mm –

8.9 kg / 18.6 lbs

6.2 kg / 13.7 lbs

9.7 kg / 21.4 lbs 128 mm 30° Up, 0° Down 344° 90° 100 x 100 mm 0 - 35 °C 20 - 80 % CB, CE, TUV/GS, cTUVus, FCC-B, Canadian ICES-003-B, VCCI-B, TUV/Ergonomics, RCM, RoHS, WEEE, EAC, (Quick Stability) Five Years

TUV/Color Accuracy

1, 2, 3

575

IPS Wide-Gamut LED 27" / 68.5 cm 2560 × 1440 (16:9 aspect ratio)

596.7 × 335.6 mm

0.233 × 0.233 mm 109 ppi DisplayPort, HDMI: 1,024 tones (a palette of 65 thousand) DVI: 256 tones (a palette of 65 thousand) DisplayPort, HDMI: 1.07 billion (a palette of 278 trillion) DVI: 16.77 million (a palette of 278 trillion) 178°, 178°

350 cd/m

120 cd/m 1500:1 – 13 ms (gray-to-gray) Adobe RGB: 99%, DCI-P3: 98% DVI-D 24 pin (with HDCP), DisplayPort (with HDCP), HDMI (with HDCP, Deep Color) DisplayPort, DVI: 26 - 89 kHz, 23 - 61 Hz (VGA Text: 69 - 71 Hz) HDMI: 15 - 89 kHz, 23 - 61 Hz

– 2 ports for monitor control 3-port USB hub

USB 3.0 AC 100 - 240 V, 50 / 60 Hz 95 W 33 W Less than 0.6 W Less than 0.6 W Power Save (DisplayPort Version

1.1a, DVI DMPM) Yes Yes Color Mode (Custom, Adobe RGB, sRGB, Calibration)

Yes – 638 × 404.1 - 559.1 × 245 mm

378.2 × 649 - 689 × 248 mm 638 × 378.2 × 64 mm

657.4 × 413.8 - 568.8 × 336 mm –

8.9 kg / 19.6 lbs

6.1 kg / 13.4 lbs

9.5 kg / 20.9 lbs 155 mm 35° Up, 5° Down 344° 90° 100 × 100 mm 0 - 35 °C 20 - 80% CB, CE, TUV/GS, cTUVus, FCC-B, Canadian ICES-003-B, VCCI-B, TUV/Ergonomics, RCM, RoHS, WEEE, EAC, TUV/Color Accuracy (Quick Stability)

1, 2, 3

Five Years

638

IPS Wide-Gamut LED

24.1" / 61 cm 1920 × 1200 (16:10 aspect ratio)

518.4 × 324 mm

400 cd/m 120 cd/m2 or less 1500:1 – 10 ms (gray-to-gray) Adobe RGB: 99%, DCI-P3: 98% DVI-D 24 pin (with HDCP), DisplayPort (with HDCP), HDMI (with HDCP, Deep Color) DisplayPort, DVI: 26 - 78 kHz, 24 - 61 Hz (VGA Text: 69 - 71 Hz) HDMI: 15 - 78 kHz, 24 - 61 Hz (VGA Text: 69 - 71 Hz) – 1 port for monitor control 3-port USB hub

USB 3.0 AC 100 - 240 V, 50 / 60 Hz 79 W 20 W Less than 0.7 W Less than 0.6 W Power Save (DisplayPort 1.1a, DVI DMPM) Yes Yes Color Mode (Custom, Adobe RGB, sRGB, Calibration)

Yes –

554.4 × 396 - 551 × 245 mm 362 × 565.4 - 647.2 × 245 mm

554.4 × 362 × 64 mm

572.4 × 405 - 560 × 336 mm –

7.8 kg / 17.2 lbs

5.0 kg / 11.0 lbs

8.5 kg / 18.7 lbs 155 mm 35° Up, 5° Down 344° 90° 100 × 100 mm 0 - 35 °C 20 - 80% CB, CE, TUV/GS, cTUVus, FCC-B, Canadian ICES-003-B, VCCI-B, TUV/Ergonomics, RCM, RoHS,WEEE, EAC, Energy labeling of televisions, TUV/Color Accuracy (Quick Stability)

1, 2, 3

Five Years

554.4

IPS Wide-Gamut LED 27" / 68.5 cm 2560 × 1440 (16:9 aspect ratio)

596.7 × 335.6 mm

350 cd/m

120 cd/m 1000:1 – 10 ms (gray-to-gray) Adobe RGB: 99% DVI-D 24 pin (with HDCP), DisplayPort (with HDCP), HDMI (with HDCP, Deep Color) DisplayPort, DVI: 26 - 89 kHz, 23 - 61 Hz (VGA Text: 69 - 71 Hz) HDMI: 15 - 89 kHz, 23 - 61 Hz

– 2 ports for monitor control 3-port USB hub

USB 3.0 AC 100 - 240 V, 50 / 60 Hz 110 W 44 W Less than 0.6 W Less than 0.6 W Power Save (DisplayPort Version

1.1a, DVI DMPM) – Yes Color Mode (Custom, Adobe RGB, sRGB, Calibration)

– – 638 × 404.1 - 559.1 × 245 mm

378.2 × 649 - 689 × 248 mm 638 × 378.2 × 64 mm – –

8.9 kg / 19.6 lbs

6.1 kg / 13.4 lbs – 155 mm 35° Up, 5° Down 344° 90° 100 × 100 mm 0 - 35 °C 20 - 80% CB, CE, TUV/GS, cTUVus, FCC-B, Canadian ICES-003-B, VCCI-B, TUV/Ergonomics, RCM, RoHS, WEEE, EAC

1, 3

Five Years

638

IPS Wide-Gamut LED

24.1" / 61 cm 1920 × 1200 (16:10 aspect ratio)

518.4 × 324 mm

350 cd/m 120 cd/m2 or less 1000:1 – 15 ms (gray-to-gray) Adobe RGB: 99% DVI-D 24 pin (with HDCP), DisplayPort (with HDCP), HDMI (with HDCP, Deep Color) DisplayPort, DVI: 26 - 78 kHz, 24 - 61 Hz (VGA Text: 69 - 71 Hz) HDMI: 15 - 78 kHz, 24 - 61 Hz (VGA Text: 69 - 71 Hz – 1 port for monitor control 3-port USB hub

USB 3.0 AC 100 - 240 V, 50 / 60 Hz 92 W 26 W Less than 0.7 W Less than 0.6 W Power Save (VESA DPM, DisplayPort 1.1a, DVI DMPM) – Yes Color Mode (Custom, Adobe RGB, sRGB, Calibration)

– –

554.4 × 396 - 551 × 245 mm 362 × 565.4 - 647.2 × 245 mm

554.4 × 362 × 64 mm – –

7.8 kg / 17.2 lbs

5.0 kg / 11.0 lbs – 155 mm 35° Up, 5° Down 344° 90° 100 × 100 mm 0 - 35 °C 20 - 80 % CB, CE, TUV/GS, cTUVus, FCC-B, Canadian ICES-003-B, VCCI-B, TUV/Ergonomics, RCM, RoHS, WEEE, EAC, Energy labeling of televisions Five Years

)

1, 3

554.4

IPS LED 23" / 58 cm 1920 × 1080 (16:9 aspect ratio)

509.2 × 286.4 mm

0.265 × 0.265 mm 96 ppi DisplayPort: 1,024 tones (a palette of 65 thousand) DVI, HDMI: 256 tones (a palette of 65 thousand) DisplayPort: 1.07 billion (a palette of 278 trillion) DVI, HDMI: 16.77 million (a palette of 278 trillion) 178°, 178°

300 cd/m 120 cd/m2 or less 1000:1 –

10.5 ms (gray-to-gray) – DVI-I 29 pin (with HDCP), DisplayPort (with HDCP), HDMI (with HDCP) DisplayPort, DVI: 26 - 68 kHz,

23.75 - 63 Hz (VGA Text: 69 - 71 Hz) HDMI: 15 - 68 kHz, 23.75 - 61 Hz

26 - 68 kHz, 47.5 - 61 Hz 2 ports for monitor control 2-port USB hub

USB 2.0 AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz 54 W 21 W Less than 0.5 W Less than 0.5 W Power Save (VESA DPM, DisplayPort 1.1a, DVI DMPM) Yes Yes Color Mode (User1, User2, User3, Paper, sRGB, Calibration)

– Yes 544 × 372.5 - 526.5 × 245.5 mm 353 × 563.5 - 627 × 245.5 mm 544 × 353 × 75 mm – –

7.5 kg / 16.5 lbs

4.8 kg / 10.6 lbs – 154 mm 30° Up, 0° Down 344° 90° 100 x 100 mm 0 - 35 °C 20 - 80 % CUDO certified mark, TCO Displays 6.0, TUV/S,TUV/ Ergonomics, TUV/GS, cTUVus, CE, RCM, CB, VCCI-B, FCC-B, Canadian ICES-003-B, RoHS, WEEE, EAC

1, 3

Five Years

544

488

53 55.5

Usage time is limited to 30,000 hours (10,000 hours for the CG3145 LCD panel).

Brightness of the CG Series is warranted for up to 10,000 hours if it is used within the recommended brightness of 120 cd/m2 or less and the color temperature between 5,000~6,500K.

For CG3145, a brightness level of 800 cd/m2 or more and a color temperature of 6500 K are warranted.

Free from bright sub-pixels for 6 months from the date of purchase.

HDCP 2.2 is not supported for CG319X, CG3145, CG248-4K, or CG277 (DisplayPort only).

With current LCD technology, a panel may contain a limited number of missing or flickering pixels.

290

423

434 ~ 588

290

345

394 ~ 544

245

256.5

402

425 ~ 576.5

281.5

398

417 ~ 545

209

245.5

378.2

404.1 - 559.1

245

362

396 ~ 551

245

378.2

404.1 - 559.1

245

362

396 ~ 551

245

353

372.5 ~ 526.5

209

245.5

22 23

Accessories

Monitor Hoods Software

Monitor hoods are bundled with the CG Series and optional for the CS Series.

Supported Models: CG2730, CS2730

Supported Models: CG248-4K, CG2420, CS2420

Supported Models: CS230

Supported Models: CG277

Area Light

Easily attachable 6500 K light that relieves eye fatigue when viewing your monitor in a dark room.

Supported Models: CG318-4K, CG248-4K, CG277, and CG247X

Calibration Device

Adjust CS Series monitors to your ideal settings with this external calibration device.

Monitor Cleaning Kit

Wipe away dust and ﬁ ngerprints with this screen cleaner kit. Includes pump spray and cloth. Bundled with the CG series.

Screen-to-Print Color Matching Tool

Easy color matching tool for simplifying monitor, retouching software, and printer settings.

Color Management Software

Color management software for simple calibration and predictable color results for photo and print.

Quality Control Software

Quality control software for management of client ColorEdge monitors.

Network Color Management Software

Network color management software for centralized quality control of ColorEdge monitors on a network.

Software System Requirements (as of April 2018)

See www.eizoglobal.com for the latest information.

Compatible OS

Additional Requirements

Supported Monitors

ColorNavigator 6

Mac Windows Mac Windows Linux

macOS High Sierra (10.13) / macOS Sierra / OS X El Capitan (10.11) / Yosemite (10.10) / Mavericks (10.9) / Mountain Lion (10.8)

· Apple Mac that fulfills the OS system requirements

· Two or more available USB ports Minimum 16.7 million display colors

· Recommended minimum resolution of 1024 x 768

ColorEdge CG Series (excluding CG3145) ColorEdge CS Series

Windows 10 (32-bit, 64-bit) /

8.1 (32-bit, 64-bit) / 7 (32-bit, 64-bit)

· PC that fulfills the OS system requirements

macOS High Sierra (10.13) / macOS Sierra / OS X El Capitan (10.11) / Yosemite (10.10) / Mavericks (10.9) / Mountain Lion (10.8) / Mac OS X 10.7.5

ColorEdge CG Series

ColorNavigator NX

Windows 10 (32-bit, 64-bit) /

8.1 (32-bit, 64-bit) / 7 (32-bit, 64-bit)

Red Hat Enterprise Linux Workstation 6

Compatible Measurement Devices (as of April 2018)

See www.eizoglobal.com for the latest information.

ColorNavigator 6

Manufacturers

X-Rite

Datacolor

EIZO

basICColor

Colorimetry Research

Klein

Konica Minolta

Photo Research

Supported Sensors Notes Supported Sensors Notes

i1 Monitor, i1 Pro, i1 Pro2, i1 Display, i1 Display 2, i1 Display 3, i1 Display Pro

ColorMunki PHOTO, ColorMunki DESIGN

Spyder 3, Spyder 4, Spyder 5

EX1, EX2, EX3

Built-in calibration sensor

DISCUS

CR-100, CR-250

K-10, K10-A

CA-210, CA-310, CS-1000, CS-1000A, CS-2000, CS-2000A, CS-200

PR-655, PR-680 PR-655, PR-680

Ambient light adjustment is not available with the i1 Monitor and i1 Display.

ColorMunki Display and ColorMunki Smile are not supported.

Ambient light adjustment and gray balance prioritizing function are not available.

Ambient light adjustment and paper white measurement are not available and therefore calibration using such measured values is not available.

available.

Ambient light adjustment and paper white measurement are not available.

Ambient light adjustment and paper white measurement are not available. Driver not included with ColorNavigator 6.

Ambient light adjustment and paper white measurement are not available.

ColorNavigator NX

i1 Monitor, i1 Pro, i1 Pro 2, i1 Display 3, i1 Display Pro

ColorMunki PHOTO, ColorMunki DESIGN

Spyder 3, Spyder 4, Spyder 5

EX1, EX2, EX3

Built-in calibration sensor

DISCUS Not compatible with Linux

CR-100, CR-250Ambient light adjustment is not

K-10

CA-210, CA-310, CS-1000, CS-1000A, CS-2000, CS-2000A, CS-200

ColorMunki Display and ColorMunki Smile are not supported. Not compatible with Linux

Not compatible with Linux

Not compatible with Mac OS X or Linux Driver not included with ColorNaviga- tor NX

JETI

153 Shimokashiwano, Hakusan, Ishikawa 924-8566 Japan

Phone +81-76-277-6792 Fax +81-76-277-6793

www.eizoglobal.com

Specbos 1211, Spectraval 1501

All product names are trademarks or registered trademarks of their respective companies. ColorEdge and EIZO are registered trademarks of EIZO Corporation. Adobe product screenshots reprinted with permission from Adobe Systems Incorporated. Speciﬁcations are subject to change without notice.

The terms HDMI and HDMI High-Deﬁnition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

Eizo CG319X User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
