EN Original operating instructions
Cordless Rotary Hammer
SP Manual de instrucciones original
Taladro percutor a batería
FR Traduction du mode d’emploi
d’origine
Marteau perforateur sans fi l
HEROCCO
7
Art.-Nr.: 4513906 I.-Nr.: 11019
Anl_Herocco_SPK7_USA.indb 1Anl_Herocco_SPK7_USA.indb 1 08.05.2019 15:35:1008.05.2019 15:35:10
- 2 -
Anl_Herocco_SPK7_USA.indb 2Anl_Herocco_SPK7_USA.indb 2 08.05.2019 15:35:1108.05.2019 15:35:11
1
1
2
1.1
11
10
9
3
4
5
1.2
7
6
8
9
2
10
Anl_Herocco_SPK7_USA.indb 3Anl_Herocco_SPK7_USA.indb 3 08.05.2019 15:35:1108.05.2019 15:35:11
- 3 -
3
11
a
4 5
1
b
1.
2.
1
6
D 2
C
E B A
7
3
4
- 4 -
Anl_Herocco_SPK7_USA.indb 4Anl_Herocco_SPK7_USA.indb 4 08.05.2019 15:35:1408.05.2019 15:35:14
EN
Table of contents
1. Safety information
2. Layout and items supplied
3. Intended use
4. Technical data
5. Before starting the equipment
6. Operation
7. Cleaning, maintenance and ordering spare parts
8. Disposal and recycling
9. Storage
Einhell USA LLC · 305 Veterans Blvd · Carlstadt · NJ 07072 · USA
- 5 -
Anl_Herocco_SPK7_USA.indb 5Anl_Herocco_SPK7_USA.indb 5 08.05.2019 15:35:1608.05.2019 15:35:16
EN

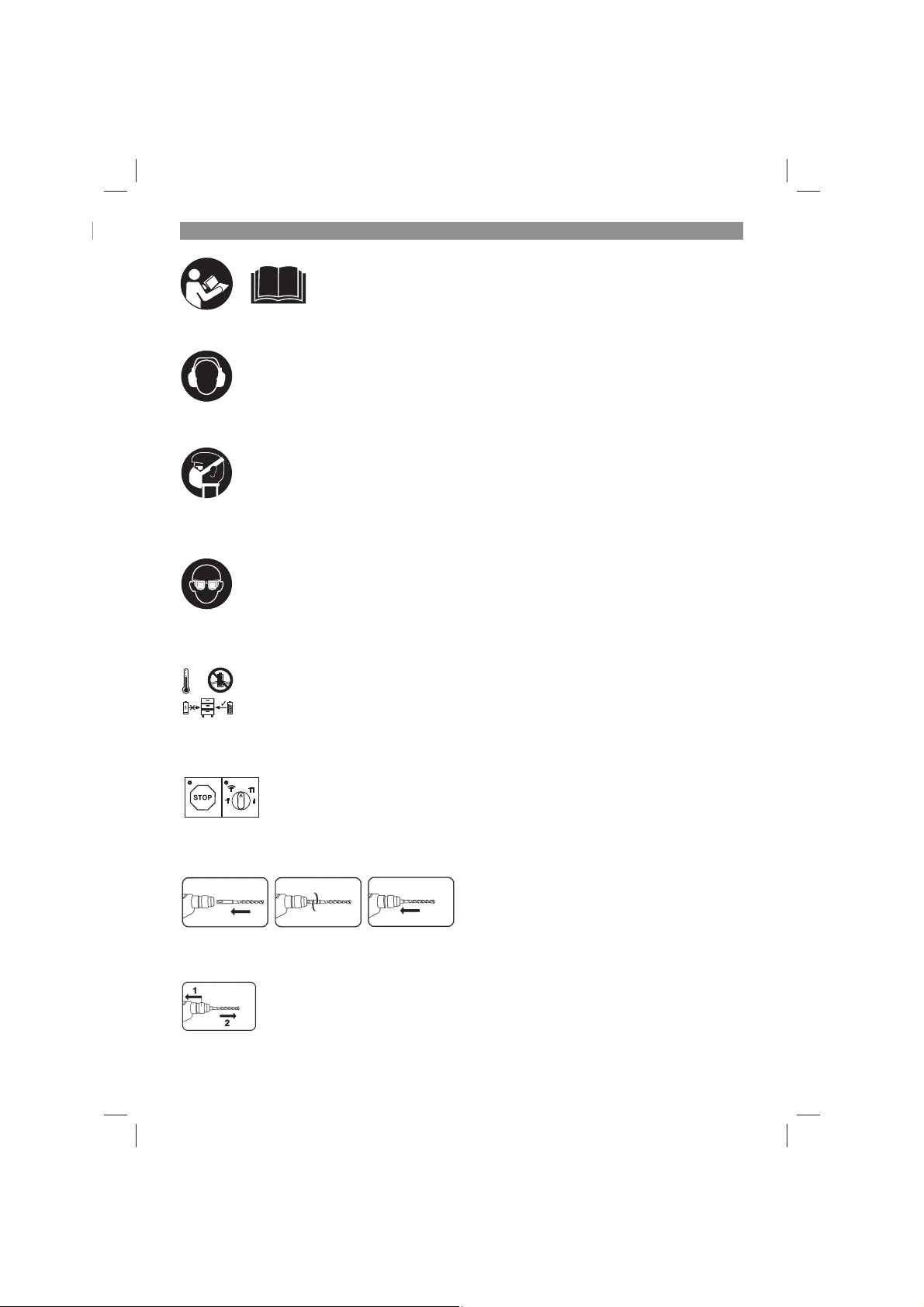

Danger! - Read the operating instructions to reduce the risk of injury
Caution! Wear ear-muff s. The impact of noise can cause damage to hearing.
Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on
wood and other materials. Never use the tool to work on any materials containing asbestos!
Caution! Wear safety goggles. Sparks generated during work or splinters, chips and dust emitted by
the equipment can cause loss of sight.
104°F
(+40°C)
50°F
(+10°C)
Store the batteries only in dry rooms with an ambient temperature of 50°F to 104°F (+10°C to +40°C).
Place only fully charged batteries in storage (charged at least 40%).
Select between the individual functions only when the equipment is at a standstill. If you fail to observe
this point, the equipment may be damaged.
Turn and push the SDS-Plus drill bit into the tool chuck as far as it will go. The tool will lock automatically.
1. Pull back and hold the locking sleeve!
2. Remove the tool!
- 6 -
Anl_Herocco_SPK7_USA.indb 6Anl_Herocco_SPK7_USA.indb 6 08.05.2019 15:35:1608.05.2019 15:35:16
EN
DANGER!
When using the equipment, a number of safety
precautions must be observed to avoid injuries
and damage. Please read the complete operating
instructions and safety information with due care.
Keep these operating instructions in a safe place
so that the information is available at all times. If
you give the equipment to any other person, hand
over these operating instructions and the safety
information as well. We cannot accept any liability
for damage or accidents which arise due to
failure to follow these instructions and the safety
information.
1. Safety information
DANGER!
Read all the safety information and
instructions. Failure to adhere to the safety
information and instructions set out below
may result in electric shock, fi re and/or serious
injury. Keep all the safety information and
instructions in a safe place for future use.
General safety information for power tools
The term „power tool“ used in the safety
regulations refers to power tools operated from
the mains power supply (with a power cable) and
to battery operated power tools (without a power
cable).
1) Work area safety
a) Keep work area clean and well lit.
Cluttered and dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
fl ammable liquids, gases or dust. Power
tools create sparks which may ignite the dust
or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can
cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do
not use any adapter plugs with earthed
(grounded) power tools. Unmodifi ed plugs
and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or
grounded surfaces such as pipes,
radiators, ranges and refrigerators. There
is an increased risk of electric shock if your
body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging
the power tool. Keep cord away from
heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the
risk of electric shock.
e) When operating a power tool outdoors,
use an extension cord suitable for
outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric
shock.
f) If operating a power tools in a damp
location is unavoidable, use a residual
current device (RCD) protected supply.
Use of an RCD reduces the risk of electric
shock.
3) Personal safety
a) Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the infl uence of
drugs, alcohol or medication. A moment of
inattention while operating power tools may
result in serious personal injury.
b) Use personal protective equipment.
Always wear eye protection. Protective
equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure
the switch is in the off -position before
connecting to power source and/or
BATTERY pack, picking up or carrying the
tool. Carrying power tools with your fi nger on
the switch or energising power tools that have
the switch on invites accidents.
d) Remove any adjusting key or wrench
before turning the power tool on. A wrench
or a key left attached to a rotating part of the
power tool may result in personal injury.
e) Do not overreach. Keep proper footing
and balance at all times. This enables
better control of the power tool in unexpected
situations.
f) Dress properly. Do not wear loose
clothing or jewellery. Keep your hair,
clothing and gloves away from moving
parts. Loose clothes, jewellery or long hair
- 7 -
Anl_Herocco_SPK7_USA.indb 7Anl_Herocco_SPK7_USA.indb 7 08.05.2019 15:35:1708.05.2019 15:35:17
EN
can be caught in moving parts.
g) If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of these devices can reduce dust
related hazards.
h) Do not let familiarity gained from frequent
use of tools allow you to become
complacent and ignore tool safety
principles. A careless action can cause
severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job
better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch
does not turn it on and off . Any power tool
that cannot be controlled with the switch is
dangerous and must be repaired.
c) Disconnect the plug from the power
source and/or remove the battery pack,
if detachable, from the power tool before
making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools and accessories.
Check for misalignment or binding of
moving parts, breakage of parts and
any other condition that may aff ect the
power tool’s operation. If damaged, have
the power tool repaired before use. Many
accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are
easier to control.
g) Use the power tool, accessories and
tool bits etc., in accordance with
these instructions and in the manner
intended for the particular type of power
tool, taking into account the working
conditions and the work to be performed.
Use of the power tool for operations diff erent
from intended could result in a hazardous
situation.
h) Keep handles and grasping surfaces
dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do
not allow for safe handling and control of the
tool in unexpected situations.
5) Battery tool use and care
a) Recharge only with the charger specifi ed
by the manufacturer. A charger that is
suitable for one type of battery pack may
create a risk of fi re when used with another
battery pack.
b) Use power tools only with specifi cally
designated battery packs. Use of any other
battery packs may create a risk of injury and
fi re.
c) When battery pack is not in use, keep it
away from other metal objects, like paper
clips, coins, keys, nails, screws or other
small metal objects that can make a
connection from one terminal to another.
Shorting the battery terminals together may
cause burns or a fi re.
d) Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
If contact accidentally occurs, fl ush with
water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from the
battery may cause irritation or burns.
e) Do not use a BATTERY pack or tool that
is damaged or modifi ed. Damaged or
modifi ed batteries may exhibit unpredictable
behaviour resulting in fi re, EXPLOSION or
risk of injury.
f) Do not expose a BATTERY pack or tool to
fi re or excessive temperature. Exposure to
fi re or temperature above 266°F (130°C) may
cause explosion.
g) Follow all charging instructions and do
not charge the BATTERY pack or tool
outside the temperature range specifi ed
in the instructions. Charging improperly or
at temperatures outside the specifi ed range
may damage the BATTERY and increase the
risk of fi re.
6) Service
a) Have your power tool serviced by a
qualifi ed repair person using only
identical replacement parts. This will
ensure that the safety of the power tool is
maintained.
b) Never service damaged BATTERY packs.
Service of BATTERY packs should only be
- 8 -
Anl_Herocco_SPK7_USA.indb 8Anl_Herocco_SPK7_USA.indb 8 08.05.2019 15:35:1708.05.2019 15:35:17
EN
performed by the manufacturer or authorized
service providers.
Additional safety instructions
We pay a great deal of attention to the design
of every battery pack to ensure that we supply
you with batteries which feature maximum
power density, durability and safety. The battery
cells have a wide range of safety devices.
Each individual cell is initially formatted and its
electrical characteristic curves are recorded.
These data are then used exclusively to be able
to assemble the best possible battery packs.
Despite all the safety precautions, caution
must always be exercised when handling
batteries. The following points must be
obeyed at all times to ensure safe use.
Safe use can only be guaranteed if
undamaged cells are used. Incorrect
handling can cause cell damage.
Caution! Analyses confi rm that incorrect use and
poor care are the main causes of the damage
caused by high performance batteries.
Information about the battery
1. The battery pack supplied with your cordless
tool is not charged. The battery pack has to
be charged before you use the tool for the fi rst
time.
2. For optimum battery performance avoid low
discharge cycles. Charge the battery pack
frequently.
3. Store the battery pack in a cool place, ideally
at 59°F (15°C) and charged to at least 40%.
4. Lithium-ion batteries are subject to a natural
ageing process. The battery pack must be
replaced at the latest when its capacity
falls to just 80% of its capacity when new.
Weakened cells in an aged battery pack are
no longer capable of meeting the high power
requirements and therefore pose a safety risk.
5. Do not throw battery packs into an open fi re.
There is a risk of explosion!
6. Do not ignite the battery pack or expose it to
fi re.
7. Do not exhaustively discharge batteries.
Exhaustive discharge will damage the battery
cells. The most common cause of deep
discharge is lengthy storage or non-use of
partly discharged batteries. Stop working as
soon as the performance of the battery falls
noticeably or the electronic protection system
triggers. Place the battery pack in storage
only after it has been fully charged.
8. Protect batteries and the tool from
overloads. Overloads will quickly result
in overheating and cell damage inside the
battery housing without this overheating
actually being apparent externally.
9. Avoid damage and shocks. Replace
batteries which have been dropped from
a height of more than one meter or which
have been exposed to violent shocks without
delay, even if the housing of the battery pack
appears to be undamaged. The battery cells
inside the battery may have suff ered serious
damage. In this respect, please also read the
waste disposal information.
10. If the battery pack suff ers overloading and
overheating, the integrated protective cutoff will switch off the equipment for safety
reasons. Caution! Do not press the ON/OFF
switch any more if the protective cut-off has
actuated. This may damage the battery.
11. Use only original battery packs. The use
of other batteries may result in injuries,
explosion and a fi re risk.
Information on chargers and the charging
process
1. Please check the data marked on the rating
plate of the battery charger. Be sure to
connect the battery charger to a power supply
with the voltage marked on the rating plate.
Never connect it to a diff erent mains voltage.
2. Protect the battery charger and its cable from
damage and sharp edges. Have damaged
cables repaired without delay by a qualifi ed
electrician.
3. Keep the battery charger, batteries and the
cordless tool out of children‘s reach.
4. Do not use damaged battery chargers.
5. Do not use the supplied battery charger to
charge other cordless tools.
6. In heavy use the battery pack will become
warm. Allow the battery pack to cool to room
temperature before commencing with the
charging.
7. Do not over-charge batteries. Do not
exceed the maximum charging times. These
charging times apply only to discharged
batteries. Frequent insertion of a charged
or partly charged battery pack will result in
over-charging and cell damage. Do not leave
batteries in the charger for days on end.
8. Never use or charge batteries if you
suspect that the last time they were
charged was more than 12 months
previously. There is a high probability
- 9 -
Anl_Herocco_SPK7_USA.indb 9Anl_Herocco_SPK7_USA.indb 9 08.05.2019 15:35:1708.05.2019 15:35:17
EN
that the battery pack has already suff ered
dangerous damage (exhaustive discharge).
9. Charging batteries at a temperature below
50°F (10°C) will cause chemical damage to
the cell and may cause a fi re.
10. Do not use batteries which have heated
during the charging process, as the battery
cells may have suff ered dangerous damage.
11. Do not use batteries which have suff ered
curvature or deformation during the charging
process or which show other non-typical
symptoms (gassing, hissing, cracking,…)
12. Never fully discharge the battery pack
(recommended depth of discharge max.
80%) A complete discharge of the battery
pack will lead to premature ageing of the
battery cells.
13. Never charge the batteries unsupervised.
Protection from environmental infl uences
1. Wear suitable work clothes. Wear safety
goggles.
2. Protect your cordless tool and the battery
charger from moisture and rain. Moisture
and rain can cause dangerous cell damage.
3. Do not use the cordless tool or the battery
charger near vapors and infl ammable liquids.
4. Use the battery charger and cordless tools
only in dry conditions and an ambient
temperature of 50°F to 104°F (10°C to 40°C).
5. Do not keep the battery charger in places
where the temperature is liable to reach over
40°C. In particular, do not leave the battery
charger in a car that is parked in the sunshine.
6. Protect batteries from overheating.
Overloads, over-charging and exposure to
direct sunlight will result in overheating and
cell damage. Never charge or work with
batteries which have been overheated –
replace them immediately if possible.
7. Storage of batteries, battery chargers
and cordless tools. Store the charger and
your cordless tool only in dry places with an
ambient temperature of 50°F to 104°F (10°C
to 40°C). Store the lithium-ion rechargeable
battery in a cool and dry place at 50°F to 68°F
(10°C to 20°C). Protect them from humidity
and direct sunlight! Place only fully charged
batteries in storage (charged at least 40%).
8. Prevent the lithium-ion battery pack from
freezing. Battery packs which were stored
below 32°F (0°C) for more than 60 minutes
must be disposed of.
9. When handling batteries beware of
electrostatic charge: Electrostatic discharges
cause damage of the electronic protection
system and the battery cells. Avoid
electrostatic charging and never touch the
battery poles.
Battery Caution + Disposal
Disposal
Should your appliance need replacement after
extended use, do not dispose of it with the
household refuse, but in an environmentally safe
way.
Waste produced by electrical machine
items should not be handled like normal
household rubbish. Please recycle where
recycle facilities exist. Check with your local
authority or retailer for recycling advice.
Always dispose of your battery pack according
to federal, state, and local regulations. Contact
a recycling agency in your area for recycling
locations.
CAUTION! Even discharged battery packs
contain some energy. Before disposing, use
electrical tape to cover the terminals to prevent
the battery pack from shorting, which could cause
a fi re or explosion.
WARNING! To reduce the risk of injury or
explosion, never burn or incinerate a battery
pack even if it is damaged, dead, or completely
discharged. When burned, toxic fumes and
materials are emitted into the surrounding
atmosphere.
1. Batteries vary according to device. Consult
your manual for specifi c information.
2. Install only new batteries of the same type in
your product (where applicable).
3. Failure to insert batteries in the correct
polarity, as indicated in the battery
compartment or manual, may shorten the life
of the batteries or cause batteries to leak.
4. Do not mix old and new batteries.
5. Do not mix Alkaline, Standard (Carbon-Zinc),
or Rechargeable (Nickel Cadmium, Nickel
Metal Hydride, or Lithium-Ion) batteries.
6. Do not dispose of batteries in fi re.
7. Batteries should be recycled or disposed of
as per state and local guidelines.
When shipping or disposing of batteries and
cordless tools, always ensure that they are
packed individually in plastic bags to prevent
short circuits and fi res.
- 10 -
Anl_Herocco_SPK7_USA.indb 10Anl_Herocco_SPK7_USA.indb 10 08.05.2019 15:35:1708.05.2019 15:35:17
EN
Safety information for hammers
a) Wear ear protection. The impact of noise
can cause damage to hearing.
b) Use the additional handles supplied with
the tool. Losing control of the tool can cause
injuries.
c) Hold the equipment by the insulated
handles when carrying out work during
which the plug-in tool could strike
concealed power cables. Contact with a
live cable might also make the metal parts
of the equipment live and cause an electric
shock.
Keep this safety information in a safe place.
2. Layout and items supplied
2.1 Layout (Fig. 1)
1. Locking sleeve
2. Drill/impact drill/chisel selector switch
3. Changeover switch
4. On/Off switch
5. Rechargeable battery
6. Pushlock button
7. Battery capacity indicator
8. Capacity indicator switch
9. LED lamp
10. Additional handle
11. Depth stop
2.2 Items supplied
Please check that the article is complete as
specifi ed in the scope of delivery. If parts are
missing, please contact our service center or the
store where you made your purchase at the latest
within 5 work days after purchasing the article and
upon presentation of a valid bill of purchase.
Open the packaging and take out the
•
equipment with care.
Remove the packaging material and any
•
packaging and/or transportation braces (if
present).
Check to see if all the items are supplied.
•
Inspect the equipment and accessories for
•
transport damage.
If possible, keep the packaging until the end
•
of the guarantee period.
Danger!
The equipment and packaging material are
not toys. Do not let children play with plastic
bags, plastic sheets and small parts. There is
a risk of choking and suff ocating!
Cordless impact drill
•
Additional handle
•
Depth stop
•
Original operating instructions
•
Safety information
•
Separately available accessories
18V 1.5Ah P-X-C lithium-ion battery
18V 2.0Ah P-X-C lithium-ion battery
18V 2.6Ah P-X-C Plus lithium-ion battery
18V 3.0Ah P-X-C lithium-ion battery
18V 4.0Ah P-X-C lithium-ion battery
18V 5.2Ah P-X-C Plus lithium-ion battery
18V P-X-C charger
Explore battery + charger options at
einhellUSA.com
3. Intended use
The equipment is designed for drilling work with
impact action in concrete, rock and brick, always
using the correct drill bit. The equipment is also
suitable for screwdriving and drilling in wood and
steel.
The equipment is allowed to be used only for its
prescribed purpose. Any other use is deemed to
be a case of misuse. The user/operator and not
the manufacturer will be liable for any damage or
injuries of any kind resulting from such misuse.
Please note that our equipment has not been
designed for use in commercial, trade or
industrial applications. Our warranty will be voided
if the equipment is used in commercial, trade or
industrial businesses or for equivalent purposes.
- 11 -
Anl_Herocco_SPK7_USA.indb 11Anl_Herocco_SPK7_USA.indb 11 08.05.2019 15:35:1708.05.2019 15:35:17
EN
4. Technical data
Motor power supply: ............................18 V
No load speed: ....................... 0-1200 min-1 (rpm)
Clockwise/counter-clockwise: ........................Yes
Blow rate: .............................. 0-5500 min
Blow strength: ..............................................2.2 J
Drilling capacity
concrete/stone (max.): ................ 0.8 in. (20 mm)
Weight: ......................................... 4.6 lbs (2.1 kg)
Wear ear-muff s.
The impact of noise can cause damage to
hearing.
Reduce noise generation and vibration to a
minimum!
Use only equipment that is in perfect
•
condition.
Maintain and clean the equipment regularly.
•
Adapt your way of working to the equipment.
•
Do not overload the equipment.
•
Have the equipment checked if necessary.
•
Switch off the equipment when not in use.
•
Wear gloves.
•
CAUTION!
Residual risks
Even if you use this electric power tool in
accordance with the instructions, certain
residual risks cannot be eliminated. The
following hazards may arise in connection
with the equipment‘s construction and
layout:
1. Lung damage if no suitable protective dust
mask is used.
2. Damage to hearing if no suitable ear
protection is applied.
3. Health damage caused by hand-arm
vibrations if the equipment is used over a
longer period or is not properly guided and
maintained.
Limit the operating time.
All stages of the operating cycle must be
considered (for example, times in which the
electric tools are switched off and times in which
the tool is switched on but operates without load).
-1
(rpm)
5. Before starting the equipment
Be sure to read the following information before
you put the cordless impact drill into operation:
1. Charge the battery pack only with a charger
from the Power-X-Change series.
2. Only ever use sharp drill bits and screwdriver
bits which are suitable for the purpose and in
faultless condition.
3. Using a cable/pipe detector, check the area
you want to work on for concealed electric
cables and gas and water pipes.
5.1 Additional handle (Fig. 2/Item 10)
For safety reasons you must only use the
impact drill with the additional handle.
The additional handle (10) enables you to achieve
better stability whilst using the impact drill. For
safety reasons the machine must not be used
without the additional handle (10).
The additional handle (10) is secured to the
impact drill by a clamp. Turning the handle anticlockwise (viewed from the handle) will release
the clamp. Turning the handle clockwise tightens
the clamp.
Release the clamp of the additional handle fi rst.
Then you can swivel the additional handle (10)
into the most comfortable working position for
yourself. Now turn the additional handle (10) in
the opposite direction again until the additional
handle (10) is secure.
5.2 Fitting and adjusting the depth stop (Fig.
3/Item 11)
The depth stop (11) is held in position by a
number of locking points.
Press the button (a) and keep it pressed while
•
pushing the depth stop (11) into the guide.
Set the depth stop (11) to the same level as
•
the drill bit.
Pull the depth stop back by the desired
•
drilling depth and then release the button (a).
The depth stop (11) will now have been
•
locked in position automatically.
Now drill the hole until the depth stop (11)
•
touches the workpiece.
- 12 -
Anl_Herocco_SPK7_USA.indb 12Anl_Herocco_SPK7_USA.indb 12 08.05.2019 15:35:1708.05.2019 15:35:17
EN
5.3. Inserting a tool (Fig. 4)
Important! Set the changeover switch (3) to its
center position whenever you carry out any work
(for example changing the tool, maintenance
work, etc.) on the equipment.
Clean the tool before fitting it and apply a thin
•
coating of bit grease to the tool shaft.
Turn and push the dust-free tool into the tool
•
mounting (b) as far as it will go. The tool will
lock automatically.
Check that the bit is locked in placed by
•
pulling on it.
5.4. Removing a tool (Fig. 5)
Pull back and hold the locking sleeve (1) and
remove the tool.
6. Operation
6.1 Drill / Impact drill / Chisel selector switch
(Fig. 6)
For drilling, press the button (E) on the rotary
•
switch (2) and simultaneously turn the rotary
switch (2) to position A.
For impact drilling, press the button (E) on the
•
rotary switch (2) and simultaneously turn the
rotary switch (2) to position B.
For chiseling, press the button (E) on the
•
rotary switch (2) and simultaneously turn the
rotary switch (2) to position C.
In switch position C the chisel is not locked.
•
For chiseling, press the button (E) on the
•
rotary switch (2) and simultaneously turn the
rotary switch (2) to position D.
The chisel is locked in position D.
•
Important!
You need apply only slight contact pressure for
impact drilling. Excessive contact pressure will
place unnecessary strain on the motor. Check drill
bits at regular intervals. Sharpen or replace blunt
drill bits.
6.2 Changeover switch (Fig. 7)
Using the changeover switch (3) above the On/Off
switch (4) you can select the direction of rotation
of the equipment and lock the equipment so that
it cannot be switched on accidentally. You can
select between clockwise and counter-clockwise
rotation. To avoid causing damage to the gearing,
the direction of rotation must only be changed
when the equipment is at a standstill. When the
changeover switch (3) is in the middle position,
the On/Off switch (4) is blocked.
Danger!
To avoid danger, the machine must only be
held using the two handles.
Otherwise you may suff er an electric shock if you
drill into electric cables!
6.3 On/Off switch (Fig. 7)
Infi nitely variable speed control is possible with
the On/Off switch (4). The further you push the
switch, the higher the speed of the equipment.
Switching on:
Press the On/Off switch (4).
Switching off :
Release the On/Off switch (4).
6.4 LED light (Fig. 1)
The LED light (9) can be used in poor lighting
conditions to illuminate the area where you want
to drill or screw. The LED light (9) will come on
automatically as soon as you press the On/Off
switch (4).
6.5 screws
It is advisable to use self-centering screws (e.g.
Torx, cross recessed head) as these will enable
you to work safely and reliably. Always make sure
that the bit used is of the same size and shape as
the screw.
6.6 Charging the Li battery pack
The corresponding instructions can be found
in the original operating instructions for your
charger.
6.7 Battery capacity indicator (Fig. 11 / item
7)
Press the battery capacity indicator switch (8).
The battery capacity indicator (7) shows the
charge status of the battery using 3 LEDs.
All 3 LEDs lit:
The battery is fully charged.
2 or 1 LED(s) lit:
The battery has an adequate remaining charge.
1 LED fl ashing:
The battery is empty, recharge the battery.
- 13 -
Anl_Herocco_SPK7_USA.indb 13Anl_Herocco_SPK7_USA.indb 13 08.05.2019 15:35:1808.05.2019 15:35:18
