Opterra® 1.2M
As the user of this product, you are solely responsible for operating in a
manner that does not endanger yourself and others or result in damage to the
product or the property of others.
• Always keep a safe distance in all directions around your model to avoid
collisions or injury. This model is controlled by a radio signal subject to
interference from many sources outside your control. Interference can
cause momentary loss of control.
• Always operate your model in open spaces away from full-size vehicles,
traffi c and people.
• Always carefully follow the directions and warnings for this and any
optional support equipment (chargers, rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and anything electrical out of the
reach of children.
• Always avoid water exposure to all equipment not specifi cally designed
and protected for this purpose. Moisture causes damage to electronics.
• Never place any portion of the model in your mouth as it could cause
serious injury or even death.
• Never operate your model with low transmitter batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep transmitter powered on while aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before fl ying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product
literature, visit www.horizonhobby.com and click on the support tab for this product.
Meaning of Special Language:
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high
probability of superfi cial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product
correctly can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this
Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children
without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon
Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the
manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
Safety Precautions and Warnings
14
+
AGE RECOMMENDATION:
Not for children under 14
years. This is not a toy.
WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver
found in a Horizon Hobby product, always purchase from Horizon Hobby, LLC or a Horizon Hobby
authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support
and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products
claiming compatibility with DSM or Spektrum technology.
If you are operating the BNF with FPV version of this product (EFL11460) in North America, you are required to have an Amateur Radio (HAM) license.
Visit www.arrl.org for more information.
EN
3
SAFE® Plus Technology (BNF with FPV) ..........................................................4
Transmitter Setup (BNF) .................................................................................4
CRSF compatibility .........................................................................................4
Transmitter Setup (PNP) .................................................................................5
Transmitter and Receiver Binding ...................................................................5
Model Assembly ............................................................................................6
Battery Installation and ESC Arming ...............................................................7
Compass Calibration Procedure (BNF with FPV) ..............................................8
Choose a Flying Field .....................................................................................8
Video System (BNF with FPV) .........................................................................9
Using the Video Transmitter ..........................................................................10
Install the Propeller ......................................................................................11
Center of Gravity (CG) .................................................................................11
AS3X/SAFE Control Direction Test ...............................................................11
Flight Preparation ........................................................................................12
Trimming the Aircraft ...................................................................................12
Flying ..........................................................................................................13
Virtual Fence Flight Modes (BNF with FPV only) ............................................ 13
Virtual Fence Mode (BNF with FPV) ..............................................................14
GPS Initialization (BNF with FPV) ..................................................................15
LED Display (BNF with FPV only) ..................................................................15
Throttle Cut in GPS modes (BNF with FPV only) ............................................15
Flight Patterns (BNF with FPV) ......................................................................16
Landing .......................................................................................................17
Deactivating GPS (BNF with FPV) .................................................................18
Service and Repairs .....................................................................................19
Upgrading PNP and BNF Basic ....................................................................19
Trouble Shooting Guide ................................................................................20
AMA National Model Aircraft Safety Code ..................................................... 21
Limited Warranty .........................................................................................22
Contact Information .....................................................................................22
FCC Information ........................................................................................... 23
IC Information ..............................................................................................23
Compliance Information for the European Union ...........................................23
Recommended Receivers ............................................................................86
Replacement Parts ....................................................................................... 87
Optional Parts ..............................................................................................88
If you own this product, you may be required to register with the FAA. For up-to-date information on how to register with the FAA, visit
https://registermyuas.faa.gov/. For additional assistance on regulations and guidance on UAS usage, visit knowbeforeyoufl y.org/.
To receive product updates, special offers and more, register your
product online at www.e-fl iterc.com

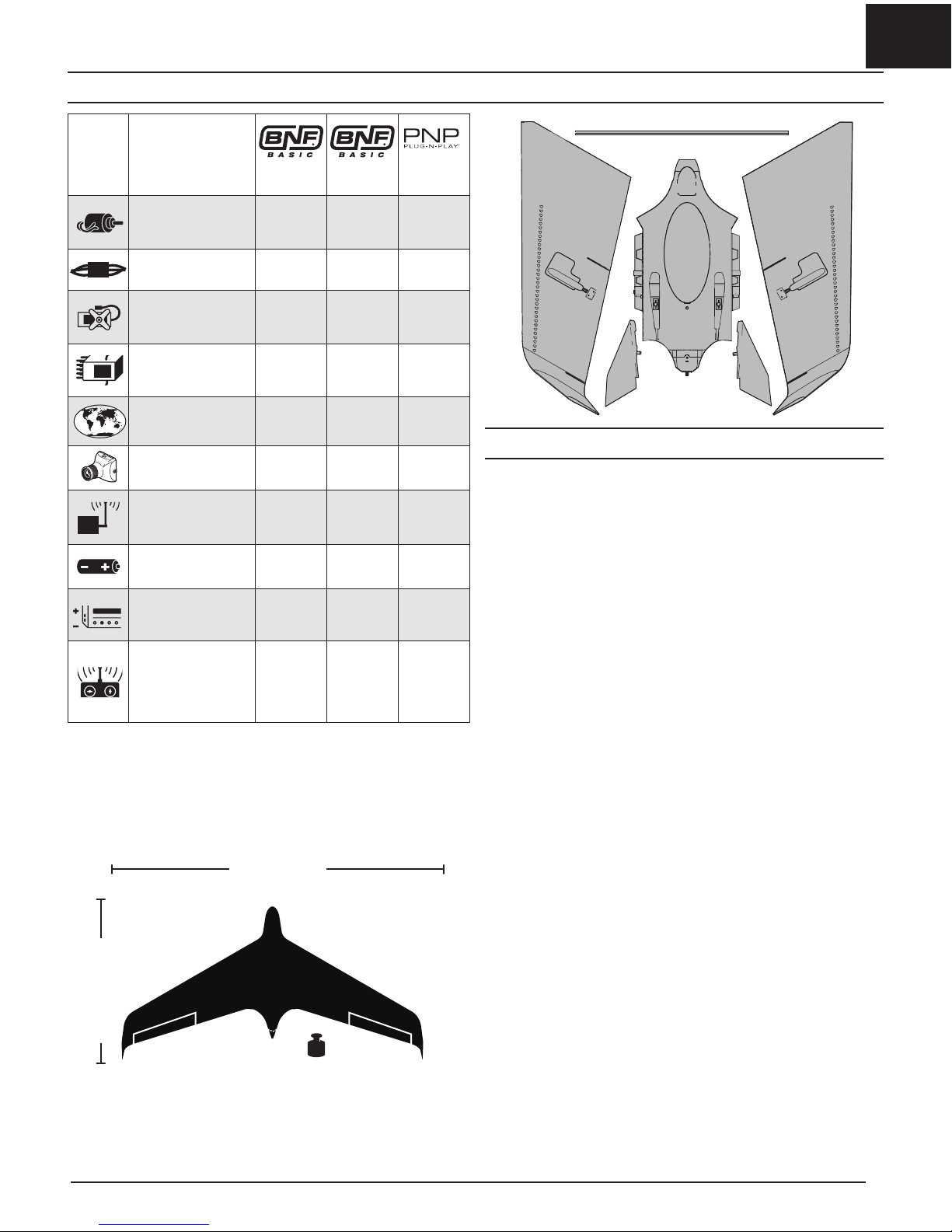

Box Contents
Table of Contents
47 in (1200mm)
21 in (525mm)
35oz
(990g)
with FPV
EFL11460* EFL11450
EFL11475
Motor: Brushless
Motor: 1.2M Opterra
(EFL11407)
Installed Installed Installed
ESC: 30A (EFLA1030B) Installed Installed Installed
Servos:
2 Aileron Servos,
(EFLR7155)
Installed Installed Installed
Receiver: SPM4647
Flight Controller:
SPMA3235
Installed Installed
Not
Included
GPS module:
SPMA3173
Installed
Not
included
Not
Included
FPV Camera:
SPMVC602
Installed
Not
included
Not
included
Video transmitter:
SPMVT1001
Installed
Not
included
Not
included
Battery: 3S 2200mAh
Li-Po (EFLB22003S20)
Required to
Complete
Required to
Complete
Required to
Complete
Battery Charger:
Li-Po battery balancing
charger
Required to
Complete
Required to
Complete
Required to
Complete
Recommended
Transmitter:
Full-Range 6 channel
2.4GHz with Spektrum
DSMX
®
technology
Required to
Complete
Required to
Complete
Required to
Complete
*The Opterra 1.2m S+ BNF with FPV (EFL11460) is not available in Europe
The operating frequency of the aircraft is 2404-2476 MHz
SPMVT1001 Analog VTX is 5.8GHz (1mw-600mw adjustable) and requires an
amateur radio license in North America (installed in EFL11460 BNF with FPV).
SPMVT1001EU is an Analog 5.8GHz device (1mw-25mw adjustable) and is
certifi ed for use without a license in Europe (available separately).
EN
4
Opterra® 1.2M

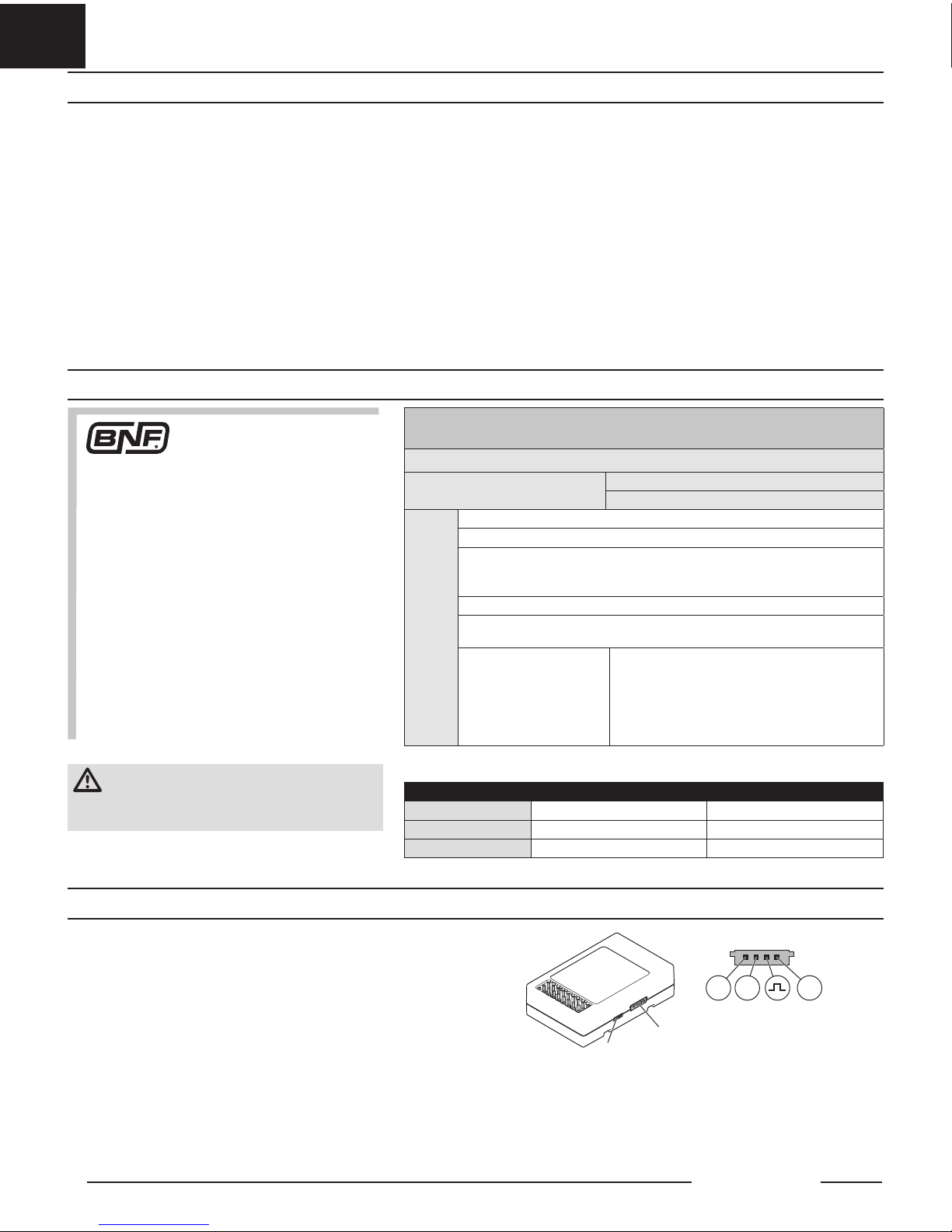

Transmitter Setup (BNF)
SAFE® Plus Technology (BNF with FPV)
There are three confi gurations for the Opterra 1.2m aircraft. A PNP option
(EFL11475) requires pilots to install their selected control and FPV systems.
A BNF Basic package (EFL11450) offers the proven SAFE
®
and AS3X®
technologies and does not include any FPV equipment or GPS features. The
BNF Basic with FPV package (EFL11460) includes SAFE Plus technology which
adds GPS based features to airplanes for advanced drone-like capabilities. GPS
also enables an On Screen Display (OSD) system to show helpful information
for the fl ight on top of the video image.
In addition to making the airplane generally stable and easy to fl y, SAFE Plus
technology can keep the airplane within the fl ying area, let the pilot have
time to think while the aircraft cruises in a holding pattern, and it can land
the aircraft automatically. No complex programming is required for AutoLand,
Holding Pattern, and Virtual Fence.
When fl ying in beginner mode, the airplane has sensors to prevent aggressive
maneuvering. In that mode, limitations keep the pilot from over-controlling, and
automatic self-leveling makes recovery from risky or confusing attitudes as
simple as releasing the sticks.
With Virtual Fence the airplane uses GPS technology to prevent the pilot from
fl ying too far from home. If the airplane passes the Virtual Fence, the model
will turn around to fl y home by itself. Control is returned to the pilot when the
airplane is within the Virtual Fence again.
Engage Holding Pattern or Loiter mode to enjoy a cruise around the fl ying area,
the model will continue to circle the area in Holding Pattern or Loiter mode
with no pilot commands. When it’s time to land, AutoLand brings the airplane
down and performs an automatic landing with no pilot assistance, right at the
designated home location.
Safe Plus technology fl ight modes are selected at the fl ip of a switch and
include an intermediate mode and advanced mode. Experienced pilots can fl y
without restraints in the AS3X fl ight mode. When fl ying in the AS3X fl ight mode,
self leveling features are disabled.
IMPORTANT: The included receiver has been programmed
for operation specifi cally in this aircraft. The programming
in this receiver cannot be changed by the user.
• SAFE Plus Flight modes are selected using Channel 5
IMPORTANT: A transmitter with a 2-position Channel 5
switch will only allow the use of position 0 or position 2
fl ight modes. If possible, assign the Gear channel (CH 5)
in your transmitter to a 3-position switch to operate all 3
fl ight modes.
• The Aux 1 channel (CH 6) is used for AutoLand and
should be assigned to a momentary button (I button/
Bind Button)*
Refer to your transmitter manual for more information
regarding switch assigning.
* The Opterra 1.2m aircraft is not compatible with DX4e or
DX5e transmitters.
Transmitter Setup
Computerized Transmitter Setup
(DX6 Gen2/3, DX6e,DX7 Gen2, DX8 Gen2, DX9, DX18 and DX20)
Start all transmitter programming with a blank model (do a model reset), then name the model.
Set Aileron, Elevator, and Rudder Rates to:
HIGH 100%
LOW 70%
DX6
DX6e
DX8
DX9
DX18
DX20
iX12
1. Go to the SYSTEM SETUP
2. Set MODEL TYPE: AIRPLANE
3. Go to CHANNEL ASSIGN:
click NEXT to go to Channel Input Confi g:
GEAR: B (Flight Mode), AUX1*: I (AutoLand)
4. Go to the FUNCTION LIST
5. Go to Throttle Cut:
set to Switch H, Position: –130
Resulting in:
Switch H operates Throttle Cut, position 0 is normal
and position 1 cuts power to the throttle.
Switch B operates the 3 SAFE Plus modes
(0- SAFE/1- SAFE with altitude hold /2- AS3X)
Button I commands Traffi c Pattern, Loiter and
AutoLand when pressed**
Dual Rate High Rate Low Rate
Aileron 100% 70%
Elevator 100% 70%
Rudder 100% 70%
Confi rm AUX1 is not reversed. If AUX1 is reversed, the ESC and the GPS system will not arm,
indicated by full down elevator.**
** BNF with FPV only
The fl ight control system included with BNF versions is compatible with the
CRSF protocol for alternative receivers. Connect the receiver to the CRSF
port and follow the manufacture’s instructions for binding. The fl ight control
system will automatically detect CRSF receivers when connected. Always
verify correct control surface response to control inputs before fl ight.
CRSF compatibility
CAUTION: Elevon mixing is handled in the fl ight controller.
Do not use an elevon mix with the BNF Basic fl ight
controller or you may experience loss of control. Loss of control
could result in a crash causing personal injury or property damage.
Receiver connection
Receiver connection
LED connection
5v
3.3v
GND
EN
WARNING: Before proceeding further, remove the propeller and spinner from the motor shaft. Never attempt
to program the radio components, assemble the aircraft, or perform maintenance of any kind without
removing the propeller. Serious injury could result if the motor starts inadvertently with the propeller still attached.
1. Remove the M3 X 8 mm screw from the
center of the spinner with a 2mm hex
wrench.
2. Remove the spinner and propeller.
5
CAUTION: Connecting the battery to the ESC with
reversed polarity will cause damage to the ESC,
the battery or both. Damage caused by incorrectly
connecting the battery is not covered under warranty.
IMPORTANT: The included receiver has been programmed
for operation specifi cally in this aircraft. The programming in
this receiver cannot be changed by the user.
Refer to your transmitter instructions for binding to a receiver.
The throttle will not arm if the transmitter’s throttle stick is not
put at the lowest position and the throttle trim centered or lower.
Binding Procedure Reference Table
1. Make sure the transmitter is powered off.
BIND
2. Make sure the transmitter controls are neutral, the throttle
is at the lowest position*, the throttle trim is centered and
the aircraft is immobile.
3. Insert a bind plug in the receiver bind port.
4. Connect the fl ight battery to the ESC. The ESC will produce a
long tone followed by a series of additional short tones.
5. The receiver LED will begin to fl ash rapidly.
6. Power on the transmitter while holding the transmitter bind
button or switch.
7. When the receiver binds to the transmitter, the red bind light on
the receiver will turn solid and the ESC will produce ascending
tones. The tones indicate the ESC is armed, provided the
throttle stick and throttle trim are low enough to trigger arming.
8. Remove the bind plug from the bind port. The receiver should
retain the binding instructions received from the transmitter
until another binding is done.
9. Disconnect the fl ight battery.
10. Safely store the bind plug (some owners attach the bind
plug to their transmitter using two-part loops and clips).
* The throttle will not arm if the transmitter’s throttle stick is not put at the lowest position.
Transmitter and Receiver Binding
Transmitter Setup (PNP)
Basic Setup Information
Dual Rates
Hi Rate Low Rate
Ail 24mm 16mm
Ele 8mm 5mm
Control Elevon mixing required
Flight Timer
Setting
6 minutes
IMPORTANT: Elevon mixing is required for PNP versions of this aircraft. Both
ailerons need to operate together as elevators and opposite as ailerons for
correct fl ight controls.
CAUTION: Do not attempt to fl y the PNP version without a properly
confi gured elevon mix. Failure to set elevon mixing will result in fl ight
controls that do not respond the way a pilot would expect, and the pilot will not
be able to control the fl ight path.
EN
Model Assembly
1. Slide the wing tube into the fuselage.
2. Slide the wings onto the wing tube.
3. Press the wing panels together onto the fuselage until the wings click into
place.
4. Insert the vertical fi ns into the pockets on top of the fuselage until the fi ns
click into place. The vertical fi ns should angle outward.
Wing Installation
6
Opterra® 1.2M
EN
Battery Installation and ESC Arming
Battery Selection
We recommend E-fl ite® 2200-3200mAh 11.1V 3S- 4S 30C Li-Po batteries. If
using a battery other than those listed, the battery should be within the range
of capacity, dimensions and weight of the E-fl ite Li-Po battery packs to fi t in the
fuselage. Be sure the model balances at the recommended CG.
1. Lower the throttle and leave the trim in the neutral position. Power on the
transmitter, then wait 5 seconds.
2. Push the canopy latch button (A) to release the canopy and remove.
3. For added security apply the loop side (soft side) of the optional hook and
loop tape (B) to the bottom of your battery and the hook side to the battery
compartment.
4. Install a fully charged 2200mAh battery (C) all the way forward in the
battery compartment as shown.
IMPORTANT Adjust the battery position for proper CG accordingly.
5. Connect the battery to the ESC. (the ESC is now armed).
6. Keep the aircraft immobile, upright and level, and away from wind or the
system will not initialize.
• The ESC will sound a series of tones (refer to step 6 of the binding
instructions for more information).
• An LED will light on the receiver.
• The elevons with cycle up and down two times to indicate that the
aircraft has initialized.
If the ESC sounds a continuous double beep after the fl ight battery is
connected, recharge or replace the battery.
7. Reinstall the canopy by inserting the front tab fi rst and pushing down on the
back of the canopy until the latch locks.
7
C
CAUTION: Always
keep hands away
from the propeller. When
armed, the motor will turn
the propeller in response to
any throttle movement.
EN
8
Opterra® 1.2M
2x 2x
Position 2Position 1
Fly in this area
(upwind of pilot)
Stand here
1300feet
(400 m)
Wind 0–12 mph
(0–19km/h)
Consult local laws and ordinances before choosing a
location to fl y your aircraft.
In order to have the most success and to protect your
property and aircraft, it is very important to select a place
to fl y that is very open.
Remember, your aircraft can reach signifi cant speeds
when fl ying and can cover ground quickly. Plan on fl ying
in an area that gives you more space than you think you
need, especially with fi rst fl ights.
The site should:
• Have a minimum of approximately 1300 feet (400m)
of clear space in all directions.
• Be clear of people and pets.
• Be free of trees, buildings, cars, power lines or anything
that could entangle your aircraft or interfere with your
line of sight.
Choose a Flying Field
Perform the compass calibration outdoors before the fi rst
fl ight or to correct the heading during auto landing if it
varies signifi cantly from the heading set during takeoff.
1. Remove the propeller if it is installed or activate
throttle cut.
2. With the transmitter trims centered, power on the
transmitter and the aircraft while holding the transmitter sticks as shown. The aircraft will indicate the
GPS is searching for satellites by cycling the elevator
up and down.
3. After satellites are acquired, the aircraft will signal
it has entered compass calibration mode by the
following:
Wings on: The elevons will cycle up and down slowly.
Wings off: The red and blue LEDs on the fl ight
controller will fl ash alternately.
Once in calibration mode, the throttle is not active and
the transmitter sticks can be released. The transmitter
must remain powered on.
4. Once in calibration mode, rotate the aircraft twice in
position 1.
5. Turn the aircraft 90 degrees and rotate it twice in
position 2.
6. Turn off the transmitter.
7. Wait 3 seconds and disconnect the fl ight battery.
Compass Calibration Procedure (BNF with FPV)
EN
9
The video transmitter installed in the BNF FPV version includes an integrated
On Screen Display system (OSD). The OSD takes advantage of the GPS data
available on the aircraft to deliver the pilot useful information on the video
display. The OSD shows the Flight Mode, Speed and altitude, GPS status,
distance to home and an arrow pointing home, time aloft, and voltage. A call
sign is also available on the OSD, it is recommended to display your HAM call
sign to satisfy amateur radio rules.
The OSD is also helpful during prefl ight setup because it will tell the pilot the
status of GPS systems. It will tell the pilot when the model has a suffi cient GPS
lock and is ready to fl y.
The video transmitter frequency and power output can be set directly from
compatible Spektrum transmitters or set in the OSD menu.
OSD Menu
The OSD has a menu system which has options where the pilot can make
changes.
1. To enter the menu the motor must be disarmed.
2. Flip the fl ight mode switch back and forth twice to enter the menu.
3. To navigate the menu use elevator stick to move up and down through
the menu, and aileron stick to move side to side through the menu.
Video System (BNF with FPV)
AutoLand Opterra
10.9V
352
ft
4:27
685 ft
Initializing
MPH
18
AutoLand Opterra
10.9V
352
ft
4:27
685 ft
Ready
MPH
18
Flight Controller Status
When powering up the airplane to fl y, the OSD will display the fl ight status
in the lower left corner.
When fi rst powered on the OSD will show INITIALIZING
When the aircraft has a solid connection to the RC controller and a GPS
lock, the OSD will display READY
The aircraft will not respond to controls until the status changes to Ready.
To fl y without GPS features see the disabling GPS section of this manual.
Callsign
On Screen Display
Flight Mode
Speed*
Flight controller status
Distance to home
Direction to home
Voltage
Altitude
Flight time
*Speed is calculated from GPS information,
therefore it is ground speed, not airspeed.
Loading...
