E-flite F-15 User Manual

F-15 Eagle ARF
Assembly Manual
Specifications
Wingspan: 36 in (915mm) Length: 47 in (1195mm) Wing Area: 400 sq in (25.8 sq dm) Weight w/ Battery: 1.9–2.1 lb (0.9–1.0 kg) Weight w/o Battery: 2.5–3.1 oz (1.1–1.4 kg)
Table of Contents
Introduction
Specifications ...................................................................... 1
Introduction ......................................................................... 2
Using the Manual ................................................................ 2
Contents of Kit/Parts Layout ................................................. 3
Required Radio Equipment ................................................... 3
Important Information About Motor Selection ........................ 4
Motor Setup ........................................................................ 4
Required Tools and Adhesives .............................................. 4
Optional Accessories ........................................................... 4
Warranty Information .......................................................... 5
Note on Lithium Polymer Batteries ........................................ 7
Warning ............................................................................. 7
Safety, Precautions, and Warnings ....................................... 7
Stabilator Installation ........................................................... 8
Motor and Fan Installation ................................................. 11
Fixed Gear Installation .......................................................15
Retract Installation ............................................................. 18
Aileron Servo Installation ................................................... 25
Wing Panel Installation ...................................................... 27
Receiver Installation ........................................................... 28
Vertical Fin Installation ....................................................... 29
Canopy Installation ............................................................ 30
Control Throws .................................................................. 31
Center of Gravity .............................................................. 32
Range Test Your Radio ....................................................... 32
Instructions for Disposal of WEEE by
Users in the European Union ................................... 32
Preflight ............................................................................ 33
Flying the F-15 Eagle ........................................................ 33
2008 Official AMA National Model Aircraft Safety Code ... 34
The McDonnell Douglas Corporation’s F-15 Eagle was designed to be a tactical fighter to gain and maintain air superiority in aerial combat. The F-15 Eagle was developed out of the lessons learned from Vietnam and the need for the United States Air Force to have a dedicated air superiority fighter. The F-15 was delivered into service in the late 1970s and remained in service with the USAF for over twenty years. The F-15 was successful in achieving air superiority through the use of avionics, weapons, speed, and maneuverability. Its electronic systems and weaponry could detect, track, and attack enemy aircraft while the flight control systems would allow one person to effectively perform air-to-air combat. E-flite has replicated the F-15 Eagle as a sport, scale model. This military fighter model boasts the scale Edwards Air Force Base Safety Chase trim scheme, making it a very attractive and highly visible plane. Spend less time building and more time flying, as this model comes out of the box fully painted red and silver on white foam with custom decals applied. It even includes retracts.
This high-powered model was designed around the use of two 420 DF 3800Kv motors to match with the included ducted fan units. The low wing loading and twin ducted fans allow superior maneuverability and acceleration to perform basic aerobatics. While this plane is capable of flying a tight flight pattern, it can still be flown at your local park. The wings are each reinforced with a carbon fiber tube spar for added stability. This model also has full flying horizontal stabilizers for pitch control and stability. The flight characteristics and response of E-flite’s F-15 Eagle mirror those of the full-size McDonell Douglas Eagle, down to the aerobatic capabilities. This model was created for the ambitious sport scale, advanced pilot looking for a versatile model capable of park flying.
Contents of Kit/Parts Layout
Required Radio Equipment
Large Parts:
EFL7051 Wing Set EFL7052 Fuselage EFL7053 Main Hatch EFL7054 Horizontal Stab Set EFL7055 Vertical Fin Set EFL7056 Power Hatch EFL7057 Landing Gear Set EFL7058 Wheel Set EFL7059 Pushrod Set EFL7060 Canopy EFL7061 Decal Set EFL7062 Retracts
You will need a minimum 4-channel transmitter, crystals, receiver, and five sub-micro servos. You can choose to purchase a complete radio system. If you are using an existing transmitter, just purchase the other required equipment separately. We
recommend the crystal-free, interference-free Spektrum
®
2.4GHz DSM we recommend the E-flite
6-channel system. If using your own transmitter,
®
S75 Sub-Micro Servos.
DX6i
If you own the Spektrum DX6i radio, just add the AR6100E
DSM2
6-channel receiver and five (to eight) of our E-flite S75
Sub-Micro Servos.
Complete Radio System
SPM6600 DX6i DSM 6CH system
Or
SPMAR6100E AR6100E DSM2 6-Channel Receiver
Ultralite (for DX6i or DX7)
And
EFLRS75 7.5-gram Sub-Micro Servo (5–8)
(if using retracts)
EFLREX12L 12-inch Servo Extension, Lightweight (2)
(Optional retracts) EFLREX18L 18-inch Servo Extension, Lightweight (3) EFLRYH3 3-inch Y-Harness, Lightweight
(3 required, 4 when installing retracts)
Motor Setup
EFLM1340DF 420 Ducted Fan Brushless Outrunner,
3800Kv (2 required) EFLA312b 40-amp Brushless ESC (2 required) EFLB21003S 2100mAh 3-Cell 11.1V Li-Po (2 required)
Spektrum is used with permission of
Bachmann Industries, Inc.
3E-flite F-15 Eagle ARF Assembly Manual
Required Tools and Adhesives
Warranty Information
Tools & Equipment
EFLA250 Park Flyer Tool Assortment, 5-piece
Or Purchase Separately
EFLA257 Screwdriver, #1 and #2 Phillips
(or included with EFLA250)
Hex wrench: 1.5mm 6-minute epoxy Hobby knife Clear tape Phillips screwdriver: #1 Hobby knife Side cutters String Painter's tape Canopy glue Ruler Threadlock Rotary tool with sanding drum and high speed grinding bit
Optional Accessories
EFLA110 Power Meter EFLC3005 Celectra
1- to 3-Cell Li-Po Charger EFLC505 Intelligent 1- to 5-Cell Balancing Charger THP21003SPL 2100mAh 3S 11.1V Li-Po Battery
Using the Manual
This manual is divided into sections to help make assembly easier to understand, and to provide breaks between each major section. In addition, check boxes have been placed next to each step to keep track of each step completed. Steps with a single circle () are performed once, while steps with two circles ( ) indicate that the step will require repeating, such as for a right or left wing panel, two servos, etc.
Remember to take your time and follow the directions.
Warranty Period
Horizon Hobby, Inc., (Horizon) warranties that the Products purchased (the “Product”) will be free from defects in materials and workmanship at the date of purchase by the Purchaser.
Limited Warranty
(a) This warranty is limited to the original Purchaser ("Purchaser") and is not transferable. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. This warranty covers only those Products purchased from an authorized Horizon dealer. Third party transactions are not covered by this warranty. Proof of purchase is required for warranty claims. Further, Horizon reserves the right to change or modify this warranty without notice and disclaims all other warranties, express or implied.
(b) Limitations- HORIZON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, ABOUT NON­INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF THE PRODUCT. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER’S INTENDED USE.
(c) Purchaser Remedy- Horizon's sole obligation hereunder shall be that Horizon will, at its option, (i) repair or (ii) replace, any Product determined by Horizon to be defective. In the event of a defect, these are the Purchaser's exclusive remedies. Horizon reserves the right to inspect any and all equipment involved in a warranty claim. Repair or replacement decisions are at the sole discretion of Horizon. This warranty does not cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or modification of or to any part of the Product. This warranty does not cover damage due to improper installation, operation, maintenance, or attempted repair by anyone other than Horizon. Return of any goods by Purchaser must be approved in writing by Horizon before shipment.
Damage Limits
Questions, Assistance, and Repairs
HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCT, WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which liability is asserted. As Horizon has no control over use, setup, final assembly, modification or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability.
If you as the Purchaser or user are not prepared to accept the liability associated with the use of this Product, you are advised to return this Product immediately in new and unused condition to the place of purchase.
Law: These Terms are governed by Illinois law (without regard to conflict of law principals).
Safety Precautions
This is a sophisticated hobby Product and not a toy. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the Product or other property. This Product is not intended for use by children without direct adult supervision. The Product manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or injury.
Your local hobby store and/or place of purchase cannot provide warranty support or repair. Once assembly, setup or use of the Product has been started, you must contact Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, please direct your email to productsupport@horizonhobby.com, or call
877.504.0233 toll free to speak to a service technician.
Inspection or Repairs
If this Product needs to be inspected or repaired, please call for a Return Merchandise Authorization (RMA). Pack the Product securely using a shipping carton. Please note that original boxes may be included, but are not designed to withstand the rigors of shipping without additional protection. Ship via a carrier that provides tracking and insurance for lost or damaged parcels, as Horizon is not
responsible for merchandise until it arrives and is accepted at our facility. A Service Repair Request is available at www.
horizonhobby.com on the “Support” tab. If you do not have internet access, please include a letter with your complete name, street address, email address and phone number where you can be reached during business days, your RMA number, a list of the included items, method of payment for any non-warranty expenses and a brief summary of the problem. Your original sales receipt must also be included for warranty consideration. Be sure your name, address, and RMA number are clearly written on the outside of the shipping carton.
Warranty Inspection and Repairs
To receive warranty service, you must include your original sales receipt verifying the proof-of-purchase date. Provided warranty
conditions have been met, your Product will be repaired or replaced free of charge. Repair or replacement decisions are at the sole discretion of Horizon Hobby.
5E-flite F-15 Eagle ARF Assembly Manual
Non-Warranty Repairs
Should your repair not be covered by warranty the repair will be completed and payment will be required without notification or estimate of the expense unless the expense exceeds 50% of the retail purchase cost.
item for repair you are agreeing to payment of the repair without notification. Repair estimates are available upon request. You must include this request with your repair. Non-warranty repair estimates will be billed a minimum of ½ hour of labor. In addition you will be billed for return freight. Please advise us of your preferred method of payment. Horizon accepts money orders and cashiers checks, as well as Visa, MasterCard, American Express, and Discover cards. If you choose to pay by credit card, please include your credit card number and expiration date. Any repair left unpaid or unclaimed after 90 days will be considered abandoned and will be disposed of accordingly.
Please note: non-warranty repair is only available
on electronics and model engines.
By submitting the
Note on Lithium Polymer Batteries
Lithium Polymer batteries are significantly more volatile than alkaline or Ni-Cd/Ni-MH batteries used in RC applications. All manufacturer’s instructions and warnings must be followed closely. Mishandling of Li-Po batteries can result in fire. Always follow the manufacturer’s instructions when disposing of Lithium Polymer batteries.
Warning
An RC aircraft is not a toy! If misused, it can cause serious bodily harm and damage to property. Fly only in open areas, preferably at AMA (Academy of Model Aeronautics) approved flying sites, following all instructions included with your radio.
Electronics and engines requiring inspection or repair should be shipped to the following address:
Horizon Service Center
4105 Fieldstone Road
Champaign, Illinois 61822
All other Products requiring warranty inspection or repair should be shipped to the following address:
Horizon Product Support
4105 Fieldstone Road
Champaign, Illinois 61822
Please call 877-504-0233 with any questions or concerns regarding this product or warranty.
Keep loose items that can get entangled in the propeller away from the prop, including loose clothing, or other objects such as pencils and screwdrivers. Especially keep your hands away from the propeller.
Safety, Precautions and Warnings
Stabilator Installation
As the user of this product, you are solely responsible for operating it in a manner that does not endanger yourself and others or result in damage to the product or the property of others.
Carefully follow the directions and warnings for this and any optional support equipment (chargers, rechargeable battery packs, etc.) that you use.
This model is controlled by a radio signal that is subject to interference from many sources outside your control. This interference can cause momentary loss of control so it is necessary to always keep a safe distance in all directions around your model, as this margin will help to avoid collisions or injury.
• Always operate your model in an open area away from cars,
traffic, or people.
• Avoid operating your model in the street where injury or
damage can occur.
• Never operate the model out into the street or populated areas
for any reason.
Required Parts
Servo (2) Stabilator (right and left) Pushrod connector (2) 145mm pushrod w/ball end (2) Nylon nut (2) Control ball end w/setscrew (2)
Required Tools and Adhesives
Hex wrench: 1.5mm 6-minute epoxy Hobby knife Threadlock

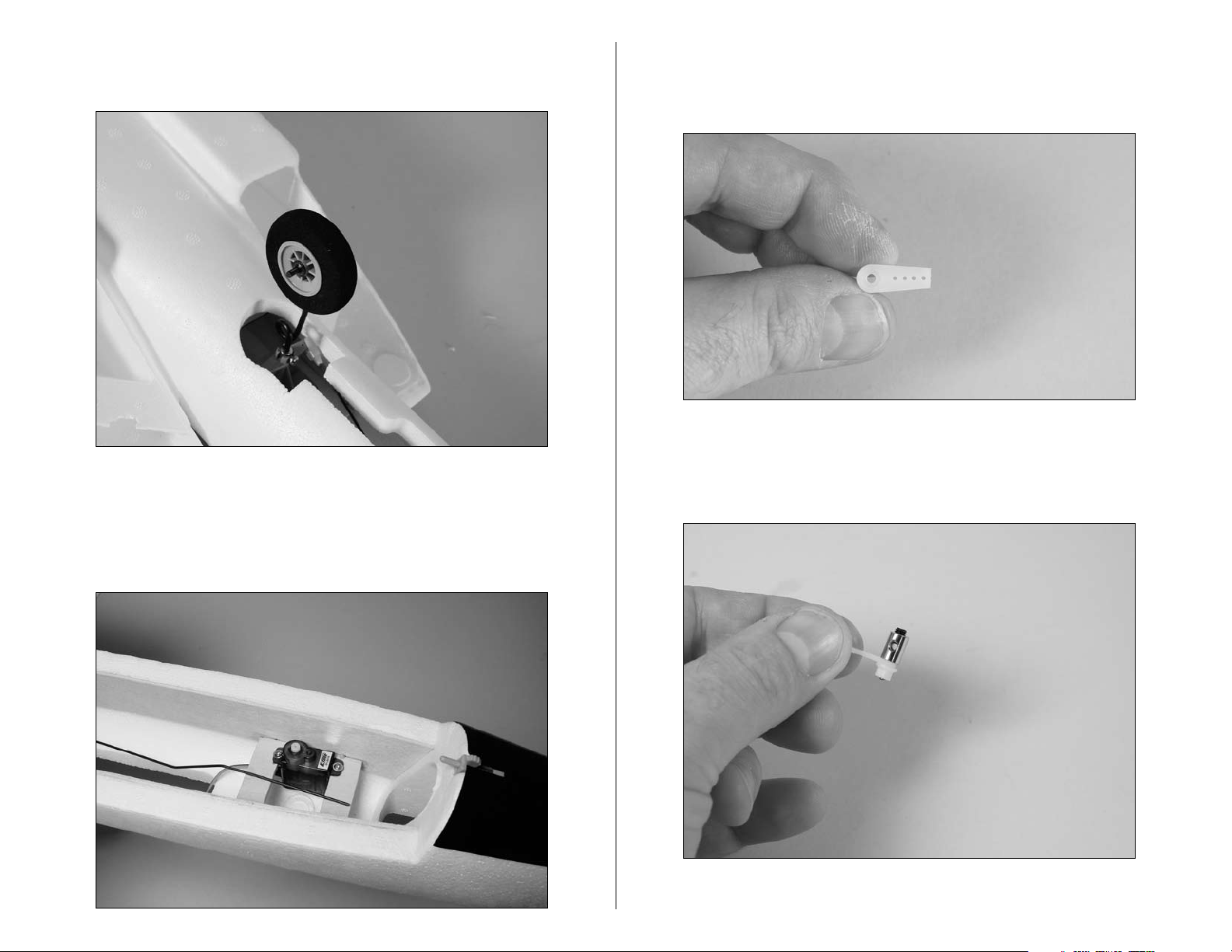

 1. Remove the servo horn from the servo. Use
6-minute epoxy to glue the elevator servo in position in the fuselage.
• Never operate your model with low transmitter batteries.
• Carefully follow the directions and warnings for this and any
optional support equipment (chargers, rechargeable battery packs, etc.) that you use.
• Keep all chemicals, small parts and anything electrical out of
the reach of children.
• Moisture causes damage to electronics. Avoid water exposure
to all equipment not specifically designed and protected for this purpose.
7E-flite F-15 Eagle ARF Assembly Manual
 2. Locate the stabilator and look at the rod of the
stabilizer. You will note that one side of the control rod has a flat area ground onto the rod. This will face to the top of the fuselage when the stabilator is installed.
 3. Slide the appropriate stabilator into the bushing in the
fuselage. As you slide the stabilator in position, slide it into one of the control ball ends.
 4. Once the stabilator is positioned, rotate it so the
setscrew can be accessed. After applying a drop of threadlock on the setscrew, use a 1.5mm hex wrench to tighten the setscrew onto the flat of the control rod.
 5. Use a hobby knife to enlarge the outer hole of a servo
arm. Install the pushrod connector and secure it, using the nylon nut supplied with your model.
 6. Snap the ball link on the 145mm pushrod onto the
stabilizer control ball end.
 7. Slide the pushrod connector onto the pushrod wire.
After centering the elevator servo using the radio, install the servo arm on the elevator servo. Make a small bend in the pushrod to ensure the pushrod is straight and in line with the control arm.
9E-flite F-15 Eagle ARF Assembly Manual
 8. With the radio system on, center the stabilator using
the guide on the side of the fuselage. Tighten the setscrew to secure the pushrod wire to the elevator servo. Make sure to use threadlock on the setscrew to prevent it from vibrating loose.
9. Repeat Steps 1 through 8 to install the remaining
elevator servo. Make note that the pushrod is bent slightly and the servo arms of both elevator servos face the same direction. This will make both stabilators operate in the same direction without the need to use mixing at the radio.
Motor and Fan Installation
Required Parts
Impeller (2) Impeller shaft (2) Impeller shaft nut (2) Fan housing (2) Motor w/connectors(2) Speed control w/connectors (2) Fan cover 2mm x 8mm sheet metal screw (8) 18-inch extension Y-harness Servo (2) 2mm x 6mm machine screw (2) 2mm x 22mm sheet metal screw (2)
Required Tools and Adhesives
Hex wrench: 1.5mm Phillips screwdriver: #1 Clear tape Threadlock Soldering iron Solder Hook and loop tape String Rotary tool with high speed grind bit and fine drum sander
Note: There is minimal airflow through the center of the fuselage for ESC cooling. For this reason we have gone to a larger amperage ESC than is really necessary. We use the E-flite 40-amp ESC and have had no issues with this setup in any of our test models.
 2. Use the impeller nut to secure the impeller shaft to
the impeller. Do not tighten at this time.
 3. Use two 2mm x 6mm machine screws and a #1
Phillips screwdriver to secure the motor in the fan housing. Route the motor leads to the outside of the shroud as shown.
 1. Slide the impeller shaft onto the impeller.
Note: You might have to grind a small hole in the shroud to accommodate your motor leads.
11E-flite F-15 Eagle ARF Assembly Manual
