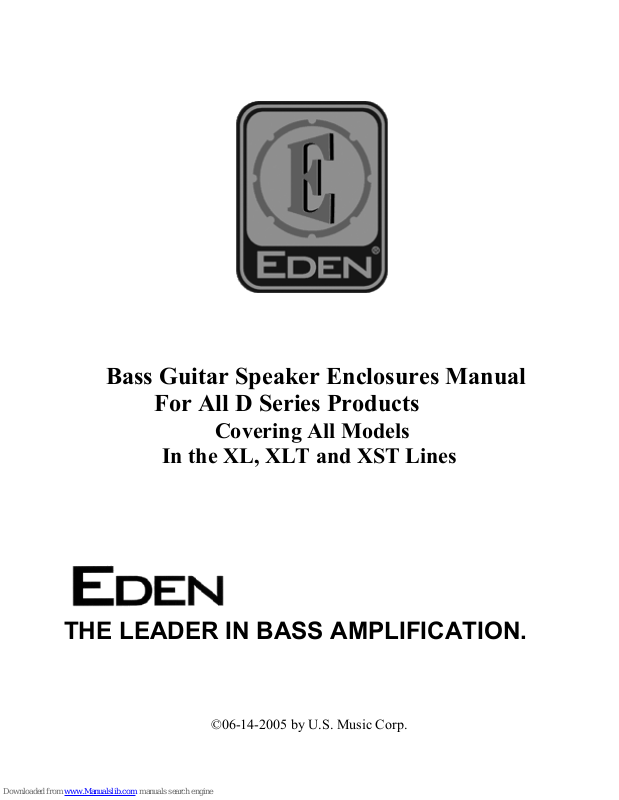

Eden D Series, D410XLT, D210XLT, D210MBX, D212XLT Operation Manual

Bass Guitar Speaker Enclosures Manual

For All D Series Products

Covering All Models

In the XL, XLT and XST Lines

THE LEADER IN BASS AMPLIFICATION.

©06-14-2005 by U.S. Music Corp.

Eden D Series

Bass Enclosures

Operation Manual

Original Publishing Date 06-14-2005

Foreword

Thank you for your purchase of an Eden D Series loudspeaker
enclosure. This cabinet has been designed and constructed to give you years
of trouble-free service. Please take the time to review this manual and to
send in your warranty registration card.

We are proud that we are the only bass amplifier manufacturer to design,
engineer and manufacture its own speakers and hi-frequency devices, all in
our own facility. This not only gives us much greater quality control, we can
also make exactly what we need for any given design. We design and
engineer all of the individual loudspeakers and all of the enclosures to work
well with each other so that the synergy of the overall design is greater than
the sum of the parts.

We have used only AA void-free plywood in the construction of your
enclosure. Other manufacturers may use C or D grade, which allows for
voids and patches that can degrade over time, causing rattles, or fall apart
completely. Your cabinet has been constructed using the finest
craftsmanship. We use a special glue and use Dado and Rabbet interlocking
joins to ensure you a lifetime of use. Your enclosure features massive
internal bracing and has been computer designed and hand-tuned to perfectly
match with our hand-built speakers and high-frequency drivers to ensure
maximum transient response and best overall sound.

Please read this manual in its entirety before operating your new speaker
system. Failure to do so could result in misuse or damage. We’ve taken the
time to write it, which was a lot longer than the time it will take for you to
read it. Help us help you by taking a few moments to learn how to properly
use your new cabinet. You’ll be glad you did!

2

CAUTION!

Your ears are your most important piece of
equipment. Unfortunately, they cannot be replaced
as easily as your other gear. Please take the
following warning seriously.

This product, when used in combination with
amplification and/or additional loudspeakers may
be capable of producing sound levels that could
cause permanent hearing loss. DO NOT operate at
high volume levels or at a level that is
uncomfortable. If you experience any discomfort or
ringing in the ears or suspect hearing loss, you
should consult an audiologist.

Thank you for your purchase of an Eden bass
guitar product. This unit has been designed and
constructed to give you years of trouble-free service.

Please take the time to review this manual

and to send in your warranty registration card.

Please complete for your records:

Date of Purchase: __________________________

Model: ___________________________________

Serial Number: _____________________________

Dealer: ___________________________________

3

OPERATING INSTRUCTIONS

As previously mentioned, Eden is the only bass amplifier manufacturer to
design, engineer and build its own drivers. Designing and building our own
speakers and high-frequency drivers allows us an opportunity to create far
greater synergy between our drivers and cabinets than any other
manufacturer can achieve. We can create several speaker and/or cabinet
prototypes and then test them together to find the best possible combination.
No other manufacturer has this capability, which is why no other
manufacturer can equal Eden’s sound and reliability.

Eden loudspeakers feature a cast frame (except for the EC1560ES in our D­215XL(T) cabinet) and edge-wound voice coils. Our horn-loaded, cast
aluminum bullet tweeter is the standard in the industry. We use a 6/18db
crossover with level control, as well as a finely calibrated limiter for
protection in high-volume situations.

TYPES OF ENCLOSURES

We manufacture a broad array of enclosures to ensure the every bassist on
the planet can find the perfect cabinets to match his or her playing style and
personal tonal requirements. Our enclosures are grouped into the product
lines outlined below. Each product group has its own tonal characteristics.
For complete specifications on your particular cabinet, refer to Appendix A
at the end of this manual.
