Page 1
Access control
easyTOUCH
Technical information
Page 2
Contents
Technical information EASYtouch Page 2
Contents ......................................................................................................................... 2
Acknowledgement ......................................................................................................... 3
FCC Statement ............................................................................................................... 4
Technical characteristic ................................................................................................ 5
Wiring instructions ........................................................................................................ 6
Function of the terminals .............................................................................................. 8
Page 3
Technical information EASYtouch Page 3
Acknowledgement
Dear client,
You have just purchased a fingerprint reader
“easyTOUCH” built by the company EDEN.
The entire EDEN team would like to thank you for
your interest as well as your confidence in our
security solution.
We hope that you will be completely satisfied with
the level of security it provides for your company’s
premises.
Should you have any comments, please contact us
via our web site at www.tech-eden.com
The EDEN team.
Page 4
Technical information EASYtouch Page 4
FCC Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference and
(2) this device must accept any interference received, including interference
that might cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates uses and can radiate radio frequency energy, and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
Note: The manufacturer is not responsible for any Radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user's authority to operate the equipment.
Page 5
Technical information EASYtouch Page 5
Technical characteristic
Maximum power consumption ........... 300 mA @ 12V
Power supply voltage ........................ 9 – 14VDC
Weight including the housing ............. 175g
Housing dimensions .......................... 119 x 77 x 40 cm
Operating temperature ...................... -20°C to +50°C
Page 6

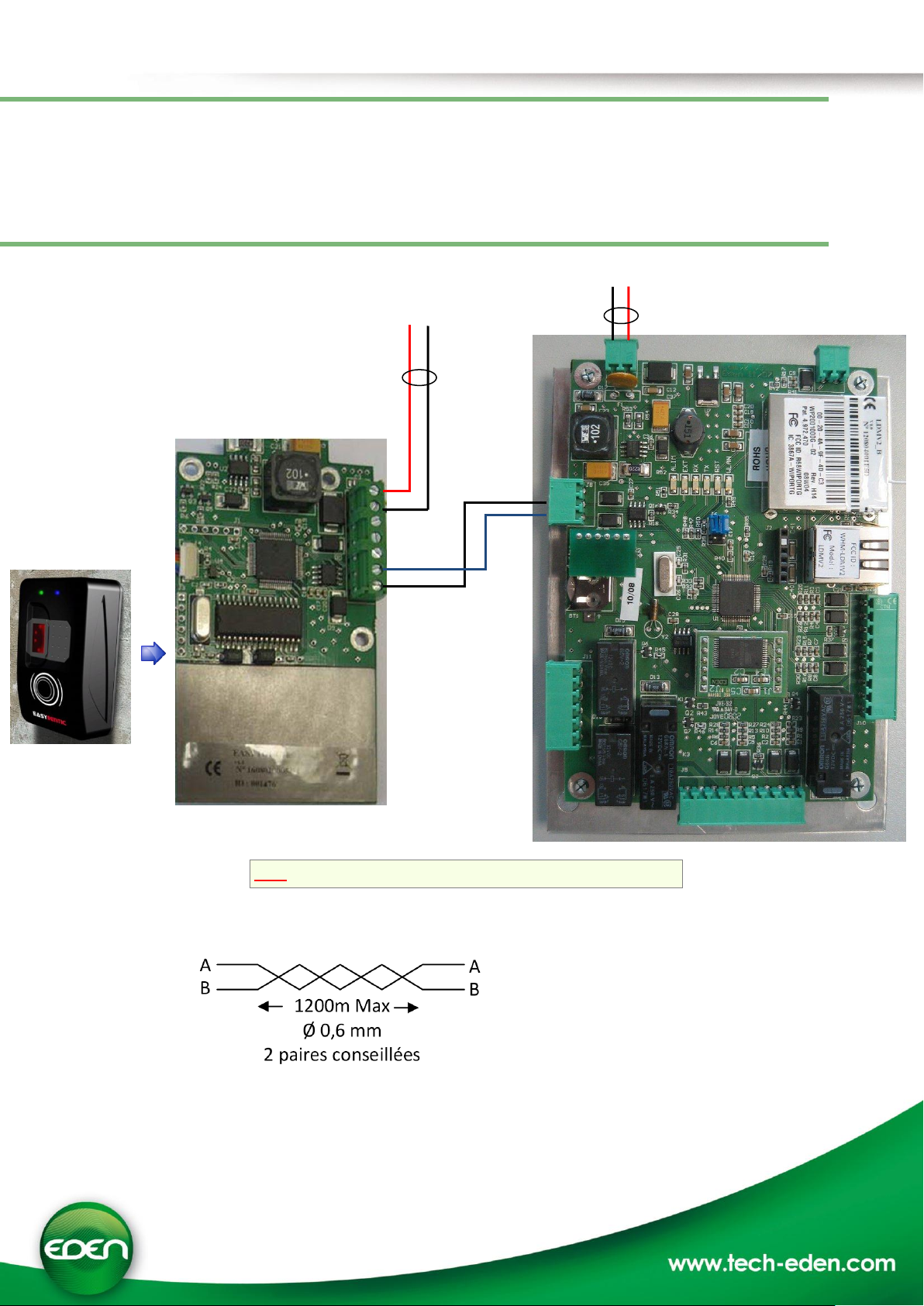

Technical information EASYtouch Page 6
Note: You can connect up to 2 easyTOUCH with a LDMV2
SYT recommended
B
A
+12V
0V
+12V
0V
Wiring instructions
(?) Data sheet:
Be sure to use the same pair for A and B
Be sure to separate the supply from the RS485 bus
Page 7
Technical information EASYtouch Page 7
Characteristic: Sensitive connection
Screen: Recommended
To reach 1,200 m, you must fit a 220 resistor between points A and B at each
end of the network (see above).
Attention: The total length must not exceed the recommended distance.
Page 8

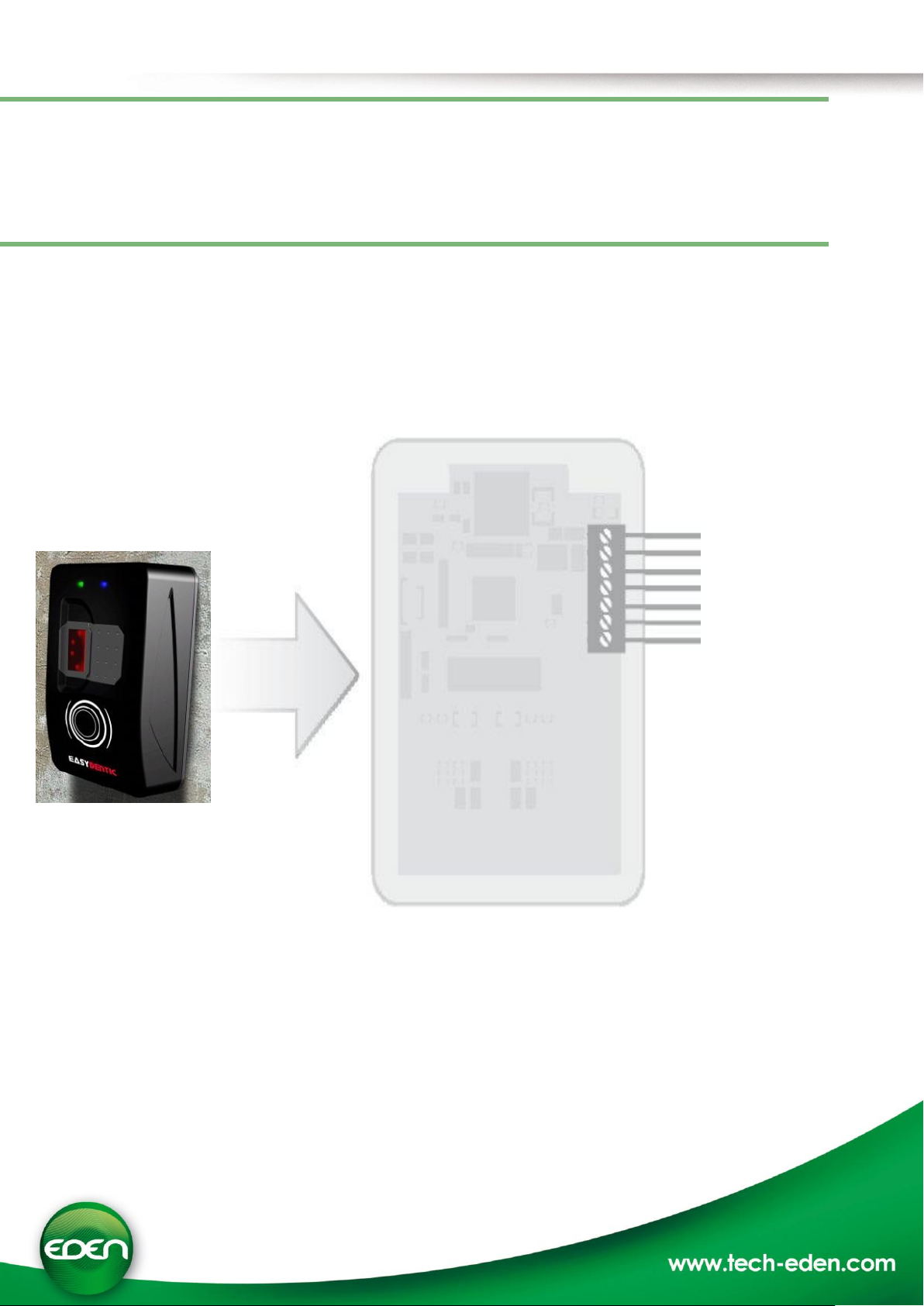

Technical information EASYtouch Page 8
+12V
0V
Data 1
Data 0
LED
A
B
Function of the terminals
