Eden Metromix Series
Quick Start Guide
EM15, EM25 & EM275
HI FIDELITY FOR LOW FREQUENCY
EDEN | METROMIX SERIES | SAFETY INSTRUCTIONS
2 | HI FIDELITY FOR LOW FREQUENCY
EDEN | METROMIX SERIES | SAFETY INSTRUCTIONS
HI FIDELITY FOR LOW FREQUENCY | 3
EDEN | METROMIX SERIES | INTRODUCTION - 2
Thank you for choosing Eden.
We hope that this product provides you with not only years of faithful service, but also the inspiration and capability to take your music and express yourself in your own way.
At Eden we realize that having the right gear can mean the difference between having the confidence and ability to perform or not, so we strive to provide you with the tools that you need, whether at home, in the studio or in a stadium.
All of our Amplifiers, Speaker Cabinets, Speakers, and other items have been carefully designed and built to provide you with optimum performance and maximum flexibility, right down to component level. At Eden we work carefully to ensure that everything down to the last screw used in a product has been chosen to deliver the best possible product to you. In addition to using the best materials and processes, Eden is also conscious of the environment and works hard to do everything it can to minimize its impact on the world we live in while still giving you the premium equipment you should expect from us.
Please take time to read this quick start guide carefully before using your equipment. As with every piece of musical equipment how you use it will affect the results you can achieve. By taking 5 minutes to understand these guidelines you will not only ensure you get the best performance from your Eden product, but it may also prevent you from accidentally damaging your unit through improper use.
We hope you continue to enjoy your equipment and welcome any comments or suggestions you may have for Eden, after all, it is the creative inspiration of musicians and their music that drives all of us.
Thank you
The Eden Team
4 | HI FIDELITY FOR LOW FREQUENCY
EDEN | METROMIX SERIES | CAUTION - 3
CAUTION!
The equipment you have purchased has been developed to provide you with a tool to achieve great tone and in some cases deliver levels of volume that may be unsuitable for use in confined spaces or without hearing protection.
Every piece of Eden equipment is designed to perform exceptionally and just as with other high performance products can in certain situations be capable of operating at levels that may be outside of the requirements or capability of the user.
Use this equipment safely and considerately, the volume control on higher Wattage amplifiers is your responsibility.
Your ears and those of others who are fortunate enough to hear you play are your most important instruments required to enjoy your music.
If you experience any hearing loss or discomfort when listening to any loud music or activity which involves excessive noise then for your own sake speak with a medical professional. As a Musician keeping your ears in good working order is as important as being able to play your instrument, you only get one set of ears!
HI FIDELITY FOR LOW FREQUENCY | 5
EDEN | METROMIX SERIES | ABOUT METROMIX/CONTENT - 4
Congratulations on your purchase of this Metromix Product. The Metromix range of amplifiers aim to provide the perfect solution to an often overlooked requirement for quality flexible amplification for practice and education.
Taking advantage of years of experience in Bass Amplification Eden has developed these amplifiers to provide fantastic clear tone reproduction, multiple instrument inputs and the ability to practice using headphones in a group situation.
In addition the larger models in this range also have a line out feature allowing you to take the sound of the amplifier further and either record or plug the signal into a PA system. The Metromix offers the perfect affordable and simple to use amplification range to allow you to maximise the playing and learning experience .
As with any electronic equipment you should take some time to familiarise yourself with you amplifier before using it to ensure optimum performance.
Manual Content:
1. |
Safety Information............. |
2-3 |
2. |
Eden Introduction............... |
4 |
3. |
Caution............................. |
5 |
4. |
About Metromix/Content..... |
6 |
5. |
EM15 Quick Start................ |
7 |
6. |
EM25 Quick Start............... |
8 |
7. |
EM275 Quick Start............. |
9 |
8. |
Product Support................ |
10 |
9. |
EM15 Diagram.................... |
39 |
10. EM25 Diagram................... |
40 |
|
11. |
EM275 Diagram ................. |
41 |
6 | HI FIDELITY FOR LOW FREQUENCY
EM275
EM15 |
|
EM25 |
|
|
|
|
|
|
EDEN | METROMIX SERIES | EM15 - 5
EM15 Quick Start Guide
The EM15 provides the perfect introduction to instrument amplification. With simple intuitive controls the EM15 allows two instruments to be played independently giving each musician control of their own volume and tone control and the ability for both to play in silence through the headphone outputs.

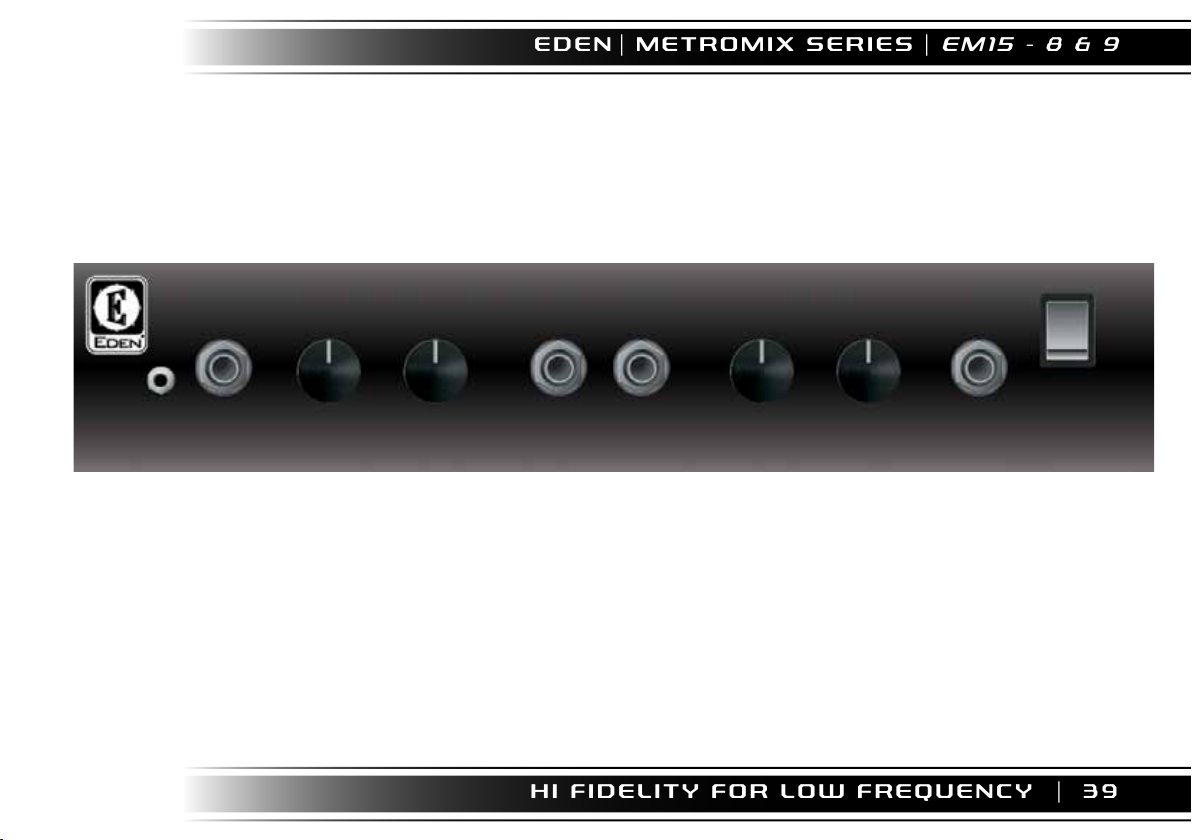

EM15 Front Panel Navigation:
1.Illuminated Eden logo; Illuminates when unit is switched on.
2.Line input; Connect your MP3 player or other device here, you can control the volume of this signal on your input device.
3.Input 1; Plug in instrument 1 to the amplifier.
4.Volume Control; Adjust the volume level for instrument 1 here.
5.Tone Control; Adjust the tone settings of the amplifier for instrument 1. Turning the control counter clockwise will increase the bass and decrease the treble levels, turning clockwise will increase the treble and reduce the bass levels. Setting this to 12 o'clock will provide a flat EQ setting.
6.Phones; Plug headphones for instrument 1 in.
7.Speaker Mute indicator; When this is illuminated the internal speaker has been muted.
8.Speaker Mute Switch; Mute the speakers for silent practice.
9.Input 2; Plug in instrument 2 to the amplifier.
10.Volume Control; Adjust the volume level for instrument 2.
11.Tone Control; Adjust the tone settings of the amplifier for instrument 2. Turning the control counter clockwise will increase the bass and decrease the treble levels, turning clockwise will increase the treble and reduce the bass levels. Setting this to 12 o'clock will provide a flat EQ setting.
12.Phones; Plug headphones for instrument 2 in.
13.Power Switch; Turn your amplifier off and on.
Note: In headphone mode the different signals are routed to different sides of the headphone, instrument 1 will appear in the left ear, instrument 2 will appear in the right ear. Any signal sent via the stereo media input will appear in both ears.
When playing only one instrument the signal will only be heard in the corresponding side of the headphones
HI FIDELITY FOR LOW FREQUENCY | 7
EDEN | METROMIX SERIES | EM25 - 6
EM25 Quick Start Guide
The EM25 combo amplifier provides a multi instrument amplifier that not only delivers 25W of power but also increased tone shaping flexibility. With separate volume controls the EM25 has a shared EQ section which offers the ability to detail the tone settings for the instrument inputs. To ensure the tonal flexibility can be fully utilised the EM25 also uses a extended range speaker to achieve great definition at both high and low tone frequencies. In addition the inclusion of separate gain (input volume) and master volume controls introduces the differences between preamp and power amp volume control.

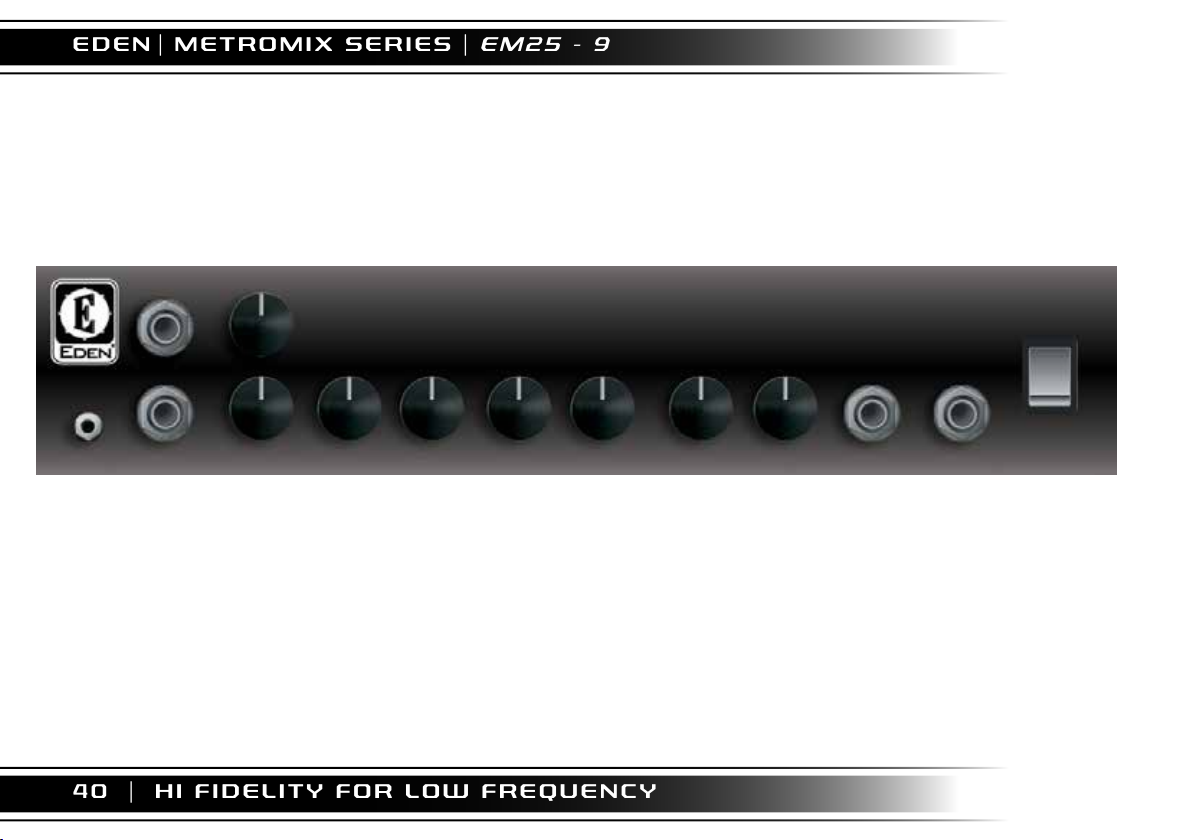

EM25 Front Panel Navigation:
1.Illuminated Eden logo; Illuminates when unit is switched on.
2.Line input; Connect your MP3 player or other device. You can control the volume of this signal on your input device.
3.Input 1; Plug in instrument 1 to the amplifier.
4.Input 2; Plug in instrument 2 to the amplifier.
5.Gain / Volume Control; Adjust the volume level for instrument 1.
6.Gain / Volume Control; Adjust the volume level for instrument 2.
7.Bass Control; Increase or decrease the level of low frequencies applied.
8.Middle Control; Increase or decrease the level of mid frequencies applied.
9.Treble Control; Increase or decrease the level of higher frequencies applied.
10.Master; Set the output volume for the amplifier.
11.Headphone Level Control; Adjust the level for the headphone Out 1.
12.Headphone Level Control; Adjust the level for the headphone Out 2.
13.Headphone Output 1; Plug in headphones.
14.Headphone Output 2; Plug in headphones.
15.Power Switch; Turn your amplifier off and on.
EM25 Back Panel Navigation:
1.RCA input; Input signal from a tape / cd or other compatible device. You can control the volume of this signal on your input device.
2.Stereo Line Out; Take a mixed output of all input signals.
8 | HI FIDELITY FOR LOW FREQUENCY
EDEN | METROMIX SERIES | EM275 - 7
EM275 Quick Start Guide
Providing the ability to practice and the power to perform the EM275 provides the ultimate solution for multi instrument amplification. With the ability to plug in up to 4 instruments at once alongside a backing track via a stereo RCA input the EM275 allows groups of musicians to practice and play together through just 1 amplifier. With 2 x 75W outputs the EM275 is a stereo amplifier allowing you to not only just the levels but also pan channels 1 and 2 of the amplifier to mix your sound. Using Extended range speakers the EM275 provides a massive depth of tone making it suitable for many instruments.

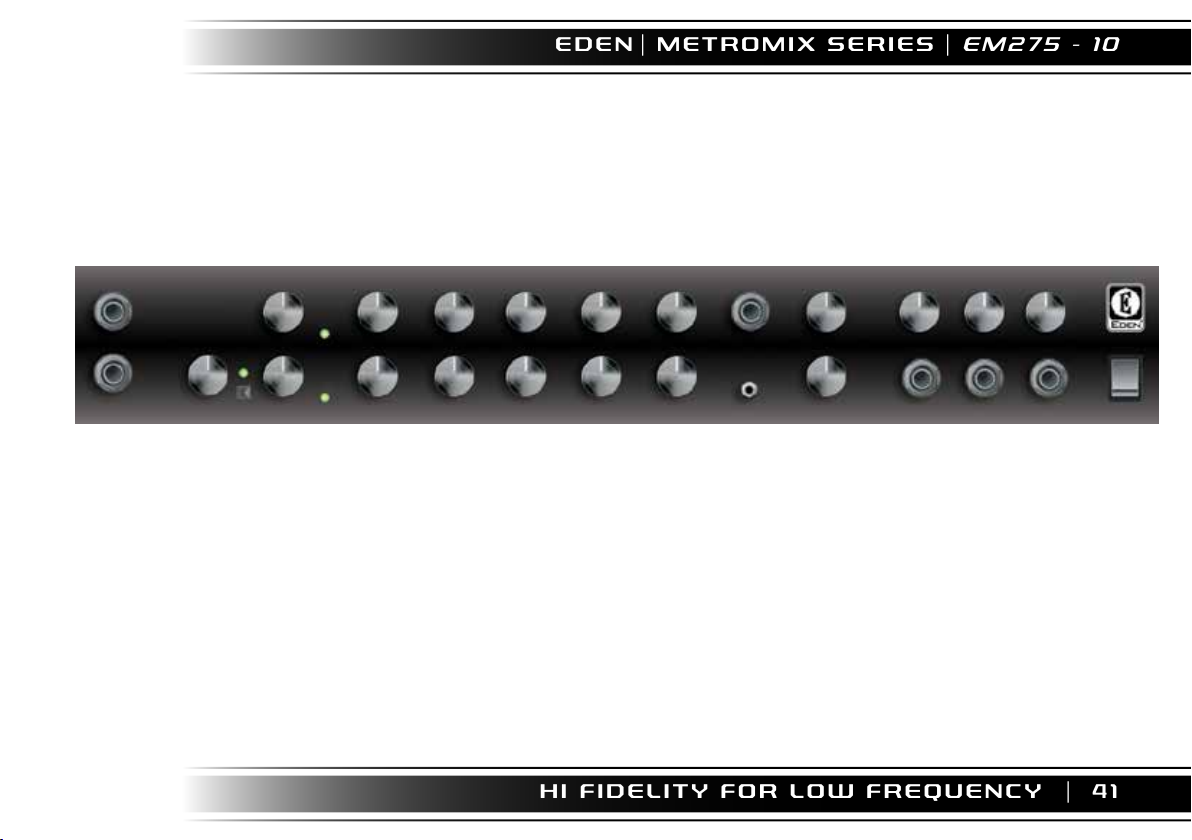

EM275 Front Panel Navigation:
1.Input 1; Plug in instrument 1 to the amplifier.
2.Input 2; Plug in instrument 2 to the amplifier.
Note: This channel has an added distortion control for use with electric guitar.
3.Gain Control; Adjust the input level for instrument 2.
4.Compressor bypass indicator; Illuminates when internal compressor is bypassed for channel 2.
5.Compressor bypass; Use this switch to bypass the internal compressor for channel 2 (tip: bypass the compressor when using distortion with the channel).
6.Gain; Adjust the input level for instrument for instrument 1.
7.Distortion; Applied the desired amount of distortion for instrument 2.
8.Bass Control Channel 1; Increase or decrease the level of low frequencies applied.
9.Bass Control Channel 2; Increase or decrease the level of low frequencies applied.
10.Middle Control Channel 1; Increase or decrease the level of mid frequencies applied.
11.Middle Control Channel 2; Increase or decrease the level of mid frequencies applied.
12.Treble Control Channel 1; Increase or decrease the level of higher frequencies applied.
13.Treble Control Channel 2; Increase or decrease the level of higher frequencies applied.
14.Pan; Choose how if you want to send more or less of instrument 1 sound to the left or right speaker of the amplifier.
15.Pan; Choose how if you want to send more or less of instrument 2 sound to the left or right speaker of the amplifier.
16.Channel 1 Level; Select the overall volume for this channel.
17.Channel 2 Level; Select the overall volume for this channel.
18.Channel 3 / 4 (stereo) input 1 (Ch3); Input an instrument such as electronic drum kit or keyboard.
19.Channel 3 / 4 (stereo) input 2 (Ch4); Input an instrument such as electronic drum kit, keyboard or MP3 player.
20.Channel 3 /4 level; Controls the overall volume for both inputs for channels 3 / 4.
21.Master level; Control the output volume of the amplifier.
22.Headphone Level Control; Adjust the level for the headphone Out 1.
23.Headphone Output 1; Plug in headphones.
24.Headphone Level Control; Adjust the level for the headphone Out 2.
25.Headphone Output 2; Plug in headphones.
26.Headphone Level Control; Adjust the level for the headphone Out 3.
27.Headphone Output 3; Plug in headphones.
28.Illuminated Eden logo; Illuminates when unit is switched on.
29.Power Switch; Turn your amplifier off and on.
HI FIDELITY FOR LOW FREQUENCY | 9
EDEN | METROMIX SERIES | PRODUCT SUPPORT - 8
EM275 Back Panel Navigation:
1.RCA input; Input signal from a tape / cd or other compatible
2.Stereo Line Out; Take a mixed output of all input signals here.
Product Support
Your Eden equipment has been designed to provide you with years of faithful service however should you ever need help with one of our products we have dedicated support teams all over the world. Visit your local Eden dealer or contact your regional distributor for more details. Alternately visit our website to see if you can find a solution www.edenamps.com
Simple rules to remember when using your Unit
DO: Keep your unit clean and free from dust and obstructions to ensure adequate cooling and maximum performance. DO: Ensure you use the best quality cables and connections when using your unit for peak performance.
DON'T: Store liquids on or near the unit during use or otherwise or store in an overly humid environment.
DON'T: Modify of attempt to modify your unit, there are no user serviceable components inside. Any modification or repair by an unauthorised technician will void any warranty offered in your region and can pose a serious risk of electrocution or death.
DON'T: Use your unit for any purpose other than for which it was intended.
REMEMBER: Follow all the warnings and instructions which are provided in this handbook, always keep this handbook for future reference.
Eden has tested or had the unit tested and approved for sale in your region. Any markings of approval and or warning labels on an Eden product are provided to ensure you as a user are aware of the efforts Eden go to ensure your product is suitable for use in your country. If you have any concerns about anything relating to your product then please contact Eden immediately.
Please check your individual unit for the relevant markings and symbols which may apply.
10 | HI FIDELITY FOR LOW FREQUENCY
EDEN | METROMIX SERIES | INTRODUCCIÓN - 1
Gracias por elegir Eden.
Espero que este producto no sólo te proporcione años de buen servicio, sino que te ofrezca la inspiración y la capacidad de hacer la música que quieres y expresarte de la forma que sabes.
En Eden entendemos que tener el equipo correcto puede significar la diferencia entre tener la confianza de poder tocar bien o no, por lo que nos esforzamos para proporcionarte las herramientas que necesitas, ya sea en casa, en el estudio o en el escenario.
Todos nuestros Amplificadores, Bafles, Altavoces y otros productos han sido cuidadosamente diseñados y fabricados para ofrecerte una óptima actuación y máxima flexibilidad desde los componentes más básicos en su construcción. En Eden nos esforzamos para asegurarte que hasta el más pequeño de los tornillos de alguno de nuestros productos ha sido elegido con estrictos criterios de calidad. Además de usar los mejores materiales y procesos, Eden es totalmente consciente del entorno en el que vivimos y trabaja duro para minimizar su impacto en el medio ambiente a la vez que quiere proporcionarte el equipo de gran calidad que esperas.
Por favor, tómate tu tiempo para leer esta guía rápida antes de usar el equipo por primera vez. Cómo utilices el equipo afectará notablemente al resultado final. Con sólo 5 minutos que le dediques para entender los consejos y utilidades que te damos en esta guía, no sólo conseguirás mejores resultados en tu equipo, sino que evitarás posibles accidentes que puedan provocar daños en el aparato.
Esperamos que sigas disfrutando de tu equipo y te invitamos a que nos comuniques tus impresiones o sugerencias, después de todo, es la inspiración creativa de los músicos y su música la que nos conduce a todos nosotros.
Gracias, el Equipo Eden.
HI FIDELITY FOR LOW FREQUENCY | 11
EDEN | SERIE METROMIX | ¡ADVERTENCIA! - 2
¡ADVERTENCIA!
El equipo que has comprado ha sido desarrollado para proporcionarte una herramienta que consigue un gran tono y en algunos casos grandes cantidades de volumen que pueden ser poco recomendables para su uso en espacios reducidos o sin protección auricular. Cada pieza de los equipos de Eden se ha diseñado para funcionar de forma excepcional y como puede pasar con otros productos de este tipo, en determinadas situaciones pueden ser capaces de operar a niveles que pueden estar fuera de los requisitos de capacidad del usuario.
Utiliza este equipo de forma segura y considerada, el control de volumen en los amplificadores de gran potencia es tu responsabilidad. Tus oídos y el de los demás que tengan la fortuna de poder escucharte tocar son los instrumentos más preciados que se necesitan para poder disfrutar de tu música. Si notaras algún tipo de pérdida de audición o molestias en el oído al escuchar cualquier tipo de música a alto volumen o hicieras alguna actividad que implique excesivo ruido, por tu propio bien acude a un médico.
Como músico que eres, debes saber que cuidar tus oídos es tan importante como saber tocar tu instrumento;
¡solo tenemos un par de oídos y no hay recambio! Enhorabuena por la compra de tu equipo Metromix. La gama de amplificadores Metromix proporciona la solución perfecta para una demanda muy extendida de amplificadores de calidad para práctica y estudio. Aprovechándose de una larga experiencia en la Amplificación de Bajo Eden ha desarrollado estos amplificadores que te proporcionarán una fantástica reproducción nítida, entradas para varios instrumentos y la posibilidad de practicar en grupo utilizando auriculares
Los modelos más altos de la gama Metromix tienen también la función de “line out” (salida de línea) que llevan la señal del amplificador a un sitema de PA o una consola de grabación. La Serie Metromix te ofrece una gama asequible y fácil de usar que te permitirá maximizar tu experiencia de práctica y aprendizaje.
Como pasa con todos los equipos electrónicos, deberías tomarte tu tiempo para familiarizarte con el amplificador o previo antes de usarlo para asegurarte mejores resultados.
12 | HI FIDELITY FOR LOW FREQUENCY
EDEN | SERIE METROMIX | SOBRE METROMIX / ÍNDICE - 3
Enhorabuena por tu compra de un producto de la Serie World Tour. La Serie de Eden Metromixha sido considerada durante muchos aòos por los bajistas profesionales màs prolÌficos ser uno de los sistemas de amplificaciûn de bajo màs versàtiles y profesionales del mercado.
Cada amplificador de la Serie Metromixproporciona la flexibilidad y control a los bajistas para que puedan entregar un gran sonido una y otra vez. Tanto si estás en el Estudio como en los escenarios los amplificadores y previos Metromixhan evolucionado para convertirse en la mejor herramienta para cada estilo diferente. Funciones como el control ëEnhanceí te permiten una gran capacidad de moldeado de la ecualizaciûn que mejora la paleta de sonidos a la vez que una fantástica y limpia etapa de potencia te permite tocar el amplificador a volumen alto sin que aparezca esa temible distorsiûn.
Como pasa con todos los equipos profesionales, deberÌas tomarte tu tiempo para familiarizarte con el amplificador o previo antes de usarlo para asegurarte mejores resultados.
ÍNDICE: |
|
|
EM275 |
|
|
1. |
Gracias |
11 |
|
|
|
|
|
|
|||
2. |
Advertencia!.................................. |
12 |
|
|
|
3. |
Sobre Metromix / ìndice................... |
13 |
|
|
|
4. |
EM15............................................. |
14 |
EM15 |
|
|
5. |
EM25............................................ |
15 |
|
||
6. |
EM275........................................... |
16 |
|
|
|
7. |
..............................Soporte Técnico |
17 |
|
|
|
8. |
EM15 Diagrama............................... |
39 |
|
|
|
9. |
EM25 Diagrama .............................. |
40 |
|
|
|
10. EM275 Diagrama............................. |
41 |
|
|
|
|
|
|
|
|
|
|
HI FIDELITY FOR LOW FREQUENCY
EM25
| 13
EDEN | SERIE METROMIX | EM15 - 4
EM15 Guía de Inicio Rápido
EL EM15 te introduce perfectamente a la amplificación de instrumentos. Con simples e intuitivos controles el EM15 te permite conectar dos instrumentos y tocarse independientemente dando a cada músico el control de su propio volumen y tono y la posibilidad de hacerlo en silencio utilizando las salidas de auriculares.
Recorrido por el Panel Frontal EM15:
1.Logo de Eden iluminado; Se ilumina cuando el aparato está encendido.
2.Entrada de lìnea; Conecta aquí tu MP3 o algún otro reproductor, puedes controlar el volumen de esta señal sobre la entrada del aparato.
3.Entrada 1; Conecta aquí tu instrumento 1 al amplificador.
4.Control de Volumen; Ajusta aquí el volumen para el instrumento 1.
5.Control de Tono; Ajusta aquí el tono del amplificador para el instrumento 1. Girando el control en el sentido contrario de las agujas del reloj incrementarás los niveles de
graves y se reducirán los agudos, girando el control en sentido de las agujas del reloj se incrementará el nivel de agudos y se reducirán los graves. El ajuste en las 12 en punto te proporcionará una Ecualización Plana.
6.Auriculares; Conecta aquí tus auriculares para el instrumento 1.
7.Indicador de silencio de altavoz; Cunado este indicador se ilumina el altavoz interno del amplificador se silencia.
8.Interruptor de Silencio de Altavoz; Silencia aquí los altavoces para práctica en silencio.
9.Entrada 2; Conecta aquí el volumen para el instrumento 2.
10.Control de Volumen; Ajusta aquí el volumen para el instrumento 2.
11.Control de Tono; Ajusta aquí el tono del amplificador para el instrumento 2. Girando el control en el sentido contrario de las agujas del reloj incrementarás los niveles de graves y se reducirán los agudos, girando el control en sentido de las agujas del reloj se incrementará el nivel de agudos y se reducirán los graves. El ajuste en las 12 en punto te proporcionará una ecualización plana.
12.Auriculares; Conecta aquí tus auriculares para el instrumento 2.
13.Interruptor de encendido; Enciende o apaga aquí tu amplificador.
Nota: Al utilizar auriculares las diferentes señales son conducidas a lados diferentes de tus auriculares, el instrumento 1 sonará en el lado izquierdo y el instrumento 2 sonará en el lado derecho.
Cualquier señal conectada a la entrada estéreo sonará en ambos lados. Si sólo tocas un instrumento la señal sólo se escuchará por su correspondiente lado del auricular.
14 | HI FIDELITY FOR LOW FREQUENCY
