Page 1

User Guide

EchoStar Digital Terrestrial Receiver

Terrestrial User Interface

Page 2

Preface

Page II EchoStar International Corporation

DISCLAIMER

RECEIVER

EchoStar International Corporation has to the best of its abilities, done everything to supply you with a receiver built to the most up-to-date software and hardware. EchoStar International Corporation makes no warranties with respect to the reception of the channels provided by the broadcast service providers and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose.

EchoStar International Corporation reserves the right, for whatever reason, to revise, change or modify the hard- and software of the receiver without the obligation to notify or warrant any person or organization of such change.

DOCUMENTATION

EchoStar International Corporation has to the best of its abilities, done everything to supply you with the most up-to-date information. EchoStar International Corporation makes no warranties with respect to the information provided by this User guide and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The information provided is meant as a guideline for the use and maintenance of the receiver.

EchoStar International Corporation reserves the right to revise, change or translate this User guide without the obligation to notify any person or organization of such change. Therefore, please visit our web site, on a regular basis, for the latest information available.

Issue: echolite_terrestrial_b_100a_us Translated from:

We encourage you to express your thoughts on this user manual. Please send your comments to: EchoStar International Corporation Technical Publications Department Schuilenburglaan 5a 7604 BJ Almelo The Netherlands

LIMITED WARRANTY

If your receiver has conditional access capabilities: For pay-services, please only use Common Interface (CI) modules and

the related Smartcard which are approved by the service provider of the encrypted program you want to receive. Only this will enable the receiver to work properly.

Anomalies can occur when an unapproved CI-module and/or Smartcard is used. EchoStar can not and will not accept any responsibility for the performance of such CI-modules and/or smartcards. If you use an unapproved CI-module and/or Smartcard, EchoStar is no longer able to provide any assistance or support. Use of an unapproved CI-module and/ or Smartcard will void any warranty claim. If you have any doubt which CImodules are approved, please ask your service provider for assistance.

© 2004 EchoStar International Corporation. All rights reserved worldwide. This User Guide has been provided pursuant to an agreement containing restrictions on its use. This User guide is also covered by Federal Copyright Law.

No part of this User Guide may be copied, distributed, transmitted, stored in a retrieval system or translated into any human or computer language, in any form or by any other means, electronically, mechanically, magnetically, manually or otherwise or disclosure to third parties without the express written permission of EchoStar International Corporation.

EchoStar International Corporation is possibly in the possession of patents, requests for patent approval, trademarks, copyrights and other intellectual property with respect to the contents within this user manual. The submission of this User Guide does not imply you have got any license or other legal right for the use of the here above mentioned without the express written permission of EchoStar International Corporation.

■ EchoStar, EchoLite and Quality has a Name

are registered trademarks of EchoStar International Corporation;

■ All other trademarks are the property of their respective owners or

companies.

Page 3

Safety Guidelines

www.echostar-int.com Page III

SAFETY GUIDELINES

1. INTENDED USE

This documentation set is intended for anyone who uses an EchoStar terrestrial receiver . It can be used by both first-time and experienced users of terrestrial receivers who want to install, use and maintain their receiver.

This User guide is applicable for the EchoStar T errestrial receivers and is divided into separate sections and chapters. For easy access to the information, a clear table of content is provided.

2. NOTATIONAL CONVENTIONS

Throughout this user guide, there may be blocks of text indicated by symbols and printed in a different way then the surrounding text. These blocks of text ask the attention of the reader to avoid hazardous situations. The

hazard levels are indicated as:

HIS WARNING INDICATES A HAZARDOUS SITUATION WHICH, IF NOT AVOIDED, COULD RESULT IN (SERIOUS) INJURY.

This caution indicates a situation which, if not avoided, could damage the equipment or other properties.

This note indicates additional information to the user to make the user aware of possible problems and information of any importance to help the user to understand, to use and to maintain the installation.

3. GENERAL SAFETY

Read this manual carefully and make sure you understand the instructions given. For your safety, know what the reaction upon each action will be. Do not perform any actions which are not described in this guide, failing to do so might result in an uncontrolled behavior of the receiver and it’s accessories or even in a hazardous situation for persons and/or equipment.

Disconnect the AC/DC adapter from the mains before you start any maintenance or installation procedures. Do not use alcohol or ammonia based liquids to clean the equipment. If required, clean with a soft lint-free cloth slightly made damp with a mild soap solution.

Consult an authorized service technician if the equipment does not operate normally when the instructions in this user guide are strictly followed. Do not to attempt to open the receiver or it’s accessories, as you will be exposed to a shock hazard.

Do not put any objects on top of the receiver which could fall through the ventilation slots or which could cover them and prevent proper cooling of the components inside.

Do not put any (foreign) objects into the ventilation slots. This can cause fire or an electrical shock by shorting the internal components.

Make sure that nothing rests on the receivers cables and that the cables are not located where they can cause injury to persons and pets (e.g to stumble over, eat the cable).

Do not install the receiver:

■ in the open air;

■ in a closed or poorly ventilated cabinet;

■ directly on top of or under another equipment;

■ on a surface which will obstruct the ventilation slots.

Do not expose the receiver and it’s accessories:

■ to rain or excessive moisture to avoid the risk of shock or permanent damage to your receiver;

■ to direct sunlight, heaters, stoves or any other heat generating equipment;

■ to any magnetic objects, such as speakers, electric motors, transformers, etc.;

■ to excessive vibration.

■ To help avoid possible damage to the receiver’s electronics:

wait 5 seconds after you switched off the receiver before you move the receiver or disconnect any equipment.

Page 4

Safety Guidelines

Page IV EchoStar International Corporation

4. ELECTRICAL SAFETY

When you use or connect electrical equipment, always obey the safety regulations as applicable in your country, to reduce the risk of fire, electrical shock and personal injury.

Read and comply at least with the given safety instructions.

■ Always make sure that the electrical power

supply corresponds with the voltage on the electrical identification plate on the equipment next to the electrical connection.

■ Your equipment is double insulated in

compliance with the standards as stated in the EC Declaration of Conformity; therefore no additional earth wire is required, though the use of an earth leak switch and/or over voltage protection switch is recommended.

■ Only use an approved extension

(convenience) lead suitable for the electrical power consumption of the installed equipment.

■ Only use an original or by EchoStar

International Corporation approved AC/DC adapter.

■ The AC/DC adapter is only meant for use

with the related EchoStar terrestrial receiver.

■ Always first disconnect the AC/DC adapter

from the mains before you disconnect the connector at the receiver.

■ If another 12Vdc/24Vdc source is applied,

use a suitable rated fuse. Make sure the power supply to the receiver is protected against a short circuit situation.

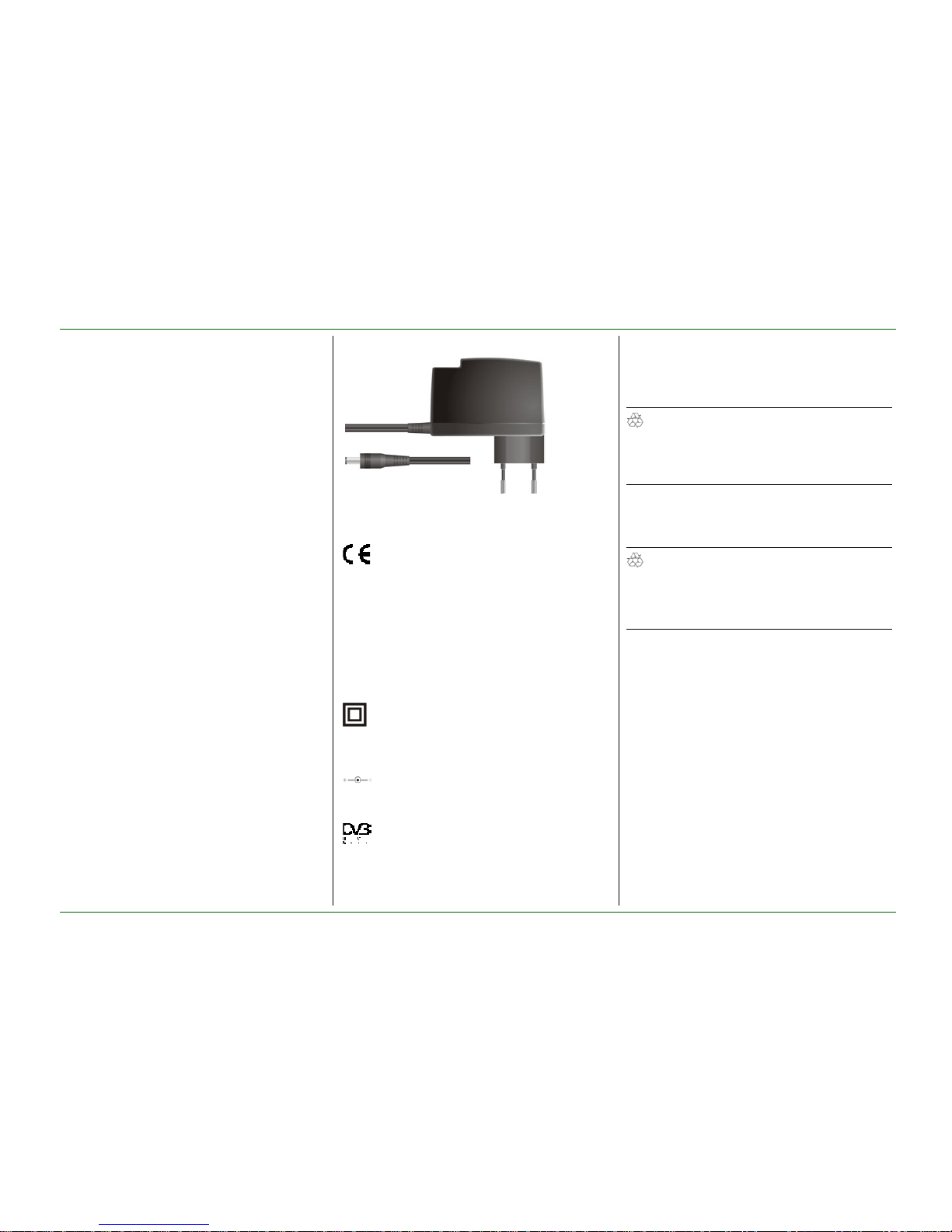

4.1. AC/DC ADAPTER

1) Receiver connector, 2) Mains connector

4.2. LOGOS

The CE logo. This logo tells you that the receiver is following the provisions of Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to the electromagnetic compatibility and the provisions of Council Directive 73/23/EEC and 93/68/EEC on the approximation of the laws of the Member States relating to low voltage and electrical safety.

The double insulation logo. This logo tells you that the receiver is electrically safe within the normal use of the receiver as stated in the safety chapter.

The 12/24Vdc connector identification This logo tells you that the outer contact is the - contact.

The Digital Video Broadcasting logo. This logo tells you that this equipment is compliant with the DVB standards as registered under registration number

5. ENVIRONMENTAL SAFETY

Most of the packaging materials can be recycled. Please discard these materials in an

environmental safe manner.

5.1. BATTERIES

Unsafely disposed batteries can be hazardous to your environment.

6. END OF LIFE DISPOSAL

Your receiver and related accessories contain materials which can be recycled and reused. Specialized companies can recycle your equipment to increase the amount of reusable materials and to minimize the amount of materials to be disposed of.

Please inform yourself on local regulations on disposal of your equipment.

ENVIRONMENTAL REMARK

Dispose the packaging in an environmental safe manner. Please inform yourself on local regulations with respect to the disposal of reusable materials.

ENVIRONMENTAL REMARK

Dispose used batteries in an environmental safe manner. Please inform yourself on local regulations with respect to the disposal of batteries.

Page 5

www.echostar-int.com Page V

Table of Contents

SAFETY GUIDELINES

1 INTENDED USE III 2 NOTATIONAL CONVENTIONS III 3 GENERAL SAFETY III 4 ELECTRICAL SAFETY IV 5 ENVIRONMENTAL SAFETY IV 6 END OF LIFE DISPOSAL IV

QUICK REFERENCE GUIDE

1 REMOTE CONTROL UNIT 1 2 TO INSTALL THE RECEIVER 2 3 FIRST TIME INSTALLATION 2 4 OPERATION 3 5 ANTENNA MYTHS 4 6 CLEANING 4

GETTING STARTED

1 UNPACKING 1-1 2 INSTALL YOUR RECEIVER 1-1 3 MENU STRUCTURE 1-2

DESCRIPTION AND OPERATION

1 EPG MENU 2-1 2 TELETEXT 2-2 3TIMERS 2-3 4 ORGANIZE THE LISTS 2-4 5 INSTALLATION MAINTENANCE 2-5 6 THE MAIN MENU STRUCTURE 2-6

TROUBLESHOOTING

1 GENERAL 3-1 2 REMOTE CONTROL UNIT (RCU) RELATED 3-1 3LIST RELATED 3-1 4 EPG RELATED 3-1 5 TV AND RADIO RELATED 3-2 6 TIMER RELATED 3-3 7 INSTALLATION RELATED 3-3

GLOSSARY

1 ABBREVIATIONS 4-1 2TERMINOLOGY 4-1

ACTIVE ANTENNA TECHNICAL SPECIFICATIONS

Page 6

Page VI EchoStar International Corporation

Page 7

Quick Reference Guide

www.echostar-int.com Page 1

QUICK REFERENCE GUIDE

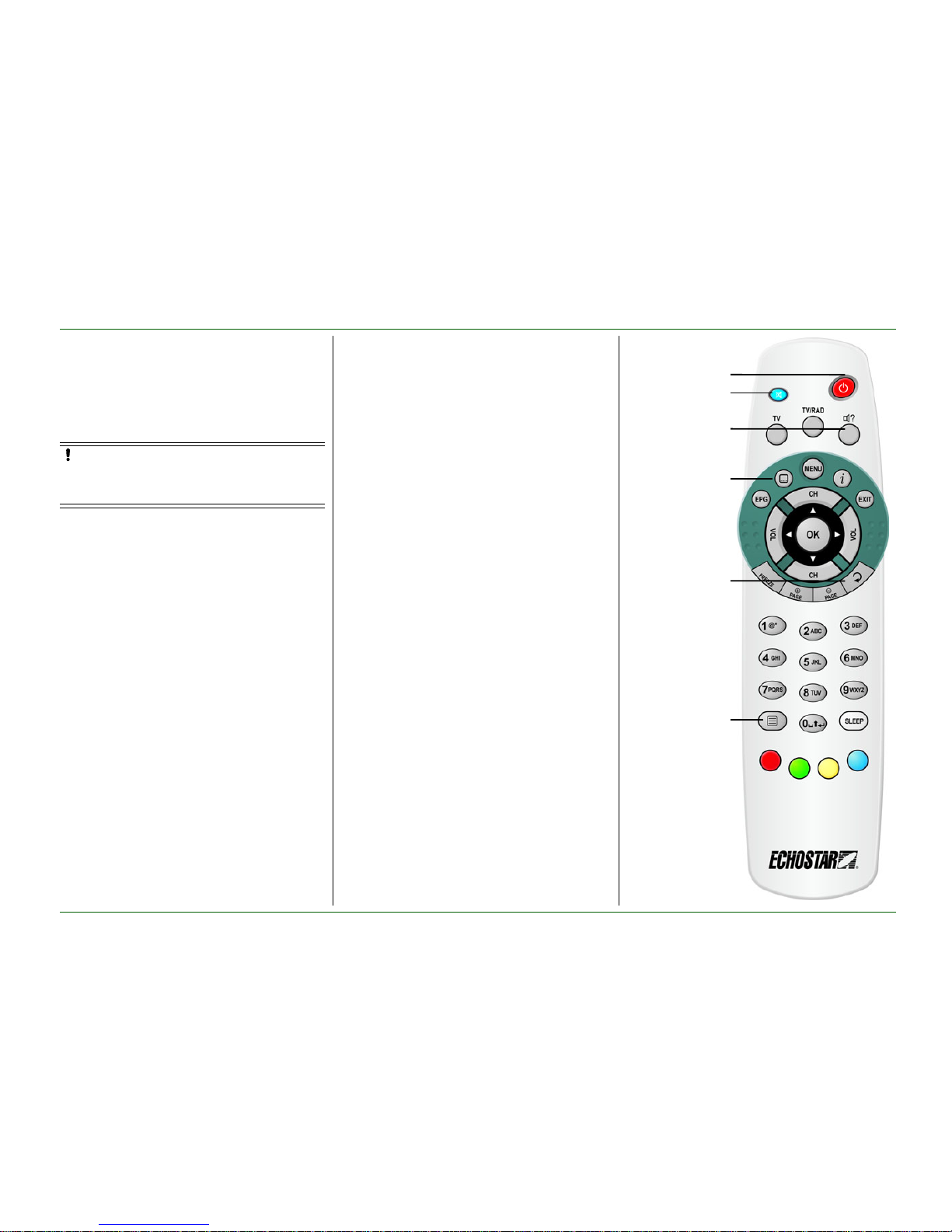

1. REMOTE CONTROL UNIT

1.1. THE BATTERIES

The EchoStar Remote Control Unit (RCU) is used to control the receiver. The RCU requires two AAA (LR03, UM4) alkaline batteries to

operate.

1.2. THE KEYS

■ Mute, to temporary, shut down the audio.

■ ON/STANDBY, to switch to standby or on.

■ TV , to switch the receiver signal to the TV on

or off (SCART connection only).

■ TV/RAD, to switch to TV or Radio mode.

■ Audio, to choose a language.

■ EPG, to view the EPG.

■ Subtitle, to choose another subtitle

language.

■ MENU, to go to the main menu.

■ i, To view the help, or to view additional

information, or to select an active option.

■ EXIT, to leave a menu or feature.

■ VOL, to decrease the volume.

■ CH, to go one channel up.

■ OK, to go to the (favorites) lists, or to make

a menu selection.

■ , to go left, up, right or down.

■ VOL, to increase the volume.

■ CH, to go one channel down.

CAUTION Insert the batteries correctly, make sure the polarity matches the instruction in the battery compartment.

■ Freeze, to hold still the TV image.

■ Page +, to go up one page.

■ Page -, to go down one page.

■ Recall, to go to the previous channel.

■ NUMBER KEYS,

To enter alph a-numerical settings; To type in a channel number.

■ Teletext, to choose teletext.

■ SLEEP, to select the sleep timer.

■ White, no function.

■ Red;

T o select the signal indication for adjustment of the antenna; To select a language (initial setup only); To select a favorite list; To select an edit option; To access the EPG timers; To se lect an active option.

■ Green

To start the all channel search; To select a favorite list; To select an edit option; To sort a list; To se lect an active option.

■ Yellow

To organize the channel list To select a favorite list; To select an edit option; To se lect an active option.

■ Blue

To access the installation menu; To select a favorite list; To select an edit option; To se lect an active option.

On/Standby Mute

Audio

Subtitle

Recall

Teletext

Page 8

Quick Reference Guide

Page 2 EchoStar International Corporation

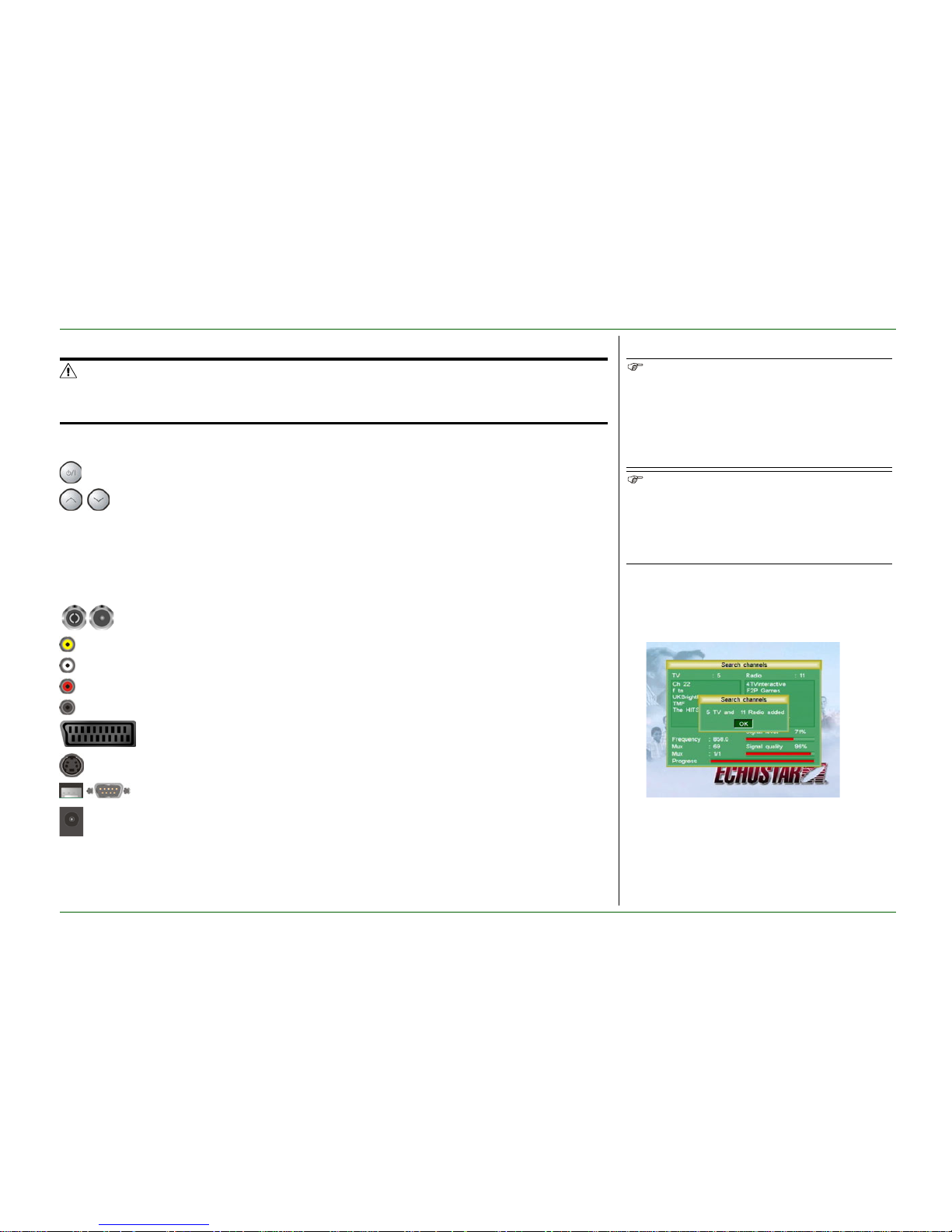

2. TO INSTALL THE RECEIVER

For the location and availability of the basic front panel controls, please refer to the front panel as shown on the packaging. If available, the basic front panel controls are:

For the location and availability of the connectors, please refer to the rear panel as shown on the packaging. If available, the connectors on the rear panel are:

WARNING

ALL EQUIPMENT INVOLVED IN THE INSTALLATION TASK MUST BE INSTALLED CORRECTLY AND SWITCHED OFF. MAKE SURE THAT IT IS SAFE TO PROCEED WITH THE INSTALLATION TASK. UNSAFE CIRCUITS AND INSTALLATIONS CAN CAUSE (SERIOUS) INJURY OR DAMAGE TO EQUIPMENT.

The standby/on button, to switch the receiver to Standby or On. The arrow up button, to move one channel up.

The arrow down button, to move one channel down.

Indicators The red indicator shows that there is sufficient signal received;

The orange indicator shows that the receiver is in standby; The green indicator shows that the receiver is set to on.

ANT IN

(IEC), to connect a terrestrial antenna (analog and digital broadcasts).

TV OUT (IEC), to connect a VCR or TV (UHF modulator only).

(Yellow) VIDEO (RCA), to connect to the composite video input of the TV (monitor). (White) AUDIO L (RCA), to connect to the left audio input of a stereo set. (Red) AUDIO R (RCA), to connect to the right audio input of a stereo set. (Black) S/PDIF (RCA), to connect to a Dolby Digital amplifier or home cinema equipment.

TV (SCART), to connect to a TV with a fully-featured SCART cable; VCR (SCART), to connect to a VCR with a fully-featured SCART cable.

SVHS (DIN), to connect to a S-Video input of SVHS compatible equipment. RS-232 (4 pin/sub-D), for the connection to the serial communication port of a PC.

12/24Vdc, for the connection of the adapter that came with the receiver or another

secure 12Vdc/24Vdc source.

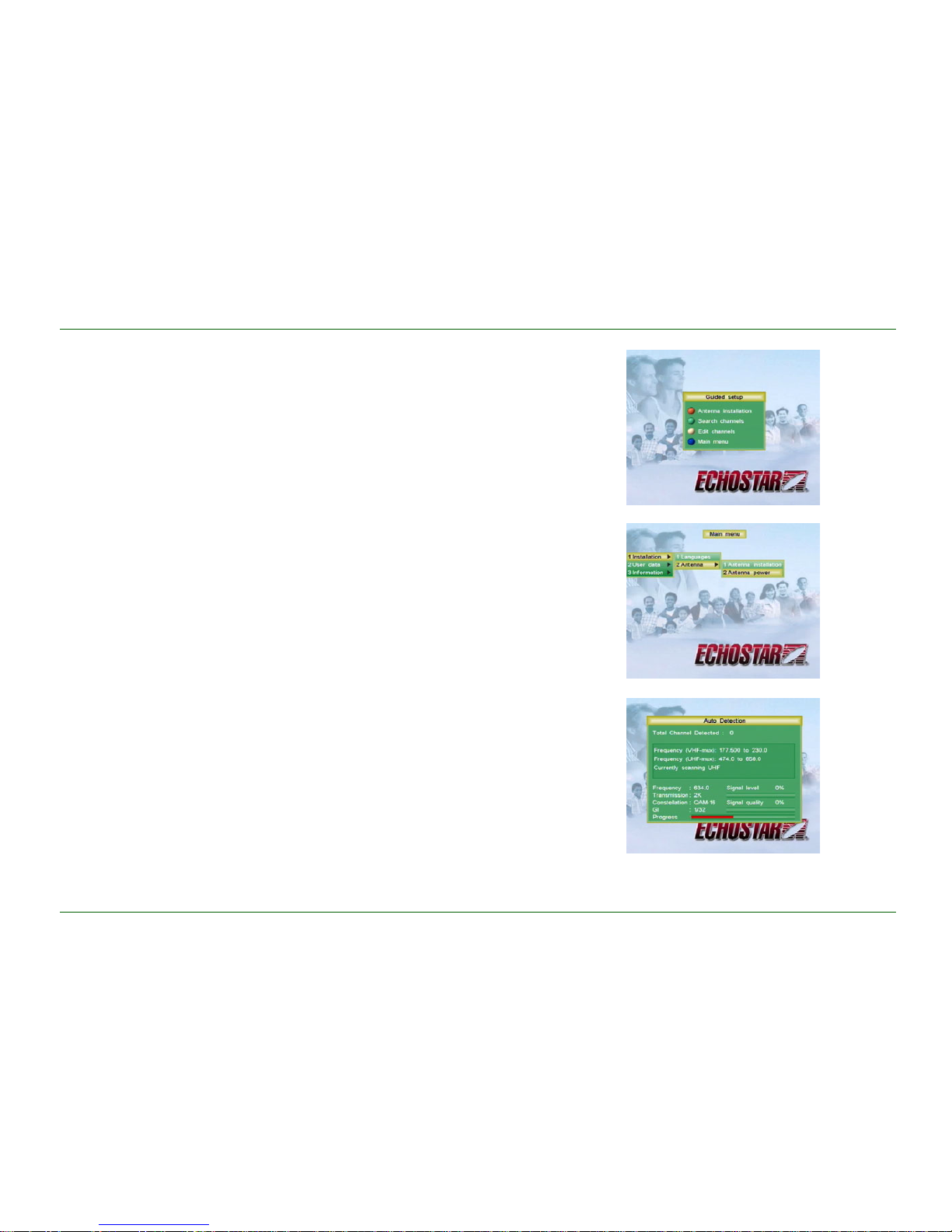

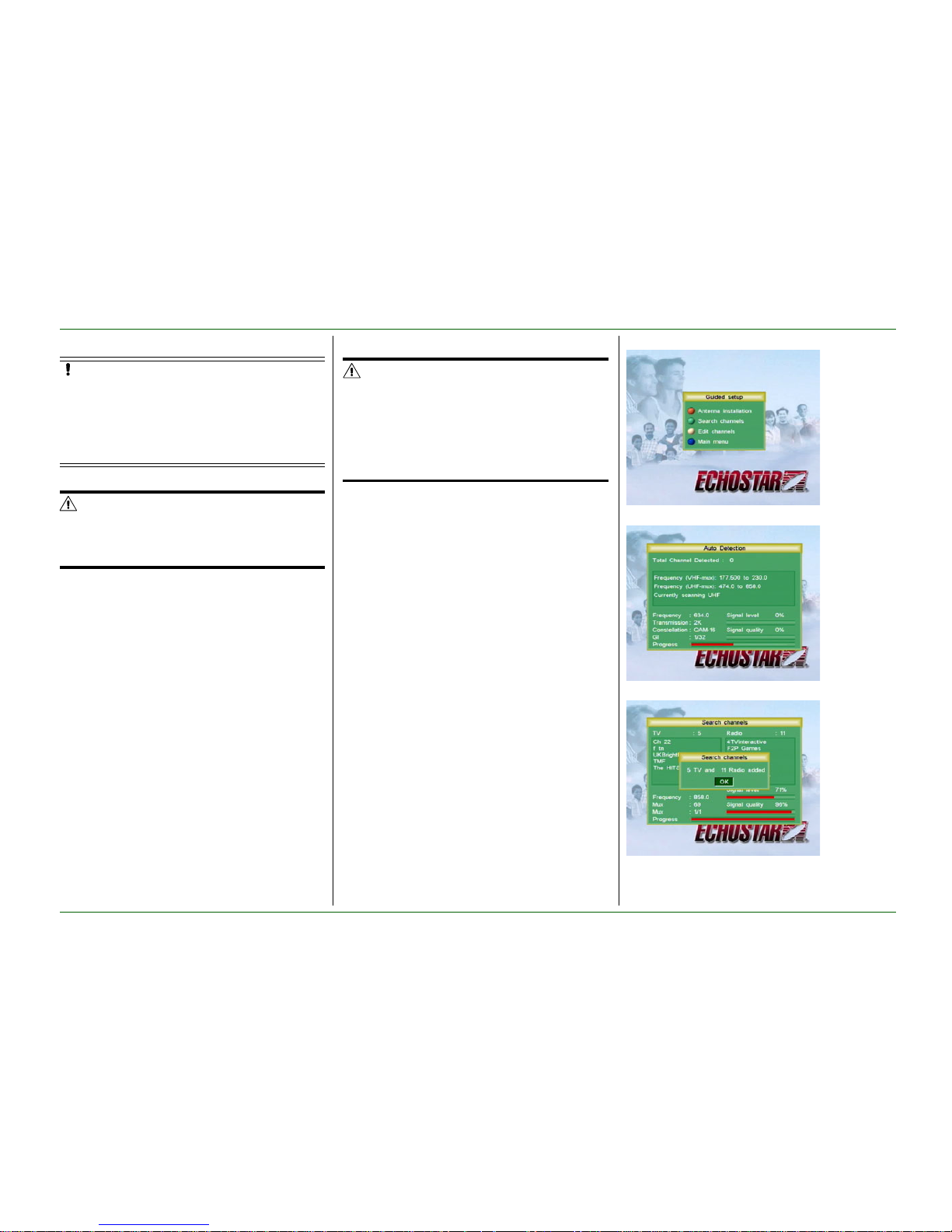

3. FIRST TIME INSTALLATION

1. Make sure, all connections are made safely.

2. Switch on the receiver and wait for the Guided setup menu.

3. Press the green key and wait for the search channels to complete.

4. Press the OK key and wait for the live video to appear.

NOTE For receivers that are connected with an

UHF cable, make sure that the TV is set to UHF channel 38 (607.25Mhz). If the channel number on the TV and receiver are not the same, you will have a distorted or no image at all.

NOTE If you have only one antenna connected, install the loop-through cable between the DIGITAL OUT and the ANALOG IN connector to be able to receive both digital and analog signals.

Page 9

Quick Reference Guide

www.echostar-int.com Page 3

4. OPERATION

Daily use of the receiver is similar to the operation of your current TV and VCR. Extra functions are the Electronic Program Guide (EPG), favorite channel lists (color keys), subtitle and audio language selection.

Every time when you change channels, a so called InfoBanner appears to give you some extra information about the program. You can also call up the information with the i-key.

4.1. NAVIGATION

In the main and EPG menu:

■ the MENU key lets you access to the main

menu or go back one menu level;

■ the EXIT key lets you leave a menu or

selection and return directly to live;

■ the  keys let you scroll up and down

through the selectable items;

■ the  keys let you scroll left and right

through the selectable items;

■ The OK key lets you:

- confirm and execute a selection;

- open an option page.

In an option page:

■ the OK key lets you confirm the selection;

■ the cursor shows the active selection;

■ the page indicator shows when you can

scroll to the next page.

In live TV or Radio:

■ the OK key lets you access the channel list;

■ the cursor shows the active selection;

■ the page indicator shows when you can

scroll to the next page.

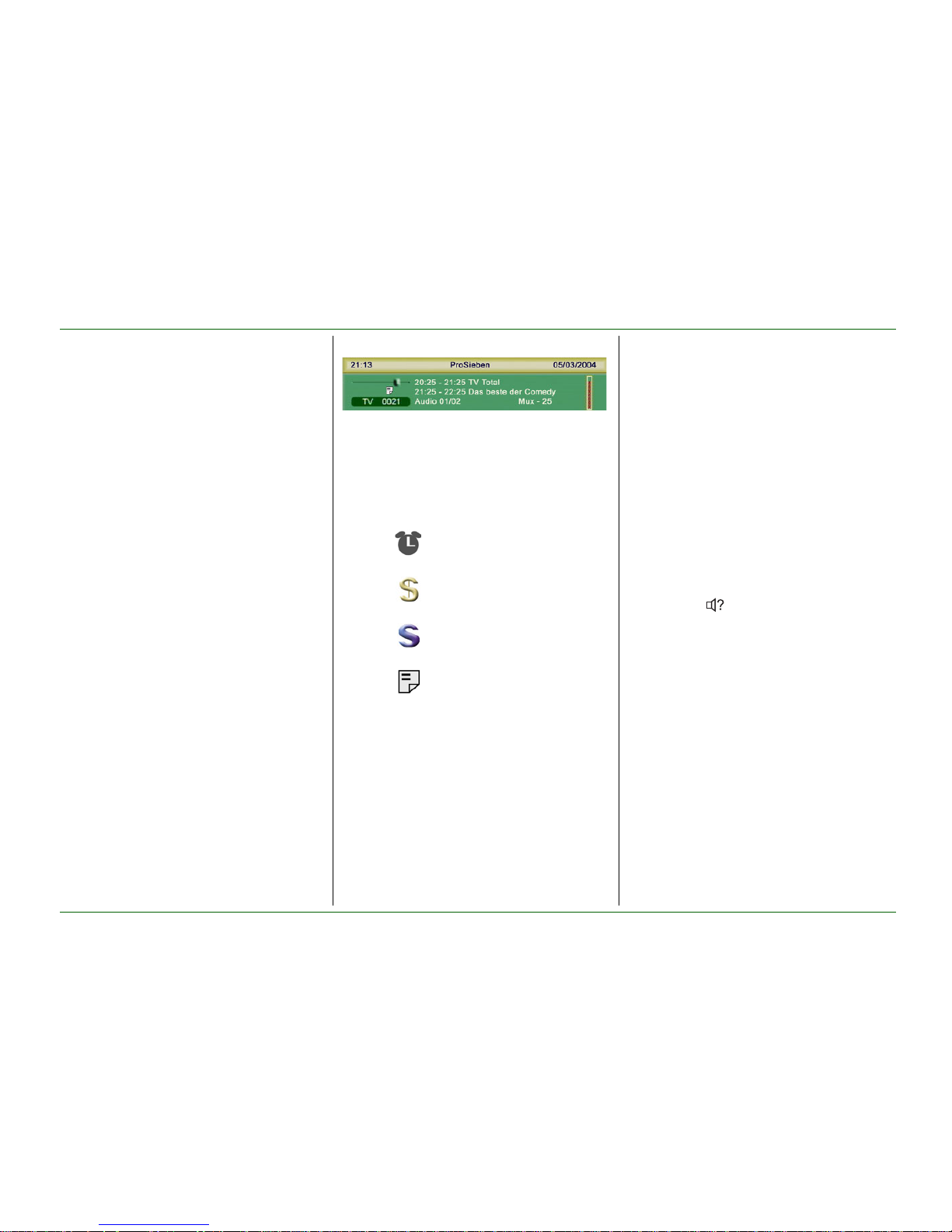

4.2. THE PROGRAM INFORMATION

The InfoBanner has a:

■ The channel information bar, to show the

local time, channel name and local date.

■ The service information bar, to show the

progress of the current program.

■ The icons represent the following

messages:

- the icon, to show that a sleep timer is active.

- the icon, to show that the channel is encrypted (Scrambled);

- the icon, to show that more Subtitle languages are available;

- the icon, to show that teletext is available.

■ The program information bar, to show:

- the channel number;

- the now and next program information;

- the audio indicator, to show that more audio languages are available;

- The channel indicator, to show the channel of the terrestrial service.

- the signal indicator, to show the signal level (strength).

■ Detailed program and channel information

show when you press the i-key on the remote control unit two or three times.

4.3. CHANNEL SELECTION

WHEN YOU WANT TO SELECT ANOTHER CHANNEL:

■ the CH keys;

■ the numerical keys;

■ the recall key.

HEN YOU ARE IN A LIST, YOU CAN USE:

■ the CH keys;

■ the Page +/- keys.

HEN YOU WANT TO ZAP BETWEEN TV AND

RADIO CHANNELS:

1. Press the TV/RAD key.

2. Select the channel.

HEN YOU WANT TO LISTEN TO ANOTHER AUDIO

ON THE SAME CHANNEL:

1. Press the (alternative audio) key.

2. Press the CH keys.

3. Press the OK key.

Page 10

Quick Reference Guide

Page 4 EchoStar International Corporation

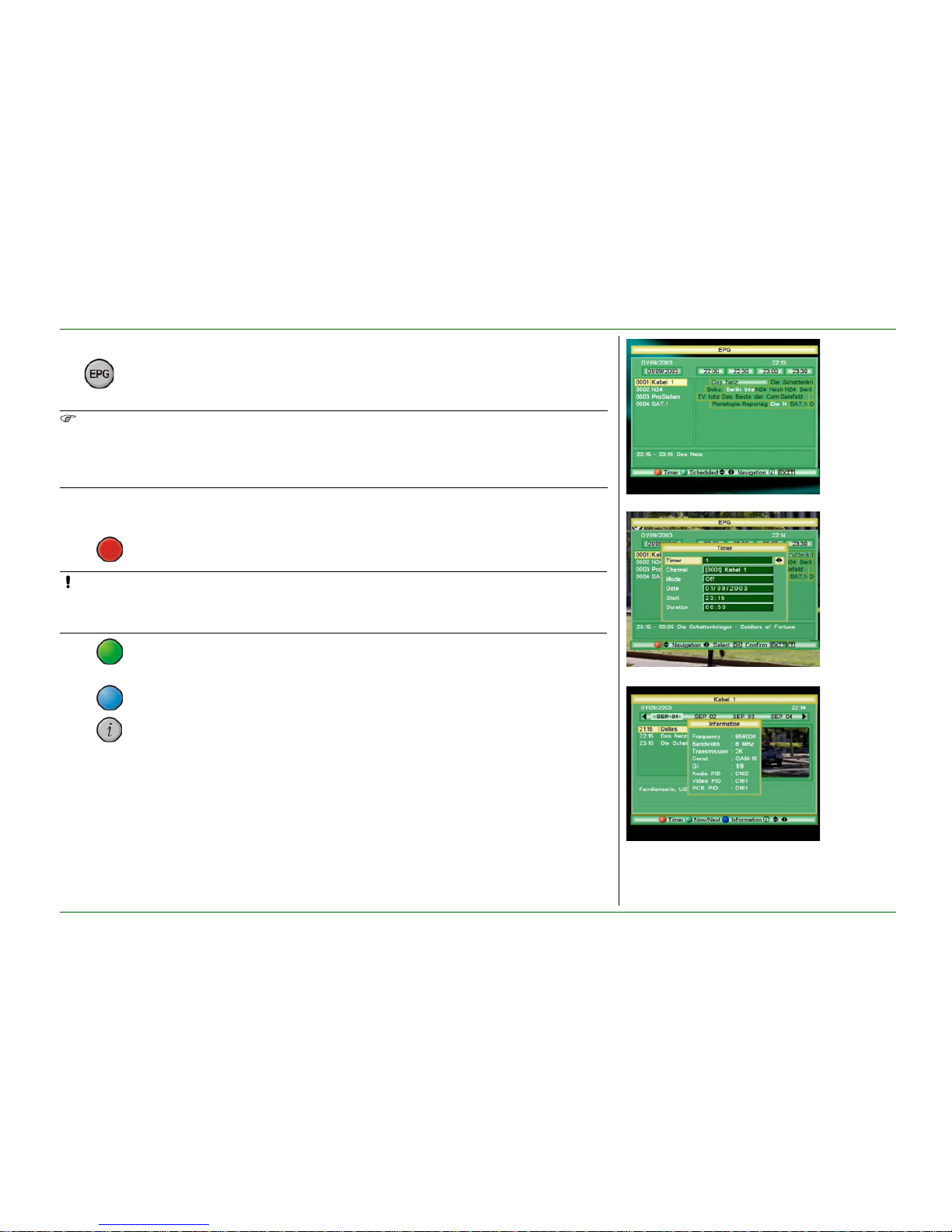

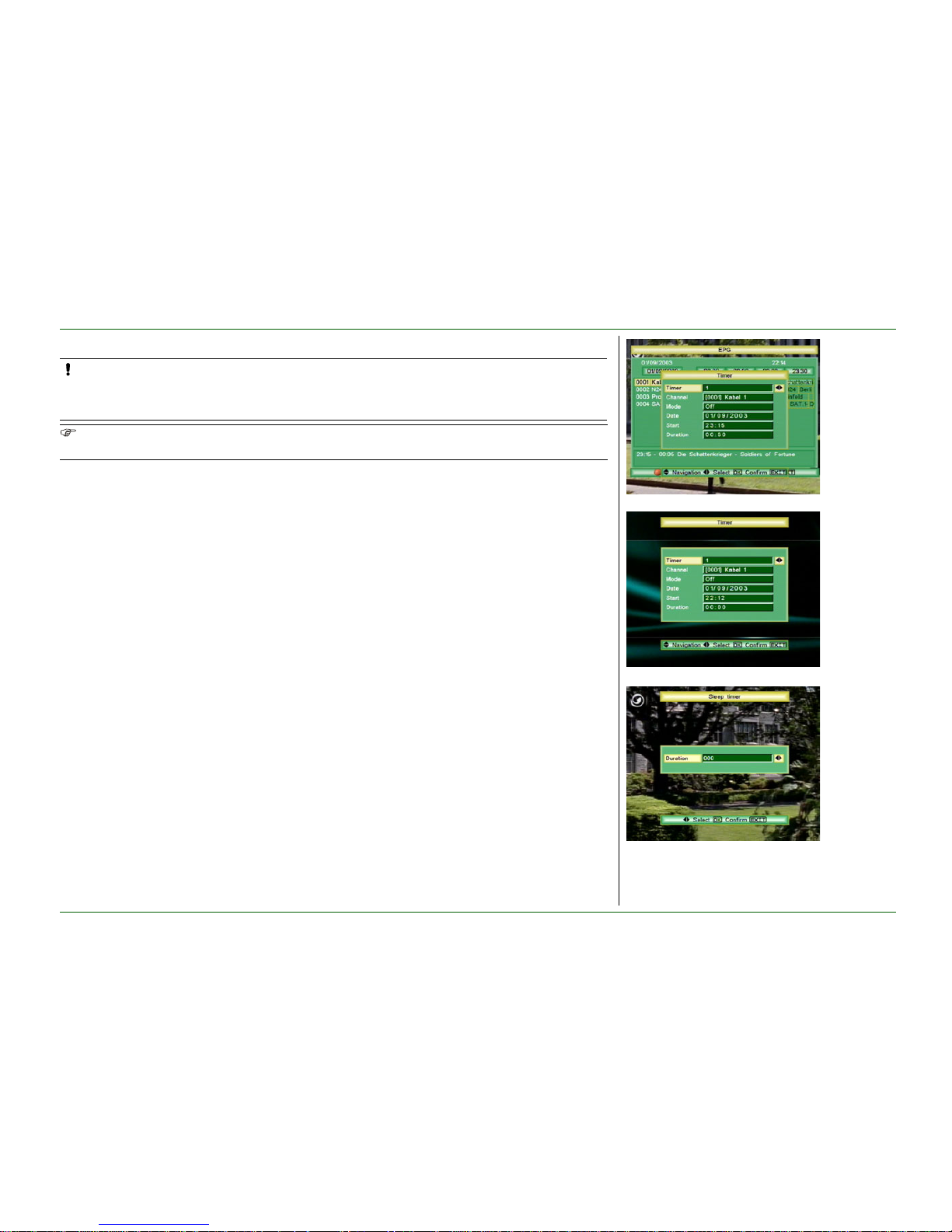

4.4. TIMERS

If the InfoBanner shows the now/next information:

1. Press the EPG key.

2. Press the red key and program the timer.

3. If required, select an interval.

4. Press the OK key to confirm. If the InfoBanner does not show the now/next

information:

1. Press the MENU key.

2. Press the blue key.

3. Select: User data - Preferences - Timers.

4. Press the OK key and program the timer.

5. If required, select an interval.

6. Press the OK key to confirm.

CAUTION The timer does not start or program your video cassette recorder (VCR). You also have to set the timer of your VCR to the same time as on the timer. Please refer to the user guide of your VCR how to make a recording from an external receiver.

5. ANTENNA MYTHS

Initially, if you use an analog antenna now , often there is no need to buy a new antenna. However, if the current antenna or it’s cabling is in poor condition which results in unsatisfactorily reception, you could improve this with a new antenna suitable for digital terrestrial reception.

You can receive excellent digital TV and Radio:

■ if the service provider delivers enough

signal (level and quality) to your area;

■ If the indoor or outdoor antenna is healthy

(antenna is clean, in good condition and correctly aimed);

■ if the connection between the antenna and

TV set is healthy (good quality cable, 75 ohm, no sharp bends or kinks, metal connectors);

You can, in certain situations, improve the digital TV and Radio reception:

■ if you use an outdoor antenna, which is not

obstructed by the metalwork that is used in the building construction,

■ if you use an active antenna for situations

where you have a long cable between the antenna and the receiver.

6. CLEANING

1. Switch the receiver to OFF.

2. Wait at least five seconds, to help avoid possible damage to the receiver’s electronics.

3. Use a dry, soft and clean lint-free cleaning cloth to clean the receiver.

4. Other cleaning agents can cause damage to the outside surface.

a. Make a dry, soft and clean lint-free

cleaning cloth a little damp.

b. Carefully wipe the surface and make sure

that no moisture gets into the receiver.

c. Let the receiver dry on the air.

WARNING

ISK OF ELECTRICAL SHOCK.

REMOVE THE MAINS PLUG FROM THE POWER

SUPPLY SOCKET BEFORE YOU CLEAN THE RECEIVER. MAKE SURE, IF USED, CLEANING AGENTS CANNOT GET IN THE RECEIVER.

Page 11

Getting Started

www.echostar-int.com Page 1 - 1

GETTING STARTED

1. UNPACKING

1.1. TO UNPACK YOUR RECEIVER:

When you unpack the contents of the box, confirm that all the parts are included.

Unpack the contents of the box carefully. Electronic equipment as satellite receivers are easily damaged when you handle it roughly. Examine all parts for damage that may have occurred during shipment. If you find any damage, stop to unpack the box and call the shop where you bought the receiver.

T o help avoid possible damage to the receiver’s electronics, allow the receiver to adapt to the ambient temperature and humidity level. This to avoid condensation.

1.2. THE CONTENTS OF THE BOX

The box contains:

■ A receiver;

■ A mains power adapter;

■ A remote control unit (RCU);

■ A pair of batteries (for the RCU);

■ A set of documentation.

CAUTION

It is recommended to keep the packaging materials for a period of time. In case of warranty claims, we can request to return the receiver in the original packaging to protect the electronics. Failing to do so might void the warranty.

WARNING

EEP AWAY THE PLASTIC PACKAGING FROM CHILDREN. THE PLASTIC PACKAGING MAY CLING TO NOSE AND MOUTH AND PREVENT BREATHING.

2. INSTALL YOUR RECEIVER

2.1. PROGRAM THE RECEIVER

This section assumes that the antenna installation is completed and operational and your receiver is connected to your TV.

1. Apply the 12Vdc to the receiver.

2. Press the On/Standby key and wait for the start-up to complete.

3. When the Guided setup screen shows, press the green key to start the automatic channel search.

4. Press the OK key and wait for the Search channels to complete

5. Press the OK key to confirm.

6. Now the receiver is ready for use.

If there are no channels found, Make sure the antenna is aimed in the correct direction.

1. When the Guided setup screen shows, press the red key to access the signal indicator.

2. Press the i-key for detailed help.

3. Turn the antenna and use the signal indicator to find the best signal.

4. In the Guided setup menu, press the green key to start the automatic channel search.

WARNING

ALL EQUIPMENT INVOLVED IN THE INSTALLATION TASK MUST BE INSTALLED CORRECTLY AND SWITCHED OFF. MAKE SURE THAT IT IS SAFE TO PROCEED WITH THE INSTALLATION TASK.

NSAFE CIRCUITS AND INSTALLATIONS CAN CAUSE (SERIOUS) INJURY OR DAMAGE TO EQUIPMENT.

QUICK REFERENCE GUIDE

Press the green key.

Wait for the Search channels to complete.

Press Ok, now the receiver is ready for use.

Page 12

Getting Started

Page 1 - 2 EchoStar International Corporation

3. MENU STRUCTURE

Main menu (use the number keys for direct access to the menu options)

1. Installation 1. Languages - To set the language you want to use for menu, audio and subtitle.

2. Antenna 1. Antenna installation To aim the antenna with help of the build-in signal indicator.

2. Antenna power To select a passive (Off) or active antenna (On).

2. User data 1. System setup 1. Search channels To start an automatic search for new channels.

2. Search mux To start a manual search for new channels on a specific service.

3. Edit mux To edit a service for new settings as indicated by the operator.

2. Channels 1. Setup favorites To add or remove channels from the all list into a favorite list.

2. Edit channels To edit or set a parental lock onto a specific channel.

3. Preferences 1. Local time To set the local time.

2. Timers To program a timer.

3. Change PIN-code To change the PIN-code as used in the parental control.

4. TV system To select TV related settings (e.g. Aspect ratio, Parental control, transparency).

5. UHF Modulator To select the UHF channel (for UHF-connection only)

6. Sleep timer To set a sleep timer to set the receiver automatically to standby.

4. Maintenance 1. Color settings To make a color selection for the menus.

2. Factory reset To delete all settings and start with the Guided setup.

3. Delete channels To delete all channels from the channel and favorite lists.

4. Region code To te ll the receiver which regional settings to use.

3. Information 1. Check signal - To check the signal for signal quality and signal level.

2. About EchoStar - To view the receiver’s and EchoStar’s administrative data.

Page 13

Description and Operation

www.echostar-int.com Page 2 - 1

DESCRIPTION AND OPERATION

1. EPG MENU

The key gives access to the EPG menu, where you control the timers and view the information in the Electronic Program Guide.

The EPG menu makes use of the EPG, i-key and the color keys on your Remote Control Unit to allow for quick access to the different EPG and timer functions. The help line shows you which color keys are active for the selected EPG menu. When the EPG menu shows:

■ The (Red) key gives access to the EPG-supported timers.

■ The (Green) key gives, if available from the service provider, access to the scheduled

program information which can be available for a few hours up until 14 days in advance.

■ The (Blue) key gives access to the technical chann el information.

■ The key gives, if available from the se rvice provider, access to the detailed program

information of the current selected program. Somet imes the information is not directly avai l ab l e , if necessary allow the receiver to collect the detailed program information.

NOTE

Most digital channels broadcast program data as an EPG. Digital channels that broadcast EPG offer you program information in advance for a certain period of time. The EPG information is not always available. Sometimes the service provider supplies only the program name, the now/ next information or sometimes nothing at all. EchoStar has no influence on this matter.

Press the i-key for detailed information.

Press the red key to set EPG-supported timer.

Press the blue key for technical channel info.

Page 14

Description and Operation

Page 2 - 2 EchoStar International Corporation

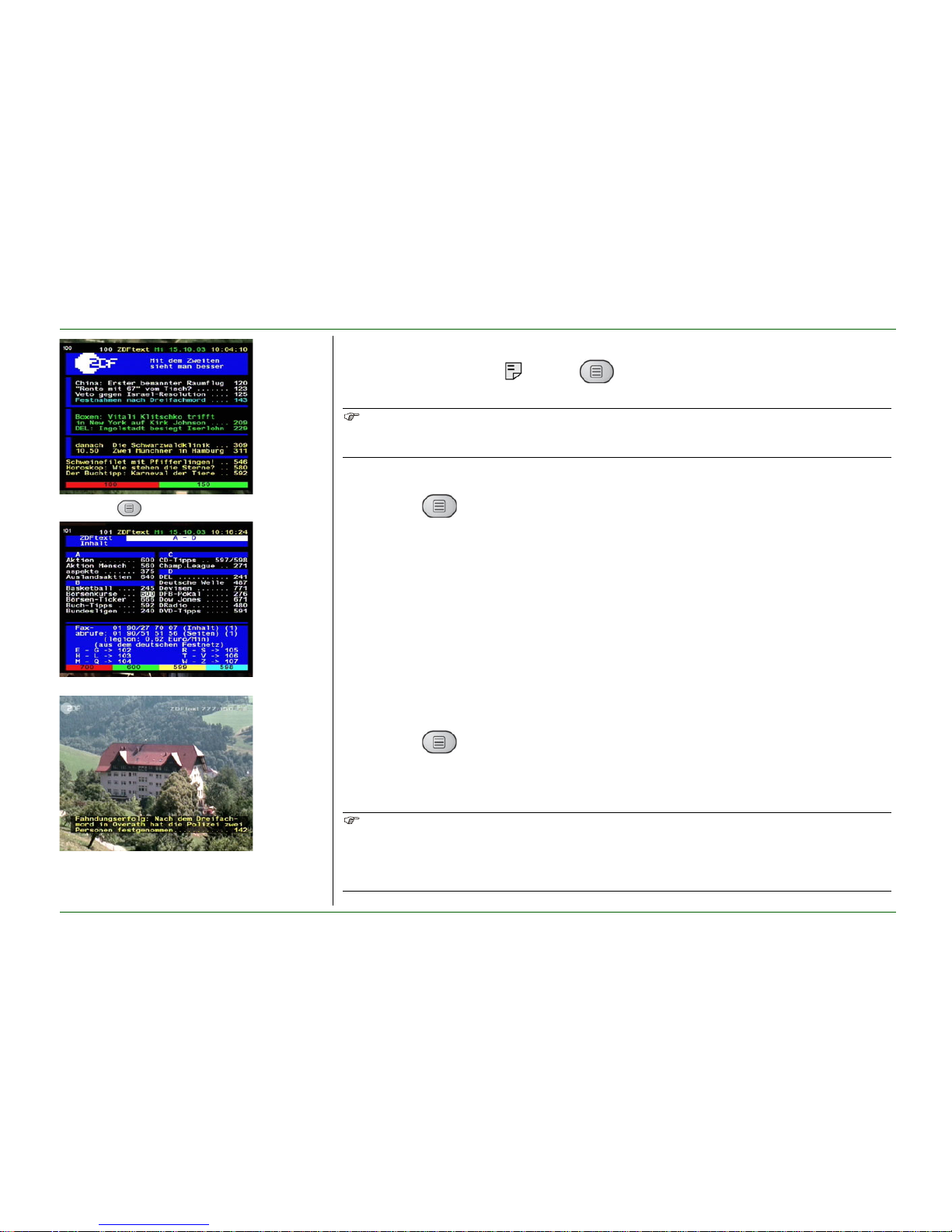

Press the key.

Use the arrow keys to select the page.

Select teletext subtitling/ news flash.

2. TELETEXT

If the InfoBanner shows the icon, the key gives access to the embedded teletext decoder.

NOTE

Sometimes the service provider does not offer teletext support. Then the teletext option will not show. Please note that EchoStar has no influence on this matter.

IF YOU WANT TO ACCESS TELETEXT:

1. Press the key.

2. Teletext shows.

F YOU WANT TO EXIT TELETEXT:

1. At any page, press the EXIT key.

ELECT AN INDEX PAGE:

1. Press the numerical keys to choose a page number, or:

2. Press the orkey to go up/down to an index page (200, 300, 400, etc.).

ELECT ANOTHER LANGUAGE:

1. Press the key two times.

2. If available, select another language.

SELECT A PAGE FROM THE INDEX

PAGE:

1. Press the numerical keys to choose a page number, or:

2. Press the Page +/- key to view the cursor.

3. Press the Page +/- key to go to a selectable page.

4. Press the OK key, or:

5. Press one of color keys to go to the indicated page.

ELECT A TELETEXT PAGE:

1. Press the numerical keys to choose a page number, or:

2. Press the key to go one page number up or down, or:

3. Press one of color keys to go to the indicated page.

4. Sub-pages (1/2, 2/2) are automatically advanced.

UT A TELETEXT PAGE OVER LIVE

VIDEO:

1. Press the OK key to make the teletext pages transparent.

2. Note that live video appears behind the Teletext page.

SE THE TELETEXT SUPPORTED SUBTITLES FOR THE HEARING IMPAIRED:

1. If the subtitles are

transmitted, select the applicable Teletext page.

2. Allow the receiver to collect

the subtitles.

3. Note that the subtitles are

show on top of the video.

4. At any time, press the EXIT

key to return to the normal operation.

NOTE

Some Teletext pages are meant to be on top of live video, such as so called latest news flashe s. When you access such a page, allow the receiver to collect the information. When the information is collected, the receiver returns automatically to live video with the news flash on top.

Page 15

Description and Operation

www.echostar-int.com Page 2 - 3

3. TIMERS

NOTE

You can not set a timer in the past.

F YOU WANT TO SET A TIMER

ONTO AN EPG EVENT:

1. Press the EPG key.

2. Select the EPG event.

3. Press the red key.

4. Review the timer settings as retrieved from the EPG event.

5. If required, change the Date, Start and Duration settings.

6. Change the Interval into Once, Daily or Weekly.

7. Press the OK key to confirm.

F YOU WANT TO SET A TIMER

WHEN THERE IS NO EPG:

1. Press the MENU key .

2. Select User data Preferences - Timers and press the OK key.

3. Select a not used timer.

4. Make the required settings.

5. Press the OK key to confirm.

F YOU WANT TO LOOK UP,

DELETE OR CHANGE A TIMER:

1. Press the MENU key .

2. Select User data Preferences - Timers and press the OK key.

3. Select the timer.

4. Make the required settings.

5. If you want to cancel a timer, select Interval = Off.

6. Press the OK key.

F YOU WANT TO SET A SLEEP

TIMER:

1. Press the MENU key.

2. Select User data Preferences - Sleep timer and press the OK key.

3. Select a duration.

4. Press the OK key to confirm.

F YOU WANT TO SET A SLEEP

TIMER QUICKLY:

1. On the remote control unit, press the SLEEP key.

2. Select a duration.

3. Press the OK key to confirm.

Press the red key to set EPG based timer.

Press the Menu key to set a timer.

Press the SLEEP key to set a timer.

Page 16

Description and Operation

Page 2 - 4 EchoStar International Corporation

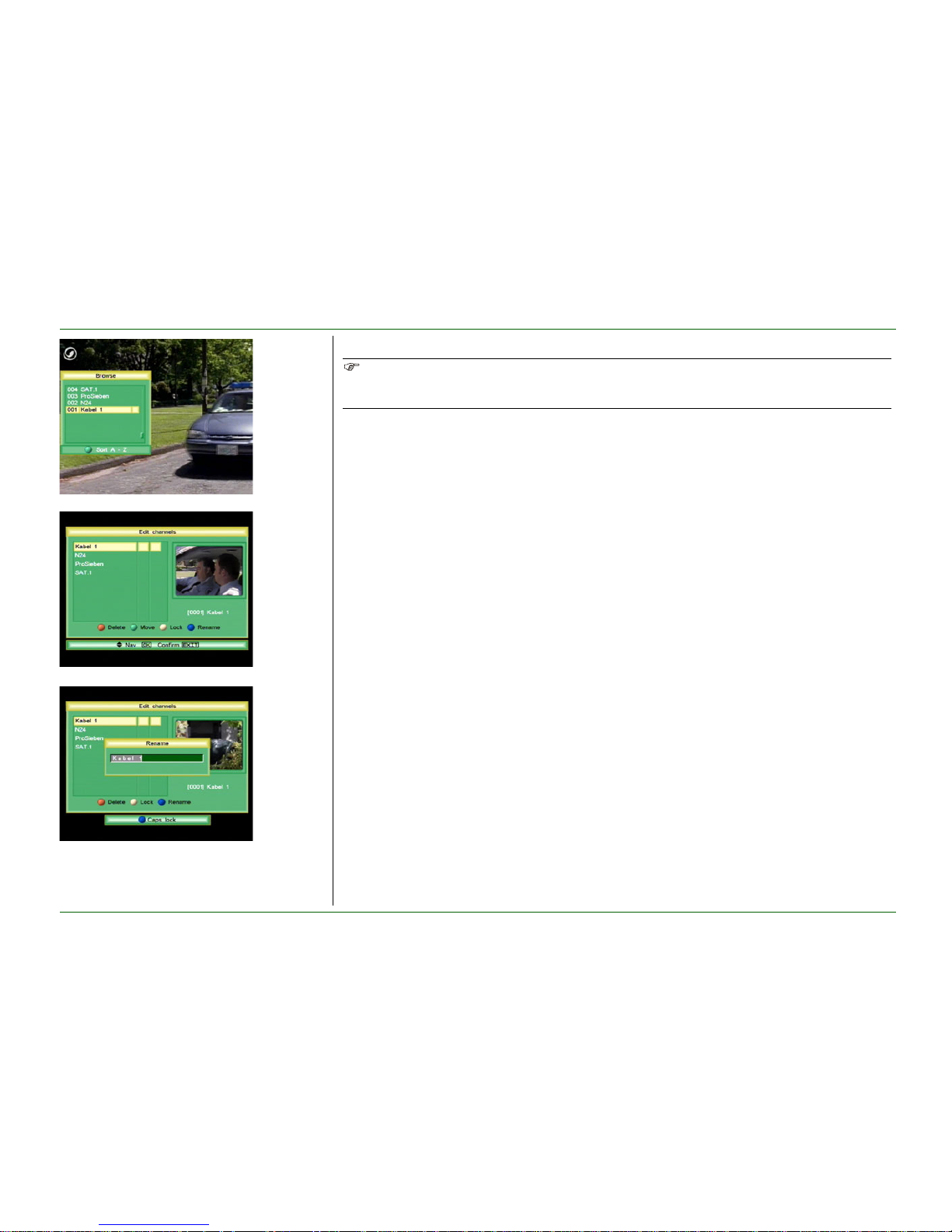

Sort the channel list.

Lock, Move or Delete a channel.

Rename a channel.

4. ORGANIZE THE LISTS

NOTE

You can not move a chanel if the Local channel number (LCN) is set to On. You can select the option in: Menu - User data - Preferences - TV system - Local channel number.

IF YOU WANT TO SORT A LIST:

1. Press the OK key to access the channel list.

2. Press the green key to sort the list from A to Z or Z to A.

F YOU WANT TO LOCK A

CHANNEL:

1. Press the MENU key.

2. Select User data - Channels

- Edit channels and press the OK key.

3. Select a channel.

4. Press the yellow key .

5. Note that a L appears behind the channels.

6. Press the OK key to confirm.

F YOU WANT TO DELETE A

CHANNEL:

1. Press the MENU key.

2. Select User data - Channels

- Edit channels and press the OK key.

3. Select a channel.

4. Press the red key.

5. Note that the delete mark appears.

6. Press the OK key to confirm.

F YOU WANT TO MOVE A

CHANNEL:

1. Press the MENU key.

2. Select User data - Channels

- Edit channels and press the OK key.

3. Select a channel.

4. Press the green key.

5. Press the  keys to move the channel to the required location.

6. Press the green key again.

F YOU WANT TO RENAME A

CHANNEL:

1. Press the MENU key.

2. Select User data - Channels

- Edit channels and press the OK key.

3. Select a channel. and press the blue key.

4. Use the alpha-numerical keys to rename the channel.

5. Use the blue key to change between lower case and upper case characters.

6. Press the OK key to confirm.

F YOU WANT TO RENAME A

FAVORITE LIST:

1. Press the MENU key.

2. Select User data - Channels

- Setup favorites and press the OK key.

3. Use the alpha-numerical keys to rename the channel.

4. Use the i-key to change between lower case and upper case characters.

5. Press the OK key to confirm.

Page 17

Description and Operation

www.echostar-int.com Page 2 - 5

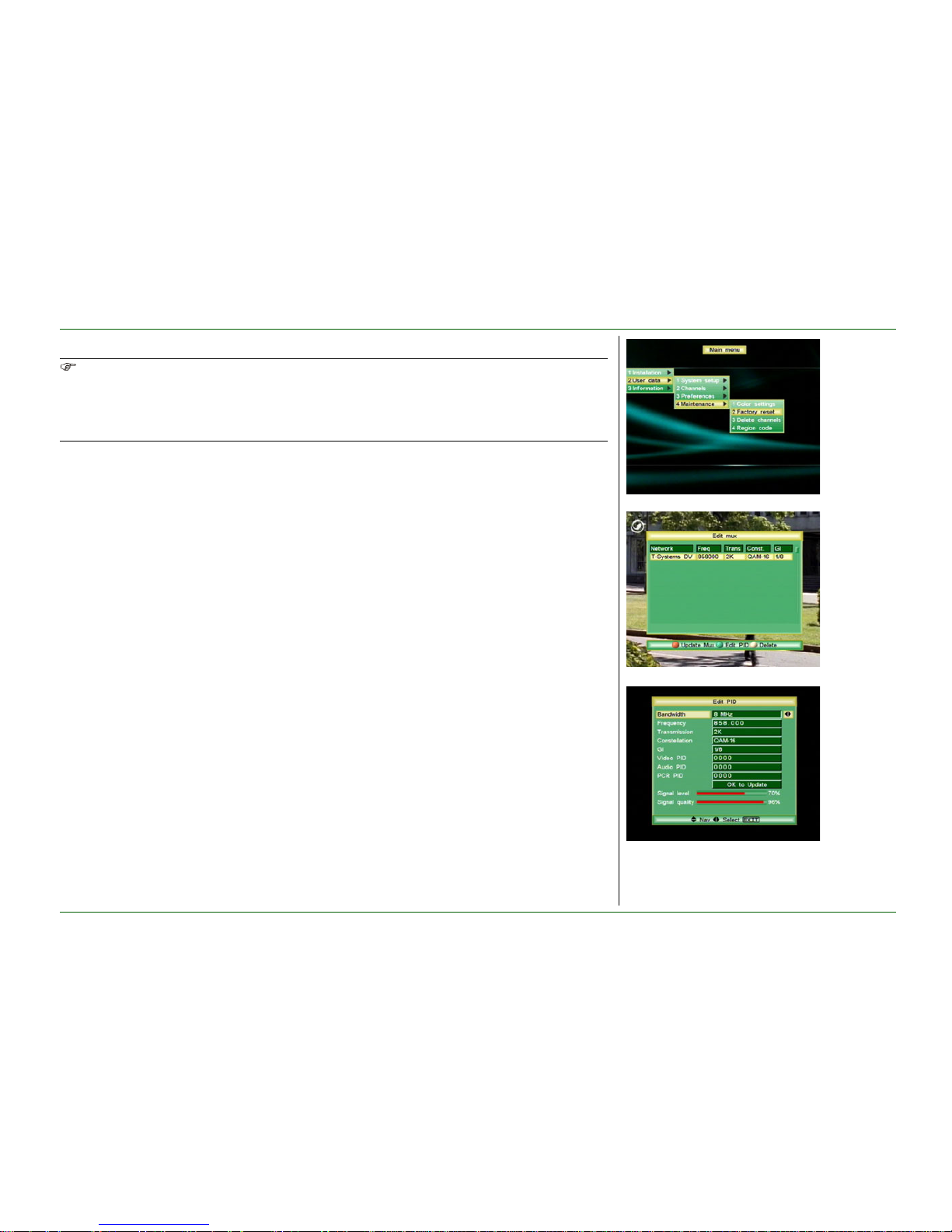

5. INSTALLATION MAINTENANCE

NOTE

There are different procedures for a reset of the receiver.

■ Factory reset - to delete all settings and start with the Guided setup.

■ Delete channels - to delete all channels from the channel and favorite lists.

Only the procedure for a Factory reset followed by the Guided setup is given.

IF YOU WANT TO DO A FACTORY

RESET:

1. Press the MENU key.

2. Select User data Maintenance - Factory reset and press the OK key.

3. Enter your PIN-code.

4. Select Yes.

5. Wait for the Guided setup menu to appear.

6. Press the green key to start the automatic channel search.

7. Select Yes.

8. Wait for the Search channels to complete.

9. Press the OK key to confirm.

10.Now the receiver is ready for use.

F YOU WANT TO DO A DELETE

CHANNELS ONLY:

1. Press the MENU key.

2. Select User data Maintenance - Delete channels and press the OK key.

3. Enter your PIN-code.

4. Select Yes.

5. Wait for the Delete channels to complete.

6. When the User data System setup - Search channels option shows, press the OK key to start.

7. Select Yes.

8. Wait for the Search channels to complete.

9. Press the OK key to confirm.

10.Now the receiver is ready for use.

F YOU WANT TO CHANGE A PID:

1. Press the MENU key.

2. Select User data - System setup - Edit mux and press the OK key.

3. Select a network and press the green key.

4. Make the required selections as indicated by your service provider.

5. Use the signal indicator to make sure that the signal is available.

6. Select Confirm and press the OK key.

7. Press the red key.

8. Press the OK key to o start the automatic channel search.

9. Wait for the Search channels to complete.

10.Press the OK key to confirm.

11.Now the receiver is ready for use.

Factory reset / Delete channels.

Select the Network that you want to edit.

Press green to edit PID.

Page 18

Description and Operation

Page 2 - 6 EchoStar International Corporation

6. THE MAIN MENU STRUCTURE

The main menu has a tree structure where each sub-menu has one or more option pages. Each sub-menu allows you to customize the settings to match your installation. Note that the menu contains dynamic pages which means that options are, or are not available depending on the selections you make.

The key gives access to the main menu, that gives you control over the settings in the Installation menu, the User data menu and the Information menu.

6.1. INSTALLATION

LANGUAGES

■

Menu To set the language you want to use in the

menus. For multi-lingual EPG, if available, the information is shown in the menu language. If a selected language is not transmitted, the information is shown in the native language of that channel.

■ 1st Audio

■ 2nd Audio

To set the language for programs with multilingual audio. For multi-lingual programs, if available, you can choose your own language. The receiver will first look for the 1st selected language, if not available, for the 2nd. If the two selected languages are not transmitted, audio is given in the native language of that channel.

■ 1st Subti tle To set the language for programs with multi-

lingual subtitles. For multi-lingual programs, if available, you can choose your own language. If the selected language is not transmitted, no subtitle is shown.

NOTE

You can override the selection per channel with use of the alternative audio and subtitle key on the RCU.

ANTENNA INSTALLATION

6.2. USER DATA

SYSTEM SETUP

CHANNELS

■

Mux To select the carrier (mux) you want to check for

the signal strength.

■ View To list the channel s that bel ong to the selected

mux.

■ Sear ch channels To do a search for all available channels as

available in the selected mux.

■ Signal level To indicate that you receive a signal (signal

strength).

■ Signal quality To indicate that you have lock onto the selected

mux (signal-to-noise ratio).

■ Sear ch channels To do an automatic all channels search for all

available channels as received by the antenna.

■ Sear ch mux To do a search for all available channels as

available in the selected mux. The green key allows you to choose between selection by mux number or frequency and bandwidth.

■ Edit mux To edit an existing mux after a change as

indicated by a service provider. This option lets you change the PID information and the terrestrial transmission parameters. Easiest option is to do an automatic channel search.

■ Setup favorites To add or delete the highlighted channel from the

selected favorite list. Note that each color represents a favorite list. In this menu it is possible to change the favorite name into something meaningful to you (i-key).

■ Edit channels To Delete, Move or Rename a channel. In this

menu it is possible to set a channel lock (Parental control).

Page 19

Description and Operation

www.echostar-int.com Page 2 - 7

PREFERENCES - LOCAL TIME

* Availability depends on the selection as made in for the Clock mode.

PREFERENCES - TIMERS

PREFERENCES - CHANGE PIN-CODE

■

Clock mode To select internal or GMT-supported clo ck.

■ Time zone* T o select the city closest to you.

■ GMT* Shows the time-offset as a result of the time

zone selection.

■ Time* To set the current time.

■ Date* To set the current Date.

■ Local time The Local time is shown automatically with the

settings made before and offer you a possibility to check for the correct time.

■ Local date The Local date is shown automatically with the

settings made before and offer you a possibility to check for the correct date.

■ Daylight saving* To set the summer time (if applicable to your

region).

NOTE

The time shown in the Local time field offers you a possibility to check for the correct time. EPG and timers will not operate correctly if the Local time not set correctly.

■ Timer To select the timer that you want to program.

■ Channel To select the channel that you want to record

from.

■ Interval To set the timer, once or repeat for every

occurrence.

■ Date To set the start date for the timer.

■ Start To set the start time for the timer.

■ Duration To set the length for the timer.

■ PIN-code

(Current, New, Verify)

To type in the factory default (0000) or your personal PIN-code.

PREFERENCES - UHF MODULATOR

PREFERENCES - TV-SYSTEM

■

Channel [21-69]

To set the TV channel to which the receiver is connected. If the channel number on the TV and receiver are not the same, you will have a distorted or no image at all. For more information, please refer to the user manual of the TV.

■ Video standard1 To set the video format supported by your TV.

Generally select for the European main land; PAL B/G and for the UK; PAL I.

■ Aspect ratio To set the image size for the TV.

If you have a TV with a 4:3 screen size and the transmission is in 16:9 format, you can select either 4:3 or 16:9. 4:3 shows the full screen completely where some of the image sides is cut off, 16:9 will show the full image with black top and bottom banners.

■ Video standard1 To set the video format supported by your TV

(50Hz).

■ Video standard2 To set the video format supported by your TV

(60Hz).

■ InfoBanner

time out

When you change to another channel, the InfoBanner shows momentarily. With this option you can set the view time for the InfoBanner.

■ Menu animation To set the menu transition effect.

■ Installation lock To lock the Installation and User data menu for

unauthorized users. Note that the Installation lock comes on automatically after you have set a channel lock.

■ Receiver lock To lock the receiver completely for unauthorized

users. If you select On, you only can gain access with the PIN-code after you have set the receiver to standby.

■ Logic channel

number

To select the channel order as transmitted by the service provider or select your own order.

Page 20

Description and Operation

Page 2 - 8 EchoStar International Corporation

PREFERENCES - SLEEP TIMER

MAINTENANCE - COLOR SETTINGS

MAINTENANCE - FACTORY RESET

MAINTENANCE - DELETE CHANNELS

MAINTENANCE - REGION CODE

■

Dolby Digital To tell the receiver that it is connected to a

Dolby Digital amplifier or not. When you have selected On, note that analog audio is not given to the TV, so no audio is heard. If you want to listen through the TV audio, select Off.

■ Transparency To set the menu transparency level.

■ Duration To set the length for the timer. Note that the

receiver switches to standby after the sleep timer has run out.

■ Items To select the menu item that you want to give

another color.

■ Red To make the item color more or less red.

■ Green To make the item color more or less green.

■ Blue To make the item color more or less blue.

■ Default To change all personal color settings to the pre-

defined colors.

■ Delete settings The receiver deletes all user defined settings,

channels, timers and (favorite) lists and replace them with the factory defaults.

■ Delete settings To delete all channels from the channel and

favorite lists. Difference with the Factory reset is that all installation settings are kept.

■ Country Select the country where the receiver is installed.

This makes sure that the transmission settings are automatically set for the known services.

INFORMATION - CHECK SIGNAL

INFORMATION - ABOUT ECHOSTAR

■

Mux Shows the current selected mux

■ Frequency Shows the current selected frequency

■ Constellation Shows the current selected

■ Guard interval Shows the current selected

■ Signal level To indicate that you receive a signal (signal

strength).

■ Signal quality To indicate that you have lock onto the selected

mux (signal-to-noise ratio).

■ Company Shows the Company name.

■ Address Shows the visit address of EchoStar.

■ Internet site Shows the EchoStar Internet site.

■ H/W Version Shows the current H/W Version.

■ S/W Version Shows the current S/W Version.

Page 21

Troubleshooting

www.echostar-int.com Page 3 - 1

TROUBLESHOOTING

1. GENERAL

2. REMOTE CONTROL UNIT (RCU) RELATED

Problem Possible cause What to do?

1. Nothing appears on the receiver front panel.

■ Main power supply is

damaged or not connected.

■ Check the main

power supply and insert it in the wall socket.

■ General domestic

power failure

■ Check the domestic

power supply and insert a new fuse.

2. You have forgotten the personal PINcode.

■ - ■ Contact your dealer.

Problem Possible cause What to do?

1. Receiver does not respond to the RCU.

■ Batteries are empty. ■ Insert new batteries.

2. Receiver does sometimes not respond to the RCU.

■ Direct sun ligh t fro m

behind the receiver.

■ Close the sun blinds

or get closer to the receiver.

■ You do not aim

sufficiently at the receiver.

■ Aim at the receiver

display.

■ install a RCU

extender.

■ Batteries are almost

empty.

■ Insert new batteries.

3. LIST RELATED

4. EPG RELATED

Problem Possible cause What to do?

1. I cannot select a favorite list.

■ You have not created

the favorite list.

■ Press the MENU key.

■ Select User data -

Channels-Setup favorites.

■ Press the OK key.

■ Make the required

selections.

Problem Possible cause What to do?

1. The EPG is empty.

■ The selected

program supports no EPG.

■ There is no solution

for this, the data is supplied by the service provider and beyond our control.

■ The local time is not

correct.

■ In the Local time

menu, set the correct time.

■ The daylight saving

time is not correct.

■ In the Local time

menu, set the correct daylight saving time.

Page 22

Troubleshooting

Page 3 - 2 EchoStar International Corporation

5. TV AND RADIO RELATED

Problem Possible cause What to do?

1. No picture or sound in the TV or radio mode.

■ Receiver is in

standby.

■ Switch the receiver

on.

■ Cable related

problems.

■ Check the cable

connections.

■ Antenna related

problems.

■ Make sure the

antenna is correctly aimed.

2. Bad picture or noisy sound in the TV or radio mode.

■ Bad reception of the

signal.

■ Make sure the

antenna is clean, in good condition and correctly aimed.

■ Contact your service

provider if your area has sufficient signal.

■ Poor or bad weather

conditions.

■ There is no solution

for this.

■ You might consider

to get a better antenna installation.

■ Signal interference

with UHF-installation.

■ Check the UHF

settings. Make sure you use the correct channel. Please refer to the TV/Radio user guide.

3. My television does not give any audio.

■ The MUTE option is

active.

■ On the RCU, press

the mute key once.

■ The volume is set to

minimum.

■ On the RCU, press

the VOL key.

4. There is no Dolby Digital (AC-3) sound to my other equipment.

■ The equipment is

connected to the receiver with a RCA or SCART cable only.

■ Connect the

S/PDIF connector of the receiver to the Dolby Digital input of the Dolby Digital amplifier.

■ The Dolby Digital

option is not set to On.

■ In the menu, set the

Dolby Digital option to On.

5. There is no audio while I watch a Dolby Digital program.

■ The Dolby Digital

amplifier is set to Off.

■ Set the Dolby Dig ital

amplifier to On.

■ The receiver is not

connected to a Dolby Digital amplifier.

■ In the menu, set the

Dolby Digital option to Off.

6. The TV shows a No Signal message.

■ Bad reception of the

signal.

■ Make sure the

channel selected transmits.

■ Make sure the

antenna is clean, in good condition and correctly aimed.

7. Nothing helps.

■ - ■ Do a factory reset.

Problem Possible cause What to do?

Page 23

Troubleshooting

www.echostar-int.com Page 3 - 3

6. TIMER RELATED

CAUTION The timer does not start or program your video cassette recorder (VCR). Y ou also have to set the timer of your VCR to the same time as on the timer. Pl ease refer to the user gui de of your VCR how to make a recording from an external receiver.

Problem Possible cause What to do?

1. I cannot set a timer because I have no EPG.

■ The selected

program supports no EPG.

■ Press the MENU key.

■ Select User data -

Preferences Timers.

■ Program the timer

manually.

■ The time settings are

not correct.

■ Review the solutions

in to solve an EPG problem.

2. I cannot find the programmed timers.

■ - ■ Press the MENU key.

■ Select User data -

Preferences Timers.

■ Select the required

timer.

3. My VCR did not record the program.

■ You did not set the

VCR itself.

■ Set your VCR itself

also.

■ The timer does not

start your VCR, it only switches on the receiver so that you can record the program.

7. INSTALLATION RELATED

Problem Possible cause What to do?

1. My television does not receive any signal from the receiver.

■ You did not use a

correct SCART cable.

■ Use only a full

featured SCART cable that is correctly shielded.

2. My television does not receive any signal from the receiver (UHF only)

■ You did not select the

correct Audio/Video channel on your TV.

■ Refer to the user

guide of the TV for instructions.

■ On the receiver, In

the TV system menu select the correct UHF channel and PAL setting.

■ Use another method

to connect the receiver.

3. My television shows black areas on the left and right of the screen.

■ You did not select the

correct aspect ratio for your TV.

■ Press the MENU key.

■ Select User data -

Preferences - TV system.

■ Select the correct

aspect ratio.

4. During (initial) setup of the receiver, no channels are found.

■ No signal is received. ■ Make sure the

antenna is clean, in good condition and correctly aimed.

■ Contact your service

provider if your area has sufficient signal.

Page 24

Troubleshooting

Page 3 - 4 EchoStar International Corporation

Page 25

Glossary

www.echostar-int.com Page 4 - 1

GLOSSARY

1. ABBREVIATIONS

Alternating Current (ac voltage)

COFDM

Coded Orthogonal Frequency Division Multiplex

Direct Current (dc voltage)

DTT

Digital Terrestrial Television

DVB-T

Digital Video Broadcasting - Terrestrial

FEC

Forward Error Correction

FFT

Fast Fourier Transform

Freq

Frequency

FTA

Free-To-Air

Guard Interval

LCN

Local Channel Number

MUX

Multiplex

PID

Packet Identification

QAM

Quadrature Amplitude Modulation

UHF

Ultra High Frequency

VHF

Very High Frequency

2. TERMINOLOGY

Active antenna An active antenna has a built-in pre-amplifier which means that the

received signal gets amplified before it is fed to the receiver. The advantage of this antenna type is that (longer) antenna cables become less vulnerable for interference. This results in better quality audio and video.

COFDM In the DTT area, COFDM is a form of signal transmission as specified by

DVB-T. The result of the COFDM digital transmission is to provide a received picture that is always free of ghosts and noise (snow).

Constellation A Constellation is a modulation scheme to improve the transmission.

Known digital frequency modulation schemes are: QPSK means Quadrature Phase Shift Keying; QAM16 means 16-state Quadrature Amplitude Modulation; QAM64 means 64-state Quadrature Amplitude Modulation.

CVBS Composite video is a combination of the three basic elements of a video

picture (color, brightness, and synchronization) into a single cable with two wires in it as used in SCART and RCA (Video) connections.

Digital Terrestrial TV Digital Terrestri al Television or DTT is basically a digital TV signal

received through a conventional (indoor or outdoor) TV antenna. Digital broadcasts give you DVD-quality video and CD-quality audio.

FEC A recover-signal mechanism which is part of the transmission that gives

the receiver software the opportunity to correct for missing or corrupted data in the received digital signal.

FFT A modulation mechanism which is part of the transmission used to make

the transmitted signal less vulnerable for interference.

Frequency band A frequency band is a range of frequencies which are dedicated to a

certain usage. In the terrestrial broadcast area, commonly known bands are the VHF-band and the UHF-band.

FTA An unscrambled broadcast which you can view without additional

equipment and payments to a service provider.

Guard interval A timing mechanism which is part of the transmission to prevent

distorted signals due to transmission errors and signal echoes.

Local Channel Number

Some service providers transmit a preferred channel order to make sure that during a channel search, all channels are re-arranged in a ‘logical’ order. If this selection is active, you are not able to move the channels according to your personal preferences.

Page 26

Glossary

Page 4 - 2 EchoStar International Corporation

MUX (Multiplex) In analog television broadcasting a transmission channel (e.g. UHF

channel 42) has only one TV channel (program) or service. In digital terrestrial television broadcasting, a transmission channel (e.g. UHF channel 42) is divided into different sections that can have more than one TV channel (program) or service. Such a transmission channel used for digital terrestrial broadcasts is called a MUX.

NTSC USA video standard with image format 4:3, 525 lines, 60Hz and 4MHz

bandwidth with a total of 6MHz video channel width.

PAL European video standard with image format 4:3, 625 lines, 50Hz and

4MHz bandwidth with a total of 8MHz video channel width.

PID

(Video, Audio, PCR)

A digital signal is divided into so called packages (as suit cases on a transport belt). Each packet holds certain information for Video, Audio, timing and completeness of the packet stream so that the receiver can compose a distortion free signal for your TV or radio.

QAM Quadrature Amplitude Modulation is a technique where the signal is

polarized and modulated in order to get more TV or Radio channels into a physical VHF or UHF channel.

RGB RGB is used to transfer a TV signal in DVD quality. The quality is

superior to SVHS and CVBS.

RS-232 connection A RS-232 connection allows you to connect equipment to the receiver

which supports the RS-232 protocol.

SCART cable A SCART cable is also known as ‘Peritel’ cable and is commonly used in

Europe to connect the audio and video equipment. A fully furnished SCART cable has 21 wires which is at both sides finished with a 21-pin connector.

SVHS SVHS means Super-VHS and is superior to a CVBS signal but less then

a RGB signal. Normally it is a single cable consisting of four wires because the black/white (luminance) is separated from the color (chrominance).

Transmission mode The COFDM technology spreads the data between many carrier waves.

The 2k mode has 1705 carriers for higher interference environments and the 8k mode has 6817 carriers for lower interference environments.

UHF-band Parts of this band (471MHz-860MHz) are dedicated for TV and Radio

broadcasting.

VHF-band Parts of this band (171-470MHz) are dedicated for TV and Radio

broadcasting.

Page 27

Active antenna Appendix 1

www.echostar-int.com Page A1 - 1

ACTIVE ANTENNA

GUIDED SETUP

The receiver can support an active antenna. If you use an active antenna, consult the

documentation that came with that antenna. at least make sure the antenna is aimed in the correct direction.

1. When the Guided setup screen shows, press the blue key to access the Main menu.

2. Select Installation - Antenna installation Antenna power.

3. Select On and press the OK key to confirm.

4. Press the MENU key as many times until the Guided setup screen shows.

5. When the Guided setup screen shows, press the green key to start the automatic channel search.

6. Press the OK key and wait for the Search channels to complete

7. Press the OK key to confirm.

8. Now the receiver is ready for use.

If there are no channels found, Make sure the antenna is aimed in the correct direction.

1. When the Guided setup screen shows, press the red key to access the signal indicator.

2. Press the i-key for detailed help.

3. Turn the antenna and use the signal indicator to find the best signal.

4. In the Guided setup menu, press the green key to start the automatic channel search.

QUICK REFERENCE GUIDE

Press the blue key.

Select Antenna power - On.

Wait for the Search channels to complete.

Page 28

Appendix 1 Technical Specifications

Page A1 - 2 EchoStar International Corporation

TECHNICAL SPECIFICATIONS

FEATURE HIGHLIGHTS*

■ EchoStar Multilingual User Interface

■ Free-To-Air

■ 14 Day EPG (Electronic Program Guide)

■ Picture Freeze

■ 7 Timers (VCR and Sleep Timer)

■ 1.000 Digital Channels

■ Teletext (Embe dded Decoder and VBI Re-insertion)

■ Multiple Favorite Channel Lists (4 for TV, 4 for Radio)

■ Multiple Search Modes (Automatic and Manual)

■ S/PDIF Home Cinema Support (Dolby Digital Compatible)

■ Software Update via Internet (RS-232)

■ Subtitle (Teletext supported)

■ LED Status Indication

■ Aspect Ratio: 4:3, 16:9 (Letter box, Pan&Scan, Widescreen)

■ Volume Control

■ Audio Mute

■ Size: 280x210x45 mm (WxDxH)

■ Low Power Consumption (9.2W, 6.8W in Standby)

■ Parental Control (Channel, Installation and Receiver Lock)

■ MPEG2/DVB Compliant

AMBIENT CONDITIONS

■

Storage temperature between -40 and +50 degrees Celsius (no condensation allowed)

■ Operation temperature

between +5 and +45 degrees Celsius (no condensation allowed)

* For the detailed specifications, please refer to the specifi cations as shown on the packaging.

TUNER/DEMODULATOR

UHF-MODULATOR*

ONNECTIONS*

Specifications and cosmetic appearances are subject to change without prior notice

Receiving Frequency VHF (177.5-466 MHz)

UHF (474-858MHz) Input Signal Level between -75dBm and -25dBm Input Impedance 75Ohm IF Bandwidth 7 and 8MHz Transmission Mode COFDM, 2K, 8K Constellation 16QAM, 64QAM, QPSK

UHF channel CH21-69 Video system PAL B/G, I, D/K Output Impedance 75Ohm TV OUT Analog (Loop through), Digital

SCART Connector TV, VCR RCA Connector AUDIO L/R, VIDEO, S/PDIF IEC Connector ANT IN, TV OUT (Loop through) DIN Connector SVHS RS-232 Connector RS-232 (Baud Rate 115,200) RGB Video out TV (SCART) Composite Video Out

TV, VCR (SCART), SVHS (DIN), VIDEO (RCA) Dolby Digital out Coaxial S/PDIF (RCA) Mains Input 12/24Vdc (230Vac Mains Adapter)

EchoStar T-232 FTA User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
