Page 1

USER MANUAL

EchoNAV User Interface

for Digital Satellite Receivers

HDD

Printedonrecycledpaper

Page 2

Issue: echonav_hdd_b_1a_us

We encourage you to express your thoughts on this user manual.

Please send your comments to:

EchoStar International Corporation

Technical Publications Department

Schuilenburglaan 5a

7604 BJ Almelo

The Netherlands

Page 3

PREFACE

1. INTRODUCTION

This manual is part of the documentation set that is delivered with your EchoStar Digital Satellite Receiver (motorized models). This manual gives an explanation and an instruction on the use of the EchoNAV user interface.

This manual describes all features of the EchoNAV user interface family for the:

DVR-7000 HDD, DVR-5000 HDD.

EchoNAV is a family of user interfaces which are dedicated for a specific range of digital satellite receivers. The EchoNAV user interface consists of:

■ EchoNAV HDD, for the receivers that have a hard disk drive;

■ EchoNAV Motorized, for the receivers that have an internal positioner;

■ EchoNAV Fixed, for the receivers that have only fixed dish and DiSEqC 1.2 capabilities.

Every digital satellite receiver is equipped with different options. Some options are related to the EchoNAV user interface, others are related to physical options as Common Interface slots, embedded (Viaccess) smart card reader, display or not, etc.

All sections are applicable to your receiver unless otherwise indicated by the respective option.

2. WHAT IS ECHONAV?

Preface

2.1. THREE WAYS WE MADE SATELLITE TV EASIER FOR YOU

Since EchoStar started making satellite TV receivers about twenty years ago we've been getting suggestions about how we can make things better.

In the early 1980s the good channels on satellite were spread across many satellites and going from one channel to the next was too complicated for many people. We thought we could make it a lot simpler by building the antenna positioner control unit into we invented the first satellite receiver with an integrated antenna positioner.

Then a few years later when scrambling started on some channels you had to hook up an additional decoder box. We figured we could make it easier to use (and cheaper) by putting the decoder into the receiver. So we came up with the first Integrated Receiver Decoder. (These days most receivers sold throughout the world have some kind of decoder built in.)

In the early 1990s the number of channels started to grow rapidly from just over a dozen worthwhile channels to several dozen to well over a hundred. In 1993 EchoStar introduced its flagship model LT-8700 set the standard in the industry with its powerful easy to use features. One of these features was to create customized lists of channels which allowed you to categorize channels according to their type. So for example you could put all news channels together in one list, and all film channels in another, and all sports channels in a third. Considering that there were over 150 channels in total this made it easy to locate the channels you wanted to watch.

2.2. 12 ½ HOURS OF NON-STOP ZAPPING?

Fast forward to 2002. A basic satellite TV installation today receives over 1,000 TV channels. More ambitious installations offer up close to 3,000 TV channels and at least 1,000 radio channels. Amazing. Many consumers these days enjoy dozens of movie channels, perhaps six or eight worthwhile sports channels, a handful of good music TV channels, and of course more news than any news junkie can cope with.

That we have progressed from a few dozen channels to a few thousand in just over a decade is a phenomenal development. But how are people dealing with so many channels? Do you watch TV in a different way today than ten years ago?

The answer, as we heard loud and clear from all your letters, e-mails and phone calls, is that the two most frequently pressed keys on every remote control are still channel-up and

EchoNAV User Interface Page I

Page 4

Preface

channel-down. There may be two dozen different keys on the remote but after pressing the power-on key most of the time it is just zapping through the channel list.

And zapping, and zapping and ..... zapping. If you spend just 15 seconds on each channel

and zap non-stop it will take you 12 ½ hours to go through 3,000 TV channels. Besides the wear and tear on your up / down keys, not to mention your thumb, this is nobody's idea of fun especially since most of these channels are completely uninteresting to you. In fact there may be no more than 200 or 300 channels worth watching (only about one hour of continuous

zapping .....).

There was one other change and that was that with so many channels you wanted the possibility to zap through a single type of channel. For example if there is some breaking news story you might want to zap from one news channel to the next to the next without seeing cartoon channels, or music TV channels. Similarly when you want to relax for the evening you want to go though your movie channels without bumping into a football match or the latest reports from Wall Street.

2.3. ZAPPING ONLY WHAT YOU WANT TO ZAP: ECHONAV

To deal with all these channels and the changing way that people watch TV, the software engineers at EchoStar have resurrected the tried and true channel list approach of the venerable LT-8700 and enhanced it to deal with the demanding requirements of today's world. We call this new system EchoNAV and this is included in all of our new line of receivers.

EchoNAV gives you eight lists for your TV channels and eight lists for your radio channels. So now for example you can put all your sports channels into a single list. When you want to watch sports just select your that list and zap till you find the match you want.

If you want to keep the kids entertained then pick the children's programming list, give them the remote control, and fear not that they may wander where they ought not to.

Looking for an update on some news item? Zap your news channels list till you come across it. You won't be wasting your time flicking past all the general entertainment channels in your quest to find your information.

But we also realized that in some households it makes more sense to divide up the channels per person - ‘John's List’ or ‘Mom's List’ for example. So in EchoNAV we give you complete flexibility in renaming each of the eight lists (you use an on-screen keyboard to create the name you want), and with a capacity of 250 channels in each list, there's more than enough room to hold all your favorites. In most households you can give one list to each person and still have a few leftover (make a neighbor happy?)

Having lots of lists is particularly nice in radio mode. Put your pop music channels into one list and your classical radio into another. Then zap. It is striking how much nicer it is when you don't constantly tune to a type of music that you don't really want to listen too.

2.4. HUNDREDS OF HOURS OF VIDEO RECORDINGS

The power and user-friendliness of EchoNAV is hardly limited to organizing and zapping lists of TV and radio channels. For those satellite receivers with a build-in hard disk drive such as the DVR-7000, it is possible to record many hours of TV programs. It is much simpler to record on a DVR than it used to be on a normal VCR. Just press the record button and you instantly record the channel you are watching. The simplicity of setting a timer to record something in the future is even more striking: in the Electronic Program Guide screen just highlight the program you want to record (up to 4 weeks in advance!), choose the timer function, and the start time, stop time and program name will all be automatically set.

Initial feedback shows that people are recording far more frequently than they ever used to with a VCR. Now consider that the capacity of hard-disk drives is growing rapidly. It is expected that within a few years total recording capacity could reach over two hundred hours. That's a lot of content - several shelves of video-cassettes in today's terms.

Page II EchoStar International Corporation

Page 5

So now comes the question of how to file all these recordings in such a way that you can find what you want to watch without having to employ a librarian! Again the answer is the EchoNAV lists. Again eight lists are dedicated to hold your recordings, and what's more, when setting a timer you can even specify the list in which you want the recording to be stored. So for example you can make sure the film recordings are stored in the Film recordings list, or that football matches are stored in the sports recordings list. Children's recordings can also be grouped together so that they can browse freely without worries - somewhat like letting them loose in the children's section of the bookstore.

2.5. EIGHT PLAYLISTS FOR YOUR DIGITAL MUSIC JUKEBOX

Throwing a party but you don't want to be bothered with changing the CDs after every song? EchoStar's DVR-7000 has a digital audio jukebox which can store up to 500 songs. Five hundred songs is somewhat more than 15 hours of music and while that is plenty to cover most parties the real beauty is again in the lists.

In this case EchoNAV gives you eight playlists that you can fill up with the songs you want to listen to. Pick them from your master list by album, or group or type of music and drop them into the play list in whatever order you want. Create playlists for dance parties, romantic dinners, or just about any occasion when you want to hear top quality music without constantly having to change the CD.

2.6. POWERFUL AND USER-FRIENDLY: ECHONAV

Preface

EchoNAV is the most powerful and easy to use satellite receiver software available today. Whether you want to zap through sports channels to find a good football match, or zap through your film channels to find a good comedy, you will find that EchoNAV makes your TV watching experience more enjoyable.

If you have one of the EchoStar satellite receivers with digital recording capabilities and digital audio jukeboxes, then you will find that EchoNAV makes it easy to find the files you want and enjoy them in the way that you want.

For the more advanced user, the EchoNAV user interface is packed with lots of clever and innovative features.

EchoNAV User Interface Page III

Page 6

Preface

TABLE OF CONTENTS

Preface

1 INTRODUCTION I 2 WHAT IS ECHONAV? I

Installation

1 THE INITIAL GUIDED SETUP MENU 3-1 2 TO SETUP YOUR RECEIVER FOR THE FIRST TIME 3-3

Familiarization

1 THE USER PREFERENCES MENU 4-1 2 THE INSTALLATION SETUP MENU 4-3 3 THE ECHONAV MODE AND SELECTION MENUS 4-10 4 THE ELECTRONIC PROGRAM GUIDE (EPG) 4-13 5 THE INFOBANNER AND POP-UP MENUS 4-14

Operation

1 TO NAVIGATE THROUGH THE MENUS 5-1 2 USE THE FAVORITE LISTS 5-7 3 TO USE THE ELECTRONIC PROGRAM GUIDE (EPG) 5-9 4TOUSETHEDVR 5-13 5 TO USE THE MP3 PLAYER 5-16 6 TO SET THE USER PREFERENCES 5-18

Maintenance

1 SOFTWARE MAINTENANCE - INSTALLATION 6-1 2 SOFTWARE MAINTENANCE - CONDITIONAL ACCESS 6-3 3 SATELLITE LIST MAINTENANCE 6-3 4 TRANSPONDER LIST MAINTENANCE 6-5 5 PID DATA MAINTENANCE 6-5

Troubleshooting

1 TO SOLVE A GENERAL PROBLEM 7-1 2 TO SOLVE AN EPG RELATED PROBLEM 7-1 3 TO SOLVE A TV OR RADIO RELATED PROBLEM 7-1 4 TO SOLVE A RCU RELATED PROBLEM 7-2 5 TO SOLVE AN INSTALLATION RELATED PROBLEM 7-3 6 TO SOLVE A DVR RELATED PROBLEM 7-4 7 TO SOLVE A MP3 PLAYER RELATED PROBLEM 7-4

Glossary

1 LIST OF USED ABBREVIATIONS 8-1 2 EXPLANATION OF USED TERMINOLOGY 8-2 3 EXPLANATION OF THE SEARCH MODES 8-5

Index

Page IV EchoStar International Corporation

Page 7

INSTALLATION

1. THE INITIAL GUIDED SETUP MENU

FOR FIXED AND DISEQC1..4SWITCH INSTALLATIONS

Languages ■ To set the language you want to use in the menus.

■ To set the language for programs with bi-lingual audio.

■ To set the language for bi-lingual subtitled programs.

TV System

User Profile

Local Time

System Setup

Check Signal

Search Channels

■ To set the (UHF) TV channel to which the receiver is

connected.

■ To set the video format supported by your TV.

■ To set the screen size of the TV.

■ To set the view time for the InfoBanner.

■ To tell the receiver that it is connected to a Dolby Digital

amplifier or not.

■ To set the time zone where you are.

■ To set the actual date.

■ To set the actual time.

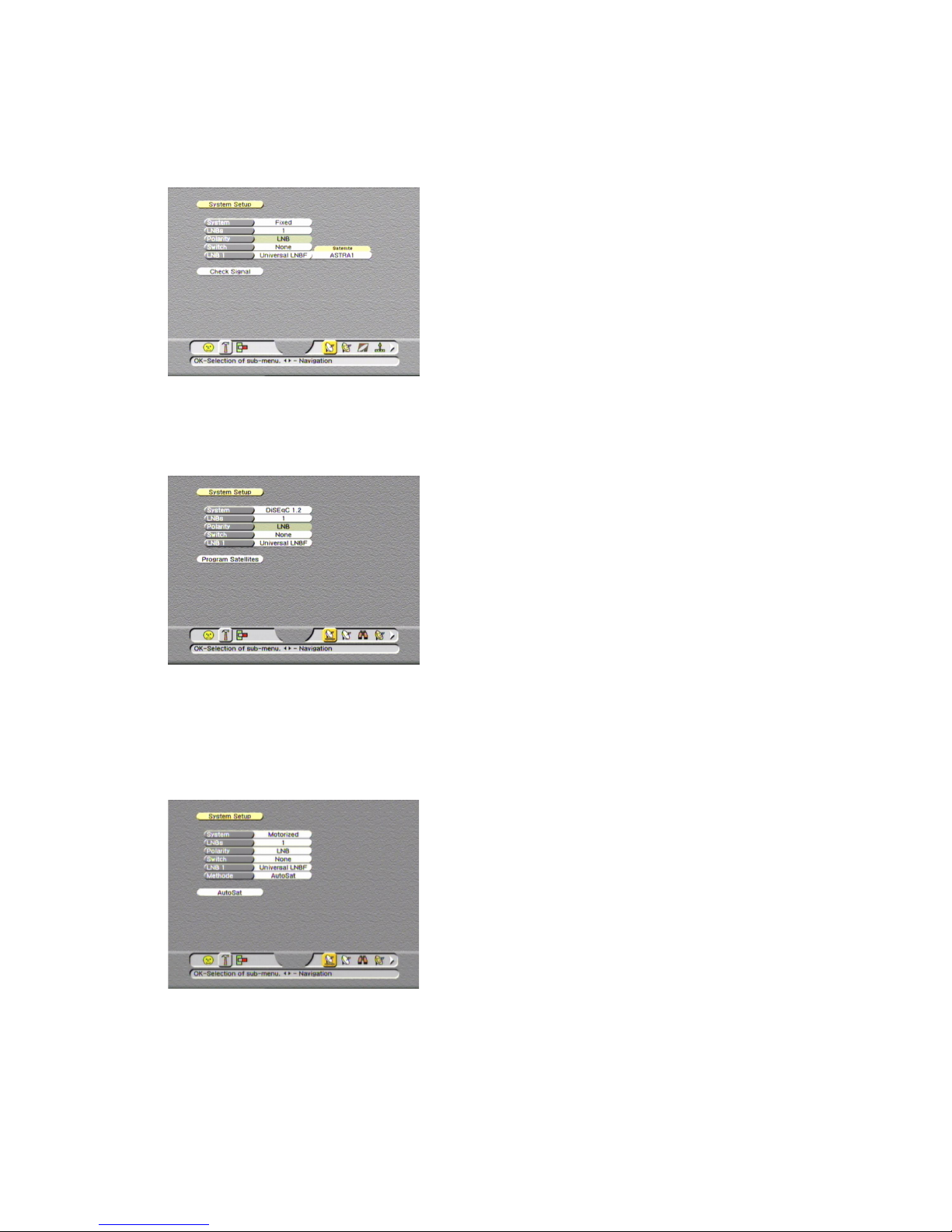

■ To set the dish type you use.

■ To set the amount of LNBs you have installed.

■ To set the switch type which you use to control the dish

installation (if used).

■ To set the LNB type(s) you use.

■ Wait for the Checking Configuration to complete.

■ Wait for the search to complete.

Installation

Section 3

FOR MOVEABLE DISH INSTALLATIONS (DISEQC1.2)

Languages

TV System

User Profile

Local Time

System Setup

Program Satellites

Search Channels

■ To set the language you want to use in the menus.

■ To set the language for programs with bi-lingual audio.

■ To set the language for bi-lingual subtitled programs.

■ To set the (UHF) TV channel to which the receiver is

connected.

■ To set the video format supported by your TV.

■ To set the screen size of the TV.

■ To set the view time for the InfoBanner.

■ To tell the receiver that it is connected to a Dolby Digital

amplifier or not.

■ To set the time zone where you are.

■ To set the actual date.

■ To set the actual time.

■ To set the dish type you use.

■ To set the amount of LNBs you have installed.

■ To set the switch type which you use to control the dish

installation (if used).

■ To set the LNB type(s) you use.

■ To set the satellite you want to scan for the LNB.

■ To select a transponder of the selected satellite.

■ To move the dish for best signal level and quality.

■ Wait for the search to complete.

EcoNAV User Interface Page 3 - 1

Page 8

Section 3

FOR MOTORIZED INSTALLATIONS -AUTOSAT

Languages ■ To set the language you want to use in the menus.

TV System

User Profile

Local Time

System Setup

Autosat (1)

Autosat (2)

Search Channels

Installation

■ To set the language for programs with bi-lingual audio.

■ To set the language for bi-lingual subtitled programs.

■ To set the (UHF) TV channel to which the receiver is

connected.

■ To set the video format supported by your TV.

■ To set the screen size of the TV.

■ To set the view time for the InfoBanner.

■ To tell the receiver that it is connected to a Dolby Digital

amplifier or not.

■ To set the time zone where you are.

■ To set the actual date.

■ To set the actual time.

■ To set the dish type you use.

■ To set the amount of LNBs you have installed.

■ Tosettheswitchtypewhichyouusetocontrolthedish

installation (if used).

■ To set the LNB type(s) you use.

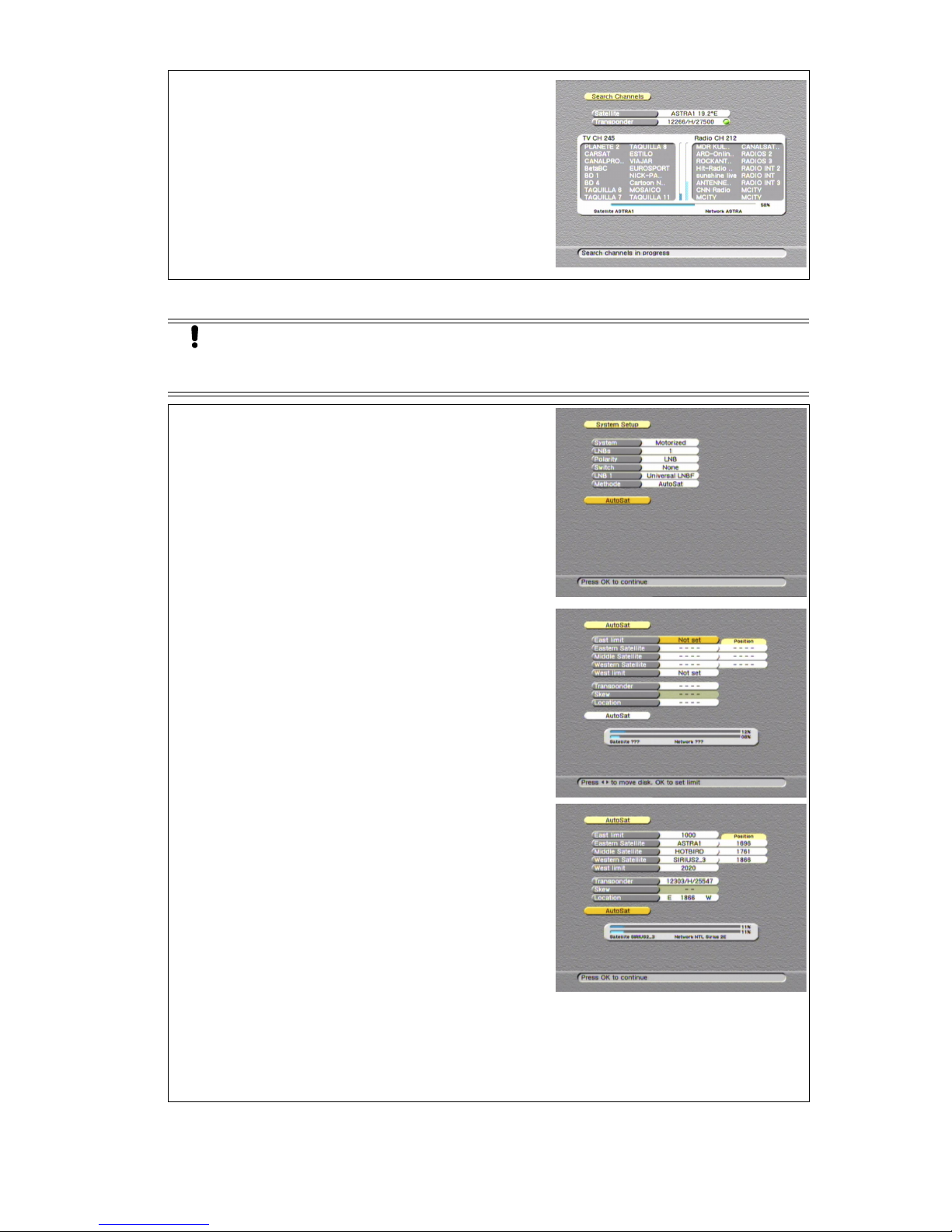

■ To set the scan method (Autosat).

■ To set the East and West limits for the dish.

■ To select the reference satellites

■ To move the dish for best signal level and quality.

■ To set the satellites you want to scan for the LNB.

■ Wait for the search to complete.

FOR MOTORIZED INSTALLATIONS -MANUAL SELECTION

Languages

TV System

User Profile

Local Time

System Setup

Set Limits

■ To set the language you want to use in the menus.

■ To set the language for programs with bi-lingual audio.

■ To set the language for bi-lingual subtitled programs.

■ To set the (UHF) TV channel to which the receiver is

connected.

■ To set the video format supported by your TV.

■ To set the screen size of the TV.

■ To set the view time for the InfoBanner.

■ To tell the receiver that it is connected to a Dolby Digital

amplifier or not.

■ To set the time zone where you are.

■ To set the actual date.

■ To set the actual time.

■ To set the dish type you use.

■ To set the amount of LNBs you have installed.

■ Tosettheswitchtypewhichyouusetocontrolthedish

installation (if used).

■ To set the LNB type(s) you use.

■ To set the scan method (Manual).

■ To set the East and West limits for the dish.

Page 3 - 2 EchoStar International Corporation

Page 9

Installation

Section 3

Program Satellites

Search Channels

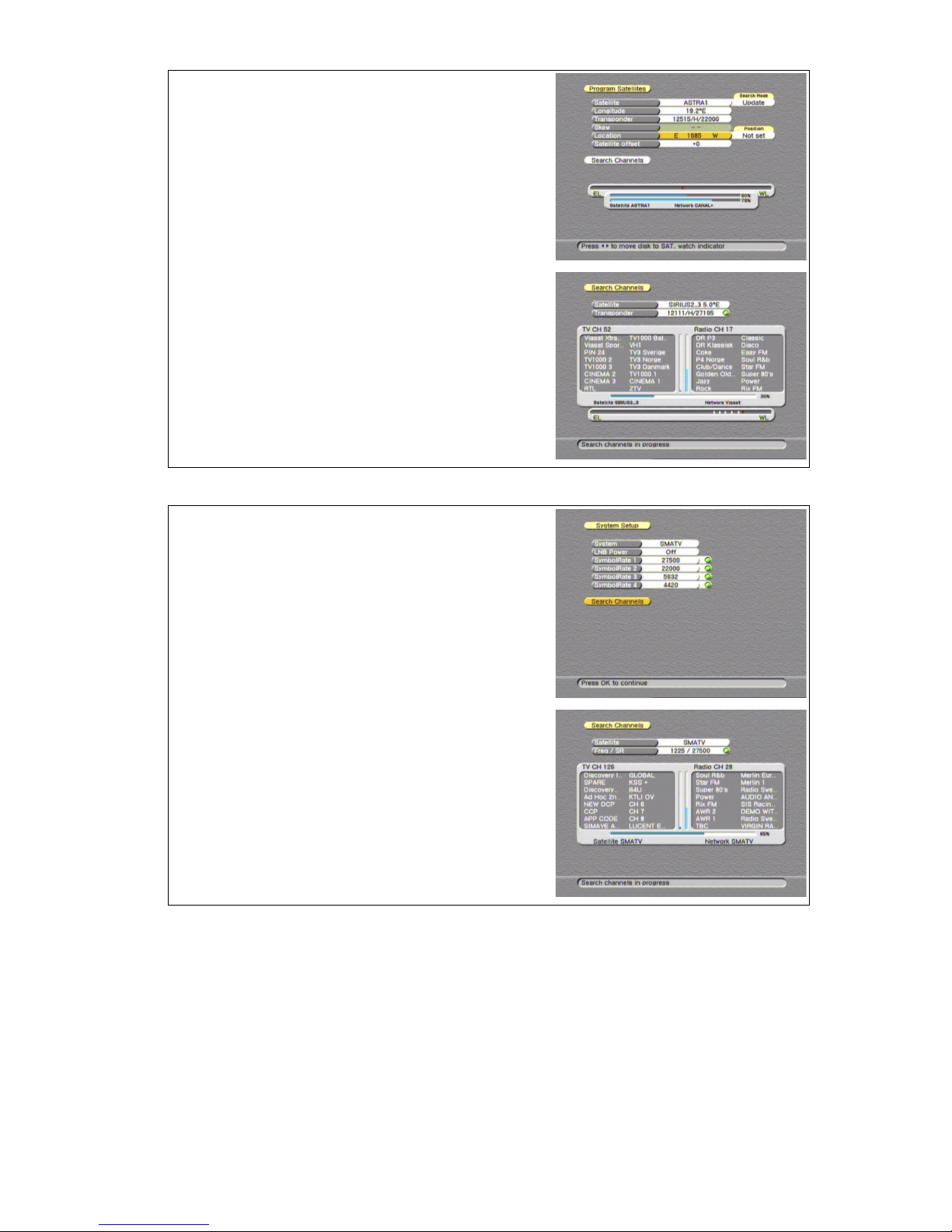

FOR SMATV INSTALLATIONS

Languages

TV System

User Profile

Local Time

System Setup

Search Channels

■ To set the satellites you want to scan for the LNB.

■ To select a transponder of the selected satellite.

■ To move the dish for best signal level and quality.

■ Wait for the search to complete.

■ To set the language you want to use in the menus.

■ To set the language for programs with bi-lingual audio.

■ To set the language for bi-lingual subtitled programs.

■ To set the (UHF) TV channel to which the receiver is

connected.

■ To set the video format supported by your TV.

■ To set the screen size of the TV.

■ To set the view time for the InfoBanner.

■ To tell the receiver that it is connected to a Dolby Digital

amplifier or not.

■ To set the time zone where you are.

■ To set the actual date.

■ To set the actual time.

■ To set the dish type you use (SMATV).

■ To select the distribution type

■ To set the symbol rates you want to scan.

■ Wait for the search to complete.

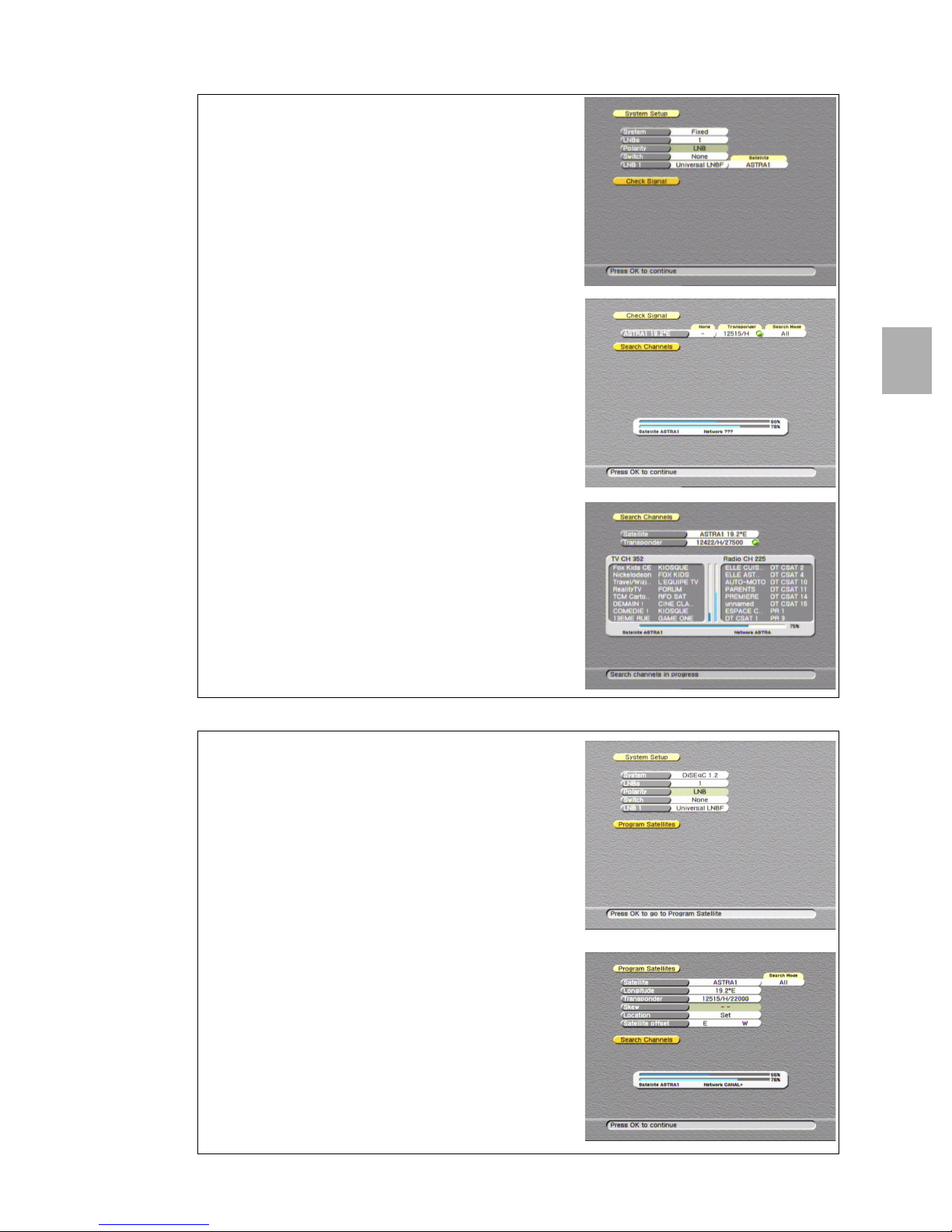

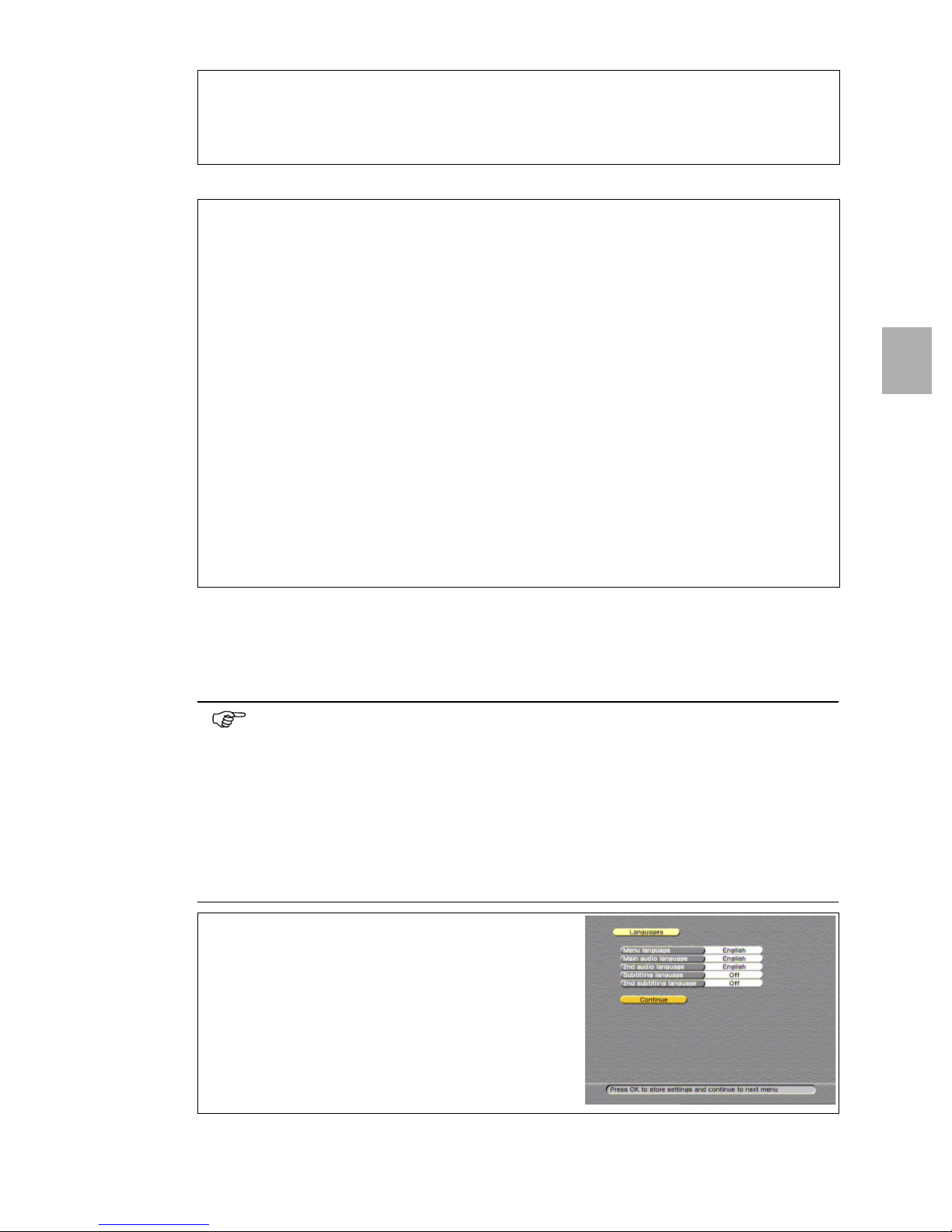

2. TO SETUP YOUR RECEIVER FOR THE FIRST TIME

This procedure will guide you step-by-step through the initial setup of the receiver. After you have finished the initial installation, these pages are accessible through the icons in the menu

bar which is in the initial setup not shown.

NOTE

Unless otherwise specified; This note explains the way you can navigate through the pages of the EchoNAV initial setup menu.

1. Use the OK key to pull down the menu selection fields.

2. Use the  arrow keys to go through the selectable menu items.

3. In a pull-down menu, use the OK key to confirm the selection.

4. Use thearrow keys to navigate between the left and right column of selectable menu items.

5. Use the EXIT key to leave the menu and return to the live mode.

1. Switch on the TV.

2. On the receiver, press the on/standby button.

3. Make the required selections.

4. Read the available help text for information.

5. Go to the Continue field.

6. On the RCU, press the OK key to advance.

EcoNAV User Interface Page 3 - 3

Page 10

Section 3

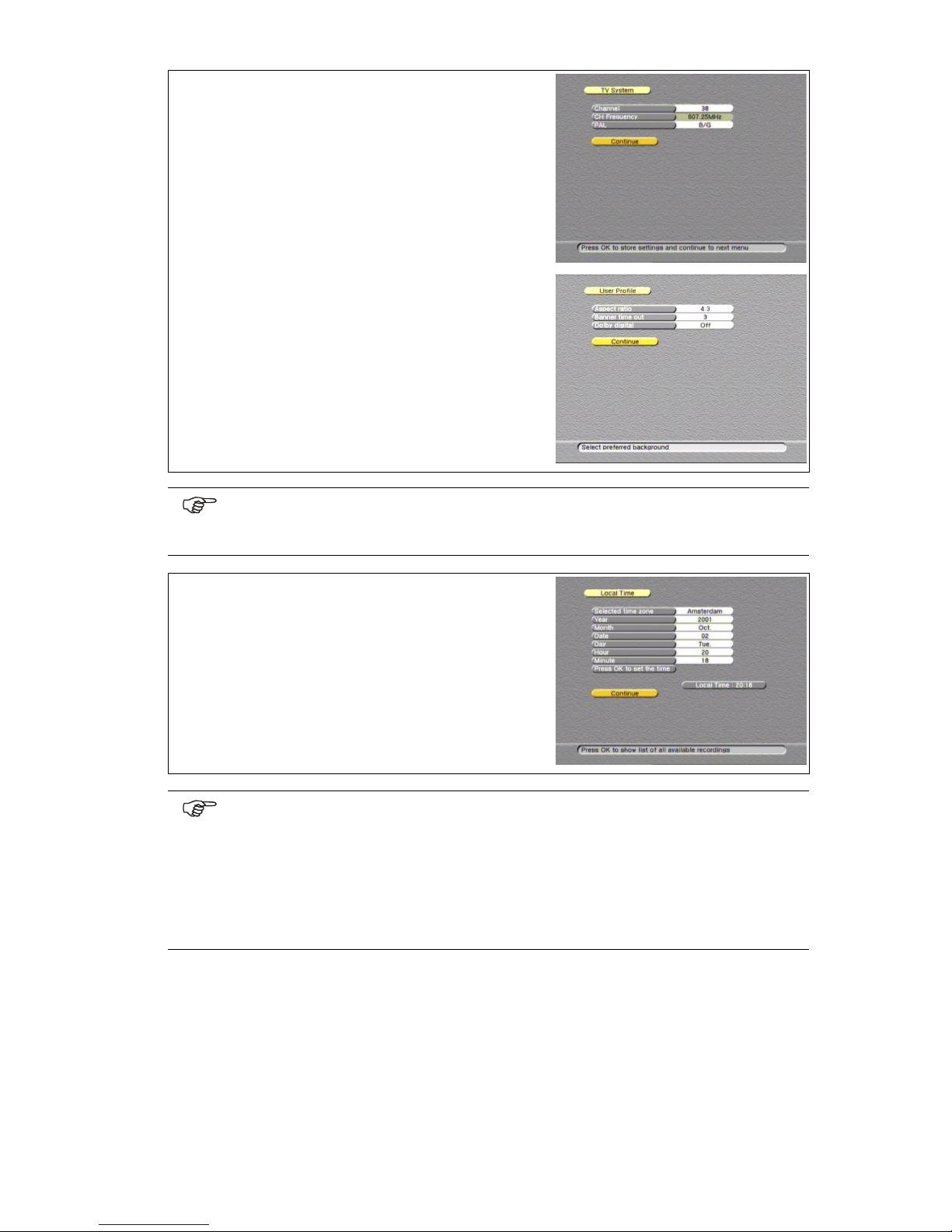

7. Make the required selections.

8. Read the available help text for information.

9. Go to the Continue field.

10. On the RCU, press the OK key to advance.

11. Make the required selections.

12. Read the available help text for information.

13. Go to the Continue field.

14. On the RCU, press the OK key to advance.

Installation

Note that only the white fields are selectable, other fields show reference information.

NOTE

The receiver needs the correct local time to collect and show the EPG (Electronic Program Guide). An incorrectly entered local time will result in no EPG information.

15. Make the required selections.

16. Read the available help text for information.

17. Go to the Press OK to set the time. Note that the local time is shown correctly.

18. On the RCU, press the OK key to set the time.

19. Go to the Continue field.

20. On the RCU, press the OK key to advance.

NOTE

From the next step onwards, the procedure is divided in different configurations. The configurations are; Fixed, DiSEqC1.2, Motorized and SMATV.

■ Fixed means set up a single dish or multiple dishes with DiSEqC1..4 switch;

■ DiSEqC 1.2 means set up a moveable dish according the DiSEqC 1.2 spec;

■ Motorized means set up a moveable dish (motor/actuator by positioner);

■ SMATV means set up for television distribution (cable network in buildings).

Page 3 - 4 EchoStar International Corporation

Page 11

FOR FIXED AND DISEQC1..4SWITCH INSTALLATIONS

21. Make the required selections.

22. Read the available help text for information. Note that only the white fields are selectable, other fields show reference information.

23. Go to the Check Signal field.

24. On the RCU, press the OK key to advance.

25. Wait for the Checking Configuration to complete.

26. Make the required selections.

27. Read the available help text for information.

28. If the red dot in the transponder field stays: a. select another transponder; b. go to the check signal field; c. on the RCU, press the OK key.

29. Go to the Search Channels field.

30. On the RCU, press the OK key to advance.

31. Wait for the search to complete: a. the search completed popup menu appears.

32. On the RCU, press the OK key to end the initial setup procedure.

Installation

Section 3

FOR MOVEABLE DISH INSTALLATIONS (DISEQC1.2)

21. Make the required selections.

22. Read the available help text for information. Note that only the white fields are selectable, other fields show reference information.

23. Go to the Program Satellites field.

24. On the RCU, press the OK key to advance.

25. Wait for the Checking Configuration to complete.

26. Make the required selections.

27. Read the available help text for information.

28. Monitor the signal indicator for best signal when you set the location.

29. On the RCU, press OK to save the setting.

30. Go to the Search Channels field.

31. On the RCU, press the OK key to advance.

EcoNAV User Interface Page 3 - 5

Page 12

Section 3

32. Wait for the search to complete:

33. On the RCU, press the OK key to end the initial

FOR MOTORIZED INSTALLATIONS -AUTOSAT

21. Make the required selections.

22. Read the available help text for information.

23. Go to the Autosat field.

24. On the RCU, press the OK key to advance.

Installation

a. the search completed popup menu appears.

setup procedure.

CAUTION

On the motorized dish, set the physical East and West limit switches first. Failing to do so might cause damage to your motorized dish installation or other properties.

Note that only the white fields are selectable, other fields show reference information.

25. On the RCU: a. press thekey to set the East limit; b. at the motor error, press thekey once; c. press the OK key.

26. On the RCU, press the OK key.

27. Select a Eastern satellite which you can receive.

28. When in the location field:

29. press and hold thekey and watch the signal indicator for an indication; a. in the signal indicator, make sure a network

name is shown;

b. press thekey to select another transponder for

signal verification;

c. use thekey to fine tune for the best signal

level and quality; d. press thekey to select the location bar; e. press the OK key, note that the saved position of

the satellite is shown.

30. Repeat the procedure for the middle and Western Satellite.

31. Set the West limit (key), refer to step 25.

32. Go to the Autosat field.

33. On the RCU, press the OK key to advance.

Page 3 - 6 EchoStar International Corporation

Page 13

34. Make the required selections.

35. Read the available help text for information.

36. Go to the Search Channels field.

37. On the RCU, press the OK key to advance.

38. Wait for the search to complete: a. the receiver display shows a moving dot; b. the search completed popup menu appears.

39. On the RCU, press the OK key to end the initial setup procedure.

Installation

Section 3

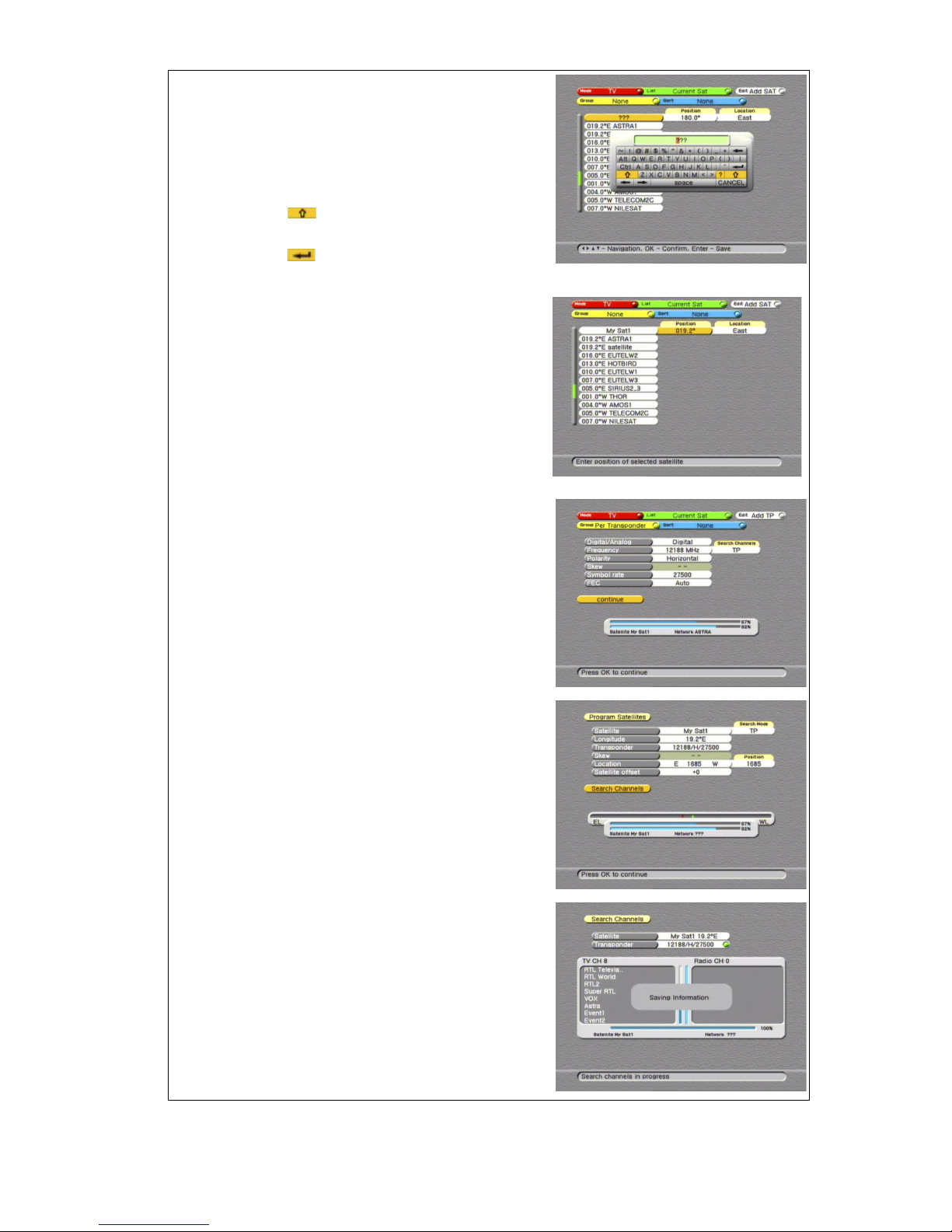

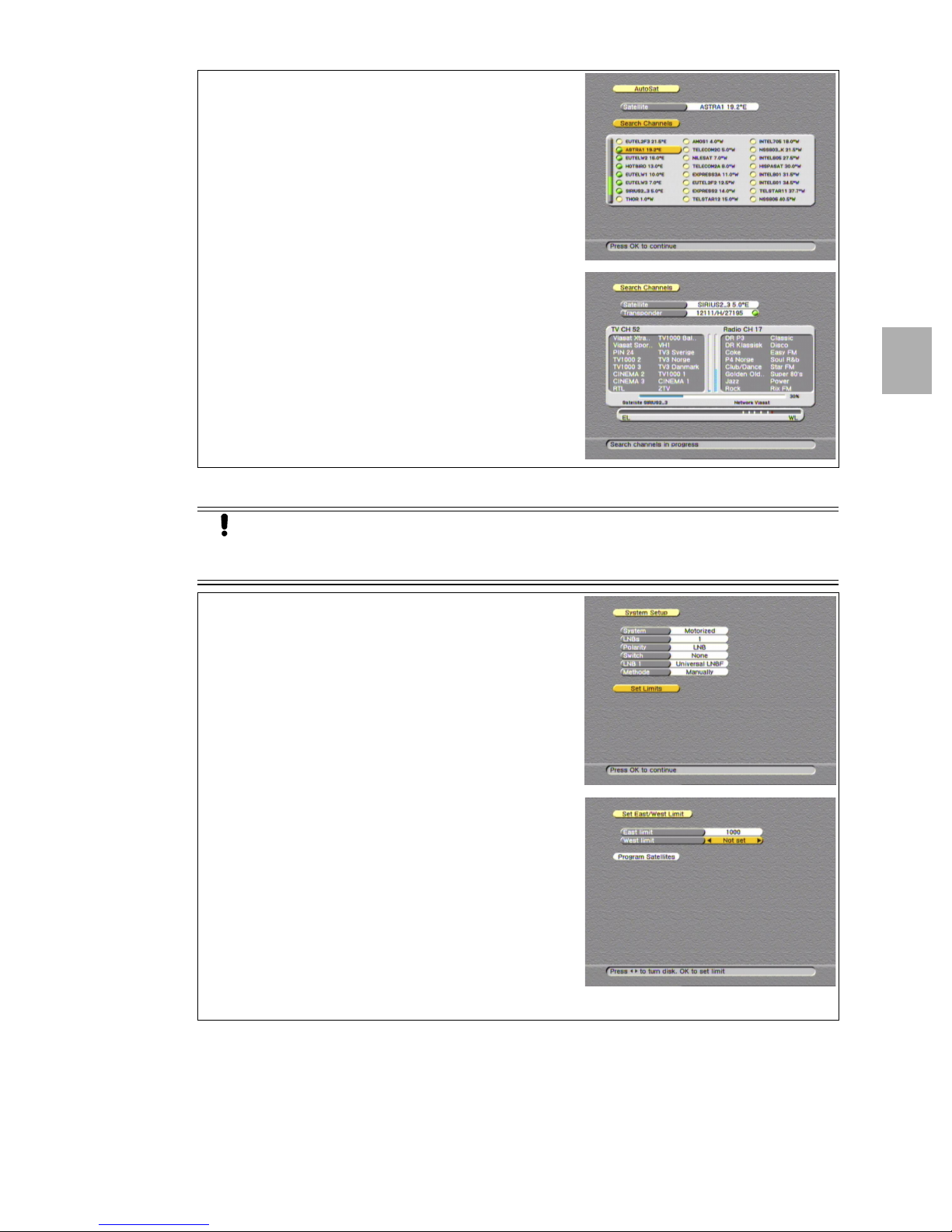

FOR MOTORIZED INSTALLATIONS -MANUAL SELECTION

CAUTION

On the motorized dish, set the physical East and West limit switches first. Failing to do so might cause damage to your motorized dish installation or other properties.

21. Make the required selections.

22. Read the available help text for information. Note that only the white fields are selectable, other fields show reference information.

23.GototheSetLimitsfield.

24. On the RCU, press the OK key to advance.

25. On the RCU: a. press thekey to set the East limit; b. at the motor error, press thekey once; c. press the OK key.

26. On the RCU: a. press thekeytosettheWestlimit; b. at the motor error, press thekey once; c. press the OK key.

27. Go to the Program Satellites field.

28. On the RCU, press the OK key to advance.

EcoNAV User Interface Page 3 - 7

Page 14

Section 3

29. Make the required selections.

30. Read the available help text for information.

31. Go to the Search Channels field.

32. On the RCU, press the OK key to advance.

33. Wait for the search to complete:

34. On the RCU, press the OK key to end the initial

Installation

a. the receiver display shows a moving dot; b. the search completed popup menu appears.

setup procedure.

FOR SMATV INSTALLATIONS

21. Make the required selections. After the initial installation it is possible to add more symbol rates. Refer to section Maintenance for detailed instructions.

22. Read the available help text for information.

23. Go to the Search Channels field.

24. On the RCU, press the OK key to advance.

25. Wait for the search to complete: a. the search completed popup menu appears.

26. On the RCU, press the OK key to end the initial setup procedure.

Page 3 - 8 EchoStar International Corporation

Page 15

FAMILIARIZATION

1. THE USER PREFERENCES MENU

■ The button gives you access to the User Preferences menu;

Familiarization

Section 4

User Profile

Languages

Parental Lock

Change PIN Code

Local Time

TV System

■ To set the screen size of the TV.

■ To set the view time for the InfoBanner.

■ To tell the receiver that it is connected to a Dolby Digital

amplifier or not.

■ To select the standard or a personal background

(EchoNAV HDD only).

■ To set the language you want to use in the menus.

■ To set the language for programs with bi-lingual audio.

■ To set the language for bi-lingual subtitled programs.

■ To lock the receiver completely for unauthorized users.

■ To lock the installation menu for unauthorized users.

■ To lock or unlock all locked selections at once.

■ To hide or unhide all hidden selections at once.

■ To type in the factory default or personal PIN code.

■ To type in your new PIN code (numbers only).

■ To type in your New password again.

■ To set the time zone where you are.

■ To set the actual date.

■ To set the actual time.

■ To set the (UHF) TV channel to which the receiver is

connected.

■ To set the video format supported by your TV.

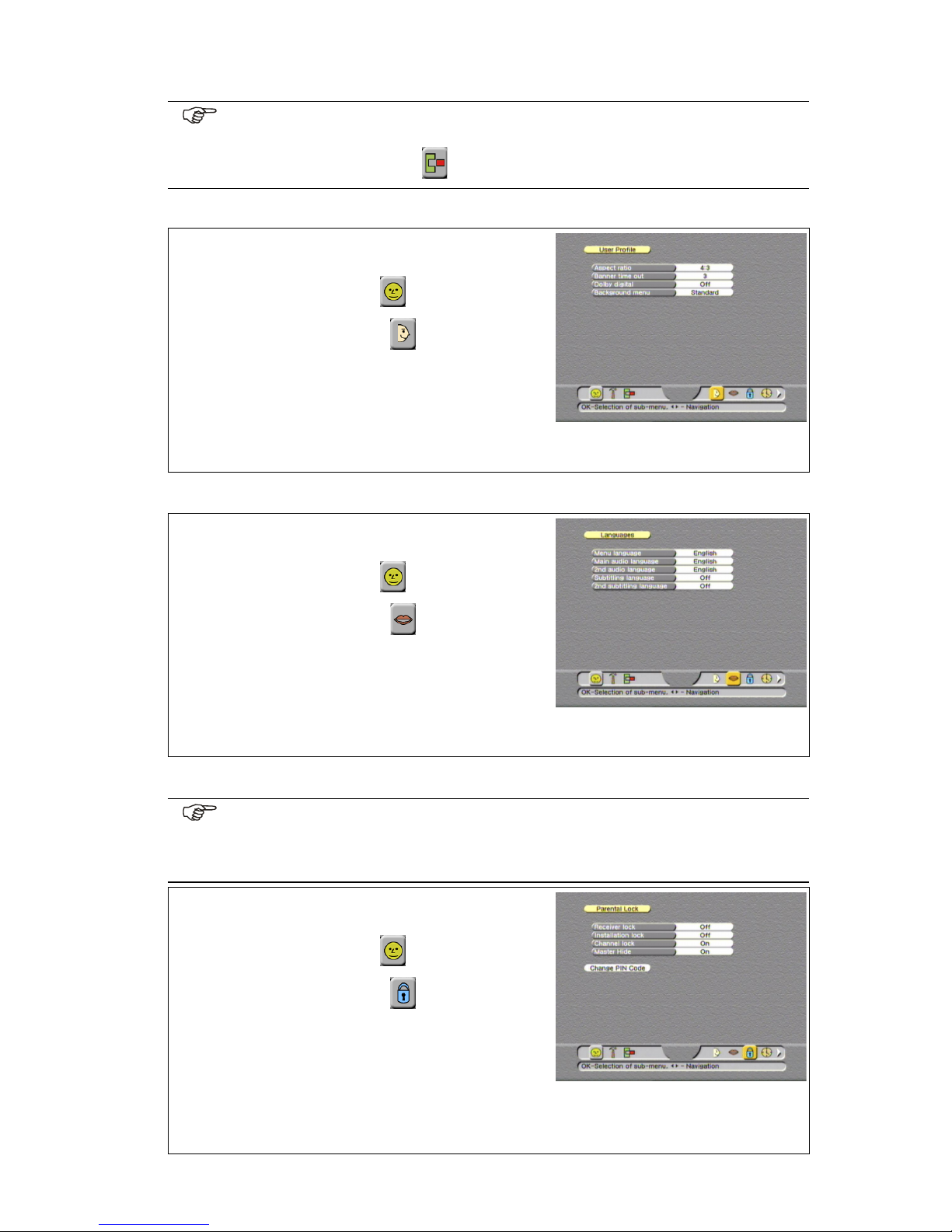

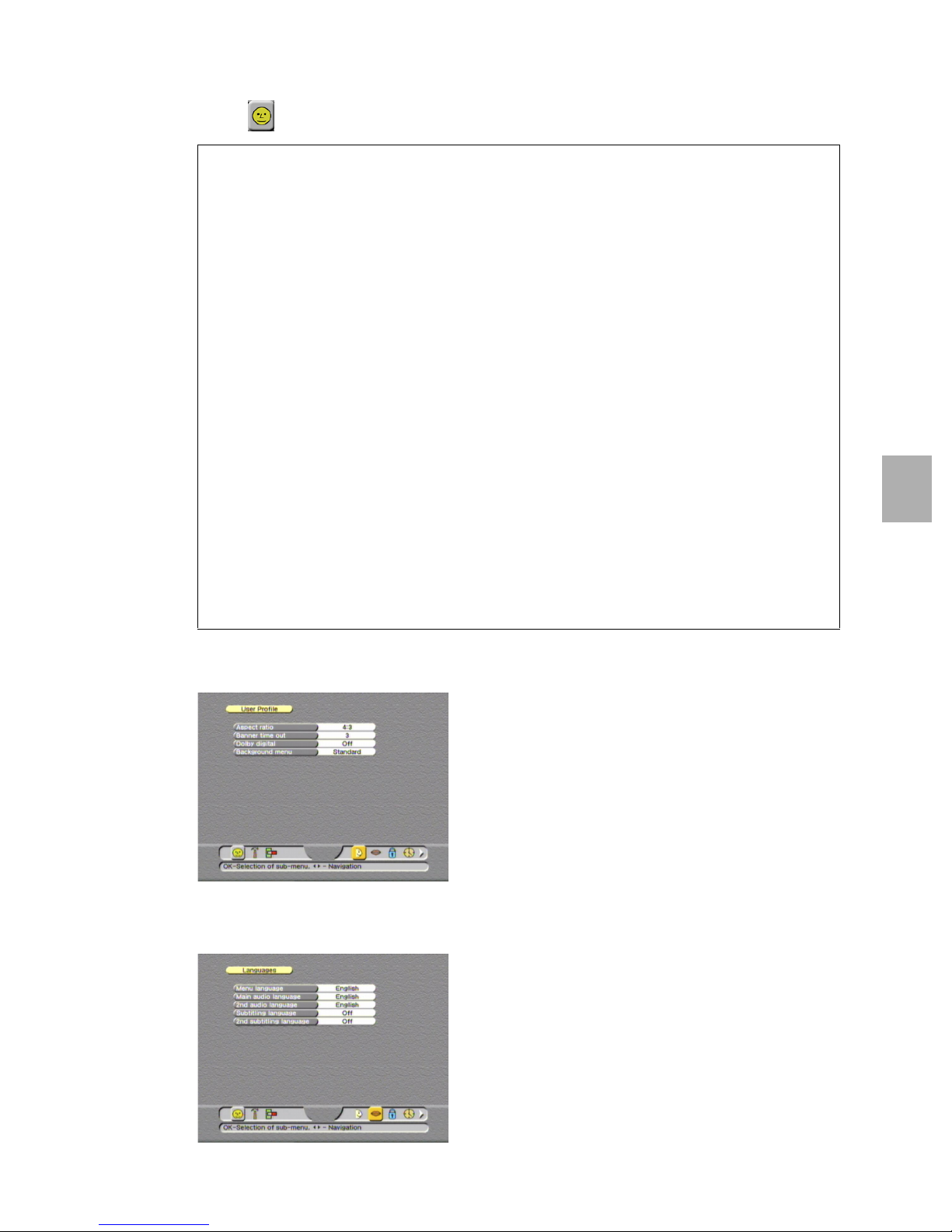

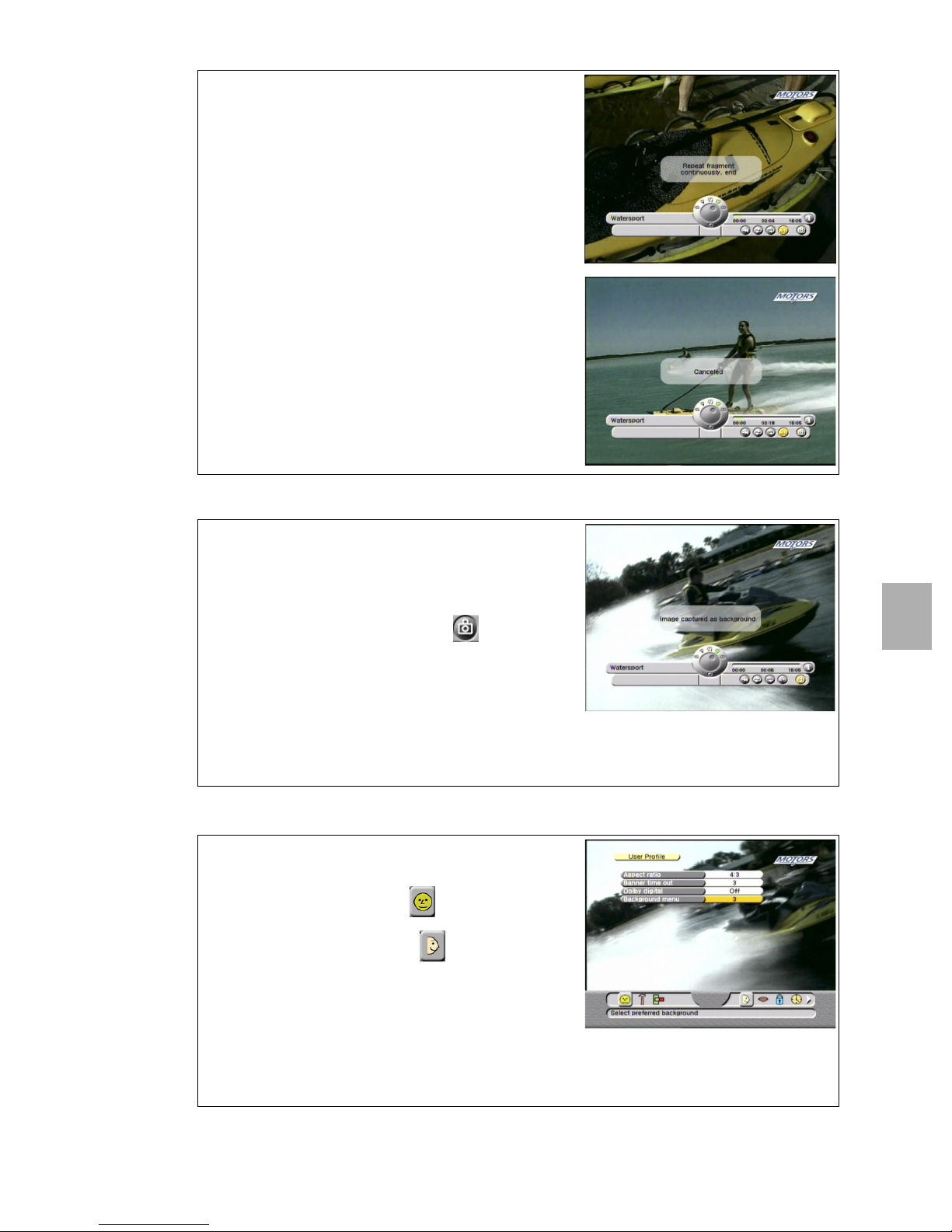

1.1. USER PROFILE PAGE

This menu page allows you to customize the user profile, you can customize:

1.2. LANGUAGES PAGE

This menu page allows you to customize the language settings, you can customize

■ Aspect ratio

To set the screen size of the TV.

■ Banner time out

To set the view time for the InfoBanner.

■ Dolby Digital

To tell the receiver that it is connected to a Dolby Digital amplifier or not.

■ Backgrounds

To select the standard or a personal background.

■ Menu Language

To set the language you want to use in the menus.

■ Main audio language

To set language for programs with bi-lingual audio.

■ 2nd audio language

To set language for programs with bi-lingual audio.

■ Subtitling language

To set language for bi-lingual subtitled programs.

■ 2nd subtitling language

To set language for bi-lingual subtitled programs.

EchoNAV User Interface Page 4 - 1

Page 16

Section 4

Familiarization

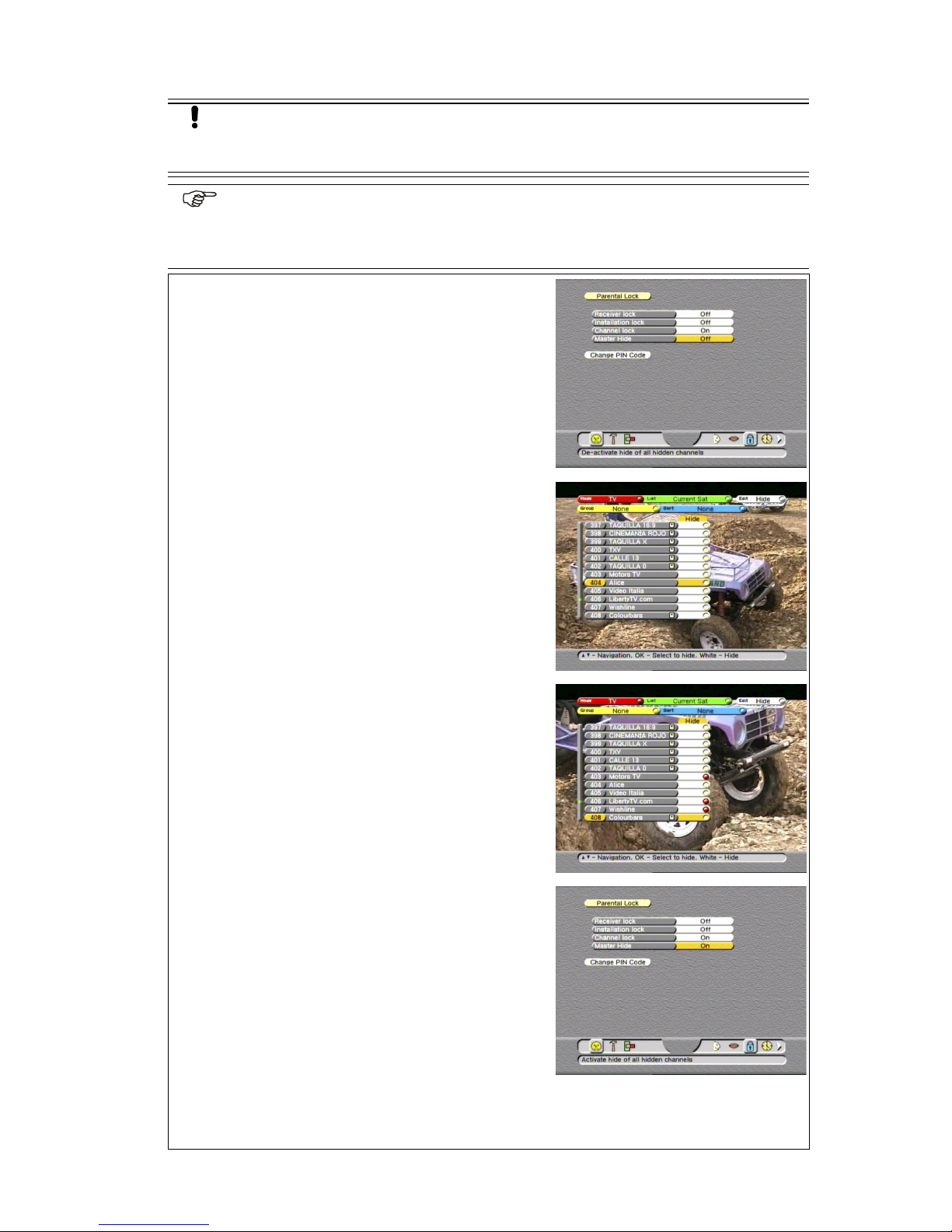

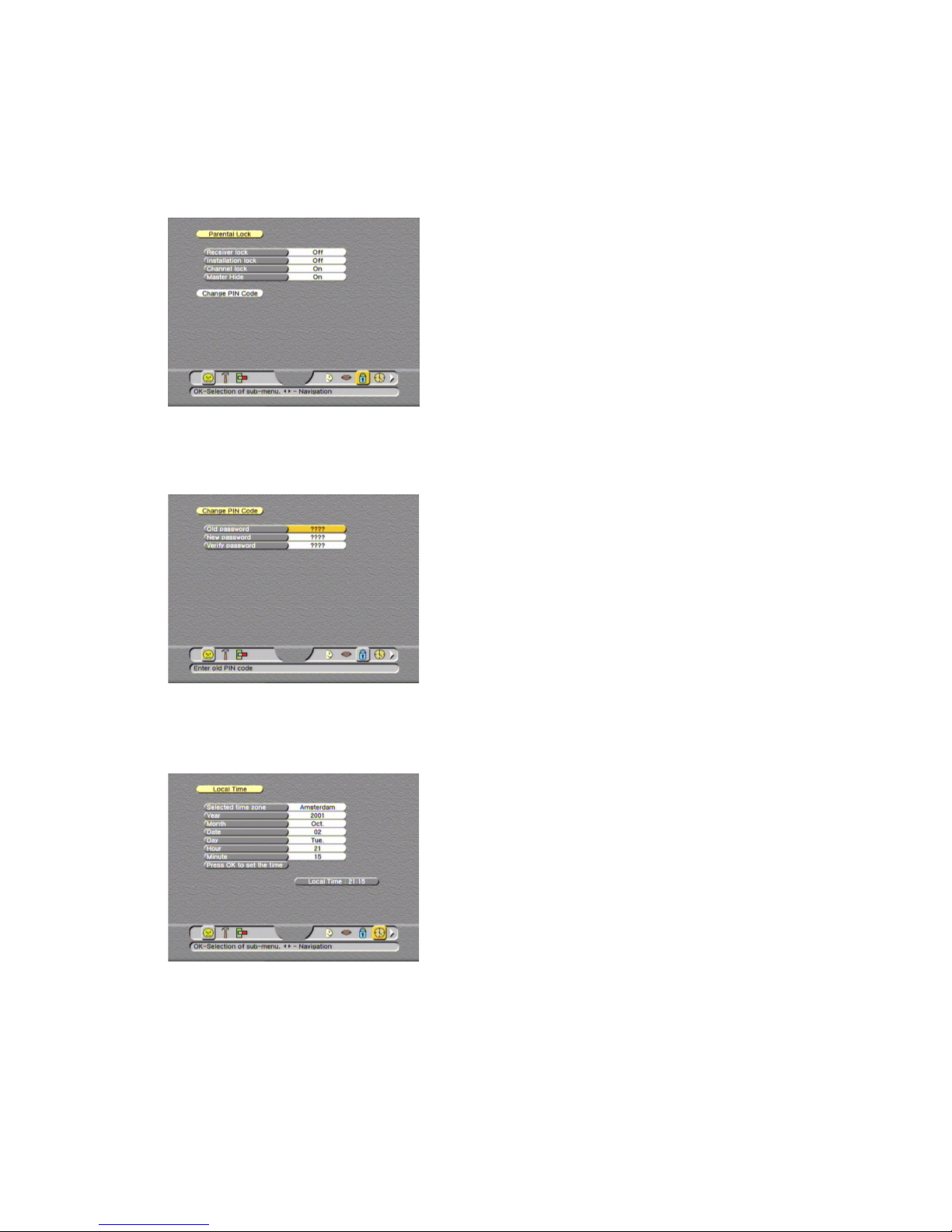

1.3. PARENTAL LOCK MENU

The parental lock menu is initial accessible with the factory default PIN code 0000. For future use, you are requested to change the PIN code to your own personal code.

This sub menu contains two menu pages. These menu pages are:

TO CHANGE THE PARENTAL LOCK SETTINGS

This menu page allows you to customize the parental lock settings, you can customize:

TO CHANGE THE PIN CODE

■ Receiver Lock

To lock the receiver completely for unauthorized users.

■ Installation Lock

To lock the installation menu for unauthorized users.

■ Channel lock

To lock or unlock all locked selections at once.

■ Master hide

To hide or unhide all hidden selections at once.

■ Change PIN Code

To access the change PIN code page.

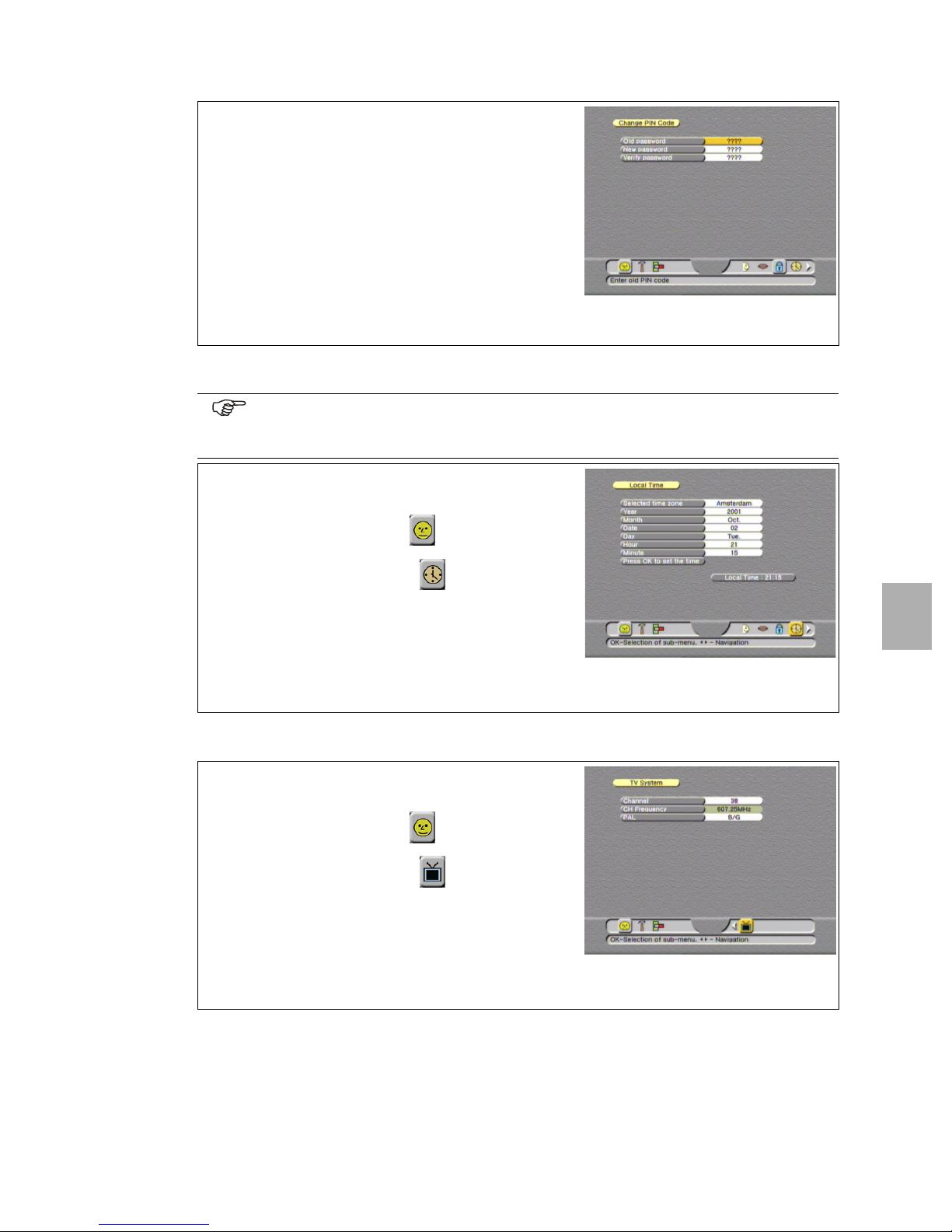

This menu page allows you to change the PIN code, you can change:

1.4. LOCAL TIME PAGE

This menu page allows you to customize the local time settings. For the correct operation of the EPG and the timers, it is necessary to set the local time correctly. You can customize:

■ Old password

To type in the factory default or personal PIN code.

■ New password

To type in your new PIN code (numbers only).

■ Verify password

To type in your New password again. Now the receiver verifies the new password to make sure that you typed in the new password correctly.

■ Selected time zone

To set the time zone where you are.

■ Year

To set the actual year.

■ Month

To set the actual month.

■ Date

To set the actual date.

■ Day

To set the actual day.

■ Hour

To set the actual time in hours.

■ Minute

To set the actual time in minutes.

■ PressOKtosetthetime

To confirm the settings you made.

Page 4 - 2 EchoStar International Corporation

Page 17

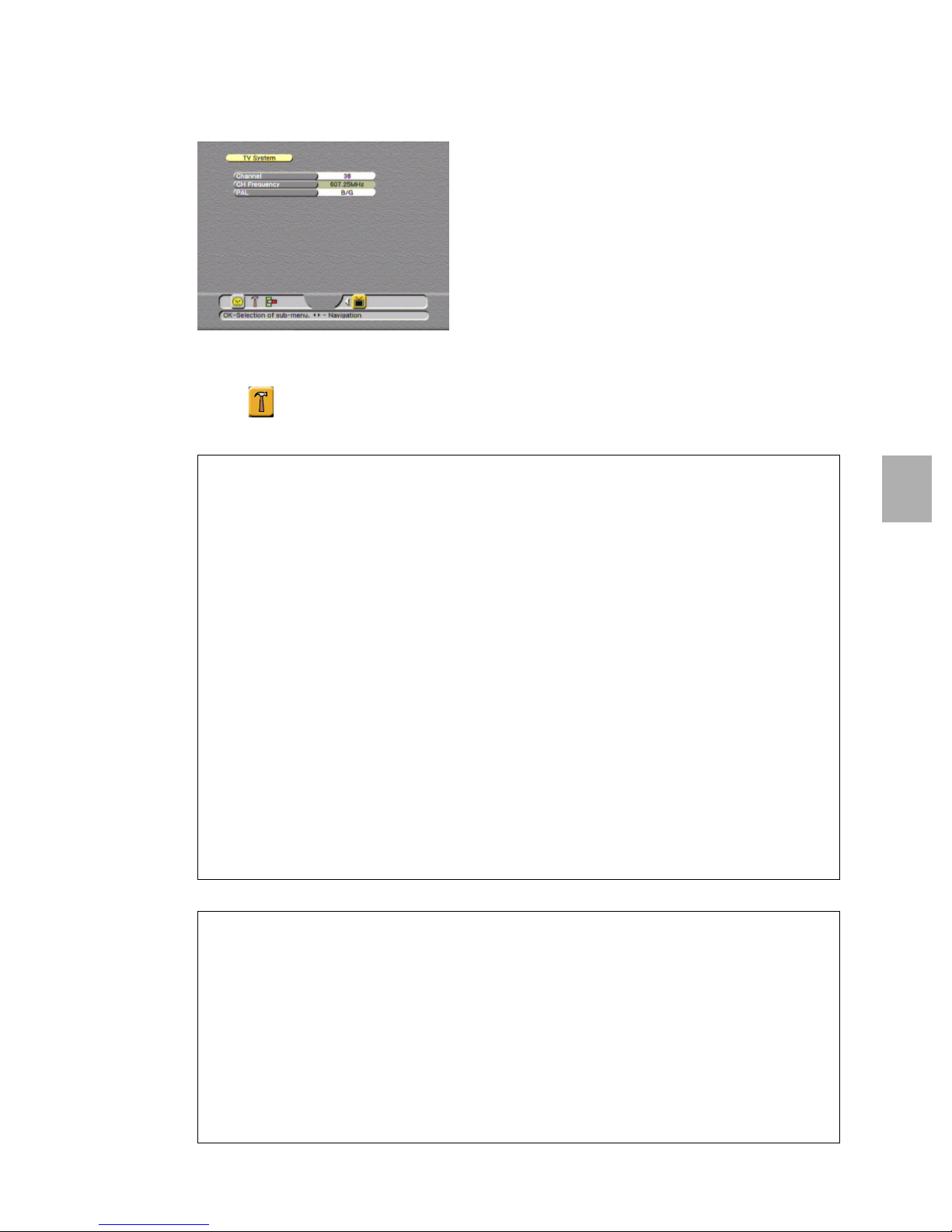

1.5. TV SYSTEM PAGE

This menu page allows you to customize the TV settings used for the receiver, you can customize:

■ Channel

To select the (UHF) TV channel to which the receiver is connected.

■ CH Frequency

To view the frequency that corresponds with the selected channel. You can not set this option.

■ System

To set the video format supported by your TV.

2. THE INSTALLATION SETUP MENU

■ The button gives you access to the installation setup menu;

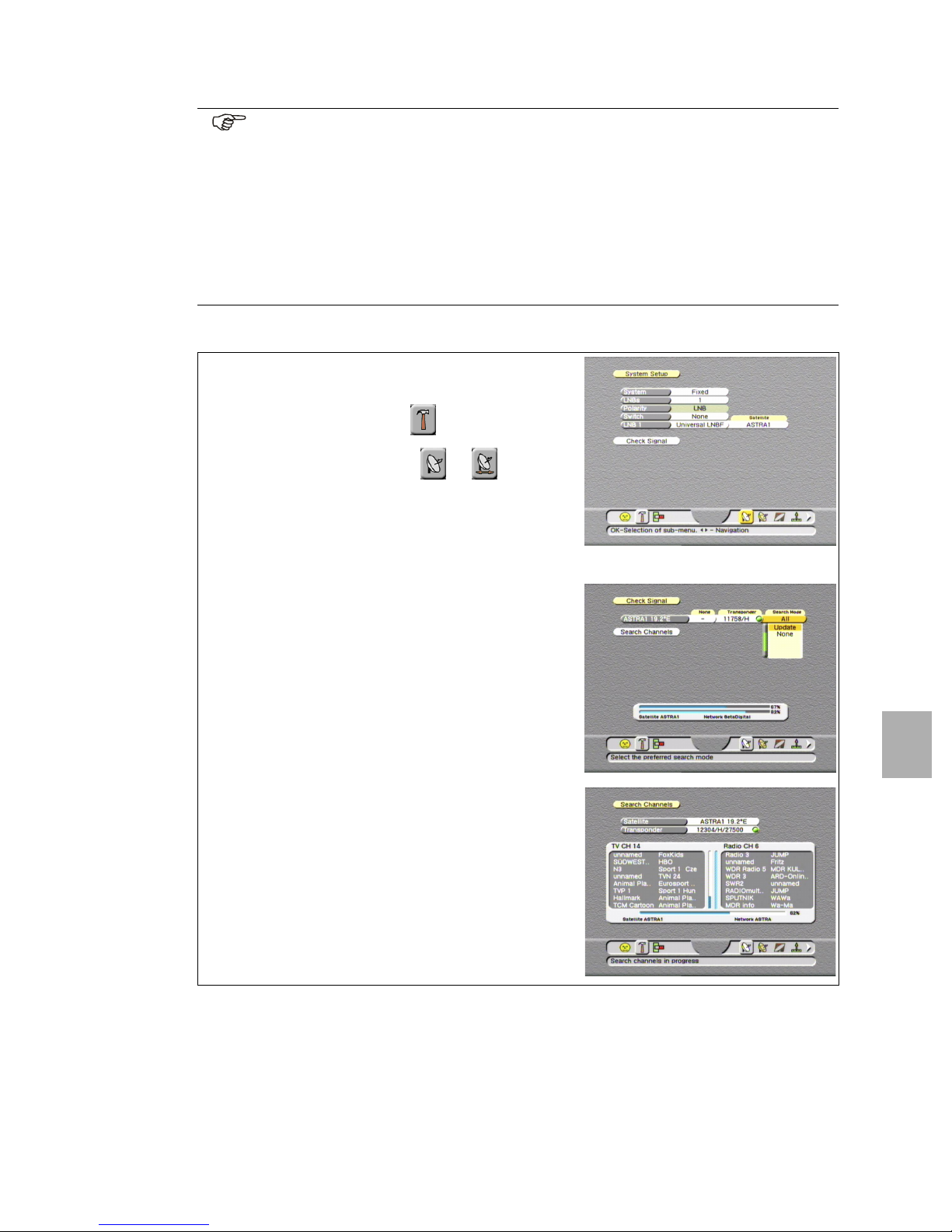

FOR FIXED AND DISEQC1..4SWITCH INSTALLATIONS

Familiarization

Section 4

System setup

■ To set the dish type you use.

■ To set the amount of LNBs you have installed.

■ To set the switch type which you use to control the dish

installation (if used).

■ To set the LNB type(s) you use.

- Check signal

- Search channels

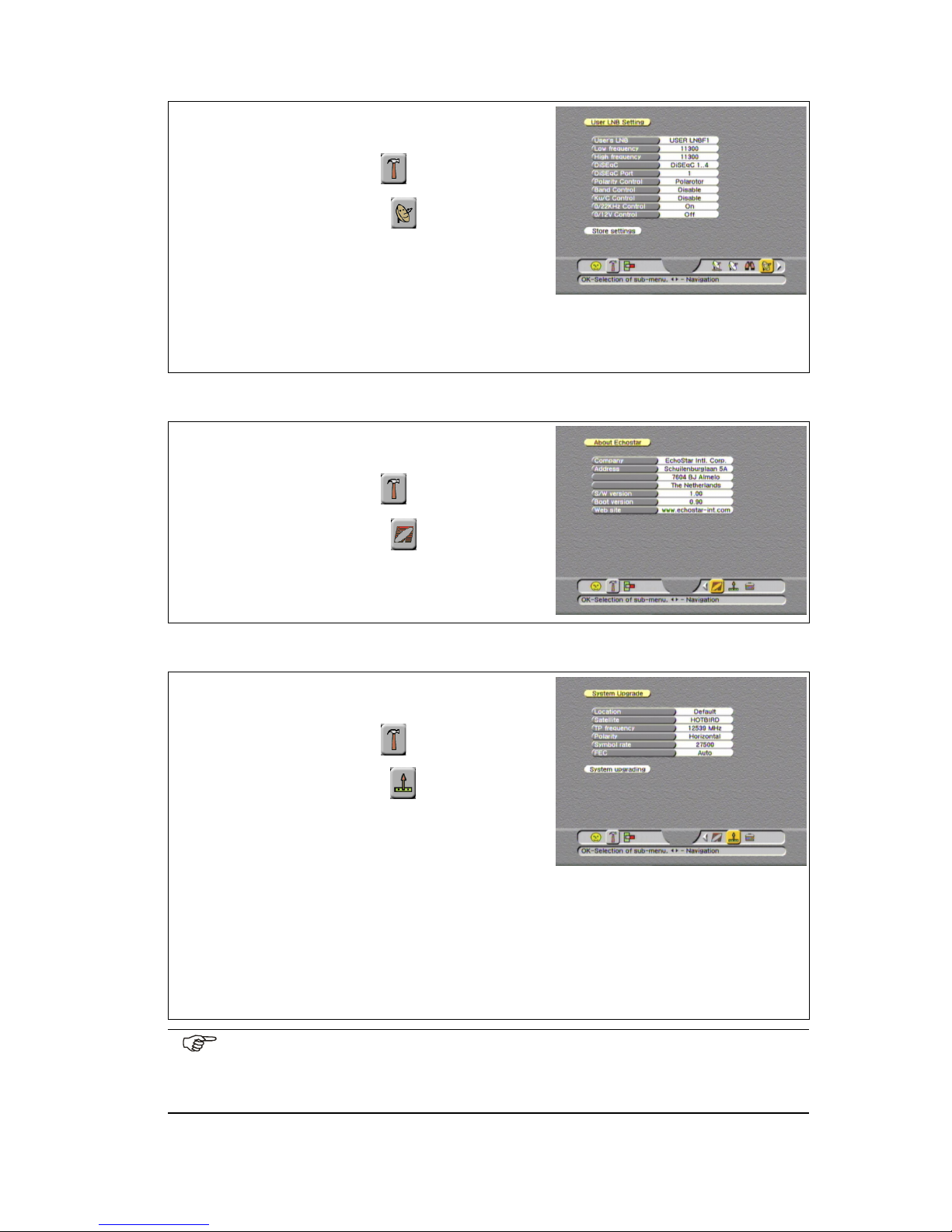

User LNB setting

About EchoStar

■ Wait for the Checking Configuration to complete.

■ Wait for the search to complete.

■ To select the first or second user defined LNB.

■ To enter the frequencies of the user LNB.

■ To select the device that controls the polarity.

■ To set the control signals.

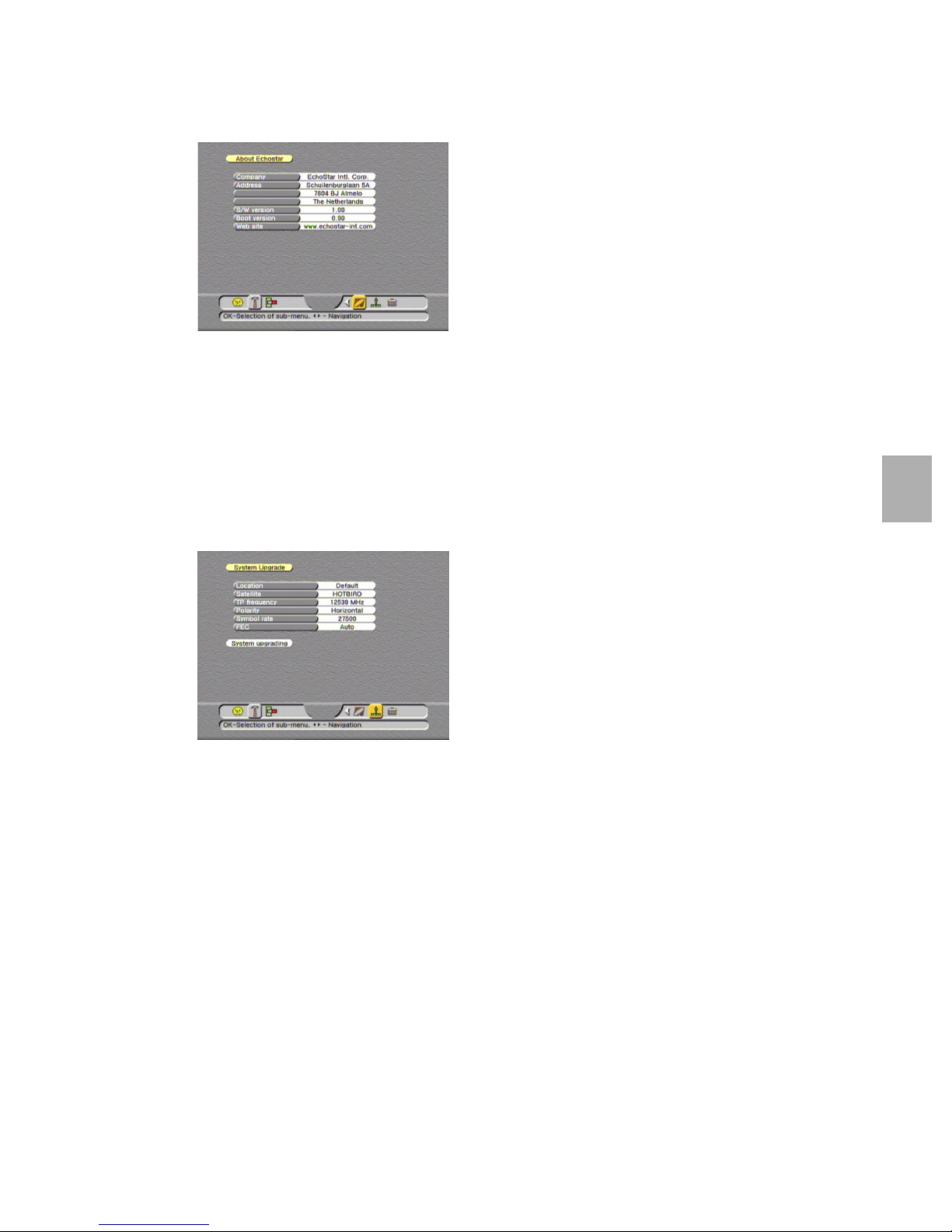

■ In the About EchoStar information menu you can look

up the factory and receiver information.

System upgrade

■ To select the default or user defined satellite where you

want to download from.

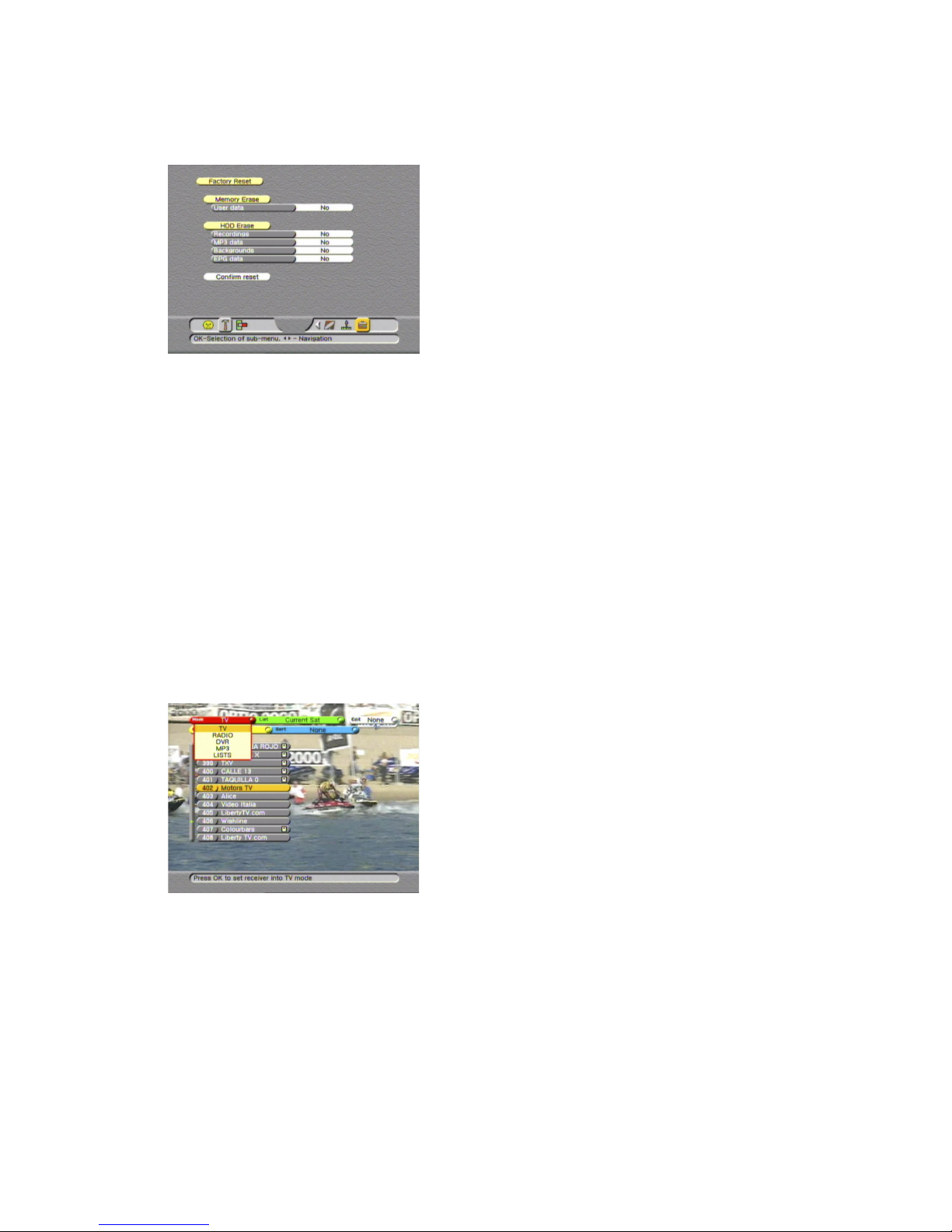

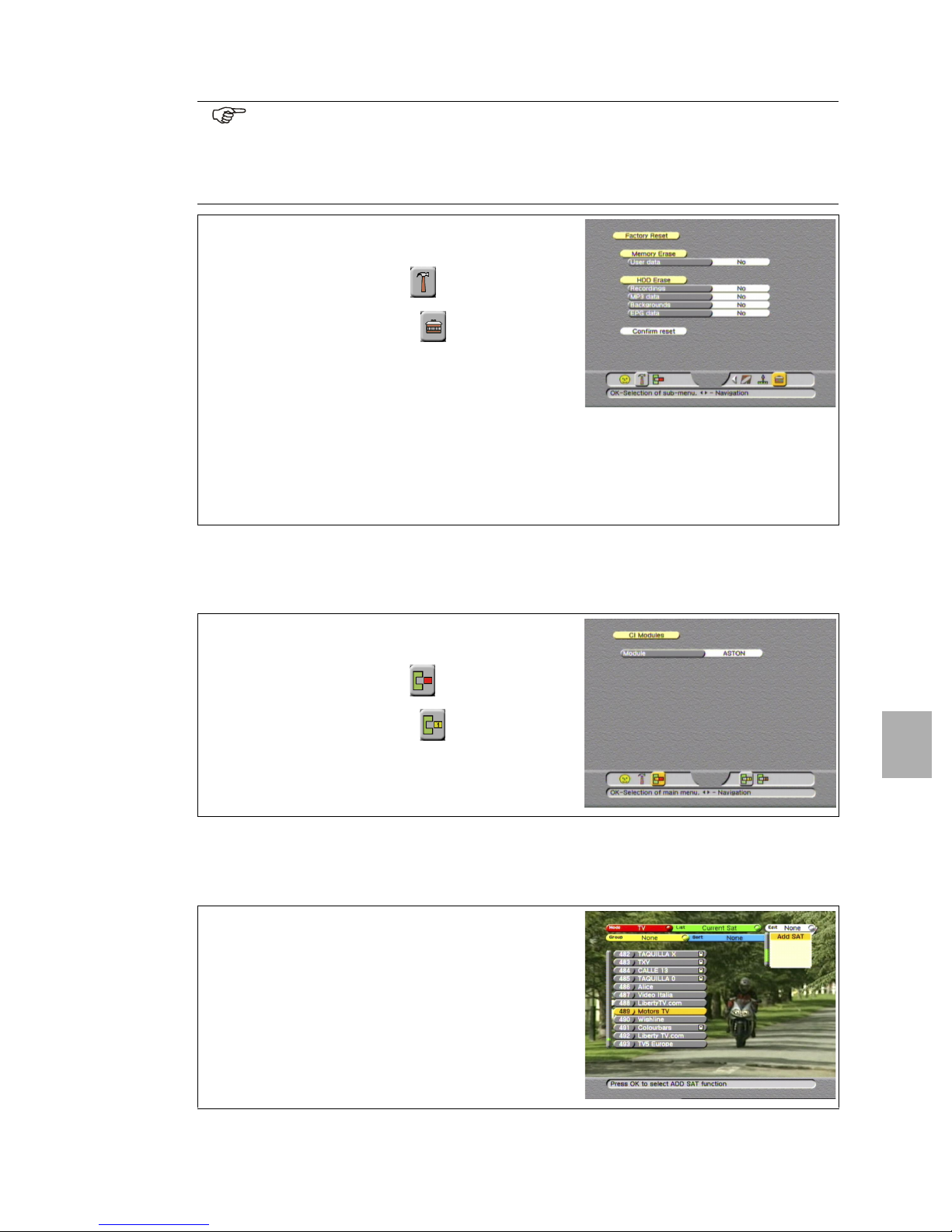

Factory reset

■ Tto reset the receiver to the initial factory settings.

FOR MOVEABLE DISH INSTALLATIONS (DISEQC1.2)

System setup

- Program Satellites

- Search Channels

EchoNAV User Interface Page 4 - 3

■ To set the dish type you use.

■ To set the amount of LNBs you have installed.

■ To set the switch type which you use to control the dish

installation (if used).

■ To set the LNB type(s) you use.

■ To set the satellite you want to scan for the LNB.

■ To select a transponder of the selected satellite.

■ To move the dish for best signal level and quality.

■ Wait for the search to complete.

Page 18

Section 4

Fixeddishsetup ■ To select the device that controls the polarity.

Familiarization

■ To set the LNB type(s) you use.

- Check signal ■ Wait for the Checking Configuration to complete.

- Search Channels

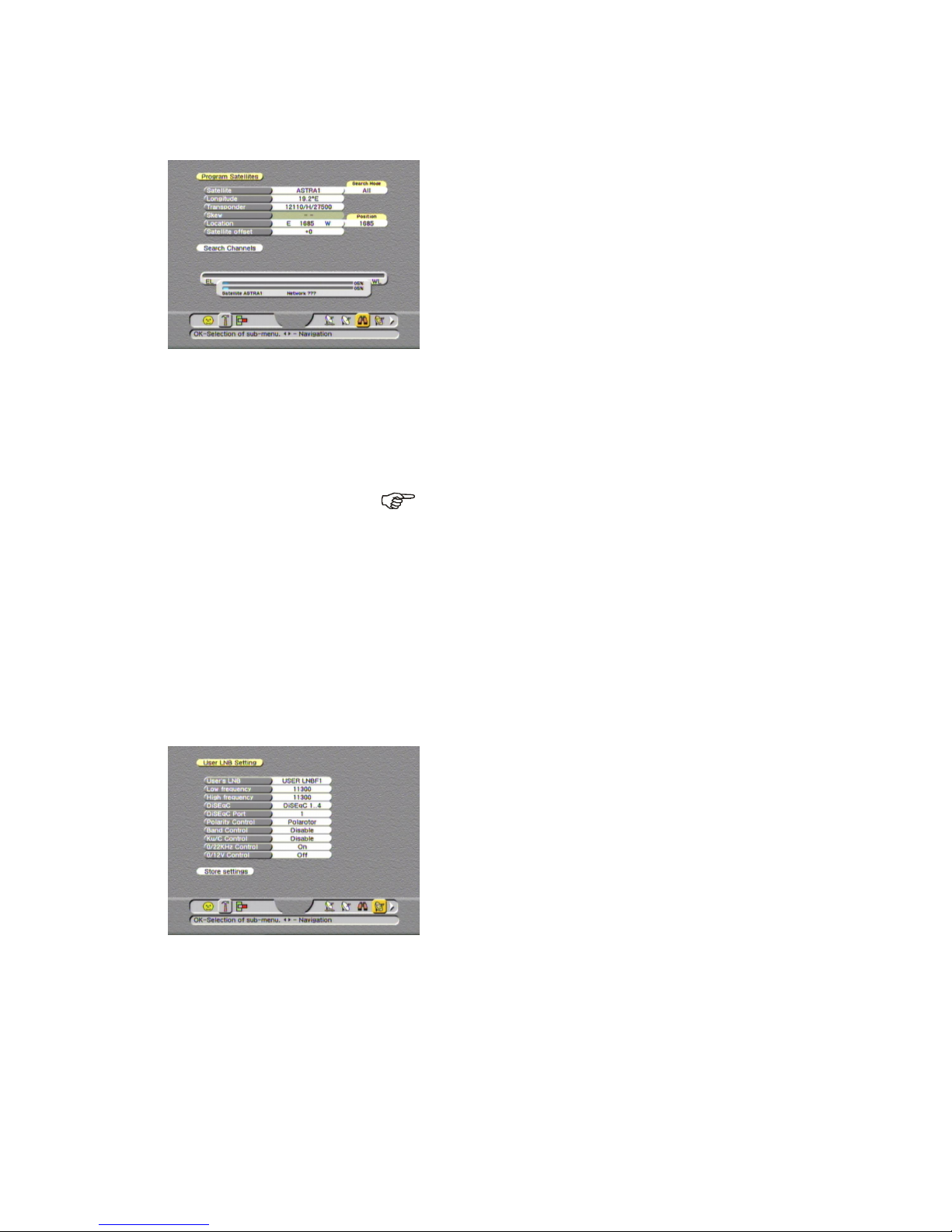

Program Satellites

User LNB setting

About EchoStar

■ Wait for the search to complete.

■ To set the satellite you want to scan for the LNB.

■ To select a transponder of the selected satellite.

■ To move the dish for best signal level and quality.

■ To select the first or second user defined LNB.

■ To enter the frequencies of the user LNB.

■ To select the device that controls the polarity.

■ To set the control signals.

■ In the About EchoStar information menu you can look

up the factory and receiver information.

System upgrade

■ To select the default or user defined satellite where you

want to download from.

Factory reset

■ Tto reset the receiver to the initial factory settings.

FOR MOTORIZED INSTALLATIONS -AUTOSAT

System setup

- Autosat (1)

- Autosat (2)

- Search Channels

Fixed dish setup

- Check signal

- Search Channels

Program Satellites

User LNB setting

About EchoStar

System upgrade

Factory reset

■ To set the dish type you use.

■ To set the amount of LNBs you have installed.

■ Tosettheswitchtypewhichyouusetocontrolthedish

installation (if used).

■ To set the LNB type(s) you use.

■ To set the scan method

■ To set the East and West limits for the dish.

■ To select the reference satellites

■ To move the dish for best signal level and quality.

■ To set the satellites you want to scan for the LNB.

■ Wait for the search to complete.

■ To select the device that controls the polarity.

■ To set the LNB type(s) you use.

■ Wait for the Checking Configuration to complete.

■ Wait for the search to complete.

■ To set the satellite you want to scan for the LNB.

■ To select a transponder of the selected satellite.

■ To move the dish for best signal level and quality.

■ To select the first or second user defined LNB.

■ To enter the frequencies of the user LNB.

■ To select the device that controls the polarity.

■ To set the control signals.

■ In the About EchoStar information menu you can look up

the factory and receiver information.

■ To select the default or user defined satellite where you

want to download from.

■ Tto reset the receiver to the initial factory settings.

Page 4 - 4 EchoStar International Corporation

Page 19

Familiarization

FOR MOTORIZED INSTALLATIONS -MANUAL SELECTION

System Setup ■ To set the dish type you use.

■ To set the amount of LNBs you have installed.

■ To set the switch type which you use to control the dish

installation (if used).

■ To set the LNB type(s) you use.

■ To set the scan method.

-SetLimits

- Program Satellites

- Search Channels

Fixeddishsetup

- Check signal

- Search Channels

Program Satellites

User LNB setting

About EchoStar

System upgrade

Factory reset

■ To set the East and West limits for the dish.

■ To set the satellites you want to scan for the LNB.

■ To select a transponder of the selected satellite.

■ To move the dish for best signal level and quality.

■ Wait for the search to complete.

■ To select the device that controls the polarity.

■ To set the LNB type(s) you use.

■ Wait for the Checking Configuration to complete.

■ Wait for the search to complete.

■ To set the satellite you want to scan for the LNB.

■ To select a transponder of the selected satellite.

■ To move the dish for best signal level and quality.

■ To select the first or second user defined LNB.

■ To enter the frequencies of the user LNB.

■ To select the device that controls the polarity.

■ To set the control signals.

■ In the About EchoStar information menu you can look up

the factory and receiver information.

■ To select the default or user defined satellite where you

want to download from.

■ Tto reset the receiver to the initial factory settings.

Section 4

FOR SMATV INSTALLATIONS

System Setup

- Search Channels

User LNB setting

About EchoStar

System upgrade

Factory reset

EchoNAV User Interface Page 4 - 5

■ To set the dish type you use (SMATV).

■ To select the distribution type

■ To set the symbol rates you want to scan..

■ Wait for the search to complete.

■ To select the first or second user defined LNB.

■ To enter the frequencies of the user LNB.

■ To select the device that controls the polarity.

■ To set the control signals.

■ In the About EchoStar information menu you can look up

the factory and receiver information.

■ To select the default or user defined satellite where you

want to download from.

■ Tto reset the receiver to the initial factory settings.

Page 20

Section 4

Familiarization

2.1. SYSTEM SETUP MENU

FOR FIXED AND DISEQC 1..4 SWITCH INSTALLATIONS

This sub menu allows you to customize the system setup to match your installation. Note that the menu page is dynamic which means that it changes with the selections you make. You can customize:

FOR MOVEABLE DISH INSTALLATIONS (DISEQC1.2)

This sub menu allows you to customize the system setup to match your installation. Note that the menu page is dynamic which means that it changes with the selections you make. You can customize:

■ System, to set the dish type you use.

■ LNBs, to set the amount of LNBs you have installed.

■ Polarity, to set the device that controls the signal

polarity.

■ Switch,tosettheswitchtypewhichyouuseto

control the dish installation (if used).

■ LNB1, to set the LNB type(s) you use.

■ Check Signal, to confirm the selections you made

and advance to the Check Signal page.

■ System, to inform you which dish installation is

used.

■ LNBs, to set the amount of LNBs you have

installed.

■ Polarit, to set the device that controls the signal

polarity.

■ Switch, to set the switch type which you use to

control the dish installation (if used).

■ LNB1, to set the LNB type(s) you use.

■ Program Satellites, to confirm the selections and

go to next menu.

FOR MOTORIZED INSTALLATIONS -AUTOSAT

This sub menu allows you to customize the system setup to match your installation. Note that the menu page is dynamic which means that it changes with the selections you make. You can customize::

■ System, to set the dish type you use.

■ LNBs, to set the amount of LNBs you have installed.

■ Polarity, to set the device that controls the signal

polarity.

■ Switch,tosettheswitchtypewhichyouuseto

control the dish installation (if used).

■ LNB1, to set the LNB type(s) you use.

■ Method, to set the scan method;

AutoSat (automatically calculates the satellite positions from reference positions).

■ AutoSat, to confirm the selections you made and

advance to the AutoSat setup page.

Page 4 - 6 EchoStar International Corporation

Page 21

Familiarization

Section 4

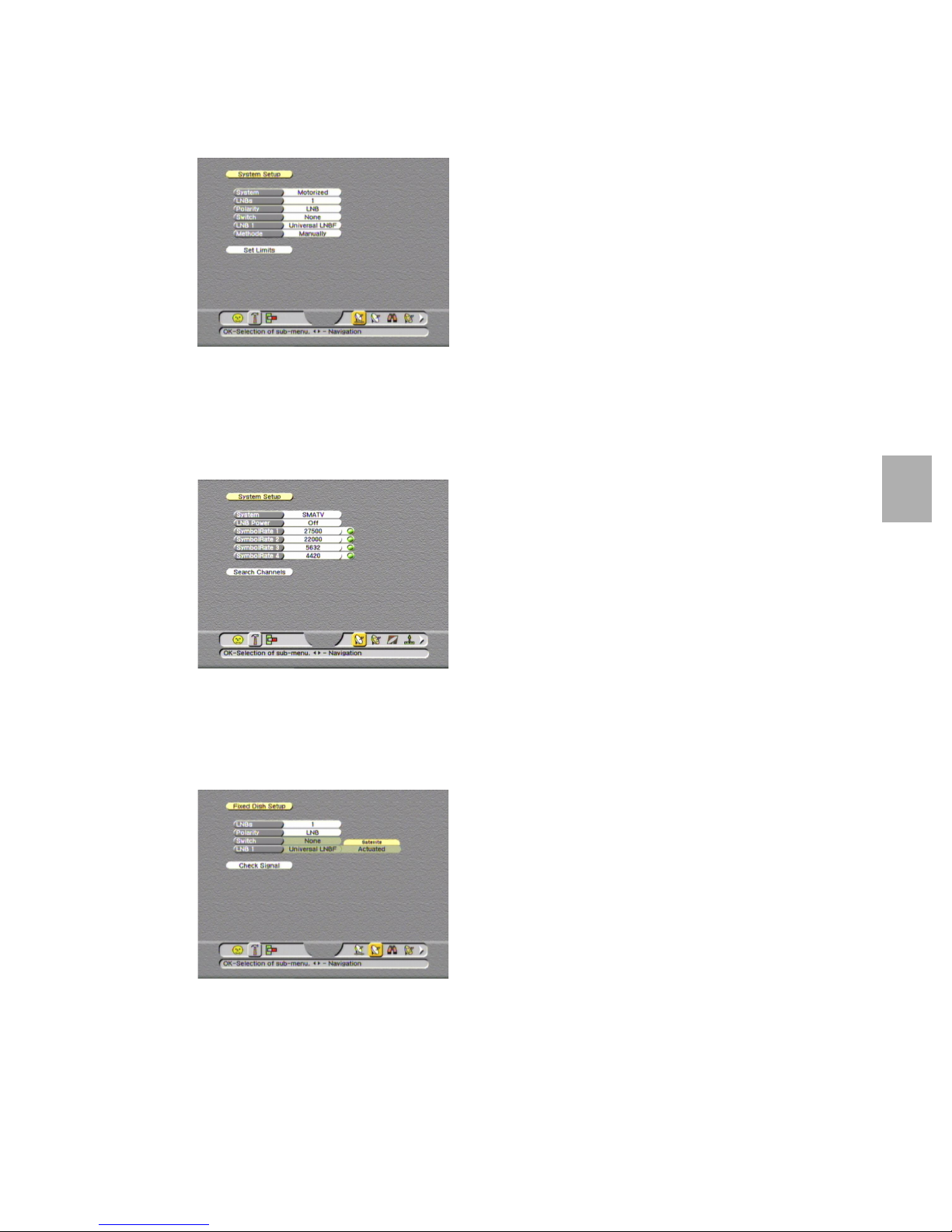

FOR MOTORIZED INSTALLATIONS -MANUAL SELECTION

This sub menu allows you to customize the system setup to match your installation. Note that the menu page is dynamic which means that it changes with the selections you make. You can customize::

■ System, to set the dish type you use.

■ LNBs, to set the amount of LNBs you have installed.

■ Polarit, to set the device that controls the signal

polarity.

■ Switch, to set the switch type which you use to

control the dish installation (if used).

■ LNB1, to set the LNB type(s) you use.

■ Method (motorized only), to set the scan method;

Manual (enter the satellites by manual search).

■ Set Limits, to confirm the selections you made and

advance to the Set Limits page.

FOR SMATV INSTALLATIONS

This sub menu allows you to customize the system setup to match your installation. Note that the menu page is dynamic which means that it changes with the selections you make. You can customize::

■ System

To set the dish type you use.

■ LNB Power

To select the distribution type (cable=Off, IF=On).

■ Symbol Rate 1-4

To set the symbol rate you want to scan.

■ Search Channels

To confirm the selections you made and advance to the Search Channels page.

2.2. FIXED DISH SETUP

This sub menu allows you to customize the system setup to add an additional fixed dish into your motorized or DiSEqC1.2 configuration. Note that the menu page is dynamic which means that it changes with the selections you make. You can customize:

■ LNBs

To set the amount of LNBs you have installed.

■ Polarity

To set the device that controls the signal polarity.

■ Switch

To set the switch type which you use to control the dish installation.

■ LNB1

To set the LNB type(s) you use.

■ Satellite

To set the satellite you want to scan for the LNB.

■ Check Signal

To confirm the selections you made and advance to the Check Signal page.

EchoNAV User Interface Page 4 - 7

Page 22

Section 4

Familiarization

2.3. PROGRAM SATELLITES

This sub menu allows you to customize your motorized or DiSEqC1.2 system setup to add an additional satellite into your receiver. Note that the menu page is dynamic which means that it changes with the selections you make. You can customize and view:

■ Satellite

To set the satellite you want to scan for the LNB.

■ Search mode

Tosetaspecificsearchmode(All,FTA,IF,TP, network or update).

■ Longitude

To view the satellite location on the Clarke Belt.

■ Transponder

To select a transponder of the selected satellite.

■ Skew (only for polarotor)

To adjust the Horizontal/Vertical setting

■ Location

To move the dish for best signal level and quality.

■ Satellite offset,

To compensate for a dish offset caused by ambient conditions.

NOTE

The satellite offset will affect all satellite positions, this means that all scanned positions will change which might result in total loss of signal for all satellites.

■ Search Channels,

To confirm the selections you made and advance to the Search Channels page.

2.4. USER LNB SETTING

This sub menu allows you to program a LNB that is not listed in the LNB selection list. Note that the menu page is dynamic which means that it changes with the selections you make. You can customize:

■ User’s LNB

To select the first or second user defined LNB.

■ Low Frequency

To enter the low frequency of the user LNB.

■ High Frequency

To enter the high frequency of the user LNB.

■ Polarity Control

To select the device that controls the polarity.

■ Band Control

To set the control signal for high or low band selection.

■ Ku/C Control

To set the control signal for the Ku/C LNB.

■ Store settings

To confirm the selection and save the settings.

Page 4 - 8 EchoStar International Corporation

Page 23

2.5. ABOUT ECHOSTAR

The About EchoStar menu gives all the where-to-contact-Information about EchoStar and the status information about the receiver. You can view:

2.6. SYSTEM UPGRADE PAGE

This menu page allows you to upgrade the receiver’s software. EchoStar provides software updates Over-The-Air (OTA) which means that you can upgrade your system via the satellite.

If you are not able to receive the satellite/transponder, you always can upgrade the software through the SERIAL PORT (RS232) at the rear of the receiver and the downloaded software from the EchoStar website.

Familiarization

■ Company

Section 4

This field shows the full name of EchoStar.

■ Address

This field shows the address of EchoStar.

■ S/W version

This field shows the current software version loaded into the receiver.

■ Boot version

This field shows the current boot version loaded into the receiver.

■ Web site

This field shows the EchoStar web site where you can find the latest user and software information.

■ Location

To select the default or user defined satellite where you want to download from.

■ Satellite

To set the satellite where you want to download from.

■ TP frequency

To set the transponder where you want to download from.

■ Polarity

To set the correct polarity for the transponder.

■ Symbol rate

To set the correct symbol rate for the transponder.

■ FEC

To set the correct Forward Error Correction for the transponder

EchoNAV User Interface Page 4 - 9

Page 24

Section 4

Familiarization

2.7. FACTORY RESET

The Factory Reset menu gives you the possibility to reset the receiver to the initial factory settings. The memory erase option restores the factory settings over your personal settings. All customized data like parental lock and favorites will be replaced with the factory settings.

■ Memory Erase - User Data

To instruct the receiver to delete all personal settings and replace them with the factory settings, the PIN code is reset to the factory default 0000.

■ HDD Erase - Recordings

To instruct the receiver to delete (only) all TV and Radio recordings from the hard disk.

■ HDD Erase - MP3 Songs (if option is available)

To instruct the receiver to delete (only) all MP3 songs from the hard disk.

■ HDD Erase - Backgrounds

To instruct the receiver to delete (only) all the personal backgrounds from the hard disk.

■ HDD Erase - EPG Data

To instruct the receiver to delete (only) all scheduled EPG data from the hard disk.

■ Confirm Reset

With this field you can confirm the selections made and execute the selected procedure. After the memory erase procedure is finished, you are taken to the initial setup procedure. (for detailed instructions, please refer to section 4).

3. THE ECHONAV MODE AND SELECTION MENUS

3.1. MODE

The Mode bar gives access to the different receiver modes. The receiver modes are:

■ TV

To switch the receiver in the TV mode and to access the list of TV channels.

■ Radio

To switch the receiver in the Radio mode and to access the list of Radio channels.

■ DVR

To switch the receiver in the DVR mode and to access the list of DVR events.

■ MP3 (if option is available)

ToswitchthereceiverintheMP3modeandto access the list of MP3 songs.

■ Lists

To switch the receiver in the Lists mode and to access the favorite lists.

Page 4 - 10 EchoStar International Corporation

Page 25

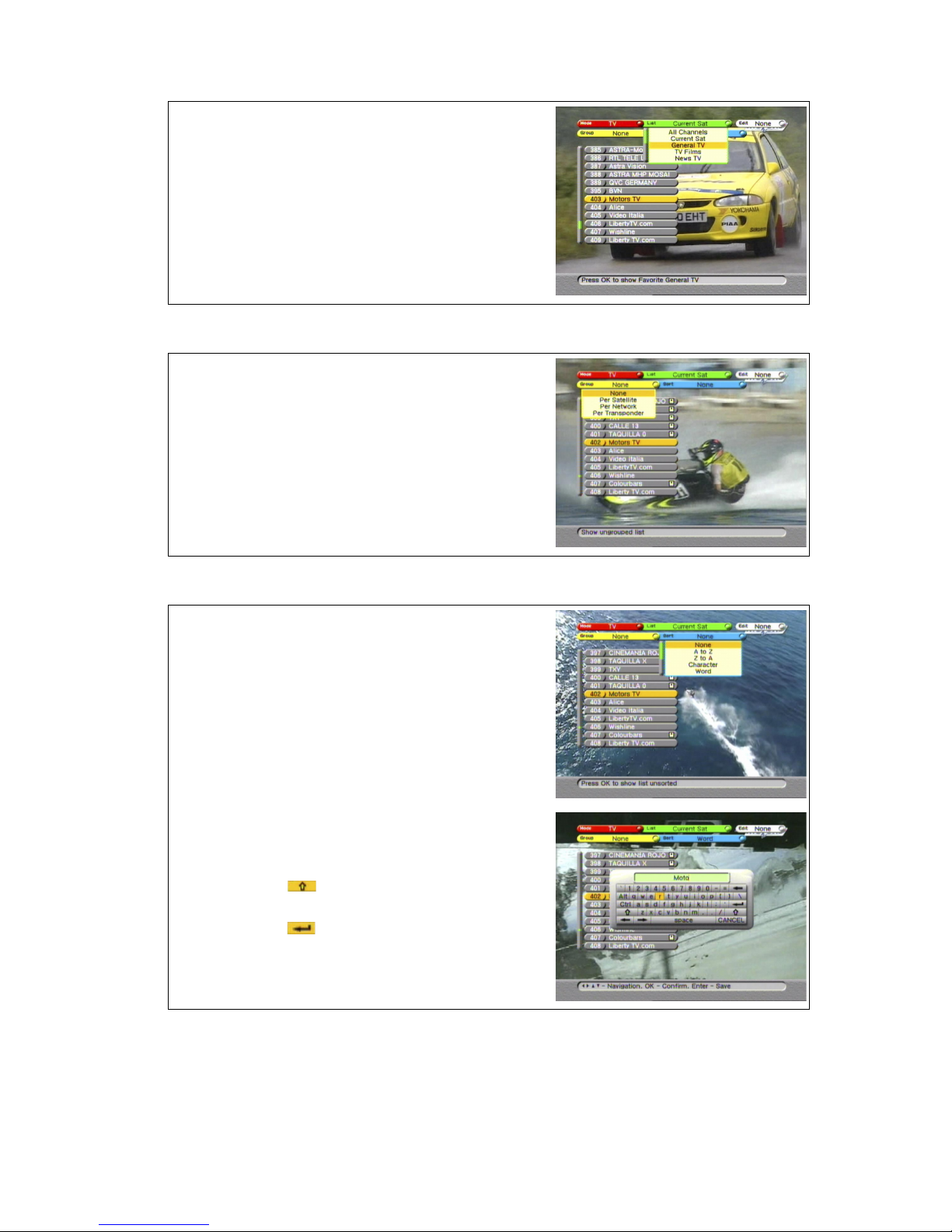

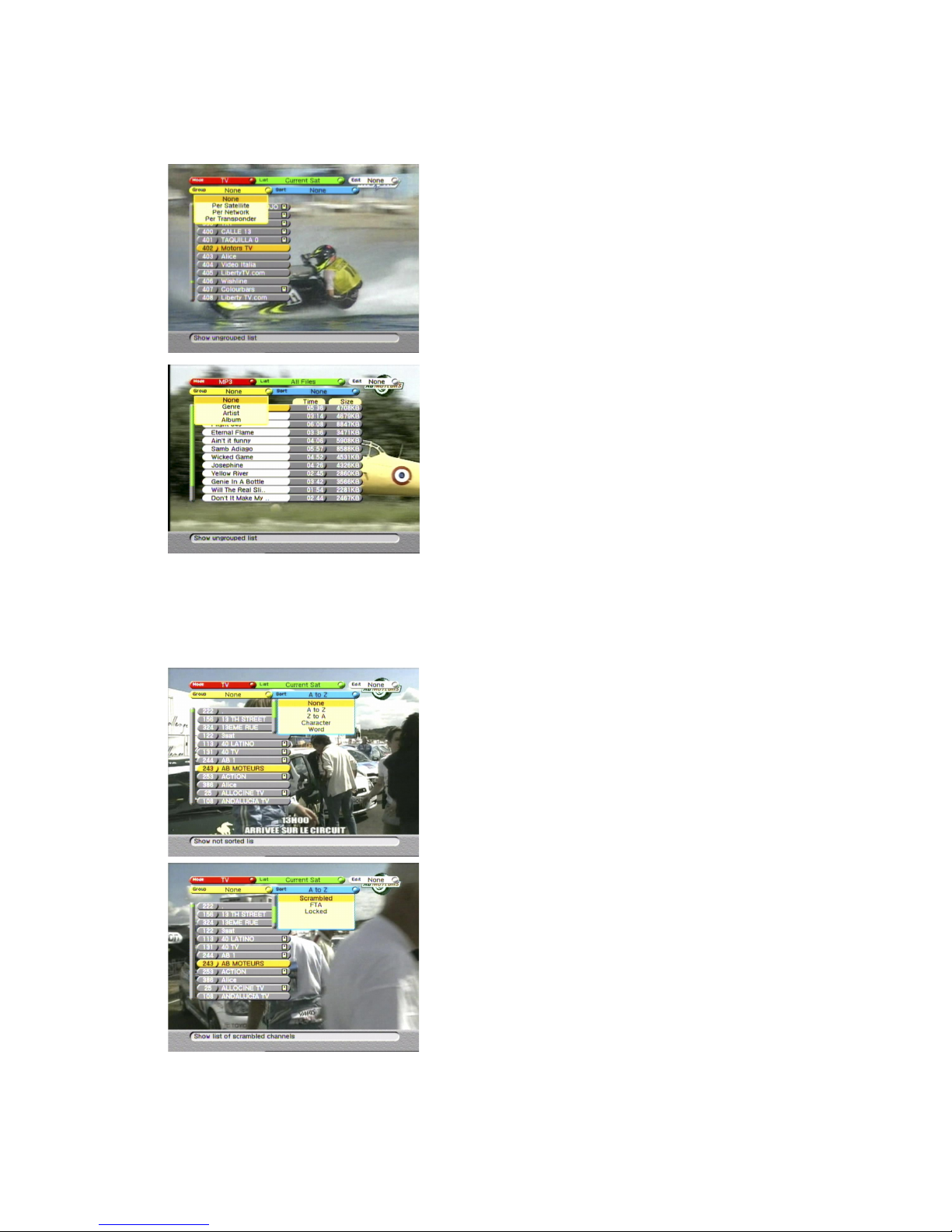

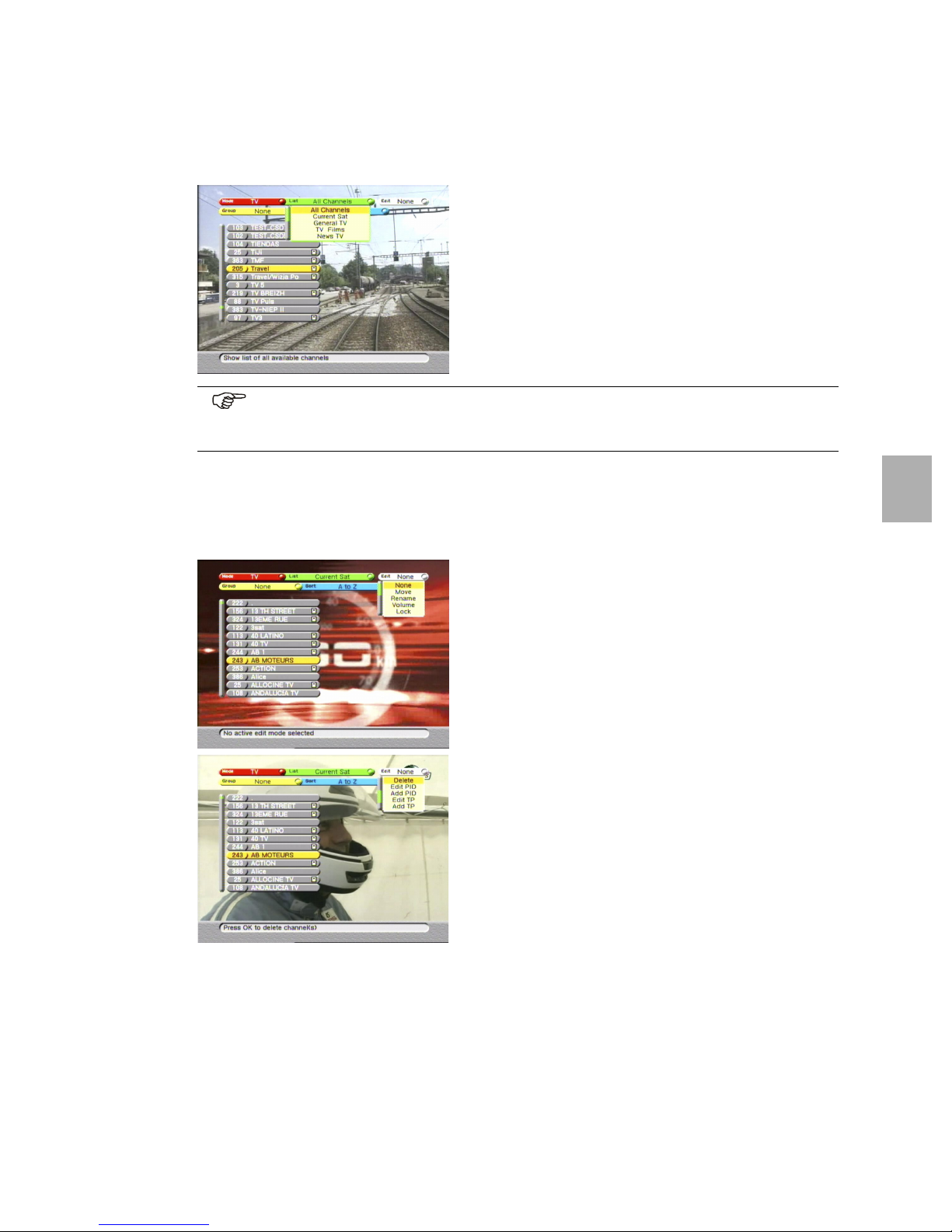

3.2. LIST

The Lists are available in the all modes. Some of the lists are factory defined and other lists (Favorite lists) are user defined. Favorite lists are lists of your favorite items that are created and maintained by you. In every mode you can setup a number of favorite lists. The lists

available are (mode dependent):

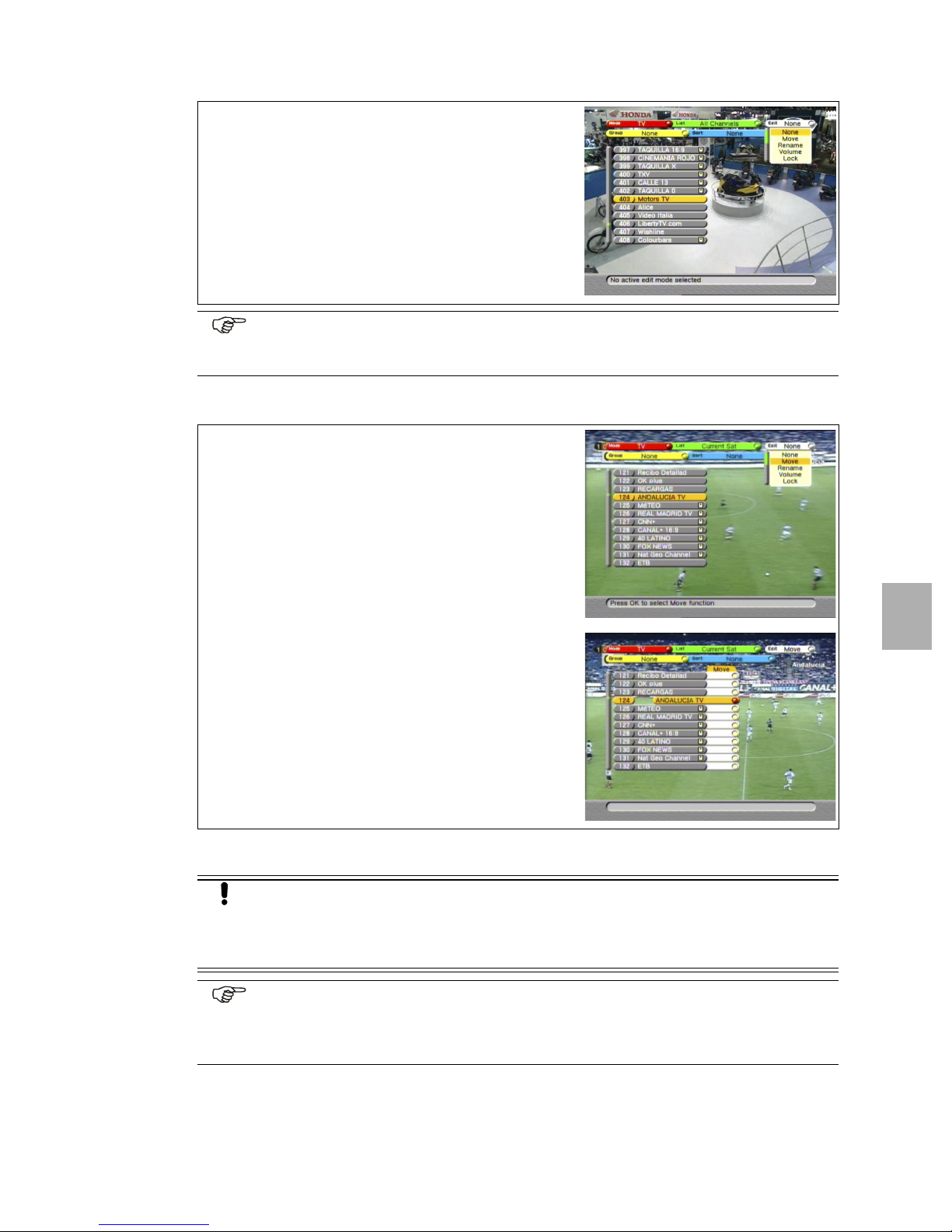

3.3. EDIT

Familiarization

■ All Channels

Section 4

To access the list of scanned TV channels available on the scanned satellites.

■ Current Sat

To access the list of all scanned TV channels available on the current selected satellite.

■ Favorites

To access to your own favorite lists. You can rename the favorites to something meaningful to yourself, e.g. Film, Sport, Kids.

NOTE

Sometimes a list seems to be empty because of the settings of the group and sort option. If this happens, just set the group and sort option to none.

The Edit options are available in the all modes. The Edit option gives you the possibility to customize the different lists. The availability of the Edit options is mode dependent, the available options are:

■ None

No edit option is selected.

■ Move

To enter the move channel function.

■ Add

To enter the add channel function.

■ Rename

To enter the rename channel function.

■ Volum e

To enter the set volume offset function.

■ Lock

To enter the lock channel function.

■ Delete

To enter the delete channel function.

■ Edit PID

To enter the edit PID function.

■ Add PID

To enter the add PID function.

■ Edit TP

To enter the edit TP function.

■ Add TP

To enter the add TP function.

■ Add SAT

To enter the add SAT function.

EchoNAV User Interface Page 4 - 11

Page 26

Section 4

Familiarization

3.4. GROUP

The Group options are available in the all modes. The Group option allows you to group the lists in different ways. The availability of the Group options is mode dependent, the available options are:

■ None

No group option is selected.

■ Per Satellite

To group the list per satellite.

■ Per Network

To group the list per network.

■ Per Transponder

To group the list per transponder.

(If option is available, MP3 mode only)

■ None

No group option is selected.

■ Per Genre

To group the list per genre.

■ Per Artist

To group the list per artist.

■ Per Album

To group the list per album.

3.5. SORT

The Sort options are available in all modes. The Sort options allow you to sort the lists in different ways. The availability of the Sort options is mode dependent, the available options are:

■ None

No sort option is selected.

■ AtoZ

Sorts a list alphabetically.

■ ZtoA

Sorts a list alphabetically, in reverse order.

■ Character

Shows list with entered character only.

■ Word

Shows a list that contains the selected word only.

■ Scrambled

Shows a list of encrypted channels only.

■ FTA

Shows a list of Free-To-Air channels only.

■ Locked

Shows a list of locked channels only.

Page 4 - 12 EchoStar International Corporation

Page 27

Familiarization

4. THE ELECTRONIC PROGRAM GUIDE (EPG)

Most digital channels transmit program data as an EPG. Digital channels that transmit EPG offer you program information in advance for a certain period of time. Dependent of the service provider, EPG is offered in different ways. After you have entered the EPG, you can select the different EPG options, these are:

■ Mode, to select the TV or Radio mode to show;

■ List, to select the list in all channels, current satellite or personal favorite;

■ Date, to access the EPG calendar;

■ Timers, to select and set the DVR, VCR or Reserved timer;

■ Zoom, to expand or shrink the EPG window as a function of the time slot.

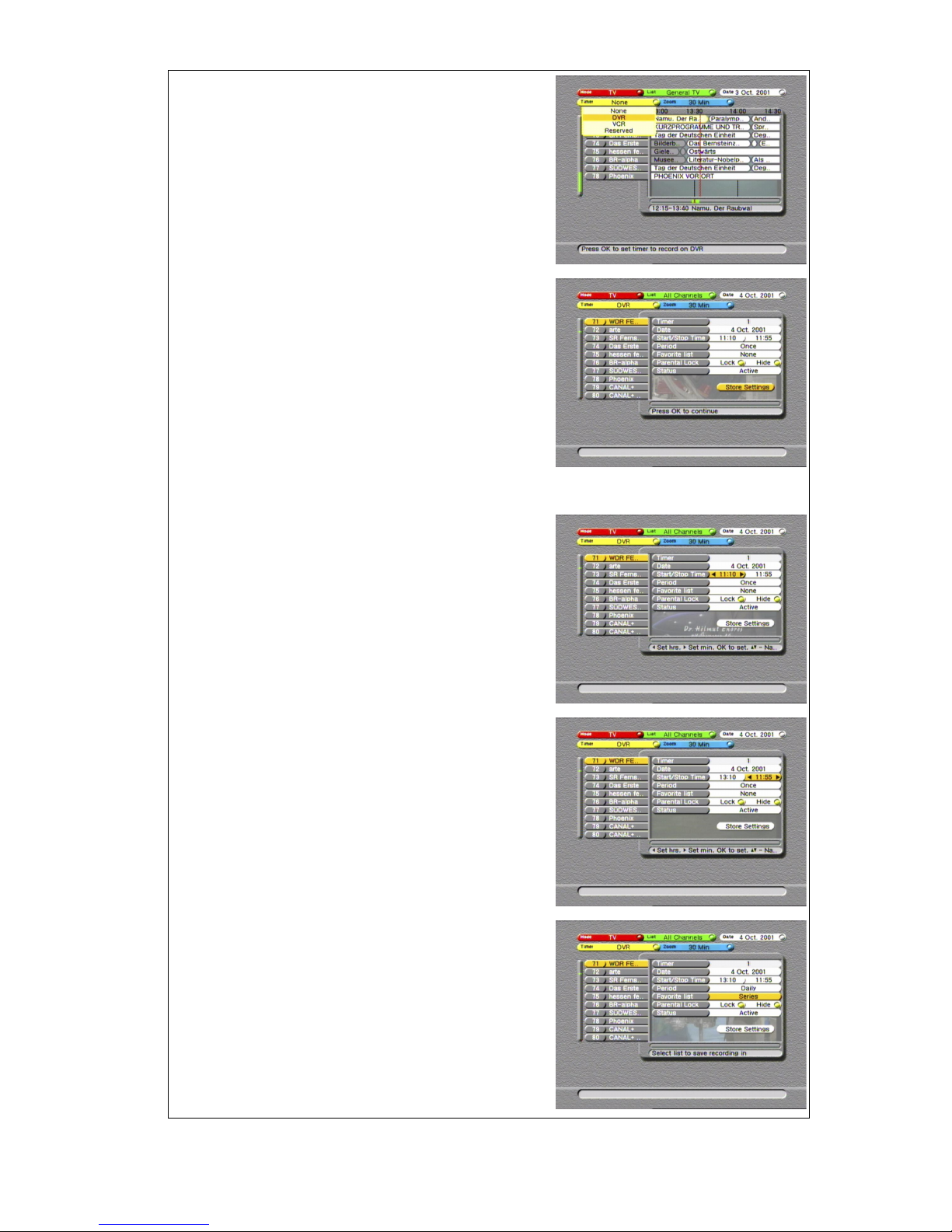

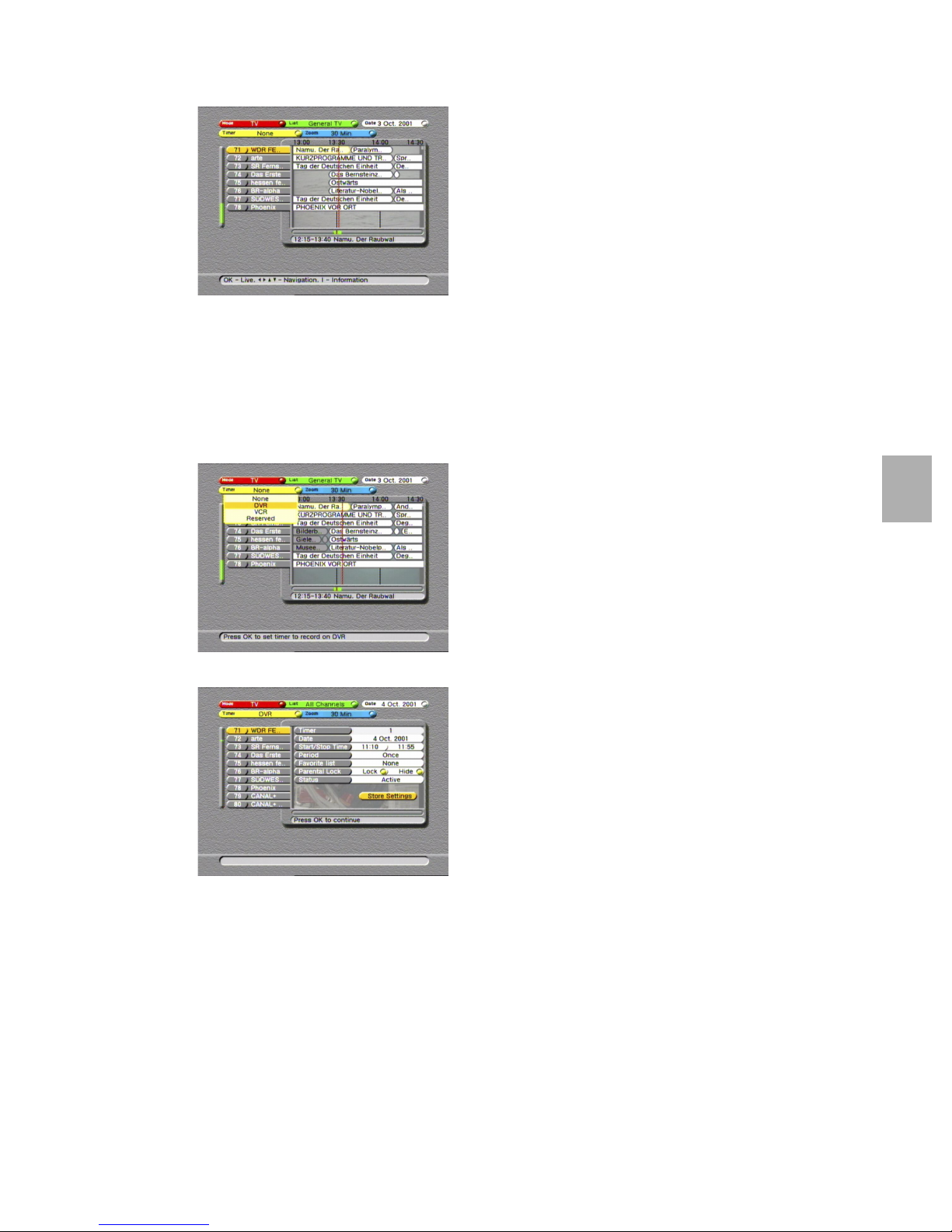

4.1. THE TIMERS

The event timers are a kind of alarm clock. An event timer reminds you when a timed program or recording starts. You can set the next timers:

■ DVR timer, to automatically record a program onto

the hard disk.

■ VCR timer, to automatically switch over to the timed

program before it really starts. This allows you to record a program on a video tape (video recorder);

■ Reserved timer, to automatically switch over to the

timed program before it really starts or when the receiver is in standby, to switch on the receiver.

If a timer is set on a program that is shown in the EPG, the relevant data is already shown in the timer. You can change the settings as follows:

■ Date, to set the start date for the timer;

■ Start time, to set the start time in hours/minutes;

■ Stop time, to set stop time in hours/minutes;

■ Period, to set the timer once or repeat for every

occurrence;

■ Favoritelist,toselectalistwheretosavethe

recording (none saves into the all files list).

■ Parental lock, to lock or hide the recording

automatically.

■ Status, to set (active) or delete (inactive) the timer.

■ Store settings, to program the timer.

Section 4

EchoNAV User Interface Page 4 - 13

Page 28

Section 4

Familiarization

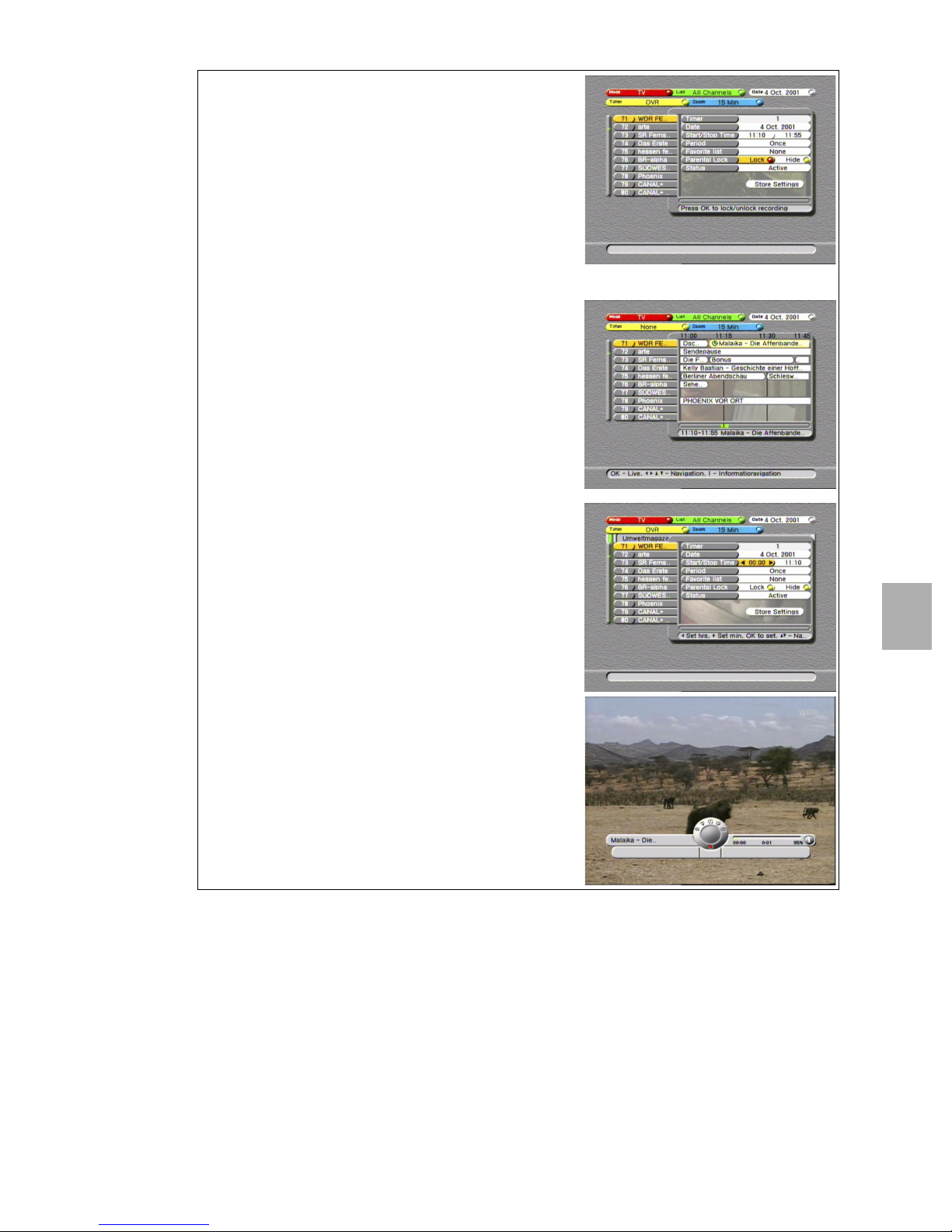

Timers are shown in the EPG window as clocks. In the List-Timers page, it is possible to get a list of the timers that are set. In this page you also can change or delete a set timer.

You can view an overview of all the timers that are set if you select the timers list.

5. THE INFOBANNER AND POP-UP MENUS

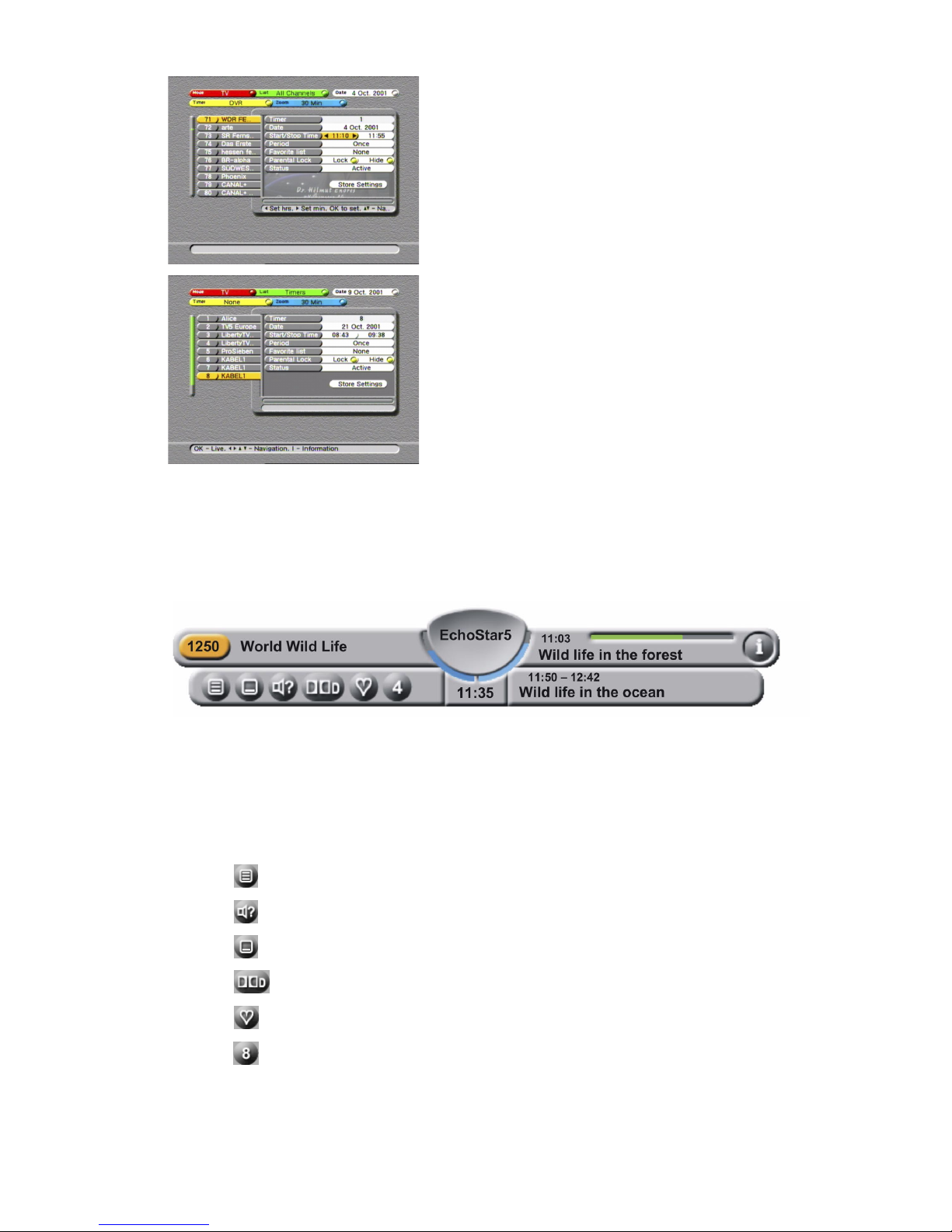

5.1. THE TV INFOBANNER

The TV InfoBanner shows the information related to the actual channel.

The information shown is some information only if provided by the service provider.

■ The channel information bar, to show the (favorites) list number and the channel name;

■ The satellite information dish, to show the name of the selected satellite;

■ The program information bar, to show the start time, duration indicator and program name;

■ The i-button, to indicate that there is detailed program information available;

■ The additional information bar, to show the additional service icons. These icons show

only if the additional service is available. The icons are:

- the icon for teletext;

- the icon for alternate audio;

- the icon for alternate subtitling;

- the icon for Dolby Digital audio;

- the icon for Favorite channel;

- the icon for Parental rating information.

■ The digital clock, to show the actual local time;

■ The next program information bar, to show the information of the next program.

■ If the volume +/- key is pressed, the volume button is shown (see the radio InfoBanner).

Page 4 - 14 EchoStar International Corporation

Page 29

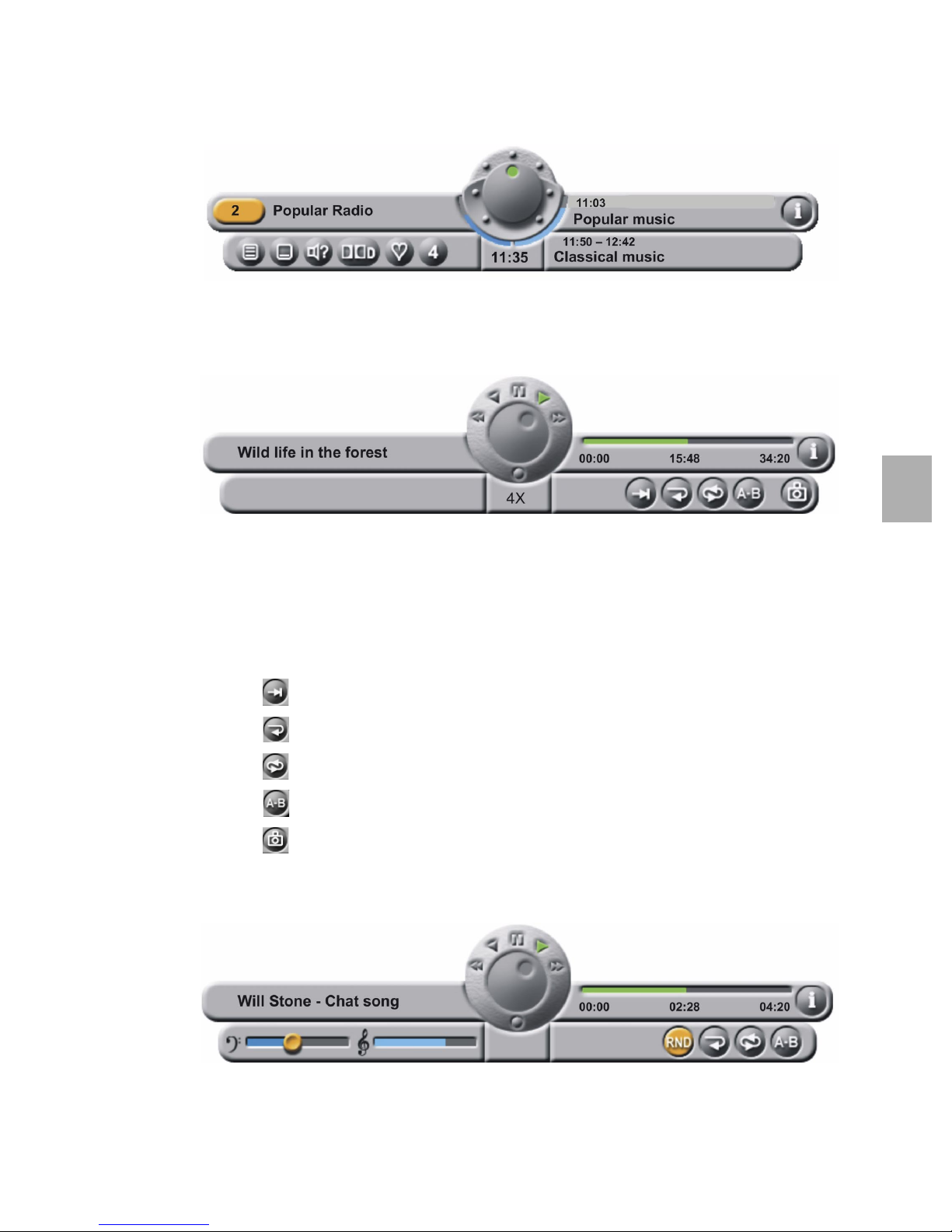

5.2. THE RADIO INFOBANNER

The radio InfoBanner shows the information related to the actual channel. The radio InfoBanner can show the same information as discussed with the TV InfoBanner.

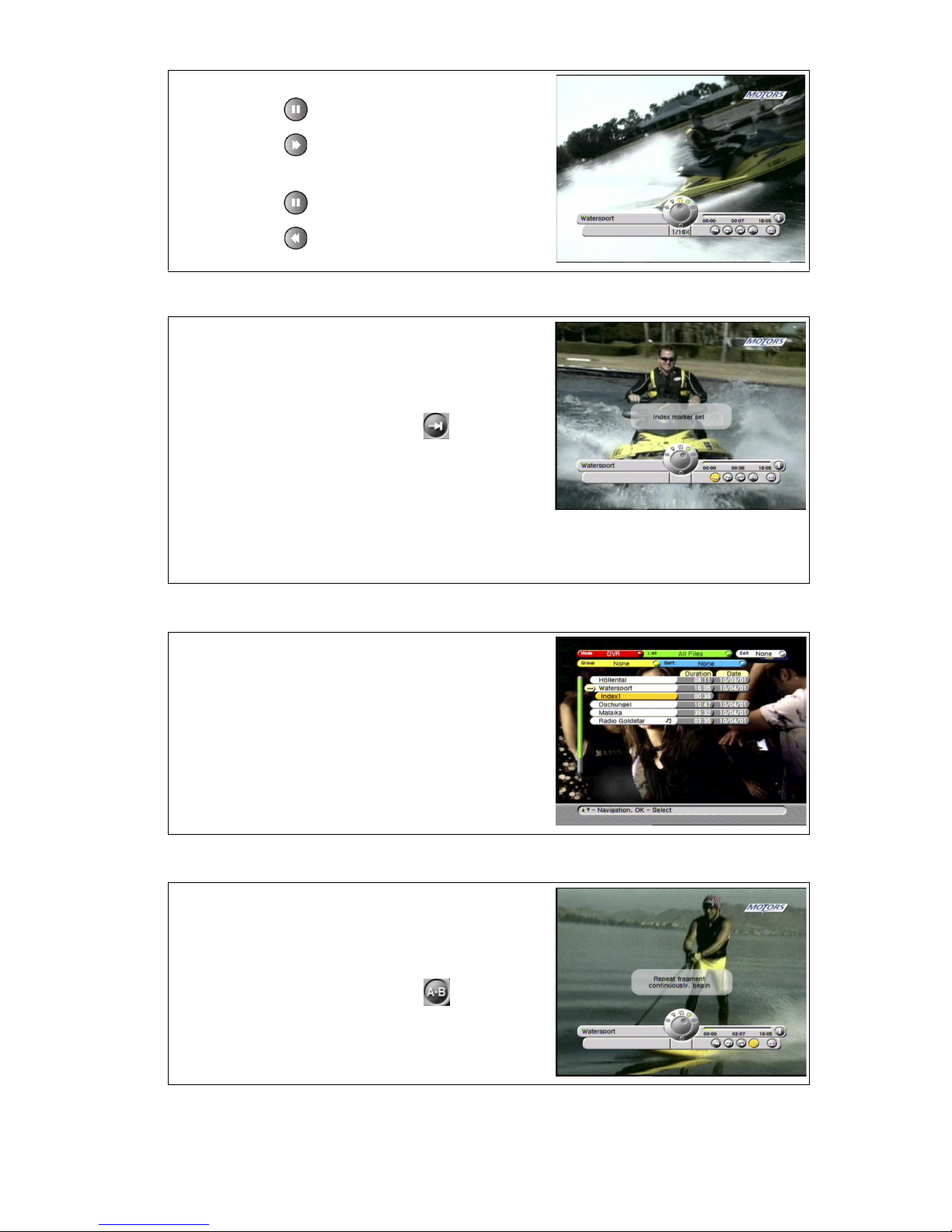

5.3. THE DVR INFOBANNER

The DVR InfoBanner shows the information related to the actual recording. The information shown is (some information only if provided during the recording by the service provider).

Familiarization

Section 4

■ The recording information bar, to show the name of the recording;

■ The jog shuttle, to show the actual status of the DVR (rewind, reverse slow motion, pause,

play, fast forward and record);

■ The progress information bar, to show the start time and duration indicator;

■ The i-button, to indicate that there is detailed program information available;

■ The speed indicator to show the (re)wind and slow motion speed;

■ The menu bar, to show the special functions. The special functions are:

- the button, to mark a scene with an index marker;

- the button, to repeat the recording continuously;

- the button, to repeat all the recordings from the selected (favorite) list;

- the button, to mark and repeat a scene continuously;

- the button, to capture an image as a personal background.

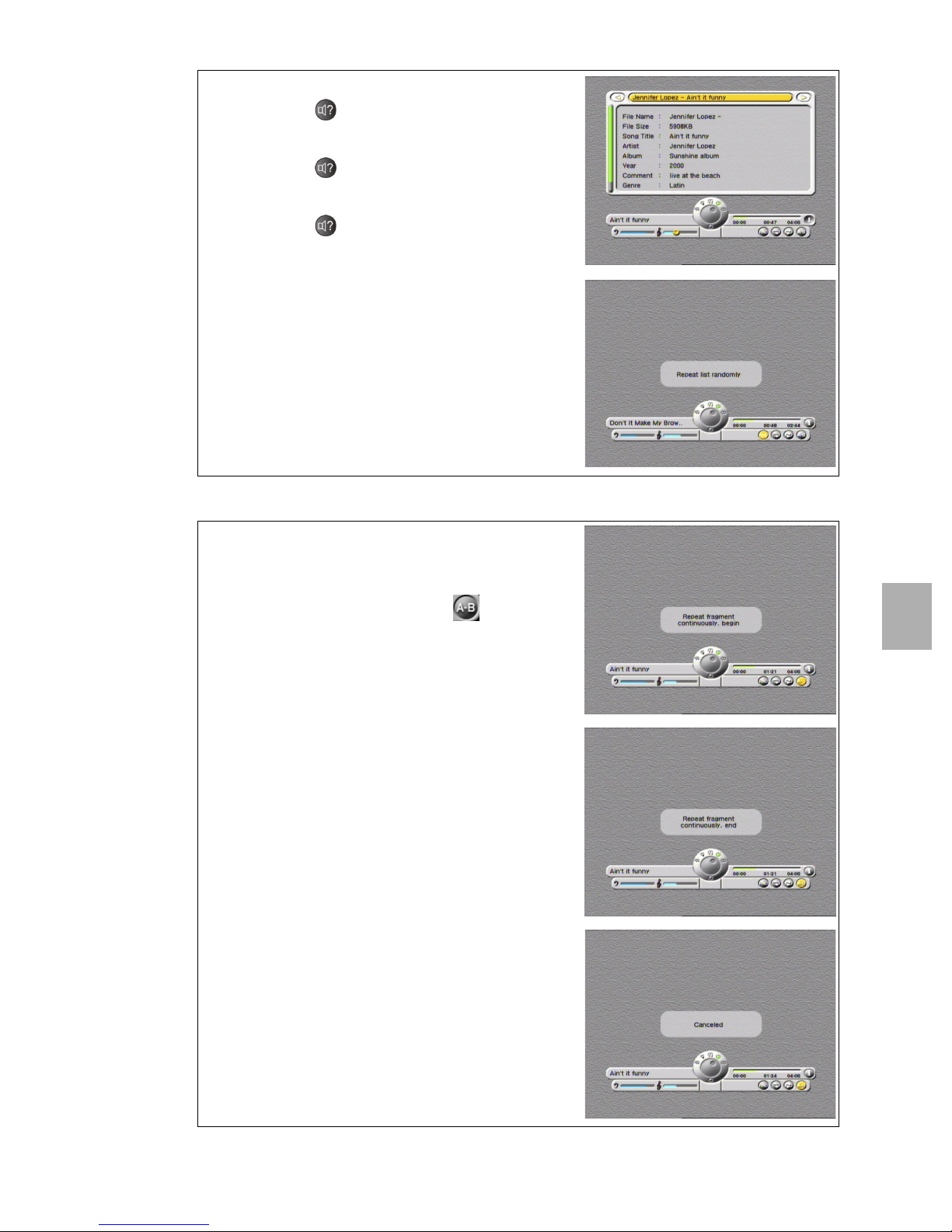

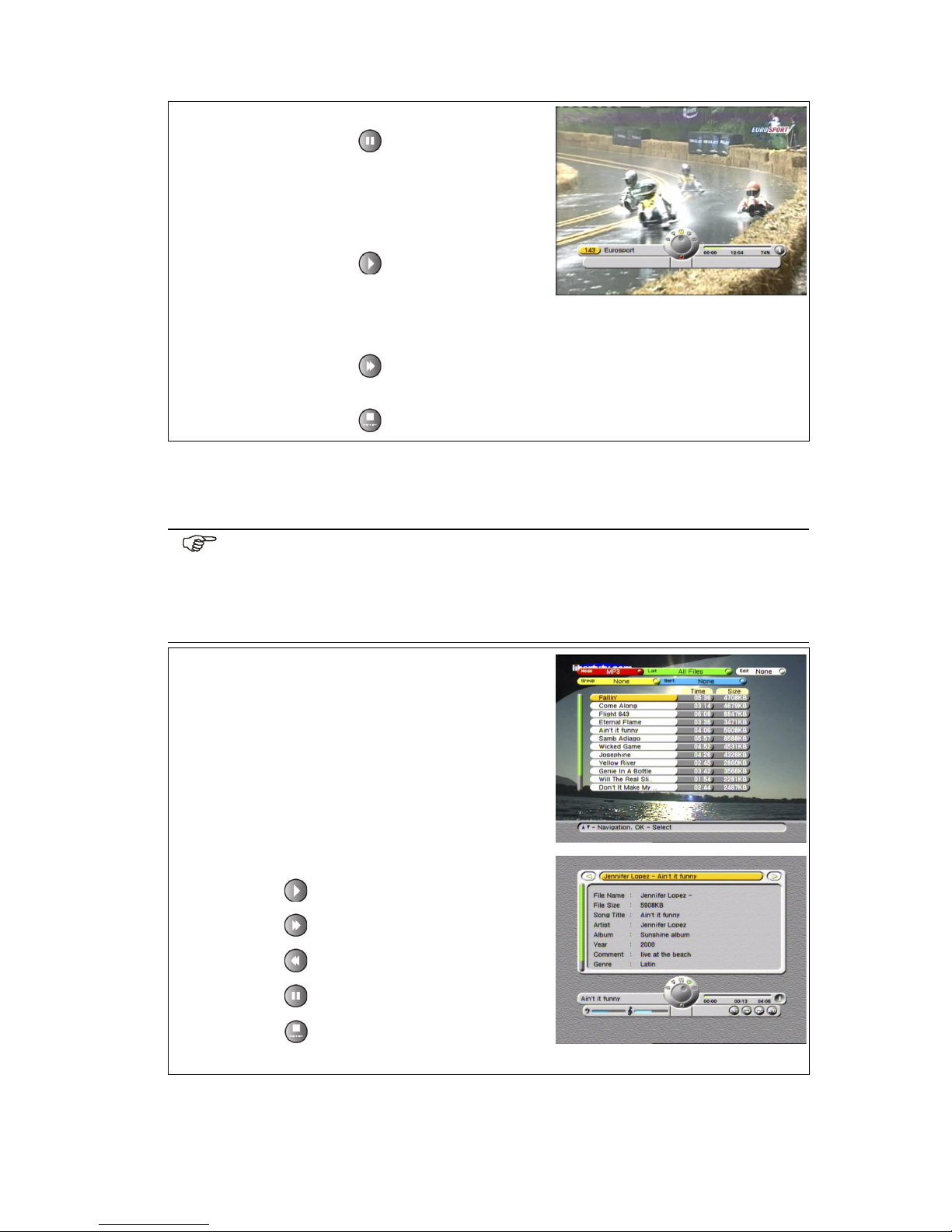

5.4. THE MP3 INFOBANNER

The MP3 InfoBanner shows the information related to the actual MP3 song.

■ The song information bar, to show the name of the recording;

■ The jog shuttle, to show the actual status of the MP3 player (rewind, pause, play and

fast forward);

■ The progress information bar, to show the start time and duration indicator;

EchoNAV User Interface Page 4 - 15

Page 30

Section 4

■ The i-button, to indicate that there is detailed information available;

■ The bass and treble indicators and the control button (alt audio key);

■ The menu bar, to show the special functions. The special functions are:

Familiarization

- the button, to repeat the list in a random order;

- the button, to repeat the song continuously;

- the button, to repeat all the songs from the selected (favorite) list;

- the button, to mark and repeat a song fragment continuously;

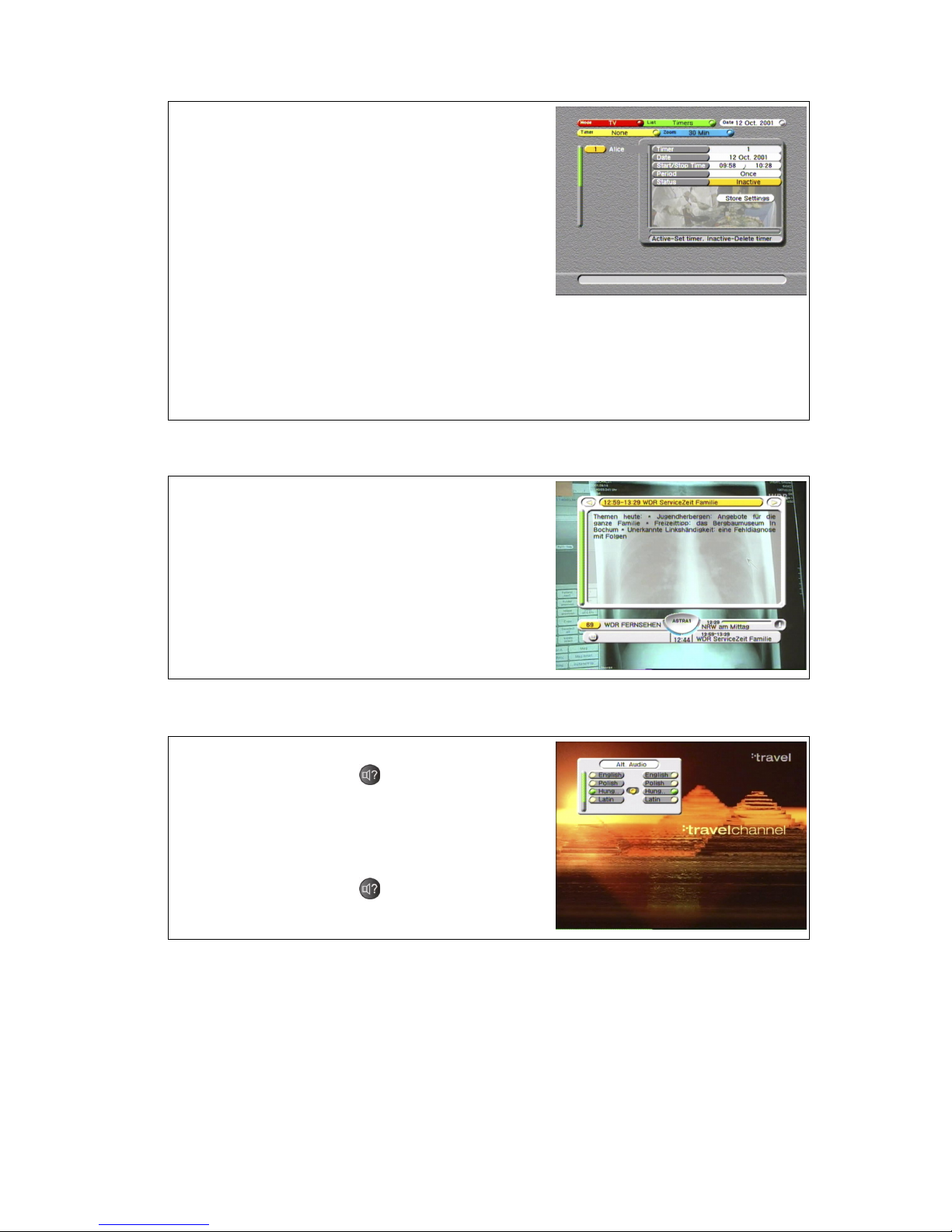

5.5. POP-UP MENUS

Some pop-up menus are used to show that the receiver is busy to execute a task. Other popup menus require interaction with the user, you have to confirm or deny a earlier given command to complete the task

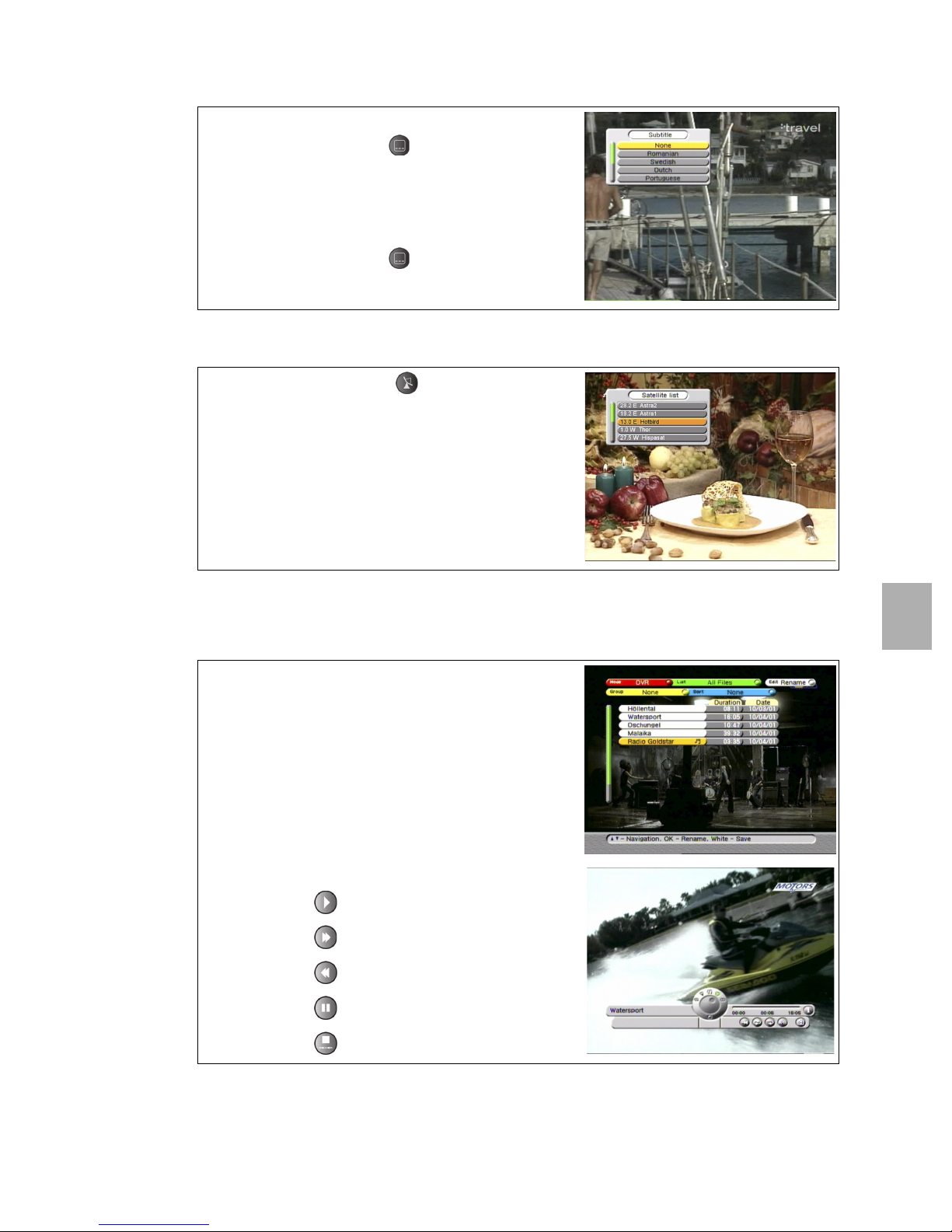

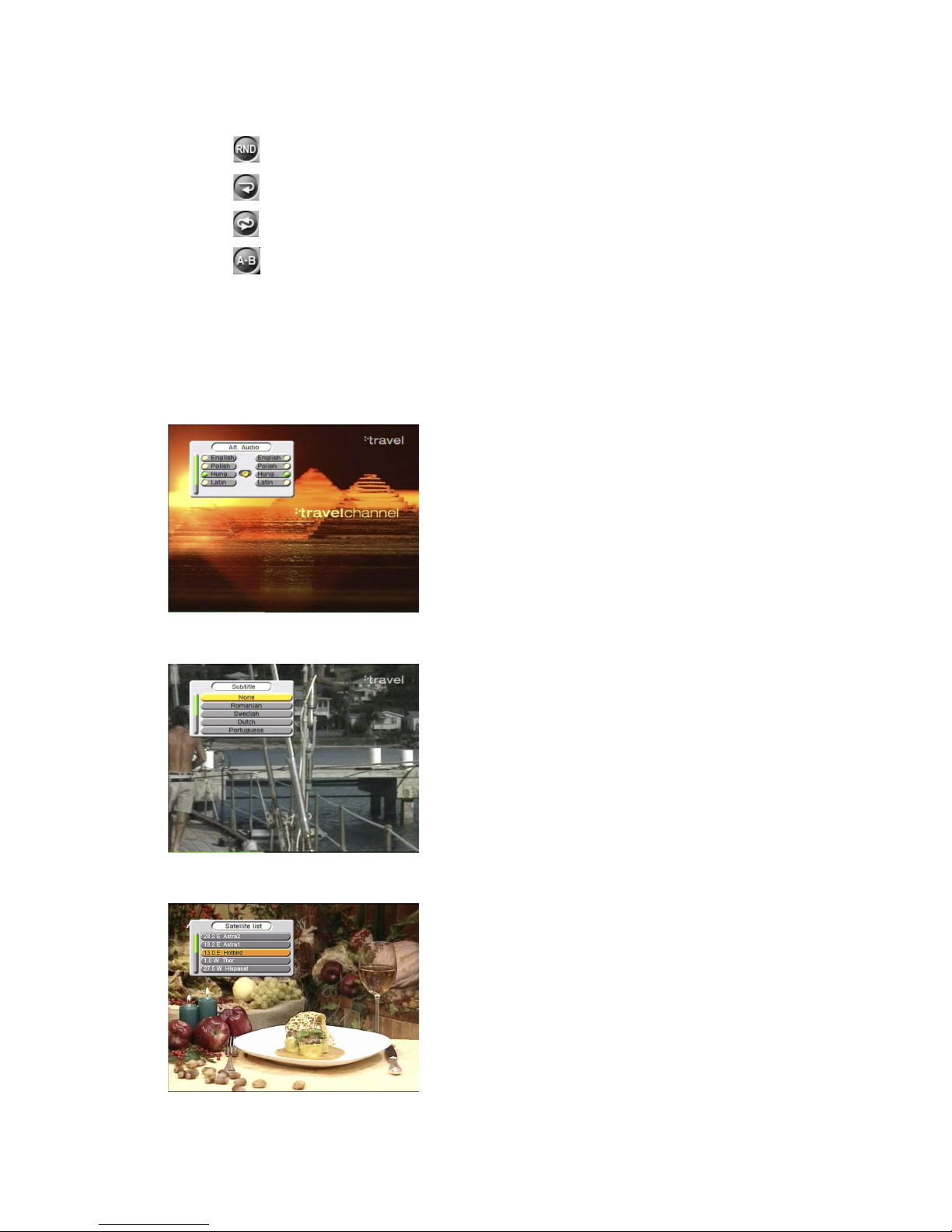

5.5.1. ALT AUDIO

If transmitted, you can set per channel your alternate audio. You can call up the pop-up menu with the alternative audio key on the remote control unit. You can navigate up and down between the audio languages or left and right for bi-lingual programs. For the radio channels, you can navigate up and down between the different radio stations within the selected channel.

5.5.2. SUBTITLE

5.5.3. SATELLITE LIST

If transmitted, you can set per channel your subtitling Youcancallupthepop-upmenuwiththesubtitlekeyon the remote control unit. You can navigate up and down between the languages.

This pop-up menu gives you the possibility to choose directly from the available satellites. You can call up the pop-up menu with the satellite key on the remote control unit.

Page 4 - 16 EchoStar International Corporation

Page 31

OPERATION

1. TO NAVIGATE THROUGH THE MENUS

NOTE

Unless otherwise specified; this note explains the way you can navigate through the pages of the EchoNAV user menu.

1. Use the OK key to pull down the menu selection fields.

2. Use the  keys to scroll the selectable items.

3. Use the  keys to navigate between the left and right column of selectable items.

4. Use the EXIT key to leave the menu and return to the view mode.

5. In a pull-down menu:

- use the OK key to confirm the selection.

- the yellow bar indicates the active selection;

- on the left, the green page indicator indicates where you are.

NOTE

In the following procedures, we assume that you have switched on the TV and the receiver is in the TV mode.

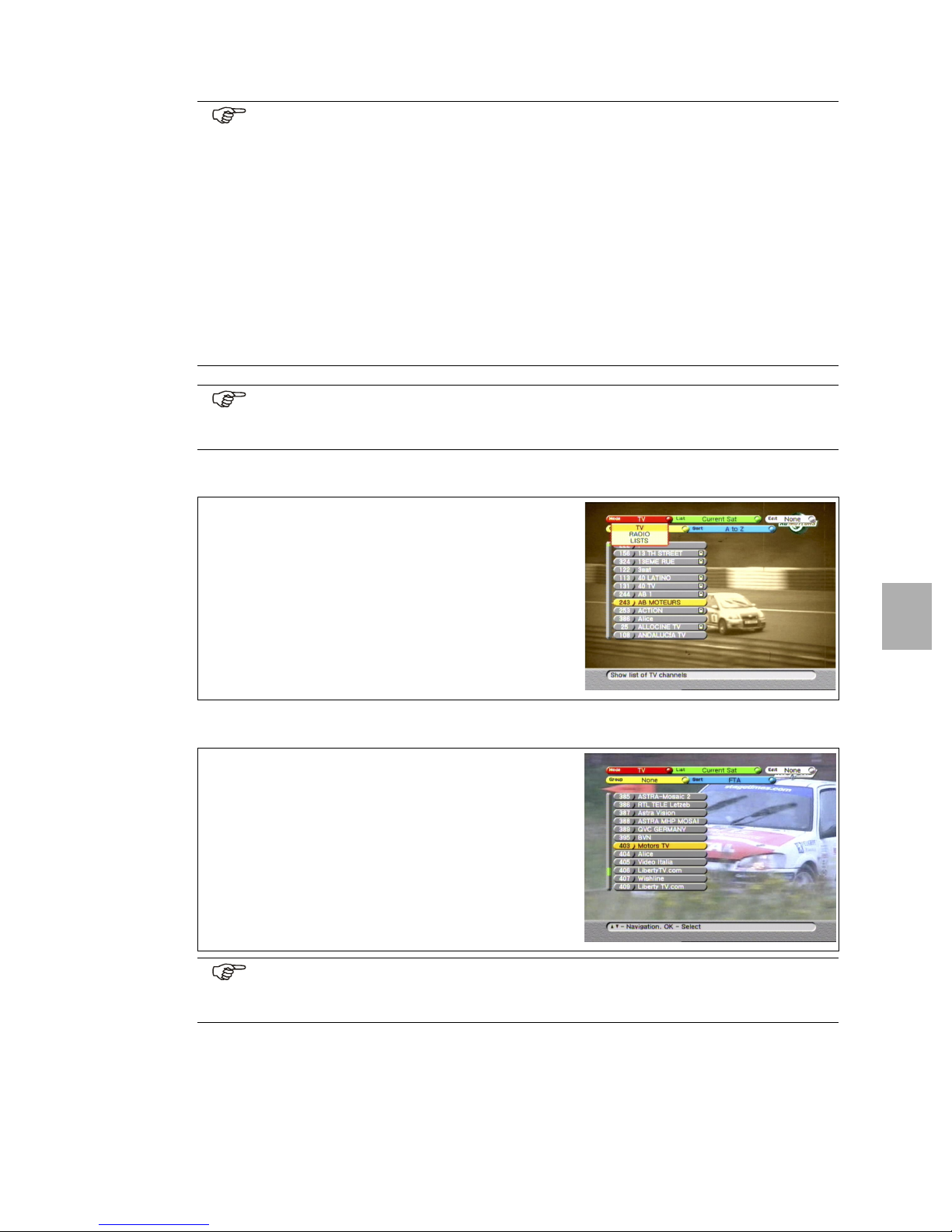

1.1. TO SELECT A MODE

Operation

Section 5

1. On the RCU, press the OK key;

2. Press the RED key and make the selection.

3. Read the available help text for information.

4. Select the required mode.

1.2. TO SELECT A CHANNEL

1. On the RCU, press the OK key.

2. Select the required mode.

3. Read the available help text for information.

4. Select a channel, either: a. use the keys; b. use the page + / - keys; c. use the numbered keys.

5. On the RCU, press the OK key to confirm.

NOTE

Normally, you only can view a scrambled channel with the applicable CI-module and/or smart card inserted in a CI-slot or Viaccess smart card reader.

EchoNAV User Interface Page 5 - 1

Page 32

Section 5

Operation

1.3. TO SELECT A LIST

1. On the RCU, press the OK key.

2. Select the required mode.

3. On the RCU press the GREEN key.

4. Read the available help text for information.

5. Select the required list.

1.4. TO GROUP A LIST

1. On the RCU, press the OK key.

2. Select the required mode.

3. On the RCU press the YELLOW key.

4. Read the available help text for information.

5. Select the required group option.

1.5. TO SORT A LIST

1. On the RCU, press the OK key.

2. Select the required mode.

3. On the RCU press the BLUE key.

4. Read the available help text for information.

5. Select the required sort option. Note that only for the Character and Word option a keyboard appears.

6. When the keyboard appears: a. use the arrow keys to navigate; b. press OK to accept the character; c. select the button to get lower case

characters and numbers;

d. select the button e. on the RCU, press the OK key to confirm.

Page 5 - 2 EchoStar International Corporation

Page 33

1.6. TO EDIT A LIST

1. On the RCU, press the OK key.

2. Select the required list.

3. On the RCU press the WHITE key.

4. Read the available help text for information.

5. Select the required edit option.

NOTE

Some EDIT options are not always available. If an option is not presented, select Group - None and Sort - None

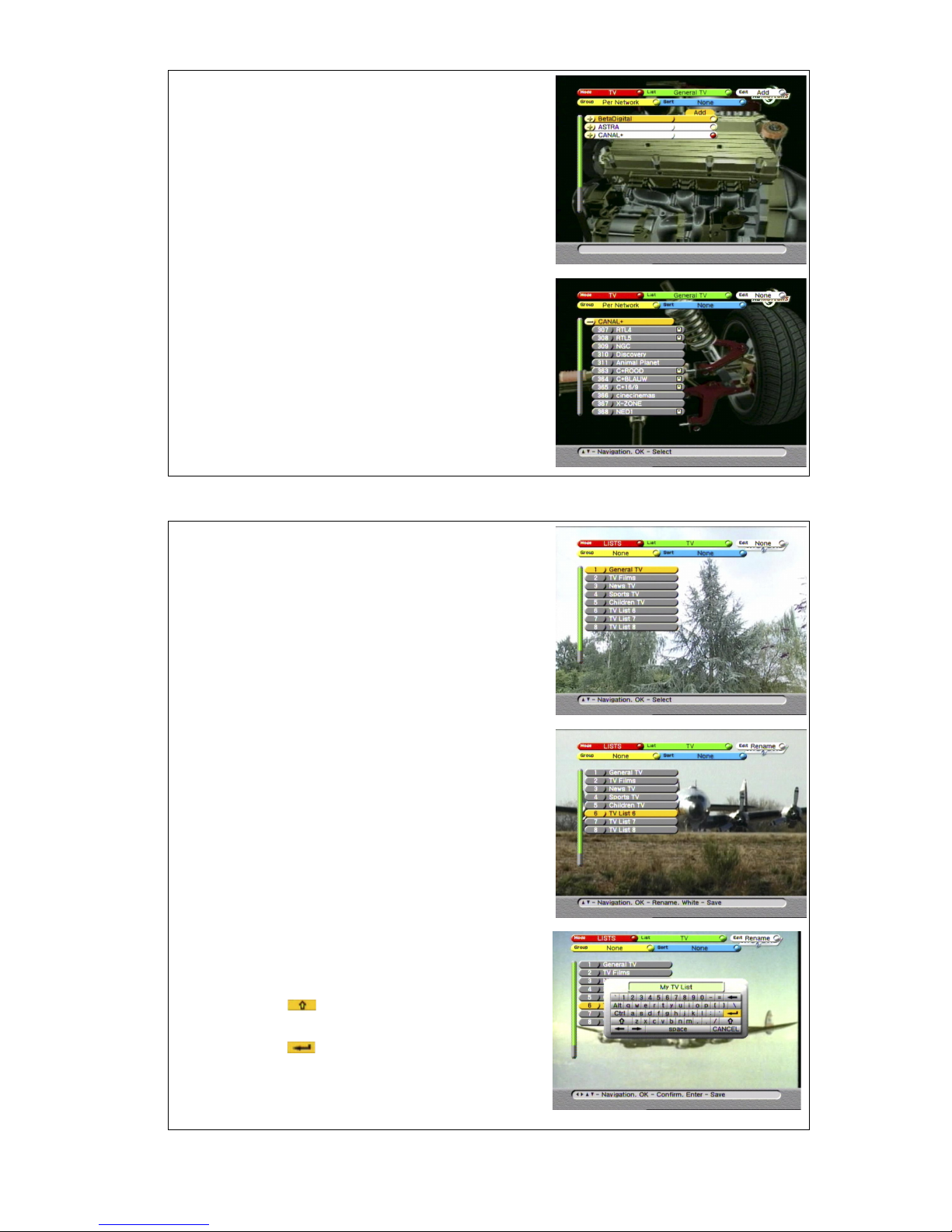

1.7. TO MOVE A CHANNEL

1. In the Edit menu, select the Move option.

2. Read the available help text for information.

3. Go to the channel you want to move.

4. On the RCU, press the OK key. Note a red bullet appears behind the selection.

5. If you want to undo the selection, press the OK key again.

Operation

Section 5

6. Move the channel, either: a. use the keys; b. use the page + / - keys;

7. On the RCU, press the OK key to confirm.

8. Either: a. press the WHITE key to end the session, or b. select the next channel you want to move.

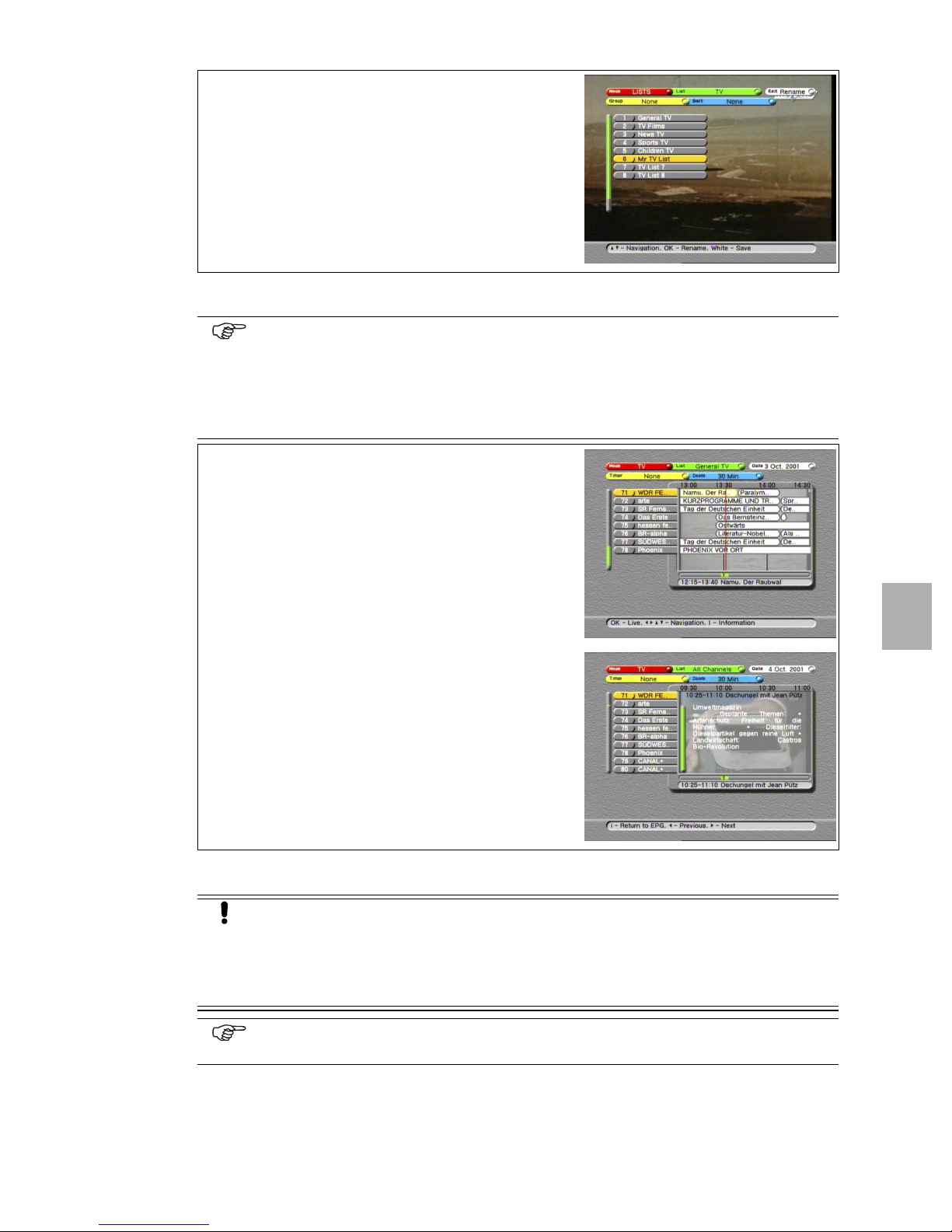

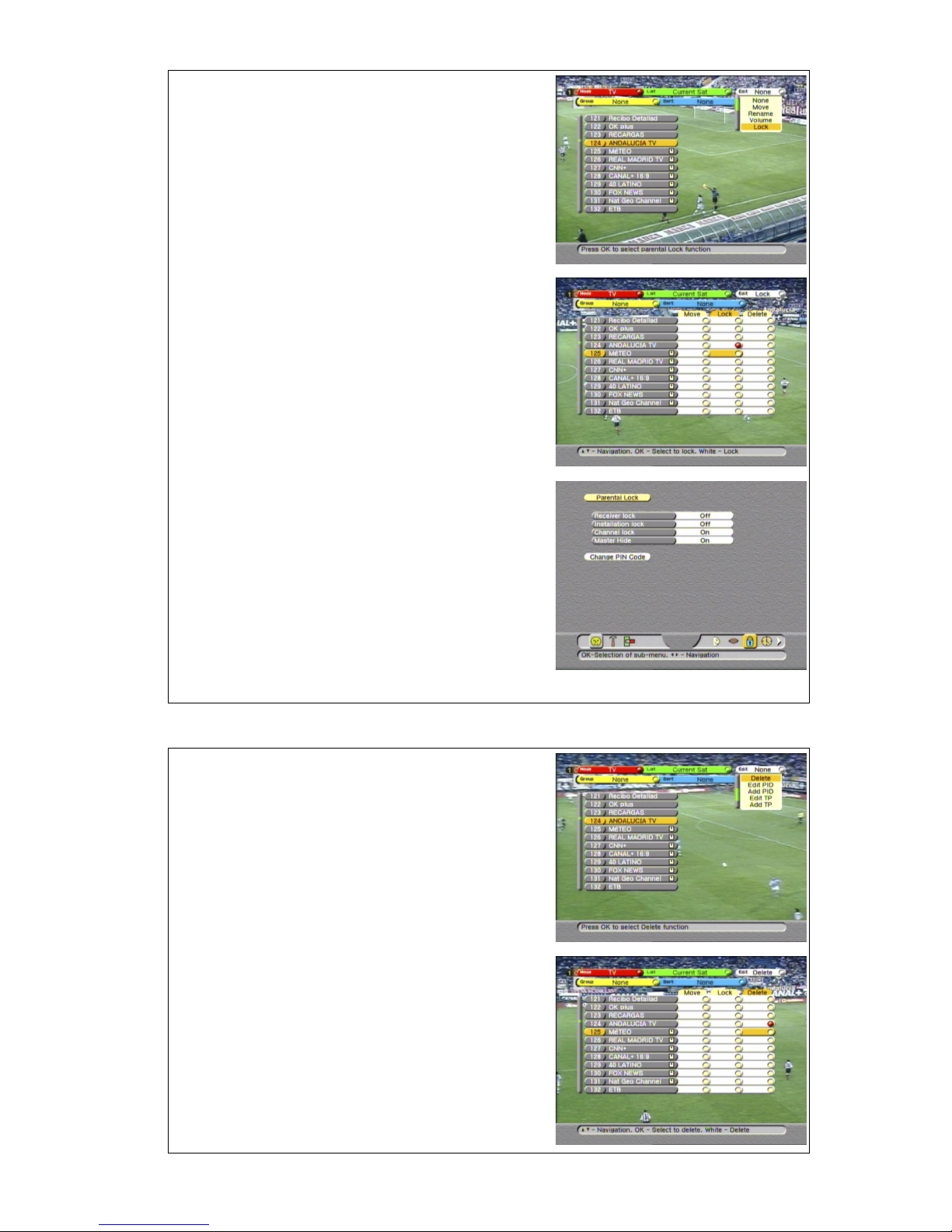

1.8. TO LOCK A CHANNEL

CAUTION

You can only lock a channel if you have set the parental lock and the PIN-code correctly. We recommend, in the parental lock menu, that you check if the lock option is set correctly.

NOTE

After you have set a lock onto a channel, the installation and the EDIT menu are automatically locked with an installation lock to prevent unauthorized access. Now you can only access these functions if you know the correct PIN-code.

EchoNAV User Interface Page 5 - 3

Page 34

Section 5

1. In the Edit menu, select the LOCK option.

2. Read the available help text for information.

3. Go to the channel you want to lock.

4. On the RCU, press the OK key.

5. If you want to undo the selection, press the OK key

6. Either:

Operation

Note a red bullet appears behind the selection.

again.

a. press the WHITE key to confirm the lock and

end the session, or

b. select the next channel you want to lock.

7. You can temporarily unlock all channels: a. On the RCU, press the MENU key; b. Select the Parental Lock menu; c. Enter the correct PIN-code as requested; d. Set the channel lock to Off.

8. You can restore all the locks on the channels: a. On the RCU, press the MENU key; b. Select the Parental Lock menu; c. Enter the correct PIN-code as requested; d. Set the channel lock to On.

1.9. TO DELETE A CHANNEL

1. In the Edit menu, select the DELETE option.

2. Read the available help text for information.

3. Go to the channel you want to delete.

4. On the RCU, press the OK key. Note a red bullet appears behind the selection and the cursor advances to the next channel.

5. If you want to undo the selection, press the OK key again.

6. Either: a. press the WHITE key to confirm the deletion and

end the session, or

b. select the next channel you want to delete.

Page 5 - 4 EchoStar International Corporation

Page 35

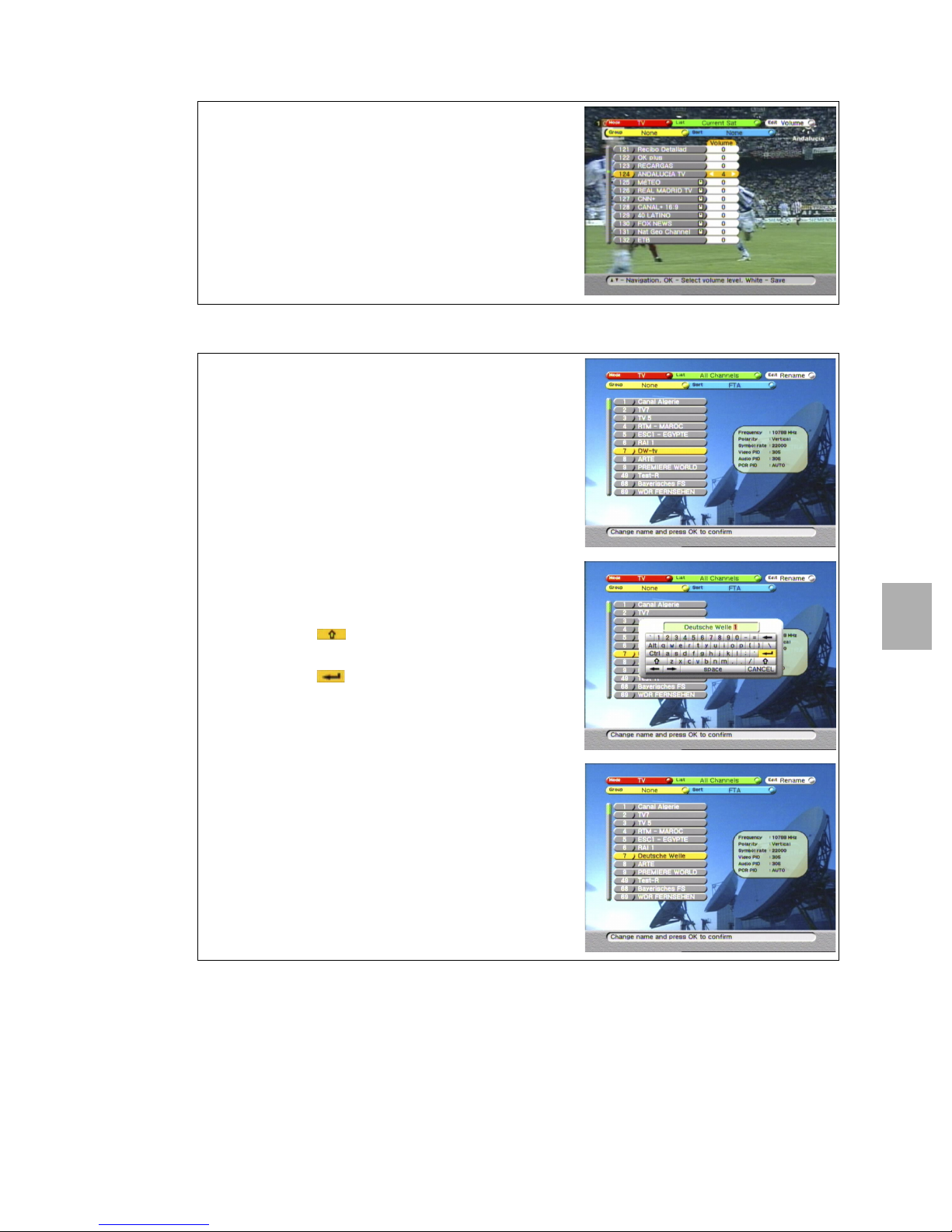

1.10. TO SET THE CHANNEL VOLUME OFFSET

1. In the Edit menu, select the VOLUME option.

2. Read the available help text for information.

3. Go to the channel you want to edit.

4. On the RCU, use the  keys to set the volume.

5. Either: a. Press the WHITE key to end the session, or b. select the next channel you want to edit.

1.11. TO RENAME A CHANNEL

1. In the Edit menu, select the RENAME option.

2. Read the available help text for information.

3. Go to the channel you want to rename.

4. On the RCU, press the OK key.

Operation

Section 5

5. When the keyboard appears: a. use the arrow keys to navigate; b. press OK to accept the character; c. select the button to get lower case

characters and numbers;

d. select the button e. on the RCU, press the OK key to confirm.

6. Either: a. Press the WHITE key to end the session, or b. select the next channel you want to rename.

EchoNAV User Interface Page 5 - 5

Page 36

Section 5

Operation

1.12. TO HIDE A CHANNEL

CAUTION

You can only hide a channel if you have set the parental lock and the PIN-code correctly. We recommend that you check if the hide option is set correctly.

NOTE

After you have set a hide onto a channel, the installation and the EDIT menu are automatically locked with an installation lock to prevent unauthorized access. Now you can only access these functions if you know the correct PIN-code.

1. Make the hide function available for edit: a. On the RCU, press the MENU key; b. Select the Parental Lock menu c. Enter the correct PIN-code as requested;

2. Set the Master Hide to Off.

1. In the Edit menu, select the HIDE option.

2. Read the available help text for information.

3. Go to the channel you want to hide.

4. On the RCU, press the OK key. Note a red bullet appears behind the selection.

5. If you want to undo the selection, press the OK key again.

6. Either: a. press the WHITE key to confirm the hide and

end the session, or

b. select the next channel you want to hide.

7. Makethehidefunctionactive a. On the RCU, press the MENU key; b. Select the Parental Lock menu c. Enter the correct PIN-code as requested;

8. Set the Master Hide to On.

9. You can temporarily unhide all channels: a. On the RCU, press the MENU key; b. Select the Parental Lock menu c. Enter the correct PIN-code as requested; d. Set the Master Hide to Off.

10. You can restore all the hides on the channels:

11. In the parental lock menu, set the Master Hide to On.

Page 5 - 6 EchoStar International Corporation

Page 37

2. USE THE FAVORITE LISTS

Navigation and use of the favorite lists are the same as for the all channels and current satellite list as described before. The main difference is that you can setup and organize the favorite lists as required. EchoStar has already pre-named the favorite lists to help you getting started. It is however possible to change the name of the favorite list to something that is meaningful to you.

For adding channels quickly, you can use the group and sort option first to limit the amount of channels where you want to choose from. As an example, now it is possible to add all sport related channels in one step to the Sports TV favorite list.

Note that for each mode, a separate number of favorite lists is available.

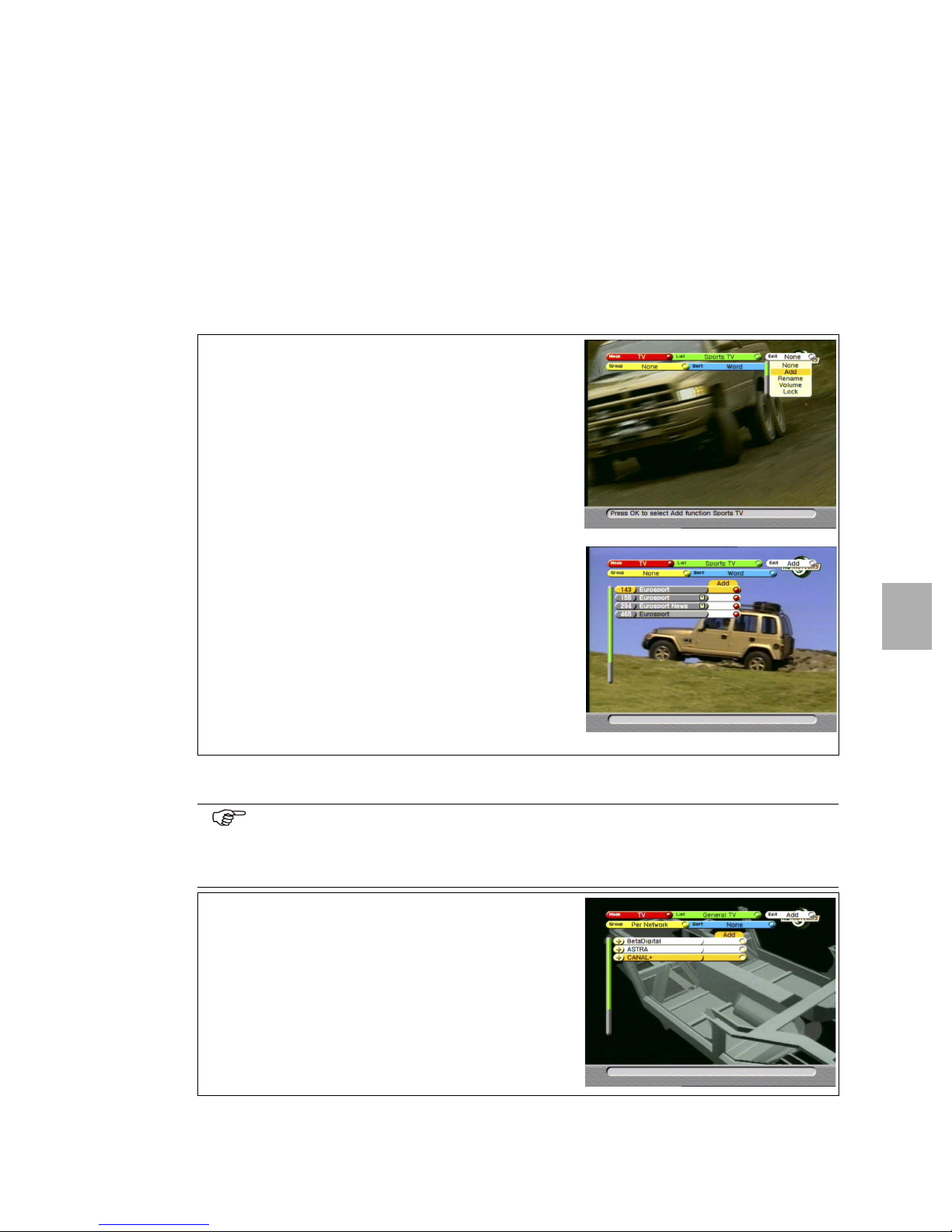

2.1. ADD A CHANNEL TO A FAVORITE LIST

1. On the RCU, press the OK key.

2. Select the required mode.

3. Read the available help text for information.

4. Group and sort the all channels list to locate the required channel quickly.

5. On the RCU press the GREEN key.

6. Select the favorite list to which you want to add a channel.

Operation

Section 5

7. On the RCU press the WHITE key.

8. Select the add option.

9. Read the available help text for information.

10. Go to the channel you want to add.

11. On the RCU, press the OK key. Note a red bullet appears behind the selection and the cursor advances to the next channel.

12. If you want to undo the selection, press the OK key again.

13. Press the WHITE key to end the session.

2.2. ADD A GROUP OF CHANNELS TO A FAVORITE LIST

NOTE

As an example, this procedure details the instructions on how to add a group of channels to a favorite list. In this example we add a complete network to the My TV Channels favorite list

1. On the RCU, press the OK key.

2. Select the required mode.

3. Read the available help text for information.

4. Group the channels as required.

5. Select the favorite list to which you want to add the group of channels.

6. On the RCU press the WHITE key.

7. Select the add option.

8. Read the available help text for information.

EchoNAV User Interface Page 5 - 7

Page 38

Section 5

9. Go to the network you want to add.

10. On the RCU, press the OK key.

11. If you want to undo the selection, select again and

12. Press the WHITE key to end the session.

13. If only the network bar is show, press the i-key to

14. Select a channel.

15. On the RCU, press the OK key to view the selected

Operation

Note a red bullet appears behind the selection and the cursor advances to the next item.

press the OK key.

expand the selection.

channel. Note that in the left bar of the InfoBanner, a heart symbol appeared to indicate that this channel is a favorite channel.

2.3. RENAME A FAVORITE LIST

1. On the RCU, press the OK key;

2. Press the RED key and select Lists.

3. Press the GREEN key and select the category.

4. In the Edit bar, select the RENAME option.

5. Read the available help text for information.

6. Go to the favorite list you want to rename.

7. On the RCU, press the OK key.

8. When the keyboard appears: a. use the arrow keys to navigate; b. press OK to accept the character; c. select the button to get lower case

characters and numbers;

d. select the button e. on the RCU, press the OK key to confirm.

Page 5 - 8 EchoStar International Corporation

Page 39

Operation

9. Either: a. press the WHITE key to end the session, or b. select the next favorite list you want to rename.

Section 5

3. TO USE THE ELECTRONIC PROGRAM GUIDE (EPG)

NOTE

The EPG information is not always available. Sometimes the service provider (who sends the EPG information) supplies only the program name, the now/next information or sometimes nothing at all. EchoStar has no influence on this matter. Make sure the local time is set otherwise you can not view EPG information because it needs the correct time (Refer to the Local Time menu).

1. Use the EPG key to access the main EPG menu.

2. Allow the receiver to collect the EPG information for the selected channel.

3. Read the available help text for information.

4. Use the  keys to select a channel.

5. Use the  keys to select the programs.

6. Use the i-key to shift between detailed program information and the main EPG menu.

7. Use the OK key to view the selected channel.

3.1. TO SET A TIMER

CAUTION

Note that the VCR timer does not start or program your video recorder (VCR). You have to set the timer of your VCR also to the same time as on the receiver. Please refer to the user’s guide of your VCR how to record from a satellite receiver. On quite a lot of VCRs you have to select the so called external channel (E1)

NOTE

You cannot set a timer in the past or on a program that has already begun.

EchoNAV User Interface Page 5 - 9

Page 40

Section 5

1. On the RCU, press the EPG key.

2. If EPG data is available, select a program in the

3. If no EPG data is available, select the correct

4. Read the available help text for information.

5. On the RCU press the YELLOW key.

6. Select the required timer.

7. When the timer appears, if necessary:

8. Change the date:

NOTE

Be aware that the shown EPG start/stop time might not be the same as the actual start/stop times, because of last minute program changes.

9. Change the start time:

Operation

future (right of the red line in the EPG window);

channel.

a. use thekey, to go to the Date; b. read the available help text for information; c. press the OK key to change the date; d. in the calendar, select the required date; e. press the OK key to return to the timer.

a. use thekey, to go to the Start Time; b. read the available help text for information; c. press thekeys to set the hours; d. press the OK key to go to the minutes; e. press thekeys to set the minutes.

10. Change the stop time: a. use thekey, to go to the Stop Time; b. read the available help text for information; c. press thekeys to set the hours; d. press the OK key to go to the minutes; e. press thekeys to set the minutes.

11. Change the repetition rate: a. use thekey, to go to the Period; b. read the available help text for information; c. press thekeys to set the repetition.

12. Save the recording in a specific (favorite) list: a. use thekey, to go to the Favorite List; b. read the available help text for information; c. press thekeys to set the (favorite) list.

Page 5 - 10 EchoStar International Corporation

Page 41

13. Save the recording as locked or hidden a. use thekey, to go to the Parental Lock; b. read the available help text for information; c. press thekeys to select Lock or Hide; d. press the OK key to activate the setting.

Note that a red bullet appears in selection.

14. Change the status: a. use thekey, to go to the Status; b. read the available help text for information; c. press thekeys to set the status;

15. Save the timer: a. use thekey, to go to the Store Settings; b. read the available help text for information; c. press the OK key to confirm the settings.

16. Note the clock that appeared in your program.

17. Do not forget to program also your VCR if you have set a VCR timer.

Operation

Section 5

NOTE

You cannot set a (EPG-based) timer in the past or on a program that has already begun. If the timer screen does not disappear, you have set a timer in the past or for a running program. Revise either date, start or stop time to a time in the future.

18. For a program that has already begun: a. set the timer as usual and change the start time

to 00:00; b. use the  key, to go to the Store Settings; c. press the OK key to confirm the settings.

19. Note that: a. the DVR InfoBanner momentarily appears with a

red blinking indicator;

b. the display on the receiver shows Hdd.

EchoNAV User Interface Page 5 - 11

Page 42

Section 5

Operation

3.2. DELETE A TIMER

1. On the RCU: a. press the EPG key; b. press the GREEN key; c. select from the list: Timers; d. press the OK key.

2. Select the applicable timer and press the OK key.

3. Change the status: a. use the  key, to go to the status; b. read the available help text for information; c. press thekey to set the status to inactive.

4. Delete the timer: a. use the  key, to go to the Store Settings; b. read the available help text for information; c. press the OK key to confirm the deletion.

3.3. USE THE INFOBANNER RELATED FUNCTIONS

1. On the RCU, press the i-key.

2. If available, allow the receiver to collect the EPG information for the selected channel.

3. If the i-button in the InfoBanner is shown, use the i-key on the RCU to shift between the detailed program information and the InfoBanner.

4. On the RCU, press the EXIT key to remove the InfoBanner from the screen (only in TV-mode).

3.4. TO SELECT THE ALTERNATE AUDIO

1. On the InfoBanner, find the alt audio symbol.

2. On the RCU, press the key.

3. In the Alt. Audio pop-up menu, select the required alternate audio. Note that alternate audio information is provided by the service provider.

4. On the RCU, press the key.

Page 5 - 12 EchoStar International Corporation

Page 43

Operation

3.5. TO SELECT THE SUBTITLE LANGUAGE

1. On the InfoBanner, find the subtitle symbol.

2. On the RCU, press the key.

3. In the subtitle pop-up menu, select the required subtitle language. Note that subtitle information is provided by the service provider.

4. On the RCU, press the key.

3.6. TO SELECT ANOTHER SATELLITE

1. On the RCU, press the key.

2. In the Satellites List pop-up menu, select the required satellite.

3. On the RCU, press the OK key. Note that the dish moves towards the selected satellite.

Section 5

4. TO USE THE DVR

4.1. PLAY BACK A RECORDING

1. On the RCU, press the OK key.

2. Select the DVR mode.

3. Read the available help text for information.

4. Select a recording, either: a. use the keys; b. use the page + / - keys;

5. On the RCU, press the OK key to playback the recording.

6. On the RCU:

a. press the key for play;

b. press the key for fast forward;

c. press the key for rewind;

d. press the key for pause;

e. press the key to stop.

EchoNAV User Interface Page 5 - 13

Page 44

Section 5

Operation

7. For forward slow motion, on the RCU:

a. press the key for pause;

b. press the key for slow motion;

8. For reverse slow motion, on the RCU:

a. press the key for pause;

b. press the key for reverse slow motion.

4.2. USE THE INDEX MARKER

1. Play back a recording.

2. On the RCU: a. press the i-key to show the InfoBanner; b. press the MENU key to activate the menu;

c. use thekeys to select the button.

3. Wait for the scene that you want to mark.

4. On the RCU, press the OK key.

5. Wait for the popup to disappear.

6. On the RCU: a. press the MENU key to leave the menu; b. press the EXIT key to remove the InfoBanner.

4.3. PLAY BACK THE INDEX MARKER

1. Select the DVR mode.

2. Select the event with the index marker.

3. On the RCU, press the i-key to expand.

4. Select the index that you want to play back.

5. On the RCU, press the OK key to playback the index.

4.4. USE THE A-B MARKER

1. Play back a recording.

2. On the RCU: a. press the i-key to show the InfoBanner; b. press the MENU key to activate the menu;

c. use thekeys to select the button.

3. Wait for the scene that you want to repeat.

4. On the RCU, press the OK key.

5. Wait for the popup to disappear.

Page 5 - 14 EchoStar International Corporation

Page 45

6. Wait for the end of the scene you want to repeat.

7. On the RCU, press the OK key.

8. Wait for the popup to disappear.

9. Note that the marked scene repeats continuously.

10. On the RCU, press the OK key to cancel the marker.

11. Wait for the popup to disappear.

12. On the RCU: a. press the MENU key to leave the menu; b. press the EXIT key to remove the InfoBanner.

Operation

Section 5

4.5. CAPTURE A PERSONAL BACKGROUND

1. Play back a recording.

2. On the RCU: a. press the i-key to show the InfoBanner b. press the MENU key to activate the menu;

c. use thekeys to select the button.

3. Wait for the scene that you want to capture.

4. On the RCU, press the OK key.

5. Wait for the popup to disappear.

6. On the RCU: a. press the MENU key to leave the menu; b. press the EXIT key to remove the InfoBanner.

4.6. INSTALL A PERSONAL BACKGROUND

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and select Background menu.

3. Read the available help text for information.

4. Select the personal background.

5. On the RCU: a. press the MENU key to leave the menu; b. press the EXIT key to return to live video.

EchoNAV User Interface Page 5 - 15

Page 46

Section 5

Operation

4.7. USE LIVE PAUSE

1. In the TV mode, select a channel to view.

2. On the RCU, press the key: a. the DVR InfoBanner appears with a yellow

pause and a red blinking indicator (recording); b. the live video freezes; c. the display on the receiver shows Hdd.

3. On the RCU, press the key: a. the live video is continued from the pause; b. the DVR InfoBanner disappears; c. the display on the receiver shows Hdd.

4. On the RCU: press the key to fast forward a timeframe(tocatchupwiththereallivevideo).

5. On the RCU, press the key to abort pause.

5. TO USE THE MP3 PLAYER

5.1. PLAY BACK A SONG

NOTE

Thekeys have a different function in the various selections:

■ normal play mode: key, previous song - key, next song;

■ detailed information: key, previous song - key, next song;

■ play mode menu: key, previous mode - key, next mode;

1. On the RCU, press the OK key.

2. Select the MP3 mode.

3. Read the available help text for information.

4. Select a song, either: a. use the keys; b. use the page + / - keys;

5. On the RCU, press the OK key to play back the song.

6. On the RCU:

a. press the key for play;

b. press the key for fast forward;

c. press the key for rewind;

d. press the key for pause;

e. press the key to stop; f. press the i-key for detailed information.

Page 5 - 16 EchoStar International Corporation

Page 47

7. For bass and treble setting, on the RCU:

a. press the key for the bass control button; b. press thekeys to change the setting;

c. press the key for the treble control button; d. press thekeys to change the setting;

e. press the key to confirm the setting.

8. For the different play modes, on the RCU: a. press the MENU key to access the menu; b. press thekey to select a play mode; c. press the OK key, to activate the selection; d. press the OK key, to cancel the selection; e. press the MENU key to leave the menu.

Operation

Section 5

5.2. USE THE A-B MARKER

1. Play back a song.

2. On the RCU: a. press the MENU key to activate the menu;

b. use thekeys to select the button.

3. Wait for the fragment that you want to repeat.

4. On the RCU, press the OK key.

5. Wait for the popup to disappear.

6. Wait for the end of the fragment you want to repeat.

7. On the RCU, press the OK key.

8. Wait for the popup to disappear.

9. Note that the marked fragment repeats continuously.

10. On the RCU, press the OK key to cancel the marker.

11. Wait for the popup to disappear.

12. On the RCU, press the MENU key to leave the menu.

13. Note that none of the buttons is highlighted.

EchoNAV User Interface Page 5 - 17

Page 48

Section 5

Operation

6. TO SET THE USER PREFERENCES

NOTE

FTA (Free-To-Air) receivers have no conditional access capabilities.

If shown, please ignore the Conditional Access button in the main menu bar.

6.1. TO CHANGE THE USER PROFILE

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. On the RCU: a. press the MENU key to save the settings; b. press the EXIT key to leave the menu.

6.2. TO CHANGE THE LANGUAGE

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. On the RCU: a. press the MENU key to save the settings; b. press the EXIT key to leave the menu.

6.3. TO SET THE PARENTAL LOCK

NOTE

This procedure does not lock a specific channel. After you made the parental control settings, you must lock the required channels or favorites manually. For a detailed procedure, please refer to the paragraph To Lock a channel.

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Enter the correct PIN code as requested

3. Read the available help text for information.

4. Make the selections.

5. On the RCU: a. press the MENU key to save the settings; b. press the EXIT key to leave the menu.

Page 5 - 18 EchoStar International Corporation

Page 49

6.4. TO CHANGE THE PIN CODE

1. Select the parental Lock menu

2. Enter the correct PIN-code as requested

3. Select the Change PIN Code bar.

4. On the RCU, press the OK key.

5. Read the available help text for information.

6. In the Change PIN-Code menu, make the required selections. Now you will return to the parental lock menu.

7. On the RCU: a. press the MENU key to save the settings; b. press the EXIT key to leave the menu.

6.5. TO SET THE LOCAL DATE AND TIME

NOTE

Make sure the local time is set correctly otherwise you can not view and use the EPG information because the EPG and the related timers need the correct time.

1. On the RCU, press: a. the MENU key;

Operation

Section 5

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. On the RCU: a. press the MENU key to save the settings; b. press the EXIT key to leave the menu.

6.6. TO SET THE TV SYSTEM

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. On the RCU: a. press the MENU key to save the settings; b. press the EXIT key to leave the menu.

EchoNAV User Interface Page 5 - 19

Page 50

Section 5

Operation

Page 5 - 20 EchoStar International Corporation

Page 51

Maintenance

MAINTENANCE

1. SOFTWARE MAINTENANCE - INSTALLATION

NOTE

Unless otherwise specified; This note explains the way you can navigate through the maintenance pages of the EchoNAV setup menu.

1. Use the OK key to pull down the menu selection fields.

2. Use thearrow keys to go through the selectable menu items.

3. In a pull-down menu, use the OK key to confirm the selection.

4. Use thearrow keys to navigate between the left and right column of selectable menu items.

5. Use the EXIT key to leave the menu and return to the live mode.

1.1. TO CHANGE THE SETUP OF THE RECEIVER

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the or menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. Go to the Check Signal field.

5. On the RCU, press the OK key.

6. Wait for the Check Signal page to appear.

7. In the Check Signal menu make the required selections for transponder and search mode.

8. Read the available help text for information.

9. If the red dot in the transponder field stays: a. select another transponder; b. go to the check signal field; c. on the RCU, press the OK key.

10. Go to the Search Channels field.

11. On the RCU, press the OK key.

12. Wait for the search to complete: a. the receiver display shows a moving dot; b. the search completed popup menu appears.

13. On the RCU: a. press the OK key to save the settings; b. press the EXIT key to leave the menu.

Section 6

EchoNAV User Interface Page 6 - 1

Page 52

Section 6

Maintenance

1.2. TO CHANGE THE USER LNB SETTINGS

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. Go to the Store Settings field.

5. On the RCU: a. press the OK key to save the settings; b. press the EXIT key to leave the menu.

1.3. ABOUT ECHOSTAR - RECEIVER INFORMATION

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. In the About EchoStar information menu you can look up the factory and receiver information.

3. Read the available help text for information.

1.4. TO DO A SOFTWARE UPDATE FROM THE SATELLITE

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. Go to the System Upgrading field.

5. On the RCU, press the OK key.

6. Wait for the system upgrade to complete.

WARNING D

O NOT PRESS ANY KEYS DURING THE SESSION, THIS CAN

INTERRUPT THE SOFTWARE UPGRADE SEQUENCE WHICH

CAN DAMAGE THE RECEIVER PERMANENTLY

■ The receiver display shows:

- ota (check for new software)

- d1...d100 (downloading)

- P1...P100 (upgrading)

- done (update memory)

- C.... (channel indication)

NOTE

EchoStar offers on a regular basis software updates via the satellite and the EchoStar website. If you have trouble to get a download with the latest software version, please ask your retail seller or dealer for assistance.

Page 6 - 2 EchoStar International Corporation

Page 53

1.5. TO DO A FACTORY RESET

NOTE

Be sure if you select Memory Erase because all your personal settings will be deleted and replaced with the factory settings. Some of the personal settings that will be deleted are Parental Lock, Favorite lists and System setup. Memory erase resets the receiver as if the receiver comes just out of the box.

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. Go to the Confirm Reset field.

5. On the RCU, press the OK key.

6. Wait for the Languages initial setup menu to appear.

7. Do the initial setup, refer to the section Installation for detailed instructions.

Maintenance

Section 6

2. SOFTWARE MAINTENANCE - CONDITIONAL ACCESS

2.1. TO GET CONDITIONAL ACCESS INFORMATIONI

1. On the RCU, press:

a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information

3. SATELLITE LIST MAINTENANCE

3.1. TO ADD A SATELLITE

1. On the RCU, press: a. the OK key; b. Select Mode = TV c. Select List = All Channels d. Select Group = None e. Select Sort = None f. Select Edit = Add SAT

EchoNAV User Interface Page 6 - 3

Page 54

Section 6

2. On the RCU, press the OK key.

3. Use the on-screen keyboard to enter the name of

4. When the keyboard appears:

5. On the RCU, use the numeric keys to enter the

6. Select the Location.

7. On the RCU, press the white key.

Maintenance

the satellite.

a. use the arrow keys to navigate; b. press OK to accept the character; c. select the button to get lower case

characters and numbers;

d. select the button e. on the RCU, press the OK key to confirm.

Position.

8. Enter the required settings.

9. Read the available help text for information.

10. Go to the continue field.

11. On the RCU, press the OK key to advance.

12. Make the required selections, it is advised to select the search mode as TP.

13. Read the available help text for information.

14. Monitor the signal indicator and make sure that you have sufficient signal strength and quality.

15. After you found the location, press the OK key to confirm the position.

16. Go to the Search Channels field.

17. On the RCU, press the OK key to advance.

18. Wait for the search to complete: a. the receiver display shows a moving dot; b. the search completed popup menu appears.

19. On the RCU: a. press the OK key to end the procedure; b. press the EXIT key to return to live video.

Page 6 - 4 EchoStar International Corporation

Page 55

4. TRANSPONDER LIST MAINTENANCE

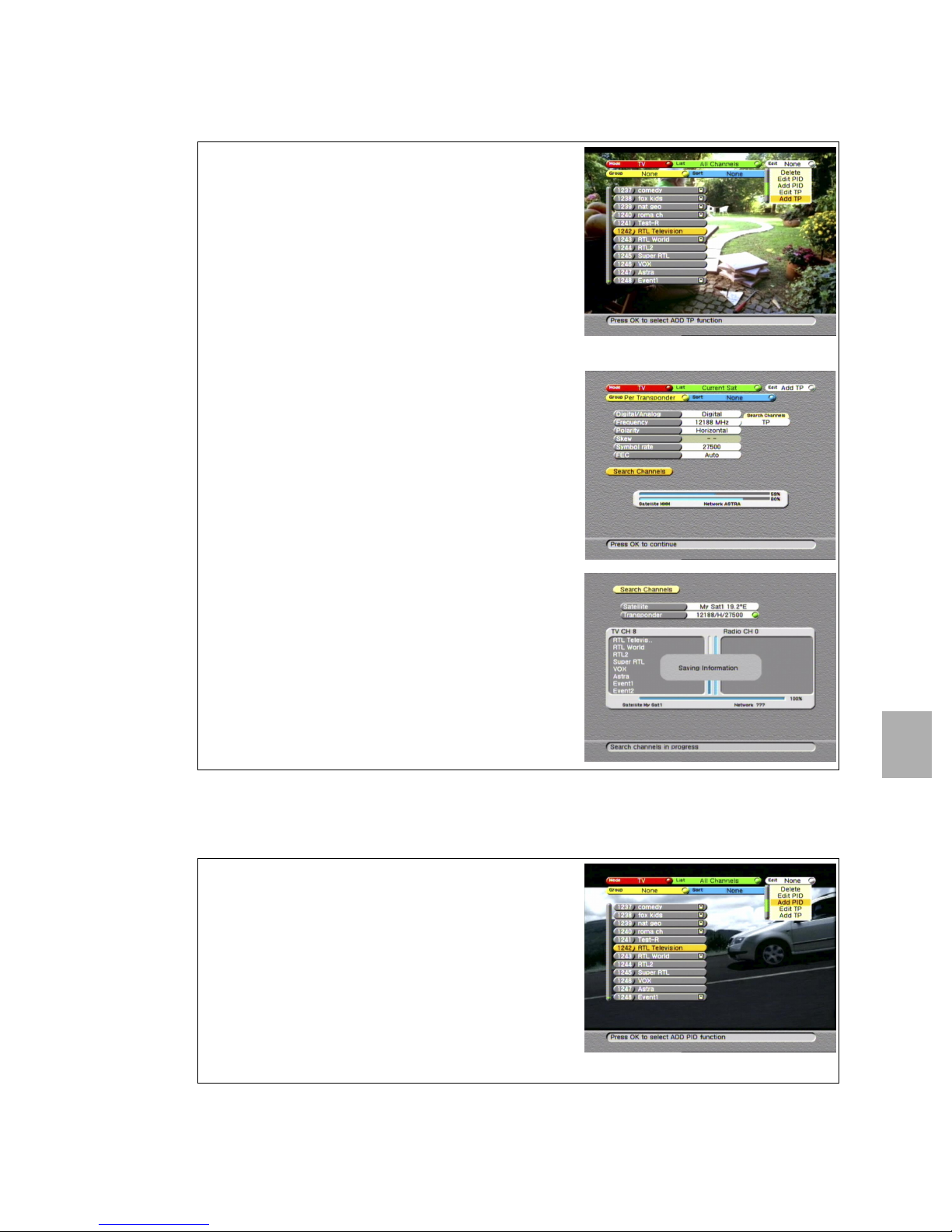

4.1. TO ADD A TRANSPONDER

1. Select a channel of the satellite to which you want to add a transponder.

2. On the RCU, press: a. the OK key; b. Select Mode = TV c. Select List = All Channels d. Select Group = None e. Select Sort = None f. Select Edit = Add TP

3. On the RCU, press the OK key.

4. On the RCU, press the OK key again to advance.

5. Enter the required settings.

6. Read the available help text for information.

7. Monitor the signal indicator and make sure that you have sufficient signal strength and quality.

8. Go to the Search Channels field.

9. On the RCU, press the OK key to advance.

Maintenance

Section 6

10. Wait for the search to complete: a. the receiver display shows a moving dot; b. the search completed popup menu appears.

11. On the RCU: a. press the OK key to advance; b. press the white key to end the procedure; c. press the EXIT key to return to live video.

5. PID DATA MAINTENANCE

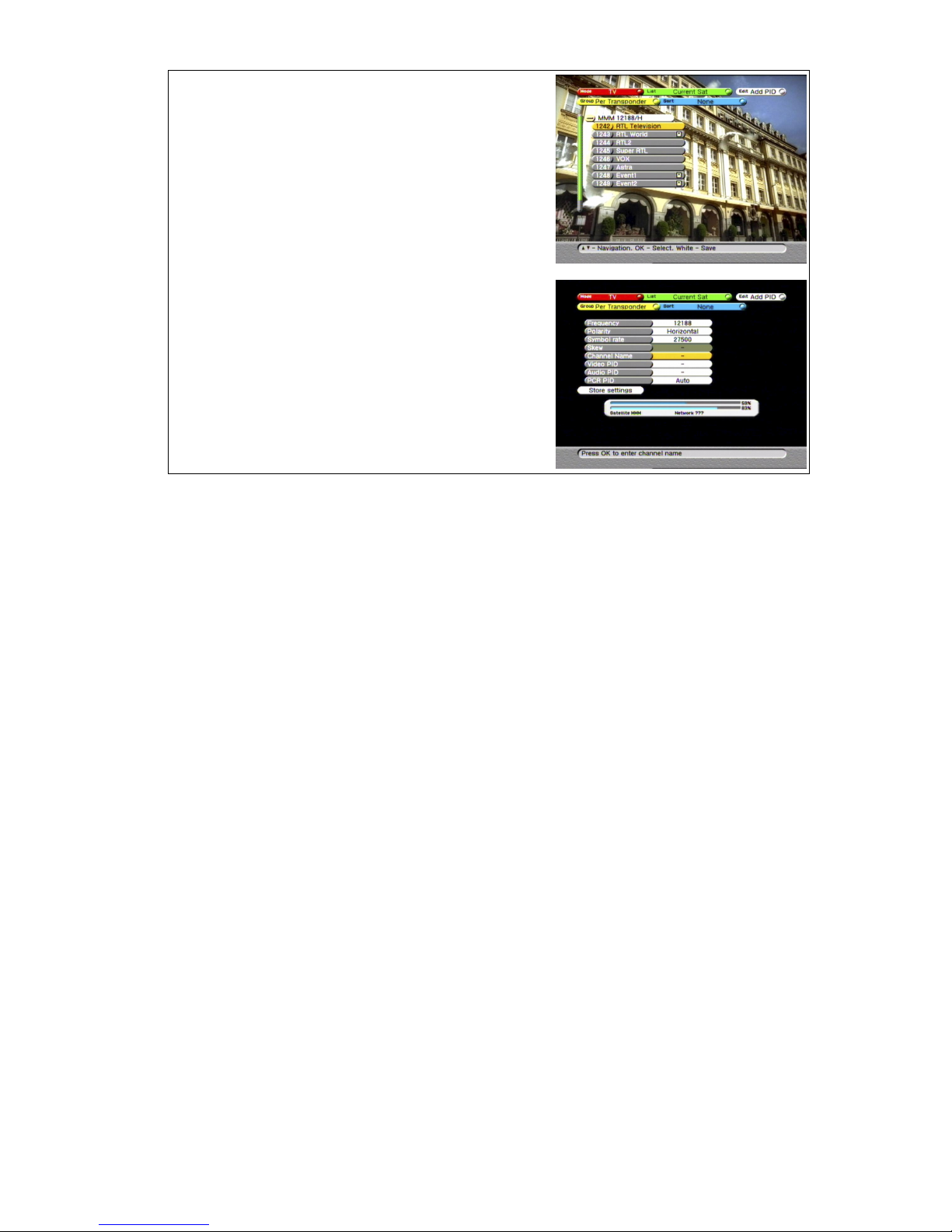

5.1. TO ADD A PID

1. Select a channel of the transponder to which you want to add a PID.

2. On the RCU, press: a. the OK key; b. Select Mode = TV c. Select List = All Channels d. Select Group = None e. Select Sort = None f. Select Edit = Add PID

3. On the RCU, press the OK key.

EchoNAV User Interface Page 6 - 5

Page 56

Section 6

4. Select the applicable transponder.

5. On the RCU, press the OK key.

6. Enter the required settings.

7. Read the available help text for information.

8. Monitor the signal indicator and make sure that you

9. Go to the Store Settings field.

10. On the RCU:

Maintenance

have sufficient signal strength and quality.

a. press the OK key to store the settings; b. press the white key to end the procedure; c. press the EXIT key to return to live video.

Page 6 - 6 EchoStar International Corporation

Page 57

TROUBLESHOOTING

1. TO SOLVE A GENERAL PROBLEM

Problem Possible cause What to do?

Troubleshooting

Section 7

1. Nothing appears on the receiver display.

■ Main power cable is

damaged or not connected.

■ General domestic power

failure

2. The display shows a flashing - - : - -

■ The back-up battery of the

clock might be empty.

3. You have forgotten the personal PIN-code.

2. TO SOLVE AN EPG RELATED PROBLEM

Problem Possible cause What to do?

■ Youhaveselectedan

empty (favorites) list.

■ The selected program

supports no EPG.

■ The local time is not

correct.

■ The selected program is

an analog channel. (InfoBanner shows no i button)

■ ThetimescaleoftheEPG

is to big.

1. The EPG is empty.

2. The EPG shows (little) grey balloons without text.

■ Check the main power

cord and insert it in the (wall socket).

■ Check the domestic power

supply and insert a new fuse.

■ Contact your dealer.

■ Select another (favorites)

list.

■ Thereisnosolutionfor

this, the data is supplied by the service provider and beyond control.

■ In the Local Time menu,

set the correct time.

■ Select a digital channel

because analog channels do not support EPG information.

■ Use the zoom function

(blue key) to reduce the time scale until the information can be read.

■ Select the grey balloon

and on the RCU, press the i-key to view and read the information.

3. TO SOLVE A TV OR RADIO RELATED PROBLEM

Problem Possible cause What to do?

1. No picture or sound in the TV or radio mode.

EchoNAV User Interface Page 7 - 1

■ Receiver is in standby. ■ Switch the receiver on.

■ Cable related problems. ■ Check the cable

connections and do any necessary work.

■ Dish/LNB related

problems.

■ Makesurethedishand

LNB are correctly adjusted. Do any necessary work.

Page 58

Section 7

Problem Possible cause What to do?

Troubleshooting

2. Bad picture or noisy sound in the TV or radio mode.

3. The TV shows a No Signal message.

4. There is no Dolby digital (AC-3) sound to my other equipment.

5. I cannot view or listen to a scrambled channel.

6. I cannot find a channel which should be there.

7. The TV shows a popup:

■ Bad reception of the

signal.

■ Make sure the dish and

LNB are clean and correctly adjusted. Do any necessary work.

■ Signal interference with

UHF-installation.

■ Check the UHF settings.

Make sure you use the correct channel. Please refer to the TV/radio user guide.

■ Bad reception of the

signal.

■ Make sure the channel

selected transmits.

■ Make sure the correct dish

or LNB is selected.

■ Make sure the dish and

LNB are clean and correctly adjusted. Do any necessary work.

■ The equipment is

connected to the receiver with a RCA or SCARTcable only.

■ Connect the

S/P DIF connector of the receiver to the Dolby digital input of the receiving equipment.

■ The CI-module/smart card

is not valid.

■ Insert, for this service, a

valid CI-module/smart card.

■ The CI-module/smart card

is not (correctly) inserted.

■ The group or sort option is

set.

■ Youareinthewronglist. ■ Check the all channels list

■ Insert the CI-module/smart

card correctly.

■ Set the group and sort

mode to none.

and select the correct (favorite) list.

■ The channel is hidden. ■ Unhide the channel.

■ You have selected an

empty (favorite) list.

■ Press the WHITE key

Select the add option.

■ Press the GREEN key

Select the Current Sat or All Channels list.

4. TO SOLVE A RCU RELATED PROBLEM

Problem Possible cause What to do?

1. Receiver does not respond to the RCU.

2. Receiver does sometimes not respond to the RCU.

Page 7 - 2 EchoStar International Corporation

■ Batteries are empty. ■ Insert new batteries.

■ The RCU is set to another

mode (TV, VCR, AUX).

■ The receiver code is not

programmed correctly.

■ On the RCU, press the

SAT key.

■ Program the SAT mode

with code 0222, see the appendix for instructions.

■ Direct sun light from

behind the receiver.

■ You do not aim sufficiently

at the receiver.

■ Batteries are almost

■ Close the sun blinds or get

closer to the receiver.

■ Aim at the receiver display.

■ install a RCU extender.

■ Insert new batteries.

empty.

Page 59

Troubleshooting

Section 7

5. TO SOLVE AN INSTALLATION RELATED PROBLEM

Problem Possible cause What to do?

1. My television does not receive any signal from the receiver (UHF only)

2. My television does not receive any signal from the receiver

3. My television shows black areas on the left and right of the screen.

4. In a motorized installation, the dish turns to the West while I select Set East Limit.

5. In a motorized installation, I cannot select a specific satellite.

6. In a motorized installation, the positioner reacts unpredictable which results in incorrect positioning of the dish.

7. During (initial) setup of the receiver, no channels are found.

■ You did not select the

correct audio/video channel on your TV.

■ You did not select the

correct A/V channel on your TV.

■ Youdidnotuseacorrect

SCART cable.

■ You did not select the

correct aspect ratio for your TV.

■ The motor turns the other

way around because the cable is not installed correctly.

■ The required satellite is

located outside the selected East or West limit.

■ The cables used are worn,

damaged or corroded.

■ The cable is incorrectly

finished or not sufficiently shielded.

■ You did not select the

correct LNB(F).

■ When installed, you have

selected the incorrect switch type or port.

■ Youhaveselectedthe

incorrect satellite to search channels on.

■ Youhaveselectedthe

incorrect search method.

■ Refer to the user manual

of the TV for instructions.

■ On the receiver, In the TV

system menu select the correct channel and PAL setting.

■ Use another method to

connect the receiver.

■ Select the correct A/V

channel on your TV.

■ Use only a full featured

SCART cable that is correctly shielded.

■ On the receiver, in the user

profile menu select the correct aspect ratio.

■ At the receiver, change the

cable connections to M1 and M2.

■ If physically possible, mind

dish damage, revise the limit setting.

■ Select another satellite.

■ Inspect the cable for

possible damage and install new cable as required.

■ Use sufficiently shielded

and correctly finished cables.

■ On the receiver, in the

installation setup menu select the correct LNB(F).

■ On the receiver, in the

installation setup menu make the correct selections.

■ On the receiver, in the

installation setup menu select the correct satellite.

■ At an initial setup, always

choose the option All.

EchoNAV User Interface Page 7 - 3

Page 60

Section 7

Troubleshooting

6. TO SOLVE A DVR RELATED PROBLEM

Problem Possible cause What to do?

1. I can not record a TV or radio broadcast onto the hard disk drive.

2. The programmed channel is not recorded completely.

3. Live pause seems not to work.

4. I cannot access the special functions menu.

5. The detailed information window shows NO INFORMATION

6. I cannot find a recording which should be there.

■ Youhavepressedthe

record key once.

■ Presstherecordkeytwice,

EchoStar has build in a safety to prevent unwanted recording.

■ You have selected an

analog station.

■ Analog broadcasts cannot

be recorded onto the digital DVR, Please record thebroadcastwithaVCR.

■ Local time setting is not

correctly set.

■ Check the Local Time

setting and reset as necessary.

■ The EPG data does not

reflect the actual start or stop time.

■ This data is supplied by

the service provider and beyond control. You can set the timer 5 minutes earlier/later than shown.

■ You have selected an

analog station.

■ Live pause records the

program temporarily onto DVR. Analog broadcasts cannot be recorded onto the digital DVR.

■ Youhavepressedthe

■ Press the pause key once.

record key.

■ The InfoBanner is not in

view.

■ Use the i-key to show the

InfoBanner and press the MENU key.

■ You d id n ot pre ss t he

■ Press the MENU key.

MENU key.

■ Youhavemadea

recording from a program that did not offer detailed information.

■ The group or sort option is

set.

■ Youareinthewronglist. ■ ChecktheallFileslistand

■ There is no solution for

this, the data is supplied by the service provider and beyond control.

■ Set the group and sort

mode to none.

select the correct (favorite) list.

■ The recording is hidden. ■ Unhide the recording.

7. TO SOLVE A MP3 PLAYER RELATED PROBLEM

Problem Possible cause What to do?

1. I cannot access the special functions menu.

2. The detailed information window shows data that is not complete.

3. I cannot go to another song with thekeys.

Page 7 - 4 EchoStar International Corporation

■ You d id n ot pre ss t he

MENU key.

■ The detailed information is

not available in the MP3tag. The MP3-tag is part of the MP3fileandcontainsthe detailed information.

■ Youareinthespecial

functions menu

■ Press the MENU key.

■ When already on the DVR,

you cannot access this information. During downloading, use the MP3 loader to change or complete the MP3-tag.

■ PresstheMENUkeyand

try again.

Page 61

GLOSSARY

1. LIST OF USED ABBREVIATIONS

Glossary

Section 8

A/V

ANT

ATA Advanced Technology Attachement

ºC

CAM

CE Conformite European

D2MAC Digital Multiplexed Analog Component

DAC Digital Analog Converter

dBm

DiSEqC

DMA Direct Memory Access

DVB

DVR

EPG

ºF

FTA

GND

GUI

H-H

IDE Intelligent Drive Equipment

IEC International Electrotechnic Committee

IRD Integrated Receicer Decoder (the

ISO

kHz

LNB

LNBF

max.

Mbps

MCPC

MHz

min

Audio/Video Alternating Current ANTenna (terrestial)

Celcius Conditional Access Module Compact Disc

CHannel Common Interface

version 2

deciBell deciBell milliwatts Direct Current Digital Satellite Equipment Control

Digital Video Broadcasting Digital Video Recorder East Limit Electronic Program Guide Fahrenheit Free-To-Air Gigabit GigaByte GrouND Graphical User Interface Horizon-to-Horizon HardWare

Intermediate Frequency

satellite receiver)

International Standards Organisation kilogram kiloHertz kiloWatt Low Noise Block down converter LNB with Feedhorn maximum MegaByte Megabits per second Multiple Channel Per Carrier MegaHertz minute

min.

MPEG

NTSC

minimum millimeter Moving Picture Experts Group National Television Standards

Committee

NVOD

OSD

OSG

OTA

PAL B/G

PAL D/K

PCMCIA

Near Video On Demand On-Screen Display On Screen Graphics Over The Air Phase Alternating Line B/G Phase Alternating Line D/K Personal Computer Memory Card

Industry Association

PCR Program Clock Reference

PID

PWM

QPSK

RCA Connector type, also Cinch connector

RCU

RND

S/PDIF

SAT

SCART Connector type, also Euro connector

SCPC

SMATV

STB

µs

UHF

VCR

Ver.

p-p

rms

WxHxD

Packet IDentification Personal Identification Number Pulse Width Modulation Quadrature Phase Shift Key

Remote Control Unit Radio Frequency RaNDom Sony/Philips Digital Interface SATellite

Single Channel Per Carrier Satellite Master Antenna TV Set Top Box (the satellite receiver) Software TransPonder TeleVision

micro

second Ultra High Frequency Volt Video Cassette Recorder Version Volts

peak-peak

Volts

rootmeansquare

Watt West Limit Width x Height x Depth

EchoNAV User Interface Page 8 - 1

Page 62

Section 8

Glossary

2. EXPLANATION OF USED TERMINOLOGY

C-band A frequency range (3.70-4.20 GHz) used for satellite

broadcasts.

CCITT An European committee of the international

Telecommunications Union and makes recommendations for the distribution of telephone and data distribution.

Clarke Belt The Clarke Belt is a dedicated satellite orbit in which

satellites remain in a fixed position relative to the Earth’s surface.

CI-module/CAM Both names are used for these modules. These modules are

PCMCIA cards with a slot in which you can insert a smart card.

Common Interface (CI) A DVB standard which defines the software and hardware

requirements for condition access systems.

Conditional Access A system which is used by service providers to control the

subscriber’s access to certain services, programs and events like Pay TV.

DBS band A signal frequency range (11.70-12.40ghz) intended for

direct TV broadcast by satellite channels.

Decoder A unit that is connected to a satellite receiver in order to

unscramble a picture that is protected by encryption.

Digital Audio Broadcasting Standard which describes the method of transmitting digital

audio.

DiSEqC A standard through which it is possible to let a DiSEqC

compatible receiver send a signal over the RF cable to a switching device to switch between different LNBs or dishes. The DiSEqC uses the 22 kHz signal to control the switching device.

DVB A broadcast standard for digital radio and television, using

MPEG-2 compression. DVB is being supported by all European manufacturers and broadcasters.

EPG A electronic program guide that comes with the broadcast of

a particular satellite, Note that every station fills the EPG differently or not, so differences in the EPG are not necessarily receiver errors.

FEC Is an invisible part of a broadcast.which makes sure that

possible errors in the reception of the satellite signal are corrected.

Feedhorn A part of the dish which collects the signals from the dish.

The signal is then fed to the LNB(F).

Ferrite A remote controlled device that determines the polarity of the

signal which is fed to the LNB. The ferrite is more or less an

electro-magnetic polarizer. Fixed Dish A dish antenna that is pointed at one particular satellite. Free-To-Air broadcast An unscrambled broadcast which you can view without

additional payments to a service provider. Frequency band A frequency band is a range of frequencies which are

dedicate to a certain usage. In the satellite area, commonly

known bands are the C-band and the Ku-band. High Definition Television A digital television format, which combines high-resolution

video and theater like sound to create a movie theater quality

TV viewing experience. Horizontal In the satellite industry, horizontal is used to indicate the

direction in which the received signal is polarized. Normally

you will find that it is abbreviated as H.

Page 8 - 2 EchoStar International Corporation

Page 63

Glossary

KU-band A frequency range (10.70-18.00 GHz) used by most

European TV satellites.

LNB A device behind the feedhorn which processes the signal

into a format which is understood by the receiver for further processing

LNBF A LNB with an integrated Feedhorn. So the LNBF comes as

one single unit.

MPEG The Moving Picture Experts group is founded by the ISO to

provide a basis for the coding and compression of moving pictures. MPEG has now become a standard method for the digital transmission of video and sound using less bandwidth than the analog transmission method.

Near Video-On-Demand Multi channel system broadcasting many copies of a film

with staggered start times so a complete film is always available to a viewer with a short waiting period.

Network With respect to the receiver, a network (also known as a

bouquet) is a set of programs that is offered by a single service provider.

NTSC USA video standard with image format 4:3, 625 lines, 60 Hz

and 4 MHz bandwidth with a total of 6 MHz video channel width.

PAL European video standard with image format 4:3, 625 lines,

50 Hz and 4 MHz bandwidth with a total of 8 MHz video channel width.

PID MPEG-2 transmits the audio and video information in so-

called packages. At the beginning of each package is an identifier (PID) present which tells the receiver what to do with the received information. Satellite receivers use normally four types of PID, these are VPID (video PID), APID (audio PID), Program Clock Reference (PCR PID) and data PID (EPG information).

Parental lock A feature which is introduced to give you the possibility to

‘lock’ or ‘hide’ several functions of the receiver to prevent unauthorized persons (children) to view broadcasts that are not suitable for them. The use of the parental lock requires a PIN-code. With this PIN-code you can change or unlock the locked or hided recordings and channels.

Pay-Per-Channel With this feature, the viewer has to pay a certain price per

month (or other period) to receive all programs of a certain channel.

Pay-Per-View Conditional access service where the user is able to buy one

particular program from a particular service provider.

Pay TV With Pay TV, the consumer has to pay for certain programs

or services.

PIN-code The PIN-code or Personal Identification Number is

necessary to make use of the parental lock feature. The PIN code has four digits which can be set personally.

Polarization Broadcasts are done in a particular frequency band. To make

maximum use of a frequency band and bring you the maximum number of programs, the broadcasts are polarized in different ways to fit as much as possible programs into one frequency band.

Polarizer A remote controlled device that determines the polarity of the

signal which is fed to the LNB.

Polarmount A motorized dish antenna mount which enables a dish to

point at every ‘visible’ satellite on the Clarke Belt.

Section 8

EchoNAV User Interface Page 8 - 3

Page 64

Section 8

Receiver Unit which takes signals from a dish and converts them so

RS232 connection A RS232 connection allows you to connect equipment to the

Satellite A broadcast station, for satellite radio and TV, positioned on

SCART cable A SCART cable is also known as ‘Peritel’ cable and is

Service provider A service provider is a company or organization that collects

Smart Card A card that contains a ‘smart’ code and is used to de-

SMATV A satellite master antenna TV system is a system which

Stream The signal which is received from the transponder which

Symbol rate Invisible information which tells the receiver at which speed

Transponder Equipment inside a satellite responsible for receiving a single

Vertical In the satellite industry, vertical is used to indicate the

Glossary

they can appear on radio and TV.

receiver which supports the RS232 protocol.

theClarkeBelt.

commonly used in Europe to connect the audio and video

equipment. A fully furnished SCART cable has 21 wires

which is at both sides finished with a 21-pin connector.

and offers you a number of programs and services. Some

are free of charge and others you have to pay for.

scramble encrypted broadcasts when placed in a decoder or

receiver with a built-in decoder.

shares the reception resources and is intended for the

distribution of TV and radio signals to the user in one ore

more buildings.

contains the together with the video signal, additional

information that the receiver needs in order to process the

received signal correctly.

(rate) the transponder sends the digital information

(symbols). The receiver must be able to handle the symbol

rate to process the signal correctly into a correct image.

uplinked channel and rebroadcasting it back to Earth.

direction in which the received signal is polarized. Normally

you will find that it is abbreviated as V.

Page 8 - 4 EchoStar International Corporation

Page 65

3. EXPLANATION OF THE SEARCH MODES

FOR DIGITAL

In the various menu pages you can make a selection from various search modes. The search mode gives the possibility to scan a satellite or transponder in a particular manner. The search modes are identified as: All In this mode the built-in database is used to select the available transponders.

The digital channels that belong to these transponders are searched for and added to the all channel list.

FTA Inthismodethebuilt-indatabaseisusedtoonlysearchfortheavailable

FTA channels which are then added to the all channel list. In the real world it seems that the service providers do not always accurately code their channels with a scrambled or FTA code. For this reason you may find that some searched channels are scrambled. Also there is a possibility that scrambled channels are coded as FTA. These channels will then be missed out because of the erroneous code.

Network In this mode the built-in database or information from the received stream is

used to search for the transponders that are included with the currently received network. The digital channels that belong to this network are searched for and added to the all channel list.

TP In this mode the built-in database or information from the received stream is

used to search for or scan in the selected transponder. The digital channels that belong to this transponder only are searched for or scanned in and added to the all channel list.

Digital In this mode the built-in database is used to search for the available digital

channels. The digital channels are then added to the all channel list. The digital channels are shown as white channel names for easy recognition.

Digital IF In this mode the currently received satellite is scanned for digital channels. The

digital channels, within the tuner bandwidth and selected symbol rates are

Update In this mode the built-in database is used to search for the available digital

None Transponders on the selected satellite are not searched for.

FOR ANALOG

Analog In this mode the built-in database is used to add the analog channels to the all

Analog IF In this mode the currently received satellite is scanned for analog channels.

scanned in and added to the all channel list.

channels. Then all new channels are added to the all channel list.

channel list. The analog channels are shown as black channel names for easy recognition.

The analog channels within the tuner bandwidth are scanned in and added to the all channel list.

Glossary

Section 8

EchoNAV User Interface Page 8 - 5

Page 66

Section 8

Glossary

Page 8 - 6 EchoStar International Corporation

Page 67

Index

Section 9

INDEX

a-b repeat .........................................5-14, 5-17

about echostar page .................................... 6-2

add

a channel to a favorite list ............................ 5-7

pid ............................................................ 6-5

sat ............................................................ 6-3

tp .............................................................. 6-5

alternate audio

icon ......................................................... 4-14

selection .........................................4-16, 5-12

alternate subtitling

icon ......................................................... 4-14

selection .........................................4-16, 5-13

analog .......................................................... 7-4

autosat .................................. 3-2

, 3-6, 4-4, 4-6

backgrounds

capture .................................................... 5-15

capture icon ............................................. 4-15

selection .................................................... 4-1

bad picture ................................................... 7-2

bass control ............................................... 5-17

blue key ....................................................... 5-2

change

backgrounds ............................................ 5-18

language .................................................. 5-18

pin code ................................................... 5-19

user profile ............................................... 5-18

check signal

disecq1..4 installation .................................. 4-6

fixed dish setup .......................................... 4-7

fixed installation ..........................................4-6

signal indicator ........................................... 6-1

clock

indicator in epg .........................................5-11

set timers ................................................. 4-13

conditional access

ci-module ................................................... 7-2

get information ............................................ 6-3

delete

channel ..................................................... 5-4

timer ........................................................5-12

detailed program information ..............5-9

disecq 1.2 setup ................... 3-1

, 3-5, 4-3, 4-6

dolby digital ............................................... 4-14

dvr timer ...........................................4-13

edit

alist ..........................................................5-3

menu .......................................................4-11

epg ..................................... 3-4

, 4-13, 5-9, 7-1

, 5-12

, 5-10

erase

backgrounds .............................................4-10

epg data ...................................................4-10

mp3 songs ...............................................4-10

recordings ................................................ 4-10

factory reset ....................................... 4-10, 6-3

fast forward ...................................... 4-15

, 5-13

favorite .......................................................4-14

favorite lists

add channel ................................................5-7

add group ...................................................5-7

ferrite ............................................................8-2

fixed dish setup ............................................4-7

fixed installations ..................3-1

, 3-5, 4-3, 4-6

fta ...............................................................4-12

green key .....................................................5-2

group

a list ..........................................................5-2

none ..........................................................5-2

per network ................................................5-2

per satellite ................................................. 5-2

per transponder ..........................................5-2

hard disk drive .............................................7-4

hdd erase ...................................................4-10

hide a channel .............................................5-6

hide a timed recording ...............................5-11

i-button ....................................4-14, 4-15, 4-16

i-key .............................................................5-9

index marker .................................... 4-15

infobanner ........................................ 4-14

, 5-14 , 5-12

installation setup menu ................................4-3

ird .................................................................8-1

keyboard .............................................. 5-2, 6-4

language

alternate audio .................................. 4-1, 5-18

alternate subtitle .......................4-1, 5-13, 5-18

main audio ....................................... 4-1, 5-18

menu ............................................... 4-1, 5-18

subtitle ............................................. 4-1, 5-18

list ...................................................... 4-11

live pause ........................................... 5-16

local time page .............................................4-2

lock

a channel ........................................... 4-2, 5-3

a timed recording ......................................5-11

installation ..................................................4-2

receiver ......................................................4-2

, 5-3 , 7-4

EchoNAV User Interface Page 9 - 1

Page 68

Section 9

Index

master hide ..........................................4-2, 5-6

memory erase ....................................4-10

, 6-3

mode ......................................................... 4-10

move a channel ........................................... 5-3

moveable dish .......................3-1

, 3-5, 4-3, 4-6

mp3 player ................................................ 5-16

navigation ..................................... 3-3, 5-1, 6-1

network

group ...................................................... 4-12

search mode .............................................. 8-5

information message ................................... 7-4

picture message ......................................... 7-1

signal message .......................................... 7-2

sound ........................................................ 7-1

note ............................................................. 6-3

ota ........................................................4-9, 6-2

parental

lock menu .................................................. 4-2

lock settings ............................................... 4-2

rating information ...................................... 4-14

pause ...............................................4-15

, 5-13

pid ............................................................... 6-5

pin code ................................................4-2

, 5-6

play ............................................................ 4-15

play back ................................................... 5-13

polarotor ...................................................... 4-8

program satellites .................................4-6

, 4-8

rcu ............................................................... 8-1

receiver information ...............4-3

record .................................................4-15

, 4-4, 4-5, 6-2

, 7-4

red bullet ..................................................... 5-4

red key ........................................................ 5-1

rename

channel ..................................................... 5-5

list ............................................................. 5-8

repeat

a-b .......................................................... 4-15

continuously ............................................. 4-15

list ........................................................... 4-15

random .................................................... 4-16

reserved timer ....................................4-13

rewind ...............................................4-15

, 5-9

, 5-13

satellite

add ........................................................... 6-3

direct access list ....................................... 5-13

group per ................................................. 4-12

scrambled .................................................. 4-12

search mode

all .............................................................. 8-5

analog .......................................................8-5

analog if ..................................................... 8-5

digital ........................................................ 8-5

digital if ......................................................8-5

fta .............................................................8-5

network ......................................................8-5

none ..........................................................8-5

selection ....................................................6-1

tp .............................................................. 8-5

update ....................................................... 8-5

select

a channel ...................................................5-1

alist ..........................................................5-2

a mode ......................................................5-1

a recording ...............................................5-13

atimer .......................................................5-9

alternate audio .......................................... 5-12

alternate subtitle language .........................5-13

another satellite ........................................ 5-13

set

atimer .......................................................5-9

channel volume offset ..................................5-5

local time and date ....................................5-19

tv settings ................................................5-19

setup after memory erase ............................3-3

signal ........................................................... 4-7

slow motion ...................................... 4-15

, 5-14

smart card information ................................. 6-3

smatv .................................... 3-3

, 3-8, 4-5, 4-7

software

update ....................................................... 6-2

version information ...................................... 4-9

sort

alist ................................................ 4-12, 5-2

a-z .......................................................... 4-12

character .................................................4-12

fta ...........................................................4-12

locked ...................................................... 4-12

none ........................................................4-12

scrambled ................................................4-12

word ........................................................ 4-12

z-a ..........................................................4-12

start time .................................................... 5-10

stb ................................................................ 8-1

stop time ....................................................5-10

system setup menu ............................. 4-6

, 6-1

teletext .......................................................4-14

timers ................................................. 5-9

dvr .......................................................... 4-13

reserved .................................................. 4-13

vcr ...........................................................4-13

transponder

add ...........................................................6-5

group per .................................................4-12

treble control .............................................. 5-17

tv system page ............................................4-3

, 5-12

Page 9 - 2 EchoStar International Corporation

Page 69

use the epg .................................................. 5-9

use the infobanner ..................................... 5-12

user lnb settings ...................................4-8

user preferences menu ............................... 4-1

user profile page .......................................... 4-1

, 6-2

vcr timer ..............................................4-13, 5-9

volume button ............................................4-14

white key .....................................................5-3

yellow key ...........................................5-2, 5-10

zoom .......................................................... 4-13

Index

Section 9

EchoNAV User Interface Page 9 - 3

Page 70

Section 9

Index

Page 9 - 4 EchoStar International Corporation

EchoStar DVR-5000 HDD, DVR-7000 HDD User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
