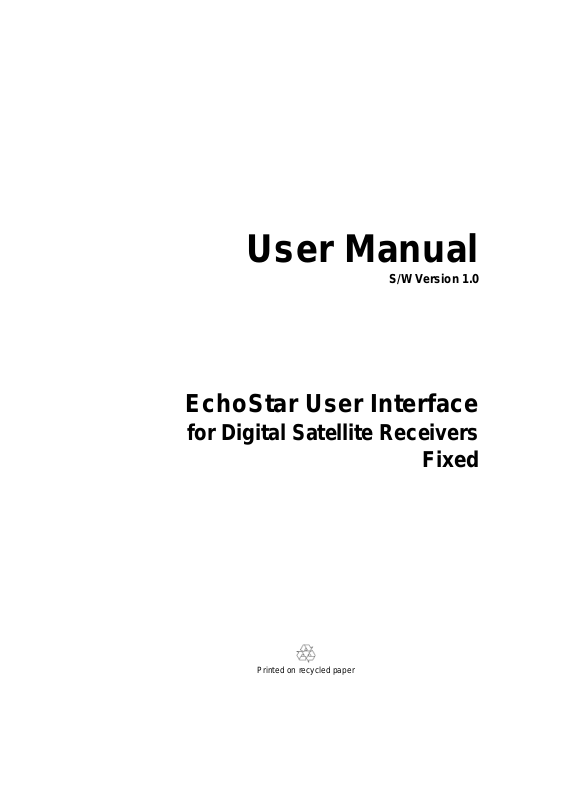

Page 1

User Manual

S/W Version 1.0

EchoStar User Interface

for Digital Satellite Receivers

Fixed

Printed on recycled pa per

Page 2

GENERAL SAFETY

Read this manual carefully and make sure you understand the instructions given. For your safety , know wha t the reac tion upon each a ction will be. Do not perfo rm any a ctions wh ich ar e not described in this manual, failing to do so might result in an uncontrolled behavior of the receiver or even in a hazardous situation for persons and/or equipment.

Consult an authorized service technician if the receiver does not operate normally when the instructions in thi s user ma nual are s trictly f ollowed. Do not to attempt to open th e receive r , as you will be exposed to a shock hazard.

For safety instructions related to the installation of the receiver, please refer to the Receiver Description which is also part of the documentation set that came with your receiver.

NOTATIONAL CONVENTIONS

Throughout this us er man ual, the re may be blo cks of te xt i ndica ted by symbol s and p rin ted in a different way then th e su rroun di ng text. These blocks of text ask the attention of the reader

to avoid hazardous situations. The hazard levels are indicated as:

WARNING

THIS INDICATES A HAZARDOUS SITUATION WHICH, IF NOT AVOIDED, COULD RESULT IN (

SERIOUS) INJURY.

CAUTION

This indicates a situati on which, if not avoided, cou ld da ma ge th e equipment or other properties.

NOTE

This indicates additional information to the user to make the user aware of possible problems and i nfor ma tion of any importance to help the us er to understand , to u se an d to maintain the installation.

Issue: echostar_fixed_b_100a_us Translated from:

We encourage you to express your thoughts on this user manual. Please send your comments to: EchoStar International Corporation Technical Publications Department Schuilenburglaan 5a 7604 BJ Almelo The Netherlands

Page 3

EchoStar User Interface

PREFACE

INTRODUCTION

The EchoStar User Interface is a family of user interfaces which are dedicated for a specific range of satellite receivers. Every satellite receiver is equipped with different options. Some options are related to the EchoStar User Interface, others are related to physical options as Common Interface slots, Embedded reader, display or not, etc.

Please note that this user manual contains the information for the most comprehensive model. Sometimes you f ind that an op tio n is no t ava ila ble on you r rece iv er whic h me ans t hat you can ignore the related descriptions and instructions. Please refer to the specifications of your receiver to find the available options that are present in your model.

DOCUMENTATION

This user manual is part of the documentation set that comes with your EchoStar satellite receiver. The documentation set contains the user manuals:

■ User Manual - Receiver Description;

■ User Manual - EchoStar User Interface - Fixed.

Sometimes you can also find a Manual update which describes the last minute changes to either the receiver itself or the EchoStar User Interface which are not described in the user manuals that come with your EchoStar satellite receiver.

INTENDED USE

The receiver is intended to be installed for private domestic use. This receiver has not been designed for other types of usage (including but not limited to commercial or head-end installations), therefore EchoStar Internation al Corpo ration makes no warranties with res pec t to product performance or reliability in such installations.

This documentati on set is int end ed for a nyone who use s an Ec hoStar satel lit e receive r. It can be used by both first-ti me and ex perienced users of sate llite rece ivers who w ant to in stall, use and maintain their receiver.

This user manual gives an explanation and an instruction on the use of the EchoStar user

interface and is divided into separate sections and chapters. For easy access to the information, a clear table of content and an index are provided.

Preface

LIMITED WARRANTY

If your rece iver has conditional access capabilities: For pay-services, please on ly use Comm on Interface (CI) module s and the re lated Smart card

which are approved by the service provider of the encrypted program you want to receive. Only this will enable the receiver to work properly.

Anomalies can occur when an unapproved CI-module and/or Smartcard is use d. EchoStar can not and will not accept any responsibility for the performance of such CI-modules and/or smartcards. If you use an unapproved CI-module and/or Smartcard, EchoStar is no longer able to provide any assistance or support. Use of an unapproved CI-module and/or Smartcard will void any warranty claim. If you have any doubt which CI-modules are approved, please ask your service provider for assistance.

DISCLAIMER

SOFTWARE DOWNLOADS

EchoSt ar I nternati onal Corp oration will to the bes t of it s abil ities, do every thing to provid e you with software updates to keep your receiver up-to-date as possible, which will not guarantee reception of all available channels. EchoStar International Corporation makes no warranties with respect to the use of the supplied software downloads and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose.

EchoSt ar Int erna t io nal Corp orat ion res erv es th e ri ght , fo r w ha tever re as on, to revise, change or modify the software that can be used by your satellite receiver without the obligation to notify or warrant any person or organization of such change. Therefore, on a regular basis, please visit our web site or check the satellite (OTA) for the latest software available.

S/W Version 1.0 Page I

Page 4

Preface

USER MANUAL

EchoStar International Corporation has to the best of its abilities, done everything to supply you with the most up-to-date information. EchoStar International Corporation makes no warranties with respect to the information provided by this User Manual and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The information provided is meant as a guideline for the use and maintenance of the receiver.

EchoStar International Corporation reserves the right to revise, change or translate this User Manual without the ob ligati on to no tify an y pers on or org aniza tio n of su ch cha nge. Th erefore, please visit our web site, on a regular basis, for the latest information available.

© 2003 EchoStar International Corporation. All rights reserved worldwide. This User Manual has been provided pursuant to an agreement containing restrictions on its use. This User Manual is also covered by Federal Copyright Law.

No part of this User Manual may be copied, distributed, transmitted, stored in a retrieval system or translated into any human or computer language, in any form or by any other means, electronica lly, mech anically, magnetic ally, manu ally or othe rwise or dis closure to third parties without the express written permission of EchoStar International Corporation.

EchoStar International Corporation is possibly in the possession of patents, requests for patent approval, trademarks, copyrights and other intellectual property with respect to the contents within this user manual. The submission of this User Manual does not imply you have got any license or other legal right for the use of the here above mentioned without the express written permission of EchoStar International Corporation.

■ EchoStar and Quality has a Name

are registered trademarks of EchoStar International Corporation;

■ Dolby Digital

Dolby, Dolby Digital, AC-3 and Dolby Pro Logic are registered trademarks of the Dolby Laboratories Licensing Corporation;

■ DiSEqC

DiSEqC

■ All other trademarks are the property of their respective owners or companies.

, DiSEqC1.2 are trademarks of Eutelsat.

User Manual

Page II Digital Satellite Receivers - Fixed

Page 5

EchoStar User Interface

TABLE OF CONTENTS

Preface Initial Installation

1 INTRODUCTION 1-1 2 NAVIGATION 1-1 3 TO INSTALL YOUR RECEIVER FOR THE FIRST TIME 1-1

Familiarization

1 THE ECHOSTAR USER INTERFACE 2-1 2 THE MAIN MENU STRUCTURE 2-2 3 THE USER MENU STRUCTURE 2-9 4 THE EPG MENU STRUCTURE 2-10 5 THE INFOBANNER 2-11 6 THE POP-UP MENUS 2-12

Operation

1 HOW TO NAVIGATE 3-1 2 HOW TO SELECT A CHANNEL 3-1 3 HOW TO USE THE TELETEXT DECODER 3-2 4 HOW TO ADJUST OR MUTE THE VOLUME 3-2 5 HOW TO ORGANIZE THE LISTS 3-3 6 HOW TO CREATE THE FAVORITE LISTS 3-4 7 HOW TO ADD TRANSPONDERS 3-5

8 HOW TO SET AND LOOK UP THE TIMERS 3-6 9 HOW TO RESET THE RECEIVER 3-7 10HOW TO DO A SOFTWARE UPGRADE 3-7

Troubleshooting

1 TO SOLVE A GENERAL PROBLEM 4-1 2 TO SOLVE AN EPG RELATED PROBLEM 4-1 3 TO SOLVE A LIST RELATED PROBLEM 4-1 4 TO SOLVE A TIMER RELATED PROBLEM 4-2 5 TO SOLVE A SMARTCARD RELATED PROBLEM 4-2

Preface

Glossary Index Appendix 1

1 LNB CONFIGURATION MATRIX A1-1 2 LNBF CONFIGURATION MATRIX A1-1 3 USER DEFINED LNB(F) MATRIX A1-2

S/W Version 1.0 Page III

Page 6

Preface

User Manual

Page IV Digital Satellite Receivers - Fixed

Page 7

EchoStar User Interface

INITIAL INST ALLATION

Initial Installation

1. INTRODUCTION

The satellite receiver is pre-programmed with the FTA channels for ASTRA1 and HOTBIRD as know during the manufacturing of the receiver. Note that it is possible to update the channel lists easily, for a detailed instruction, please refer to installation update. The preprogrammed channels ar e only for use in a single fixed dish installation with a so called universal LNB. If your i nstallation is dif ferent some extra progra mm in g needs to be done. For a detailed instruction, please refer to the Guided setup.

2. NAVIGATION

The EchoS t ar U s er Int erfa ce h as various w ays to nav iga te th roug h th e me nus and fun cti ons . Some of the keys on the remote control unit give direct access to functions. Important keys are identified as EPG, colored keys, MENU, OK and EXIT. Other keys are multi-functional which means that their function can change with the selections you make.

NOTE

Unless otherwise specified; this note explains the navigation through the menus and functions. In the main, user and EPG menu:

1. the MENU key lets you access to the main menu or go back one menu level;

2. the EXIT key lets you leave a menu or selection and return directly to live;

3. the keys let you scroll up and down through the selectable items;

4. the keys let you scroll left and right through the selectable items;

5. The OK key lets you:

- confirm an d execute a selection;

- open a pull-down menu.

In a pull-down menu:

1. the OK key lets you confirm the selection;

2. the highlighted cursor indicates the active selection.

Section 1

English

3. TO INSTALL YOUR RECEIVER FOR THE FIRST TIME

This section assumes that the dish installation is completed and operational and your

receiver is connected to your TV and other equipment with suitable cables. Note that your receiver is pre-programmed for a fixed dish installation with a universal LNBF. If you have

another dish installation (multiple LNBs or motorized), additional settings are required.

NOTE

For receivers that are connected with an UHF cable, make sure that the TV is set to UHF channel 38 (607.25Mhz). If the channel number on the TV and receiver are not the same, you will have a distorted or no image at all. For more information, please refer to the user manual of the TV.

NOTE

For receivers that are connected with a SVHS cable, make sure that the audio to the TV is connected with either the S/PDIF or the AUDIO L/R connector. For more information, please refer to the user manual of the TV/VCR.

NOTE

From the next step onwards, the procedure is divided in different installation procedures. The given procedures are; Fixed, Multiple LNBs, DiSEqC1.2 and GoTo X.

■ Fixed means install a single dish with an Universal LNB;

■ Multiple LNBs means install a dish with multiple LNBs or multiple dishes;

■ DiSEqC1.2 means install a moveable dish according the DiSEqC1.2 spec;

■ GoTo X means install a moveable dish that is GoTo X compatible.

S/W Version 1.0 Page 1 - 1

Page 8

Section 1

Initial Installation

User Manual

English

3.1. SINGLE FIXED DISH INSTALLATION

1. Connect the receiver to the mains wall outlet.

2. On the rear panel, set the ON/OFF switch to ON.

3. Note that the receiver initializes.

4. Wait for the initial startup to complete.

5. If your dish installation is aimed at ASTRA1, live video appears.

6. If your dish installation is aimed at anothe r s ate ll ite, a No signal message appears.

7. Press the OK key.

8. Press the red key to choose Select SAT.

3.2. MULTIPLE LNB INSTALLATION

9. In the SAT list, select one of the pre-programmed satellites.

10.Press the OK key twice.

11. If your dish installation is correctly aimed, live video appears.

12.If your satellite is not listed, continue with the Guided setup.

1. Make sure that the LNB1 for ASTRA1 is connected to the DiSEqC switch port 1 and LNB2 for HOTBIRD to port 2.

2. For the monoblock LNB, please refer to the manufacturer’s specifications.

3. Connect the receiver to the mains wall outlet.

Page 1 - 2 Digital Satellite Receivers - Fixed

4. On the rear panel, set the ON/OFF switch to ON.

5. Note that the receiver initializes.

6. Wait for the initial start-up to complete.

7. If your dish installation is aimed correctly, live video appears.

8. If your installation is physically configured differently, a No signal message appears.

9. Press the MENU key.

10.Select Installation - User LNB and press the OK key.

11. For LNB1 select for Port: 2 and press OK.

12.For LNB2 select for Port: 1 and press OK.

13. Press the EXIT key.

14.If live video does not appear , continue with the Guided setup.

Page 9

EchoStar User Interface

Initial Installation

Section 1

3.3. DISEQC 1.2 INSTALLATION

CAUTION

On the motorized dish , mind the Eas t and We st limit s. F ailing to do so mi gh t caus e damage to your motorized dish installation or other properties.

1. Press the MENU key.

2. Select User data Maintenance - Full reset and press the OK key.

3. Enter Pin-code: 0000.

4. Select Yes.

5. Wait for the Guided setup menu to appear.

6. Press the EXIT key.

7. Press the MENU key to start the installation.

8. Select Installation Motorized - DiSEqC 1.2 and press the OK key.

9. Select DiSEqC On.

10.For detailed settin g instructions, please refer to the manual that came with the motor.

11.Press the MENU key.

12.Select Installation System setup - Search channels and press the OK key.

English

13.Select the SAT.

14.Select the Move dish option.

15.Move the dish and find the satellite.

16.Select the Fine tune option.

17.Move the dish and find the best signal.

18.Select the Search channels field and press the OK key.

19.Wait for the search to complete.

20.Press the OK key.

3.4. GOTO X INSTALLATION

1. Do the DiSEqC 1.2 installation first.

2. Make sure the channel search on the satellit e is completed.

3. Press the MENU key to continue the installation.

4. For detailed setting instructions, please refer to the manual that came with the motor.

S/W Version 1.0 Page 1 - 3

5. Select Installation Motorized - GoTo X and press the OK key.

6. Set the My longitude and My latitude of the dish.

7. Select the GoTo X option and select On.

8. Press the OK key .

9. Press the MENU key .

10.Select Installation - System setup - Search channel s and press the OK key.

11. Select the SAT.

12.Allow the motor some time to move to the satellite.

13.Select the Search channels field and press the OK key.

14.Wait for the search to complete.

15.Press the OK key.

Page 10

English

Section 1

Initial Installation

User Manual

Page 1 - 4 Digital Satellite Receivers - Fixed

Page 11

User Manual

FAMILIARIZATION

1. THE ECHOSTAR USER INTERFACE

Familiarization

The software of the receiv er cont ains the EchoStar User Interface with on-screen help, whic h gives you easy co ntrol o ver the fea tures o f the re ceive r. The receiver is pre-programmed with

for different satellites. If your satellite is not listed, then the receiver can use the internal database of pre-programmed satellites and transponders which is used for a quick installation.

The EchoStar User Interface has three main menus that give access to the different functions. Note that some models do not have the common interface slots. The related keys

on the Remote Control Unit (RCU) are identified as:

■ The key gives access to the main menu, that gives you control over the settings in

the Installation menu, the User data menu and the Information menu;

Section 2

English

■ The key gives access to the user menu, that hel p s you to control the daily operation;

■ The key gives access to the EPG menu , that help s yo u to co ntrol the di ffe ren t timers

and to view the information in the Electronic Program Guide (EPG);

■ The colored keys, if favorite lists are available, give direct access to the favorite lists.

Additionally the key g ives acce ss to the In foBanne r, that hel ps yo u to view the a vaila ble information about the current channel and to view additional information such as detailed program information (EPG) and detailed channel data (signal strength).

The EchoSt ar U s er Int erfa ce h as various w ays to nav iga te th roug h th e me nus and fun cti ons . Some of the keys on the RCU give direct access to functions. Important keys are identified as

EPG, colored keys, MENU, OK and EXIT. Some keys are multi-functional which means that their function can change with the selections you make.

NAVIGATION

In the main, user and EPG menu:

■ the MENU key lets you access to the main menu or go back one menu level;

■ the EXIT key lets you leave a menu or selection and return directly to live;

■ the  keys let you scroll up and down through the selectable items;

■ the  keys let you scroll left and right through the selectable items;

■ The OK key lets you:

- confirm and execute a selection;

- open a pull-down menu.

In a pull-down menu:

■ the OK key lets you confirm the selection;

■ the highlighted cursor indicates the active selection.

S/W Version 1.0 Page 2 - 1

Page 12

Section 2

Familiarization

EchoStar User Interface

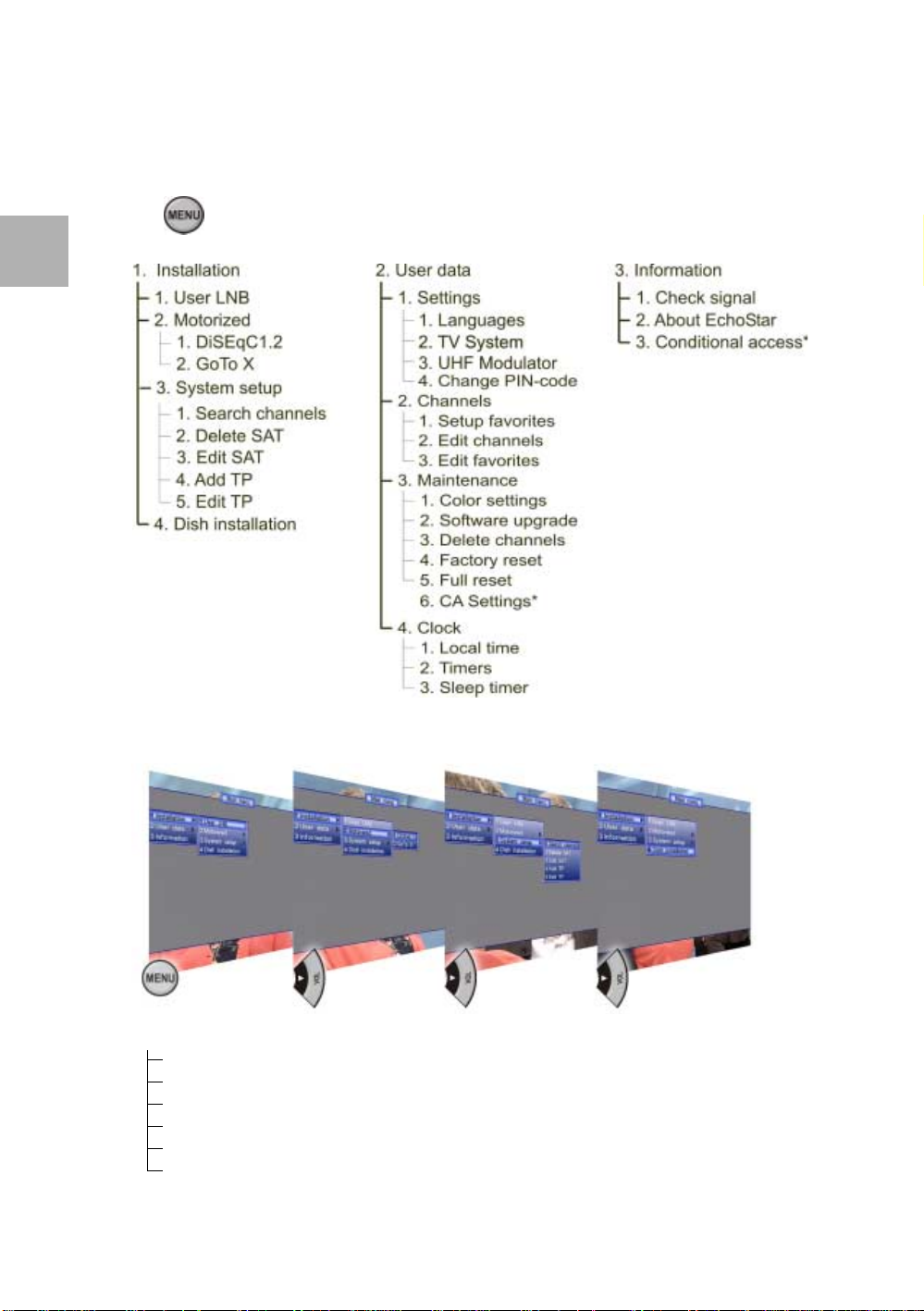

2. THE MAIN MENU STRUCTURE

The main menu has a tree structure where each sub-menu has one or more option pages. Each sub-menu allows you to cus tom iz e th e se ttin gs to match your installation. Note that the

menu contains dynamic pages which means that options are, or are not available depending on the selections you make.

English

The key gives access to the main menu, that gives you control over the settings in the Installation menu, the User data menu and the Information menu.

* Only for receivers with conditional access capabilities.

2.1. INSTALLATION

2.1.1. USER LNB

■ LNB To select the LNB that you want to define.

■ LO low To select the Low Band Local oscillator frequency.

■ LO high To select the High Band Local oscillator f requency.

■ Port To select the DiSEqC Port to which the LNB is connected.

■ DiSEqC repeat To repeat the DiSEqC command to the switch.

■ LNB power To switch the LNB power On (normal installations) or Off

(IF-distribution inst al la tion s).

Page 2 - 2 Digital Satellite Receivers - Fixed

Page 13

User Manual

2.1.2. MOTORIZED

ISEQC1.2

OTO X

Familiarization

Section 2

NOTE

Some options might not be supported by your DiSEqC1.2 motor. Please refer to the user guide of the motor for further details.

■ DiSEqC on To select the DiSEqC1.2 option for motorized installations.

■ DiSEqC off To select the DiSEqC1.0 option for fixed installations.

■ Limits on To select the dish movement limits option by software.

■ Limits off To delete the dish movement limits.

■ Move dish To move the dish and find the defined SAT.

■ Fine tune To move the dish for best signal level and quality.

■ Set East limit To set the East limit by software.

■ Set West limit To set the West limit by software.

■ Go to reference

■ Recalculate positionIf a DiSEqC1.2 motor is out of position, you can recalculate the

■ My latitude To set the latitude for the installation site of the dish.

■ North/South To select the hemisphere for the installation site of the dish.

■ My longitude To set the longitude for the installation site of the dish.

■ East/West To select the hemisphere for the installation site of the dish.

■ Set East limit To set the East limit by software.

■ Set West limit To set the West limit by software.

■ GoTo X To select the GoTo X option for DiSEqC1.2 installations.

If you want to reset your DiSEqC1.2 motor, you can re-calibrate the position of the motor with the command: Go to reference. Allow the motor some time to re-calibrate.

position of all programmed satellites with the command: Recalculate position. Allow the dish some time to recalculate the SAT positions.

English

2.1.3. SYSTEM SETUP

EARCH CHANNELS

■ SAT To define the satellite you want to search channels on.

■ LNB To select the LNB that you want to use for the selected SAT.

■ TP To select a transponder, from the internal database, of the

defined SAT. If the signal indicator shows low levels, select another TP that gives a better signal.

■ Position

(DiSEqC1.2 only)

■ Search mode To select Auto (all), TP or Network to search for channels.

■ Channel type To search for All channels, only FTA or only Scramble d

Shows the database number of the satellite.

channels.

■ Channel To search for All channels, only TV, only Radio or only Data

channels.

■ Move dish

(DiSEqC1.2 only)

■ Fine tune

(DiSEqC1.2 only)

■ Search channels Search channels does a channel search on the defined SAT.

■ Signal level To indicate that you receive a signal (signal strength).

■ Signal quality To indicate that you have lock onto the selected TP (signal-to-

To move the dish and find the defined SAT. To move the dish for best signal level and quality.

noise rat io).

S/W Version 1.0 Page 2 - 3

Page 14

English

Section 2

DELETE SAT

Familiarization

■ 1 To select the SAT that you want to delete. Note that all TV and

EchoStar User Interface

radio channels are deleted.

DIT SAT

■ SA T T o sh ow th e curren t satel lite y ou want to chang e the se tti ngs for.

■ LNB To select the LNB that you want to use for the selected SAT.

■ Position

(DiSEqC1.2 only)

■ Move dish

(DiSEqC1.2 only)

■ Fine tune

(DiSEqC1.2 only)

■ Re-align dish

(GoTo X only)

DD TP

■ SAT To select the satellite you want to change the settings for.

■ Frequency To set the required frequency (MHz).

■ Symbol rate To set the required symbol rate (MSym/s).

■ LNB To select the LNB that you want to use for the selected SAT.

■ Polarity To select the required polarity (Horizontal/Vertical).

■ 22kHz To select the control signal (Auto, On, Off) for the switch.

■ Channel type To search for All channels, only FTA or only Scrambled

Shows the database numbe r of the satell ite . To move the dish and find the defined SAT. To move the dish for best signal level and quality. To compensate for a dish offset caused by ambient conditions.

channels.

■ Channel To search for All channels, only TV, only Radio or only Data

channels.

■ Search channels Search channels does a channel search on the defined TP.

DIT TP

■ SAT

(blue key)

■ Frequency To view the current frequency (MHz).

■ Symbol rate To view the current symbol rate (MSym/s).

■ Polarity To view the current polarity (Horizontal/Vertical).

■ Delete

(yellow key)

■ Edit PID

(green key)

■ Confirm

(red key)

DIT PID

■ SAT To select the satellite you want to change settings for.

■ Frequency To set the required frequency (MHz).

■ Symbol rate To set the required symbol rate (MSym/s).

■ LNB To select the LNB that you want to use for the selected SAT.

■ Polarity To select the required polarity (Horizontal/Vertical).

■ Video PID To set the required Video PID.

■ Audio PID To set the required Audio PID.

■ PCR PID To set the required PCR PID.

To select the satellite you want to change the settings for.

To delete the selected transponder. To select the Edit PID sub-menu were you can set the required

settings (Frequency, Symbol rate, LNB and PIDs). To confirm the new settings and return to the Edit TP menu.

2.1.4. DISH INSTALLATION

■ SAT To select the satellite you want to check for the signal strength.

■ TP To select the TP you want to check for the signal strength.

■ View To list the channels that belong to the selected TP.

Page 2 - 4 Digital Satellite Receivers - Fixed

Page 15

User Manual

■

Search channels Search channels does a channel search on the defined SAT.

2.2. USER DATA

2.2.1. SETTINGS

ANGUAGES

■ Menu To set the language you want to use in the menus.

■ 1st Audio

■ 2nd Audio

Familiarization

Section 2

For multi-lingual EPG, if available, the information is shown in the menu language. If a selected language is not transmitted, the information is shown in the native language of that channel.

To set the language for programs with multi-lingual audio. For multi-lingual programs, if available, you can choose your own language. The receiver will first look for the 1st selected language, if not available, for the 2nd. If the two selected languages are not transmitted, audio is given in the native language of that channel.

English

NOTE

■ 1st Subtitle T o set t he langua ge for program s with mul ti-lingual su btitles. F or

You can override the selection per channel with use of the alternative audio key on the RCU.

multi-lingual programs, if available, you can choose your own language. If th e se lected l angua ge is not transm itted, no subtit le is shown.

NOTE

You can override the selection per channel with use of the alternative subtitle key on the RCU.

TV SYSTEM

■ Aspect ratio To set the image size for the TV.

If you have a TV with a 4:3 screen size and the transmission is in 16:9 format, you can select either 4:3 or 16:9. 4:3 shows the full screen completely where some of the image sides is cut off, 16:9 will show the full image with black top and bottom banners.

■ Video standard1 To set the video format supported by your TV (50Hz).

■ Video standard2 To set the video format supported by your TV (60Hz).

■ Signal type To set the signal format supported by your TV.

■ InfoBanner time-out When you change to another channel, the InfoBanner shows

momentarily. With this option you can set the view time for the InfoBanner.

■ Menu animation To set the menu transition effect.

S/W Version 1.0 Page 2 - 5

Page 16

English

Section 2

UHF MODULATOR

CHANGE PIN-CODE

Familiarization

Installation lock To lock the Installation and User data menu for unauthorized

■

EchoStar User Interface

users. Note that the Installation lock comes on automatically after you have set a channel lock.

■ Receiver lock To lock the receiver completely for unauthorized users. If you

select On, you only ca n gain acce ss with the PIN -code af ter yo u have set the receiver to standby.

■ Dolby Digital To tell the receiver that it is connected to a Dolby Digital

amplifier or not. When you have selected On, note that analog audio is not given to the TV, so no aud io is heard. If y ou wan t to listen through the TV audio, select Off.

■ Transparency To set the menu transparency level.

■ Channel To set the TV channel to which the receiver is connected. If the

channel number on the TV and receiver are not the same, you will have a distorted or no image at all. For more information, please refer to the user manual of the TV.

■ Video standard1 To set the video format supported by your country and TV.

■ PIN-code

(Current, New, Verif y)

To type in the factory default (0000) or your personal PIN-code.

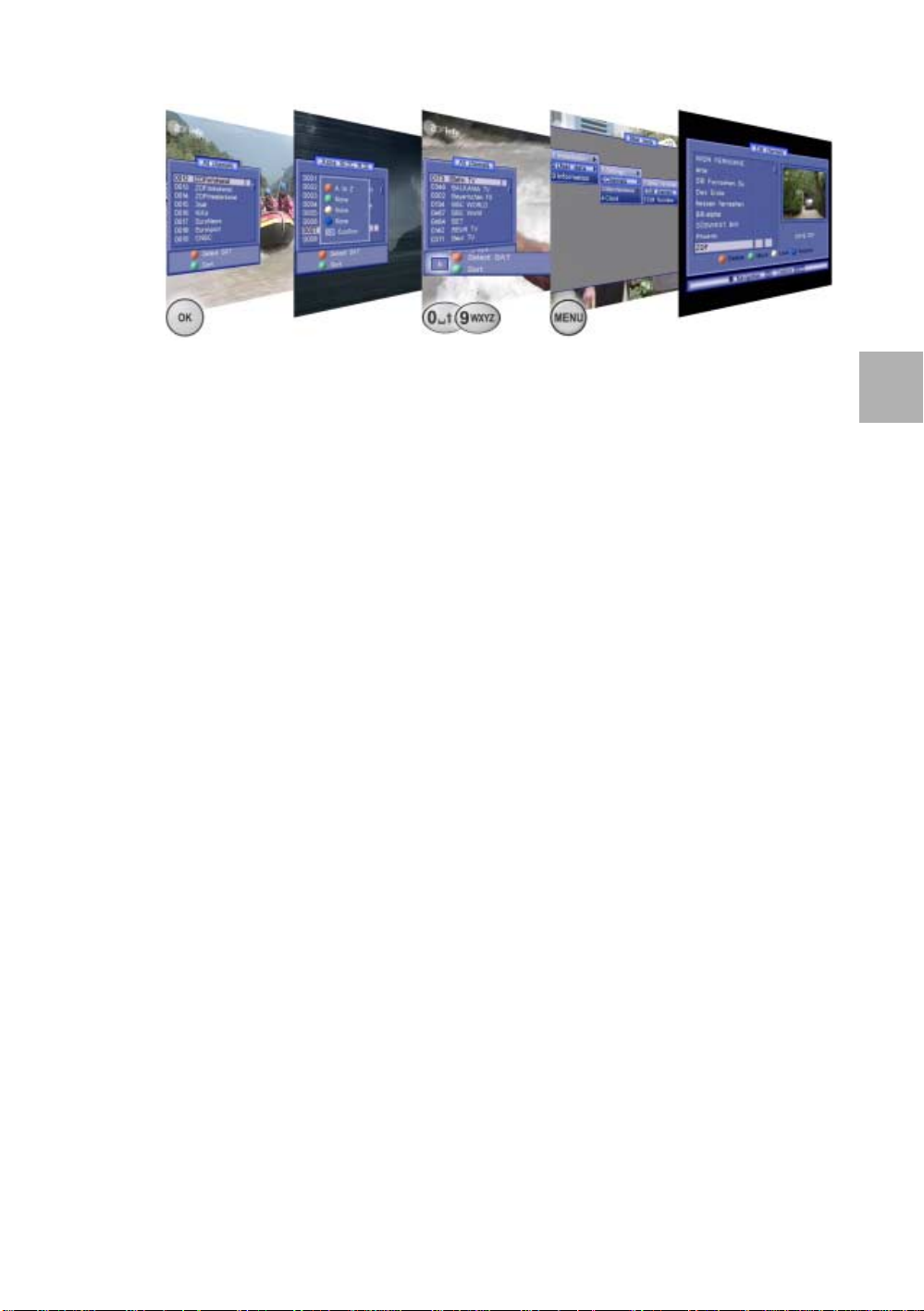

2.2.2. CHANNELS

ET UP FAVORITES

■ Fav 1 (red) To add or delete the highlighted channel for this favorite list.

■ Fav 2 (green) To add or delete the highlighted channel for this favorite list.

■ Fav 3 (yellow) To add or delete the highlighted channel for this favorite list.

■ Fav 4 (blue) To add or delete the highlighted channel for this favorite list.

■ Rename To rename the favorite channel lists.

EDIT CHANNELS

■ Delete (red) To delete the highlighted channel from the all channels list.

■ Move (green) To move the highlighted channel to another position.

■ Lock (yellow) To lock the highlighted channel (Parental control).

■ Rename (blue) To rename the highlighted channel.

EDIT FAVORITES

■ Move To move the highlighted channel to another position.

2.2.3. MAINTENANCE

OLOR SETTINGS

■ Items To select the menu item that you want to give another color.

■ Red To make the item color more or less red.

■ Green To make the item color more or less green.

■ Blue To make the item color more or less blue.

■ Default To change all personal color settings to the pre-defined colors.

SOFTWARE UPGRADE

■ SAT To select the satellite you want to download from.

■ Freq To set the required frequency you want to download from.

■ SR To set the required symbol rate you want to download from.

■ LNB To select the LNB that you want to use for the selected SAT.

■ Pol To select the required polarity you want to download from.

■ 22kHz To select the control signal (Auto, On, Off) for the switch.

■ PID To set the required PID you want to download from.

Page 2 - 6 Digital Satellite Receivers - Fixed

Page 17

User Manual

Familiarization

Section 2

■ Conform before

update

To select Ye s / No befo re you actuall y start the downl oad action. If you select Yes and the software version is the same as the current software, you are asked if you want to continue. If you select No, the download starts automatically and the software version is written to the receiver memory where it deletes the current installed version.

■ Sta r t Starts the Software upgrade procedure.

If a new software version is found on the satellite, the receiver starts to download the new software version in temporary memory. When the download is complete, the new software

English

version is written to the receiver memory where it deletes the previous version. This process can take up to approximately 30 minutes. The Software upgrade is completed when the receiver restarts and returns with live video.

■ Check OTA (green) To look on th e s at ell ite if new software is a va ila ble fo r download.

■ Signal indicator To show the signal level and quality of the download signal. If

you have a poor recept ion due to we ather co nditio ns, pl ease try later.

DELETE CHANNELS

■ Delete settings To delete all channels from the channel and favorite lists.

Difference with the Full reset is that all installation settings are kept.

FACTORY RESET

■ Delete settings It is advised to write down the most important settings before

you confirm the Factory reset (e.g. Switch and Port settings, LNBs, User data, etc.). The receiver deletes all user defined settings, channels, timers and (favorite) lists and replace them with the factory defaults and pre-programmed channel lists.

FULL RESET

■ Delete settings To d elete a ll cha nnels from th e chan nel an d favo rite lis ts as well

as the installation settings. The receiver automatically deletes all settings and starts with the Guided setup.

2.2.4. CLOCK

OCAL TIME

■ Clock mode To select internal or satellite clock.

■ Time zone* To select the city closest to you.

■ GMT* Shows the time-offset as a result of the time zone selection.

■ Time* To set the current time.

■ Date* To set the current Date.

■ Local time The Local time is shown automatically with the settings made

before and offer you a possibility to check for the correct time.

■ Local date The Local date is shown automatically with the settings made

before and offer you a possibility to check for the correct date.

■ Daylight saving* To set the summer time (if applicable to your region).

* Availability depends on the selection as made in for the Clock mode.

NOTE

The time shown in the Local time field offers you a possibility to check for the correct time. EPG and timers will not operate correctly if the Local time not set correctly.

S/W Version 1.0 Page 2 - 7

Page 18

English

Section 2

Familiarization

TIMERS

■

Timer To select the timer that you want to program.

■ Channel To select the channel that you want to record from.

■ Interval To set the timer, once or repeat for every occurrence.

■ Date To set the start date for the timer.

■ Start To set the start time for the timer.

■ Duration To set the length for the timer.

CAUTION

Note that the timer does not start or program your video recorder (VCR). You have to set the timer of your VCR also to the same time as on the receiver. Please refer to the user’s guide of your VCR how to record from a satellite receiver. On quite a lot of VCRs you have to select the so called external channel (E1).

SLEEP TIMER

■ Duration To set the length for th e tim er. Note that the receiver switches to

2.2.5. INFORMATION

HECK SIGNAL

■ Frequency Shows the current selected transponder frequency

■ Symbol rate Shows the current selected sym bol rate.

■ Polarity Show s the curr ent se lec ted polarity.

■ Audio PID Shows the current selected Audio PID.

■ Video PID Shows the current selected Video PID.

■ PCR PID Shows the current selected PCR PID.

■ Teletext PID Shows the current selected Teletext PID.

■ CA1 Shows the current selected conditional access system.

■ Signal level To indicate that you receive a signal (signal strength).

■ Signal quality To indicate that you have lock onto the selected TP (signal-to-

EchoStar User Interface

standby after the sleep timer has run out.

noise ratio).

ABOUT ECHOSTAR

■ Company Shows the Company name.

■ Address Shows the visit address of EchoStar.

■ Internet site Shows the EchoStar Internet site.

■ H/W Version Shows the current H/W Version.

■ S/W Version Shows the current S/W Version.

Page 2 - 8 Digital Satellite Receivers - Fixed

Page 19

User Manual

Familiarization

3. THE USER MENU STRUCTURE

Red Green

The key gives access to the user menu for quick access to the different list and zap functions.

When a list shows, you can access the colored menus for further organization of the lists:

■ The (Red) key gives access to the opt ion: Sele ct SAT and depending on the selecte d

mode, the possibility to sort the complete list in None (default), from A to Z and Z to A

■ The (Green) key gives access to the option: Sort and depending on the selected

mode, the possibility to sort the complete list in None (default), per TP or per Network.

Section 2

English

■ The (Yellow) key gives access to the option: show a limited list that is selected by

None (default), Scrambled or FTA (Free-To-Air) channels.

■ The (Blue) key gives access to the list for the current satellite (None) or the All

channels list.

When live video shows, you can directly access the personally created (pre-defined) favorite lists:

■ The (Red) key gives access to Favorite list: Fav 1.

■ The (Green) key gives access to Favorite list: Fav 2.

■ The (Yellow) key gives access to Favorite list: Fav 3.

■ The (Blue) key gives access to Favorite list: Fav 4.

S/W Version 1.0 Page 2 - 9

Page 20

English

Section 2

Familiarization

4. THE EPG MENU STRUCTURE

EchoStar User Interface

Green

The key gives access to the EPG m enu, th at hel ps you to con trol th e tim ers an d to v iew the information in the Electronic Program Guide (EPG).

Red

NOTE

Most digital channels broadcast program data as an EPG. Digital channels that broadcast EPG offer you program information in advance for a certain period of time. The EPG information is not alwa ys ava ila ble . Some tim es the service provider supplie s only the program name, th e now/ne xt inform ation or s ometimes nothin g at all. EchoStar has no influence on this matter.

The EPG menu makes use o f the EPG, i-key and th e colo r keys on yo ur Remot e Control Unit (RCU) to allow for quick access to the different EPG and timer functions. When the EPG menu shows:

■ The (Red) key gives access to the timers.

CAUTION

■ The (Green) key gives, if avail able from the serv ice provid er , acce ss to the schedule d

program information which can be available for a few hours up until 14 days in advance.

■ The key gives, if available from the service provider, access to the detailed program

information of the current selected program. Sometimes the information is not directly available, if necessary allow the receiver to collect the detailed program information.

Page 2 - 10 Digital Satellite Receivers - Fixed

Page 21

User Manual

Familiarization

5. THE INFOBANNER

The key gives access to the InfoBanner, tha t help s you t o view the availa ble inf ormatio n about the current channel and to view additional information such as detailed program information (EPG) and standard channel data.

The InfoBanner shows the information related to the current channel. The information as shown is not always available. Sometimes the service provider broadcasts only the basic information or just the live content. EchoStar has no influence on this matter.

The InfoBanner has a:

■ The channel informati on bar, to show:

- the local time;

- the channel name;

Section 2

English

- the icon, to show that a sleep timer is active.

- the local date.

■ The service informatio n bar, to show:

- the duration indicator, to show the progress of the current program;

- the icon, to show that the channel is encrypted (Scrambled);

- the icon, to show that more Subtitle languages are available;

- the icon, to show that teletext is available.

- the channel number.

■ The program information bar, to show:

- the current (now) and next program information;

- the audio indicator, to show that alternative audio languages are available;

- The satellite indicator, to show the name of the current satellite;

- the signal indicator, to show the signal level (strength).

S/W Version 1.0 Page 2 - 11

Page 22

English

Section 2

Familiarization

EchoStar User Interface

6. THE POP-UP MENUS

Some pop-up mess age s are us ed to show that the re ce iv er i s bu sy w it h a task. Other pop- up messages require interaction with the user, you have to confirm or deny an earlier given command to complete the task.

There are several special pop-up menus that give quick access to:

■ The key shows the Subtitle pop-up, that gives you the possibility to choose directly

from the available alternative subti tle languages as broadcasted by the servi ce prov id er. The program uses first the Subti tle selecti on as ma de in the User data - Language s. If yo u do not want to use this selection, you can override the selection for the current channel

with a selection from this menu.

NOTE

Digital channe ls that bro adcast in diff erent lan guages of fer yo u the po ssibility t o choo se another language. The broadcast in different languages is not always available, sometimes the service provider broad casts in one language. Echo S tar has no influ ence on this matter.

■ The (Alternative audio) key sho ws the Audio pop-up , that gives you the possib ili ty to

choose directly from the available alternative audio languages as broadcasted by the service provider. The program uses first the Audio selection as made in the User data Languages. If you do not want to use this selection, you can override and save the

selection for the current channel with a selection from this menu.

NOTE

Some radio channels broadcast more than one radio station per channel. Known channels are Radios2/Radios3 (Astra1). Default the receiver selects the first station in row. Within the Audio pop-up you can select and save another station as if you select another Audio language.

■ The key shows the sleep timer pop-up, that gives you the possibility to set a sleep

timer directly.

■ The key, if pressed twice, shows the Teletext language pop-up, that gives you the

possibility to choose directly from the available alternative Teletext languages as broadcasted by the service provider.

Page 2 - 12 Digital Satellite Receivers - Fixed

Page 23

EchoStar User Interface Operation Section 3

OPERATION

1. HOW TO NAVIGATE

The EchoStar user interface has various ways to navigate through the menus and functions. Some of the keys on the RCU give direct access to functions. Important keys are identified as colored keys, MENU, OK, EPG and EXIT. Other keys are multi-functional which means that their function can change with the selections you make.

NOTE

Unless otherwise specified; this note explains the navigation through the menus and functions. In the main, user and EPG menu:

1. the MENU key lets you access to the main menu or go back one menu level;

2. the EXIT key lets you l eave a menu or s election and return directly to live;

3. the keys let you scroll up and down through the selectable items;

4. the keys let you scroll left and right through the selectable items;

5. The OK key lets you:

- confirm and execute a selection;

- open a pull-down menu.

In a pull-down menu:

1. the OK key lets you confirm the selection;

2. the highlighted cursor indicates the active selection.

2. HOW TO SELECT A CHANNEL

You can select a channel in different ways. For a quick channel selection we advise you to organize your channel lists with help of the Favorite lists.

English

NOTE

HEN YOU WANT TO SELECT

ANOTHER CHANNEL:

■ the CH keys;

■ the numerical keys.

WHEN YOU ARE IN A LIST,

YOU CAN USE:

■ the CH keys;

■ the Page +/- keys.

HEN YOU ARE IN A SORTED

LIST, YOU CAN USE:

■ the CH keys;

■ the alpha-numerical

keys (A to Z, Z to A only).

HEN YOU WANT TO ZAP BETWEEN TV AND RADIO CHANNELS:

1. Press the TV/RAD k ey.

2. Select the channel.

HEN YOU WANT TO LISTEN TO

ANOTHER AUDIO ON THE SAME CHANNEL:

1. Press the (alternative audio) key.

2. Press the CH keys.

3. Press the OK key.

S/W Version 1.0 Page 3 - 1

Page 24

Section 3

Operation

3. HOW TO USE THE TELETEXT DECODER

User Manual

English

NOTE

If the InfoBanner shows the icon, Teletext is available.

IF YOU WANT TO ACCESS TELETEXT:

1. Press the key .

2. Teletext shows.

F YOU WANT TO EXIT

I TELETEXT:

1. At any page, press the EXIT key .

SELECT AN INDEX PAGE:

1. Press the numerical keys to choose a page n umber, or:

2. Press the orkey to go up/down to an index p a ge (200, 300, 400, etc.).

SELECT ANOTHER LANGUAGE:

1. Press the key two times.

2. If available, select another language.

ELECT A PAGE FROM THE

INDEX PAGE:

1. Press the numerical keys to choose a page number, or:

2. Press the Page +/- key to view the cursor.

3. Press the Page +/- key to go to a selectable page.

4. Pres s the OK key, or:

5. Press one of color keys to go to the indicated page.

ELECT A TELETEXT PAGE:

1. Press the numerical keys to choose a page number, or:

2. Press the key to go one page number up or down, or:

3. Press one of color keys to go to the indicated page.

4. Sub-pages (1/2, 2/2) are automatically advanced.

UT A TELETEXT PAGE OVER

LIVE VIDEO:

1. Press the OK key to m ake the teletext pages transparent.

2. Note that live video appears behind the Teletext page.

SE THE TELETEXT SUPPORTED SUBTITLES FOR THE HEARING IMPAIRED:

1. If the subtitles are

transmitted, select the applicable Teletext page.

2. Allow the receiver to

collect the subtitles.

3. Note that the subtitles are

show on top of the video.

4. At any time, press the

EXIT key to return to the normal operation.

NOTE

Some Teletext pages are me ant to be o n top of live vid eo, such as so ca lled late st news flash pages. When you access such a page, allow the receiver to collect the information. When the inform ation is c ollecte d, the re ceiver return s au tomati cally t o l ive video with the latest news flash on top.

4. HOW TO ADJUST OR MUTE THE VOLUME

F YOU WANT TO ADJUST THE VOLUME:

1. Press the VOL keys.

2. Note that the Volume indicator shows.

Page 3 - 2 Digital Satellite Receivers - Fixed

F YOU, TEMPORARY, WANT TO SHUT DOWN THE

I AUDIO:

1. Press the (mute) key.

2. Note that the Mute indicator shows.

Page 25

EchoStar User Interface Operation Section 3

5. HOW TO ORGANIZE THE LISTS

IF YOU WANT TO SORT A LIST:

1. Pres s the OK key to access the channel list.

2. Press the red key to access the satellite list.

3. Press the green key to access the sort functions.

4. When in the sort menu, use the colored keys to make a selection.

5. Pres s the OK key to confirm.

6. If the quick selection box appears (sort A to Z, Sort Z to A only), press the applicable alpha-numeric key to go directly to that character.

F YOU WANT TO DELETE A CHANNEL:

1. Press the MENU key.

2. Select User data - Channels - Edit channels and press the OK key.

3. Select a channel.

4. Press the red key.

5. Note that the delete mark appears.

6. Pres s the OK key to confirm.

F YOU WANT TO MOVE A CHANNEL:

1. Press the MENU key.

2. Select User data - Channels - Edit channels and press the OK key.

3. Select a channel.

4. Press the green key.

5. Press the  keys to move the channel to the required location.

6. Press the green key again.

F YOU WANT TO LOCK A CHANNEL:

1. Press the MENU key.

2. Select User data - Channels - Edit channels and press the OK key.

3. Press the yellow key.

4. Note that a L appears behind the channels.

5. Pres s the OK key to confirm.

English

F YOU WANT TO RENAME A CHANNEL:

1. Press the MENU key.

2. Select User data - Channels - Edit channels and press the OK key.

3. Select a channel. and press the blue key.

4. Use the alpha-numerical keys to rename the channel.

5. Use the blue key to change between lower case and upper case characters.

6. Pres s the OK key to confirm.

S/W Version 1.0 Page 3 - 3

Page 26

Section 3

Operation

6. HOW TO CREATE THE FAVORITE LISTS

User Manual

English

In this procedure you lea rn how to c reate your o wn favorite l ists th at give qu ick acce ss to you r most popular channels. First you learn how to add a group of channels to your favorite list followed by how to delete a gro up of chan nels, the n you lea rn how to ren ame a fav orite lis t to something meaningful to you.

IF YOU WANT TO ADD A SELECTION:

1. Press the MENU key.

2. Select User data - Channels - Setup favorites and press the OK key.

3. Use the keys to select a channel.

4. Press a colored key to add a channel to that specific favorite list.

5. A colored bullet behind the selection shows to which favorite list a channel belongs.

6. Press the OK key to confirm.

F YOU WANT TO DELETE A FAVORITE SELECTION:

1. Press the MENU key.

2. Select User data - Channels - Setup favorites and press the OK key.

3. Use the keys to select a channel.

4. On a channel with a colored bullet behind it, press that color key.

5. Note that the favorite is deselected which means deleted from that favorite list.

6. Press the OK key to confirm.

F YOU WANT TO RENAME A FAVORITE LIST:

1. Press the MENU key.

2. Select User data - Channels - Setup favorites and press the OK key.

3. Press the i-key.

4. Use the alpha-numerical keys to rename the channel.

5. Use the i-key to change between lower case and upper case characters.

6. Press the OK key to confirm.

F YOU WANT TO MOVE A CHANNEL WITHIN A FAVORITE LIST:

1. Press the MENU key.

2. Select User data - Channels - Edit favorites and press the OK key.

3. Press the i- key.

4. Press the  keys to move the channel to the required location.

5. Press the i-key again.

Page 3 - 4 Digital Satellite Receivers - Fixed

Page 27

EchoStar User Interface Operation Section 3

7. HOW TO ADD TRANSPONDERS

IF YOU WANT TO ADD A TRANSPONDER:

1. Press the MENU key.

2. Select Installation - System setup - Add TP and press the OK key.

3. Make the required selections.

4. Search channels will start the channel search for the new transponder (TP).

F YOU WANT TO DELETE A TRANSPONDER:

1. Press the MENU key.

2. Select Installation - System setup - Edit TP and press the OK key.

3. Select the transponder that you want to delete.

4. Press the yellow key and follow the instructions as given.

F YOU WANT TO EDIT A TRANSPONDER OR PID:

1. Press the MENU key.

2. Select Installation - System setup - Edit TP and press the OK key.

3. Select the transponder that you want to change.

4. Press the green key.

5. Make the required selections.

6. Select Confirm and press the OK key.

English

S/W Version 1.0 Page 3 - 5

Page 28

Section 3

Operation

8. HOW TO SET AND LOOK UP THE TIMERS

User Manual

English

CAUTION

The timer does not start or program your video recorder (VCR). You also have to set the timer of your VCR to the same time as on th e time r. Plea se ref er to the use r guid e of your VCR how to make a recording from a satellite receiver. On many VCRs you have to select the so called external channel (E1).

NOTE

You can not set a timer in the past.

F YOU WANT TO SET A TIMER

ONTO AN EPG EVENT:

1. Press the EPG key.

2. Select the EPG event.

3. Press the red key.

4. Review the timer settings as retrieved from the EPG event.

5. If required, change the Date, Start and Duration settings.

6. Change the Interval into Once, Daily or Weekly.

7. Press the OK key to confirm.

F YOU WANT TO SET A TIMER

WHEN THERE IS NO EPG:

1. .Press the MENU key.

2. Select User data - Clock Timers and pres s the OK key.

3. Select a not used timer.

4. Make the required settings.

5. Press the OK key to confirm.

F YOU WANT TO LOOK UP,

DELETE OR CHANGE A TIMER:

1. .Press the MENU key.

2. Select User data - Clock Timers and pres s the OK key.

3. Select the timer.

4. Make the required settings.

5. If you want to cancel a timer, select Interval = Off.

6. Press the OK key.

F YOU WANT TO SET A SLEEP

TIMER:

1. Press the MENU key.

2. Select User data - Clock Sleep timer and press the OK key.

3. Select a duration.

4. Press the OK key to confirm.

F YOU WANT TO SET A SLEEP

TIMER QUICKLY:

1. On the remote control unit, press the SLEEP key.

2. Select a duration.

3. Press the OK key to confirm.

Page 3 - 6 Digital Satellite Receivers - Fixed

Page 29

EchoStar User Interface Operation Section 3

9. HOW TO RESET THE RECEIVER

NOTE

There are different procedures for a reset of the receiver.

■ Delete channels - to delete all channels from the channel and favorite lists.

■ Factory reset - to return to the factory defaults and pre-programmed channel lists.

■ Full reset - to delete all settings and start with the Guided setup.

Only the procedure for a Full reset followed by the Guided setup is given.

NOTE

This procedure is applicable to standard installations with a single dish and LNB. Please refer to the Initial setup procedures for DiSEqC1.2 and GoTo X installations.

1. Press the MENU key.

2. Select User data Maintenance - Full reset and press the OK key.

3. Ente r your PIN-cod e.

4. Select Yes.

5. Wait for the Guided setup

menu to appear.

6. Press the red key.

7. In the Language menu, make the required selections.

8. Pres s the OK key.

9. Press the green key.

10.In the User LNB menu, make the required selections.

11.Press the OK key to confirm.

12.Press the MENU key.

13.Press the yellow key.

14.In the Satellite list, make the required selections.

15.Press the OK key.

16.Press the blue key.

17.In the Dish installation menu, make the required selections:

18.Select the satellite option.

19.Press the OK key and make your selection.

20.Select the transponder option.

21.Press the OK key and make your selection.

22.Use the signal ind icato r to check the signal strength and quality.

23.Press the green key to start Search channels.

English

10. HOW TO DO A SOFTWARE UPGRADE

WARNING

DO NOT PRESS ANY KEYS DURING THE SESSION, THIS CAN INTERRUPT THE SOFTWARE

UPGRADE SEQUENCE WHICH CAN DAMAGE THE RECEIVER PERMANENTLY.

NOTE

On a regular basis, EchoStar offers software updates via satellite and the EchoStar web site (where we also a nnounc e new soft ware releas es and related d ocu ment atio n). If you have trouble to get a download with the latest software version, please ask your retail seller or dealer for assistance

1. Press the MENU key.

2. Select User data Maintenance - Software Upgrade and press the OK key.

S/W Version 1.0 Page 3 - 7

3. The default settings are pre-programmed.

4. Select Start to begin the Software upgrade.

5. Follow the instructions as given in the progress screens.

6. If you want to download from another satellite, please visit our web site for detailed instructions .

Page 30

English

Section 3

Operation

User Manual

Page 3 - 8 Digital Satellite Receivers - Fixed

Page 31

EchoStar User Interface Troubleshooting Section 4

TROUBLESHOOTING

1. TO SOLVE A GENERAL PROBLEM

Problem Possible cause What to do?

1. Nothing appears on the receiver front panel.

■ Main power cable is

damaged or not connected.

■ The On/Off swit ch on the

rear panel is set to Off.

■ General domestic power

failure

■ Check the main power

cord and insert it in the (wall socket).

■ Set the On/Off switch in

the On position.

■ Check the domestic

power supply and insert a new fuse.

2. You have forgotten the

■ - ■ Contact your dealer.

personal PIN-code.

3. I cannot select Dolby Digital in the Audio popup.

■ You did not select Dolby

Digital to On.

■ Press the MENU key .

■ Select User data -

Settings - TV System.

■ Select Dolby Digital = Yes.

2. TO SOLVE AN EPG RELATED PROBLEM

Problem Possible cause What to do?

1. The EPG is empty. ■ The selected program

supports no EPG.

■ The local time is not

correct.

■ The daylight saving time

3. TO SOLVE A LIST RELATED PROBLEM

is not correct.

Problem Possible cause What to do?

1. The list is empty.

■ No channels found for the

Satellite.

2. I cannot find the favorite channel lists.

■ You did not create a

favorite list.

■ - ■ When in live TV/Radio,

■ There is no solution for

this, the data is supplied by the servi ce provider and beyond our control.

■ In the Local time menu,

set the correct time.

■ In the Local time menu,

set the correct daylight saving time.

■ Press the MENU key and

select Installation. System setup - Search channels.

■ Select another Search

mode and search again for channels.

■ In the User data -

Channels menu setup the favorite list.

press one of the colored keys.

English

S/W Version 1.0 Page 4 - 1

Page 32

English

Section 4

Troubleshooting

User Manual

4. TO SOLVE A TIMER RELATED PROBLEM

Problem Possible cause What to do?

1. I cannot set a timer because I have no EPG.

■ The selected program

supports no EPG.

■ Press the MENU key.

■ Select: User data - Clock -

Timers menu.

■ Program the timer

manually.

2. I cannot find the programmed timers.

■ The time settings are not

correct.

■ - ■ Press the MENU key.

■ Review the solutions in to

solve an EPG problem.

■ Select: User data - Clock -

Timers menu.

■ Select the required timer.

3. My VCR did not record the program.

■ You did not set the VCR

itself.

■ Set your VCR itself also.

■ The timer does not start

your VCR, it only swit ches on the receiver so th at you can record the program.

5. TO SOLVE A SMARTCARD RELATED PROBLEM

Problem Possible cause What to do?

1. I cannot view or listen to a scrambled channel.

■ The CI-module/smartcard

is not valid for the service.

■ The CI-module/smartcard

is not correctly inserted.

■ The software lost

communicati on with the CI-module/smartcard.

■ Insert a valid CI-module/

smartcard correctly.

■ Contact your service

provider.

■ Insert a valid CI-module/

smartcard correctly.

■ Press the On/S t andby key

two times.

Page 4 - 2 Digital Satellite Receivers - Fixed

Page 33

EchoStar User Interface

GLOSSARY

C-band A frequency range (3.70-4.20 GHz) used for satellite broadcasts. CI-module/CAM Both names are used for these modules. These modules are

Common Interface (CI) A DVB standard which defines the software and hardware

Conditional access A system which is used by service providers to control the

CVBS Composite video is a combination of the three basic elements of a

DiSEqC A standard throug h whi ch it is pos s ibl e to le t a D i SEqC c om p a tib le

EPG A electronic program guide that co mes w ith a broadcas t. Note tha t

FEC Is an invisible part of a broadcast. that can correct possible errors

Fixed A dish antenna that is pointed at one particular satellite. FTA broadcast An unscrambled broadcast which you can view without additional

Frequency band A frequency band i s a range of frequenc ies whic h are dedic ate to a

GoTo X GoTo X is a smart DiSEqC1.2 motor with an internal satellite

Horizontal In the satellite industry, horizontal is used to indicate the direction

KU-band A frequency range (10.70-18.00 GHz) used by most European TV

LNB A device behind the feedhorn which processes the signal into a

NVOD Near Video On D emand - Mul ti channel sy stem broadc asting ma ny

Network With respect to the receiver, a network (also known as a bouquet)

NTSC USA video standard with image format 4:3, 625 lines, 60 Hz and

PAL European video standard with image format 4:3, 625 lines, 50 Hz

Glossary

Section 5

PCMCIA cards with a slot in which you can insert a smart card.

requirements for condition access systems.

subscriber’s access to certain services, programs and events like Pay TV.

video picture (color, brightness, and synchronization) into a single cable with two wires in it as used in SCART and RCA (Video) connections.

receiver send a signal over the RF cable to a switching device to switch between different LNBs or dishes. DiSEqC uses the 22kHz signal to control the switching device.

every station fills the EPG differently or not, so differences in the EPG are not necessarily receiver errors.

in the reception of the satellite signal.

payments to a service provider.

certain usage. In the satellite area, commonly know n bands are the C-band and the Ku-band.

database which makes the installation of a DiSEqC motor quite easy. After you have entered the latitude and the longitude (position) of the dish, th e dis h m oves automatically to the selected satellite.

in which the rece ived signa l is polari zed. No rmally you wil l find that it is abbreviated as H.

satellites.

format which is understood by the receiver for further processing

copies of a film with staggered start times so a complete film is always available to a viewer with a short waiting pe riod.

is a set of programs that is offered by a single service provider.

4 MHz bandwidth with a total of 6 MHz video channel width.

and 4 M Hz bandwidth with a total of 8 MHz video channel width. Known formats are PAL B/G, D/K, I, D and H)

English

S/W Version 1.0 Page 5 - 1

Page 34

English

Section 5

PID MPEG-2 transmits the audio and video information in so-called

packages. Each package has an identifier (PID) present which tells the receiver what to do with the received information. Satellite receivers use normally four types of PID, these are VPID (Video PID), APID (Audio PID), Program Clock Reference (PCR PID) and data PID (EPG).

Parental control A feature which is introduced to give you the possibility to ‘Lock’

several functions of the receiver to prevent unauthorized persons (children) to view broadcasts that are not suitable for them. The use of the Parental control requires a PIN-code. With this PINcode you can change or unlock the locked channels.

Pay-Per-Channel With this feature, the viewer has to pay a certai n price per month

(or other period) to receive all programs of a certain channel.

Pay-Per-View Conditional access service where the user is able to buy one

particular program from a particular service provider.

Pay TV With Pay TV, the consumer has to pay for certain programs or

services.

PIN-code The PIN-code or Personal Identification Number is necessary to

make use of th e pare ntal l ock fea ture. The PIN-code has fou r digit s which can be set personally.

Polarity Broadcasts are done in a particular frequency band. To make

maximum use of a frequency band and bring you the maximum number of programs, the broadcasts are polarized in different ways to fit as much as possible prog rams into one freque ncy ban d.

Receiver Unit which takes signals from a dish and converts them so they

can appear on radio and TV.

RGB RGB is used to transfer a TV signal in DVD quality. The quality is

superior to SVHS and CVBS.

SAT With respect to the receiver, a satellite is a broadcast station, for

satellite radio and TV, positioned on the Clarke Belt.

SECAM SECAM (Systeme Electronic Pour Couleur Avec Memoire) is

almost the same as PAL. It is used in France, Russia, and part s of Africa and Eastern Europe.

Service provider A service provider is a company or organization that collects and

offers you a number of programs and services. Some are free of charge and others you have to pay for.

Smartcard A card that contains a ‘smart’ code and is used to de-scramble

encrypted broadcasts when placed in a decoder or receiver with a built-in decoder.

Stream The signal which is received from the transponder which contains

the together with the video signal, additional information that the receiver needs in order to process the received signal correctly.

SVHS SVHS means Super-VHS and is superior to a CVBS signal but

less then a RGB signal. Normally it is a single cable consisting of four wires because the black/white (luminance) is separated from the color (chrominance).

Symbol rate Invisible information which tells the receiver at which speed (rate)

the transponder sends the digital information (symbols). The receiver must be able to handle the Symbol rate to process the signal correctly into a correct image.

TP Equipment inside a satellite responsible for receiving a single

uplinked channel and rebroadcasting it back to Earth.

Vertical In the satellite industry, Vertical is used to indicate the direction in

which the received sign al is pol ariz ed . No rm all y yo u will f ind that it is abbreviated as V.

Glossary

User Manual

Page 5 - 2 Digital Satellite Receivers - Fixed

Page 35

EchoStar User Interface

Index

Section 6

INDEX

add

channel .....................................................3-4

selection ....................................................3-4

transponder ................................................3-5

audio

ac-3 ..........................................................2-6

alternate language ....................................2-12

radio channels ..........................................2-12

channel

add to list ...................................................3-4

delete from list ............................................3-4

rename ......................................................3-4

select ........................................................3-1

channel list

delete ........................................................3-3

lock ...........................................................3-3

move .........................................................3-3

rename ......................................................3-3

sort ...........................................................3-3

clock

daylight saving time .....................................4-1

local time ...................................................2-7

sleep timer .................................................2-8

timers ........................................................2-8

color keys ..................................................2-10

color settings

...............................................2-6

conditional access

ci-module ....................................................1-I

daylight saving time .....................................4-1

diseqc

explanation ................................................5-1

goto x ........................................................1-1

motor ........................................................1-1

switch ........................................................1-1

dolby digital

settings ......................................................2-6

troubleshooting ...........................................4-1

edit

pid ............................................................3-5

transponder ................................................3-5

edit data

transponder ................................................3-5

epg

access ..............................................2-1, 2-10

program information ....................................2-1

troubleshooting ...........................................4-1

favorite list

add channel ...............................................3-4

create ........................................................3-4

quick access ..............................................2-9

rename ......................................................3-4

infobanner

access .......................................................2-1

information ...............................................2-11

installation

diseqc1.2 ...................................................1-3

goto x ........................................................1-3

single dish/dual lnb ......................................1-2

single dish/lnb .............................................1-2

tv system ...................................................2-5

uhf modulator .............................................2-6

installation

diseqc1.2 ...................................................2-3

goto x ........................................................2-3

motorized ...................................................2-3

language

epg ............................................................2-5

installation ..................................................2-5

lnb

local oscillator frequency ..............................2-2

main menu

access ...............................................2-1, 2-2

search channels ..........................................2-3

structure .....................................................2-2

user lnb setting ...........................................2-2

motorized

diseqc1.2 ...................................................2-3

goto x ........................................................2-3

mute .............................................................3-2

navigation ............................................2-1, 3-1

ota

download settings .......................................2-6

software download .......................................1-I

parental control

explanation .................................................5-2

pid

edit ............................................................2-4

explanation .................................................5-2

rename

channel ......................................................3-4

favorite lis t ..................................................3-4

reset

delete channels ...........................................2-7

factory reset ...............................................2-7

full reset .............................................2-7, 3-7

English

S/W Version 1.0 Page 6 - 1

Page 36

English

Section 6

Index

satellite

delete ........................................................2-4

edit ...........................................................2-4

select

channel ..................................................... 3-1

mute .........................................................3-2

radio station ...............................................3-1

radio/tv ...................................................... 3-1

volume ...................................................... 3-2

selection methods ................................2-1, 3-1

signal indicator

............................................2-4

software upgrade

description .................................................2-6

procedure ..................................................3-7

sort

a to z .........................................................2-9

fta .............................................................2-9

per network ................................................2-9

per tp ........................................................ 2-9

scrambled ..................................................2-9

z to a .........................................................2-9

subtitle

alternate language ....................................2-12

summertime ................................................ 4-1

teletext

access .......................................................3-2

latest news flash ......................................... 3-2

subtitles ..................................................... 3-2

timer

access .....................................................2-10

change ...................................................... 3-6

delete ........................................................3-6

look up ......................................................3-6

set ............................................................3-6

troubleshooting ........................................... 4-2

vcr ............................................................ 3-6

transponder

add ....................................................2-4, 3-5

delete ........................................................3-5

edit ...........................................................2-4

troubleshooting

epg ........................................................... 4-1

timer ......................................................... 4-2

uhf channel

frequency ..................................................1-1

settings menu .............................................2-6

update

software ....................................................3-7

user menu

access .......................................................2-1

vcr timer ...................................................... 3-6

volume

mute .........................................................3-2

select ........................................................3-2

User Manual

Page 6 - 2 Digital Satellite Receivers - Fixed

Page 37

EchoStar User Interface

APPENDIX 1

LNB(F) Configuration matrix

1. LNB CONFIGURATION MATRIX

In the installati on m enu , yo u can set your type of LNB. Thi s l ist is p rov ide d to help you to find the different settings for each LNB type.

LNB TYPE LO Frequency LO Selection 13/18V 0/22kHz

H V H V

Appendix 1

English

Standard Enhanced Quattro

10,000 disabled 18 18 0 0

9,750 disabled 18 18 0 0 9,750 13V 13 13 0 0

10,750 18V 18 18 0 0

C-Band DBS

10.7 LNB

5,150 disabled 18 18 0 0 10,750 disabled 18 18 0 0 10,700 disabled 18 18 0 0

2. LNBF CONFIGURATION MATRIX

In the installation menu, you can set your type of LNB(F). This list is provided to help you to find the different settings for each LNB(F) type.

LNBF TYPE LO Frequency LO Selection 13/18V 0/22kHz

Standard Enhanced Universal

Quattro

C-Band C-Band SS

10.7 LNBF

10,000 disabled 18 13 0 0

9,750 disabled 18 13 0 0

9,750 0 kHz 18 13 0 0 10,600 22 kHz 18 13 22 22

9,750 0 kHz 18 13 0 0 10,750 22 kHz 18 13 22 22

5,150 disabled 18 13 0 0

5,150 13V 18 13 0 0

5,750 18V 18 13 0 0 10,700 disabled 18 13 0 0

HVHV

S/W Version 1.0 Page A1 - 1

Page 38

Appendix 1

LNB(F) Configuration matrix

User Manual

English

3. USER DEFINED LNB(F) MATRIX

In the User LNB menu, you can define your own LNB(F). You can use the list below to note the settings

User LNB(F) LO Frequency LO Selection 13/18V 0/22kHz

User ........ 1

User ........ 2

User ........ 3

User ........ 4

User ........ 5

User ........ 6

User ........ 7

HVHV

... ...,... ... ... ... ...,... ... ... ... ... ... ... ... ... ... ...

User ........ 8

... ...,... ... ... ... ...,... ... ... ... ... ... ... ... ... ... ...

Page A1 - 2 Digital Satellite Receivers - Fixed

EchoStar DSB-880 2Ci User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

GENERAL SAFETY

NOTATIONAL CONVENTIONS

PREFACE

INITIAL INST ALLATION

1. INTRODUCTION

2. NAVIGATION

1. the MENU key lets you access to the main menu or go back one menu level;

2. the EXIT key lets you leave a menu or selection and return directly to live;

5. The OK key lets you:

1. the OK key lets you confirm the selection;

2. the highlighted cursor indicates the active selection.

3. TO INSTALL YOUR RECEIVER FOR THE FIRST TIME

3.1. SINGLE FIXED DISH INSTALLATION

1. Connect the receiver to the mains wall outlet.

2. On the rear panel, set the ON/OFF switch to ON.

3. Note that the receiver initializes.

5. If your dish installation is aimed at ASTRA1, live video appears.

6. If your dish installation is aimed at anothe r s ate ll ite, a No signal message appears.

7. Press the OK key.

8. Press the red key to choose Select SAT.

3.2. MULTIPLE LNB INSTALLATION

9. In the SAT list, select one of the pre-programmed satellites.

10.Press the OK key twice.

11. If your dish installation is correctly aimed, live video appears.

12.If your satellite is not listed, continue with the Guided setup.

1. Make sure that the LNB1 for ASTRA1 is connected to the DiSEqC switch port 1 and LNB2 for HOTBIRD to port 2.

2. For the monoblock LNB, please refer to the manufacturer’s specifications.

3. Connect the receiver to the mains wall outlet.

4. On the rear panel, set the ON/OFF switch to ON.

5. Note that the receiver initializes.

6. Wait for the initial start-up to complete.

7. If your dish installation is aimed correctly, live video appears.

8. If your installation is physically configured differently, a No signal message appears.

9. Press the MENU key.

10.Select Installation - User LNB and press the OK key.

11. For LNB1 select for Port: 2 and press OK.

12.For LNB2 select for Port: 1 and press OK.

13. Press the EXIT key.

14.If live video does not appear , continue with the Guided setup.

3.3. DISEQC 1.2 INSTALLATION

1. Press the MENU key.

3. Enter Pin-code: 0000.

4. Select Yes.

5. Wait for the Guided setup menu to appear.

6. Press the EXIT key.

7. Press the MENU key to start the installation.

9. Select DiSEqC On.

10.For detailed settin g instructions, please refer to the manual that came with the motor.

11.Press the MENU key.

13.Select the SAT.

14.Select the Move dish option.

15.Move the dish and find the satellite.

16.Select the Fine tune option.

17.Move the dish and find the best signal.

18.Select the Search channels field and press the OK key.

19.Wait for the search to complete.

20.Press the OK key.

3.4. GOTO X INSTALLATION

1. Do the DiSEqC 1.2 installation first.

2. Make sure the channel search on the satellit e is completed.

3. Press the MENU key to continue the installation.

4. For detailed setting instructions, please refer to the manual that came with the motor.

6. Set the My longitude and My latitude of the dish.

7. Select the GoTo X option and select On.

8. Press the OK key .

9. Press the MENU key .

10.Select Installation - System setup - Search channel s and press the OK key.

11. Select the SAT.

12.Allow the motor some time to move to the satellite.

13.Select the Search channels field and press the OK key.

14.Wait for the search to complete.

15.Press the OK key.

FAMILIARIZATION

1. THE ECHOSTAR USER INTERFACE

NAVIGATION

2. THE MAIN MENU STRUCTURE
