Page 1

USER MANUAL

DSB-707 FTA

Digital Satellite Receiver

Printedonrecycledpaper

Page 2

Issue: dsb707fta-B-1a-us

We encourage you to express your thoughts on this user manual.

Please send your comments to:

EchoStar International Corporation

Technical Publications Department

Schuilenburglaan 5a

7604 BJ Almelo

The Netherlands

Page 3

PREFACE

1. DEAR CUSTOMER

Thank you for purchasing an EchoStar satellite receiver. This receiver is of the latest generation for which it is possible to upgrade the software to keep up with the newest developments. Please read this user manual carefully, to be able to safely install, use and maintain the receiver for maximum performance. Keep this user manual next to your receiver for future reference.

Please make a note of the serial number in the space below. This helps to trace and identify thereceiverincaseoftheft.Alsoquestionstoourhelpdeskcanbeansweredmoreaccurate if you can provide the details as mentioned on the serial number plate. You find the serial number plate at the rear panel of the receiver.

Type: ...........................................................................

S/N: ..............................................................................

Software Version: .......................................................

Preface

2. INTENDED USE

This user manual is intended for anyone who uses an EchoStar satellite receiver. It can be used by both first-time and experienced users of satellite receivers who want to install, use and maintain their receiver.

This user manual is applicable for the EchoStar DSB-707 FTA Digital Satellite Receiver and the related accessories. This user manual is divided into separate sections and chapters. For easy access to the information, a clear table of content and an index are provided.

3. DISCLAIMER

SATELLITE RECEIVER

EchoStar International Corporation has to the best of her abilities, everything done to supply you with a satellite receiver built to the most up-to-date software and hardware. EchoStar International Corporation makes no warranties with respect to the reception of the channels provided by the broadcast service providers and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose.

EchoStar International Corporation reserves the right, for whatever reason, to revise, change or modify the hard- and software of the satellite receiver without the obligation to notify or warrant any person or organization of such change. Therefore, please visit our website, on a regular basis, for the latest information available.

SOFTWARE DOWNLOADS

EchoStar International Corporation will to the best abilities, do everything possible to supply you with software updates to keep your receiver as up-to-date as technically possible. EchoStar International Corporation makes no warranties with respect to the use of the supplied software downloads and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose.

EchoStar International Corporation reserves the right, for whatever reason, to revise, change or modify the software that can be used by your satellite receiver without the obligation to notify or warrant any person or organization of such change. Therefore, please visit our website, on a regular basis, for the latest software available.

Digital Satellite Receiver Page I

Page 4

Preface

USER MANUAL

EchoStar International Corporation has to the best of her abilities, everything done to supply you with the most up-to-date information. EchoStar International Corporation makes no warranties with respect to the information provided by this user manual and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The information provided is meant as a guideline for the use and maintenance of the receiver.

EchoStar International Corporation reserves the right to revise, change or translate this user manual without the obligation to notify any person or organization of such change. Therefore, please visit our website, on a regular basis, for the latest information available.

4. COPYRIGHT AND TRADEMARKS

© 2001 EchoStar International Corporation. All rights reserved worldwide. This user manual has been provided pursuant to an agreement containing restrictions on its use. This user manual is also covered by Federal Copyright Law.

No part of this user manual may be copied, distributed, transmitted, stored in a retrieval system or translated into any human or computer language, in any form or by any other means, electronically, mechanically, magnetically, manually or otherwise or disclosure to third parties without the express written permission of EchoStar International Corporation.

EchoStar International Corporation is possibly in the possession of patents, requests for patent approval, trademarks, copyrights and other intellectual property with respect to the contents within this user manual. The submission of this user manual does not imply you have got any license or other legal right for the use of the here above mentioned without the express written permission of EchoStar International Corporation.

■ EchoStar, EchoNAV and Quality has a Name

are registered trademarks of EchoStar International Corporation;

■ DVB, Digital Video Broadcasting

is a registered trademark of the The Digital Video Broadcasting Project (1991 to 1996) which is an industry-led consortium of over 300 broadcasters, manufacturers, network operators, software developers, regulatory bodies and others in over 35 countries committed to designing global standards for the delivery of digital television and data services.

■ Dolby Digital

Dolby, Dolby Digital, AC-3 and Dolby Pro Logic are registered trademarks of the Dolby Laboratories Licensing Corporation;

■ All other trademarks are the property of their respective owners or companies.

Page II EchoStar DSB-707 FTA

Page 5

Preface

TABLE OF CONTENTS

Preface

1 DEAR CUSTOMER I 2 INTENDED USE I 3DISCLAIMER I 4 COPYRIGHT AND TRADEMARKS II

Safety Information

1 GENERAL SAFETY 1-1 2 ELECTRICAL SAFETY 1-1 3 NOTATIONAL CONVENTIONS USED IN THIS MANUAL 1-2 4 SYMBOLS USED ON THE RECEIVER 1-2

Preparation

1 STORAGE AND TRANSPORT 2-1 2 TO UNPACK YOUR RECEIVER 2-1 3 THE CONTENTS OF THE BOX 2-1 4 THE DISPOSAL OF YOUR PACKING MATERIALS 2-1 5 TO SETUP YOUR PERIPHERAL EQUIPMENT 2-2 6 TO SETUP THE RECEIVER 2-2

Installation

1 CONNECT YOUR EQUIPMENT 3-1 2 CONNECT A DISH 3-2 3 TO SETUP YOUR RECEIVER FOR THE FIRST TIME 3-3

Familiarization

1 THE RECEIVER 4-1 2 THE ECHONAV INSTALLATION MENU 4-4 3 THE ECHONAV MODE AND SELECTION MENUS 4-11 4 THE ELECTRONIC PROGRAM GUIDE (EPG) 4-14 5 THE INFOBANNER AND POP-UP MENUS 4-14

Operation

1 TO NAVIGATE THROUGH THE MENUS 5-1 2 USE THE FAVORITE LISTS 5-7 3 TO USE THE ELECTRONIC PROGRAM GUIDE (EPG) 5-10 4 TO SET THE USER PREFERENCES 5-12

Maintenance

1 HARDWARE MAINTENANCE 6-1 2 SOFTWARE MAINTENANCE 6-1 3 END OF LIFE DISPOSAL 6-5

Troubleshooting

1 TO SOLVE A PROBLEM 7-1

Glossary

1 LIST OF USED ABBREVIATIONS 8-1 2 EXPLANATION OF USED TERMINOLOGY 8-2 3 EXPLANATION OF THE SEARCH MODES 8-5

Index

Digital Satellite Receiver Page III

Page 6

Preface

Appendix 1

1 LNB CONFIGURATION MATRIX A1-1 2 LNBF CONFIGURATION MATRIX A1-1 3 USER DEFINED LNB(F) MATRIX A1-1

Page IV EchoStar DSB-707 FTA

Page 7

SAFETY INFORMATION

1. GENERAL SAFETY

Safety Information

Section 1

Read this manual carefully and make sure you understand the instructions given. For your safety, know what the reaction upon each action will be. Do not perform any actions which are not described in this manual, failing to do so might result in an uncontrolled behavior of the receiver or even in a hazardous situation for persons and/or equipment.

Disconnect the receiver from the mains before you start any maintenance or installation procedures. Do not use alcohol or ammonia based liquids to clean the receiver. If required, clean with a soft lint-free cloth slightly made damp with a mild soap solution.

Consult an authorized service technician if the receiver does not operate normally when the instructions in this user manual are strictly followed. Do not to attempt to open the receiver, as youwillbeexposedtoashockhazard.

Do not put any objects on top of the receiver which could fall through the ventilation slots or which could cover them and prevent proper cooling of the components inside.

Do not put any (foreign) objects into the ventilation slots. This can cause fire or an electrical shock by shorting the internal components.

Make sure that nothing rests on the receivers cables and that the cables are not located where they can cause injury to persons and pets (e.g to stumble over, eat the cable).

Do not install the receiver:

■ in a closed or poorly ventilated cabinet;

■ directly on top of or under another equipment;

■ on a surface which will obstruct the ventilation slots.

Do not expose the receiver and it’s accessories:

■ to rain or excessive moisture to avoid the risk of shock or permanent damage to your

receiver;

■ to direct sunlight, heaters, stoves or any other heat generating equipment;

■ to any magnetic objects, such as speakers, electric motors, transformers, etc.;

■ to excessive vibration.

To help avoid possible damage to the receiver’s electronics:

■ wait 5 seconds after you switched off the receiver before you move the receiver or discon-

nect any equipment;

2. ELECTRICAL SAFETY

When using or connecting electrical equipment always observe the safety regulations applicable in your country to reduce the risk of fire, electrical shock, and personal injury.

Read and comply at least with the given safety instructions.

■ Always make sure that the electrical power supply corresponds with the voltage on the

electrical identification plate at the rear of the receiver next to the electrical cord.

■ Your receiver is double insulated and complies with the EN 50144; therefore no additional

earth wire is required, though the use of an earth leak switch and/or over voltage protection switch is recommended.

■ Only use an approved extension (convenience) lead suitable for the electrical power con-

sumption of the installed equipment.

Digital Satellite Receiver Page 1 - 1

Page 8

Section 1

Safety Information

3. NOTATIONAL CONVENTIONS USED IN THIS MANUAL

3.1. WARNINGS, CAUTIONS AND NOTES

Throughout this user manual, there may be blocks of text indicated by symbols and printed in a different way then the surrounding text. These blocks of text ask the attention of the reader

to avoid hazardous situations. The hazard levels are indicated as:

WARNING

THIS INDICATES A HAZARDOUS SITUATION WHICH, IF NOT AVOIDED, COULD RESULT IN (SERIOUS) INJURY.

CAUTION

This indicates a situation which, if not avoided, could damage the equipment or other properties.

NOTE

This indicates additional information to the user to make the user aware of possible problems and information of any importance to help the user to understand, to use and to maintain the installation.

4. SYMBOLS USED ON THE RECEIVER

The next paragraphs explain the meaning of the symbols, present on the receiver.

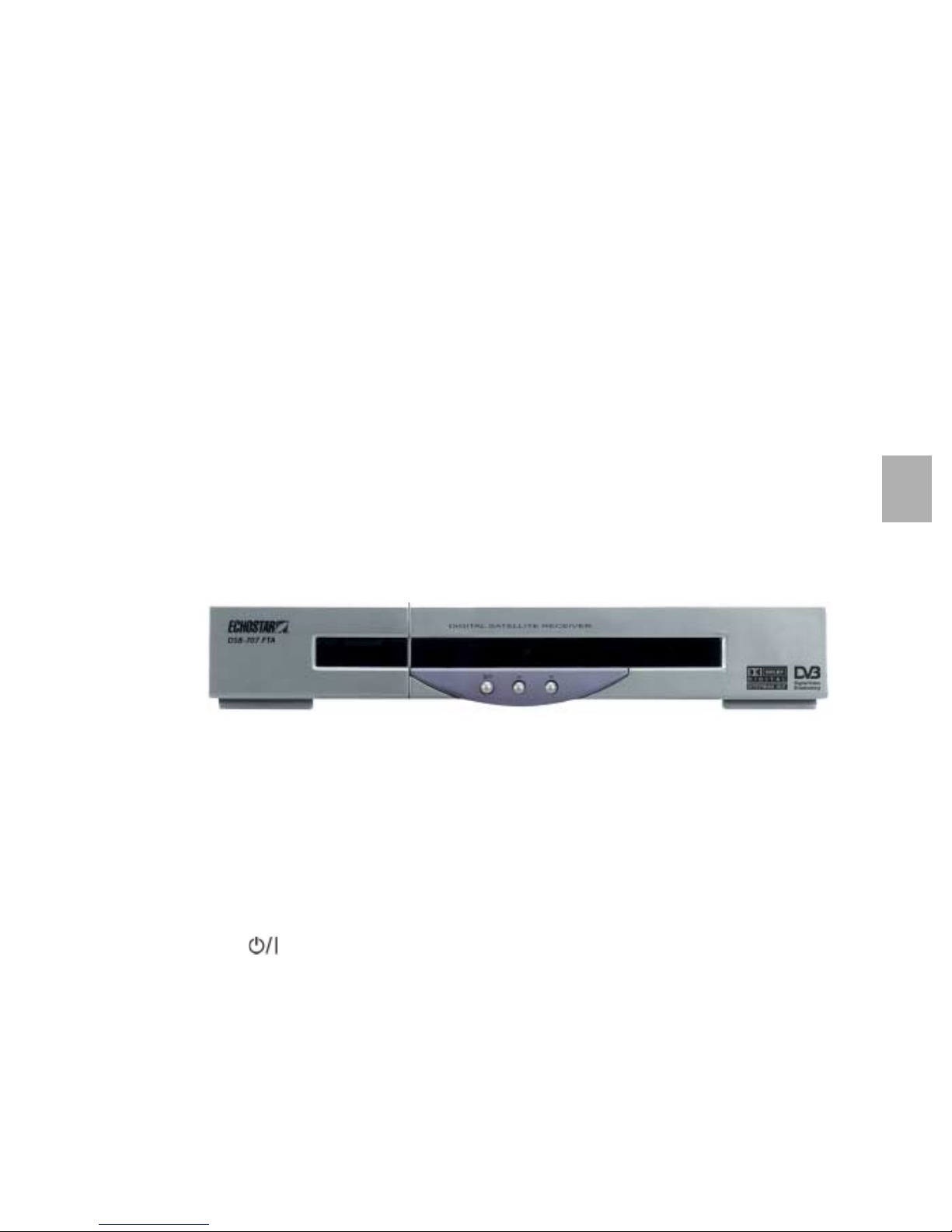

4.1. SYMBOLS ON THE FRONT PANEL

The Dolby Digital logo. This logo tells you that this receiver is compliant with the Dolby Digital standard.

The Digital Video Broadcasting logo. This logo tells you that this receiver is compliant with the DVB standards as registered under registration number 2347.

4.2. SYMBOLS ON THE REAR PANEL

The caution ‘risk of electrical shock - do not open’ symbol This symbol tells you that you are not allowed to open the receiver. Only authorized (service) technicians are allowed to open the box.

The CE mark. This mark tells you that the receiver is following the provisions of Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to the electromagnetic compatibility and the provisions of Council Directive 73/23/EEC and 93/68/EEC on the approximation of the laws of the Member States relating to low voltage and electrical safety.

The double insulation symbol. This symbol tells you that the receiver is electrically safe within the normal use of the receiver as stated in the safety chapter.

Page 1 - 2 EchoStar DSB-707 FTA

Page 9

PREPARATION

1. STORAGE AND TRANSPORT

The receiver and it’s accessories are delivered in a protective packaging. This packaging is designed to protect against excessive shocks and not against ingress of moisture.

1.1. STORAGE

If necessary:

■ store the receiver in it’s original protective packaging;

■ in a room with the ambient conditions as stated in the technical specifications.

1.2. TRANSPORT

Pack the receiver preferably in the original packaging or in an equally protective packaging. This is to help avoid possible damage to the receiver’s electronics.

2. TO UNPACK YOUR RECEIVER

DANGER

KEEP AWAY THE PLASTIC PACKAGING FROM CHILDREN.THE PLASTIC PACKAGING MAY

CLING TO NOSE AND MOUTH AND PREVENT BREATHING

Preparation

Section 2

When you unpack the contents of the box, confirm that all the parts are included. Refer to Chapter 3. The contents of the box.

Unpack the contents of the box carefully. Electronic equipment as satellite receivers are easily damaged when you handle it roughly. Examine all parts for damage that may have occurred during shipment. If you find any damage, stop to unpack the box and call the retail seller where you bought the receiver.

To help avoid possible damage to the receiver’s electronics, allow the receiver to adapt to the

ambient temperature and humidity level. This to avoid condensation caused by a sudden change in temperature (e.g from a cold car into a warm room).

3. THE CONTENTS OF THE BOX

The box contains:

■ A receiver;

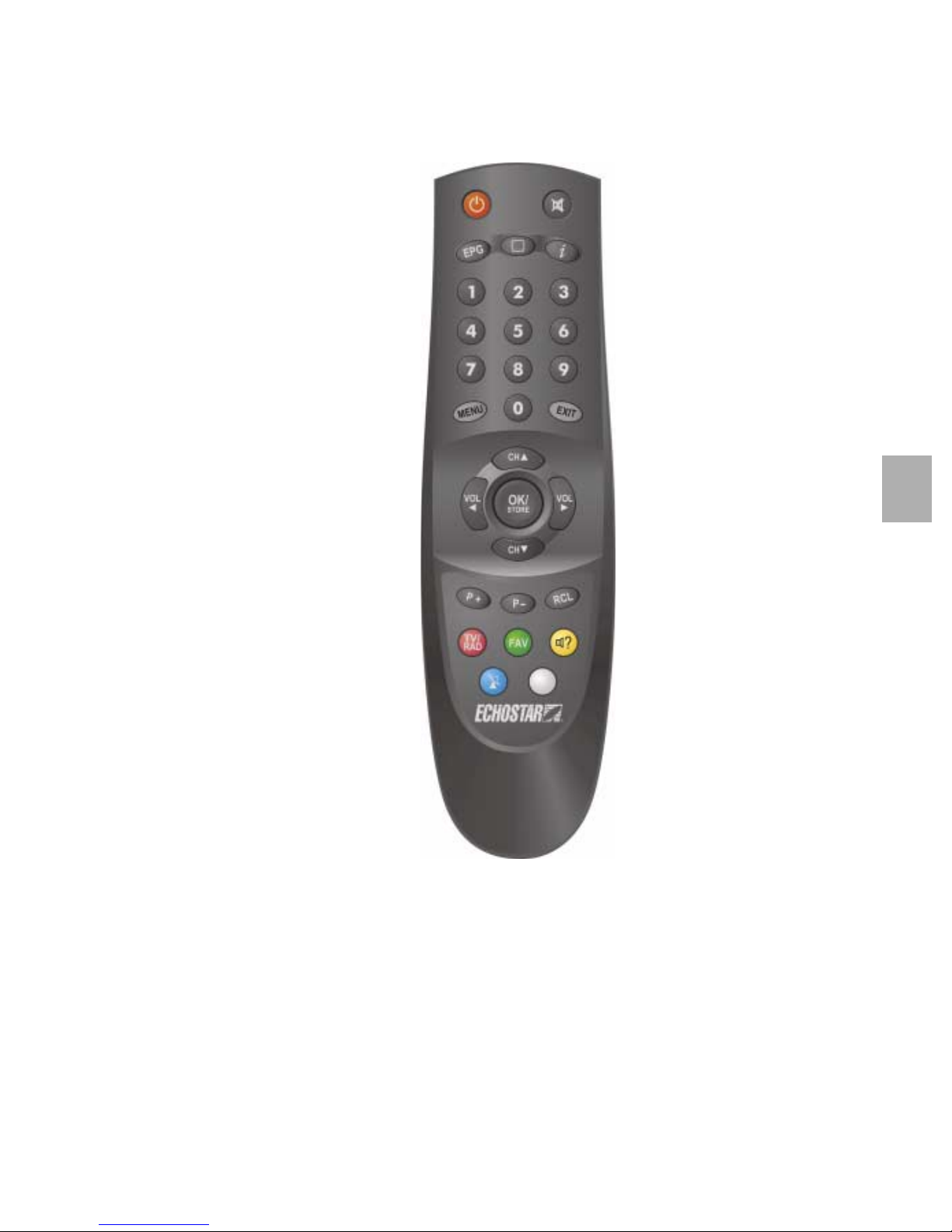

■ A remote control unit;

■ A pair of batteries (for the remote control unit);

■ Amainscord;

■ A set of documentation.

4. THE DISPOSAL OF YOUR PACKING MATERIALS

CAUTION

It is recommended to keep the packaging materials for a period of time. In case of warranty claims, we can request to return the receiver in the original packaging to protect the electronics. Failing to do so might void the warranty.

Most of the packaging materials can be recycled. Please discard these materials in an environmental safe manner

ENVIRONMENTAL REMARK

Dispose the packaging in an environmental safe manner. Please inform yourself on local regulations with respect to the disposal of reusable materials.

Digital Satellite Receiver Page 2 - 1

Page 10

Section 2

Preparation

5. TO SETUP YOUR PERIPHERAL EQUIPMENT

Please refer to the user manuals of your terrestrial antenna, dish, TV, video recorder and/or audio equipment to make sure this equipment is properly installed and configured before you install the receiver.

EchoStar recommends that you follow at least the following instructions:

5.1. THE TERRESTRIAL ANTENNA

1. Make sure:

■ The terrestrial antenna is in good condition and well aligned for the best reception

(avoid corroded contacts);

■ The UHF coaxial cable is in a good condition (no excessive bends or damaged

insulation);

■ The UHF coaxial cable connections are well shielded (metal connectors).

2. If necessary, do any work.

5.2. THE DISH

1. Make sure:

■ The outdoor components of the dish are good condition;

■ The dish is well aligned for the best reception;

■ The dish is connected with the correct RF coaxial cable (75 Ohm) and connectors;

■ The cables from the dish are in a good condition (no excessive bends or damaged

insulation).

2. If necessary, do any work.

5.3. THE TV, VIDEO RECORDER AND AUDIO EQUIPMENT

1. Make sure:

■ Safe access to the connections is available;

■ The equipment is switched off;

■ It is safe to remove and install the cables.

2. If necessary, do any work.

6. TO SETUP THE RECEIVER

You can install the receiver safely in a convenient location if you adhere to the warning:

WARNING

DO NOT INSTALL THE RECEIVER:

■ in a closed or poorly ventilated cabinet;

■ directly on top of or under another equipment;

■ on a surface which will obstruct the ventilation slots.

O NOT EXPOSE THE RECEIVER AND IT’S ACCESSORIES:

■ to rain or excessive moisture to avoid the risk of shock or permanent damage to

your receiver;

■ to direct sunlight, heaters, stoves or any other heat generating equipment;

■ to any magnetic objects, such as speakers, electric motors, transformers, etc.;

■ to excessive vibration.

Page 2 - 2 EchoStar DSB-707 FTA

Page 11

INSTALLATION

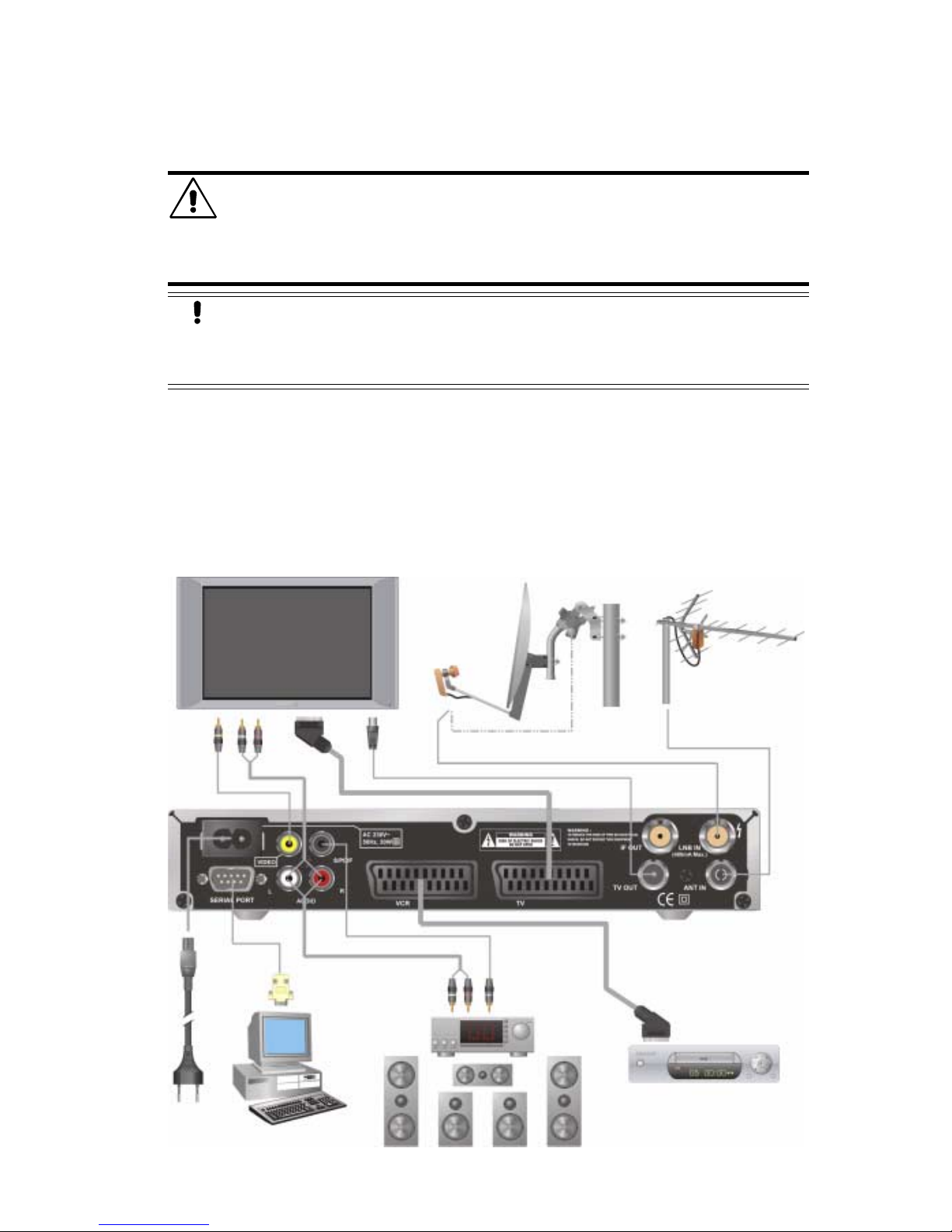

1. CONNECT YOUR EQUIPMENT

It is possible to connect the different equipment with the use of UHF coaxial cables, SCART cables, and/or so called audio/video cables with RCA connectors.

WARNING

ALL EQUIPMENT INVOLVED IN THE INSTALLATION TASK MUST BE INSTALLED CORRECTLY

ANDSWITCHEDOFF

TASK

.UNSAFE CIRCUITS AND INSTALLATIONS CAN CAUSE (SERIOUS) INJURY OR DAMAGE

TO EQUIPMENT

CONNECTION WITH UHF COAXIAL CABLES

1. On the TV, find the UHF-coaxial cable that is connected to the terrestrial antenna or cable network.

2. Remove the UHF-coaxial cable from the TV and make sure the cable condition is OK.

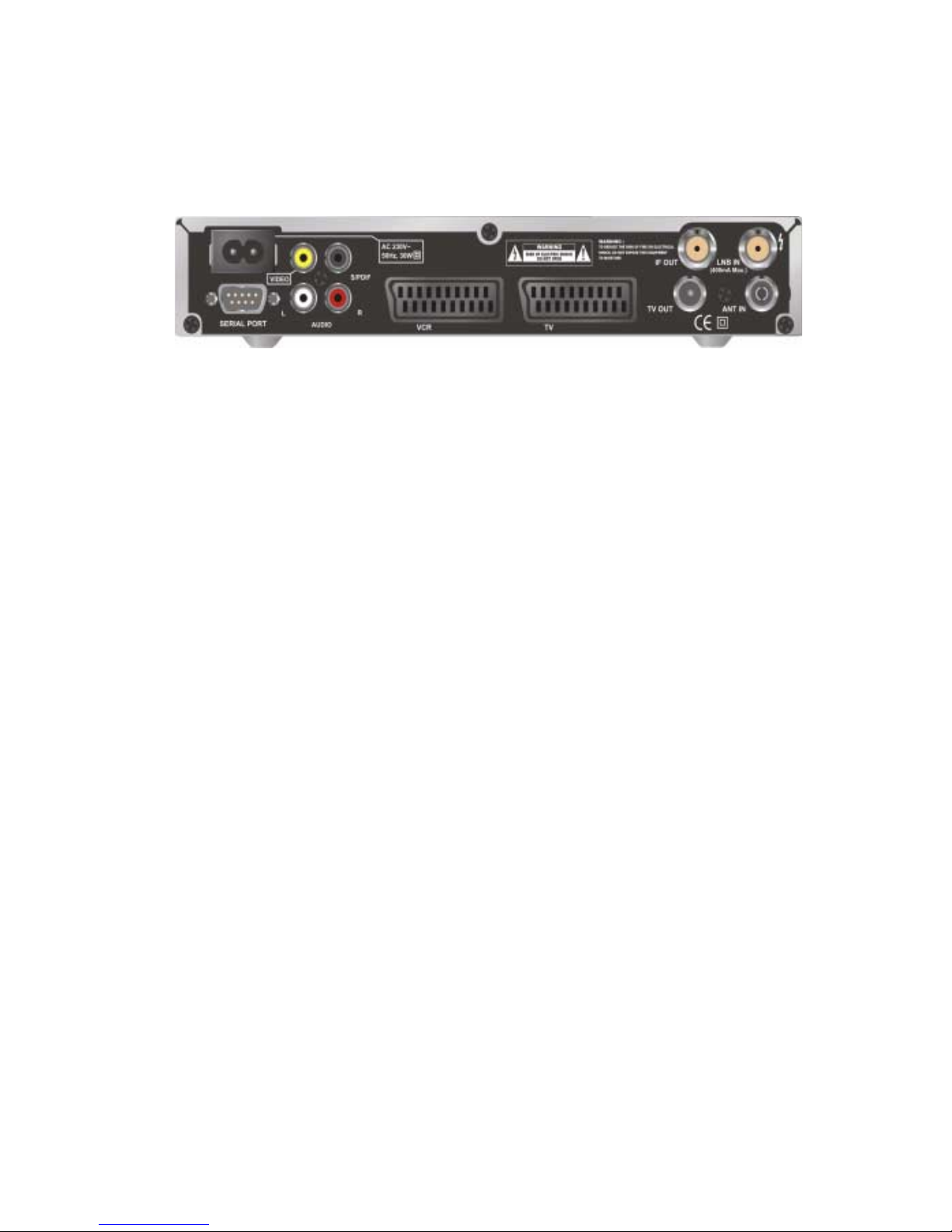

3. On the rear panel of the receiver find the TV OUT connector.

4. Install an UHF-coaxial cable between the TV OUT connector (receiver) and the antenna connector (TV).

5. On the rear panel of the receiver find the ANT IN connector.

6. Install the UHF-connector (terrestrial antenna) to the ANT IN connector (receiver).

CONNECTION WITH SCART CABLES

1. On the TV find the SCART cable that is connected to the VCR.

2. Remove the SCART connector that is connected to the VCR from the TV.

3. On the rear panel of the receiver find the TV and VCR SCART connectors.

4. Install the SCART cable between the VCR and the VIDEO SCART connector (receiver).

5. Install a full featured SCART cable between the TV SCART connector (receiver) and the SCART connector on the TV (old SCART connection to the VCR).

CONNECTION WITH AUDIO/VIDEO CABLE (RCA-CONNECTORS)

1. On the rear panel of the receiver find the VIDEO, AUDIO L and AUDIO R connectors.

2. Install an audio/video cable between: a. the VIDEO connector of the receiver and TV (yellow); b. the AUDIO L connector of the receiver and TV (white); c. the AUDIO R connector of the receiver and TV (red).

CONNECTION WITH DOLBY DIGITAL AUDIO CABLE (RCA-CONNECTORS)

1. On the rear panel of the receiver find the S/PDIF connector.

2. Install an audio/video cable (black) between: a. the S/PDIF connector (receiver) and Dolby Digital connection of the Dolby digital

compatible installation.

CONNECTION WITH SERIAL CABLE (0-MODEM CABLE)

1. On the rear panel of the receiver find the SERIAL PORT connector.

2. Install a serial cable between the SERIAL PORT connector (receiver) and the serial port connection of the PC.

.MAKE SURE THAT IT IS SAFE TO PROCEED WITH THE INSTALLATION

Installation

Section 3

Digital Satellite Receiver Page 3 - 1

Page 12

Section 3

Installation

2. CONNECT A DISH

It is possible to connect the different dish configurations with the use of RF coaxial cables. Only the most common configurations are discussed. If in doubt, please ask the EchoStar

service department for advice.

WARNING

ALL EQUIPMENT INVOLVED IN THE INSTALLATION TASK MUST BE INSTALLED CORRECTLY

ANDSWITCHEDOFF

TASK

.UNSAFE CIRCUITS AND INSTALLATIONS CAN CAUSE (SERIOUS) INJURY OR DAMAGE

TO EQUIPMENT

CAUTION

Tighten the cable connectors only by hand. Do not use any tools. You will damage the connector pins if you overtighten the connector. This will result in loss of signal quality, or even total loss of reception.

1. On the dish installation, connect a RF cable (for detailed instructions, refer to the manufacturer’s instructions).

2. On the rear panel of the receiver find the LNB IN (digital) and the IF OUT connectors

FIXED DISH INSTALLATION WITH LNB(F)

3. Install the F-connector (dish) to the LNB IN connector (receiver).

FIXED DISH INSTALLATION WITH DISEQC SWITCH

3. Install the F-connector (DiSEqC switch) to the LNB IN connector (receiver).

.MAKE SURE THAT IT IS SAFE TO PROCEED WITH THE INSTALLATION

Page 3 - 2 EchoStar DSB-707 FTA

Page 13

Installation

Section 3

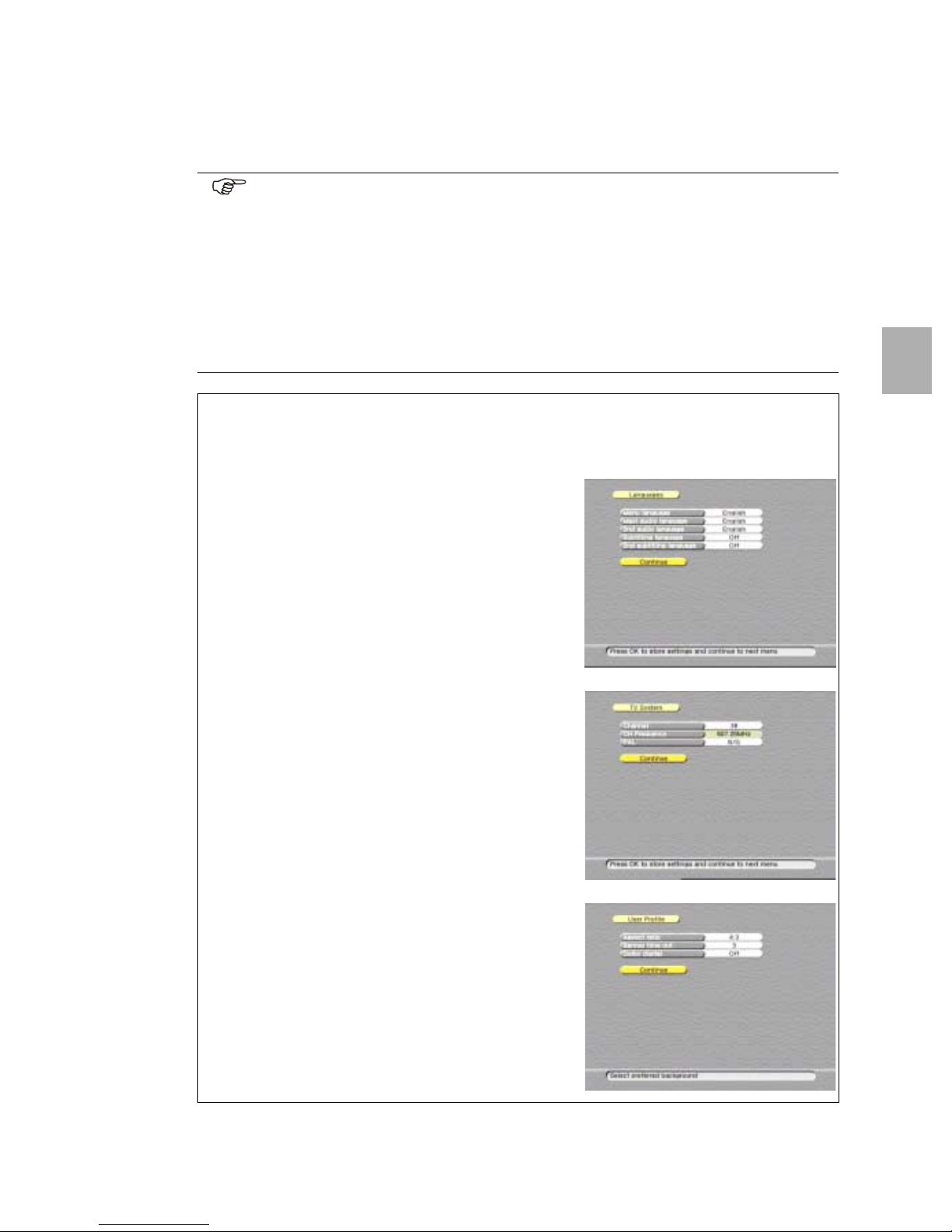

3. TO SETUP YOUR RECEIVER FOR THE FIRST TIME

This procedures will guide you step-by-step through the initial setup of the receiver. After you have finished the initial installation, these pages are accessible through the icons in the menu

bar which is in the initial setup not shown.

NOTE

Unless otherwise specified; This note explains the way you can navigate through the pages of the EchoNAV initial setup menu.

1. Use the OK key to pull down the menu selection fields.

2. Use thearrow keys to go through the selectable menu items.

3. In a pull-down menu, use the OK key to confirm the selection.

4. Use thearrow keys to navigate between the left and right column of selectable menu items.

5. Use the EXIT key to leave the menu and return to the live mode.

1. Switch on the TV.

2. On the receiver, press the on/standby key.

3. Make the required selections.

4. Read the available help text for information.

5. Go to the Continue field.

6. On the RCU, press the OK key to advance.

7. Make the required selections.

8. Read the available help text for information. Note that only the white fields are selectable, other fields show reference information.

9. Go to the Continue field.

10. On the RCU, press the OK key to advance.

■ The receiver display shows a

green LED indicator.

■ The TV shows the first page.

11. Make the required selections.

12. Read the available help text for information.

13. Go to the Continue field.

14. On the RCU, press the OK key to advance.

Digital Satellite Receiver Page 3 - 3

Page 14

Section 3

15. Make the required selections.

16. Read the available help text for information;

17. Go to the Continue field.

18. On the RCU, press the OK key to advance.

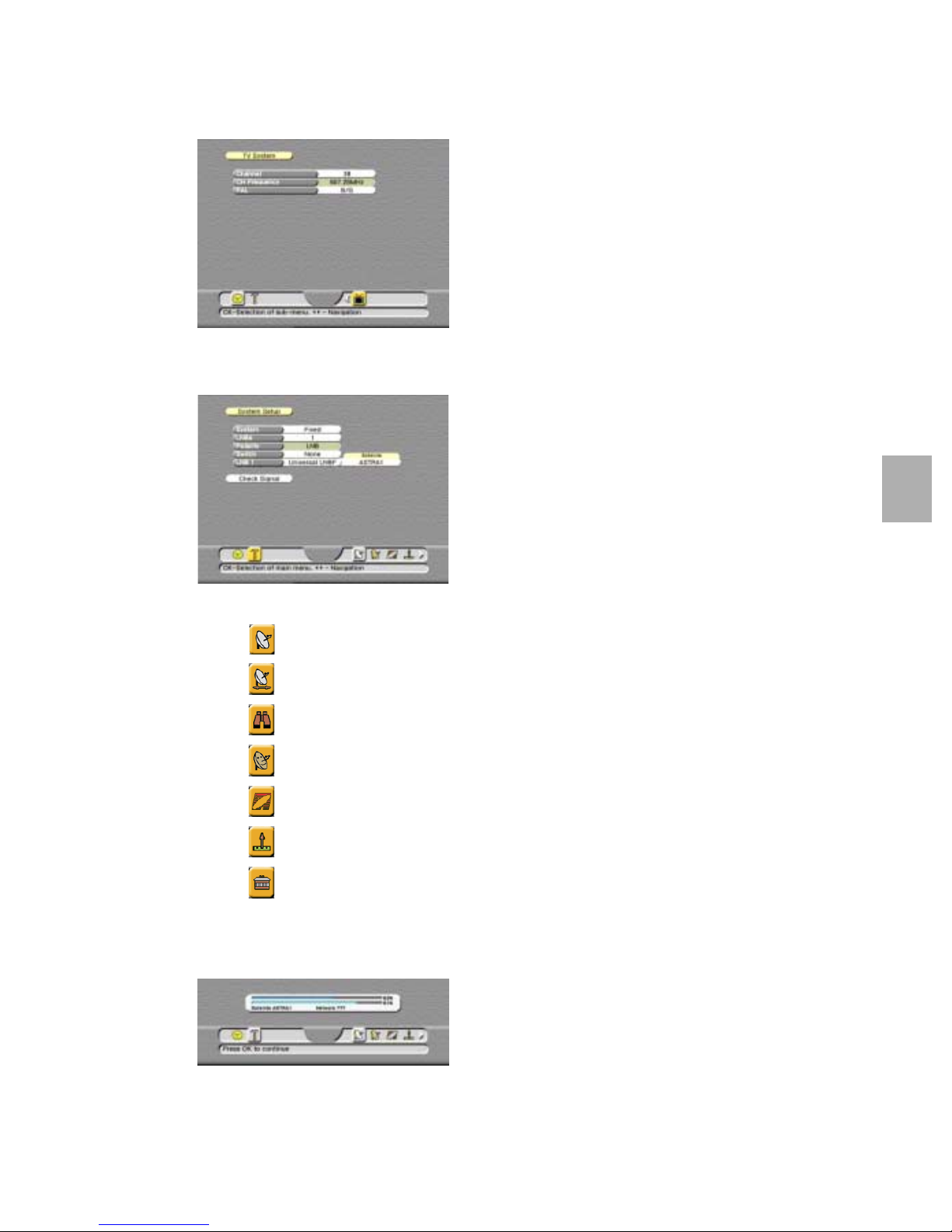

FOR FIXED AND DISEQC 1..4 SWITCH INSTALLATIONS

Installation

NOTE

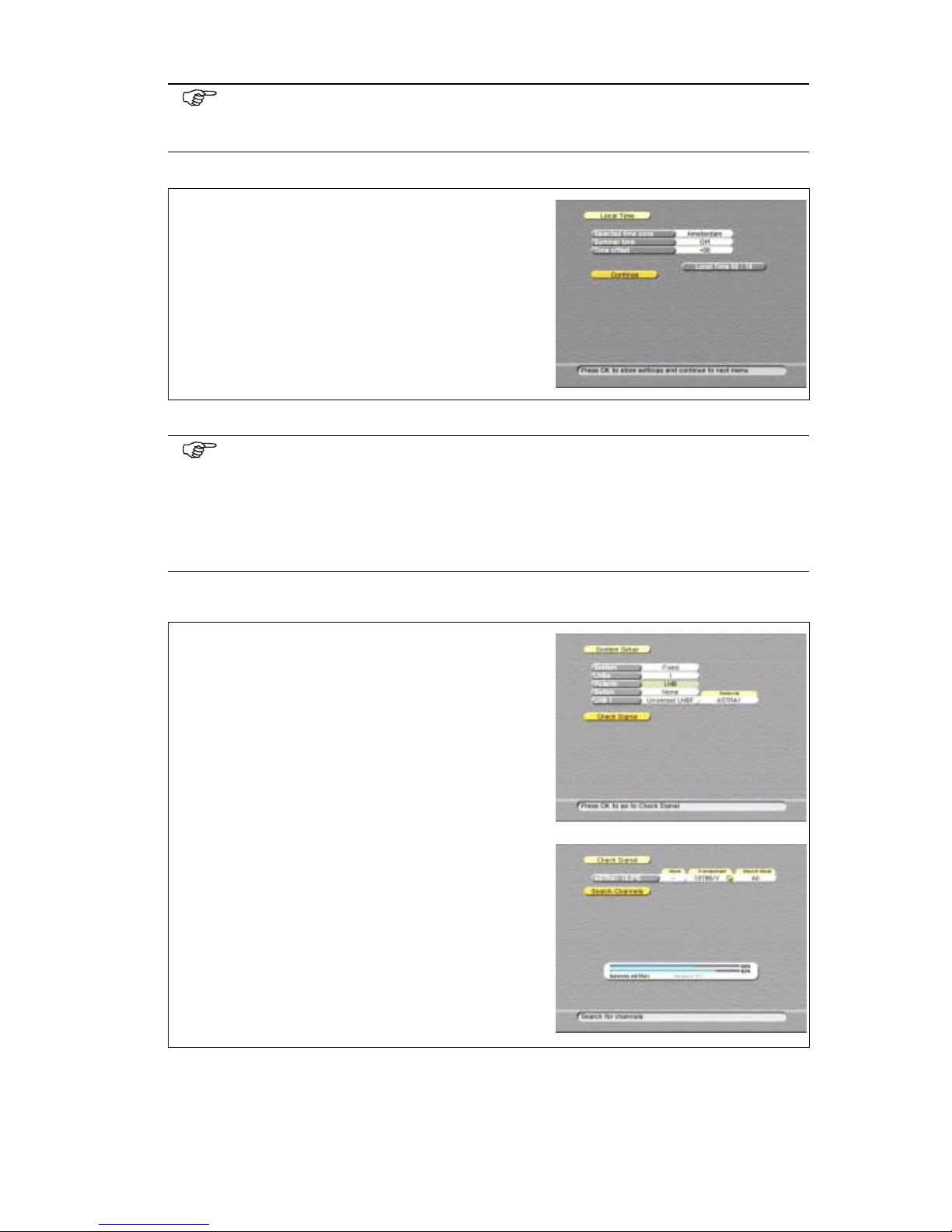

The receiver needs the correct local time to collect and show the EPG (Electronic Program Guide). An incorrectly entered local time will result in no EPG information.

Note that the local time is shown correctly.

NOTE

From the next step onwards, the procedure is divided into different configurations. The configurations are; Fixed, DiSEqC 1.2 and SMATV.

■ Fixed means set up a single dish or multiple dishes with DiSEqC1..4 switch;

■ DiSEqC 1.2 means set up a moveable dish according the DiSEqC 1.2 spec;

■ SMATV means set up for television distribution (cable network in buildings).

19. Make the required selections.

20. Read the available help text for information. Note that only the white fields are selectable, other fields show reference information.

21. Go to the Check Signal field.

22. On the RCU, press the OK key to advance.

23. Wait for the Checking Configuration to complete.

24. Make the required selections.

25. Read the available help text for information.

26. If the red dot in the transponder field stays: a. select another transponder; b. go to the check signal field; c. on the RCU, press the OK key.

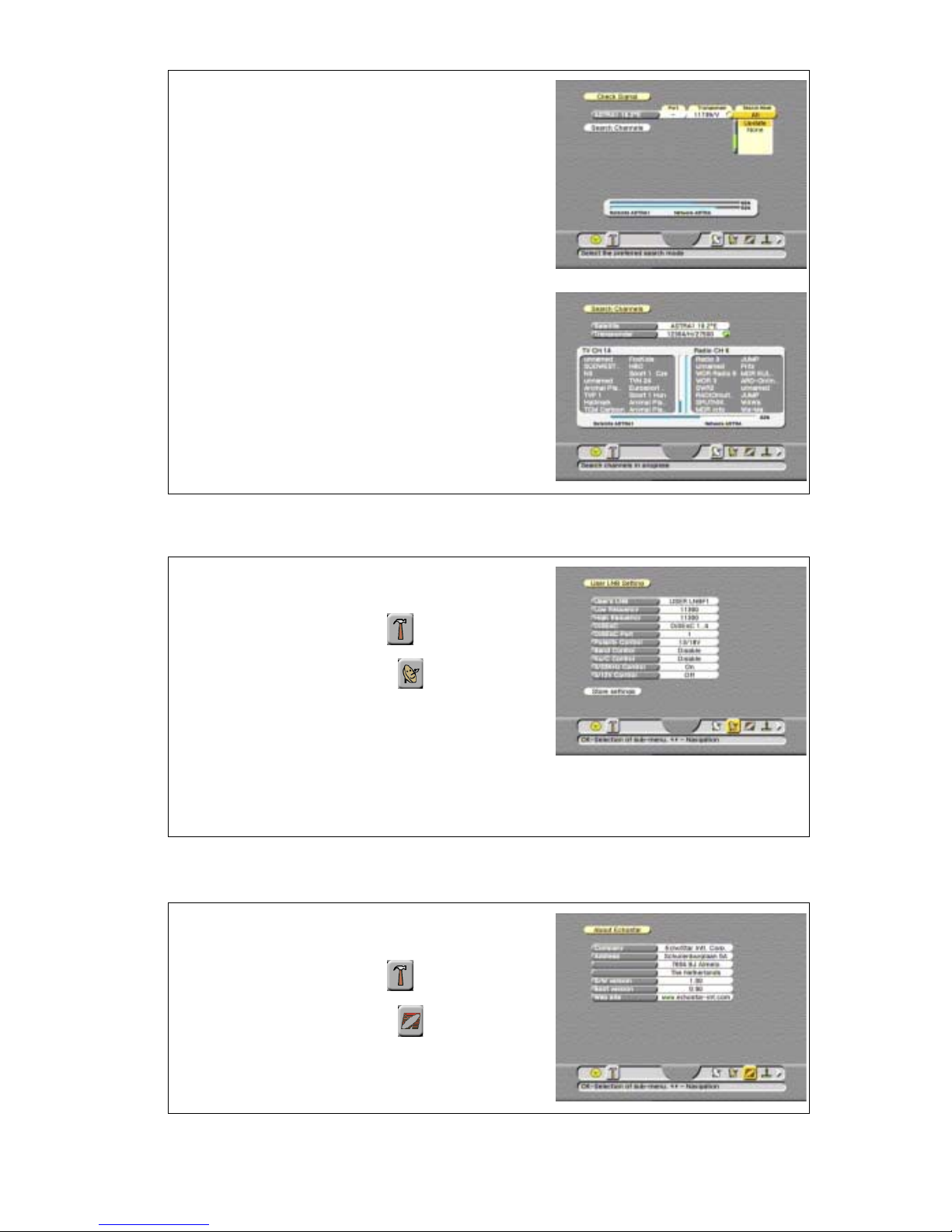

27. Go to the Search Channels field.

28. On the RCU, press the OK key to advance.

Page 3 - 4 EchoStar DSB-707 FTA

Page 15

29. Wait for the search to complete: a. the receiver display shows a moving dot; b. the search completed popup menu appears.

30. On the RCU, press the OK key. to end the initial setup procedure.

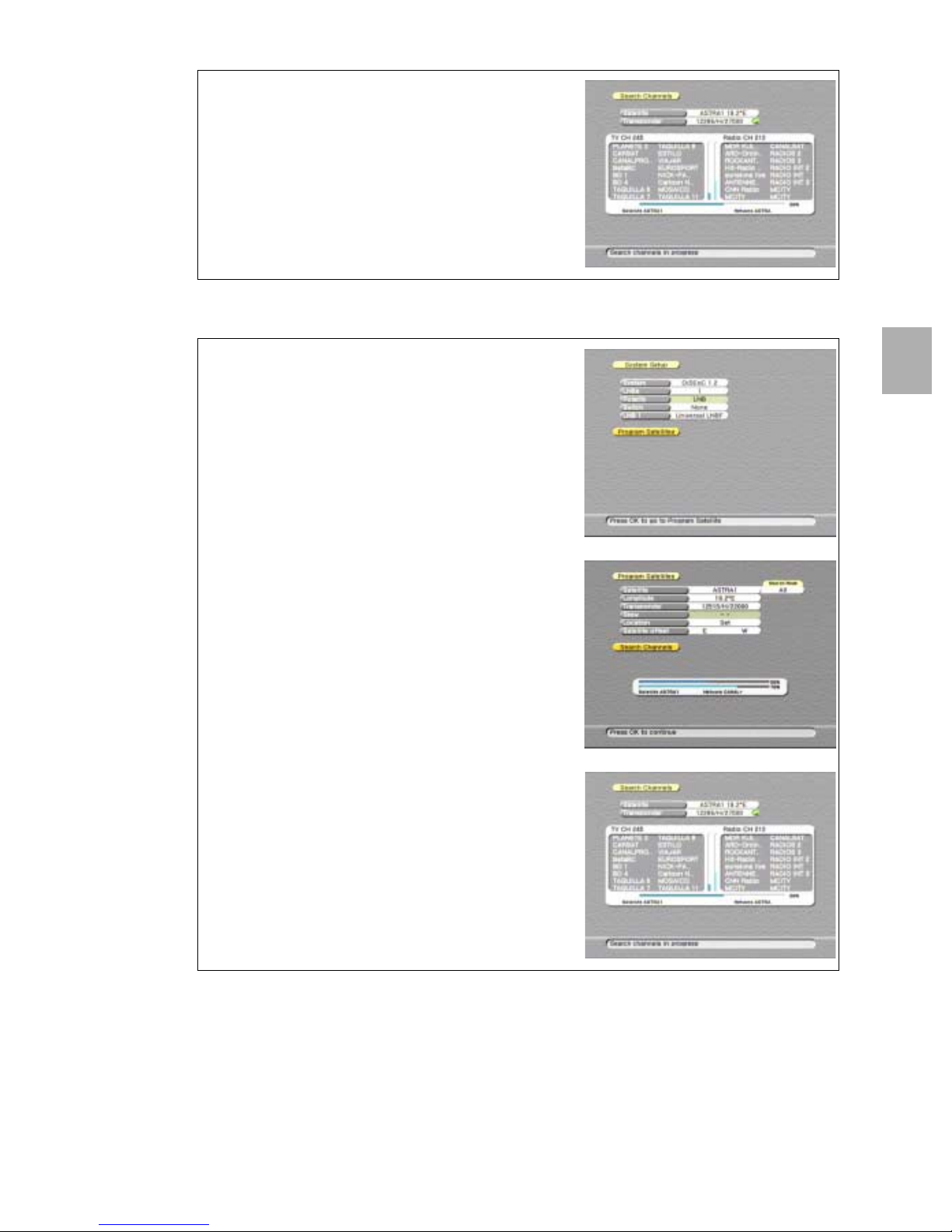

FOR MOVEABLE DISH INSTALLATIONS (DISEQC1.2)

22. Make the required selections.

23. Read the available help text for information. Note that only the white fields are selectable, other fields show reference information.

24. Go to the Program Satellites field.

25. On the RCU, press the OK key to advance.

Installation

Section 3

26. Wait for the Checking Configuration to complete.

27. Make the required selections.

28. Read the available help text for information.

29. Monitor the signal indicator for best signal when you set the location.

30. On the RCU, press OK to save the setting.

31. Go to the Search Channels field.

32. On the RCU, press the OK key to advance.

33. Wait for the search to complete: a. the receiver display shows a moving dot; b. the search completed popup menu appears.

34. On the RCU, press the OK key. to end the initial setup procedure.

Digital Satellite Receiver Page 3 - 5

Page 16

Section 3

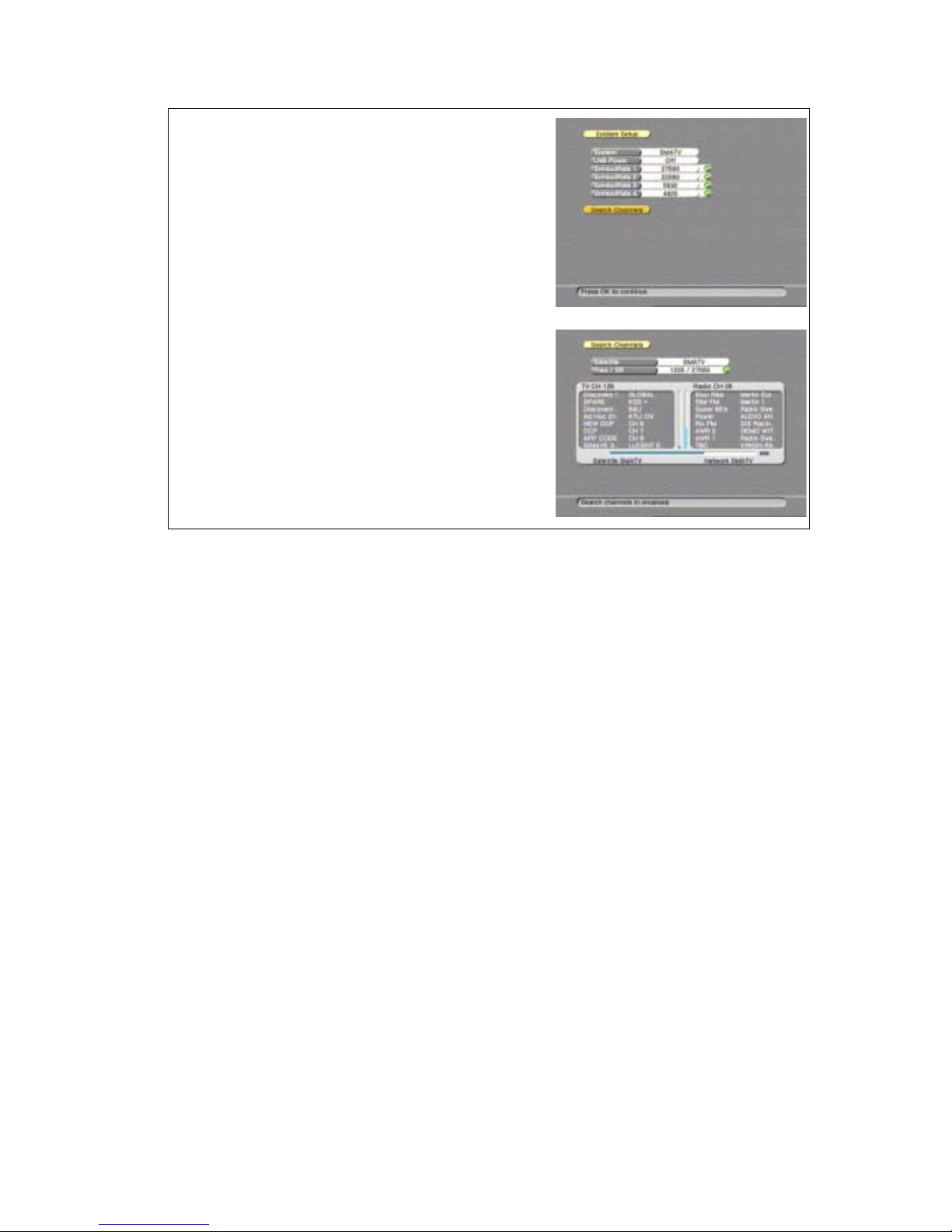

FOR SMATV INSTALLATIONS

22. Make the required selections.

23. Read the available help text for information.

24. Go to the Search Channels field.

25. On the RCU, press the OK key to advance.

26. Wait for the search to complete:

27. On the RCU, press the OK key. to end the initial

Installation

After the initial installation it is possible to add more symbol rates. Refer to section Maintenance for detailed instructions.

a. the receiver display shows a moving dot; b. the search completed popup menu appears.

setup procedure.

Page 3 - 6 EchoStar DSB-707 FTA

Page 17

FAMILIARIZATION

1. THE RECEIVER

The front panel of the digital satellite receiver gives you the control over the basic functions. The rear panel gives you various connections to connect the audio and video equipment as well as a terrestrial and dish antenna. Ventilation slots in the housing are provided for cooling of the internal electronics.

The software of the receiver contains the EchoNAV user interface with on-screen help, which gives you easy control over the features of the receiver. The software contains also a large database of pre-programmed satellites and transponders which are used for a quick installation. For initial installation, the software guides you through the required setup menu to allow for an easy and reliable installation setup of the receiver.

FEATURE HIGHLIGHTS

■

EchoNAV Multi-Lingual advanced User Interface (12+ languages);

■ 7dayEPG;

■ 4,000 Digital Channels, 100 Satellites, 1,300 Transponders;

■ 8 Favorite Channel Lists for TV and 8 for radio;

■ Powerful Channel Sorting and Grouping;

■ Multiple Scan Modes (incl.Update Scan);

■ Digital Audio Output (Dolby Digital Compatible);

■ DiSEqC 1.2;

■ Software Update via Internet/Satellite (OTA).

Familiarization

Section 4

1.1. THE RECEIVER FRONT PANEL

The front panel has:

■ The display,

to show the actual status of the receiver.

- red LED to indicate standby;

- green LED to indicate ON;

- blinking green LED to indicate software-download in progress (OTA only);

- blinking red-orange-green LED to indicate software-download in progress (PC only).

■ The key,

to switch the receiver to ON or OFF.

■ The arrow up and down keys,

to navigate up and down through the selectable options.

■ The access door,

to access the slot for the embedded Viaccess smart card reader.

Digital Satellite Receiver Page 4 - 1

Page 18

Section 4

Familiarization

1.2. THE RECEIVER REAR PANEL

The rear panel gives you various connections to connect the audio and video equipment as well as a terrestrial and dish antennas. Depending on the installation setup, you may not use all connectors, but they are provided for any desired setup in future.

The available connectors on the rear panel are:

■ The mains conenctor, for the conenction

to the mains power socket.

■ The SERIAL PORT connector (sub-D),

for the connection to the serial communication port of a PC;

■ The VIDEO connector (RCA),

for the connection to the composite video input of the TV (monitor);

■ The S/PDIF connector (RCA),

for the connection of Dolby Digital (AC-3) compatible audio equipment;

■ The AUDIO L connector (RCA),

for the connection of the left audio input channel of a stereo set;

■ The AUDIO R connector (RCA),

for the connection of the right audio input channel of a stereo set;

■ The LNB IN connector (F-type),

for the connection of a dish to the receiver, to receive the digital broadcasts;

■ The IF OUT connector (F-type), for a

loop through connection;

■ The ANT IN connector (IEC),

for the connection of an terrestrial TV antenna;

■ The TV OUT connector (IEC),

for the connection to the antenna connector of a TV or a VCR;

■ The VCR connector (SCART), for the

connectionofaVCRwiththeuseofa fully-featured SCART-cable;

■ The TV connector (SCART),

for the connection of a TV with the use of a fully-featured SCART-cable;

Page 4 - 2 EchoStar DSB-707 FTA

Page 19

1.3. THE REMOTE CONTROL UNIT (RCU)

The EchoStar Remote Control Unit (RCU) is used to control the receiver. The RCU requires two AA/R6 alkaline batteries to operate.

■ ON/STANDBY

To switch to standby or on.

■ EPG

To view the EPG. To return to current time.

■ SUBTITLE

To choose another subtitle language.

■ MENU

To go to the installation menu.

■ VOL+

To increase the volume.

■ VOL-

To decrease the volume.

■ ARROW CLUSTER

To go left, right, down or left.

■ OK/STORE

To go to the (favorites) lists; To make a menu selection; To pull down a menu.

■ RED

To go to another mode.

TV/RAD To switch to TV or Radio mode. To view detailed EPG information.

■ BLUE

To s ort a li st ; To zoom in/out the time slot of the EPG view window. SAT To select another satellite.

Familiarization

■ MUTE

To blank out the volume.

■ i

To view the InfoBanner; To access extended info.

■ NUMBER KEYS

To enter numerical settings; To type in a channel number.

■ EXIT

To leave a menu or feature.

■ CH+

To go one channel up.

■ CH-

To go one channel down.

■ PAGE+

To go up one page.

■ PAGE -

To go down one page.

■ RCL

To go to the previous channel; To access special features.

■ GREEN

To select a (favorites) list. FAV To go to the favorite list of the actual mode.

■ YELLOW

To group a list; To select an EPG timer. ALT AUDIO To choose a language.

■ WHITE

To go to the edit mode.

Section 4

1.4. THE ECHONAV USER INTERFACE

The EchoNAV user interface is designed to give you easy control over the receiver. The EchoNAV user interface has four main features that give access to the different functions. Thefourmainfeaturesare:

■ The EchoNAV installation menu,

that helps you to setup the receiver and access the parental lock settings;

■ The EchoNAV user menu,

that helps you to control the daily operation and selection of the favorites;

■ The EchoNAV EPG menu,

that helps you to control the different timers and to view the available EPG;

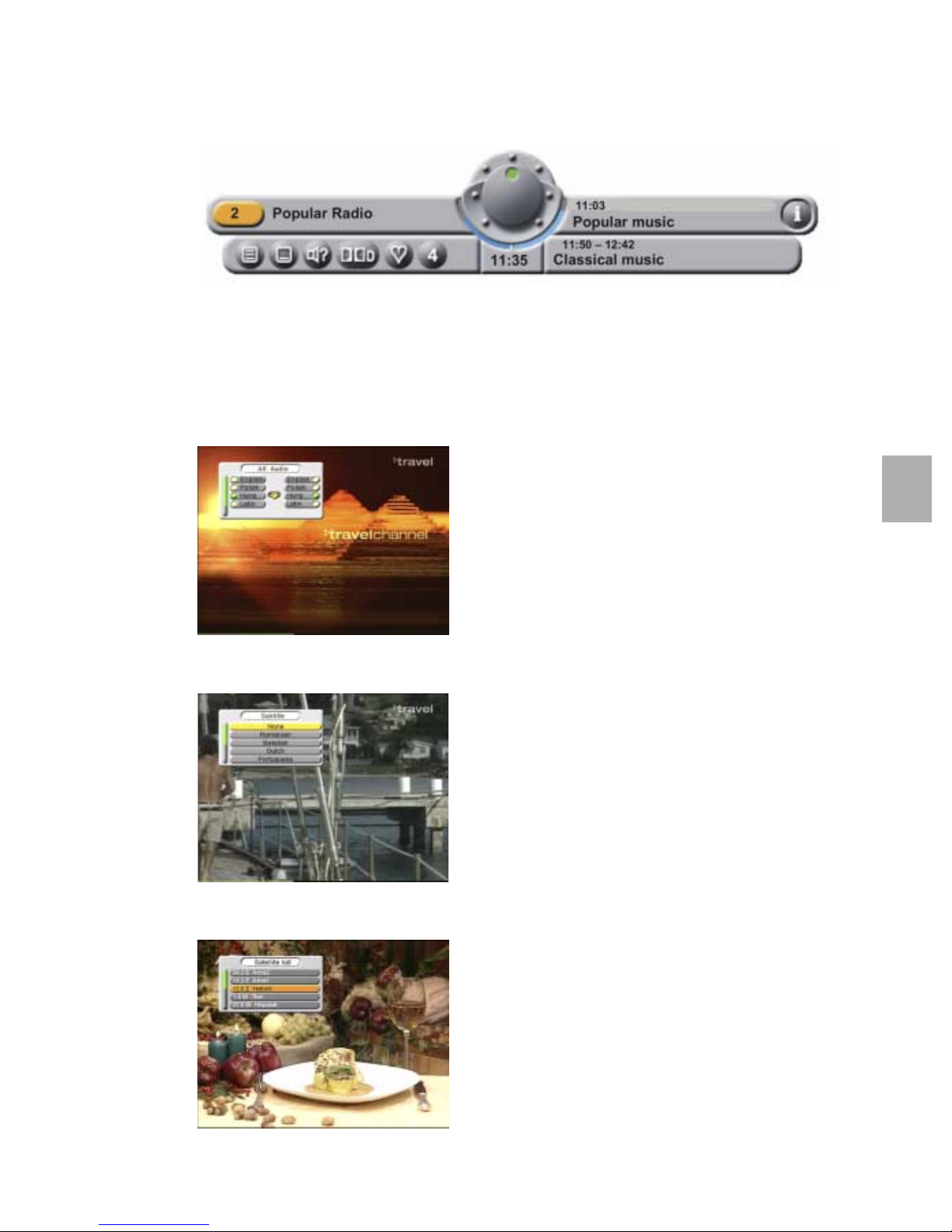

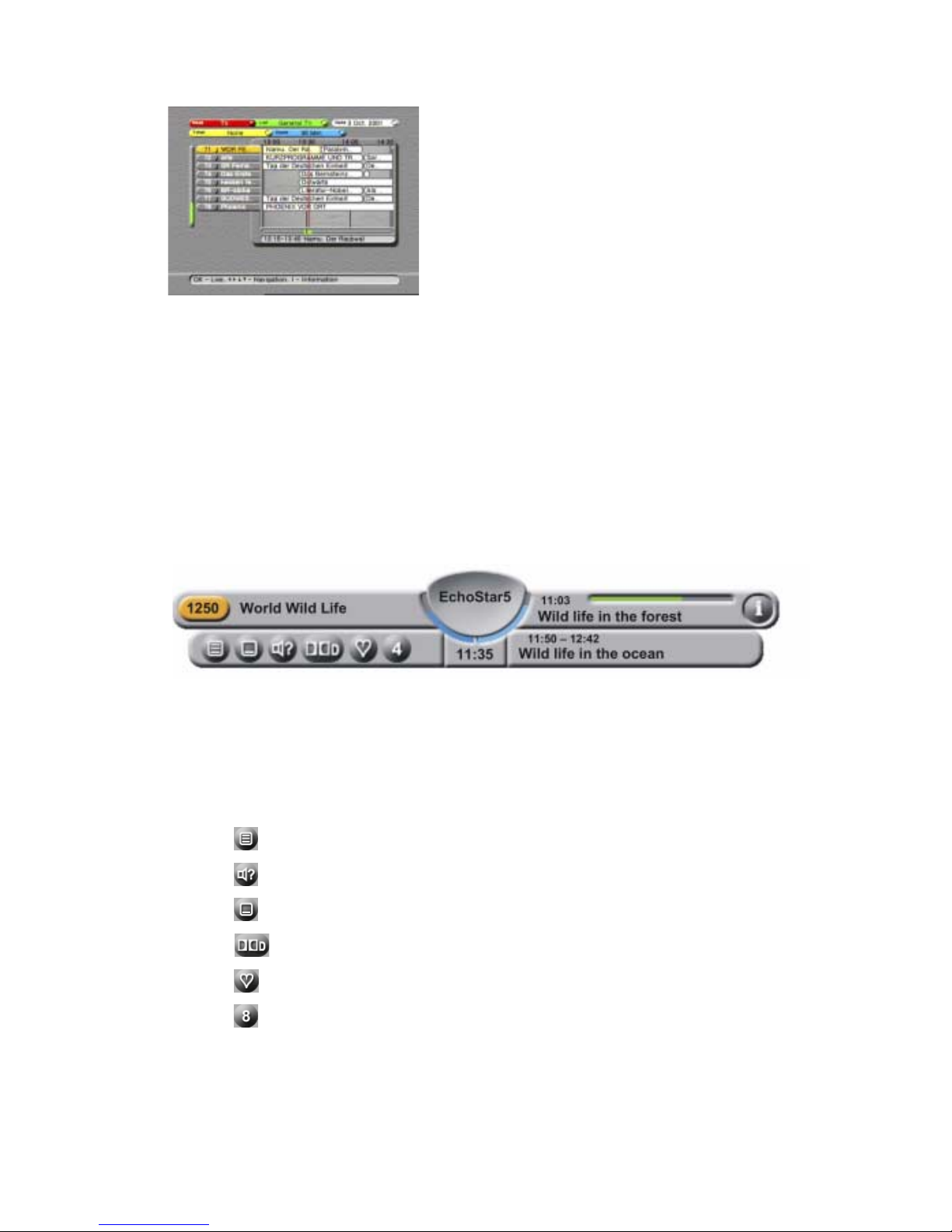

■ The EchoNAV InfoBanner,

that helps you to view the available information about the actual mode.

Digital Satellite Receiver Page 4 - 3

Page 20

Section 4

Familiarization

The EchoNAV user interface has various ways to navigate through the menus and functions. Some of the keys on the remote control unit give direct access to functions. The most important keys are identified as EPG, i, colored keys, MENU and OK. Other keys are multifunctional which means that their function changes dependent of the mode that you are in.

NOTE

Unless otherwise specified; this note explains the way you can navigate through the pages of the EchoNAV user menu.

1. Use the OK key to pull down the menu selection fields.

2. Use the  keys to scroll the selectable items.

3. Use the  keys to navigate between the left and right column of selectable items.

4. Use the EXIT key to leave the menu and return to the view mode.

5. In a pull-down menu:

- use the OK key to confirm the selection.

- the yellow bar indicates the active selection;

- on the left, the green page indicator indicates where you are.

2. THE ECHONAV INSTALLATION MENU

The EchoNAV installation menu has different main menus that give you access to the different sub-menus. The main menus are:

■ The guided initial setup menu which is only accessible after the first time you switch the

receiver on and after every manually initiated factory reset;

■ The User Preferences menu and the installation setup menu are accessible at any time.

NAVIGATION

A highlighted button shows you which (main/sub) menu is selected. The MENU key lets you change between the main and sub menu where thekeys let you make a selection in the selected (main/sub) menu. The OK key brings you into the related page, where you can make a choice from the available options.

NOTE

Once in a page, at any time:

■ you can use the MENU key to reverse from a menu page to the sub menu bar;

■ you can easily leave with the EXIT key.

The main menus are divided into sub-menus, selection pages and option fields. The main menu buttons are shown at the right hand side of the menu bar. The different sub-menu buttons are shown on the left hand side of the menu bar. The selection pages with the option fields are accessible after you have selected a sub-menu. Every menu, sub-menu and selection page has one or more help lines to assist you. The main menus are accessible with:

■ The button, that gives you access to the User Preferences menu;

■ The button, that gives you access to the installation setup menu;

Page 4 - 4 EchoStar DSB-707 FTA

Page 21

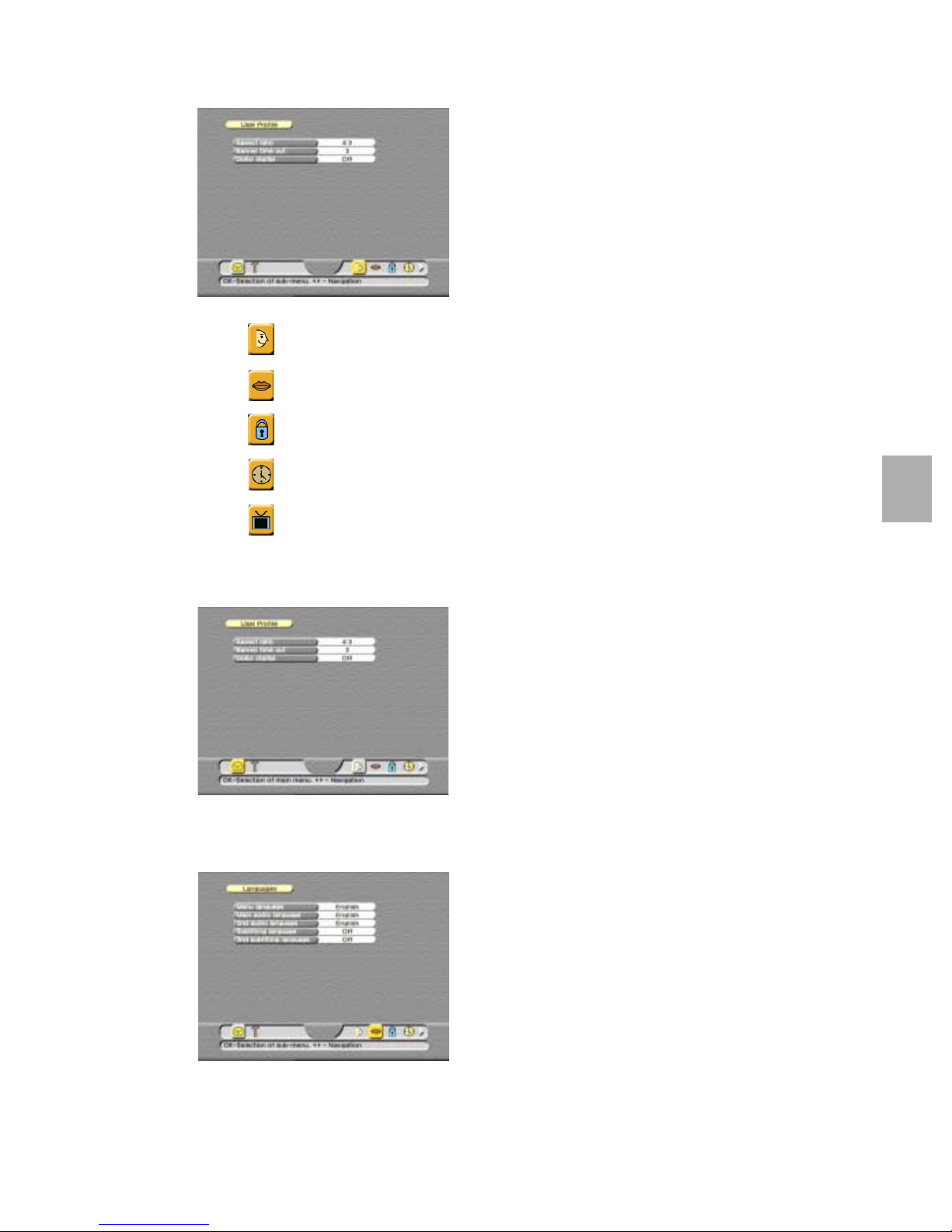

2.1. THE USER PREFERENCES MENU

This main menu has different sub-menus that give access to the pages where you can customize the factory settings. The user preferences menu always comes in view with the User Profile sub-menu. In the menu bar the sub menus are shown at the right side. The available sub menus are shown as icons which become a highlighted button after selection. The sub-menus are accessible with:

■ The button, that gives you access to the User Profile page;

■ The button, that gives you access to the Languages page;

■ The button, that gives you access to the Parental Lock page;

Familiarization

Section 4

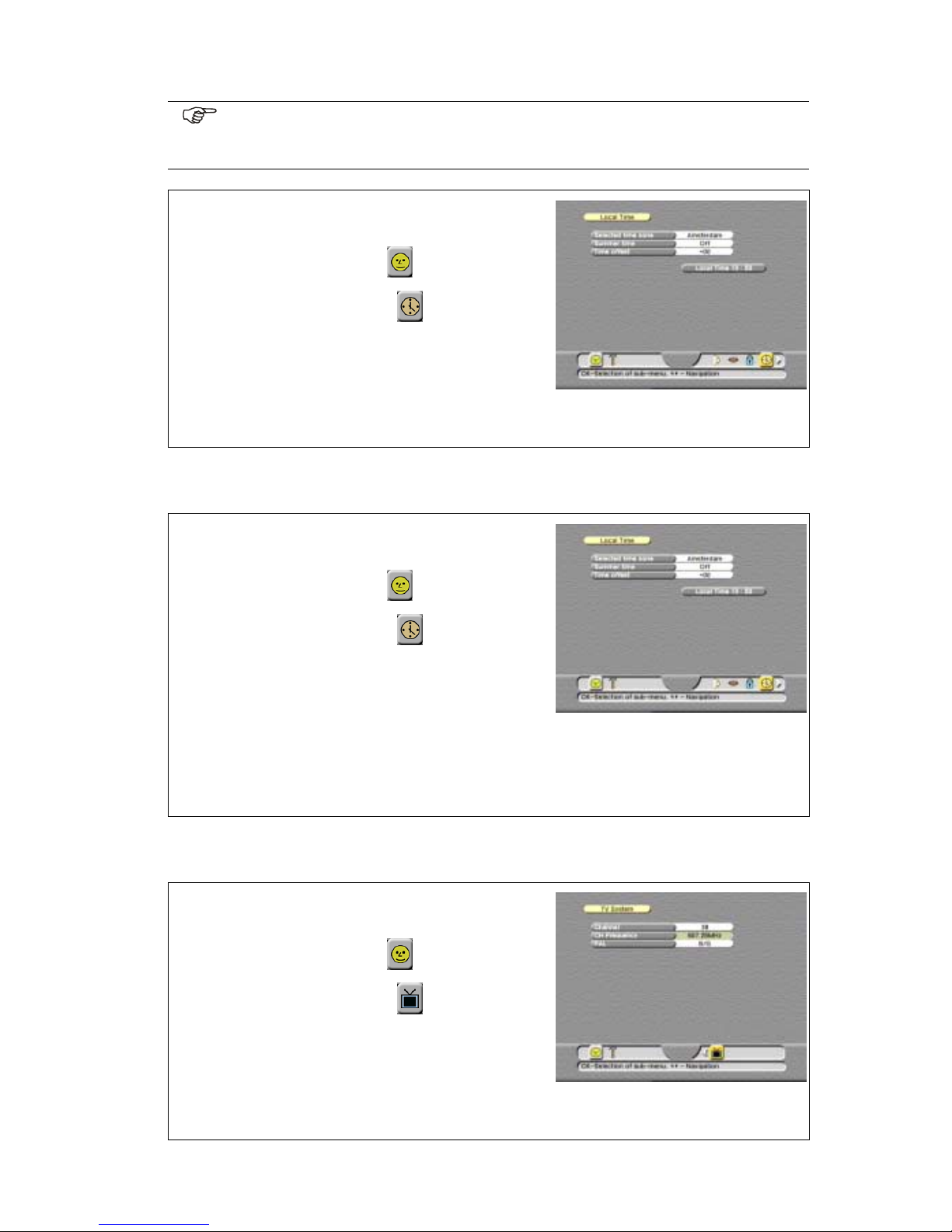

■ The button, that gives you access to the Local Time page;

■ The button, that gives you access to the TV System page.

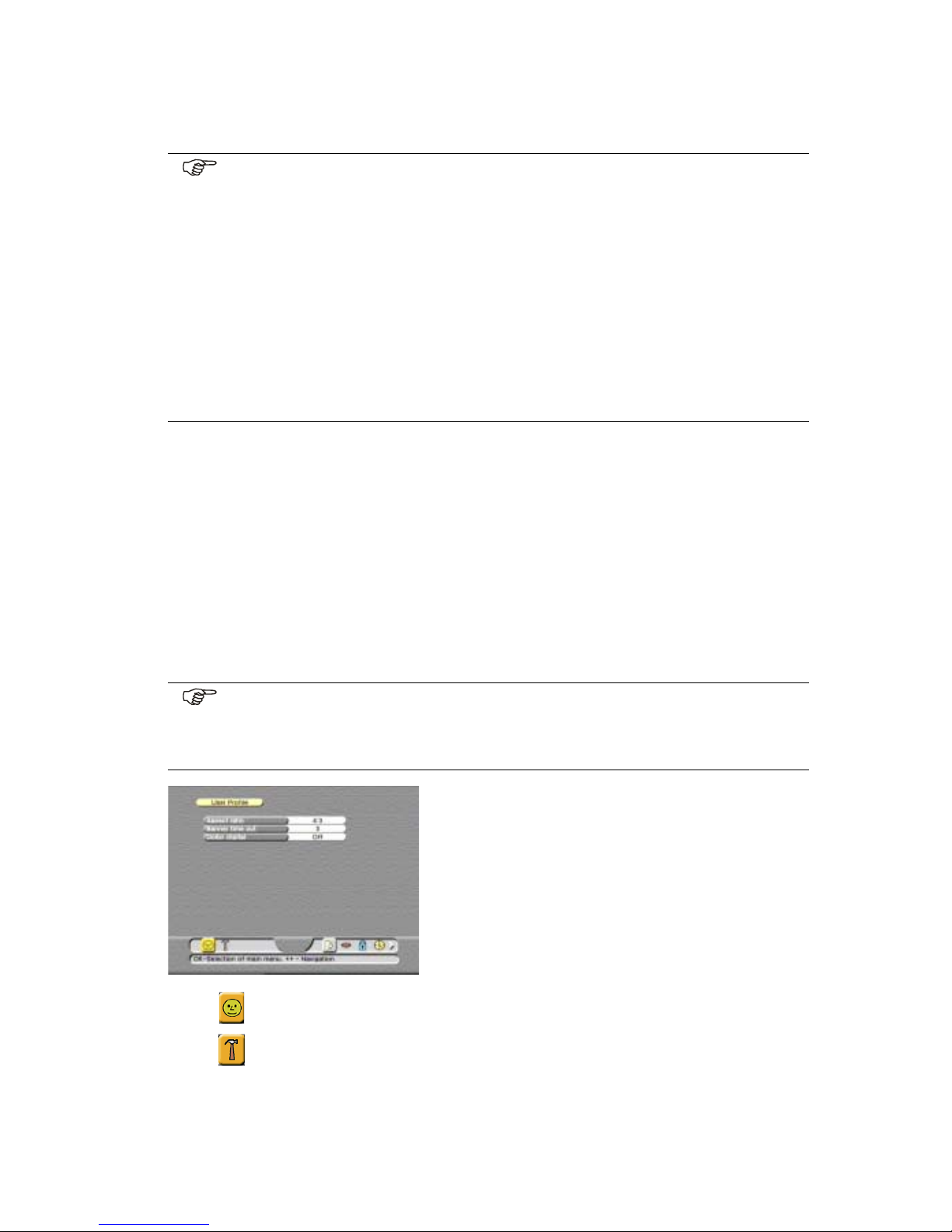

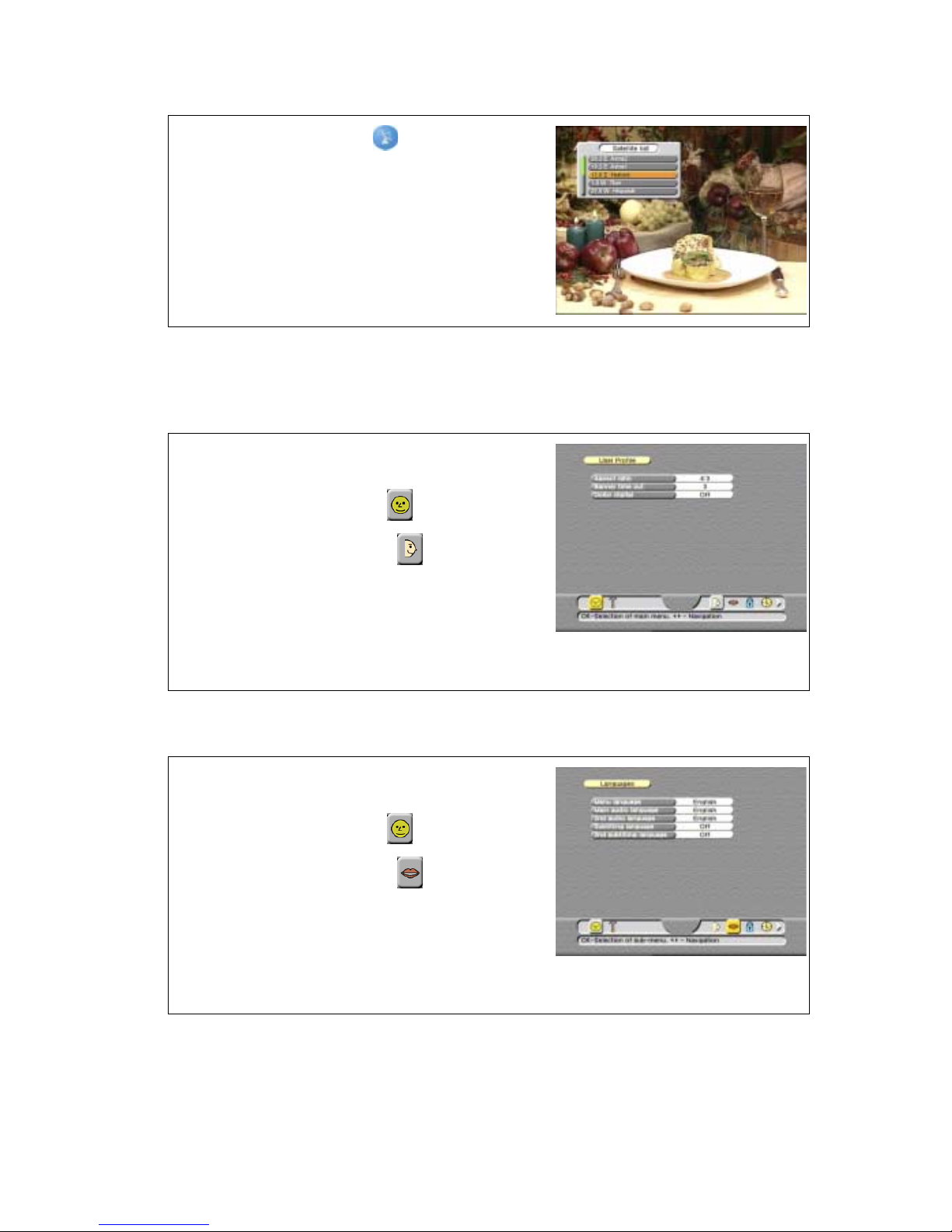

2.1.1. USER PROFILE PAGE

This menu page allows you to customize the user profile, you can customize:

2.1.2. LANGUAGES PAGE

This menu page allows you to customize the language settings, you can customize

■ Aspect ratio

To set the screen size of the TV.

■ Banner time out

To set the view time for the InfoBanner.

■ Dolby Digital

To tell the receiver that it is connected to a Dolby Digital amplifier or not.

■ Menu Language

To set the language you want to use in the menus.

■ Main audio language

To set language for programs with bi-lingual audio.

■ 2nd audio language

To set language for programs with bi-lingual audio.

■ Subtitling language

To set language for bi-lingual subtitled programs.

■ 2nd subtitling language

To set language for bi-lingual subtitled programs.

Digital Satellite Receiver Page 4 - 5

Page 22

Section 4

Familiarization

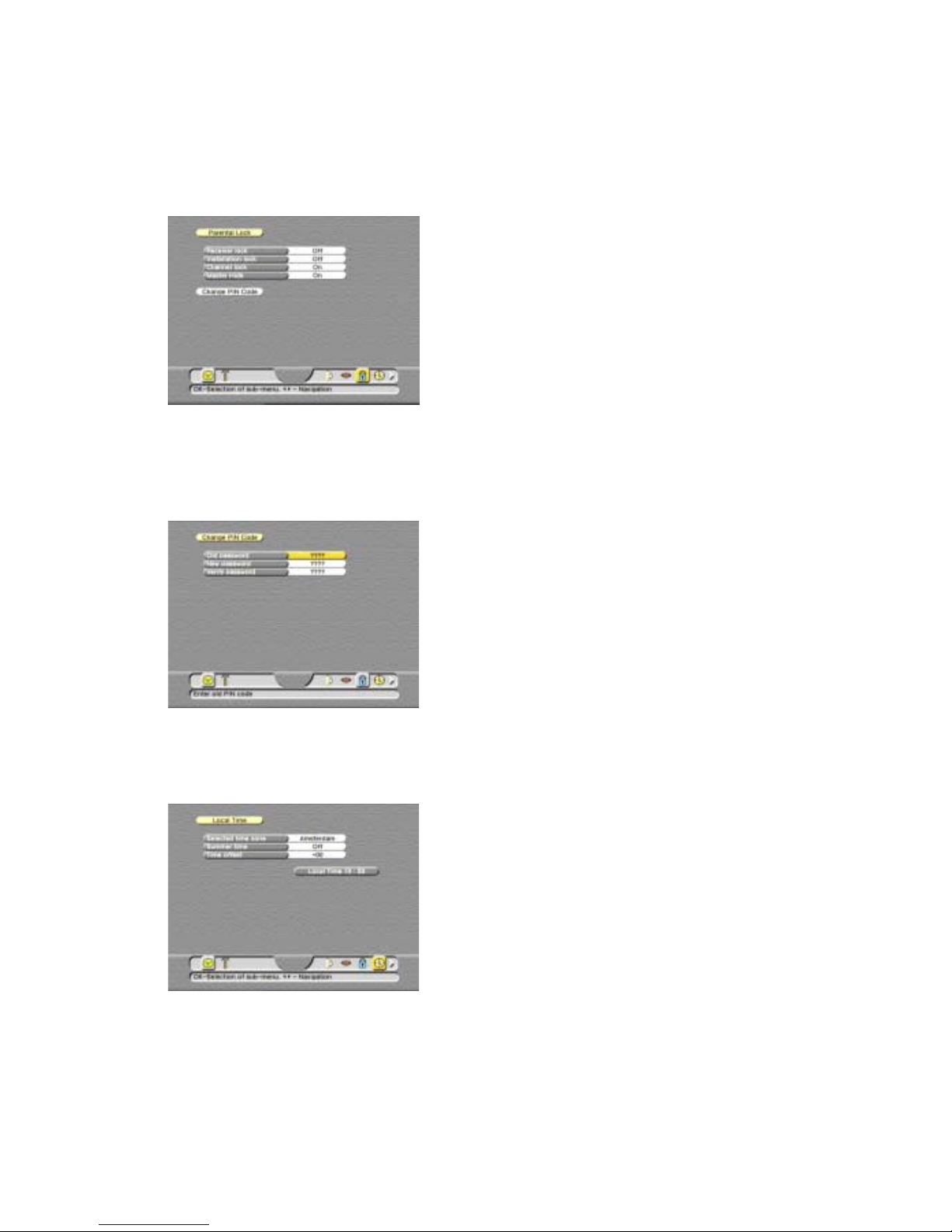

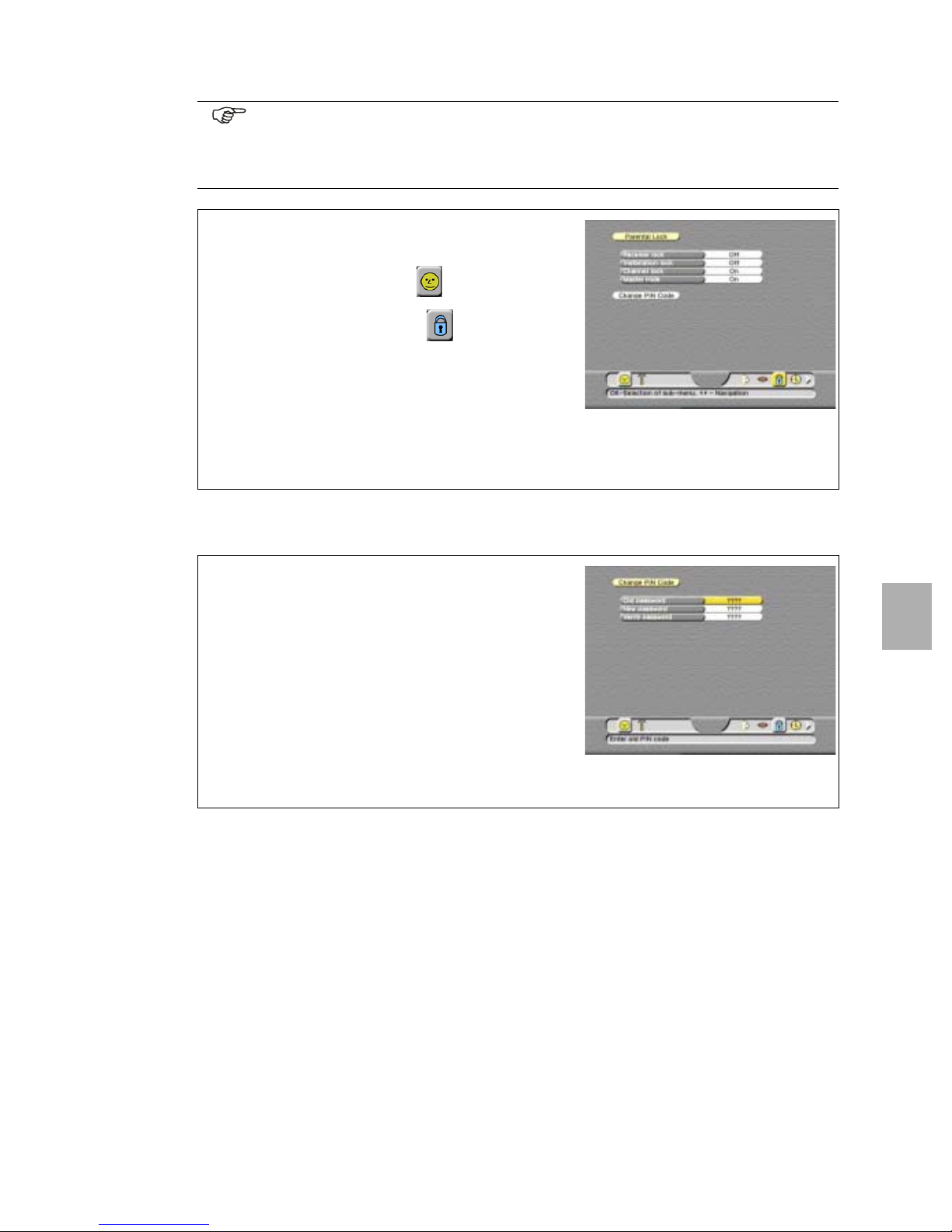

2.1.3. PARENTAL LOCK PAGE

The parental lock menu is initial accessible with the factory default PIN code 0000. For future use, you are requested to change the PIN code to your own personal code.

This sub menu contains two menu pages. These menu pages are:

TO CHANGE THE PARENTAL LOCK SETTINGS

This menu page allows you to customize the parental lock settings, you can customize:

■ Receiver Lock

To lock the receiver completely for unauthorized users.

■ Installation Lock

To lock the installation menu for unauthorized users.

■ Channel lock

To lock or unlock all locked selections at once.

■ Master hide

To hide or unhide all hidden selections at once.

■ Change PIN Code

To access the change PIN code page.

TO CHANGE THE PIN CODE

This menu page allows you to change the PIN code, you can change:

2.1.4. LOCAL TIME PAGE

This menu page allows you to customize the local time settings. For the correct operation of the EPG and the timers, it is necessary to set the local time correctly. You can customize:

■ Old password

To type in the factory default or personal PIN code.

■ New password

To type in your new PIN code (numbers only).

■ Veri f y password

To type in your New password again. Now the receiver verifies the new password to make sure that you typed in the new password correctly.

■ Selected time zone

To set the time zone where you are.

■ summer time

To set the daylight savings time on or off.

■ Time offset

To set the difference between local time and the common time as defined by the time zone.

Page 4 - 6 EchoStar DSB-707 FTA

Page 23

2.1.5. TV SYSTEM PAGE

This menu page allows you to customize the TV settings used for the receiver, you can customize:

■ Channel

To select the (UHF) TV channel to which the receiver is connected.

■ CH Frequency

To view the frequency that corresponds with the selected channel. You cannot set this option.

■ System

To set the video format supported by your TV.

2.2. THE INSTALLATION SETUP MENU

This main menu has different sub-menus that give access to the pages where you can customize the settings to match your personal requirements. Note that the sub-menus are dynamic which means that they change with the selections you make. The installation setup menu always comes in view with the system setup sub-menu. In the menu bar the sub menus are shown at the right side. The available sub menus are shown as icons which become a highlighted button after selection. The sub-menus are accessible with:

Familiarization

Section 4

■ The button, that gives you access to the System Setup page (for Fixed dish, SMATV);

■ The button, that gives you access to the System Setup page (for DiSEqC 1.2);

■ The button, that gives you access to the Program Satellites page (for DiSEqC 1.2);

■ The button, that gives you access to the User LNB Setting page;

■ The button, that gives you access to the About EchoStar information page;

■ The button, that gives you access to the System Upgrade page;

■ The button, that gives you access to the Factory Reset page.

THE SIGNAL INDICATOR

In some menus the signal indicator is shown to help you to find a satellite and fine tune for the best signal level and quality.

■ The signal indicator

The top bar shows the signal level to indicate that you receive a signal. The bottom bar shows the quality of the signal (signal-to-noise ratio) to indicate that you have a lock onto the selected transponder. The bottom text gives the satellite and network information to which the lock is established.

Digital Satellite Receiver Page 4 - 7

Page 24

Section 4

Familiarization

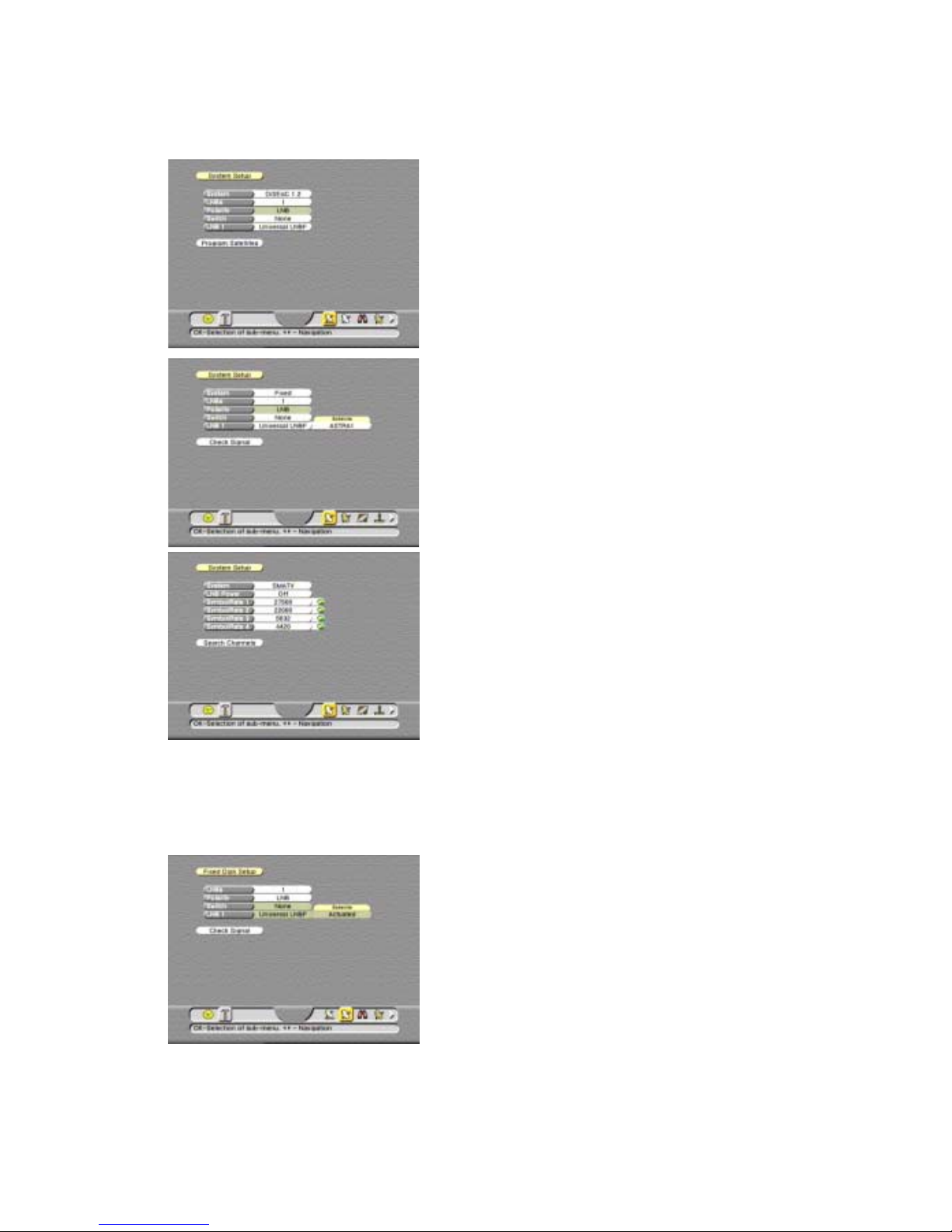

2.2.1. SYSTEM SETUP MENU

This sub-menu allows you to customize the system setup to match your installation. Note that the menu page is dynamic which means that it changes with the selections you make. You can customize:

■ System

To set the dish type you use.

■ LNBs

To set the amount of LNBs you have installed.

■ Polarity

To set the device that controls the signal polarity.

■ Switch

To set the switch type which you use to control the dish installation (if used).

■ LNB1

To set the LNB type(s) you use.

■ Program Satellites (DiSEqC1.2 only)

To confirm the selections and go to next menu.

■ Satellite (fixed only)

To set the satellite you want to scan for the LNB.

■ Check Signal (fixed only)

To confirm the selections and go to next menu.

■ LNB Power (SMATV only)

To select the distribution type (cable=Off, IF=On).

■ Symbol Rate 1-4 (SMATV only)

To set the symbol rates you want to scan. You can search four symbol rates simultaneously in one search. Repeat the session if you want to scan for more symbol rates.

■ Search Channels (SMATV only)

To confirm the selections you made and advance to the Search Channels page.

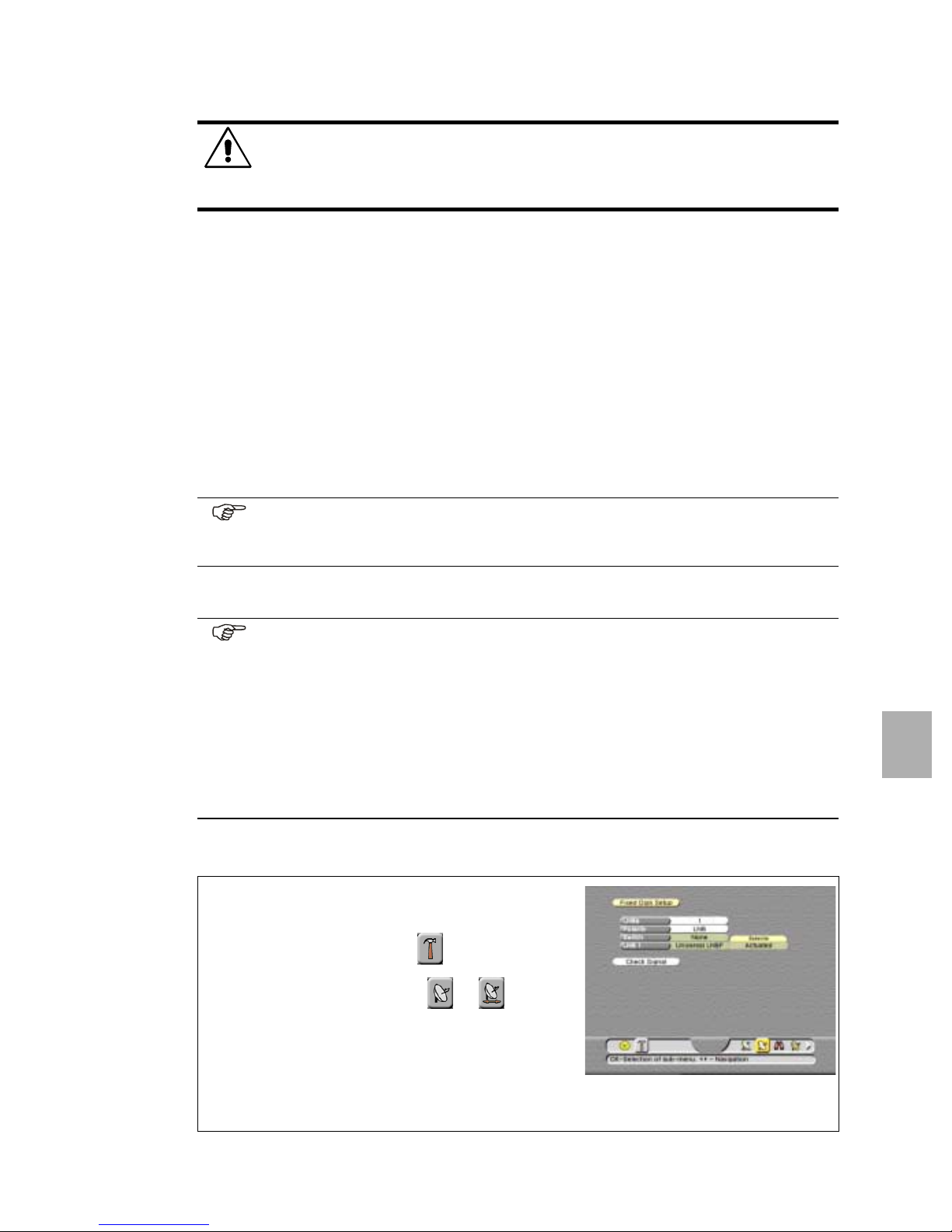

2.2.2. FIXED DISH SETUP

This sub-menu allows you to customize the system setup to add an additional fixed dish into your DiSEcQ1.2 configuration. Note that the menu page is dynamic which means that it changes with the selections you make. You can customize:

Page 4 - 8 EchoStar DSB-707 FTA

■ LNBs

To set the amount of LNBs you have installed.

■ Polarity

To set the device that controls the signal polarity.

■ Switch

To set the switch type which you use to control the dish installation.

■ LNB1

To set the LNB type(s) you use.

■ Satellite

To set the satellite you want to scan for the LNB.

■ Check Signal

To confirm the selections you made and advance to the Check Signal page.

Page 25

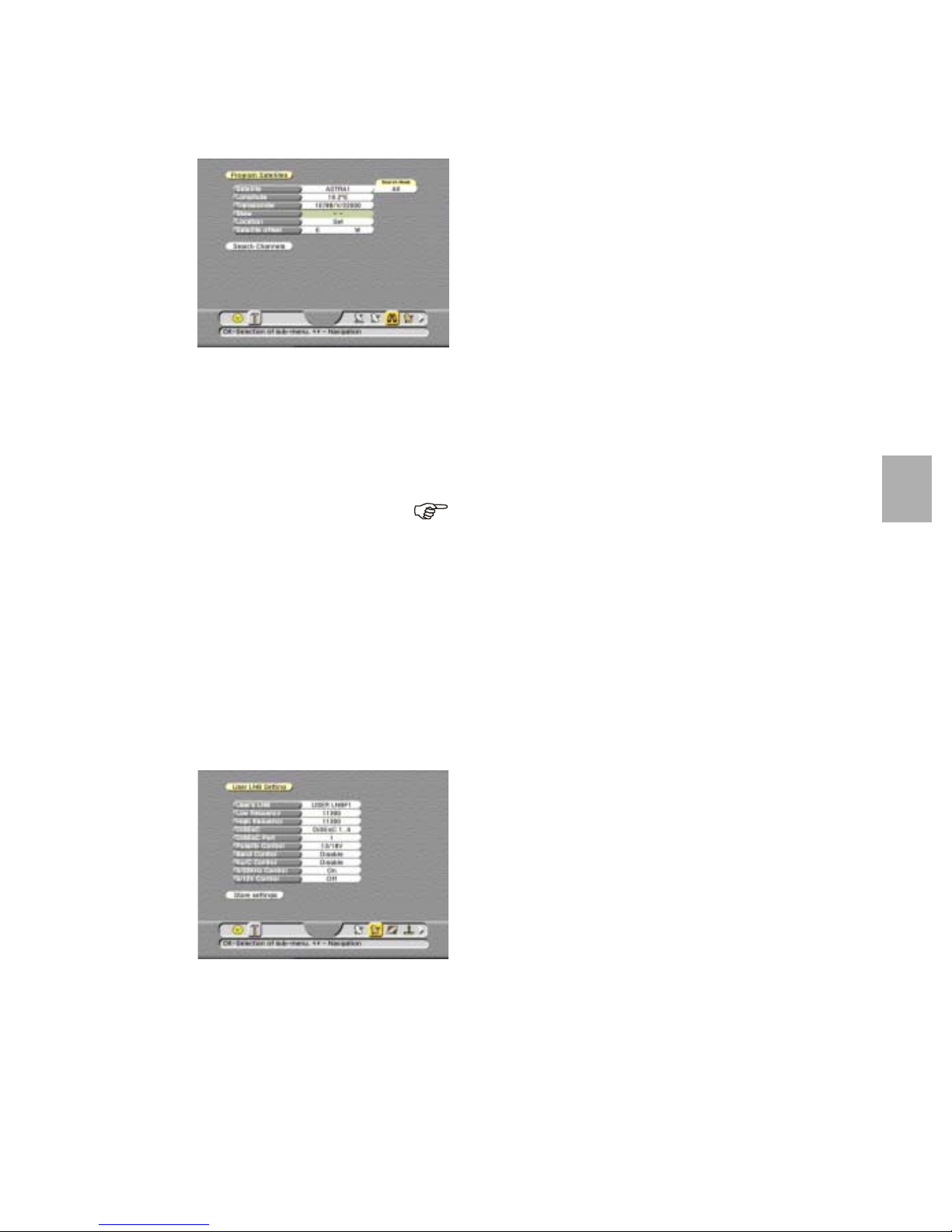

2.2.3. PROGRAM SATELLITES

This sub-menu allows you to customize the system setup to add an additional satellite into your receiver. Note that the menu page is dynamic which means that it changes with the selections you make. You can customize and view:

Familiarization

■ Satellite

Section 4

To set the satellite you want to scan for the LNB.

■ Search mode

To set a specific search mode (All, FTA, IF, TP, network or update).

■ Longitude

To view the satellite location on the Clarke Belt.

■ Transponder

To select a transponder of the selected satellite.

■ Skew

To adjust the Horizontal/Vertical setting (only for polarotor).

■ Location

To move the dish for best signal level and quality.

■ Satellite offset

To compensate for a dish offset caused by ambient conditions.

NOTE

The satellite offset will affect all satellite positions, this means that all scanned positions will change which might result in total loss of signal for all satellites.

■ Search Channels

To confirm the selections you made and advance to the Search Channels page.

2.2.4. USER LNB SETTING

This sub-menu allows you to program a LNB that is not listed in the LNB selection list. Note that the menu page is dynamic which means that it changes with the selections you make. You can customize:

■ User’s LNB

To select the first or second user defined LNB.

■ Low Frequency

To enter the low frequency of the user LNB.

■ High Frequency

To enter the high frequency of the user LNB.

■ Polarity Control

To select the device that controls the polarity.

■ Band Control

To set the control signal for high or low band selection.

■ Ku/C Control

To set the control signal for the Ku/C LNB.

■ Save settings

To confirm the selection and save the settings.

Digital Satellite Receiver Page 4 - 9

Page 26

Section 4

Familiarization

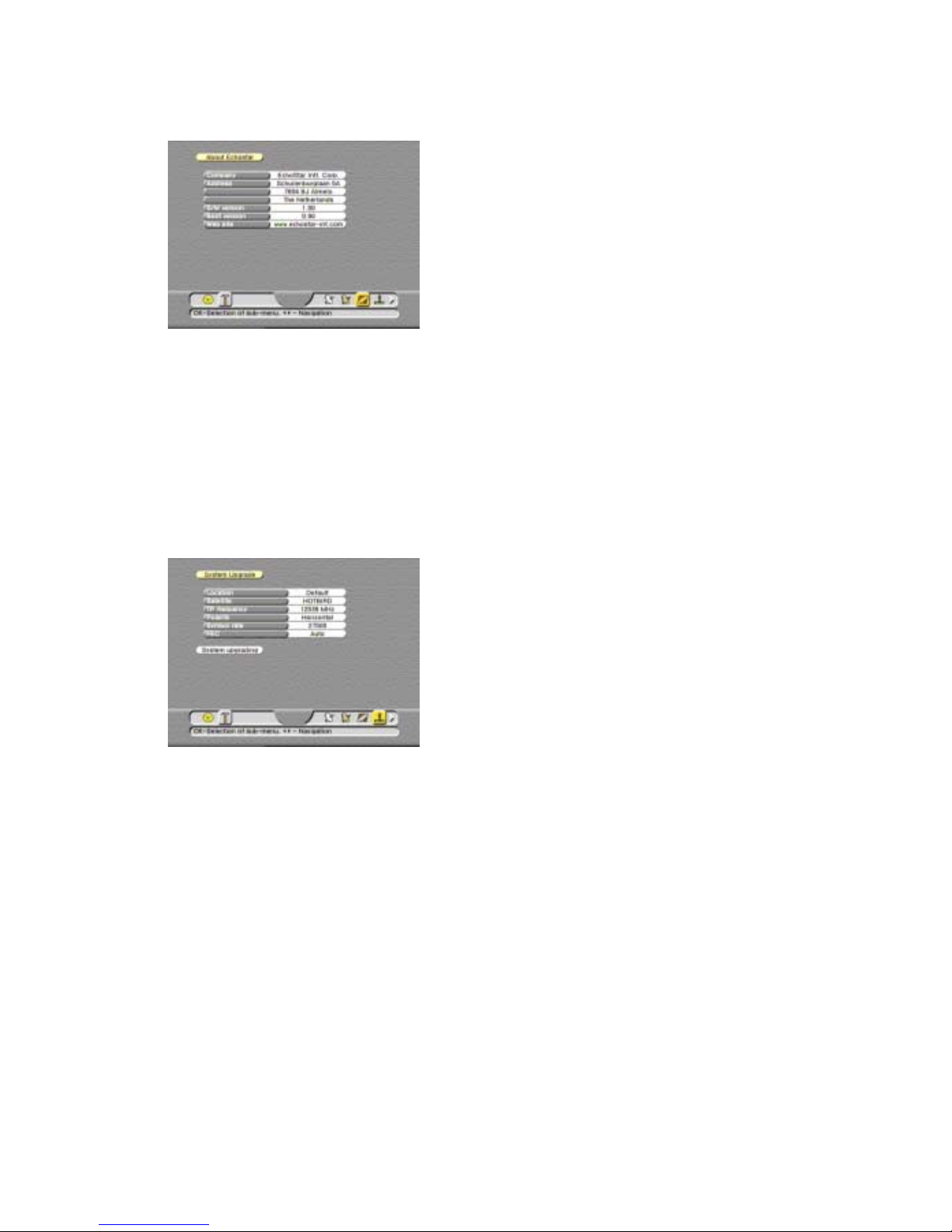

2.2.5. ABOUT ECHOSTAR

The About EchoStar menu gives all the where-to-contact-Information about EchoStar and the status information about the receiver. You can view:

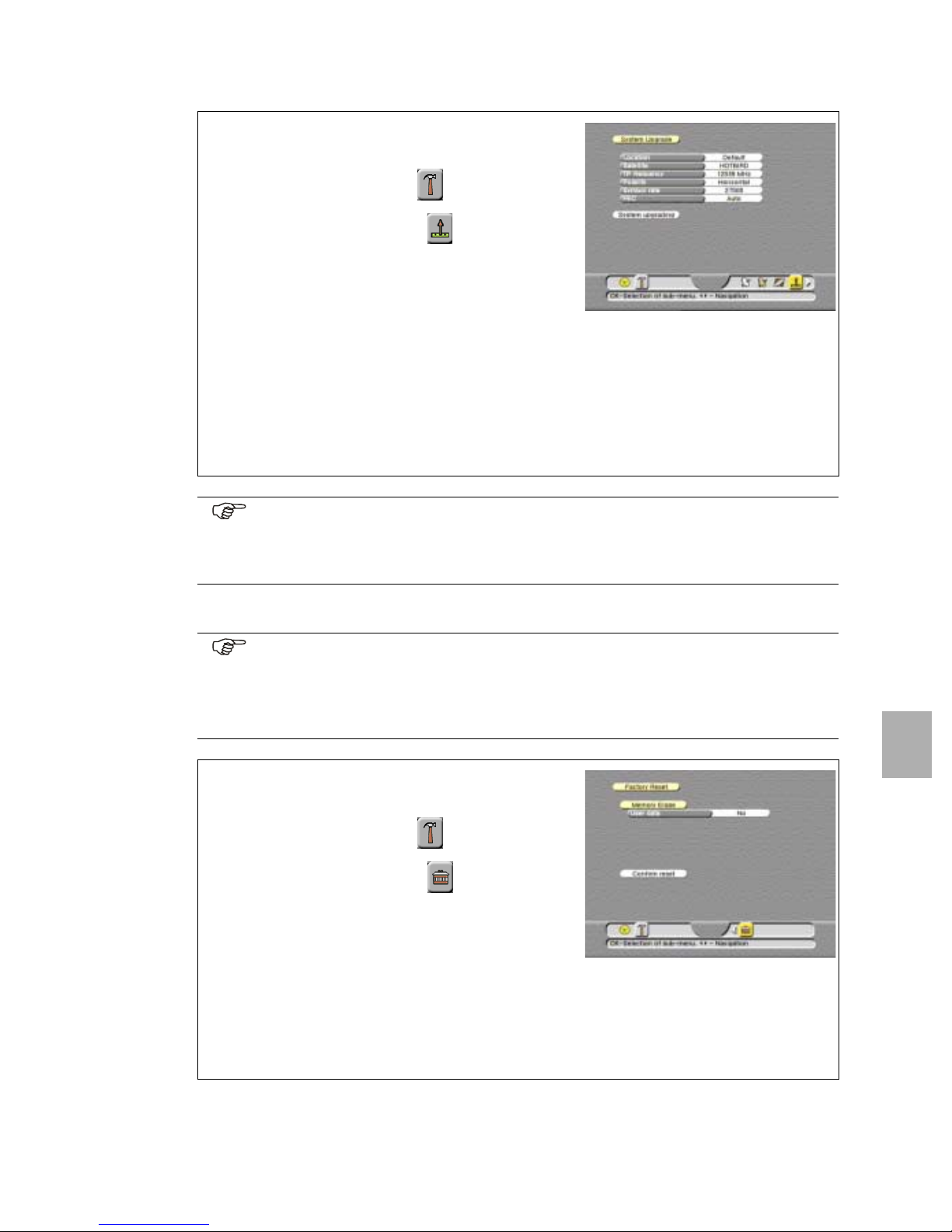

2.2.6. SYSTEM UPGRADE PAGE

This menu page allows you to upgrade the receiver’s software. EchoStar provides software updates Over-The-Air (OTA) which means that you can upgrade your system via the satellite.

If you are not able to receive the satellite/transponder, you always can upgrade the software through the SERIAL PORT (RS232) at the rear of the receiver and the downloaded software from the EchoStar website.

■ Company

This field shows the full name of EchoStar.

■ Address

This field shows the address of EchoStar.

■ S/W version

This field shows the current software version loaded into the receiver.

■ Boot version

This field shows the current boot version loaded into the receiver.

■ Web site

This field shows the EchoStar web site where you can find the latest user and software information.

■ Location

To select the default or user defined satellite where you want to download from.

■ Satellite

To set the satellite where you want to download from.

■ TP frequency

To set the transponder where you want to download from.

■ Polarity

To set the correct polarity for the transponder.

■ Symbol rate

To set the correct symbol rate for the transponder.

■ FEC

To set the correct Forward Error Correction for the transponder

Page 4 - 10 EchoStar DSB-707 FTA

Page 27

Familiarization

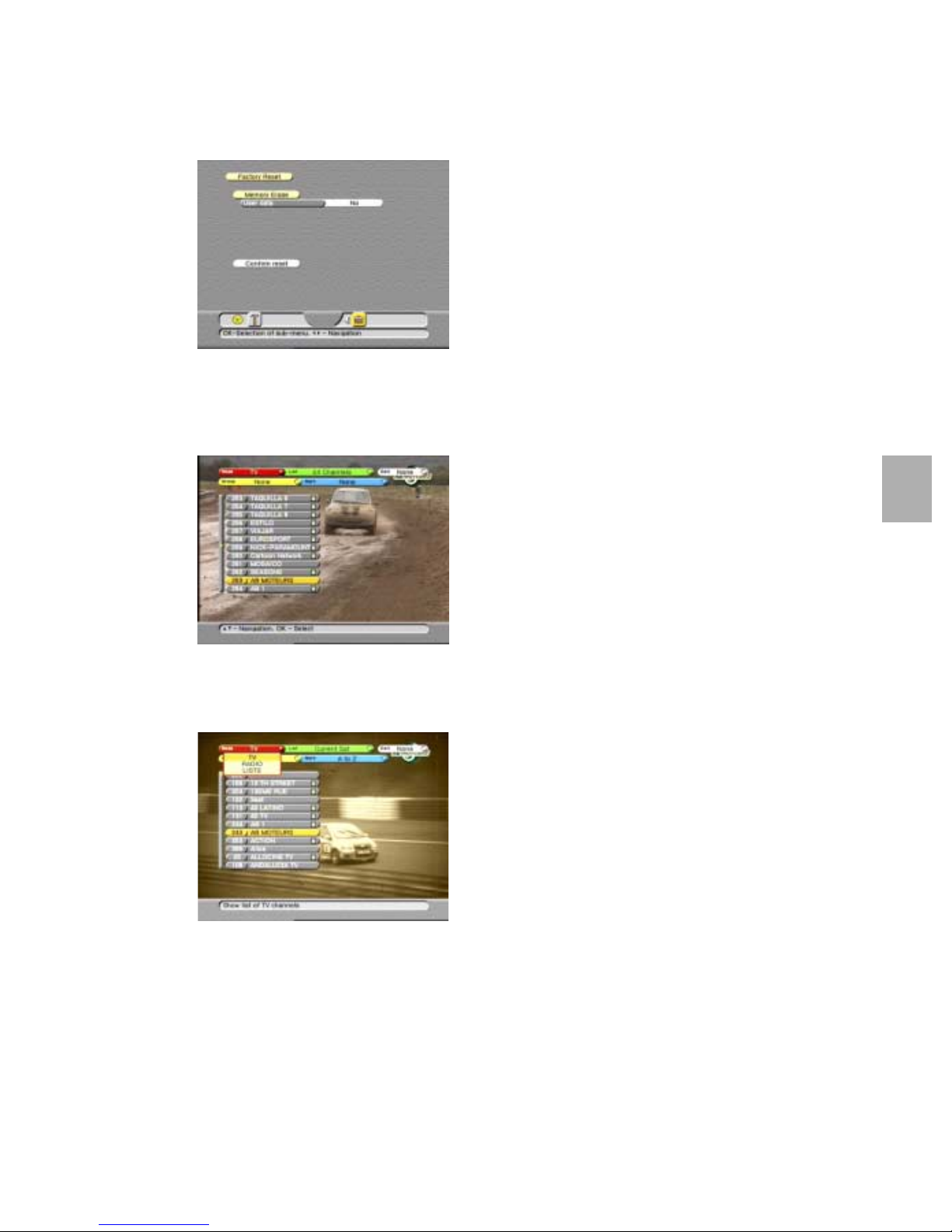

2.2.7. FACTORY RESET

The Factory Reset menu gives you the possibility to reset the receiver to the initial factory settings. The memory erase option restores the factory settings over your personal settings. All customized data like parental lock and favorites will be replaced with the factory settings.

■ Memory Erase - User Data

To instruct the receiver to delete all personal settings and replace them with the factory settings.

■ Confirm Reset

With this field you can confirm the selections made and execute the selected procedure. After the memory erase procedure is finished, you are taken to the initial setup procedure. (for detailed instructions, please refer to section Installation).

3. THE ECHONAV MODE AND SELECTION MENUS

3.1. INTRODUCTION

The mode and selection menu gives access to the current list, related features and on-screen help lines. After you have entered the mode and selection menu you can manipulate the lists through:

■ The Mode bar (red);

■ The List bar (green);

■ The Edit bar (white);

■ The Group bar (yellow);

■ The Sort bar (blue).

Section 4

3.2. MODE

The Mode bar gives access to the different receiver modes. The receiver modes are:

■ TV

To switch the receiver in the TV mode and to access the list of TV channels.

■ Radio

To switch the receiver in the Radio mode and to access the list of Radio channels.

■ Lists

To switch the receiver in the Lists mode and to access the favorite lists.

Digital Satellite Receiver Page 4 - 11

Page 28

Section 4

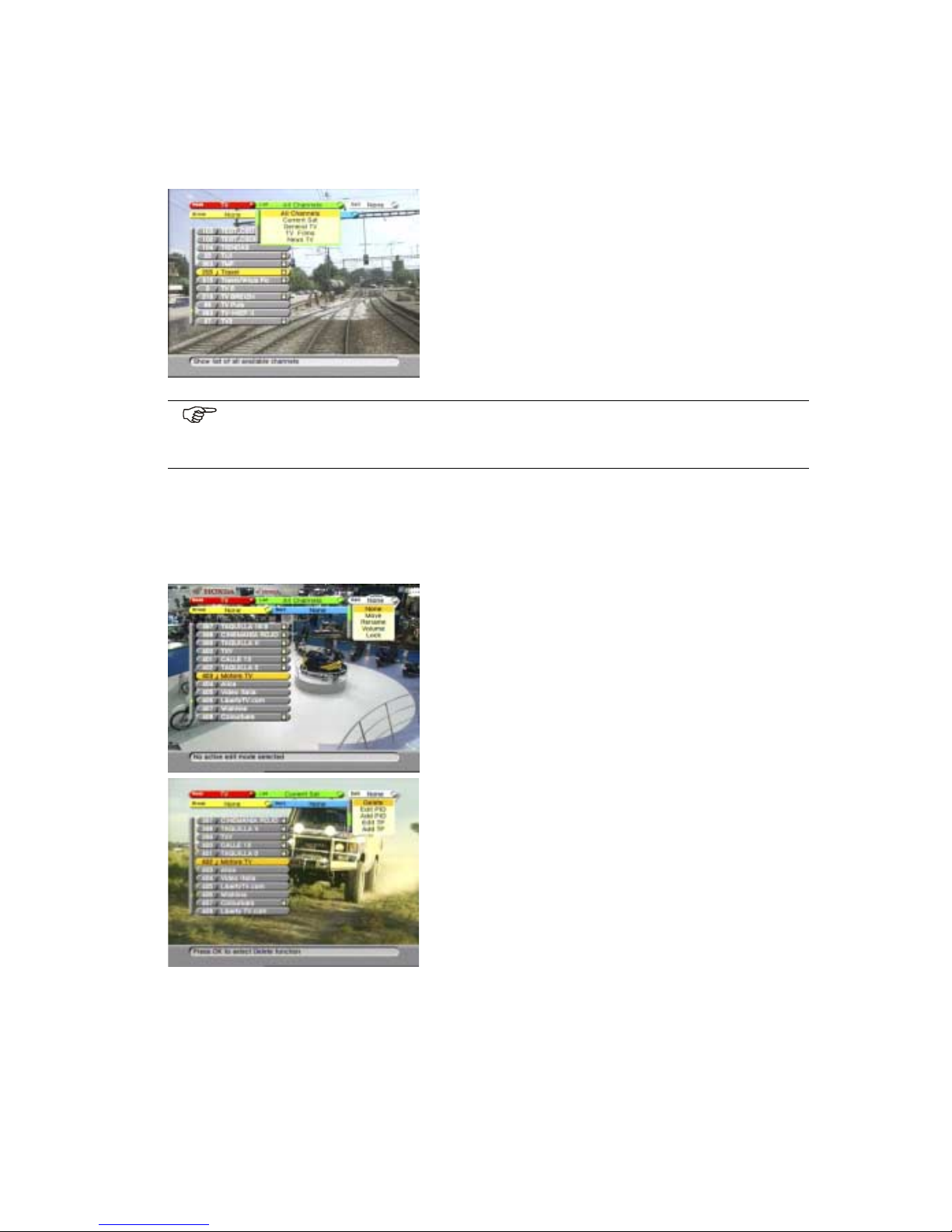

3.3. LIST

The Lists are available in the all modes. Some of the lists are factory defined and other lists (Favorite lists) are user defined. Favorite lists are lists of your favorite items that are created and maintained by you. In every mode you can setup a number of favorite lists. The lists

available are (mode dependent):

Familiarization

■ All Channels

To access the list of scanned TV channels available on the scanned satellites.

■ Current Sat

To access the list of all scanned TV channels available on the current selected satellite.

■ Favorites

To access to your own favorite lists. You can rename the favorites to something meaningful to yourself,e.g.Film,Sport,Kids.

NOTE

Sometimes a list seems to be empty because of the settings of the group and sort option. If this happens, just set the group and sort option to none.

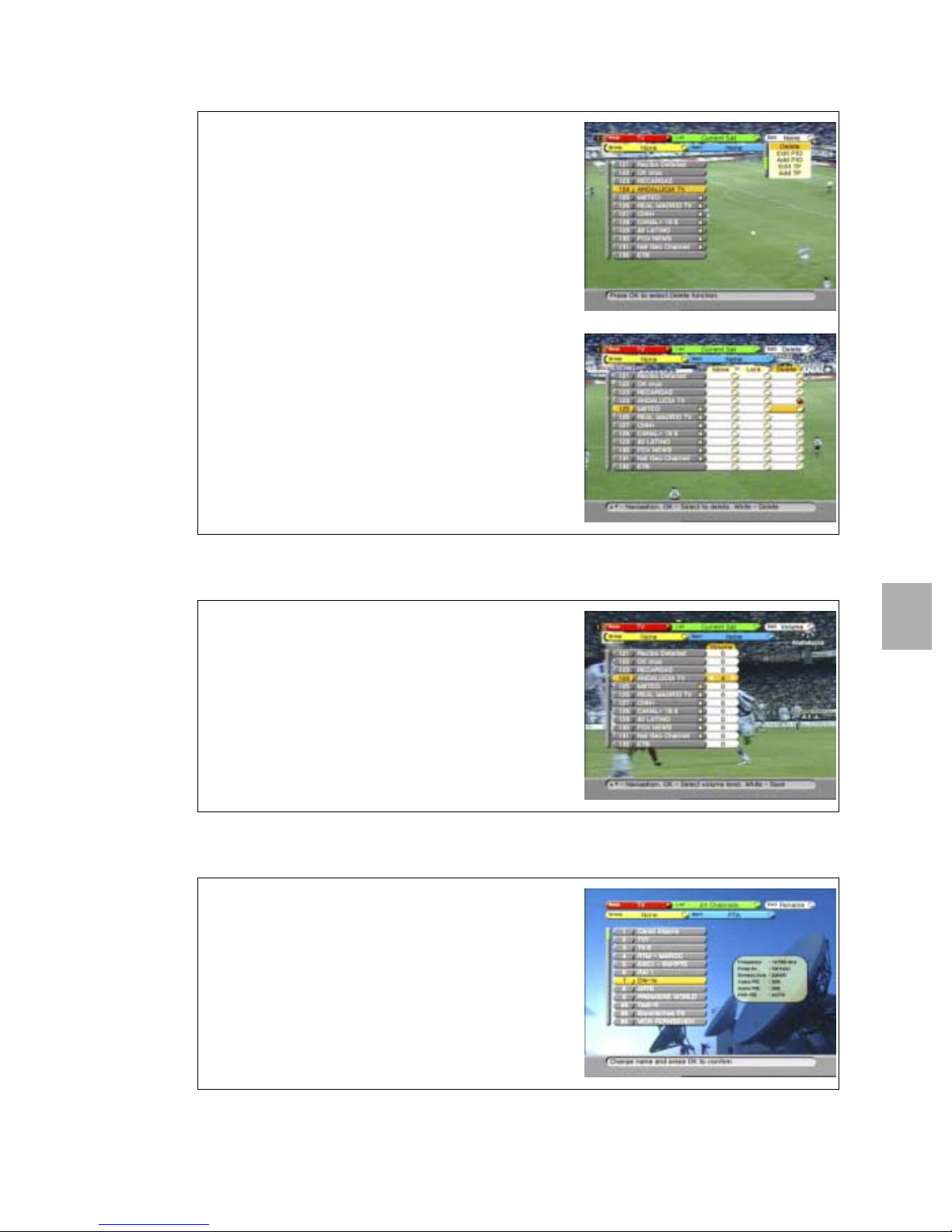

3.4. EDIT

The Edit options are available in the all modes. The Edit option gives you the possibility to customize the different lists. The availability of the Edit options is mode dependent, the available options are:

■ None

No edit option is selected.

■ Move

To enter the move channel function.

■ Add

To enter the add channel function.

■ Rename

To enter the rename channel function.

■ Volum e

To enter the set volume offset function.

■ Lock

To enter the lock channel function.

■ Delete

To enter the delete channel function.

■ Edit PID

To enter the edit PID function.

■ Add PID

To enter the add PID function.

■ Edit TP

To enter the edit TP function.

■ Add TP

To enter the add TP function.

Page 4 - 12 EchoStar DSB-707 FTA

Page 29

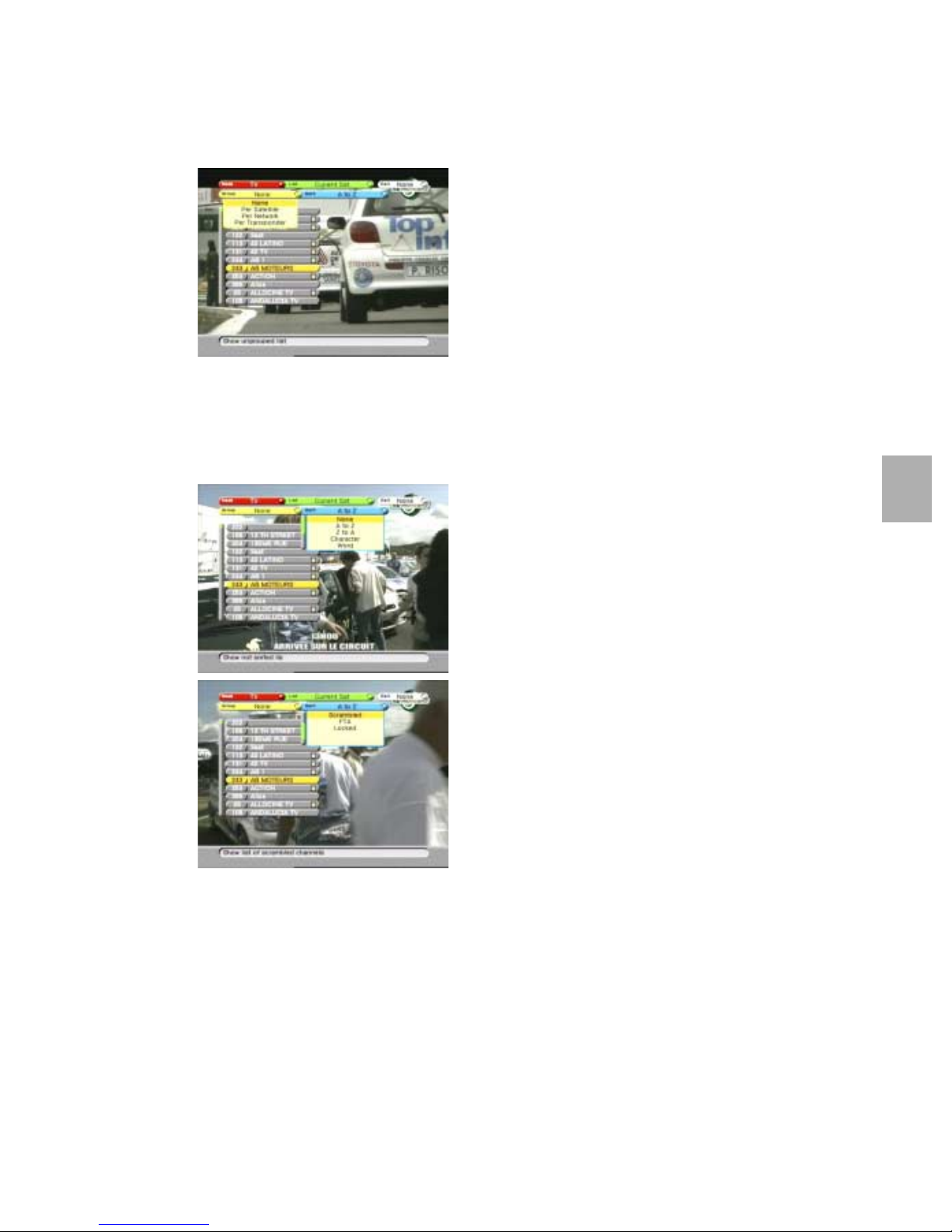

3.5. GROUP

3.6. SORT

Familiarization

Section 4

The Group options are available in the all modes. The Group option allows you to group the lists in different ways. The availability of the Group options is mode dependent, the available options are:

■ None

No group option is selected.

■ Per Satellite

To group the list per satellite.

■ Per Network

To group the list per network.

■ Per Transponder

To group the list per transponder.

The Sort options are available in all modes. The Sort options allow you to sort the lists in different ways. The availability of the Sort options is mode dependent, the available options are:

■ None

No sort option is selected.

■ AtoZ

Sorts a list alphabetically.

■ ZtoA

Sorts a list alphabetically, in reverse order.

■ Character

Shows list with entered character only.

■ Word

Shows a list that contains the selected word only.

■ Scrambled

Shows a list of encrypted channels only.

■ FTA

Shows a list of Free-To-Air channels only.

■ Locked

Shows a list of locked channels only.

Digital Satellite Receiver Page 4 - 13

Page 30

Section 4

Familiarization

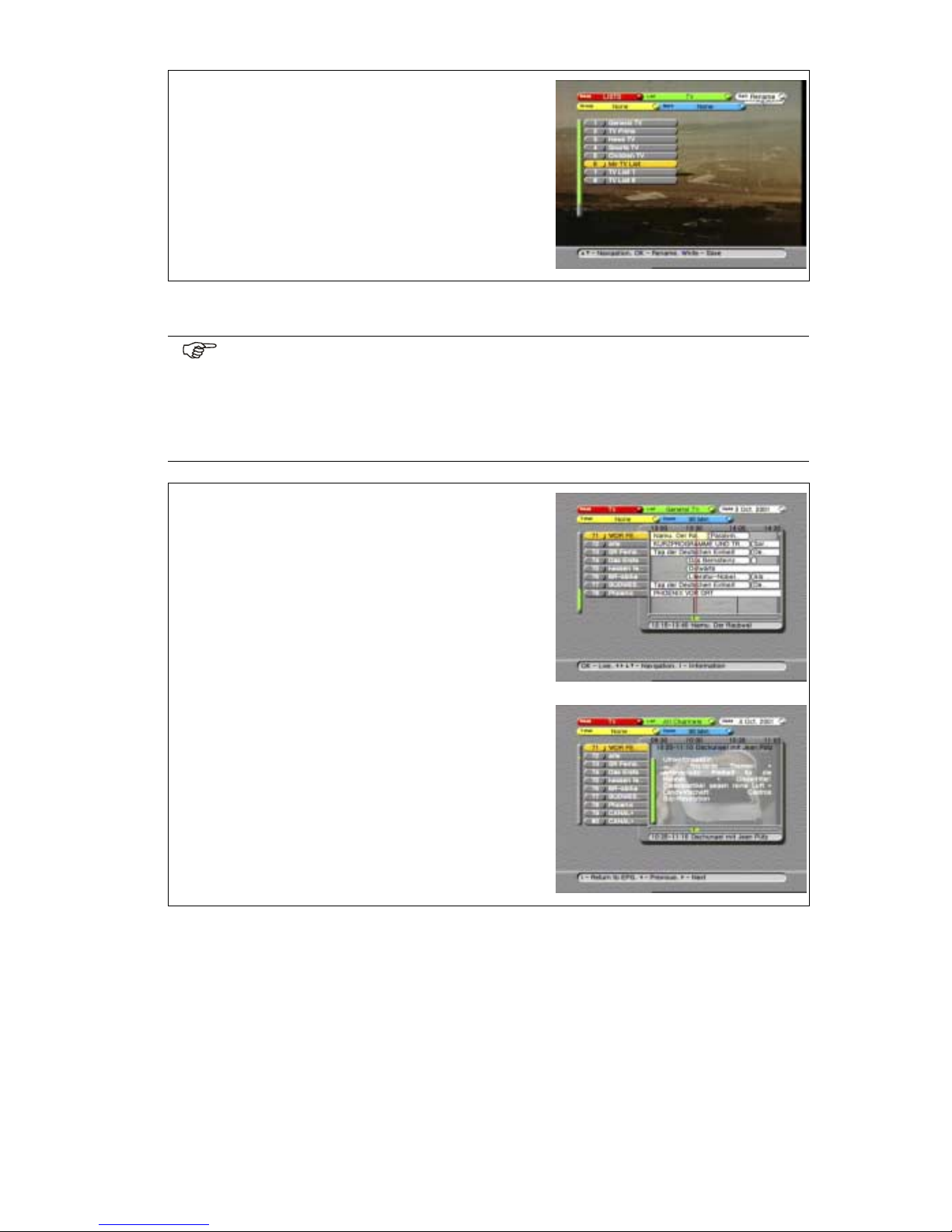

4. THE ELECTRONIC PROGRAM GUIDE (EPG)

Most digital channels transmit program data as an EPG. Digital channels that transmit EPG offer you program information in advance for a certain period of time. Dependent of the service provider, EPG is offeredindifferentways. After you have entered the EPG, you can select the different EPG options, these are:

■ Mode, to select the TV or Radio mode to show;

■ List, to select the list in all channels, current satellite or personal favorite;

■ Date, to access the EPG calendar;

■ Timers, not available in this configuration;

■ Zoom, to expand or shrink the EPG window as a function of the time slot.

5. THE INFOBANNER AND POP-UP MENUS

5.1. THE TV INFOBANNER

The TV InfoBanner shows the information related to the actual channel.

The information shown is (some information only if provided by the service provider.

■ The channel information bar, to show the (favorites) list number and the channel name;

■ The satellite information dish, to show the name of the selected satellite;

■ The program information bar, to show the start time, duration indicator and program name;

■ The i-button, to indicate that there is detailed program information available;

■ The additional information bar, to show the additional service icons. These icons show

only if the additional service is available. The icons are:

- the icon for teletext;

- the icon for alternate audio;

- the icon for alternate subtitling;

- the icon for Dolby Digital audio;

- the icon for Favorite channel;

- the icon for Parental rating information.

■ The digital clock, to show the actual local time;

■ The next program information bar, to show the information of the next program.

■ If the volume +/- key is pressed, the volume button is shown (see the radio InfoBanner).

Page 4 - 14 EchoStar DSB-707 FTA

Page 31

5.2. THE RADIO INFOBANNER

The radio InfoBanner shows the information related to the actual channel. The radio InfoBanner can show the same information as discussed with the TV InfoBanner.

5.3. POP-UP MENUS

Some pop-up menus are used to show that the receiver is busy to execute a task. Other popup menus require interaction with the user, you have to confirm or deny a earlier given command to complete the task

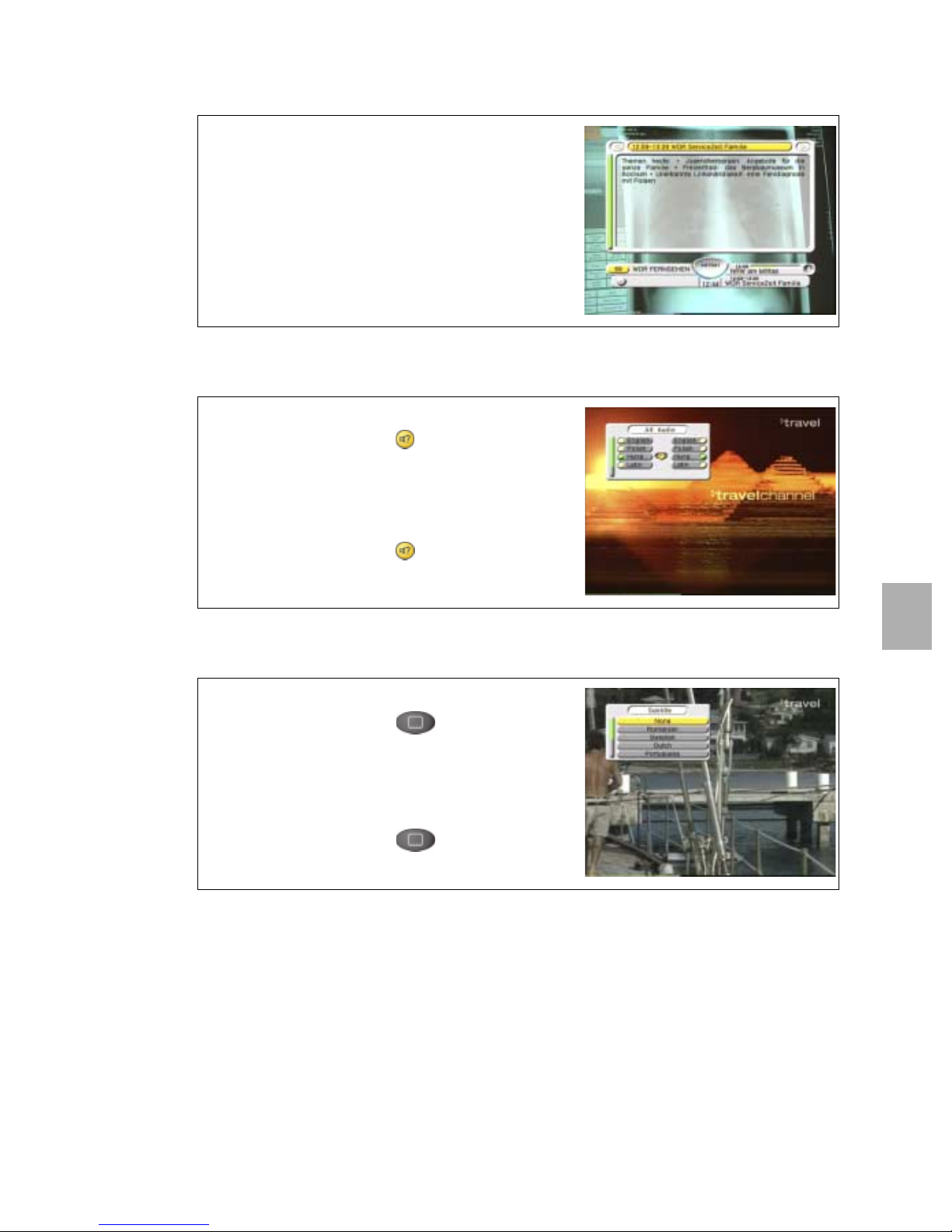

5.3.1. ALT AUDIO

Familiarization

If transmitted, you can set per channel your alternate audio. You can call up the pop-up menu with the alternative audio key on the remote control unit. You can navigate up and down between the audio languages or left and right for bi-lingual programs. For the radio channels, you can navigate up and down between the different radio stations within the selected channel.

Section 4

5.3.2. SUBTITLE

If transmitted, you can set per channel your subtitling You can call up the pop-up menu with the subtitle key on the remote control unit. You can navigate up and down between the languages.

5.3.3. SATELLITE LIST

This pop-up menu gives you the possibility to choose directly from the available satellites. You can call up the pop-up menu with the satellite key on the remote control unit.

Digital Satellite Receiver Page 4 - 15

Page 32

Page 4 - 16 EchoStar DSB-707 FTA

Page 33

OPERATION

1. TO NAVIGATE THROUGH THE MENUS

NOTE

Unless otherwise specified; this note explains the way you can navigate through the pages of the EchoNAV user menu.

1. Use the OK key to pull down the menu selection fields.

2. Use the  keys to scroll the selectable items.

3. Use the  keys to navigate between the left and right column of selectable items.

4. Use the EXIT key to leave the menu and return to the view mode.

5. In a pull-down menu:

- use the OK key to confirm the selection.

- the yellow bar indicates the active selection;

- on the left, the green page indicator indicates where you are.

NOTE

In the following procedures, we assume that you have switched on the TV and the receiver is in the TV mode.

Operation

Section 5

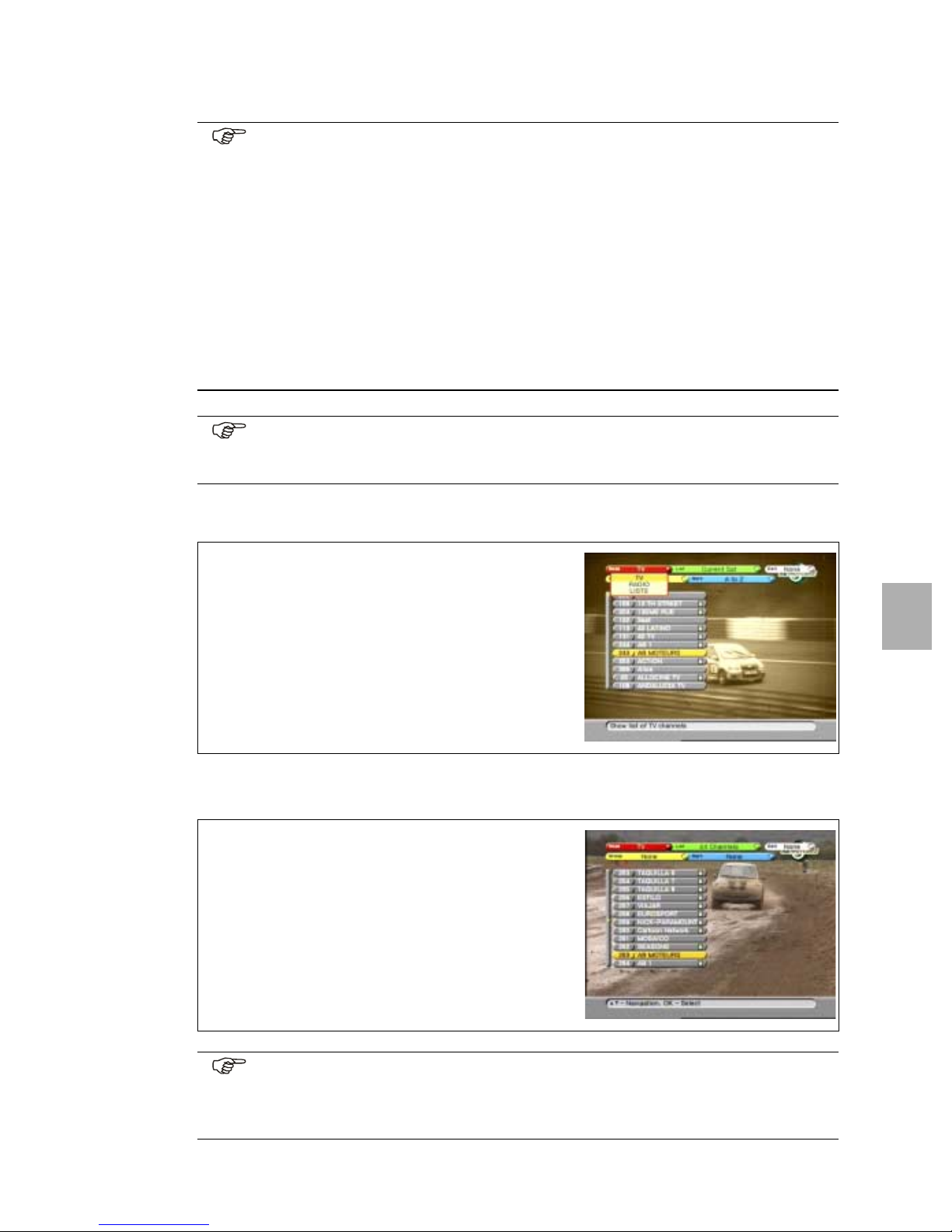

1.1. TO SELECT A MODE

1. On the RCU, press the OK key;

2. Press the RED key and make the selection.

3. Read the available help text for information.

4. Select the required mode.

1.2. TO SELECT A CHANNEL

1. On the RCU, press the OK key.

2. Select the required mode.

3. Read the available help text for information.

4. Select a channel, either: a. use the keys; b. use the page + / - keys; c. use the numbered keys.

5. On the RCU, press the OK key to confirm.

NOTE

Normally, you can not view a scrambled channel with a FTA digital satellite receiver. Sometimes a FTA channel is marked as a scrambled channel or vice versa. This can occur due to code mistakes made by the service provider.

Digital Satellite Receiver Page 5 - 1

Page 34

Section 5

Operation

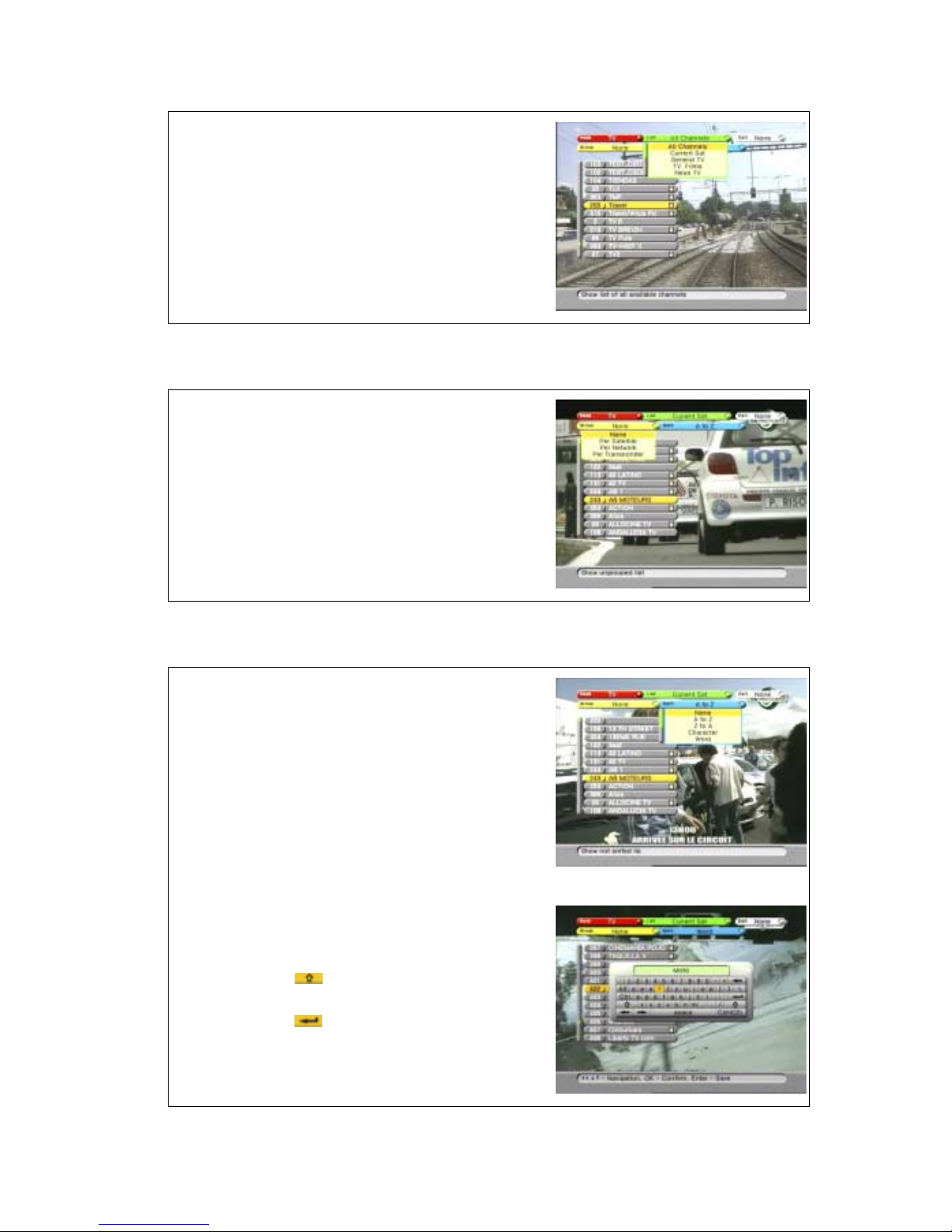

1.3. TO SELECT A LIST

1. On the RCU, press the OK key.

2. Select the required mode.

3. On the RCU press the GREEN key.

4. Read the available help text for information.

5. Select the required list.

1.4. TO GROUP A LIST

1. On the RCU, press the OK key.

2. Select the required mode.

3. On the RCU press the YELLOW key.

4. Read the available help text for information.

5. Select the required group option.

1.5. TO SORT A LIST

1. On the RCU, press the OK key.

2. Select the required mode.

3. On the RCU press the BLUE key.

4. Read the available help text for information.

5. Select the required sort option.

NOTE

- that only for the Character and Word option a keyboard appears.

- that the FTA option only shows the channels which are coded FTA.

6. When the keyboard appears: a. use the arrow keys to navigate; b. press OK to accept the character; c. select the button to get lower case

characters and numbers;

d. select the button e. on the RCU, press the OK key to confirm.

Page 5 - 2 EchoStar DSB-707 FTA

Page 35

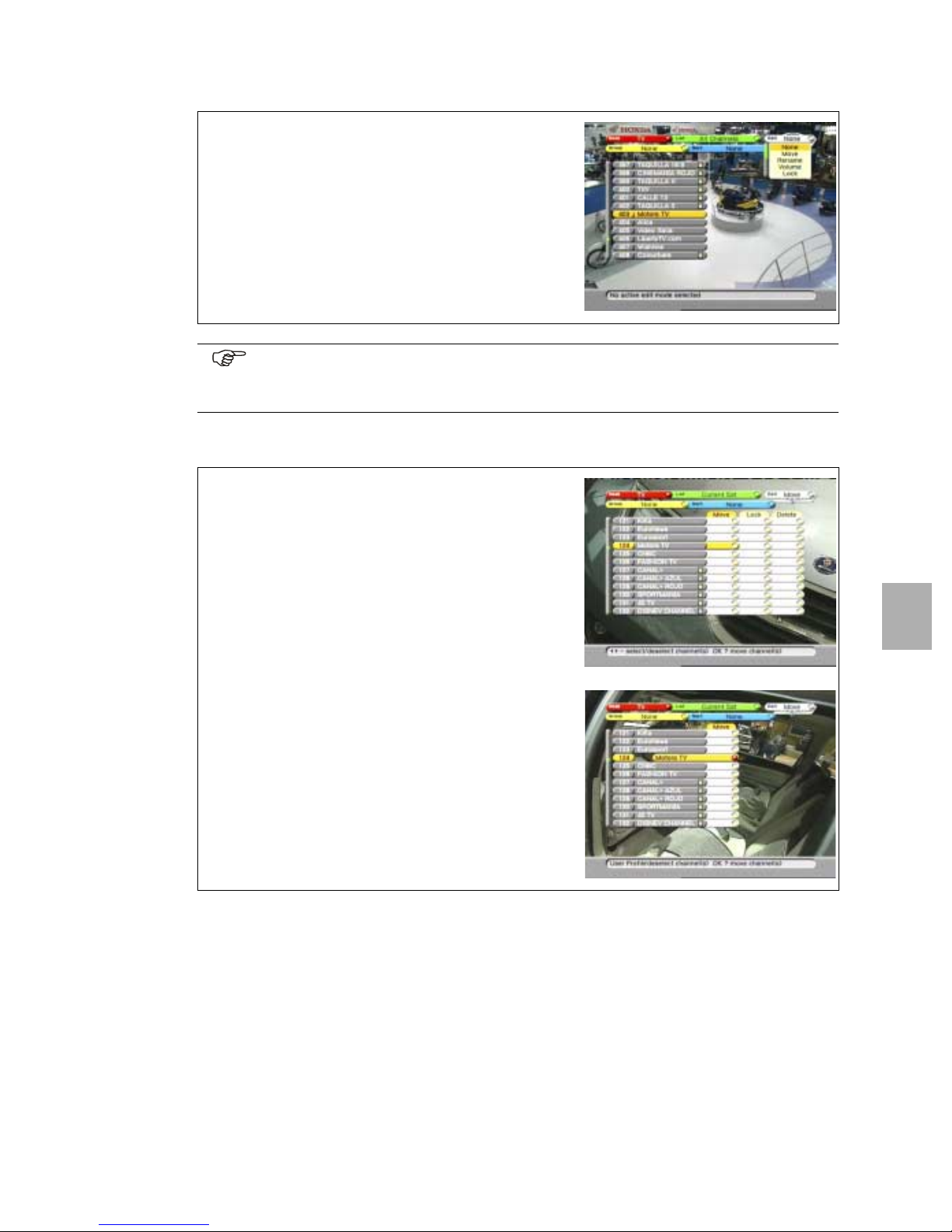

1.6. TO EDIT A LIST

1. On the RCU, press the OK key.

2. Select the required list.

3. On the RCU press the WHITE key.

4. Read the available help text for information.

5. Select the required edit option.

NOTE

Some EDIT options are not always available. If an option is not presented, select Group - None and Sort - None

1.6.1. TO MOVE A CHANNEL

Operation

Section 5

1. In the Edit menu, select the Move option.

2. Read the available help text for information.

3. Go to the channel you want to move.

4. On the RCU, press the OK key. Note a red bullet appears behind the selection.

5. If you want to undo the selection, press the OK key again.

6. Move the channel, either: a. use the keys; b. use the page + / - keys;

7. On the RCU, press the OK key to confirm.

8. Either: a. press the WHITE key to end the session, or b. select the next channel you want to move.

Digital Satellite Receiver Page 5 - 3

Page 36

Section 5

Operation

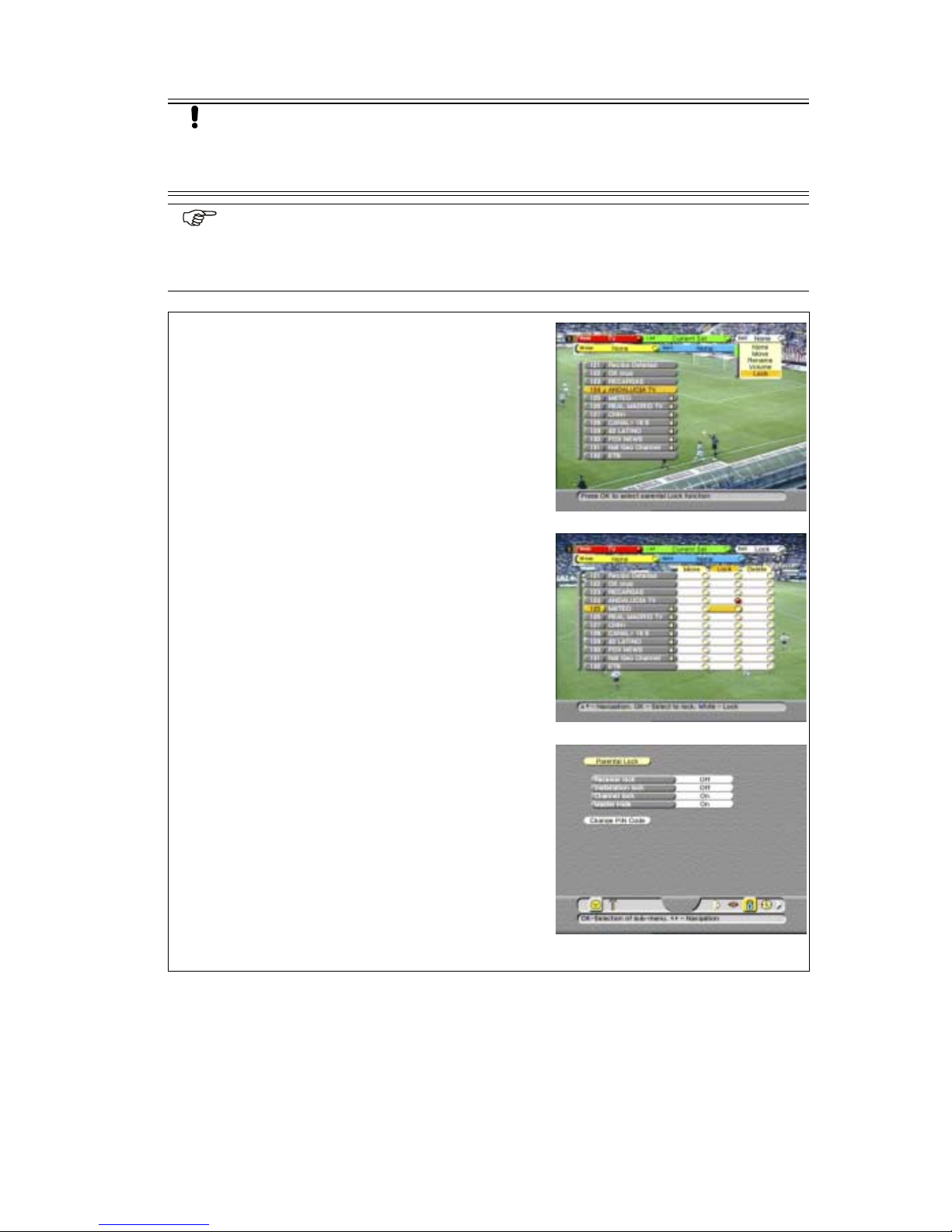

1.6.2. TO LOCK A CHANNEL

CAUTION

You can only lock a channel or favorite if you have set the parental lock and the PIN code correctly. We recommend, in the parental lock menu, that you check if the lock option is set correctly.

NOTE

After you have set a lock onto a channel, the installation and the EDIT menu are automatically locked with an installation lock to prevent unauthorized access. Now you can only access these functions if you know the correct PIN code.

1. In the Edit menu, select the LOCK option.

2. Read the available help text for information.

3. Go to the channel you want to lock.

4. On the RCU, press the OK key. Note a red bullet appears behind the selection.

5. If you want to undo the selection, press the OK key again.

6. Either: a. press the WHITE key to confirm the lock and

end the session, or

b. select the next channel you want to lock.

7. You can temporarily unlock all channels: a. On the RCU, press the MENU key; b. Select the Parental Lock menu; c. Enter the correct PIN code as requested; d. Set the channel lock to Off.

8. You can restore all the locks on the channels: a. On the RCU, press the MENU key; b. Select the Parental Lock menu; c. Enter the correct PIN code as requested; d. Set the channel lock to On.

Page 5 - 4 EchoStar DSB-707 FTA

Page 37

1.6.3. TO DELETE A CHANNEL

1. In the Edit menu, select the DELETE option.

2. Read the available help text for information.

3. Go to the channel you want to delete.

4. On the RCU, press the OK key. Note a red bullet appears behind the selection and the cursor advances to the next channel.

5. If you want to undo the selection, press the OK key again.

6. Either: a. press the WHITE key to confirm the deletion

and end the session, or

b. select the next channel you want to delete.

Operation

Section 5

1.6.4. TO SET THE CHANNEL VOLUME OFFSET

1. In the Edit menu, select the VOLUME option.

2. Read the available help text for information.

3. Go to the channel you want to edit.

4. On the RCU, use the  keys to set the volume.

5. Either: a. Press the WHITE key to end the session, or b. select the next channel you want to edit.

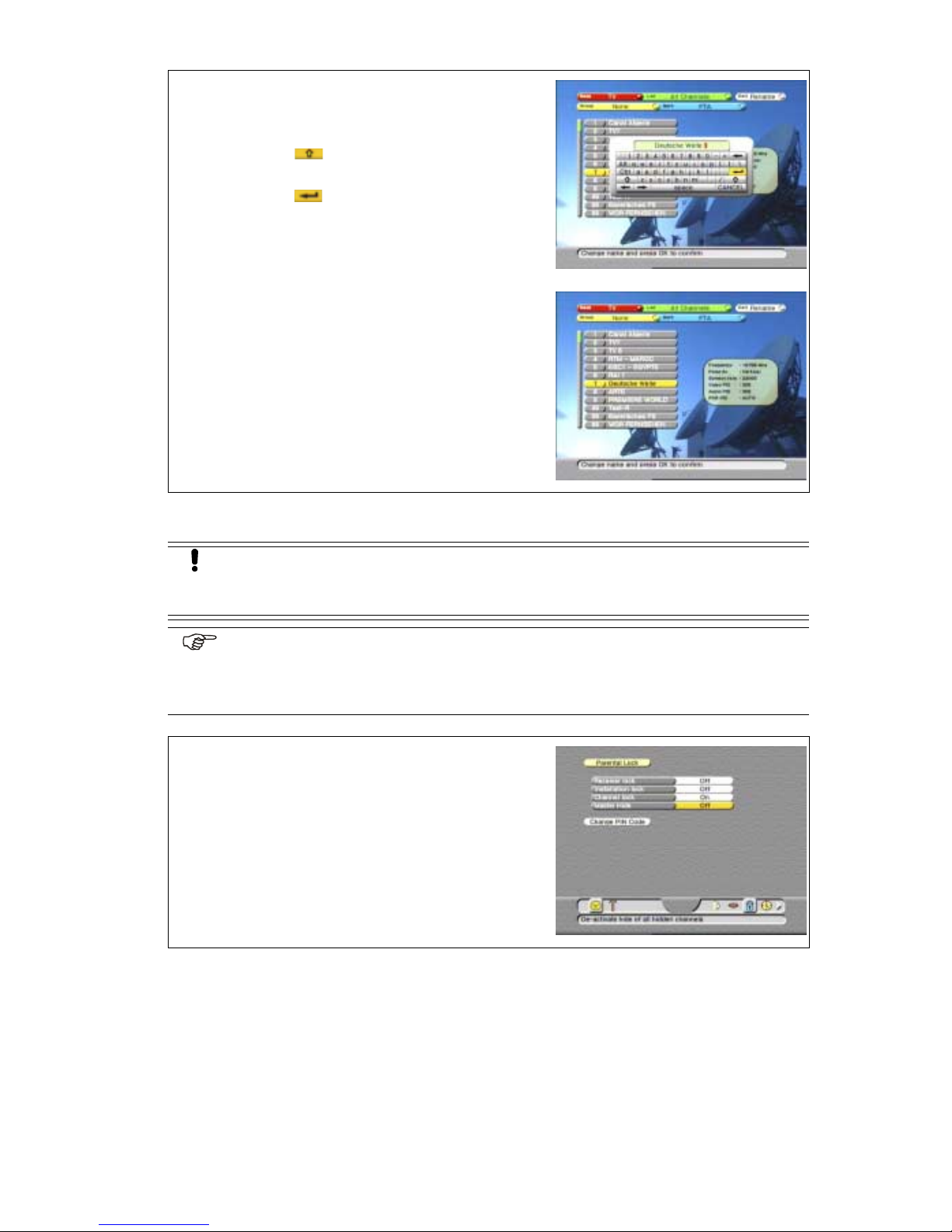

1.6.5. TO RENAME A CHANNEL

1. In the Edit menu, select the RENAME option.

2. Read the available help text for information.

3. Go to the channel you want to rename.

4. On the RCU, press the OK key.

Digital Satellite Receiver Page 5 - 5

Page 38

Section 5

5. When the keyboard appears:

6. Either:

Operation

a. use the arrow keys to navigate; b. press OK to accept the character; c. select the button to get lower case

characters and numbers;

d. select the button e. on the RCU, press the OK key to confirm.

a. Press the WHITE key to end the session, or b. select the next channel you want to rename.

1.6.6. TO HIDE A CHANNEL

CAUTION

You can only hide a channel if you have set the parental lock and the PIN code correctly. We recommend that you check if the hide option is set correctly.

NOTE

After you have set a hide onto a channel, the installation and the EDIT menu are automatically locked with an installation lock to prevent unauthorized access. Now you can only access these functions if you know the correct PIN code.

1. Make the hide function available for edit: a. On the RCU, press the MENU key; b. Select the Parental Lock menu c. Enter the correct PIN code as requested;

2. Set the Master Hide to Off.

Page 5 - 6 EchoStar DSB-707 FTA

Page 39

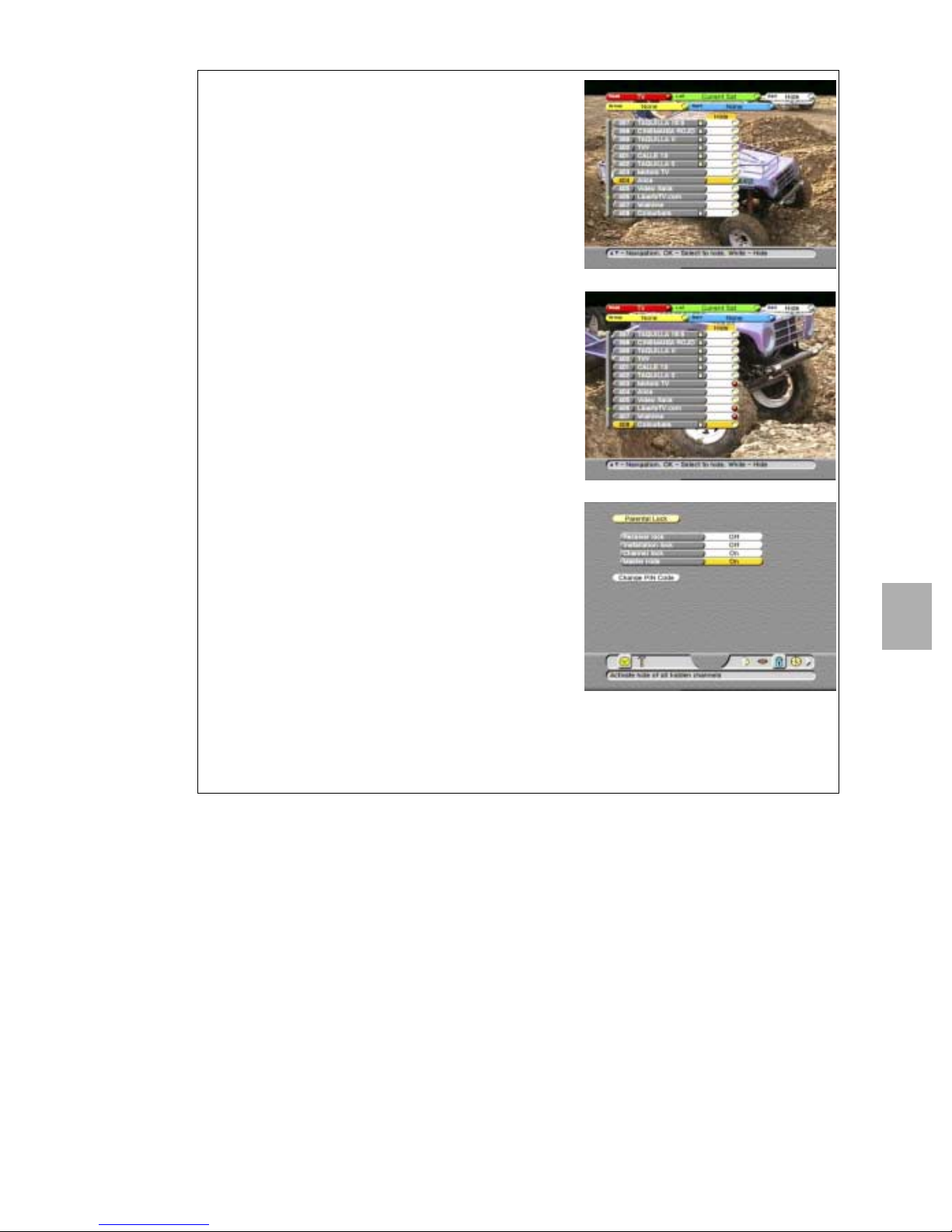

1. In the Edit menu, select the HIDE option.

2. Read the available help text for information.

3. Go to the channel you want to hide.

4. On the RCU, press the OK key. Note a red bullet appears behind the selection.

5. If you want to undo the selection, press the OK key again.

6. Either: a. press the WHITE key to confirm the hide and

end the session, or

b. select the next channel you want to hide.

Operation

Section 5

7. Make the hide function active a. On the RCU, press the MENU key; b. Select the Parental Lock menu c. Enter the correct PIN code as requested;

8. Set the Master Hide to On.

9. You can temporarily unhide all channels:

a. On the RCU, press the MENU key; b. Select the Parental Lock menu c. Enter the correct PIN code as requested; d. Set the Master Hide to Off.

10. You can restore all the hides on the channels: a. In the parental lock menu, set the Master Hide

to On.

2. USE THE FAVORITE LISTS

Navigation and use of the favorite lists are the same as for the all channels and current satellite list as described before. The main difference is that you can setup and organize the favorite lists as required. EchoStar has already pre-named the favorite lists to help you getting started. It is however possible to change the name of the favorite list to something that is meaningful to you.

For adding channels quickly, you can use the group and sort option first to limit the amount of channels where you want to choose from. As an example, now it is possible to add all sport related channels in one step to the Sports TV favorite list.

Note that for each mode, a separate number of favorite lists is available.

Digital Satellite Receiver Page 5 - 7

Page 40

Section 5

Operation

2.1. ADD A CHANNEL TO A FAVORITE LIST

1. On the RCU, press the OK key.

2. Select the required mode.

3. Read the available help text for information.

4. Group and sort the all channels list to locate the required channel quickly.

5. On the RCU press the GREEN key.

6. Select the favorite list to which you want to add a channel.

7. On the RCU press the WHITE key.

8. Select the add option.

9. Read the available help text for information.

10. Go to the channel you want to add.

11. On the RCU, press the OK key. Note a red bullet appears behind the selection and the cursor advances to the next channel.

12. If you want to undo the selection, press the OK key again.

13. Press the WHITE key to end the session.

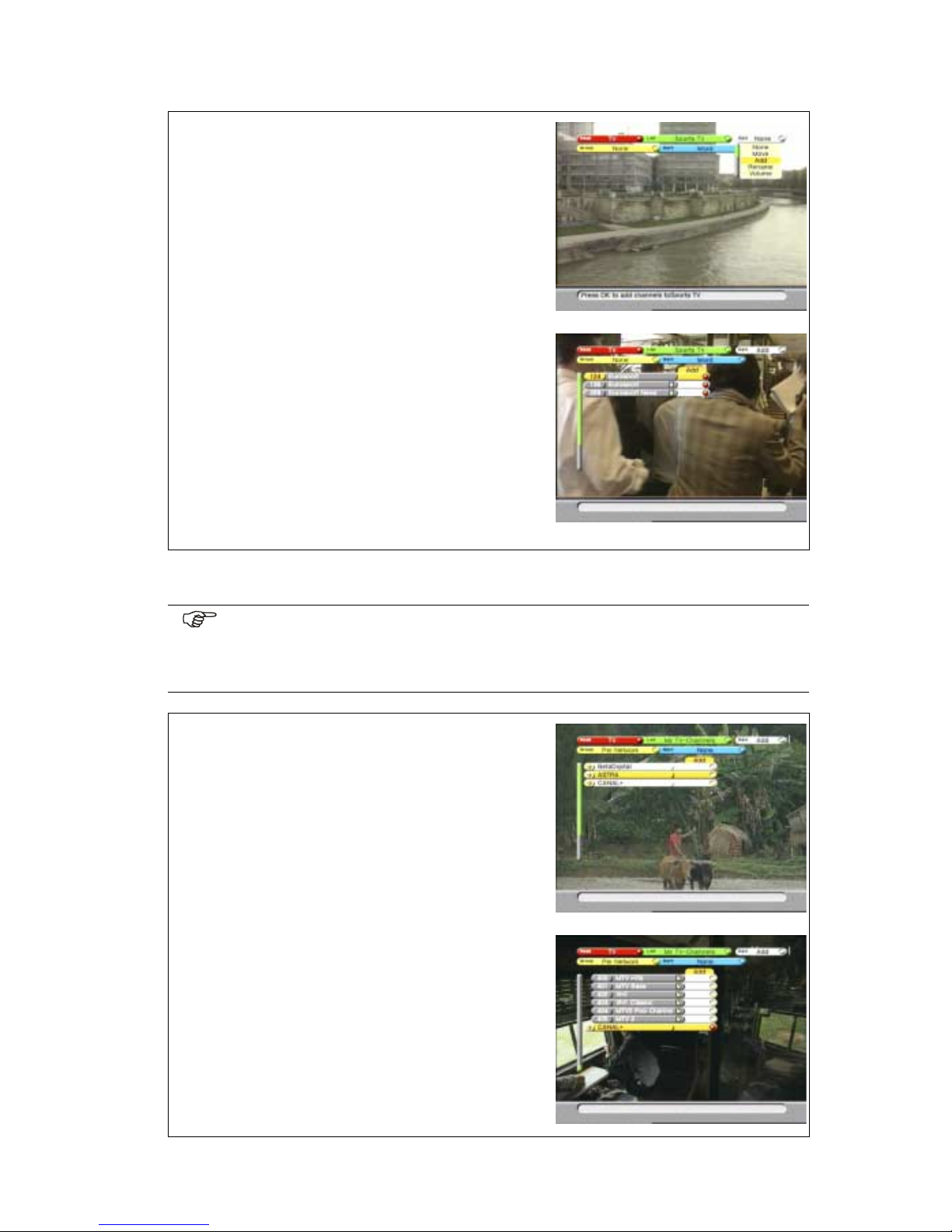

2.2. ADD A GROUP OF CHANNELS TO A FAVORITE LIST

NOTE

As an example, this procedure details the instructions on how to add a group of channels to a favorite list. In this example we add a complete network to the My TV Channels favorite list

1. On the RCU, press the OK key.

2. Select the required mode.

3. Read the available help text for information.

4. Group the channels as required.

5. Select the favorite list to which you want to add the group of channels.

6. On the RCU press the WHITE key.

7. Select the add option.

8. Read the available help text for information.

9. Go to the network you want to add.

10. On the RCU, press the OK key. Note a red bullet appears behind the selection and the cursor advances to the next item.

11. If you want to undo the selection, select again and press the OK key.

Page 5 - 8 EchoStar DSB-707 FTA

Page 41

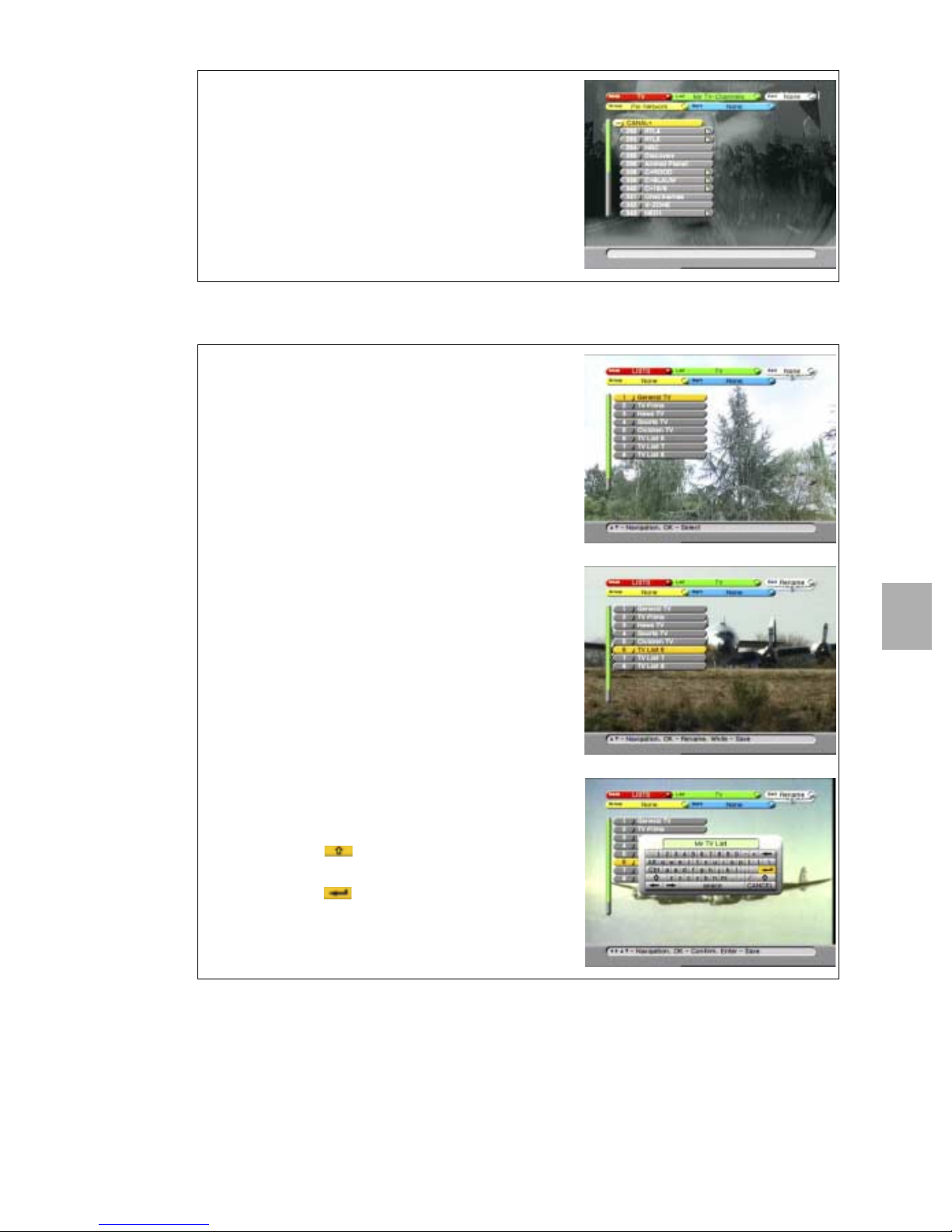

12. Press the WHITE key to end the session.

13. If only the network bar is show, press the i-key to expand the selection.

14. Select a channel.

15. On the RCU, press the OK key to view the selected channel. Note that in the left bar of the InfoBanner, a heart symbol appeared to indicate that this channel is a favorite channel.

2.3. RENAME A FAVORITE LIST

1. On the RCU, press the OK key;

2. Press the RED key and select Lists.

3. Press the GREEN key and select the category.

Operation

Section 5

4. In the Edit bar, select the RENAME option.

5. Read the available help text for information.

6. Go to the favorite list you want to rename.

7. On the RCU, press the OK key.

8. When the keyboard appears: a. use the arrow keys to navigate; b. press OK to accept the character; c. select the button to get lower case

characters and numbers;

d. select the button e. on the RCU, press the OK key to confirm.

Digital Satellite Receiver Page 5 - 9

Page 42

Section 5

Operation

9. Either: a. press the WHITE key to end the session, or b. select the next favorite list you want to

rename.

3. TO USE THE ELECTRONIC PROGRAM GUIDE (EPG)

NOTE

The EPG information is not always available. Sometimes the service provider (who sends the EPG information) supplies only the program name, the now/next information or sometimes nothing at all. EchoStar has no influence on this matter. Make sure the local time is set otherwise you cannot view EPG information because it needs the correct time (Refer to the Local Time menu).

1. Use the EPG key to access the main EPG menu.

2. Allow the receiver to collect the EPG information for the selected channel.

3. Read the available help text for information.

4. Use the  keys to select a channel.

5. Use the  keys to select the programs.

6. Use the i-key to shift between detailed program information and the main EPG menu.

7. Use the OK key to view the selected channel.

Page 5 - 10 EchoStar DSB-707 FTA

Page 43

Operation

3.1. USE THE INFOBANNER RELATED FUNCTIONS

1. On the RCU, press the i-key.

2. If available, allow the receiver to collect the EPG information for the selected channel.

3. If the i-button in the InfoBanner is shown, use the i-key on the RCU to shift between the detailed program information and the InfoBanner.

4. On the RCU, press the EXIT key to remove the InfoBanner from the screen (only in TV-mode).

3.2. TO SELECT THE ALTERNATE AUDIO

1. On the InfoBanner, find the alt audio symbol.

2. On the RCU, press the key.

3. In the Alt. Audio pop-up menu, select the required alternate audio. Note that alternate audio information is provided by the service provider.

Section 5

4. On the RCU, press the key twice.

3.3. TO SELECT THE SUBTITLE LANGUAGE

1. On the InfoBanner, find the subtitle symbol.

2. On the RCU, press the key.

3. In the subtitle pop-up menu, select the required subtitle language. Note that subtitle information is provided by the service provider.

4. On the RCU, press the key.

Digital Satellite Receiver Page 5 - 11

Page 44

Section 5

Operation

3.4. TO SELECT ANOTHER SATELLITE

1. On the RCU, press the key.

2. In the Satellites List pop-up menu, select the required satellite.

3. On the RCU, press the OK key. Note that the dish moves towards the selected satellite.

4. TO SET THE USER PREFERENCES

4.1. TO CHANGE THE USER PROFILE

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. On the RCU: a. press the MENU key to save the settings; b. press the EXIT key to leave the menu.

4.2. TO CHANGE THE LANGUAGE

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. On the RCU: a. press the MENU key to save the settings; b. press the EXIT key to leave the menu.

Page 5 - 12 EchoStar DSB-707 FTA

Page 45

4.3. TO SET THE PARENTAL LOCK

NOTE

This procedure does not lock a specific channel. After you made the parental control settings, you must lock the required channels or favorites manually. For a detailed procedure, please refer to the paragraph To Lock a channel.

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Enter the correct PIN code as requested

3. Read the available help text for information.

4. Make the selections.

5. On the RCU: a. press the MENU key to save the settings; b. press the EXIT key to leave the menu.

Operation

Section 5

4.4. TO CHANGE THE PIN CODE

1. Select the parental Lock menu

2. Enter the correct PIN code as requested

3. Select the Change PIN Code bar.

4. On the RCU, press the OK key.

5. Read the available help text for information.

6. In the Change PIN code menu, make the required selections. Now you will return to the parental lock menu.

7. On the RCU: a. press the MENU key to save the settings; b. press the EXIT key to leave the menu.

Digital Satellite Receiver Page 5 - 13

Page 46

Section 5

Operation

4.5. TO SET THE LOCAL DATE AND TIME

NOTE

Make sure the local time is set correctly otherwise you cannot view and use the EPG information because the EPG and the related timers need the correct time.

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. On the RCU: a. press the MENU key to save the settings; b. press the EXIT key to leave the menu.

4.6. TO SET THE DAYLIGHT SAVINGS TIME

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Select the summer time option: a. off for winter time (no daylight savings time); b. on for summer time (+ 1 hour).

3. Read the available help text for information.

4. On the RCU: a. press the MENU key to save the settings; b. press the EXIT key to leave the menu.

4.7. TO SET THE TV SYSTEM

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. On the RCU: a. press the MENU key to save the settings; b. press the EXIT key to leave the menu.

Page 5 - 14 EchoStar DSB-707 FTA

Page 47

MAINTENANCE

1. HARDWARE MAINTENANCE

WARNING

RISK OF ELECTRICAL SHOCK.

EMOVE THE MAINS PLUG FROM THE POWER SUPPLY SOCKET BEFORE YOU CLEAN THE

RECEIVER

1. Switch the receiver to off and make sure the display shows black.

2. Remove the mains plug from the power supply socket.

3. Wait at least five seconds, to help avoid possible damage to the receiver’s electronics.

4. Use a dry, soft and clean lint-free cleaning cloth to clean the receiver.

5. Other cleaning agents can cause damage to the outside surface. a. Make a dry, soft and clean lint-free cleaning cloth a little damp. b. Carefully wipe the surface and make sure that no moisture gets into the receiver. c. Let the receiver dry on the air.

6. Install the receiver and make sure all connections on the rear panel are made correctly (For more detailed instructions, please refer to section Installation).

7. Connect the mains plug to the power supply socket.

8. Set the local time, for detailed instructions please refer to the section Operation.

.MAKE SURE, IF USED, CLEANING AGENTS CANNOT GET IN THE RECEIVER.

Maintenance

Section 6

NOTE

Make sure the local time is set correctly otherwise you cannot view and use the EPG information because the EPG and the related timers need the correct time.

2. SOFTWARE MAINTENANCE

NOTE

2.1. TO CHANGE THE SETUP OF THE RECEIVER

1. On the RCU, press:

Unless otherwise specified; This note explains the way you can navigate through the maintenance pages of the EchoNAV setup menu.

1. Use the OK key to pull down the menu selection fields.

2. Use thearrow keys to go through the selectable menu items.

3. In a pull-down menu, use the OK key to confirm the selection.

4. Use thearrow keys to navigate between the left and right column of selectable menu items.

5. Use the EXIT key to leave the menu and return to the live mode.

a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the or menu.

2. Press the OK key and make the selections, note that you cannot change the System field.

3. Read the available help text for information.

4. Go to the Check Signal field.

5. On the RCU, press the OK key.

Digital Satellite Receiver Page 6 - 1

Page 48

Section 6

6. Wait for the Check Signal page to appear.

7. In the Check Signal menu make the required

8. Read the available help text for information.

9. If the red dot in the transponder field stays:

10. Go to the Search Channels field.

11. On the RCU, press the OK key.

12. Wait for the search to complete:

13. On the RCU:

Maintenance

selections for transponder and search mode.

a. select another transponder; b. go to the check signal field; c. on the RCU, press the OK key.

a. the receiver display shows a moving dot; b. the search completed popup menu appears.

a. press the OK key to save the settings; b. press the EXIT key to leave the menu.

2.2. TO CHANGE THE USER LNB SETTINGS

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. Go to the Store Settings field.

5. On the RCU: a. press the OK key to save the settings; b. press the EXIT key to leave the menu.

2.3. ABOUT ECHOSTAR - RECEIVER INFORMATION

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. In the About EchoStar information menu you can look up the factory and receiver information.

3. Read the available help text for information.

Page 6 - 2 EchoStar DSB-707 FTA

Page 49

Maintenance

2.4. TO DO A SOFTWARE UPDATE FROM THE SATELLITE

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. Go to the System Upgrading field.

Section 6

5. On the RCU, press the OK key.

6. Wait for the system upgrade to complete.

WARNING D

O NOT PRESS ANY KEYS DURING THE SESSION, THIS

CAN INTERRUPT THE SOFTWARE UPGRADE SEQUENCE

WHICH CAN DAMAGE THE RECEIVER PERMANENTLY

NOTE

EchoStar offers on a regular basis software updates via the satellite and the EchoStar website. If you have trouble to get a download with the latest software version, please ask your retail seller or dealer for assistance.

2.5. TO DO A FACTORY RESET

1. On the RCU, press:

NOTE

Be sure if you select Memory Erase because all your personal settings will be deleted and replaced with the factory settings. An example of the personal settings that will be deleted are Parental Lock, Favorite lists and System setup. Memory erase resets the receiver as if the receiver comes just out of the box.

a. the MENU key;

■ The receiver display shows:

- ota (check for new software)

- d1...d100 (downloading)

- P1...P100 (upgrading)

- done (update memory)

- C.... (channel indication)

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. Go to the Confirm Reset field.

5. On the RCU, press the OK key.

6. Wait for the Languages initial setup menu to appear.

7. Do the initial setup, refer to the section Installation for detailed instructions.

Digital Satellite Receiver Page 6 - 3

Page 50

Section 6

Maintenance

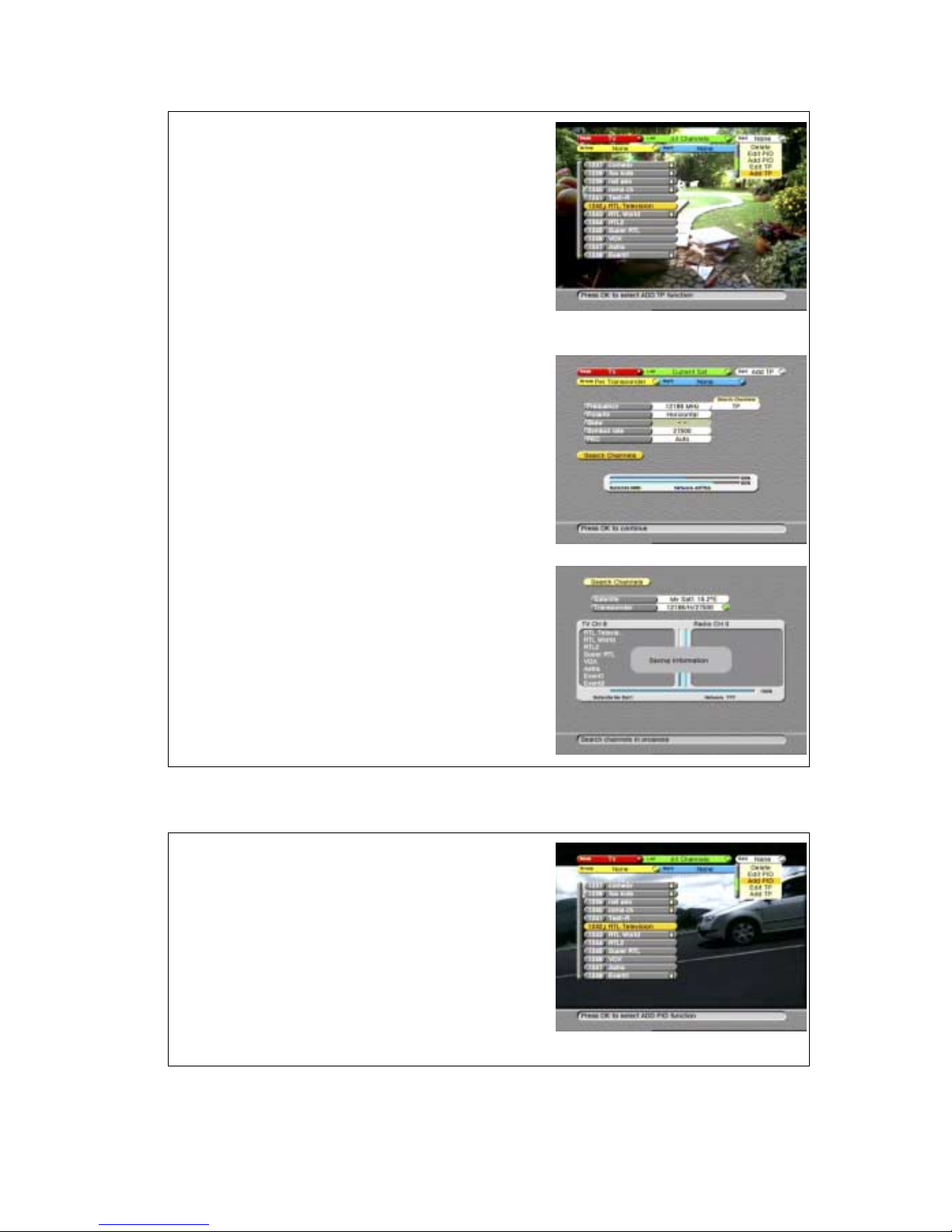

2.6. TO ADD A TRANSPONDER

1. Select a channel of the satellite to which you want to add a transponder.

2. On the RCU, press: a. the OK key; b. Select Mode = TV c. Select List = All Channels d. Select Group = None e. Select Sort = None f. Select Edit = Add TP

3. On the RCU, press the OK key.

4. On the RCU, press the OK key again to advance.

5. Enter the required settings.

6. Read the available help text for information.

7. Monitor the signal indicator and make sure that you have sufficient signal strength and quality.

8. Go to the Search Channels field.

9. On the RCU, press the OK key to advance.

10. Wait for the search to complete: a. the receiver display shows a moving dot; b. the search completed popup menu appears.

11. On the RCU: a. press the OK key to advance; b. press the white key to end the procedure; c. press the EXIT key to return to live video.

2.7. TO ADD A PID

1. Select a channel of the transponder to which you want to add a PID.

2. On the RCU, press: a. the OK key; b. Select Mode = TV c. Select List = All Channels d. Select Group = None e. Select Sort = None f. Select Edit = Add PID

3. On the RCU, press the OK key.

Page 6 - 4 EchoStar DSB-707 FTA

Page 51

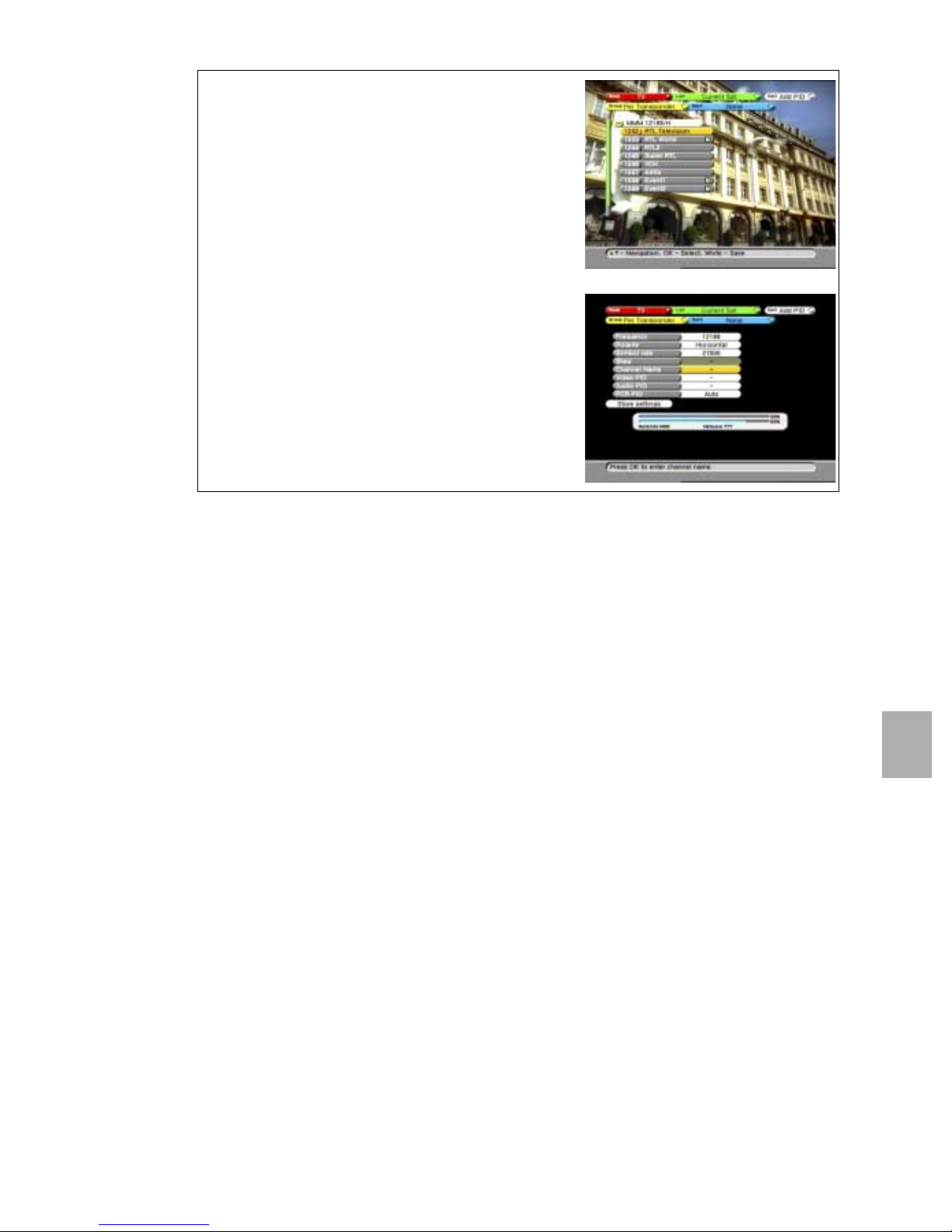

4. Select the applicable transponder.

5. On the RCU, press the OK key.

6. Enter the required settings.

7. Read the available help text for information.

8. Monitor the signal indicator and make sure that you have sufficient signal strength and quality.

9. Go to the Store Settings field.

10. On the RCU: a. press the OK key to store the settings; b. press the white key to end the procedure; c. press the EXIT key to return to live video.

Maintenance

Section 6

3. END OF LIFE DISPOSAL

Your receiver and related accessories contain materials which can be recycled and reused. Specialized companies can recycle your equipment to increase the amount of reusable materials and to minimize the amount of materials to be disposed of.

Please inform yourself on local regulations on disposal of your equipment.

Digital Satellite Receiver Page 6 - 5

Page 52

Page 6 - 6 EchoStar DSB-707 FTA

Page 53

TROUBLESHOOTING

1. TO SOLVE A PROBLEM

1.1. GENERAL

Problem Possible cause What to do?

Troubleshooting

Section 7

1. Nothing appears on the receiver display.

2. You have forgotten the personal PIN-code.

1.2. EPG RELATED

Problem Possible cause What to do?

1. The EPG is empty.

2. The EPG shows (little) grey balloons without text.

■ Main power cable is

damaged or not connected.

■ General domestic power

failure

■ Youhaveselectedan

empty (favorites) list.

■ The selected program

supports no EPG.

■ The local time is not

correct.

■ The time scale of the

EPG is to big.

■ Check the main power

cord and insert it in the (wall) socket).

■ Check the domestic

power supply and insert a new fuse.

■ Contact your dealer.

■ Select another (favorites)

list.

■ There is no solution for

this.

■ In the Local Time menu,

set the correct time.

■ Use the zoom function

(blue bar) to reduce the time scale until the information can be read.

■ Select the grey balloon

andontheRCU,press theibuttontoviewand read the information.

1.3. TV AND RADIO RELATED

Problem Possible cause What to do?

1. No picture or sound in the TV or radio mode.

Digital Satellite Receiver Page 7 - 1

■ Receiver is in standby. ■ Switch the receiver on.

■ Cable related problems. ■ Check the cable

connections and do any necessary work.

■ Dish/LNB related

problems.

■ Make sure the dish and

LNB are correctly adjusted. Do any necessary work.

Page 54

Section 7

Problem Possible cause What to do?

Troubleshooting

2. Bad picture or noisy sound in the TV or radio mode.

3. The TV shows a No Signal message.

4. There is no Dolby digital (AC-3)soundtomyother equipment.

5. I can not view or listen to a scrambled channel.

6. I cannot find a channel which should be there.

7. The TV shows a popup:

■ Bad reception of the

signal.

■ Make sure the dish and

LNB are clean and correctly adjusted. Do any necessary work.

■ Signal interference with

UHF-installation.

■ Check the UHF settings.

Make sure you use the correct channel. Please refertotheTV/radiouser guide.

■ Bad reception of the

signal.

■ Make sure the channel

selected transmits.

■ Make sure the correct

dish or LNB is selected.

■ Make sure the dish and

LNB are clean and correctly adjusted. Do any necessary work.

■ The equipment is

connected to the receiver with a RCA or SCARTcable only.

■ Connect the

S/P DIF connector of the receiver to the Dolby digital input of the receiving equipment.

■ The receiver is FTA only

which means that you

■ Thereisnosolutionfor

this. can not view scrambled channels.

■ The group or sort option

is set.

■ Youareinthewronglist. ■ Check the all channels

■ Set the group and sort

mode to none.

list and select the correct

(favorite) list.

■ The channel is hidden. ■ Unhide the channel.

■ You have selected an

empty (favorite) list.

■ Press the WHITE key

Select the add option.

■ Press the GREEN key

Select the Current Sat or

All Channels list.

Page 7 - 2 EchoStar DSB-707 FTA

Page 55

Troubleshooting

1.4. REMOTE CONTROL UNIT (RCU) RELATED

Problem Possible cause What to do?

Section 7

1. Receiver does not respond to the RCU.

2. Receiver does sometimes not respond to the RCU.

1.5. INSTALLATION RELATED

Problem Possible cause What to do?

1. My television does not receive any signal from the receiver (UHF only)

2. My television does not receive any signal from the receiver

3. My television shows black areas on the left and right of the screen.

4. During (initial) setup of the receiver, no channels are found.

■ Batteries are empty. ■ Insert new batteries.

■ Direct sun light from

behind the receiver.

■ Youdonotaim

sufficiently at the receiver.

■ Batteries are almost

■ Close the sun blinds or

get closer to the receiver.

■ Aim at the receiver

display.

■ install a RCU extender.

■ Insert new batteries.

empty.

■ You did not select the

correct audio/video channel on your TV.

■ Refer to the user manual

of the TV for instructions.

■ On the receiver, In the

TV system menu select the correct channel and PAL setting.

■ Use another method to

connect the receiver.

■ You did not select the

correct A/V channel on

■ Select the correct A/V

channel on your TV.

your TV.

■ You did not use a correct

SCART cable.

■ Use only a full featured

SCART cable that is correctly shielded.

■ You did not select the

correct aspect ratio for your TV.

■ You did not select the

correct LNB(F).

■ On the receiver, in the

user profile menu select the correct aspect ratio.

■ On the receiver, in the

installation setup menu select the correct LNB(F).

■ When installed, you have

selected the incorrect switch type or port.

■ On the receiver, in the

installation setup menu make the correct selections.

■ You have selected the

incorrect satellite to search channels on.

■ On the receiver, in the

installation setup menu select the correct satellite.

■ You have selected the

incorrect search method.

■ At an initial setup, always

choose the option All.

Digital Satellite Receiver Page 7 - 3

Page 56

Page 7 - 4 EchoStar DSB-707 FTA

Page 57

GLOSSARY

1. LIST OF USED ABBREVIATIONS

Glossary

Section 8

A/V

ANT

ATA Advanced Technology Attachement min.

ºC

CAM

CE Conformite European NVOD

D2MAC Digital Multiplexed Analog

DAC Digital Analog Converter PAL B/G

dBm

DiSEqC

DMA Direct Memory Access PIN

DVB

EPG

ºF

FTA

GMT

GND

GUI

H-H

IDE Intelligent Drive Equipment TP

IEC International Electrotechnic

IRD Integrated Receicer Decoder (the

ISO

kHz

LNB

LNBF

max.

Mbps

Audio/Video Alternating Current ANTenna (terrestial)

Celcius Conditional Access Module Compact Disc

CHannel Common Interface

Component version 2

deciBell deciBell milliwatts

Direct Current Digital Satellite Equipment Control

Digital Video Broadcasting East Limit Electronic Program Guide Fahrenheit Free-To-Air Gigabit GigaByte Greenwich Mean Time GrouND Graphical User Interface Horizon-to-Horizon HardWare

Committee

Intermediate Frequency

satellite receiver)

International Standards Organisation kilogram kiloHertz kiloWatt Low Noise Block down converter

LNB with Feedhorn

maximum MegaByte Megabits per second

MCPC

MHz

min

MPEG

NTSC

OSD

OSG

OTA

PAL D/K

PCMCIA

PCR Program Clock Reference

PID

PWM

QPSK

RCA Connector type, also known as Cinch

RCU

S/PDIF

SAT

SCART Connector type, also Euro connector

SCPC

SMATV

STB

µs

UHF

UTC

VCR

Ver.

p-p

rms

WxHxD

Multiple Channel Per Carrier MegaHertz minute minimum millimeter Moving Picture Experts Group National Television Standards

Committee Near Video On Demand On-Screen Display On Screen Graphics Over The Air

Phase Alternating Line B/G Phase Alternating Line D/K Personal Computer Memory Card

Industry Association

Packet IDentification Personal Identification Number Pulse Width Modulation Quadrature Phase Shift Key

Remote Control Unit Radio Frequency Sony/Philips Digital Interface SATellite

Single Channel Per Carrier Satellite Master Antenna TV Set Top Box (the satellite receiver) Software TransPonder TeleVision

second

micro

Ultra High Frequency

Universal Time Code Volt Video Cassette Recorder Version Volts

peak-peak

Volts

rootmeansquare

Watt West Limit Width x Height x Depth

Digital Satellite Receiver Page 8 - 1

Page 58

Section 8

Glossary

2. EXPLANATION OF USED TERMINOLOGY

C-band A frequency range (3.70-4.20 GHz) used for satellite

broadcasts.

CCITT An European committee of the international

Telecommunications Union and makes recommendations for the distribution of telephone and data distribution.

Clarke Belt The Clarke Belt is a dedicated satellite orbit in which

satellites remain in a fixed position relative to the Earth’s surface.

Conditional Access A system which is used by service providers to control the

subscriber’s access to certain services, programs and events like Pay TV.

DBS band A signal frequency range (11.70-12.40ghz) intended for

direct TV broadcast by satellite channels.

Decoder A unit that is connected to a satellite receiver in order to

unscramble a picture that is protected by encryption.

Digital Audio Broadcasting Standard which describes the method of transmitting digital

audio.

DiSEqC A standard through which it is possible to let a DiSEqC

compatible receiver send a signal over the RF cable to a switching device to switch between different LNBs or dishes. The DiSEqC uses the 22 kHz signal to control the switching device.

DVB A broadcast standard for digital radio and television, using

MPEG-2 compression. DVB is being supported by all European manufacturers and broadcasters.

EPG A electronic program guide that comes with the broadcast of

a particular satellite, Note that every station fills the EPG differently or not, so differences in the EPG are not necessarily receiver errors.

FEC Is an invisible part of a broadcast which makes sure that

possible errors in the reception of the satellite signal are corrected.

Feedhorn A part of the dish which collects the signals from the dish.

The signal is then fed to the LNB(F).

Ferrite A remote controlled device that determines the polarity of the

signal which is fed to the LNB. The ferrite is more or less an

electro-magnetic polarizer. Fixed Dish A dish antenna that is pointed at one particular satellite. Free-To-Air broadcast An unscrambled broadcast which you can view without

additional payments to a service provider. Frequency band A frequency band is a range of frequencies which are

dedicated to a certain usage. In the satellite area, commonly

known bands are the C-band and the Ku-band. GMT Greenwich Mean Time (London time) is the time standard

against which all other time zones in the world are

referenced. High Definition Television A digital television format, which combines high-resolution

video and theater like sound to create a movie theater quality

TV viewing experience. Horizontal In the satellite industry, horizontal is used to indicate the

direction in which the received signal is polarized. Normally

you will find that it is abbreviated as H. KU-band A frequency range (10.70-18.00 GHz) used by most

European TV satellites.

Page 8 - 2 EchoStar DSB-707 FTA

Page 59

Glossary

LNB A device behind the feedhorn which processes the signal

into a format which is understood by the receiver for further processing

LNBF A LNB with an integrated Feedhorn. So the LNBF comes as

one single unit.

MPEG The Moving Picture Experts group is founded by the ISO to

provide a basis for the coding and compression of moving pictures. MPEG has now become a standard method for the digital transmission of video and sound using less bandwidth than the analog transmission method.

Near Video-On-Demand Multi channel system broadcasting many copies of a film

with staggered start times so a complete film is always available to a viewer with a short waiting period.

Network With respect to the receiver, a network (also known as a

bouquet) is a set of programs that is offered by a single service provider.

NTSC USA video standard with image format 4:3, 625 lines, 60 Hz

and 4 MHz bandwidth with a total of 6 MHz video channel width.

PAL European video standard with image format 4:3, 625 lines,

50 Hz and 4 MHz bandwidth with a total of 8 MHz video channel width.

PID MPEG-2 transmits the audio and video information in so-

called packages. At the beginning of each package is an identifier (PID) present which tells the receiver what to do with the received information. Satellite receivers use normally four types of PID, these are VPID (video PID), APID (audio PID), Program Clock Reference (PCR PID) and data PID (EPG information).

Parental lock A feature which is introduced to give you the possibility to

‘lock’ or ‘hide’ several functions of the receiver to prevent unauthorized persons (children) to view broadcasts that are not suitable for them. The use of the parental lock requires a PIN code. With this PIN code you can change or unlock the locked or hided channels.

Pay-Per-Channel With this feature, the viewer has to pay a certain price per

month (or other period) to receive all programs of a certain channel.

Pay-Per-View Conditional access service where the user is able to buy one

particular program from a particular service provider.

Pay TV With Pay TV, the consumer has to pay for certain programs

or services.

PIN code The PIN code or Personal Identification Number is

necessary to make use of the parental lock feature. The PIN code has four digits which can be set personally.

Polarization Broadcasts are done in a particular frequency band. To make

maximum use of a frequency band and bring you the maximum number of programs, the broadcasts are polarized in different ways to fit as many as possible programs into one frequency band.

Polarizer A remote controlled device that determines the polarity of the

signal which is fed to the LNB.

Polarmount A motorized dish antenna mount which enables a dish to

point at every ‘visible’ satellite on the Clarke Belt.

Receiver Unit which takes signals from a dish and converts them so

they can appear on radio and TV.

Section 8

Digital Satellite Receiver Page 8 - 3

Page 60

Section 8

RS232 connection A RS232 connection allows you to connect equipment to the

Satellite A broadcast station, for satellite radio and TV, positioned on

SCART cable A SCART cable is also known as ‘Peritel’ cable and is

Service provider A service provider is a company or organization that collects

Smart Card A card that contains a ‘smart’ code and is used to de-

SMATV A satellite master antenna TV system is a system which

Stream The signal which is received from the transponder which

Symbol rate Information in the stream which tells the receiver at which

Time zone There are 25 World Time Zones from -12 hours (West) to

Transponder Equipment inside a satellite responsible for receiving a single

Vertical In the satellite industry, vertical is used to indicate the

Glossary

receiver which supports the RS232 protocol.

theClarkeBelt.

commonly used in Europe to connect the audio and video

equipment. A fully furnished SCART cable has 21 wires

which is at both sides finished with a 21-pin connector.

and offers you a number of programs and services. Some

are free of charge and others you have to pay for.

scramble encrypted broadcasts when placed in a decoder or

receiver with a built-in decoder.

shares the reception resources and is intended for the

distribution of TV and radio signals to the user in one ore

more buildings.

contains the together with the video signal, additional

information that the receiver needs in order to process the

received signal correctly.

speed (rate) the transponder sends the digital information

(symbols). The receiver must be able to handle the symbol

rate to process the signal correctly into a correct image.

+12 hours (East) with respect to GMT. Each time zone is

15° of Longitude. Some countries have their own time zones,

usually with a 30 minutes offset to the standard time zone

(Refer to the Local Time menu to set this offset).

uplinked channel and rebroadcasting it back to Earth.

direction in which the received signal is polarized. Normally

you will find that it is abbreviated as V.

Page 8 - 4 EchoStar DSB-707 FTA

Page 61

3. EXPLANATION OF THE SEARCH MODES

In the various menu pages you can make a selection from various search modes. The search mode gives the possibility to scan a satellite or transponder in a particular manner. The search modes are identified as: All In this mode the built-in database is used to select the available transponders.

The digital channels that belong to these transponders are searched for and added to the all channel list.

FTA Inthismodethebuilt-indatabaseisusedtoonlysearchfortheavailable

FTA channels which are then added to the all channel list. In the real world it seems that the service providers do not always accurately code their channels with a scrambled or FTA code. For this reason you may find that some searched channels are scrambled. Also there is a possibility that scrambled channels are coded as FTA. These channels will then be missed out because of the erroneous code.

Network In this mode the built-in database or information from the received stream is

used to search for the transponders that are included with the currently received network. The digital channels that belong to this network are searched for and added to the all channel list.

TP In this mode the built-in database or information from the received stream is

used to search for or scan in the selected transponder. The digital channels that belong to this transponder only are searched for or scanned in and added to the all channel list.

Digital In this mode the built-in database is used to search for the available digital

channels. The digital channels are then added to the all channel list. The digital channels are shown as white channel names for easy recognition.

Digital IF In this mode the currently received satellite is scanned for digital channels. The

digital channels, within the tuner bandwidth and selected symbol rates are scanned in and added to the all channel list.

Update In this mode the built-in database is used to search for the available digital

None Transponders on the selected satellite are not searched for.

channels. Then all new channels are added to the all channel list.

Glossary

Section 8

Digital Satellite Receiver Page 8 - 5

Page 62

Page 8 - 6 EchoStar DSB-707 FTA

Page 63

INDEX

Section 9

INDEX

about echostar page .................................... 6-2

add a channel to a favorite list ..................... 5-8

add pid ....................................................... 4-12

add pid ......................................................... 6-4

add tp ........................................................ 4-12

add transponder ..........................................6-4

alternate audio ........................ 4-14

alternate subtitling .....................................4-14

, 4-15, 5-11

bad picture ................................................... 7-2

blue key ....................................................... 5-2

caution ......................................................... 1-2

ce mark ........................................................ 1-2

change the language ................................. 5-12

change the pin code .................................. 5-13

change the user profile .............................. 5-12

check signal ................................................. 4-8

check signal menu ....................................... 6-2

cleaning ....................................................... 6-1

connections ................................................. 4-2

daylight savings time ................................. 5-14

delete ......................................................... 4-12

delete a channel .......................................... 5-5

detailed program information ............5-10

disecq 1.2 setup .......................................... 3-5

disecq1.2 ..................................................... 4-8

disposal ....................................................... 6-5

dolby digital ............................................... 4-14

dvb ............................................................... 1-II

echonav user interface ................................ 4-3

edit ............................................................. 4-12

edit a list ...................................................... 5-3

edit pid ....................................................... 4-12

edit tp ......................................................... 4-12

epg ................................... 3-4

, 4-14, 5-10, 7-1

factory reset ........................................4-11, 6-3

favorite ................................................4-14

favorite lists ................................................. 5-7

features ....................................................... 4-1

ferrite ........................................................... 8-2

fixed dish setup ........................................... 4-8

fixed installations ......................................... 3-4

fta .............................................................. 4-13

, 5-11

, 7-1

green key .....................................................5-2

group ..........................................................4-13

group a list ...................................................5-2

hide a channel .............................................5-6

i-button .......................................................4-14

i-key ...........................................................5-10

indicator .......................................................4-7

infobanner ........................................ 4-14

install the receiver ........................................1-1

installation setup menu ................................4-4

ird .................................................................8-1

, 5-11

keyboard ......................................................5-2

language .......................................... 5-11, 5-12

languages page ...........................................4-5

list ...................................................... 4-12

local time page .............................................4-6

lock ............................................................4-12

lock a channel ..............................................5-4

, 5-3

master hide ..................................................5-6

memory erase .................................... 4-11

mode ..........................................................4-11

move ..........................................................4-12

move a channel ...........................................5-3

moveable dish ..............................................3-5

, 6-3

navigation .....................................3-3, 5-1, 6-1

no picture .....................................................7-1

no signal ......................................................7-2

no sound ......................................................7-1

note ..............................................................6-3

ota ...................................................... 4-10, 6-3

parental lock page .......................................4-6

parental lock settings ...................................4-6

parental rating information .........................4-14

pid ...................................................... 4-12

pin code ............................................... 4-6

program satellites ................................ 4-8

, 6-4 , 5-6 , 4-9

rcu ................................................................8-1

receiver information .....................................6-2

Digital Satellite Receiver Page 9 - 1

Page 64

Section 9

INDEX

red bullet ..................................................... 5-5

red key ........................................................ 5-1

remote control unit ...................................... 4-3

rename ...................................................... 4-12

rename a channel ....................................... 5-5

rename a favorite list ................................... 5-9

safety ........................................................... 1-1

satellites list ............................................... 5-12

scrambled .................................................. 4-13

search channels page ..........................3-4

search mode ............................................... 6-2

search modes .............................................. 8-5

select a channel .......................................... 5-1

select a list .................................................. 5-2

select a mode .............................................. 5-1

select the alternate audio .......................... 5-11

select the subtitle language ....................... 5-11

set the channel volume ............................... 5-5

set the local date and time ........................ 5-14

set the tv system ....................................... 5-14

setup after memory erase ........................... 3-3

signal ....................................................4-7

signal indicator ............................................ 4-7

smatv ........................................................... 3-6

software update ........................................... 6-3

software version ........................................ 4-10

sort ............................................................ 4-13

sort a list ...................................................... 5-2

stb ............................................................... 8-1

subtitling ...........................................4-15

summertime .............................................. 5-14

symbols ....................................................... 1-2

system setup menu ..............................4-8

, 6-2

, 4-8

, 5-11

, 6-1

white key ......................................................5-3

wintertime .................................................. 5-14

yellow key ....................................................5-2

zoom ..........................................................4-14

zoom ............................................................7-1

teletext ....................................................... 4-14

tp ............................................................... 4-12

transponder ................................................. 6-4

tv system page ............................................ 4-7

use the epg ............................................... 5-10

use the infobanner .................................... 5-11

user lnb settings ...................................4-9

user preferences menu ........................4-4

user profile page ......................................... 4-5

volume ....................................................... 4-12

volume button ............................................ 4-14

warning ........................................................ 1-2

Page 9 - 2 EchoStar DSB-707 FTA

, 6-2 , 4-5

Page 65

LNB(F) Configuration matrix

APPENDIX1

1. LNB CONFIGURATION MATRIX

In the installation menu, the different LNBs are already pre-programmed to save you a lot of configuring routines.

LNB TYPE LO Frequency LO Selection 13/18V 0/22kHz

Appendix 1

HVHV

Standard

Enhanced

Quattro

10,000 13/18V 18 18 0 0

9,750 13/18V 18 18 0 0

9,750 13V 13 13 0 0

10,750 18V 18 18 0 0

C-Band

DBS

TELECOM

5,150 13/18V 18 18 0 0

10,750 18V 18 18 0 0

11,475 18V 18 18 0 0

2. LNBF CONFIGURATION MATRIX

In the installation menu, the different LNBFs are already pre-programmed to save you a lot of configuring routines.

LNBF TYPE LO Frequency LO Selection 13/18V 0/22kHz

Standard

Enhanced

Universal

Quattro

10,000 13/18V 18 13 0 0

9,750 13/18V 18 13 0 0

9,750 0 kHz 18 13 0 0

10,600 22 kHz 18 13 22 22

9,750 0 kHz 18 13 0 0

HVHV

10,750 22 kHz 18 13 22 22

C-Band

C-Band SS

5,150 13/18V 18 13 0 0

5,150 13V 18 13 0 0

5,750 18V 18 13 0 0

3. USER DEFINED LNB(F) MATRIX

In the User LNB setting menu, you can define your own LNB(F). You can use the list below to note the settings.

User LNB(F) LO Frequency LO Selection 13/18V 0/22kHz

HVHV

User ........ 1

User ........ 2

Digital Satellite Receiver Page A1 - 1

... ...,... ... ... ... .../... ... ... ... ... ... ... ... ... ... ...

Page 66

Appendix 1

LNB(F) Configuration matrix

Page A1 - 2 EchoStar DSB-707 FTA

EchoStar DSB-707 FTA User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
