PREFACE
1.DEAR CUSTOMER
Thank you for purchasing an EchoStar satellite receiver. This receiver is of the latest
generation for which it is possible to upgrade the software to keep up with the newest
developments. Please read this user manual carefully, to be able to safely install, use and
maintain the receiver for maximum performance. Keep this user manual next to your receiver
for future reference.
Please make a note of the serial number in the space below. This helps to trace and identify
thereceiverincaseoftheft.Alsoquestionstoourhelpdeskcanbeansweredmoreaccurate
if you can provide the details as mentioned on the serial number plate. You find the serial
number plate at the rear panel of the receiver.
This user manual is intended for anyone who uses an EchoStar satellite receiver. It can be
used by both first-time and experienced users of satellite receivers who want to install, use
and maintain their receiver.
This user manual is applicable for the EchoStar D-2600 IP Viaccess
Receiver and the related accessories. This user manual is divided into separate sections and
chapters. For easy access to the information, a clear table of content and an index are
provided.
All rights reserved
3.WARRANTY
COMMON INTERFACE-MODULES AND SMART CARDS
For pay-services, please only use Common Interface (CI) modules and the related smart
cards which are approved by the service provider of the encrypted program you want to
receive. Only this will enable the receiver to work properly.
Anomalies can occur when unapproved CI-modules and/or smart cards are used. EchoStar
can not and will not accept any responsibility for the performance of such CI-modules and/or
smart cards. If you use unapproved CI-modules and/or smart cards, EchoStar is no longer
able to provide any assistance or support. Use of unapproved CI-modules and/or smart cards
will void any warranty claim. If you have any doubt which CI-modules are approved, please
ask your service provider for assistance.
EchoStar International Corporation has to the best of her abilities, everything done to supply
you with a satellite receiver built to the most up-to-date software and hardware. EchoStar
International Corporation makes no warranties with respect to the reception of the channels
provided by the broadcast service providers and specifically disclaims any implied warranties
of merchantability or fitness for any particular purpose.
EchoStar International Corporation reserves the right, for whatever reason, to revise, change
or modify the hard- and software of the satellite receiver without the obligation to notify or
warrant any person or organization of such change. Therefore, please visit our website, on a
regular basis, for the latest information available.
Digital Satellite ReceiverPage I
Page 4
Preface
SOFTWARE DOWNLOADS
EchoStar International Corporation will to the best abilities, do everything possible to supply
you with software updates to keep your receiver as up-to-date as technically possible.
EchoStar International Corporation makes no warranties with respect to the use of the
supplied software downloads and specifically disclaims any implied warranties of
merchantability or fitness for any particular purpose.
EchoStar International Corporation reserves the right, for whatever reason, to revise, change
or modify the software that can be used by your satellite receiver without the obligation to
notify or warrant any person or organization of such change. Therefore, please visit our
website, on a regular basis, for the latest software available.
USER MANUAL
EchoStar International Corporation has to the best of her abilities, everything done to supply
you with the most up-to-date information. EchoStar International Corporation makes no
warranties with respect to the information provided by this user manual and specifically
disclaims any implied warranties of merchantability or fitness for any particular purpose. The
information provided is meant as a guideline for the use and maintenance of the receiver.
EchoStar International Corporation reserves the right to revise, change or translate this user
manual without the obligation to notify any person or organization of such change. Therefore,
please visit our website, on a regular basis, for the latest information available.
No part of this user manual may be copied, distributed, transmitted, stored in a retrieval
system or translated into any human or computer language, in any form or by any other
means, electronically, mechanically, magnetically, manually or otherwise or disclosure to third
parties without the express written permission of EchoStar International Corporation.
EchoStar International Corporation is possibly in the possession of patents, requests for
patent approval, trademarks, copyrights and other intellectual property with respect to the
contents within this user manual. The submission of this user manual does not imply you
have got any license or other legal right for the use of the here above mentioned without the
express written permission of EchoStar International Corporation.
■ EchoStar, EchoNAV and Quality has a Name
are registered trademarks of EchoStar International Corporation;
■ DVB, Digital Video Broadcasting
is a registered trademark of the The Digital Video Broadcasting Project (1991 to 1996)
which is an industry-led consortium of over 300 broadcasters, manufacturers, network
operators, software developers, regulatory bodies and others in over 35 countries
committed to designing global standards for the delivery of digital television and data
services.
■ Dolby Digital
Dolby, Dolby Digital, AC-3 and Dolby Pro Logic are registered trademarks of the Dolby
Laboratories Licensing Corporation;
■ Viaccess
Viaccess is a registered trademark of VIACCESS SA, a France Telecom Group company
that delivers end-to-end solutions for digital pay-TV services and multimedia applications,
built around our DVB MPEG-2 compatible VIACCESS
interactively engines such as OpenTV.
■ All other trademarks are the property of their respective owners or companies.
1DEAR CUSTOMERI
2INTENDED USEI
3WARRANTYI
4DISCLAIMERI
5COPYRIGHT AND TRADEMARKSII
Safety Information
1GENERAL SAFETY1-1
2ELECTRICAL SAFETY1-1
3NOTATIONAL CONVENTIONS USED IN THIS MANUAL1-2
4SYMBOLS USED ON THE RECEIVER1-2
Preparation
1STORAGE AND TRANSPORT2-1
2TO UNPACK YOUR RECEIVER2-1
3THE CONTENTS OF THE BOX2-1
4THE DISPOSAL OF YOUR PACKING MATERIALS2-1

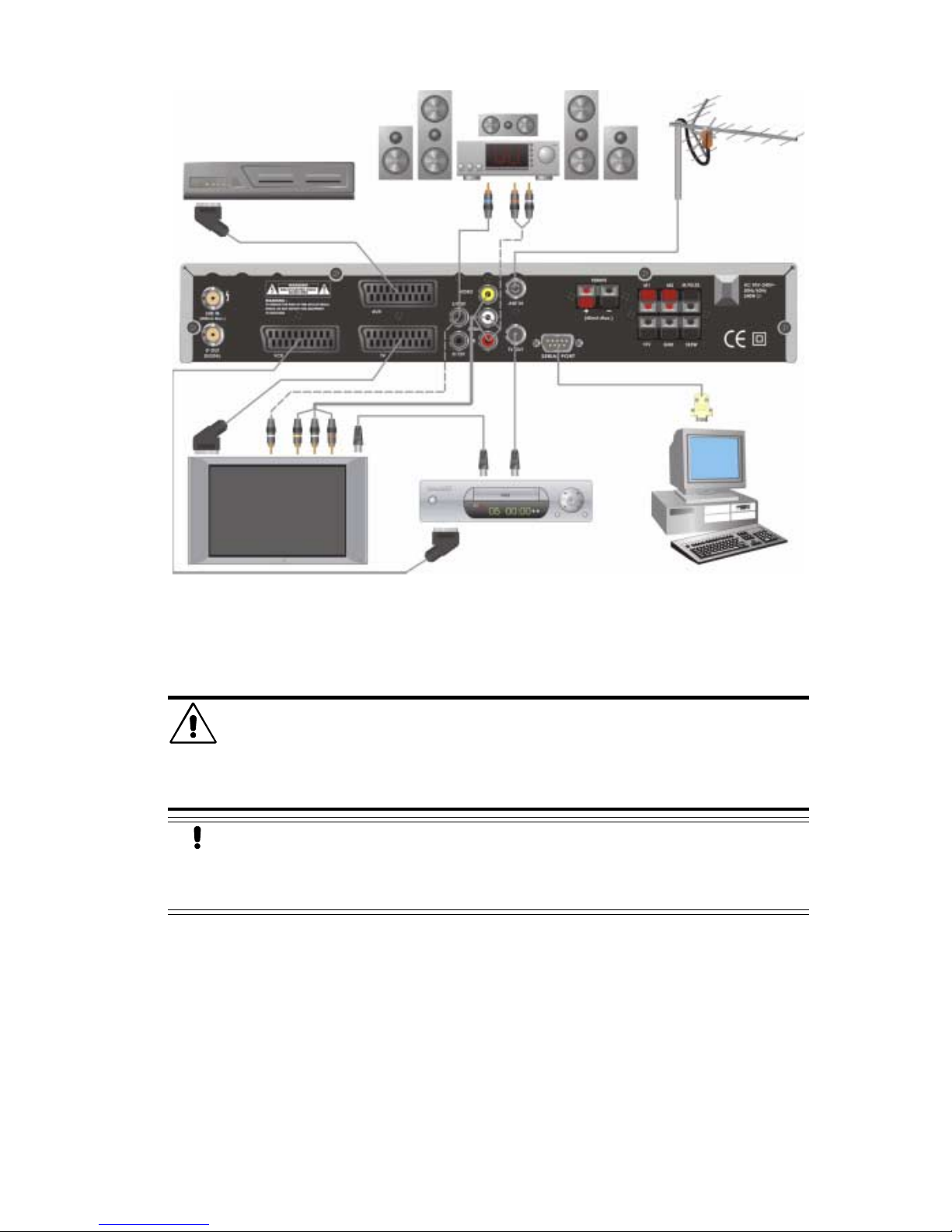

5TO SETUP YOUR PERIPHERAL EQUIPMENT2-2
6TO SETUP THE RECEIVER2-2
Read this manual carefully and make sure you understand the instructions given. For your
safety, know what the reaction upon each action will be. Do not perform any actions which are
not described in this manual, failing to do so might result in an uncontrolled behavior of the
receiver or even in a hazardous situation for persons and/or equipment.
Disconnect the receiver from the mains before you start any maintenance or installation
procedures. Do not use alcohol or ammonia based liquids to clean the receiver. If required,
clean with a soft lint-free cloth slightly made damp with a mild soap solution.
Consult an authorized service technician if the receiver does not operate normally when the
instructions in this user manual are strictly followed. Do not to attempt to open the receiver, as
youwillbeexposedtoashockhazard.
Do not put any objects on top of the receiver which could fall through the ventilation slots or
which could cover them and prevent proper cooling of the components inside.
Do not put any (foreign) objects into the ventilation or CI-slots. This can cause fire or an
electrical shock by shorting the internal components.
Make sure that nothing rests on the receivers cables and that the cables are not located
where they can cause injury to persons and pets (e.g to stumble over, eat the cable).
Do not install the receiver:
■ in a closed or poorly ventilated cabinet;
■ directly on top of or under another equipment;
■ on a surface which will obstruct the ventilation slots.
Do not expose the receiver and it’s accessories:
■ to rain or excessive moisture to avoid the risk of shock or permanent damage to your
receiver;
■ to direct sunlight, heaters, stoves or any other heat generating equipment;
■ to any magnetic objects, such as speakers, electric motors, transformers, etc.;
■ to excessive vibration.
To help avoid possible damage to the receiver’s electronics:
■ wait 5 seconds after you switched off the receiver before you move the receiver or discon-
nect any equipment;
■ do not touch the components or pins on the CI-module or the smart card and hold the
CI-module and the smart card by it’s edges.
1
2.ELECTRICAL SAFETY
When using or connecting electrical equipment always observe the safety regulations
applicable in your country to reduce the risk of fire, electrical shock, and personal injury.
Read and comply at least with the given safety instructions.
■ Always make sure that the electrical power supply corresponds with the voltage on the
electrical identification plate at the rear of the receiver next to the electrical cord.
■ Your receiver is double insulated and complies with the EN 50144; therefore no additional
earth wire is required, though the use of an earth leak switch and/or over voltage protection switch is recommended.
■ Only use an approved extension (convenience) lead suitable for the electrical power con-
sumption of the installed equipment.
Digital Satellite ReceiverPage 1 - 1
Page 8
Section 1
Safety Information

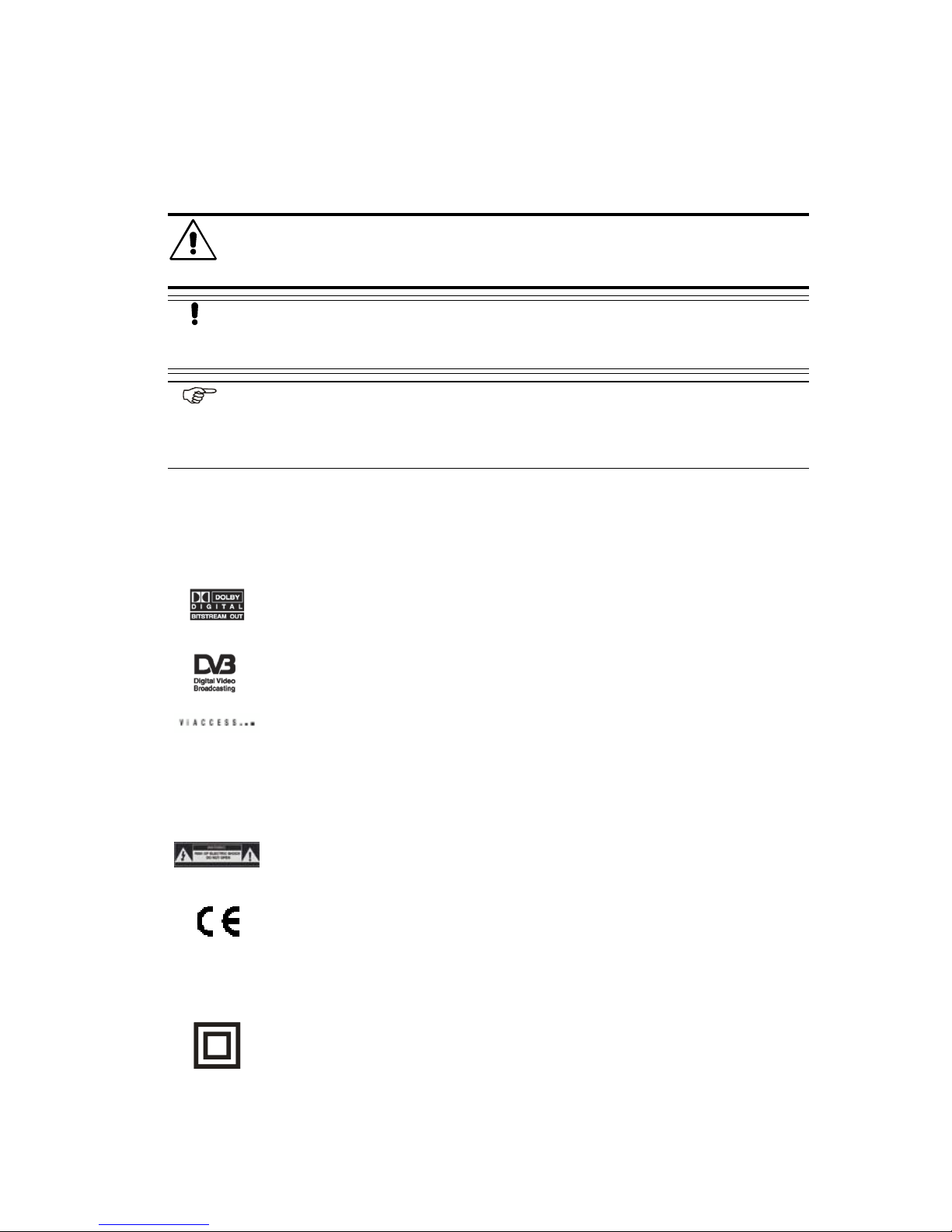

3.NOTATIONAL CONVENTIONS USED IN THIS MANUAL
3.1.WARNINGS, CAUTIONS AND NOTES
Throughout this user manual, there may be blocks of text indicated by symbols and printed in
a different way then the surrounding text. These blocks of text ask the attention of the reader
to avoid hazardous situations. The hazard levels are indicated as:
WARNING
THIS INDICATES A HAZARDOUS SITUATION WHICH, IF NOT AVOIDED, COULD RESULT IN
(SERIOUS) INJURY.
CAUTION
This indicates a situation which, if not avoided, could damage the equipment or
other properties.
NOTE
This indicates additional information to the user to make the user aware of possible
problems and information of any importance to help the user to understand, to use
and to maintain the installation.
4.SYMBOLS USED ON THE RECEIVER
The next paragraphs explain the meaning of the symbols, present on the receiver.
4.1.SYMBOLS ON THE FRONT PANEL
The Dolby Digital logo.
This logo tells you that this receiver is compliant with the Dolby Digital
standard.
The Digital Video Broadcasting logo.
This logo tells you that this receiver is compliant with the DVB standards as
registered under registration number 2345.
The Viaccess logo.
This logo tells you that this receiver has an embedded Viaccess smart card
reader. The required smart card has to be obtained from a service provider
who scrambles the programs according the Viaccess encryption method.

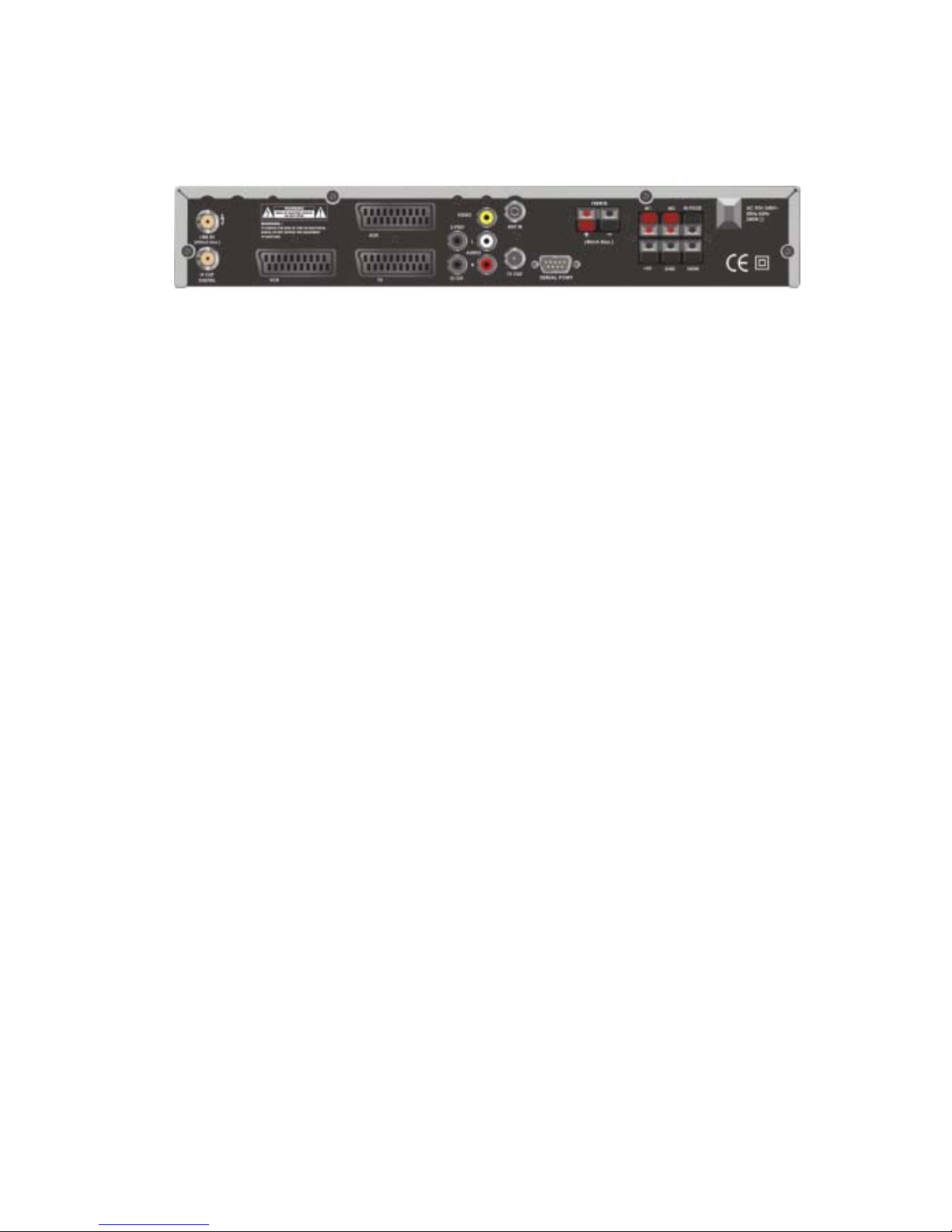

4.2.SYMBOLS ON THE REAR PANEL
The caution ‘risk of electrical shock - do not open’ symbol
This symbol tells you that you are not allowed to open the receiver. Only
authorized (service) technicians are allowed to open the box.
The CE mark.
This mark tells you that the receiver is following the provisions of Council
Directive 89/336/EEC on the approximation of the laws of the Member States
relating to the electromagnetic compatibility and the provisions of Council
Directive 73/23/EEC and 93/68/EEC on the approximation of the laws of the
Member States relating to low voltage and electrical safety.
The double insulation symbol.
This symbol tells you that the receiver is electrically safe within the normal
use of the receiver as stated in the safety chapter.
The receiver and it’s accessories are delivered in a protective packaging. This packaging is
designed to protect against excessive shocks and not against ingress of moisture.
1.1.STORAGE
If necessary:
■ store the receiver in it’s original protective packaging;
■ in a room with the ambient conditions as stated in the technical specifications.
1.2.TRANSPORT
Pack the receiver preferably in the original packaging or in an equally protective packaging.
This is to help avoid possible damage to the receiver’s electronics.
2.TO UNPACK YOUR RECEIVER
DANGER
KEEP AWAY THE PLASTIC PACKAGING FROM CHILDREN.THE PLASTIC PACKAGING MAY
When you unpack the contents of the box, confirm that all the parts are included. Refer to
Chapter 3. The contents of the box.
Unpack the contents of the box carefully. Electronic equipment as satellite receivers are
easily damaged when you handle it roughly. Examine all parts for damage that may have
occurred during shipment. If you find any damage, stop to unpack the box and call the retail
seller where you bought the receiver.
To help avoid possible damage to the receiver’s electronics, allow the receiver to adapt to the
All rights reserved
ambient temperature and humidity level. This to avoid condensation caused by a sudden
change in temperature (e.g from a hot car into a cool room).
3.THE CONTENTS OF THE BOX
The box contains:
■ A receiver;

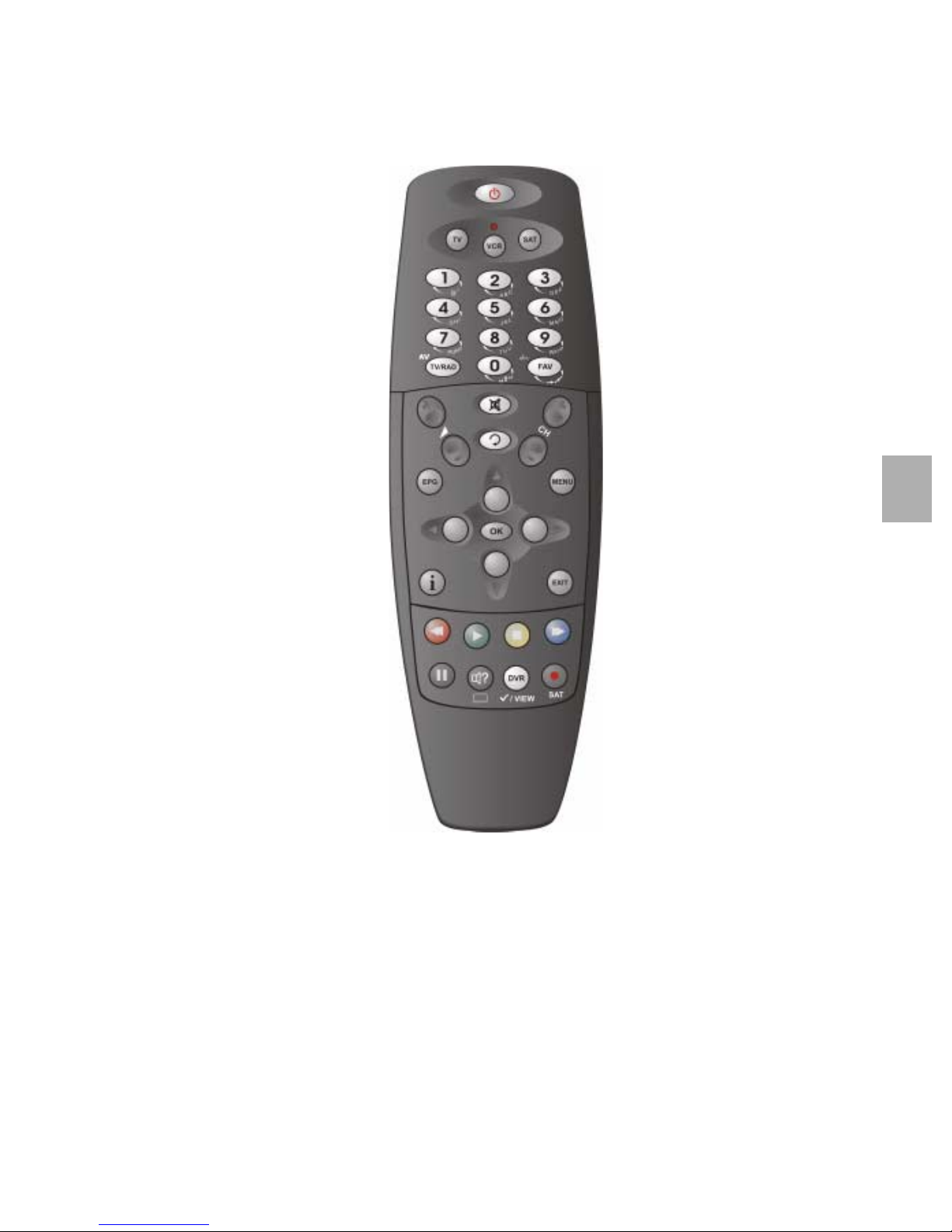

■ A remote control unit;
■ A pair of batteries (for the remote control unit);
■ A set of documentation.
4.THE DISPOSAL OF YOUR PACKING MATERIALS
CAUTION
It is recommended to keep the packaging materials for a period of time. In case of
warranty claims, we can request to return the receiver in the original packaging to
protect the electronics. Failing to do so might void the warranty.
Most of the packaging materials can be recycled. Please discard these materials in an
environmental safe manner
ENVIRONMENTAL REMARK
Dispose the packaging in an environmental safe manner. Please inform yourself
on local regulations with respect to the disposal of reusable materials.
Digital Satellite ReceiverPage 2 - 1
Page 10
Section 2
Preparation
5.TO SETUP YOUR PERIPHERAL EQUIPMENT
Please refer to the user manuals of your terrestrial antenna, dish, TV, video recorder and/or
audio equipment to make sure this equipment is properly installed and configured before you
install the receiver.
EchoStar recommends that you follow at least the following instructions:
5.1.THE TERRESTRIAL ANTENNA
1. Make sure:
■ The terrestrial antenna is in good condition and well aligned for the best reception
(avoid corroded contacts);
■ The UHF coaxial cable is in a good condition (no excessive bends or damaged
insulation);
■ The UHF coaxial cable connections are well shielded (metal connectors).
2. If necessary, do any work.
5.2.THE DISH
1. Make sure:
■ The outdoor components of the dish are good condition;
■ The dish is well aligned for the best reception;
■ The dish is connected with the correct RF coaxial cable (75 Ohm) and connectors;
■ The cables from the dish are in a good condition (no excessive bends or damaged
It is possible to connect the different equipment with the use of UHF coaxial cables,
SCART cables, and/or so called audio/video cables with RCA connectors.
WARNING
ALL EQUIPMENT INVOLVED IN THE INSTALLATION TASK MUST BE INSTALLED CORRECTLY
All rights reserved
ANDSWITCHEDOFF
TASK
.UNSAFE CIRCUITS AND INSTALLATIONS CAN CAUSE (SERIOUS) INJURY OR DAMAGE
TO EQUIPMENT
CONNECTION WITH UHF COAXIAL CABLES
1. On the TV, find the UHF-coaxial cable that is connected to the terrestrial antenna or cable
network.
2. Remove the UHF-coaxial cable from the TV and make sure the cable condition is OK.
3. On the rear panel of the receiver find the TV OUT connector.
4. Install an UHF-coaxial cable between the TV OUT connector (receiver) and the antenna
connector (TV).
5. On the rear panel of the receiver find the ANT IN connector.
6. Install the UHF-connector (terrestrial antenna) to the ANT IN connector (receiver).
CONNECTION WITH SCART CABLES
1. On the TV find the SCART cable that is connected to the VCR.
2. Remove the SCART connector that is connected to the VCR from the TV.
3. On the rear panel of the receiver find the AUX, TV and VCR SCART connectors.
4. Install a full featured SCART cable between the auxiliary equipment (e.g. external analog
receiver) and the AUX SCART connector (receiver).
5. Install a full featured SCART cable between the VCR and the VIDEO SCART connector
(receiver).
6. Install a full featured SCART cable between the TV SCART connector (receiver) and the
SCART connector on the TV (old SCART connection to the VCR).
CONNECTION WITH AUDIO/VIDEO CABLE (RCA-CONNECTORS)
1. On the rear panel of the receiver find the VIDEO, AUDIO L and AUDIO R connectors.
2. Install an audio/video cable between:
a.the VIDEO connector of the receiver and TV (yellow);
b.the AUDIO L connector of the receiver and TV (white);
c.the AUDIO R connector of the receiver and TV (red).
CONNECTION WITH DOLBY DIGITAL AUDIO CABLE (RCA-CONNECTORS)
1. On the rear panel of the receiver find the S/PDIF connector.
2. Install an audio/video cable (black) between:
a.the S/PDIF connector (receiver) and Dolby Digital connection of the Dolby digital
compatible installation.
CONNECTION WITH SERIAL CABLE (0-MODEM CABLE)
1. On the rear panel of the receiver find the SERIAL PORT connector.
2. Install a serial cable between the SERIAL PORT connector (receiver) and the serial port
connection of the PC.
.MAKE SURE THAT IT IS SAFE TO PROCEED WITH THE INSTALLATION
.
Installation
Section 3
3
Digital Satellite ReceiverPage 3 - 1
Page 12
Section 3
.
Installation

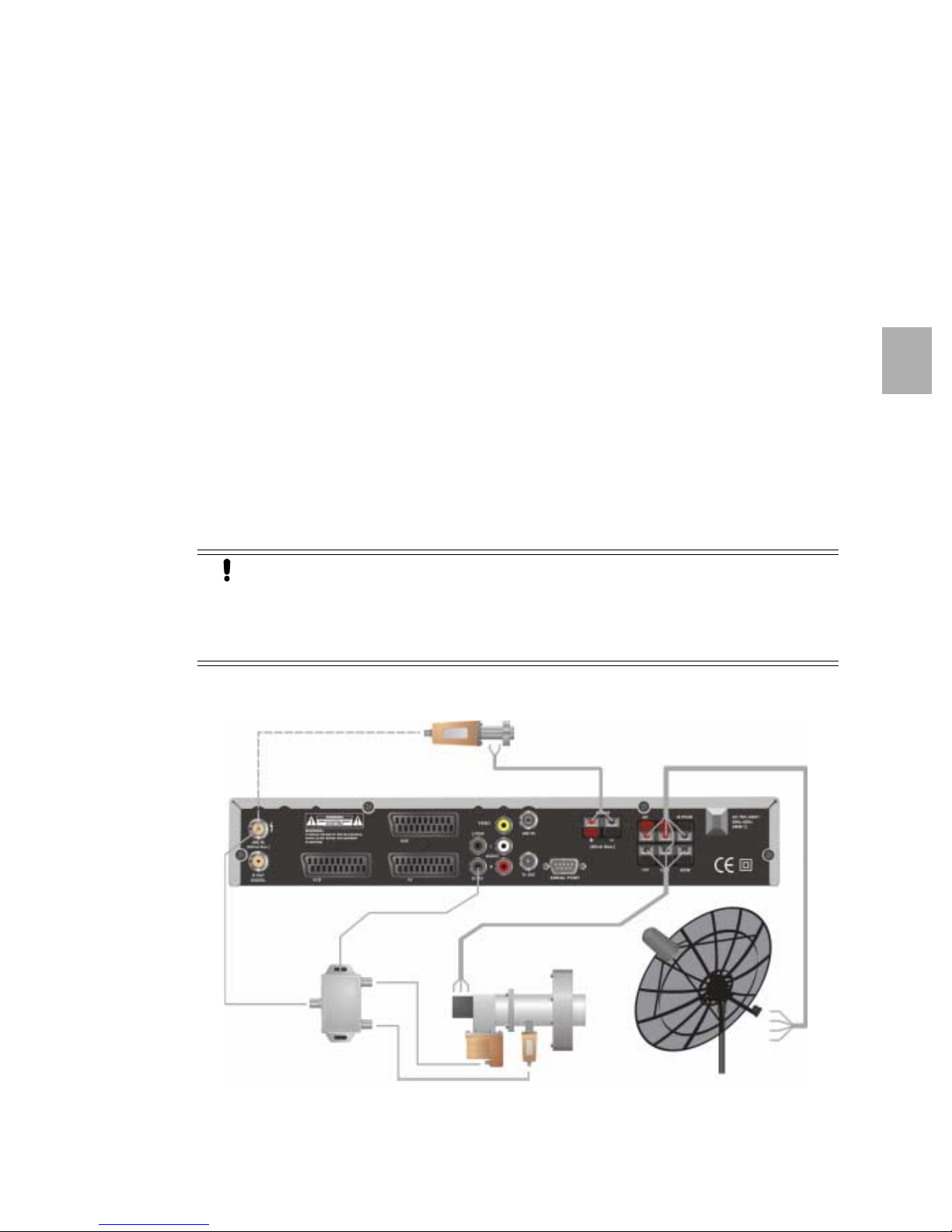

2.CONNECT A DISH
It is possible to connect the different dish configurations with the use of RF coaxial cables.
Only the most common configurations are discussed. If in doubt, please ask the EchoStar
service department for advice.
WARNING
ALL EQUIPMENT INVOLVED IN THE INSTALLATION TASK MUST BE INSTALLED CORRECTLY
ANDSWITCHEDOFF
.UNSAFE CIRCUITS AND INSTALLATIONS CAN CAUSE (SERIOUS) INJURY OR DAMAGE
TASK
TO EQUIPMENT
CAUTION
Tighten the cable connectors only by hand. Do not use any tools. You will damage
the connector pins if you overtighten the connector. This will result in loss of signal
quality, or even total loss of reception.
1. On the dish installation, connect a RF coaxial cable (for detailed instructions, refer to the
manufacturer’s instructions).
2. On the rear panel of the receiver find the LNB IN (digital) and the IF OUT connectors.
FIXED DISH INSTALLATION WITH LNB(F)
3. Install the F-connector (dish) to the LNB IN connector (receiver).
FIXED DISH INSTALLATION WITH DISEQC SWITCH
3. Install the F-connector (DiSEqC switch) to the LNB IN connector (receiver).
.MAKE SURE THAT IT IS SAFE TO PROCEED WITH THE INSTALLATION
1. On the dish installation (for detailed instructions refer to the manufacturer’s instructions):
a.connect a RF coaxial cable;
b.connect the power and sensor cables;
c.if present, set the East and West limit switches to prevent dish damage.
2. On the rear panel of the receiver find:
a.the LNB IN connector;
b.the M.PULSE,theGND,theM1 and the M2 connectors.
3. Install the F-connector (dish) to the LNB IN connector (receiver).
4. On the rear panel of the receiver find the M.PULSE,theGND,theM1 and M2 connectors.
5. First install the motor sensor cables to the M.PULSE and GND connector (receiver).
6. Install the motor power cable to the M1 and M2 connectors (receiver).
DISH INSTALLATION WITH FERRITE FEED
1. On the dish installation, connect the ferrite cables (for detailed instructions refer to the
manufacturer’s instructions).
2. On the rear panel of the receiver find the Ferrite + and the Ferrite - connectors.
3. Install the ferrite power cable to the Ferrite + and Ferrite - connectors (receiver).
DISH INSTALLATION WITH POLAROTOR
1. On the dish installation, connect the polarotor cables (for detailed instructions refer to the
manufacturer’s instructions).
2. On the rear panel of the receiver find the +5V,theGND and the SKEW connectors.
It is possible that the GND connector is already occupied by the motor sensor
cable. If you need to connect the GND for the polarotor as well, please use the
appropriate connection materials to connect both cables. Failing to do so can
cause damage to the equipment.
3. Install the polarotor power cable to the +5Vand GND connectors (receiver).
4. Install the polarotor skew cable to the SKEW connector (receiver).
Digital Satellite ReceiverPage 3 - 3
Page 14
Section 3
Installation

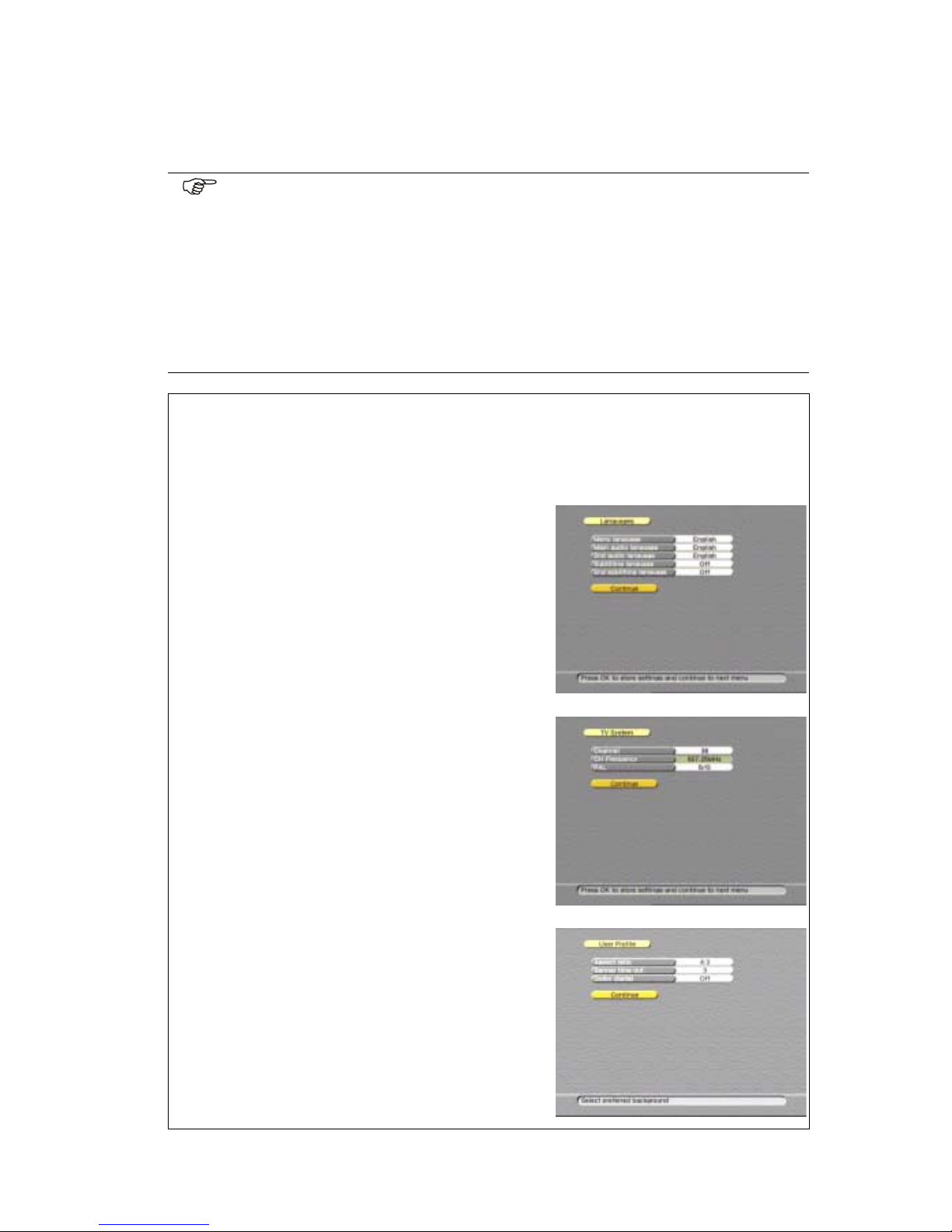

3.TO SETUP YOUR RECEIVER FOR THE FIRST TIME
This procedures will guide you step-by-step through the initial setup of the receiver. After you
have finished the initial installation, these pages are accessible through the icons in the menu
bar which is in the initial setup not shown.
NOTE
Unless otherwise specified; This note explains the way you can navigate through
the pages of the EchoNAV initial setup menu.
1. Use the OK key to pull down the menu selection fields.
2. Use the arrow keys to go through the selectable menu items.
3. In a pull-down menu, use the OK key to confirm the selection.
4. Use thearrow keys to navigate between the left and right column of
selectable menu items.
5. Use the EXIT key to leave the menu and return to the live mode.
1. Switch on the TV.

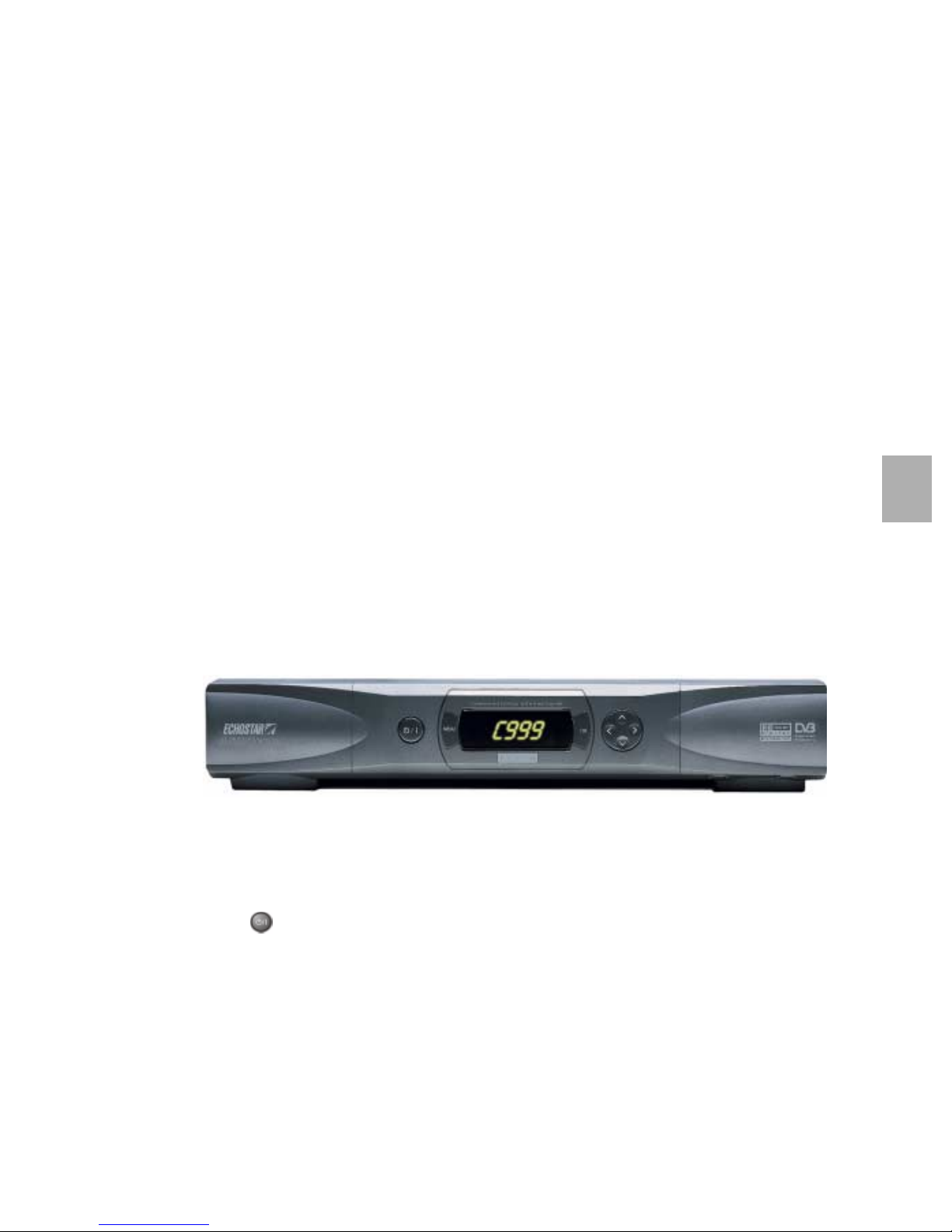

2. On the receiver, press the on/standby button.
3. Make the required selections.
4. Read the available help text for information.
5. Go to the Continue field.
6. On the RCU, press the OK key to advance.
7. Make the required selections.
8. Read the available help text for information.
Note that only the white fields are selectable,
other fields show reference information.

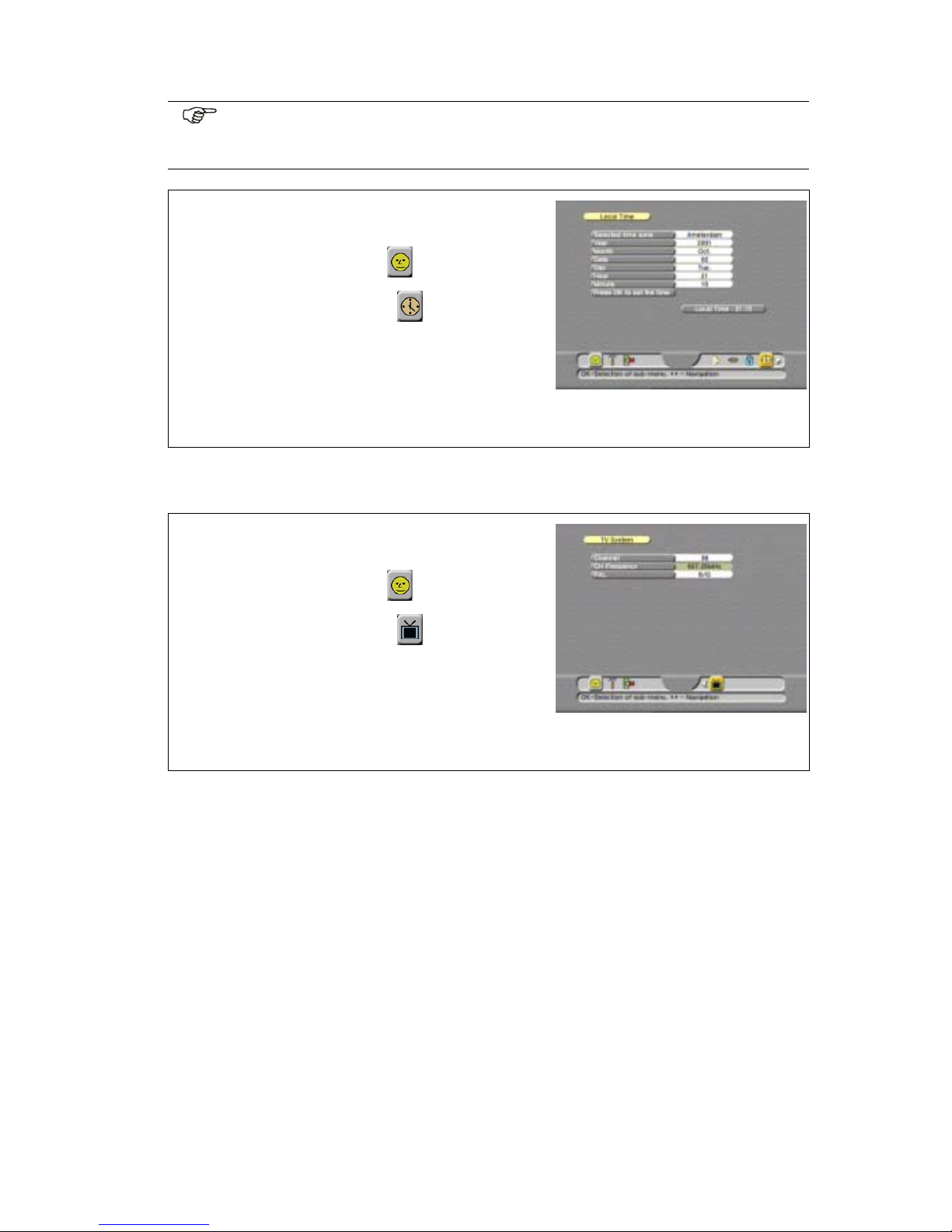

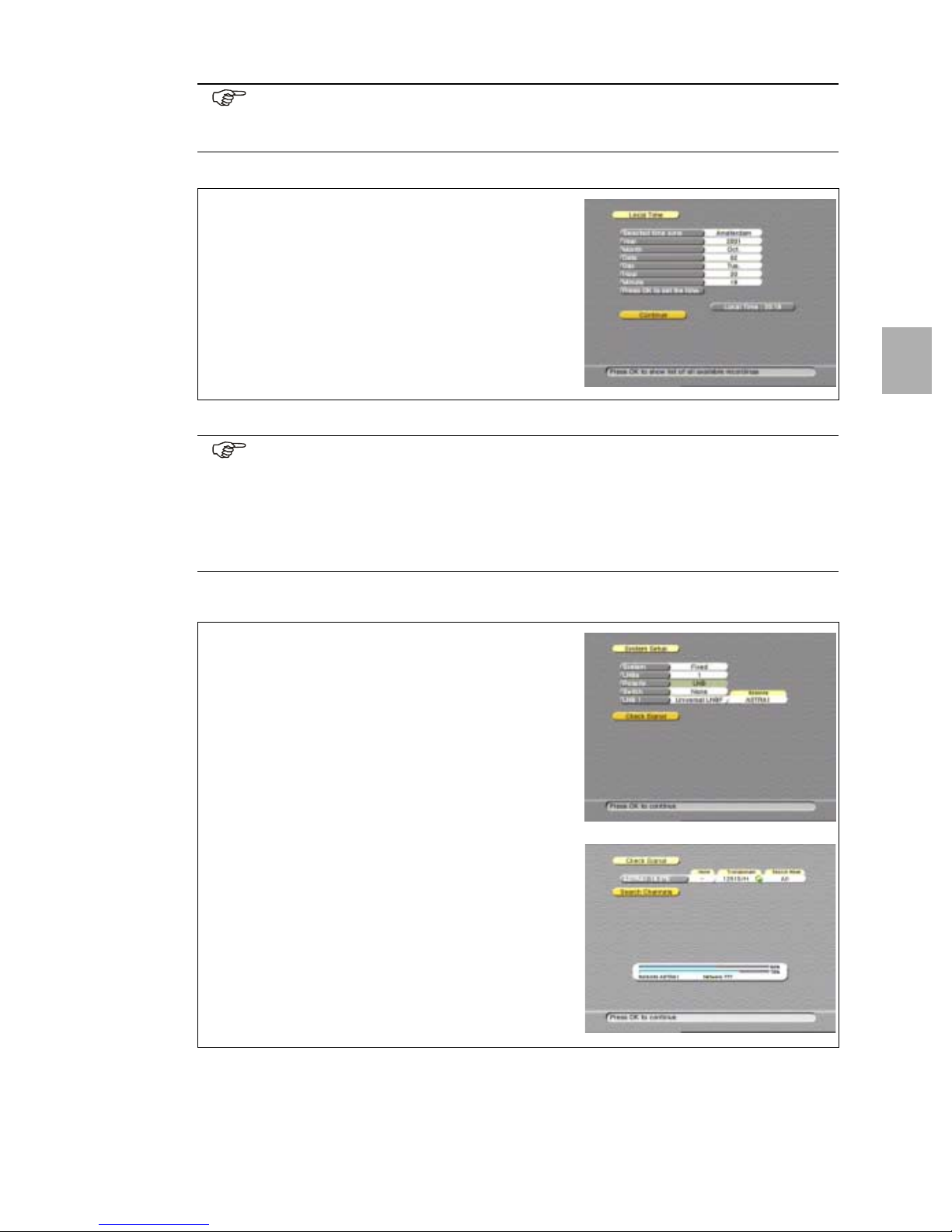

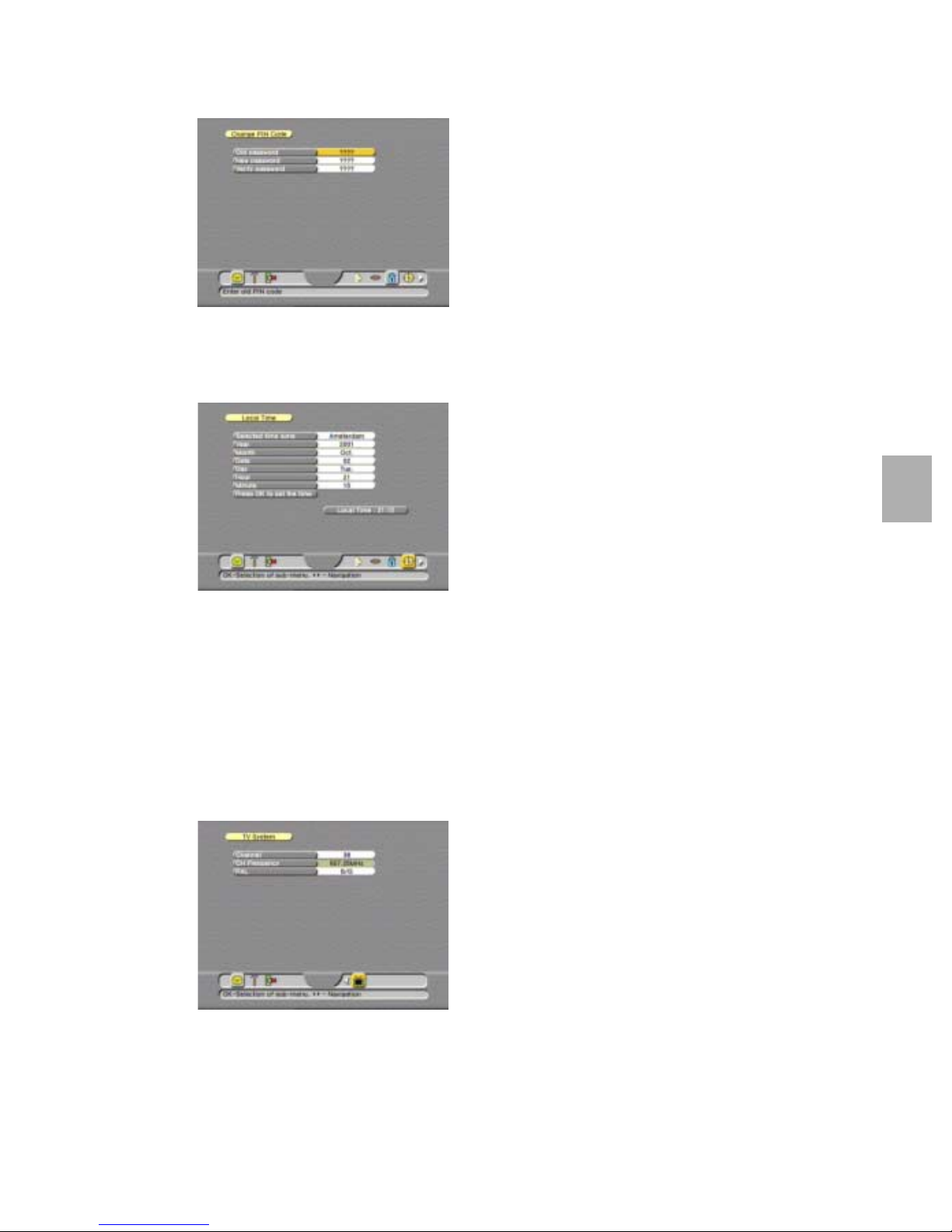

The receiver needs the correct local time to collect and show the EPG (Electronic
Program Guide). An incorrectly entered local time will result in no EPG information.
15. Make the required selections.
16. Read the available help text for information.
17. Go to the Press OK to set the time.
Note that the local time is shown correctly.
18. On the RCU, press the OK key to set the time.
19. Go to the Continue field.
20. On the RCU, press the OK key to advance.

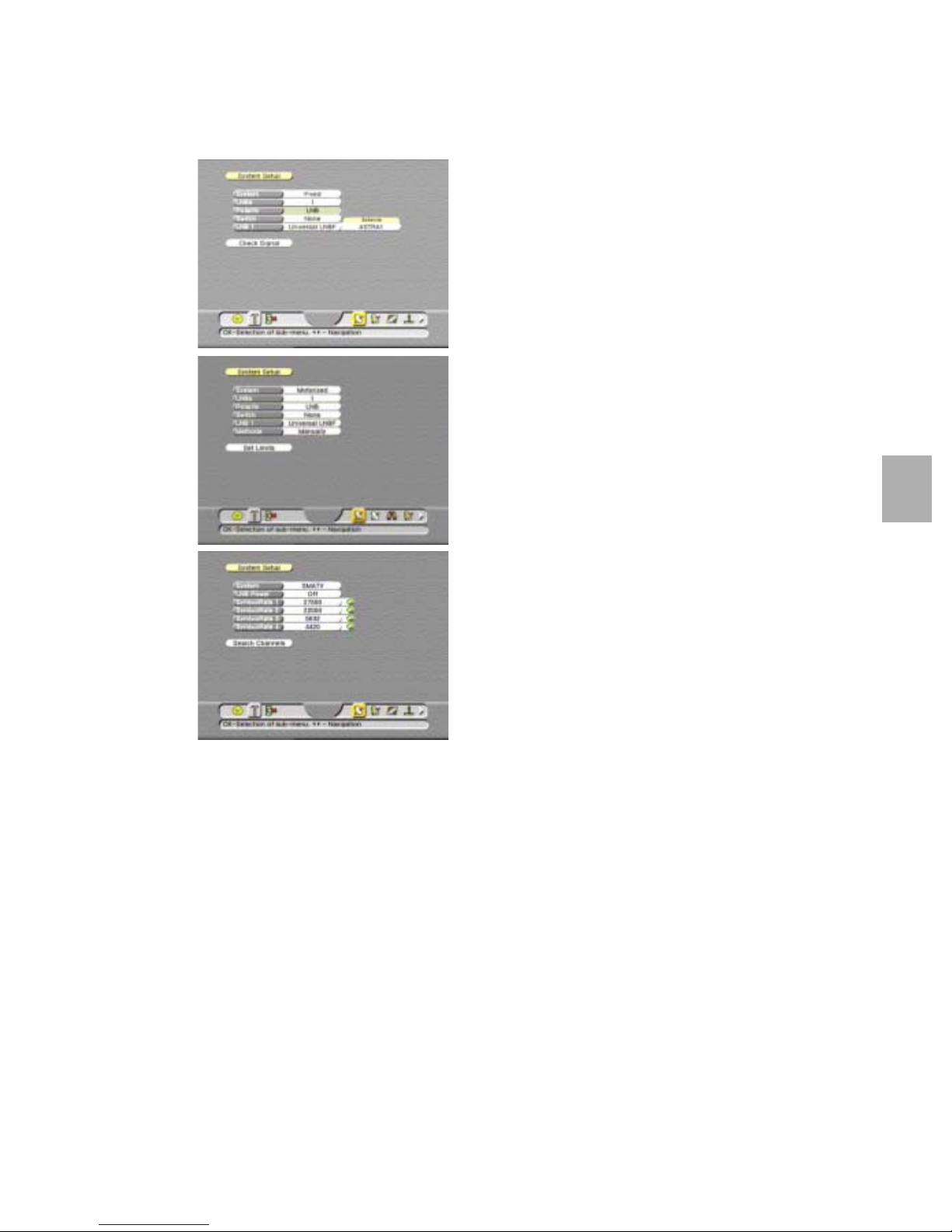

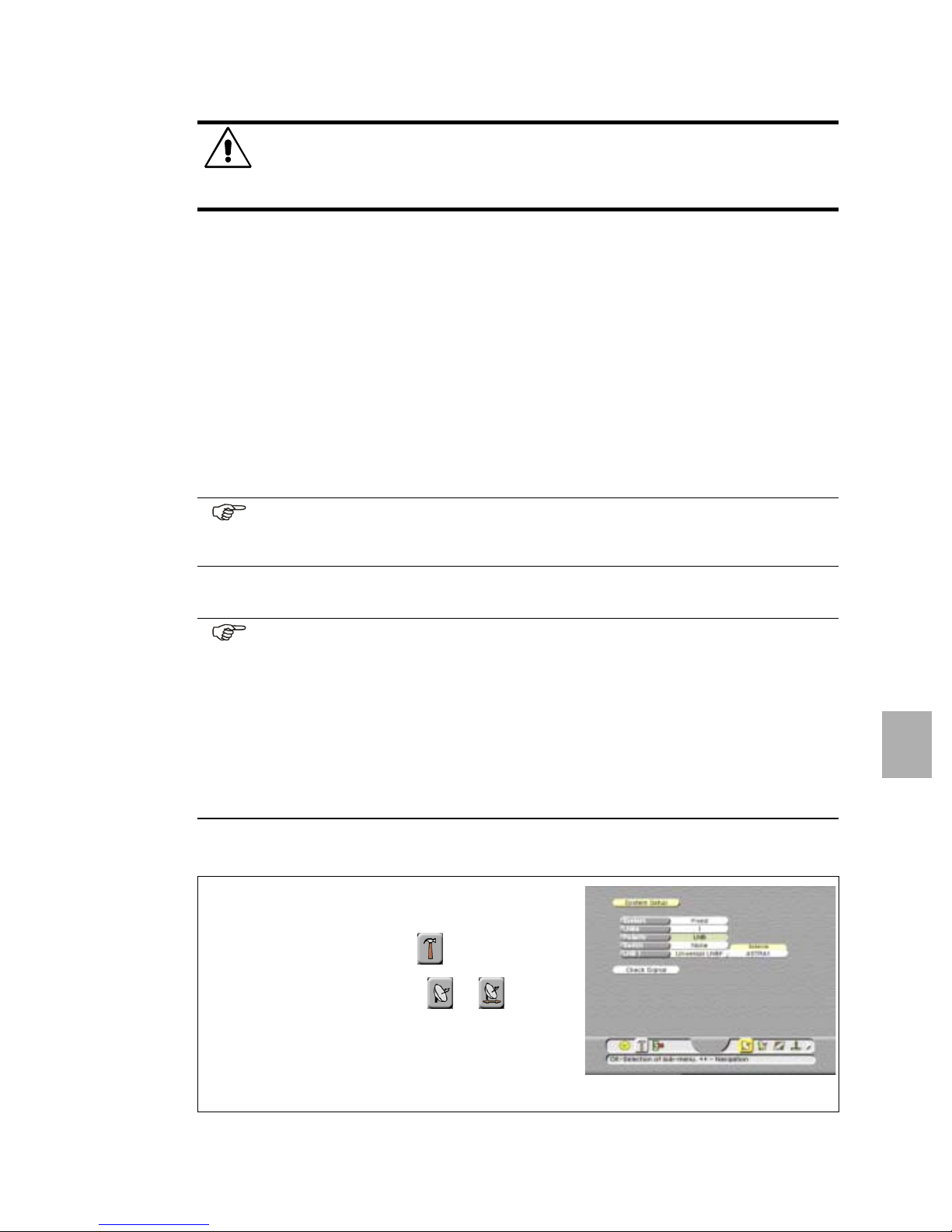

NOTE
From the next step onwards, the procedure is divided in different configurations.
The configurations are; Fixed, Motorized and SMATV.
■ Fixed means set up a single dish or multiple dishes with DiSEqC1..4 switch;
■ Motorized means set up a moveable dish (motor/actuator by positioner);
■ SMATV means set up for television distribution (cable network in buildings).
22. Read the available help text for information.
Note that only the white fields are selectable,
other fields show reference information.

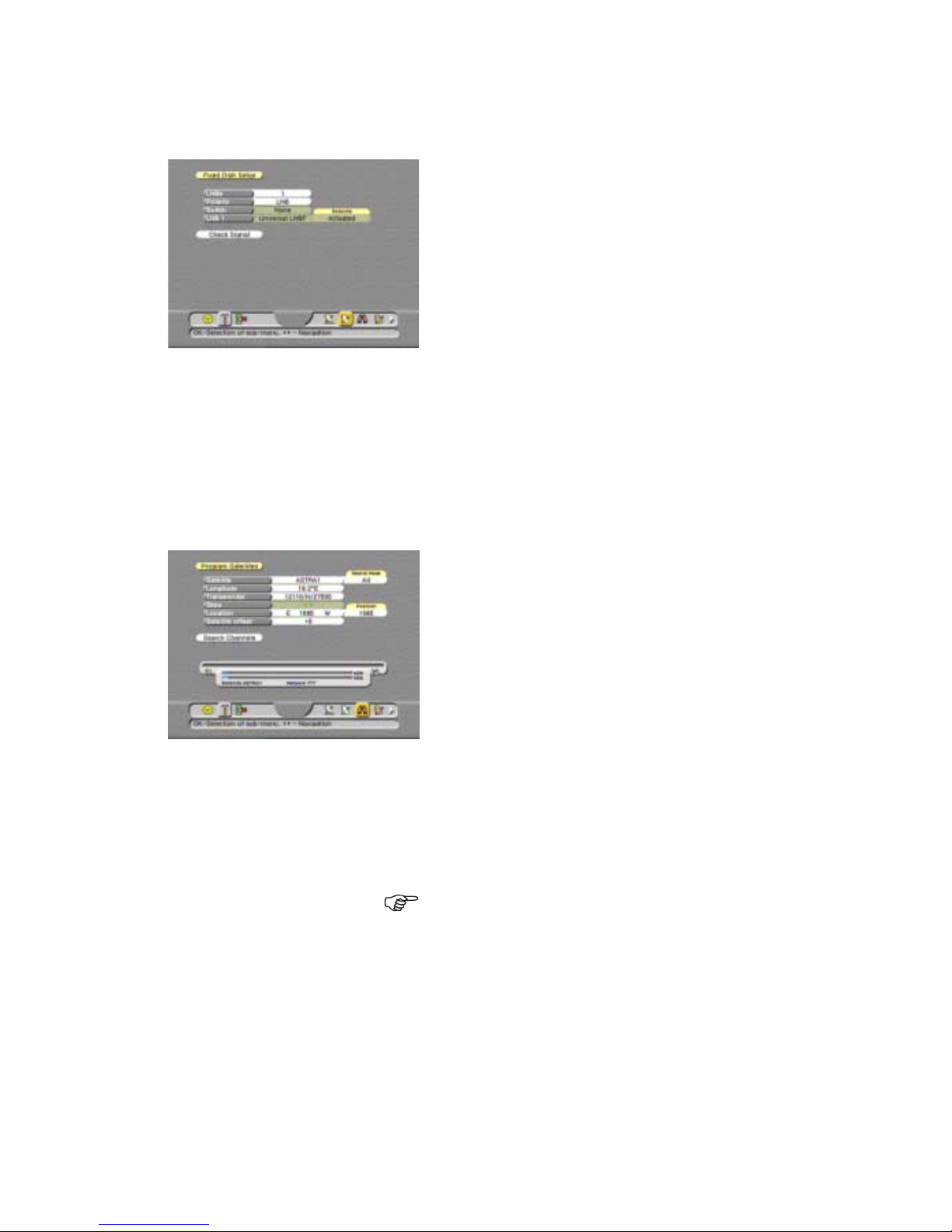

23. Go to the Check Signal field.
24. On the RCU, press the OK key to advance.
25. Wait for the Checking Configuration to complete.
26. Make the required selections.
27. Read the available help text for information.
28. If the red dot in the transponder field stays:
a. select another transponder;
b. go to the check signal field;
c. on the RCU, press the OK key.

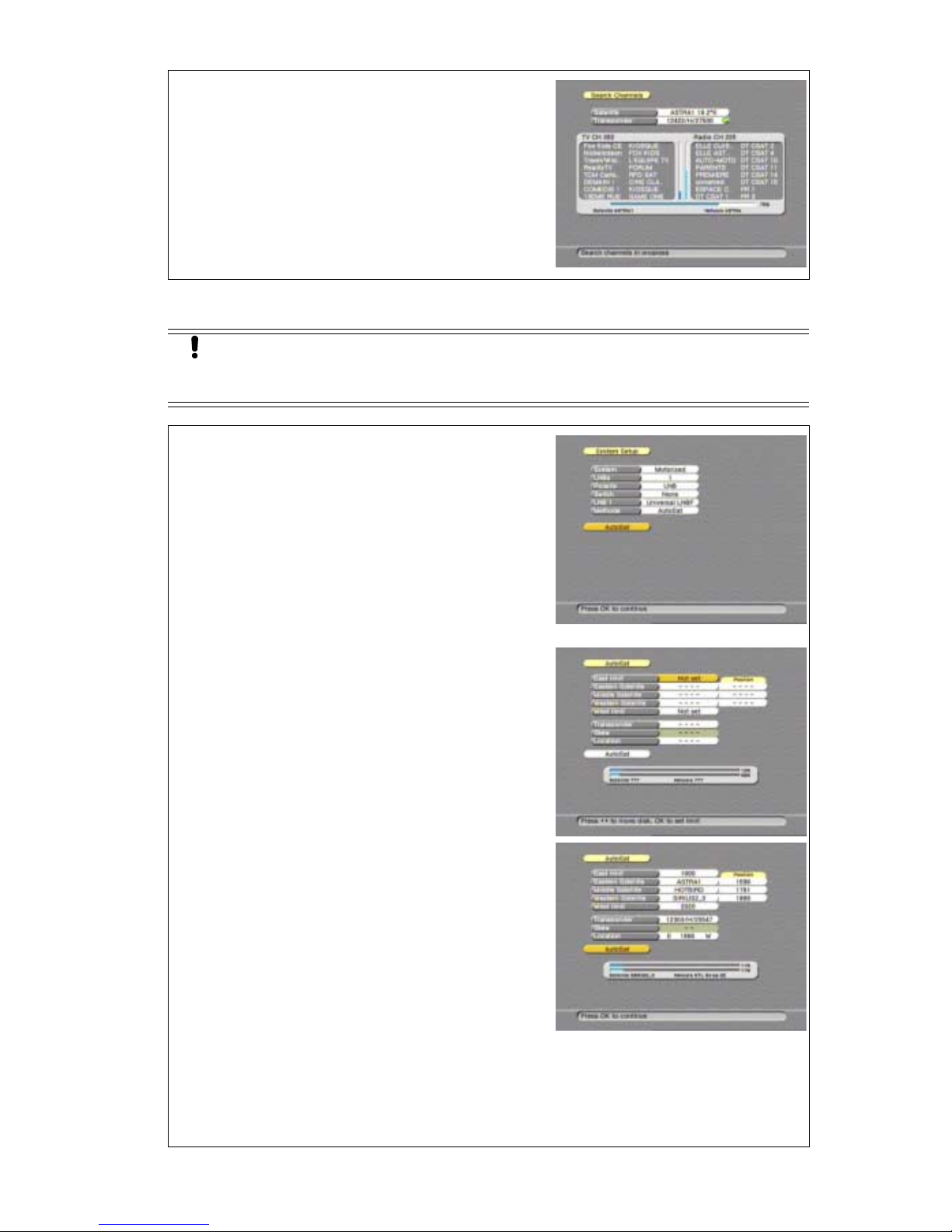

29. Go to the Search Channels field.
30. On the RCU, press the OK key to advance.
Digital Satellite ReceiverPage 3 - 5
Page 16
Section 3
31. Wait for the search to complete:
32. On the RCU, press the OK key to end the initial

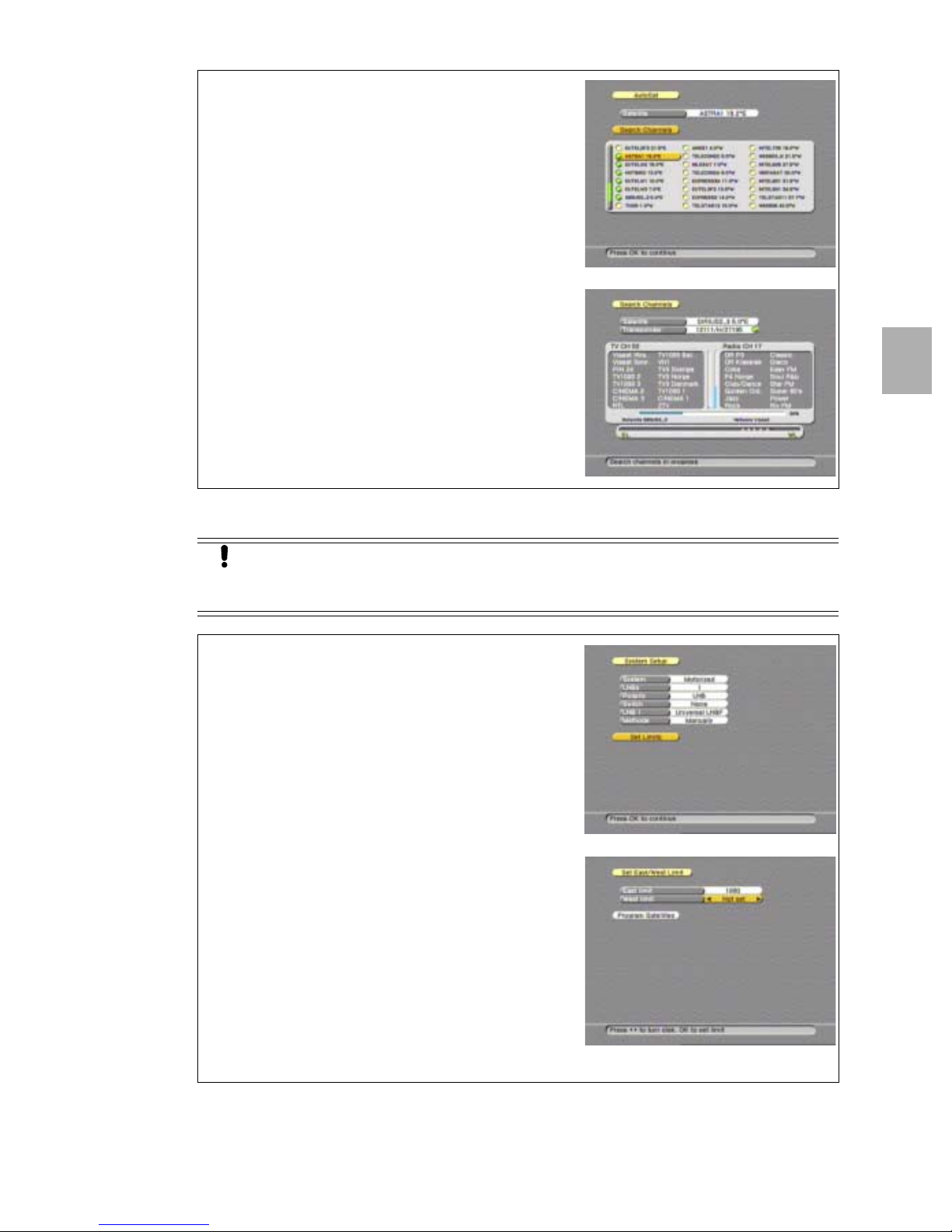

FOR MOTORIZED INSTALLATIONS -AUTOSAT
22. Make the required selections.
23. Read the available help text for information.
24. Go to the Autosat field.
25. On the RCU, press the OK key to advance.
Installation
a. the receiver display shows a moving dot;
b. the search completed popup menu appears.
setup procedure.
CAUTION
On the motorized dish, set the physical East and West limit switches first. Failing to
do so might cause damage to your motorized dish installation or other properties.
Note that only the white fields are selectable,
other fields show reference information.
On the motorized dish, set the physical East and West limit switches first. Failing to
do so might cause damage to your motorized dish installation or other properties.
22. Make the required selections.
23. Read the available help text for information.
Note that only the white fields are selectable,
other fields show reference information.

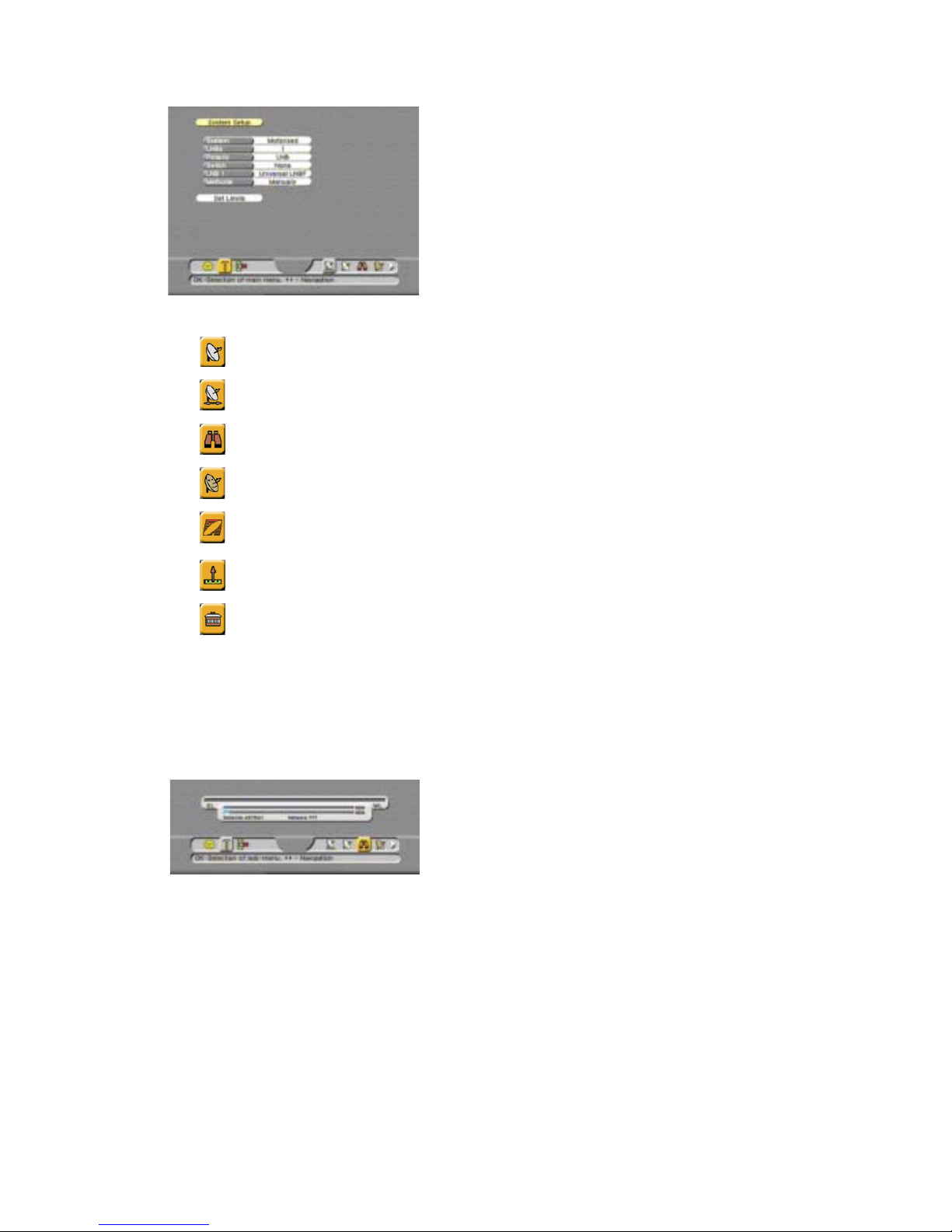

24. Go to the Set Limits field.
25. On the RCU, press the OK key to advance.
26. On the RCU:
a. press thekey to set the East limit;
b. at the motor error, press thekey once;
c. press the OK key.
27. On the RCU:
a. press thekey to set the West limit;
b. at the motor error, press thekey once;
c. press the OK key.

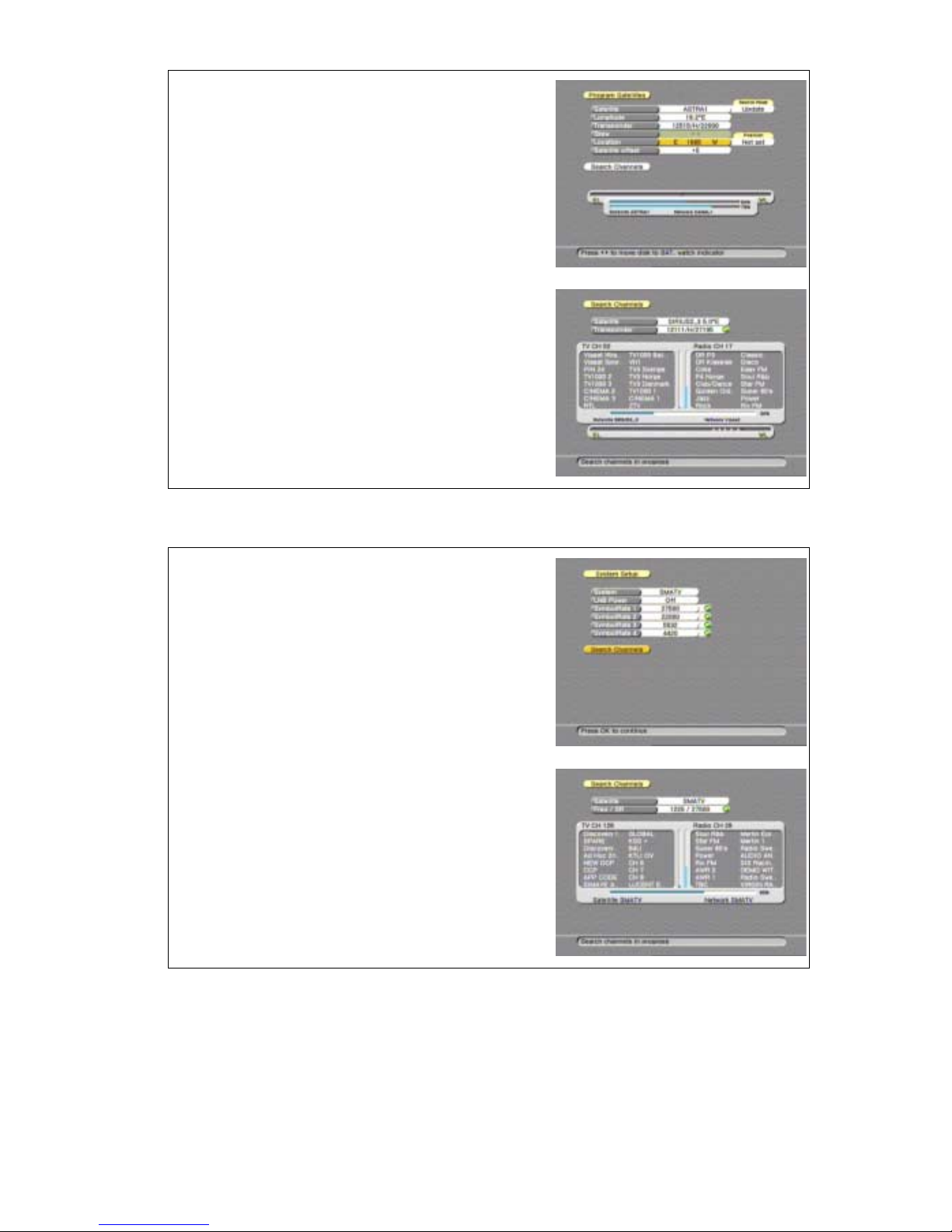

28. Go to the Program Satellites field.
29. On the RCU, press the OK key to advance.
Digital Satellite ReceiverPage 3 - 7
Page 18
Section 3
30. Make the required selections.
31. Read the available help text for information.
32. Go to the Search Channels field.
33. On the RCU, press the OK key to advance.
34. Wait for the search to complete:
35. On the RCU, press the OK key to end the initial
Installation
a. the receiver display shows a moving dot;
b. the search completed popup menu appears.
setup procedure.
FOR SMATV INSTALLATIONS
22. Make the required selections.
After the initial installation it is possible to add
more symbol rates. Refer to section Maintenance
for detailed instructions.
23. Read the available help text for information.
24. Go to the Search Channels field.
25. On the RCU, press the OK key to advance.
26. Wait for the search to complete:
a. the receiver display shows a moving dot;
b. the search completed popup menu appears.
27. On the RCU, press the OK key to end the initial
setup procedure.
The digital satellite receiver has 2 Common Interface slots and an embedded Viaccess smart
card reader. The front panel gives you the control over the basic functions. The rear panel
gives you various connections to connect the audio and video equipment as well as a
terrestrial and dish antenna. Ventilation slots in the housing are provided for cooling of the
internal electronics.
The software of the receiver contains the EchoNAV user interface with on-screen help, which
gives you easy control over the features of the receiver. The software contains also a large
database of pre-programmed satellites and transponders which are used for a quick
installation. For initial installation, the software guides you through the required setup menu to
allow for an easy and reliable installation setup of the receiver.
FEATURE HIGHLIGHTS
■
EchoNAV Multi-Lingual advanced User Interface (12+ languages);
■ Embedded Viaccess 1.1;
■ 2 Common Interface Slots;
■ 7dayEPG;
■ 5,000 Digital Channels, 100 Satellites, 1,300 Transponders;
■ 8 Favorite Channel Lists for TV and 8 for radio;
■ Powerful Channel Sorting and Grouping;
■ Multiple Scan Modes (incl.Update Scan);
■ Digital Audio Output (Dolby Digital Compatible);
■ DiSEqC 1.0;
■ Integrated High Power Positioner (36 Volt, 5 Amp.)
to show the clock or the actual status of the receiver;
■ Thekey,
to switch the receiver to on or stand-by;
■ The MENU key,
to get access to the EchoNAV installation menu;
■ The OK key,
to get access to the EchoNAV mode and selection menu;
■ The arrow keys,
to navigate left, up, right and down through the selectable options;
■ The access door,
to access the different slots for the CI-modules and smart cards.
Digital Satellite ReceiverPage 4 - 1
Page 20
Section 4
Familiarization
1.2.THE RECEIVER REAR PANEL
The rear panel gives you various connections to connect the audio and video equipment as
well as a terrestrial and dish antennas. Depending on the installation setup, you may not use
all connectors, but they are provided for any desired setup in future.
The available connectors on the rear panel are:
■ The LNB IN connector (F-type),
for the connection of a dish to the
receiver, to receive the digital
broadcasts;
■ The IF OUT DIGITAL connector
(F-type), for the connection of a loop
through cable;
■ The VCR connector (SCART), for the
connection of a VCR with the use of a
fully-featured SCART-cable;
■ The AUX connector (SCART),
for the connection of e.g. an analog
receiver with the use of a fully-featured
SCART-cable;
■ The TV connector (SCART),
for the connection of a TV with the use of
a fully-featured SCART-cable;
■ The S/PDIF connector (RCA),
for the connection of Dolby Digital (AC-3)
compatible audio equipment;
■ The 0/12V connector (RCA),
for the connection of a remote switch;
■ The VIDEO connector (RCA),
for the connection to the composite
video input of the TV (monitor);
■ The AUDIO L connector (RCA),
for the connection of the left audio input
channel of a stereo set;
■ The AUDIO R connector (RCA),
for the connection of the right audio input
channel of a stereo set;
■ The ANT IN connector (IEC),
for the connection of an terrestrial TV
antenna;
■ The TV OUT connector (IEC),
for the connection to the antenna
connector of a TV or a VCR;
■ The SERIAL PORT connector (sub-D),
for the connection to the serial
communication port of a PC;
■ The FERRITE + connector (spring-clip),
for the connection to the + terminal of a
magnetic polarotor (Ferrite);
■ The FERRITE - connector (spring-clip),
for the connection to the - terminal of a
magnetic polarotor (Ferrite);
■ The M1 connector (spring-clip),
for the line 1 connection of a motor or
actuator (for motorized/actuated dishes);
■ The M2 connector (spring-clip),
for the line 2 connection of a motor or
actuator (for motorized/actuated dishes);
■ The M.PULSE connector (spring-clip),
for the connection of the feedback
sensor (for motorized/actuated dishes);
■ The +5V connector (spring-clip),
for the connection of the power terminal
of a polarotor;
■ The GND connector (spring-clip),
for the connection of the ground terminal
of the feedback sensor and the
polarotor;
■ The SKEW connector (spring-clip),
for the connection of the skew terminal
of a polarotor;

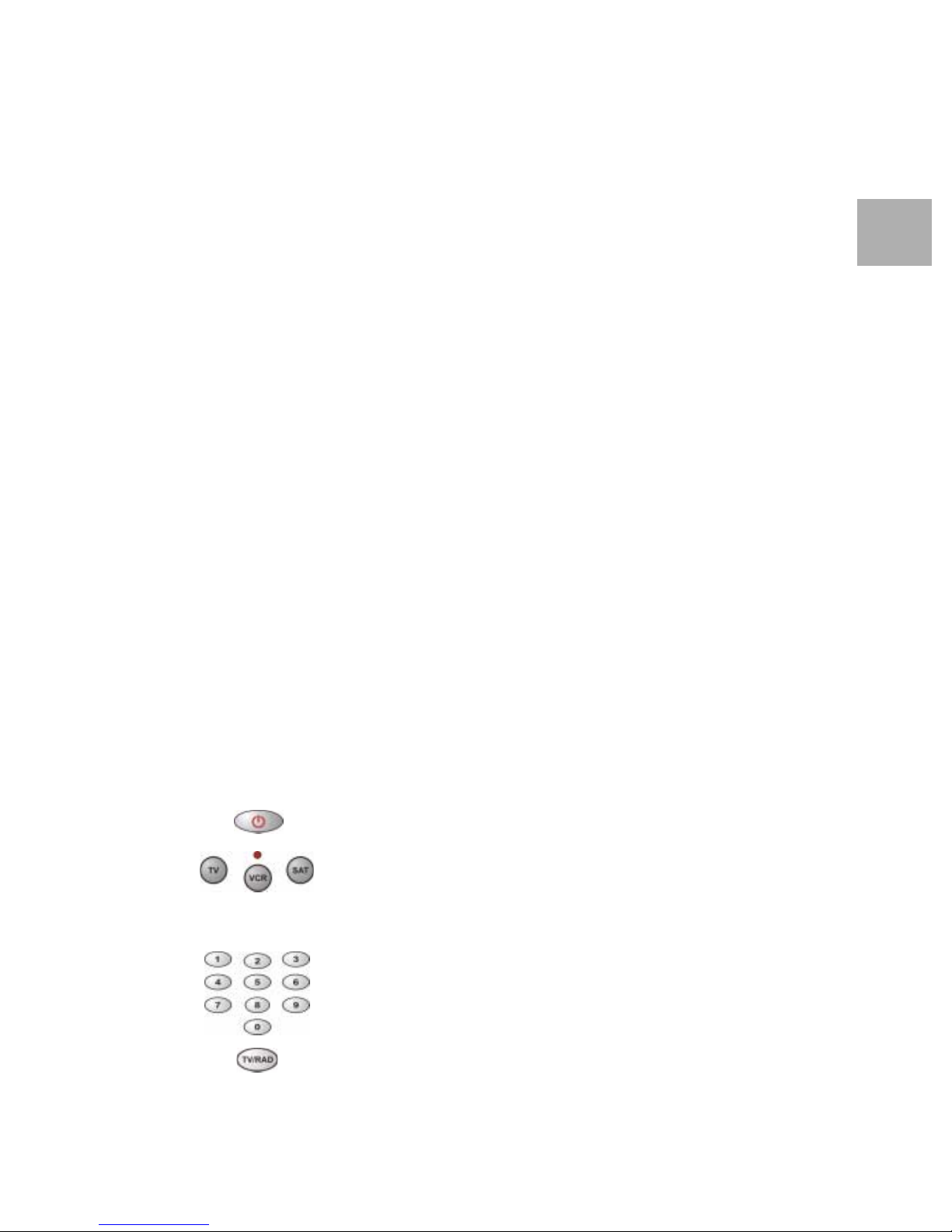

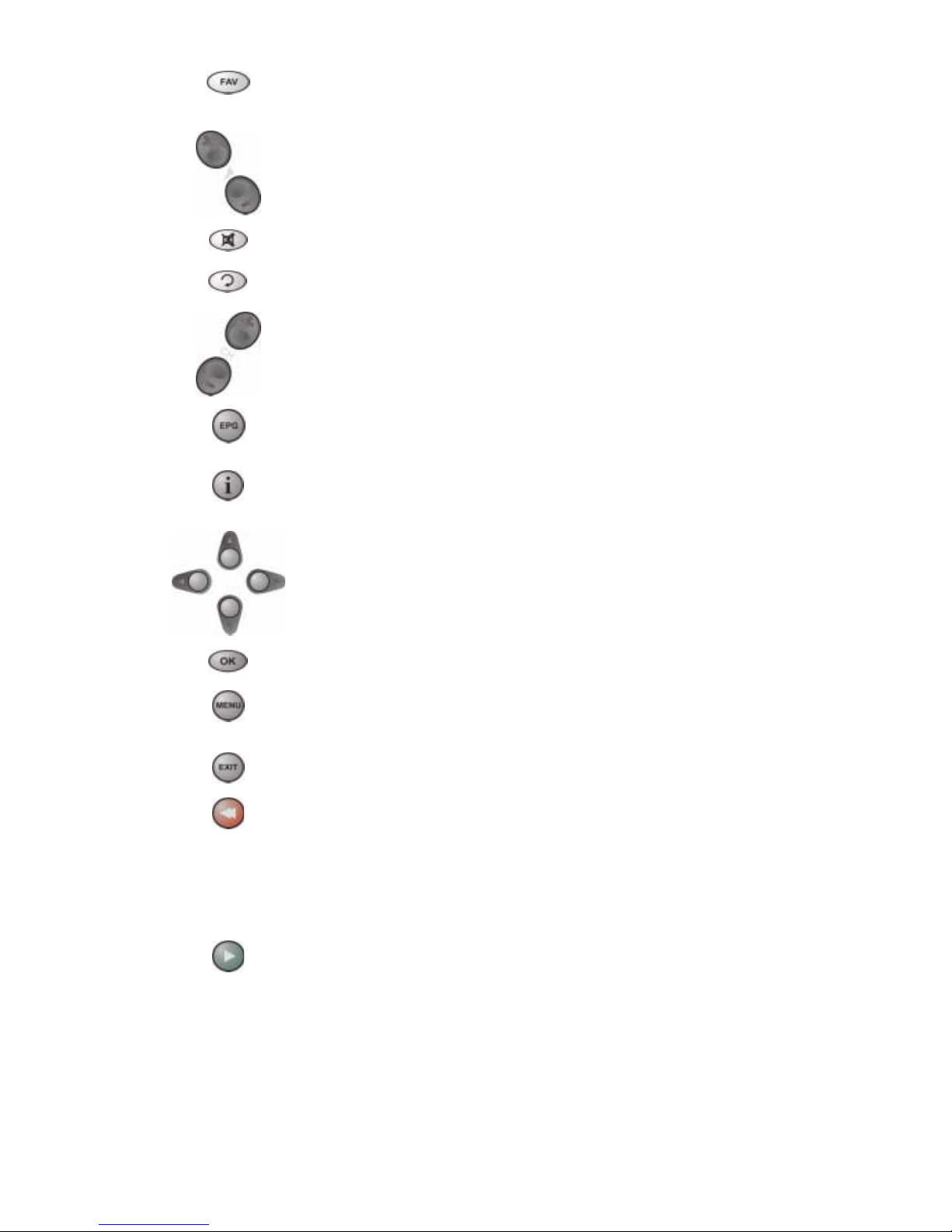

The EchoStar Tri Control is a programmable RCU that also can control your TV and VCR.
The EchoStar Tri Control requires two AA/R6 alkaline batteries to operate.
To view the InfoBanner;
To view detailed EPG
information.
■ ARROW CLUSTER
To scroll left, right, down or
left.

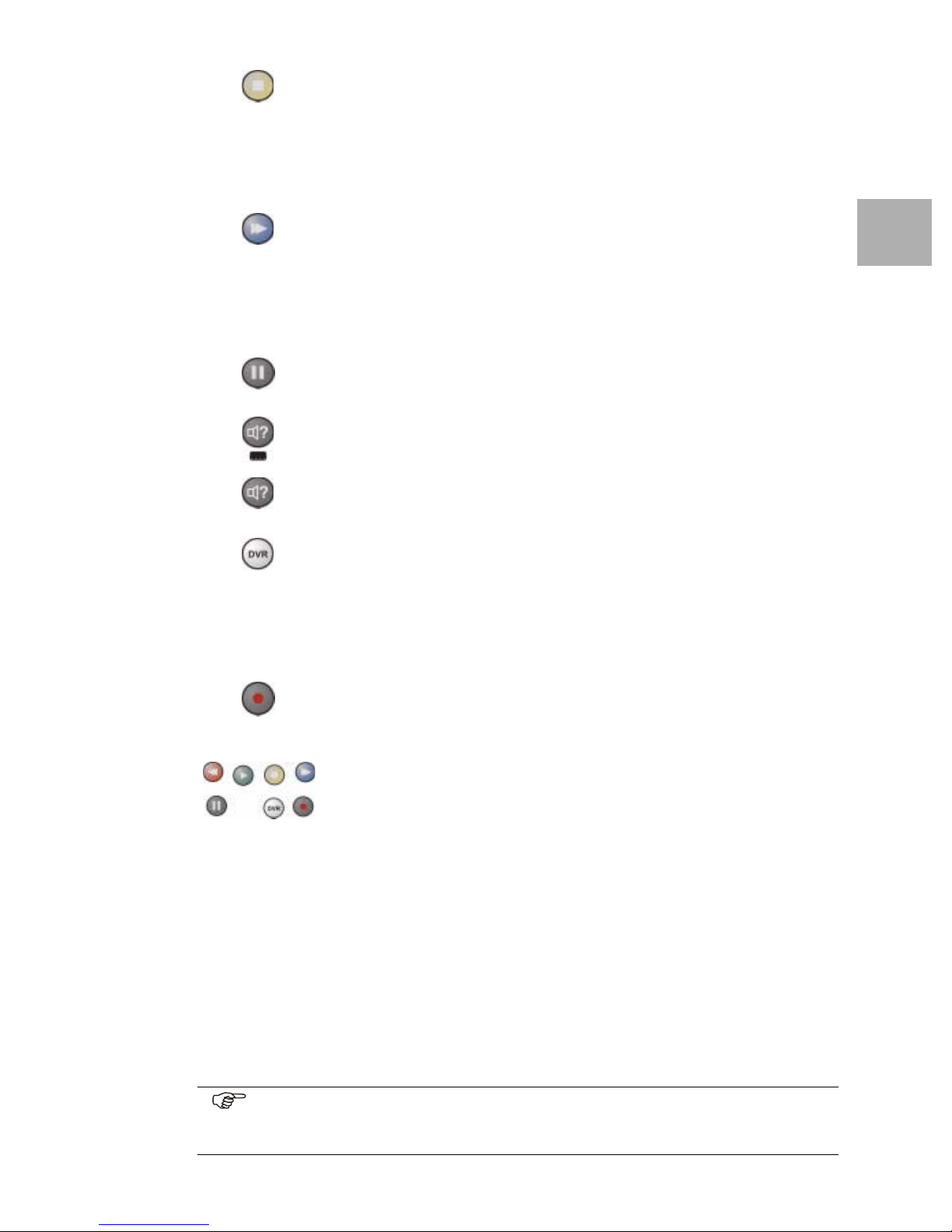

■ RED
All rights reserved
To go to another mode.
REWIND
Not used for Sat-mode.
■ GREEN
To select a (favorites) list.
PLAY
Not used for Sat-mode.
■ PAUSE
Not used for Sat-mode.
■ ALT AUDIO
To choose a language.
ALT SUBTITLE
To choose a subtitle.
■ RECORD
Not used for Sat-mode.
SAT
Not used for Sat-mode.
■ SAT
To control the receiver.
■ NUMBER KEYS
To enter numerical settings;
To type in a channel number.
■ FAV
To go to the favorite list of the
actual mode.
■ MUTE
To blank out the volume.
■ Recall
To go to the previous channel;
To access special features.
■ CH+
To go one channel up.
■ CH-
To go one channel down.
■ OK
To go to the (favorites) lists;
To make a menu selection;
To pull down a selection menu.
■ MENU
To go to the installation menu.
■ EXIT
To leave a menu or feature.
■ YELLOW
To group a list;
To select an EPG timer.
STOP
Not used for Sat-mode.
■ BLUE
To s o rt a l is t;
To zoom in/out the time slot of
the EPG view window.
FAST FORWARD
Not used for Sat-mode.
■ WHITE
To edit a list.
DVR
Not used for Sat-mode.
4
Digital Satellite ReceiverPage 4 - 3
Page 22
Section 4
Familiarization
1.4.THE ECHONAV USER INTERFACE
The EchoNAV user interface is designed to give you easy control over the receiver. The
EchoNAV user interface has four main features that give access to the different functions.
The four main features are:
■ The EchoNAV installation menu,
that helps you to setup the receiver and access the parental lock settings;
■ The EchoNAV user menu,
that helps you to control the daily operation and selection of the favorites;
■ The EchoNAV EPG menu,
that helps you to control the different timers and to view the available EPG;

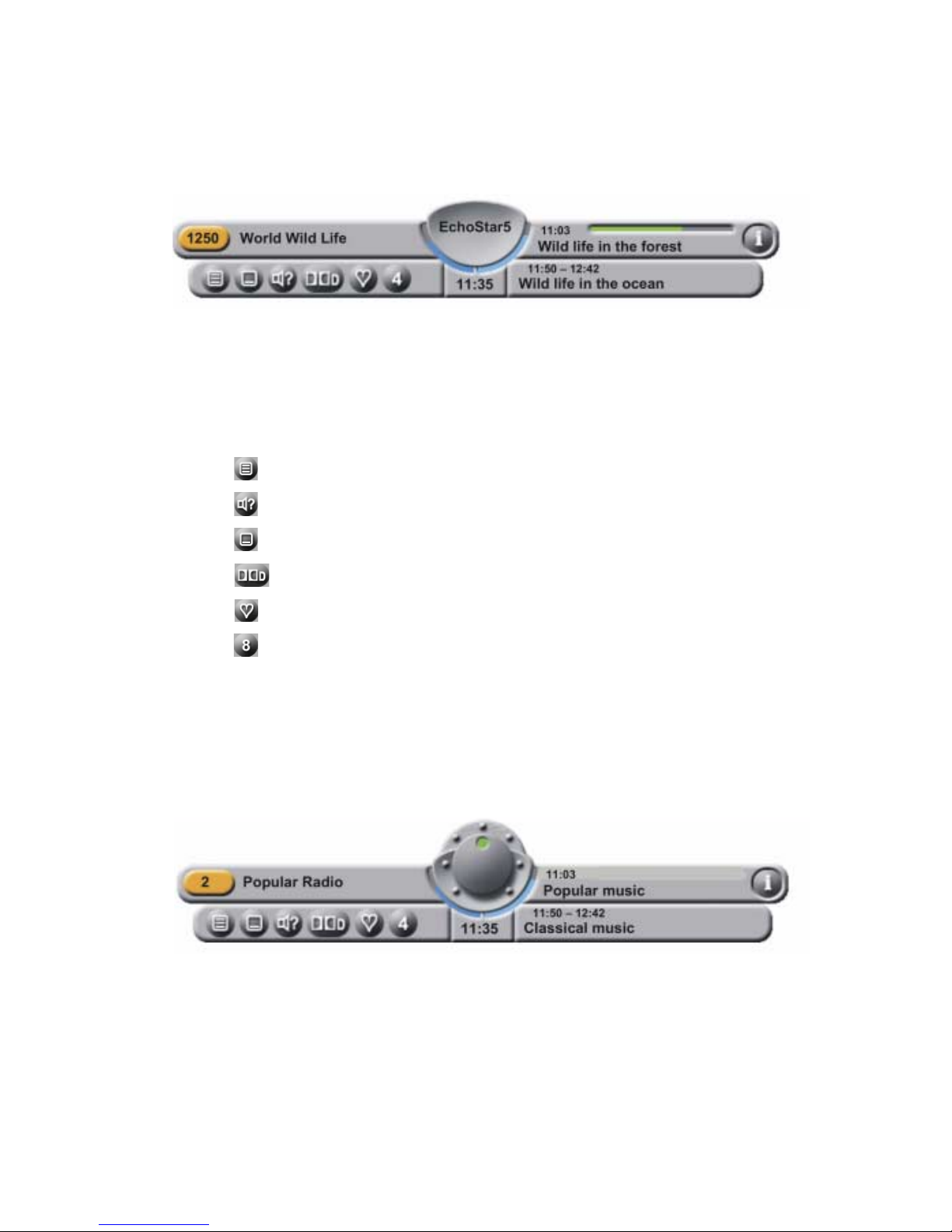

■ The EchoNAV InfoBanner,
that helps you to view the available information about the actual mode.
The EchoNAV user interface has various ways to navigate through the menus and functions.
Some of the keys on the remote control unit give direct access to functions. The most
important keys are identified as EPG, colored keys, MENU, OK and EXIT. Other keys are
multi-functional which means that their function changes dependent of the mode that you are
in.
NOTE
Unless otherwise specified; this note explains the way you can navigate through
the pages of the EchoNAV user menu.
1. Use the OK key to pull down the menu selection fields.
2. Use the keys to scroll the selectable items.
3. Use the keys to navigate between the left and right column of selectable
items.
4. Use the EXIT key to leave the menu and return to the view mode.
5. In a pull-down menu:
- use the OK key to confirm the selection.
- the yellow bar indicates the active selection;
- on the left, the green page indicator indicates where you are.
The EchoNAV installation menu has different main menus that give you access to the
different sub menus. The main menus are:
■ The guided initial setup menu which is only accessible after the first time you switch the
receiver on and after every manually initiated factory reset;
■ The User Preferences menu, the installation setup menu and the CI menu are accessible
at any time.
NAVIGATION
A highlighted button shows you which (main/sub) menu is selected. The MENU key lets you
change between the main and sub menu where thekeys let you make a selection in the
selected (main/sub) menu. The OK key brings you into the related page, where you can make
a choice from the available options.
NOTE
Once in a page, at any time:
■ you can use the MENU key to reverse from a menu page to the sub menu bar;
■ you can easily leave with the EXIT key.
Page 4 - 4EchoStar D-2600 IP Viaccess
Page 23
■ Thebutton, that gives you access to the User Preferences menu;
■ Thebutton, that gives you access to the installation setup menu;

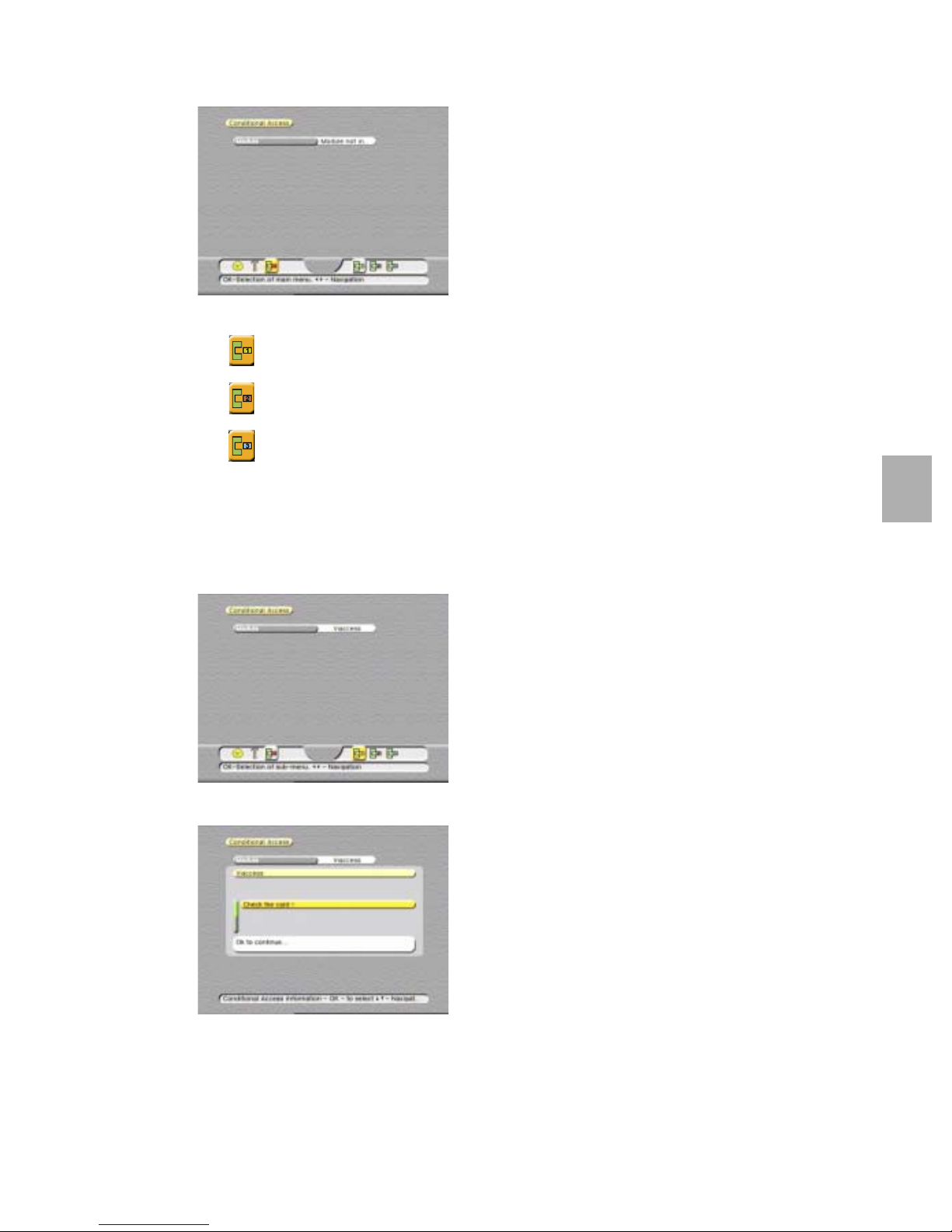

■ Thebutton, that gives you access to the Conditional Access menu.

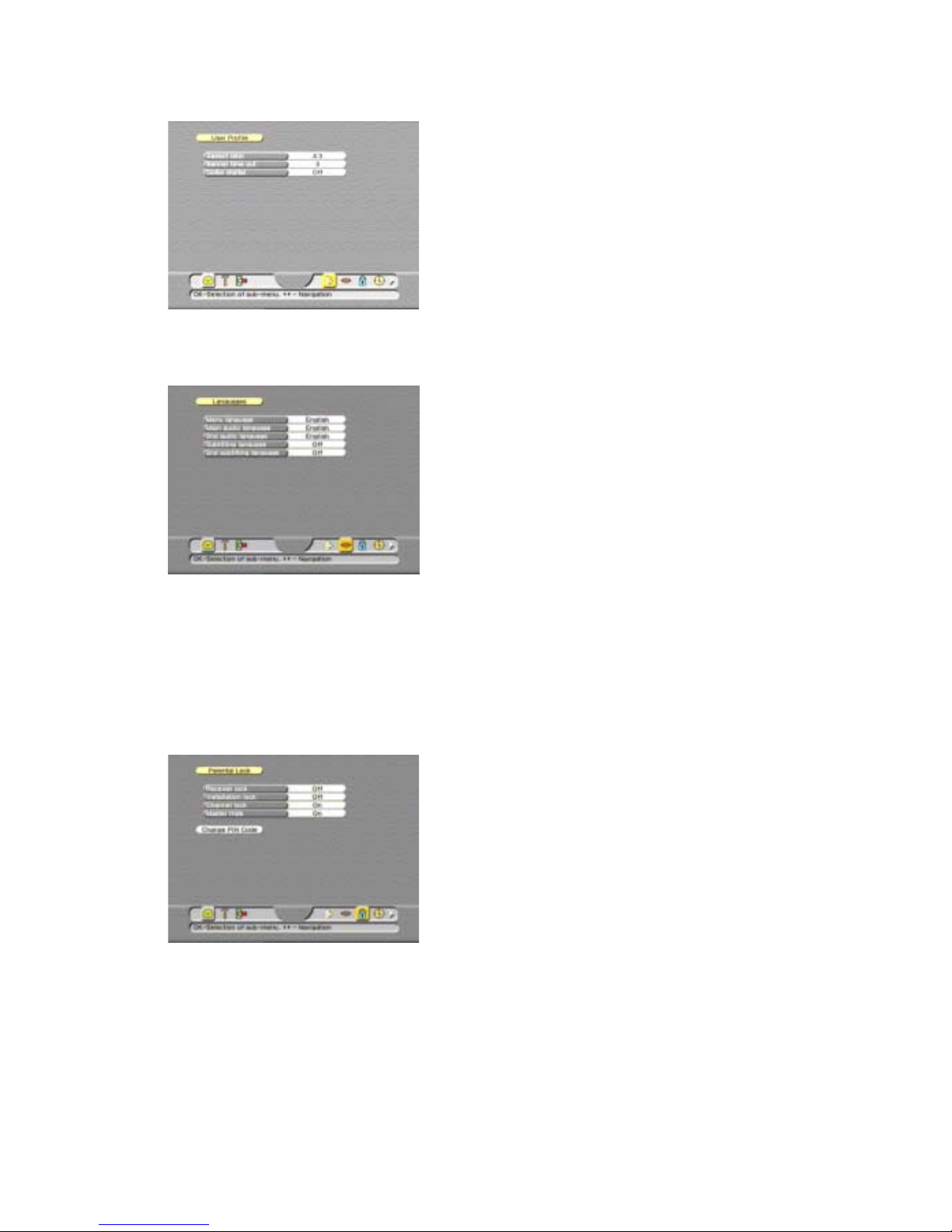

2.1.THE USER PREFERENCES MENU
All rights reserved
Familiarization
Section 4
The main menus are divided in sub menus, selection
pages and option fields. The main menu buttons are
shown at the right hand side of the menu bar. The
different sub menu buttons are shown on the left hand
side of the menu bar.
The selection pages with the option fields are
accessible after you have selected a sub menu.
Every menu, sub menu and selection page has one or
more help lines to assist you.

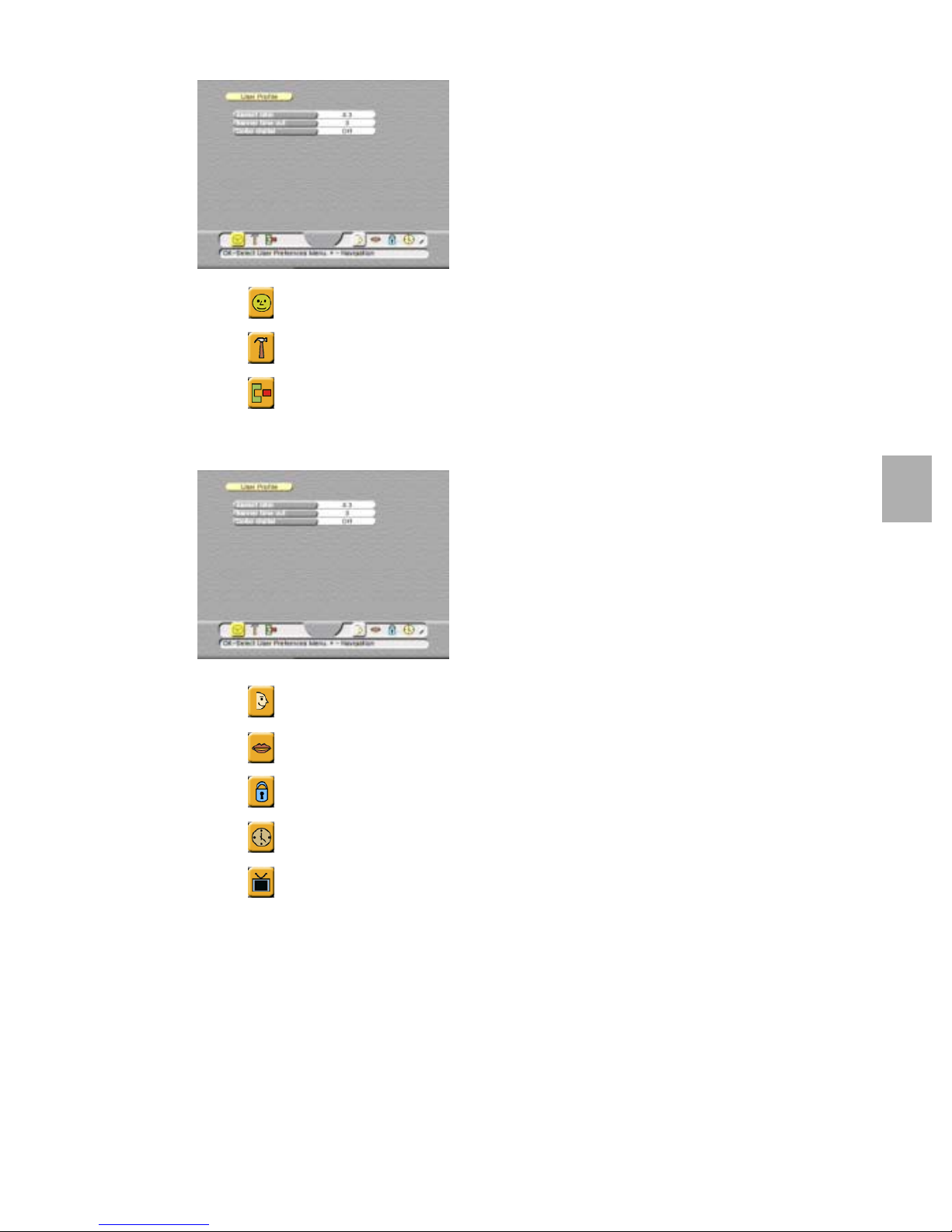

The main menus are accessible with:
This main menu has different sub menus that give
access to the pages where you can customize the
factory settings.

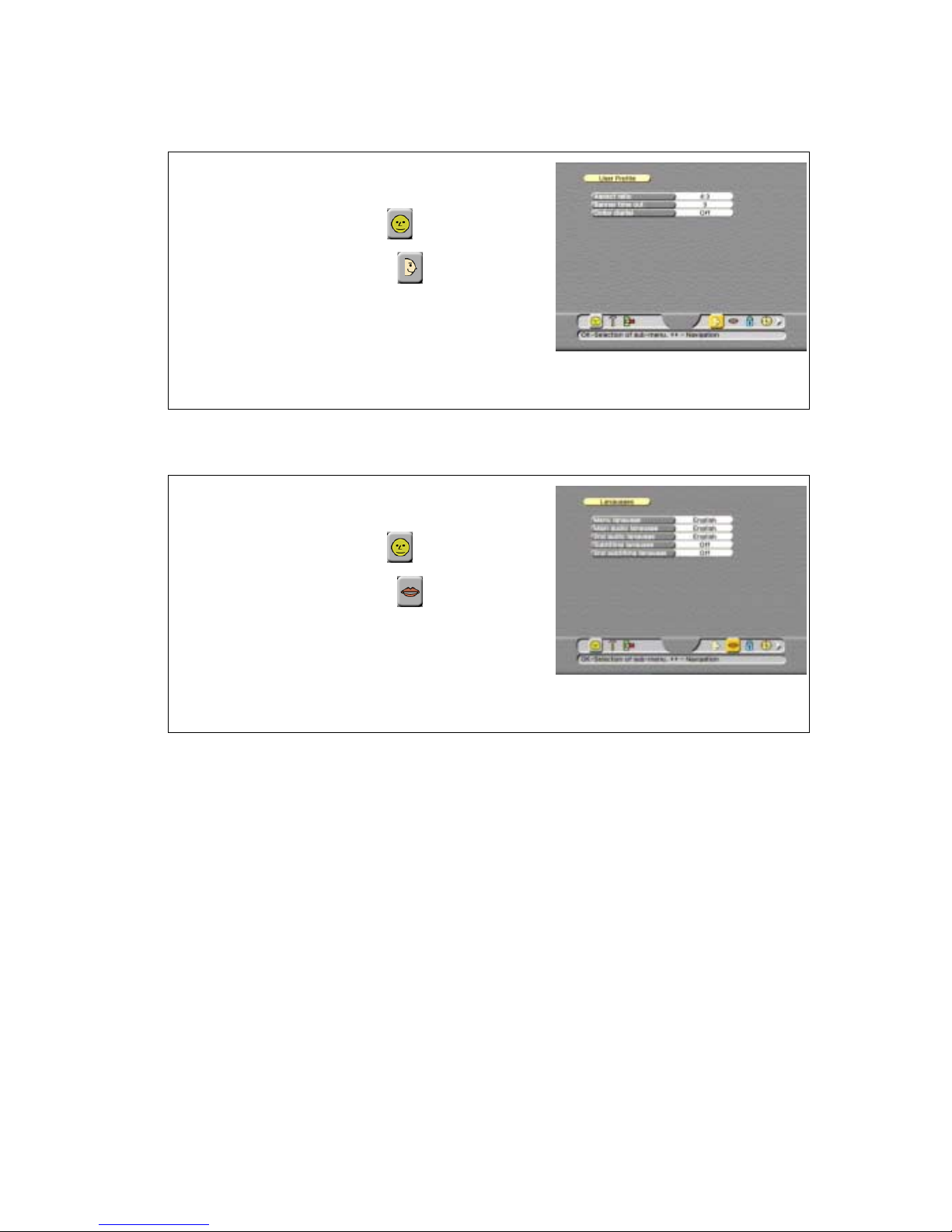

The user preferences menu always comes in view with
the User Profile sub menu. In the menu bar the
sub menus are shown at the right side. The available
sub menus are shown as icons which become a
highlighted button after selection.
The sub menus are accessible with:

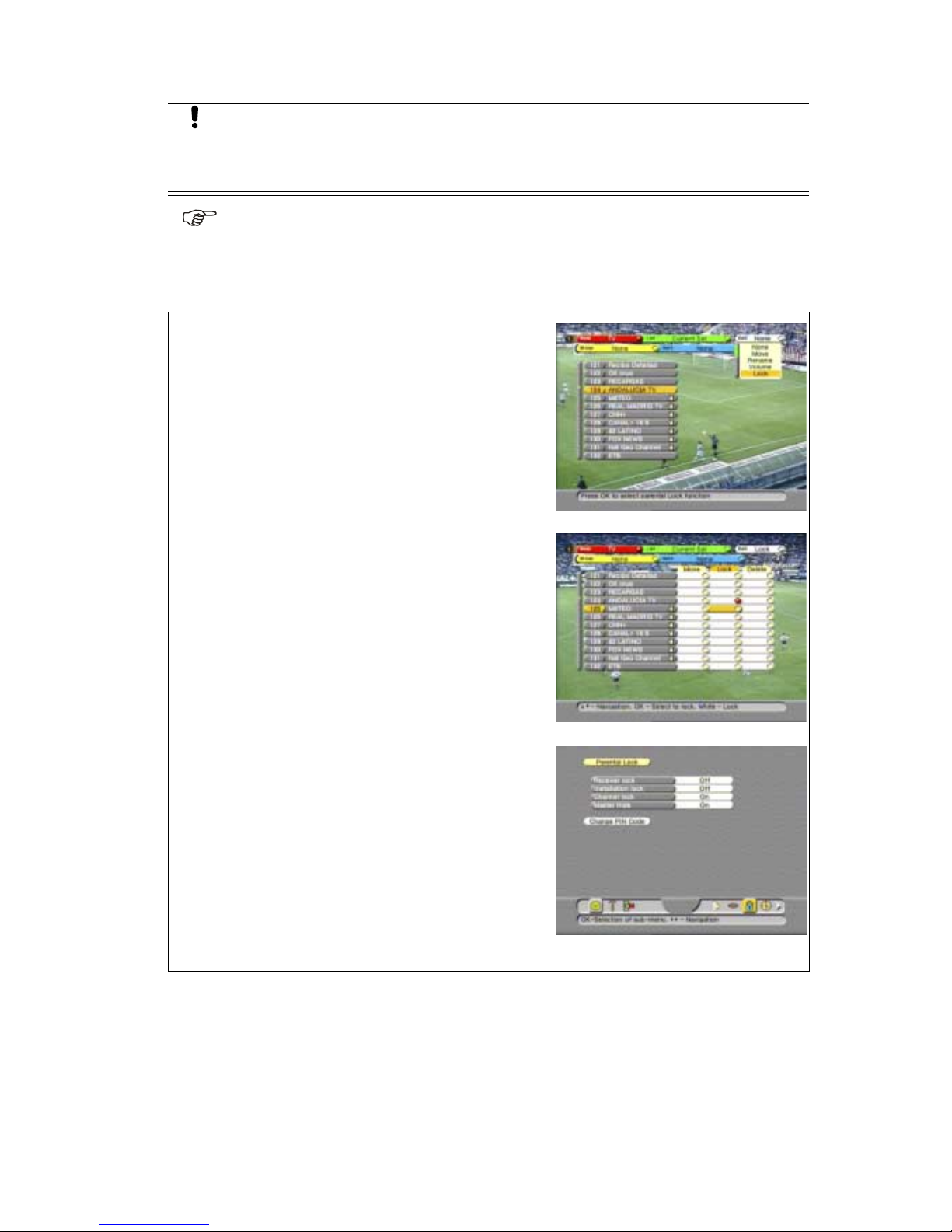

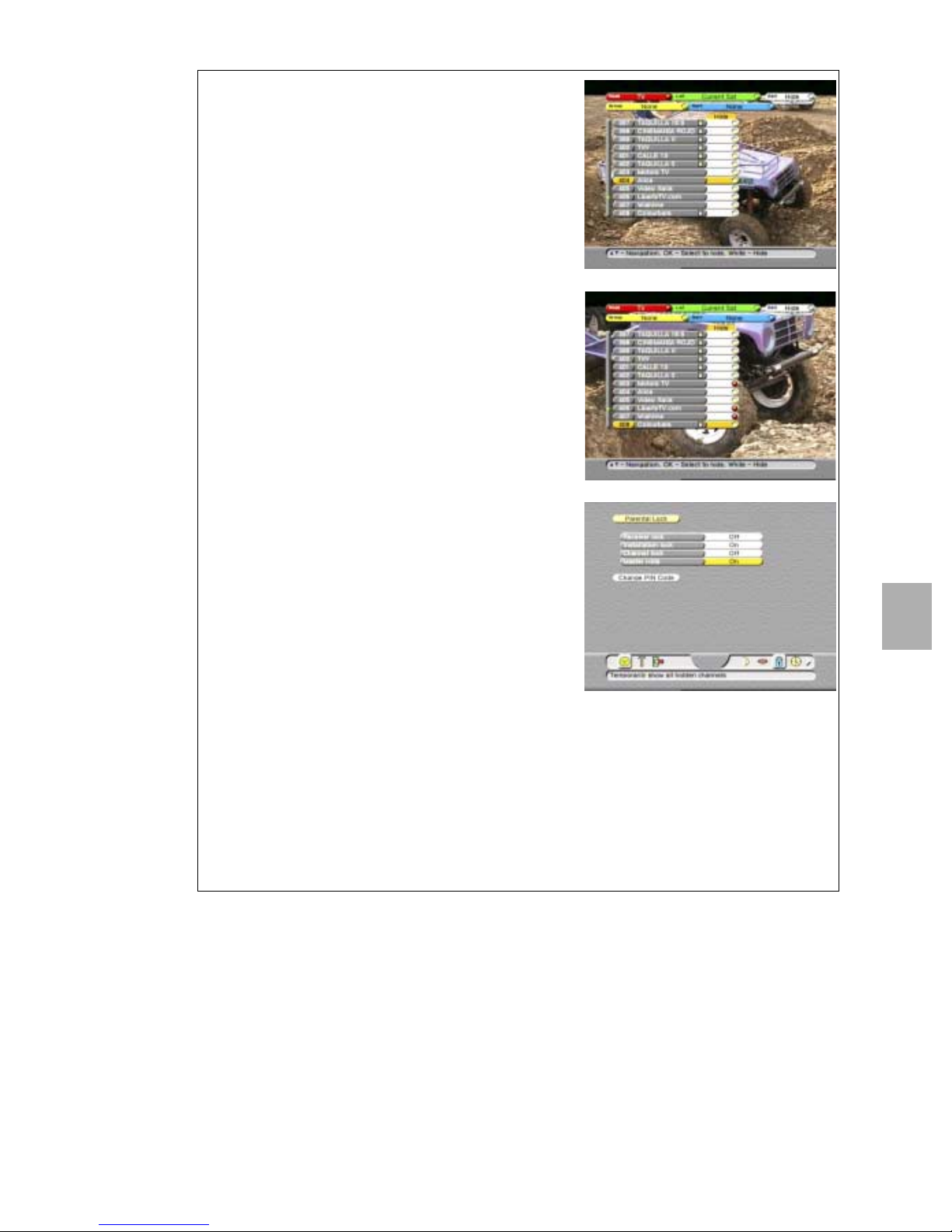

The parental lock menu is initial accessible with the factory default PIN code 0000. For future
use, you are requested to change the PIN code to your own personal code.
This sub menu contains two menu pages. These menu pages are:

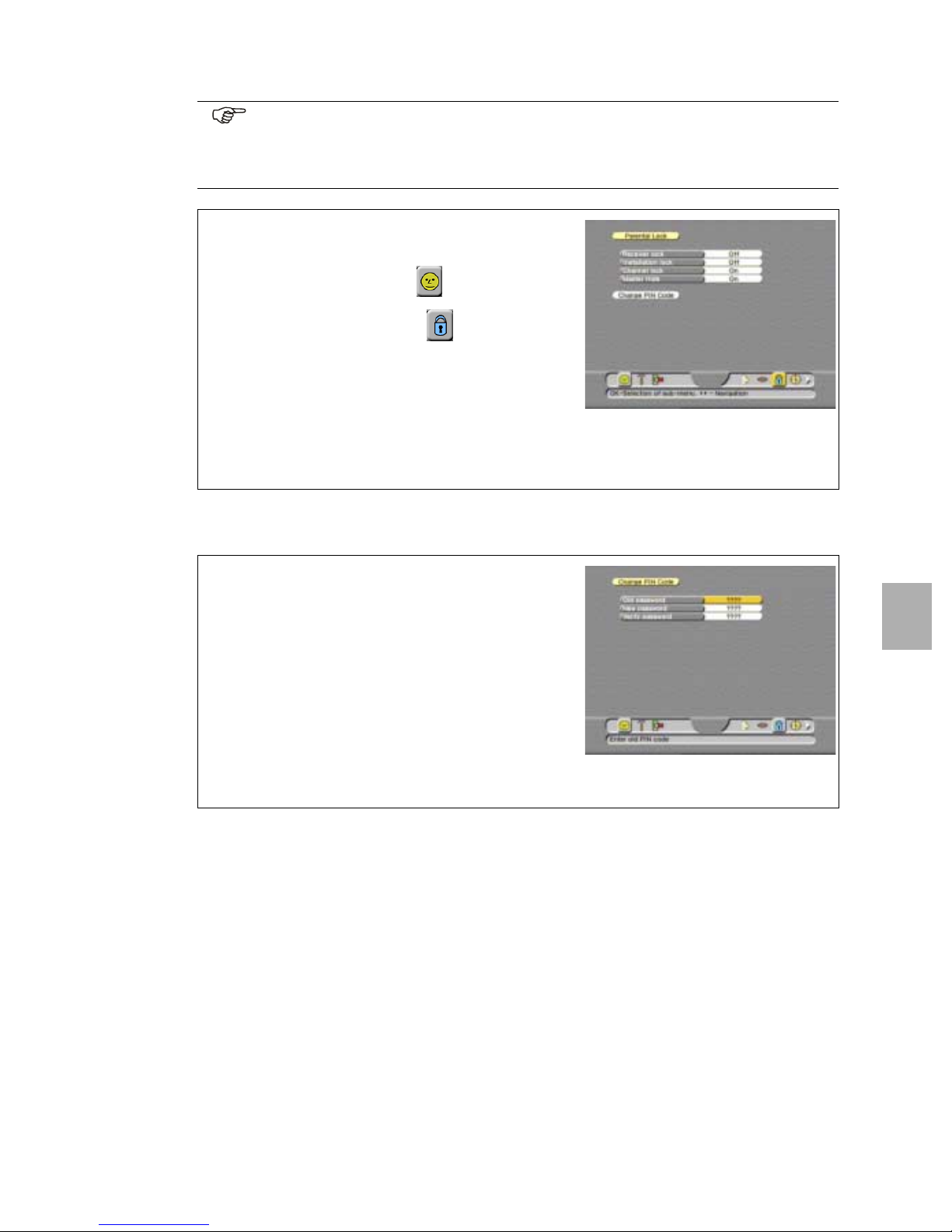

TO CHANGE THE PARENTAL LOCK SETTINGS
This menu page allows you to customize the parental lock settings, you can customize:
■ Receiver Lock
To lock the receiver completely for unauthorized
users.
■ Installation Lock
To lock the installation menu for unauthorized
users.
This menu page allows you to change the PIN code, you can change:
2.1.4. LOCAL TIME PAGE
This menu page allows you to customize the local time settings. For the correct operation of
the EPG and the timers, it is necessary to set the local time correctly. You can customize:
All rights reserved
Familiarization
■ Old password
Section 4
To type in the factory default or personal PIN code.
■ New password
To type in your new PIN code (numbers only).
■ Verify password
To type in your New password again. Now the
receiver verifies the new password to make sure
that you typed in the new password correctly.
■ Selected time zone
To set the time zone where you are.
■ Year
To set the actual year.
■ Month
To set the actual month.
■ Date
To set the actual date.
■ Day
To set the actual day.
■ Hour
To set the actual time in hours.
■ Minute
To set the actual time in minutes.
■ Press OK to set the time
To confirm the settings you made.
4
2.1.5. TV SYSTEM PAGE
This menu page allows you to customize the TV settings used for the receiver, you can
customize:
■ Channel
To select the (UHF) TV channel to which the
receiver is connected.
■ CH Frequency
To view the frequency that corresponds with the
selected channel. You can not set this option.
■ System
To set the video format supported by your TV.
Digital Satellite ReceiverPage 4 - 7
Page 26
Section 4
Familiarization
2.2.THE INSTALLATION SETUP MENU
This main menu has different sub menus that give
access to the pages where you can customize the
settings to match your personal requirements.
Note that the sub menus are dynamic which means
that they change with the selections you make.
The installation setup menu always comes in view with
the system setup sub menu. In the menu bar the
sub menus are shown at the right side. The available
sub menus are shown as icons which become a
highlighted button after selection. The sub menus are
accessible with:
Thebutton, that gives you access to the System Setup page (for Fixed dish);
Thebutton, that gives you access to the System Setup page (for motorized dish);
Thebutton, that gives you access to the Program Satellites page (for motorized dish);
Thebutton, that gives you access to the User LNB Setting page;
Thebutton, that gives you access to the About EchoStar information page;
Thebutton, that gives you access to the System Upgrade page;
Thebutton, that gives you access to the Factory Reset page.
SIGNAL AND EL-WL INDICATOR
In some menus the signal indicator is shown to help you to find a satellite and fine tune for the
best signal level and quality.
In some menus (motorized only), an EL-WL indicator is shown to show you what the East and
West limits are that you have set for the dish installation, also the position of the searched
satellites is shown.
■ The signal indicator
The top bar shows the signal level to indicate that
you receive a signal.
The bottom bar shows the quality of the signal
(signal-to-noise ratio) to indicate that you have a
lock onto the selected transponder.
The bottom text gives the satellite and network
information to which the lock is established.
■ The EL-WL indicator (motorized only)
EL and WL show you the calculated East and West
Limits. The Indication in the EL-WL indicator show
you the calculated position of the searched
satellites. Note that this indicator can also show in
the TV or Radio mode as part of the InfoBanner.
This sub menu allows you to customize the system setup to match your installation. Note that
the menu page is dynamic which means that it changes with the selections you make. You
can customize:
All rights reserved
Familiarization
■ System
Section 4
To set the dish type you use.
■ LNBs
To set the amount of LNBs you have installed.
■ Polarity
To set the device that controls the signal polarity.
■ Switch
To set the switch type which you use to control the
dish installation (if used).
■ LNB1
To set the LNB type(s) you use.
■ Method (motorized only)
To set the scan method;
AutoSat (automatically calculate the satellite
positions from reference positions)
Manual (enter the satellites by manual search).
■ AutoSat (motorized, AutoSat only)
To confirm the selections you made and advance
to the AutoSat setup page (AutoSat only)
■ Set Limits (motorized, manual only)
To confirm the selections you made and advance
to the Set Limits page.
■ Satellite (fixed only)
To set the satellite you want to scan for the LNB.
■ Check Signal (fixed only)
To confirm the selections you made and advance
to the Check Signal page.
■ LNB Power (SMATV only)
To select the distribution type (cable=Off, IF=On).
■ Symbol Rate 1-4 (SMATV only)
To set the symbol rate you want to scan.
■ Search Channels (SMATV only)
To confirm the selections you made and advance
to the Search Channels page.
4
Digital Satellite ReceiverPage 4 - 9
Page 28
Section 4
Familiarization
2.2.2. FIXED DISH SETUP
This sub menu allows you to customize the system setup to add an additional fixed dish into
your motorized configuration. Note that the menu page is dynamic which means that it
changes with the selections you make. You can customize:
2.2.3. PROGRAM SATELLITES
■ LNBs
To set the amount of LNBs you have installed.
■ Polarity
To set the device that controls the signal polarity.
■ Switch
To set the switch type which you use to control the
dish installation.
■ LNB1
To set the LNB type(s) you use.
■ Satellite
To set the satellite you want to scan for the LNB.
■ Check Signal
To confirm the selections you made and advance
to the Check Signal page.
This sub menu allows you to customize the system setup to add an additional satellite into
your receiver. Note that the menu page is dynamic which means that it changes with the
selections you make. You can customize and view:
■ Satellite
To set the satellite you want to scan for the LNB.
■ Search mode
To set a specific search mode (All, FTA, IF, TP,
network or update).
■ Longitude
To view the satellite location on the Clarke Belt.
■ Transponder
To select a transponder of the selected satellite.
■ Skew
To adjust the Horizontal/Vertical setting (only for
polarotor).
■ Location
To move the dish for best signal level and quality.
■ Satellite offset
To compensate for a dish offset caused by ambient
conditions.
NOTE
The satellite offset will affect all satellite positions,
this means that all scanned positions will change
which might result in total loss of signal for all
satellites.
■ Search Channels
To confirm the selections you made and advance
to the Search Channels page.

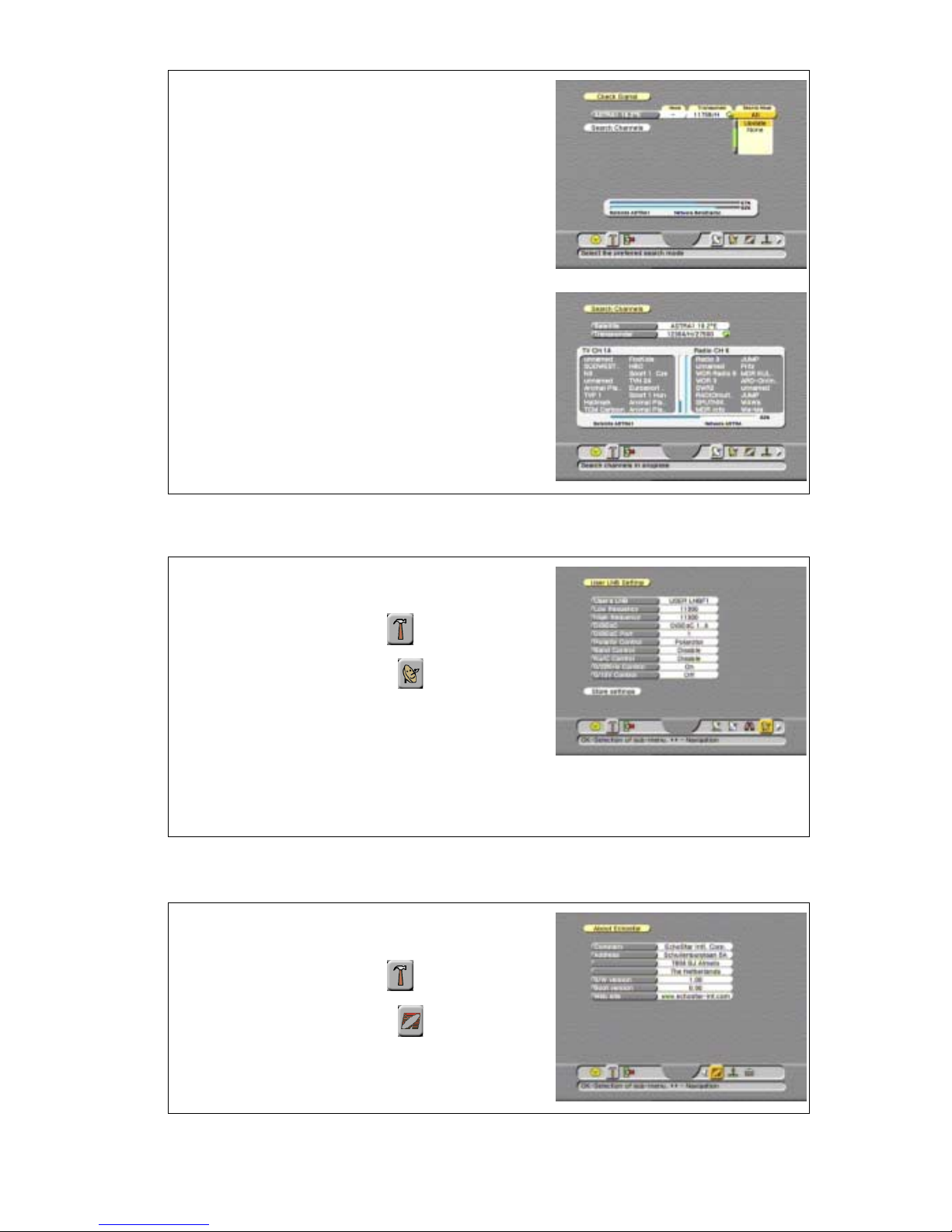

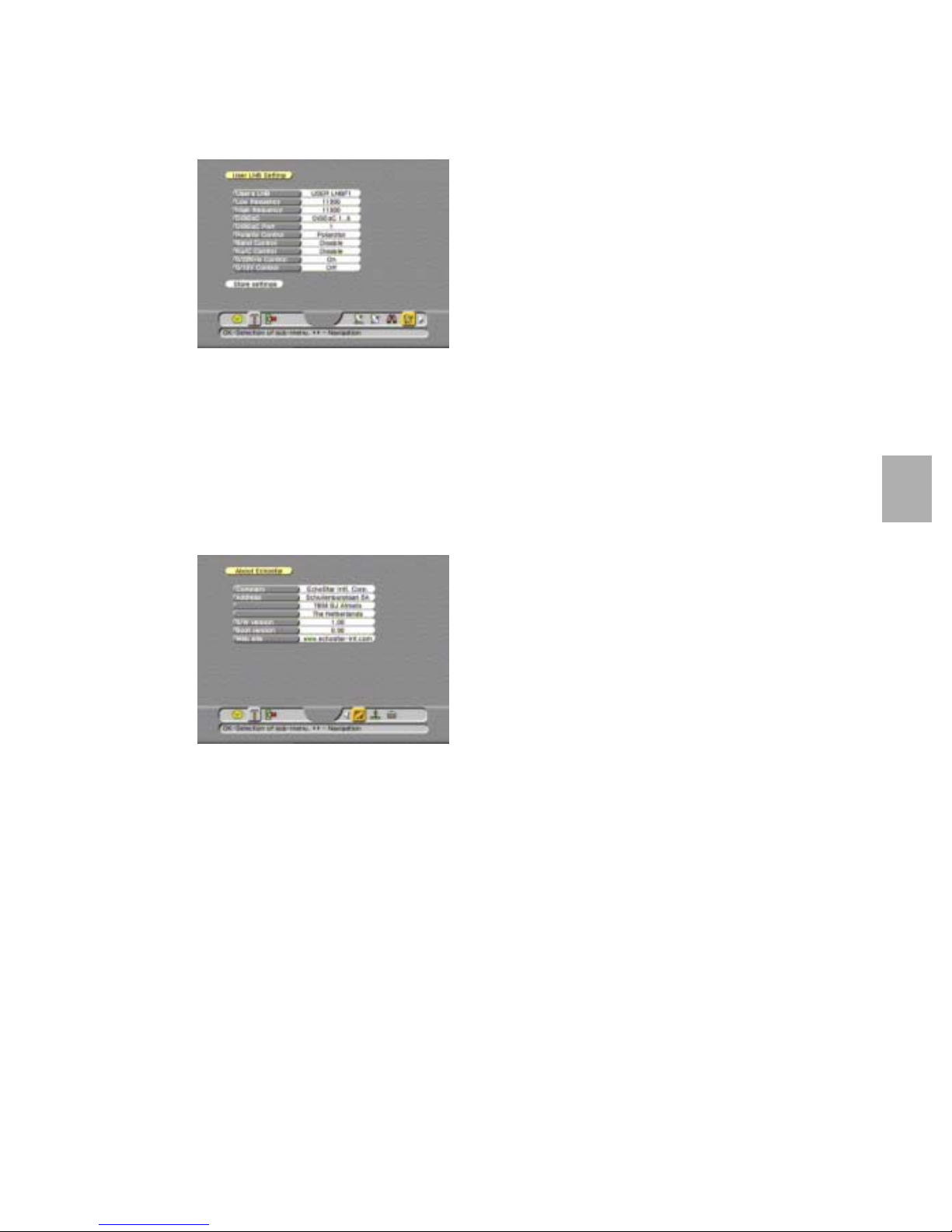

This sub menu allows you to program a LNB that is not listed in the LNB selection list. Note
that the menu page is dynamic which means that it changes with the selections you make.
You can customize:
Familiarization
■ User’s LNB
To select the first or second user defined LNB.
■ Low Frequency
To enter the low frequency of the user LNB.
■ High Frequency
To enter the high frequency of the user LNB.
■ Polarity Control
To select the device that controls the polarity.
■ Band Control
To set the control signal for high or low band
selection.
The About EchoStar menu gives all the where-to-contact-Information about EchoStar and the
status information about the receiver. You can view:
All rights reserved
4
■ Company
This field shows the full name of EchoStar.
■ Address
This field shows the address of EchoStar.
■ S/W version
This field shows the current software version
loaded into the receiver.
■ Boot version
This field shows the current boot version loaded
into the receiver.
■ Web site
This field shows the EchoStar web site where you
can find the latest user and software information.
Digital Satellite ReceiverPage 4 - 11
Page 30
Section 4
Familiarization

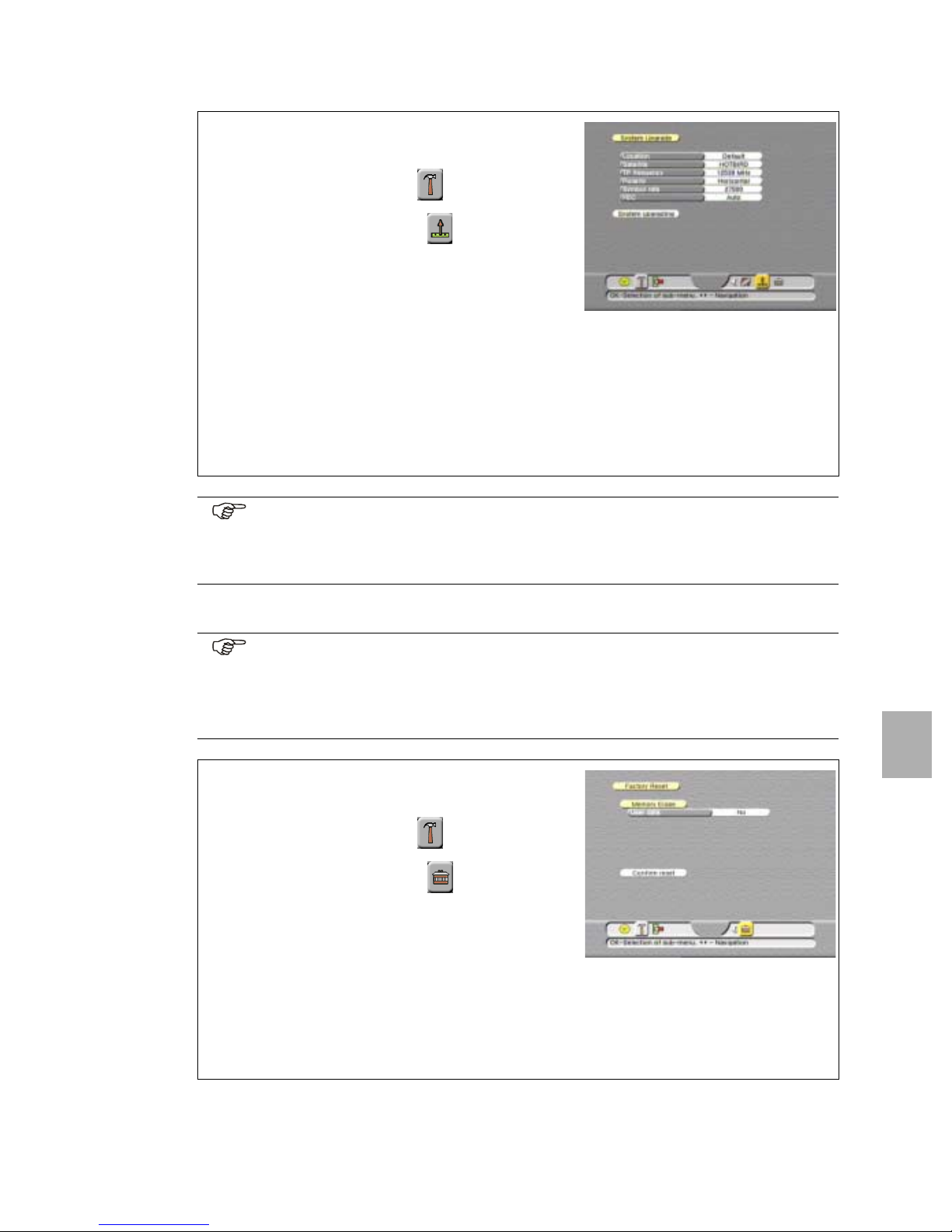

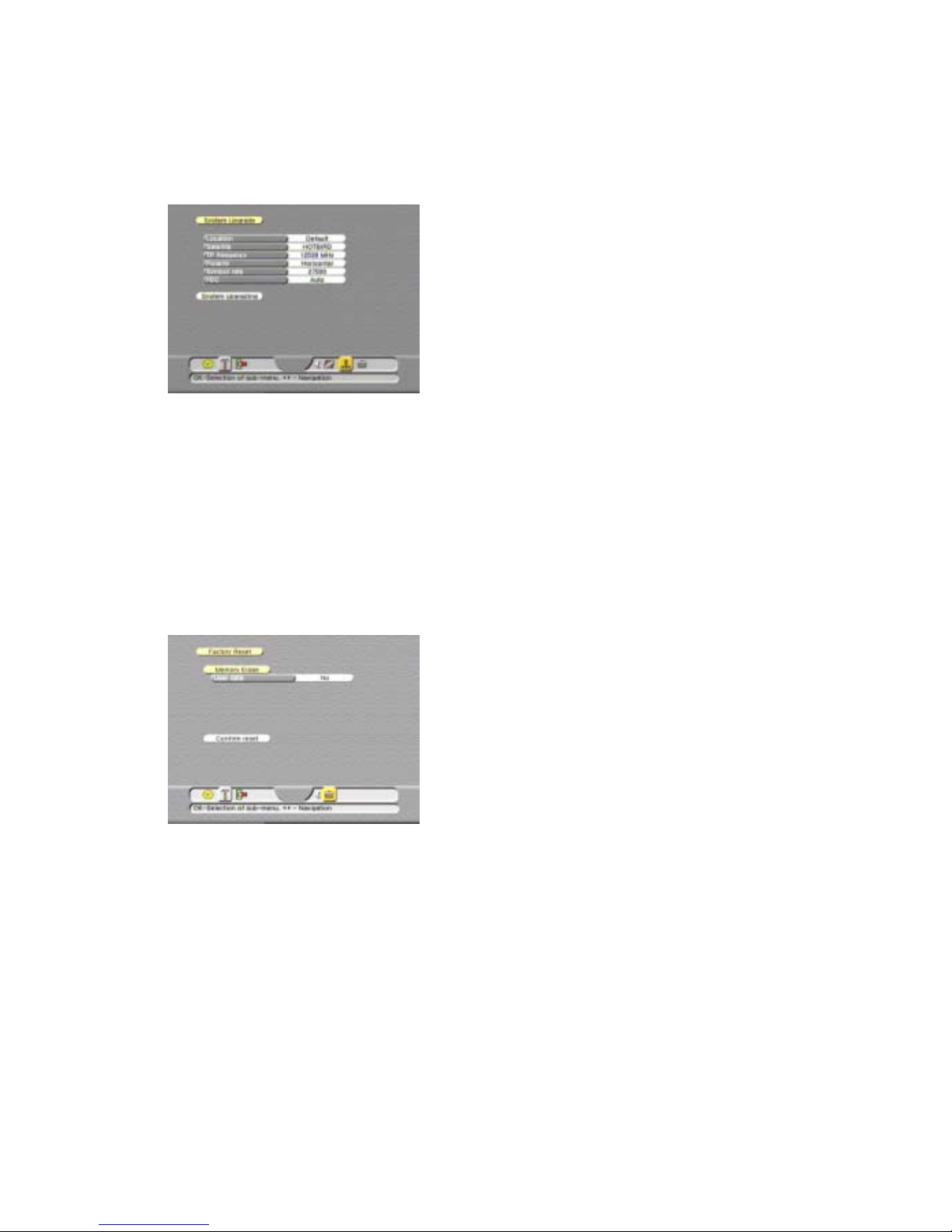

2.2.6. SYSTEM UPGRADE PAGE
This menu page allows you to upgrade the receiver’s software. EchoStar provides software
updates Over-The-Air (OTA) which means that you can upgrade your system via the satellite.
If you are not able to receive the satellite/transponder, you always can upgrade the software
through the SERIAL PORT (RS232) at the rear of the receiver and the downloaded software
from the EchoStar website.
■ Location
To select the default or user defined satellite where
you want to download from.
■ Satellite
To set the satellite where you want to download
from.
■ TP frequency
To set the transponder where you want to
download from.
■ Polarity
To set the correct polarity for the transponder.
■ Symbol rate
To set the correct symbol rate for the transponder.
■ FEC
To set the correct Forward Error Correction for the
transponder
The Factory Reset menu gives you the possibility to reset the receiver to the initial factory
settings. The memory erase option restores the factory settings over your personal settings.
All customized data like parental lock and favorites will be replaced with the factory settings.
All rights reserved
■ Memory Erase - User Data
To instruct the receiver to delete all personal
settings and replace them with the factory settings.
■ Confirm Reset
With this field you can confirm the selections made
and execute the selected procedure. After the
memory erase procedure is finished, you are taken
to the initial setup procedure. (for detailed
instructions, please refer to section Installation).
Page 4 - 12EchoStar D-2600 IP Viaccess
Page 31
2.3.THE CI INFORMATION MENU
This main menu has different sub menus that give
access to the pages where you can view the
CI-module and smart card settings.
Note that the sub menus are dynamic which means
that they change with the selections you make.
The conditional access information menu always
comesinviewwiththesystemsetupsubmenu.Inthe
menu bar the sub menus are shown at the right side.
The available sub menus are shown as icons which
become a highlighted button after selection. The sub
menus are accessible with:
Thebutton, that gives you access to the CI-module 1 information page;
Thebutton, that gives you access to the CI-module 2 information page;
Thebutton, that gives you access to the Viaccess smart card reader information page.
The CI-modules sub menu gives all the Information about the CI-module and related smart
card that is inserted. Note that the menu is dynamic which means that it changes with the
type of CI-module and related smart card inserted. The menus for slots 1, 2 and 3 are almost
identical, therefore only an example for slot 1 is shown. You can view:
All rights reserved
CONDITIONAL ACCESS INFORMATION
4
■ Module
Gives information about which CI-module and
related smart card is inserted in the selected
CI-slot.
■ Viaccess Embedded (smart card reader only)
Gives information about which Viaccess
compatible smart card is inserted in the Viaccess
smart card reader.
■ As an example;
this page shows the additional information that is
available from the inserted CI-module and related
smart card.
■ Note that this page can show differently for other
CI-modules and related smart cards.
■ EchoStar has no control over the information
provided by the related service provider, therefor
no specific information is given.
Digital Satellite ReceiverPage 4 - 13
Page 32
Section 4
Familiarization
3.THE ECHONAV MODE AND SELECTION MENUS
3.1.INTRODUCTION
The mode and selection menu gives access to the
current list, related features and on-screen help lines.
After you have entered the mode and selection menu
you can manipulate the lists through:
■ The Mode bar (red);
■ The List bar (green);
■ The Edit bar (white);
■ The Group bar (yellow);
■ The Sort bar (blue).

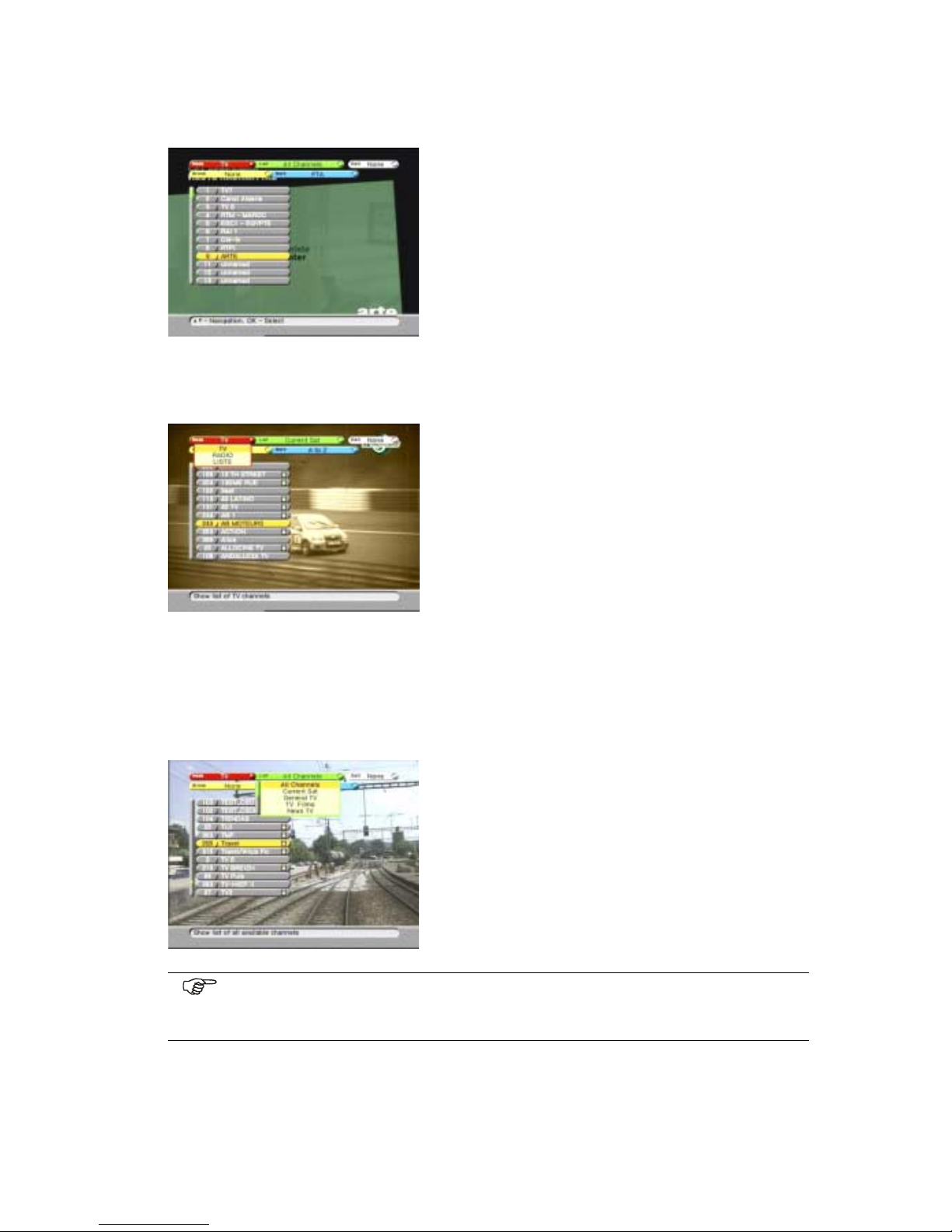

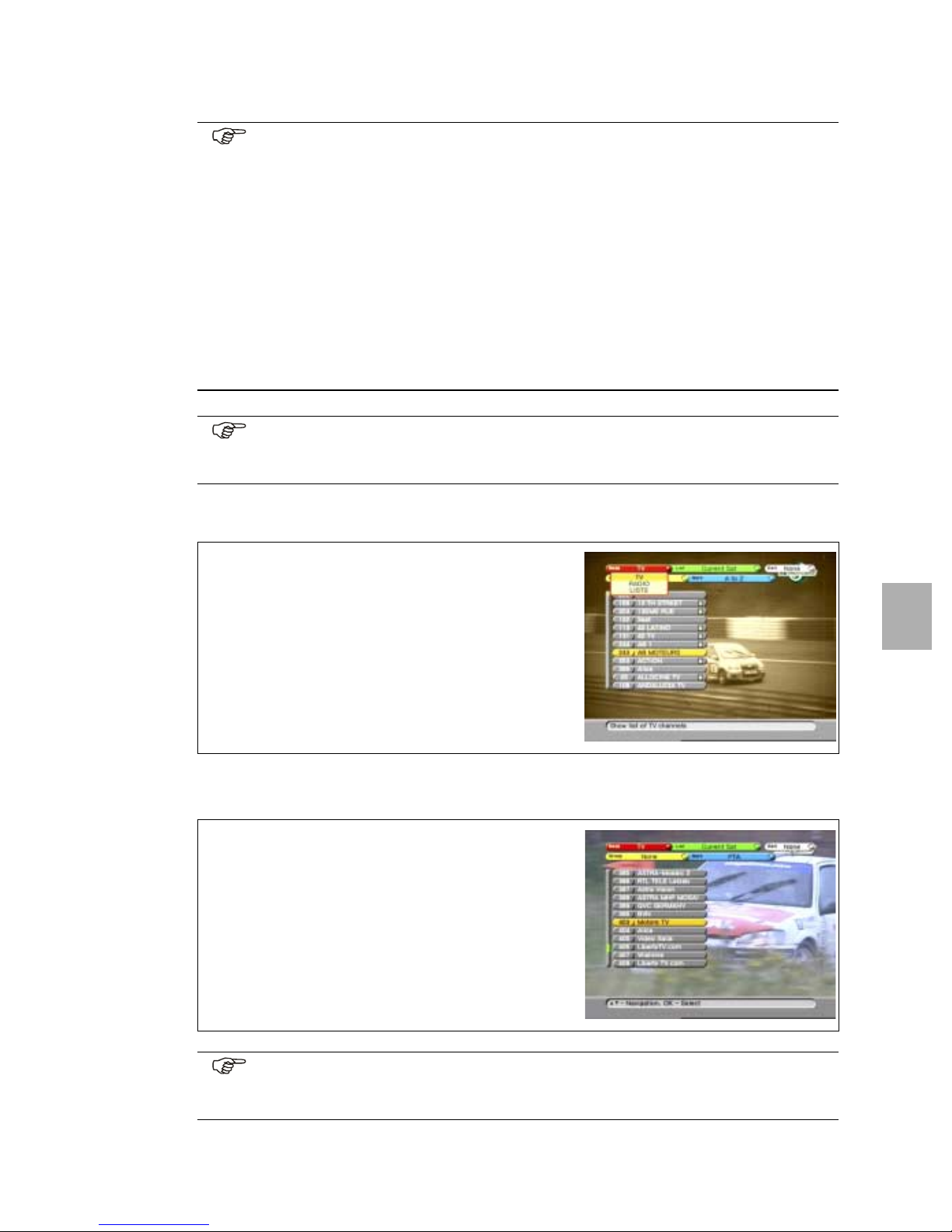

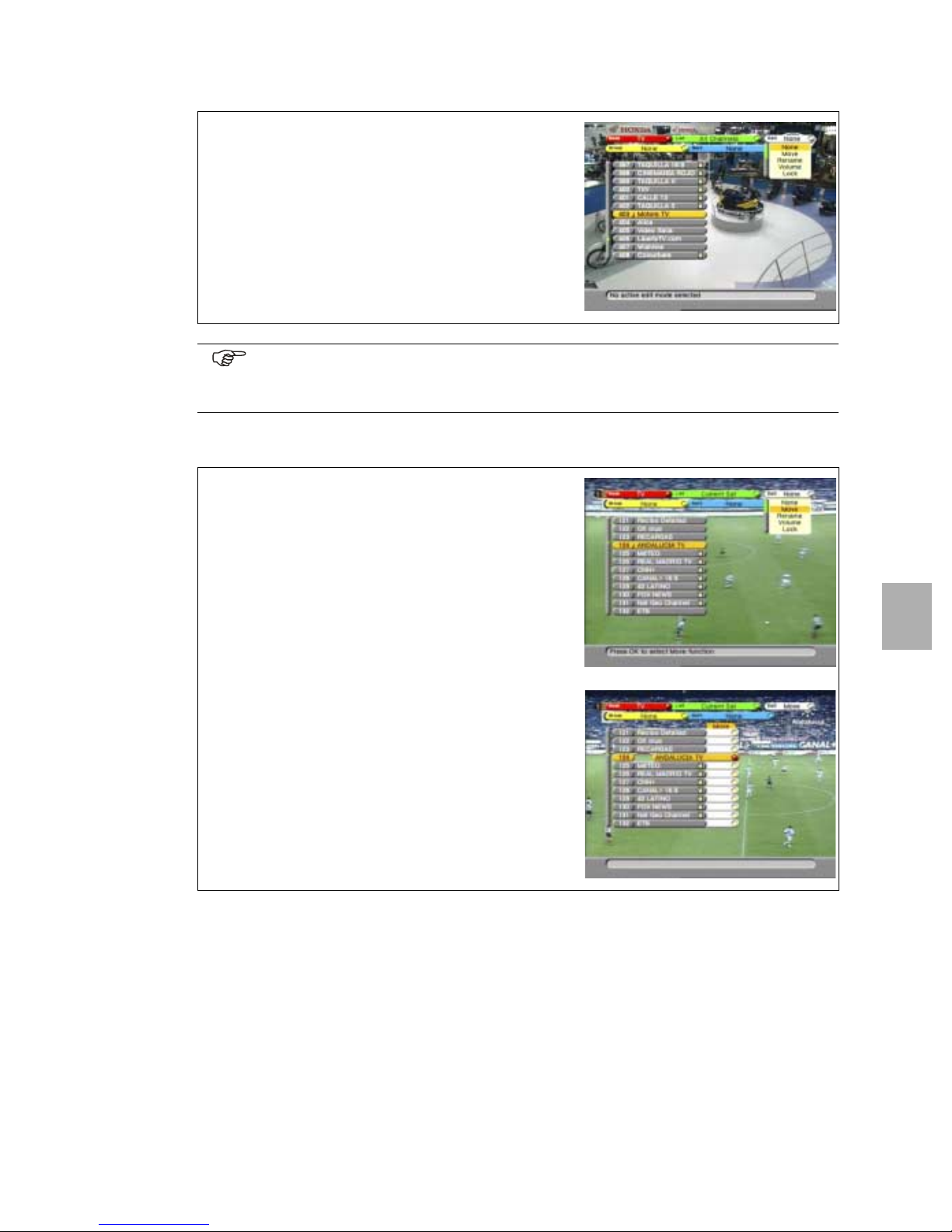

3.2.MODE
The Mode bar gives access to the different receiver modes. The receiver modes are:
■ TV
To switch the receiver in the TV mode and to
access the list of TV channels.
■ Radio
To switch the receiver in the Radio mode and to
access the list of Radio channels.
■ Lists
To switch the receiver in the Lists mode and to
access the favorite lists.

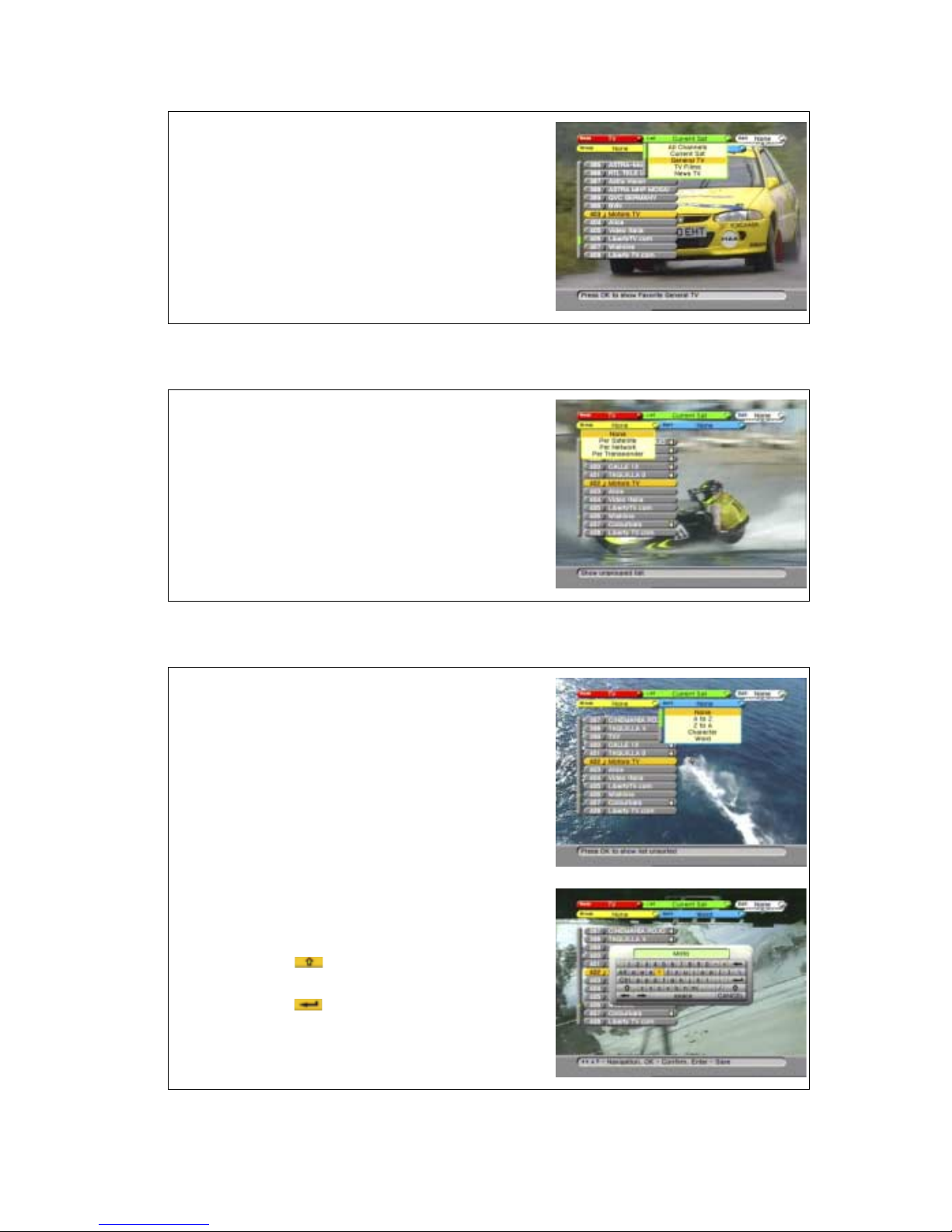

The Lists are available in the all modes. Some of the lists are factory defined and other lists
(Favorite lists) are user defined. Favorite lists are lists of your favorite items that are created
and maintained by you. In every mode you can setup a number of favorite lists. The lists
available are (mode dependent):
■ All Channels
To access the list of scanned TV channels
available on the scanned satellites.
■ Current Sat
To access the list of all scanned TV channels
available on the current selected satellite.
■ Favorites
To access to your own favorite lists. You can
rename the favorites to something meaningful to
yourself,e.g.Film,Sport,Kids.
NOTE
Sometimes a list seems to be empty because of the settings of the group and sort
option. If this happens, just set the group and sort option to none.
Page 4 - 14EchoStar D-2600 IP Viaccess
Page 33
3.4.EDIT
All rights reserved
Familiarization
Section 4
The Edit options are available in the all modes. The Edit option gives you the possibility to
customize the different lists. The availability of the Edit options is mode dependent, the
available options are:

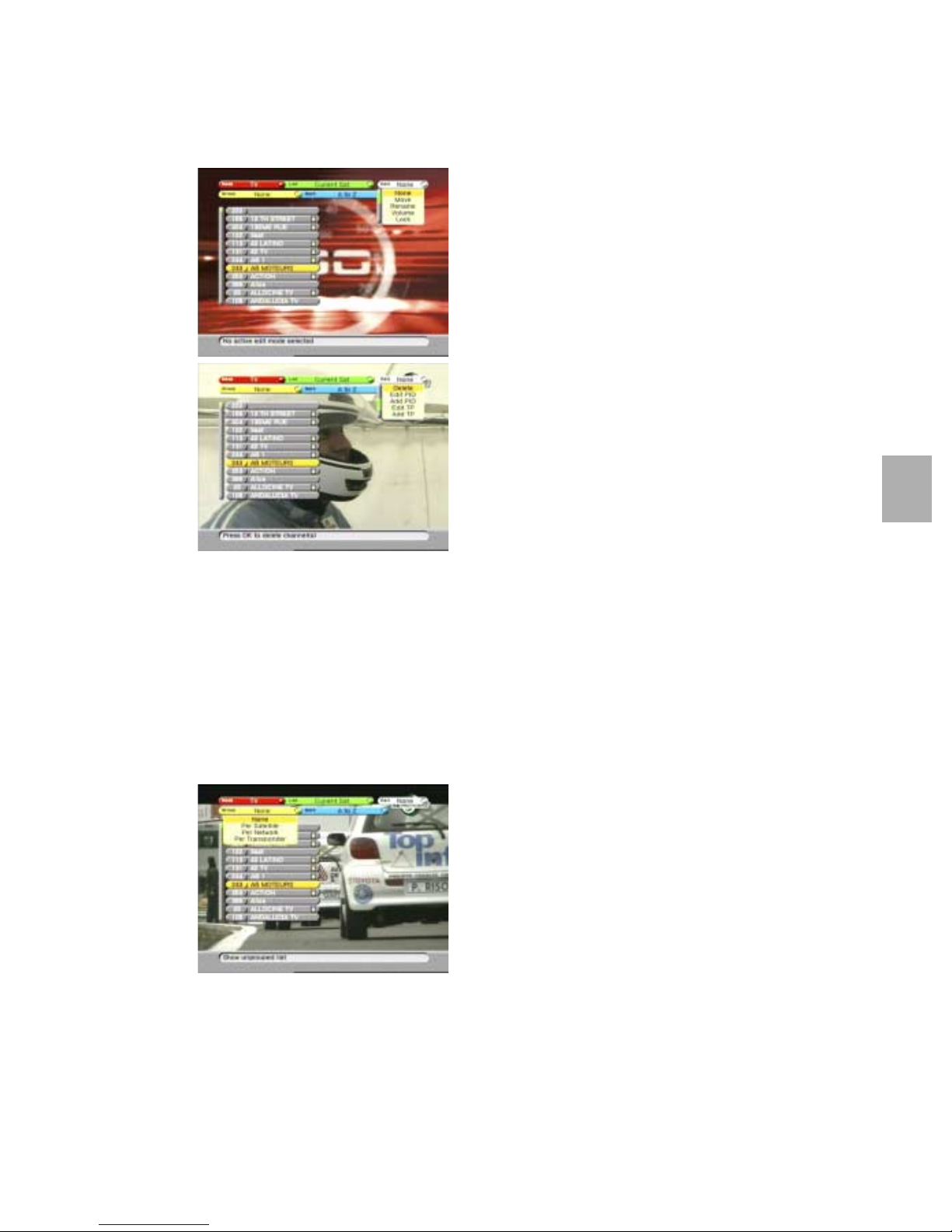

The Group options are available in the all modes. The Group option allows you to group the
lists in different ways. The availability of the Group options is mode dependent, the available
options are:
■ None
No group option is selected.
■ Per Satellite
To group the list per satellite.
■ Per Network
To group the list per network.
■ Per Transponder
To group the list per transponder.
Digital Satellite ReceiverPage 4 - 15
Page 34
Section 4

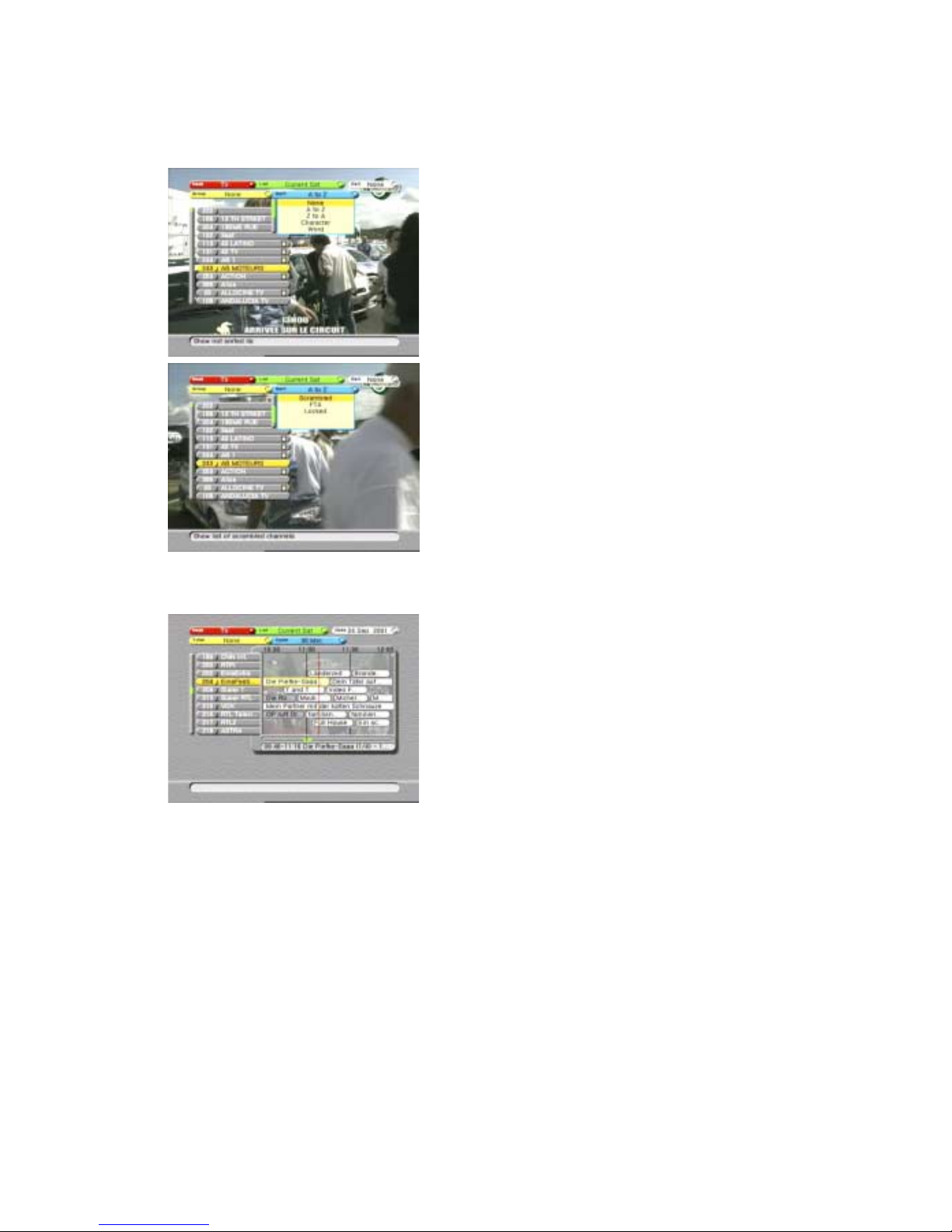

3.6.SORT
The Sort options are available in all modes. The Sort options allow you to sort the lists in
different ways. The availability of the Sort options is mode dependent, the available options
are:
Familiarization
■ None
No sort option is selected.
■ AtoZ
Sorts a list alphabetically.
■ ZtoA
Sorts a list alphabetically, in reverse order.
■ Character
Shows list with entered character only.
■ Word
Shows a list that contains the selected word only.
Most digital channels transmit program data as an
EPG. Digital channels that transmit EPG offer you
program information in advance for a certain period of
time. Dependent of the service provider, EPG is
offeredindifferentways.
After you have entered the EPG, you can select the
different EPG options, these are:
■ Mode, to select the TV or Radio mode to show;
■ List, to select the list in all channels, current satellite or personal favorite;
■ Date, to access the EPG calendar;
■ Timers, to select and set the VCR or Reserved timer;
■ Zoom, to expand or shrink the EPG window as a function of the time slot.
All rights reserved
Page 4 - 16EchoStar D-2600 IP Viaccess
Page 35

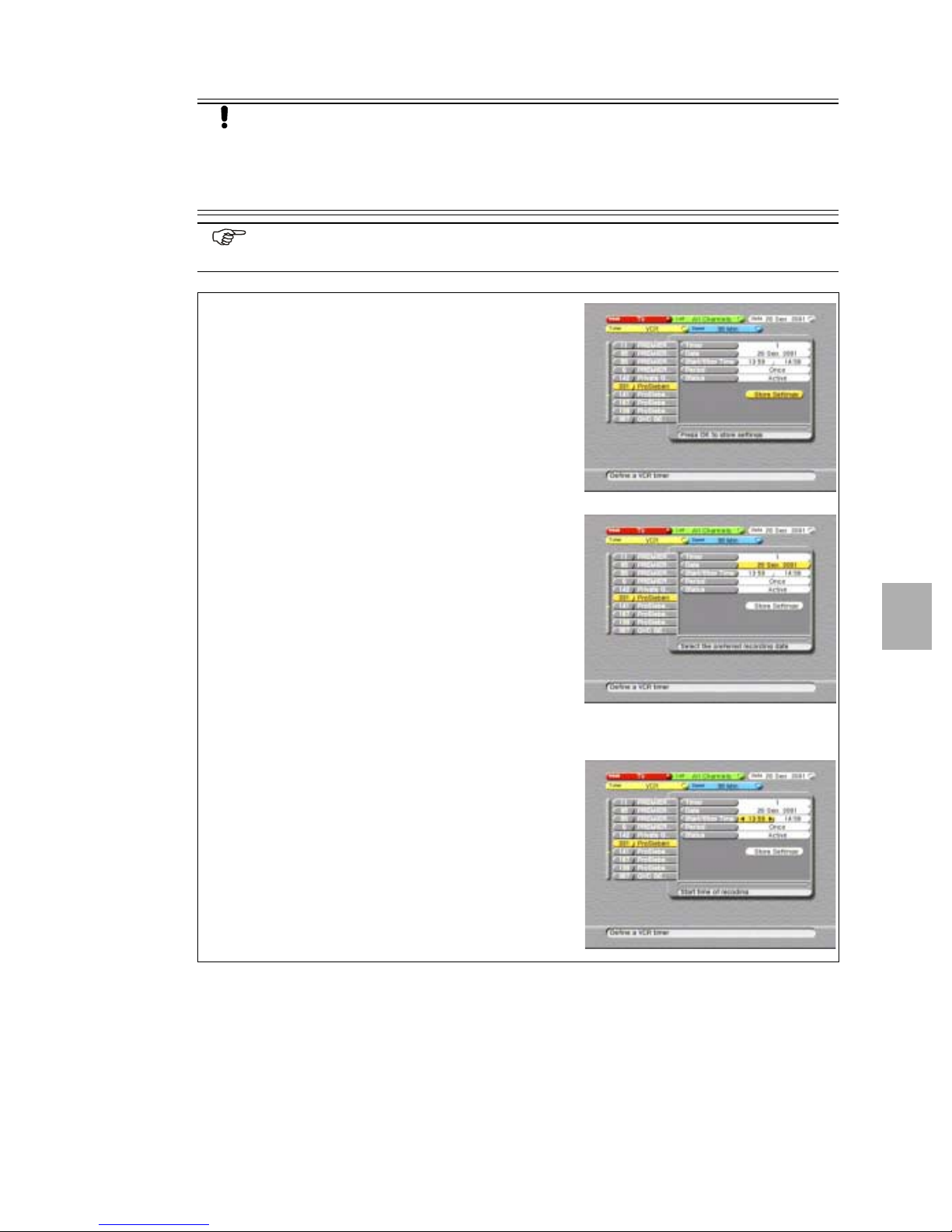

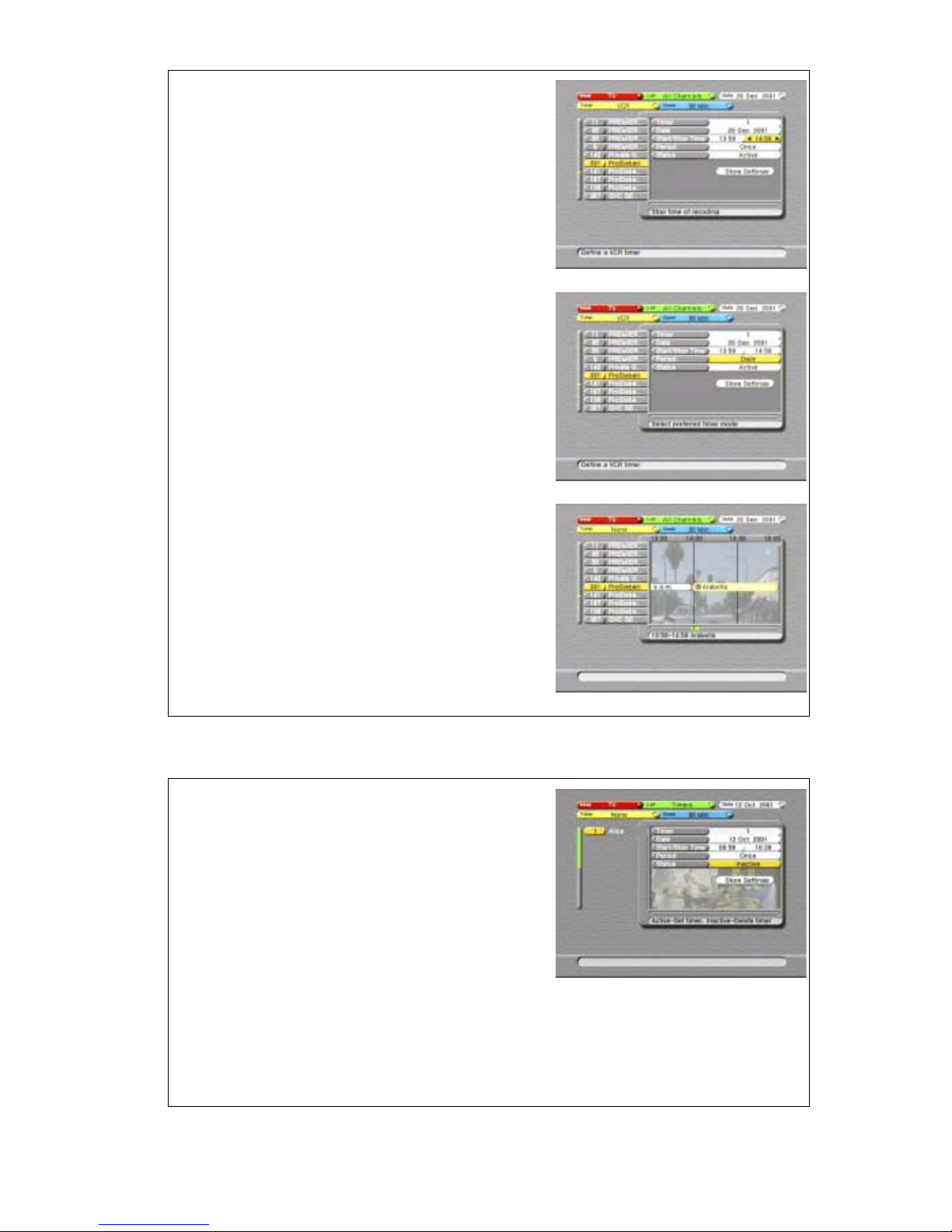

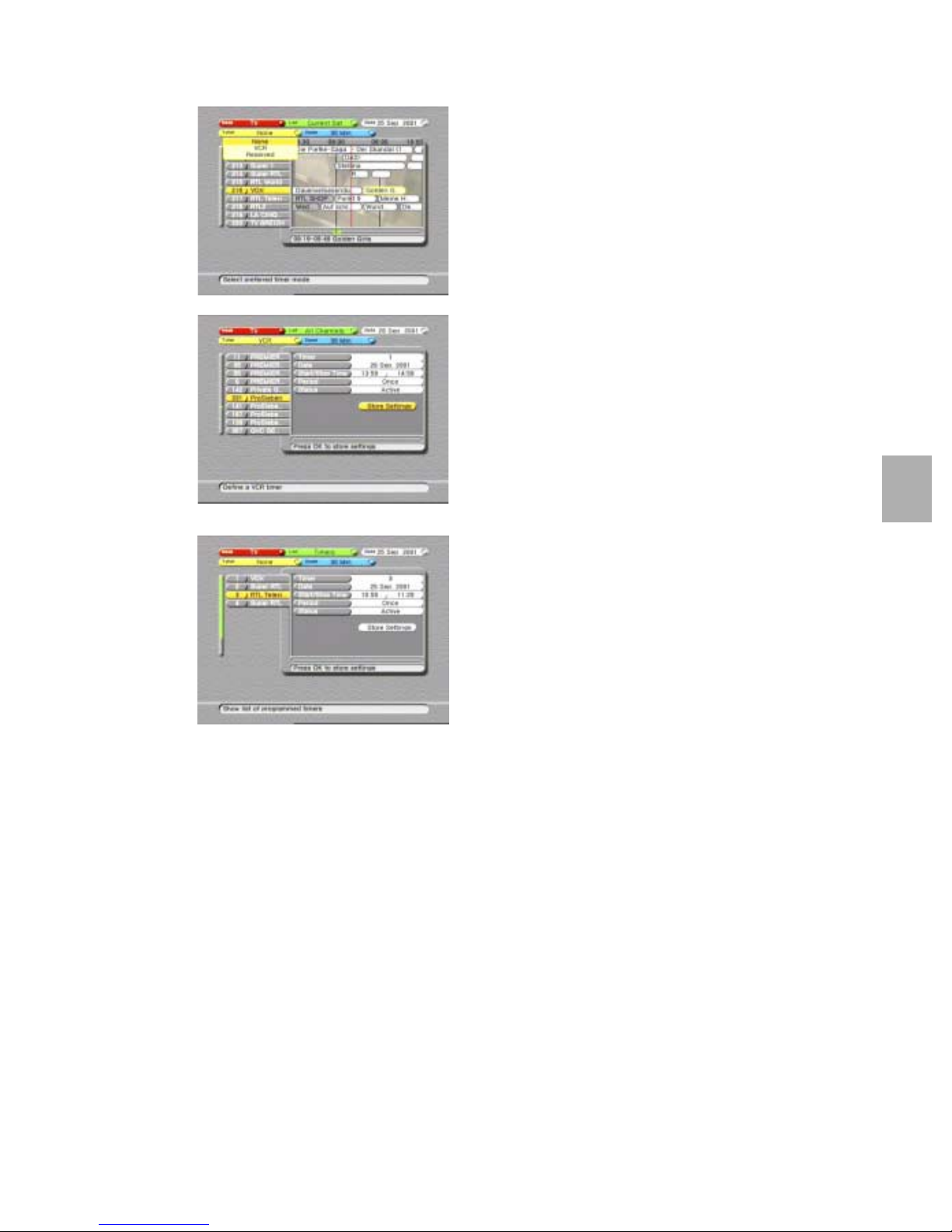

4.1.THE TIMERS
Familiarization
Section 4
The event timers are a kind of alarm clock. An event
timer reminds you when a program or a timed
VCR recording starts. You can set the next timers:
■ VCR timer, to automatically switch over to the
timed program before it really starts. This allows
you to record a program on a video tape (video
recorder);
■ Reserved timer, to automatically switch over to the
timed program before it really starts or when the
receiver is in standby, to switch on the receiver.
If a timer is set on a program that is shown in the EPG,
the relevant data is already shown in the timer. You
can change the settings as follows:
■ Date, to set the start date for the timer;
■ Start time, to set the start time in hours/minutes;
■ Stop time, to set stop time in hours/minutes;
■ Period, to set the timer once or for every
occurrence;
■ Status, to set (active) or delete (inactive) the timer.
Timers are shown in the EPG window as clocks.
In the List-Timers page, it is possible to get a list of the
timers that are set. In this page you also can change or
delete a set timer.
All rights reserved
Digital Satellite ReceiverPage 4 - 17
Page 36
Section 4
Familiarization
5.THE INFOBANNER AND POP-UP MENUS
5.1.THE TV INFOBANNER
The TV InfoBanner shows the information related to the actual channel.
The information shown is some information only if provided by the service provider.
■ The channel information bar, to show the (favorites) list number and the channel name;
■ The satellite information dish, to show the name of the selected satellite;
■ The program information bar, to show the start time, duration indicator and program name;
■ The i-button, to indicate that there is detailed program information available;
■ The additional information bar, to show the additional service icons. These icons show
only if the additional service is available. The icons are:
- theicon for teletext;
- theicon for alternate audio;
- theicon for alternate subtitling;
- theicon for Dolby Digital audio;
- theicon for Favorite channel;
- theicon for Parental rating information.
■ The digital clock, to show the actual local time;
■ The next program information bar, to show the information of the next program.
■ If the volume +/- key is pressed, the volume button is shown (see the radio InfoBanner).

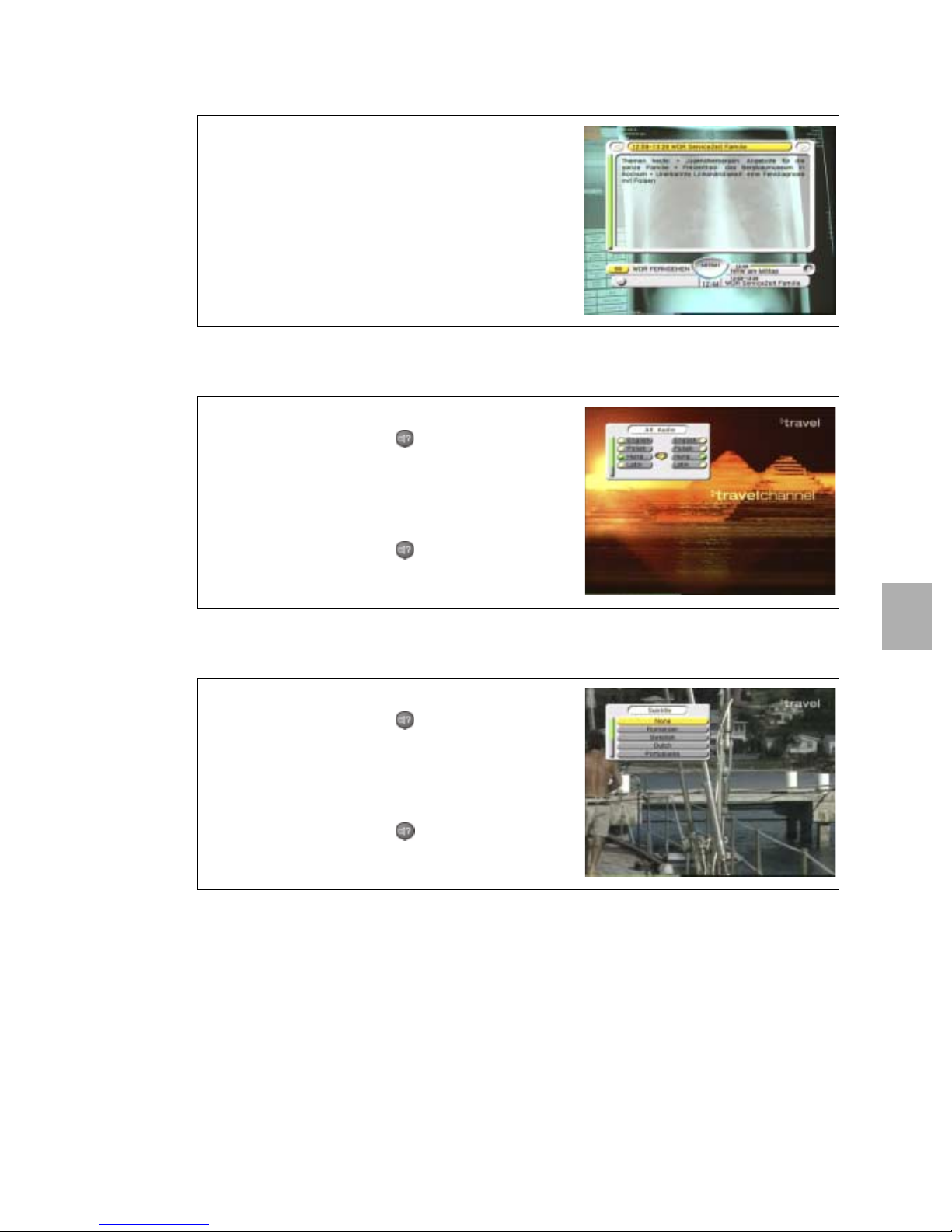

5.1.1. THE RADIO INFOBANNER
The radio InfoBanner shows the information related to the actual channel. The radio
InfoBanner can show the same information as discussed with the TV InfoBanner.
Some pop-up menus are used to show that the receiver is busy to execute a task. Other popup menus require interaction with the user, you have to confirm or deny an earlier given
command to complete the task.

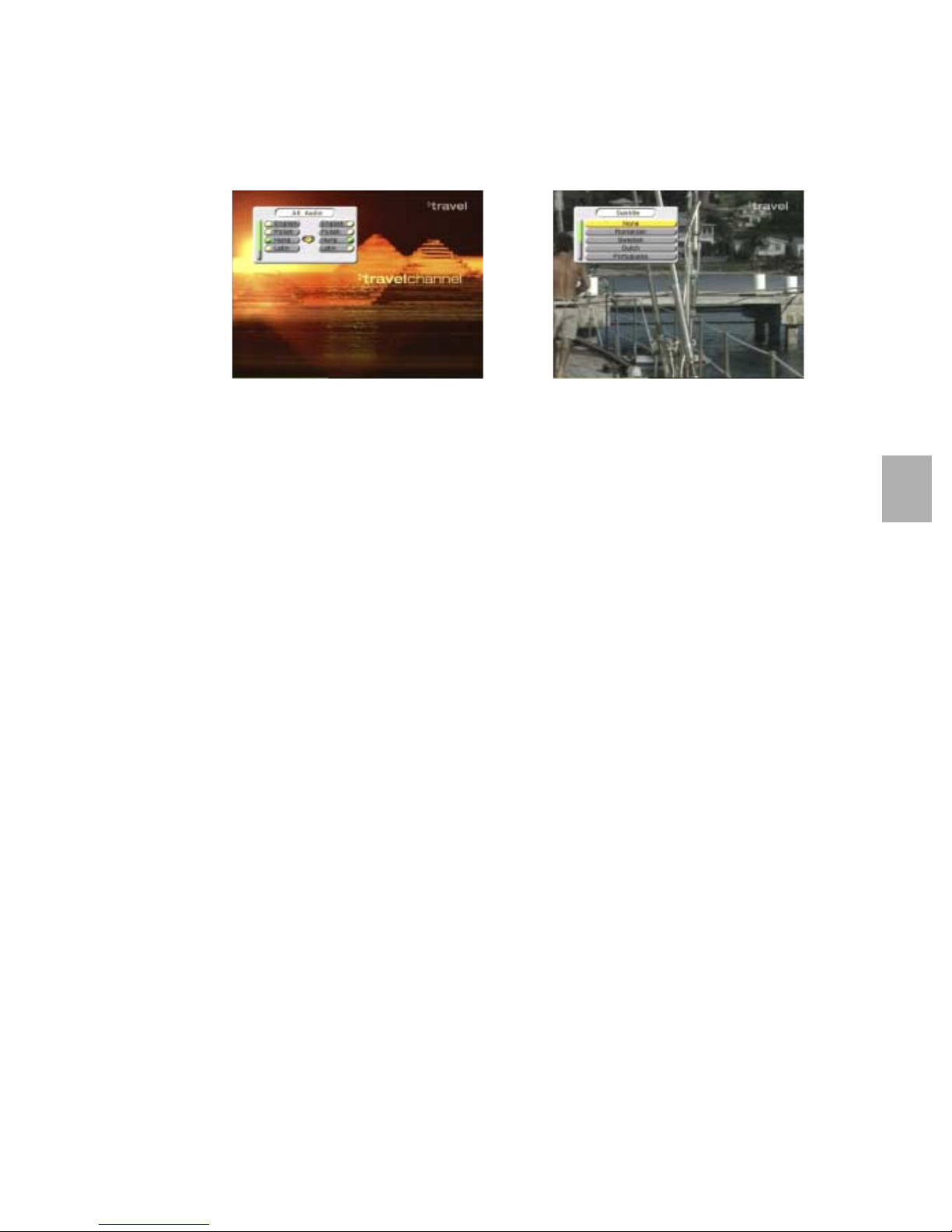

If transmitted, you can set per channel your alternate audio and subtitling as shown above.
4. On the RCU, press the OK key.
Note a red bullet appears behind the selection.
5. If you want to undo the selection, press the
OK key again.
5
6. Move the channel, either:
a. use the keys;
b. use the page + / - keys;
7. On the RCU, press the OK key to confirm.
8. Either:
a. press the WHITE key to end the session, or
b. select the next channel you want to move.
Digital Satellite ReceiverPage 5 - 3
Page 42
Section 5
Operation

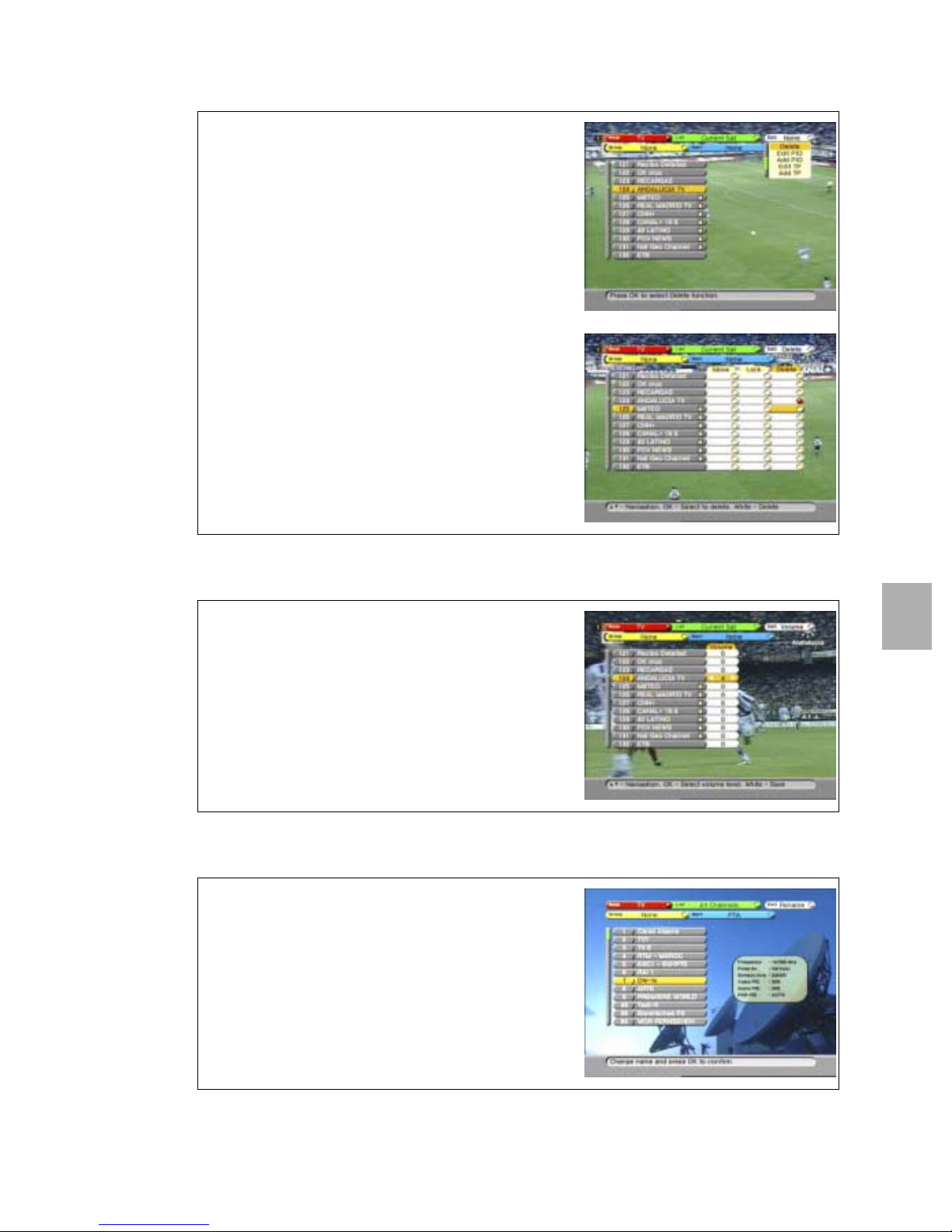

1.6.2. TO LOCK A CHANNEL
CAUTION
You can only lock a channel if you have set the parental lock and the PIN-code
correctly. We recommend, in the parental lock menu, that you check if the lock
option is set correctly.
NOTE
After you have set a lock onto a channel, the installation and the EDIT menu are
automatically locked with an installation lock to prevent unauthorized access.
Now you can only access these functions if you know the correct PIN-code.
1. In the Edit menu, select the LOCK option.
2. Read the available help text for information.
3. Go to the channel you want to lock.
4. On the RCU, press the OK key.
Note a red bullet appears behind the selection.
5. If you want to undo the selection, press the
OK key again.
6. Either:
a. press the WHITE key to confirm the lock and
end the session, or
b. select the next channel you want to lock.
7. You can temporarily unlock all channels:
a. On the RCU, press the MENU key;
b. Select the Parental Lock menu;
c. Enter the correct PIN-code as requested;
d. Set the channel lock to Off.
8. You can restore all the locks on the channels:
a. On the RCU, press the MENU key;
b. Select the Parental Lock menu;
c. Enter the correct PIN-code as requested;
d. Set the channel lock to On.
5. Either:
a. Press the WHITE key to end the session, or
b. select the next channel you want to edit.

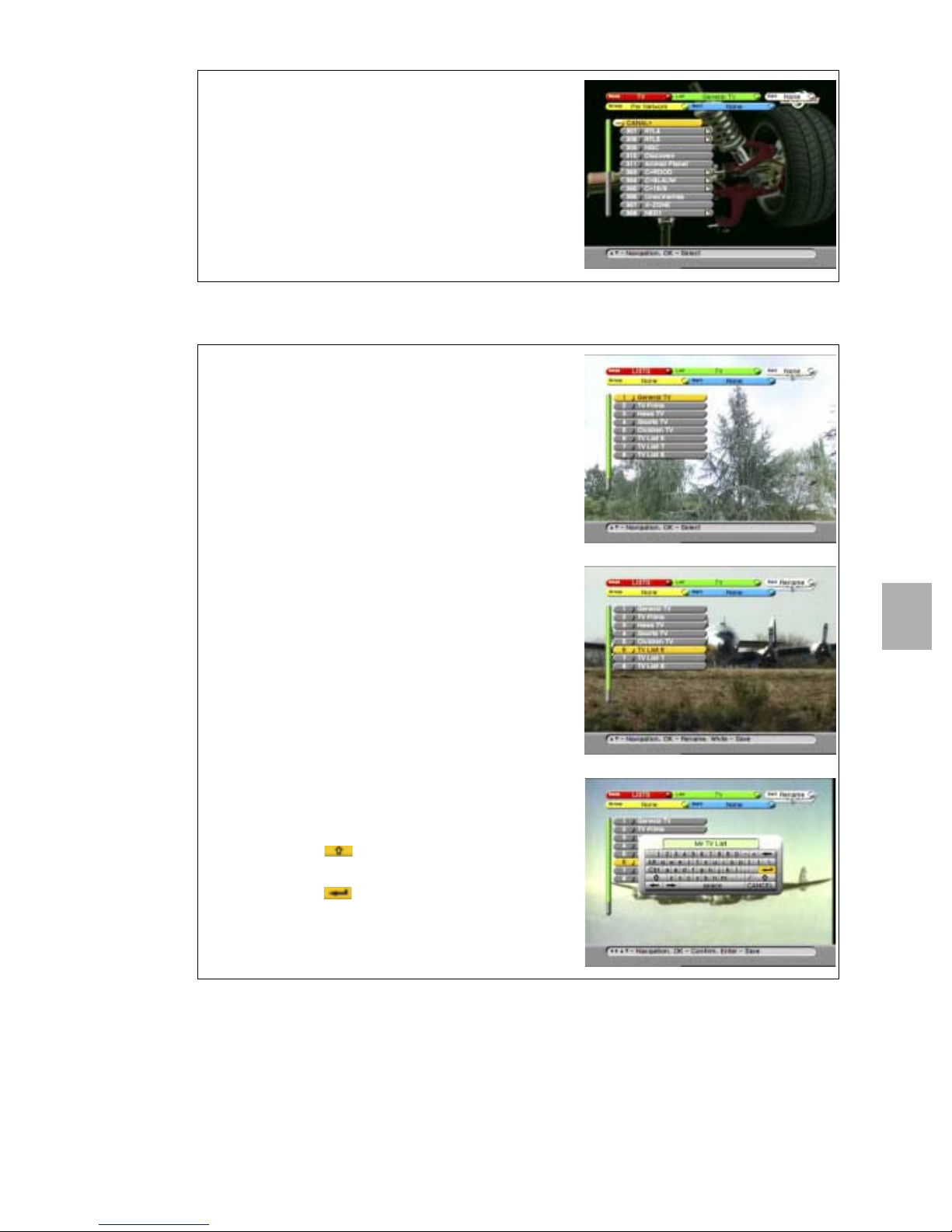

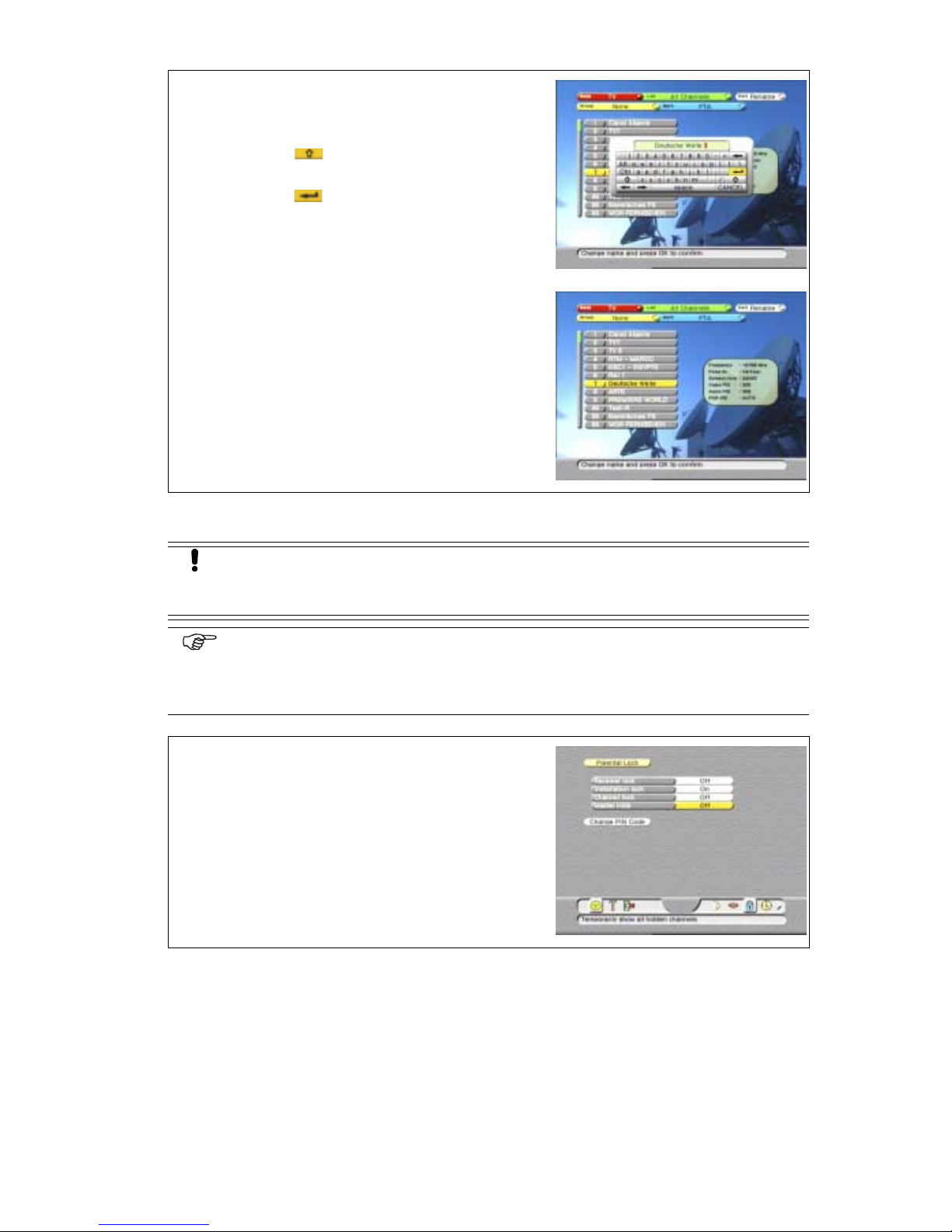

1.6.5. TO RENAME A CHANNEL
1. In the Edit menu, select the RENAME option.
2. Read the available help text for information.
3. Go to the channel you want to rename.
4. On the RCU, press the OK key.
5
Digital Satellite ReceiverPage 5 - 5
Page 44
Section 5
5. When the keyboard appears:
6. Either:
Operation
a. use the arrow keys to navigate;
b. press OK to accept the character;
c. select thebutton to get lower case
characters and numbers;
d. select thebutton
e. on the RCU, press the OK key to confirm.
a. Press the WHITE key to end the session, or
b. select the next channel you want to rename.
1.6.6. TO HIDE A CHANNEL
CAUTION
You can only hide a channel if you have set the parental lock and the PIN-code
correctly. We recommend that you check if the hide option is set correctly.
NOTE
After you have set a hide onto a channel, the installation and the EDIT menu are
automatically locked with an installation lock to prevent unauthorized access.
Now you can only access these functions if you know the correct PIN-code.
1. Make the hide function available for edit:
a. On the RCU, press the MENU key;
b. Select the Parental Lock menu
c. Enter the correct PIN-code as requested;
7. Make the hide function active
a. On the RCU, press the MENU key;
b. Select the Parental Lock menu
c. Enter the correct PIN-code as requested;
8. Set the Master Hide to On.
All rights reserved
9. You can temporarily unhide all channels:
a. On the RCU, press the MENU key;
b. Select the Parental Lock menu
c. Enter the correct PIN-code as requested;
d. Set the Master Hide to Off.
10. You can restore all the hides on the channels:
a. In the parental lock menu, set the Master Hide
to On.
2.USE THE FAVORITE LISTS
Navigation and use of the favorite lists are the same as for the all channels and current
satellite list as described before. The main difference is that you can setup and organize the
favorite lists as required. EchoStar has already pre-named the favorite lists to help you getting
started. It is however possible to change the name of the favorite list to something that is
meaningful to you.
For adding channels quickly, you can use the group and sort option first to limit the amount of
channels where you want to choose from. As an example, now it is possible to add all sport
related channels in one step to the Sports TV favorite list.
Note that for each mode, a separate number of favorite lists is available.
5
Digital Satellite ReceiverPage 5 - 7
Page 46
Section 5
Operation
2.1.ADD A CHANNEL TO A FAVORITE LIST
1. On the RCU, press the OK key.
2. Select the required mode.
3. Read the available help text for information.
4. Group and sort the all channels list to locate the
required channel quickly.
5. On the RCU press the GREEN key.
6. Select the favorite list to which you want to add a
channel.
7. On the RCU press the WHITE key.
8. Select the add option.
9. Read the available help text for information.
10. Go to the channel you want to add.
11. On the RCU, press the OK key.
Note a red bullet appears behind the selection
and the cursor advances to the next channel.
12. If you want to undo the selection, press the
OK key again.

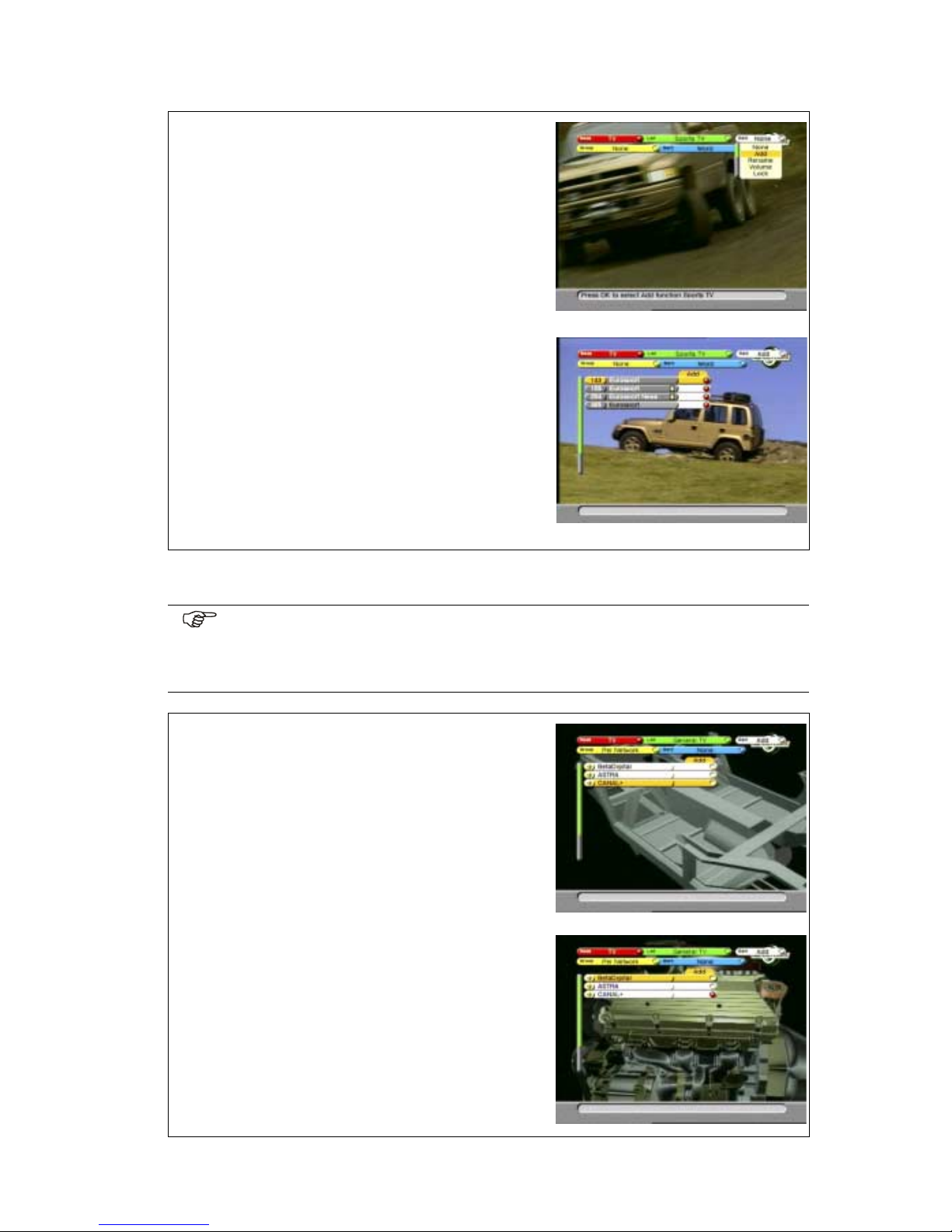

As an example, this procedure details the instructions on how to add a group of
channels to a favorite list.
In this example we add a complete network to the My TV Channels favorite list
1. On the RCU, press the OK key.
2. Select the required mode.
3. Read the available help text for information.
4. Group the channels as required.
5. Select the favorite list to which you want to add
the group of channels.
6. On the RCU press the WHITE key.
7. Select the add option.
8. Read the available help text for information.
9. Go to the network you want to add.
10. On the RCU, press the OK key.
Note a red bullet appears behind the selection
and the cursor advances to the next item.
11. If you want to undo the selection, select again
and press the OK key.
All rights reserved
Page 5 - 8EchoStar D-2600 IP Viaccess
Page 47
12. Press the WHITE key to end the session.
13. If only the network bar is show, press the i-key to
expand the selection.
14. Select a channel.
15. On the RCU, press the OK key to view the
selected channel.
Note that in the left bar of the InfoBanner, a heart
symbol appeared to indicate that this channel is a
favorite channel.
8. When the keyboard appears:
a. use the arrow keys to navigate;
b. press OK to accept the character;
c. select thebutton to get lower case
characters and numbers;
d. select thebutton
e. on the RCU, press the OK key to confirm.
5
Digital Satellite ReceiverPage 5 - 9
Page 48
Section 5
Operation
9. Either:
a. press the WHITE key to end the session, or
b. select the next favorite list you want to
rename.

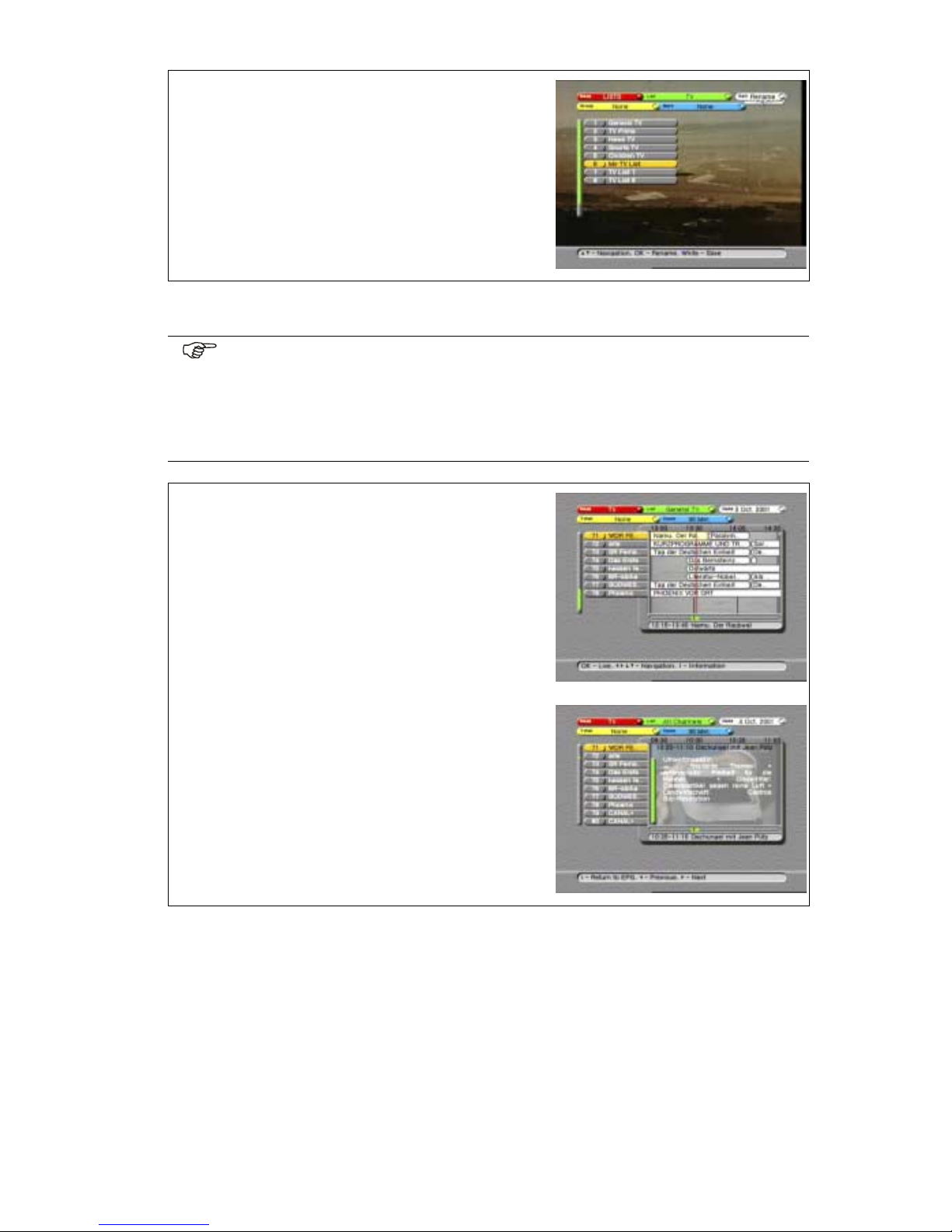

3.TO USE THE ELECTRONIC PROGRAM GUIDE (EPG)
NOTE
The EPG information is not always available. Sometimes the service provider (who
sends the EPG information) supplies only the program name, the now/next information or sometimes nothing at all. EchoStar has no influence on this matter.
Make sure the local time is set otherwise you can not view EPG information
because it needs the correct time (Refer to the Local Time menu).
1. Use the EPG key to access the main EPG menu.
2. Allow the receiver to collect the EPG information
for the selected channel.
3. Read the available help text for information.
4. Use the keys to select a channel.
5. Use the keys to select the programs.
6. Use the i-key to shift between detailed program
information and the main EPG menu.
Note that the VCR timer does not start or program your video recorder (VCR). You
have to set the timer of your VCR also to the same time as on the receiver. Please
refer to the user’s guide of your VCR how to record from a satellite receiver. On
quite a lot of VCRs you have to select the so called external channel (E1)
NOTE
You cannot set a timer in the past or on a program that has already begun.
1. On the RCU, press the EPG key.
2. If EPG data is available, select a program in the
future (right of the red line in the EPG window);
3. If no EPG data is available, select the correct
channel.
8. Change the date:
a. use the key, to go to the date;
b. read the available help text for information;
c. press the OK key to change the date;
d. in the calendar, select the required date;
e. press the OK key to return to the timer.
NOTE
Be aware that the shown EPG start/stop time might
not be the same as the actual start/stop times,
because of last minute program changes.
9. Change the start time:
a. use the key, to go to the start time;
b. read the available help text for information;
c. press the keys to set the hours;
d. press the OK key to go to the minutes;
e. press the keys to set the minutes.
5
Digital Satellite ReceiverPage 5 - 11
Page 50
Section 5
10. Change the stop time:
11. Change the repetition:
12. Change the status:
Operation
a. use the key, to go to the stop time;
b. read the available help text for information;
c. press the keys to set the hours;
d. press the OK key to go to the minutes;
e. press the keys to set the minutes.
a. use the key, to go to the period;
b. read the available help text for information;
c. press the keys to set the repetition.
a. use the key, to go to the status;
b. read the available help text for information;
c. press the keys to set the status.
13. Save the timer:
a. use the key, to go to the Store Settings;
b. read the available help text for information;
c. press the OK key to confirm the settings.
14. Note the clock that appeared in your program.
15. Do not forget to program also your VCR.
If the timer screen does not disappear, you have set
a timer in the past or for a running program. Revise
either date, start or stop time to a time in the future
3.2.DELETE A TIMER
1. On the RCU:
a. press the EPG key;
b. press the GREEN key;
c. select from the list: Timers;
d. press the OK key.
2. Select the applicable timer and press the OK key.
3. Change the status:
a. use the key, to go to the status;
b. read the available help text for information;
c. press thekey to set the status to inactive.
4. Delete the timer:
a. use the key, to go to the Store Settings;
b. read the available help text for information;
c. press the OK key to confirm the deletion.
This procedure does not lock a specific channel. After you made the parental control settings, you must lock the required channels or favorites manually.
For a detailed procedure, please refer to the paragraph To Lock a channel.
1. On the RCU, press:
a. the MENU key;
b. the key to select themenu;
c. the OK key, to select themenu.
2. Enter the correct PIN code as requested
3. Read the available help text for information.
4. Make the selections.
5. On the RCU:
a. press the MENU key to save the settings;
b. press the EXIT key to leave the menu.
6. In the Change PIN-Code menu, make the
required selections. Now you will return to the
parental lock menu.
7. On the RCU:
a. press the MENU key to save the settings;
b. press the EXIT key to leave the menu.
5
Digital Satellite ReceiverPage 5 - 15
Page 54
Section 5
Operation
4.5.TO SET THE LOCAL DATE AND TIME
NOTE
Make sure the local time is set correctly otherwise you can not view and use the
EPG information because the EPG and the related timers need the correct time.
1. On the RCU, press:
a. the MENU key;
b. the key to select themenu;
c. the OK key, to select themenu.
2. Press the OK key and make the selections.
3. Read the available help text for information.
4. On the RCU:
a. press the MENU key to save the settings;
b. press the EXIT key to leave the menu.
4.6.TO SET THE TV SYSTEM
1. On the RCU, press:
a. the MENU key;
b. the key to select themenu;
c. the OK key, to select themenu.
2. Press the OK key and make the selections.
3. Read the available help text for information.
4. On the RCU:
a. press the MENU key to save the settings;
b. press the EXIT key to leave the menu.
EMOVE THE MAINS PLUG FROM THE POWER SUPPLY SOCKET BEFORE YOU CLEAN THE
R
RECEIVER
1. Switch the receiver to stand-by and on the display make sure the clock shows.
2. Remove the mains plug from the power supply socket.
3. Wait at least five seconds, to help avoid possible damage to the receiver’s electronics.
4. Use a dry, soft and clean lint-free cleaning cloth to clean the receiver.
5. Other cleaning agents can cause damage to the outside surface.
a.Make a dry, soft and clean lint-free cleaning cloth a little damp.
b.Carefully wipe the surface and make sure that no moisture gets into the receiver.
c.Let the receiver dry on the air.
6. Install the receiver and make sure all connections on the rear panel are made correctly
(For more detailed instructions, please refer to section Installation).
7. Connect the mains plug to the power supply socket.
8. Set the local time, for detailed instructions please refer to the section Operation.
.MAKE SURE, IF USED, CLEANING AGENTS CANNOT GET IN THE RECEIVER.
Make sure the local time is set correctly otherwise you can not view and use the
EPG information because the EPG and the related timers need the correct time.
2.SOFTWARE MAINTENANCE
NOTE
All rights reserved
2.1.TO CHANGE THE SETUP OF THE RECEIVER
1. On the RCU, press:
Unless otherwise specified; This note explains the way you can navigate through
the maintenance pages of the EchoNAV setup menu.
1. Use the OK key to pull down the menu selection fields.
2. Use thearrow keys to go through the selectable menu items.
3. In a pull-down menu, use the OK key to confirm the selection.
4. Use thearrow keys to navigate between the left and right column of
selectable menu items.
5. Use the EXIT key to leave the menu and return to the live mode.
a. the MENU key;
b. the key to select themenu;
6
c. the OK key, to select theormenu.
2. Press the OK key and make the selections.
3. Read the available help text for information.
4. Go to the Check Signal field.
5. On the RCU, press the OK key.
Digital Satellite ReceiverPage 6 - 1
Page 56
Section 6
6. Wait for the Check Signal page to appear.
7. In the Check Signal menu make the required
8. Read the available help text for information.
9. If the red dot in the transponder field stays:
10. Go to the Search Channels field.
11. On the RCU, press the OK key.
12. Wait for the search to complete:
13. On the RCU:
Maintenance
selections for transponder and search mode.
a. select another transponder;
b. go to the check signal field;
c. on the RCU, press the OK key.
a. the receiver display shows a moving dot;
b. the search completed popup menu appears.
a. press the OK key to save the settings;
b. press the EXIT key to leave the menu.
.
2.2.TO CHANGE THE USER LNB SETTINGS
1. On the RCU, press:
a. the MENU key;
b. the key to select themenu;
c. the OK key, to select themenu.
2. Press the OK key and make the selections.
3. Read the available help text for information.
4. Go to the Store Settings field.
5. On the RCU:
a. press the OK key to save the settings;
b. press the EXIT key to leave the menu.
EchoStar offers on a regular basis software updates via the satellite and the
EchoStar website. If you have trouble to get a download with the latest software
version, please ask your retail seller or dealer for assistance.
2.5.TO DO A FACTORY RESET
All rights reserved
1. On the RCU, press:
NOTE
Be sure if you select Memory Erase because all your personal settings will be
deleted and replaced with the factory settings. Some of the personal settings that
will be deleted are Parental Lock, Favorite lists and System setup. Memory erase
resets the receiver as if the receiver comes just out of the box.
a. the MENU key;
■ The receiver display shows:
- ota (check for new software)
- d1...d100 (downloading)
- P1...P100 (upgrading)
- done (update memory)
.
- C.... (channel indication)
6
b. the key to select themenu;
c. the OK key, to select themenu.
2. Press the OK key and make the selections.
3. Read the available help text for information.
4. Go to the Confirm Reset field.
5. On the RCU, press the OK key.
6. Wait for the Languages initial setup menu to
appear.
7. Do the initial setup, refer to the section
Installation for detailed instructions.
Digital Satellite ReceiverPage 6 - 3
Page 58
Section 6
Maintenance
2.6.TO GET CONDITIONAL ACCESS INFORMATION
1. On the RCU, press:
a. the MENU key;
b. the key to select themenu;
c. the OK key, to select themenu.
2. Press the OK key and make the selections.
3. Read the available help text for information.

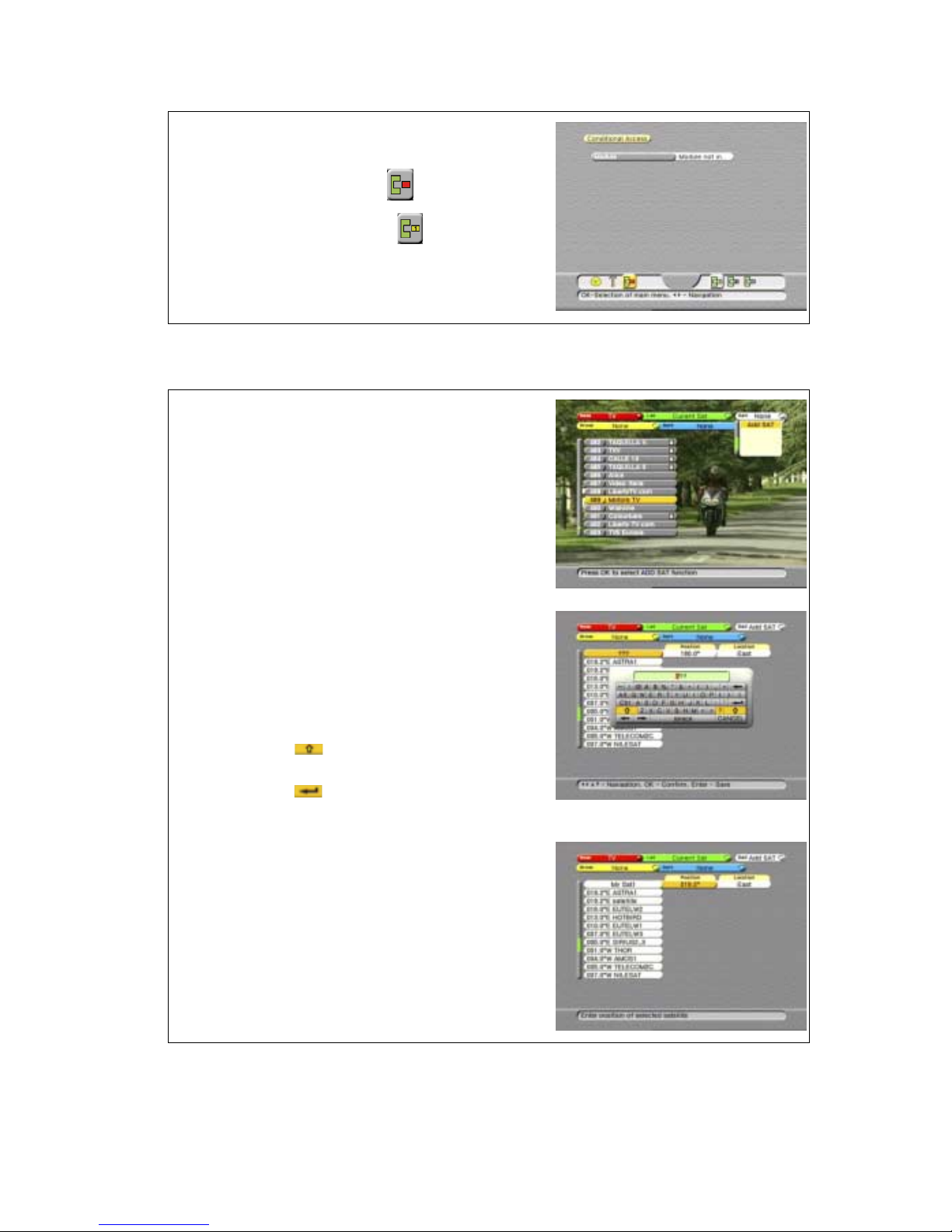

2.7.TO ADD A SATELLITE
1. On the RCU, press:
a. the OK key;
b. Select Mode = TV
c. Select List = All Channels
d. Select Group = None
e. Select Sort = None
f. Select Edit = Add SAT
18. Wait for the search to complete:
a. the receiver display shows a moving dot;
b. the search completed popup menu appears.
19. On the RCU:
a. press the OK key to end the procedure;
b. press the EXIT key to return to live video.
All rights reserved

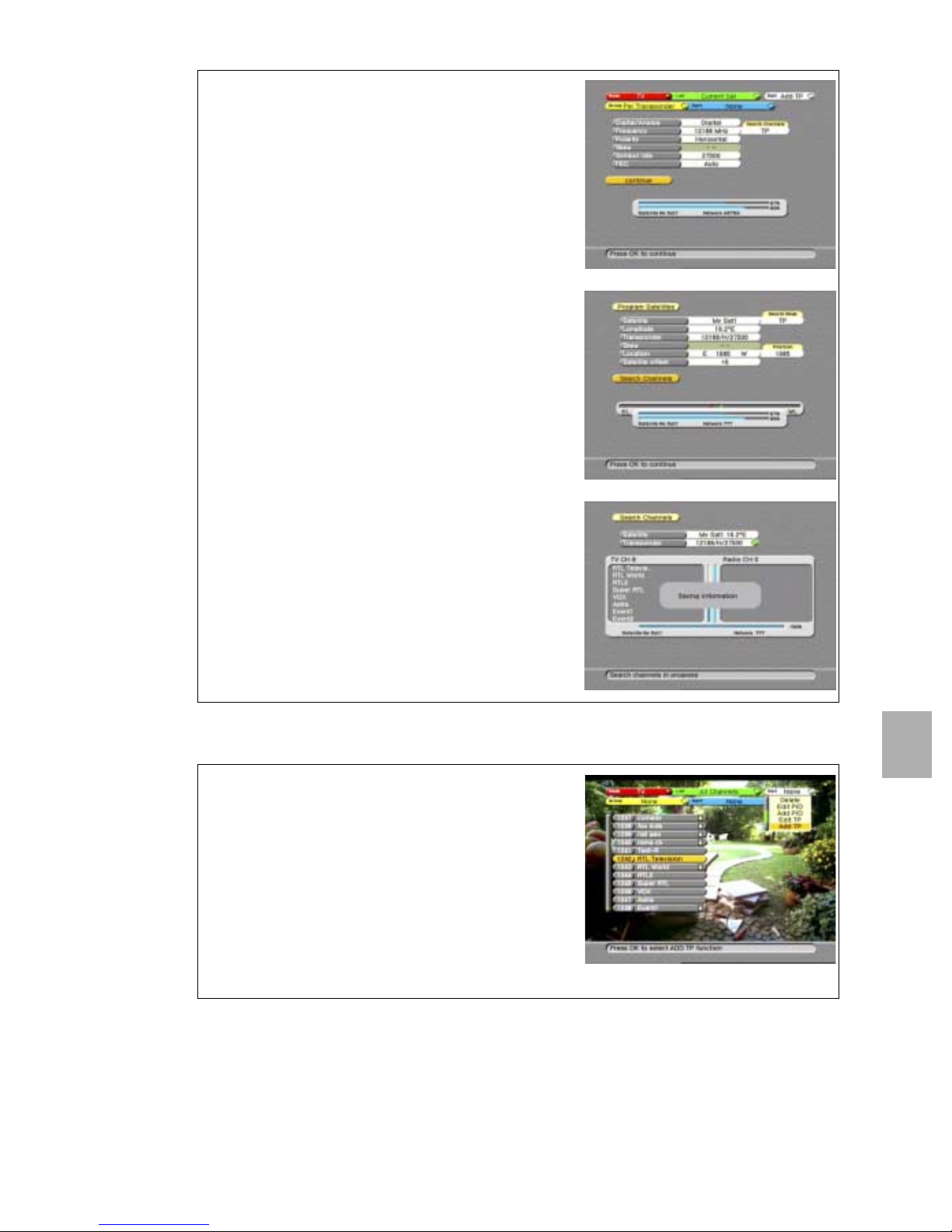

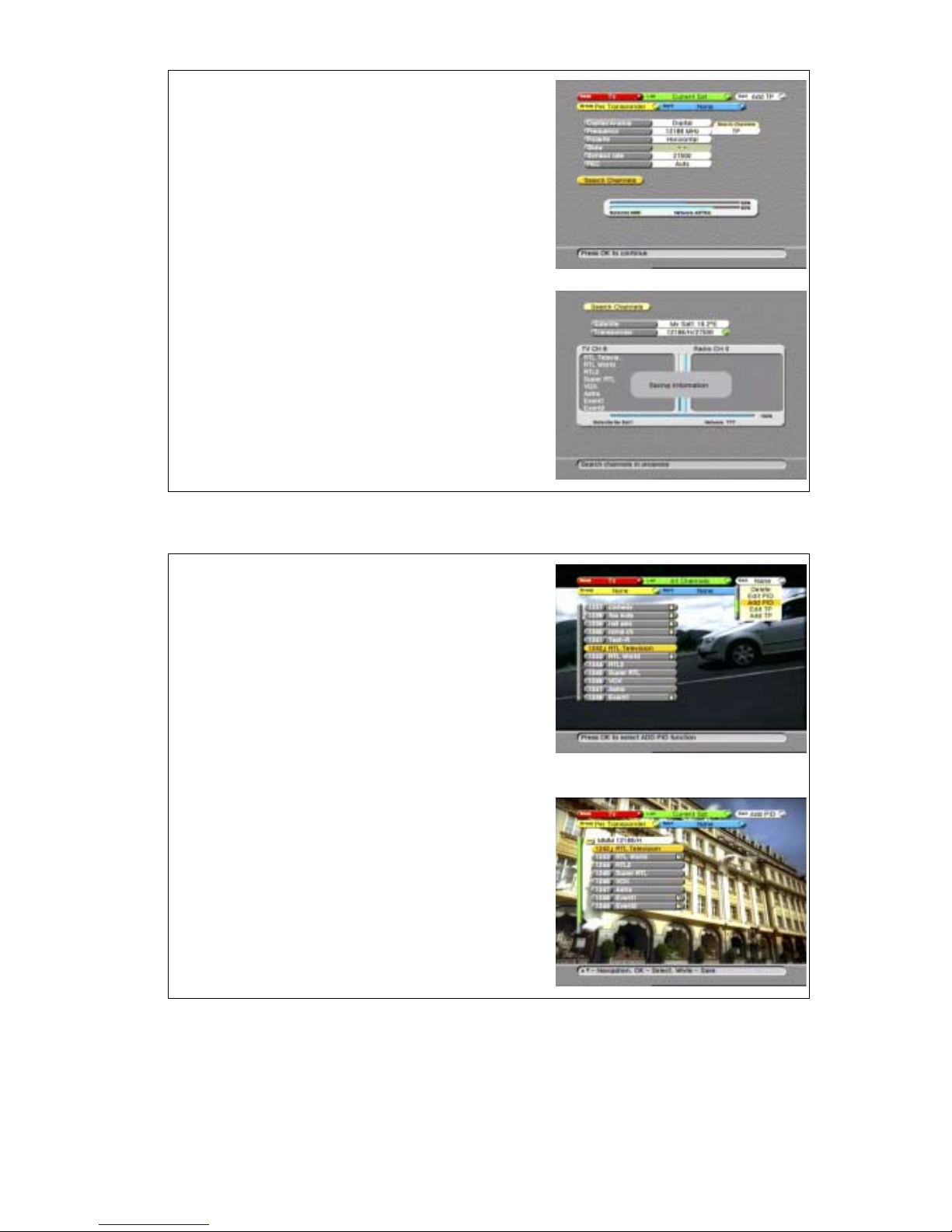

2.8.TO ADD A TRANSPONDER
6
1. Select a channel of the satellite to which you
want to add a transponder.
2. On the RCU, press:
a. the OK key;
b. Select Mode = TV
c. Select List = All Channels
d. Select Group = None
e. Select Sort = None
f. Select Edit = Add TP
3. On the RCU, press the OK key.
Digital Satellite ReceiverPage 6 - 5
Page 60
Section 6
4. On the RCU, press the OK key again to advance.
5. Enter the required settings.
6. Read the available help text for information.
7. Monitor the signal indicator and make sure that
8. Go to the Search Channels field.
9. On the RCU, press the OK key to advance.
10. Wait for the search to complete:
11. On the RCU:
Maintenance
you have sufficient signal strength and quality.
a. the receiver display shows a moving dot;
b. the search completed popup menu appears.
a. press the OK key to advance;
b. press the white key to end the procedure;
c. press the EXIT key to return to live video.

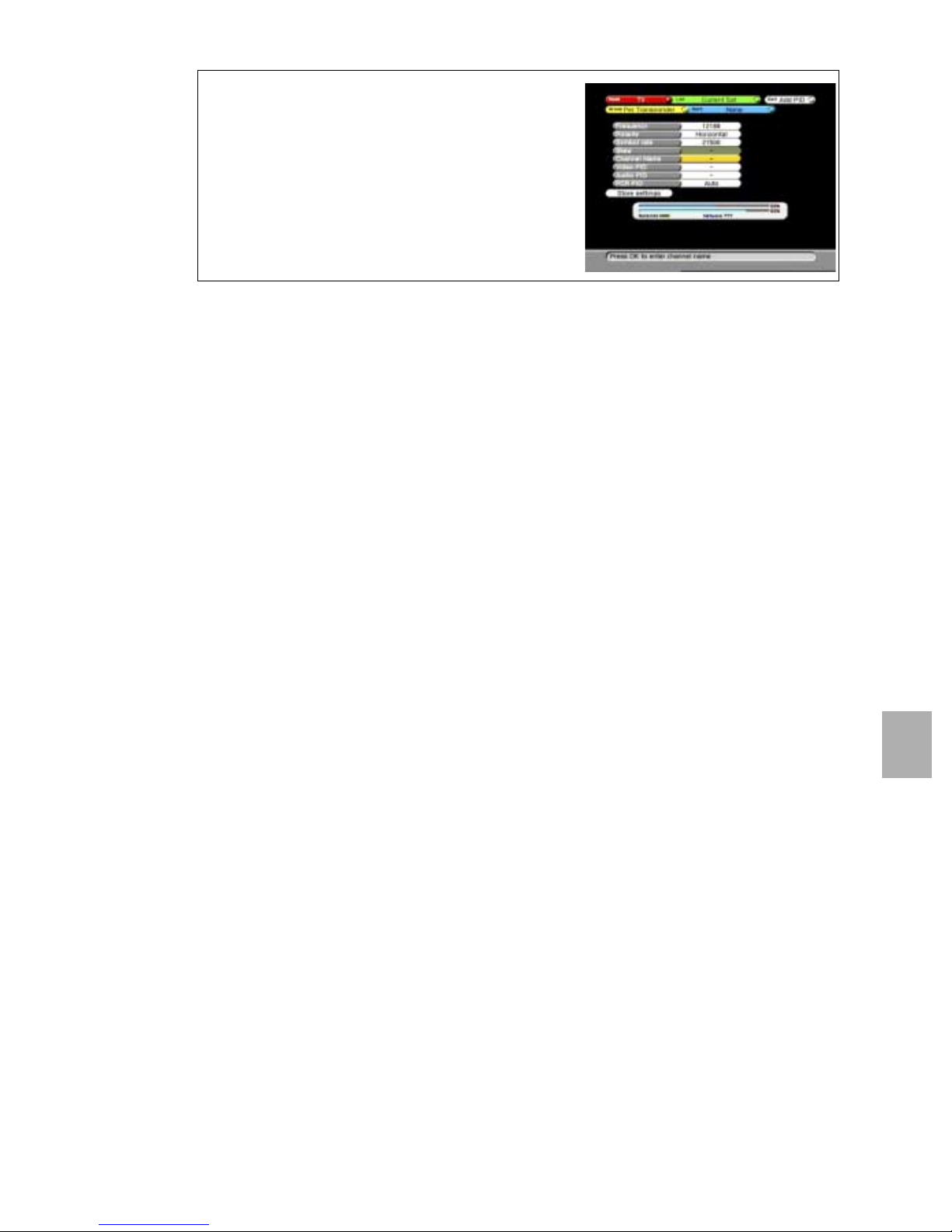

2.9.TO ADD A PID
1. Select a channel of the transponder to which you
want to add a PID.
2. On the RCU, press:
a. the OK key;
b. Select Mode = TV
c. Select List = All Channels
d. Select Group = None
e. Select Sort = None
f. Select Edit = Add PID
8. Monitor the signal indicator and make sure that
you have sufficient signal strength and quality.
9. Go to the Store Settings field.
10. On the RCU:
a. press the OK key to store the settings;
b. press the white key to end the procedure;
c. press the EXIT key to return to live video.
3.END OF LIFE DISPOSAL
Your receiver and related accessories contain materials which can be recycled and reused.
Specialized companies can recycle your equipment to increase the amount of reusable
materials and to minimize the amount of materials to be disposed of.
Please inform yourself on local regulations on disposal of your equipment.
Audio/Video
Alternating Current
ANTenna (terrestial)
Celcius
Conditional Access Module
Compact Disc
CHannel
Common Interface
Component version 2
deciBell
deciBell milliwatts
Direct Current
Digital Satellite Equipment Control
Digital Video Broadcasting
Digital Video Recorder
East Limit
Electronic Program Guide
Fahrenheit
Free-To-Air
Gigabit
GigaByte
GrouND
Graphical User Interface
Horizon-to-Horizon
HardWare
Committee
Intermediate Frequency
satellite receiver)
International Standards Organisation
kilogram
kiloHertz
kiloWatt
Low Noise Block down converter
LNB with Feedhorn
maximum
MegaByte
Megabits per second
MCPC
MHz
min
mm
MPEG
NTSC
OSD
OSG
OTA
PAL D/K
PCMCIA
PCRProgram Clock Reference
PID
PWM
QPSK
RCAConnector type, also Cinch connector
RCU
RF
RND
S/PDIF
SAT
SCARTConnector type, also Euro connector
SCPC
SMATV
STB
TP
TV
µs
UHF
V
VCR
Ver.
V
p-p
V
rms
W
WL
WxHxD
Multiple Channel Per Carrier
MegaHertz
minute
minimum
millimeter
Moving Picture Experts Group
National Television Standards
Committee
Near Video On Demand
On-Screen Display
On Screen Graphics
Over The Air
Phase Alternating Line B/G
Phase Alternating Line D/K
Personal Computer Memory Card
Industry Association
Packet IDentification
Personal Identification Number
Pulse Width Modulation
Quadrature Phase Shift Key
Remote Control Unit
Radio Frequency
RaNDom
Sony/Philips Digital Interface
SATellite
Single Channel Per Carrier
Satellite Master Antenna TV
Set Top Box (the satellite receiver)
Software
TransPonder
TeleVision
micro
second
Ultra High Frequency
Volt
Video Cassette Recorder
Version
Volts
peak-peak
Volts
rootmeansquare
Watt
West Limit
Width x Height x Depth
8
Digital Satellite ReceiverPage 8 - 1
Page 68
Section 8
Glossary
2.EXPLANATION OF USED TERMINOLOGY
C-bandA frequency range (3.70-4.20 GHz) used for satellite
broadcasts.
CCITTAn European committee of the international
Telecommunications Union and makes recommendations for
the distribution of telephone and data distribution.
Clarke BeltThe Clarke Belt is a dedicated satellite orbit in which
satellites remain in a fixed position relative to the Earth’s
surface.
CI-module/CAMBoth names are used for these modules. These modules are
PCMCIA cards with a slot in which you can insert a smart
card.
Common Interface (CI)A DVB standard which defines the software and hardware
requirements for condition access systems.
Conditional AccessA system which is used by service providers to control the
subscriber’s access to certain services, programs and events
like Pay TV.
DBS bandA signal frequency range (11.70-12.40ghz) intended for
direct TV broadcast by satellite channels.
DecoderA unit that is connected to a satellite receiver in order to
unscramble a picture that is protected by encryption.
Digital Audio BroadcastingStandard which describes the method of transmitting digital
audio.
DiSEqCA standard through which it is possible to let a DiSEqC
compatible receiver send a signal over the RF cable to a
switching device to switch between different LNBs or dishes.
The DiSEqC uses the 22 kHz signal to control the switching
device.
DVBA broadcast standard for digital radio and television, using
MPEG-2 compression. DVB is being supported by all
European manufacturers and broadcasters.
EPGA electronic program guide that comes with the broadcast of
a particular satellite, Note that every station fills the EPG
differently or not, so differences in the EPG are not
necessarily receiver errors.
FECIs an invisible part of a broadcast which makes sure that
possible errors in the reception of the satellite signal are
corrected.
FeedhornA part of the dish which collects the signals from the dish.
The signal is then fed to the LNB(F).
FerriteA remote controlled device that determines the polarity of the
signal which is fed to the LNB. The ferrite is more or less an
electro-magnetic polarizer.
Fixed DishA dish antenna that is pointed at one particular satellite.
Free-To-Air broadcastAn unscrambled broadcast which you can view without
additional payments to a service provider.
Frequency bandA frequency band is a range of frequencies which are
dedicated to a certain usage. In the satellite area, commonly
known bands are the C-band and the Ku-band.
High Definition TelevisionA digital television format, which combines high-resolution
video and theater like sound to create a movie theater quality
TV viewing experience.
HorizontalIn the satellite industry, horizontal is used to indicate the
direction in which the received signal is polarized. Normally
KU-bandA frequency range (10.70-18.00 GHz) used by most
European TV satellites.
LNBA device behind the feedhorn which processes the signal
into a format which is understood by the receiver for further
processing
LNBFA LNB with an integrated Feedhorn. So the LNBF comes as
one single unit.
MPEGThe Moving Picture Experts group is founded by the ISO to
provide a basis for the coding and compression of moving
pictures. MPEG has now become a standard method for the
digital transmission of video and sound using less bandwidth
than the analog transmission method.
Near Video-On-DemandMulti channel system broadcasting many copies of a film
with staggered start times so a complete film is always
available to a viewer with a short waiting period.
NetworkWith respect to the receiver, a network (also known as a
bouquet) is a set of programs that is offered by a single
service provider.
NTSCUSA video standard with image format 4:3, 625 lines, 60 Hz
and 4 MHz bandwidth with a total of 6 MHz video channel
width.
PALEuropean video standard with image format 4:3, 625 lines,
50 Hz and 4 MHz bandwidth with a total of 8 MHz video
channel width.
PIDMPEG-2 transmits the audio and video information in so-
called packages. At the beginning of each package is an
identifier (PID) present which tells the receiver what to do
with the received information. Satellite receivers use
normally four types of PID, these are VPID (video PID), APID
(audio PID), Program Clock Reference (PCR PID) and data
PID (EPG information).
Parental lockA feature which is introduced to give you the possibility to
‘lock’ or ‘hide’ several functions of the receiver to prevent
unauthorized persons (children) to view broadcasts that are
not suitable for them. The use of the parental lock requires a
PIN code. With this PIN code you can change or unlock the
locked or hided channels.
Pay-Per-ChannelWith this feature, the viewer has to pay a certain price per
month (or other period) to receive all programs of a certain
channel.
Pay-Per-ViewConditional access service where the user is able to buy one
particular program from a particular service provider.
Pay TVWith Pay TV, the consumer has to pay for certain programs
or services.
PIN codeThe PIN code or Personal Identification Number is
necessary to make use of the parental lock feature. The PIN
code has four digits which can be set personally.
PolarizationBroadcasts are done in a particular frequency band. To make
maximum use of a frequency band and bring you the
maximum number of programs, the broadcasts are polarized
in different ways to fit as many as possible programs into one
frequency band.
PolarizerA remote controlled device that determines the polarity of the
signal which is fed to the LNB.
PolarmountA motorized dish antenna mount which enables a dish to
point at every ‘visible’ satellite on the Clarke Belt.
Section 8
8
Digital Satellite ReceiverPage 8 - 3
Page 70
Section 8
ReceiverUnit which takes signals from a dish and converts them so
RS232 connectionA RS232 connection allows you to connect equipment to the
SatelliteA broadcast station, for satellite radio and TV, positioned on
SCART cableA SCART cable is also known as ‘Peritel’ cable and is
Service providerA service provider is a company or organization that collects
Smart CardA card that contains a ‘smart’ code and is used to de-
SMATVA satellite master antenna TV system is a system which
StreamThe signal which is received from the transponder which
Symbol rateInformation in the stream which tells the receiver at which
TransponderEquipment inside a satellite responsible for receiving a single
VerticalIn the satellite industry, vertical is used to indicate the
Glossary
they can appear on radio and TV.
receiver which supports the RS232 protocol.
theClarkeBelt.
commonly used in Europe to connect the audio and video
equipment. A fully furnished SCART cable has 21 wires
which is at both sides finished with a 21-pin connector.
and offers you a number of programs and services. Some
are free of charge and others you have to pay for.
scramble encrypted broadcasts when placed in a decoder or
receiver with a built-in decoder.
shares the reception resources and is intended for the
distribution of TV and radio signals to the user in one ore
more buildings.
contains the together with the video signal, additional
information that the receiver needs in order to process the
received signal correctly.
speed (rate) the transponder sends the digital information
(symbols). The receiver must be able to handle the symbol
rate to process the signal correctly into a correct image.
uplinked channel and rebroadcasting it back to Earth.
direction in which the received signal is polarized. Normally
In the various menu pages you can make a selection from various search modes. The search
mode gives the possibility to scan a satellite or transponder in a particular manner. The
search modes are identified as:
AllIn this mode the built-in database is used to select the available transponders.
The digital channels that belong to these transponders are searched for and
added to the all channel list.
FTA channels which are then added to the all channel list. In the real world it
seems that the service providers do not always accurately code their channels
with a scrambled or FTA code. For this reason you may find that some
searched channels are scrambled. Also there is a possibility that scrambled
channels are coded as FTA. These channels will then be missed out because
of the erroneous code.
NetworkIn this mode the built-in database or information from the received stream is
used to search for the transponders that are included with the currently
received network. The digital channels that belong to this network are
searched for and added to the all channel list.
TPIn this mode the built-in database or information from the received stream is
used to search for or scan in the selected transponder. The digital channels
that belong to this transponder only are searched for or scanned in and added
to the all channel list.
DigitalIn this mode the built-in database is used to search for the available digital
channels. The digital channels are then added to the all channel list. The digital
channels are shown as white channel names for easy recognition.
Digital IFIn this mode the currently received satellite is scanned for digital channels. The
digital channels, within the tuner bandwidth and selected symbol rates are
scanned in and added to the all channel list.
UpdateIn this mode the built-in database is used to search for the available digital
All rights reserved
NoneTransponders on the selected satellite are not searched for.
channels. Then all new channels are added to the all channel list.
EchoStar Tri Control, Programmable Remote Control Unit
APPENDIX2
1.INTRODUCTION
This appendix gives the information necessary for the use of the Tri Control with other
equipment than the EchoStar receiver. This appendix also contains a code reference list
which gives the program code for most of the know TV, video and audio equipment.
The Tri Control is and infra red (IR) type programmable remote control unit (RCU) that is able
to control most functions (basic) of your TV and VCR equipment connected to the receiver.
You can program the RCU with a code to which your equipment responds. If the code is not
available in the supplied code list, the built-in intelligence assists you to find the applicable
code.
For future use it is recommended that you make a note of the equipment codes and the serial
number in the fields below: The RCU is already pre-programmed for the EchoStar receiver
with code 0222.
The RCU is powered by two 1.5 Volt Alkaline batteries type AA/LR6. We recommend that you
do not use rechargeable batteries. At battery change, the RCU keeps the programmed
information for a maximum of 15 minutes.
1.Remove the battery cover.
2.Find the battery + and - marks.
3.Insert the batteries accordingly the + and - marks.
All rights reserved
4.Install the battery cover.
5.Press the SAT key once, Make sure the key lights up to indicate that it is ready for use.

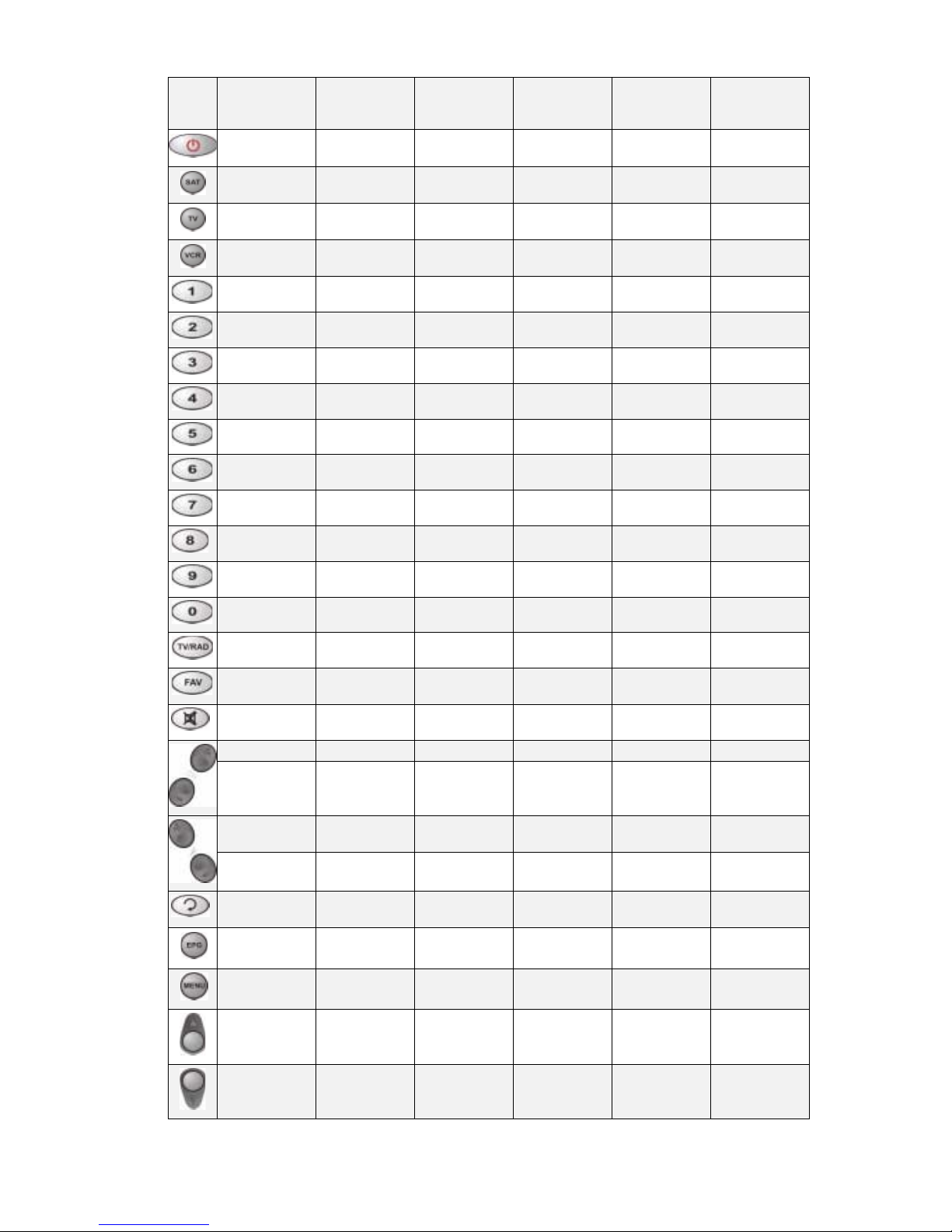

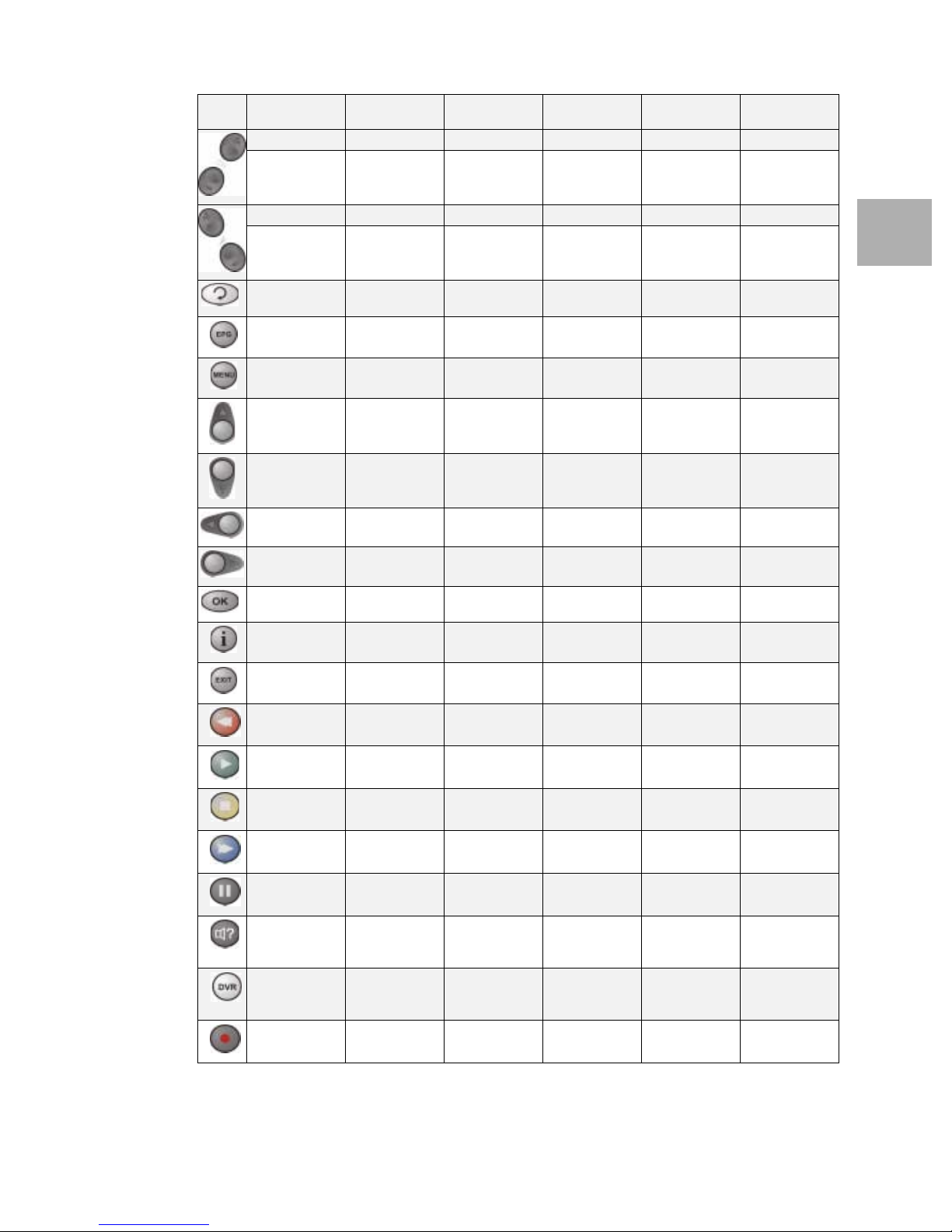

3.THE KEYS
If the RCU is programmed with the correct equipment code, the keys should control the same
(basic) functions as the keys on the original remote control unit of that equipment.
The functionality of the SAT mode is discussed in the user’s guide of the satellite receiver.
The Power key
This key controls the ON-OFF-STANDBY function.
Indicator
The red indicator shows that the RCU responds to your commands.
Mode keys (TV, VCR, SAT)
These keys are programmable to take control over the television (TV),
video cassette recorder (VCR) and the satellite receiver (SAT).
Numerical keys
The Numerical keys (0-9) activates the same functions as available on
your original remote control unit, such as direct access program
selection.
Digital Satellite ReceiverPage A2 - 1
TV/RAD key
If the function is available, this key operates as the AV key for TV and as
TV/VCR for VCR.
Page 78
Appendix 2
EchoStar Tri Control, Programmable Remote Control Unit
FAV key
If your original remote control unit uses one/two number keys (usually
marked as -/--, 10 or 20), press this key as usual.
Volume +/- keys
This key is used to control the volume level for the selected equipment.
The Mute key
This key blanks out the volume.
Recall key
This key brings back the last selection.
CH +/- keys
This key is used to move one channel up or down for the selected
equipment.
EPG key
If the function is available, this key activates the program function for
VCR equipment.
ikey
If the function is available, this key activates the display/information
function for TV and VCR equipment.
Arrow cluster
While in a menu, this key is mainly used to scroll left, right, down or left.
OK key
While in a menu, this key is mainly used to confirm a selection.
MENU key
This key activates the available on-screen menu for the selected
equipment.
EXIT key
While in a menu, this key is mainly used to exit from a selection.
Red key
If the function is available, this key activates the fast text functions (fast
navigation in teletext).
For some equipment the key activates a
menu function. For detailed information of the fast text functions,
please refer to the applicable user’s guide.
Rewind key
In the VCR mode, this key is used to rewind the video tape.
Green key
If the function is available, this key activates the fast text functions (fast
navigation in teletext).
For some equipment the key activates a
menu function. For detailed information of the fast text functions,
please refer to the applicable user’s guide.
Play key
In the VCR mode, this key is used to play back the video tape.
EchoStar Tri Control, Programmable Remote Control Unit
Yell ow k ey
If the function is available, this key activates the fast text functions (fast
navigation in teletext).
For some equipment the key activates a
menu function. For detailed information of the fast text functions,
please refer to the applicable user’s guide.
Stop key
In the VCR mode, this key is used to stop the play back of the video tape.
Blue key
If the function is available, this key activates the fast text functions (fast
navigation in teletext).
For some equipment the key activates a
menu function. For detailed information of the fast text functions,
please refer to the applicable user’s guide.
Fast Forward key
IntheVCRmode,thiskeyisusedtowindthevideotapefastforward.
Pause key
In the VCR mode, this key is used to pause the play back of the video
tape.
Subtitle key
If the function is available, in TV mode, this key is used as white fast text
key or menu key.
Alternate Audio language key
If the function is available, this key selects audio language choice for the
selected equipment.
White key
If the function is available, this key activates the fast text functions (fast
navigation in teletext).
For some equipment the key activates a
menu function. For detailed information of the fast text functions,
please refer to the applicable user’s guide.
DVR key
In the VCR mode, this key is not used.
Record key
In the VCR mode, this key is used to start a recording. To prevent
accidental recording, you have to press the record key twice to start the
recording.
Teletext keys
If the function is available, some VCR keys control the main teletext
functions. You find the teletext functions under the given keys:
teletext off; press the stop key
teletext on; press the play key
teletext mix; press the rewind key
teletext hold; press the pause key
teletext expand; press the record key (once!)
Appendix 2
A2
4.PROGRAM THE TV AND VCR KEY
You can program the mode keys (TV, VCR) with only one device per key.
■ The TV key is used to setup the RCU to control your basic TV functions;
■ The VCR key is used to setup the RCU to control your basic VCR functions.
You can program the SAT mode keys to control a number of satellite receivers. The RCU is
default programmed to control the EchoStar satellite receiver that came in the same box.
NOTE
Some codes are quite similar. If your device does not respond or does not function
properly with one of the codes, try another code listed under your brand.
Digital Satellite ReceiverPage A2 - 3
Page 80
Appendix 2
EchoStar Tri Control, Programmable Remote Control Unit
4.1.SETUP WITH USE OF THE EQUIPMENT CODE LIST
NOTE
The procedures to set the RCU for the TV and VCR equipment is identical,
therefor only the procedure to setup the TV is given.
1.Find your brand in the equipment code list.
2.Switch your TV to on and make sure a broadcast is seen.
3.On the RCU, press the TV key continuously until the indicator stays on.
4.Release the TV key and make sure the indicator blinks continuously.
5.Use the numerical keys to enter the first code that is listed behind your brand name.
6.Note that the indicator blinks three times.
7.Aim the RCU at your TV and press the on/standby key and make sure the TV switches
off.
8.Now the RCU is programmed to control your TV.
9.If there is no response aim and press again. If there is no response, the first code is not
valid for your TV. Repeat the previous steps with the next code given.
10. If the TV does not respond at the last code, continue with the next procedure
4.2.SETUP WITH USE OF THE SEARCH CODE FEATURE
NOTE
■ A completed search is indicated by eight blinks.
■ If the original remote control unit for the VCR does not have a on/off key: before
you continue insert a tape before you continue;
■ For some codes the play or Volume + key might work.
1.Switch your TV to on and make sure a broadcast is seen.
2.On the RCU, press the TV key continuously until the indicator stays on.
3.Release the TV key and make sure the indicator blinks continuously.
4.On the RCU, press the on/standby key and see that the indicator of the TV key stays on.
5.Press the up key once and see if the TV switches off.
Make sure you wait at least 2 seconds to allow the TV to respond.
6.If the TV does not switch off, repeat step 5 until the TV switches off.
7.After the TV switched off, press the OK key to store the code.
8.On the RCU, press the key that you normally would use to switch on the TV. See that the
TV key blinks once and the TV switches on.
9.Now your are ready to read-out the code from the memory for future use.
EchoStar Tri Control, Programmable Remote Control Unit
4.3.READ OUT THE EQUIPMENT CODE
NOTE
You can read out the code from the RCU, just blink back the code. It is handy for
future reference. Remember you only can blink back the code after the RCU
operates your device.
1.Switch your TV to on and make sure a broadcast is seen.
2.On the RCU, press the TV key continuously until the indicator stays on.
3.Release the TV key and make sure the indicator blinks continuously.
4.Use the numerical keys to enter code 990.
5.Note that the indicator goes off and stays off.
NOTE
The amount of blinks gives you the first number, no blinks indicate a 0.
6.Press the numerical key 1 and count the blinks for the first number.
7.Press the numerical key 2 and count the blinks for the second number.
8.Press the numerical key 3 and count the blinks for the third number.
9.Press the numerical key 4 and count the blinks for the fourth number.
10. Write the code, with a permanent pen, in the boxes in the battery cover and this manual.
It is possible to control a second TV or VCR with your RCU. One of the other mode keys (TV,
VCR) must be sacrificed in this case. It is not possible to sacrifice the SAT key.
5.1.SETUP A SECOND TV OR VCR
All rights reserved
1.On the RCU, press the TV key continuously until the indicator stays on.
2.Release the TV key and make sure the indicator blinks continuously.
3.Use the numerical keys to enter code 992.
4.Note that the indicator goes on and off and finally stays on.
5.Press the VCR key once and note that the indicator goes on and off and finally stays off.
6.Now the VCR key is assigned as a TV key.
7.Setup the VCR key to control your second TV, refer to chapter 4 for detailed instructions.
5.2.UNDO THE SETUP OF A SECOND TV OR VCR
NOTE
The procedure to assign a second TV or VCR is identical, therefor only the
procedure to assign the second TV is given.
NOTE
The procedure to undo an assignment for the TV or VCR is identical, therefor only
the procedure to undo the assignment of the VCR key as a second TV is given.
1.On the RCU, press the VCR key continuously until the indicator stays on.
2.Release the VCR key and make sure the indicator blinks continuously.
3.Use the numerical keys to enter code 992.
4.Monitor the VCR key and note that the indicator goes on and off and finally stays on.
5.Press the VCR key once and note that the indicator goes on and off and finally stays off.
6.Now the VCR key is assigned as a VCR key.
7.Setup the VCR key to control your VCR, refer to chapter 4 for detailed instructions.
Digital Satellite ReceiverPage A2 - 5
Page 82
Appendix 2
EchoStar Tri Control, Programmable Remote Control Unit
6.SPECIAL FUNCTIONS
6.1.VOLUME LOCK (PUNCH THROUGH)
The RCU allows you to select the device that you want to control the volume of,
independently from any other mode. As an example, if you are in the SAT mode, you can stay
in the SAT mode and adjust the volume of the TV directly with the volume +/- key.
NOTE
The procedures to set the volume lock for the TV, VCR, DVD and Audio equipment
is identical, therefor only the procedure to set the volume lock for the TV is given.
1.On the RCU, press the TV key continuously until the indicator stays on.
2.Release the TV key and make sure the indicator blinks continuously.
3.Use the numerical keys to enter code 993.
4.Press the TV key once.
5.Note that the indicator blinks three times.
6.Now the volume control is locked to the TV except for the AUX mode.
6.2.RESET VOLUME LOCK (PUNCH THROUGH)
1.On the RCU, press the SAT key continuously until the indicator stays on.
2.Release the SAT key and make sure the indicator blinks continuously.
3.Use the numerical keys to enter code 993.
4.Press the Volume + key once and note that the indicator blinks four times.
5.Now the volume control is unlocked to control the device that belongs to that key.
6.3.FACTORY RESET
1.On the RCU, press the SAT key continuously until the indicator stays on.
2.Keep the SAT key pressed.
3.Use the numerical keys to enter code 981and note that the indicator blinks four times.
4.Now the RCU is programmed with the factory settings and ready for reprogramming.
