Page 1

USER MANUAL

D-2400IP

Digital Satellite Receiver

Printedonrecycledpaper

Page 2

Issue: d2400ip_B_21a_us

We encourage you to express your thoughts on this user manual.

Please send your comments to:

EchoStar International Corporation

Technical Publications Department

Schuilenburglaan 5a

7604 BJ Almelo

The Netherlands

Page 3

PREFACE

1. DEAR CUSTOMER

Thank you for purchasing an EchoStar satellite receiver. This receiver is of the latest generation for which it is possible to upgrade the software to keep up with the newest developments. Please read this user manual carefully, to be able to safely install, use and maintain the receiver for maximum performance. Keep this user manual next to your receiver for future reference.

Please make a note of the serial number in the space below. This helps to trace and identify thereceiverincaseoftheft.Alsoquestionstoourhelpdeskcanbeansweredmoreaccurate if you can provide the details as mentioned on the serial number plate. You find the serial number plate at the rear panel of the receiver.

Type: .................................................................................

S/N: ....................................................................................

Software Version: ............................................................

2. INTENDED USE

Preface

This user manual is intended for anyone who uses an EchoStar satellite receiver. It can be used by both first-time and experienced users of satellite receivers who want to install, use and maintain their receiver.

This user manual is applicable for the EchoStar D-2400 IP Digital Satellite Receiver and the related accessories. This user manual is divided into separate sections and chapters. For easy access to the information, a clear table of content and an index are provided.

3. WARRANTY

COMMON INTERFACE-MODULES AND SMART CARDS

For pay-services, please only use Common Interface (CI) modules and the related smart cards which are approved by the service provider of the encrypted program you want to receive. Only this will enable the receiver to work properly.

Anomalies can occur when unapproved CI-modules and/or smart cards are used. EchoStar can not and will not accept any responsibility for the performance of such CI-modules and/or smart cards. If you use unapproved CI-modules and/or smart cards, EchoStar is no longer able to provide any assistance or support. Use of unapproved CI-modules and/or smart cards will void any warranty claim. If you have any doubt which CI-modules are approved, please ask your service provider for assistance.

4. DISCLAIMER

SATELLITE RECEIVER

EchoStar International Corporation has to the best of her abilities, everything done to supply you with a satellite receiver built to the most up-to-date software and hardware. EchoStar International Corporation makes no warranties with respect to the reception of the channels provided by the broadcast service providers and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose.

EchoStar International Corporation reserves the right, for whatever reason, to revise, change or modify the hard- and software of the satellite receiver without the obligation to notify or warrant any person or organization of such change. Therefore, please visit our website, on a regular basis, for the latest information available.

Digital Satellite Receiver Page I

Page 4

Preface

SOFTWARE DOWNLOADS

EchoStar International Corporation will to the best abilities, do everything possible to supply you with software updates to keep your receiver as up-to-date as technically possible. EchoStar International Corporation makes no warranties with respect to the use of the supplied software downloads and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose.

EchoStar International Corporation reserves the right, for whatever reason, to revise, change or modify the software that can be used by your satellite receiver without the obligation to notify or warrant any person or organization of such change. Therefore, please visit our website, on a regular basis, for the latest software available.

USER MANUAL

EchoStar International Corporation has to the best of her abilities, everything done to supply you with the most up-to-date information. EchoStar International Corporation makes no warranties with respect to the information provided by this user manual and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The information provided is meant as a guideline for the use and maintenance of the receiver.

EchoStar International Corporation reserves the right to revise, change or translate this user manual without the obligation to notify any person or organization of such change. Therefore, please visit our website, on a regular basis, for the latest information available.

5. COPYRIGHT AND TRADEMARKS

© 2002 EchoStar International Corporation. All rights reserved worldwide. This user manual has been provided pursuant to an agreement containing restrictions on its use. This user manual is also covered by Federal Copyright Law.

No part of this user manual may be copied, distributed, transmitted, stored in a retrieval system or translated into any human or computer language, in any form or by any other means, electronically, mechanically, magnetically, manually or otherwise or disclosure to third parties without the express written permission of EchoStar International Corporation.

EchoStar International Corporation is possibly in the possession of patents, requests for patent approval, trademarks, copyrights and other intellectual property with respect to the contents within this user manual. The submission of this user manual does not imply you have got any license or other legal right for the use of the here above mentioned without the express written permission of EchoStar International Corporation.

■ EchoStar, EchoNAV and Quality has a Name

are registered trademarks of EchoStar International Corporation;

■ DVB, Digital Video Broadcasting

is a registered trademark of the The Digital Video Broadcasting Project (1991 to 1996) which is an industry-led consortium of over 300 broadcasters, manufacturers, network operators, software developers, regulatory bodies and others in over 35 countries committed to designing global standards for the delivery of digital television and data services.

■ Dolby Digital

Dolby, Dolby Digital, AC-3 and Dolby Pro Logic are registered trademarks of the Dolby Laboratories Licensing Corporation;

■ All other trademarks are the property of their respective owners or companies.

Page II EchoStar D-2400IP

Page 5

Preface

TABLE OF CONTENTS

Preface

1 DEAR CUSTOMER I 2 INTENDED USE I 3 WARRANTY I 4DISCLAIMER I 5 COPYRIGHT AND TRADEMARKS II

Safety Information

1 GENERAL SAFETY 1-1 2 ELECTRICAL SAFETY 1-1 3 WARNINGS, CAUTIONS AND NOTES 1-2 4 SYMBOLS USED ON THE RECEIVER 1-2

Preparation

1 STORAGE AND TRANSPORT 2-1 2 TO UNPACK YOUR RECEIVER 2-1 3 THE CONTENTS OF THE BOX 2-1 4 THE DISPOSAL OF YOUR PACKING MATERIALS 2-1 5 TO SETUP YOUR PERIPHERAL EQUIPMENT 2-2 6 TO SETUP THE RECEIVER 2-2

Installation

1 CONNECT YOUR EQUIPMENT 3-1 2 CONNECT A DISH 3-2 3 TO SETUP YOUR RECEIVER FOR THE FIRST TIME 3-4

Familiarization

1 THE RECEIVER 4-1 2 THE ECHONAV INSTALLATION MENU 4-4 3 THE ECHONAV MODE AND SELECTION MENUS 4-14 4 THE ELECTRONIC PROGRAM GUIDE (EPG) 4-16 5 THE INFOBANNER AND POP-UP MENUS 4-18

Operation

1 TO NAVIGATE THROUGH THE MENUS 5-1 2 USE THE FAVORITE LISTS 5-7 3 TO USE THE ELECTRONIC PROGRAM GUIDE (EPG) 5-10 4 TO SET THE USER PREFERENCES 5-14

Maintenance

1 HARDWARE MAINTENANCE 6-1 2 SOFTWARE MAINTENANCE 6-1 3 END OF LIFE DISPOSAL 6-7

Troubleshooting

1 GENERAL 7-1 2EPGRELATED 7-1 3 TV AND RADIO RELATED 7-1 4 REMOTE CONTROL UNIT (RCU) RELATED 7-2 5 INSTALLATION RELATED 7-3

Digital Satellite Receiver Page III

Page 6

Preface

Glossary

1 LIST OF USED ABBREVIATIONS 8-1 2 EXPLANATION OF USED TERMINOLOGY 8-2 3 EXPLANATION OF THE SEARCH MODES 8-4

Index

Appendix 1

1 LNB CONFIGURATION MATRIX A1-1 2 LNBF CONFIGURATION MATRIX A1-1 3 USER DEFINED LNB(F) MATRIX A1-1

Appendix 2

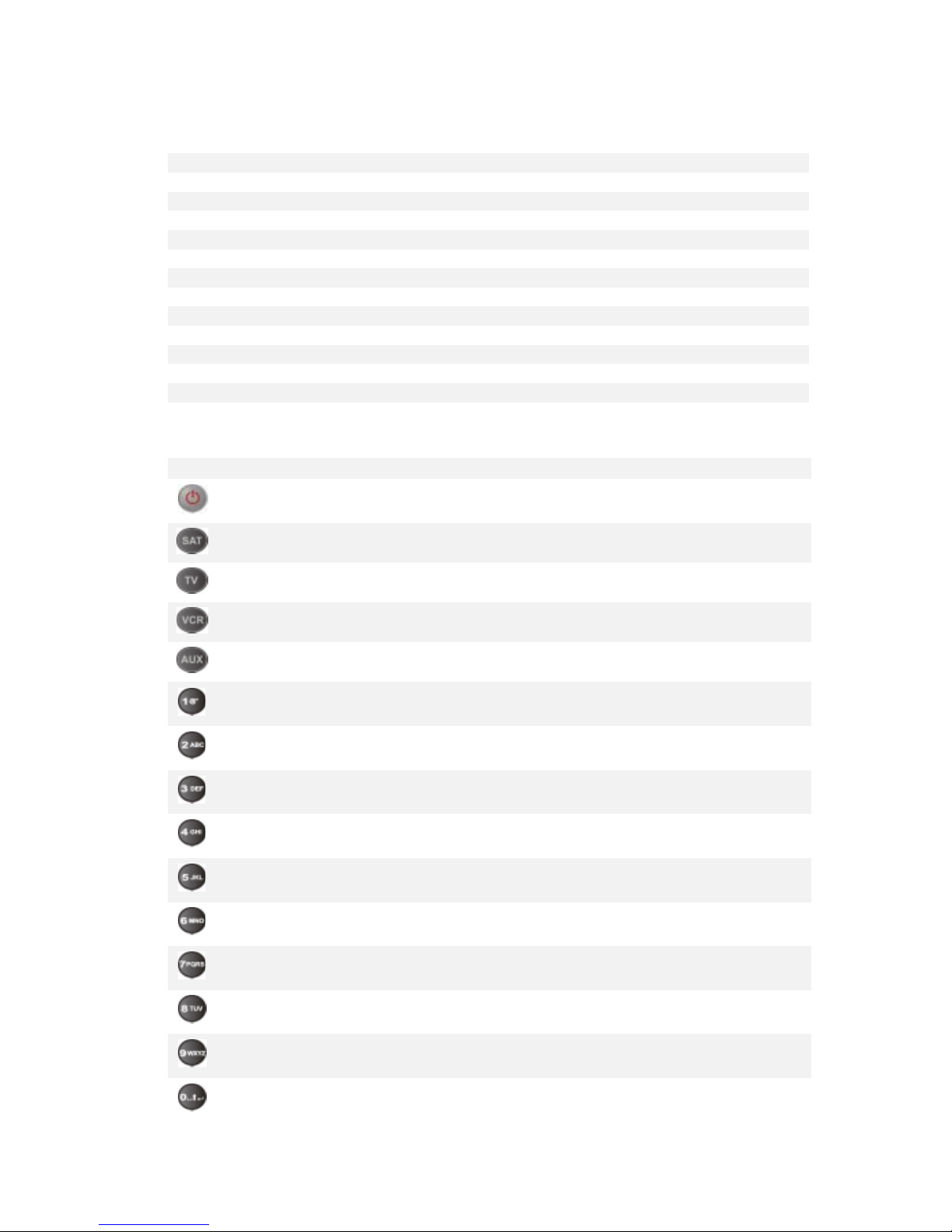

1 INTRODUCTION A-1 2 THE BATTERIES A-1 3 THE KEYS A-1 4 PROGRAM THE TV, VCR AND AUX KEY A-3 5 SPECIAL SETUP FUNCTIONS A-4 6 SPECIAL FUNCTIONS A-5 7 TROUBLESHOOTING A-7 8 EQUIPMENT CODES A-8

Page IV EchoStar D-2400IP

Page 7

SAFETY INFORMATION

1. GENERAL SAFETY

Safety Information

Section 1

Read this manual carefully and make sure you understand the instructions given. For your safety, know what the reaction upon each action will be. Do not perform any actions which are not described in this manual, failing to do so might result in an uncontrolled behavior of the receiver or even in a hazardous situation for persons and/or equipment.

Disconnect the receiver from the mains before you start any maintenance or installation procedures. Do not use alcohol or ammonia based liquids to clean the receiver. If required, clean with a soft lint-free cloth slightly made damp with a mild soap solution.

Consult an authorized service technician if the receiver does not operate normally when the instructions in this user manual are strictly followed. Do not to attempt to open the receiver, as youwillbeexposedtoashockhazard.

Do not put any objects on top of the receiver which could fall through the ventilation slots or which could cover them and prevent proper cooling of the components inside.

Do not put any (foreign) objects into the ventilation or CI-slots. This can cause fire or an electrical shock by shorting the internal components.

Make sure that nothing rests on the receivers cables and that the cables are not located where they can cause injury to persons and pets (e.g to stumble over, eat the cable).

Do not install the receiver:

■ in a closed or poorly ventilated cabinet;

■ directly on top of or under another equipment;

■ on a surface which will obstruct the ventilation slots.

Do not expose the receiver and it’s accessories:

■ to rain or excessive moisture to avoid the risk of shock or permanent damage to your

receiver;

■ to direct sunlight, heaters, stoves or any other heat generating equipment;

■ to any magnetic objects, such as speakers, electric motors, transformers, etc.;

■ to excessive vibration.

To help avoid possible damage to the receiver’s electronics:

■ wait 5 seconds after you switched off the receiver before you move the receiver or discon-

nect any equipment;

■ do not touch the components or pins on the CI-module or the smart card and hold the

CI-module and the smart card by it’s edges.

2. ELECTRICAL SAFETY

When using or connecting electrical equipment always observe the safety regulations applicable in your country to reduce the risk of fire, electrical shock, and personal injury.

Read and comply at least with the given safety instructions.

■ Always make sure that the electrical power supply corresponds with the voltage on the

electrical identification plate at the rear of the receiver next to the electrical cord.

■ Your receiver is double insulated and complies with the EN 50144; therefore no additional

earth wire is required, though the use of an earth leak switch and/or over voltage protection switch is recommended.

■ Only use an approved extension (convenience) lead suitable for the electrical power con-

sumption of the installed equipment.

Digital Satellite Receiver Page 1 - 1

Page 8

Section 1

Safety Information

3. WARNINGS, CAUTIONS AND NOTES

Throughout this user manual, there may be blocks of text indicated by symbols and printed in a different way then the surrounding text. These blocks of text ask the attention of the reader

to avoid hazardous situations. The hazard levels are indicated as:

WARNING

THIS INDICATES A HAZARDOUS SITUATION WHICH, IF NOT AVOIDED, COULD RESULT IN (SERIOUS) INJURY.

CAUTION

This indicates a situation which, if not avoided, could damage the equipment or other properties.

NOTE

This indicates additional information to the user to make the user aware of possible problems and information of any importance to help the user to understand, to use and to maintain the installation.

4. SYMBOLS USED ON THE RECEIVER

The next paragraphs explain the meaning of the symbols, present on the receiver.

4.1. SYMBOLS ON THE FRONT PANEL

The Dolby Digital logo. This logo tells you that this receiver is compliant with the Dolby Digital standard.

The Digital Video Broadcasting logo. This logo tells you that this receiver is compliant with the DVB standards as registered under registration number 2543..

4.2. SYMBOLS ON THE REAR PANEL

The caution ‘risk of electrical shock - do not open’ symbol This symbol tells you that you are not allowed to open the receiver. Only authorized (service) technicians are allowed to open the box.

The CE mark. This mark tells you that the receiver is following the provisions of Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to the electromagnetic compatibility and the provisions of Council Directive 73/23/EEC and 93/68/EEC on the approximation of the laws of the Member States relating to low voltage and electrical safety.

The double insulation symbol. This symbol tells you that the receiver is electrically safe within the normal use of the receiver as stated in the safety chapter.

Page 1 - 2 EchoStar D-2400IP

Page 9

PREPARATION

1. STORAGE AND TRANSPORT

The receiver and it’s accessories are delivered in a protective packaging. This packaging is designed to protect against excessive shocks and not against ingress of moisture.

1.1. STORAGE

If necessary:

■ store the receiver in it’s original protective packaging;

■ in a room with the ambient conditions as stated in the technical specifications.

1.2. TRANSPORT

Pack the receiver preferably in the original packaging or in an equally protective packaging. This is to help avoid possible damage to the receiver’s electronics.

2. TO UNPACK YOUR RECEIVER

DANGER

KEEP AWAY THE PLASTIC PACKAGING FROM CHILDREN.THE PLASTIC PACKAGING MAY

CLING TO NOSE AND MOUTH AND PREVENT BREATHING

Preparation

Section 2

When you unpack the contents of the box, confirm that all the parts are included. Refer to Chapter 3. The contents of the box.

Unpack the contents of the box carefully. Electronic equipment as satellite receivers are easily damaged when you handle it roughly. Examine all parts for damage that may have occurred during shipment. If you find any damage, stop to unpack the box and call the retail seller where you bought the receiver.

To help avoid possible damage to the receiver’s electronics, allow the receiver to adapt to the ambient temperature and humidity level. This to avoid condensation caused by a sudden

change in temperature (e.g from a cool car into a warm room).

3. THE CONTENTS OF THE BOX

The box contains:

■ A receiver;

■ A remote control unit;

■ A pair of batteries (for the remote control unit);

■ A set of documentation.

4. THE DISPOSAL OF YOUR PACKING MATERIALS

CAUTION

It is recommended to keep the packaging materials for a period of time. In case of warranty claims, we can request to return the receiver in the original packaging to protect the electronics. Failing to do so might void the warranty.

Most of the packaging materials can be recycled. Please discard these materials in an environmental safe manner

ENVIRONMENTAL REMARK

Dispose the packaging in an environmental safe manner. Please inform yourself on local regulations with respect to the disposal of reusable materials.

Digital Satellite Receiver Page 2 - 1

Page 10

Section 2

Preparation

5. TO SETUP YOUR PERIPHERAL EQUIPMENT

Please refer to the user manuals of your terrestrial antenna, dish, TV, video recorder and/or audio equipment to make sure this equipment is properly installed and configured before you install the receiver.

EchoStar recommends that you follow at least the following instructions:

5.1. THE TERRESTRIAL ANTENNA

1. Make sure:

■ The terrestrial antenna is in good condition and well aligned for the best reception

(avoid corroded contacts);

■ The UHF coaxial cable is in a good condition (no excessive bends or damaged

insulation);

■ The UHF coaxial cable connections are well shielded (metal connectors).

2. If necessary, do any work.

5.2. THE DISH

1. Make sure:

■ The outdoor components of the dish are good condition;

■ The dish is well aligned for the best reception;

■ The dish is connected with the correct RF coaxial cable (75 Ohm) and connectors;

■ The cables from the dish are in a good condition (no excessive bends or damaged

insulation).

2. If necessary, do any work.

5.3. THE TV, VIDEO RECORDER AND AUDIO EQUIPMENT

1. Make sure:

■ Safe access to the connections is available;

■ The equipment is switched off;

■ It is safe to remove and install the cables.

2. If necessary, do any work.

6. TO SETUP THE RECEIVER

You can install the receiver safely in a convenient location if you adhere to the warning:

WARNING

DO NOT INSTALL THE RECEIVER:

■ in a closed or poorly ventilated cabinet;

■ directly on top of or under another equipment;

■ on a surface which will obstruct the ventilation slots.

O NOT EXPOSE THE RECEIVER AND IT’S ACCESSORIES:

■ to rain or excessive moisture to avoid the risk of shock or permanent damage to

your receiver;

■ to direct sunlight, heaters, stoves or any other heat generating equipment;

■ to any magnetic objects, such as speakers, electric motors, transformers, etc.;

■ to excessive vibration.

Page 2 - 2 EchoStar D-2400IP

Page 11

INSTALLATION

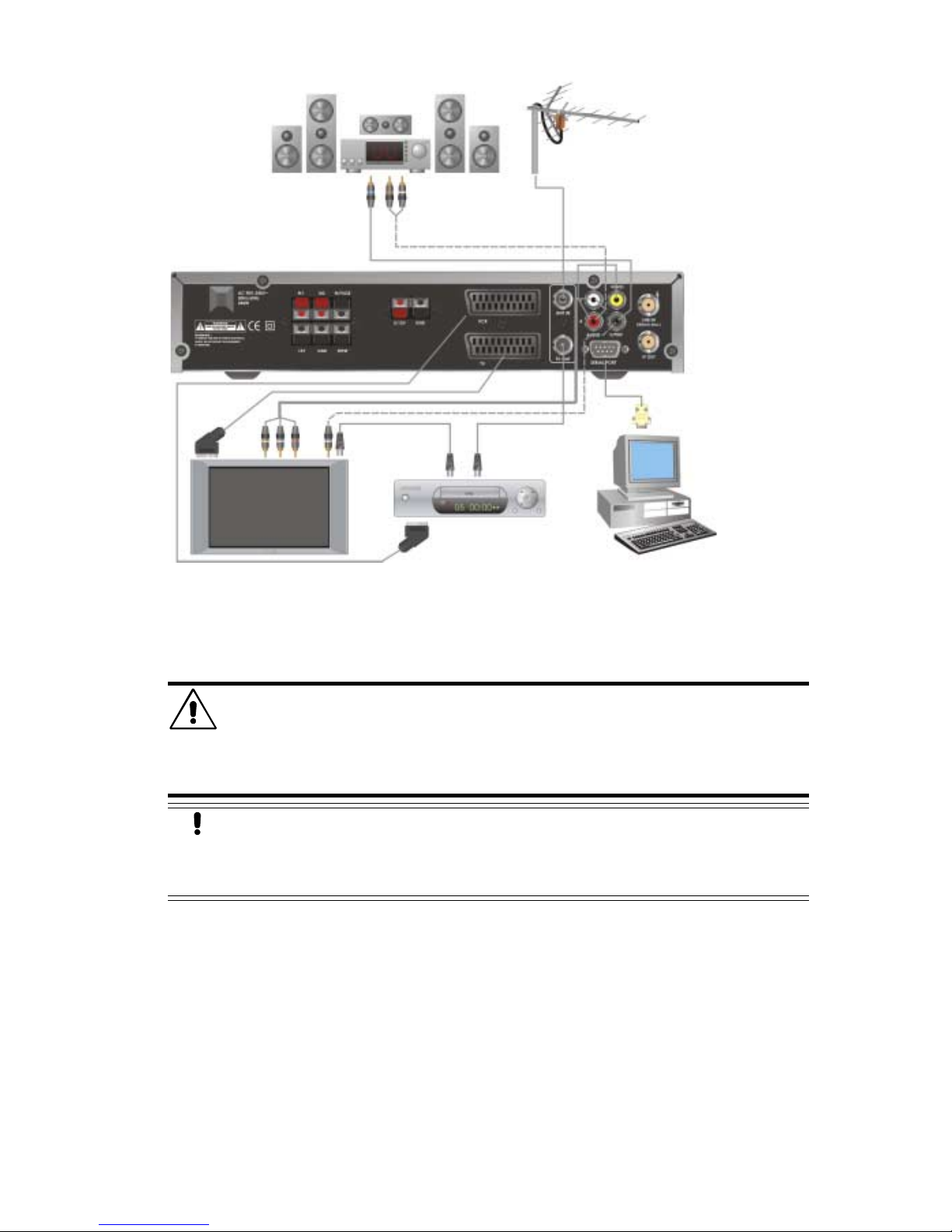

1. CONNECT YOUR EQUIPMENT

It is possible to connect the different equipment with the use of UHF coaxial cables, SCART cables, and/or so called audio/video cables with RCA connectors.

WARNING

ALL EQUIPMENT INVOLVED IN THE INSTALLATION TASK MUST BE INSTALLED CORRECTLY

.MAKE SURE THAT IT IS SAFE TO PROCEED WITH THE INSTALLATION

ANDSWITCHEDOFF

TASK

.UNSAFE CIRCUITS AND INSTALLATIONS CAN CAUSE (SERIOUS) INJURY OR DAMAGE

TO EQUIPMENT

CONNECTION WITH UHF COAXIAL CABLES

1. On the TV, find the UHF-coaxial cable that is connected to the terrestrial antenna or cable network.

2. Remove the UHF-coaxial cable from the TV and make sure the cable condition is OK.

3. On the rear panel of the receiver find the TV OUT connector.

4. Install an UHF-coaxial cable between the TV OUT connector (receiver) and the antenna connector (TV).

5. On the rear panel of the receiver find the ANT IN connector.

6. Install the UHF-connector (terrestrial antenna) to the ANT IN connector (receiver).

CONNECTION WITH SCART CABLES

1. On the TV find the SCART cable that is connected to the VCR.

2. Remove the SCART connector that is connected to the VCR from the TV.

3. On the rear panel of the receiver find the TV and VCR SCART connectors.

4. Install a full featured SCART cable between the VCR and the VIDEO SCART connector (receiver).

5. Install a full featured SCART cable between the TV SCART connector (receiver) and the SCART connector on the TV (old SCART connection to the VCR).

CONNECTION WITH AUDIO/VIDEO CABLE (RCA-CONNECTORS)

1. On the rear panel of the receiver find the VIDEO, AUDIO L and AUDIO R connectors.

2. Install an audio/video cable between: a. the VIDEO connector of the receiver and TV (yellow); b. the AUDIO L connector of the receiver and TV (white); c. the AUDIO R connector of the receiver and TV (red).

CONNECTION WITH DOLBY DIGITAL AUDIO CABLE (RCA-CONNECTORS)

1. On the rear panel of the receiver find the S/PDIF connector.

2. Install an audio/video cable (black) between: a. the S/PDIF connector (receiver) and Dolby Digital connection of the Dolby digital

compatible installation.

CONNECTION WITH SERIAL CABLE (0-MODEM CABLE)

1. On the rear panel of the receiver find the SERIAL PORT connector.

2. Install a serial cable between the SERIAL PORT connector (receiver) and the serial port connection of the PC.

Installation

Section 3

Digital Satellite Receiver Page 3 - 1

Page 12

Section 3

Installation

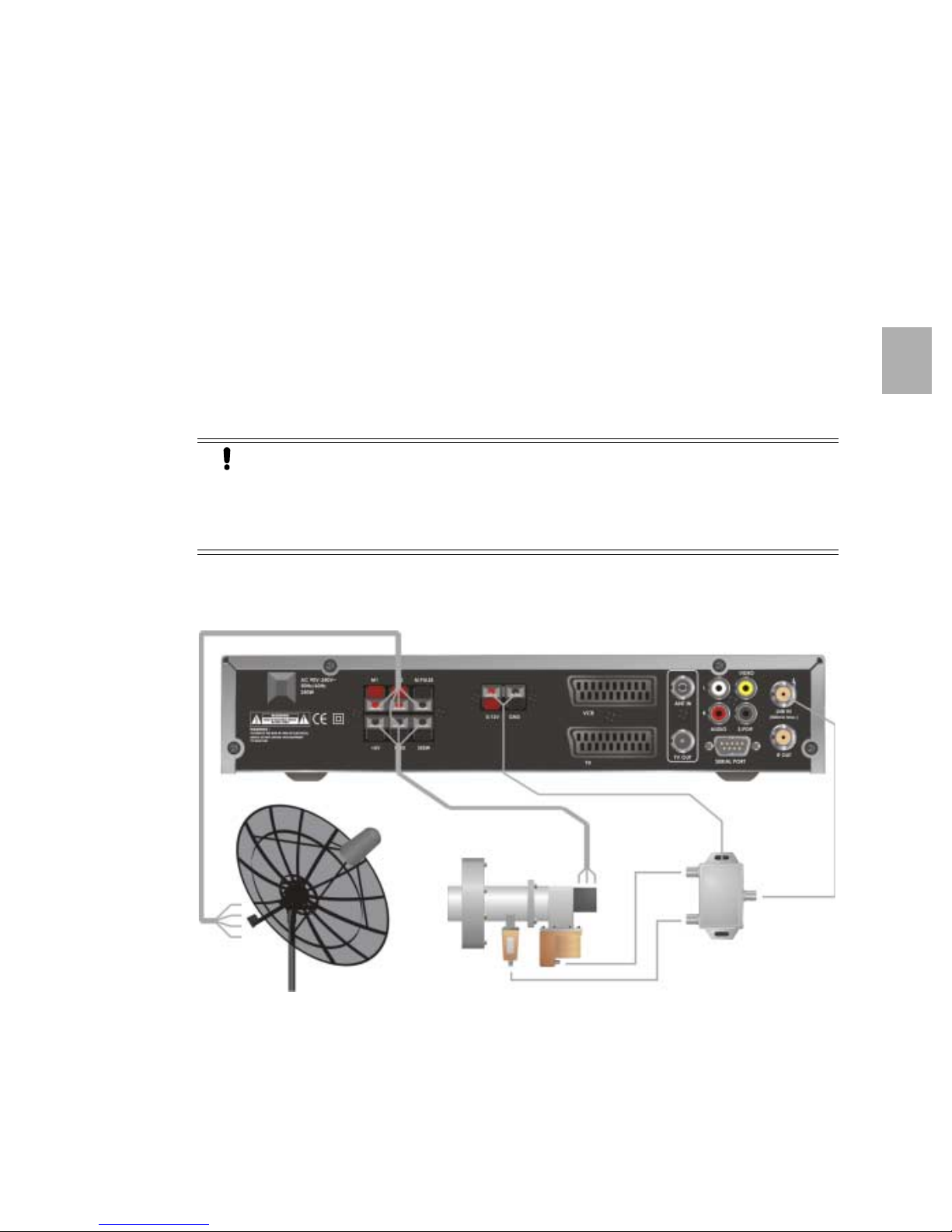

2. CONNECT A DISH

It is possible to connect the different dish configurations with the use of RF coaxial cables. Only the most common configurations are discussed. If in doubt, please ask the EchoStar

service department for advice.

WARNING

ALL EQUIPMENT INVOLVED IN THE INSTALLATION TASK MUST BE INSTALLED CORRECTLY

ANDSWITCHEDOFF

TASK

.UNSAFE CIRCUITS AND INSTALLATIONS CAN CAUSE (SERIOUS) INJURY OR DAMAGE

TO EQUIPMENT

CAUTION

Tighten the cable connectors only by hand. Do not use any tools. You will damage the connector pins if you overtighten the connector. This will result in loss of signal quality, or even total loss of reception.

1. On the dish installation, connect a RF coaxial cable (for detailed instructions, refer to the manufacturer’s instructions).

2. On the rear panel of the receiver find the LNB IN (digital) and the IF OUT connectors.

FIXED DISH INSTALLATION WITH LNB(F)

3. Install the F-connector (dish) to the LNB IN connector (receiver).

FIXED DISH INSTALLATION WITH DISEQC SWITCH

3. Install the F-connector (DiSEqC switch) to the LNB IN connector (receiver).

.MAKE SURE THAT IT IS SAFE TO PROCEED WITH THE INSTALLATION

Page 3 - 2 EchoStar D-2400IP

Page 13

Installation

Section 3

MOTORIZED DISH INSTALLATION WITH LNB(F)

1. On the dish installation (for detailed instructions refer to the manufacturer’s instructions): a. connect a RF coaxial cable; b. connect the power and sensor cables; c. if present, set the East and West limit switches to prevent dish damage.

2. On the rear panel of the receiver find: a. the LNB IN connector; b. the M.PULSE,theGND,theM1 and the M2 connectors.

3. Install the F-connector (dish) to the LNB IN connector (receiver).

4. On the rear panel of the receiver find the M.PULSE,theGND,theM1 and M2 connectors.

5. First install the motor sensor cables to the M.PULSE and GND connector (receiver).

6. Install the motor power cable to the M1 and M2 connectors (receiver).

DISH INSTALLATION WITH POLAROTOR

1. On the dish installation, connect the polarotor cables (for detailed instructions refer to the manufacturer’s instructions).

2. On the rear panel of the receiver find the +5V,theGND and the SKEW connectors.

CAUTION

It is possible that the GND connector is already occupied by the motor sensor cable. If you need to connect the GND for the polarotor as well, please use the appropriate connection materials to connect both cables. Failing to do so can cause damage to the equipment.

3. Install the polarotor power cable to the +5Vand GND connectors (receiver).

4. Install the polarotor skew cable to the SKEW connector (receiver).

Digital Satellite Receiver Page 3 - 3

Page 14

Section 3

Installation

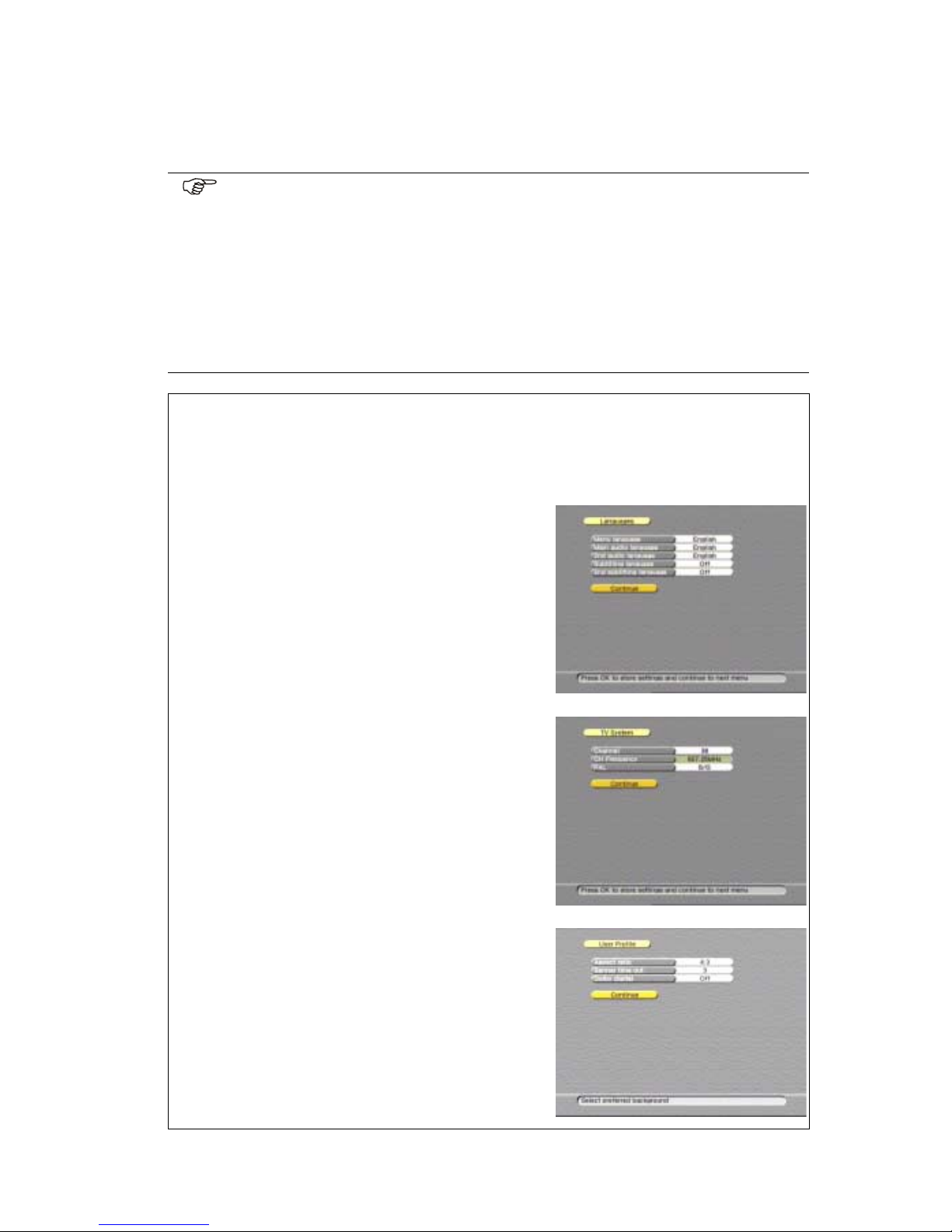

3. TO SETUP YOUR RECEIVER FOR THE FIRST TIME

This procedures will guide you step-by-step through the initial setup of the receiver. After you have finished the initial installation, these pages are accessible through the icons in the menu

bar which is in the initial setup not shown.

NOTE

Unless otherwise specified; This note explains the way you can navigate through the pages of the EchoNAV initial setup menu.

1. Use the OK key to pull down the menu selection fields.

2. Use the  arrow keys to go through the selectable menu items.

3. In a pull-down menu, use the OK key to confirm the selection.

4. Use thearrow keys to navigate between the left and right column of selectable menu items.

5. Use the EXIT key to leave the menu and return to the live mode.

1. Switch on the TV.

2. On the receiver, press the on/standby button.

3. Make the required selections.

4. Read the available help text for information.

5. Go to the Continue field.

6. On the RCU, press the OK key to advance.

7. Make the required selections.

8. Read the available help text for information. Note that only the white fields are selectable, other fields show reference information.

9. Go to the Continue field.

10. On the RCU, press the OK key to advance.

■ The receiver display shows:

-firstamovingdot;

-thenitshows----

■ The TV shows the first page.

11. Make the required selections.

12. Read the available help text for information.

13. Go to the Continue field.

14. On the RCU, press the OK key to advance.

Page 3 - 4 EchoStar D-2400IP

Page 15

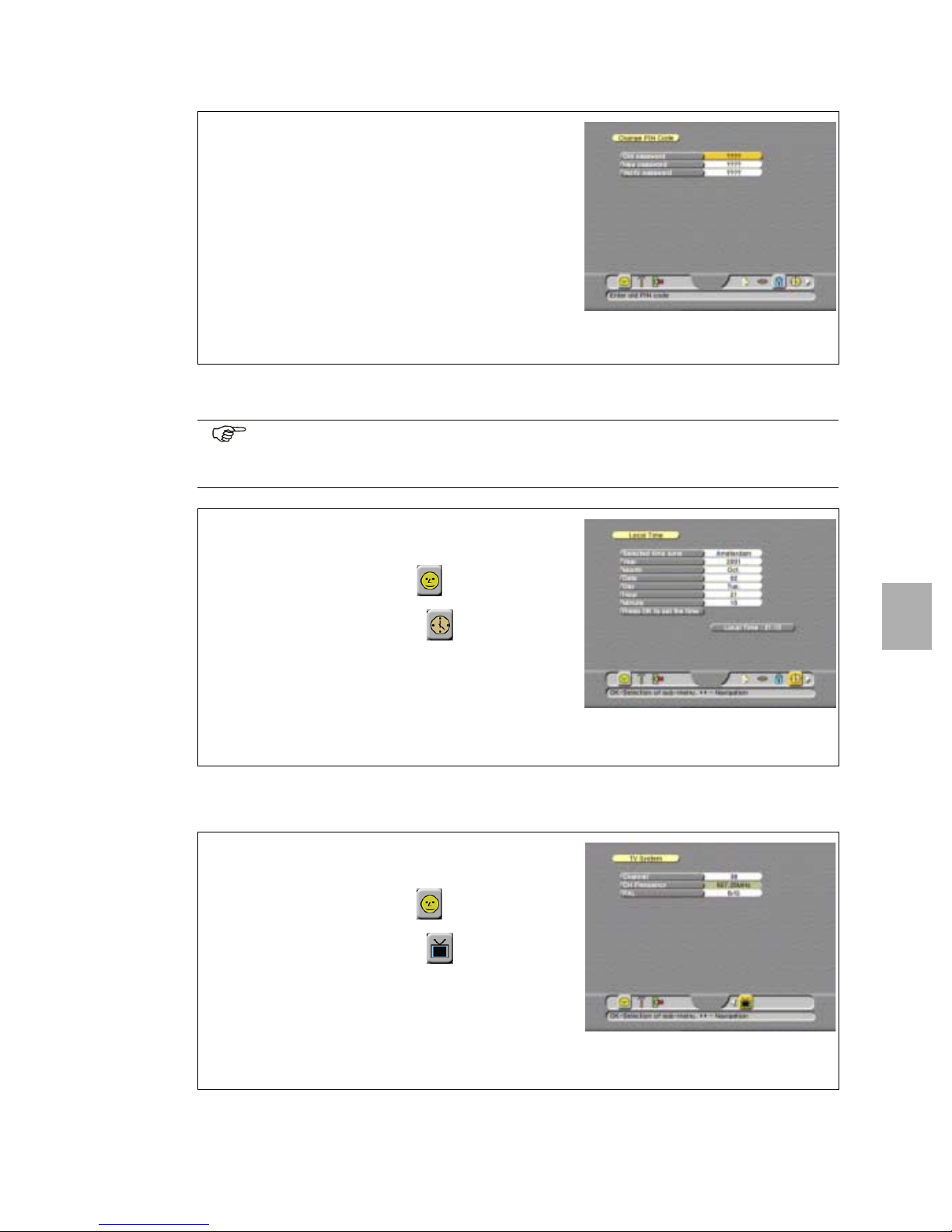

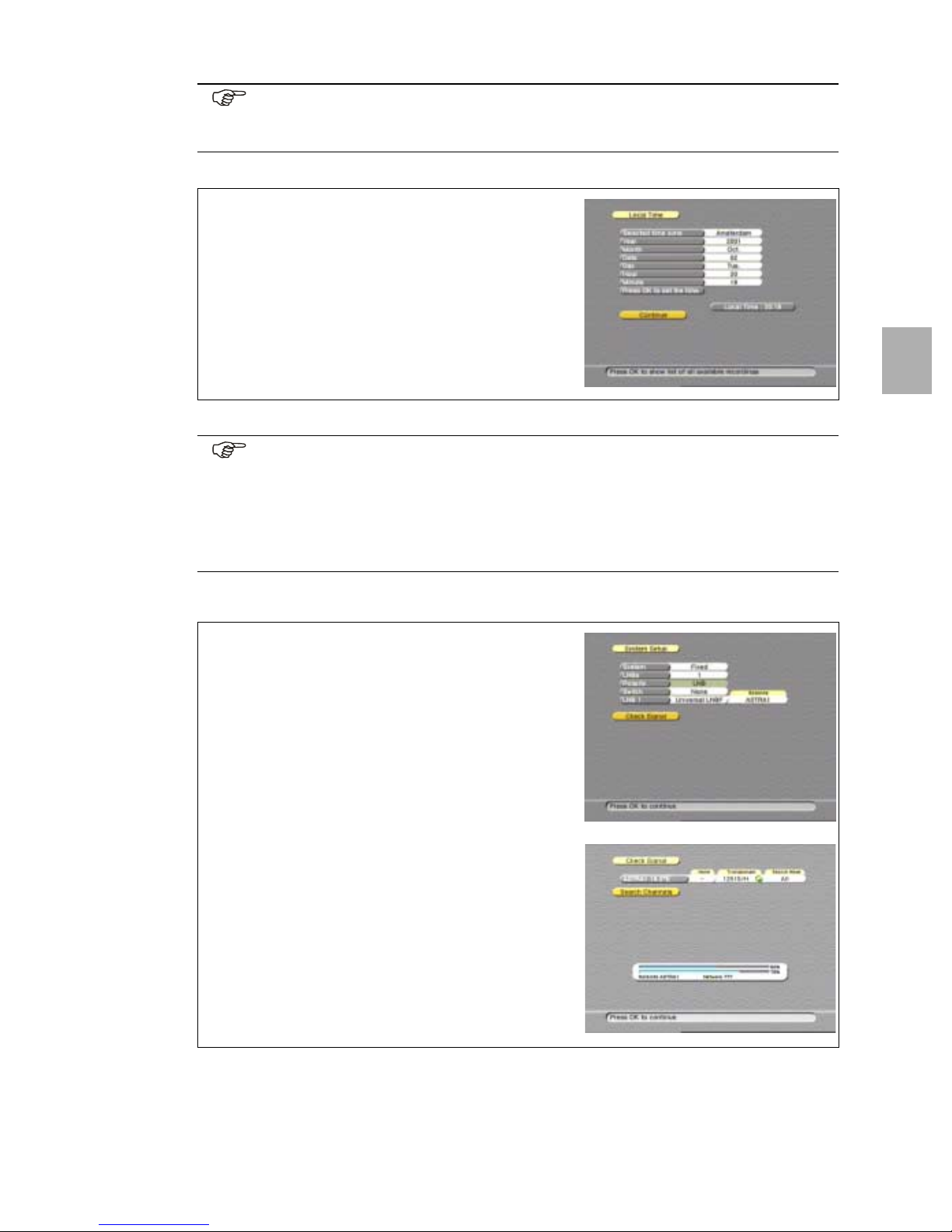

NOTE

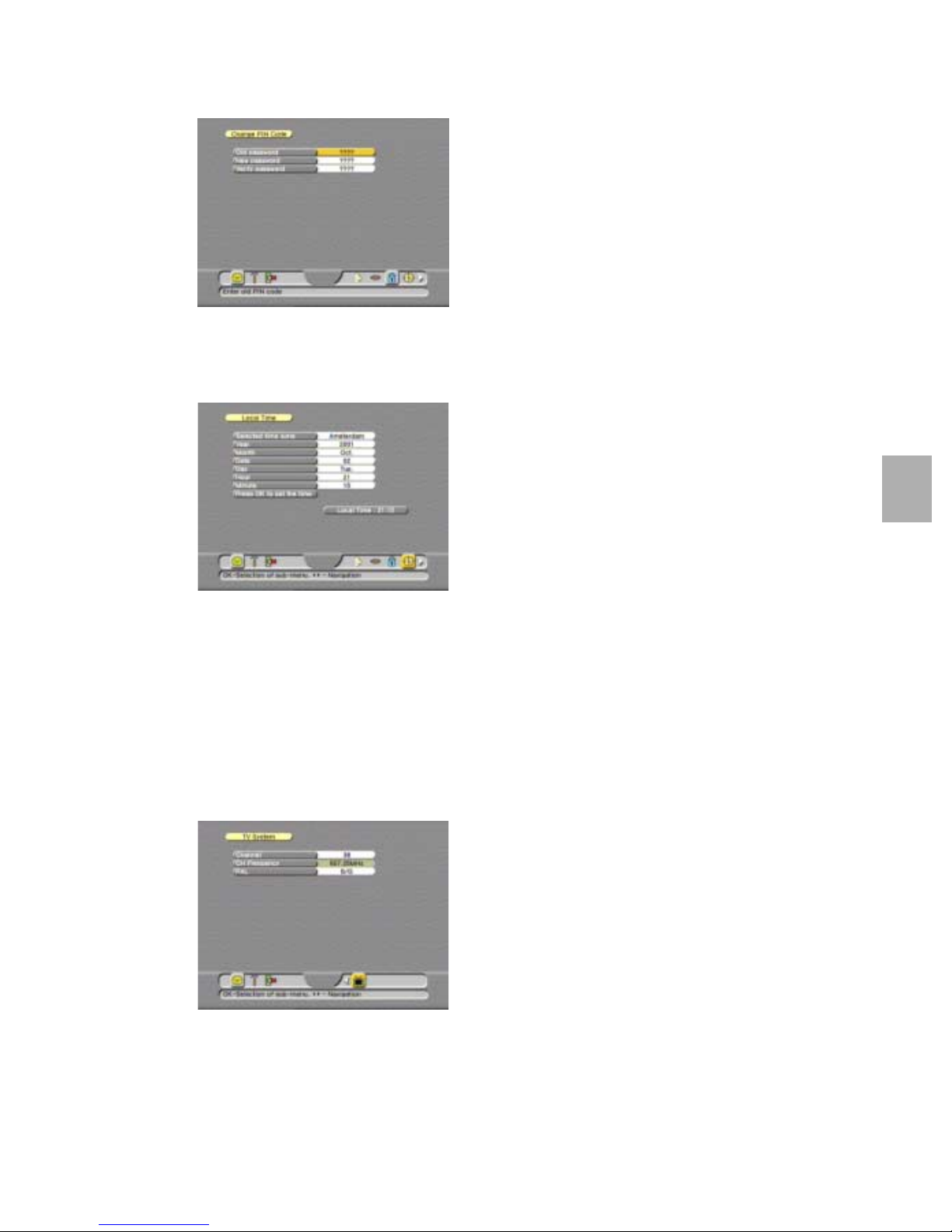

The receiver needs the correct local time to collect and show the EPG (Electronic Program Guide). An incorrectly entered local time will result in no EPG information.

15. Make the required selections.

16. Read the available help text for information.

17. Go to the Press OK to set the time. Note that the local time is shown correctly.

18. On the RCU, press the OK key to set the time.

19. Go to the Continue field.

20. On the RCU, press the OK key to advance.

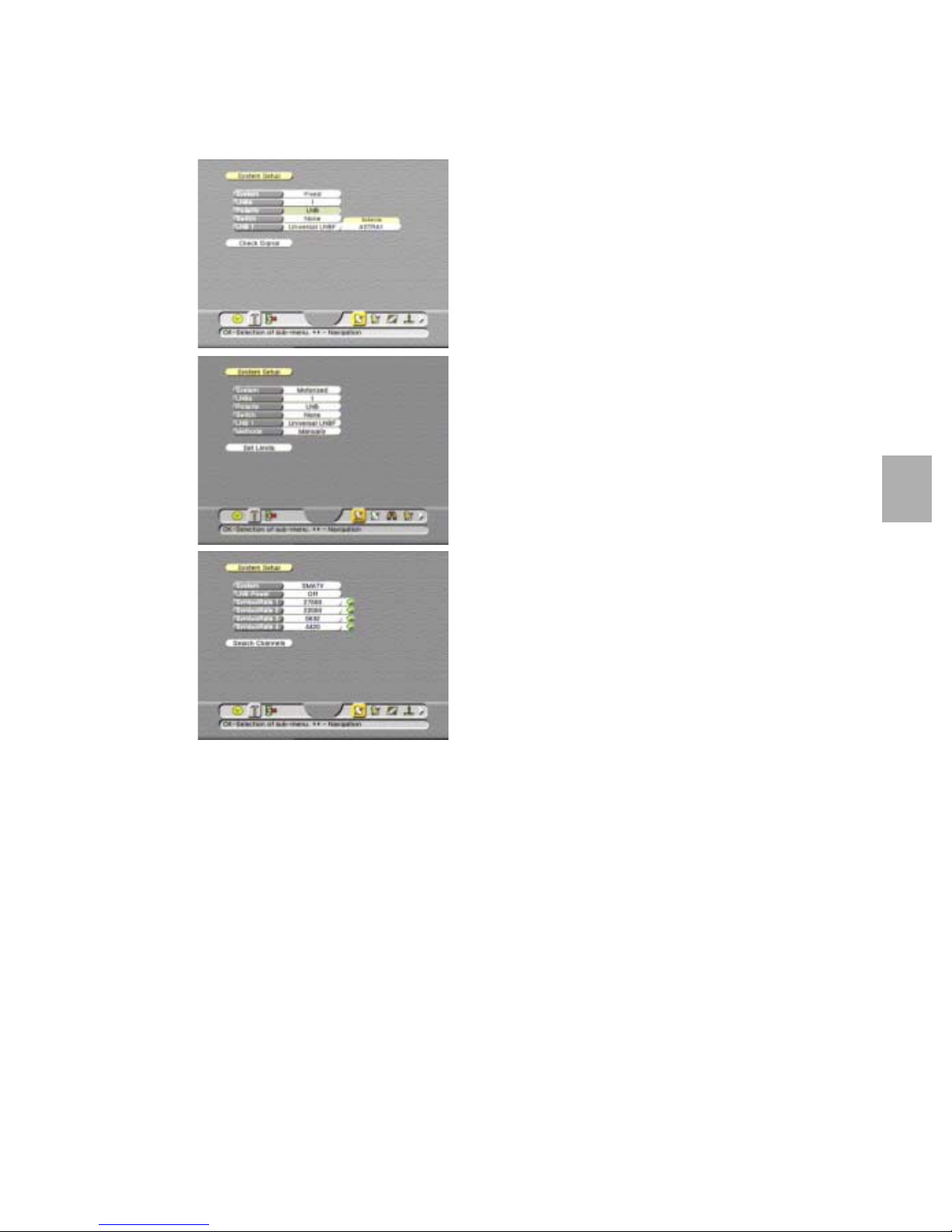

NOTE

From the next step onwards, the procedure is divided in different configurations. The configurations are; Fixed, Motorized and SMATV.

■ Fixed means set up a single dish or multiple dishes with DiSEqC1..4 switch;

■ Motorized means set up a moveable dish (motor/actuator by positioner);

■ SMATV means set up for television distribution (cable network in buildings).

Installation

Section 3

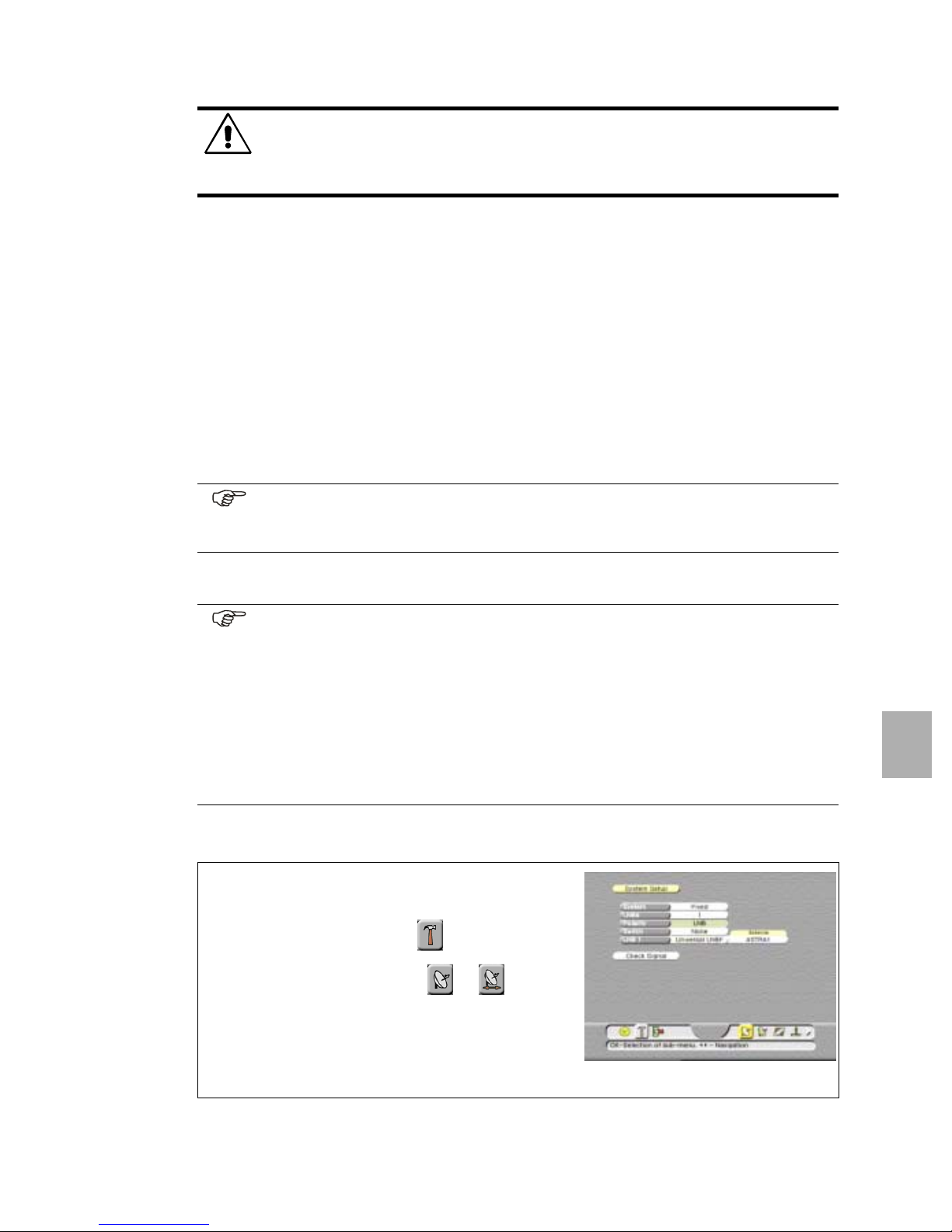

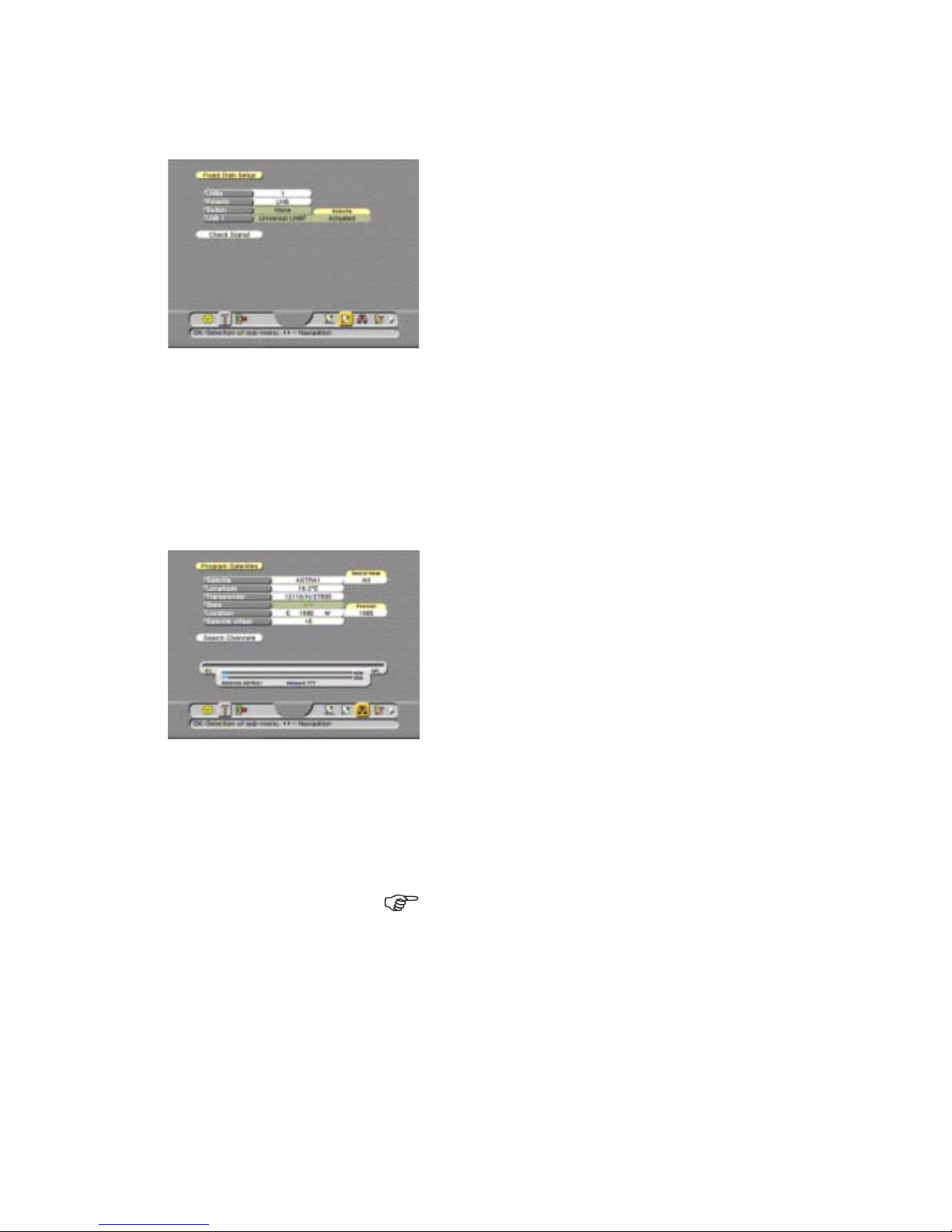

FOR FIXED AND DISEQC1..4SWITCH INSTALLATIONS

21. Make the required selections.

22. Read the available help text for information. Note that only the white fields are selectable, other fields show reference information.

23. Go to the Check Signal field.

24. On the RCU, press the OK key to advance.

25. Wait for the Checking Configuration to complete.

26. Make the required selections.

27. Read the available help text for information.

28. If the red dot in the transponder field stays: a. select another transponder; b. go to the check signal field; c. on the RCU, press the OK key.

29. Go to the Search Channels field.

30. On the RCU, press the OK key to advance.

Digital Satellite Receiver Page 3 - 5

Page 16

Section 3

31. Wait for the search to complete:

32. On the RCU, press the OK key to end the initial

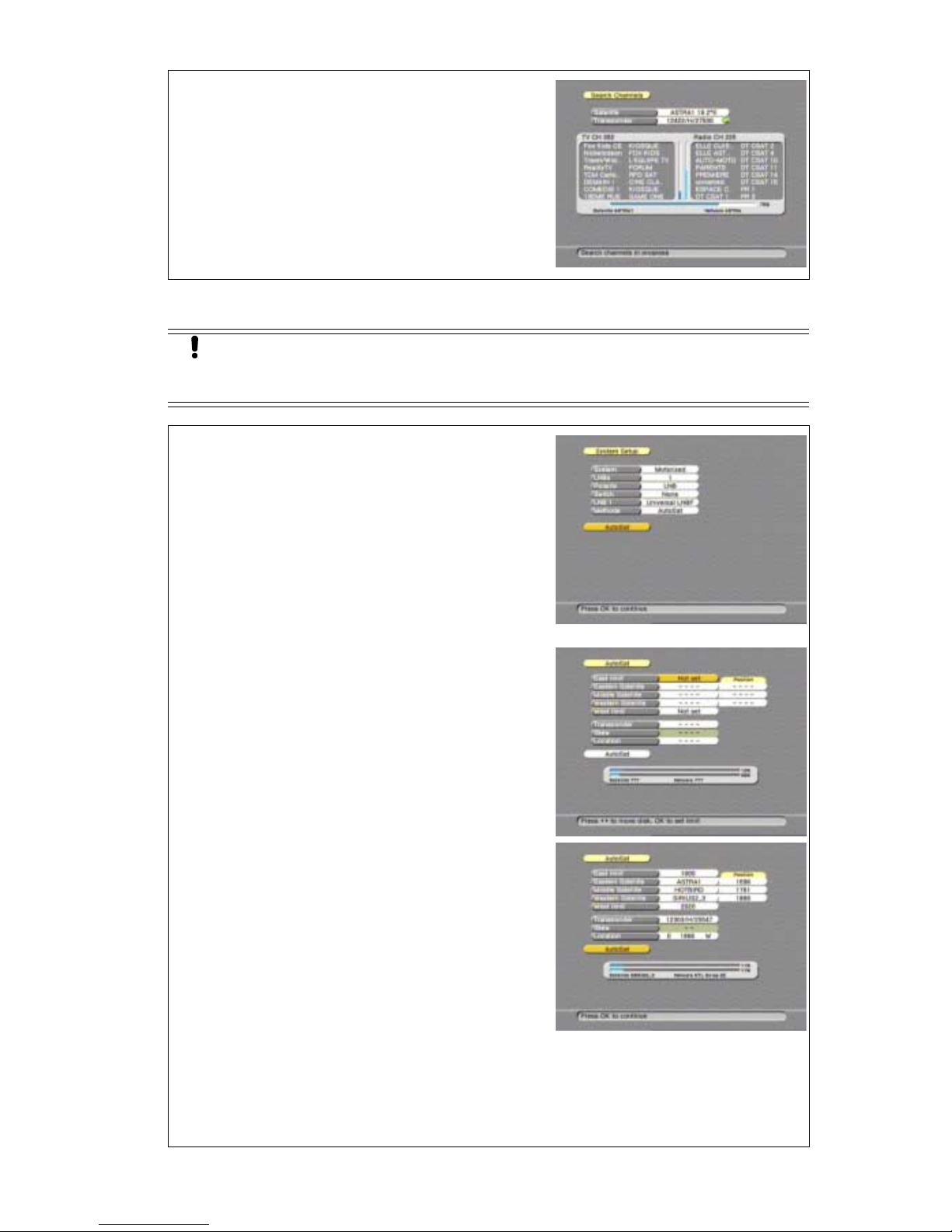

FOR MOTORIZED INSTALLATIONS -AUTOSAT

21. Make the required selections.

22. Read the available help text for information.

23. Go to the Autosat field.

24. On the RCU, press the OK key to advance.

Installation

a. the receiver display shows a moving dot; b. the search completed popup menu appears.

setup procedure.

CAUTION

On the motorized dish, set the physical East and West limit switches first. Failing to do so might cause damage to your motorized dish installation or other properties.

Note that only the white fields are selectable, other fields show reference information.

25. On the RCU: a. press thekey to set the East limit; b. at the motor error, press thekey once; c. press the OK key.

26. On the RCU, press the OK key.

27. Select a Eastern satellite which you can receive.

28. When in the location field: a. press and hold thekey and watch the signal

indicator for an indication;

b. in the signal indicator, make sure a network

name is shown;

c. press thekey to select another transponder

for signal verification;

d. use thekeytofinetuneforthebestsignal

level and quality; e. press thekey to select the location bar; f. press the OK key, note that the saved position

of the satellite is shown.

29. Repeat the procedure for the middle and Western Satellite.

30.SettheWestlimit(key), refer to step 25.

31. Go to the Autosat field.

32. On the RCU, press the OK key to advance.

Page 3 - 6 EchoStar D-2400IP

Page 17

33. Make the required selections.

34. Read the available help text for information.

35. Go to the Search Channels field.

36. On the RCU, press the OK key to advance.

37. Wait for the search to complete: a. the receiver display shows a moving dot; b. the search completed popup menu appears.

38. On the RCU, press the OK key to end the initial setup procedure.

Installation

Section 3

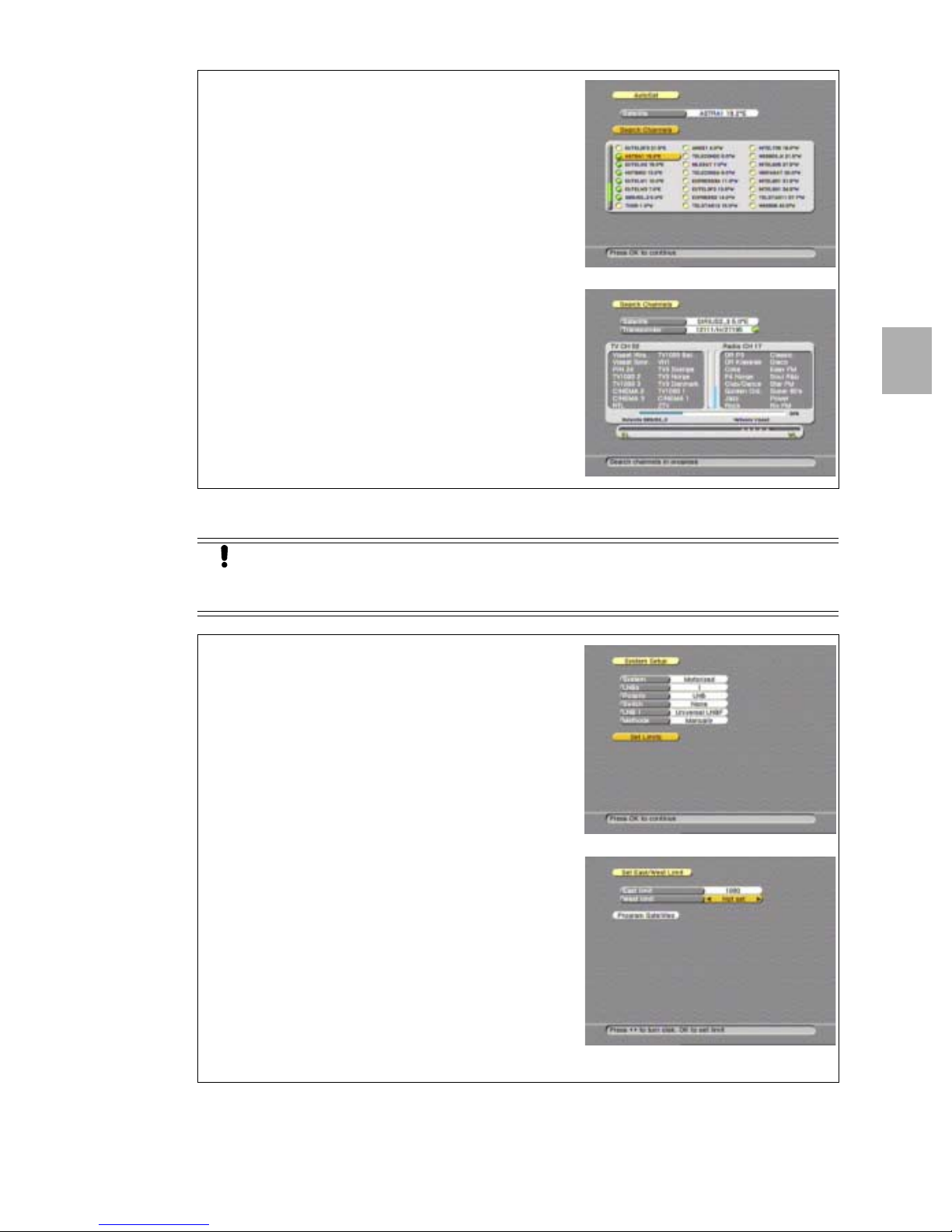

FOR MOTORIZED INSTALLATIONS -MANUAL SELECTION

CAUTION

On the motorized dish, set the physical East and West limit switches first. Failing to do so might cause damage to your motorized dish installation or other properties.

21. Make the required selections.

22. Read the available help text for information. Note that only the white fields are selectable, other fields show reference information.

23. Go to the Set Limits field.

24. On the RCU, press the OK key to advance.

25. On the RCU: a. press thekey to set the East limit; b. at the motor error, press thekey once; c. press the OK key.

26. On the RCU: a. press thekey to set the West limit; b. at the motor error, press thekey once; c. press the OK key.

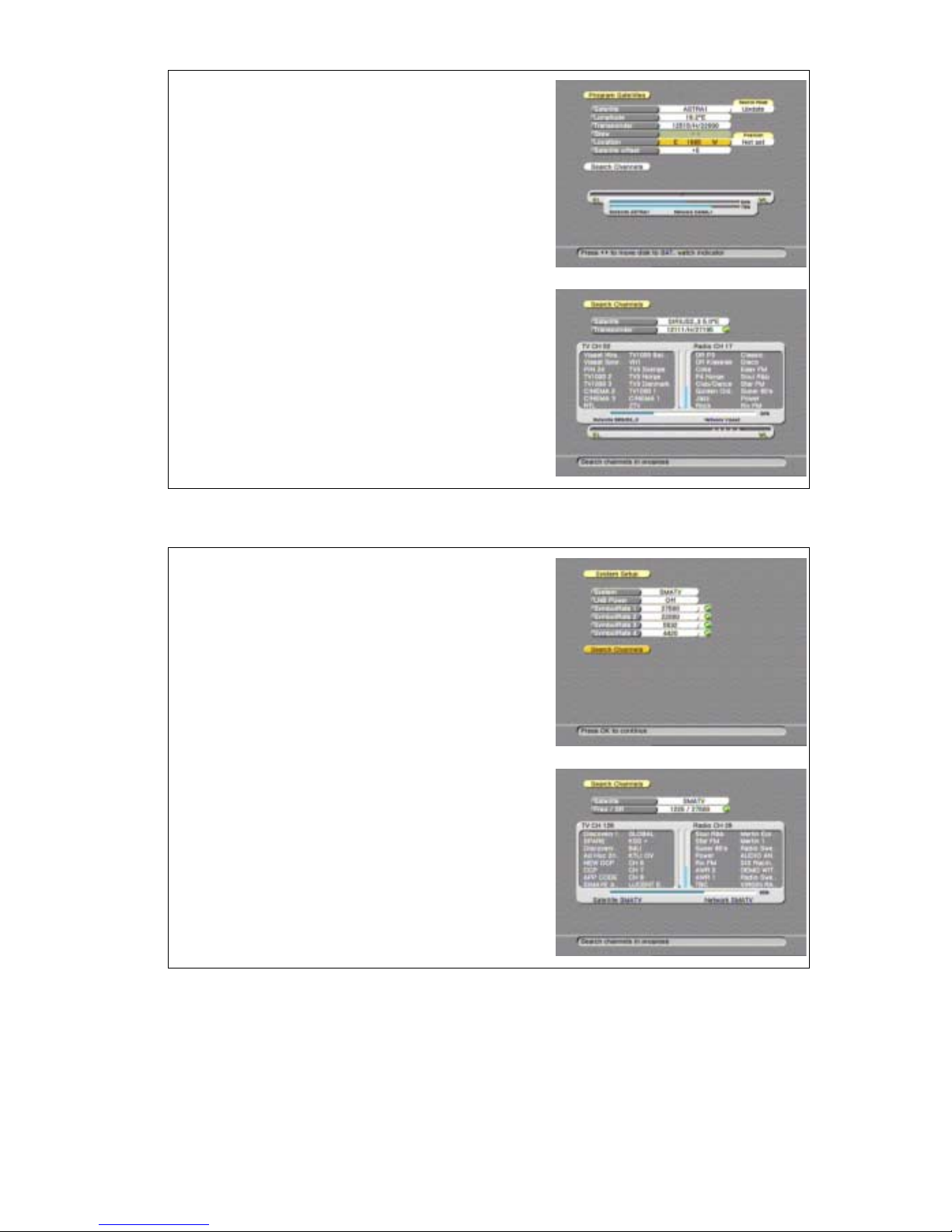

27. Go to the Program Satellites field.

28. On the RCU, press the OK key to advance.

Digital Satellite Receiver Page 3 - 7

Page 18

Section 3

29. Make the required selections.

30. Read the available help text for information.

31. Go to the Search Channels field.

32. On the RCU, press the OK key to advance.

33. Wait for the search to complete:

34. On the RCU, press the OK key to end the initial

Installation

a. the receiver display shows a moving dot; b. the search completed popup menu appears.

setup procedure.

FOR SMATV INSTALLATIONS

21. Make the required selections. After the initial installation it is possible to add more symbol rates. Refer to section Maintenance for detailed instructions.

22. Read the available help text for information.

23. Go to the Search Channels field.

24. On the RCU, press the OK key to advance.

25. Wait for the search to complete: a. the receiver display shows a moving dot; b. the search completed popup menu appears.

26. On the RCU, press the OK key to end the initial setup procedure.

Page 3 - 8 EchoStar D-2400IP

Page 19

FAMILIARIZATION

1. THE RECEIVER

The digital satellite receiver has 2 Common Interface slots and an embedded Viaccess smart card reader. The front panel gives you the control over the basic functions. The rear panel gives you various connections to connect the audio and video equipment as well as a terrestrial and dish antenna. Ventilation slots in the housing are provided for cooling of the internal electronics.

The software of the receiver contains the EchoNAV user interface with on-screen help, which gives you easy control over the features of the receiver. The software contains also a large database of pre-programmed satellites and transponders which are used for a quick installation. For initial installation, the software guides you through the required setup menu to allow for an easy and reliable installation setup of the receiver.

FEATURE HIGHLIGHTS

■

EchoNAV Multi-Lingual advanced User Interface (14 languages);

■ 2 Common Interface Slots;

■ 7dayEPG;

■ 5,000 Digital Channels, 100 Satellites, 1,300 Transponders;

■ 8 Favorite Channel Lists for TV and 8 for radio;

■ Powerful Channel Sorting and Grouping;

■ Multiple Search Modes (incl.Update Scan);

■ Digital Audio Output (Dolby Digital Compatible);

■ DiSEqC 1.0;

■ Integrated High Power Positioner (36 Volt, 5 Amp.)

■ Software Update via Internet/Satellite (OTA).

Familiarization

Section 4

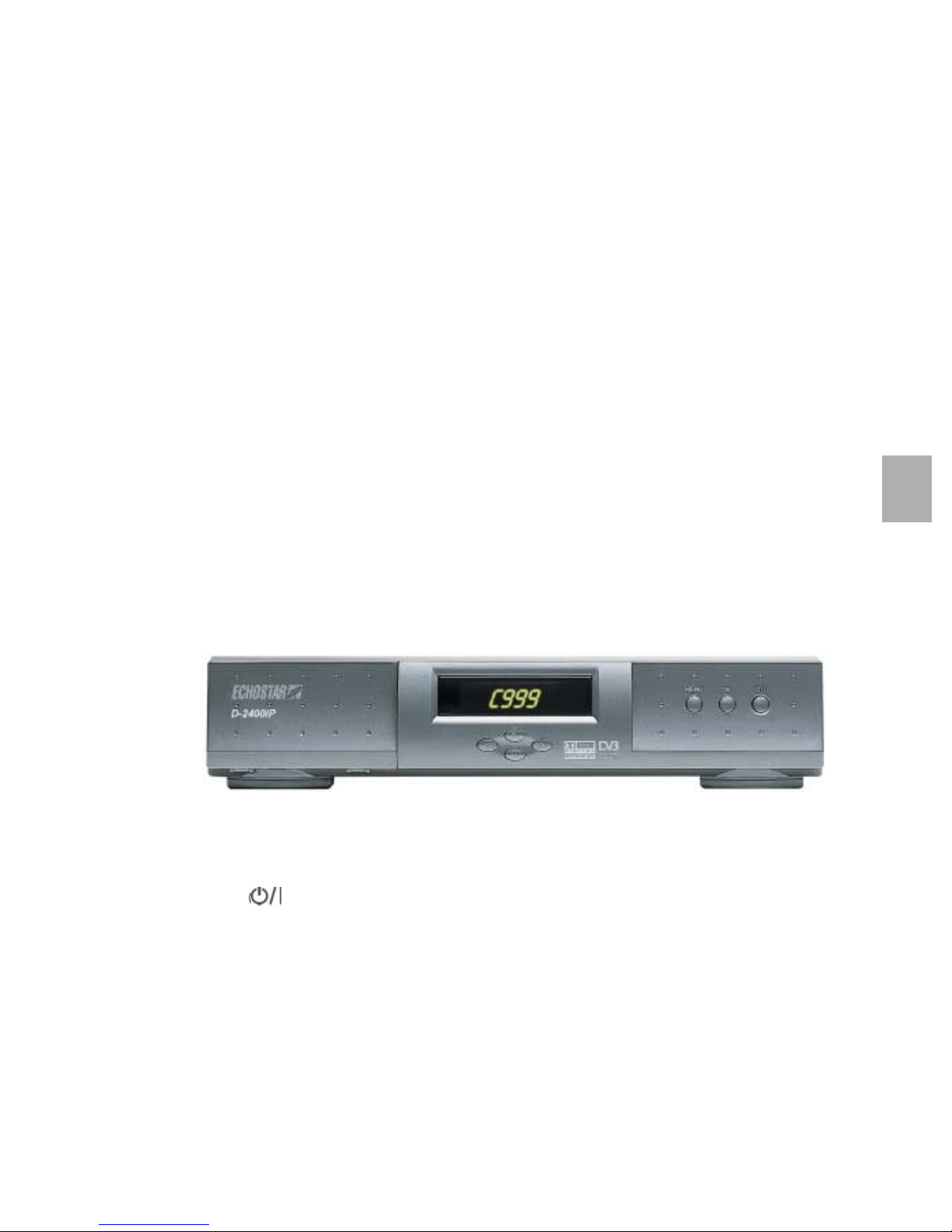

1.1. THE RECEIVER FRONT PANEL

The front panel has:

■ The display,

to show the clock or the actual status of the receiver.

■ The key,

to switch the receiver to on or stand-by.

■ The MENU key,

to get access to the EchoNAV installation menu.

■ The OK key,

to get access to the EchoNAV mode and selection menu.

■ The arrow keys,

to navigate left, up, right and down through the selectable options.

■ The access door,

to access the different slots for the CI-modules and smart cards.

Digital Satellite Receiver Page 4 - 1

Page 20

Section 4

Familiarization

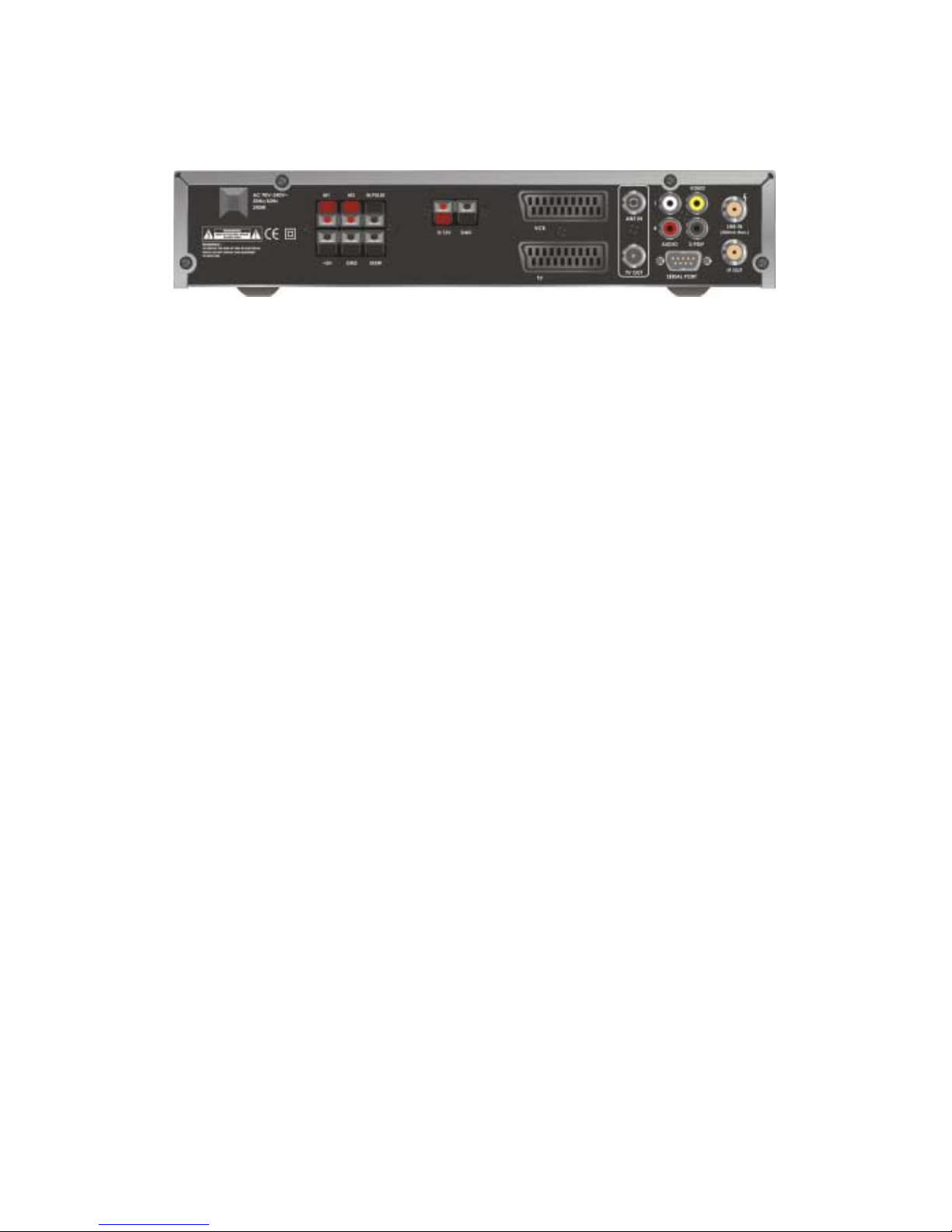

1.2. THE RECEIVER REAR PANEL

The rear panel gives you various connections to connect the audio and video equipment as well as a terrestrial and dish antennas. Depending on the installation setup, you may not use all connectors, but they are provided for any desired setup in future.

The available connectors on the rear panel are

■ The M1 connector (spring-clip),

for the line 1 connection of a motor or actuator (for motorized/actuated dishes);

■ The M2 connector (spring-clip),

for the line 2 connection of a motor or actuator (for motorized/actuated dishes);

■ The M.PULSE connector (spring-clip),

for the connection of the feedback sensor (for motorized/actuated dishes);

■ The +5V connector (spring-clip),

for the connection of the power terminal of a polarotor;

■ The GND connector (spring-clip),

for the connection of the ground terminal of the feedback sensor and the polarotor;

■ The SKEW connector (spring-clip),

for the connection of the skew terminal of a polarotor;

■ The 0/12V connectors (spring-clip),

for the connection of a remote switch;

■ The VCR connector (SCART), for the

connection of a VCR with the use of a fully-featured SCART-cable;

■ The TV connector (SCART),

for the connection of a TV with the use of a fully-featured SCART-cable;

■ The ANT IN connector (IEC),

for the connection of an terrestrial TV antenna;

■ The TV OUT connector (IEC),

for the connection to the antenna connector of a TV or a VCR;

■ The AUDIO L connector (RCA),

for the connection of the left audio input channel of a stereo set;

■ The AUDIO R connector (RCA),

for the connection of the right audio input channel of a stereo set;

■ The VIDEO connector (RCA),

for the connection to the composite video input of the TV (monitor);

■ The S/PDIF connector (RCA),

for the connection of Dolby Digital (AC-3) compatible audio equipment;

■ The SERIAL PORT connector

(sub-D), for the connection to the serial communication port of a PC;

■ The LNB IN connector (F-type),

for the connection of a dish to the receiver, to receive the digital broadcasts;

■ The IF OUT connector

(F-type), for the connection of a loop through cable;

Page 4 - 2 EchoStar D-2400IP

Page 21

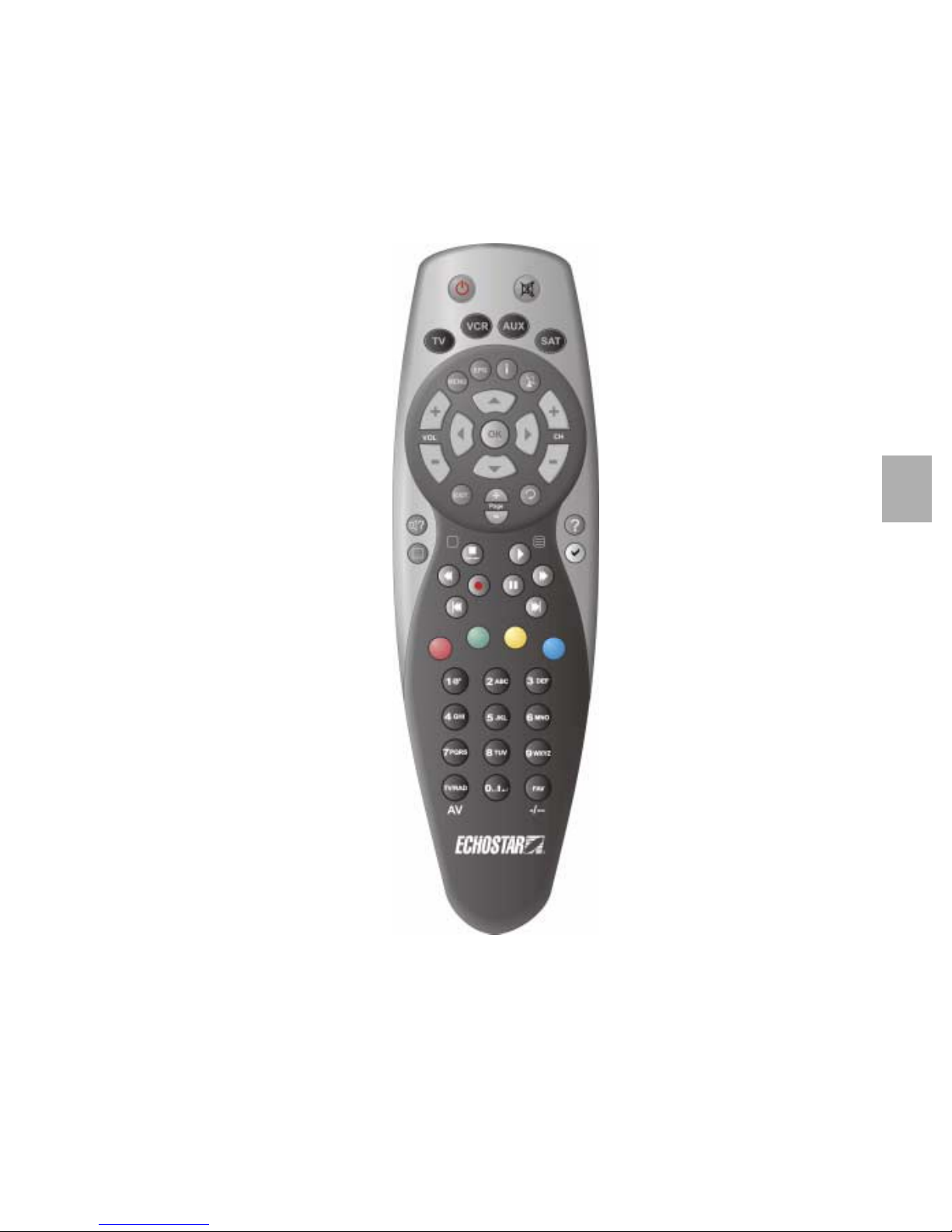

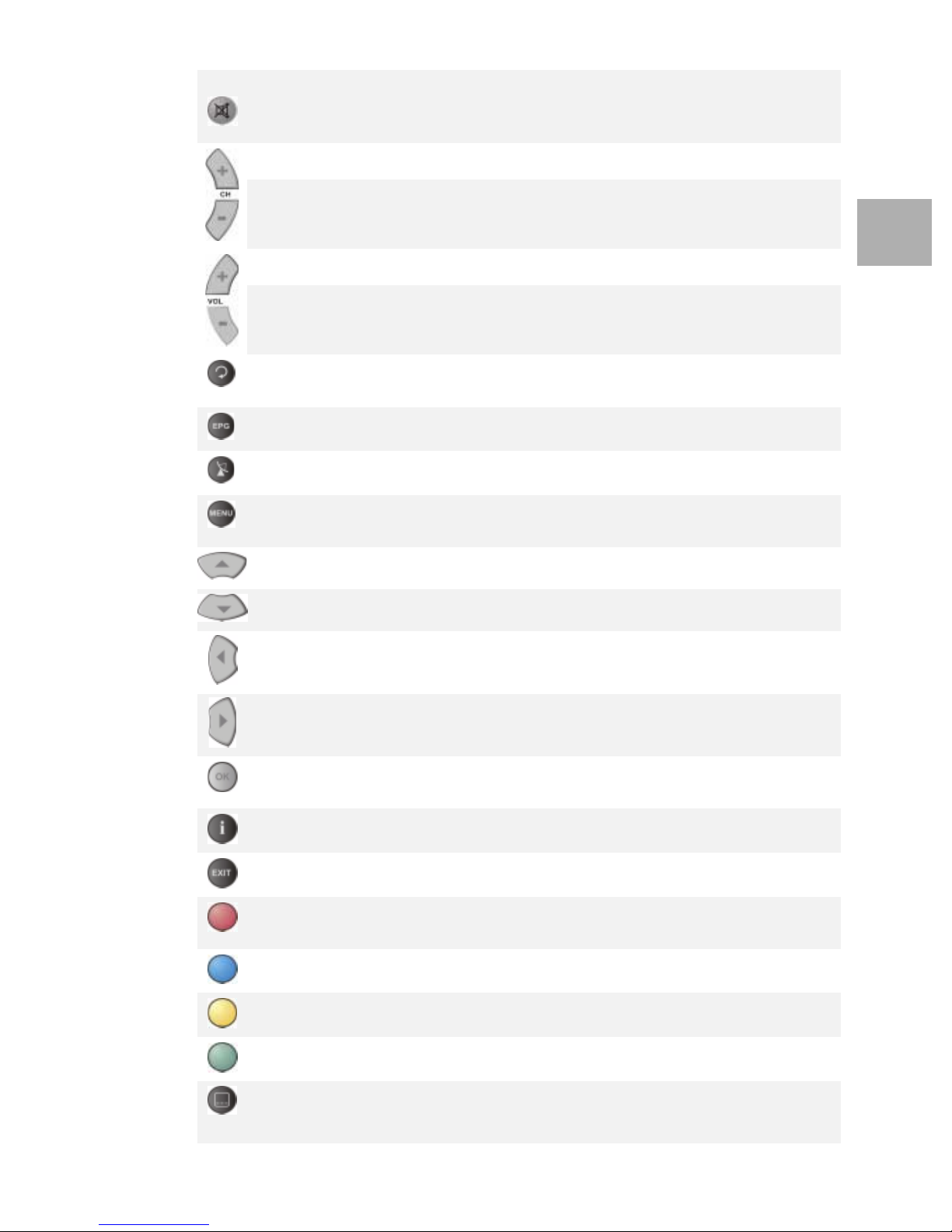

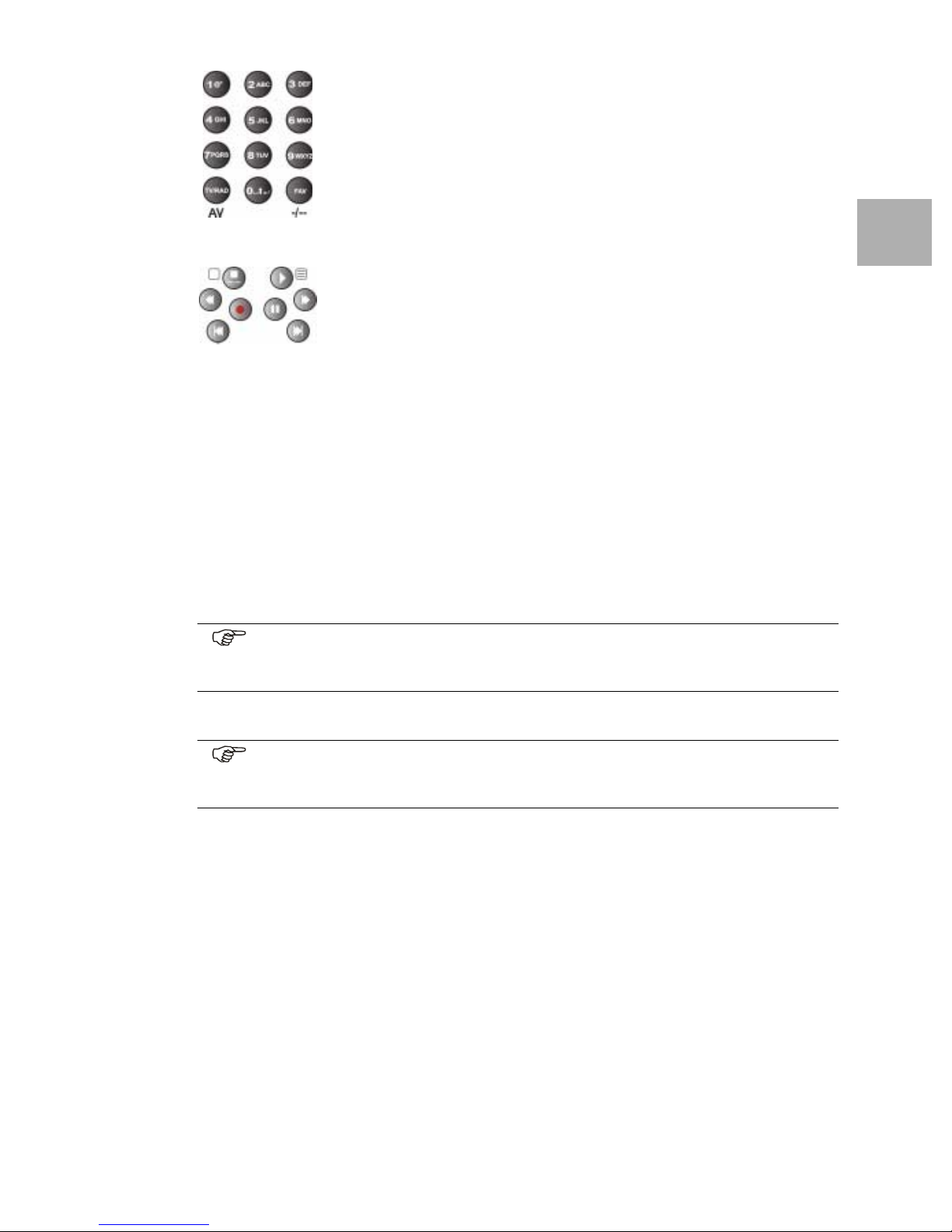

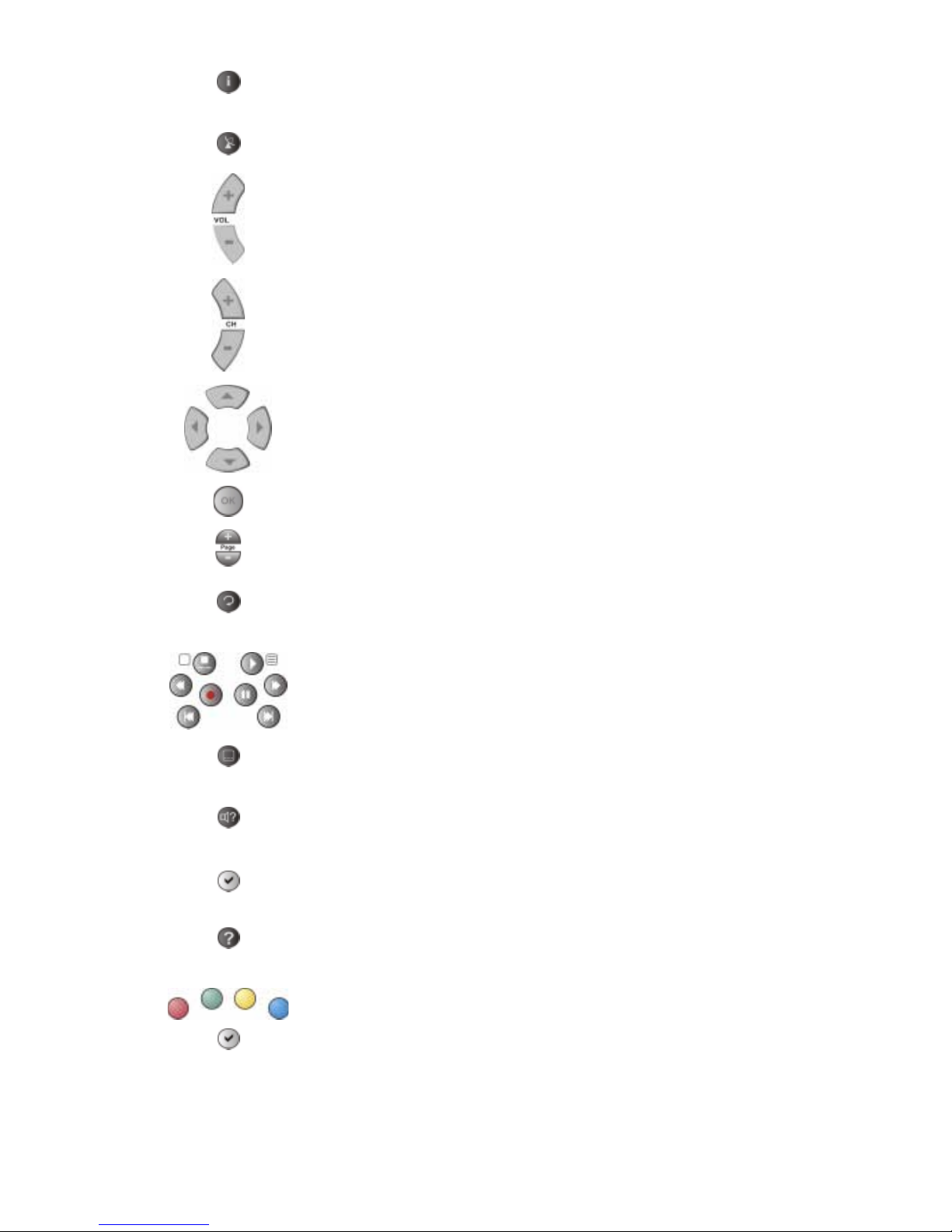

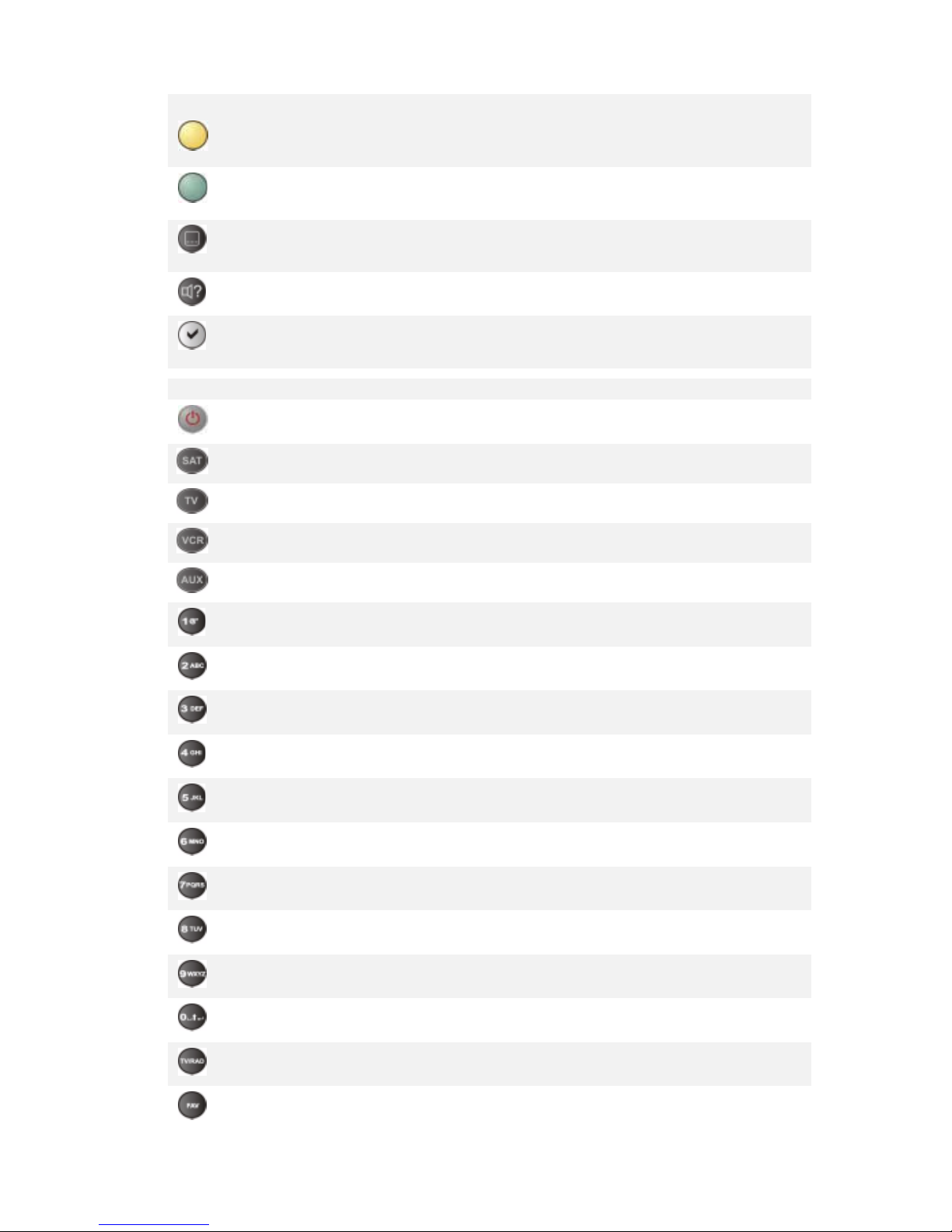

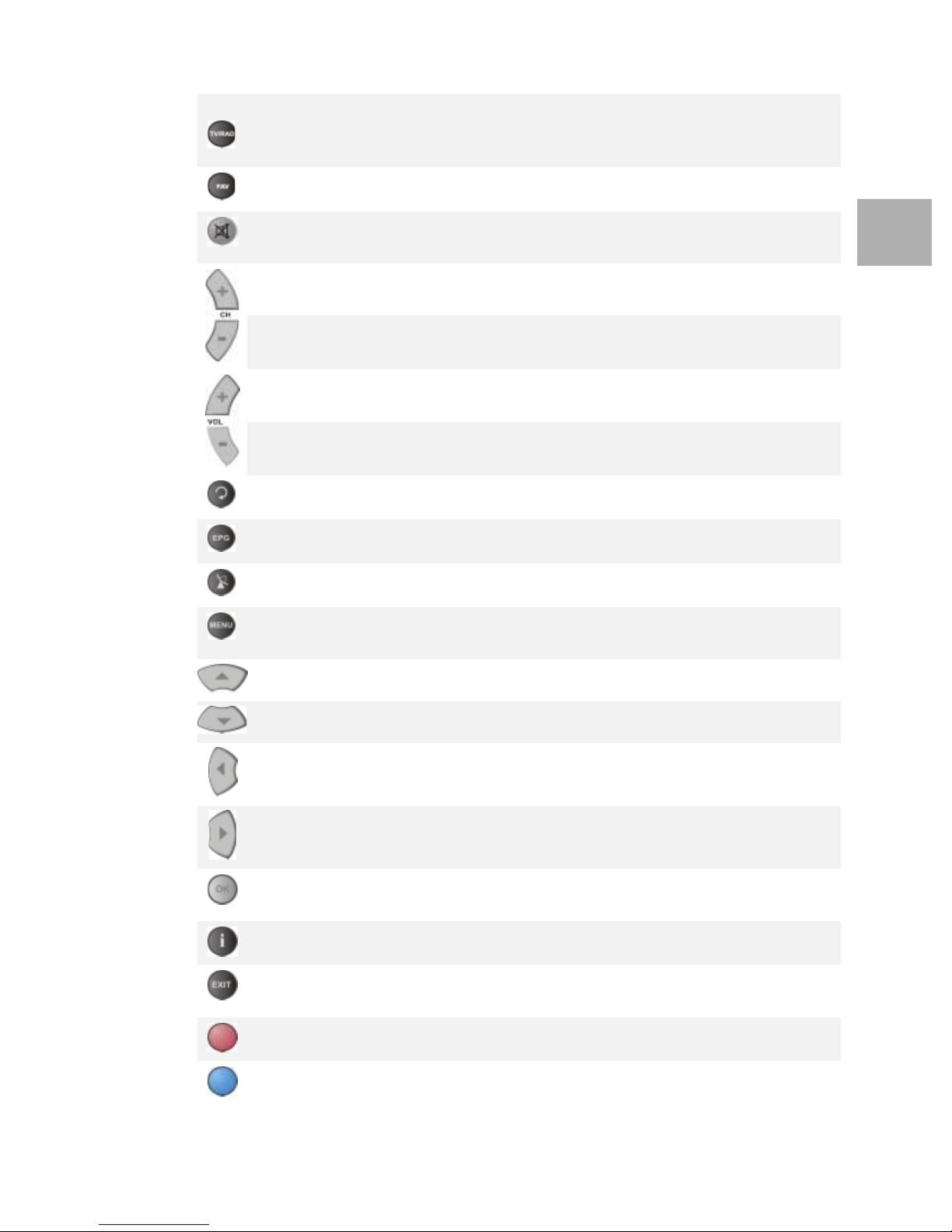

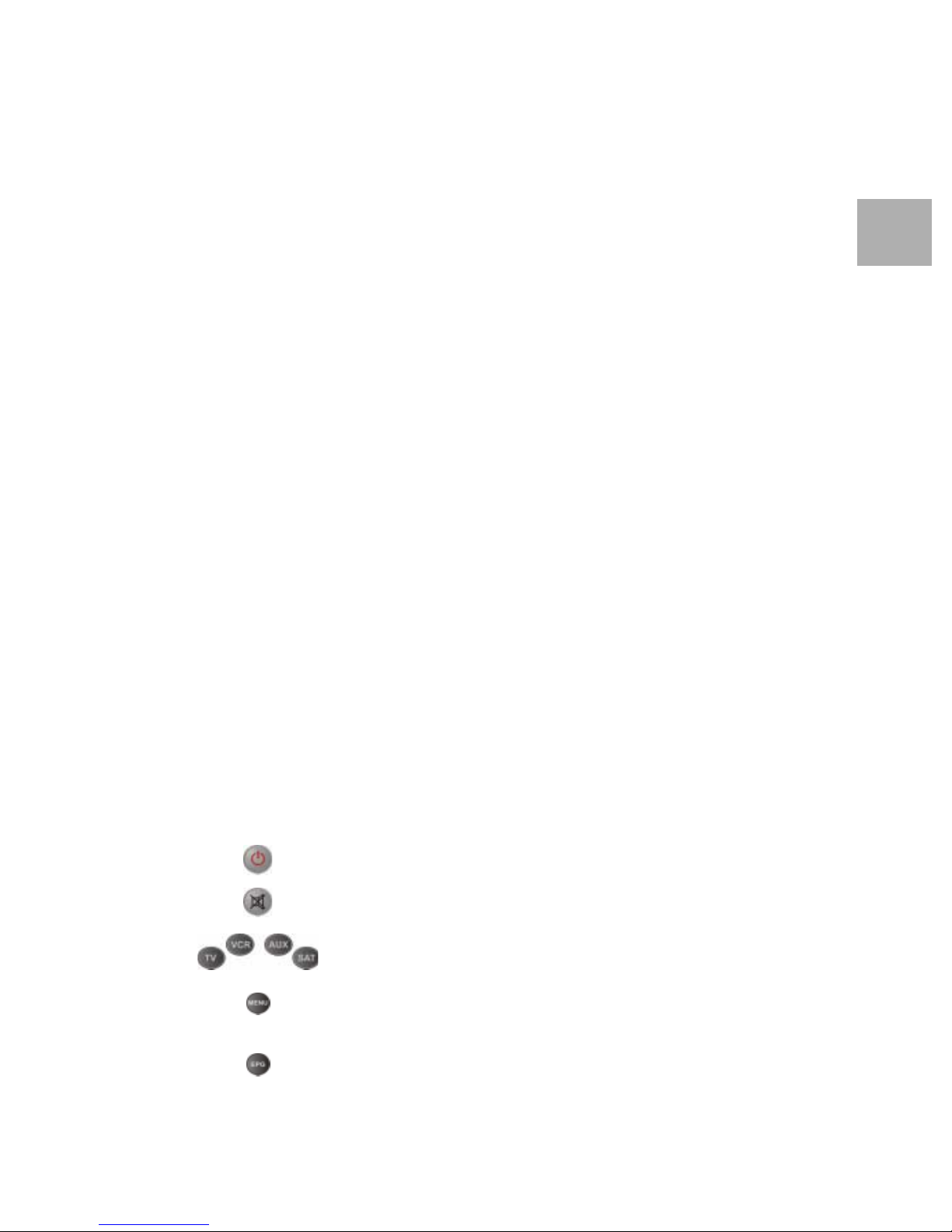

1.3. THE REMOTE CONTROL UNIT (RCU)

The EchoStar Quattro is a programmable RCU that also can control your TV, VCR, DVD and/or Audio set. The EchoStar Quattro requires two AA/R6 alkaline batteries to operate.

■ ON/STANDBY

To switch to standby or on.

■ VCR

To control the VCR.

■ TV

To control the TV.

■ EPG

To view the EPG.

■ MENU

To go to the installation menu.

■ VOL+

To increase the volume.

■ VOL-

To decrease the volume.

■ ARROW CLUSTER

To scroll left, up, right or down.

■ EXIT

To leave a menu or feature.

■ PAGE+

To go one page up.

■ PAGE -

To go one page down.

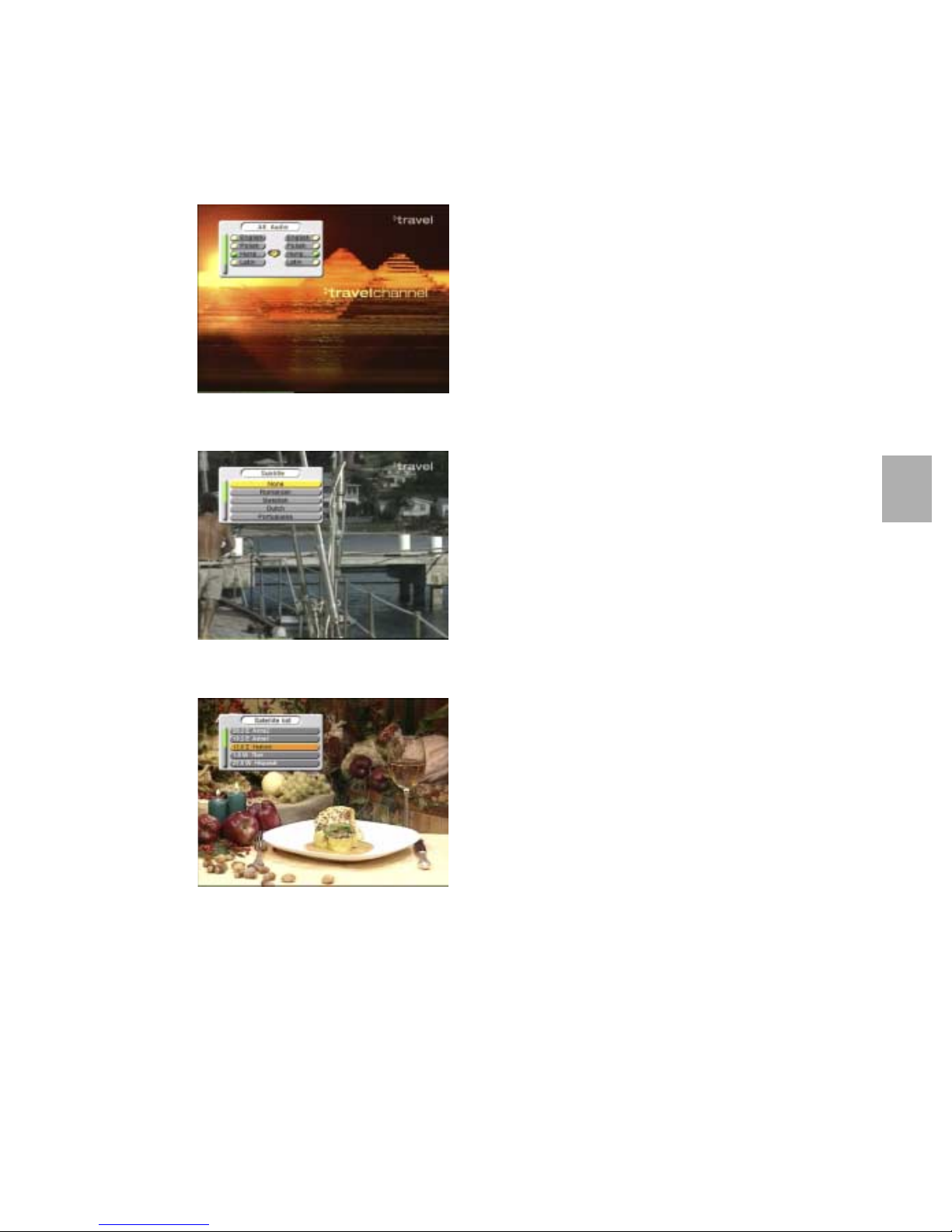

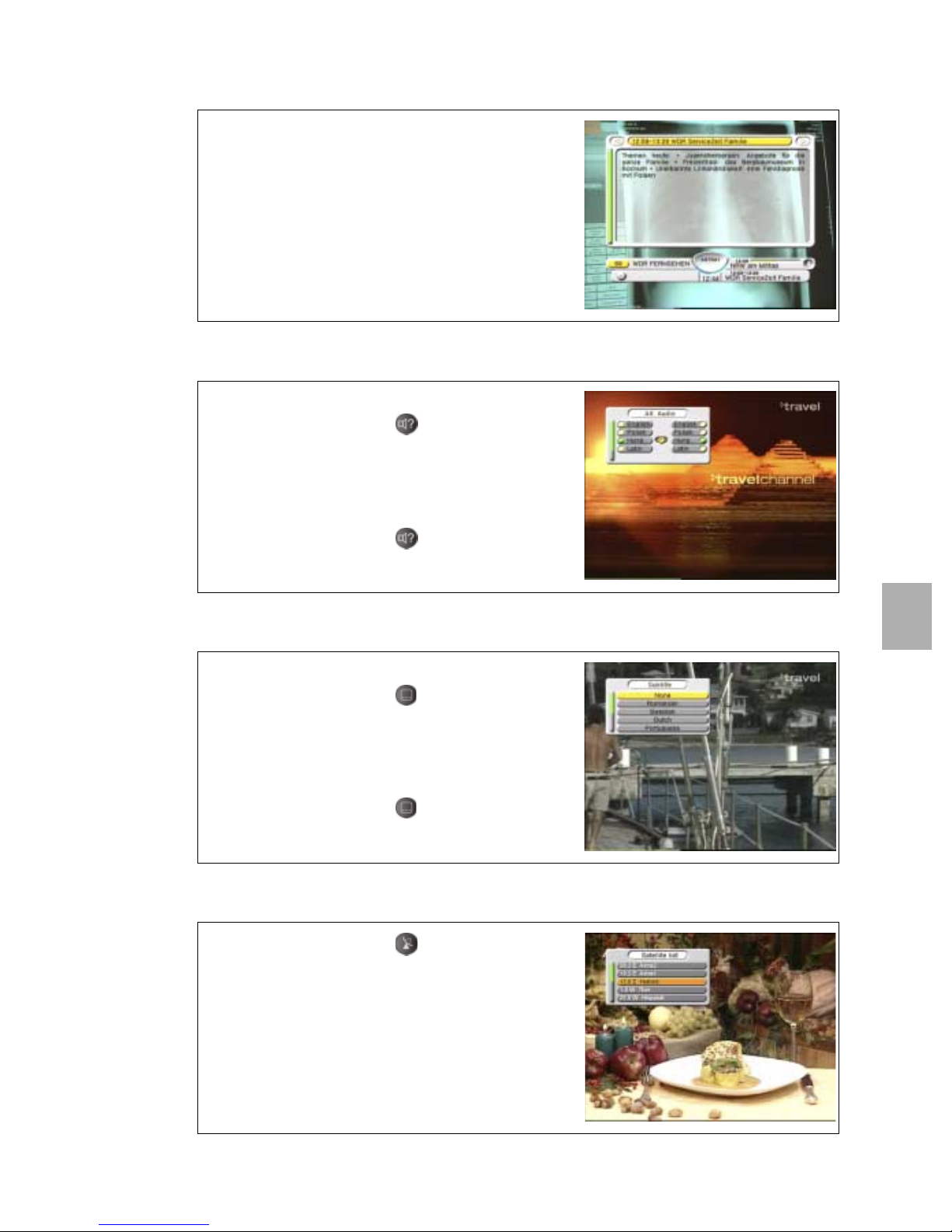

■ ALT AUDIO

To choose a language.

■ ALT SUBTITLE

To choose a subtitle.

■ STOP

To stop the recording or play back of an event; To return to actual time in the EPG window

■ REWIND

To go to the beginning of an recorded event fastly.

■ RECORD (press twice)

To record a live program.

■ SKIP BACKWARD

Not used for Sat-mode.

■ GREEN

To select a (favorites) list.

■ RED

To go to another mode.

■ NUMBER KEYS

To enter numerical settings; To type in a channel number.

■ TV/RAD

To switch to TV or Radio mode.

Familiarization

■ MUTE

Section 4

To blank out the volume.

■ AUX

To control the Audio Set or DVD.

■ SAT

To control the receiver.

■ i

To view the InfoBanner; To view detailed EPG information.

■ Satellite Dish

To select another satellite.

■ CH+

To go one channel up.

■ CH-

To go one channel down.

■ OK

To go to the (favorites) lists; To make a menu selection; To pull down a selection menu.

■ PREVIOUS

To go to the previous channel; To access special features.

■ ?

Not used for Sat-mode.

■ V(white)

To edit a list

■ PLAY

To play back a recorded event.

■ FAST FORWARD

To go to the end of an recorded event fastly.

■ PAUSE

To pause the playback of an event; To pause a live program.

■ SKIP FORWARD

Not used for Sat-mode.

■ YELLOW

To group a list; To select an EPG timer.

■ BLUE

To s o rt a l is t; To zoom in/out the time slot of the EPG view window.

■ FAV

To go to the favorite list of the actual mode.

Digital Satellite Receiver Page 4 - 3

Page 22

Section 4

Familiarization

1.4. THE ECHONAV USER INTERFACE

The EchoNAV user interface is designed to give you easy control over the receiver. The EchoNAV user interface has four main features that give access to the different functions. The four main features are:

■ The EchoNAV installation menu,

that helps you to setup the receiver and access the parental lock settings;

■ The EchoNAV user menu,

that helps you to control the daily operation and selection of the favorites;

■ The EchoNAV EPG menu,

that helps you to control the different timers and to view the available EPG;

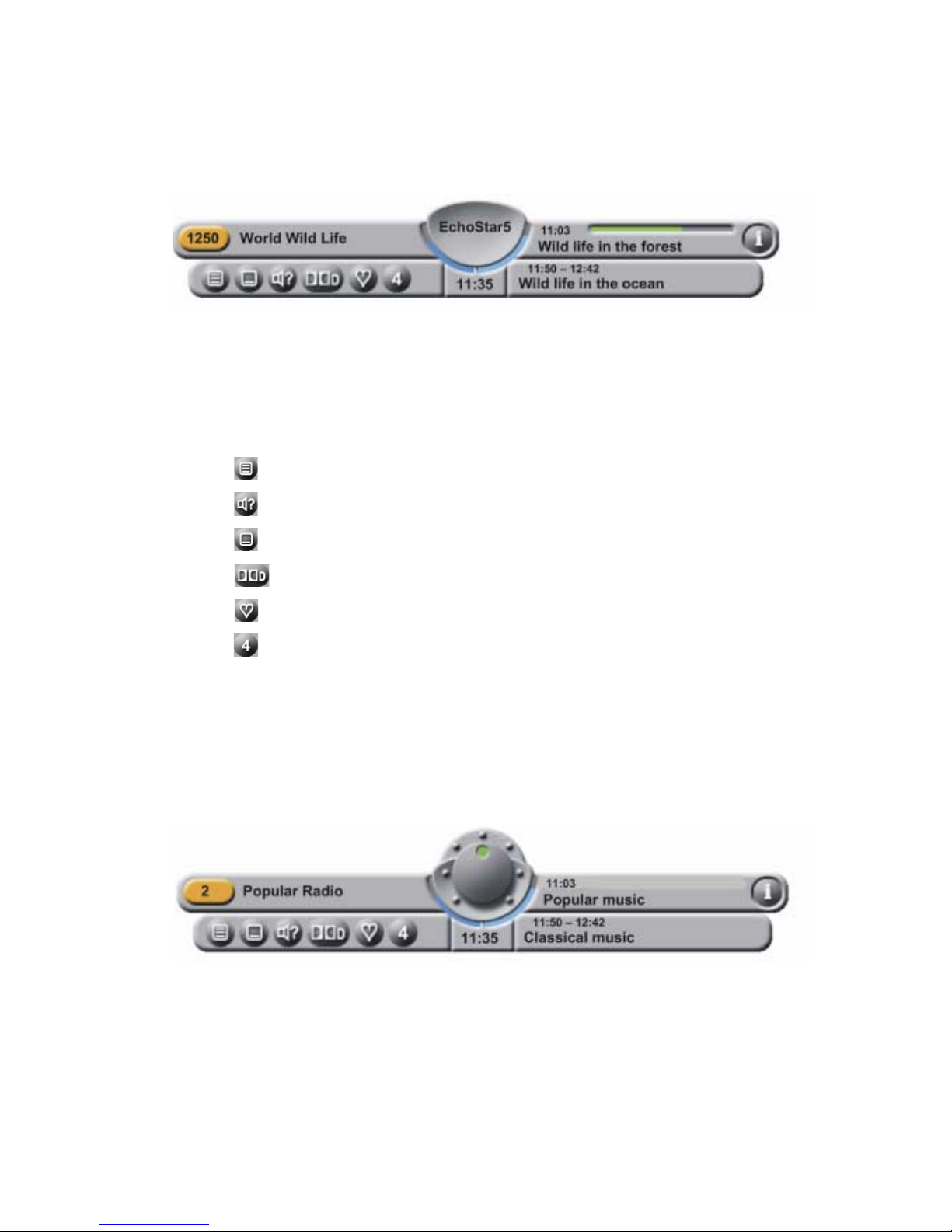

■ The EchoNAV InfoBanner,

that helps you to view the available information about the actual mode.

The EchoNAV user interface has various ways to navigate through the menus and functions. Some of the keys on the remote control unit give direct access to functions. The most important keys are identified as EPG, colored keys, MENU, OK and EXIT. Other keys are multi-functional which means that their function changes dependent of the mode that you are

in.

NOTE

Unless otherwise specified; this note explains the way you can navigate through the pages of the EchoNAV user menu.

1. Use the OK key to pull down the menu selection fields.

2. Use the  keys to scroll the selectable items.

3. Use the  keys to navigate between the left and right column of selectable items.

4. Use the EXIT key to leave the menu and return to the view mode.

5. In a pull-down menu:

- use the OK key to confirm the selection.

- the yellow bar indicates the active selection;

- on the left, the green page indicator indicates where you are.

2. THE ECHONAV INSTALLATION MENU

The EchoNAV installation menu has different main menus that give you access to the different sub menus. The main menus are:

■ The guided initial setup menu which is only accessible after the first time you switch the

receiver on and after every manually initiated factory reset;

■ The User Preferences menu, the installation setup menu and the CI menu are accessible

at any time.

NAVIGATION

A highlighted button shows you which (main/sub) menu is selected. The MENU key lets you change between the main and sub menu where thekeys let you make a selection in the selected (main/sub) menu. The OK key brings you into the related page, where you can make

a choice from the available options.

NOTE

Once in a page, at any time:

■ you can use the MENU key to reverse from a menu page to the sub menu bar;

■ you can easily leave with the EXIT key.

Page 4 - 4 EchoStar D-2400IP

Page 23

■ The button, that gives you access to the User Preferences menu;

■ The button, that gives you access to the installation setup menu;

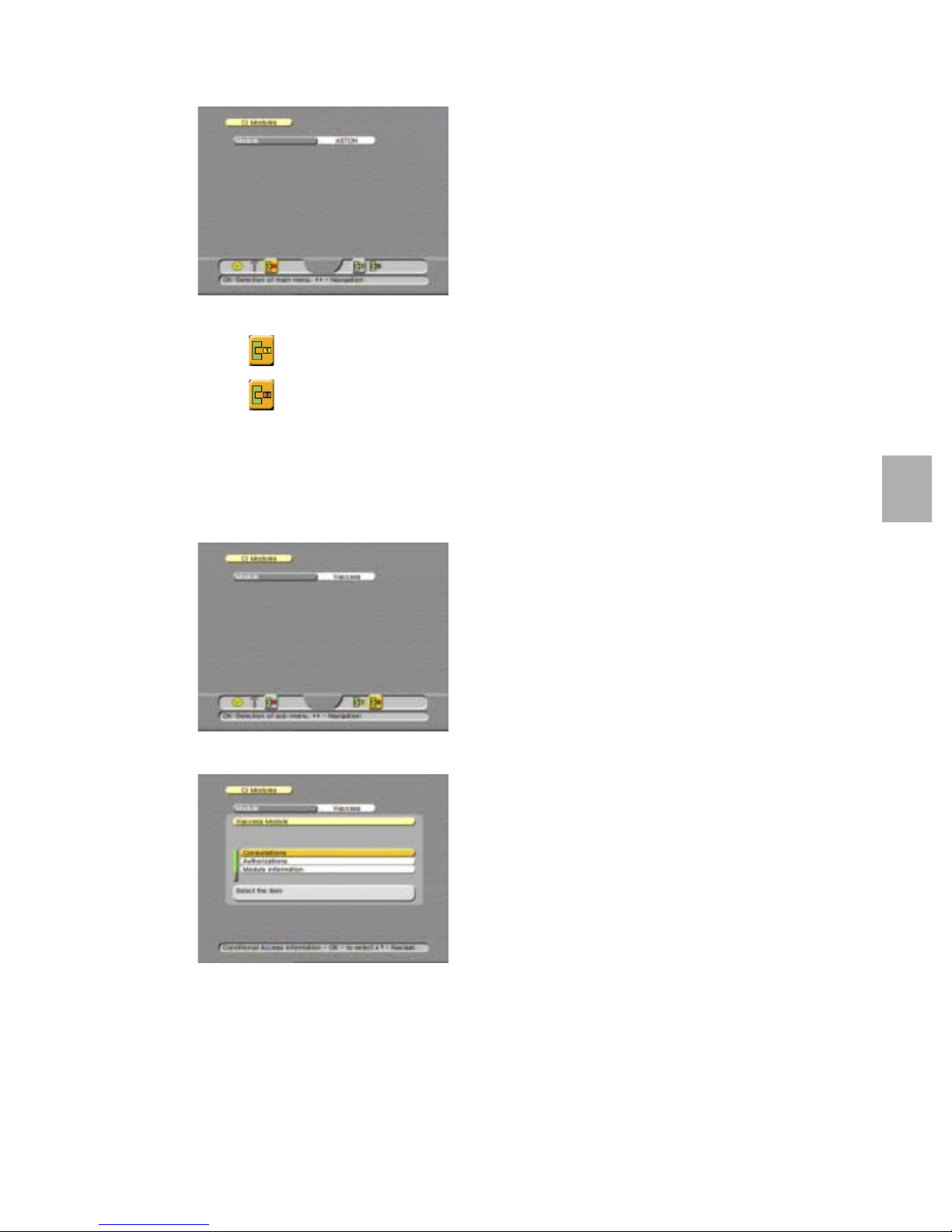

■ The button, that gives you access to the Conditional Access menu.

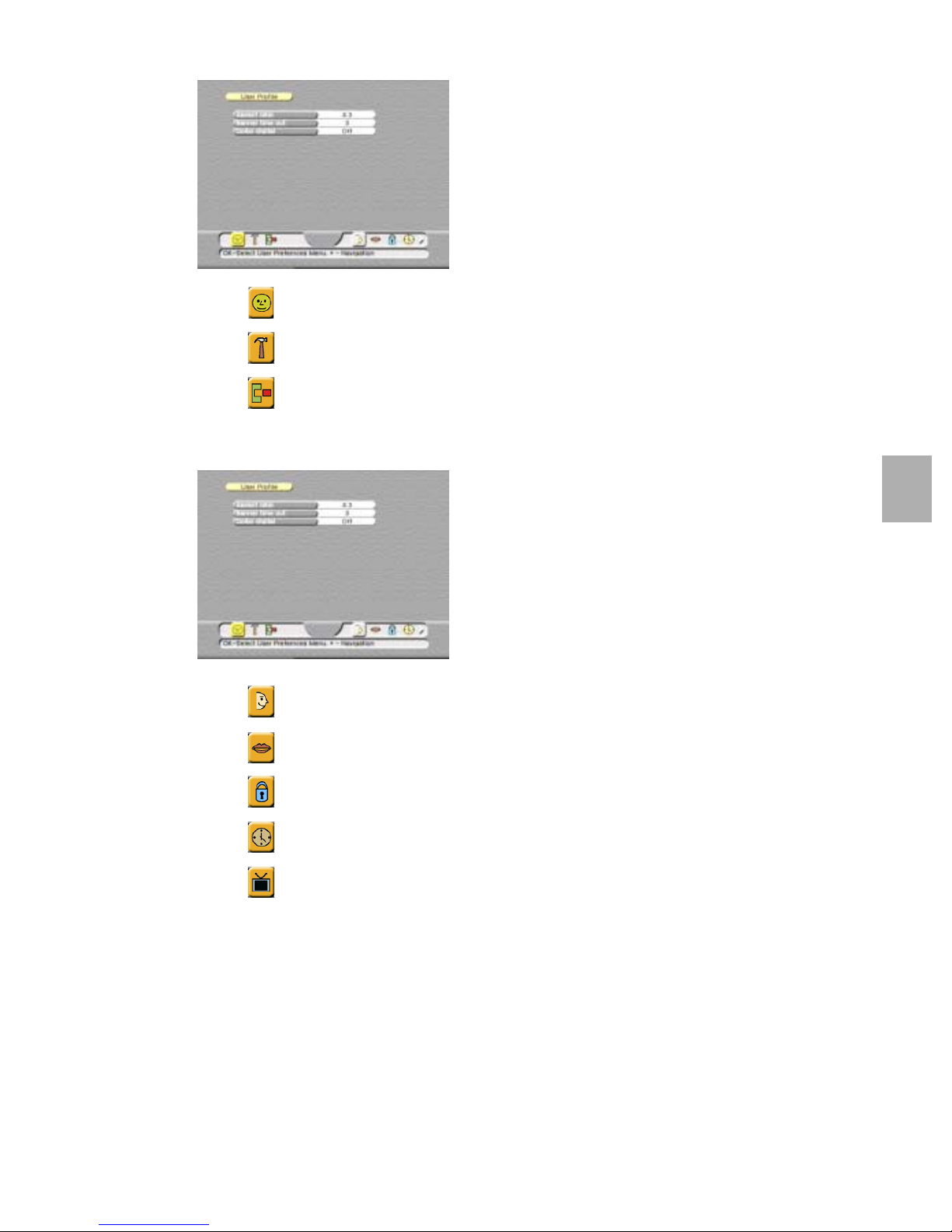

2.1. THE USER PREFERENCES MENU

Familiarization

Section 4

The main menus are divided in sub menus, selection pages and option fields. The main menu buttons are shown at the right hand side of the menu bar. The different sub menu buttons are shown on the left hand side of the menu bar. The selection pages with the option fields are accessible after you have selected a sub menu. Every menu, sub menu and selection page has one or more help lines to assist you. The main menus are accessible with:

This main menu has different sub menus that give access to the pages where you can customize the factory settings. The user preferences menu always comes in view with the User Profile sub menu. In the menu bar the sub menus are shown at the right side. The available sub menus are shown as icons which become a highlighted button after selection. The sub menus are accessible with:

■ The button, that gives you access to the User Profile page;

■ The button, that gives you access to the Languages page;

■ The button, that gives you access to the Parental Lock page;

■ The button, that gives you access to the Local Time page;

■ The button, that gives you access to the TV System page.

Digital Satellite Receiver Page 4 - 5

Page 24

Section 4

Familiarization

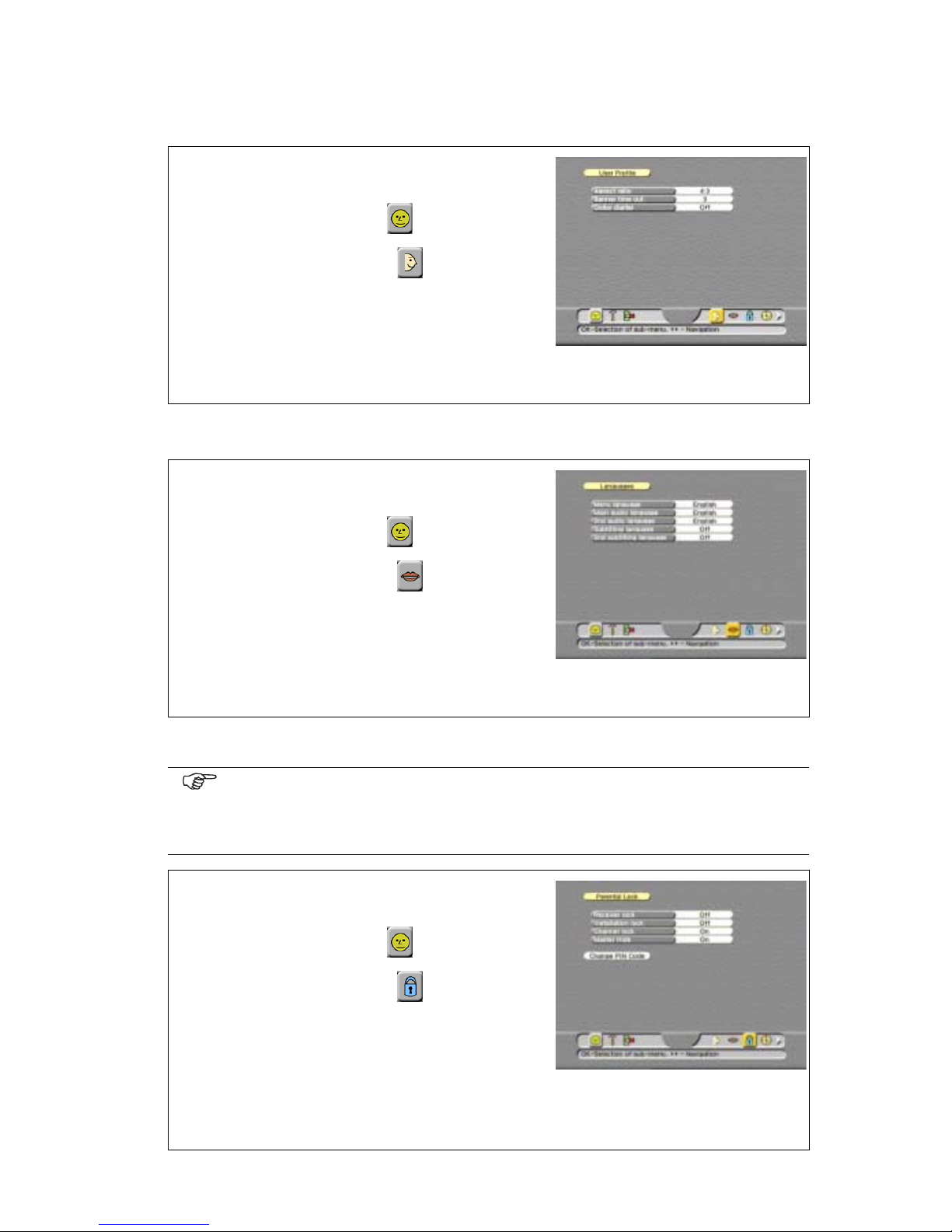

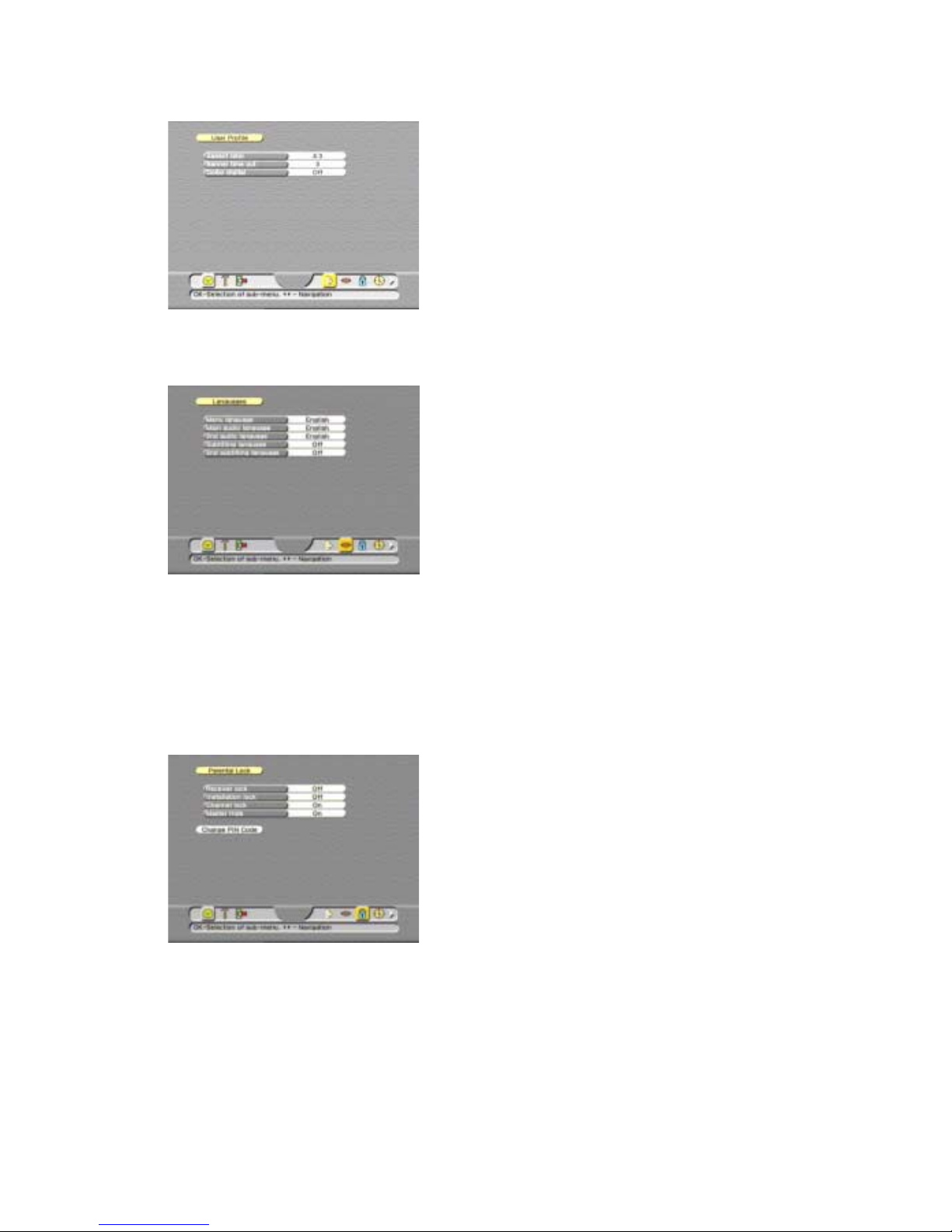

2.1.1. USER PROFILE PAGE

This menu page allows you to customize the user profile, you can customize:

2.1.2. LANGUAGES PAGE

This menu page allows you to customize the language settings, you can customize

■ Aspect ratio

To set the screen size of the TV.

■ Banner time out

To set the view time for the InfoBanner.

■ Dolby Digital

To tell the receiver that it is connected to a Dolby Digital amplifier or not.

■ Menu Language

To set the language you want to use in the menus.

■ Main audio language

To set language for programs with bi-lingual audio.

■ 2nd audio language

To set language for programs with bi-lingual audio.

■ Subtitling language

To set language for bi-lingual subtitled programs.

■ 2nd subtitling language

To set language for bi-lingual subtitled programs.

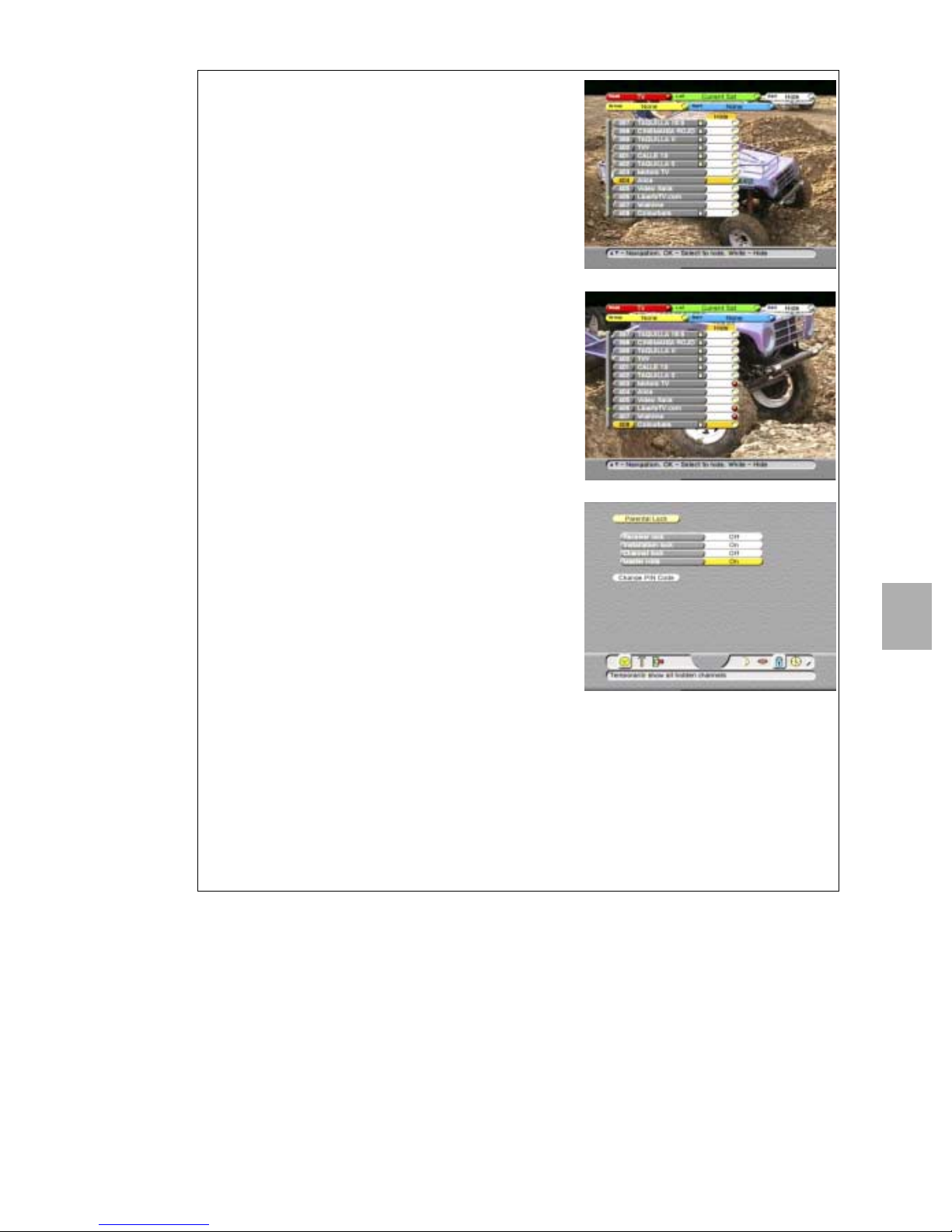

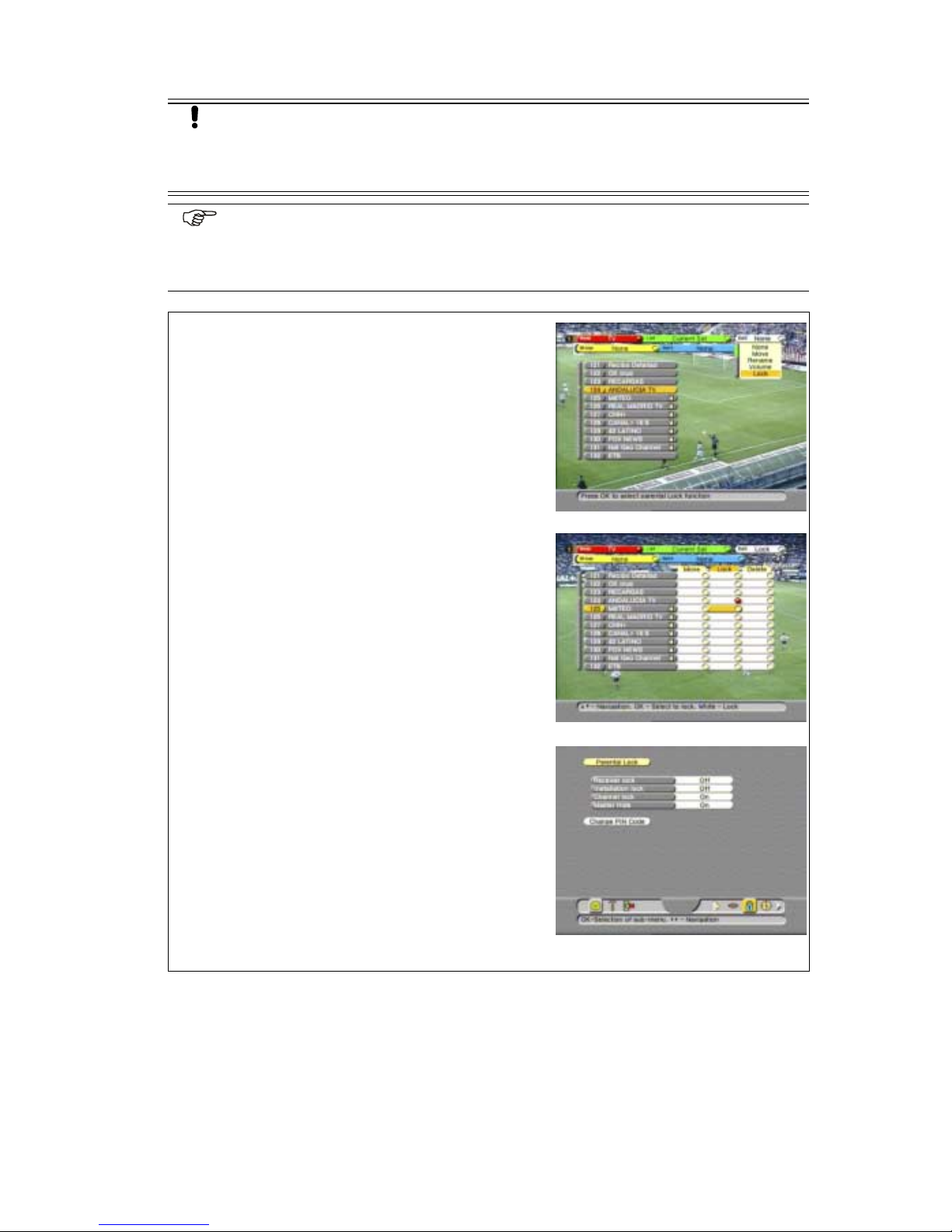

2.1.3. PARENTAL LOCK PAGE

The parental lock menu is initial accessible with the factory default PIN code 0000. For future use, you are requested to change the PIN code to your own personal code.

This sub menu contains two menu pages. These menu pages are:

TO CHANGE THE PARENTAL LOCK SETTINGS

This menu page allows you to customize the parental lock settings, you can customize:

■ Receiver Lock

To lock the receiver completely for unauthorized users.

■ Installation Lock

To lock the installation menu for unauthorized users.

■ Channel lock

To lock or unlock all locked selections at once.

■ Master hide

To hide or unhide all hidden selections at once.

■ Change PIN Code

To access the change PIN code page.

Page 4 - 6 EchoStar D-2400IP

Page 25

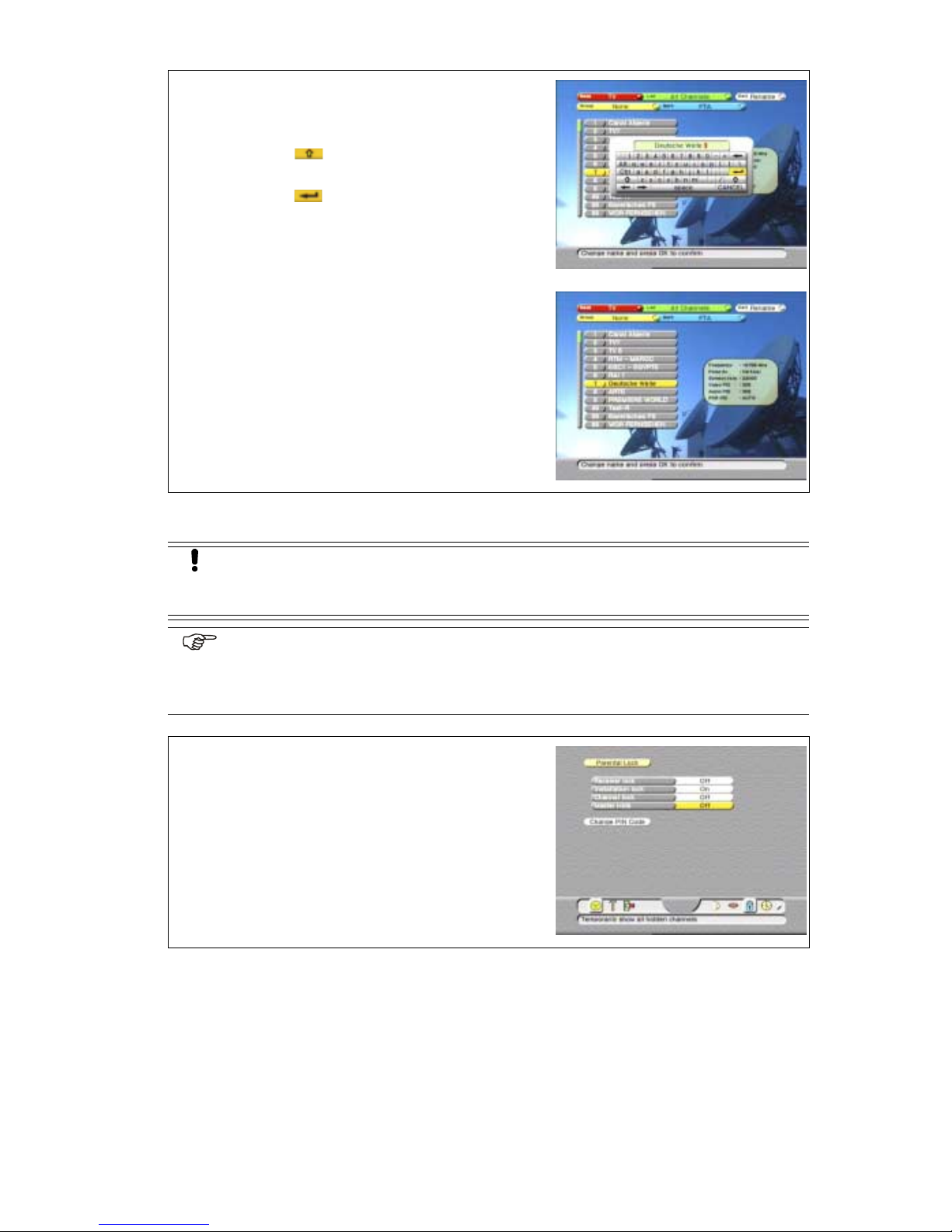

TO CHANGE THE PIN CODE

This menu page allows you to change the PIN code, you can change:

2.1.4. LOCAL TIME PAGE

This menu page allows you to customize the local time settings. For the correct operation of the EPG and the timers, it is necessary to set the local time correctly. You can customize:

Familiarization

■ Old password

Section 4

To type in the factory default or personal PIN code.

■ New password

To type in your new PIN code (numbers only).

■ Verify password

To type in your New password again. Now the receiver verifies the new password to make sure that you typed in the new password correctly.

■ Selected time zone

To set the time zone where you are.

■ Year

To set the actual year.

■ Month

To set the actual month.

■ Date

To set the actual date.

■ Day

To set the actual day.

■ Hour

To set the actual time in hours.

■ Minute

To set the actual time in minutes.

■ Press OK to set the time

To confirm the settings you made.

2.1.5. TV SYSTEM PAGE

This menu page allows you to customize the TV settings used for the receiver, you can customize:

■ Channel

To select the (UHF) TV channel to which the receiver is connected.

■ CH Frequency

To view the frequency that corresponds with the selected channel. You can not set this option.

■ System

To set the video format supported by your TV.

Digital Satellite Receiver Page 4 - 7

Page 26

Section 4

Familiarization

2.2. THE INSTALLATION SETUP MENU

This main menu has different sub menus that give access to the pages where you can customize the settings to match your personal requirements. Note that the sub menus are dynamic which means that they change with the selections you make. The installation setup menu always comes in view with the system setup sub menu. In the menu bar the sub menus are shown at the right side. The available sub menus are shown as icons which become a highlighted button after selection. The sub menus are accessible with:

■ The button, that gives you access to the System Setup page (for Fixed dish);

■ The button, that gives you access to the System Setup page (for motorized dish);

■ The button, that gives you access to the Program Satellites page (for motorized dish);

■ The button, that gives you access to the User LNB Setting page;

■ The button, that gives you access to the About EchoStar information page;

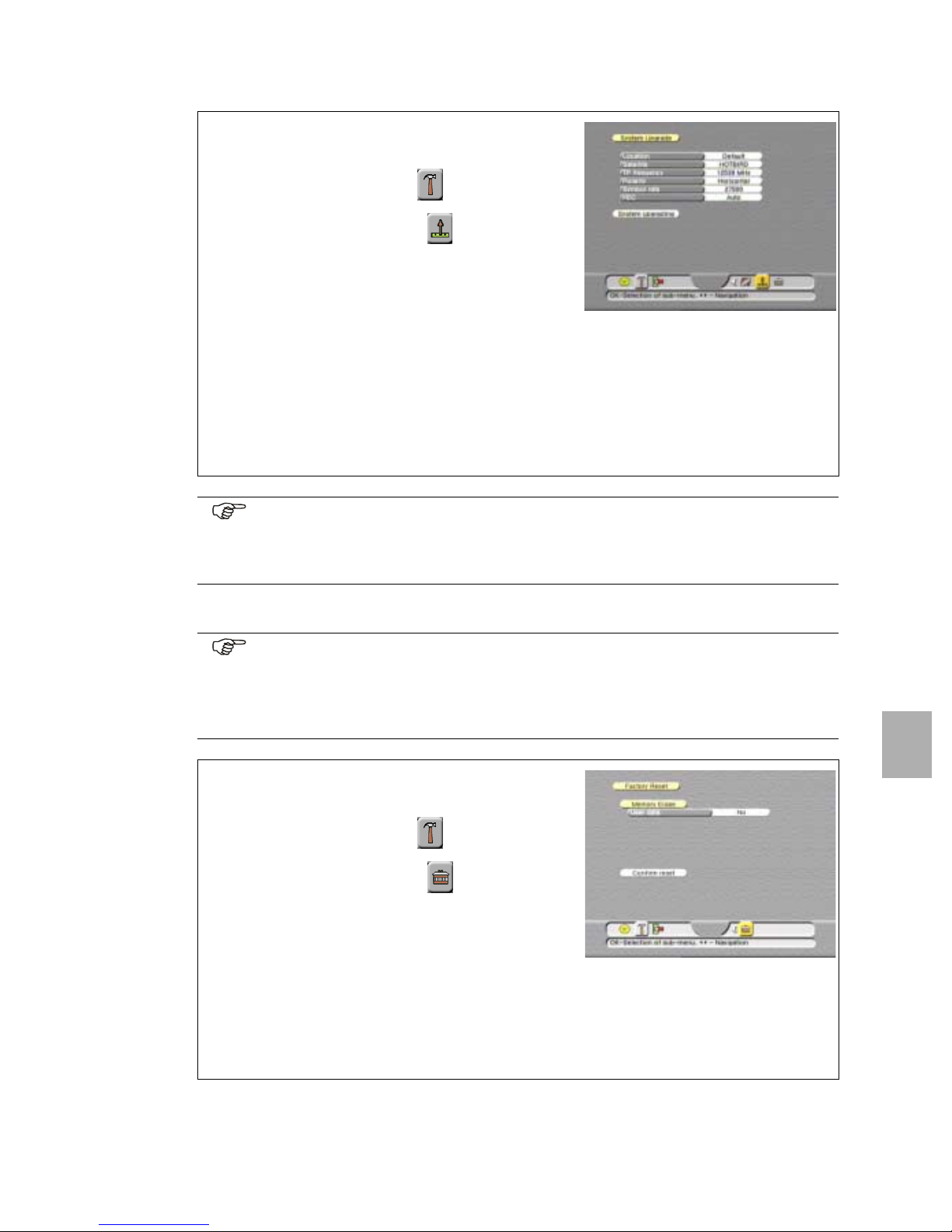

■ The button, that gives you access to the System Upgrade page;

■ The button, that gives you access to the Factory Reset page.

SIGNAL AND EL-WL INDICATOR

In some menus the signal indicator is shown to help you to find a satellite and fine tune for the best signal level and quality.

In some menus (motorized only), an EL-WL indicator is shown to show you what the East and West limits are that you have set for the dish installation, also the position of the searched satellites is shown.

■ The signal indicator

The top bar shows the signal level to indicate that you receive a signal. The bottom bar shows the quality of the signal (signal-to-noise ratio) to indicate that you have a lock onto the selected transponder. The bottom text gives the satellite and network information to which the lock is established.

■ The EL-WL indicator (motorized only)

EL and WL show you the calculated East and West Limits. The Indication in the EL-WL indicator show you the calculated position of the searched satellites. Note that this indicator can also show in the TV or Radio mode as part of the InfoBanner.

Page 4 - 8 EchoStar D-2400IP

Page 27

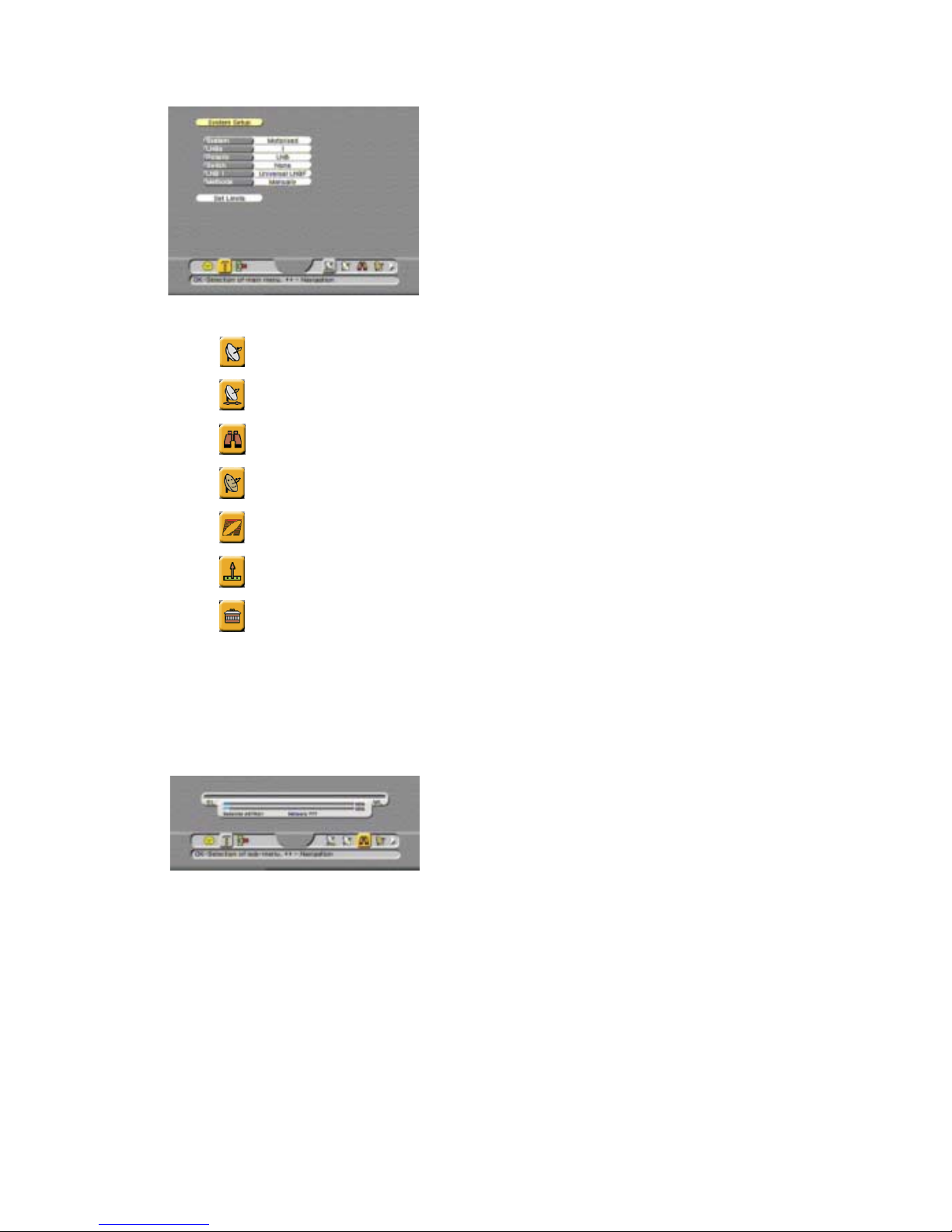

2.2.1. SYSTEM SETUP MENU

This sub menu allows you to customize the system setup to match your installation. Note that the menu page is dynamic which means that it changes with the selections you make. You can customize:

Familiarization

■ System

Section 4

To set the dish type you use.

■ LNBs

To set the amount of LNBs you have installed.

■ Polarity

To set the device that controls the signal polarity.

■ Switch

To set the switch type which you use to control the dish installation (if used).

■ LNB1

To set the LNB type(s) you use.

■ Method (motorized only)

To set the scan method; AutoSat (automatically calculate the satellite positions from reference positions) Manual (enter the satellites by manual search).

■ AutoSat (motorized, AutoSat only)

To confirm the selections you made and advance to the AutoSat setup page (AutoSat only)

■ Set Limits (motorized, manual only)

To confirm the selections you made and advance to the Set Limits page.

■ Satellite (fixed only)

To set the satellite you want to scan for the LNB.

■ Check Signal (fixed only)

To confirm the selections you made and advance to the Check Signal page.

■ LNB Power (SMATV only)

To select the distribution type (cable=Off, IF=On).

■ Symbol Rate 1-4 (SMATV only)

To set the symbol rate you want to scan.

■ Search Channels (SMATV only)

To confirm the selections you made and advance to the Search Channels page.

Digital Satellite Receiver Page 4 - 9

Page 28

Section 4

Familiarization

2.2.2. FIXED DISH SETUP

This sub menu allows you to customize the system setup to add an additional fixed dish into your motorized configuration. Note that the menu page is dynamic which means that it changes with the selections you make. You can customize:

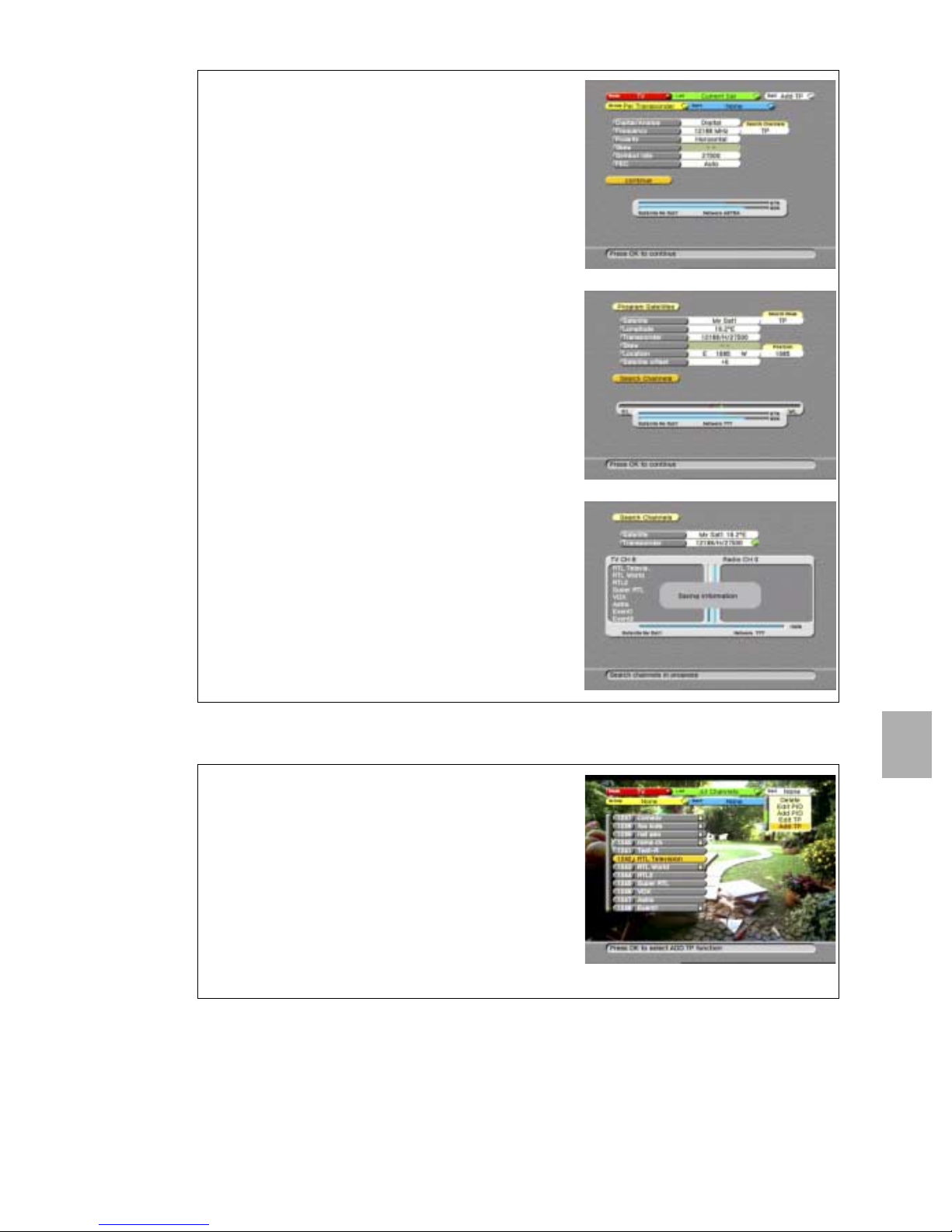

2.2.3. PROGRAM SATELLITES

■ LNBs

To set the amount of LNBs you have installed.

■ Polarity

To set the device that controls the signal polarity.

■ Switch

To set the switch type which you use to control the dish installation.

■ LNB1

To set the LNB type(s) you use.

■ Satellite

To set the satellite you want to scan for the LNB.

■ Check Signal

To confirm the selections you made and advance to the Check Signal page.

This sub menu allows you to customize the system setup to add an additional satellite into your receiver. Note that the menu page is dynamic which means that it changes with the selections you make. You can customize and view:

■ Satellite

To set the satellite you want to scan for the LNB.

■ Search mode

To set a specific search mode (All, FTA, IF, TP, network or update).

■ Longitude

To view the satellite location on the Clarke Belt.

■ Transponder

To select a transponder of the selected satellite.

■ Skew

To adjust the Horizontal/Vertical setting (only for polarotor).

■ Location

To move the dish for best signal level and quality.

■ Satellite offset

To compensate for a dish offset caused by ambient conditions.

NOTE

The satellite offset will affect all satellite positions, this means that all scanned positions will change which might result in total loss of signal for all satellites.

■ Search Channels

To confirm the selections you made and advance to the Search Channels page.

Page 4 - 10 EchoStar D-2400IP

Page 29

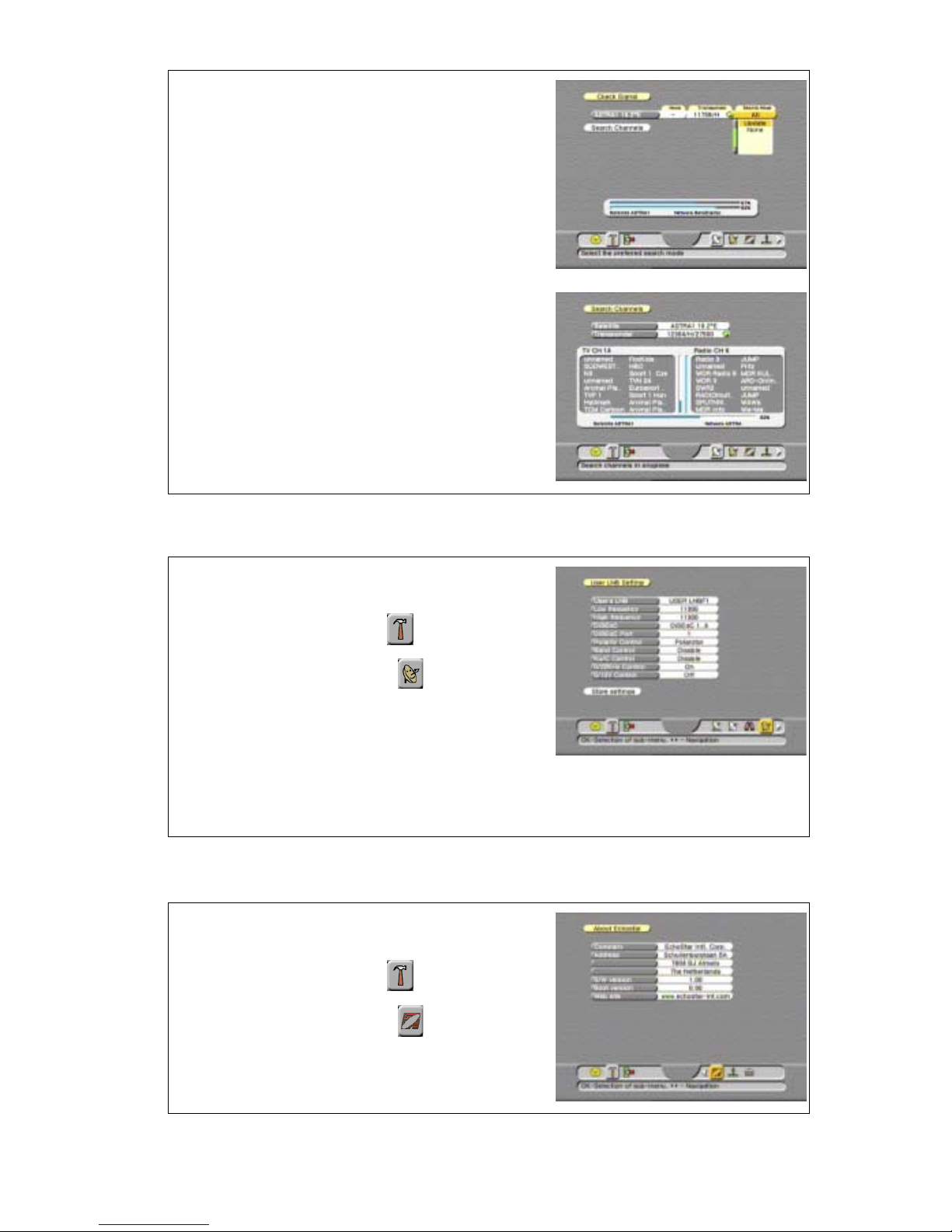

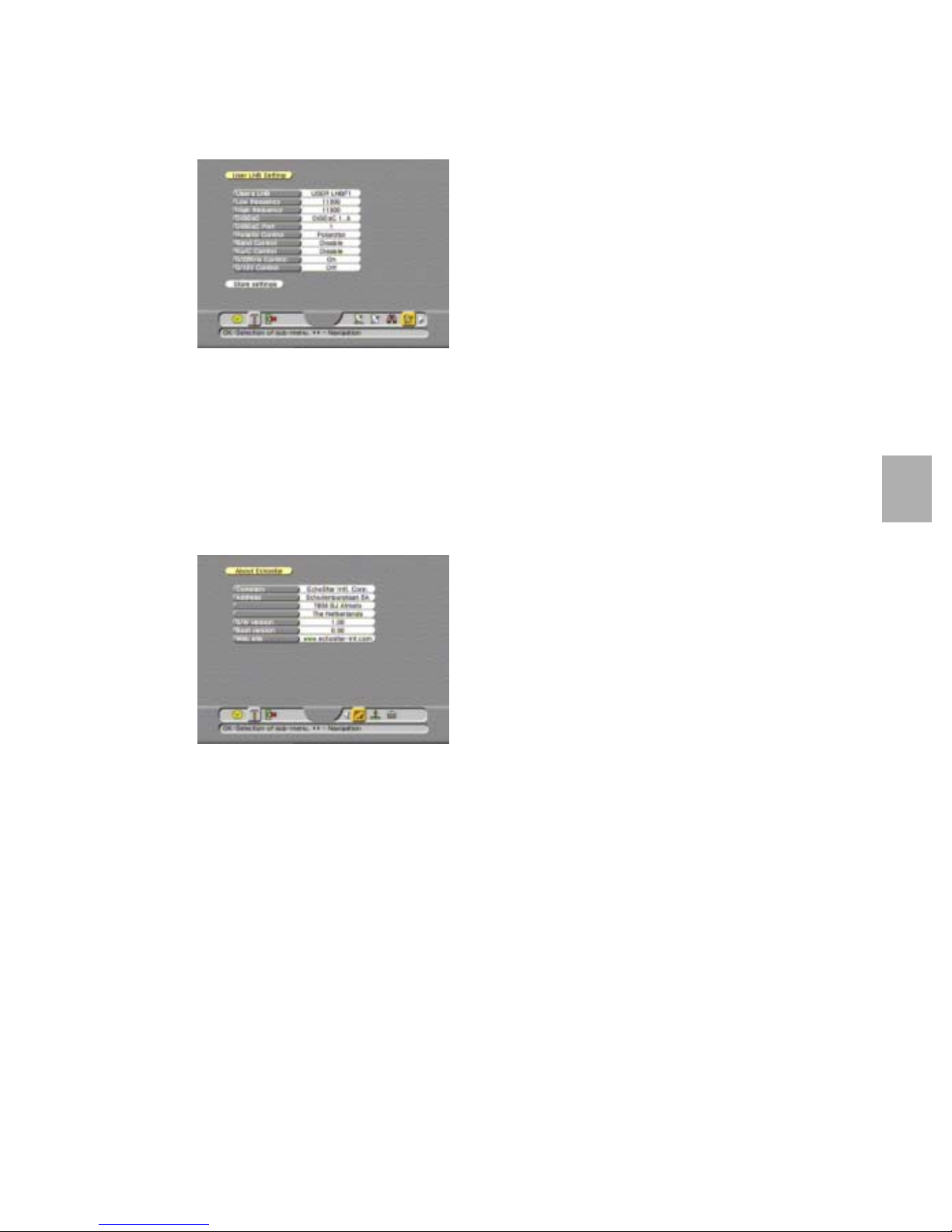

2.2.4. USER LNB SETTING

This sub menu allows you to program a LNB that is not listed in the LNB selection list. Note that the menu page is dynamic which means that it changes with the selections you make. You can customize:

Familiarization

■ User’s LNB

To select the first or second user defined LNB.

■ Low Frequency

To enter the low frequency of the user LNB.

■ High Frequency

To enter the high frequency of the user LNB.

■ Polarity Control

To select the device that controls the polarity.

■ Band Control

To set the control signal for high or low band selection.

■ Ku/C Control

To set the control signal for the Ku/C LNB.

■ Store settings

To confirm the selection and save the settings.

Section 4

2.2.5. ABOUT ECHOSTAR

The About EchoStar menu gives all the where-to-contact-Information about EchoStar and the status information about the receiver. You can view:

■ Company

This field shows the full name of EchoStar.

■ Address

This field shows the address of EchoStar.

■ S/W version

This field shows the current software version loaded into the receiver.

■ Boot version

This field shows the current boot version loaded into the receiver.

■ Web site

This field shows the EchoStar web site where you can find the latest user and software information.

Digital Satellite Receiver Page 4 - 11

Page 30

Section 4

Familiarization

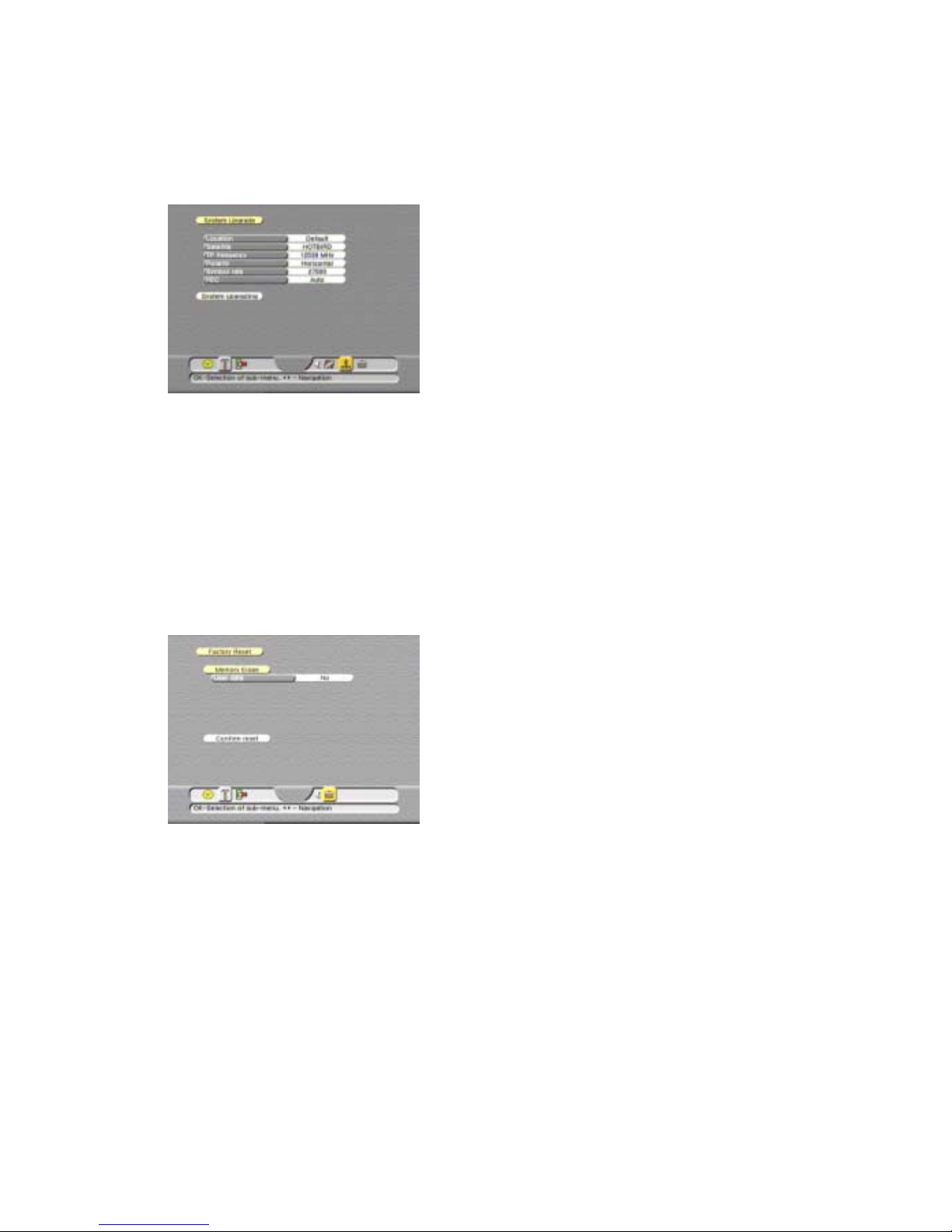

2.2.6. SYSTEM UPGRADE PAGE

This menu page allows you to upgrade the receiver’s software. EchoStar provides software updates Over-The-Air (OTA) which means that you can upgrade your system via the satellite.

If you are not able to receive the satellite/transponder, you always can upgrade the software through the SERIAL PORT (RS232) at the rear of the receiver and the downloaded software from the EchoStar website.

■ Location

To select the default or user defined satellite where you want to download from.

■ Satellite

To set the satellite where you want to download from.

■ TP frequency

To set the transponder where you want to download from.

■ Polarity

To set the correct polarity for the transponder.

■ Symbol rate

To set the correct symbol rate for the transponder.

■ FEC

To set the correct Forward Error Correction for the transponder

2.2.7. FACTORY RESET

The Factory Reset menu gives you the possibility to reset the receiver to the initial factory settings. The memory erase option restores the factory settings over your personal settings. All customized data like parental lock and favorites will be replaced with the factory settings.

■ Memory Erase - User Data

To instruct the receiver to delete all personal settings and replace them with the factory settings.

■ Confirm Reset

With this field you can confirm the selections made and execute the selected procedure. After the memory erase procedure is finished, you are taken to the initial setup procedure. (for detailed instructions, please refer to section Installation).

Page 4 - 12 EchoStar D-2400IP

Page 31

2.3. THE CI INFORMATION MENU

This main menu has different sub menus that give access to the pages where you can view the CI-module and smart card settings. Note that the sub menus are dynamic which means that they change with the selections you make. The conditional access information menu always comesinviewwiththesystemsetupsubmenu.Inthe menu bar the sub menus are shown at the right side. The available sub menus are shown as icons which become a highlighted button after selection. The sub menus are accessible with:

■ The button, that gives you access to the CI-module 1 information page.

■ The button, that gives you access to the CI-module 2 information page.

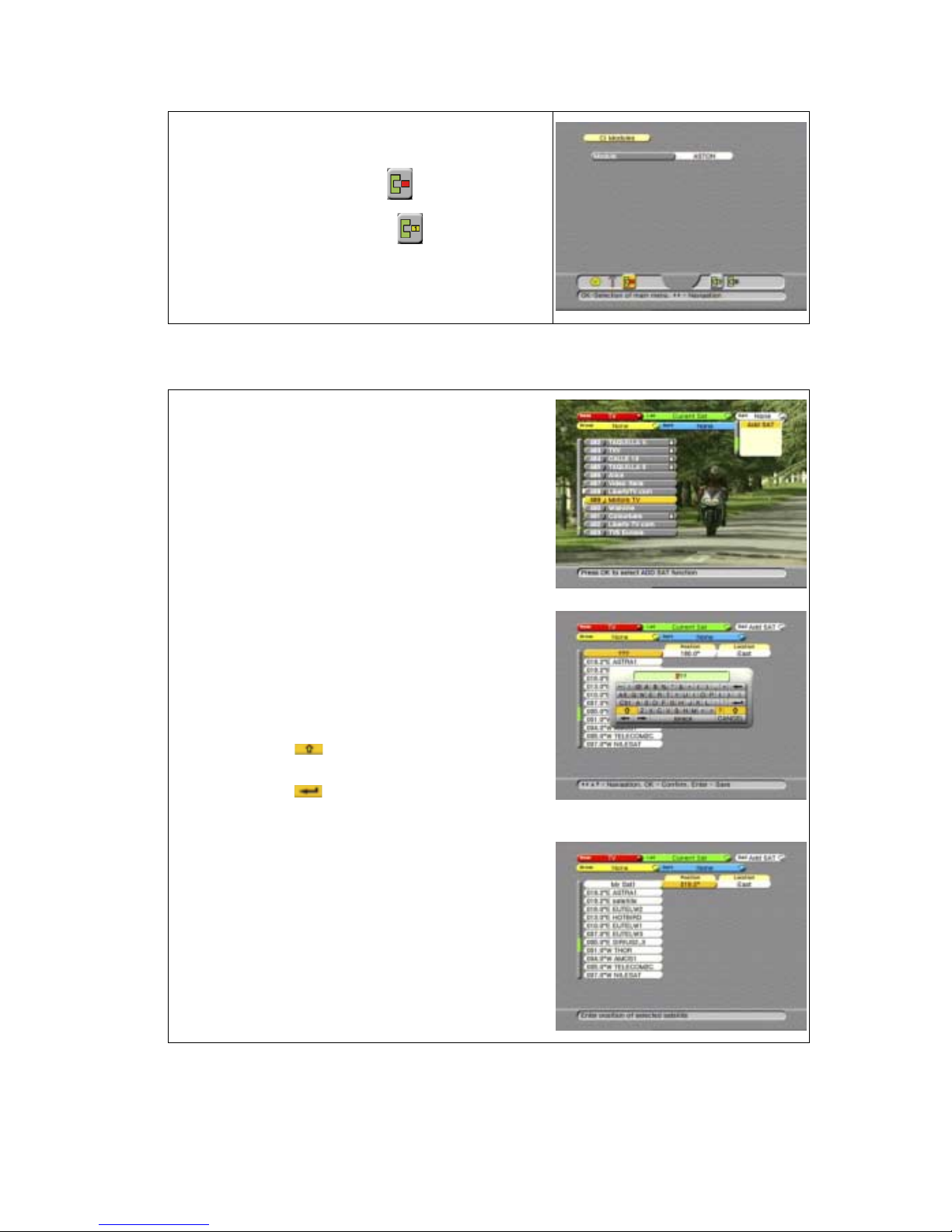

2.3.1. CI-MODULES

The CI-modules sub menu gives all the Information about the CI-module and related smart card that is inserted. Note that the menu is dynamic which means that it changes with the type of CI-module and related smart card inserted. The menus for CI-module 1 and 2 are identical, therefore only an example for CI-module 1 is shown. You can view:

■ Module

Gives information about which CI-module and related smart card is inserted in CI_slot1.

Familiarization

Section 4

CONDITIONAL ACCESS INFORMATION

■ As an example;

this page shows the additional information that is available from the inserted CI-module and related smart card.

■ Note that this page can show differently for other

CI-modules and related smart cards.

■ EchoStar has no control over the information

provided by the related service provider, therefor no specific information is given.

Digital Satellite Receiver Page 4 - 13

Page 32

Section 4

Familiarization

3. THE ECHONAV MODE AND SELECTION MENUS

3.1. INTRODUCTION

The mode and selection menu gives access to the current list, related features and on-screen help lines. After you have entered the mode and selection menu you can manipulate the lists through:

■ The Mode bar (red);

■ The List bar (green);

■ The Edit bar (white);

■ The Group bar (yellow);

■ The Sort bar (blue).

3.2. MODE

The Mode bar gives access to the different receiver modes. The receiver modes are:

■ TV

To switch the receiver in the TV mode and to access the list of TV channels.

■ Radio

To switch the receiver in the Radio mode and to access the list of Radio channels.

■ Lists

To switch the receiver in the Lists mode and to access the favorite lists.

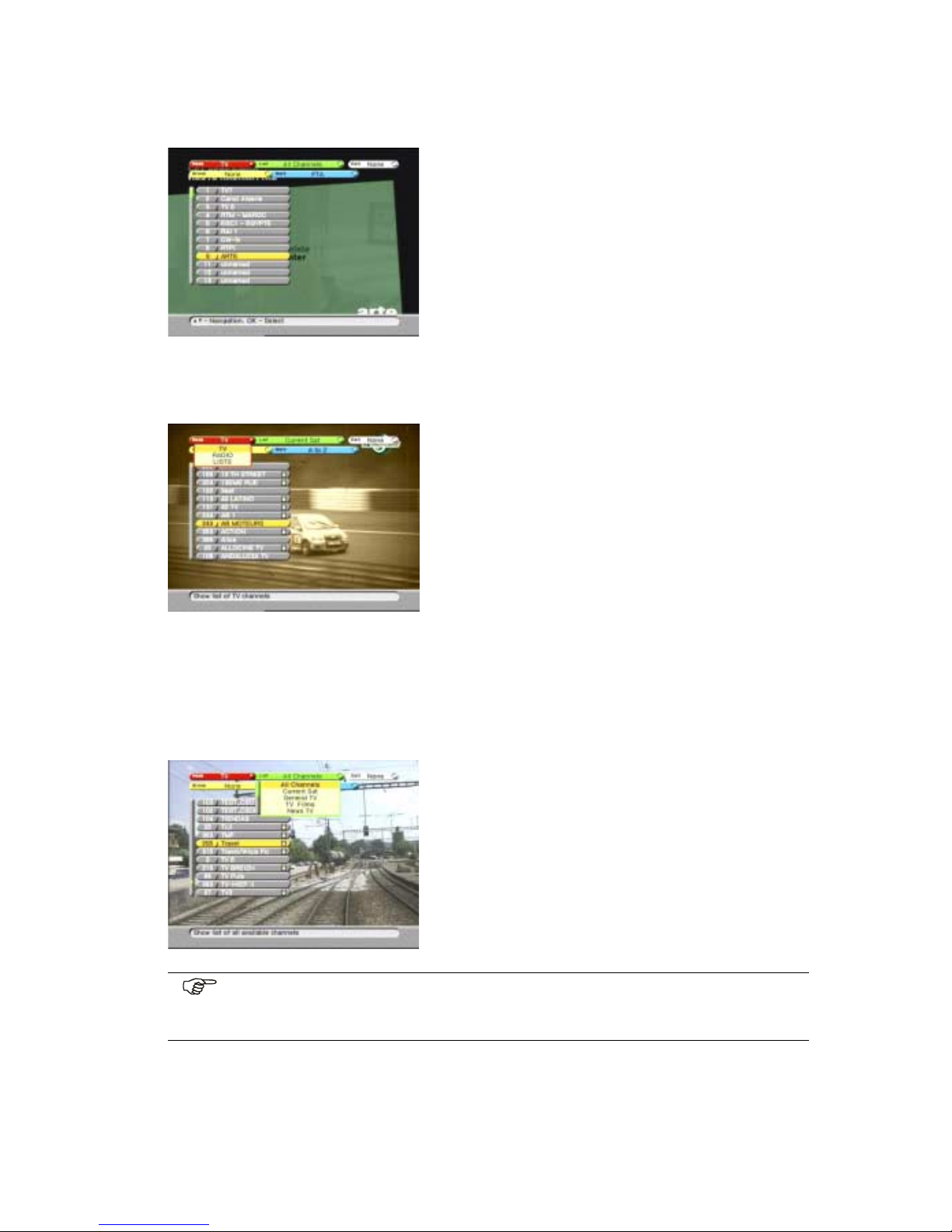

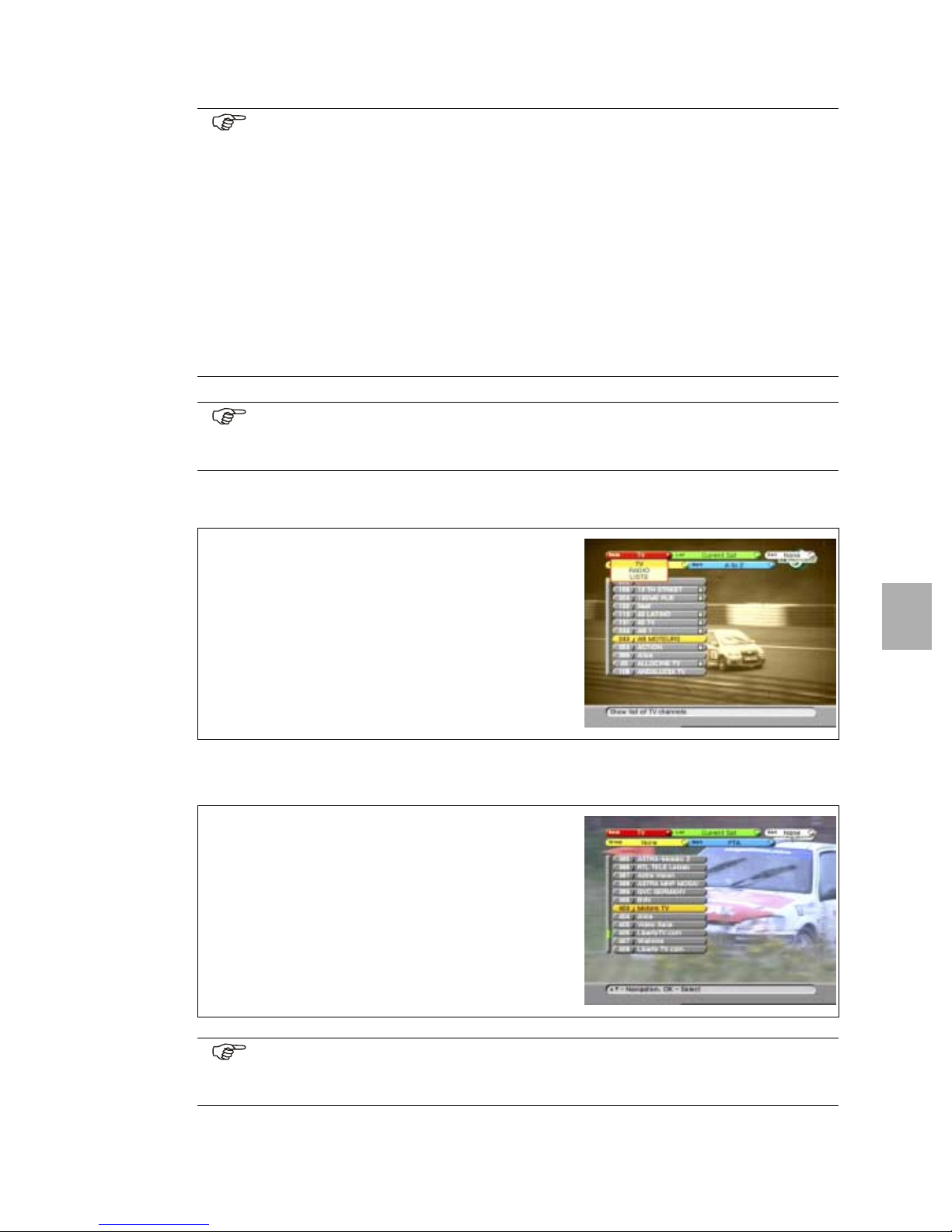

3.3. LIST

The Lists are available in the all modes. Some of the lists are factory defined and other lists (Favorite lists) are user defined. Favorite lists are lists of your favorite items that are created and maintained by you. In every mode you can setup a number of favorite lists. The lists

available are (mode dependent):

■ All Channels

To access the list of scanned TV channels available on the scanned satellites.

■ Current Sat

To access the list of all scanned TV channels available on the current selected satellite.

■ Favorites

To access to your own favorite lists. You can rename the favorites to something meaningful to yourself,e.g.Film,Sport,Kids.

NOTE

Sometimes a list seems to be empty because of the settings of the group and sort option. If this happens, just set the group and sort option to none.

Page 4 - 14 EchoStar D-2400IP

Page 33

3.4. EDIT

Familiarization

Section 4

The Edit options are available in the all modes. The Edit option gives you the possibility to customize the different lists. The availability of the Edit options is mode dependent, the available options are:

■ None

No edit option is selected.

■ Move

To enter the move channel function.

■ Add

To enter the add channel function.

■ Rename

To enter the rename channel function.

■ Volume

To enter the set volume offset function.

■ Lock

To enter the lock channel function.

■ Delete

To enter the delete channel function.

■ Edit PID

To enter the edit PID function.

■ Add PID

To enter the add PID function.

■ Edit TP

To enter the edit TP function.

■ Add TP

To enter the add TP function.

■ Add SAT

To enter the add SAT function.

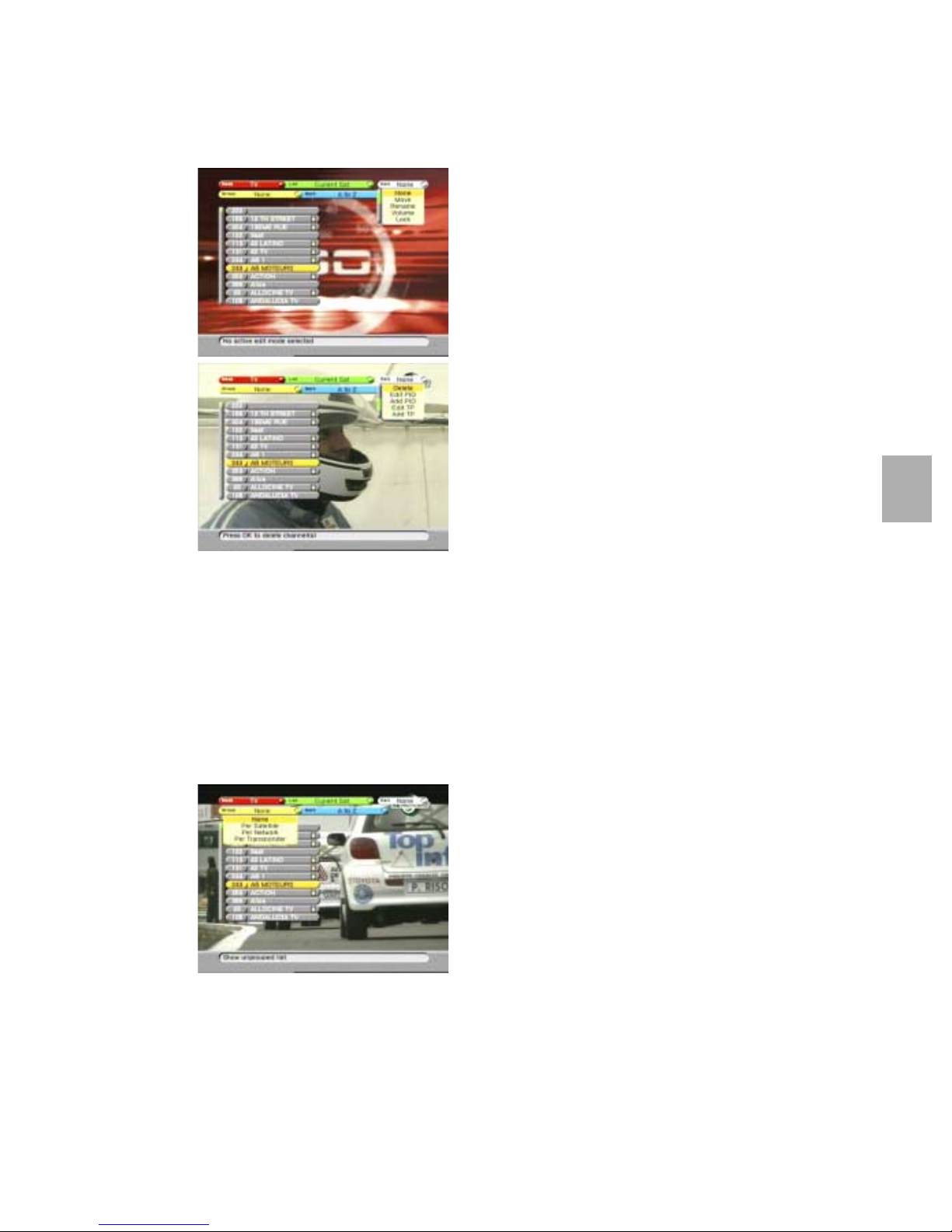

3.5. GROUP

The Group options are available in the all modes. The Group option allows you to group the lists in different ways. The availability of the Group options is mode dependent, the available options are:

■ None

No group option is selected.

■ Per Satellite

To group the list per satellite.

■ Per Network

To group the list per network.

■ Per Transponder

To group the list per transponder.

Digital Satellite Receiver Page 4 - 15

Page 34

Section 4

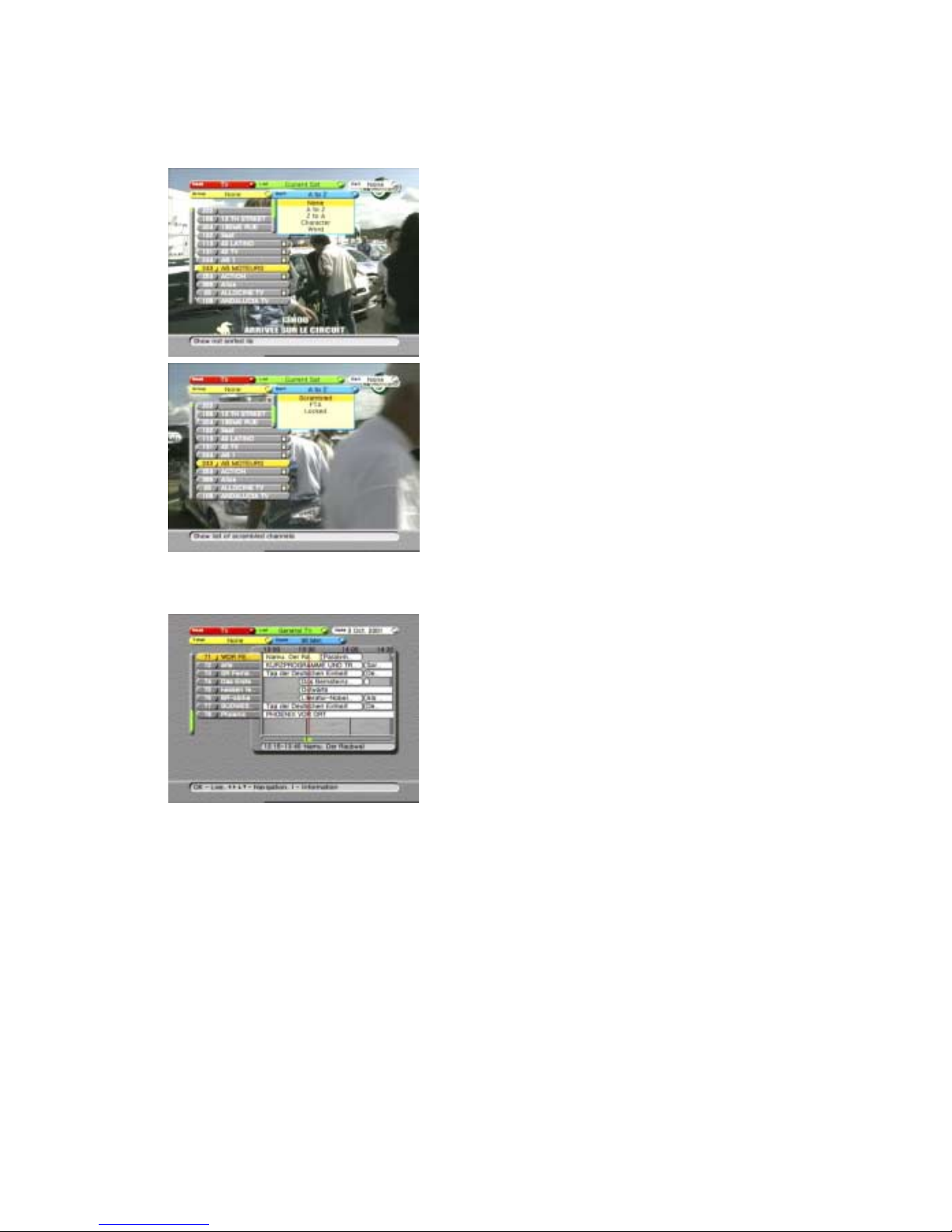

3.6. SORT

The Sort options are available in all modes. The Sort options allow you to sort the lists in different ways. The availability of the Sort options is mode dependent, the available options are:

Familiarization

■ None

No sort option is selected.

■ AtoZ

Sorts a list alphabetically.

■ ZtoA

Sorts a list alphabetically, in reverse order.

■ Character

Shows list with entered character only.

■ Word

Shows a list that contains the selected word only.

■ Scrambled

Shows a list of encrypted channels only.

■ FTA

Shows a list of Free-To-Air channels only.

■ Locked

Shows a list of locked channels only.

4. THE ELECTRONIC PROGRAM GUIDE (EPG)

Most digital channels transmit program data as an EPG. Digital channels that transmit EPG offer you program information in advance for a certain period of time. Dependent of the service provider, EPG is offeredindifferentways. After you have entered the EPG, you can select the different EPG options, these are:

■ Mode, to select the TV or Radio mode to show;

■ List, to select the list in all channels, current satellite or personal favorite;

■ Date, to access the EPG calendar;

■ Timers, to select and set the VCR or Reserved timer;

■ Zoom, to expand or shrink the EPG window as a function of the time slot.

Page 4 - 16 EchoStar D-2400IP

Page 35

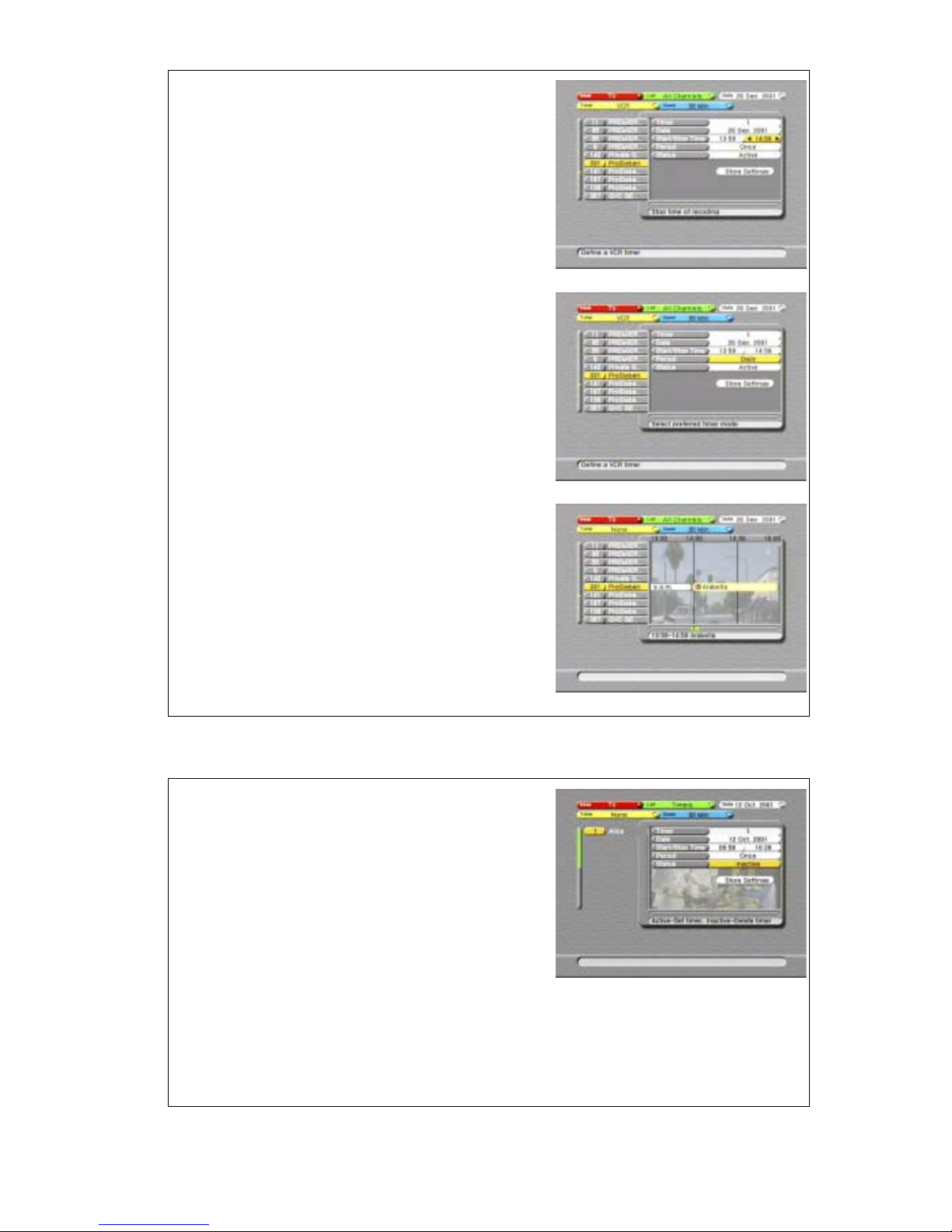

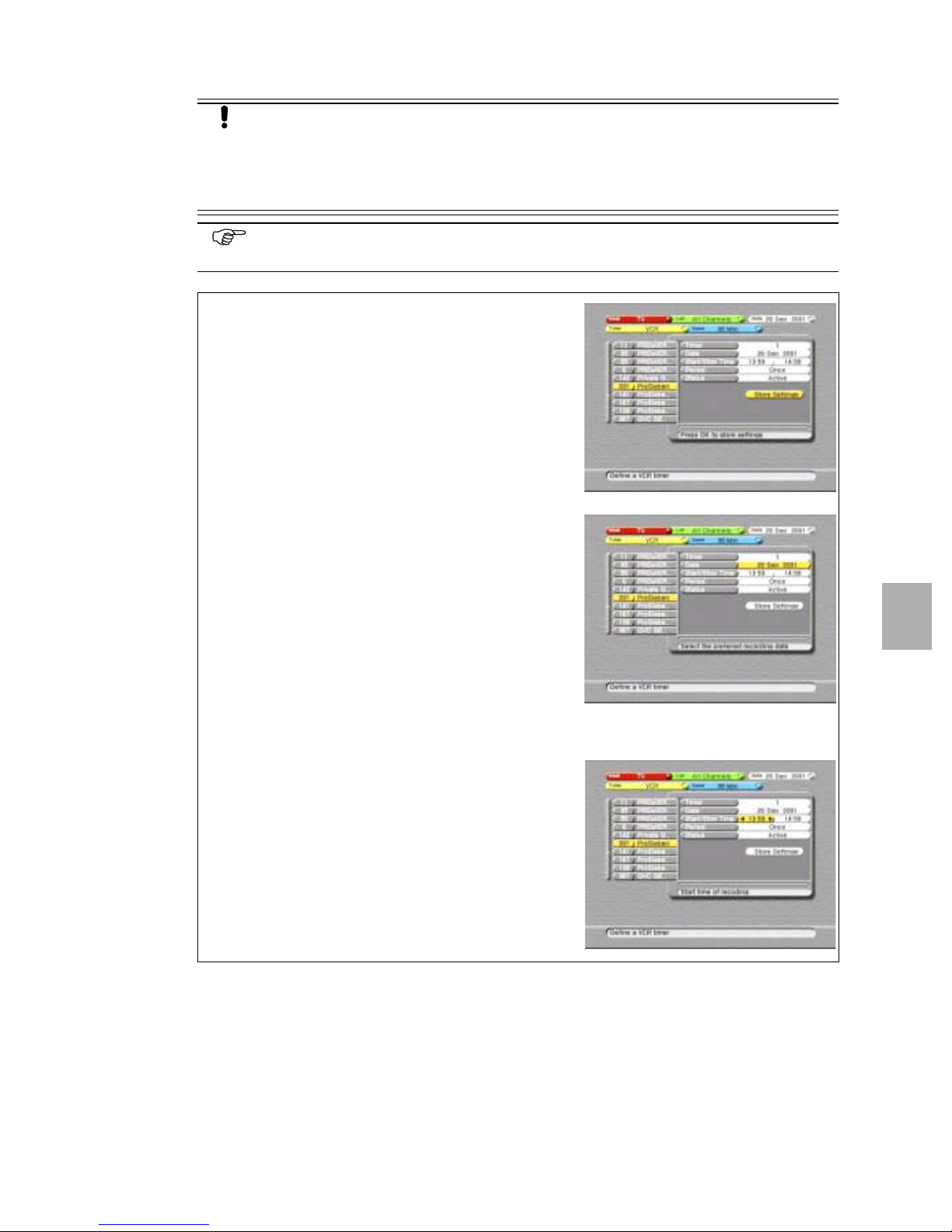

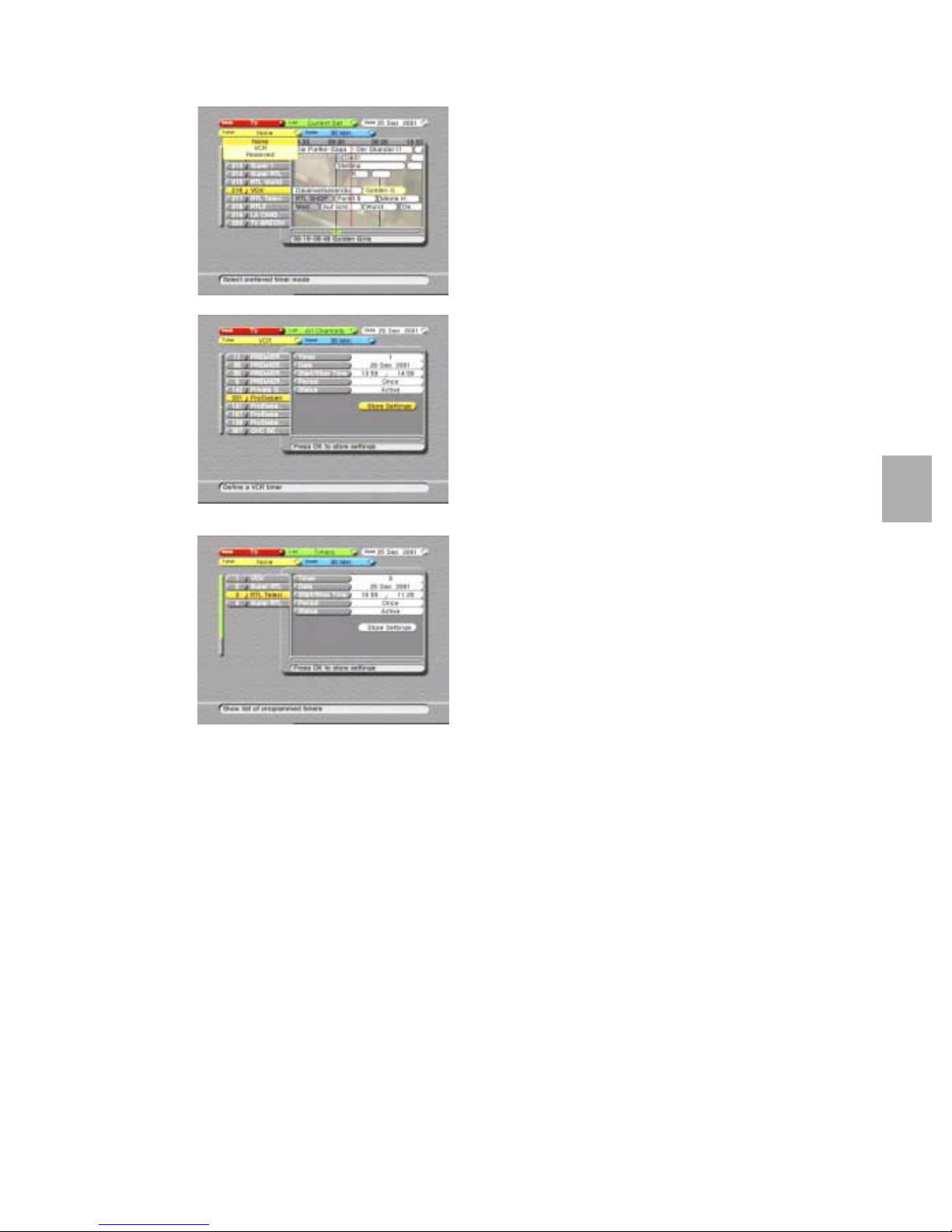

4.1. THE TIMERS

Familiarization

Section 4

The event timers are a kind of alarm clock. An event timer reminds you when a program or a timed VCR recording starts. You can set the next timers:

■ VCR timer, to automatically switch over to the

timed program before it really starts. This allows you to record a program on a video tape (video recorder);

■ Reserved timer, to automatically switch over to the

timed program before it really starts or when the receiver is in standby, to switch on the receiver.

If a timer is set on a program that is shown in the EPG, the relevant data is already shown in the timer. You can change the settings as follows:

■ Date, to set the start date for the timer;

■ Start time, to set the start time in hours/minutes;

■ Stop time, to set stop time in hours/minutes;

■ Period, to set the timer once or for every

occurrence;

■ Status, to set (active) or delete (inactive) the timer.

■ Store settings, to program the timer.

Timers are shown in the EPG window as clocks. In the List-Timers page, it is possible to get a list of the timers that are set. In this page you also can change or delete a set timer.

Digital Satellite Receiver Page 4 - 17

Page 36

Section 4

Familiarization

5. THE INFOBANNER AND POP-UP MENUS

5.1. THE TV INFOBANNER

The TV InfoBanner shows the information related to the actual channel.

The information shown is some information only if provided by the service provider.

■ The channel information bar, to show the (favorites) list number and the channel name;

■ The satellite information dish, to show the name of the selected satellite;

■ The program information bar, to show the start time, duration indicator and program name;

■ The i-button, to indicate that there is detailed program information available;

■ The additional information bar, to show the additional service icons. These icons show

only if the additional service is available. The icons are:

- the icon for teletext;

- the icon for alternate audio;

- the icon for alternate subtitling;

- the icon for Dolby Digital audio;

- the icon for Favorite channel;

- the icon for Parental rating information.

■ The digital clock, to show the actual local time;

■ The next program information bar, to show the information of the next program.

■ If the volume +/- key is pressed, the volume button is shown (see the radio InfoBanner).

5.2. THE RADIO INFOBANNER

The radio InfoBanner shows the information related to the actual channel. The radio InfoBanner can show the same information as discussed with the TV InfoBanner.

Page 4 - 18 EchoStar D-2400IP

Page 37

5.3. POP-UP MENUS

Some pop-up menus are used to show that the receiver is busy to execute a task. Other popup menus require interaction with the user, you have to confirm or deny a earlier given command to complete the task

5.3.1. ALT AUDIO

5.3.2. SUBTITLE

Familiarization

If transmitted, you can set per channel your alternate audio. You can call up the pop-up menu with the alternative audio key on the remote control unit. You can navigate up and down between the audio languages or left and right for bi-lingual programs. For the radio channels, you can navigate up and down between the different radio stations within the selected channel.

If transmitted, you can set per channel your subtitling You can call up the pop-up menu with the subtitle key on the remote control unit. You can navigate up and down between the languages.

Section 4

5.3.3. SATELLITE LIST

This pop-up menu gives you the possibility to choose directly from the available satellites. You can call up the pop-up menu with the satellite key on the remote control unit.

Digital Satellite Receiver Page 4 - 19

Page 38

Section 4

Familiarization

Page 4 - 20 EchoStar D-2400IP

Page 39

OPERATION

1. TO NAVIGATE THROUGH THE MENUS

NOTE

Unless otherwise specified; this note explains the way you can navigate through the pages of the EchoNAV user menu.

1. Use the OK key to pull down the menu selection fields.

2. Use the  keys to scroll the selectable items.

3. Use the  keys to navigate between the left and right column of selectable items.

4. Use the EXIT key to leave the menu and return to the view mode.

5. In a pull-down menu:

- use the OK key to confirm the selection.

- the yellow bar indicates the active selection;

- on the left, the green page indicator indicates where you are.

NOTE

In the following procedures, we assume that you have switched on the TV and the receiver is in the TV mode.

Operation

Section 5

1.1. TO SELECT A MODE

1. On the RCU, press the OK key;

2. Press the RED key and make the selection.

3. Read the available help text for information.

4. Select the required mode.

1.2. TO SELECT A CHANNEL

1. On the RCU, press the OK key.

2. Select the required mode.

3. Read the available help text for information.

4. Select a channel, either: a. use the keys; b. use the page + / - keys; c. use the numbered keys.

5. On the RCU, press the OK key to confirm.

NOTE

Normally, you only can view a scrambled channel with the applicable CI-module and/or smart card inserted in a CI-slot or Viaccess smart card reader.

Digital Satellite Receiver Page 5 - 1

Page 40

Section 5

Operation

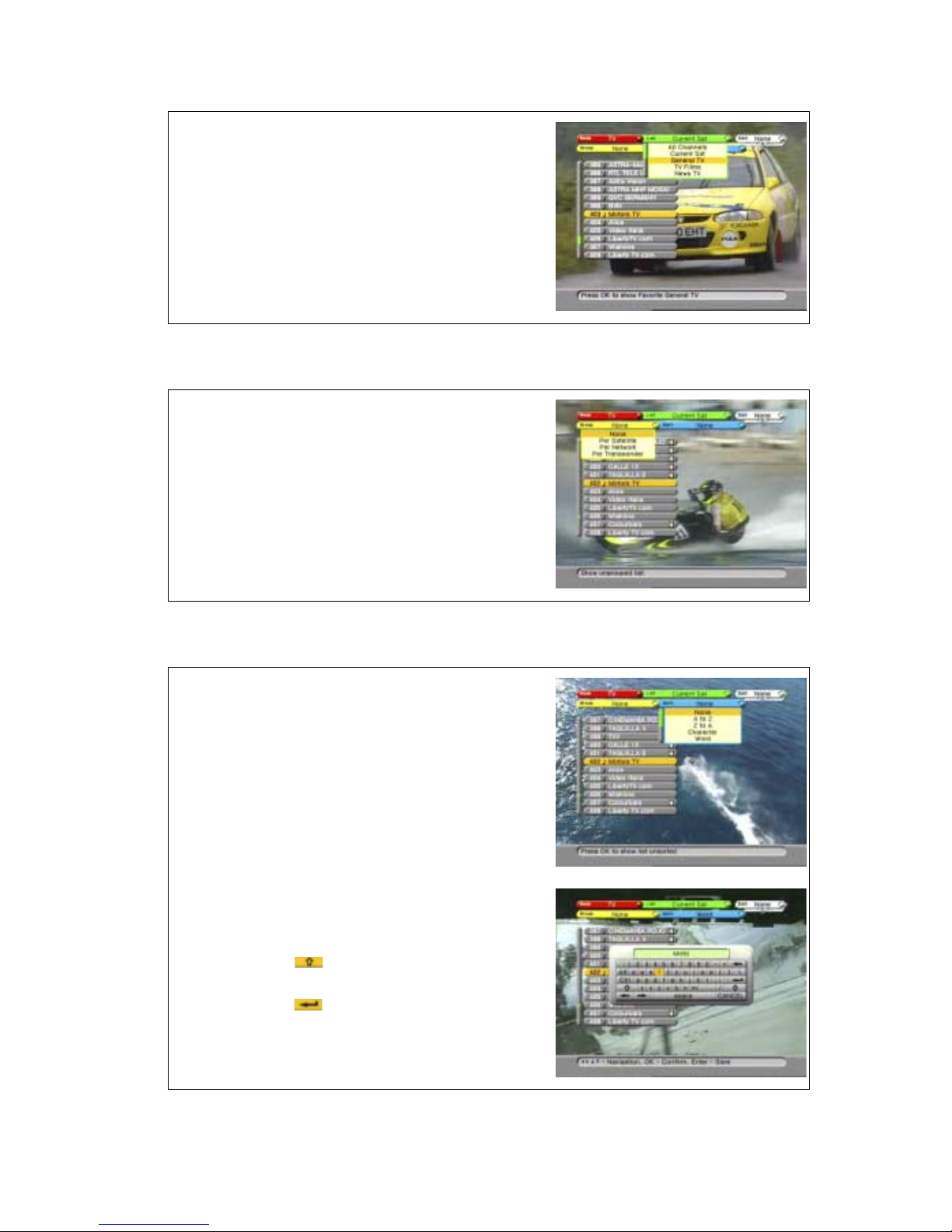

1.3. TO SELECT A LIST

1. On the RCU, press the OK key.

2. Select the required mode.

3. On the RCU press the GREEN key.

4. Read the available help text for information.

5. Select the required list.

1.4. TO GROUP A LIST

1. On the RCU, press the OK key.

2. Select the required mode.

3. On the RCU press the YELLOW key.

4. Read the available help text for information.

5. Select the required group option.

1.5. TO SORT A LIST

1. On the RCU, press the OK key.

2. Select the required mode.

3. On the RCU press the BLUE key.

4. Read the available help text for information.

5. Select the required sort option. Note that only for the Character and Word option a keyboard appears.

6. When the keyboard appears: a. use the arrow keys to navigate; b. press OK to accept the character; c. select the button to get lower case

characters and numbers;

d. select the button e. on the RCU, press the OK key to confirm.

Page 5 - 2 EchoStar D-2400IP

Page 41

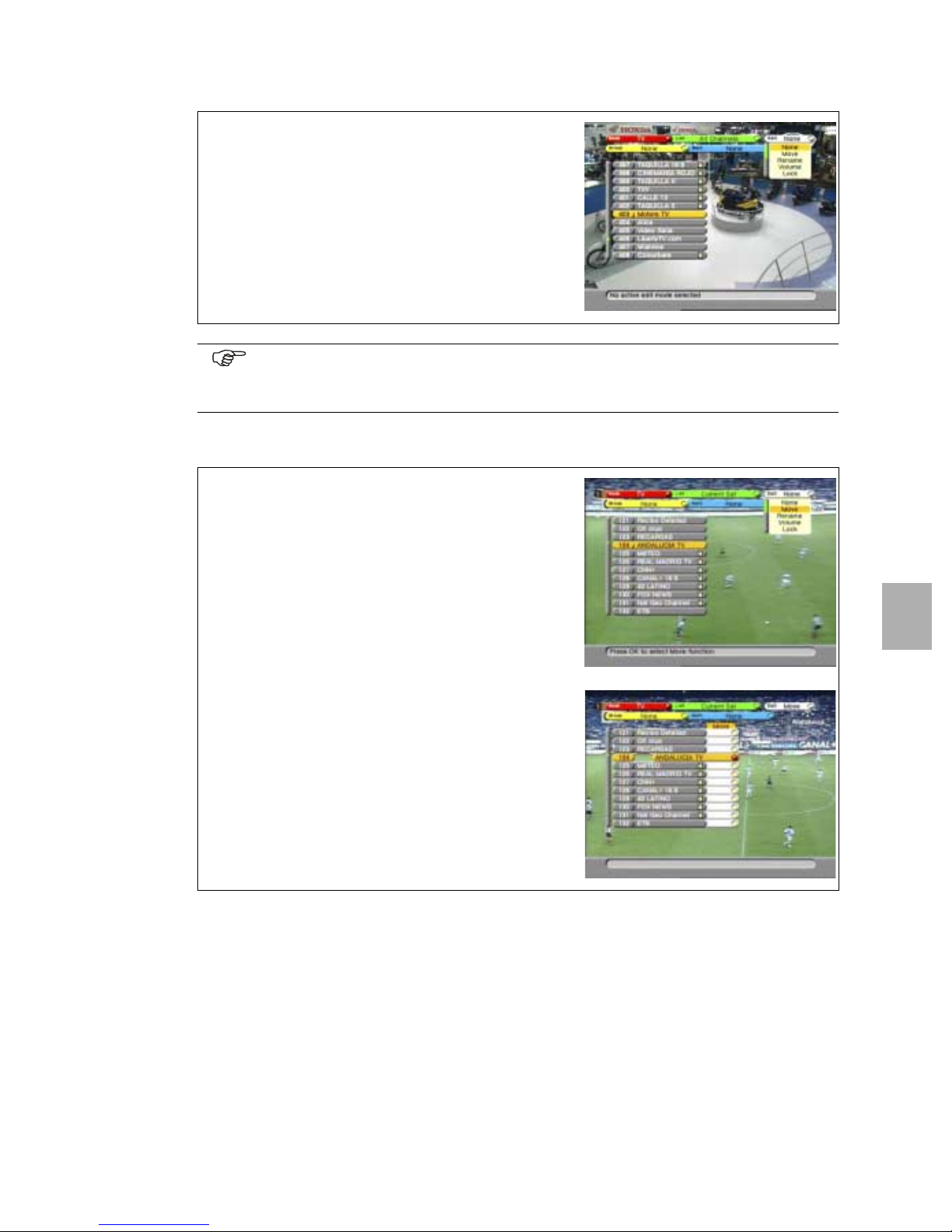

1.6. TO EDIT A LIST

1. On the RCU, press the OK key.

2. Select the required list.

3. On the RCU press the WHITE key.

4. Read the available help text for information.

5. Select the required edit option.

NOTE

Some EDIT options are not always available. If an option is not presented, select Group - None and Sort - None

1.6.1. TO MOVE A CHANNEL

Operation

Section 5

1. In the Edit menu, select the Move option.

2. Read the available help text for information.

3. Go to the channel you want to move.

4. On the RCU, press the OK key. Note a red bullet appears behind the selection.

5. If you want to undo the selection, press the OK key again.

6. Move the channel, either: a. use the keys; b. use the page + / - keys;

7. On the RCU, press the OK key to confirm.

8. Either: a. press the WHITE key to end the session, or b. select the next channel you want to move.

Digital Satellite Receiver Page 5 - 3

Page 42

Section 5

Operation

1.6.2. TO LOCK A CHANNEL

CAUTION

You can only lock a channel if you have set the parental lock and the PIN-code correctly. We recommend, in the parental lock menu, that you check if the lock option is set correctly.

NOTE

After you have set a lock onto a channel, the installation and the EDIT menu are automatically locked with an installation lock to prevent unauthorized access. Now you can only access these functions if you know the correct PIN-code.

1. In the Edit menu, select the LOCK option.

2. Read the available help text for information.

3. Go to the channel you want to lock.

4. On the RCU, press the OK key. Note a red bullet appears behind the selection.

5. If you want to undo the selection, press the OK key again.

6. Either: a. press the WHITE key to confirm the lock and

end the session, or

b. select the next channel you want to lock.

7. You can temporarily unlock all channels: a. On the RCU, press the MENU key; b. Select the Parental Lock menu; c. Enter the correct PIN-code as requested; d. Set the channel lock to Off.

8. You can restore all the locks on the channels: a. On the RCU, press the MENU key; b. Select the Parental Lock menu; c. Enter the correct PIN-code as requested; d. Set the channel lock to On.

Page 5 - 4 EchoStar D-2400IP

Page 43

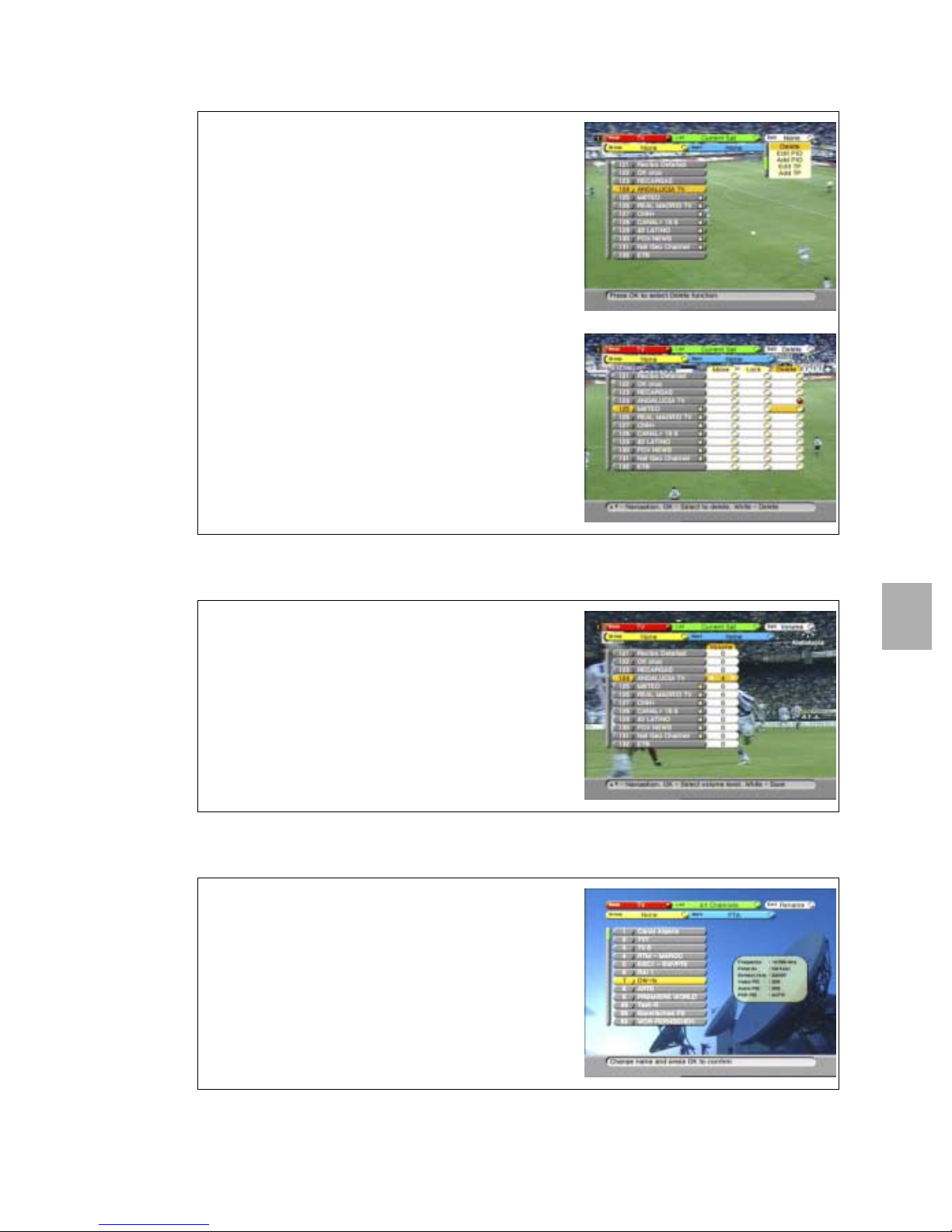

1.6.3. TO DELETE A CHANNEL

1. In the Edit menu, select the DELETE option.

2. Read the available help text for information.

3. Go to the channel you want to delete.

4. On the RCU, press the OK key. Note a red bullet appears behind the selection and the cursor advances to the next channel.

5. If you want to undo the selection, press the OK key again.

6. Either: a. press the WHITE key to confirm the deletion

and end the session, or

b. select the next channel you want to delete.

Operation

Section 5

1.6.4. TO SET THE CHANNEL VOLUME OFFSET

1. In the Edit menu, select the VOLUME option.

2. Read the available help text for information.

3. Go to the channel you want to edit.

4. On the RCU, use the  keys to set the volume.

5. Either: a. Press the WHITE key to end the session, or b. select the next channel you want to edit.

1.6.5. TO RENAME A CHANNEL

1. In the Edit menu, select the RENAME option.

2. Read the available help text for information.

3. Go to the channel you want to rename.

4. On the RCU, press the OK key.

Digital Satellite Receiver Page 5 - 5

Page 44

Section 5

5. When the keyboard appears:

6. Either:

Operation

a. use the arrow keys to navigate; b. press OK to accept the character; c. select the button to get lower case

characters and numbers; d. select the button e. on the RCU, press the OK key to confirm.

a. Press the WHITE key to end the session, or b. select the next channel you want to rename.

1.6.6. TO HIDE A CHANNEL

CAUTION

You can only hide a channel if you have set the parental lock and the PIN-code correctly. We recommend that you check if the hide option is set correctly.

NOTE

After you have set a hide onto a channel, the installation and the EDIT menu are automatically locked with an installation lock to prevent unauthorized access. Now you can only access these functions if you know the correct PIN-code.

1. Make the hide function available for edit: a. On the RCU, press the MENU key; b. Select the Parental Lock menu c. Enter the correct PIN-code as requested;

2. Set the Master Hide to Off.

Page 5 - 6 EchoStar D-2400IP

Page 45

1. In the Edit menu, select the HIDE option.

2. Read the available help text for information.

3. Go to the channel you want to hide.

4. On the RCU, press the OK key. Note a red bullet appears behind the selection.

5. If you want to undo the selection, press the OK key again.

6. Either: a. press the WHITE key to confirm the hide and

end the session, or

b. select the next channel you want to hide.

Operation

Section 5

7. Make the hide function active a. On the RCU, press the MENU key; b. Select the Parental Lock menu c. Enter the correct PIN-code as requested;

8. Set the Master Hide to On.

9. You can temporarily unhide all channels: a. On the RCU, press the MENU key; b. Select the Parental Lock menu c. Enter the correct PIN-code as requested; d. Set the Master Hide to Off.

10. You can restore all the hides on the channels: a. In the parental lock menu, set the Master Hide

to On.

2. USE THE FAVORITE LISTS

Navigation and use of the favorite lists are the same as for the all channels and current satellite list as described before. The main difference is that you can setup and organize the favorite lists as required. EchoStar has already pre-named the favorite lists to help you getting started. It is however possible to change the name of the favorite list to something that is meaningful to you.

For adding channels quickly, you can use the group and sort option first to limit the amount of channels where you want to choose from. As an example, now it is possible to add all sport related channels in one step to the Sports TV favorite list.

Note that for each mode, a separate number of favorite lists is available.

Digital Satellite Receiver Page 5 - 7

Page 46

Section 5

Operation

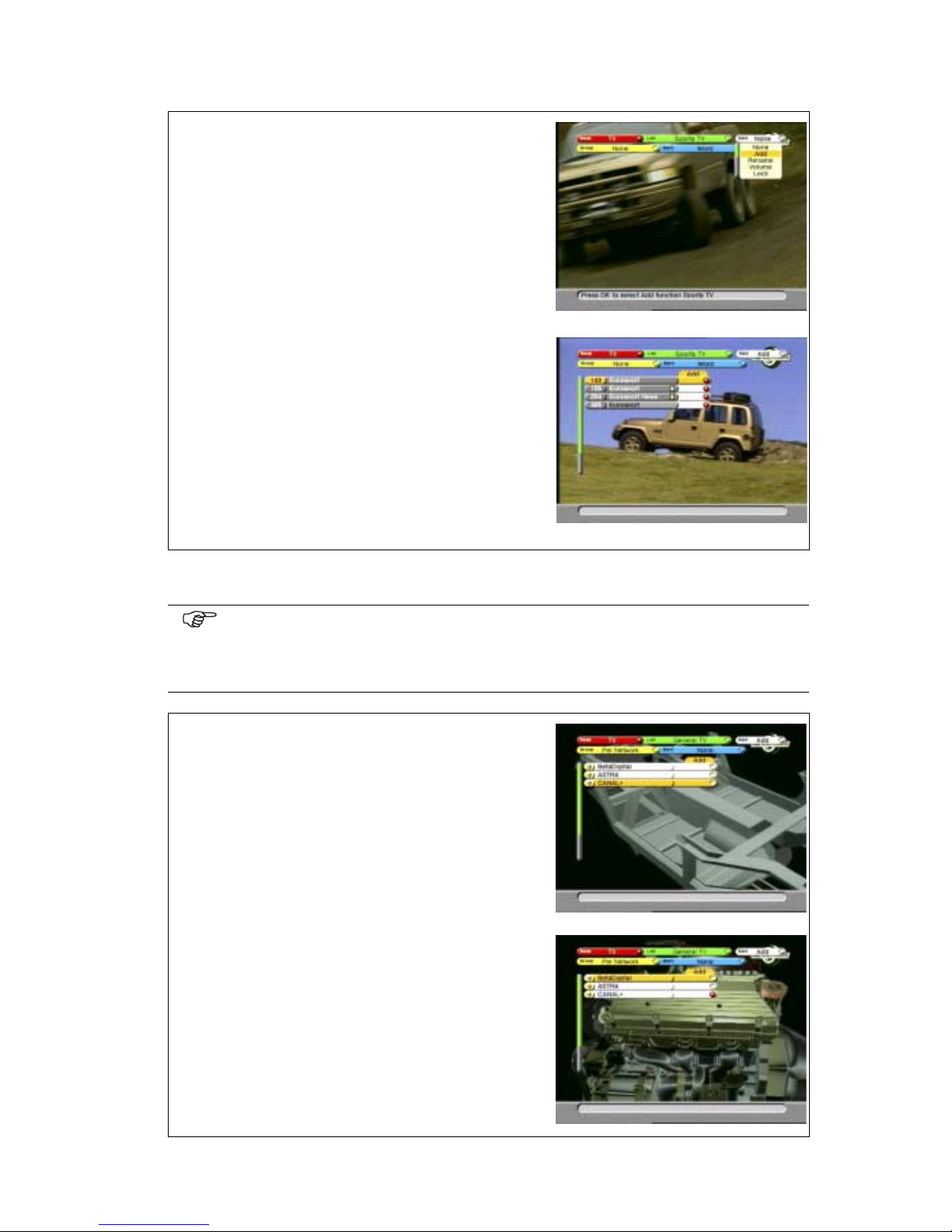

2.1. ADD A CHANNEL TO A FAVORITE LIST

1. On the RCU, press the OK key.

2. Select the required mode.

3. Read the available help text for information.

4. Group and sort the all channels list to locate the required channel quickly.

5. On the RCU press the GREEN key.

6. Select the favorite list to which you want to add a channel.

7. On the RCU press the WHITE key.

8. Select the add option.

9. Read the available help text for information.

10. Go to the channel you want to add.

11. On the RCU, press the OK key. Note a red bullet appears behind the selection and the cursor advances to the next channel.

12. If you want to undo the selection, press the OK key again.

13. Press the WHITE key to end the session.

2.2. ADD A GROUP OF CHANNELS TO A FAVORITE LIST

NOTE

As an example, this procedure details the instructions on how to add a group of channels to a favorite list. In this example we add a complete network to the My TV Channels favorite list

1. On the RCU, press the OK key.

2. Select the required mode.

3. Read the available help text for information.

4. Group the channels as required.

5. Select the favorite list to which you want to add the group of channels.

6. On the RCU press the WHITE key.

7. Select the add option.

8. Read the available help text for information.

9. Go to the network you want to add.

10. On the RCU, press the OK key. Note a red bullet appears behind the selection and the cursor advances to the next item.

11. If you want to undo the selection, select again and press the OK key.

Page 5 - 8 EchoStar D-2400IP

Page 47

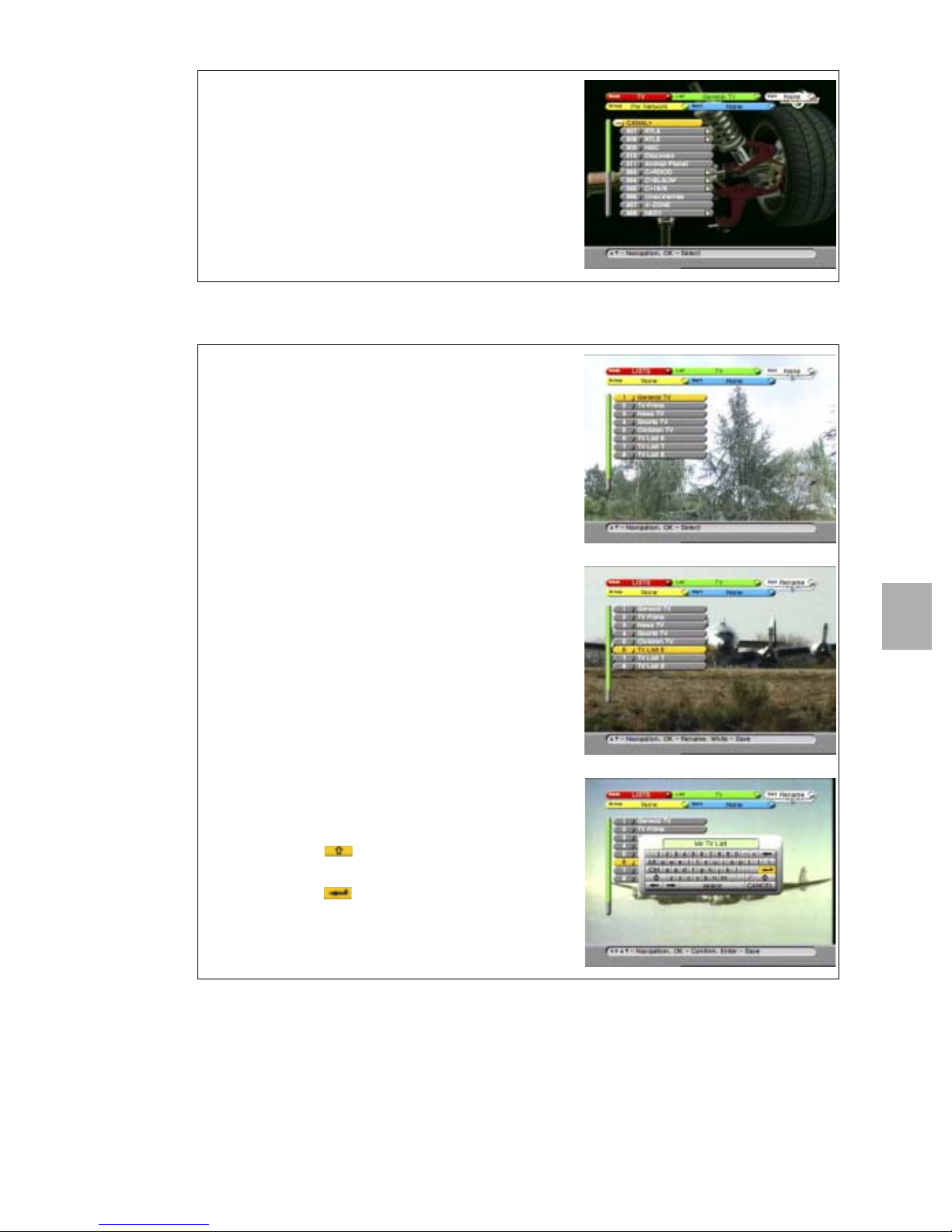

12. Press the WHITE key to end the session.

13. If only the network bar is show, press the i-key to expand the selection.

14. Select a channel.

15. On the RCU, press the OK key to view the selected channel. Note that in the left bar of the InfoBanner, a heart symbol appeared to indicate that this channel is a favorite channel.

2.3. RENAME A FAVORITE LIST

1. On the RCU, press the OK key;

2. Press the RED key and select Lists.

3. Press the GREEN key and select the category.

Operation

Section 5

4. In the Edit bar, select the RENAME option.

5. Read the available help text for information.

6. Go to the favorite list you want to rename.

7. On the RCU, press the OK key.

8. When the keyboard appears: a. use the arrow keys to navigate; b. press OK to accept the character; c. select the button to get lower case

characters and numbers; d. select the button e. on the RCU, press the OK key to confirm.

Digital Satellite Receiver Page 5 - 9

Page 48

Section 5

Operation

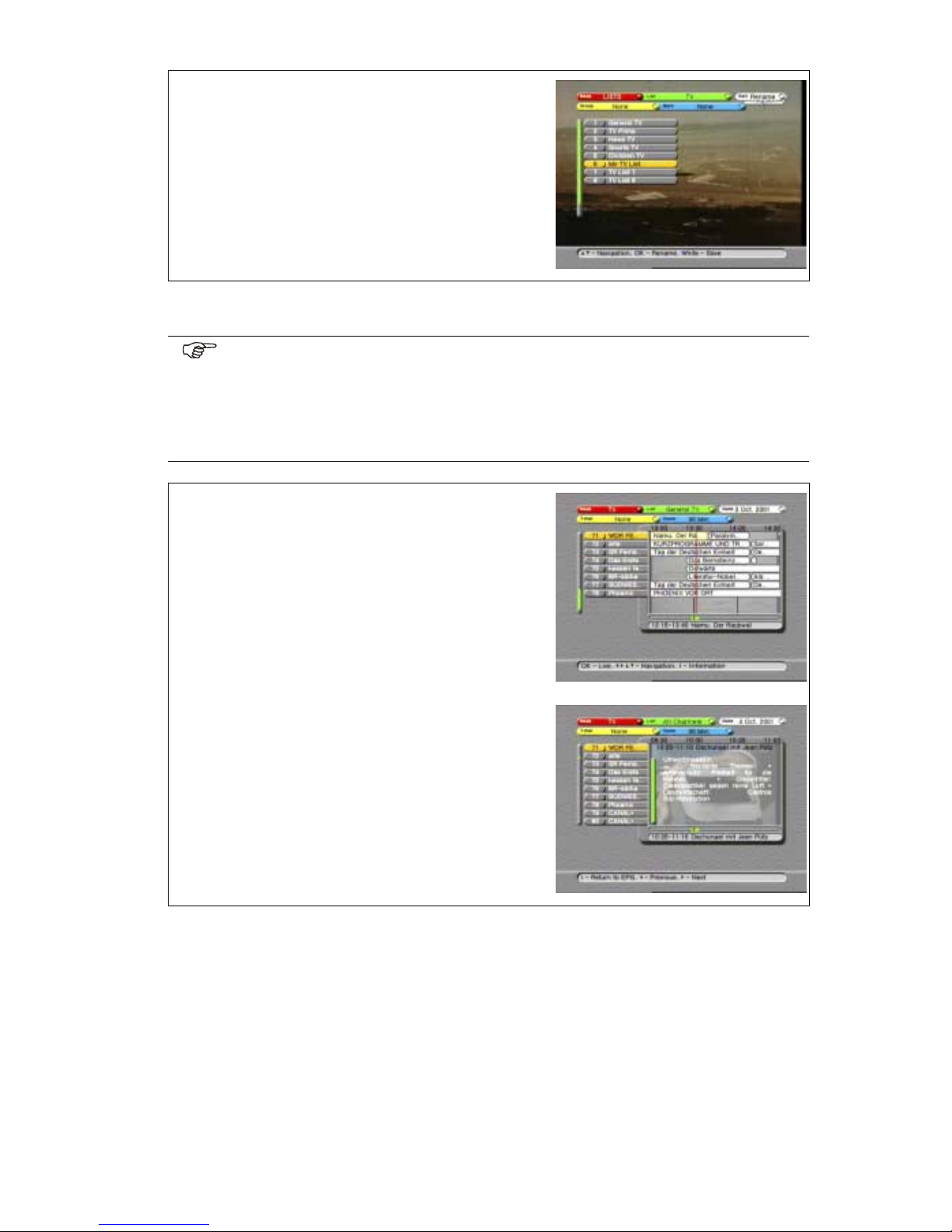

9. Either: a. press the WHITE key to end the session, or b. select the next favorite list you want to

rename.

3. TO USE THE ELECTRONIC PROGRAM GUIDE (EPG)

NOTE

The EPG information is not always available. Sometimes the service provider (who sends the EPG information) supplies only the program name, the now/next information or sometimes nothing at all. EchoStar has no influence on this matter. Make sure the local time is set otherwise you can not view EPG information because it needs the correct time (Refer to the Local Time menu).

1. Use the EPG key to access the main EPG menu.

2. Allow the receiver to collect the EPG information for the selected channel.

3. Read the available help text for information.

4. Use the  keys to select a channel.

5. Use the  keys to select the programs.

6. Use the i-key to shift between detailed program information and the main EPG menu.

7. Use the OK key to view the selected channel.

Page 5 - 10 EchoStar D-2400IP

Page 49

3.1. TO SET A TIMER

CAUTION

Note that the VCR timer does not start or program your video recorder (VCR). You have to set the timer of your VCR also to the same time as on the receiver. Please refer to the user’s guide of your VCR how to record from a satellite receiver. On quite a lot of VCRs you have to select the so called external channel (E1)

NOTE

You cannot set a timer in the past or on a program that has already begun.

1. On the RCU, press the EPG key.

2. If EPG data is available, select a program in the future (right of the red line in the EPG window);

3. If no EPG data is available, select the correct channel.

4. On the RCU press the YELLOW key.

5. Read the available help text for information.

6. Select the required timer.

7. When the timer appears, if necessary:

Operation

Section 5

8. Change the date: a. use the  key, to go to the date; b. read the available help text for information; c. press the OK key to change the date; d. in the calendar, select the required date; e. press the OK key to return to the timer.

NOTE

Be aware that the shown EPG start/stop time might not be the same as the actual start/stop times, because of last minute program changes.

9. Change the start time: a. use the  key, to go to the start time; b. read the available help text for information; c. press the  keys to set the hours; d. press the OK key to go to the minutes; e. press the  keys to set the minutes.

Digital Satellite Receiver Page 5 - 11

Page 50

Section 5

10. Change the stop time:

11. Change the repetition:

12. Change the status:

Operation

a. use the  key, to go to the stop time; b. read the available help text for information; c. press the  keys to set the hours; d. press the OK key to go to the minutes; e. press the  keys to set the minutes.

a. use the  key, to go to the period; b. read the available help text for information; c. press the  keys to set the repetition.

a. use the  key, to go to the status; b. read the available help text for information; c. press the  keys to set the status.

13. Save the timer: a. use the  key, to go to the Store Settings; b. read the available help text for information; c. press the OK key to confirm the settings.

14. Note the clock that appeared in your program.

15. Do not forget to program also your VCR.

If the timer screen does not disappear, you have set a timer in the past or for a running program. Revise either date, start or stop time to a time in the future

3.2. DELETE A TIMER

1. On the RCU: a. press the EPG key; b. press the GREEN key; c. select from the list: Timers; d. press the OK key.

2. Select the applicable timer and press the OK key.

3. Change the status: a. use the  key, to go to the status; b. read the available help text for information; c. press thekey to set the status to inactive.

4. Delete the timer: a. use the  key, to go to the Store Settings; b. read the available help text for information; c. press the OK key to confirm the deletion.

Page 5 - 12 EchoStar D-2400IP

Page 51

Operation

3.3. USE THE INFOBANNER RELATED FUNCTIONS

1. On the RCU, press the i-key.

2. If available, allow the receiver to collect the EPG information for the selected channel.

3. If the i-button in the InfoBanner is shown, use the i-key on the RCU to shift between the detailed program information and the InfoBanner.

4. On the RCU, press the EXIT key to remove the InfoBanner from the screen (only in TV-mode).

3.4. TO SELECT THE ALTERNATE AUDIO

1. On the InfoBanner, find the alt audio symbol.

2. On the RCU, press the key.

3. In the Alt. Audio pop-up menu, select the required alternate audio. Note that alternate audio information is provided by the service provider.

Section 5

4. On the RCU, press the key.

3.5. TO SELECT THE SUBTITLE LANGUAGE

1. On the InfoBanner, find the subtitle symbol.

2. On the RCU, press the key.

3. In the subtitle pop-up menu, select the required subtitle language. Note that subtitle information is provided by the service provider.

4. On the RCU, press the key.

3.6. TO SELECT ANOTHER SATELLITE

1. On the RCU, press the key.

2. In the Satellites List pop-up menu, select the required satellite.

3. On the RCU, press the OK key. Note that the dish moves towards the selected satellite.

Digital Satellite Receiver Page 5 - 13

Page 52

Section 5

Operation

4. TO SET THE USER PREFERENCES

4.1. TO CHANGE THE USER PROFILE

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. On the RCU: a. press the MENU key to save the settings; b. press the EXIT key to leave the menu.

4.2. TO CHANGE THE LANGUAGE

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. On the RCU: a. press the MENU key to save the settings; b. press the EXIT key to leave the menu.

4.3. TO SET THE PARENTAL LOCK

NOTE

This procedure does not lock a specific channel. After you made the parental control settings, you must lock the required channels or favorites manually. For a detailed procedure, please refer to the paragraph To Lock a channel.

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Enter the correct PIN code as requested

3. Read the available help text for information.

4. Make the selections.

5. On the RCU: a. press the MENU key to save the settings; b. press the EXIT key to leave the menu.

Page 5 - 14 EchoStar D-2400IP

Page 53

4.4. TO CHANGE THE PIN CODE

1. Select the parental Lock menu

2. Enter the correct PIN-code as requested

3. Select the Change PIN Code bar.

4. On the RCU, press the OK key.

5. Read the available help text for information.

6. In the Change PIN-Code menu, make the required selections. Now you will return to the parental lock menu.

7. On the RCU: a. press the MENU key to save the settings; b. press the EXIT key to leave the menu.

4.5. TO SET THE LOCAL DATE AND TIME

NOTE

Make sure the local time is set correctly otherwise you can not view and use the EPG information because the EPG and the related timers need the correct time.

Operation

Section 5

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. On the RCU: a. press the MENU key to save the settings; b. press the EXIT key to leave the menu.

4.6. TO SET THE TV SYSTEM

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. On the RCU: a. press the MENU key to save the settings; b. press the EXIT key to leave the menu.

Digital Satellite Receiver Page 5 - 15

Page 54

Section 5

Operation

Page 5 - 16 EchoStar D-2400IP

Page 55

MAINTENANCE

1. HARDWARE MAINTENANCE

WARNING

RISK OF ELECTRICAL SHOCK.

EMOVE THE MAINS PLUG FROM THE POWER SUPPLY SOCKET BEFORE YOU CLEAN THE

RECEIVER

1. Switch the receiver to stand-by and on the display make sure the clock shows.

2. Remove the mains plug from the power supply socket.

3. Wait at least five seconds, to help avoid possible damage to the receiver’s electronics.

4. Use a dry, soft and clean lint-free cleaning cloth to clean the receiver.

5. Other cleaning agents can cause damage to the outside surface. a. Make a dry, soft and clean lint-free cleaning cloth a little damp. b. Carefully wipe the surface and make sure that no moisture gets into the receiver. c. Let the receiver dry on the air.

6. Install the receiver and make sure all connections on the rear panel are made correctly (For more detailed instructions, please refer to section Installation).

7. Connect the mains plug to the power supply socket.

8. Set the local time, for detailed instructions please refer to the section Operation.

.MAKE SURE, IF USED, CLEANING AGENTS CANNOT GET IN THE RECEIVER.

Maintenance

Section 6

NOTE

Make sure the local time is set correctly otherwise you can not view and use the EPG information because the EPG and the related timers need the correct time.

2. SOFTWARE MAINTENANCE

NOTE

2.1. TO CHANGE THE SETUP OF THE RECEIVER

1. On the RCU, press:

Unless otherwise specified; This note explains the way you can navigate through the maintenance pages of the EchoNAV setup menu.

1. Use the OK key to pull down the menu selection fields.

2. Use thearrow keys to go through the selectable menu items.

3. In a pull-down menu, use the OK key to confirm the selection.

4. Use thearrow keys to navigate between the left and right column of selectable menu items.

5. Use the EXIT key to leave the menu and return to the live mode.

a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the or menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. Go to the Check Signal field.

5. On the RCU, press the OK key.

Digital Satellite Receiver Page 6 - 1

Page 56

Section 6

6. Wait for the Check Signal page to appear.

7. In the Check Signal menu make the required

8. Read the available help text for information.

9. If the red dot in the transponder field stays:

10. Go to the Search Channels field.

11. On the RCU, press the OK key.

12. Wait for the search to complete:

13. On the RCU:

Maintenance

selections for transponder and search mode.

a. select another transponder; b. go to the check signal field; c. on the RCU, press the OK key.

a. the receiver display shows a moving dot; b. the search completed popup menu appears.

a. press the OK key to save the settings; b. press the EXIT key to leave the menu.

2.2. TO CHANGE THE USER LNB SETTINGS

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. Go to the Store Settings field.

5. On the RCU: a. press the OK key to save the settings; b. press the EXIT key to leave the menu.

2.3. ABOUT ECHOSTAR - RECEIVER INFORMATION

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. In the About EchoStar information menu you can look up the factory and receiver information.

3. Read the available help text for information.

Page 6 - 2 EchoStar D-2400IP

Page 57

Maintenance

2.4. TO DO A SOFTWARE UPDATE FROM THE SATELLITE

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. Go to the System Upgrading field.

Section 6

5. On the RCU, press the OK key.

6. Wait for the system upgrade to complete.

WARNING D

O NOT PRESS ANY KEYS DURING THE SESSION, THIS

CAN INTERRUPT THE SOFTWARE UPGRADE SEQUENCE

WHICH CAN DAMAGE THE RECEIVER PERMANENTLY

NOTE

EchoStar offers on a regular basis software updates via the satellite and the EchoStar website. If you have trouble to get a download with the latest software version, please ask your retail seller or dealer for assistance.

2.5. TO DO A FACTORY RESET

1. On the RCU, press:

NOTE

Be sure if you select Memory Erase because all your personal settings will be deleted and replaced with the factory settings. Some of the personal settings that will be deleted are Parental Lock, Favorite lists and System setup. Memory erase resets the receiver as if the receiver comes just out of the box.

a. the MENU key;

■ The receiver display shows:

- ota (check for new software)

- d1...d100 (downloading)

- P1...P100 (upgrading)

- done (update memory)

- C.... (channel indication)

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

4. Go to the Confirm Reset field.

5. On the RCU, press the OK key.

6. Wait for the Languages initial setup menu to appear.

7. Do the initial setup, refer to the section Installation for detailed instructions.

Digital Satellite Receiver Page 6 - 3

Page 58

Section 6

Maintenance

2.6. TO GET CONDITIONAL ACCESS INFORMATION

1. On the RCU, press: a. the MENU key;

b. the  key to select the menu;

c. the OK key, to select the menu.

2. Press the OK key and make the selections.

3. Read the available help text for information.

2.7. TO ADD A SATELLITE

1. On the RCU, press: a. the OK key; b. Select Mode = TV c. Select List = All Channels d. Select Group = None e. Select Sort = None f. Select Edit = Add SAT

2. On the RCU, press the OK key.

3. Use the on-screen keyboard to enter the name of the satellite.

4. When the keyboard appears: a. use the arrow keys to navigate; b. press OK to accept the character; c. select the button to get lower case

characters and numbers;

d. select the button e. on the RCU, press the OK key to confirm.

5. On the RCU, use the numeric keys to enter the Position.

6. Select the Location.

7. On the RCU, press the white key.

Page 6 - 4 EchoStar D-2400IP

Page 59

8. Enter the required settings.

9. Read the available help text for information.

10. Go to the continue field.

11. On the RCU, press the OK key to advance.

12. Make the required selections, it is advised to selectthesearchmodeasTP.

13. Read the available help text for information.

14. Monitor the signal indicator and make sure that you have sufficient signal strength and quality.

15. After you found the location, press the OK key to confirm the position.

16. Go to the Search Channels field.

17. On the RCU, press the OK key to advance.

Maintenance

Section 6

18. Wait for the search to complete: a. the receiver display shows a moving dot; b. the search completed popup menu appears.

19. On the RCU: a. press the OK key to end the procedure; b. press the EXIT key to return to live video.

2.8. TO ADD A TRANSPONDER

1. Select a channel of the satellite to which you want to add a transponder.

2. On the RCU, press: a. the OK key; b. Select Mode = TV c. Select List = All Channels d. Select Group = None e. Select Sort = None f. Select Edit = Add TP

3. On the RCU, press the OK key.

Digital Satellite Receiver Page 6 - 5

Page 60

Section 6

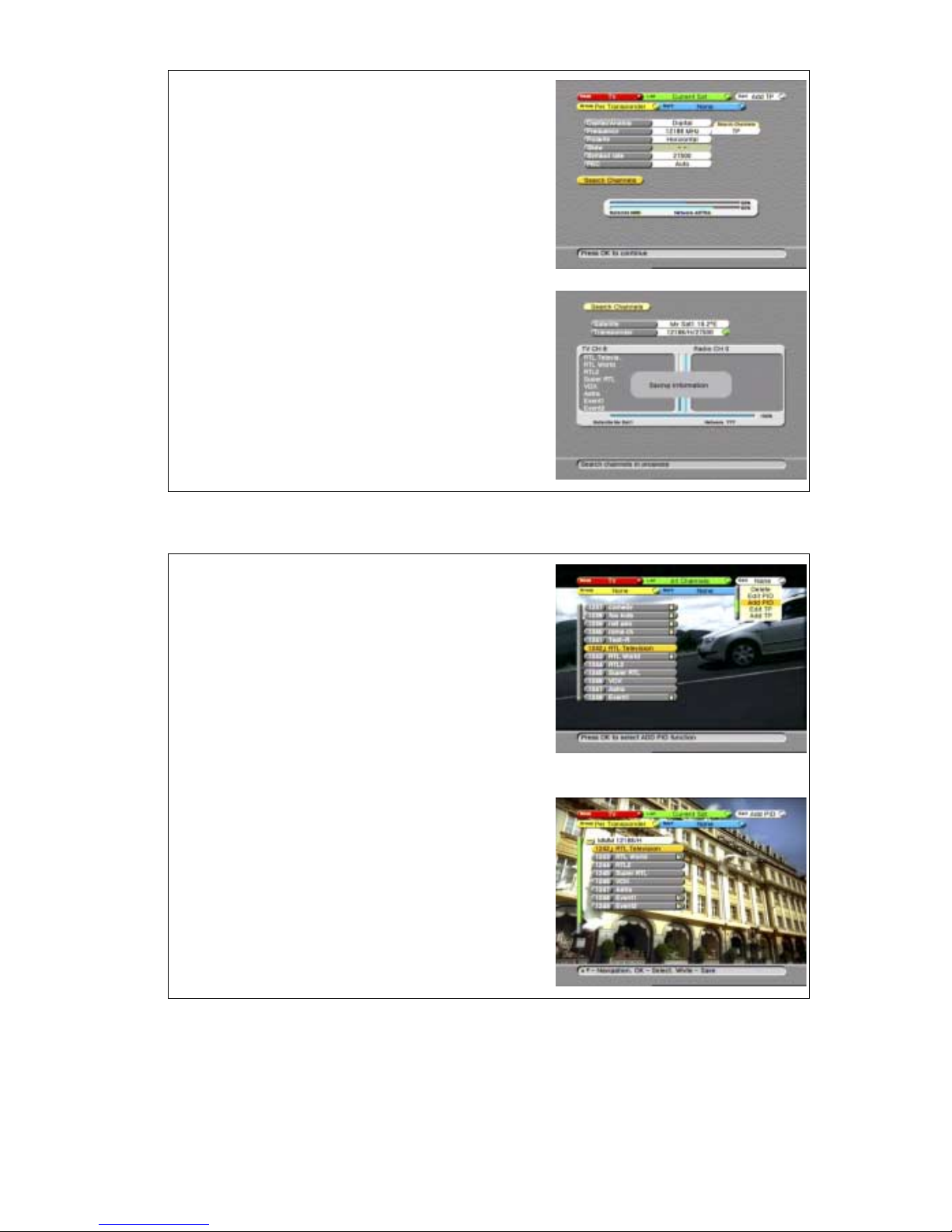

4. On the RCU, press the OK key again to advance.

5. Enter the required settings.

6. Read the available help text for information.

7. Monitor the signal indicator and make sure that

8. Go to the Search Channels field.

9. On the RCU, press the OK key to advance.

10. Wait for the search to complete:

11. On the RCU:

Maintenance

you have sufficient signal strength and quality.

a. the receiver display shows a moving dot; b. the search completed popup menu appears.

a. press the OK key to advance; b. press the white key to end the procedure; c. press the EXIT key to return to live video.

2.9. TO ADD A PID

1. Select a channel of the transponder to which you want to add a PID.

2. On the RCU, press: a. the OK key; b. Select Mode = TV c. Select List = All Channels d. Select Group = None e. Select Sort = None f. Select Edit = Add PID

3. On the RCU, press the OK key.

4. Select the applicable transponder.

5. On the RCU, press the OK key.

Page 6 - 6 EchoStar D-2400IP

Page 61

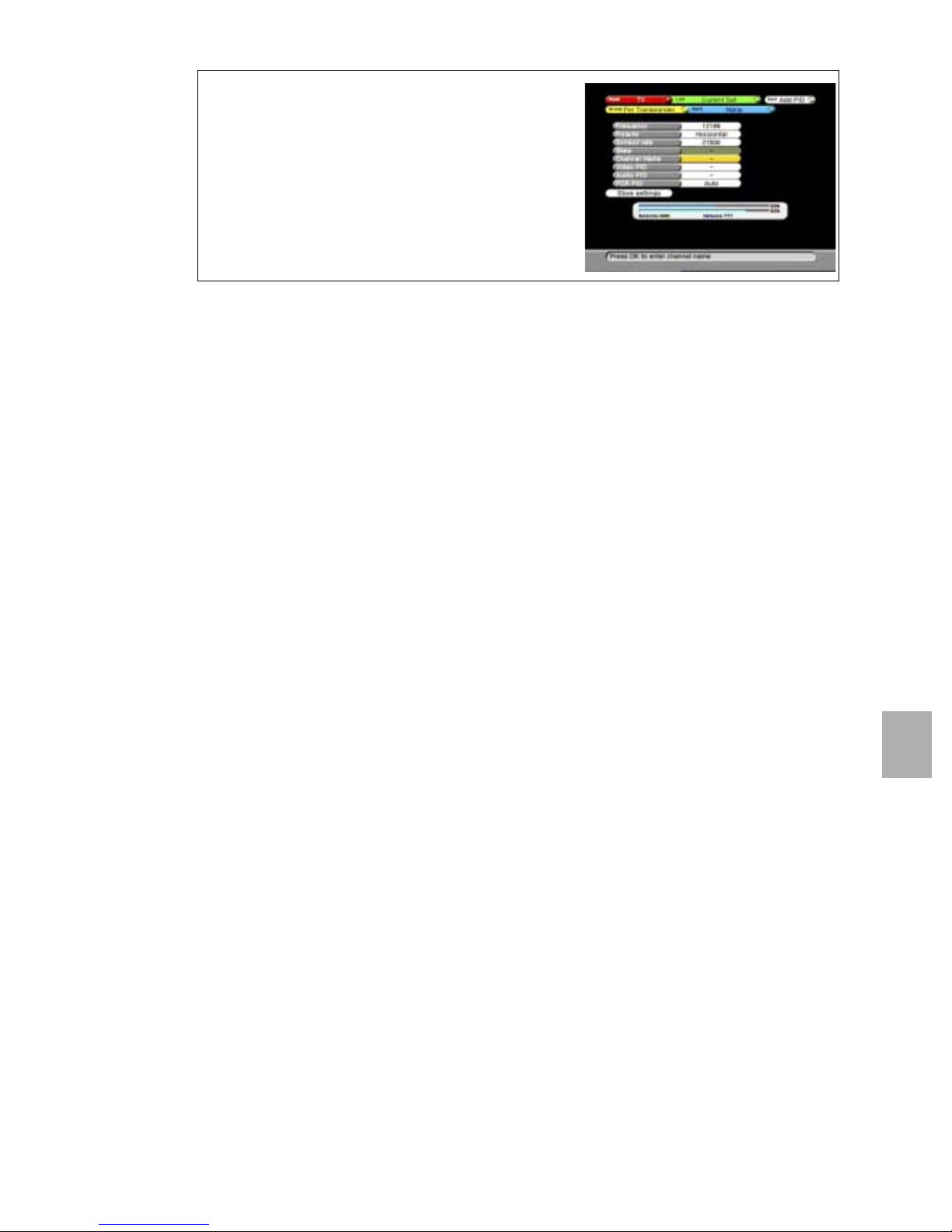

6. Enter the required settings.

7. Read the available help text for information.

8. Monitor the signal indicator and make sure that you have sufficient signal strength and quality.

9. Go to the Store Settings field.

10. On the RCU: a. press the OK key to store the settings; b. press the white key to end the procedure; c. press the EXIT key to return to live video.

3. END OF LIFE DISPOSAL

Your receiver and related accessories contain materials which can be recycled and reused. Specialized companies can recycle your equipment to increase the amount of reusable materials and to minimize the amount of materials to be disposed of.

Please inform yourself on local regulations on disposal of your equipment.

Maintenance

Section 6

Digital Satellite Receiver Page 6 - 7

Page 62

Section 6

Maintenance

Page 6 - 8 EchoStar D-2400IP

Page 63

TROUBLESHOOTING

1. GENERAL

Problem Possible cause What to do?

Troubleshooting

Section 7

1. Nothing appears on the receiver display.

2. The display shows a flashing--:--

3. You have forgotten the personal PIN-code.

2. EPG RELATED

Problem Possible cause What to do?

1. The EPG is empty.

2. The EPG shows (little) grey balloons without text.

■ Main power cable is

damaged or not connected.

■ General domestic power

failure

■ General domestic power

failure

■ Youhaveselectedan

empty (favorites) list.

■ The selected program

supports no EPG.

■ The local time is not

correct.

■ ThetimescaleoftheEPG

is to big.

■ Check the main power

cord and insert it in the (wall socket).

■ Check the domestic

power supply and insert a new fuse.

■ In the Local Time menu,

set the correct time.

■ Contact your dealer.

■ Select another (favorites)

list.

■ There is no solution for

this, the data is supplied by the service provider and beyond control.

■ In the Local Time menu,

set the correct time.

■ Use the zoom function

(blue key) to reduce the time scale until the information can be read.

■ Select the grey balloon

andontheRCU,press the i-key to view and read the information.

3. TV AND RADIO RELATED

Problem Possible cause What to do?

1. No picture or sound in the TV or radio mode.

2. Bad picture or noisy sound in the TV or radio mode.

Digital Satellite Receiver Page 7 - 1

■ Receiver is in standby. ■ Switch the receiver on.

■ Cable related problems. ■ Check the cable

connections and do any necessary work.

■ Dish/LNB related

problems.

■ Make sure the dish and

LNB are correctly adjusted. Do any necessary work.

■ Bad reception of the

signal.

■ Make sure the dish and

LNB are clean and correctly adjusted. Do any necessary work.

■ Signal interference with

UHF-installation.

■ Check the UHF settings.

Make sure you use the correct channel. Please refer to the TV/radio user guide.

Page 64

Section 7

Problem Possible cause What to do?

Troubleshooting

3. The TV shows a No Signal message.

4. There is no Dolby digital (AC-3)soundtomyother equipment.

5. I cannot view or listen to a scrambled channel.

6. I cannot find a channel which should be there.

7. The TV shows a popup:

■ Bad reception of the

signal.

■ Make sure the channel

selected transmits.

■ Make sure the correct

dish or LNB is selected.

■ Make sure the dish and

LNB are clean and correctly adjusted. Do any necessary work.

■ The equipment is

connected to the receiver with a RCA or SCARTcable only.

■ Connect the

S/P DIF connector of the receiver to the Dolby digital input of the receiving equipment.

■ The CI-module/smart

card is not valid.

■ Insert, for this service, a

valid CI-module/smart card.

■ The CI-module/smart

card is not (correctly)

■ Insert the CI-module/

smart card correctly.

inserted.

■ The group or sort option is

set.

■ Youareinthewronglist. ■ Check the all channels list

■ Set the group and sort

mode to none.

and select the correct (favorite) list.

■ The channel is hidden. ■ Unhide the channel.

■ You have selected an

empty (favorite) list.

■ Press the WHITE key

Select the add option.

■ Press the GREEN key

Select the Current Sat or All Channels list.

4. REMOTE CONTROL UNIT (RCU) RELATED

Problem Possible cause What to do?

1. Receiver does not respond to the RCU.

2. Receiver does sometimes not respond to the RCU.

■ Batteries are empty. ■ Insert new batteries.

■ The RCU is set to another

mode (TV, VCR, AUX).

■ The receiver code is not

programmed correctly.

■ On the RCU, press the

SAT key.

■ Program the SAT mode

with code 0222, see the appendix for instructions.

■ Direct sun light from

behind the receiver.

■ You do not aim sufficiently

at the receiver.

■ Batteries are almost

■ Close the sun blinds or

get closer to the receiver.

■ Aim at the receiver

display.

■ install a RCU extender.

■ Insert new batteries.

empty.

Page 7 - 2 EchoStar D-2400IP

Page 65

5. INSTALLATION RELATED

Problem Possible cause What to do?

Troubleshooting

Section 7

1. My television does not receive any signal from the receiver (UHF only)

2. My television does not receive any signal from the receiver

3. My television shows black areas on the left and right of the screen.

4. In a motorized installation, the dish turns to the West while I select Set East Limit.

5. In a motorized installation, I cannot select a specific satellite.

6. In a motorized installation, the positioner reacts unpredictable which results in incorrect positioning of the dish.

7. During (initial) setup of the receiver, no channels are found.

■ You did not select the

correct audio/video channel on your TV.

■ You did not select the

correct A/V channel on your TV.

■ You did not use a correct

SCART cable.

■ You did not select the

correct aspect ratio for your TV.

■ The motor turns the other

way around because the cable is not installed correctly.

■ The required satellite is

located outside the selected East or West limit.

■ The cables used are

worn, damaged or corroded.

■ The cable is incorrectly

finished or not sufficiently shielded.

■ You did not select the

correct LNB(F).

■ When installed, you have

selected the incorrect switch type or port.

■ You have selected the

incorrect satellite to search channels on.

■ You have selected the

incorrect search method.

■ Refer to the user manual

of the TV for instructions.

■ On the receiver, In the TV

system menu select the correct channel and PAL setting.

■ Use another method to

connect the receiver.

■ Select the correct A/V

channel on your TV.

■ Use only a full featured

SCART cable that is correctly shielded.

■ On the receiver, in the

user profile menu select the correct aspect ratio.

■ At the receiver, change

the cable connections to M1 and M2.

■ If physically possible,

mind dish damage, revise the limit setting.

■ Select another satellite.

■ Inspect the cable for

possible damage and install new cable as required.

■ Use sufficiently shielded

and correctly finished cables.

■ On the receiver, in the

installation setup menu select the correct LNB(F).

■ On the receiver, in the

installation setup menu make the correct selections.

■ On the receiver, in the

installation setup menu select the correct satellite.

■ At an initial setup, always

choose the option All.

Digital Satellite Receiver Page 7 - 3

Page 66

Section 7

Troubleshooting

Page 7 - 4 EchoStar D-2400IP

Page 67

GLOSSARY

1. LIST OF USED ABBREVIATIONS

Glossary

Section 8

A/V

ANT

ATA Advanced Technology Attachement

ºC

CAM

CE Conformite European

D2MAC Digital Multiplexed Analog Component

DAC Digital Analog Converter

dBm

DiSEqC

DMA Direct Memory Access

DVB

DVR

EPG

ºF

FTA

GND

GUI

H-H

IDE Intelligent Drive Equipment

IEC International Electrotechnic Committee

IRD Integrated Receicer Decoder (the

ISO

kHz

LNB

LNBF

max.

Mbps

MCPC

MHz

min

Audio/Video Alternating Current ANTenna (terrestial)

Celcius Conditional Access Module Compact Disc

CHannel Common Interface

version 2

deciBell deciBell milliwatts Direct Current Digital Satellite Equipment Control

Digital Video Broadcasting Digital Video Recorder East Limit Electronic Program Guide Fahrenheit Free-To-Air Gigabit GigaByte GrouND Graphical User Interface Horizon-to-Horizon HardWare

Intermediate Frequency

satellite receiver)

International Standards Organisation kilogram kiloHertz kiloWatt Low Noise Block down converter LNB with Feedhorn maximum MegaByte Megabits per second Multiple Channel Per Carrier MegaHertz minute

min.

MPEG

NTSC

minimum millimeter Moving Picture Experts Group National Television Standards

Committee

NVOD

OSD

OSG

OTA

PAL B/ G

PAL D/ K

PCMCIA

Near Video On Demand On-Screen Display On Screen Graphics Over The Air Phase Alternating Line B/G Phase Alternating Line D/K Personal Computer Memory Card

Industry Association

PCR Program Clock Reference

PID

PWM

QPSK

RCA Connector type, also Cinch connector

RCU

RND

S/PDIF

SAT

SCART Connector type, also Euro connector

SCPC

SMATV

STB

µs

UHF

VCR

Ver.

p-p

rms

WxHxD

Packet IDentification Personal Identification Number Pulse Width Modulation Quadrature Phase Shift Key

Remote Control Unit Radio Frequency RaNDom Sony/Philips Digital Interface SATellite

Single Channel Per Carrier Satellite Master Antenna TV Set Top Box (the satellite receiver) Software TransPonder TeleVision

micro

second Ultra High Frequency Volt Video Cassette Recorder Version Volts

peak-peak

Volts

rootmeansquare

Watt West Limit Width x Height x Depth

Digital Satellite Receiver Page 8 - 1

Page 68

Section 8

Glossary

2. EXPLANATION OF USED TERMINOLOGY

C-band A frequency range (3.70-4.20 GHz) used for satellite

broadcasts.

CCITT An European committee of the international

Telecommunications Union and makes recommendations for the distribution of telephone and data distribution.

Clarke Belt The Clarke Belt is a dedicated satellite orbit in which

satellites remain in a fixed position relative to the Earth’s surface.

CI-module/CAM Both names are used for these modules. These modules are

PCMCIA cards with a slot in which you can insert a smart card.

Common Interface (CI) A DVB standard which defines the software and hardware

requirements for condition access systems.

Conditional Access A system which is used by service providers to control the

subscriber’s access to certain services, programs and events like Pay TV.

DBS band A signal frequency range (11.70-12.40ghz) intended for

direct TV broadcast by satellite channels.

Decoder A unit that is connected to a satellite receiver in order to

unscramble a picture that is protected by encryption.

Digital Audio Broadcasting Standard which describes the method of transmitting digital

audio.

DiSEqC A standard through which it is possible to let a DiSEqC

compatible receiver send a signal over the RF cable to a switching device to switch between different LNBs or dishes. The DiSEqC uses the 22 kHz signal to control the switching device.

DVB A broadcast standard for digital radio and television, using

MPEG-2 compression. DVB is being supported by all European manufacturers and broadcasters.

EPG A electronic program guide that comes with the broadcast of

a particular satellite, Note that every station fills the EPG differently or not, so differences in the EPG are not necessarily receiver errors.

FEC Is an invisible part of a broadcast which makes sure that

possible errors in the reception of the satellite signal are corrected.

Feedhorn A part of the dish which collects the signals from the dish.

The signal is then fed to the LNB(F).

Ferrite A remote controlled device that determines the polarity of the

signal which is fed to the LNB. The ferrite is more or less an

electro-magnetic polarizer. Fixed Dish A dish antenna that is pointed at one particular satellite. Free-To-Air broadcast An unscrambled broadcast which you can view without

additional payments to a service provider. Frequency band A frequency band is a range of frequencies which are

dedicated to a certain usage. In the satellite area, commonly

known bands are the C-band and the Ku-band. High Definition Television A digital television format, which combines high-resolution

video and theater like sound to create a movie theater quality

TV viewing experience. Horizontal In the satellite industry, horizontal is used to indicate the

direction in which the received signal is polarized. Normally

you will find that it is abbreviated as H. KU-band A frequency range (10.70-18.00 GHz) used by most

European TV satellites. LNB A device behind the feedhorn which processes the signal

into a format which is understood by the receiver for further

processing

Page 8 - 2 EchoStar D-2400IP

Page 69

Glossary

LNBF A LNB with an integrated Feedhorn. So the LNBF comes as

one single unit.

MPEG The Moving Picture Experts group is founded by the ISO to

provide a basis for the coding and compression of moving pictures. MPEG has now become a standard method for the digital transmission of video and sound using less bandwidth than the analog transmission method.

Near Video-On-Demand Multi channel system broadcasting many copies of a film

with staggered start times so a complete film is always available to a viewer with a short waiting period.

Network With respect to the receiver, a network (also known as a

bouquet) is a set of programs that is offered by a single service provider.

NTSC USA video standard with image format 4:3, 625 lines, 60 Hz

and 4 MHz bandwidth with a total of 6 MHz video channel width.

PAL European video standard with image format 4:3, 625 lines,

50 Hz and 4 MHz bandwidth with a total of 8 MHz video channel width.

PID MPEG-2 transmits the audio and video information in so-

called packages. At the beginning of each package is an identifier (PID) present which tells the receiver what to do with the received information. Satellite receivers use normally four types of PID, these are VPID (video PID), APID (audio PID), Program Clock Reference (PCR PID) and data PID (EPG information).

Parental lock A feature which is introduced to give you the possibility to

‘lock’ or ‘hide’ several functions of the receiver to prevent unauthorized persons (children) to view broadcasts that are not suitable for them. The use of the parental lock requires a PIN code. With this PIN code you can change or unlock the locked or hided channels.

Pay-Per-Channel With this feature, the viewer has to pay a certain price per

month (or other period) to receive all programs of a certain channel.

Pay-Per-View Conditional access service where the user is able to buy one

particular program from a particular service provider.

Pay TV With Pay TV, the consumer has to pay for certain programs

or services.

PIN code The PIN code or Personal Identification Number is

necessary to make use of the parental lock feature. The PIN code has four digits which can be set personally.

Polarization Broadcasts are done in a particular frequency band. To make

maximum use of a frequency band and bring you the maximum number of programs, the broadcasts are polarized in different ways to fit as many as possible programs into one frequency band.

Polarizer A remote controlled device that determines the polarity of the

signal which is fed to the LNB.

Polarmount A motorized dish antenna mount which enables a dish to

point at every ‘visible’ satellite on the Clarke Belt.

Receiver Unit which takes signals from a dish and converts them so

they can appear on radio and TV.

RS232 connection A RS232 connection allows you to connect equipment to the

receiver which supports the RS232 protocol.

Satellite A broadcast station, for satellite radio and TV, positioned on

theClarkeBelt.

SCART cable A SCART cable is also known as ‘Peritel’ cable and is

commonly used in Europe to connect the audio and video equipment. A fully furnished SCART cable has 21 wires which is at both sides finished with a 21-pin connector.

Section 8

Digital Satellite Receiver Page 8 - 3

Page 70

Section 8

Service provider A service provider is a company or organization that collects

Smart Card A card that contains a ‘smart’ code and is used to de-

SMATV A satellite master antenna TV system is a system which

Stream The signal which is received from the transponder which

Symbol rate Information in the stream which tells the receiver at which

Transponder Equipment inside a satellite responsible for receiving a single

Vertical In the satellite industry, vertical is used to indicate the

Glossary

and offers you a number of programs and services. Some

are free of charge and others you have to pay for.

scramble encrypted broadcasts when placed in a decoder or

receiver with a built-in decoder.

shares the reception resources and is intended for the

distribution of TV and radio signals to the user in one ore

more buildings.

contains the together with the video signal, additional

information that the receiver needs in order to process the

received signal correctly.

speed (rate) the transponder sends the digital information

(symbols). The receiver must be able to handle the symbol

rate to process the signal correctly into a correct image.

uplinked channel and rebroadcasting it back to Earth.

direction in which the received signal is polarized. Normally

you will find that it is abbreviated as V.

3. EXPLANATION OF THE SEARCH MODES

In the various menu pages you can make a selection from various search modes. The search mode gives the possibility to scan a satellite or transponder in a particular manner. The search modes are identified as: All In this mode the built-in database is used to select the available transponders.

The digital channels that belong to these transponders are searched for and added to the all channel list.

FTA In this mode the built-in database is used to only search for the available

FTA channels which are then added to the all channel list. In the real world it seems that the service providers do not always accurately code their channels with a scrambled or FTA code. For this reason you may find that some searched channels are scrambled. Also there is a possibility that scrambled channels are coded as FTA. These channels will then be missed out because of the erroneous code.

Network In this mode the built-in database or information from the received stream is

used to search for the transponders that are included with the currently received network. The digital channels that belong to this network are searched for and added to the all channel list.

TP In this mode the built-in database or information from the received stream is

used to search for or scan in the selected transponder. The digital channels that belong to this transponder only are searched for or scanned in and added to the all channel list.

Digital In this mode the built-in database is used to search for the available digital

channels. The digital channels are then added to the all channel list. The digital channels are shown as white channel names for easy recognition.

Digital IF In this mode the currently received satellite is scanned for digital channels. The

digital channels, within the tuner bandwidth and selected symbol rates are scanned in and added to the all channel list.

Update In this mode the built-in database is used to search for the available digital

channels. Then all new channels are added to the all channel list.

None Transponders on the selected satellite are not searched for.

Page 8 - 4 EchoStar D-2400IP

Page 71

INDEX

about echostar page .................................... 6-2

add a channel to a favorite list ..................... 5-8

add pid .......................................................4-15

add pid .........................................................6-6

add sat .......................................................4-15

add satellite ................................................. 6-4

add tp ........................................................4-15

add transponder ..........................................6-5

alternate audio ........................4-18

alternate subtitling .....................................4-18

autosat ..................................................3-6

, 4-19, 5-13

bad picture ...................................................7-1

blue key ....................................................... 5-2

caution ......................................................... 1-2

ce mark ........................................................ 1-2

change the language ................................. 5-14

change the pin code ..................................5-15

change the user profile .............................. 5-14

check signal ............................................... 4-10

check signal menu ....................................... 6-2

ci-module ...............................................1-I

cleaning ....................................................... 6-1

clock .................................................4-17

conditional access information .................... 6-4

conditional access menu ....................4-5

connections ................................................. 4-2

delete ......................................................... 4-15

delete a channel ..........................................5-5

delete a timer ............................................. 5-12

detailed program information ............5-10

disposal ....................................................... 6-7

dolby digital ...............................................4-18

dvb ...............................................................1-II

echonav user interface ................................ 4-4

edit .............................................................4-15

edit a list ...................................................... 5-3

edit pid ....................................................... 4-15

edit tp ......................................................... 4-15

el-wl indicator ..............................................4-8

epg ................................... 3-5

, 4-16, 5-10, 7-1

, 4-9

, 7-2

, 5-12

, 4-13

, 5-13

INDEX

Section 9

factory reset ....................................... 4-12, 6-3

favorite .......................................................4-18

favorite lists ..................................................5-7

features ........................................................4-1

ferrite ............................................................8-2

fixed dish setup ..........................................4-10

fixed installations .........................................3-5

fta ...............................................................4-16

green key .....................................................5-2

group ..........................................................4-15

group a list ...................................................5-2

hide a channel .............................................5-6

i-button .......................................................4-18

i-key ...........................................................5-10

indicator .......................................................4-8

infobanner ........................................ 4-18

install the receiver ........................................1-1

installation setup menu ................................4-5

ird .................................................................8-1

, 5-13

keyboard .............................................. 5-2, 6-4

language .......................................... 5-13, 5-14

languages page ...........................................4-6

list ...................................................... 4-14

local time page .............................................4-7

lock ............................................................4-15

lock a channel ..............................................5-4

, 5-3

master hide ..................................................5-6

memory erase .................................... 4-12

mode ..........................................................4-14

move ..........................................................4-15

move a channel ...........................................5-3

, 6-3

navigation .....................................3-4, 5-1, 6-1

no picture .....................................................7-1

no signal ......................................................7-2

no sound ......................................................7-1

note ...................................................... 1-2

, 6-3

Digital Satellite Receiver Page 9 - 1

ota ...................................................... 4-12, 6-3

Page 72

Section 9

INDEX

parental lock page ....................................... 4-6

parental lock settings .................................. 4-6

parental rating information ........................ 4-18

pid ......................................................4-15

pin code ................................................4-7

polarotor ...................................................... 3-3

polarotor .............................................4-2

program satellites ...................................... 4-10

, 6-6 , 5-6

, 4-10

quattro ......................................................... 4-3

rcu ............................................................... 8-1

receiver information ..................................... 6-2

red bullet ..................................................... 5-5

red key ........................................................ 5-1

remote control unit ...................................... 4-3

rename ...................................................... 4-15

rename a channel ....................................... 5-5

rename a favorite list ................................... 5-9

reserved timer ..................................4-17

, 5-11

safety ........................................................... 1-1

satellite ........................................................ 6-4

satellites list ............................................... 5-13

scrambled .................................................. 4-16

search channels page ..........................3-5

search mode ............................................... 6-2

search modes .............................................. 8-4

select a channel .......................................... 5-1

select a list .................................................. 5-2

select a mode .............................................. 5-1

select the alternate audio .......................... 5-13

select the subtitle language ....................... 5-13

set a timer ................................................. 5-11

set the channel volume ............................... 5-5

set the local date and time ........................ 5-15

set the tv system ....................................... 5-15

setup after memory erase ........................... 3-4

signal ..................................................4-8

signal indicator ............................................ 4-8

smart card information ................................. 6-4

smatv ........................................................... 3-8

software update ........................................... 6-3

software version ........................................ 4-11

sort ............................................................ 4-16

sort a list ...................................................... 5-2

, 6-2

, 4-10

start time ....................................................5-11

stb ................................................................8-1

stop time .................................................... 5-12

subtitling .......................................... 4-19

symbols ....................................................... 1-2

system setup menu ............................. 4-9

, 5-13

, 6-1

teletext .......................................................4-18

timers ......................................4-17

tp ................................................................4-15

transponder ................................................. 6-5

tv system page ............................................4-7

, 5-11, 5-12

use the epg ................................................5-10

use the infobanner .....................................5-13

user lnb settings ................................ 4-11

user preferences menu ................................ 4-5

user profile page ..........................................4-6

, 6-2

vcr timer ........................................... 4-17, 5-11

volume .......................................................4-15

volume button ............................................4-18

warning ........................................................ 1-2

white key ...................................................... 5-3

yellow key .......................................... 5-2, 5-11

zoom ..........................................................4-16

Page 9 - 2 EchoStar D-2400IP

Page 73

LNB(F) Configuration matrix

APPENDIX1

1. LNB CONFIGURATION MATRIX

In the installation menu, the different LNBs are already pre-programmed to save you a lot of configuring routines.

LNB TYPE LO Frequency LO Selection 13/18V 0/22kHz

Appendix 1

HVHV

Standard

Enhanced

Quattro

10,000 13/18V 18 18 0 0

9,750 13/18V 18 18 0 0

9,750 13V 13 13 0 0

10,750 18V 18 18 0 0

C-Band

DBS

TELECOM

5,150 13/18V 18 18 0 0

10,750 18V 18 18 0 0

11,475 18V 18 18 0 0

2. LNBF CONFIGURATION MATRIX

In the installation menu, the different LNBFs are already pre-programmed to save you a lot of configuring routines.

LNBF TYPE LO Frequency LO Selection 13/18V 0/22kHz

Standard

Enhanced

Universal

10,000 13/18V 18 13 0 0

9,750 13/18V 18 13 0 0

9,750 0 kHz 18 13 0 0

10,600 22 kHz 18 13 22 22

HVHV

Quattro

9,750 0 kHz 18 13 0 0

10,750 22 kHz 18 13 22 22

C-Band

C-Band SS

5,150 13/18V 18 13 0 0

5,150 13V 18 13 0 0

5,750 18V 18 13 0 0

3. USER DEFINED LNB(F) MATRIX

In the User LNB setting menu, you can define your own LNB(F). You can use the list below to note the settings.

User LNB(F) LO Frequency LO Selection 13/18V 0/22kHz

HVHV

User ........ 1

User ........ 2

... ...,... ... ... ... .../... ... ... ... ... ... ... ... ... ... ...

Digital Satellite Receiver Page A1 - 1

Page 74

Appendix 1

LNB(F) Configuration matrix

Page A1 - 2 EchoStar D-2400IP

Page 75

EchoStar Quattro, Programmable Remote Control Unit

APPENDIX2

1. INTRODUCTION

This appendix gives the information necessary for the use of the Quattro with other equipment than the EchoStar receiver. This appendix also contains a code reference list which gives the program code for most of the know TV, video and audio equipment.

The Quattro is and infra red (IR) type programmable remote control unit (RCU) that is able to control most functions (basic) of your TV, VCR, DVD and Audio equipment connected to the receiver. You can program the RCU with a code to which your equipment responds. If the code is not available in the supplied code list, the built-in intelligence assists you to find the applicable code.

For future use it is recommended that you make a note of the equipment codes and the serial number in the fields below: The RCU is already pre-programmed for the EchoStar receiver with code 0222.

TVkey:____

VCRkey:____

AUXkey:____

SATkey:____

Appendix 2

SerialNumber:__-___-__

2. THE BATTERIES

The RCU is powered by two 1.5 Volt Alkaline batteries type AA/LR6. We recommend that you do not use rechargeable batteries. At battery change, the RCU keeps the programmed information for a maximum of 15 minutes.

1. Remove the battery cover.

2. Find the battery + and - marks.

3. Insert the batteries accordingly the + and - marks.

4. Install the battery cover.

5. Press the SAT key once, Make sure the key lights up to indicate that it is ready for use.

3. THE KEYS

If the RCU is programmed with the correct equipment code, the keys should control the same (basic) functions as the keys on the original remote control unit of that equipment.

The functionality of the SAT mode is discussed in the user’s guide of the satellite receiver.

The Power key This key controls the On-OFF-STANDBY function.

TheMutekey To blank out the volume.

Mode keys (TV, VCR, AUX, SAT) These keys are programmable to take control over the television, video recorder, DVD-player, audio sets and the satellite receiver.

MENU key This key activates the available on-screen menu for the selected equipment.

EPG key If the function is available, this key activates the program function for VCR and DVD equipment.

Digital Satellite Receiver Page A2 - 1

Page 76

Appendix 2

EchoStar Quattro, Programmable Remote Control Unit

ikey If the function is available, this key activates the display/information function for TV, VCR and DVD equipment.

Satellite list key Thiskeyisnotused.

Volume +/- keys This key is used to control the volume level for the selected equipment.

CH +/- keys This key is used to move one channel up or down for the selected equipment.

Arrow cluster To scroll left, up, right or down.

OK key While in a menu, this key is mainly used to confirm a selection.

Page +/- keys If the function is available, this key activates the tracking +/- function for VCR and surround center +/- for audio equipment (AUX).

Recall key This key brings back the last selection. If the function is available, this key activates the random function (AUX).

Transport keys These keys operate the transport function of your VCR, DVD and DVR. To prevent accidental recording, the RECORD key is pressed twice to start the recording.

Subtitle key If the function is available, this key gives subtitles in DVD mode and may also function in TV mode as white fast text key or menu key.

Audio language key If the function is available, this key selects audio language choice for your DVD player and stereo/mono or audio language for your television.

Bookmark key This key is dedicated for use in the SAT mode, for detailed information refer to the user’s guide of your satellite receiver.

?key If the function is available, this key activates the ? function for teletext and for some TVs it activates the 16:9 mode.

Red, Green, Yellow, Blue and White key If the function is available, this key activates the fast text functions (fast navigation in teletext).

For some equipment the key activates the menu function. For detailed information of the fast text functions, please refer to the applicable user’s guide.

Page A2 - 2 EchoStar D-2400IP

Page 77

EchoStar Quattro, Programmable Remote Control Unit

Numerical keys The Numerical keys (0-9, TV/RAD, FAV) activates the same functions as available on your original remote control unit, such as direct access program selection. TV/RAD key If the function is available, this key operates as the AV key for TV and as TV/VCR for VCR. FAV key If your original remote control unit uses one/two number keys (usually marked as -/--, 10 or 20), press this key as usual.

Teletext keys If the function is available, some transport keys control the main teletext functions. You find the teletext functions under the given keys: teletext off; press the stop key teletext on; press the play key teletext mix; press the rewind key teletext hold; press the pause key teletext expand; press the record key

4. PROGRAM THE TV, VCR AND AUX KEY

You can program the mode keys (TV, VCR, AUX) with only one device per key.

■ The TV key is used to setup the RCU to control your basic TV functions;

■ The VCR key is used to setup the RCU to control your basic VCR or DVD functions;

■ The AUX key is used to setup the RCU to control your amplifier, tuner or miscellaneous

audio equipment.

You can program the SAT mode keys to control a number of satellite receivers. The RCU is default programmed to control the EchoStar satellite receiver that came in the same box.

Appendix 2

Some codes are quite similar. If your device does not respond or does not function properly with one of the codes, try another code listed under your brand.

4.1. SETUP WITH USE OF THE EQUIPMENT CODE LIST

NOTE

The procedures to set the RCU for the TV, VCR, DVD and Audio equipment is identical, therefor only the procedure to setup the TV is given.

1. Find your brand in the equipment code list.

2. Switch your TV to on and make sure a broadcast is seen.

3. On the RCU, press the TV key continuously until the indicator stays on.

4. Release the TV key and make sure the indicator blinks continuously.

5. Use the numerical keys to enter the first code that is listed behind your brand name.

6. Monitor the TV key and note that the indicator blinks three times.

7. Aim the RCU at your TV and press the on/standby key and make sure the TV switches off.

8. Now the RCU is programmed to control your TV.

9. If there is no response aim and press again. If there is no response, the first code is not valid for your TV. Repeat the previous steps with the next code given.

10. If the TV does not respond at the last code, continue with the next procedure

NOTE

Digital Satellite Receiver Page A2 - 3

Page 78

Appendix 2

EchoStar Quattro, Programmable Remote Control Unit

4.2. SETUP WITH USE OF THE SEARCH CODE FEATURE

NOTE

■ A completed search is indicated by eight blinks.

■ If the original remote control unit for the VCR, DVD or audio device does not

have a on/off key: before you continue insert a tape or disk before you continue;

■ For some codes the play or Volume + key might work.

1. Switch your TV to on and make sure a broadcast is seen.

2. On the RCU, press the TV key continuously until the indicator stays on.

3. Release the TV key and make sure the indicator blinks continuously.

4. On the RCU, press the on/standby key and make sure the indicator of the TV key stays on.

5. Press the up key once and see if the TV switches off. Make sure you wait at least 2 seconds to allow the TV to respond.

6. If the TV does not switch off, repeat step 5 until the TV switches off.

7. After the TV switched off, press the OK key to store the code.

8. On the RCU, press the on/off key. See that the TV key blinks once and the TV switches on.

9. Now your are ready to read-out the code from the memory for future use.

4.3. READ OUT THE EQUIPMENT CODE

NOTE

You can read out the code from the RCU, just blink back the code. It is handy for future reference. Remember you only can blink back the code after the RCU operates your device.

1. Switch your TV to on and make sure a broadcast is seen.

2. On the RCU, press the TV key continuously until the indicator stays on.

3. Release the TV key and make sure the indicator blinks continuously.

4. Use the numerical keys to enter code 990.

5. Monitor the TV key and note that the indicator goes off and stays off.

NOTE

The amount of blinks gives you the first number, no blinks indicate a 0.

6. Press the numerical key 1 and count the blinks for the first number.

7. Press the numerical key 2 and count the blinks for the second number.

8. Press the numerical key 3 and count the blinks for the third number.

9. Press the numerical key 4 and count the blinks for the fourth number.

10. Write the code, with a permanent pen, in the boxes in the battery cover and this manual.

11. Now the RCU is programmed to control your TV.

5. SPECIAL SETUP FUNCTIONS

It is possible to control a second TV or VCR with your RCU. One of the other mode keys (TV, VCR, AUX) must be sacrificed in this case. It is not possible to sacrifice the SAT key.

It is also possible to control another (up to 16) EchoStar receivers that use the equipment code 0222. This is done with use of the address feature in the SAT mode.

Page A2 - 4 EchoStar D-2400IP

Page 79

EchoStar Quattro, Programmable Remote Control Unit

5.1. SETUP A SECOND TV OR VCR

NOTE

The procedure to assign a second TV or VCR is identical, therefor only the procedure to assign the second TV is given.

1. On the RCU, press the TV key continuously until the indicator stays on.

2. Release the TV key and make sure the indicator blinks continuously.

3. Use the numerical keys to enter code 992.

4. Monitor the TV key and note that the indicator goes on and off and finally stays on.

5. Press the VCR key once and note that the indicator goes on and off and finally stays off.

6. Now the VCR key is assigned as a TV key.

7. Setup the VCR key to control your second TV, refer to chapter 4 for detailed instructions.

5.2. UNDO THE SETUP OF A SECOND TV OR VCR

NOTE

The procedure to undo an assignment for the TV or VCR is identical, therefor only the procedure to undo the assignment of the VCR key as a second TV is given.

1. On the RCU, press the VCR key continuously until the indicator stays on.

2. Release the VCR key and make sure the indicator blinks continuously.

3. Use the numerical keys to enter code 992.

4. Monitor the VCR key and note that the indicator goes on and off and finally stays on.

5. Press the VCR key once and note that the indicator goes on and off and finally stays off.

6. Now the VCR key is assigned as a VCR key.

7. Setup the VCR key to control your VCR, refer to chapter 4 for detailed instructions.

Appendix 2

6. SPECIAL FUNCTIONS

6.1. VOLUME LOCK (PUNCH THROUGH)

The RCU allows you to select the device that you want to control the volume of, independently from any other mode. As an example, if you are in the SAT mode, you can stay in the SAT mode and adjust the volume of the TV directly with the volume +/- key.

NOTE

The procedures to set the volume lock for the TV, VCR, DVD and Audio equipment is identical, therefor only the procedure to set the volume lock for the TV is given.

1. On the RCU, press the TV key continuously until the indicator stays on.

2. Release the TV key and make sure the indicator blinks continuously.

3. Use the numerical keys to enter code 993.

4. Press the TV key once.

5. Monitor the TV key and note that the indicator blinks three times.

6. Now the volume control is locked to the TV except for the AUX mode.

6.2. RESET VOLUME LOCK (PUNCH THROUGH)

1. On the RCU, press the SAT key continuously until the indicator stays on.

2. Release the SAT key and make sure the indicator blinks continuously.

3. Use the numerical keys to enter code 993.

4. Press the Volume + key once and note that the indicator blinks four times.

5. Now the volume control is unlocked to control the device that belongs to that key.

Digital Satellite Receiver Page A2 - 5

Page 80

Appendix 2

EchoStar Quattro, Programmable Remote Control Unit

6.3. REAL-TIME MACROS

This feature allows you to program a macro on any key. With a macro you can assign a chain of key strokes to any key on the RCU, also on a mode key. The macros are recorded and played real-time, which means the actual time between key strokes will also be recorded.

6.3.1. DEFINE A MACRO

NOTE

■ You have to complete the macro within a maximum of 8 key strokes.

■ If a mode key is used within a macro then all keys pressed after this mode key

will follow that mode until another mode key is pressed.

■ Nested macros are not possible, in other words you cannot start another macro

within a macro.

1. On the RCU, press the SAT key continuously until the indicator stays on.

2. Release the SAT key and make sure the indicator blinks continuously.

3. Use the numerical keys to enter code 995and note that the indicator stays on.

4. Choose and press the key which you want to assign for the macro. This can be any key, but after the recording it’s original function is lost.

5. Immediately program the macro as required, after the final key stroke press the SAT key for three seconds to close the macro. Note that the indicator blinks three times.

6. Now the macro is recorded successfully and ready for use.

6.3.2. PLAY BACK A MACRO

If a macro is recorded under any key, not being a mode key, press the key and the macro plays back, for a macro under a mode key you have to press the key twice within two seconds.

6.3.3. DELETE A MACRO

1. On the RCU, press the SAT key continuously until the indicator stays on.

2. Release the SAT key and make sure the indicator blinks continuously.

3. Use the numerical keys to enter code 995and note that the indicator stays on.

4. Choose and press the key for the macro that you want to delete.

5. Press the SAT key for three seconds to delete the macro. Note that the indicator blinks three times.

6. Now the macro is deleted successfully and the original key function is restored.

6.4. FACTORY RESET

You can do either a functional reset which means that all personal programs as volume lock and real-time macros are lost. All equipment codes will remain.

A full factory reset is done if you want to delete all personal programming as well as the equipment codes. This procedure will return the factory settings which you can customize later.

6.4.1. FUNCTIONAL RESET

1. On the RCU, press the SAT key continuously until the indicator stays on.

2. Keep the SAT key pressed.

3. Use the numerical keys to enter code 980and note that the indicator blinks four times.

4. Now the RCU is programmed with the factory settings and ready for reprogramming.

Page A2 - 6 EchoStar D-2400IP

Page 81

EchoStar Quattro, Programmable Remote Control Unit

6.4.2. FULL FACTORY RESET

1. On the RCU, press the SAT key continuously until the indicator stays on.

2. Keep the SAT key pressed.

3. Use the numerical keys to enter code 981and note that the indicator blinks four times.

4. Now the RCU is programmed with the factory settings and ready for reprogramming.

7. TROUBLESHOOTING

Appendix 2

Problem Possible cause What to do?

1. Device does not respond

to the RCU.

2. One of the mode keys

■ You did not select the

correct code for the device.

■ Batteries are empty. ■ Insert new batteries.

■ Try all the codes listed for

your brand.

■ Try the search method.

blinks twice when a key is pressed but the device does not respond.

3. Device does sometimes

not respond to the RCU.

■ Direct sun light from

behind the device.

■ Youdonotaim

sufficiently at the device.

■ Batteries are almost

■ Close the sun blinds or

get closer to the device.

■ Aim at the device’s

display.

■ install a RCU extender.

■ Insert new batteries.

empty.

4. Your device code is not

listed.

■ The device code was not

know at the time this

■ Try the search method.

manual was created.

5. The RCU does not exe-

cute the commands properly.

6. Volume control does not

respond as expected.

7. Video does not record.

■ Some codes are quite

similar, maybe you have chosen the wrong code.

■ Volume is locked to

another device.

■ You pressed the record

key once.

■ Try another code listed

for your brand.

■ Try the search method.

■ Undo the volume lock

(punch through) function.

■ Press the record key

twice to start. The RCU has a safety feature to avoid a start of an unwanted recording.

8. The RCU gives still prob-

lems.

■ Your customized settings

are corrupted.

■ Do an operational reset.

■ Do a factory reset.

Digital Satellite Receiver Page A2 - 7

Page 82

Appendix 2

EchoStar Quattro, Programmable Remote Control Unit

8. EQUIPMENT CODES

8.1. ECHOSTAR SATELLITE RECEIVERS

AD2000 IP 0453

AD3000 series 0222

D2500 IP 0511

DSB1100 1086

DSB2000 0853

DSB9800 0871

DVR-7000 series 0222

IR700 0312

LT7500 0465

LT8 0 + 0688

LT8700 0454

SR1500 0218

SR200 I.P 0713

SR4500 0100

SR5500 0170

8.2. ECHOSTAR KEY ASSIGNMENTS

KEY DSB2000 DSB9800 LT8700 LT80+ SR4500 SR1500

Power/Stby Power/Stby Power/Stby Power/Stby Power/Stby Power/Stby

Select SAT

mode

Select TV

mode

Select VCR

mode

------

Select SAT

mode

Select TV

mode

Select VCR

mode

Select SAT

mode

Select TV

mode

Select VCR

mode

Select SAT

mode

Select TV

mode

Select VCR

mode

Select SAT

mode

Select TV

mode

Select VCR

mode

Select SAT

mode

Select TV

mode

Select VCR

mode

1 1 1 1 1 1

222222

3 3 3 3 3 3

444444

5 5 5 5 5 5

666666

7 7 7 7 7 7

888888

9 9 9 9 9 9

000000

Page A2 - 8 EchoStar D-2400IP

Page 83

EchoStar Quattro, Programmable Remote Control Unit

8.2. ECHOSTAR KEY ASSIGNMENTS (CONTINUED)

KEY DSB2000 DSB9800 LT8700 LT80+ SR4500 SR1500

TONE-

Radio guide

select

X- Favorite

IRD

A/V TV/SAT-TV

or sat. select

FAVORITE RADIO/SAT-

Radio or

Appendix 2

FCH, fav list

MUTE-

Volume Mute

IRD

Channel up

IRD

Channel

DOWN IRD

Vol ume u p

IRD

Volume

down IRD

->EXIT- IRD RECALL

EPG- EPG Guide

SERV- Info

subscription

Menu-

Navigator

IRD

Up cursor

IRD

Down cursor

IRD

Left cursor

IRD

MUTE-

Volume Mute

IRD

Cursor up

IRD

Cursor down

IRD

Cursor left

IRD

Cursor right

IRD

Menu-

Navigator

IRD

Cursor up

IRD

Cursor down

IRD

Cursor left

IRD

MUTE-

Volume Mute

IRD

Channel up

IRD

Channel

DOWN IRD

Vol ume u p

IRD

Volume

down IRD

SAT

STORE ENTER- Ok

MENU Menu-

Left cursor

IRD

MUTE-

Volume Mute

IRD

Ch up IRD Ch up IRD Channel up

Ch down

IRD

Vol- IRD Volum e up

Vol+ IRD Volume

IRD

Navigator

IRD

Ch up IRD VIDEO

Ch DOWN

IRD

Tuning < SKEW- down

MUTE-

VolumeMute

IRD

Ch down

IRD

down IRD

ERASE RECALL

CLAMP

FORMAT-

format

FINE- up

VIDEO

FINE- down

MUTE-

VolumeMute

Channel

DOWN IRD

Volume up

Volume

down IRD

SETUP -

Setup menu

TUNING- up

TUNING-

down IRD

IRD

Right cursor

IRD

OK- IRD OK- IRD SELECT-

INFO- Info

prog IRD

E- Function

key

A- Function

key

B- Function

key

Digital Satellite Receiver Page A2 - 9

Cursor right

IRD

Info- Info

IRD

ESC-

Escape, exit

IRD

Right cursor

IRD

store

settings

CANCEL-

cancel

VIEW CANCEL-

=== - MAC

teletekst

Tuning > SKEW- up

STORE-

store IRD

cancel IRD

WEST- move

dish west

SAT-

VIDEO

DEVIA

POSITION

ENTER-

store

selection

VIEW

Page 84

Appendix 2

EchoStar Quattro, Programmable Remote Control Unit

8.2. ECHOSTAR KEY ASSIGNMENTS (CONTINUED)

KEY DSB2000 DSB9800 LT8700 LT80+ SR4500 SR1500

C- Function

key

D- Function

key

subtitling --- subtitling

+- Add. Info,

subtitling

<| |> -

enlarge

screen

=?= -

subtitiling

select

on/off

TUNE AUDIO-

STOP- stop

moving dish

EAST- move

dish east

P.LOCK- set

change p.

Lock

audio menu

AUDIO DE-

EMPH

BANDWITH AUDIO

P.L OC K- s et

change p.

Lock

TV/SAT

Select TV or

DBS

KEY D2500 I.P. AD2000 I.P. SR200 I.P. SR5500 LT7500 SR5500

Power/Stby Power/Stby Power/Stby Power/Stby Power/Stby Power/Stby

Select SAT

mode

Select TV

mode

Select VCR

mode

Select AUX

mode

1 1 1 1 1 1

222222

3 3 3 3 3 3

444444

Ext PPV VIDEO-

Select SAT

mode

Select TV

mode

Select VCR

mode

Select AUX

mode

Select SAT

mode

Select TV

mode

Select VCR

mode

Select AUX

mode

video menu

Select SAT

mode

Select TV

mode

Select VCR

mode

Select AUX

mode

POLARITY

Select SAT

mode

Select TV

mode

Select VCR

mode

Select AUX

mode

Select SAT

mode

Select TV

mode

Select VCR

mode

Select AUX

mode

5 5 5 5 5 5

666666

7 7 7 7 7 7

888888

9 9 9 9 9 9

000000

TV/Radio

select

Favorite Favorite FAV/MAIN-

Page A2 - 10 EchoStar D-2400IP

TV/Radio

select

RADIO -TV/

Radio select

Favorite or

main list

FAV,

CANCEL

FAV,

CANCEL

Page 85

EchoStar Quattro, Programmable Remote Control Unit

KEY D2500 I.P. AD2000 I.P. SR200 I.P. SR5500 LT7500 SR5500

MUTE-

Volume Mute

IRD

Channel up

IRD

Channel

DOWN IRD

MUTE-

Volume Mute

IRD

Channel up

IRD

Channel

DOWN IRD

MUTE-

Volume Mute

IRD

Channel +

IRD

Channel -

IRD

MUTE-

VolumeMute

IRD

Channel up

IRD

Channel

DOWN IRD

MUTE-

VolumeMute

IRD

TUNING- up

IRD

TUNING-

down IRD

Appendix 2

MUTE-

VolumeMute

IRD

Channel up

IRD

Channel

DOWN IRD

Vol ume u p

IRD

Volume

down IRD

Guide - IRD Guide - IRD

SAT-List of

satellites

Menu-

Navigator

IRD

Channel up

IRD

Channel

DOWN IRD

Volume

down IRD

Vol ume u p

IRD

Vol ume u p

IRD

Volume

down IRD

TV/DBS-

Select TV or

DBS

SAT-List of

satellites

Menu-

Navigator

IRD

Channel up

IRD

Channel

DOWN IRD

Volume

down IRD

Vol ume u p

IRD

Volume +

IRD

Volume -

IRD

TV- Select

TV or Sat

INDEX-

system info

Up cursor

IRD

Down cursor

IRD

Left cursor

IRD

Right cursor

IRD

Vol ume u p

IRD

Volume

down IRD

MASK SCAN - dish

ENTER

SATELLITE

<- TUNING <- TUNING <- TUNING

-> TUNING -> TUNING -> TUNING

Volume up

IRD

Volume

down IRD

TES -

Internal sync

toggle

par.

Menu-

Navigator

IRD

TUNING- up

IRD

TUNING-

down IRD

Volume up

IRD

Volume

down IRD

MASK

ENTER

SATELLITE

OK/Store

IRD

Info IRD Info IRD EXTRA

Exit IRD Exit IRD CANCEL -

OK/Store

IRD

DIG/ANA-

Digital

analog

toggle IRD

STORE- IRD STORE-

store

settings

FEATURES

WEST- move

dish west

TUNING SELECT

FSS/DBS SKEW- skew

EAST- move

dish east

TIMER- set

timer

AUDIO

BANDWITH

AUDIO DE-

EMPH

ENTER-

store

selection

Cancel IRD

DOWN/

CANCEL -

Pos. control

SAT/STORE-

Pos. control

setting

UP/ERASE -

Pos. control

BRF/TEF AUDIO

STORE-

store

settings

EXTRA

FEATURES

TUNING

SELECT

FSS/DBS

AUDIO

BANDWITH

DE-EMPH

Digital Satellite Receiver Page A2 - 11

Page 86

Appendix 2

EchoStar Quattro, Programmable Remote Control Unit

KEY D2500 I.P. AD2000 I.P. SR200 I.P. SR5500 LT7500 SR5500

Speaker ALT- Audio

language

toggle

UHF-Select

TV or DBS

BACK-

Background

toggle

8.3. AMPLIFIERS

Arcam 0641 Pioneer 0013, 0300

Bush 0421 Sansui 0321

Cyrus 0683 Sherwood 0711

Denon 0272 Sony 0689

Goodmans 0421, 0847 Tevion 1129

JBL 0668, 1177 Videologic 1095

Kenwood 0772 Yamaha 0354

Philips 0641

8.4. MISCELLENEOUS AUDIO

Goodmans 0841 Uher 0841

Sanyo 0871, 0882 Videologic 117 9

LOCK- set

change par.

Lock

MIX-

Background

toggle

STEREO AUDIO-

audio

parameters

FORMAT VIDEO-

video menu

STEREO

FORMAT

8.5. RECEIVERS

Aiwa 0121, 1405, 1188 Okano 0440

Akai 0115, 0440 Onkyo 0135

Arcam 0642 Panasonic 0763

Audiolab 11 8 9 Philips 0642, 1089, 1189, 1269,

Bang & Olufsen 0799 Phonotrend 0502

Denon 110 4 , 116 0 Pioneer 0289, 1107, 1143

Fine Arts 1189 RCA 1254, 1123

Fisher 0360 Sanyo 0219, 0360

Goodmans 0440 Sharp 0262

Grundig 0219, 1131, 1189, 1192 Sherwood 0491, 0502, 0653, 1050

Harman/Kardon 0110 Sony 1058, 1158, 1258

JVC 0074, 0464 Tec h n ic s 0208, 1135, 1308, 1309,

Kenwood 1027, 1313, 1569, 1570 Thomson 1254

Marantz 0219, 0412, 1089, 1189 Thorens 1189

Memorex 1024 Venturer 1033

Micromega 11 8 9 Wharfedale 0440

Mitsubishi 0440 Yamaha 0176, 0712, 1276

Myryad 1189

8.6. TELEVISIONS

AGB 0516 M Electronic 0009, 0037, 0057, 0104,

ASA 0087, 0104 MTC 0349, 0512

Acura 0009 Magnadyne 0087, 0102, 0247, 0516

Admiral 0087, 0163 Magnafon 0102, 0516

Adyson 0032, 0217 Magnum 0648

Aiwa 0701 Manesth 0217, 0235, 0264

Akai 0208, 0361, 0516, 0602,

Akito 0272 Marelli 0087

Akura 0218, 0264, 0358, 0493 Mark 0037

0708

1289

1518

0105, 0109, 0163, 0217, 0346, 0374, 0480

Marantz 0037, 0556

Page A2 - 12 EchoStar D-2400IP

Page 87

EchoStar Quattro, Programmable Remote Control Unit

8.6. TELEVISIONS (CONTINUED)

Alba 0009, 0036, 0037, 0211,

Allorgan 0294 McMichael 0043

Amplivision 0217, 0400 Mediator 0012, 0037

Amstrad 0009, 0037, 0171, 0177,

Anitech 0009 Memorex 0009, 1037

Arc En Ciel 0501, 0568 Memphis 0337

Arcam 0216, 0217 Metz 0087, 0275, 0367, 0388,

Asuka 0218 Minerva 0070, 0237, 0487

Atlantic 0206 Minoka 0412

Audiosonic 0037, 0109 Mitsubishi 0033, 0036, 0087, 0108,

Autovox 0087, 0206, 0237, 0336 Mivar 0216, 0290, 0291, 0292,

BPL 0282 Multitech 0009, 0102, 0216

BSR 0294 Myryad 0556

BTC 0218 NEC 0170, 0704

Bang & Olufsen 0087, 0565 NEI 0037, 0337

Barco 0380 National 0237

Basic Line 0009, 0218 Neckermann 0037, 0087, 0191, 0349,

Baur 0010, 0037, 0349, 0361,

Beko 0370, 0486, 0714, 0715 Nikkai 0032, 0035, 0037, 0072,

Beon 0037 Nobliko 0102

Bestar 0626 Nogamatic 0501, 0568

Binatone 0217 Nokia 0361, 0473, 0480, 0548,

Blaupunkt 0191, 0195, 0200, 0327,

Blue Sky 0218, 0668, 1037 Oceanic 0163, 0361

Blue Star 0282 Onwa 0433

Bondstec 0247 Orion 0037, 0177, 0235, 0294,

Boots 0217 Osaki 0032, 0072, 0217, 0218,

Brandt 0109, 0196, 0198, 0335 Oso 0218

Brandt Electronic 0501, 0568 Osume 0032, 0072, 0157

Brionvega 0087 Otto Versand 0010, 0036, 0037, 0191,

Britannia 0216 Palladium 0370, 0418

Bruns 0087 Panama 0217, 0264

Bush 0009, 0036, 0037, 0211,

CGE 0074, 0084, 0247 Pathe Cinema 0216, 0238

CS Electronics 0216 Pathe Marconi 0196, 0198, 0501, 0568

CTC 0247 Pausa 0009

Carrefour 0036 Phase 0032

Cascade 0009 Philco 0074, 0084, 0087, 0247

Cathay 0037 Philips 0012, 0037, 0043, 0087,

Centurion 0037 Phoenix 0087

0218, 0235, 0371, 0581, 0668

0354, 0371, 0412, 0433, 0516

0505, 0512

0328

0218, 0272, 0282, 0294, 0349, 0355, 0371, 0374, 0519, 0581, 0668

Appendix 2

Matsui 0009, 0011, 0035, 0036,

Medion 0668

Nesco 0179

Nordmende 0109, 0196, 0198, 0501,

Panasonic 0126, 0163, 0214, 0226,

0037, 0072, 0177, 0208, 0211, 0217, 0235, 0272, 0294, 0354, 0355, 0371, 0443, 0487, 0516, 0579

0447

0237, 0354, 0512, 0691

0516, 0609

0505, 0556

0216, 0218, 0264, 0337

0606, 0631

0560, 0568

0355, 0364, 0443, 0516, 0655

0264, 0412, 0493

0217, 0349, 0505, 0512, 0556

0237, 0250, 0274, 0367, 0650

0193, 0374, 0556

Digital Satellite Receiver Page A2 - 13

Page 88

Appendix 2

EchoStar Quattro, Programmable Remote Control Unit

8.6. TELEVISIONS (CONTINUED)

Century 0087 Phonola 0012, 0037, 0087

Cimline 0009 Pioneer 0109, 0163, 0166

Clarivox 0037 Prandoni Prince 0516

Clatronic 0247, 0370 Profex 0009, 0361

Condor 0370 Protech 0009, 0037, 0102, 0217,

Contec 0009, 0036, 0216 Pye 0012

Continental Edison 0196, 0198, 0399, 0501,

Crosley 0074, 0084, 0087 Questa 0036

Crown 0009, 0037, 0370, 0418,

Cybertron 0218 RBM 0070

Daewoo 0009, 0037, 0374, 0499 RFT 0087, 0428

Dainichi 0218 Radiola 0012, 0037

Dansai 0037 Radiomarelli 0087, 0516

Dayton 0009 Rank Arena 0036

De Graaf 0208, 0548 Rediffusion 0361

Decca 0037, 0072, 0272, 0516 Revox 0037

Denon 0145 Rex 0163, 0206, 0259, 0264

Dixi 0009, 0037 Roadstar 0009, 0218, 0264, 0418

Dual 0336, 0519 Runco 0603

Dual Tec 0217 SBR 0012, 0037, 0043, 0193

Dumont 0070, 0087 SEG 0036, 0217, 0264, 0668

Elbe 0259 SEI 0010, 0087, 0102, 0177,

Elin 037, 0548 Saba 0087, 0109, 0163, 0196,

Elite 0218 Saccs 0238

Elta 0009 Sagem 0610

Emerson 0087, 0361 Saisho 0009, 0011, 0033, 0177,

Erres 0012, 0037 Salora 0163, 0194, 0349, 0356,

Europhon 0516 Sambers 0102, 0516

Expert 0206 Samsung 0009, 0037, 0060, 0217,

Ferguson 0037, 0073, 0109, 0190,

Fidelity 0193, 0216, 0361 Sanyo 0011, 0036, 0045, 0072,

Finlandia 0208, 0346, 0359 Schaub Lorenz 0361

Finlux 0037, 0070, 0072, 0087,

Firstline 0009, 0216, 0217, 0247,

Fisher 0104, 0208, 0217, 0303,

Flint 0455 Sharp 0036, 0093, 1093, 1193

Forgestone 0193 Shorai 0294

Formenti 0037, 0087 Siarem 0087, 0102, 0516

Frontech 0163, 0247, 0264, 0448 Siemens 0037, 0157, 0191, 0195,

Fujitsu 0072, 0206, 0683 Silver 0036

Funai 0179, 0264, 0294, 0303 Singer 0087

0568

0579

0193, 0238, 0324, 0335, 0560

0104, 0105, 0179, 0346, 0411, 0516

0294, 0668

0370, 0555

0247, 0264, 0337, 0418, 0668

Quelle 0010, 0011, 0037, 0070,

R-Line 0037

Sandra 0216

Schneider 0037, 0057, 0218, 0247,

Seleco 0163, 0206, 0259, 0411

Sentra 0035

0074, 0084, 0104, 0200, 0327, 0328, 0361, 0505, 0512

0294, 0516

0198, 0335, 0501, 0568

0211, 0235, 0264, 0354, 0516

0359, 0361, 0548

0264, 0290, 0370, 0556, 0587

0104, 0157, 0208, 0339

0303, 0336, 0371, 0394, 0668

0200, 0327, 0328

Page A2 - 14 EchoStar D-2400IP

Page 89

EchoStar Quattro, Programmable Remote Control Unit

8.6. TELEVISIONS (CONTINUED)

GEC 0037, 0043, 0072, 0217,

GPM 0218 Skantic 0356

Geloso 0009 Solavox 0032, 0163

Genexxa 0163, 0218 Sonitron 0208

GoldStar 0037, 0109, 0217, 0290,

Goodmans 0036, 0037, 0072, 0179,

Gorenje 0370 Sontec 0037

Graetz 0163, 0361 Sony 0010, 0011, 0036, 0505,

Granada 0037, 0045, 0072, 0208,

Grandin 0282, 0610 Standard 0009, 0217, 0218

Grundig 0070, 0191, 0195, 0237,

HCM 0009, 0282, 0412 Sunkai 0294, 0355

Hanseatic 0037, 0361, 0428, 0556 Susumu 0218

Hantarex 0516 Sysline 0037

Hifivox 0501, 0568 T + A 0447

Hinari 0009, 0036, 0037, 0179,

Hisawa 0282, 0400, 0455 Tashiko 0036, 0043, 0217, 0359

Hitachi 0032, 0036, 0043, 0044,

Huanyu 0216, 0374 Tec 0217, 0247

Hypson 0037, 0264, 0282 Technic s 0250, 0650

ICE 0217, 0264, 0371 Technol Ace 0179

ICeS 0218 Teleavia 0501, 0568

ITS 0371 Telefunken 0074, 0084, 0101, 0109,

ITT 0163, 0361, 0548 Te l e tech 0009

Imperial 0074, 0084, 0247, 0370,

Indesit 0237 Ten s ai 0218, 0294

Indiana 0037 Texet 0216, 0218

Ingelen 0163 Thomson 0109, 0196, 0198, 0237,

Inno Hit 0072, 0516 Thorn 0035, 0037, 0072, 0074,

Interfunk 0037, 0163, 0247, 0361,

Intervision 0037, 0102, 0217, 0264,

Isukai 0218 Triumph 0177, 0243, 0516

JVC 0036, 0053, 0094, 0190,

Kaisui 0009, 0216, 0217, 0218,

Kapsch 0163, 0206 Ultravox 0102

Karcher 0610 Universum 0037, 0104, 0105, 0264,

Kathrein 0556 Vestel 0037

Kendo 0037, 0235 Videosat 0247

Kingsley 0216 Videotechnic 0217

0516

0377

0217, 0235, 0364, 0371, 0374, 0499, 0624

0217, 0339, 0359, 0516

0487, 0556, 0587

0218

0105, 0109, 0145, 0163, 0196, 0198, 0217, 0225, 0349, 0356, 0441, 0481, 0548, 0563, 0578

0418

0501, 0512, 0568

0377, 0654

0192, 0371, 0606, 0643, 0653

0282

Appendix 2

Sinudyne 0010, 0087, 0102, 0177,

Sonoko 0009, 0037

Sonolor 0163, 0208

Soundwave 0037, 0418

Stern 0163, 0206, 0259

Tandy 0072, 0163, 0217, 0218,

Tatung 0037, 0072, 0217, 0516

Teleton 0036, 0206, 0217, 0349

Tomashi 0282

Toshiba 0035, 0036, 0070, 0243,

Uher 0206, 0303

Ultra 0192

0235, 0294, 0516

1505, 1651

0276

0262, 0335, 0471, 0498, 0501, 0568, 0625

0349, 0399, 0501, 0568

0084, 0104, 0190, 0192, 0193, 0361, 0499, 0505, 0512

0508, 1508

0346, 0370, 0492

Digital Satellite Receiver Page A2 - 15

Page 90

Appendix 2

EchoStar Quattro, Programmable Remote Control Unit

8.6. TELEVISIONS (CONTINUED)

Kneissel 0259, 0435 Voxson 0087, 0163

Korpel 0037 Waltham 0217, 0356

Korting 0087 Watson 0037

Koyoda 0009 Watt Radio 0102

Leyco 037, 0072, 0264, 0294 Wega 0036, 0087

Liesenk & Tter 0037 White Westinghouse 0037, 0216

Lloytron 0032 Yo ko 0037, 0217, 0264

Loewe 0087, 0512 Zanussi 0206

Luma 0206

Luxor 0194, 0237, 0349, 0356,

0361

8.7. VIDEO RECORDERS

ASA 0037, 0081 NEC 0038, 0041, 0067

Aiwa 0000, 0307, 0348, 0352 Neckermann 0081

Akai 0041, 0106, 0315 Nesco 0072

Akiba 0072 Nokia 0041, 0046, 0104, 0106,

Akura 0271 Nordmende 0041, 0320, 0321, 0384,

Alba 0020, 0072, 0278, 0293,

Ambassador 0020, 0554 Okano 0315, 0348

Amstrad 0000, 0278, 0325, 0332 Orion 0004, 0333, 0334, 0343,

Anitech 0072 Osaki 0000, 0037, 0072

Asuka 0037 Otto Versand 0081

Baird 0000, 0041, 0104, 0107 Palladium 0006, 0037, 0041, 0072

Bang & Olufsen 0013, 0499 Panasonic 0162, 0226, 0227, 0454,

Basic Line 0020, 0072, 0278, 0554 Pathe Marconi 0041

Blaupunkt 0003, 0006, 0034, 0154,

Blue Sky 0278 Perdio 0000

Brandt 0320, 0321, 0493 Philco 0038

Brandt Electronic 0041 Philips 0081, 0146, 0384

Bush 0072, 0278, 0293, 0333,

CGE 0000 Pioneer 0067, 0081

Catron 0020, 0554 Portland 0020, 0554

Cimline 0072 Profex 0322

Clatronic 0020, 0554 Profitronic 0240

Combitech 0352 Proline 0000, 0293

Condor 0020, 0554 Pye 0081

Crown 0020, 0072, 0278, 0554 Quartz 0046

Cyrus 0081 Quelle 0081

Daewoo 0020, 0278, 0554 Radiola 0081

Dansai 0072 Rex 0041, 0384

De Graaf 0042, 0166 Roadstar 0037, 0072, 0240, 0278

Decca 0000, 0081 SBR 0081, 0146

Denon 0042 SEG 0240, 0322

Dual 0041 SEI 0004, 0081

Dumont 0000, 0081, 0104 Saba 0041, 0206, 0207, 0320,

ESC 0240, 0278 Saisho 0004

Elbe 0038 Salora 0043, 0046, 0106

Elcatech 0072 Samsung 0240, 0432

0315, 0333, 0334, 0352, 0554

0162, 0195, 0226, 0227

0334, 0352

0240

0494

Oceanic 0000, 0041

0348, 0352

0459, 1162

Pentax 0042

Phonola 0081

0321, 0384, 0494, 0530

Page A2 - 16 EchoStar D-2400IP

Page 91

EchoStar Quattro, Programmable Remote Control Unit

8.7. VIDEO RECORDERS (CONTINUED)

Ferguson 0041, 0107, 0320, 0321,

Fidelity 0000 Sanyo 0046, 0104

Finlandia 0081, 0104 Saville 0352

Finlux 0000, 0042, 0081, 0104 Schaub Lorenz 0000, 0041, 0104

Firstline 0037, 0043, 0045, 0072 Schneider 0000, 0072, 0081

Fisher 0046, 0047, 0054, 0104 Seleco 0041

Frontech 0020, 0554 Sentra 0020, 0554

Funai 0000 Sharp 0048, 0062

GEC 0081 Shintom 0072, 0104

General 0020, 0554 Shorai 0004

GoldHand 0072 Siemens 0003, 0006, 0037, 0054,

GoldStar 0037 Silva 0037

Goodmans 000, 0020, 0037, 0062,

Graetz 0041, 0104, 0240 Sinudyne 0004, 0081

Granada 0046, 0081, 0104 Solavox 0020, 0554

Grandin 0000, 0037, 0072 Sonolor 0046, 0062

Grundig 0003, 0006, 0007, 0072,

HCM 0072, 0293 Sony 0011, 0032, 0033, 0034,

Hanseatic 0037 Sunkai 0348

Hinari 0004, 0072, 0240, 0293,

Hitachi 0000, 0004, 0041, 0042,

Hypson 0072 Ta s h ik o 0000

ITT 0041, 0046, 0104, 0106,

ITV 0020, 0037, 0278 Te c 0020, 0554

Imperial 0000 Technics 0162, 0226

Ingersol 0004 Teleavia 0041, 0493

Interfunk 0081 Telefunken 0041, 0320, 0321, 0384,

JVC 0008, 0041, 0067, 0206,

Kaisui 0072 Tensai 0000, 0322

Kendo 0106 Thomson 0041, 0320, 0384, 0493,

Kenwood 0041 Thorn 0041, 0104

Korpel 0072 To sh ib a 0041, 0043, 0045, 0081,

Lenco 0278 Towada 0322

Leyco 0072 Uher 0240

Loewe 0004, 0006, 0037, 0081,

Logik 0004, 0240 Ya m ishi 0072

Luxor 0043, 0046, 0048, 0062,

MElectronic 0000, 0038 Yoko 0020, 0240, 0554

Manesth 0045, 0072 Thorn 0041, 0104

Marantz 0003, 0006, 0062, 0081,

Matsui 0004, 0348, 0352 Towada 0322

Memorex 0000, 0037, 0046, 0104 Uher 0240

Memphis 0072 Universum 0000, 0006, 0037, 0081,

0493

0072, 0278, 0343, 0554, 0637

0081, 0195, 0207, 0226, 0293, 0347, 0349

0352

0166, 0240, 0544

0240, 0384

0207, 0384

0162, 0454, 1162

0104, 0106

0146

Appendix 2

Sansui 0041, 0067, 0271

0081, 0104, 0146, 0195

Singer 0045

Sontec 0037

1032

Sunstar 0000

Suntronic 0000

Tatung 0000, 0041, 0081

0493, 0494, 0529, 0580

Ten o s al 0072

0494, 0528

0384

Universum 0000, 0006, 0037, 0081,

Yokan 0 072

Tosh ib a 0041, 0043, 0045, 0081,

0106, 0195, 0240, 0325

0384

0106, 0195, 0240, 0325

Digital Satellite Receiver Page A2 - 17

Page 92

Appendix 2

EchoStar Quattro, Programmable Remote Control Unit

8.7. VIDEO RECORDERS (CONTINUED)

Metz 0003, 0006, 0037, 0162,

Minerva 0006, 0195 Yokan 0072

Mitsubishi 0043, 0067, 0075, 0081,

Multitech 0000, 0072

Murphy 0000

Myryad 0081

0195, 0227, 0347, 0454, 0459, 1162

0608

8.8. DVD

Akai 0611 Samsung 0573

Bush 0690 Sharp 0630

Denon 0490 Sony 0533

JMB 0695 Technics 0490

JVC 0558 Thomson 0551

Kenwood 0490, 0534 To sh i ba 0503

Oritron 0651 Wharfedale 0686

Panasonic 0490, 0703 Yamaha 0668

Philips 0539 Yamakawa 0665

Pioneer 0525, 0571

Proline 0652

Yamis h i 0072

Yoko 0020, 0240, 0554

Page A2 - 18 EchoStar D-2400IP

EchoStar D-2400 IP User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
