Page 1
Grass Trimmer
Operator's Manual
MODELS GT-201
Serial Number 002001001 & Up
WARNING
The engine exhaust from this
product contains chemicals known
to the State of California to cause
cancer, birth defects or other
reproductive harm.
X7702272300
WARNING DANGER
Read rules for safe operation and instructions carefully. ECHO provides an Operator's
Manual and a Safety Manual. Both must be read and understood for proper and safe
operation.
X770000170
06/00
Page 2
2
INTRODUCTION
Welcome to the ECHO family. This ECHO product was designed and manufactured to provide long life and on-the-jobdependability. Read and understand this manual and the SAFETY MANUAL you found in the same package. You will
find both easy to use and full of helpful operations tips and SAFETY messages.
W ARNING DANGER
Read rules for safe operation and instructions carefully. ECHO provides an Operator's Manual and a
Safety Manual. Both must be read and understood for proper and safe operation.
THE OPERATOR'S MANUAL
contains specifications and information for operation, starting,
stopping, maintenance, storage and assembly specific to this product.
THE SAFETY MANUAL
explains possible hazards involved with the use of Grass Trimmers and
Brush cutters and what measures you should take to make their use
safer.
TABLE OF CONTENTS
Introduction .................................................................... 2
Manual Safety Symbols and Important Information .......... 3
Safety .............................................................................. 3
- Decals ...................................................................... 3
- International Symbols.............................................. 4
- Equipment ................................................................ 4
- Fuel .......................................................................... 5
- Personal Conditions and Safety Equipment ............ 6
- Safe Operation ......................................................... 7
- Extended Operation/Extreme Conditions ................. 8
Description ..................................................................... 9
- Emission Control...................................................... 9
- Contents List ........................................................... 9
Specifications................................................................ 12
Assembly ...................................................................... 13
- Plastic Shield.......................................................... 1 3
- Nylon Head............................................................ 13
- Front (Loop) Handle .............................................. 13
Pre-Operation ................................................................ 14
- Fuel ........................................................................ 1 4
- Equipment Check ................................................... 15
- Determine Operation Area ..................................... 1 6
Operation ...................................................................... 16
- Starting Cold Engine .............................................. 1 6
- Starting Warm Engine............................................ 1 7
CopyRight© 2000 By Echo, Incorporated
All Rights Reserved.
- Stopping Engine .................................................... 18
Maintenance ................................................................. 18
- Skill Level ............................................................... 18
- Maintenance Intervals ........................................... 19
- Air filter .................................................................. 20
- Fuel filter ................................................................ 20
- Spark plug .............................................................. 2 1
- Cooling System ...................................................... 21
- Exhaust System ...................................................... 22
- Carburetor Adjustment........................................... 2 3
- Lubrication ............................................................. 2 4
- Nylon Line Replacement ........................................ 24
Troubleshooting ........................................................... 2 6
Storage.......................................................................... 2 7
Servicing Information.................................................... 2 8
- Parts....................................................................... 2 8
- Service ................................................................... 28
- ECHO Consumer Product Support......................... 2 8
- Warranty Card ....................................................... 2 8
- Additional or Replacement Manuals ..................... 28
- Ordering Instructions for Manuals ........................ 28
Specifications, descriptions and illustrative material in this
literature are as accurate as known at the time of publication,
but are subject to change without notice. Illustrations may
include optional equipment and accessories, and may not
include all standard equipment.
Page 3
G
RASS
O
PERATOR'S MANUAL
MANUAL SAFETY SYMBOLS AND IMPORTANT INFORMATION
Throughout this manual and on the product itself, you will find safety
alerts and helpful, information messages preceded by symbols or key
words. The following is an explanation of those symbols and key words
and what they mean to you.
IMPORTANT
T
RIMMER
3
This symbol accompanied by the words
NOTE
WARNING and DANGER calls attention to an
act or condition that can lead to serious personal
injury to operator and bystanders.
The circle with the slash symbol means whatever is
shown within the circle is prohibited.
IMPORTANT The enclosed message
provides information necessary for the
protection of the unit.
NOTE This enclosed message provides tips
for use, care and maintenance of the unit.
SAFETY
DECALS
Locate these safety decals on your unit. The complete unit illustration found in the "DESCRIPTION" section, will help
you locate them. Make sure the decals are legible and that you understand and follow the instructions on them. If a
decal cannot be read, a new one can be ordered from your ECHO dealer. See PARTS ORDERING instructions for specific
information.
A. DRIVE SHAFT
•This unit can be dangerous and cause serious injury if improperly used. • Operators, helpers and bystanders can be severely
in jured by thrown objects and must wear specified ANSI Z87.1 eye protection. Blindness or loss of eye can occur. Do not rely
on cutter head shield to protect eyes. Ricochet can occur. •to avoid accidental contact, keep everyone beyond operating area.
•To reduce the risk of injury to operator, helpers & bystanders, read and understand your operator's and safety manuals. For
a free copy of the safety Manual, write to ECHO, INCORPORATED, 400 Oakwood Road, Lake Zurich, IL 60047. •Keep shield
and other components in place and in good condition. Do not use attachments or other parts not approved by ECHO. GT style
(non-blade capable) units must not be converted to blade use except Maxi-Cuts or similar ECHO approved attachments.
B. SPANISH DECAL
ADVERTENCIA PELIGRO
Esta unidad puede ser peligrosa y producir
lesiones personales graves si no se usa en
forma adecuada. Para reducir el riesgo de
lesionarse, los operadores, los ayudantes y los
espectadores deben leer y comprender el
890228-09560
ENGLISH TRANSLATION
Manual Del Operador y los Manuales De
Seguridad que se entregan escritos en español.
W ARNING DANGER
This unit can be dangerous and cause serious
injury if improperly used. To reduce injury
risk to operator, helpers and bystanders, read
and understand the Operator's and Safety
Manuals, which are provided in Spanish.
W ARNING DANGER
C. SHIELD DECAL
Page 4
4
INTERNATIONAL SYMBOLS
SYMBOL FORM/
SHAPE
SYMBOL
DESCRIPTION/APPLICATION
Read and understand
Operator's Manual.
SYMBOL FORM/
SHAPE
SYMBOL
DESCRIPTION/APPLICATION
FUEL AND OIL
MIXTURE
SYMBOL FORM/
SHAPE
SYMBOL
DESCRIPTION/APPLICATION
DO NOT ALLOW
FLAMES OR
SPARKS NEAR
FUEL.
SYMBOL FORM/
SHAPE
SYMBOL
DESCRIPTION/APPLICATION
EMERGENCY STOP
WEAR EYES, EARS
AND HEAD
PROTECTION
HOT
SURFACE
WEAR HAND AND
FOOT PROTECTION
SAFETY/ALERT
KEEP BYSTANDERS AND HELPERS
FINGER SEVERING
WEAR SLIP
RESISTANT
FOOT WEAR.
DO NOT SMOKE
NEAR FUEL.
AWAY 15 M (50 FT.).
EQUIPMENT
Before operation a complete check of the unit must be performed;
• Check unit for loose/missing nuts, bolts and screws. Tighten and/or
replace as needed.
Engine choke
control.
PRIMER
BULB
DO NOT EXCEED
10,000 RPM.
DO NOT OPERATE
WITHOUT
GUARDS AND
SHIELDS IN
PLACE.
DO NOT USE
BLADES. STRING
LINE ONLY
IGNITION
ON/OFF
CARBURETOR
ADJUSTMENT
- HIGH SPEED
MIXTURE
CARBURETOR
ADJUSTMENT
- LOW SPEED
MIXTURE
CARBURETOR
ADJUSTMENT
- IDLE SPEED
BEWARE
- THROWN,
RICOCHET
OBJECTS
• Inspect fuel lines, tank and area around carburetor for fuel leaks.
DO NOT operate unit if leaks are found.
• Inspect shield for damage and ensure that the cut-off knife issecurely
in place. Replace if either is damaged or missing.
• Check that the cutting attachment is firmly attached and in safe
operating condition.
• Check that front (loop) handle and/or optional shoulder harness are
adjusted for safe, comfortable operation. See Assembly for proper
adjustment.
• Have repairs done only by an authorized ECHO Service Dealer.
• Do not use any attachment, accessory or replacement part unless it is
recommended in the Operator's Manual.
Page 5
Spark Arrestor - Catalytic Muffler/Muffler
• The muffler or catalytic muffler controls the exhaust noise and
emissions. The spark arrestor screen prevents hot, glowing particles
of carbon from leaving the muffler. Make sure the spark arrestor
screen is in good repair and properly seated in the muffler. Keep
exhaust area clear of flammable debris. Avoid contact during and
immediately after operation.

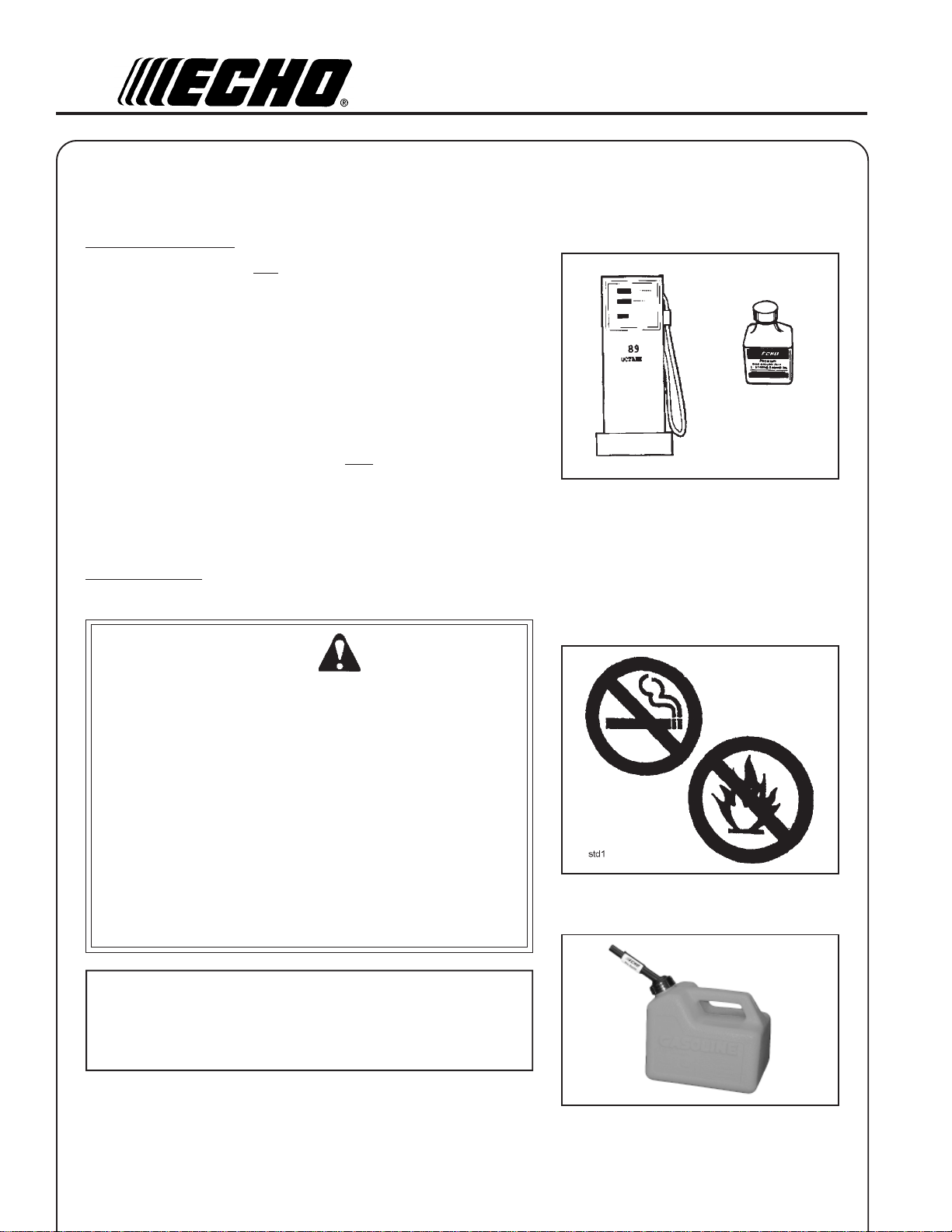

FUEL
W ARNING DANGER
Fuel is VERY flammable. Use extreme care when mixing, storing or
handling, otherwise serious personal injury may result.
• Use an approved fuel container.
• DO NOT smoke near fuel.
• DO NOT allow flames or sparks near fuel.
• Fuel tanks/cans may be under pressure. Always loosen fuel caps
slowly allowing pressure to equalize.
• NEVER refuel a unit when the engine is HOT!
• NEVER refuel a unit with the engine running.
• DO NOT fill fuel tanks indoors. ALWAYS fill fuel tanks outdoors
over bare ground.
• Securely tighten fuel cap after refueling.
• Inspect for fuel leakage. If fuel leakage is found, do not start or
operate unit until leakage is repaired.
G
RASS
O
PERATOR'S MANUAL
T
RIMMER
5
IMPORTANT
Spilled fuel is a leading cause of hydrocarbon emissions. Some
states may require the use of automatic fuel shut-off containers to
reduce fuel spillage. Contact your ECHO dealer for ordering
information.
After Refueling;
• Wipe any spilled fuel from the unit.
• Move at least 3 M (10 ft.) from refueling location before starting.
After Use;
• DO NOT store a unit with fuel in its tank. Leaks can occur. Return
unused fuel to an approved fuel storage container.
3M (10 FT.)
Page 6
6
PERSONAL CONDITION AND SAFETY EQUIPMENT
W ARNING DANGER
Trimmer/Brush Cutter users risk injury to themselves and others if the trimmer/brush cutter is used improperly and or
safety precautions are not followed. Proper clothing and safety gear must be worn when operating a trimmer.
Physical Condition --
Your judgment and physical dexterity may not be good:
• if you are tired or sick,
• if you are taking medication,
• if you have taken alcohol or drugs.
Operate unit only if you are physically and mentally well.
Eye Protection --
Wear eye protection that meets ANSI Z87.1 or CE requirements
whenever you operate the trimmer.
Hand Protection --
Wear no-slip, heavy duty work gloves to improve your grip on the
Trimmer/Brush Cutter handles. Gloves also reduce the transmission of
machine vibration to your hands.
Hearing Protection --
ECHO recommends wearing hearing protection whenever unit is used.
Proper Clothing --
Wear snug fitting, durable clothing;
• Pants should have long legs, shirts with long sleeves.
• DO NOT WEAR SHORTS,
• DO NOT WEAR TIES, SCARVES, JEWELRY.
Wear sturdy work shoes with non-skid soles;
• DO NOT WEAR OPEN TOED SHOES,
• DO NOT OPERATE UNIT BAREFOOTED.
Hot Humid Weather --
Heavy protective clothing can increase operator fatigue which may lead
to heat stroke. Schedule heavy work for early morning or late afternoon
hours when temperatures are cooler.
Page 7
SAFE OPERATION
Determine Operation Area
• Provide all operators of this equipment with the Operator's Manual
and instructions for safe operation.
• Review the area to be trimmed. Look for hazards that could contribute
to unsafe conditions.
• Spectators and fellow workers must be warned, and children and
animals prevented from coming nearer than 15M (50 ft.) while
the trimmer is in use.
Operation
Use Proper Clothing & Equipment
• Before starting the unit, equip yourself and any other person
working within the 15M (50 ft.) Safety Zone with the required
Protective Equipment and clothing.
G
RASS
O
PERATOR'S MANUAL
15M (50 FT.)
T
RIMMER
7
W ARNING DANGER
Do not operate this product indoors or in inadequately ventilated
areas. Engine exhaust contains poisonous emissions and can cause
serious injury or death.
Avoid Hot Surfaces
• During operation, the complete unit, especially the exhaust area and
the bearing housing may become very hot. Avoid contact during and
immediately after operation. Always keep exhaust area clear of
flammable debris. Allow the engine and muffler to completely cool
before performing any maintenance activity.
Keep A Firm Grip
• Hold the front and rear handles with both hands with thumbs and
fingers encircling the handles
Keep A Solid Stance
• Maintain footing and balance at all times. Do not stand on slippery,
uneven or unstable surfaces. Do not work in odd positions or on
ladders. Do not over reach.
Page 8
8
EXTENDED OPERATION/EXTREME CONDITIONS
Vibration and Cold --
It is believed that a condition called Raynaud’s Phenomenon, which
affects the fingers of certain individuals may be brought about by
exposure to vibration and cold. Exposure to vibration and cold may
cause tingling and burning sensations followed by loss of color and
numbness in the fingers. The following precautions are strongly
recommended because the minimum exposure which might trigger the
ailment is unknown.
• Keep your body warm, especially the head, neck, feet, ankles, hands
and wrists.
• Maintain good blood circulation by performing vigorous arm exercises during frequent work breaks and also by not smoking.
• Limit the hours of operation. Try to fill each day with jobs where
operating the trimmer or other hand-held power equipment is not
required.
• If you experience discomfort, redness and swelling of the fingers
followed by whitening and loss of feeling, consult your physician
before further exposing yourself to cold and vibration.
Repetitive Stress Injuries --
It is believed that overusing the muscles and tendons of the fingers,
hands, arms and shoulders may cause soreness, swelling, numbness,
weakness and extreme pain in those areas. Certain repetitive hand
activities may put you at a high risk for developing a Repetitive Stress
Injury (RSI). An extreme RSI condition is Carpal Tunnel Syndrome
(CTS), which could occur when your wrist swells and squeezes a vital
nerve that runs through the area. Some believe that prolonged exposure
to vibration may contribute to CTS. CTS can cause severe pain for
months or even years. To reduce the risk of RSI/CTS, do the following:
• Avoid using your wrist in a bent, extended or twisted position.
Instead try to maintain a straight wrist position. Also, when grasping,
use your whole hand, not just the thumb and index finger.
• Take periodic breaks to minimize repetition and rest your hands.
• Reduce the speed and force in which you do the repetitive movement.
• Do exercises to strengthen the hand and arm muscles.
• Immediately stop using all power equipment and consult a doctor if
you feel tingling, numbness or pain in the fingers, hands, wrists or
arms. The sooner RSI/CTS is diagnosed, the more likely permanent
nerve and muscle damage can be prevented.
Page 9
G
RASS
O
PERATOR'S MANUAL
T
RIMMER
DESCRIPTION
The ECHO product you purchased has been factory pre-assembled for your convenience. Due to packaging restrictions,
shield installation and positioning of the front handle are necessary.
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing
parts. Use the contents list to check for missing parts.
AIR INDEX TAG
EMISSION CONTROL
California Tier 2
The emission control system for these engines are
EM (Engine Modification).
IMPORTANT ENGINE INFORMATION
ENGINE FAMILY: YEHXS.0214CA
DISPLACEMENT: 21.2 CC
THIS ENGINE MEETS U.S. EPA PH1 AND 2000 AND
LATER CALIFORNIA EMISSION REGULATIONS FOR
S.O.R.E. REFER TO OWNER'S MANUAL FOR
MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS.
The Air Index Tag indicates, for
purposes of consumer awareness, how
this product's emissions compare to
the standards enacted by the California
Air Resources Board.
9
An Emission Control Label is located on the engine. (This is an
EXAMPLE ONLY, information on label varies by engine FAMILY).
PRODUCT EMISSION DURABILITY
The 300 hour emission durability period is the time span selected by the manufacturer certifying the engine
emissions output meets applicable California emissions regulations, provided that approved maintenance procedures are followed as listed in the Maintenance Section of this manual.
CONTENTS
____ 1 - Trimmer Assembly
____ - Power Head
____ - Drive Shaft Assembly
____ 1 - Plastic Bag (Co-Pack)
____ - Operator's Manual
____ - Safety Manual
____ - Shield Assembly
____ - Nylon Trimmer Head
____ - Hardware Bag
____ -1, 1/4-20 bolt
____ -1, 1/4-20 wing nut
____ -1, 1/4-20 flat washer
____ - Warranty Card & Limited Warranty
____ - Safety Glasses
____ - Oil 2 Stroke
Page 10
10
1
6
2
19
18
17
4
5
8
21
20
16
13
14
15
3
7
12
9
10
11
22
Page 11
G
RASS
O
PERATOR'S MANUAL
1. OPERATOR'S MANUAL - Included in plastic bag (co-pack). Read before operation and keep in a safe place for
future reference, i.e., operation, maintenance, storage and specifications.
2. SAFETY MANUAL - Included in plastic bag (co-pack). Read before operation and keep in a safe place for future
reference to learn proper, safe operating techniques.
3. POWER HEAD - Factory Assembled to the Drive Shaft assembly. Includes the Engine, Clutch, Fuel System,
Ignition System and Recoil Starter.
4. FRONT HANDLE - The Front (loop) handle is factory assembled to the Drive Shaft assembly but must be reposi-
tioned for proper cutting attitude and operator comfort.
5. Drive Shaft ASSEMBLY - Factory Assembled to the Power Head. Includes the Rear (right hand) Handle Assembly,
Bearing Housing Assembly, Throttle Trigger, Front (loop, left hand) Handle Assembly, Flexible Drive Cable and
Safety Decals.
6. NYLON CUTTER HEAD - Contains replaceable nylon trimming line that advances when the trimmer head is tapped
against the ground while the head is turning at normal operating speed.
7. DEBRIS SHIELD ASSEMBLY - Included in plastic bag (co-pack). MUST be installed on unit before use, see
Assembly Instructions. Shield assembly includes the Cut-Off Knife and Safety Decal. Mounts on the Bearing
Housing Assembly just above the cutting attachment. Helps protect the operator by deflecting debris produced
during the trimming operation.
8. CUT-OFF KNIFE - Trims line to the correct length (5"). If trimmer is operated without a cut-off knife the line will
become too long - more than (5") - the operating speed will slow, the engine overheat and performance will suffer.
9. THROTTLE TRIGGER - Spring loaded to return to idle when released. During acceleration, press trigger gradually
for best operating technique.
10. GRIP - Rear (right hand) handle.
11. STOP SWITCH - "TOGGLE SWITCH" mounted on the engine. Move switch UP to RUN, DOWN to STOP.
12. SHOULDER HARNESS - Optional. An adjustable strap that suspends the unit from the operator.
13. ARM REST - Provides arm rest during operation and protects arm from hot engine.
14. SPARK ARRESTOR - CATALYTIC MUFFLER / MUFFLER -The muffler or catalytic muffler controls exhaust noise
and emission. The spark arrestor screen prevents hot, glowing particles of carbon from leaving the muffler. Keep
exhaust area clear of flammable debris.
15. FUEL TANK - Contains fuel and fuel filter.
16. RECOIL STARTER HANDLE - Pull handle slowly until recoil starter engages, then quickly and firmly. When engine
starts, return handle slowly. DO NOT let handle snap back or damage to unit will occur.
17. FUEL TANK CAP - Cover and seals fuel tank opening.
18. PRIMER BULB - Pumping primer bulb before starting engine draws fresh fuel from the fuel tank priming the carbure-
tor for starting. Pump primer bulb until fuel will be visible and flows freely in the clear fuel tank return line. Pump bulb
an additional 4 or 5 times.
19. AIR CLEANER - Contains replaceable filter element.
20. CHOKE - Located above the air cleaner housing. Move lever to “Cold Start” to close choke for cold starting. Move
lever to “Run” ostion to open choke.
21. SPARK PLUG - Provides spark to ignite fuel mixture.
22. SAFETY VIDEO - (Not included with unit) P/N 99922202540 English version only is available at a cost of $5.00 from
ECHO, INC. or any authorized ECHO dealer. The video overviews safety precautions and proper operating techniques and is supplemental to the Safety Manual. Read and understand the Safety Manual for complete information
on safe operation.
T
RIMMER
11
Page 12
12
SPECIFICATIONS
MODEL GT-201
Length 1400 mm (55.1 in.)
Width 310 mm (12.2 in.)
Heig ht 385 mm (15.2 in.)
Weight (dry) w/Cutte r Head 4.35 kg (9.6 lb.)
Engine Type Air cooled, two-stroke, single cylinder gasoline engine
Bore 32.2 mm (1.268 in.)
Stroke
Displacement 21.2 cc (1.29 cu. in.)
Exha us t Spark A rrestor M uffle r w /c a ta lyst
Carburetor Zama diaphragm model w/purge
Ignition S ystem Flywheel magne to, capacito r discharge
Spark Plug NGK BPM-7Y (0.65 mm (0.026 in.)
Fuel Mixed (Gasoline and Two-stroke Oil)
Fuel/Oil Ratio 50:1 ECHO High Performance, two-stroke air cooled engine oil
Gasoline
Oil 50:1 ECHO High Performance, two-stroke air cooled engine oil
Fuel Tank Capacity
Recoil Starter System Automatic Recoil Starter
Clutch Centrifugal Type
89 Octane unleaded. DO NOT use fuel containing methyl alcohol,
more than 10 % ethyl alcohol or 15% MTBE.
26.0 mm (1.02 in.)
0.45 lit. (15.2 US fl. oz.)
Drive Shaft 1/4" Flex Shaft
Rotating Direction Clockwise viewed from top
Cutter Head Nylon line head (2-Line) with .080 in. line capacity 6.5 m (20 ft.)
Front Handle Left - D-Loop, Right - Grip
Shoulder Harness Optional P/N 99944200201
Idle Speed (RPM) 2400 - 3200
Wide Open Throttle Speed with
Trimmer Head
6800 - 7500
Page 13
ASSEMBLY
G
RASS
O
PERATOR'S MANUAL
T
RIMMER
13
Tools Required: Locking Tool (not included). (Use 1/8 in. diameter or
less metal bar or small screwdriver.)
PLASTIC SHIELD
1. Snap the shield over the bearing housing.
2 . Install bolt (A), washer (B) and wing nut (C).
NYLON LINE HEAD
1 . Align locking hole in upper plate with hole in bearing housing.
2 . Insert 1/8" dia. locking tool (D) (not included with unit) and remove
plastic retaining sleeve. Thread cutting attachment onto PTO shaft
clockwise until head is tight.
B
C
D
A
IMPORTANT
Remember to remove the locking tool.
FRONT (LOOP) HANDLE
NOTE
Front handle is pre-installed. Repositioning and tightening is all
that is required.
1 . Position front handle (E) in comfortable operating position and
tighten wing nut (F). The cutting attachment should be 5cm- 7.5cm
(2 in. -3 in.) above the ground and as level as possible.
E
F
Page 14
14
PRE - OPERA TION
FUEL
Fuel Requirements
Gasoline - Use 89 Octane [ ] (mid grade or higher) gasoline or
gasohol known to be good quality. Gasohol may contain up to 10%
Ethyl (grain) alcohol or 15% MTBE (methyl tertiary-butyl ether).
Gasohol containing methyl (wood) alcohol is NOT approved.
Two Stroke Oil - A two-stroke engine oil meeting ISO-L-EGD (ISO/CD
13738) and JASO FC standards, must be used. Echo brand Premium 50:1
oil meets these standards. Engine problems due to inadequate lubrication caused by failure to use an ISO-L-EGD and JASO FC certified oil,
such as Echo Premium 50:1 Two-stroke Oil, will void the two-stroke
engine warranty. (Emission related parts only are covered for two
years, regardless of two-stroke oil used, per the statement listed in the
California Emission Defect Warranty Explanation.)
Mixing - Follow directions on the oil container.
R + M
2
Handling Fuel
W ARNING DANGER
Fuel is VERY flammable. Use extreme care when mixing, storing or
handling, otherwise serious personal injury may result.
• Use an approved fuel container.
• DO NOT smoke near fuel.
• DO NOT allow flames or sparks near fuel.
• Fuel tanks/cans may be under pressure. Always loosen fuel caps
slowly allowing pressure to equalize.
• NEVER refuel a unit when the engine is HOT!
• NEVER refuel a unit with the engine running.
• DO NOT fill fuel tanks indoors. ALWAYS fill fuel tanks outdoors
over bare ground.
• Securely tighten fuel cap after refueling.
• Inspect for fuel leakage. If fuel leakage is found, do not start or
operate unit until leakage is repaired.
IMPORTANT
Spilled fuel is a leading cause of hydrocarbon emissions. Some
states may require the use of automatic fuel shut-off containers to
reduce fuel spillage. Contact your ECHO dealer for ordering
information.
Page 15
After refueling;
• Wipe any spilled fuel from the unit.
• Move at least 3 M (10 ft.) from refueling location before starting the
engine.
After use;
• DO NOT store a unit with fuel in its tank. Leaks can occur.
Return unused fuel to an approved fuel storage container.
Storage -
Fuel storage laws vary by locality. Contact your local government for
the laws affecting your area. As a precaution, store fuel in an approved,
air tight container. Store in a well ventilated, unoccupied building, away
from sparks and flames. Do not store fuel longer than 30 days.
IMPORTANT
Stored fuel ages. Do not mix more fuel than you expect to use in
thirty (30) days, ninety (90) days when a fuel stabilizer is added.
IMPORTANT
Stored two-stroke fuel may separate. ALWAYS shake fuel container thoroughly before each use.
G
RASS
O
PERATOR'S MANUAL
3M (10 FT.)
T
RIMMER
SMTWTF S
1234567
8 9 10 1112 13 14
1516 17 181920 21
2223 24 252627 28
2930 31
15
EQUIPMENT CHECK
Before operation a complete check of the unit must be performed;
• Check unit for loose/missing nuts, bolts and screws. Tighten and/or
replace as needed.
• Inspect fuel lines, tank and area around carburetor for fuel leaks. DO
NOT operate unit if leaks are found.
• Inspect shield for damage and ensure that the cut-off knife is securely
in place. Replace if either is damaged or missing.
• Check that the cutting attachment is firmly attached and in safe
operating condition.
• Check that front (loop) handle and optional shoulder harness are
adjusted for safe, comfortable operation. See Assembly for proper
adjustment.
Page 16
16
DETERMINE OPERATION AREA
• Review the area to be trimmed. Look for hazards that could contribute
to unsafe conditions.
• Spectators and fellow workers must be warned, and children and
animals prevented from coming nearer than 15M (50 ft.) while the
trimmer is in use.
OPERA TION
• Provide all operators of this equipment with the Operator's Manual
and Instructions for safe use.
• Before starting the unit, equip yourself and any other person working
within the 15M (50 ft.) Safety Zone with the required Protective
Equipment and clothing.
• During operation, the complete unit, especially the exhaust area and
the bearing housing may become very hot, too hot to touch. Avoid
contact during and immediately after operation. Always keep exhaust
area clear of flammable debris.
15M (50 FT.)
STARTING COLD ENGINE
W ARNING DANGER
The cutting attachment should not rotate at idle. If attachment
rotates, readjust carburetor according to "Carburetor Adjustment"
instructions in this manual or see your ECHO Dealer, otherwise
serious personal injury may result.
1 . Stop Switch - Start/Run.
Move stop switch button (A) away from the STOP position.
2 . Choke Lever - Cold Start.
Move choke (B) to “Cold Start” Position.
3 . Primer - Pump Bulb
Pump primer bulb (C) until fuel will be visible and flows freely in the
clear fuel tank return line. Pump bulb an additional 4 or 5 times.
A
B
C
Page 17
W ARNING DANGER
Inspect starting area for hazards such as rocks, glass, debris etc.
which could be thrown by the cutting attachment when starting.
Keep helpers and bystanders at least 15m (50 feet) from starting
area, otherwise serious personal injury may result.
4 . Lay the trimmer on a flat clear area. Firmly grasp throttle grip with
left hand and fully depress throttle trigger to wide open position.
Rapidly pull starter handle/rope (D) until engine fires (maximum five
[5] pulls).
5 . After engine fires or five (5) pulls, move choke lever back to “Run”
position. Hold throttle trigger fully depressed and pull starter
handle/rope until engine starts and runs. Release throttle trigger
and allow unit to warm up at idle for several minutes.
NOTE
If engine does not start with choke in “Run” position after 5 pulls,
repeat instructions.
G
RASS
O
PERATOR'S MANUAL
D
T
RIMMER
17
6 . After engine warm up, gradually depress throttle trigger to increase
engine RPM to operating speed.
STARTING WARM ENGINE
W ARNING DANGER
The cutting attachment should not rotate at idle. If attachment
rotates, readjust carburetor according to "Carburetor Adjustment"
instructions in this manual or see your ECHO Dealer, otherwise
serious personal injury may result.
1 . Stop Switch - Start/Run. Move stop switch button (A) away from
the STOP position.
2 . Start - Pull Rope. Lay the trimmer on a flat clear area and pull
the starter handle (D) until the engine fires.
A
NOTE
If engine does not start after 5 pulls, use Cold Start Procedure.
D
Page 18
18
STOPPING ENGINE
1 . Release Throttle. Allow engine to idle for a minute.
2. Stop Switch - Stop. Move stop switch button (A) to STOP
position.
W ARNING DANGER
If engine does not stop when stop switch is moved to STOP
position, close choke - COLD START position - to stall engine.
Have your ECHO dealer repair stop switch before using trimmer
again.
NOTE
Refer to the Grass Trimmer / Brush Cutter Safety Manual for proper
and safe trimming techniques.
A
MAINTENANCE
Your ECHO trimmer is designed to provide many hours of trouble free service. Regular scheduled maintenance will help
your trimmer achieve that goal. If you are unsure or are not equipped with the necessary tools, you may want to take your
unit to an ECHO Service Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the
ECHO Dealer do it, each maintenance task has been graded. If the task is not listed see your Echo dealer for repairs.
SKILL LEVEL
Level 1 = Easy to do. Most required tools come with unit.
Level 2 = Moderate difficulty. Some specialized tools may be required.
Level 3 = Experience required. Specialized tools are required. ECHO recommends
that the unit be returned to your ECHO dealer for servicing.
ECHO offers REPOWERTM Maintenance Kits and Parts to make your maintenance job easier. Just below each task
heading are listed the various part numbers required for that task. See your ECHO dealer for these parts.
Page 19
MAINTENANCE INTERVALS
G
RASS
O
PERATOR'S MANUAL
T
RIMMER
19
Component/S ystem Maintenance Procedure
Air Filter Clean / Replace
Fuel S trainer Clean / Replace
Fuel Line Inspect
Carburetor Inspect / Rebuild / Replace
Choke System Inspect / Clean / Replace
Cooling System Inspect / C lean
Muffle r Spa r k
Arre sto r
C yli nd e r Exhaust Port Inspe c t / Clean / De c arbo n
Drive Shaft (Flex
Cable Models)
Inspect / Clean
Grease
Daily or
Before
Use
I / C R *
II I
I / C I / C
I / C
Every
Refuel
3 Months
or 90
Hours
IR
I / C
I / C
I (2)
6 Months
or 270
Hours
I / C R (1 )
Yearly
Gear Housing Grease
Sta rte r Ro p e Insp e c t / C le a n
Fuel Leaks Inspect / Replace
Spark Plug Clean / Replace
Ignition System Clean / Replace No Maintenance required for coil and flywheel
Screws/Nuts/Bolts Inspect /T ighten / Replace
I = Inspect / R = Re place / C = Clean
Time intervals shown are maximum. Actual use and your e xperience will determine the fre que ncy of
re qui re d ma i ntena nc e.
(1 ) R epla ceme nt will be re quired for c o mmerc ia l us e y e a rly. Fo r Co ns ume r us e, cl e a ning e v ery 6 months
is re quired. Cle a ning include s R e build Kits.
* All re comme ndations to replace are based on the finding of damage or we ar during inspection.
(2) Greas e flexible drive cables e ve ry 25 hours and/or on a we e kly schedule.
I
II
I
I
I / C R
Page 20
20
AIR FILTER
Level 1.
Tools required: Cleaning brush, 25 or 50 mm (1 or 2 in.) medium bristle
paint brush.
Parts required: 90008 REPOWERTM AIR & FUEL FILTER KIT.
1. Close choke (Cold Start Position). This prevents dirt from entering the
carburetor throat when the air filter is removed. Brush accumulated dirt
from the air cleaner area.
2. Remove the air cleaner cover. Clean and inspect the element for
damage. If element is fuel soaked and very dirty, replace.
3. If element can be cleaned and reused, be certain it:
-still fits the cavity in the air cleaner cover.
-is installed with the original side out.
NOTE
Carburetor adjustment may be needed after air filter cleaning/
replacement. See Carburetor Adjustment Section.
FUEL FILTER
Level 1.
Tools required: Fuel line hook, 203-254 mm ( 8-10 in.) length of wire
with one end bent into a hook. Clean rag, funnel, and an approved fuel
container.
Parts required: 90008 REPOWERTM AIR & FUEL FILTER KIT
W ARNING DANGER
Fuel is VERY flammable. Use extreme care when mixing, storing or
handling.
1 . Use a clean rag to remove loose dirt from around fuel cap and
empty fuel tank.
2 . Use the “fuel line hook” to pull the fuel line and filter from the tank.
3 . Remove the filter from the line and install the new filter.
Page 21
W ARNING DANGER
Catalytic mufflers operate at extremely high temperatures. Muffler
area must be kept clean. Do not perform maintenance on the muffler
until engine and muffler are completely cool, otherwise serious
personal injury may occur.
SP ARK PLUG
Level 2.
Tools Required: Spark Plug socket wrench and screw driver, Feeler
gauge. Preferably a wire gauge.
Parts Required: 90064 REPOWERTM Tune-Up Kit
1 . Remove spark plug and check for fouling, worn and rounded center
electrode.
G
RASS
O
PERATOR'S MANUAL
T
RIMMER
21
2 . Clean the plug or replace with a new one. DO NOT sand blast to
clean. Remaining sand will damage engine.
3. Adjust spark plug gap by bending outer electrode.
4 . Tighten spark plug to 145-155 kg/cm (125-135 in. lb.).
COOLING SYSTEMS CLEANING
Level 2.
Tools required: Cross Head Screwdriver, 3 mm Hexagon wrench,
Cleaning Brush, 25-50 mm (1-2 in.) medium bristle paint brush.
Parts Required: None.
IMPORTANT
To maintain proper engine operating temperatures, cooling air must
pass freely through the cylinder fin area. This flow of air carries
combustion heat away from the engine.
Overheating and engine seizure can occur when:
- Air intakes are blocked, preventing cooling air from reaching the
cylinder.
- Dust and grass build up on the outside of the cylinder. This build up
insulates the engine and prevents the heat from leaving.
Removal of cooling passage blockages or cleaning of cooling fins is
considered “Normal Maintenance”. Any failure attributed to lack of
maintenance is not warranted.
Page 22
22
1 . Remove spark plug lead and throttle linkage end from the carbure-
tor swivel.
2. Remove the four screws that retain the cover. Two at the top of the
Recoil Starter, two on either side of the front. Lift the cover from the
engine and lay to the front of the trimmer.
NOTE
The throttle linkage remains assembled to the cover and the spark
plug lead and grommet remain installed.
IMPORTANT
DO NOT use a metal scraper to remove dirt from the cylinder fins.
3 . Use the brush to remove dirt from the cylinder fins.
4 . Remove grass and leaves from the grid between the starter and fuel
tank.
5 . When installing the cover, be certain the tab of the metal deflector
shield is in the slot of the cover.
EXHAUST SYSTEM
Spark Arrestor Screen
Level 2.
Tools Required: Cross Head Screwdriver. Soft metal brush.
Parts Required: Screen P/N 14586240630, Gasket Lid P/N 14586642031
1 . Remove engine cover, see "Cooling System Cleaning" pages 21
and 22 for step by step instructions.
2 . Remove screen cover (A), holder (B) and gasket (C) from muffler
body.
3 . Clean carbon deposits from screen (D) and muffler components.
4 . Replace screen if it is cracked, plugged or has holes burned
through.
5. Assemble components in reverse order.
Page 23
CARBURETOR ADJUSTMENT
Engine Break-In
New engines must be operated a minimum duration of two tanks of fuel
break-in before carburetor adjustments can be made. During the break-in
period your engine performance will increase and exhaust emissions will
stabilize. Idle speed can be adjusted as required.
High Altitude Adjustment
High altitude adjustment is not required for proper operation of this
engine.
Level 2.
Tools required: Screwdriver, Tachometer (ECHO P/N 99051130017).
Parts required: None.
NOTE
Every unit is run at the factory and the carburetor is set in compliance and California Emission Regulations. In addition, the carburetor is equipped with a HI needle adjustment limiter that prevents
settings outside acceptable limits.
G
RASS
O
PERATOR'S MANUAL
T
RIMMER
23
1 . Before adjusting the carburetor, clean or replace the air filter and
spark arrester screen.
2 . Trimmer line must be extended to the cut-off knife.
3 . Start engine and run for several minutes to reach operating tempera-
ture.
4 . Stop engine. Turn HI speed needle (A) CCW (counter clockwise) to
stop.
5 . Idle Speed Adjustment.
• Start engine and turn “idle” speed adjustment screw (B) CW
until the blades begin to turn, then turn the screw CCW until
blades stop turning. Turn screw CCW an additional 1/4 turn.
6 . Accelerate to full throttle for 2-3 seconds to clear excess fuel from
engine then return to idle. Accelerate to full throttle to check for
smooth transition from idle to full throttle. If engine stops or stalls
after full warm up return the unit to your authorized ECHO dealer for
repair.
7 . Check HI speed RPM at W.O.T. (Wide Open Throttle). HI speed
RPM should be set to specifications found on page 12 "Specifications" of this manual.
8 . Check idle speed and reset if necessary. If a tachometer is available,
idle speed should be set to the specification found on page 12
"Specifications" of this manual.
A
B
W ARNING DANGER
When carburetor adjustment is completed, the cutting attachment
should not turn at idle, otherwise serious personal injury may
result.
Page 24
24
LUBRICA TION
Level 1.
Tools Required: 8 mm Open End Wrench, Screwdriver, Clean Rag.
Parts Required: Echo LubeTM 8 oz. (P/N 91014) or Lithium Base Grease.
1 . Remove plastic shield.
2. Loosen bearing housing locating screw (A), at the top of the
housing, remove mounting screw (B).
3 . Pull the flexible drive shaft (C) from the housing, wipe clean and re-
coat with a thin coating [1/2 oz. (15 ml)] of grease.
4 . Slide the flexible drive shaft back in the drive housing being careful
not to get dirt on the flexible drive shaft.
5. Install the bearing housing and shield.
NYLON LINE REPLACEMENT
Level 1.
Tools Required: Head locking tool - 1/8" dia. Rod (if head is to be
removed)
Parts Required: ECHO 0.080 (2 mm) Nylon Trimmer Line 4.6 m (15 feet)
1. Shut engine off. Lay unit on the ground with head assembly up.
2. Hold head firmly, push in housing tab and turn cover counter
clockwise to remove cover and spool.
3 . Cut .080" line to 4.6 m (15 feet) length. Thread line through hole (A)
in spool spindle until one end is 4" longer than the other end.
Page 25
4 . Hold spool with words "WIND LINE" and tap knob towards you.
Place index finger between the two lines and wind line clockwise
tightly and evenly.
5 . Place ends of line in the two notches (B) molded in the spool with
12.5 cm to 15.2 cm (5 in. to 6 in.) protruding.
G
RASS
O
PERATOR'S MANUAL
T
RIMMER
25
6. Place spool in housing against spring (C); thread line ends through
housing eyelets (D)
7. Align cover arrow with housing tab; push down on cover and twist
clockwise until cover locks in place.
8 . Pull both lines out and trim to cut-off knife length.
Before installing, test head. Push center button while pulling on
both lines. Trimmer line should advance approximately 1 (one) inch.
D
C
D
Page 26
26
TROUBLESHOOTING
Problem
Eng i ne -- s tarts ha rd
Engine -- does not start
Engine
Cranks
Engine
does not
crank
Fuel at
carburetor
Fuel at
cyli nder
Spark at end
of plug wire
Spark at plug No spark
No fuel at
carburetor
No fuel at
cyli nder
Muffler wet
with fuel
No sp ark
at end of
plug wire
at plug
Cause Remedy
Fuel strainer clogged
Fuel line clogged
Carburetor
Carburetor See your EC HO dealer
Fuel Mi xture is too rich Open choke
Stop switch off
Electrical problem
Spark gap incorrect
C o vere d with carb on
Fouled with fuel
Spark plug defective
Internal engine pro blem See your ECHO dealer
Clean
Clean
See your EC HO dealer
Clean/replace air filter
Adjust carburetor
See your EC HO dealer
Turn switch o n
See your EC HO dealer
Adjust 0.65mm (0.026in.)
Clean or replace
Clean or replace
Replace plug
Engine
runs
Air filter dirty
Fuel filter dirty
F uel vent plugged
Spark plug
Carburetor
Cooling system plugged
Spark arrestor screen
plugged
Clean or replace
Replace
Replace
Clean and adjust/replace
Adjust
Clean
Clean
W ARNING DANGER
Fuel vapors are extremely flammable and may cause fire and/or explosion. Never test for ignition spark near an open
spark plug opening, otherwise serious personal injury may result.
Page 27
STORAGE
Long Term Storage (over 30 days)
G
RASS
O
PERATOR'S MANUAL
T
RIMMER
27
W ARNING
During operation the muffler or catalytic muffler and surrounding
cover become hot. Always keep exhaust area clear of flammable
debris during transportation or when storing, otherwise serious
property damage or personal injury may result.
Do not store your unit for a prolonged period of time (30 days or longer)
without performing protective storage maintenance which includes the
following:
1 . Store unit in a dry, dust free place, out of the reach of children with
drive shaft housing in an upright or horizontal position to prevent
grease leakage.
DANGER
W ARNING DANGER
Do not store in enclosure where fuel fumes may accumulate or
reach an open flame or spark, otherwise serious injury may result.
2. Place the stop switch (A) in the "OFF" position.
3 . Remove accumulation of grease, oil, dirt and debris from exterior of
unit.
4 . Perform all periodic lubrication and services that are required.
5. Tighten all the screws and nuts.
6. Drain the fuel tank completely and pull the recoil starter handle
several times to remove fuel from the carburetor.
7 . Remove the spark plug and pour 7 cc (1/4 oz.; 1/2 tablespoon) of
fresh, clean, two-stroke engine oil into the cylinder through the
spark plug hole.
A. Place a clean cloth over the spark plug hole.
B . Pull the recoil starter handle 2-3 times to distribute the oil inside
the engine.
C. Observe the piston location through the spark plug hole. Pull
the recoil starter handle slowly until the piston reaches the top
of its travel and leave it there.
8. Install the spark plug (do not connect ignition cable).
A
Page 28
SERVICING INFORMATION
PARTS
Genuine ECHO Parts and ECHO REPOWERTM Parts and Assemblies for
your ECHO products are available only from an Authorized ECHO
Dealer. When you do need to buy parts always have the Model Number
and Serial Number of the unit with you. You can find these numbers on
the engine housing. For future reference, write them in the space
provided below.
Model No. ____________ SN. _____________
SERVICE
Service of this product during the warranty period must be performed by
an Authorized ECHO Service Dealer. For the name and address of the
Authorized ECHO Service Dealer nearest you, ask your retailer or call:
1-800-432-ECHO (3246). When presenting your unit for Warranty
service/repairs, proof of purchase is required.
ECHO CONSUMER PRODUCT SUPPORT
If you require assistance or have questions concerning the application,
operation or maintenance of this product you may call the ECHO
Consumer Product Support Department at 1-800-673-1558 from 8:00 am
to 5:00 pm (Central Standard Time) Monday through Friday. Before
calling, please know the model and serial number of your unit to help
your Consumer Product Support Representative.
W ARRANTY CARD
This card is our means of registering all original owners of ECHO
equipment. The card plus proof of purchase provides you the assurance that authorized warranty work will be done. It also provides a
direct link between you and ECHO if we find it necessary to contact
you.
ADDITIONAL OR REPLACEMENT MANUALS
Safety Manuals are available, free of charge, from your ECHO dealer
or by contacting Echo Incorporated, 400 Oakwood Road, Lake Zurich, IL
60047
Operator's and Parts Manuals are available for purchase from
your ECHO dealer or directly from ECHO. [See ordering instructions at
the end of this manual.]
Safety Video is available from your dealer. A $5.00 shipping charge
will be required.
DEALER?
Call
1-800-432-ECHO
1-800-432-3246
CONSUMER PRODUCT
SUPPORT
1-800-673-1558
8 - 5 Mon - Fri C.S.T.
ECHO Incorporated
400 Oakwood Road
Lake Zurich, IL 60047
Technical Publications Orders
ORDERING INSTRUCTIONS
To obtain a Parts Catalog or Operator's Manual send a check or money order for $2.00 per Parts Catalog or $1.50 per
Operator's Manual made payable to ECHO, INCORPORATED. State on a sheet of paper the model number and serial
number of the ECHO unit you have, part number of the manual (if known), your name and address and mail to address
above.
Available Parts Catalog
GT-201 Serial Number 002001001 Part Number 99922203164
ECHO, INCORPORATED
400 OAKWOOD ROAD
LAKE ZURICH, IL 60047
Loading...
