Echo GT-200 R User Manual

A V AILABLE A TT ACHMENTS & A CCESSORIES

Accessories

99944200201 GT Shoulder Harness Kit

PARTS CATALOG

Cutting Heads

215311 Maxi-Cut Head
21560040 Echomatic Single Line Head
21560056 2-Line Rapid Loader

GT-200R Trimmer

21.2cc

MODEL:SERIAL NUMBERS

GT-200R: S/N: S80113001001 - S80113999999

ECHO, INCORPORATED

400 Oakwood Road Lake Zurich, Illinois 60047 USA

WWW.ECHO-USA.COM

99922203366_200R/13

©2007 ECHO Incorporated, RePower is Registered Trademark of ECHO Incorporated. All Rights Reserved REVISED 06/04/07

Table of Contents Part Number Index

Table of Contents

Click Any Diagram Desciption Below To Veiw That Diagram.

GT-200R S/N: S80113001001 - S80113999999

Cylinder Cover.................................................................................................................................................................4

Fuel System.....................................................................................................................................................................6

Fan Case, Clutch, Ignition Switch..................................................................................................................................8

Starter -- i-30..................................................................................................................................................................10

Intake..............................................................................................................................................................................12

Carburetor -- RB-K75.....................................................................................................................................................14

Exhaust...........................................................................................................................................................................16

Ignition............................................................................................................................................................................18

Engine, Short Block -- SB1072.....................................................................................................................................20

Rapid Loader Head........................................................................................................................................................22

Plastic Shield.................................................................................................................................................................24

Gear Case.......................................................................................................................................................................26

Handles, Throttle Cable.................................................................................................................................................28

Main Pipe, Flexible Driveshaft......................................................................................................................................30

Model Labels..................................................................................................................................................................32

Gasket Kit.......................................................................................................................................................................34

RePower Tune-Up Kit.....................................................................................................................................................36

Tools...............................................................................................................................................................................38

Part Number Index.........................................................................................................................................................40

Part Description Index..................................................................................................................................................41

99922203366_200R/13 - 2 - REVISED 06/04/07

This Page Intentionally Left Blank

- 3 -

Table of Contents Part Number Index

GT-200R Trimmer Cylinder Cover

99922203366_200R/13 - 4 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Cylinder Cover

REMARKSDESCRIPTIONQTYPART NUMBERITEM
COVER, CYLINDER1A1600005801
SCREW 4X122900253040122
PLUG1V1410000303
GUARD, TOP1A1620000404
SCREW 5X161900253050165
SCREW 4X162900163040166
SCREW 4X8191107040087
LABEL, CAUTION - HOT1890160063618

99922203366_200R/13 - 5 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Fuel System

99922203366_200R/13 - 6 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Fuel System

REMARKSDESCRIPTIONQTYPART NUMBERITEM
TANK, FUEL1A3500006901
WASHER 52900603000052
SCREW 5X202900162050203

INCLUDES ITEMS 5-6FUEL TANK CAP ASY1131004555304
CONNECTOR, FUEL CAP1131051560305
GASKET, FUEL CAP1131016558306
GROMMET1V1370000307

1131205073208

FILTER, FUEL
CLIP1132013098209

VENT ASY1A35600003012

1: Also Included In REPOWER TUNE-UP KIT

1

BULK OPTION: 90014PIPE, FUEL - 3X5X180mm1V47100119010

BULK OPTION: 90014PIPE, VENT - 3X5X70mm1V47100120011

BULK OPTION: 90017PIPE, RETURN - 3X6X80mm11320125603013

Footnotes

99922203366_200R/13 - 7 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Fan Case, Clutch, Ignition Switch

99922203366_200R/13 - 8 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Fan Case, Clutch, Ignition Switch

REMARKSDESCRIPTIONQTYPART NUMBERITEM
FAN COVER ASY1101503566301
BOLT 5X282900142050282
NUT 52900565500053
SWITCH, IGNITION1163400034604
BOLT 4X184900163040185
BRACKET, SWITCH1163810443306
CLUTCH ASY1175000568307

99922203366_200R/13 - 9 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Starter -- i-30

99922203366_200R/13 - 10 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Starter -- i-30

REMARKSDESCRIPTIONQTYPART NUMBERITEM

INCLUDES ITEMS 2-4STARTER PAWL ASY1A0520001801
E-RING2P0220021002
SPRING, PAWL, RETURN2P0220065103
PAWL, STARTER2P0220068504

INCLUDES ITEMS 6-14STARTER ASY1A0510007405
SCREW1177236618306
PLATE, CAM1P0220082807
SPRING, DAMPER1P0220082708
DRUM1P0220068309

BULK OPTION: 99944440000ROPE, STARTER - 3X700mm1P02200826010
GUIDE, ROPE11772274203011
GRIP, STARTER11772282703012
CLIP, STARTER ROPE11772461112013
SPRING, REWIND11772204203014
SCREW 4X1649001630401615
LABEL, i-301X50200031016

99922203366_200R/13 - 11 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Intake

99922203366_200R/13 - 12 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Intake

REMARKSDESCRIPTIONQTYPART NUMBERITEM
WING BOLT1210417527301
LID, AIR CLEANER - GRAY1130313065632
LID, AIR CLEANER - BLACK1130313058633

1130310541304

FILTER, AIR
PLATE, PREVENT1129011527305
SCREW 5X652900220050656
CASE, AIR CLEANER - GRAY1P0210009917
CASE, AIR CLEANER - BLACK1P0210044808
LABEL, CHOKE1890121527309

11300101341012

GASKET, INTAKE
INSULATOR, INTAKE11300174433013
SCREW 5X2029002380502014
NUT 529005000000515

11300104203216

SHIELD, CYLINDER

1: Also Included In REPOWER TUNE-UP KIT
2: Also Included In GASKET KIT

1

CANADA MODELSLABEL, CHOKE18901215273010

See Carburetor Diagram For Additional InformationCARBURETOR1------------------11

2

2

Footnotes

99922203366_200R/13 - 13 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Carburetor -- RB-K75

99922203366_200R/13 - 14 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Carburetor -- RB-K75

REMARKSDESCRIPTIONQTYPART NUMBERITEM
CARBURETOR -- RB-K751A021000740
ROTOR COVER ASY1P0050013201
SCREW, ROTOR COVER ASY3125344139312
SCREW, ROTOR COVER1125344521303
SCREW, CABLE ADJUST1P0050013304
SWIVEL1P0050012405
E-RING1P0050001906
SCREW, THROTTLE ADJUST1P0050001007
O-RING1P0050002808

1------------------9

BODY, CARBURETOR
PLUG1P00500127010
NEEDLE - HIGH SPEED1P00500126011
PURGE BASE ASY1P00500093012
SCREW, PURGE BASE ASY1P00500027013
BULB, PURGE11253810866014
RETAINER, PURGE BULB1P00500025015
SCREW, PURGE BULB RETAINER41253106183016
COVER, DIAPHRAGM11253425213017
SCREW, DIAPHRAGM COVER31253445213018
SCREW, METERING LEVER PIN11253394203019

ROLLER, GUIDE1P00500100021
PIN, METERING LEVER1------------------22
VALVE, INLET NEEDLE1------------------23
LEVER, METERING1------------------24
SPRING, METERING LEVER1------------------25
STRAINER1------------------26
DIAPHRAGM, PUMP1------------------27
GASKET, PUMP1------------------28
GASKET, METERING1------------------29
DIAPHRAGM, METERING1------------------30

DIAPHRAGM, PUMP1------------------32
GASKET, PUMP1------------------33
GASKET, METERING1------------------34
DIAPHRAGM, METERING1------------------35

1

INCLUDES ITEMS 21-30REPAIR KIT1P00500167020

INCLUDES ITEMS 32-35DIAPHRAGM/GASKET KIT1P00500166031

Footnotes

1: NOT AVAILABLE SEPARATELY

99922203366_200R/13 - 15 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Exhaust

99922203366_200R/13 - 16 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Exhaust

REMARKSDESCRIPTIONQTYPART NUMBERITEM

1V1040005101

1145866420316

1: Also Included In GASKET KIT

SHIELD, EXHAUST
MUFFLER1145806420302
SCREEN, MUFFLER1145862406303
BOLT 5X552900105050554
WASHER2900600000055

GASKET, EXHAUST
GUIDE, EXHAUST1A3130005807
SCREW 4X103900242040108

1

1

Footnotes

99922203366_200R/13 - 17 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Ignition

99922203366_200R/13 - 18 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Ignition

REMARKSDESCRIPTIONQTYPART NUMBERITEM
COIL, IGNITION1A4110001301
BOLT 4X202900162040202
TUBE1156110549303
BUSHING1150112443304
CAP, SPARK PLUG1159012016205
TERMINAL, SPARK PLUG CAP1159011034326

1159010198307

SPARK PLUG -- BPM-8Y

1A4250000008

SPARK PLUG -- BPMR-8Y
FLYWHEEL1A4090002109
LEAD, GROUND1V48500029010
LABEL, SPARK PLUG1X53200067111

1: Also Included In REPOWER TUNE-UP KIT

1

1

Footnotes

CANADA MODELS

99922203366_200R/13 - 19 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Engine, Short Block -- SB1072

99922203366_200R/13 - 20 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Engine, Short Block -- SB1072

REMARKSDESCRIPTIONQTYPART NUMBERITEM

INCLUDES ITEM 2-17SHORT BLOCK1SB10721
CYLINDER1A1300005402
BOLT 5X222900162050223

1V1000001604

11002424203016

1: Also Included In GASKET KIT

GASKET, CYLINDER

RING, PISTON1A1010000906
PIN, PISTON1100013115207
CIRCLIP, PISTON PIN2100015046308
SPACER, PISTON PIN2100014115209

BEARING, NEEDLE1V55300001011

OIL SEAL21002124203113
DOWEL PIN2V62200002014
BEARING, BALL2940353620115

GASKET, CRANKCASE
SCREW 5X2839001620502817

1

INCLUDES ITEMS 6-9PISTON KIT1P0210077125

INCLUDES ITEM 11CRANKSHAFT ASY1A01100010110

INCLUDES ITEMS 13-17CRANKCASE KIT11002045213212

1

Footnotes

99922203366_200R/13 - 21 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Rapid Loader Head

99922203366_200R/13 - 22 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Rapid Loader Head

REMARKSDESCRIPTIONQTYPART NUMBERITEM

INCLUDES ITEM 2-4TWO LINE RAPID LOADER HEAD1X4800000201

INCLUDES 3 - CAM, SHAFT, SPRING & 6 - SCREWREPAIR KIT1P0220010902
COVER, TOP1P0220010703

INCLUDES 3 PER PACKAGEEYELET2P0220010804
WASHER1V3070001105
WASHER 101V3070000806
LOCKNUT1V2660000307

INCLUDES 20 PER PACKAGELINE, CUTTING - 0.80in11022121318

99922203366_200R/13 - 23 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Plastic Shield

99922203366_200R/13 - 24 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Plastic Shield

REMARKSDESCRIPTIONQTYPART NUMBERITEM

INCLUDES ITEMS 2-8SHIELD ASY1699004527301
SHIELD1699010443302
BOLT 1/4-20X21900017080643
WASHER 1/41900035000084
WING NUT 1/4-201900033000085
CUTTER1699016443306
SCREW 5X162900238050167
NUT 52900500000058

99922203366_200R/13 - 25 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Gear Case

99922203366_200R/13 - 26 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Gear Case

REMARKSDESCRIPTIONQTYPART NUMBERITEM

INCLUDES ITEMS 2-9GEAR HOUSING ASY1C0560000111
CASE, GEAR1C5300000302
BOLT 5X251900152050253
SCREW 4X101900242040104
BEARING, BALL 6200194060062005
SHAFT, P.T.O.1C5340003406
BEARING, BALL 62001900811062007
CIRCLIP 301900702000308
PLATE, ADAPTER1C5350002409

99922203366_200R/13 - 27 - REVISED 06/04/07

Table of Contents Part Number Index

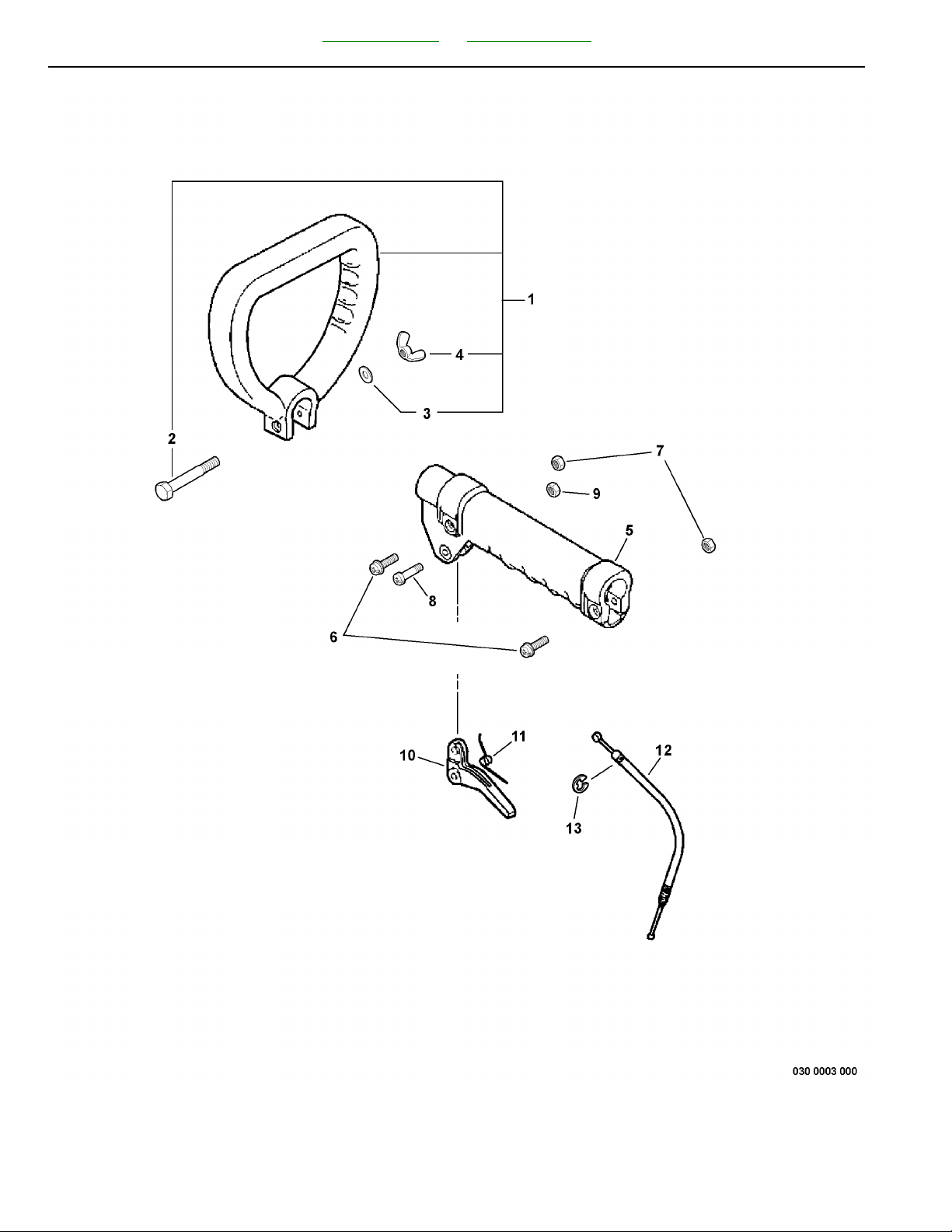

GT-200R Trimmer Handles,Throttle Cable

99922203366_200R/13 - 28 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Handles,Throttle Cable

REMARKSDESCRIPTIONQTYPART NUMBERITEM

INCLUDES ITEMS 2-4FRONT HANDLE ASY1351600443301
BOLT 1/4-20X1-1/21900017080482
WASHER1900035000083
WING NUT1900033000084
GRIP1351213443305
SCREW 5X252900242050256
NUT 52900500000057
SCREW1178110053308
LOCKNUT1900560000059
TRIGGER, THROTTLE1C45000007010
SPRING, THROTTLE RETURN11780430693011
CABLE, THROTTLE1V43000067112
E-RING19007000000513

99922203366_200R/13 - 29 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Main Pipe, Flexible Driveshaft

99922203366_200R/13 - 30 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Main Pipe, Flexible Driveshaft

REMARKSDESCRIPTIONQTYPART NUMBERITEM

INCLUDES ITEM 2-6DRIVESHAFT HOUSING ASY1610609443301
LINER1610217443302
LABEL, CAUTION - SPANISH1890228095603
LABEL, CAUTION1890317445304

CANADA MODELSLABEL, CAUTION1890317487315
LABEL, HANDLE LOCATION1X5050019306
LABEL, ALIGNMENT1890152049307
DRIVESHAFT, FLEXIBLE1C5060000308

99922203366_200R/13 - 31 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Model Labels

99922203366_200R/13 - 32 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Model Labels

REMARKSDESCRIPTIONQTYPART NUMBERITEM
LABEL, MODEL -- GT-2001X5470005501
LABEL, MODEL -- GT-200R1X5470003302
LABEL, MODEL -- GT-200EZR1X5430003003
LABEL, MODEL -- GT-200i1X5430003004
LABEL, MODEL -- GT-2011X5030012805
LABEL, MODEL -- GT-201R1X5430000806
LABEL, MODEL -- GT-201EZR1X5430003107
LABEL, MODEL -- GT-201i1X5430003108

99922203366_200R/13 - 33 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Gasket Kit

99922203366_200R/13 - 34 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Gasket Kit

REMARKSDESCRIPTIONQTYPART NUMBERITEM
GASKET KIT1P0210102201

99922203366_200R/13 - 35 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer RePower Tune-Up Kit

99922203366_200R/13 - 36 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer RePower Tune-Up Kit

REMARKSDESCRIPTIONQTYPART NUMBERITEM
TUNE-UP KIT190074C1

99922203366_200R/13 - 37 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Tools

99922203366_200R/13 - 38 - REVISED 06/04/07

Table of Contents Part Number Index

GT-200R Trimmer Tools

REMARKSDESCRIPTIONQTYPART NUMBERITEM
WRENCH/SCREWDRIVER -- 17X19mm1895410106301
WRENCH/SCREWDRIVER -- 17X19mm1X6020000202
WRENCH/SCREWDRIVER -- 10X19mm1895410391313
WRENCH/SCREWDRIVER -- 13X19mm1895410069604
BOX WRENCH -- 17X14.5mm1X6020000315
LOCKING BAR -- 5X120mm1897518011316
SPANNER -- 8X10mm1895112003307
SPANNER -- 17X19mm1895122209608
SPANNER -- 10mm1895015052609
HEX BAR -- 10mm18954122096010
L-WRENCH -- 3mm18956120343011
L-WRENCH -- 4mm18956100013012
L-WRENCH -- 5mm18956110033013
SCREWDRIVER -- 125mm18958110013014
SCREWDRIVER -- 50mm18958120393015

99922203366_200R/13 - 39 - REVISED 06/04/07

Table of Contents Part Number Index

Part Number Index

Click The Page Number After Any Part Number To Veiw The Diagram Containing That Part.

PagePart Number

PagePart Number

PagePart Number

13, 15------------------ .............

2110001311520 ............

2110001411520 ............

2110001504630 ............

2110020452132 ............

2110021242031 ............

2110024242030 ............

910150356630 ............

23102212131 ................

1512531061830 ............

1512533942030 ............

1512534252130 ............

1512534413931 ............

1512534452130 ............

1512538108660 ............

1312901152730 ............

1313001013410 ............

1313001042032 ............

1313001744330 ............

1313031054130 ............

1313031305863 ............

1313031306563 ............

713100455530 ............

713101655830 ............

713105156030 ............

713120507320 ............

713201256030 ............

713201309820 ............

1714580642030 ............

1714586240630 ............

1714586642031 ............

1915011244330 ............

1915611054930 ............

1915901019830 ............

1915901103432 ............

1915901201620 ............

916340003460 ............

916381044330 ............

917500056830 ............

1117722042030 ............

1117722742030 ............

1117722827030 ............

1117723661830 ............

1117724611120 ............

2917804306930 ............

2917811005330 ............

1321041752730 ............

2935121344330 ............

2935160044330 ............

3161021744330 ............

3161060944330 ............

2569900452730 ............

2569901044330 ............

2569901644330 ............

1389012152730 ............

3189015204930 ............

589016006361 ............

3189022809560 ............

3189031744530 ............

3189031748731 ............

3989501505260 ............

3989511200330 ............

3989512220960 ............

3989541006960 ............

3989541010630 ............

3989541039131 ............

3989541220960 ............

3989561000130 ............

3989561100330 ............

3989561203430 ............

3989581100130 ............

3989581203930 ............

3989751801131 ............

2990001708048 ............

2590001708064 ............

25, 2990003300008 ............

25, 2990003500008 ............

1790010505055 ............

990014205028 ............

2790015205025 ............

1990016204020 ............

790016205020 ............

2190016205022 ............

2190016205028 ............

5, 1190016304016 ............

990016304018 ............

1390022005065 ............

2590023805016 ............

1390023805020 ............

17, 2790024204010 ............

2990024205025 ............

590025304012 ............

590025305016 ............

13, 25, 2990050000005 ............

2990056000005 ............

990056550005 ............

1790060000005 ............

790060300005 ............

2990070000005 ............

2790070200030 ............

3790074C ......................

2790081106200 ............

59110704008 ..............

219403536201 ..............

279406006200 ..............

21A011000101 ..............

15A021000740 ..............

11A051000740 ..............

11A052000180 ..............

21A101000090 ..............

21A130000540 ..............

5A160000580 ..............

5A162000040 ..............

17A313000580 ..............

7A350000690 ..............

7A356000030 ..............

19A409000210 ..............

19A411000130 ..............

19A425000000 ..............

27C056000011 ..............

29C450000070 ..............

31C506000030 ..............

27C530000030 ..............

27C534000340 ..............

27C535000240 ..............

15P005000100 ..............

15P005000190 ..............

15P005000250 ..............

15P005000270 ..............

15P005000280 ..............

15P005000930 ..............

15P005001000 ..............

15P005001240 ..............

15P005001260 ..............

15P005001270 ..............

15P005001320 ..............

15P005001330 ..............

15P005001660 ..............

15P005001670 ..............

13P021000991 ..............

13P021004480 ..............

21P021007712 ..............

35P021010220 ..............

23P022001070 ..............

23P022001080 ..............

23P022001090 ..............

11P022002100 ..............

11P022006510 ..............

11P022006830 ..............

11P022006850 ..............

11P022008260 ..............

11P022008270 ..............

11P022008280 ..............

21SB1072 ......................

21V100000160 ..............

17V104000510 ..............

7V137000030 ..............

5V141000030 ..............

23V266000030 ..............

23V307000080 ..............

23V307000110 ..............

29V430000671 ..............

7V471001190 ..............

7V471001200 ..............

19V485000290 ..............

21V553000010 ..............

21V622000020 ..............

23X480000020 ..............

11X502000310 ..............

33X503001280 ..............

31X505001930 ..............

19X532000671 ..............

33X543000080 ..............

33X543000300 ..............

33X543000310 ..............

33X547000330 ..............

33X547000550 ..............

39X602000020 ..............

39X602000031 ..............

99922203366_200R/13 - 40 - REVISED 06/04/07

Table of Contents Part Number Index

Part Description Index

Click The Page Number After Any Part Desciption To Veiw The Diagram Containing That Part.

B

BEARING, BALL.....21

BEARING, BALL 6200.....27

BEARING, NEEDLE.....21

BODY, CARBURETOR.....15

BOLT 1/4-20X1-1/2.....29

BOLT 1/4-20X2.....25

BOLT 4X18.....9

BOLT 4X20.....19

BOLT 5X22.....21

BOLT 5X25.....27

BOLT 5X28.....9

BOLT 5X55.....17

BOX WRENCH -- 17X14.5mm.....39

BRACKET, SWITCH.....9

BULB, PURGE.....15

BUSHING.....19

C

CABLE, THROTTLE.....29

CAP, SPARK PLUG.....19

CARBURETOR.....13

CARBURETOR -- RB-K75.....15

CASE, AIR CLEANER - BLACK.....13

CASE, AIR CLEANER - GRAY.....13

CASE, GEAR.....27

CIRCLIP 30.....27

CIRCLIP, PISTON PIN.....21

CLIP.....7

CLIP, STARTER ROPE.....11

CLUTCH ASY.....9

COIL, IGNITION.....19

CONNECTOR, FUEL CAP.....7

COVER, CYLINDER.....5

COVER, DIAPHRAGM.....15

COVER, TOP.....23

CRANKCASE KIT.....21

CRANKSHAFT ASY.....21

CUTTER.....25

CYLINDER.....21

D

DIAPHRAGM, METERING.....15

DIAPHRAGM, PUMP.....15

DIAPHRAGM/GASKET KIT.....15

DOWEL PIN.....21

DRIVESHAFT HOUSING ASY.....31

DRIVESHAFT, FLEXIBLE.....31

DRUM.....11

E

E-RING.....11, 15, 29

EYELET.....23

F

FAN COVER ASY.....9

FILTER, AIR.....13

FILTER, FUEL.....7

FLYWHEEL.....19

FRONT HANDLE ASY.....29

FUEL TANK CAP ASY.....7

G

GASKET KIT.....35

GASKET, CRANKCASE.....21

GASKET, CYLINDER.....21

GASKET, EXHAUST.....17

GASKET, FUEL CAP.....7

GASKET, INTAKE.....13

GASKET, METERING.....15

GASKET, PUMP.....15

GEAR HOUSING ASY.....27

GRIP.....29

GRIP, STARTER.....11

GROMMET.....7

GUARD, TOP.....5

GUIDE, EXHAUST.....17

GUIDE, ROPE.....11

H

HEX BAR -- 10mm.....39

I

INSULATOR, INTAKE.....13

L

LABEL, ALIGNMENT.....31

LABEL, CAUTION.....31

LABEL, CAUTION - HOT.....5

LABEL, CAUTION - SPANISH.....31

LABEL, CHOKE.....13

LABEL, HANDLE LOCATION.....31

LABEL, i-30.....11

LABEL, MODEL -- GT-200.....33

LABEL, MODEL -- GT-200EZR.....33

LABEL, MODEL -- GT-200i.....33

LABEL, MODEL -- GT-200R.....33

LABEL, MODEL -- GT-201.....33

LABEL, MODEL -- GT-201EZR.....33

LABEL, MODEL -- GT-201i.....33

LABEL, MODEL -- GT-201R.....33

LABEL, SPARK PLUG.....19

LEAD, GROUND.....19

LEVER, METERING.....15

LID, AIR CLEANER - BLACK.....13

LID, AIR CLEANER - GRAY.....13

LINE, CUTTING - 0.80in.....23

LINER.....31

LOCKING BAR -- 5X120mm.....39

LOCKNUT.....23, 29

L-WRENCH -- 3mm.....39

L-WRENCH -- 4mm.....39

L-WRENCH -- 5mm.....39

M

MUFFLER.....17

N

NEEDLE - HIGH SPEED.....15

NUT 5.....9, 13, 25, 29

O

OIL SEAL.....21

O-RING.....15

P

PAWL, STARTER.....11

PIN, METERING LEVER.....15

PIN, PISTON.....21

PIPE, FUEL - 3X5X180mm.....7

PIPE, RETURN - 3X6X80mm.....7

PIPE, VENT - 3X5X70mm.....7

PISTON KIT.....21

PLATE, ADAPTER.....27

PLATE, CAM.....11

PLATE, PREVENT.....13

PLUG.....5, 15

PURGE BASE ASY.....15

R

REPAIR KIT.....15, 23

RETAINER, PURGE BULB.....15

RING, PISTON.....21

ROLLER, GUIDE.....15

ROPE, STARTER - 3X700mm.....11

ROTOR COVER ASY.....15

S

SCREEN, MUFFLER.....17

SCREW.....11, 29

SCREW 4X10.....17, 27

SCREW 4X12.....5

SCREW 4X16.....5, 11

SCREW 4X8.....5

SCREW 5X16.....5, 25

SCREW 5X20.....7, 13

SCREW 5X25.....29

SCREW 5X28.....21

SCREW 5X65.....13

SCREW, CABLE ADJUST.....15

SCREW, DIAPHRAGM COVER.....15

SCREW, METERING LEVER PIN.....15

SCREW, PURGE BASE ASY.....15

SCREW, PURGE BULB RETAINER.....15

SCREW, ROTOR COVER.....15

SCREW, ROTOR COVER ASY.....15

SCREW, THROTTLE ADJUST.....15

SCREWDRIVER -- 125mm.....39

SCREWDRIVER -- 50mm.....39

SHAFT, P.T.O......27

SHIELD.....25

SHIELD ASY.....25

SHIELD, CYLINDER.....13

SHIELD, EXHAUST.....17

SHORT BLOCK.....21

SPACER, PISTON PIN.....21

SPANNER -- 10mm.....39

SPANNER -- 17X19mm.....39

SPANNER -- 8X10mm.....39

SPARK PLUG -- BPM-8Y.....19

SPARK PLUG -- BPMR-8Y.....19

SPRING, DAMPER.....11

SPRING, METERING LEVER.....15

SPRING, PAWL, RETURN.....11

SPRING, REWIND.....11

SPRING, THROTTLE RETURN.....29

STARTER ASY.....11

STARTER PAWL ASY.....11

STRAINER.....15

99922203366_200R/13 - 41 - REVISED 06/04/07

Part Description Index (continued)

SWITCH, IGNITION.....9

SWIVEL.....15

T

TANK, FUEL.....7

TERMINAL, SPARK PLUG CAP.....19

TRIGGER, THROTTLE.....29

TUBE.....19

TUNE-UP KIT.....37

TWO LINE RAPID LOADER HEAD.....23

V

VALVE, INLET NEEDLE.....15

VENT ASY.....7

W

WASHER.....17, 23, 29

WASHER 1/4.....25

WASHER 10.....23

WASHER 5.....7

WING BOLT.....13

WING NUT.....29

WING NUT 1/4-20.....25

WRENCH/SCREWDRIVER -- 10X19mm.....39

WRENCH/SCREWDRIVER -- 13X19mm.....39

WRENCH/SCREWDRIVER -- 17X19mm.....39

Table of Contents Part Number Index

99922203366_200R/13 - 42 - REVISED 06/04/07

NOTES

99922203366_200R/13 - 43 - REVISED 06/04/07

ECHO, INCORPORATED

400 Oakwood Road

Lake Zurich, IL 60047 USA

WWW.ECHO-USA.COM
