INTRODUCTION
This manual shows rules of safe operation, proper use,
servicing, and maintenance of your ECHO chain saw.
Follow these instructions in order to maintain a good
operating condition and a long service life.
Misuse of the chain saw can cause serious bodily injury.
It is important for you to understand all safety
precautions correctly before using your chain saw.
This chain saw is designed for cutting wood or wood
products. Do not cut solid metal, sheet metal, plastic or
any non-wood materials.
If there is any clause in this Manual that is hard to be
understood, please contact your ECHO dealer.
CONTENTS
INTRODUCTION............................................................2
DECALS AND SYMBOLS............................................ 2
RULES FOR SAFE OPERATION ..................................2

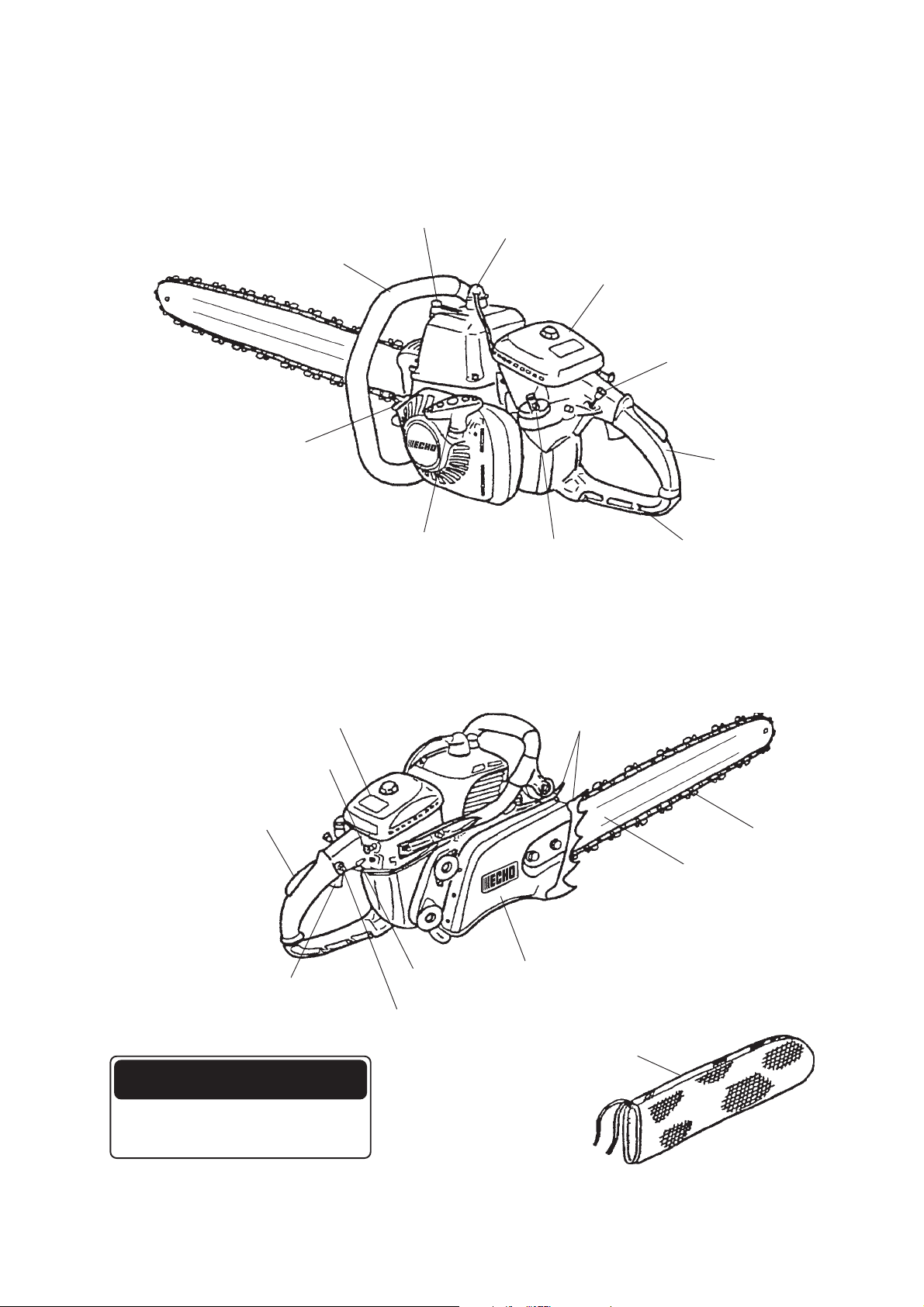

PARTS IDENTIFICATION..............................................7
ASSEMBLY.................................................................... 8
OPERATION ..................................................................8
CUTTING INSTRUCTION............................................10
SERVICE MAINTENANCE GUIDE.............................. 14
TROUBLE SHOOTING ................................................14
SERVICE .....................................................................15
SAW CHAIN MAINTENANCE......................................17
STORAGE....................................................................18
SPECIFICATIONS ....................................................... 19
DECALS AND SYMBOLS
Symbol form/shape Symbol description/application Symbol form/shape Symbol description/application
Petrol and oil mixtureThis symbol accompanied by the
words WARNING and DANGER
calls attentions to an act or a
condition which can lead to
serious personal injury or death.
Circle and slash symbol means
whatever is shown is prohibited.
Chain oil fill / oil pump
CAUTION indicates a potentially
CAUTION
NOTE
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
This enclosed message provides
tips for use, care and
maintenance of the unit.
RULES FOR SAFE OPERATION
1. GENERAL PRECAUTIONS
OPERATOR’S MANUAL
•Read the operator’s manual for your chain saw
carefully.
Be thoroughly familiar with the chain saw’s controls
and how to use the chain saw properly.
Failure to follow instructions could lead to personal
injury.
•If you have any questions or problems, please contact
your ECHO dealer.
Carburettor adjustment
- Low speed mixture
Carburettor adjustment
- High speed mixture
Carburettor adjustment
- Idle speed
PHYSICAL CONDITION
•Do not operate a chain saw when you are fatigued or
under the influence of alcohol or drugs.
•You should be in good physical and mental health in
order to handle your chain saw safely. Errors in
judgement or execution can be serious or fatal.
If you have any physical condition which strenuous
work could worsen, check with your physician before
using a chain saw.
Do not operate when ill or fatigued, or under the
influence of any substance or medication which could
affect your vision, dexterity or judgement.
CS-1201
2
1
2
3
4
5, 6
12
PERSONAL EQUIPMENT
•Always wear approved goggles to protect your eyes.
Wood chips, dust, snapping branches and other debris
can be thrown by the cutting chain into the operator’s
facial area.
Goggles may also offer limited protection in the event
of the cutting chain hitting the operator in the eye area.
If conditions warrant that a ventilated face shield be
worn, goggles must be worn underneath it.
•ECHO recommends wearing hearing protection at all
times.
If not followed, hearing loss can occur.
You should reduce the risk of hearing damage by
wearing either “headset” type protectors or ear plugs
which are approved by an authorized organization.
Jewery
Ties, Cords, Strings
Fragile or open toed footwear
3456
CAUTION
Stuffing ears with cotton is not recommended.
•All persons who make part of their living using chain
saws should be tested periodically for hearing
deterioration.
•Always wear a cap or hat when working with a chain
saw. A safety hard hat is highly recommended when
felling or working under trees, or when objects can fall
on you.
•Wear heavy duty, non-slip gloves for improved grip,
and also for protection against cold and vibration.
•Safety tip shoes or boots with non-slip sole should be
worn.
Loose clothing or open jacket
•Never wear loose clothing, unbuttoned jackets, flared
sleeves and cuffs, scarves, tie-strings, neckties, cords,
chains, jewelry, etc. which could snag the saw chain or
underbrush.
•Clothing should be of sturdy, protective material. It
should be snug-fitting to resist snagging, but roomy
enough for freedom of movement.
•Trouser legs should not be flared or cuffed, and should
be either tucked into the boot tops or trimmed short.
FUEL
WARNING DANGER
••
•PETROL AND FUEL ARE EXTREMELY
••
FLAMMABLE. IF SPILLED OR IGNITED BY
IGNITION SOURCE, IT CAN CAUSE FIRE AND
SERIOUS INJURY OR PROPER TY DAMAGE.
EXTREME CAUTION IS REQUIRED WHEN
HANDLING PETROL OR FUEL.
••
•AFTER REFUELLING, TIGHTEN FUEL CAP
••
FIRMLY AND CHECK FOR LEAKAGE. IN CASE OF
FUEL LEAKAGE, REP AIR BEFORE STARTING
OPERATION SINCE THERE IS A DANGER OF
FIRE.
•Use an appropriate type of fuel container.
•Do not smoke or bring flame or sparks near to fuel
supplies.
•Safety vests, leg chaps and logger’s pants of ballistic
material are available.
It is the operator’s responsibility to wear such
additional protection if conditions warrant it.
•Never operate a chain saw when you are alone.
Arrange to have someone remain within calling
distance in case you need help.
Tightening
direction
Tightening direction
Oil tank cap
•The fuel tank may be under pressure. Always loosen
the fuel cap and wait for pressure to be equalized
before removing the cap.
•Fill the fuel tank outdoors over bare ground and install
the fuel cap securely. Do not pour fuel indoors.
•Wipe any spilled fuel off the unit.
•Never refuel while the engine is still hot, or fuel a
running engine.
•Do not store the unit with fuel in its tank, because a
fuel leak could start a fire.
•Bring an extinguisher or shovel in case of fire.
Despite the precautions which can be taken, operating
a chain saw, or just working in the forest, presents
dangers.
Fuel tank cap
3
CS-1201
3 m
Guide bar cover
STARTING ENGINE
•Move the chain saw at least 3 m from the fuelling point
before starting the engine.
•Do not allow other persons to be near the chain saw
when you are starting or cutting with the chain saw.
Keep bystanders and animals out of the work area.
Do not let anyone hold wood for you to cut.
•Do not start cutting until you have a clear work area,
secure footing and a planned retreat path from the
falling tree.
•Before you start the engine, make sure that the saw
chain is not contacting anything.
•Keep the handles dry, clean, and free of oil or fuel
mixture.
•Operate the chain saw only in well-ventilated areas.
Exhaust gas, oil mist (from chain saw lubrication) or
saw dust saw is harmful to health.
Rotational kickback
TRANSPORTATION
•When transporting your chain saw, use the appropriate
guide bar cover.
•Carry the chain saw with the engine stopped, the guide
bar and saw chain to the rear, and the silencer away
from your body.
Pinch
Chain moving downward at impact
2. KICKBA CK SAFETY PRECAUTIONS
WARNING DANGER
KICKBACK SAFETY PRECAUTION FOR CHAIN
SAW USERS: KICKBACK MAY OCCUR WHEN THE
NOSE OR TIP OF THE GUIDE BAR TOUCHES AN
OBJECT OR WHEN THE WOOD CLOSES IN AND
PINCHES THE SAW CHAIN IN THE CUT.
•In some cases, tip contact may cause a lightning-fast
reverse reaction, kicking the guide bar up and back
toward the operator (this is called a rotational
kickback).
Pinching the saw chain along the top of the guide bar
may push the guide bar rapidly back toward the
operator (this is called a linear kickback).
Linear kickback
•Either or these reactions may cause you to lose control
of the saw and come in contact with the moving chain,
which could result in serious personal injury. As a
chain saw user, you should take several steps to keep
your cutting jobs free from accident or injury.
•With a basic understanding of kickback, you can
reduce or eliminate the element of surprise.
Sudden surprise contributes to accidents. Understand
that rotational kickback is preventable by keeping an
unshielded bar nose from touching an object or the
ground.
CS-1201
4
Don’t reach far out
•Do not operate a chain saw with one hand!
Serious injury to the operator, helpers or bystanders
may result from one-handed operation. For proper
control, always use two hands when operating a chain
saw, one of which operates the trigger. Otherwise, this
can result in the chain saw “skating” or skidding, which
can result in personal injury due to loss of control.
•Keep a good firm grip on the saw which both hands,
with the right hand on the rear handle and the left hand
on the front handle, when the engine is running. Use a
firm grip with thumbs and fingers enriching the chain
saw handles. A firm grip will help you reduce kickback
and maintain control of the saw. Two hands must be
used to control the saw at all times.
•Do not overreach or cut above chest height.
•Make sure that the area in which you are cutting is free
from obstructions. Do not let the bar nose contact a
log, branch, or any other obstruction which could be hit
while you are operating the saw.
•Cutting at high engine speeds may reduce the
likelihood of kickback. But cutting at part-throttle or low
engine speeds may be preferable to control the chain
saw in tight situations and may also reduce the
likelihood of kickback.
•Follow manufacturer’s sharpening and maintenance
instructions for the saw chain.
•Use only replacement guide bars and chains specified
by the manufacturer, or the acceptable equivalents of
these guide bars and chains.
3. OTHER SAFETY PRECAUTIONS
VIBRATION AND COLD
It is believed that a condition called Raynaud’s
Phenomenon, which affects the fingers of certain
individuals, may be brought about by exposure to cold
and vibration.
Accordingly, your ECHO chain saw has shock mounts
designed to reduce the intensity of vibration received
through the handles.
Exposure to cold and vibration may cause tingling and
burning followed by loss of color and numbness in the
fingers. We strongly recommend you take the following
precautions because the minimum exposure which
might trigger the ailment is unknown.
•Keep your body warm, especially the head and neck,
feet and ankles, and hands and wrists.
•Maintain good blood circulation by performing vigorous
arm exercises during frequent work breaks and also by
not smoking.
•Limit the number of hours of chain saw operation. Try
to fill a part of each work day with jobs other than chain
sawing.
•If you experience discomfort, redness and swelling of
the fingers, followed by whitening and loss of feeling,
consult your physician before further exposing yourself
to cold and vibration.
REPETITIVE STRESS INJURIES
It is believed that over-using the muscles and tendons of
the fingers, hands, arms and shoulders may cause
soreness, swelling, numbness, weakness and extreme
pain to the areas just mentioned.
To reduce the risk of repetitive stress injury, do the
following:
•Avoid using your wrist in a bent, extended or twisted
position. Instead, try to maintain a straight wrist
position. Also, when grasping, use your whole hand,
not just the thumb and index finger.
•Take periodic breaks to minimize repetition and rest
your hands.
•Reduce the speed and force in which you do the
repetitive movement.
•Do exercises to strengthen the hand and arm muscles.
•See a doctor if you feel tingling, numbness or pain in
the fingers, hands, wrists or arms.
5
CS-1201
MACHINE CONDITIONS
•Do not operate a chain saw that is damaged,
improperly adjusted, or not completely and securely
assembled.
Do not operate the chain saw with a loose or defective
silencer.
Be sure that the saw chain stops moving when the
throttle control trigger is released.
WARNING DANGER
DO NOT MODIFY A CHAIN SAW IN ANY WAY.
ONLY ATTACHMENTS AND PARTS SUPPLIED BY
KIORITZ CORP. OR EXPRESSLY APPROVED BY
KIORITZ CORP. FOR USE WITH THE SPECIFIC
KIORITZ CORP. CHAIN SAW MODELS ARE
AUTHORIZED.
ALTHOUGH CERTAIN UNAUTHORIZED
ATTACHMENTS ARE USEABLE WITH THE KIORITZ
CORP. POWERHEAD, THEIR USE MAY, IN FACT , BE
EXTREMELY DANGEROUS.
Know how limb
is stressed.
See page 12
SERVICES
•All chain saw service operations, other than items
listed in the operator’s manual maintenance
instructions, should be performed by competent
service personnel.
(For example, if an improper tool is used to hold the
flywheel in order to remove the clutch, structural
damage to the flywheel could occur and subsequently
could cause the flywheel to burst.)
Cutting from ladders is dangerous.
CUTTING
•Do not operate a chain saw in a tree unless you have
been specifically trained to do so.
•Keep all parts of your body away from the saw chain
when the engine is running.
•Use extreme caution when cutting small-size brush
and saplings because slender material may catch the
saw chain and be whipped toward you or pull you off
balance.
•When cutting a limb that is under tension, be alert for
spring-back so that you will not be struck by the limb or
chain saw when the tension in the wood fibers is
released.
Cut only wood or wood products
WOOD PRACTICES
•Operating a chain saw safely requires a chain saw in
proper working order, sound judgement, and
knowledge of the methods which should be applied in
each cutting situation.
•Do not let any person use your saw unless he has
read this operator’s manual and fully understands its
instructions.
•Never let children operate the saw.
•Use your saw only to cut wood or wood products. Do
not cut solid metal, sheet metal, plastics or any nonwood materials.
•Cutting while on a ladder is extremely dangerous
because the ladder can slip and your control of the
chain saw is limited.
Working aloft should be left to professionals.
•Stop the engine before setting the chain saw down.
Stay on the uphill side of logs
Down
Keep both feet on the ground
•Stay on the uphill side when bucking or limbing logs
which might roll when cut.
•Keep both feet on the ground. Do not work from offthe-ground positions.
CS-1201
6
Decompression button
Front handle
Oil tank cap
PARTS IDENTIFICATION
Spark plug cap
Air cleaner cover
Manual oil pump
Rear handle
Part Number 890151-60730
Choke control knob
Throttle trigger lockout
Throttle trigger
Starter handle
Ignition switch
Fuel tank cap
Spiked bumpers
Clutch cover
Rear handle supporter
Saw chain
Guide bar
Throttle latch
Part Number 890151-60730
CS-1201
CAUTION : For Safe Operation
Follow All Safety Precautions
In Operator’s Manual.
* If a decal cannot be read, a new one can be
ordered from your ECHO dealer.
Guide bar cover
7
CS-1201
Clutch cover
Clutch
Guide bar
Tension adjuster
Two nuts
Spiked bumpers
Bar holes

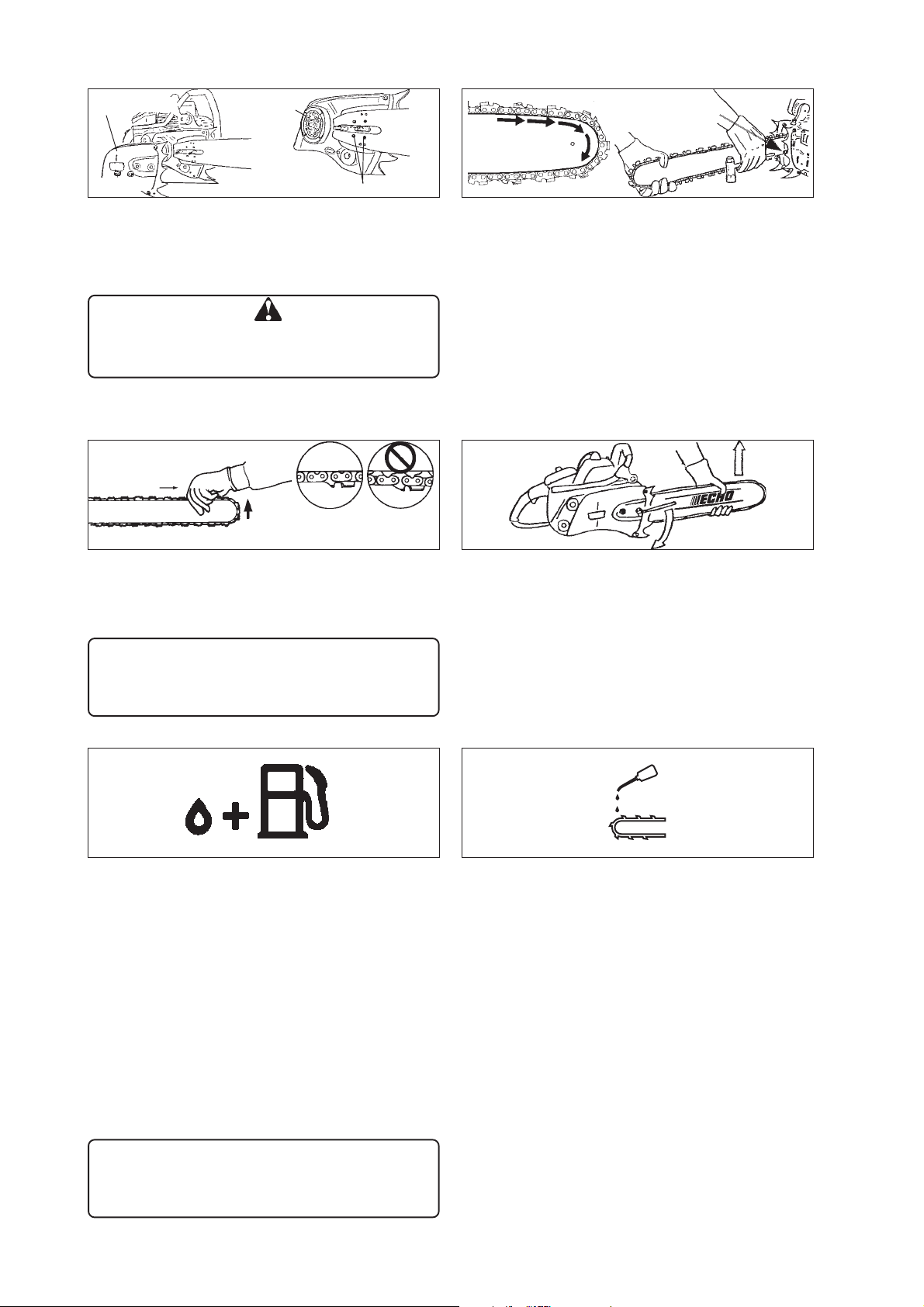

ASSEMBLY
MOUNTING GUIDE BAR AND CHAIN
The unit is delivered with guide bar and saw chain
separated. Install guide bar and chain as follows.
W ARNING DANGER
FOR YOUR OWN SAFETY, ALW A YS ST OP THE
ENGINE BEFORE PERFORMING ANY OF THE
FOLLOWING OPERATIONS.
Proper
tension
•Hold the bar nose up and turn the adjuster clockwise
until the chain fits snugly against the underside of the
bar.
CAUTION
1.All adjustments should be made cold.
2.Always wear gloves when working on chain.
3.Do not operate with a loose chain.
Improper
tension
•Unscrew two nuts and remove clutch cover.
•Install the spiked bumpers on the front of machine.
•Mount the bar and slide toward clutch to make saw
chain installation easier.
•Install saw chain as shown. (Ensure cutters are
pointing in the right direction)
•Install the clutch cover, tighten nuts finger tight.
Ensure that chain tension adjuster fits into bar hole.
•Tighten both nuts with the bar nose held up.
•Pull the chain around the bar by hand. Loosen the
adjustment if you feel tight spots.
•Star t the engine and run at low speed. Stop and
readjust if necessary.
OPERATION
FUEL AND LUBRICANT
•Fuel is a mixture of regular grade petrol and an aircooled 2-stroke engine oil of reputable brand name.
Minimum 89 Octane unleaded petrol is recommended.
Do not use fuel containing methyl alcohol or more than
10 % of ethyl alcohol.
•Recommended mixture ratio; 50 : 1 ( 2 % ) for ISO-L-
EGD Standard (ISO/CD 13738), JASO FC grade and
ECHO Premium 50 : 1 oil and 25 : 1 ( 4 % ) for JASO
FA or FB grade oil.
- Do not mix directly in engine fuel tank.
- Avoid spilling petrol or oil. Spilled fuel should always
be wiped up.
- Handle petrol with care, it is highly inflammable.
- Always store fuel in approved container.
CAUTION
Whenever opening up the fuel tank, always loosen
the cap very slowly and wait for the tank pressure
to be equalized before removing the cap.
CS-1201
CHAIN LUBRICANT
Proper lubrication of the chain while in operation
reduces the friction between the chain and the guide bar
to a minimum and assures a longer life time. Use only
special chain oil of high quality for this purpose.
Do not use any waste or reclaimed oil to avoid various
problems with the oil pump.
In case of emergency, it is allowed to use motor oil for a
short time.
SAE 30.... in summer
SAE 10.... in winter or for the cutting of wood with a high
resin content.
8
Throttle latch
Starter handle
ST ARTING THE ENGINE
•Fill the fuel tank with fuel mixture. It is not permitted to
fill fuel above the shoulder level of fuel tank.
•Fill the chain oil tank with lubricant.
•Place chain saw down on a clear level place where the
saw chain will not be in contact with anything.
•Lubricate the chain whenever the chain is mounted on
the saw or remounted.
•Push manual oiler button until oil coming onto the saw
chain.
NOTE
Do not pull starter rope out to the maximum position.
Do not allow starter handle to snap back against the
casing.
Manual oil pump
Throttle trigger
lockout
•Lift ignition switch up.
•Pull choke control knob all the way out. (Use only
when engine is cold.)
•Keep your body to the left of the saw. Hold the saw
down with the left hand on top of the front handle, and
with your right foot on the rear handle supporter.
•Make sure guide bar and saw chain are not touching
anything when starting the saw.
•In order to start engine easily, push decompression
button while pulling starter handle to reduce pressure
in cylinder. Rotate the decompressin button 90
degrees clockwise to latch. When engine starts, turn
back the decompression button to release.
•Pull starter handle several times until first firing sound
is heard.
•Push choke control knob all the way in.
•Pull starter handle again.
•When engine is hard to start, press throttle trigger
lockout down while squeezing the trigger and push the
latch in. When engine starts, immediately squeeze the
trigger up to release the latch.
•After engine has started, idle for a few minutes to
warm it up.
•Ensure proper acceleration and lubrication of saw
chain and guide bar.
Choke control knob
Ignition switch
Throttle trigger
Front handle
Decompression button
CAUTION
Clutch engages and chain will rotate when engine
is started with throttle trigger squeezed.
After engine starts release throttle trigger to idle
position.
CAUTION
When throttle latch is used, saw chain will go into
motion as soon as the engine starts.
Never use throttle latch for cutting.
Use it only when starting the engine.
Ignition switch
Throttle trigger
Throttle trigger lockout
STOP
STOPPING THE ENGINE
•Release throttle trigger and push ignition switch down.
NOTE
If engine does not stop, pull choke control knob all the
way out to stop engine.
Check and repair ignition switch before starting the
engine again.
9
CS-1201
PRE CUTTING TEST
•Familiarize yourself with your chain saw before you
start actual cutting.
•For this purpose it may be wise to practice by cutting
some small logs or limbs several times.
•Do not allow either people or animals into the work
area. Multiple operators - Keep a safe distance
between two or more operators when working together
simultaneously.
CHAIN LUBRICATION TEST
Hold the chain just above a dry surface and open the
throttle to half speed for 30 seconds.
A thin line of “thrown” oil should be seen on the dry
surface.
CHECKING CHAIN TENSION
•Chain tension should be checked frequently during
work and corrected if necessary.
•Tension the chain as tight as possible, but so it can still
be pulled easily along the bar by hand.
WARNING DANGER
MAKE SURE THAT THE ENGINE IS SHUT OFF
WHEN CHECKING CHAIN TENSION.
Make felling cuts from
left side when possible
Kickback arc is away from you
CUTTING INSTRUCTION
GENERAL
In all circumstances the operation of the chain saw is a
one-man job.
It is difficult at times to take care of your own safety, so
don’t assume the responsibility for a helper as well.
After you have learned the basic techniques of using the
saw, your best aid will be your own good common
sense.
The accepted way to hold the saw is to stand to the left
of the saw with your left hand on the front handle so you
can operate the throttle trigger with your right index
finger.
Before attempting to fell a tree, cut some small logs or
limbs.
Be thoroughly familiar with the controls and the
responses of the saw.
Too short a distance to your body
If a felling cut must be made
from the right side, stay out of
the kickback path.
Do not crowed the saw with
your body!
Start the engine, see that is running properly. Squeeze
the trigger to open the throttle wide open, then start the
cut. It is not necessary to press down hard to make the
saw cut. If the chain is properly sharpened, the cutting
should be relatively effortless.
Pushing the saw too hard will slow the engine and
cutting will actually be more difficult.
Some material may adversely affect the housing of your
chain saw.
(Example: palm tree acid, fertilizer etc.)
To avoid housing deterioration carefully remove all
packed saw dust around clutch and guide bar area and
wash with water.
WARNING DANGER
DO NOT LET THE NOSE OR TIP OF THE GUIDE BAR
TOUCH ANYTHING WHILE ENGINE IS RUNNING TO
AVOID KICKBACK.
CS-1201
10
Fall
3 m
Retreat
45°
FELLING A TREE
A falling tree can seriously damage anything it may hit a car, a house, a fence, a power-line or another tree.
There are ways to make a tree fall where you want it, so
first decide where that is!
Before cutting, clear the area around the tree. You will
need good footing while working and you should be able
to work the saw without hitting any obstacles.
Next select a path of retreat.
When the tree begins to fall you should retreat away
from the direction of fall at a 45-degree angle and at
least 3 m from the trunk to avoid the trunk kicking back
over the stump. (See figure right, top)
Begin the cut on the side to which the tree is to fall.
Cut a notch approximately 1/3 of the way into the tree.
(See figure A)
The position of this notch is important since the tree will
try to fall “into” the notch. (See figure A)
The felling cut is made on the side opposite the notch.
Make the felling cut by placing spiked bumper 2.5 cm to
5 cm above the bottom of the notch and stop cutting at
approximately 1/10 of diameter to the inner edge of the
notch (See figure B) in order to leave the uncut portion
of the wood as a hinge.
Do not try to cut through to the notch with the felling cut.
The remaining wood between the notch cut and felling
cut will act as a hinge when the tree falls, guiding it in
the desired direction.
When the tree starts to fall, stop the engine, place the
saw on the ground and make your retreat quickly.
Retreat
Figure A
Uncut hinge wood
Backcut
2.5 to 5 cm
Figure B
Wedges
(when room)
Backcut
Leave 1/10 of diameter
Hinge
45°
Not this way
Side view
1/10 of diameter
Notch
1/3 of diameter
Top view
Notch cuts
FALL
90°
To fell big trees with a diameter exceeding twice the bar
length, start the notching cuts from one side and draw
the saw through to the other side of the notch.
Start the back cut on one side of the tree with the spiked
bumper engaged, pivoting the saw through to form the
desired hinge on that side.
Then remove the saw for the second cut.
Insert the saw in the first cut very carefully so as not to
cause kickback.
The final cut is made by drawing the saw forward in the
cut to reach the hinge. (See figure C)
11
Figure C
Draw-across
method
Felling cuts
2
Wedges
Top view
1
Notching cuts
3
5
4
CS-1201
LIMBING
Limbing a fallen tree is much the same as bucking.
Never remove a limb from a tree while it is supporting
your weight.
Be careful of the tip touching other limbs.
Always use both hands.
Don’t cut with the saw overhead or the bar in a vertical
position. If the saw should kickback, you may not have
good enough control to prevent possible injury.
CAUTION
Don’t saw above chest height.
Do not cut above chest height
Know how limb is stressed
BUCKING
Bucking is the sawing of a log or fallen tree into smaller
pieces.
There are a few basic rules which apply to all bucking
operations.
Keep both hands on the handles at all times.
Support logs if possible.
When cutting on a slope or hillside, always stand uphill.
CAUTION
Stay on the uphill side of logs.
Leave supporting limbs till last
Slide support logs under trunk
No standing on log
Stay on the uphill side of logs
CS-1201
Down
12
TENSION AND COMPRESSION IN TIMBER
A length of timber lying on the ground will be subject to
tension and compression, depending at which points the
major support is.
When timber is supported at its ends the compression
side is at the top and the tension side is at the bottom.
To cut between these support points, make the first cut
downwards approximately 1/3rd the timber diameter.
The second cut is made upwards and should meet the
first cut.
When the timber is supported at one end only, make the
first cut upwards approximately 1/3rd the timber
diameter. The second cut is made downwards and
should meet the first cut.
CAUTION
If you have misjudged the effects of tension and
compression, and cut from the wrong side, the
timber will pinch the guide bar and chain, trapping it.
Racing the engine with the chain jammed will burn
out your clutch.
If the chain should become jammed and the saw
can not be removed from the cut do not force it out.
Stop the saw, force a wedge into the cut to open it
up.
Never force the saw when it is jammed.
Do not force the saw into the cut.
A dull chain is unsafe and will cause excessive
wear to the cutting attachments.
A good way to tell when the chain is dull is when
fine saw dust comes out instead of chips.
“Hinge”
Closed
Heavy stress
Weakening cut to finish
Overbuck
Opened
“Hinge”
“Hinge”
1/3 Dia. To avoid sprit
DOWNs
Unsupported end
CAUTION
Do not touch hot surfaces of cylinder cover and
silencer after you used the chain saw.
WARNING DANGER
NEVER USE THROTTLE LATCH FOR CUTTING
JOBS.
UP
Underbuck
Wedge
Make angled cut when one section may settle against
the other
13
CS-1201
SERVICE MAINTENANCE GUIDE
AREA MAINTENANCE PAGE BEFORE USE MONTHLY
Air Filter Clean/Replace 15 •
Fuel Filter Inspect/Clean/Replace 15 •
Spark Plug Inspect/Clean/Adjust/Replace 16 •
Carburettor Adjust/Replace and adjust 15 •
Cooling System Inspect/Clean 16 •
Silencer Inspect/Tighten/Clean 16 •
Oil Filter Inspect/Clean/Replace 15 •
Sprocket Inspect/Replace 16 •
Starter Rope Inspect/Replace - •
Guide Bar Inspect/Clean 16 •
Fuel System Inspect 15 •
Screws, Bolts and Nuts Inspect, Tighten/Replace - •
IMPORTANT
Time intervals shown are maximum. Actual use and your experience will determine the frequency of
required maintenance.
TROUBLE SHOOTING
Engine
Engine
cranks
Engine
does not
crank
Engine
runs
Trouble
- hard to start
- does not start
Fuel at
carburettor
Fuel at cylinder
Spark at end of
plug wire
Spark at plug
Dies or
accelerates
poorly
No fuel at
carburettor
No fuel at
cylinder
Silencer wet with
fuel
No spark at end
of plug wire
No spark at plug
Cause
• Fuel filter clogged
• Fuel line clogged
• Carburettor
• Carburettor
• Fuel mixture is too rich
• Ignition switch off
• Electrical problem
• Spark gap incorrect
• Covered with carbon
• Fouled with fuel
• Spark plug defective
• Internal engine problem
• Air filter dirty
• Fuel filter dirty
• Fuel vent plugged
• Spark plug
• Carburettor
• Cooling system plugged
• Exhaust port/silencer
plugged
Remedy
• Clean or replace
• Clean
• Ask your ECHO dealer
• Ask your ECHO dealer
• Open choke
• Clean/replace air filter
• Adjust carburettor
• Ask your ECHO dealer
• Turn switch on
• Ask your ECHO dealer
• Adjust 0.6 to 0.7 mm
• Clean or replace
• Clean or replace
• Replace plug
• Ask your ECHO dealer
• Clean or replace
• Clean or replace
• Clean
• Clean and adjust/replace
• Adjust
• Clean
• Clean
WARNING DANGER
• ALL CHAIN SAW SERVICE OPERATIONS, OTHER THAN ITEMS LISTED IN THE OPERAT OR’S MANUAL,
SHOULD BE PERFORMED BY COMPETENT SERVICE PERSONNEL.
• FUEL VAPORS ARE EXTREMELY FLAMMABLE AND MAY CAUSE FIRE AND/OR EXPLOSION. NEVER TEST
FOR IGNITION SPARK BY GROUNDING SPARK PLUG NEAR CYLINDER PLUG HOLE, OTHERWISE
SERIOUS PERSONAL INJURY MAY RESULT.
CS-1201
14
T:Idle speed
adjuster
L:Low speed
mixture adjuster
H :High speed
mixture adjuster
SERVICE
•If you have any questions or problems, please contact
your ECHO dealer.
CARBURETTOR
•Do not adjust the carburettor unless necessary.
•To adjust the carburettor proceed as follows:
- Low speed mixture adjuster (L): 1¼ to 1¾ turns open
- High speed mixture adjuster (H): 1½ turns open
- Screw in the needles until lightly seated and return
indicated turn above.
•Turn idle speed adjuster (T) clockwise until chain
begins to rotate. Then back screw 1/2 turn.
CAUTION
When starting, idle speed adjuster (T) should be
adjusted not to rotate the saw chain.
When there is some trouble with the carburettor,
contact your dealer.
Cleaner cover knob
Air cleaner cover
Air filter
Choke control knob
AIR FILTER
•Check before every use.
•Always keep air filter clean to maintain air/fuel mixture
in a correct ratio constantly.
•Before removing air cleaner cover, pull choke control
out to prevent dust from entering into carburetor.
•Turn cleaner cover knob anticlockwise with hand and
remove air cleaner cover and air filter.
Brush off dust lightly, or wash it in a non-inflammable
solvent if necessary, or replace the air filter.
•Dry it completely before installation.
•Reinstall air filter and cover.
CHECK FUEL SYSTEM
•Check before every use.
•After refuelling, make sure fuel does not leak or exude
from around fuel pipe, fuel grommet or fuel tank cap.
•In case of fuel leakage or exudation there is a danger
of fire. Stop using the machine immediately and
request your dealer to inspect or replace.
Fuel filter
FUEL FILTER
•Check periodically.
- Do not allow dust to enter fuel tank.
- A clogged filter will cause difficulty in starting engine
or abnormalities in engine performance.
- Pick up the fuel filter through fuel inlet port with a
piece of steel wire or the like.
- When the filter is dirty, replace it.
- When the inside of the fuel tank is dirty, it can be
cleaned by rinsing the tank out with petrol.
WARNING DANGER
PETROL AND FUEL ARE EXTREMELY
FLAMMABLE.
EXTREME CAUTION IS REQUIRED WHEN
HANDLING PETROL OR FUEL.
Oil filter
OIL FILTER
•Check periodically.
- Do not allow dust to enter oil tank.
- A clogged oil filter will affect the normal lubricating
system.
- Pick it up through oil filling hole with a piece of steel
wire or the like.
- If the filter is dirty, wash it in petrol or replace it.
- When the inside of the oil tank gets dirty, it can be
cleaned by rinsing the tank out with petrol.
15
CS-1201
Stiff wire
Groove
Oil hole
Grease gun
0.5 mm
Sprocket
Clutch drum
GUIDE BAR
•Clean before using.
- Clean the groove of the guide bar with a small screw
driver, for example.
- Clean oil holes with a wire.
•When you use sprocket nose guide bar, check nose
sprocket to see if it rotates freely or needs grease.
Worn guide bar shuld be replaced. Injection of grease
into the sprocket using grease gun.
•Reverse guide bar periodically.
•Check sprocket and the clutch and clean the bar
mount area before installation of the guide bar.
Replace either or both if worn.
NOTE
When replacing guide bar or saw chain, ask your
ECHO dealer.
Oil adjusting screw
INCREASE
Stop fin
DECREASE
SPROCKET
•The damaged sprocket will cause premature damage
or wear of saw chain.
- When the sprocket has worn out 0.5 mm or more,
replace it.
•Check sprocket when you install new chain. Replace it
if worn.
0.6 to 0.7 mm
AUTOMATIC OILER
•The discharge volume of the automatic oiler is
adjusted to 10 mL/min approximately at 7,000 r/min,
prior to shipment from factory.
- To increase the delivery volume, turn the adjusting
screw clockwise.
When the adjusting screw touches stopper and stops,
this position indicates maximum discharge volume.
(23 mL/min at 7,000 r/min)
- Do not turn the adjusting screw beyond the maximum
or minimum limit of volume adjustment.
SILENCER
•Clean deposits from silencer.
NOTE
Recommend removal of silencer be done by the
Dealer. Because they need thread locking sealant with
special torques when assembling.
SPARK PLUG
•Check periodically.
- The standard spark gap is 0.6 to 0.7 mm.
- Correct the spark gap if it is wider or narrower than
the standard gap.
•Fastening torque: 15 to 17 N·m (150 to 170 kgf·cm)
CYLINDER FINS
•Check periodically.
•Clogged fins will result in poor engine cooling.
•Remove dirt and dust from between fins to let cooling
air pass easily.
CS-1201
16
4 mm
0.76 mm
SAW CHAIN MAINTENANCE
Never operate a chain saw with a dull or damaged
chain. If the chain requires excessive pressure to cut or
produces dust instead of wood chips then inspect the
cutters for damage. When sharpening the chain the
objective will be to maintain the same angles and
profiles throughout its life as when it was new.
Inspect the chain for damage or wear every time you
refuel your chain saw.
When the length of the cutting teeth has worn down to
only 4 mm the chain must be replaced.
A
B
C
•Sharpening
In order to file the chain correctly you need:round file
and file holder (A), flat file (B) and a depth gauge tool
(C).
By using the correct file size (5.6 mm Round file) and a
file holder, it is easier to receive a good result.
Consult your ECHO dealer for correct sharpening tools
and sizes.
1/5
WARNING DANGER
SWITCH OFF THE ENGINE BEFORE SHARPENING
THE CHAIN.
AL WAYS WEAR GLOVES WHEN WORKING ON
CHAIN.
3
30°
2
1. Lock the chain - push hand guard forward.
To rotate the chain - pull hand guard against front
handle.
2. Your chain will have alternative left and right hand
cutters. Always sharpen from the inside out.
3. Keep the angle lines of the file holder parallel to the
line of the chain and file the cutter back until the
damaged area (side plate and top plate) has been
removed.
4. Hold the file tipped 10° upward.
5. Sharpen the most damaged cutter first and then take
all the other cutters back to the same length.
1
3
1. The depth control determines the thickness of wood
chip produced and must be maintained correctly
throughout the chain life.
2. As the cutter length is reduced, the depth control
height is altered and must be reduced.
3. Position the depth gauge, and file off any of the depth
control which protrudes.
4. Round off the front of the depth control to allow
smooth cutting.
4
10°
4
(PRECAUTION)
The following faults will increase the risk of kickback
considerably.
1) Top plate angle too large
2) Side plate angle too small
3) File diameter too small
4) Depth gauge too large
A
30°
•Properly filed cutters are shown below.
A : Top plate angle 30°
B : Side plate angle 85°
C : Top plate cutting angle 60°
D : Depth gauge 0.76 mm
BC
85°
60°
D
0.76 mm
Parallel
NOTE
These angles are referred to as Oregon 27 saw chain.
For other branded saw chain, follow it’s chain
manufacturer’s instruction.
5
•Drive link serves to remove sawdust from the groove of
the guide bar. Therefore, keep the lower edge of the
drive link sharp, indicated as 5.
- When setting of the chain is finished, soak it in oil and
wash away filings completely before using.
- When the chain has been filed on the bar, supply
sufficient oil to it, and rotate the chain slowly to wash
away the filings before using again.
- If the chain saw is operated with filings clogged in the
groove, the saw chain and the guide bar will be
damaged prematurely.
- If the saw chain becomes soiled with resin for
instance, clean it with kerosene and soak it in oil.
17
CS-1201
Ignition switch
STOP
STORAGE
LONG TERM STORAGE (Over 30 days)
WARNING DANGER
DO NOT STORE IN AN ENCLOSURE WHERE FUEL
FUMES MAY ACCUMULATE OR REACH AN OPEN
FLAME OR SPARK.
Do not store your unit for a prolonged period of time (30
days or longer) without performing protective storage
maintenance which includes the following:
1. Store unit in a dry, dust free place, out of the reach
of children and other unauthorized persons.
2. Place the ignition switch in the “STOP” position.
3. Remove accumulation of grease, oil, dirt and debris
from exterior of unit.
4. Perform all periodic lubrication and services that are
required.
5. Tighten all the screws, bolts and nuts.
6. Drain the fuel tank completely and pull the recoil
starter handle several times to remove fuel from the
carburettor.
7. Always store fuel in approved container.
Guide bar cover
8. Remove the spark plug and pour 1/2 tablespoon of
fresh, clean, two-stroke engine oil into the cylinder
through the spark plug hole.
A. Place a clean cloth over the spark plug hole.
B. Pull the recoil starter handle 2 or 3 times to
distribute the oil inside the engine.
C. Observe the piston location through the spark
plug hole.
Pull the recoil starter handle slowly until the
piston reaches the top of its travel and leave it
there.
9. Install the spark plug (do not connect ignition cable).
10.Cover the chain and the guide bar with the guide bar
cover before putting them in storage.
ENGLISH
GB
OPERATOR’S MANUAL
CHAIN SAW
CS-1201
WARNING DANGER
READ INSTRUCTIONS CAREFULLY AND FOLLOW RULES FOR
SAFE OPERATION.
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY.
898 615-6073 1
© 2003
X750 313-050 1
NOTE
•For future reference, you should keep this
operator’s manual.
•If this operator’s manual has become illegible
through impairment or is lost, please purchase a
new one from your ECHO dealer.
•When renting or lending this machine to a person
who will operate it, always include this operator’s
manual, which provides explanation and
instructions.
•When transferring a product, please deliver it
attaching the operator’s manual.
CS-1201
18
SPECIFICATIONS
CS-1201
External dimentions : L × W × H mm 490 × 300 × 320
Mass : Saw without guide bar and chain, empty tanks kg 10.6
Volume :
Fuel tank L 1.25
Tank for chain lubrication oil L 0.65
Fuel ( Mixture ratio ) Regular grade petrol. Minimum 89 Octane
unleaded petrol is recommended. Do not use
fuel containing methyl alcohol or more than 10 %
of ethyl alcohol.
50 : 1 ( 2 % ) for ISO-L-EGD Standard ( ISO/CD
13738 ), JASO FC grade and ECHO Premium
50 : 1 oil and 25 : 1 ( 4 % ) for JASO FA or FB
grade oil.
Oil ( Chain oil ) Special chain oil or motor oil
Cutting length : All specified usable cutting lengths of
guide bar cm *83
Chain :
Specified pitch mm 10.26 ( 0.404 inch )
Specified gauge ( thickness of drive links ) mm 1.6 ( 0.063 inch )
Type of guide bar cm *83 ( ECHO 33G63 )
Guide bar gauge mm 1.6 ( 0.063 inch )
Type of chain *Oregon 27-100E
Lubrication Adjustable automatic oil pump and manual
Sprocket : Specified number of teeth 7
Engine :
Type Air cooled 2-cycle single cylinder
Carburettor Diaphragm type
Magneto Flywheel magneto, TCI system
Spark plug CHAMPION CJ-6Y
Starter Recoil starter
Power transmission Automatic centrifugal clutch
Decompression device With
Engine displacement mL (cm³) 116.3
Other devices : Throttle trigger lockout, Chain catcher,
Anti-vibration device, Spiked bumper
*Standard configuration, other lengths are available.
Specifications, descriptions and illustrative material in
this literature are as accurate as known at the time of
publication, but are subject to change without notice.
Illustrations may include optional equipment and
accessories, and may not include all standard
equipment.
19
CS-1201
7-2 SUEHIROCHO 1-CHOME, OHME, TOKYO 198-8711, JAPAN
PHONE: 81-428-32-6118. FAX: 81-428-32-6145.
Loading...
