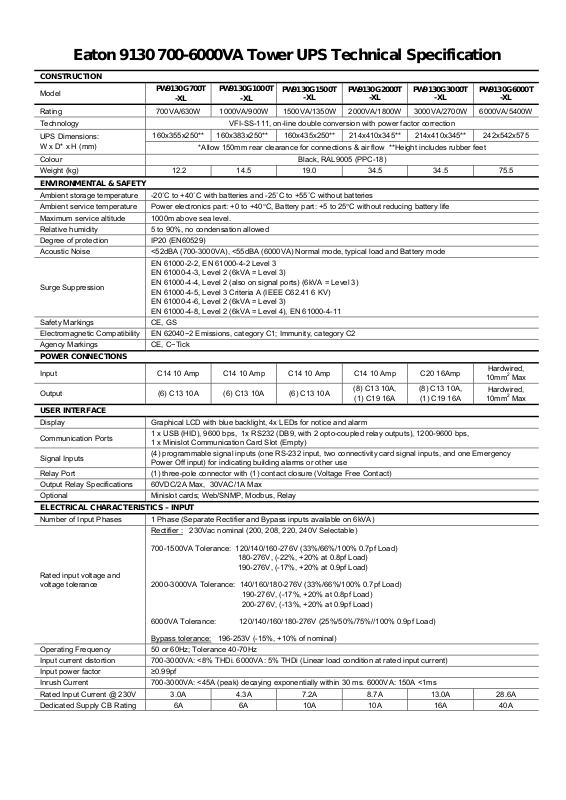

Eaton 9130 700-6000VA Tower UPS Technical Specification
CONSTRUCTION
Model
Rating 700VA/630W 1000VA/900W 1500VA/1350W 2000VA/1800W 3000VA/2700W 6000VA/5400W
Technology VFI-SS-111, on-line double conversion with power factor correction
UPS Dimensions:
W x D* x H (mm)
Colour Black, RAL9005 (PPC-18)
Weight (kg) 12.2 14.5 19.0 34.5 34.5 75.5
ENVIRONMENTAL & SAFETY
Ambient storage temperature -20˚C to +40˚C with batteries and -25˚C to +55˚C without batteries
Ambient service temperature
Maximum service altitude 1000m above sea level.
Relative humidity 5 to 90%, no condensation allowed
Degree of protection IP20 (EN60529)
Acoustic Noise <52dBA (700-3000VA), <55dBA (6000VA) Normal mode, typical load and Battery mode
Surge Suppression
Safety Markings CE, GS
Electromagnetic Compatibility EN 62040−2 Emissions, category C1; Immunity, category C2
Agency Markings CE, C−Tick
POWER CONNECTIONS
Input C14 10 Amp C14 10 Amp C14 10 Amp C14 10 Amp C20 16Amp
Output (6) C13 10A (6) C13 10A (6) C13 10A
USER INTERFACE
Display Graphical LCD with blue backlight, 4x LEDs for notice and alarm
Communication Ports
Signal Inputs
Relay Port (1) three-pole connector with (1) contact closure (Voltage Free Contact)
Output Relay Specifications 60VDC/2A Max, 30VAC/1A Max
Optional Minislot cards; Web/SNMP, Modbus, Relay
ELECTRICAL CHARACTERISTICS – INPUT
Number of Input Phases 1 Phase (Separate Rectifier and Bypass inputs available on 6kVA)
Rated input voltage and
voltage tolerance
Operating Frequency 50 or 60Hz; Tolerance 40-70Hz
Input current distortion 700-3000VA: <8% THDi. 6000VA: 5% THDi (Linear load condition at rated input current)
Input power factor ≥0.99pf
Inrush Current 700-3000VA: <45A (peak) decaying exponentially within 30 ms. 6000VA: 150A <1ms
Rated Input Current @ 230V 3.0A 4.3A 7.2A 8.7A 13.0A 28.6A
Dedicated Supply CB Rating 6A 6A 10A 10A 16A 40A
PW9130G700T
-XL
160x355x250** 160x383x250** 160x435x250** 214x410x345** 214x410x345** 242x542x575
Power electronics part: +0 to +40C, Battery part: +5 to 25C without reducing battery life
EN 61000-2-2, EN 61000-4-2 Level 3
EN 61000-4-3, Level 2 (6kVA = Level 3)
EN 61000-4-4, Level 2 (also on signal ports) (6kVA = Level 3)
EN 61000-4-5, Level 3 Criteria A (IEEE C62.41 6 KV)
EN 61000-4-6, Level 2 (6kVA = Level 3)
EN 61000-4-8, Level 2 (6kVA = Level 4), EN 61000-4-11
1 x USB (HID), 9600 bps, 1x RS232 (DB9, with 2 opto-coupled relay outputs), 1200-9600 bps,
1 x Minislot Communication Card Slot (Empty)
(4) programmable signal inputs (one RS-232 input, two connectivity card signal inputs, and one Emergency
Power Off input) for indicating building alarms or other use
Rectifier : 230Vac nominal (200, 208, 220, 240V Selectable)
700-1500VA Tolerance: 120/140/160-276V (33%/66%/100% 0.7pf Load)
180-276V, (-22%, +20% at 0.8pf Load)
190-276V, (-17%, +20% at 0.9pf Load)
2000-3000VA Tolerance: 140/160/180-276V (33%/66%/100% 0.7pf Load)
190-276V, (-17%, +20% at 0.8pf Load)
200-276V, (-13%, +20% at 0.9pf Load)
6000VA Tolerance: 120/140/160/180-276V (25%/50%/75%//100% 0.9pf Load)
Bypass tolerance: 196-253V (-15%, +10% of nominal)
PW9130G1000T
-XL
*Allow 150mm rear clearance for connections & air flow **Height includes rubber feet
PW9130G1500T
-XL
PW9130G2000T
-XL
(8) C13 10A,
(1) C19 16A
PW9130G3000T
-XL
(8) C13 10A,
(1) C19 16A
PW9130G6000T
-XL
Hardwired,
2
Max
10mm
Hardwired,
2
Max
10mm
Eaton 9130 700-6000VA Tower UPS Technical Specification
ELECTRICAL OUTPUT CHARACTERISTICS – NORMAL MODE
Model
Rated apparent/active power 700VA/630W 1000VA/900W 1500VA/1350W 2000VA/1800W 3000VA/2700W 6000VA/5400W
Number of output phases 1 Phase
Transfer time No break (normal to stored energy)
Rated output voltage
Voltage variation ±2%
Crest factor 3:1
Rated output frequency 50Hz (default) or 60Hz
Frequency regulation ±3Hz of nominal line frequency, ±0.5, ±1Hz, ±2Hz User Selectable (outside this range ±0.1Hz)
Total output voltage distortion <3% (Across a linear load); <5% (Across a non-linear load)
Number of output phases 1 Phase
Output Overload
(Normal Mode)
Dynamic Voltage variation ±6% max from 100% to 20% load step or vice versa
ELECTRICAL OUTPUT CHARACTERISTICS – STORED ENERGY
Rated apparent/active power 700VA/630W 1000VA/900W 1500VA/1350W 2000VA/1800W 3000VA/2700W 6000VA/5400W
Waveform Sine Wave
Rated output voltage 230V Single Phase (default), 200*, 208**, 220, 240,Vac (selectable)
Output voltage variation ±2% (700-3000VA), ±3% (6000VA)
Crest factor 3:1
Rated output frequency
Output frequency regulation < ±0.1Hz
Total output voltage distortion <3% (Across a linear load); <5% (Across a non-linear load)
Load power factor range
Number of output phases 1 Phase
Output Overload
(Battery Mode)
EFFICIENCY (Input/Output)
At 100% load (On Line
Mode/High Efficiency Mode)
At 100% load (On Battery) >79.5% (700VA), >82% (1000-1500VA), >84% (2000-3000VA), >92% (6000VA)
Dissipation normal mode 70W 100W 150W 200W 267W 345W
Dissipation on battery 163W 198W 296W 343W 514W 470W
BATTERY
Battery Type 12V, 7/9 Ah batteries, Valve Regulated Lead Acid, AGM
Battery Management Advanced Battery Management (ABM®) = 90% resting,10% floating/charging
Charging current 1.0A – 1.6A
Battery cut-off voltage 1.60VDC – 1.85VDC per cell depending on load
Battery Re-charge time
Battery Nominal Voltage 24V (12 Cells) 36V (18 Cells) 48V (24 Cells) 96V (48 Cells) 96V (48 Cells) 240V(120 Cells)
UPS Battery Configuration 2 x 12V9Ah 3 x 12V9Ah 4 x 12V9Ah 8 x 12V9Ah 8 x 12V9Ah 20 x 12V7Ah
Battery Replacement Hot-swappable internal and external batteries
PW9130G700T
-XL
700-3000VA: 230V Single Phase (default), 200*, 208**, 220, 240Vac (selectable)
*output de-rated by 20%, **output de-rated by 10%
6000VA: 230V Single Phase (default), 208*, 220, 240Vac (selectable)
*output de-rated by 10%
Level 1: 100-102%: Activates Overload alarm
Level 2: >102-130%: Load transfers to Bypass mode after 12 seconds (700-3000VA), 2 minutes (6000VA)
Level 3: >130-150%: Load transfers to Bypass mode after 2 seconds (700-3000VA), 30 seconds (6000VA)
Level 4: >150%: Load transfers to Bypass mode immediately
Short circuit capability: 5 cycles capability, then UPS shut down
NOTE: Default configuration transfers immediately to Bypass at >102%
*200V output de-rated by 20%, 208V output de-rated by 10%
50Hz (default) or 60Hz
0.7 – 1.0
Level 1: 100-102%: Activates Overload alarm
Level 2: >102-130%: 12 seconds (700-3000VA), 2 minutes (6000VA)
Level 3: >130-150%: 2 seconds (700-3000VA), 30 seconds (6000VA)
Level 4: >150%: UPS shuts down within 100ms
Short circuit capability: 5 cycles capability, then UPS shut down
PW9130G1000T
-XL
90% / >93% (700-2000VA), 91% / >93% (3000VA), >94% / >98% (6000VA)
Internal Battery: <4 hours to recover 90 percent of nominal backup
+1 EBM: 9 hours, +2 EBMs: 15 hours, +3 EBMs: 21 hours, +4 EBMs:27 hours
PW9130G1500T
-XL
PW9130G2000T
-XL
PW9130G3000T
-XL
PW9130G6000T
-XL
