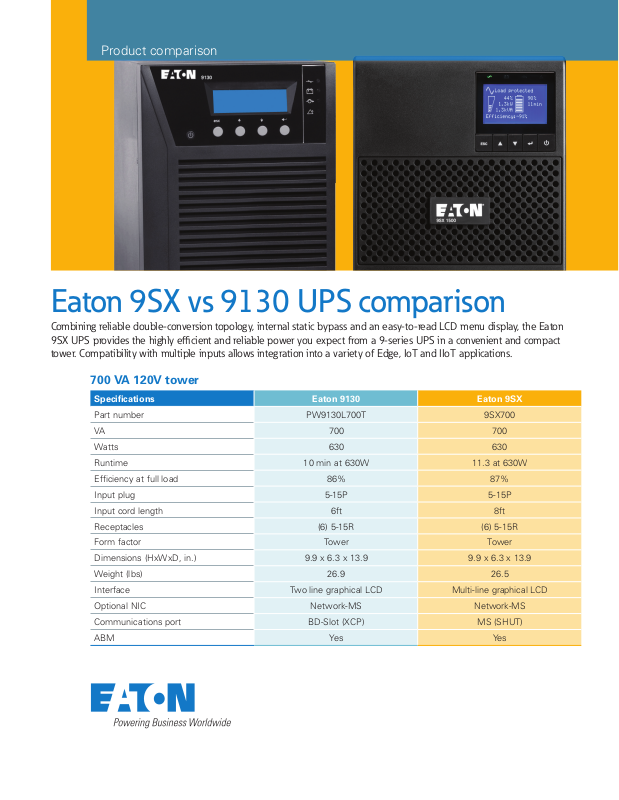

Page 1
Product comparison
Eaton 9SX vs 9130 UPS comparison
Combining reliable double-conversion topology, internal static bypass and an easy-to-read LCD menu display, the Eaton
9SX UPS provides the highly efficient and reliable power you expect from a 9-series UPS in a convenient and compact
tower. Compatibility with multiple inputs allows integration into a variety of Edge, IoT and IIoT applications.
700 VA 120V tower
Specifications Eaton 9130 Eaton 9SX
Part number PW9130L700T 9SX700
VA 700 700
Watts 630 630
Runtime 10 min at 630W 11.3 at 630W
Efficiency at full load 86% 87%
Input plug 5-15P 5-15P
Input cord length 6ft 8ft
Receptacles (6) 5-15R (6) 5-15R
Form factor Tower Tower
Dimensions (HxWxD, in.) 9.9 x 6.3 x 13.9 9.9 x 6.3 x 13.9
Weight (lbs) 26.9 26.5
Interface Two line graphical LCD Multi-line graphical LCD
Optional NIC Network-MS Network-MS
Communications port BD-Slot (XCP) MS (SHUT)
ABM Yes Yes
Page 2
1000 VA 120V tower
Specifications Eaton 9130 Eaton 9SX
Part number PW9130L1000T-XL 9SX1000
VA 1000 1000
Watts 900 900
Runtime 6 min at 900W 6.7 at 900W
Efficiency at full load 86% 88%
Input plug 5-15P 5-15P
Input cord length 6ft 8ft
Receptacles (6) 5-15R (6) 5-15R
Form factor Tower Tower
Dimensions (HxWxD, in.) 9.9 x 6.3 x 15.1 9.9 x 6.3 x 15.1
Weight (lbs) 30.9 30.9
Interface Two line graphical LCD Multi-line graphical LCD
Optional NIC Network-MS Network-MS
Communications port BD-Slot (XCP) MS (SHUT)
ABM Yes Yes
1000 VA 208V tower
Specifications Eaton 9130 Eaton 9SX
Part number PW9130i1000T-XL 9SX1000G
VA 1000 1000
Watts 900 900
Runtime 6 min at 900W 5.9 at 900W
Efficiency at full load 86% 88%
Input plug (recessed) C14 C14
Input cord length N/A N/A
Receptacles (6) C13 (6) C13
Output cables included (2) C13 to C14 (2) C13 to C14
Form factor Tower Tower
Dimensions (HxWxD, in.) 9.9 x 6.3 x 15.1 9.9 x 6.3 x 15.1
Weight (lbs) 30.9 30.9
Interface Two line graphical LCD Multi-line graphical LCD
Optional NIC Network-MS Network-MS
Communications port BD-Slot (XCP) MS (SHUT)
ABM Yes Yes
2 EATON Product comparison
Page 3
1500 VA 120V tower
Specifications Eaton 9130 Eaton 9SX
Part number PW9130L1500T-XL 9SX1500
VA 1500 1500
Watts 1350 1350
Runtime 6 min at 1350W 6 at 1350W
Efficiency at full load 86% 88%
Input plug 5-15P 5-15P
Input cord length 6ft 8ft
Receptacles (6) 5-15R (6) 5-15R
Form factor Tower Tower
Dimensions (HxWxD, in.) 9.9 x 6.3 x 16.9 9.9 x 6.3 x 17.1
Weight (lbs) 41.9 41.9
Interface Two line graphical LCD Multi-line graphical LCD
Optional NIC Network-MS Network-MS
Communications port BD-Slot (XCP) MS (SHUT)
ABM Yes Yes
1500 VA 208V tower
Specifications Eaton 9130 Eaton 9SX
Part number PW9130i1500T-XL 9SX1500G
VA 1500 1500
Watts 1350 1350
Runtime 5 min at 1350W 5.3 at 1350W
Efficiency at full load 86% 91%
Input plug (recessed) C14 C14
Input cord length N/A N/A
Receptacles (6) C13 (6) C13
Output cables included (2) C13 to C14 (2) C13 to C14
Form factor Tower Tower
Dimensions (HxWxD, in.) 9.9 x 6.3 x 17.1 9.9 x 6.3 x 17.1
Weight (lbs) 41.9 41.9
Interface Two line graphical LCD Multi-line graphical LCD
Optional NIC Network-MS Network-MS
Communicatioons Port BD-Slot (XCP) MS (SHUT)
ABM Yes Yes
3EATON Product comparison
Page 4
2000 VA 120V tower
Specifications Eaton 9130 Eaton 9SX
Part number PW9130L2000T-XL 9SX2000
VA 2000 2000
Watts 1800 1770
Runtime 10 min at 1800W 10.3 at 1770W
Efficiency at full load 88% 88%
Input plug 5-20P 5-20P
Input cord length 6ft 8ft
Receptacles (4) 5-20R, (1) L5-20R (6) 5-20R, (1) L5-20R
Form factor Tower Tower
Dimensions (HxWxD, in.) 12.8 x 8.4 x 16.1 13.6 x 8.4 x 16.2
Weight (lbs) 76.1 77.2
Interface Two line graphical LCD Multi-line graphical LCD
Optional NIC Network-MS Network-MS
Communications port BD-Slot (XCP) MS (SHUT)
ABM Yes Yes
2000 VA 208V tower
Specifications Eaton 9130 Eaton 9SX
Part number PW9130i2000T-XL 9SX2000G
VA 2000 2000
Watts 1800 1800
Runtime 11 min at 1800W 10.4 at 1800W
Efficiency at full load 86% 92%
Input plug C14 C14 / L6-20P
Input cord length N/A 8ft (C13 to L6-20P jumper)
Receptacles (8) C13, (1) C19 (8) C13
Output cables included (2) C13 to C14 (2) C13 to C14
Form factor Tower Tower
Dimensions (HxWxD, in.) 12.8 x 8.4 x 16.1 13.6 x 8.4 x 16.2
Weight (lbs) 76.1 77.2
Interface Two line graphical LCD Multi-line graphical LCD
Optional NIC Network-MS Network-MS
Communications port BD-Slot (XCP) MS (SHUT)
ABM Yes Yes
4 EATON Product comparison
Page 5
3000 VA 120V tower
Specifications Eaton 9130 Eaton 9SX
Part number PW9130L3000T-XL 9SX3000
VA 3000 3000
Watts 2700 2700
Runtime 6 min at 2700W 5.7 at 2700W
Efficiency at full load 88% 88%
Input plug L5-30P L5-30P
Input cord length 6ft 8ft
Receptacles (4) 5-20R, (1) L5-30R (4) 5-20R, (1) L5-30R
Form factor Tower Tower
Dimensions (HxWxD, in.) 12.8 x 8.4 x 16.1 13.6 x 8.4 x 16.2
Weight (lbs) 76.1 77.2
Interface Two line graphical LCD Multi-line graphical LCD
Optional NIC Network-MS Network-MS
Communications port BD-Slot (XCP) MS (SHUT)
ABM Yes Yes
3000 VA 208V – NEMA/Locking tower
Specifications Eaton 9130 Eaton 9SX
Part number PW9130G3000T-XL 9SX3000GL
VA 3000 3000
Watts 2700 2700
Runtime 6 min at 2700W 5.8 min at 2700W
Efficiency at full load 88% 92%
Input plug C20 / L6-20P C20 / L6-20P
Input cord length 6ft (C19 to L6-20P jumper) 8ft (C19 to L6-20P jumper)
Receptacles (1) L6-30R, (1) L6-20R, (2) 6-20R (1) L6-30R, (1) L6-20R, (2) 6-20
Output cables included (2) C13 to C14 (2) C13 to C14
Form factor Tower Tower
Dimensions (HxWxD, in.) 13.6 x 8.4 x 16.2 13.6 x 8.4 x 16.2
Weight (lbs) 76.1 77.2
Interface Two line graphical LCD Multi-line graphical LCD
Optional NIC Network-MS Network-MS
Communications port BD-Slot (XCP) MS (SHUT)
ABM Yes Yes
5EATON Product comparison
Page 6
3000 VA 208V – IEC tower
Specifications Eaton 9130 Eaton 9130 Eaton 9130 Eaton 9SX
Part number PW9130i3000T-XL PW9130G3000T-XLEU PW9130G2000T-XLEU 9SX3000G
VA 3000 3000 2000 3000
Watts 2700 2700 1800 2700
Runtime 6 min at 2700W 6 min at 2700W 10.4 at 1800W 5.8 min at 2700W
Efficiency at full load 88% 88% 88% 92%
Input plug C20 C20 / L6-20P C20 / L6-20P C20 / L6-20P
Input cord length N/A
6ft (C19 to L6-20P
jumper)
Receptacles (8) C13, (1) C19 (8) C13, (1) C19 (8) C13, (1) C19 (8) C13
Output cables included (2) C13 to C14 (2) C13 to C14 (2) C13 to C14 (2) C13 to C14
Form factor Tower Tower Tower Tower
Dimensions (HxWxD, in.) 13.6 x 8.4 x 16.2 13.6 x 8.4 x 16.2 13.6 x 8.4 x 16.2 13.6 x 8.4 x 16.2
Weight (lbs) 77.2 76.1 76.1 77.2
Interface Two line graphical LCD Two line graphical LCD Two line graphical LCD Multi-line graphical LCD
Optional NIC Network-MS Network-MS Network-MS Network-MS
Communications port BD-Slot (XCP) BD-Slot (XCP) BD-Slot (XCP) MS (SHUT)
ABM Yes Ye s Yes Yes
6ft (C19 to L6-20P
jumper)
8ft (C19 to L6-20P
jumper)
700–1000 VA EBM tower
Specifications
Part Number PW9130N1500T-EBM 9SXEBM48
Dimensions (HxWxD in.) 9.9 x 6.3 x 17.0 9.9 x 6.3 x 17.1
Weight (lbs) 52.9 52.9
Runtime at full load (m) 23 min at 1350W 29 min at 1350W
EBM cross compatible Yes Yes
EBM crossover cable CBLADAPT36T CBLADAPT36T
Eaton 9130 Eaton 9SX
1500 VA EBM tower
Specifications
Part number PW9130N1000T-EBM 9SXEBM36
Dimensions (HxWxD in.) 9.9 x 6.3 x 15.1 9.9 x 6.3 x 15.1
Weight (lbs) 41.8 41.9
Runtime with 1 EBM 32 min at 900W 32 min at 900W
EBM cross compatible Yes Yes
EBM crossover cable CBLADAPT48T CBLADAPT48T
Eaton 9130 Eaton 9SX
2000–3000 VA EBM tower
Specifications
Part number PW9130N1000T-EBM 9SXEBM96
Dimensions (HxWxD in.) 12.8 x 8.4 x 16.2 13.6 x 8.4 x 16.2
Weight (lbs) 110.2 110.2
Runtime at full load (m) 21 min at 2700W 28 min at 2700W
EBM cross compatible Yes Yes
EBM crossover cable CBLADAPT96T CBLADAPT96T
Eaton 9130 UPS Eaton 9SX UPS
Eaton 9130 Eaton 9SX
