Pulsar series
Eaton EX UPS
Mini-tower
Rack/Tower 2U
Rack/Tower 3U
High availability
• Eaton® EX UPS—online, doubleconversion UPS with automatic
bypass for fault-tolerance
• Continuous power with hot
swappable batteries—the optional
HotSwap Maintenance Bypass
(MBP) module allows the UPS to
be replaced without interrupting the
power supply
• Load segments—load shedding
capability and backup time
maximization, as well as remote
reboot and sequential startup
• Long backup times—add up to four
EXB battery modules to the EX
(1000 VA models and above)
Total flexibility
The EX provides unmatched flexibility.
• Form factor—the EX is available
in tower or convertible rack/tower
models, optimized for telecom
racks with short depth
• Connections—easily add
more outlets with the
FlexPDU and HotSwap
MBP; these optional PDUs
can be mounted behind,
on the side or on top of the
rack/tower UPS models
• Interfaces—USB, serial
RS232, remote On/Off
and a slot for an optional
communications card
(Ethernet, ModBus or
status)
Adjustable multilingual
display
700/1000/1500/2200/3000 VA
HotSwap MBP 15A
Servers, data storage and
network equipment
Telephony - VoIP Medical equipment - industrial
processes
Page 2
Manageability
• Multilingual LCD provides access to a wide range of
measurements and setup menus
• Remote supervision—the EX comes with a free five-node version
of Enterprise Power Manager for network-based supervision and
asset management
• Network-based modules for power management of servers
(Windows, Linux, MacOS) or small blade servers (VMware ESX,
Microsoft Hyper-V)
• NetWatch 5.0 software enables automatic shutdown of UPSprotected devices
1
2
7
6
3
5
4
Eaton NetWatch Client 5.0 has tested compatible
with Cisco Unified Communications Manager 4.3.
Go to www.eaton.com/PQ/cisco for disclaimer.
Eaton customer service and support
• Two-year warranty, including batteries
• Standard exchange of product in case of failure, including
batteries
Associated services:
• Extended warranty contracts available to provide up to
five years of warranty coverage
• Battery replacement program
• UPSgrade
™
program for substitution of an old UPS
(vendor neutral)
Communications software and connectivity
• Power management suite (included) comes with
network-based shutdown software (Windows, Linux,
MacOS, VMware ESX, Microsoft Hyper-V) and local or
remote supervision up to five nodes
• Network Management Card (NMC) connects the UPS to an
Ethernet 10/100 network, raising SNMP or XML alarms and
supervising the UPS using a simple browser interface
• NMC environment sensor monitors the temperature, humidity
and two relay contacts via SNMP or HTML
• Enterprise Power Manager supervisor provides comprehensive
management of multiple UPSs and PDUs using a Windows PC
(vendor neutral)
• NMS integration kits include HP OpenView, IBM Tivoli Netview,
CA Unicenter, etc.
• Management card contacts/serial provide UPS status outputs
via relay contacts, emergency stop and a second serial port
• NMC ModBus/JBus card combines SNMP, HTML and ModBus/
JBus supervision
• UPS control remote display monitors UPS status up to 82 feet
from the unit
2
3
1
2
3
4
5
6
7
8
1
5
4
7
3
7
5
8

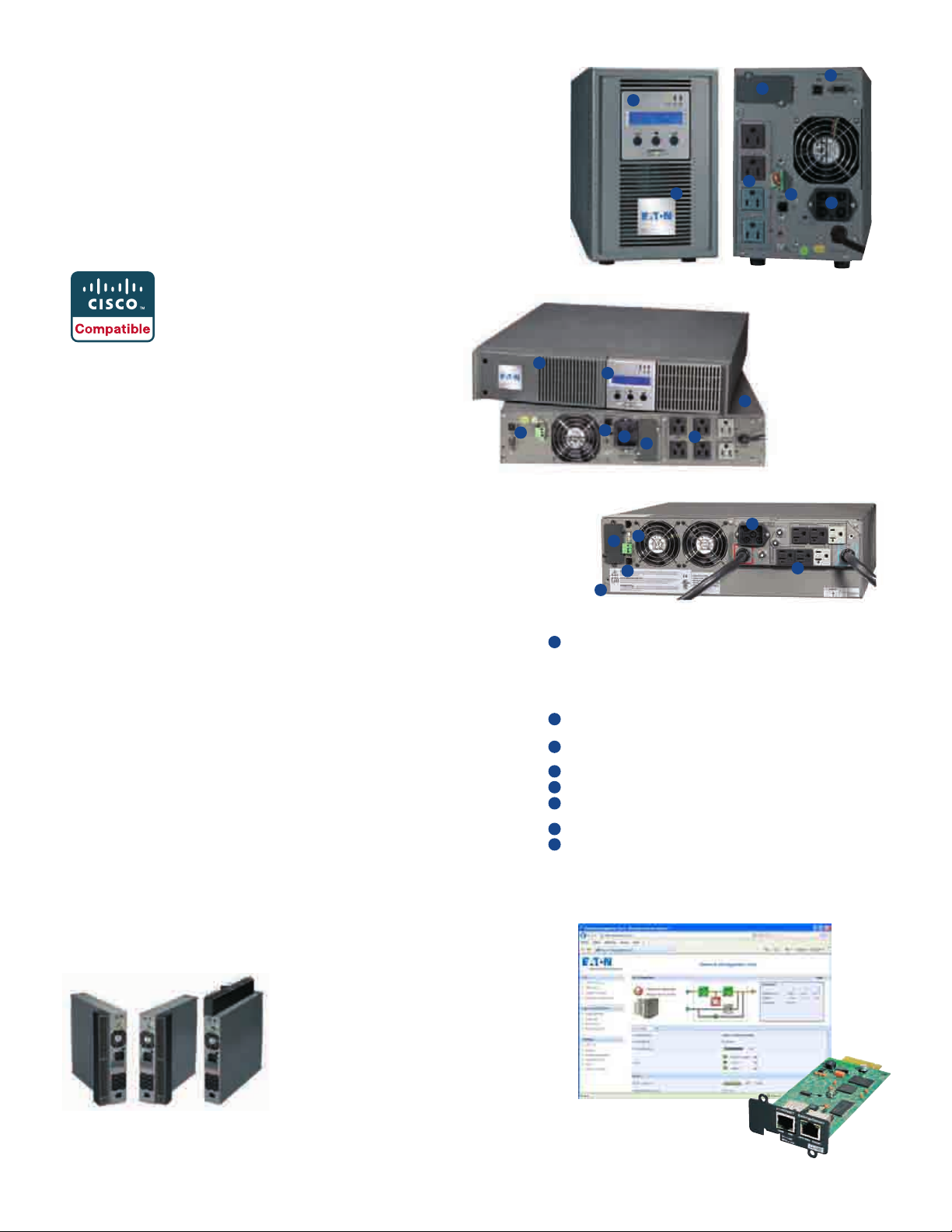

Multilingual LCD
- Six languages
- Displays measurements
- Displays alarms
- Access to control and set-up menus
Panel for replacing batteries without interrupting
the output
(1) USB port, (1) serial port, remote On/Off and
emergency stop contacts
EXB battery module connector
Automatic detection of EXB battery modules
(6) NEMA 5-20R receptacles, including (2) switched
outlets and (1) locking NEMA receptacle
Communications card slot
Mountings for HotSwap MBP and FlexPDU
8
6
4
6
FlexPDU and HotSwap MBP can be
mounted in many different positions
2
EATON CORPORATION Eaton EX UPS
Network Management
Card and Enterprise Power
Manager Supervision
Page 3
Technical specifications
1
fORmAT
Form factor 700 VA: Mini-tower
1000–1500 VA: Mini-tower or
rack/tower 2U
2200–3000 VA: Rack/tower 2U
and rack/tower 3U
ElECTRICAl ChARACTERIsTICs
Topology Online with automatic bypass and
power factor correction
Input voltage/frequency range
(without batteries)
700–1500 VA: 100/120/140/160
40–70 Hz
2
to 284V,
2200–3000 VA: 503–100V to 142V,
40–70 Hz
Output voltage/frequency 120V (adjustable to 100/110/127V),
50/60 Hz, auto-select or frequency
converter mode
4
CONNECTIONs
Input 700–1500 VA: 5-15P
2200 VA: NEMA 5-20P
3000 VA: NEMA L5-30P
Outputs 700–1500 VA : (4) 5-15R tower, (6) 5-15R
RT2U
2200 VA: (6) NEMA 5-20R + (1) NEMA
L5-20R
3000 VA: (6) NEMA 5-20R + (1) NEMA
L5-30R
Additional outputs with
HotSwap MBP
700–1500 VA: (4) NEMA 5-15R
2200–3000 VA: (5) NEMA 5-15R or
(5) NEMA 5-20R
Additional outputs with FlexPDU NEMA L5-20R
2200–3000 VA: (10) NEMA 5-15R or
(10) NEMA 5-20R or (8) NEMA L5-20R
INTERfACEs
Indicators and display (3) LEDs + adjustable multilingual
display: display of measurements,
access to control and setup menus
Communication ports (1) USB port, (1) RS232 serial port and
relay contacts
5
, (1) mini terminal block
for remote On/Off and emergency stop
Communications card slots (1) slot for NMC Mini-Slot 2006
card, NMC ModBus/JBus or MC
Contacts/Serial
OPERATINg CONdITIONs, sTANdARds ANd APPROvAls
Operating temperature 32°F to 104°F (0°C to 40°C) continuous
Noise level 45 dBA
Performance/Safety/EMC 700–1500 VA: IEC 62 040-3 (VFI-SS-113),
IEC 62 040-1-1, IEC 60 950-1 (RD), FCC
Subpart B, class A
2200–3000 VA: IEC/EN 62 040-3 (VFISS-113), IEC/EN 62 040-1-1, IEC/EN 60
950-1 (RD), IEC/EN 62 040-2 C1, FCC
Subpart B, Class A
Approvals 700–1500 VA: UL, cUL, CE, CB report
2200–3000 VA: CE, TüV, CB Report, UL
and CUL (CSA)
1. Due to continuing product improvement programs, specifications are subject to change without notice
2. Lower limits for <20%, <33%, <66%, >=66% of nominal power (VA); for active output power greater
than 0.7 and 0.8 nominal rating, the lower limit is 180V and 190V respectively
3. Lower limits for reduced load
4. Derated by 15% when used as a frequency converter
5. USB and RS232 serial ports cannot be used simultaneously
EX BATTERY BACKUP TImEs (IN mINUTEs)
Load
(VA/Watts)
Internal
Batteries
+1 EBM +2 EBMs +3 EBMs +4 EBMs
1
EX 700
70/49 71 - - - 140/98 36 - - - 210/147 25 - - - 280/196 20 - - - 350/245 16 - - - 420/294 12 - - - 490/343 10 - - - 560/392 8 - - - 630/441 6 - - - 700/490 5 - - - -
EX 1000 / 1000 RT 2U
100/70 75 290 490 790 980
200/140 40 170 290 440 550
300/210 28 125 210 310 390
400/280 21 92 180 240 310
500/350 18 75 150 205 250
600/420 14 60 110 170 220
700/490 11 52 90 145 190
800/560 9 43 78 125 170
900/630 7 40 70 112 155
1000/700 6 35 60 95 135
EX 1500 / 1500 RT 2U
150/105 60 212 360 475 700
300/210 32 110 220 280 380
450/315 21 78 155 210 260
600/420 16 60 115 160 200
750/525 13 47 83 140 180
900/630 10 40 71 110 140
1050/735 8 34 60 90 118
1200/840 7 30 52 76 100
1350/945 6 27 48 70 90
1500/1050 5 24 42 62 80
EX 2200 RT 2U & 3U
2
220/154 90 352 587 831 1216
440/308 48 200 340 470 650
660/462 30 130 225 320 450
880/616 22 100 170 260 350
1100/770 16 80 135 215 286
1320/924 13 62 110 180 240
1540/1078 10 50 95 150 200
1760/1232 8 42 80 125 170
1980/1386 7 36 65 110 152
2200/1540 6 30 51 83 134
EX 3000 RT 2U & 3U
3
300/210 79 254 454 628 847
600/420 40 130 255 330 445
900/630 25 80 160 230 290
1200/840 18 60 120 180 230
1500/1050 14 48 102 143 187
1800/1260 12 38 82 115 150
2100/1470 9 32 72 95 125
2400/1680 7 27 58 80 100
2700/1890 6 22 50 70 82
3000/2100 5 18 36 52 70
EX 3000 RT 3U XL
4
300/210 - 175 375 549 768
600/420 - 90 215 290 405
900/630 - 55 135 205 265
1200/840 - 42 102 162 212
1500/1050 - 34 88 129 173
1800/1260 - 26 70 103 138
2100/1470 - 23 63 86 116
2400/1680 - 20 51 73 93
2700/1890 - 16 44 64 76
3000/2100 - 13 31 47 65
1. Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature,
etc. The EX has a 0.9 power factor, but runtimes are shown here at 0.7 power factor for easy comparison against
competitor's products, which have a 0.7 power factor. 2. Output power rating = 1650W. 3. Standard configuration power rating = 2550W, with EBM = 2100W. 4 Output power rating = 2150W; up to 12 EBMs can be added for
extended runtime of 196-1909 minutes
Page 4
EX, NEmA 50/60 hz mOdEls: 120v
Catalog
Number
Style
Number Form Factor
Rating
(VA/Watts)
Input
Connection
Output
Receptacles
Dimensions
(H x W x D, inches)
PULSL700T 86700 Tower 700/630 5-15P (4) 5-15R 9.52 x 6.00 x 17.32
PULSL1000T 86701 Tower 1000/900
PULSL1500T 86703 Tower 1500/1350
1
5-15P (4) 5-15R 9.52 x 6.00 x 17.32
2
5-15P (4) 5-15R 9.52 x 6.00 x 19.29
PULSL1000R-XL2U 86702 Rack 1000/900 5-15P (6) 5-15R 3.46 x 17.25 x 19.00
PULSL1500R-XL2U 86704 Rack 1500/1350 5-15P (6) 5-15R 3.46 x 17.25 x 19.00
PULSML2200-XL2U 86722 Rack/Tower 2U 2100/1650 5-20P (6) 5-20R, (1) L5-20R 3.40 (2U) x 17.30 x 25.20
PULSML2200-XL3U 86723 Rack/Tower 3U 2100/1650 5-20P (6) 5-20R, (1) L5-20R 5.14 (3U) x 17.30 x 19.29
PULSML3000-XL2U 86732 Rack/Tower 2U 3000/2550 L5-30P (6) 5-20R, (1) L5-30R 3.40 (2U) x 17.30 x 25.20
PULSML3000-XL3U 86733 Rack/Tower 3U 3000/2550
3
L5-30P (6) 5-20R, (1) L5-30R 5.14 (3U) x 17.30 x 19.29
PULSML3000-XL3UXL 86735 Rack/Tower 3U XL 3000/2150 L5-30P (6) 5-20R, (1) L5-30R 5.14 (3U) x 17.33 x 19.29
EX, INTERNATIONAl mOdEls: 230v
Catalog
Number
Style
Number Form Factor
Rating
(VA/Watts)
Input
Connection
Output
Receptacles
Dimensions
(H x W x D, inches)
PULSI700T 68180 Tower 700/630 IEC C14 (10A Socket) (6) IEC C13 (10A) 9.52 x 6.00 x 17.32
PULSI1000T 68181 Tower 1000/900 IEC C14 (10A Socket) (6) IEC C13 (10A) 9.52 x 6.00 x 17.32
PULSI1500T 68183 Tower 1500/1350 IEC C14 (10A Socket) (6) IEC C13 (10A) 9.52 x 6.00 x 19.29
PULSI1000R-XL2U 68182 Rack 1000/900 IEC C14 (10A Socket) (6) IEC C13 (10A) 3.46 x 17.25 x 19.00
PULSI1500R-XL2U 68184 Rack 1500/1350 IEC C14 (10A Socket) (6) IEC C13 (10A) 3.46 x 17.25 x 19.00
PULSMI2200-XL2U 68401 Rack/Tower 2U 2200/1980 IEC C20 (16A) or terminal block
on Hot-swap MBP (HW)
PULSMI2200-XL3U 68400 Rack/Tower 3U 2200/1980 IEC C20 (16A) or terminal block
on Hot-swap MBP (HW)
PULSMI3000-XL2U 68403 Rack/Tower 2U 3000/2700 IEC C20 (16A) or terminal block
on Hot-swap MBP (HW)
PULSMI3000-XL3U 68402 Rack/Tower 3U 3000/2700 IEC C20 (16A) or terminal block
on Hot-swap MBP (HW)
PULSMI3000-XL3UXL 68404 Rack/Tower 3U XL 3000/2400 IEC C20 (16A) or terminal block
on Hot-swap MBP (HW)
1. Max rating with EXB battery units = 800W.
2. Max rating with EXB battery units = 1200W.
3. Max rating with EXB battery units = 2400W.
(8) IEC C13 (10A)
(1) IEC C19 (16A)
(8) IEC C13 (10A)
(1) IEC C19 (16A)
(8) IEC C13 (10A)
(1) IEC C19 (16A)
(8) IEC C13 (10A)
(1) IEC C19 (16A)
(8) IEC C13 (10A)
(1) IEC C19 (16A)
3.39 x 17.32 x 25.20
5.16 x 17.32 x 19.29
3.39 x 17.32 x 25.20
5.16 x 17.32 x 19.29
5.16 x 17.32 x 19.29
EX OPTIONs
Catalog Number Style Number Description Dimensions (H x W x D, inches)
Extended Battery Modules
PULSL1500T-EBM 86705 TWR EBM 1–1.5 kVA 9.52 x 6.00 x 17.32
PULSL1500R-EBM 86706 RK EBM 1–1.5 kVA 3.40 x 17.25 x 19.00
PULSI1500T-EBM 68185 TWR EBM 1–1.5 kVA 9.53 x 6.22 x 15.75
PULSI1500R-EBM 68186 RK EBM 1–1.5 kVA 3.41 x 17.32 x 18.9
PULSMI3000-EBM 68405 RT EBM 2–3 kVA 5.16 x 17.32 x 19.29
Optional Mounting Hardware
PULSM-RAIL 68441 2U/3U RAIL KIT -
