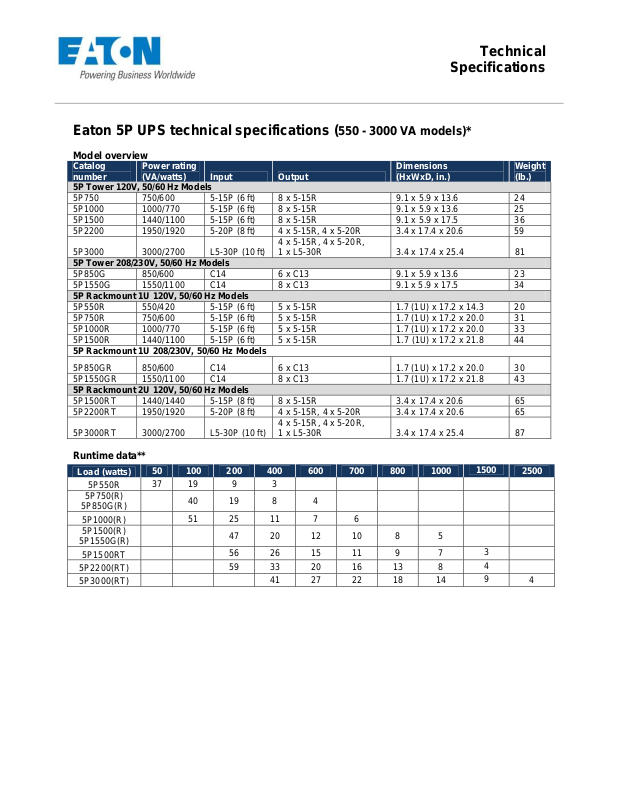

Page 1
Technical
Specifications
Eaton 5P UPS technical specifications (
550 - 3000 VA models)*
Model overview
Catalog
number
5P Tower 120V, 50/60 Hz Models
5P750 750/600 5-15P (6 ft) 8 x 5-15R 9.1 x 5.9 x 13.6 24
5P1000 1000/770 5-15P (6 ft) 8 x 5-15R 9.1 x 5.9 x 13.6 25
5P1500 1440/1100 5-15P (6 ft) 8 x 5-15R 9.1 x 5.9 x 17.5 36
5P2200 1950/1920 5-20P (8 ft) 4 x 5-15R, 4 x 5-20R 3.4 x 17.4 x 20.6 59
5P3000 3000/2700 L5-30P (10 ft)
5P Tower 208/230V, 50/60 Hz Models
5P850G 850/600 C14 6 x C13 9.1 x 5.9 x 13.6 23
5P1550G 1550/1100 C14 8 x C13 9.1 x 5.9 x 17.5 34
5P Rackmount 1U 120V, 50/60 Hz Models
5P550R 550/420 5-15P (6 ft) 5 x 5-15R 1.7 (1U) x 17.2 x 14.3 20
5P750R 750/600 5-15P (6 ft) 5 x 5-15R 1.7 (1U) x 17.2 x 20.0 31
5P1000R 1000/770 5-15P (6 ft) 5 x 5-15R 1.7 (1U) x 17.2 x 20.0 33
5P1500R 1440/1100 5-15P (6 ft) 5 x 5-15R 1.7 (1U) x 17.2 x 21.8 44
5P Rackmount 1U 208/230V, 50/60 Hz Models
5P850GR 850/600 C14 6 x C13 1.7 (1U) x 17.2 x 20.0 30
5P1550GR 1550/1100 C14 8 x C13 1.7 (1U) x 17.2 x 21.8 43
5P Rackmount 2U 120V, 50/60 Hz Models
5P1500RT 1440/1440 5-15P (8 ft) 8 x 5-15R 3.4 x 17.4 x 20.6 65
5P2200RT 1950/1920 5-20P (8 ft) 4 x 5-15R, 4 x 5-20R 3.4 x 17.4 x 20.6 65
5P3000RT 3000/2700 L5-30P (10 ft)
Runtime data**
Load (watts)
5P550R
5P750(R)
5P850G(R)
5P1000(R)
5P1500(R)
5P1550G(R)
5P1500RT
5P2200(RT)
5P3000(RT)
Power rating
(VA/watts) Input Output
4 x 5-15R, 4 x 5-20R,
1 x L5-30R 3.4 x 17.4 x 25.4 81
4 x 5-15R, 4 x 5-20R,
1 x L5-30R 3.4 x 17.4 x 25.4 87
50 100 200 400 600 700 800 1000
37 19 9 3
40 19 8 4
51 25 11 7 6
47 20 12 10 8 5
56 26 15 11 9 7
59 33 20 16 13 8
41 27 22 18 14
Dimensions
(HxWxD, in.)
Weight
(lb.)
1500
3
4
9
2500
4
Page 2
r
Additional specifications
General 5P Towe
Graphical LCD Graphical display. UPS status in a single view
LEDs 3 status-indicating LEDs
Topology Line interactive
Configuration Tower Rack 1U & Rack 2U
Color Black and silver
Diagnostics Full system self test at power up
Warranty 3 years including batteries with product registration
Rail kit None 4-post rail kit (included)
Optional 2-post rail kit:
1U(R): RK2PA
2U(RT): 103007018-5591
Remote emergency power
off
Contents (Ships with the
following items)
Electrical input
Nominal voltage 120V: 100/120/127V
Default voltage Low Voltage: 120V
Input voltage range 120V: 89-151 Vac
Frequency 50/60 Hz
Frequency range 60 Hz: 47–70 Hz
Electrical output
On utility voltage
regulation
On battery voltage
regulation
Efficiency Normal or line mode: >96% above 60% load
Frequency tolerance ±0.1Hz
Over current protection Electronic current limit
Load segments Two load segments for individual control
Battery
Battery description Sealed, lead-acid; maintenance free
Battery management ABM technology; 3-stage charging extends battery service life by 50% and provides
Battery replacement Hot-swappable internal batteries
Start on battery Cold-start enabled; first cold start is always forbidden
UPS
User manual CD
Intelligent Power Software CD
Quick start guide
USB cable
RS-232 serial cable
G-Models only:
2 IEC-to-IEC jumper cables
2200/3000 models only:
Phillips head screw driver
Tower pedestals
ROO and RPO: Rear connector for remote on/off and power off
UPS
User manual CD
Intelligent Power Software Suite CD
Quick start guide
4-post rail kit (5P550R ears only)
Extra wall mounting ear (5P1500R & 5P1550GR)
USB cable
RS-232 serial cable
G-Models only:
2 IEC-to-IEC jumper cables
Output cable locking system
Input cable locking system
2200/3000 models only:
Tower pedestals
Phillips head screw driver
230V(G models): 200/208/220/230/240V
High Voltage: 230V
208V: 160-262 Vac
230V: 160-294 Vac
50 Hz: 56.5–70 Hz
120V: 102-132 Vac
230V: 184-256 Vac
-10%, +6% of nominal
advance warning for battery replacement
5P Rackmount
Page 3
Communications
r
User interface LCD graphical display. UPS status in a single view.
LEDs 3 status-indicating LEDs
Communication ports RS-232 (RJ45) port
USB port as standard (HID)
6-foot RS-232 and USB cables included
Communications card slot Network Card-MS (optional)
Relay-MS (optional)
Power management
software
Environmental & standards
RoHS compliance Yes
Surge protection IEEE ANSI C62.41 Cat B2
Safety conformance 120V: UL1778; UL497A
EMC compliance 120V: FCC Part 15 subpart B Class B
EMC markings IEC 62040-2 C1-C2 / EN 55024 / CISPR22 Class B / FCC part 15 Class B
IEC 62040-2 C1-C2 / EN 55024 / CISPR22 Class A / FCC part 15 Class A
Audible noise < 45 dB at 1 meter (3000VA: < 50 dB at 1 meter)
Operating temperature 0 to 35°C (32°F to 95°F) 5P1500RT, 2200 & 3000: 0 to 40°C (32°F to 104°F)
Safety conformance CE / cULus / NOM
Storage temperature -15°C to 40°C (5°F to 104°F)
Relative humidity 0 to 95% non-condensing
Altitude Up to 10,000 ft (3000m) without de-rating
Heat dissipation (battery fully charged)
5P UPS Model Line mode, BTU/h
5P550R 72 344
5P750/5P850G/
5P750R/5P850GR
5P1000/5P1000R 106 500
5P1500/5P1550G
5P1500R/5P1550GR
5P1500RT 305 2047
5P2200/5P2200RT 305 2047
5P3000/5P3000RT 305 2047
Eaton Intelligent Power Software Suite CD (included)
120V (2200/3000): FCC Part 15 subpart B Class A
2200/3000
Battery mode, BTU/hr
82 389
113 714
