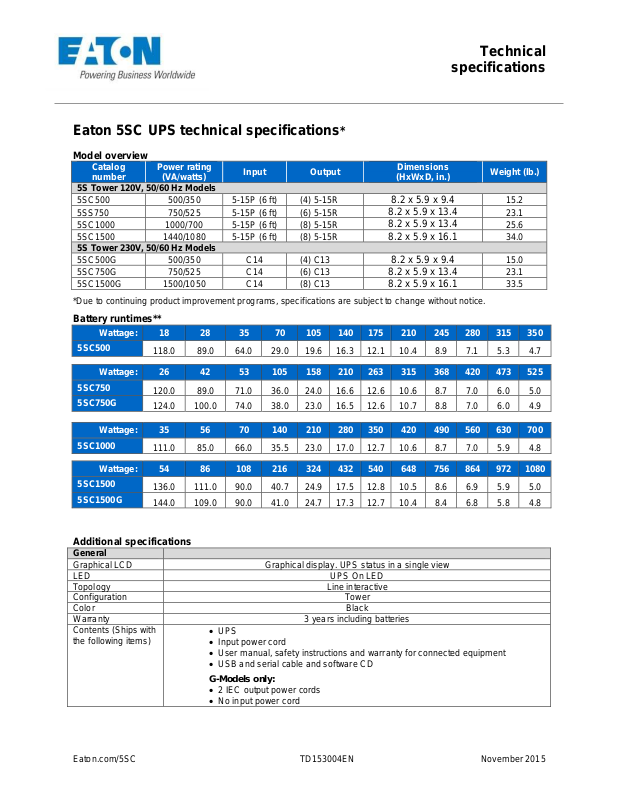

Eaton Powerware 5SC UPS Technical Specifications

specifications

Catalog
number

Power rating

(VA/watts)

Input

Output

Dimensions

(HxWxD, in.)

Weight (lb.)

5S Tower 120V, 50/60 Hz Models

5SC500

500/350

5-15P (6 ft)

(4) 5-15R

8.2 x 5.9 x 9.4

15.2

5SS750

750/525

5-15P (6 ft)

(6) 5-15R

8.2 x 5.9 x 13.4

23.1

5SC1000

1000/700

5-15P (6 ft)

(8) 5-15R

8.2 x 5.9 x 13.4

25.6

5SC1500

1440/1080

5-15P (6 ft)

(8) 5-15R

8.2 x 5.9 x 16.1

34.0

5S Tower 230V, 50/60 Hz Models

5SC500G

500/350

C14

(4) C13

8.2 x 5.9 x 9.4

15.0

5SC750G

750/525

8.2 x 5.9 x 13.4

23.1

5SC1500G

1500/1050

8.2 x 5.9 x 16.1

33.5

Wattage:

18

28

175

210

245

280

315

350

5SC500

118.0

89.0

12.1

10.4

8.9

7.1

5.3

4.7

Wattage:

26

42

263

315

368

420

473

525

5SC750

120.0

89.0

12.6

10.6

8.7

7.0

6.0

5.0

5SC750G

124.0

100.0

12.6

10.7

8.8

7.0

6.0

4.9

Wattage:

35

56

70

140

210

280

350

420

490

560

630

700

5SC1000

111.0

85.0

66.0

35.5

23.0

17.0

12.7

10.6

8.7

7.0

5.9

4.8

Wattage:

54

86

108

216

324

432

540

648

756

864

972

1080

5SC1500

136.0

111.0

90.0

40.7

24.9

17.5

12.8

10.5

8.6

6.9

5.9

5.0

5SC1500G

144.0

109.0

90.0

41.0

24.7

17.3

12.7

10.4

8.4

6.8

5.8

4.8

General

Graphical LCD

Graphical display. UPS status in a single view

LED

UPS On LED

Topology

Line interactive

Configuration

Tower

Color

Black

Warranty

3 years including batteries

Contents (Ships with
the following items)

 UPS
 Input power cord
 User manual, safety instructions and warranty for connected equipment
 USB and serial cable and software CD

G-Models only:

 2 IEC output power cords
 No input power cord

Eaton 5SC UPS technical specifications*

Model overview

C14 (6) C13
C14 (8) C13

*Due to continuing product improvement programs, specifications are subject to change without notice.

Battery runtimes**

35 70 105 140

Technical

Additional specifications

64.0 29.0 19.6 16.3

53 105 158 210

71.0 36.0 24.0 16.6

74.0 38.0 23.0 16.5

Eaton.com/5SC TD153004EN November 2015

Page 2 of 2

Electrical input

Nominal voltage

120V: 100/110/120V

230V (G models): 220/230/240V

Default voltage

Low Voltage: 120V

High Voltage: 230V

Input voltage range

120V: 96-144 Vac

230V: 184-276 Vac

Frequency

50/60 Hz

Frequency range

60 Hz: 55–65 Hz
50 Hz: 45–55 Hz

Electrical output

On utility voltage
regulation

120V: 108-127 Vac
230V: 207-243 Vac

On battery voltage
regulation

-10%, +6% of nominal

Efficiency

Normal or line mode: >90% above 50% load, >94% at 100% load

Frequency tolerance

±0.1 Hz

Over current
protection

Electronic current limit

Battery

Battery description

Sealed, lead-acid; maintenance free

Battery management

ABM technology; 3-stage charging extends battery service life by 50% and provides advance

warning for battery replacement

Battery replacement

Replaceable internal batteries

(not hot-swappable)

Start on battery

Cold-start enabled; first unit start up requires utility power

Communications

User interface

LCD graphical display. UPS status in a single view.

Communication
ports

USB port as standard (HID) - USB Cord Included

RJ45 Serial Port – Serial Cord included

Power management
software

IPP / IPM

Environmental & standards

RoHS compliance

Yes

Surge protection

IEEE ANSI C62.41 Cat B2

EMC compliance

120V: FCC Part 15 subpart B Class A

IEC 62040-2 C1/ EN 55024 / CISPR22 Class B / FCC part 15 Class B

Audible noise

< 40 dB at 1 meter

Operating
temperature

0° to 40°C (32°F to 104°F)

Safety Markings

120V: cULus / CE

230V: CE / cTUVus / EAC (GOST) / C-tick

Storage temperature

-15°C to 50°C (5°F to 122°F)

Relative humidity

0 to 95% non-condensing

Altitude

Up to 2000m (6,500 ft) without de-rating,

Up to 3000m (9,843 ft) requires de-rating to 90%
