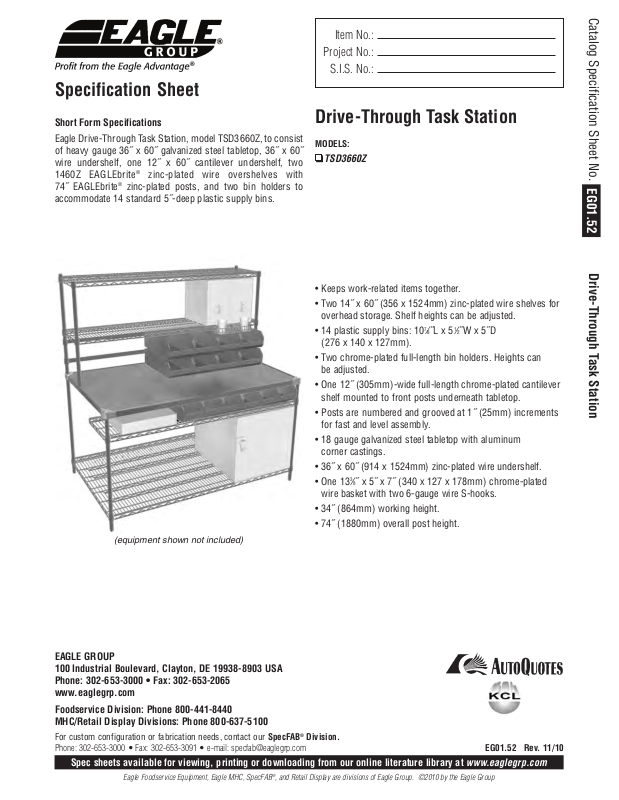

Eagle TSD3660Z User Manual
Specification Sheet
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
Short Form Specifications
Eagle Drive-Through Task Station, model TSD3660Z, to consist
of heavy gauge 36˝ x 60˝ galvanized steel tabletop, 36˝ x 60˝
wire undershelf, one 12˝ x 60˝ cantilever undershelf, two
1460Z EAGLEbrite
74˝ EAGLEbrite
accommodate 14 standard 5˝-deep plastic supply bins.
®
®
(equipment shown not included)
zinc-plated wire overshelves with
zinc-plated posts, and two bin holders to
Drive-Through Task Station
MODELS:
TSD3660Z
• Keeps work-related items together.
• Two 14˝ x 60˝ (356 x 1524mm) zinc-plated wire shelves for
overhead storage. Shelf heights can be adjusted.
7
• 14 plastic supply bins: 10
(276 x 140 x 127mm).
• Two chrome-plated full-length bin holders. Heights can
be adjusted.
• One 12˝ (305mm)-wide full-length chrome-plated cantilever
shelf mounted to front posts underneath tabletop.
• Posts are numbered and grooved at 1˝ (25mm) increments
for fast and level assembly.
• 18 gauge galvanized steel tabletop with aluminum
corner castings.
• 36˝ x 60˝ (914 x 1524mm) zinc-plated wire undershelf.
3
• One 13
wire basket with two 6-gauge wire S-hooks.
• 34˝ (864mm) working height.
• 74˝ (1880mm) overall post height.
⁄8˝ x 5˝ x 7˝ (340 x 127 x 178mm) chrome-plated
⁄8˝L x 51⁄2˝W x 5˝D
EG01.52
Drive-Through Task Station
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
For custom configuration or fabrication needs, contact our SpecFAB®Division.
Phone: 302-653-3000 • Fax: 302-653-3091 • e-mail: specfab@eaglegrp.com
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2010 by the Eagle Group
EG01.52 Rev. 11/10
EG01.52
Drive-Through Task Station
Catalog Specification Sheet No.
TOP VIEW
Item No.:
Project No.:
S.I.S. No.:
Drive-Through Task Station
FRONT VIEW
width length height weight
model # in. mm in. mm in. mm lbs. kg
TSD3660Z 36˝ 914 60˝ 1524 74˝ 1880 168 76.2
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for
typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.
SIDE VIEW
(Note: shown without supply bins)
Printed in U.S.A.
©2010 by Eagle Group
Rev. 11/10
