Dynex DX-TVM113 User Manual
16 - 24 in.
406mm - 610mm
Slim-Prole TV Mount

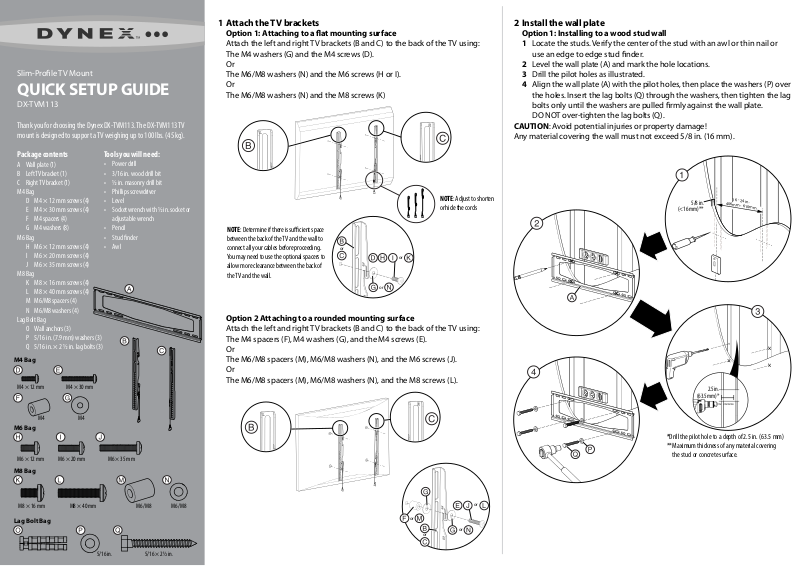

QUICK SETUP GUIDE
DX-TVM113
Thank you for choosing the Dynex DX-TVM113. The DX-TVM113 TV
mount is designed to support a TV weighing up to 100 lbs. (45 kg).
1 Attach the TV brackets
Option 1: Attaching to a at mounting surface
Attach the left and right TV brackets (B and C) to the back of the TV using:
The M4 washers (G) and the M4 screws (D).
Or
The M6/M8 washers (N) and the M6 screws (H or I).
Or
The M6/M8 washers (N) and the M8 screws (K)
2 Install the wall plate
Option 1: Installing to a wood stud wall
1 Locate the studs. Verify the center of the stud with an awl or thin nail or
use an edge to edge stud nder.
2 Level the wall plate (A) and mark the hole locations.
3 Drill the pilot holes as illustrated.
4 Align the wall plate (A) with the pilot holes, then place the washers (P) over
the holes. Insert the lag bolts (Q) through the washers, then tighten the lag
bolts only until the washers are pulled rmly against the wall plate.
DO NOT over-tighten the lag bolts (Q).
CAUTION: Avoid potential injuries or property damage!
Any material covering the wall must not exceed 5/8 in. (16 mm).
Package contents
A Wall plate (1)
B Left TV bracket (1)
C Right TV bracket (1)
M4 Bag
D M4 × 12 mm screws (4)
E M4 × 30 mm screws (4)
F M4 spacers (4)
G M4 washers (8)
M6 Bag
H M6 × 12 mm screws (4)
I M6 × 20 mm screws (4)
J M6 × 35 mm screws (4)
M8 Bag
K M8 × 16 mm screws (4)
L M8 × 40 mm screws (4)
M M6/M8 spacers (4)
N M6/M8 washers (4)
Lag Bolt Bag
O Wall anchors (3)
P 5/16 in. (7.9 mm) washers (3)
Q 5/16 in. × 2 ½ in. lag bolts (3)
M4 Bag
M4 × 12 mm
M6 Bag
M6 × 12 mm
M8 Bag
M4 × 30 mm
M4 M4
M6 × 20 mm M6 × 35 mm
Tools you will need:
• Power drill
• 3/16 in. wood drill bit
• ½ in. masonry drill bit
• Phillips screwdriver
• Level
• Socket wrench with ½ in. socket or
adjustable wrench
• Pencil
• Stud nder
• Awl
NOTE: Adjust to shorten
or hide the cords
NOTE: Determine if there is sucient space
between the back of the TV and the wall to
connect all your cables before proceeding.
You may need to use the optional spacers to
or
or
allow more clearance between the back of
the TV and the wall.
or
Option 2 Attaching to a rounded mounting surface
Attach the left and right TV brackets (B and C) to the back of the TV using:
The M4 spacers (F), M4 washers (G), and the M4 screws (E).
Or
The M6/M8 spacers (M), M6/M8 washers (N), and the M6 screws (J).
Or
The M6/M8 spacers (M), M6/M8 washers (N), and the M8 screws (L).
5/8 in.
(<16 mm)**
2.5 in.
(63.5 mm)*
*Drill the pilot hole to a depth of 2.5 in. (63.5 mm)
**Maximum thickness of any material covering
the stud or concrete surface.
M8 × 16 mm
Lag Bolt Bag
M8 × 40 mm
5/16 in.
5/16 × 2½ in.
M6/M8M6/M8
or
or
or
or
Option 2: Installing to a solid concrete or concrete block wall
1 Level the wall plate (A) and mark the hole locations.
2 Drill the pilot holes as illustrated.
3 Insert the concrete wall anchors (O) into the pilot holes and make sure
that the anchors are seated ush with the surface.
4 Align the wall plate (A) with the wall anchors, then place the washers (P)
over the holes. Insert the lag bolts (Q) through the washers, then tighten
the lag bolts only until the washers are pulled rmly against the wall
plate. DO NOT over-tighten the lag bolts (Q).
CAUTION: Avoid potential injuries or property damage!
Any material covering the wall must not exceed 5/8 in. (16 mm).
CAUTION: To prevent property
damage or personal injury, never
drill into mortar between blocks.
3 Mount the TV to the wall
Slide the upper notches on the TV bracket over the upper
anges on the wall bracket.
4 Remove the TV from the wall
HEAVY! You will need
assistance with this step.
Latched
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
CAUTION: Do not use this product for any purpose not explicitly
specied by Dynex. Improper installation may cause property
damage or personal injury. If you do not understand these
directions, or have doubts about the safety of the installation,
contact Customer Service or call a qualied contractor. Dynex is
not responsible for damage or injury caused by incorrect
installation or use.
The weight of your TV must not exceed 100 lb (45 kg). The wall
must be capable of supporting ve times the weight of the TV
and wall mount combined.
This product contains small items that could be a choking hazard
if swallowed. Keep these items away from young children!
3-year limited warranty
Visit www.dynexproducts.com for details.
5/8 in.
(<16 mm)**
2.5 in.
(63.5 mm)*
*Drill the pilot hole to a depth of 2.5 in. (63.5 mm)
**Maximum thickness of any material covering
the stud or concrete surface.
SLIMPROFILE TV MOUNT I QUICK SETUP GUIDE I DXTVM113
Unlatched
We’re here for you
www.dynexproducts.com
For customer service, call:
800-305-2204 (U.S./Canada markets)
01 800-926-3020 (Mexico market)
© 2010 BBY Solutions, Inc., All Rights Reserved.
Distributed by Best Buy Purchasing, LLC 7601 Penn Avenue
South, Richeld, MN USA 55423-3645
Best Buy Imports, S. de R.L. de C.V. Av. Santa Fe 485, Segundo
Piso, Colonia Cruz Manca, Programa Parcial de Desarrollo
Santa Fe, Delegación Cuajimalpa, Distrito Federal, México
05349
© 2010 Best Buy UK Distributions Limited. All rights reserved.
Distributed by Best Buy Europe Distributions Limited. 1 Portal
Way, London W3 6RS
DYNEX is a trademark of BBY Solutions, Inc. Registered in
some countries. All other products and brand names are
trademarks of their respective owners.
6907-002011 <00>
ENGLISH 10-0165
