Dynex DX-TVM111 User Manual

Slim-Prole TV Mount

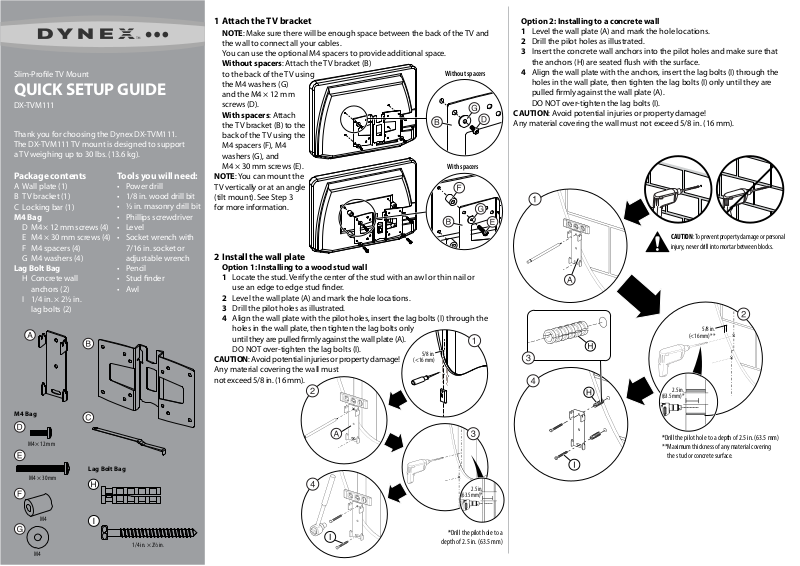

QUICK SETUP GUIDE

DX-TVM111

Thank you for choosing the Dynex DX-TVM111. The DX-TVM111 TV mount is designed to support a TV weighing up to 30 lbs. (13.6 kg).

Package contents

A Wall plate (1) B TV bracket (1) C Locking bar (1)

M4 Bag

D M4 × 12 mm screws (4) E M4 × 30 mm screws (4) F M4 spacers (4) G M4 washers (4)

Lag Bolt Bag

H Concrete wall anchors (2) I 1/4 in. × 2½ in. lag bolts (2)

Tools you will need:

• Power drill

• 1/8 in. wood drill bit

• ½ in. masonry drill bit

• Phillips screwdriver

• Level

• Socket wrench with 7/16 in. socket or adjustable wrench

• Pencil

• Stud nder

• Awl

1 Attach the TV bracket NOTE: Make sure there will be enough space between the back of the TV and

the wall to connect all your cables. You can use the optional M4 spacers to provide additional space. Without spacers: Attach the TV bracket (B) to the back of the TV using

Without spacers

the M4 washers (G) and the M4 × 12 mm screws (D). With spacers: Attach the TV bracket (B) to the back of the TV using the M4 spacers (F), M4 washers (G), and M4 × 30 mm screws (E).

With spacers

NOTE: You can mount the TV vertically or at an angle (tilt mount). See Step 3 for more information.

2 Install the wall plate

Option 1: Installing to a wood stud wall

1 Locate the stud. Verify the center of the stud with an awl or thin nail or use an edge to edge stud nder. 2 Level the wall plate (A) and mark the hole locations. 3 Drill the pilot holes as illustrated. 4 Align the wall plate with the pilot holes, insert the lag bolts (I) through the holes in the wall plate, then tighten the lag bolts only until they are pulled rmly against the wall plate (A). DO NOT over-tighten the lag bolts (I). CAUTION: Avoid potential injuries or property damage! Any material covering the wall must not exceed 5/8 in. (16 mm).

5/8 in.

(<16 mm)

Option 2: Installing to a concrete wall

1 Level the wall plate (A) and mark the hole locations. 2 Drill the pilot holes as illustrated. 3 Insert the concrete wall anchors into the pilot holes and make sure that the anchors (H) are seated ush with the surface. 4 Align the wall plate with the anchors, insert the lag bolts (I) through the holes in the wall plate, then tighten the lag bolts (I) only until they are pulled rmly against the wall plate (A). DO NOT over-tighten the lag bolts (I). CAUTION: Avoid potential injuries or property damage! Any material covering the wall must not exceed 5/8 in. (16 mm).

CAUTION: To prevent property damage or personal injury, never drill into mortar between blocks.

5/8 in.

(<16 mm)**

2.5 in.

(63.5 mm)*

M4 Bag

M4 × 12 mm

M4 × 30 mm

Lag Bolt Bag

1/4 in. × 2½ in.

2.5 in.

(63.5 mm)*

*Drill the pilot hole to a

depth of 2.5 in. (63.5 mm)

*Drill the pilot hole to a depth of 2.5 in. (63.5 mm) **Maximum thickness of any material covering the stud or concrete surface.

3 Mount the TV to the wall

Place the TV bracket into the slotted anges of the wall plate. The TV can be mounted either (1) vertically or (2) with a 5-degree tilt.

HEAVY! You will need

assistance with this step.

Vertical mount Note: Attach the TV bracket to the ange that is closest to the wall plate.

4 Lock the TV to the wall plate

Slide the locking bar (C) through the TV bracket (B) and the wall plate (A) to secure the TV. A padlock (not included) may be used for extra security.

IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS

CAUTION: Do not use this product for any purpose not explicitly

specied by Dynex. Improper installation may cause property damage or personal injury. If you do not understand these directions, or have doubts about the safety of the installation, contact Customer Service or call a qualied contractor. Dynex is not responsible for damage or injury caused by incorrect installation or use.

The weight of your TV must not exceed 30 lb (13.6 kg). The wall must be capable of supporting ve times the weight of the TV and wall mount combined.

This product contains small items that could be a choking hazard if swallowed. Keep these items away from young children!

3-year limited warranty

Visit www.dynexproducts.com for details.

Tilt mount Note: Attach the TV bracket to the ange that is farthest from the wall plate.

5°

Vertical mount Tilt mount
