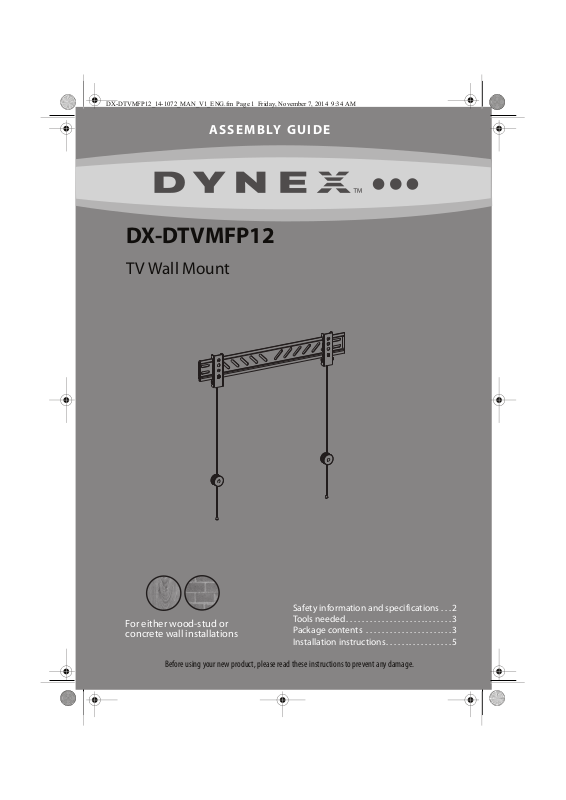

Dynex DX-DTVMFP12 Assembly Guide

ASSEMBLY GUIDE
DX-DTVMFP12
TV Wall Mount
For either wood-stud or concrete wall installations
Safety information and specifications . . .2
Tools needed. . . . . . . . . . . . . . . . . . . . . . . . . . .3
Package contents . . . . . . . . . . . . . . . . . . . . . .3
Installation instructions. . . . . . . . . . . . . . . . .5
2
Maximum TV weight: 88 lbs. (40 kg) TV screen size: 26 in. to 50 in. diagonal Wall mount dimensions (H × W × D):
18.2 x 3.7 x 0.7in.(463 x 94 x 18 mm)
Wall-mount weight: 1.23 lbs.(0.56 kg) We’re here for you
www.dynexproducts.com For customer service, call: 1-800-305-2204 (U.S. and Canada) or
01-800-926-3020 (Mexico)
2.95 - 15.75 in. (75 - 400 mm)
18.23 in. (463 mm)
2.36 in. (60 mm)
3.7 in. (94 mm)
2.95 - 15.75 in. (75 - 400 mm)
Safety information and specifications
IMPORTANT SAFETY INSTRUCTIONS ­SAVE THESE INSTRUCTIONS
CAUTION: Do not use this
product for any purpose not explicitly specified by Dynex.
Improper installation may cause property damage or personal injury. If you do not understand these directions, or have doubts about the safety of the installation, contact Customer Service or call a qualified contractor. Dynex is not responsible for damage or injury caused by incorrect installation or use.
The weight of your TV must not exceed 88 lbs. (40 kg). The wall must be capable of supporting five times the weight of your TV and wall mount combined.
This product contains small items that could be a choking hazard if swallowed. Keep these items away from young children!
DX-DTVMFP12
Edge-to-edge stud finder
Pencil
Level
Phillips screwdriver
Socket wrench with 1/2" (13 mm) socket or adjustable wrench
Measuring tape
Drill
3/17" (4.5 mm) wood drill bit for wood stud wall
OR
3/8" (10 mm) masonry drill bit (concrete only)
Hammer
A
B
C
Tools needed
3
ardware
Package contents
You will need the following tools to assemble your new TV wall mount:
Make sure that you have all the hardware necessary to assemble your new TV wall mount:
A Wall Plate (1) C Wheel (2) B TV Brackets (2)
4
Label Hardware Qty.
D2
E2
F2
G
4
H4
I4
J4
K2
L2
M4 × 12 mm screw
M4 × 20 mm screw
M4 × 30 mm screw
M5 washer
M6/M8 washer
M8 x 5 mm spacers
M8 x 10 mm spacers
M6 × 12 mm screw
M6 × 20 mm screw
Label Hardware Qty.
M2
N2
O2
P2
Q4
R4
S4
1
M6 × 35 mm screw
M8 × 16 mm screw
M8 × 20 mm screw
M8 × 36 mm screw
Lag bolt washer
lag bolt
Concrete anchor
10 20 30 40 50 60 70 80 90 1 00mm
1234in
TV Hardware Bag
DX-DTVMFP12
Installation instructions
STEP 1- Determine whether your TV has a flat back or an irregular or obstructed back
1
Carefully place your TV face-down on a cushioned, clean surface to protect the screen.
2
If your TV has a ta ble-top stand attached, remove the stand. See the documentation that came with your TV for instructions.
3

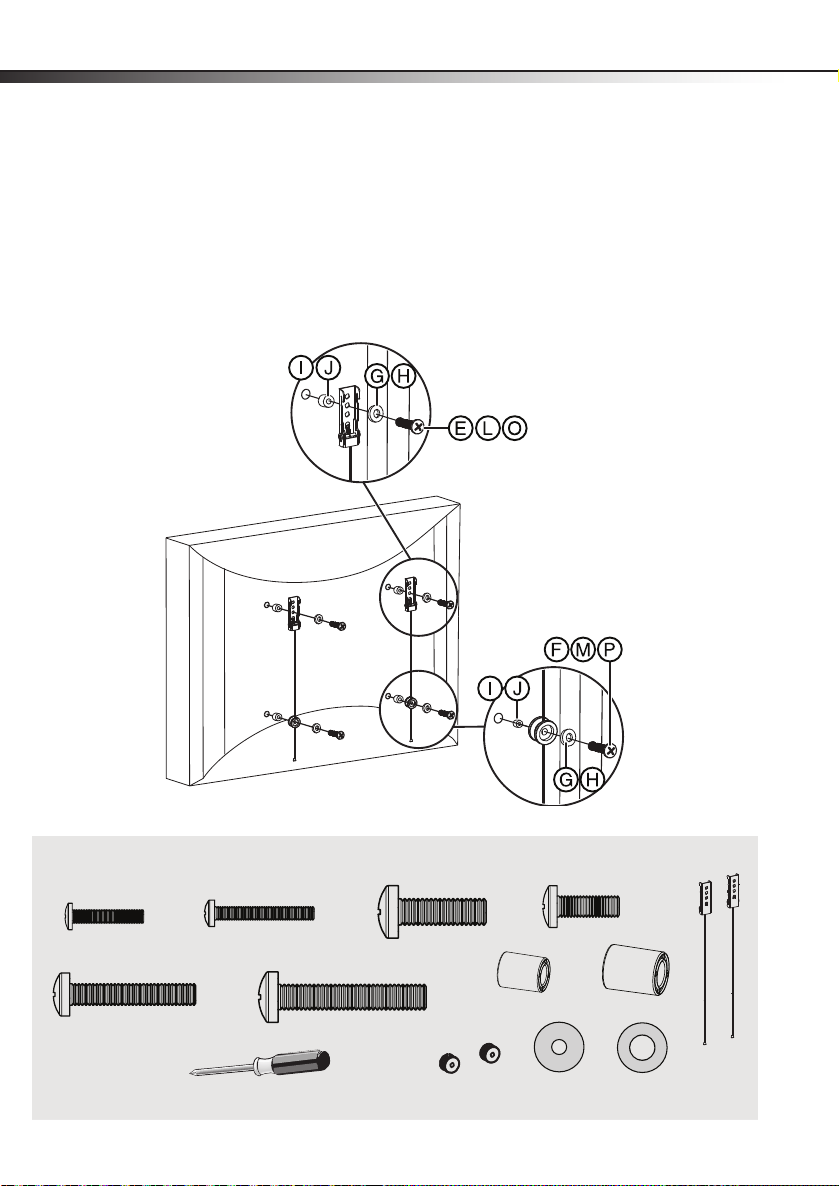

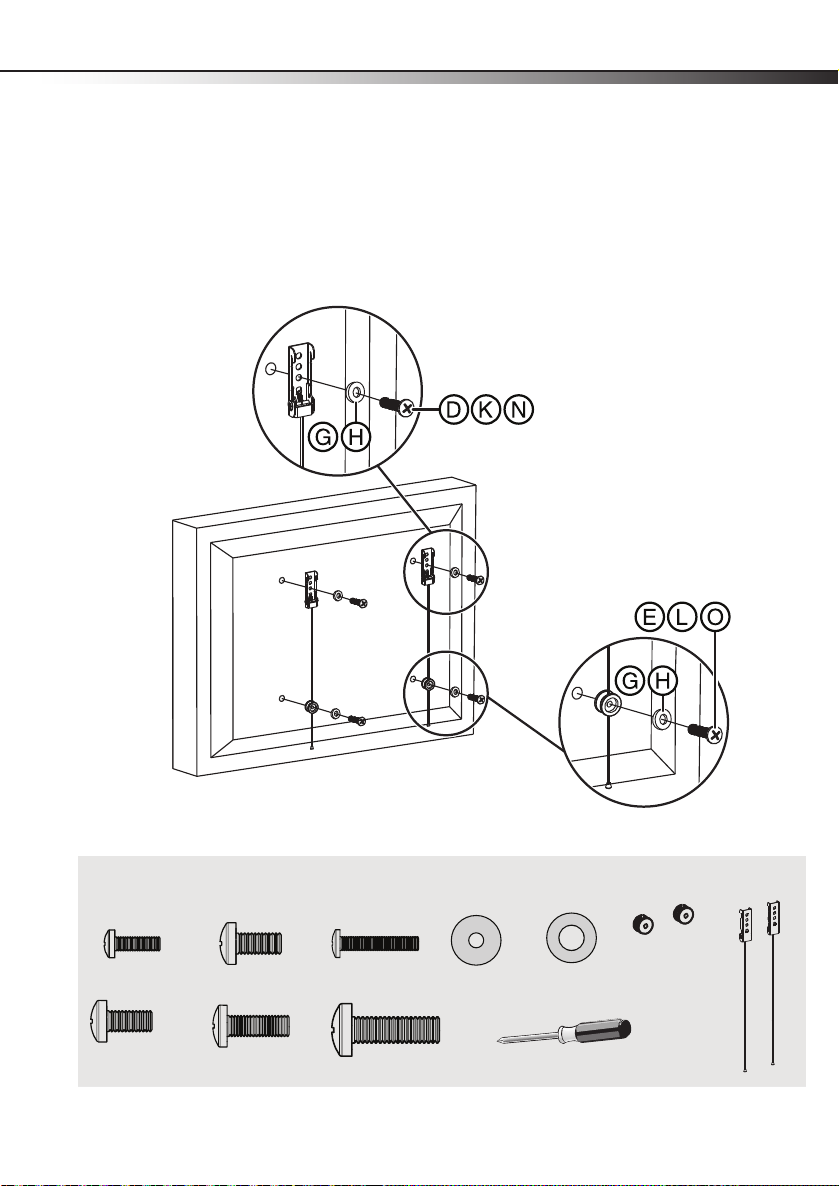

Temporarily lay the TV brackets (B) on the back of your TV.
4
Align the screw holes in the TV brackets with the mounting screw holes on your TV.
5
Identify which type of back your TV may have:
Flat back: The brackets lay flush against the back of your TV and do not block any jacks. You do not need spacers when assembling the wall mount.
Obstructed back: The brackets block one or more of the jacks on the back of your TV. You will need spacers when assembling the wall mount.
5
Irregularly-shaped back: There is a gap between a bracket and some part of the back of your TV. You will need spacers when assembling the wall mount.
6
Remove the TV brackets.
