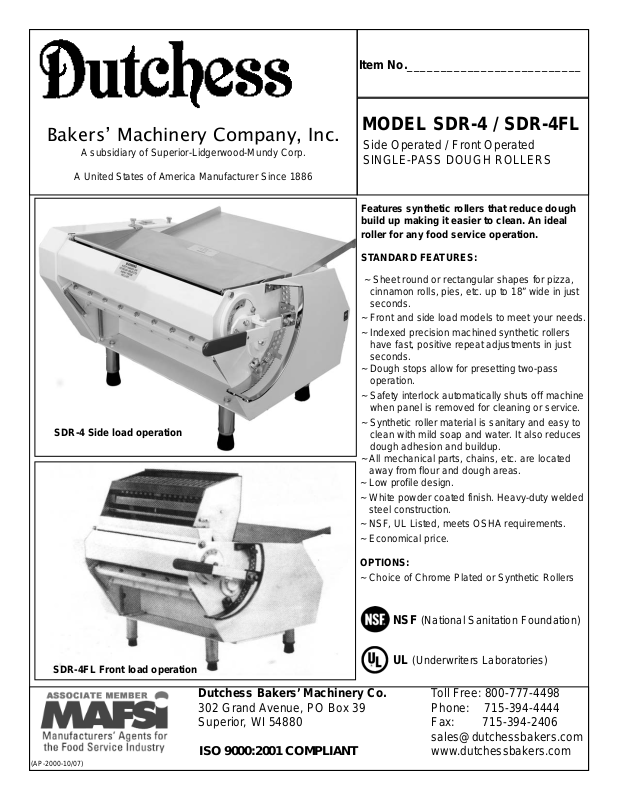

Dutchess SDR4 Specifications

Features synthetic rollers that reduce dough
build up making it easier to clean. An ideal

roller for any food service operation.
STANDARD FEATURES:

~ Sheet round or rectangular shapes for pizza,

cinnamon rolls, pies, etc. up to 18” wide in just

seconds.
~ Front and side load models to meet your needs.
~ Indexed precision machined synthetic rollers

have fast, positive repeat adjustments in just

seconds.
~ Dough stops allow for presetting two-pass

operation.
~ Safety interlock automatically shuts off machine

when panel is removed for cleaning or service.
~ Synthetic roller material is sanitary and easy to

clean with mild soap and water. It also reduces

dough adhesion and buildup.
~ All mechanical parts, chains, etc. are located

away from flour and dough areas.

~ Low profile design.
~ White powder coated finish. Heavy-duty welded

steel construction.
~ NSF, UL Listed, meets OSHA requirements.
~ Economical price.

OPTIONS:

~ Choice of Chrome Plated or Synthetic Rollers

Bakers’ Machinery Company, Inc.

A subsidiary of Superior-Lidgerwood-Mundy Corp.

A United States of America Manufacturer Since 1886

Item No.__________________________

MODEL SDR-4 / SDR-4FL

Side Operated / Front Operated

SINGLE-PASS DOUGH ROLLERS

Dutchess Bakers’ Machinery Co. Toll Free: 800-777-4498
302 Grand Avenue, PO Box 39 Phone: [phone]
Superior, WI 54880 Fax: [phone]

[e-mail]

ISO 9000:2001 COMPLIANT www.dutchessbakers.com

(AP-2000-10/07)

NSF (National Sanitation Foundation)

UL (Underwriters Laboratories)

SDR-4 Side load operation

SDR-4FL Front load operation

SDR-4 Side Operated Single-Pass Dough Roller

SDR-4FL Front Loading Single-Pass Dough Roller

Printed: October 2007 Specifications subject to change without notice. Printed in the USA

Dutchess Bakers’ Machinery Company Inc., 302 Grand Avenue, Superior, WI 54880-0039

Toll Free: 800-777-4498 ~ Ph: 715-394-4444 ~ Fax: [phone]

[e-mail] ~ www.dutchessbakers.com

Standard: FDA Approved White Powder Coated Finish
Options: Chrome Rollers, 50hz Electrical (call for availability)

Machine Dimensions:
Width: 27.25” Length: 24.5” (overall) Height: SDR-4 16.75” ~ SDR-4FL 25.5”
Shipping Wt.: SDR-4 = 200lbs, SDR-4FL 220lbs Shipping Class: 85 FOB: 60062
Shipping Dimensions: SDR-4 16-3/4” x 27-1/4” x 24.5” ~ SDR-4FL 25.5” x 24.25” x 24.5”
Counter Space required: 28”w x 20”d (approximate)

Electrical requirements:
Standard:115v / 60hz / 1-phase, 1/2 motor, 7 amps, 6’ - 3 wire cord and plug
Optional electrical: Call for details
Stop/Start Switch: Heavy Duty Type (sealed with clear rubber boot)

Specifications: SDR-4 (Side-operation) SDR-4FL (Front operation)
Roller Material: Synthetic or Chrome Synthetic or Chrome
Roller Speed: 85 fpm @ 60 hz 85 fpm @ 60 hz
Roller Size: 3-1/2” dia. x 20” lg. 3-1/2” dia. x 20” lg.
Roller Quantity: 2 2
Quick Set Roller Adj.: Standard Standard
Ball Bearings: Sealed Sealed
Infeed Pan & Guard: Stainless Steel Stainless Steel and Aluminum
Flour Pan: Stainless Steel n/a
Dough Chute: n/a Stainless Steel and Aluminum
Legs: 4” sanitary adjustable 4” sanitary adjustable

Certifications: NSF, UL, meets OSHA requirements

Easy to remove polyethylene scrapers
