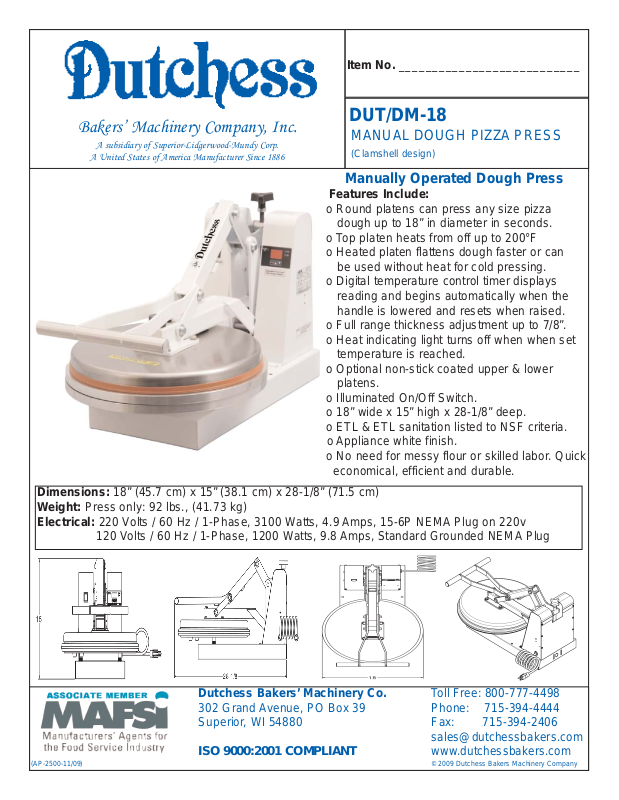

Dutchess DUT-DM-18 Specifications

Manually Operated Dough Press

Features Include:

o Round platens can press any size pizza

dough up to 18” in diameter in seconds.
o Top platen heats from off up to 200°F
o Heated platen flattens dough faster or can

be used without heat for cold pressing.
o Digital temperature control timer displays

reading and begins automatically when the

handle is lowered and resets when raised.
o Full range thickness adjustment up to 7/8”.
o Heat indicating light turns off when when set

temperature is reached.
o Optional non-stick coated upper & lower

platens.
o Illuminated On/Off Switch.
o 18” wide x 15” high x 28-1/8” deep.
o ETL & ETL sanitation listed to NSF criteria.
o Appliance white finish.
o No need for messy flour or skilled labor. Quick

economical, efficient and durable.

Bakers’ Machinery Company, Inc.

A subsidiary of Superior-Lidgerwood-Mundy Corp.

A United States of America Manufacturer Since 1886

Item No. ___________________________

DUT/DM-18

MANUAL DOUGH PIZZA PRESS

(Clamshell design)

Dutchess Bakers’ Machinery Co. Toll Free: 800-777-4498
302 Grand Avenue, PO Box 39 Phone: [phone]
Superior, WI 54880 Fax: [phone]

[e-mail]

ISO 9000:2001 COMPLIANT www.dutchessbakers.com

(AP-2500-11/09) © 2009 Dutchess Bakers Machinery Company

Dimensions: 18” (45.7 cm) x 15” (38.1 cm) x 28-1/8” (71.5 cm)
Weight: Press only: 92 lbs., (41.73 kg)
Electrical: 220 Volts / 60 Hz / 1-Phase, 3100 Watts, 4.9 Amps, 15-6P NEMA Plug on 220v

120 Volts / 60 Hz / 1-Phase, 1200 Watts, 9.8 Amps, Standard Grounded NEMAPlug
