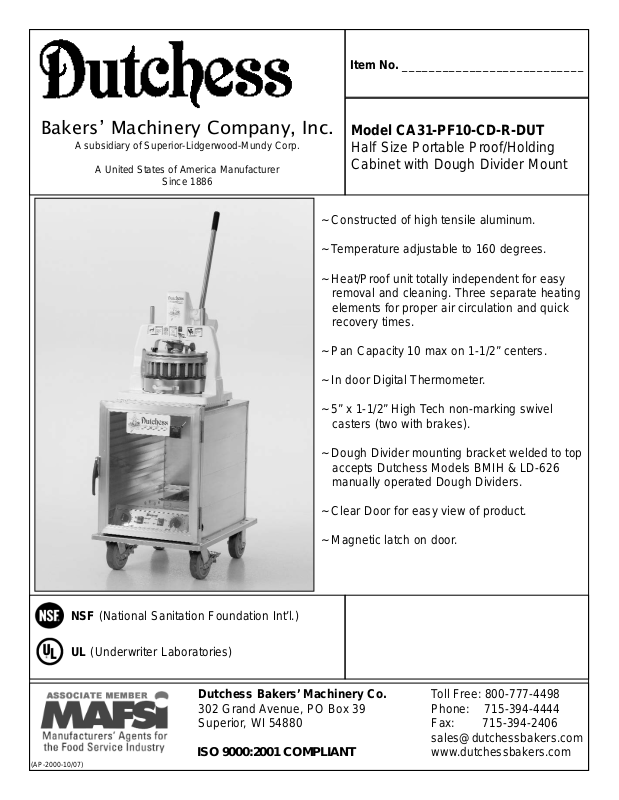

Dutchess CA31-PF10-CD-R-DUT User Manual

Bakers’ Machinery Company, Inc.

A subsidiary of Superior-Lidgerwood-Mundy Corp.

A United States of America Manufacturer

Since 1886

Item No. ___________________________

Model CA31-PF10-CD-R-DUT

Half Size Portable Proof/Holding
Cabinet with Dough Divider Mount

Dutchess Bakers’ Machinery Co. Toll Free: 800-777-4498
302 Grand Avenue, PO Box 39 Phone: [phone]
Superior, WI 54880 Fax: [phone]

[e-mail]

ISO 9000:2001 COMPLIANT www.dutchessbakers.com

(AP-2000-10/07)

NSF (National Sanitation Foundation Int’l.)

UL (Underwriter Laboratories)

~ Constructed of high tensile aluminum.
~ Temperature adjustable to 160 degrees.
~ Heat/Proof unit totally independent for easy

removal and cleaning. Three separate heating
elements for proper air circulation and quick

recovery times.
~ Pan Capacity 10 max on 1-1/2” centers.
~ In door Digital Thermometer.
~ 5” x 1-1/2” High Tech non-marking swivel

casters (two with brakes).
~ Dough Divider mounting bracket welded to top

accepts Dutchess Models BMIH & LD-626

manually operated Dough Dividers.
~ Clear Door for easy view of product.
~ Magnetic latch on door.

MODEL CA31-PF10-CD-R-DUT

Half Size Portable Proof/Holding Cabinet with Dough Divider Mounting Bracket

(Shown with Dutchess Model BMIH Dough Divider mounted on top)

Printed: November 2007 Printed in the USA

Dutchess Bakers’ Machinery Company Inc., 302 Grand Avenue, Superior, WI 54880-0039

Toll Free: 800-777-4498 ~ Ph: 715-394-4444 ~ Fax: [phone]

[e-mail] ~ www.dutchessbakers.com

Standard: Temperature adjustable to approximately 160 degrees.

Clear door with magnetic latch.
5” x 1-1/4” High Tech non-marking Casters with swivel plate (2 w/brakes)
Pan capacity:10 max on 1-1/2” centers. (lip hung)

Cabinet Dimensions:
Dimensions: Width: 22-3/8” Depth: 31-1/8” Height: 33-1/8”
Shipping Wt.: 82 lbs.(39.6 kg) Net Wt.: 63 lbs (36 kg) Shipping Class: 85 FOB: 54880
Shipping Dimensions: 37.37” x 22.38” x 31.25”

Electrical: 120v / 60 hz / 1-phase, 15 amp circuit 3-prong plug

Heat/Proof unit is totally independent for easy removal and cleaning. Comes standard with
three heating elements for proper air circulation and quick recovery times.

Thermometer: In door Digital Thermometer
Construction: High tensile aluminum
Top Mounting Bracket: Fits Dutchess Models BMIH and LD-626

(holes tapped to exact dimensions)

33-1/8”

18-5/8”

31-1/8”

22-3/8

”
