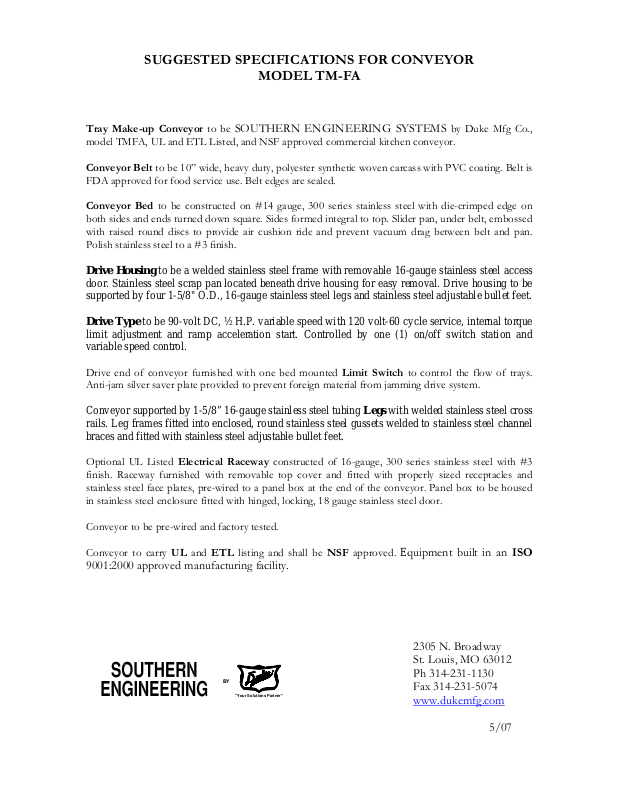

SUGGESTED SPECIFICATIONS FOR CONVEYOR

MODEL TM-FA

Tray Make-up Conveyor to be

model TMFA, UL and ETL Listed, and NSF approved commercial kitchen conveyor.

Conveyor Belt to be 10” wide, heavy duty, polyester synthetic woven carcass with PVC coating. Belt is
FDA approved for food service use. Belt edges are sealed.

Conveyor Bed to be constructed on #14 gauge, 300 series stainless steel with die-crimped edge on
both sides and ends turned down square. Sides formed integral to top. Slider pan, under belt, embossed
with raised round discs to provide air cushion ride and prevent vacuum drag between belt and pan.
Polish stainless steel to a #3 finish.

Drive Housing to be a welded stainless steel frame with removable 16-gauge stainless steel access
door. Stainless steel scrap pan located beneath drive housing for easy removal. Drive housing to be
supported by four 1-5/8" O.D., 16-gauge stainless steel legs and stainless steel adjustable bullet feet.

Drive Type to be 90-volt DC, ½ H.P. variable speed with 120 volt-60 cycle service, internal torque
limit adjustment and ramp acceleration start. Controlled by one (1) on/off switch station and
variable speed control.

Drive end of conveyor furnished with one bed mounted Limit Switch to control the flow of trays.
Anti-jam silver saver plate provided to prevent foreign material from jamming drive system.

Conveyor supported by 1-5/8” 16-gauge stainless steel tubing Legs with welded stainless steel cross
rails. Leg frames fitted into enclosed, round stainless steel gussets welded to stainless steel channel
braces and fitted with stainless steel adjustable bullet feet.

SOUTHERN ENGINEERING SYSTEMS by Duke Mfg Co.,

Optional UL Listed Electrical Raceway constructed of 16-gauge, 300 series stainless steel with #3
finish. Raceway furnished with removable top cover and fitted with properly sized receptacles and
stainless steel face plates, pre-wired to a panel box at the end of the conveyor. Panel box to be housed
in stainless steel enclosure fitted with hinged, locking, 18 gauge stainless steel door.

Conveyor to be pre-wired and factory tested.

Conveyor to carry UL and ETL listing and shall be NSF approved. E

quipment built in an ISO

9001:2000 approved manufacturing facility.

2305 N. Broadway
St. Louis, MO 63012
Ph 314-231-1130
Fax [phone]
www.dukemfg.com

BY

"Your Solutions Partner"

5/07

Optional Accessories

 12” Wide Fabric Belt  S/S Belt Cover W/Hanger Brackets
 Stainless Raceway & Panel Box  Movable Over Shelf _______ft _____Dbl.
 Mobile Package (Note: Max 100Amp Main  Stationary Over Shelf _______ft _____Dbl
Cord & Plug with Optional Raceway)  Stationary Under Shelf _______ft
 Flanged Feet  Removable Under Shelf _______ft
 Additional Start-Stop Station  3” High x 1-1/4” Rolled Rim Sides
 Foot Switch (Momentary Stop)  1-1/2” High x 2” Channel Edge Sides
 Cord & Plug (Without Raceway)  Other _____________________________
 Flush-Wash (Drip pan and Drains only.) _____________________________
 Auto-wash System

COMMENTS/NOTES ____________________________________________________________

1 1/4"

3'-0"

SHOWN WITH OPTIONAL S.S. RACEWAY & S.S.

PANELBOX. RACEWAY FITTED WITH OPTIONAL

1'-9"

10"

BELT

7 1/2"

8"

NOTE: CASTERS NOT AVAILABLE WHEN PANEL BOX INCOMING

1 1/4"

1 5/8" O.D. 16 GA. S.S. TUBING LEGS
WITH 1 1/4" O.D. 16 GA. S.S. TUBING
CROSSRAILS.

SERVICE EXCEEDS 100AMPS.

RECEPTACLES

START STOP STATION

RECESSED INTO END

ACCESS COVER TO

ELECTRIC WIRING

PANEL.

1'-9"

7/8"

3'-0"

10"

BELT

RAISED DIMPLES IN SLIDER PAN
FOR "AIR CUSHION" RIDE.

18 GA. S.S. ACCESS DOOR TO ENCLOSE
ELECTRIC PANEL BOX. DOOR MOUNTED
ON FULL HEIGHT PIANO HINGE AND
FITTED WITH RECESSED HANDLE,
KEY LOCK
