Dremel 4300-5/40, 4300-9/64 User manual

IMPORTANT:

Read Before Using

Operating/Safety Instructions

4300

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Safety Symbols

!

The definitions below describe the level of severity for each signal word. Please read the manual

and pay attention to these symbols.

This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.

DANGER indicates a hazardous situation which, if not avoided, will
result in death or serious injury.

WARNING indicates a hazardous situation which, if not avoided, could
result in death or serious injury.

CAUTION indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.

General Power Tool Safety Warnings

Read all safety warnings and all instructions. Failure to follow the warnings

and instructions may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.

Work area safety

Keep work area clean and well lit. Cluttered

or dark areas invite accidents.

Do not operate power tools in explosive
atmospheres, such as in the presence of

flammable liquids, gases or dust. Power

tools create sparks which may ignite the dust
or fumes.

Keep children and bystanders away while

operating a power tool. Distractions can

cause you to lose control.

Electrical safety

Power tool plugs must match the outlet.
Never modify the plug in any way. Do not
us e any ada p ter plug s wi t h ea rthe d

(grounded) power tools. Unmodified plugs

and matching outlets will reduce risk of electric
shock.

Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges

and refrigerators. There is an increased risk

of electric shock if your body is earthed or
grounded.

Do not expose power tools to rain or wet

conditions. Water entering a power tool will

increase the risk of electric shock.

2

Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp

edges or moving parts. Damaged or entangled

cords increase the risk of electric shock.

When operating a power tool outdoors,
use an extension cord suitable for outdoor

use. Use of a cord suitable for outdoor use

reduces the risk of electric shock.

If operating a power tool in a damp location
is unavoidable, use a Ground Fault Circuit

Interrupter (GFCI) protected supply. Use of

an GFCI reduces the risk of electric shock.

Personal safety

Stay alert, watch what you are doing and
us e commo n sen se wh en op erating a
power tool. Do not use a power tool while
you are tired or under the influence of drugs,

alcohol or medication. A moment of inattention

while operating power tools may result in
serious personal injury.

Use personal protective equipment. Always

wear eye protection. Protective equipment

such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Prevent unintentional starting. Ensure the
sw itch is in th e off-p osition before
connecting to power source and / or battery
pa ck, picking up or ca rrying the too l.

Carrying power tools with your finger on the
switch or energizing power tools that have the
switch on invites accidents.

Remove any adjusting key or wrench before

turning the power tool on. A wrench or a key

left attached to a rotating part of the power
tool may result in personal injury.

Do not overreach. Keep proper footing and

balance at all times. This enables better

control of the power tool in unexpected
situations.

Dress properly. Do not wear loose clothing
or jewelry. Keep your hair, clothing and

gloves away from moving parts. Loose

clothes, jewelry or long hair can be caught in
moving parts.

If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly

used. Use of dust collection can reduce dust-

related hazards.

Power tool use and care

Do no t f orc e t he pow er too l. Use the

correct power tool for your application. The

correct power tool will do the job better and
safer at the rate for which it was designed.

Do not use the power tool if the switch does

not turn it on and off. Any power tool that

cannot be controlled with the switch is
dangerous and must be repaired.

Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing

accessories, or storing power tools. Such

preventive safety measures reduce the risk of
starting the power tool accidentally.

Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to

operate the power tool. Power tools are

dangerous in the hands of untrained users.

Maintain power tools. Check for misalignment
or binding of moving parts, breakage of
parts and any other condition that may
affect the power tool’s operation. If damaged,
have the power tool repaired before use.

Many accidents are caused by poorly
maintained power tools.

Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to
control.

Use the power tool, accessories and tool
bits etc. in accordance with these instructions,
taking into account the working conditions

and the work to be performed. Use of the

power tool for operations different from those
intended could result in a hazardous situation.

Service

Have your power tool serviced by a qualified
re pair p erso n usin g only i dent ical

replacement parts. This will ensure that the

safety of the power tool is maintained.

Safety Rules for Rotary Tools

Safety warnings common for

grinding, sanding, wire brushing,

polishing, carving or abrasive

cutting-off operations:

This power tool is intended to function as a
gr inder, sande r, w ire brush, pol ish er,
carving or cut-off tool. Read all safety
warnings, instructions, illustrations and
specifications provided with this power

tool. Failure to follow all instructions listed

below may result in electric shock, fire and/or
serious injury.

Do not use accessor ie s which are not
specifically designed and recommended by

the tool manufacturer. Just because the

accessory can be attached to your power tool,
it does not assure safe operation.

The R ATED SPEED of the accessories
must be at least equal to the operating
speed setting marked on the power tool.

Accessories running faster than their RATED
SPEED can break and fly apart.

The outside diameter and the thickness of
your accessory must be within the capacity

rating of your power tool. Incorrectly sized

accessories cannot be adequately guarded or
controlled.

The arbor size of wheels, sanding drums or
any other accessory must properly fit the
sp ind le or co lle t of the p owe r tool.

Accessories that do not match the mounting
hardware of the power tool will run out of
balance, vibrate excessively and may cause
loss of control.

3

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Safety Rules for Rotary Tools - (cont.)

Mandrel mounted wheels, sanding drums,
cutters or other accessories must be fully

inserted into the colle t or chuck. If the

mandrel is insufficiently held and/or the
overhang of the wheel is too long, the mounted
wheel may become loose and be ejected at
high velocity.

Do not use a damaged accessory. Before
each use inspect the accessory such as
abrasive wheels for chips and cracks,
sanding drum for cracks, tear or excess
wear, wire brush for loose or cracked wires.
If power tool or accessory is dropped,
inspect for damage or install an undamaged
accessory. After inspecting and installing
an a cce ssory, p osition yourself and
bystanders away from the plane of the
rotating accessory and run the power tool
at maximum no-load speed for one minute.

Damaged accessories will normally break apart
during this test time.

Wear pers onal prote ctive equi pme nt.
Depending on application, use face shield,
sa fety go ggles or safet y glasses. As
ap propr iat e, w ear dus t mask, hearin g
protectors, gloves and workshop apron
capabl e of stopping small abrasi ve or
workpiece fragments. The eye protection
must be capable of stopping flying debris

generated by various operations. The dust

mask or respirator must be capable of filtrating
particles generated by your operation.
Prolonged exposure to high intensity noise may
cause hearing loss.

Keep bystanders a safe distance away from
work area. Anyone entering the work area
must wear personal protective equipment.

Fragments of workpiece or of a broken
accessory may fly away and cause injury
beyond immediate area of operation.

Hold the power tool by insulated gripping
su rface s on ly, whe n pe rform ing an
operation where the cutting accessory may
conta ct hidden wiring or its own cord.

Cutting accessory contacting a “live” wire may
make exposed metal parts of the power tool
“live” and could give the operator an electric
shock.

Always hold the tool firmly in your hand(s)

during the start-up. The reaction torque of the

motor, as it accelerates to full speed, can cause
the tool to twist.

Use clamps to support workpiece whenever
practical. Never hold a small workpiece in

one hand and the tool in the other hand

while in use. Clamping a small workpiece

allows you to use your hand(s) to control the
tool. Round material such as dowel rods, pipes
or tubing have a tendency to roll while being
cut, and may cause the bit to bind or jump
toward you.

Position the cord clear of the spinning

accessory. If you lose control, the cord may be

cut or snagged and your hand or arm may be
pulled into the spinning accessory.

Never lay the power tool down until the
accessory has come to a complete stop.

The spinning accessory may grab the surface
and pull the power tool out of your control.

After changing the bits or making any
adjustments, make sure the collet nut,
chuck or any other adjustment devices are

securely tightened. Loose adjustment devices

can unexpectedly shift, causing loss of control,
loose rotating components will be violently
thrown.

Do not run the power tool while carrying it

at your side. Accidental contact with the

spinning accessory could snag your clothing,
pulling the accessory into your body.

Regularly clean the power tool’s air vents.

The motor’s fan will draw the dust inside the
housing and excessive accumulation of
powdered metal may cause electrical hazards.

Do n ot operate t he po wer tool nea r

flammable materials. Sparks could ignite

these materials.

Do not use accessories that require liquid

coolants. Using water or other liquid coolants

may result in electrocution or shock.
Use only in well-ventilated area. Working in a

safe environment reduces risk of injury.

Allow f or sufficient space, at least 6”,
between your hand and the spinning bit. Do

not reach in the area of the spinning bit. The

proximity of the spinning bit to your hand may
not always be obvious.

Do not touch the bit or collet after use. After
use the bit and collet are too hot to be touched
by bare hands.

Do not alter or misuse tool. Any alteration or
modification is a misuse and may result in
serious personal injury.

This product is not intended for use as a
dental drill, in human or veterinary medical

applications. Serious injury may result.

4

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Safety Rules for Rotary Tools - (cont.)

Kickback and Related Warnings

Kickback is a sudden reaction to a pinched or
snagged rotating wheel, backing pad, brush or
any other accessory. Pinching or snagging
causes rapid stalling of the rotating accessory
which in turn causes the uncontrolled power
tool to be forced in the direction opposite of the
accessory’s rotation.

For example, if an abrasive wheel is snagged
or pinched by the workpiece, the edge of the
wheel that is entering into the pinch point can
dig into the surface of the material causing the
wheel to climb out or kickout. The wheel may
either jump toward or away from the operator,
depending on direction of the wheel’s
movement at the point of pinching. Abrasive
wheels may also break under these conditions.

Kickback is the result of power tool misuse
and/or incorrect operating procedures or
conditions and can be avoided by taking proper
precautions as given below.

Maintain a firm grip on the power tool and
position your body and arm to allow you to

resist kickback forces. The operator can

control kickback forces, if proper precautions
are taken.

Use special care when working corners,
sh arp edges e tc. Av oid bouncing and

snagging the accessory. Corners, sharp

edges or bouncing have a tendency to snag the
rotating accessory and cause loss of control or
kickback.

Do not attach a toothed saw blade. Such
blades create frequent kickback and loss of
control.

Always feed the bit into the material in the
same direction as the cutting edge is exiting
fr om the mater ial (whic h i s the s ame

direction as the chips are thrown). Feeding

the tool in the wrong direction causes the
cutting edge of the bit to climb out of the work
and pull the tool in the direction of this feed.

When using rotary files, cut-off wheels,
high-speed cutters or tungsten carbide
cutters, always have the work securely

clampe d. These wheels will grab if they

become slightly canted in the groove, and can
kickback. When a cut-off wheel grabs, the
wheel itself usually breaks. When a rotary file,
high-speed cutter or tungsten carbide cutter
grabs, it may jump from the groove and you
could lose control of the tool.

Safety warnings specific for

grinding and abrasive

cutting-off operations:

Us e on ly w heel ty pes that ar e
recommended for your power tool and only
fo r rec omm ended ap plica tions. F or
example: do not grind with the side of a cut-

off wheel. Abrasive cut-off wheels are intended

for peripheral grinding, side forces applied to
these wheels may cause them to shatter.

For threaded abrasive cones and plugs use
only undamaged wheel mandrels with an
unreli ev ed shoul der flan ge that are o f

correct size and length. Proper mandrels will

reduce the possibility of breakage.

Do not ′′jam′′ a cut-off wheel or apply
excessive pressure. Do not attempt to make

an excessive depth of cut. Overstressing the

wheel increases the loading and susceptibility
to twisting or snagging of the wheel in the cut
and the possibility of kickback or wheel
breakage.

Do not position your hand in line with and

behind the rotating wheel. When the wheel,

at the point of operation, is moving away from
your hand, the possible kickback may propel
the spinning wheel and the power tool directly
at you.

When wheel is pinched, snagged or when
interrupting a cut for any reason, switch off
the power tool and hold the power tool
motionless until the wh ee l comes to a
complete stop. Never attempt to remove the
cut-off wheel from the cut while the wheel is
in motion otherwise kickback may occur.

Investigate and take corrective action to
eliminate the cause of wheel pinching or
snagging.

Do not restart the cutting operation in the
workpiece. Let the wheel reach full speed

and carefully re-enter the cut. The wheel may

bind, walk up or kickback if the power tool is
restarted in the workpiece.

Support panels or any oversized workpiece
to minimize the risk of wheel pinching and

kickback. Large workpieces tend to sag under

their own weight. Supports must be placed
under the workpiece near the line of cut and
near the edge of the workpiece on both sides of
the wheel.

Use extra caution when making a ′′pocket
cut′′ into existing walls or other blind areas.

5

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Safety Rules for Rotary Tools - (cont.)

The protruding wheel may cut gas or water
pipes, electrical wiring or objects that can
cause kickback.

Safety warnings specific for wire

brushing operations:

Be aware that wire bristles are thrown by
the brush even during ordinary operation.
Do not overstress the wires by applying

excessive load to the brush. The wire bristles

can easily penetrate light clothing and/or skin.

Additional Safety Warnings

Do not use rou ter bit

with the Dremel chuck.

Bit may become a projectile and cause serious
injury.

GFCI and personal protection devices like
electrician’s rubber gloves and footwear will
further enhance your personal safety.

Do not use AC only rated tools with a DC

power supply. While the tool may appear to

work, the electrical components of the AC
rated tool are likely to fail and create a hazard
to the operator.

Keep handles dry, clean and free from oil

and grease. Slippery hands cannot safely

control the power tool.

Use clamps or other practical way to secure
and support the workpiece to a stable

platform. Holding the work by hand or against

your body is unstable and may lead to loss of
control.

Develop a periodic maintenance schedule
for your tool. When cleaning a tool be
careful not to disassemble any portion of
th e too l sin ce in terna l wir es ma y be
misplaced or pinched or safety guard return

Allow brushes to run at operating speed for
at least one minute before using them.
During this time no one is to stand in front

or in line with the brush. Loose bristles or

wires will be discharged during the run-in time.

Direct the discharge of the spinning wire

brush away from you. Small particles and tiny

wire fragments may be discharged at high
velocity during the use of these brushes and
may become imbedded in your skin.

sp rings may be imp roperly mounte d.

Certain cleaning agents such as gasoline,
carbon tetrachloride, ammonia, etc. may
damage plastic parts.

Risk of injury to user. The power cord must only
be serviced by a Dremel Service Facility..

Some dust created by

power sanding, sawing,
grinding, drilling, and other construction
activities contains chemicals known to
ca use can cer, b irt h defec ts or oth er
reproductive harm. Some examples of
these chemicals are:

• Lead from lead-based paints,

• Crystalline silica from bricks and cement and

other masonry products, and

• Arsenic and chromium from chemically-

treated lumber.

Your risk from these exposures varies,
depending on how often you do this type of
work. To reduce your exposure to these
chemicals: work in a well ventilated area, and
work with approved safety equipment, such as
those dust masks that are specially designed
to filter out microscopic particles.

6

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Symbols

0

IMPORTANT: Some of the following symbols may be used on your tool. Please study them
and learn their meaning. Proper interpretation of these symbols will allow you to operate the
tool better and safer.

Symbol Designation / Explanation

V Volts (voltage)

A Amperes (current)

Hz Hertz (frequency, cycles per second)

W Watt (power)

kg Kilograms (weight)

min Minutes (time)

s Seconds (time)

⌀

n

0

n Rated speed (maximum attainable speed)

.../min

0 Off position (zero speed, zero torque...)

1, 2, 3, ...

I, II, III,

Diameter (size of drill bits, grinding wheels, etc.)

No load speed (rotational speed at no load)

Revolutions or reciprocation per minute (revolutions, strokes, surface speed,
orbits etc. per minute)

Selector settings (speed, torque or position settings. Higher number means
greater speed)

Infinitely variable selector with off (speed is increasing from 0 setting)

Arrow (action in the direction of arrow)

Alternating current (type or a characteristic of current)

Direct current (type or a characteristic of current)

Alternating or direct current (type or a characteristic of current)

Class II construction (designates double insulated construction tools)

Earthing terminal (grounding terminal)

7

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Symbols (continued)

IMPORTANT: Some of the following symbols may be used on your tool. Please study them

and learn their meaning. Proper interpretation of these symbols will allow you to operate the
tool better and safer.

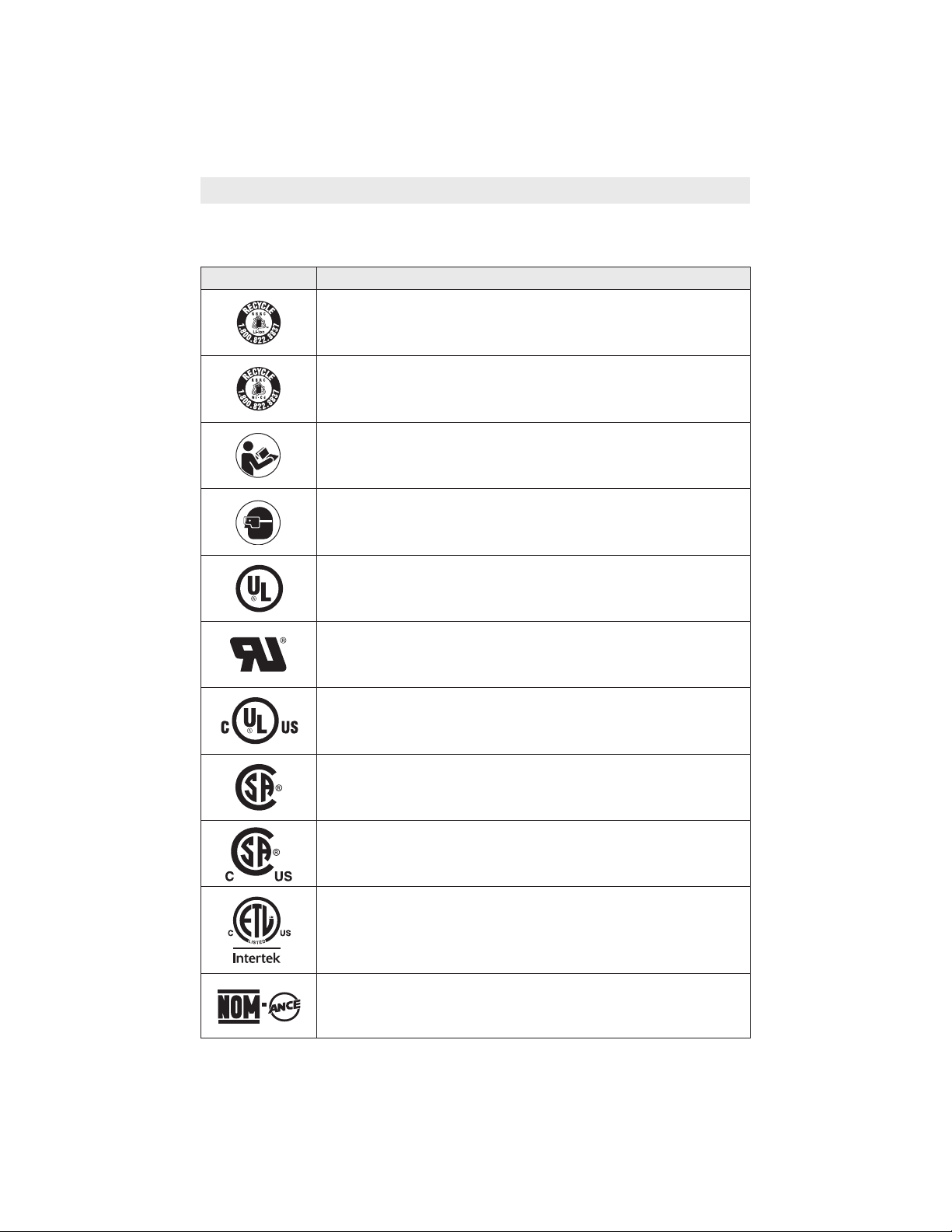

Symbol Designation / Explanation

Designates Li-ion battery recycling program

Designates Ni-Cad battery recycling program

Alerts user to read manual

Alerts user to wear eye protection

This symbol designates that this tool is listed by Underwriters Laboratories.

This symbol designates that this component is recognized by Underwriters
Laboratories.

This symbol designates that this tool is listed by Underwriters Laboratories,
to United States and Canadian Standards.

This symbol designates that this tool is listed by the Canadian Standards
Association.

This symbol designates that this tool is listed by the Canadian Standards
Association, to United States and Canadian Standards.

This symbol designates that this tool is listed by the Intertek Testing
Services, to United States and Canadian Standards.

This symbol designates that this tool complies to NOM Mexican Standards.

8

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Functional Description and Specifications

Disconnect the plug from the p ower source b efore making any

safety measures reduce the risk of starting the tool accidentally.

assembly, adjustments or changing accessories. Such preventive

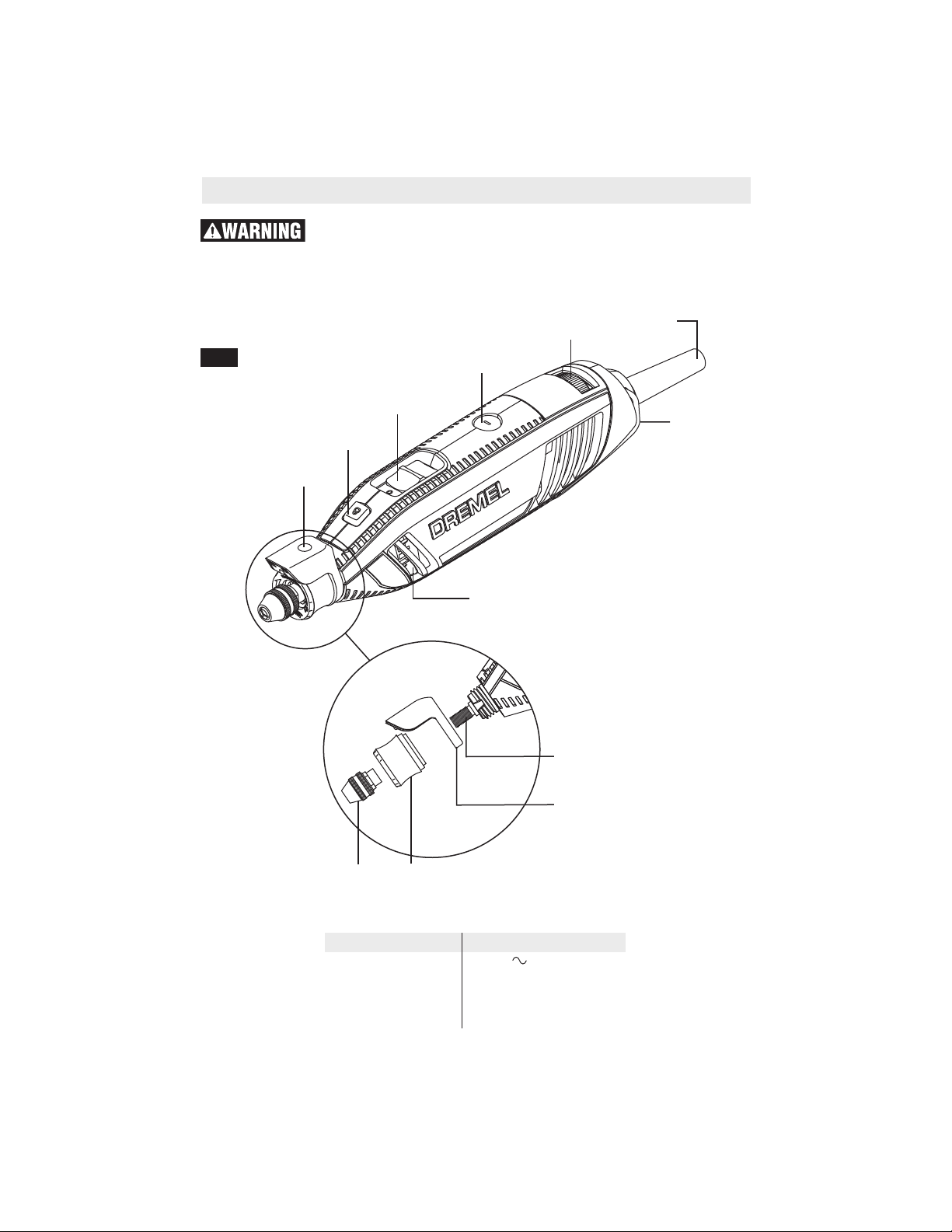

Model 4300 High Speed Rotary Tool

FIG. 1

LIGHT MODULE

ON/OFF SWITCH

SHAFT LOCK

BUTTON

ON/OFF

SWITCH

BRUSH COVER

(one on each side)

VENTILATION

OPENINGS

VARIABLE SPEED

DIAL

SHAFT

CORD

HANGER

LIGHT
MODULE

DREMEL

CHUCK

Amperage rating 1.8A

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

EZ TWIST™
INTEGRATED
WRENCH/ NOSE CAP

Model number 4300

Voltage rating 120V 50—60Hz

Rated speed n 5,000—35,000 /min

Chuck capacity 1/32"—1/8"

9

Assembly

Always unplug Rotary Tool before changing accessories, changing
collets or servicing your Rotary Tool.

LIGHT MODULE

The light module included with your tool is
intended to provide you with improved visibility
while working on your project. It uses 2
replaceable CR1025 batteries (included) to
power the LED and can be rotated around the
front of the tool depending on your needs.

Changing Batteries

Chemical Burn Hazard.
Keep batteries away from

children. This product contains a lithium

button/coin cell battery. If a new or used lithium
button/coin cell battery is swallowed or enters
the body, it can cause severe internal burns and
can lead to death in as little as 2 hours. Always
completely secure the battery compartment. If
the battery compartment does not close
securely, stop using the product, remove the
batteries, and keep it away from children. If you
think batteries might have been swallowed or
placed inside any part of the body, seek
immediate medical attention.

To change the batteries for the light module,
begin by unscrewing the nose cap to remove
the light module. Once it is removed, use a
small screwdriver to loosen the screw on the
battery compartment. Do not pull the screw
out com pletely ! Remove the battery

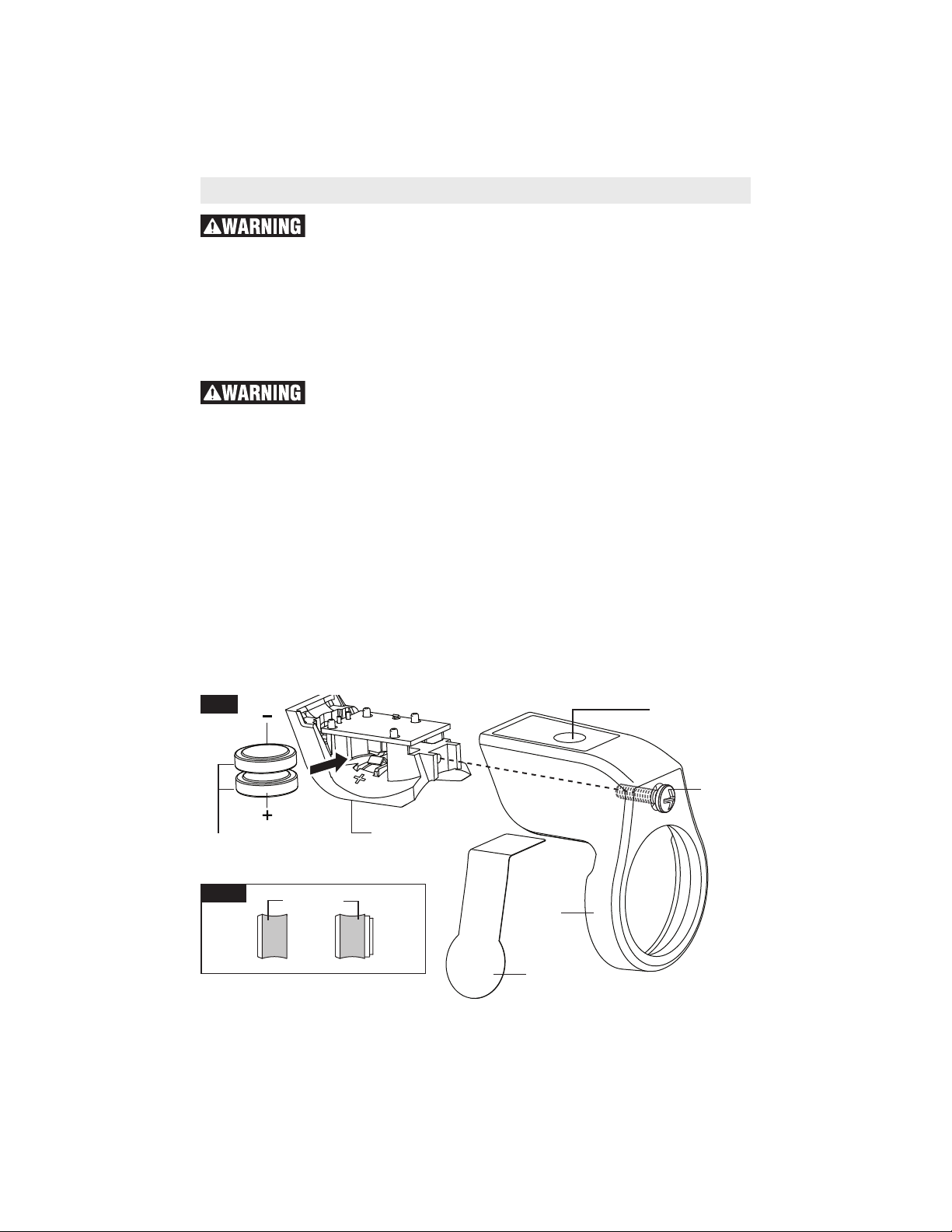

FIG. 2

compartment housing from the underside of the
module. Slide the old batteries out and replace
with new batteries making sure to replicate the
orientation of the original batteries. With the
new batteries in place, replace the battery
compartment housing and re-tighten the screw.

Installation and Use

Prior to using the light module for the first time,
pull out and discard the plastic tab (Fig. 2).

To install the light module on the tool, begin by
unscrewing the nose cap from the end of the
tool. Slide the light module onto the end of the
tool with the light pointing forward. Re-tighten
the nose cap on the end of the tool to squeeze
the light module ring in place (Fig. 1). The light
module will only work with the new style nose
cap that came with your tool. The difference
between the old and new nose cap are shown
in Fig. 2a.

To turn the light on, press the On/Off switch. To
turn the light off, press the On/Off switch again

Depending on how you are using your rotary
tool, you may find that the light module is either
in the way or that you would like to illuminate
your workpiece differently. To reposition the light
module, simply loosen the nose cap, rotate the
light module as desired, and re-tighten the nose
cap.

ON/OFF SWITCH

SCREW

CR1025 BATTERIES

FIG. 2a

OLD

10

Find Quality Products Online at: [e-mail]

NOSE CAP

www.GlobalTestSupply.com

BATTERY
COMPARTMENT

LIGHT

MODULE

NEW

PLASTIC
TAB

DREMEL CHUCK

Dremel Chuck allows you to quickly and
easily change accessories on Dremel Rotary
Tools without changing collets. Accepts
accessories with 1/32” - 1/8” shank. To
loosen, first press shaft lock button and
rotate the shaft by hand until the lock
engages the shaft preventing further rotation.

Do not enga g e l o c k

while the Rotary Tool is

running.

With the shaft lock engaged use the wrench
or the EZ Twist Nose Cap to loosen the
chuck and open the jaws. Remove the
accessory from the chuck. If necessary,
continue loosening the chuck so that the new
accessory fits between the jaws. Insert the
new accessory into the chuck far enough so
that there is approximately 1/4” between the
end of the chuck and the beginning of the
working part of the accessory (drill bit flutes,
sand paper, engraving end, etc.). With the
shaft lock engaged, tighten the chuck using
the EZ Twist Nose Cap or wrench to secure
the accessory.

Helpful Tips when using the

Dremel Chuck

• The Dremel Chuck and the collet and collet
nut system are interchangeable on this tool.
While the chuck will provide you with the best
experience for changing accessories, the
collet and collet nut will provide a more
precise accessory holding solution especially
in heavier side load applications. If you will be
using your rotary tool for routing, heavy wood
or metal cutting, heavy sanding, or carving
you will probably have a better experience
using the collet and collet nut.

• The Dremel Chuck needs to be securely
tightened in order to retain the accessory
during use. If you find the accessory slipping
in the chuck, use the included EZTwist Nose
Cap or wrench to tighten the chuck around
the bit. If further slippage persists, switch to
using the collet and collet nut.

• The jaws of the chuck can become displaced
if dropped, pried against, or filled with dust
causing the accessory to no longer run true
and concentric. This is often called run-out.
To reset the jaws, apply the following
procedure:

1. Remove the accessory from the chuck.

2. Clean the chuck if necessary using

compressed air.

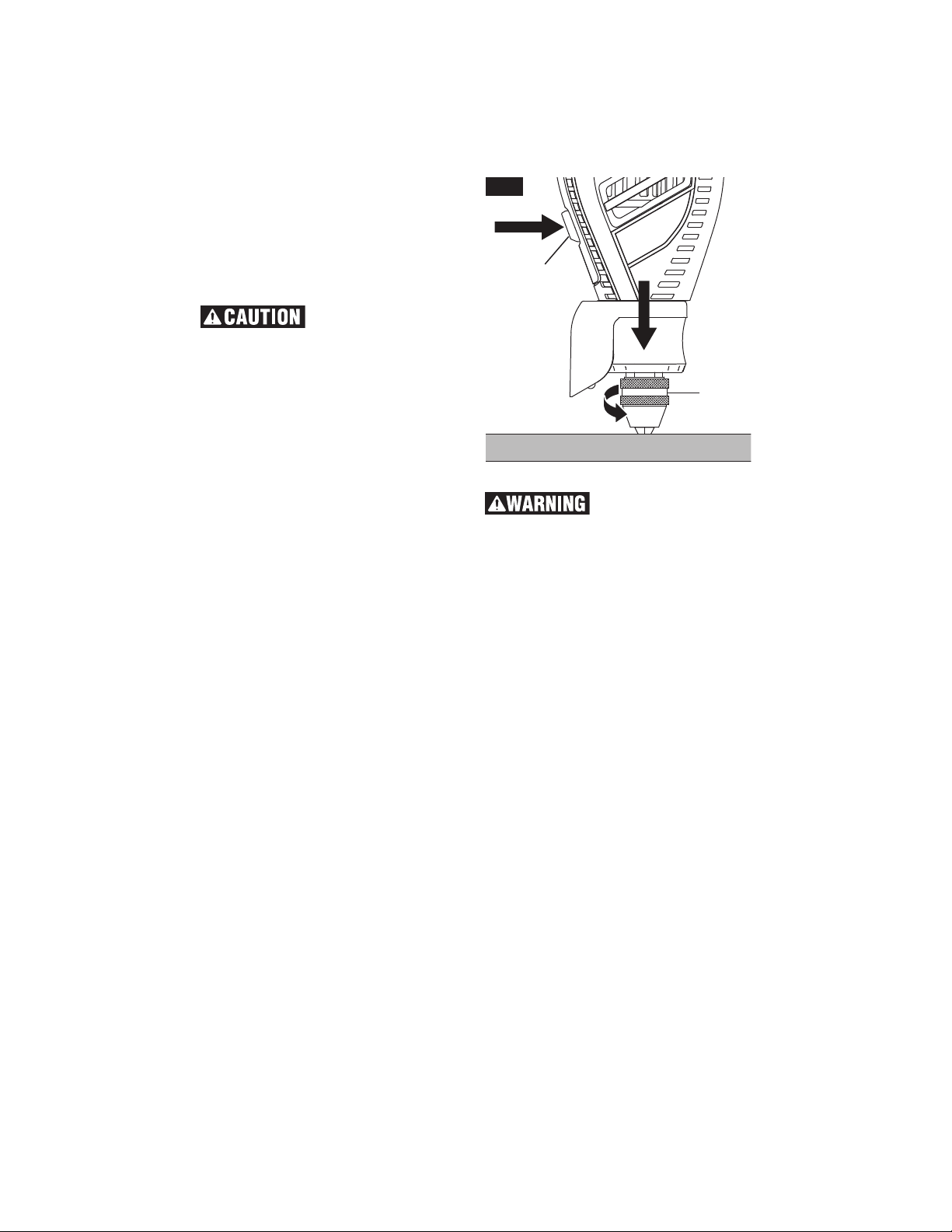

FIG. 3

SHAFT LOCK

BUTTON

DREMEL

CHUCK

Alwa ys wear saf ety
goggles when cleaning

tools with compressed air.

3. Press shaft lock button and tighten the chuck
until the jaws extend past the outer surface of
the chuck, approximately 1/8".

4. Push the end of the chuck firmly against a
hard flat surface to be sure the jaws are all
seated axially.

5. Continue to hand tighten the chuck until the
jaws completely close.

6. Loosen the chuck, and reinsert a straight
accessory.

7. Turn the tool by hand and observe if there is
any run-out. If there is obvious run-out,
repeat the procedure.

8. With the shaft lock engaged, tighten the
chuck using the EZ Twist Nose Cap or
wrench to secure the accessory.

9. Turn the tool on to the lowest speed setting
and observe for run-out. If there is obvious
run-out, check that the accessory is straight
before repeating the procedure.

11

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

BALANCING ACCESSORIES

For precision work, it is important that all
accessories be in good balance (much the
same as the tires on your automobile). To true
up or balance an accessory, slightly loosen
chuck or collet nut and give the accessory or
collet a 1/4 turn. Re tighten the chuck or collet
nut and run the Rotary Tool. You should be able
to tell by the sound and feel if your accessory is
running in balance. Continue adjusting in this
fashion until best balance is achieved. To
maintain balance on abrasive wheel points,
before each use, with the wheel point secured
in the collet, turn on the Rotary Tool and run the
415 Dressing Stone lightly against the revolving
wheel point. This removes high spots and trues
up the wheel point for good balance.

Model No. Description

220 Workstation drill press Yes

225 Flex Shaft Yes

335-01 Plunge Router No Collet is required
A550 Shield Yes
565 Multipurpose cutting kit No Collet is required

575 Right angle attachment Yes

670 Mini Saw attachment N/A
A679-02 Sharpening kit No Collet is required
231 Router Table No Collet is required
A576 Sanding/Grinding Guide No Collet is required
490 Dust Blower No Collet is required
577 Detailers Grip Yes
678-01 Circle cutter / straight edge guide No Collet is required

4300 Attachment Compatibility

Dremel rotary tool attachments allow you to
change the function of your tool so that it is
more optimized for your application. You can
find the full line of Dremel rotary tool
attachments. The Dremel 4300 is
compatible with all currently available
Dremel attachments. Depending on the
attachment being used, you will either need to
use a collet and collet nut to hold the accessory
or will be able to use the Dremel Chuck to hold
the accessory. The following chart shows
which attachments function with the Dremel
Chuck. For more information on individual
attachments, please refer to the user manual
for those attachments in this manual or that
came with those attachments.

Dremel chuck

compatible? Comment

Chuck fits on the

output shaft of the

Flex Shaft

Chuck fits on the

output shaft of the

right angle

attachment

Do not use router bit with the Dremel chuck. Bit may become a projectile
and cause serious injury.

12

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

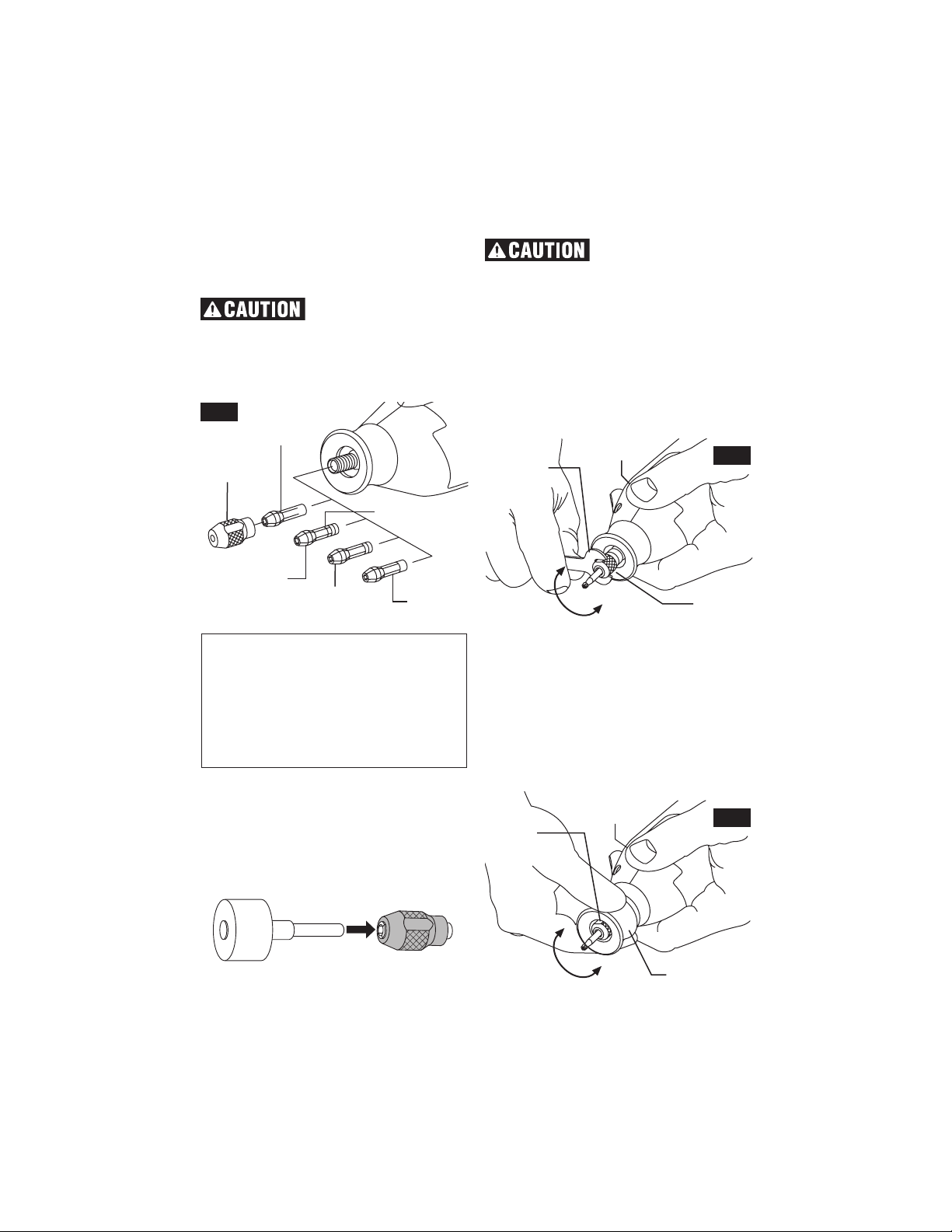

Four different size collets (see illus tration), to

COLLETS

accommodate different shank sizes, are avail ­able for your Rotary Tool. To install a different
collet, remove the collet nut and remove the old
collet. Insert the unslotted end of the collet in
the hole in the end of the tool shaft. Replace
collet nut on the shaft.

Al ways use the collet

which matches the shank

size of the accessory you plan to use. Never

force a larger diameter shank into a collet.
Note: Most rotary tool kits do not include all

four collets sizes.

FIG. 4

COLLET

NUT

480

1/8"

COLLET

481

3/32"

COLLET

482

1/16"

COLLET

IDENTIFICATION

RINGS

483

1/32"

COLLET

COLLET IDENTIFICATION CHART

Collet sizes can be identified by the rings
on the back end of collet.

1/32" Collet has one (1) ring.
1/16" Collet has two (2) rings.
3/32" Collet has three (3) rings.
1/8" Collet has no rings. (Included in

most tool kits on the tool)

FIXING STUCK COLLETS

It is possible for a collet to get stuck within the
collet nut especially if a collet nut is tightened
onto the tool without a bit in place. If this
happens, the collet can be removed from the
collet nut by pushing the shank of an accessory
into the hole in the collet nut. This should cause
the collet to pop out of the collet nut.

Dremel 4300 is equipped with a quick shaft lock
mechanism. This mechanism engages the
output shaft in 8 separate locations on the shaft
for easier operation.

Do not engage lock while
the Rotary Tool is running.

With the shaft lock engaged use the collet
wrench to loosen the collet nut if necessary. The
collet nut must be loosely threaded on when
inserting an accessory. Change accessories by
inserting the new one into the collet as far as
possible to minimize runout and unbalance.
With the shaft lock engaged, use collet wrench
or EZ Twist Nose Cap to securely tighten the
collet nut. (Fig. 5). Avoid excessive tightening

of the collet nut whe n the re is no bit
inserted.

SHAFT LOCK

COLLET

WRENCH

TO

TIGHTEN

BUTTON

TO

LOOSEN

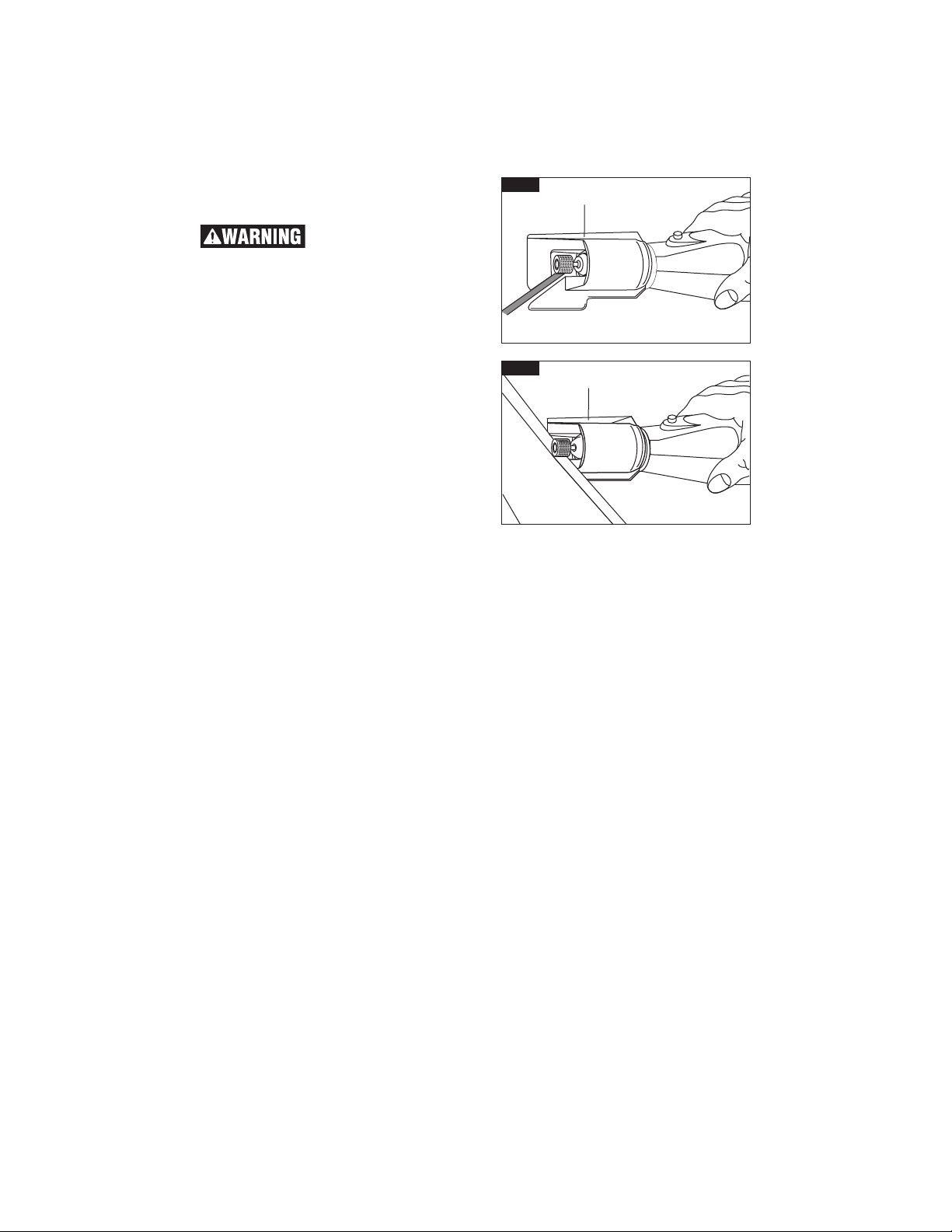

FIG. 5

COLLET

NUT

EZ TWIST™ INTEGRATED

WRENCH/NOSE CAP

The nose cap of your tool has an integrated
wrench allowing you to loosen and tighten the
collet nut without the use of the standard collet
wrench. Unscrew the nose cap from the tool,
line-up steel insert on inside of cap with collet
nut. With the shaft lock engaged twist nose cap
clockwise to tighten, and counter-clockwise to
loosen (Fig. 6).

SHAFT LOCK

COLLET

NUT

BUTTON

FIG. 6

EZ TWIST™

INTEGRATED

WRENCH/NOSE CAP

To loosen, first press shaft lock button and

COLLET NUT

TO

TIGHTEN

TO

LOOSEN

rotate the shaft by hand until the lock engages
the shaft preventing further rotation. Your

13

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Operating Instructions

Thank you for purchasing the Dremel 4300.

Dremel 4300

This product was designed by the many
Dremel users who passionately use their rotary
tools daily. This tool was designed to give you
the ultimate performance when working on
projects.

The Dremel 4300 is the MOST versatile rotary
tool available today. It has a wide speed range
including a high performance motor with
electronic feedback that allows the tool to
maintain its speed under load. The design of
the tool is symmetrical and contains plenty of
soft grip so the tool can be held comfortably in
many positions. The inclusion of the Dremel
Chuck allows you to use any shank size
accessory from 1/32” to 1/8” so that you don’t
have to change collets when you change to a
different size accessory. In addition, the
included worklight will help you see every detail
as you work on your project. You will appreciate
the many applications that the Dremel 4300
can easily tackle.

Rotary Tool Introduction

The Rotary Tool has a small, powerful electric
universal motor, is comfort able in the hand, and
is made to accept a large variety of accessories
including abrasive wheels, drill bits, wire
brushes, polishing accessories, engraving
cutters, router bits, cutting wheels and
attachments. Accessories come in a variety of
shapes and permit you to do a number of
different jobs. As you be come familiar with the
range of accessories and their uses, you will
learn just how versatile the Rotary Tool is. You’ll
see dozens of uses you hadn’t thought of
before.

The real secret of the Rotary Tool is its speed.
To understand the advantages of its high
speed, you have to know that the standard
portable electric drill runs at speeds up to 2,800
revolutions per minute. The Rotary Tool
operates at speeds up to 35,000 revolutions
per minute. The typical electric drill is a low­speed, high torque tool; the Rotary Tool is just
the opposite – a high-speed, low torque tool.
The major difference to the user is that in the
high speed tools, the speed combined with the
acces sory mounted in the chuck or collet does
the work. You don’t apply pressure to the tool,
but simply hold and guide it. In the low speed
tools, you not only guide the tool, but also apply
pressure to it, as you do, for example, when
drilling a hole.

14

It is this high speed, along with its compact size
and wide variety of special accessories and
attachments, that makes the Rotary Tool differ ­ent from other tools. The speed enables it to do
jobs low speed tools cannot do, such as cutting
hardened steel, en graving glass, etc.

Getting the most out of your Rotary Tool is a
matter of learning how to let this speed work

for you.

The first step in learning to use the Rotary
Tool is to get the “feel” of it. Hold it in your
hand and feel its weight and balance. Feel
the taper of the housing. This taper permits
the Rotary Tool

pen or pencil (Fig. 7).

common, but it does happen.

cover the air vents with your hand. This
blocks the air flow and causes the motor to
overheat.

Practice on scrap materials first to see how the
Rotary Tool's high speed action performs. Keep
in mind that the work is done by the speed of
the tool and by the accessory in the collet. You
should not lean on or push the tool during use.

Instead, lower the spinning accessory lightly to
the work and allow it to touch the point at which
you want cutting (or sanding or etching, etc.) to
begin. Con centrate on guiding the tool over the
work using very little pressure from your hand.
Allow the accessory to do the work.

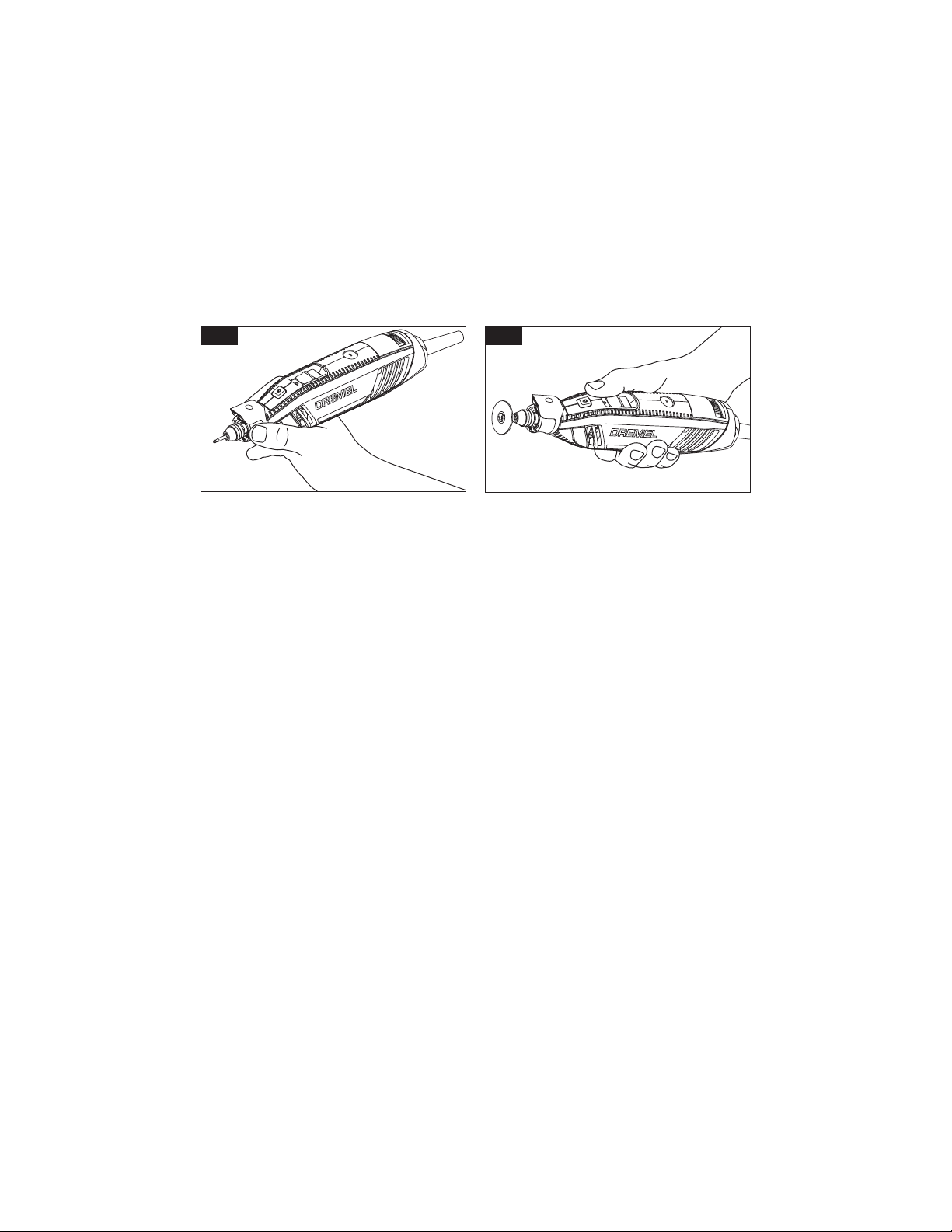

For best control in close or detailed work, grip
the Rotary Tool like a pencil between your
thumb and forefinger (Fig. 7).

The “Golf Grip” method of holding the tool is
used for more aggressive operations such as
grinding a flat surface or using cutoff wheels
(Fig. 8).

Usually, it is best to make a series of passes
with the tool rather than attempt to do all the

Using the Rotary Tool

to be grasped much like a

Always hold the tool
away from your face.
Accessories can be
damaged during
handling, and can fly
apart as they come up
to speed. This is not

Whenever you hold the
tool, be c arefu l not to

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

work in one pass. To make a cut, for example,
pass the tool back and forth over the work,
much as you would a small paint brush. Cut a
little material on each pass until you reach the
desired depth. For most work, the gentle
touch is best. With it, you have the best
control, are less likely to make errors, and will
get the most effi cient work out of the
accessory.

The hanger is provided for the use of hanging

TOOL HANGER

your tool while using the Flex Shaft or for
storage. If you do not use the hanger, snap it
back into place so it will be out of the way while
the tool is in use (Fig. 1).

FIG. 8FIG. 7

15

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Operating Speeds

To select the right speed for each job, use a
practice piece of material.

NO TE: Spe ed is aff ect ed b y voltage
changes. A reduced incoming voltage will
slow the RPM of the tool.

SLIDE "ON/OFF" SWITCH

The tool is switched "ON" by the slide switch
located on the topside of the motor housing.

TO TURN THE TOOL "ON", slide the switch
button forward.

TO TURN THE TOOL "OFF", slide the switch
button backward.

HIGH PERFORMANCE MOTOR

Your tool is equipped with a high performance
rotary tool motor. This motor expands the
versatility of the rotary tool by driving additional
attachments such as the Dremel Right Angle
Attachment and Dremel Flex Shaft.

ELECTRONIC FEEDBACK

Your tool is equipped with an internal electronic
feedback system that provides a “soft start”,
which will reduce the stresses that occur from
a high torque start. The system also helps to
keep the preselected speed virtually constant
between no-load and load conditions.

VARIABLE SPEED DIAL

Your tool is equipped with a variable speed
dial. The speed may be adjusted during
operation by presetting the dial on or
between any one of the settings.

You can refer to the charts on pages 27–30
to determine the proper speed, based on the
material being worked and the type of
accessory being used. These charts enable
you to select both the correct acces sory and
the optimum speed at a glance.

The speed of Rotary Tool is controlled by
setting this dial on the housing (Fig. 9).

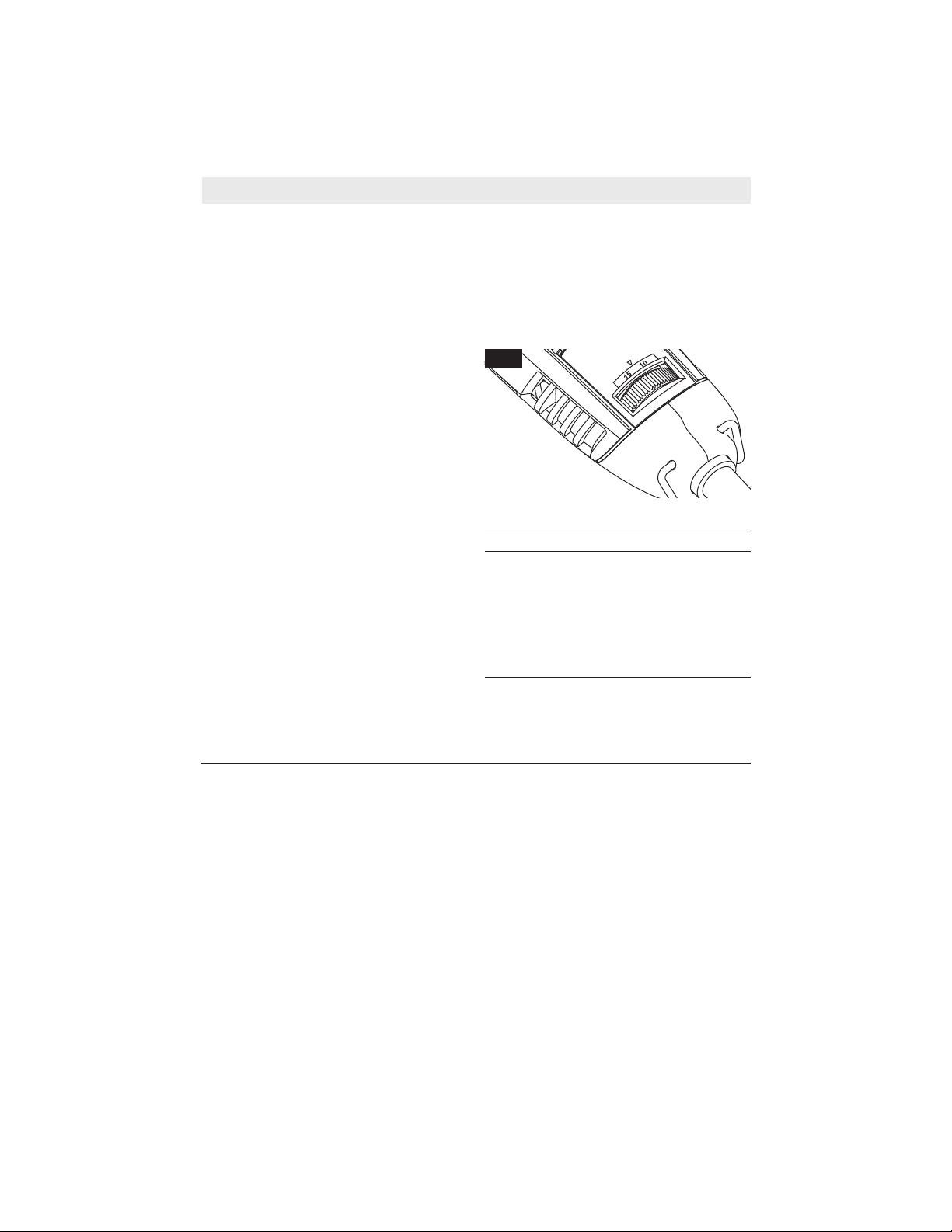

FIG. 9

Settings for Approximate Revolutions.

Switch Setting Speed Range

*5–10 5,000-10,000 RPM
15 13,000-17,000 RPM
20 18,000-23,000 RPM
25 23,000-27,000 RPM
30 28,000-32,000 RPM
35 33,000-35,000 RPM
* Wire Brush Setting.

Certain materials, however, (some plastics and
precious metals, for ex ample) require a
relatively slow speed because at high speed
the friction of the accessory generates heat
and may cause damage to the material.

Slow speeds (15,000 RPM or less) usually are
best for polishing operations employing the felt
polishing ac ces sories. They may also be best
for working on deli cate projects as “eggery”
work, delicate wood carving and fragile model
parts. (All brushing applications require lower
speeds to avoid wire discharge from the
holder.)

16

Find Quality Products Online at: [e-mail]

Needs for Slower Speeds

www.GlobalTestSupply.com

Higher speeds are better for carving, cutting,
routing, shaping, cutting dadoes or rabbets in
wood.

Hardwoods, metals and glass require high
speed operation, and drilling should also be
done at high speeds.

The point to remember is this: Many
applications and accessories in our line will
provide the best performance at full speed, but
for certain materials, applications, and
accessories, you need slower speeds, which is
the reason our variable speed models are
available.

To aid you in determining the optimum
operational speed for differ ent materials and
different accessories, we have constructed a
series of tables that appear on pages 27–30.
By referring to these tables, you can discover
the recommended speeds for each type of
accessory. Look these tables over and
become familiar with them.

Ultimately, the best way to determine the
correct speed for work on any material is to
practice for a few minutes on a piece of scrap,
even after referring to the chart. You can
quickly learn that a slower or faster speed is
more effective just by observing what hap pens
as you make a pass or two at different speeds.
When working with plastic, for example, start
at a slow rate of speed and increase the speed
until you observe that the plastic is melting at
the point of contact. Then reduce the speed
slight ly to get the optimum working speed.

Some rules of thumb in regard to speed:

1. Plastic and other materials that melt at low
temperatures should be cut at low speeds.

Use only Dremel®, high-performance accessories.

2. Polishing, buffing and cleaning with any
type of bristle brush must be done at
speeds not greater than 15,000 RPM to
prevent damage to the brush.

3. Wood should be cut at high speed.

4. Iron or steel should be cut at high speed. If
a high speed steel cutter starts to chatter —
this normally means it is running too slow.

5. Aluminum, copper alloys, lead alloys, zinc
alloys and tin may be cut at various
speeds, depending on the type of cutting
being done. Use paraffin or other suitable
lubricant on the cutter to prevent the cut
material from adhering to the cutter teeth.

Increasing the pressure on the tool is not the
answer when it is not performing as you think it
should. Perhaps you should be using a
different accessory, and perhaps an
adjustment in speed would solve the problem.
Leaning on the tool does not help.

Let speed do the work!

Maintenance Information

To avoid injury from unexpected starting or electrical shock, always
remove plug from wall outlet before performing service or cleaning.

Service

Preventive maintenance

pe r form e d by
unau thorize d per so n nel m ay resu lt in
mis p l acin g of i n t erna l wire s and
components which could cause serious

hazard. We recommend that all tool service

be performed by a Dremel Service Facility.

CARBON BRUSHES

The brushes and commutator in your tool
have been engineered for many hours of
dependable service.

In order to prepare your brushes for use, run
your tool at full speed for 5 minutes under no
load. This will properly “seat” your brushes,
which extends the life of both your brushes
and your tool.

To maintain peak efficiency of the motor, we
recommend every 40 - 50 hours the brush es
be examined. Only genuine Dremel replace -

ment brushes specially designed for your tool
should be used.

MAINTENANCE OF REPLACEABLE

BRUSHES ON MODEL 4300

The brushes should be inspected frequently
when tools are used continuously. If your tool
runs spo rad ically, loses power, makes
unusual noises or runs at a reduced speed,
check the brushes.

To c ontinue using the

too l i n t h is c ondi t ion

will permanently damage your tool.

Follow these steps to check/change the
rotary tool brushes:

1. With the power cord unplugged, place the
tool on a clean surface. Use the tool
wrench as a screwdriver to remove the
brush caps in a counter-clockwise
direction (Fig. 10).

17

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

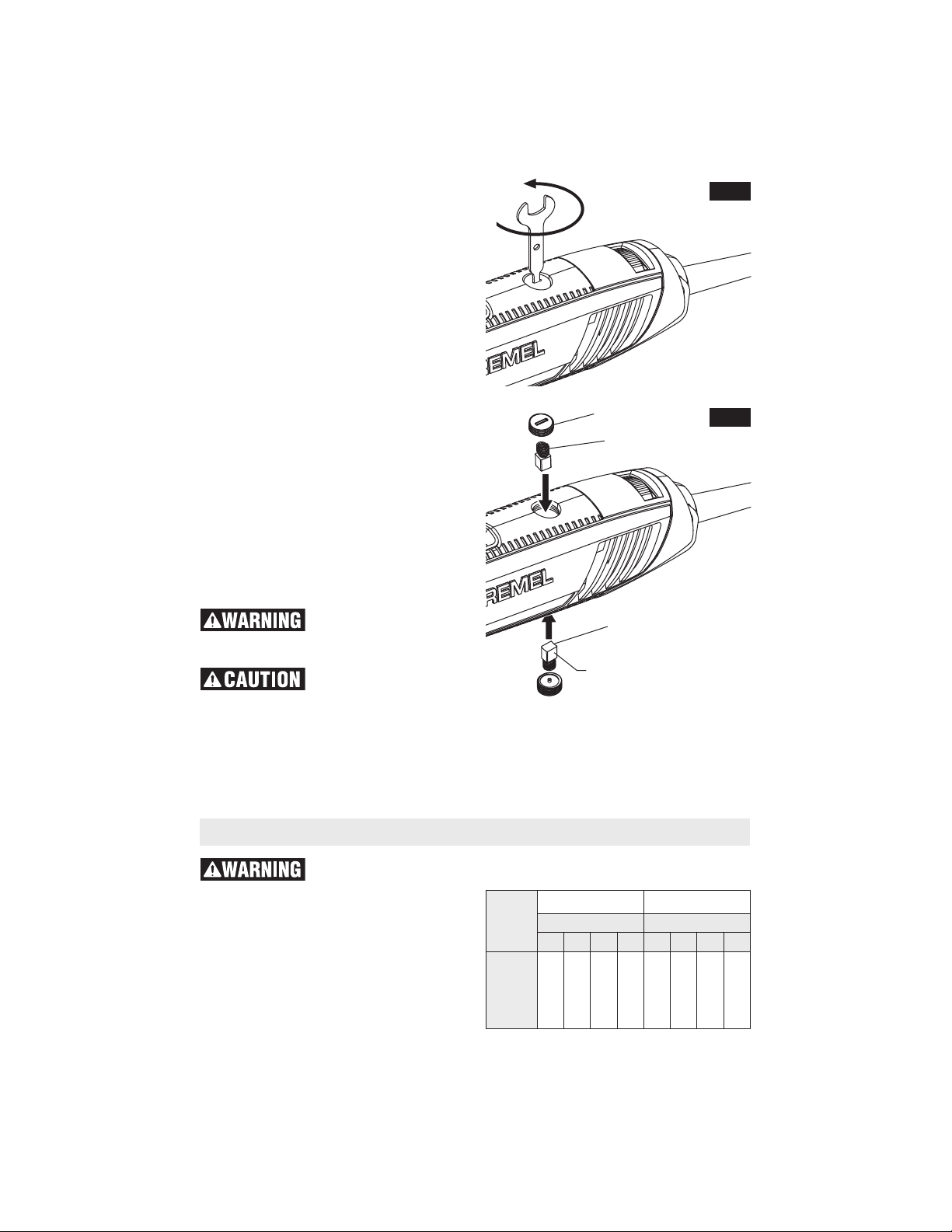

2. Remove the brushes from the tool by
pulling on the spring that is attached to the
carbon brush. If the brush is less than 1/8"
long and the end surface of the brush that
contacts the commutator is rough and/or
pitted, they should be replaced. Check
both brushes (Fig. 11).

Usually the brushes will not wear out simul ­taneously. If one brush is worn out, replace
both brushes. Make sure the brushes are
installed as illus trated. The curved surface of
the brush must match the curvature of the
commutator. Also check that the brush caps
sit flush with the tool housing.

3. After replacing brushes the tool should be
run at no-load; place it on a clean surface
and run it freely at full speed for 5 minutes
before loading (or using) the tool. This will
allow the brushes to “seat” properly and
will give you more hours of life from each
set of brushes. This will also extend the
total life of your tool since the com mutator
surface will “wear” longer.

BEARINGS

Model 4300 has ball bearing construction.
Under normal use no additional lubrication is
required.

Cleaning

To a v oid acc i d ents

always dis conn ect the
too l fro m the power supp l y b e f ore
cleaning or performing any main tenance.

Certain cleaning agents

and so l vents da m age

plastic parts. Some of these are: gasoline,

carbon tetrachloride, chlo rinated cleaning
solvents, ammonia and household
detergents that contain ammonia.

Ventilation openings and switch levers must

FIG. 10

BRUSH CAP

BRUSH SPRING

Curved end of brush
must match curvature of
commutator

BRUSH

FIG. 11

be kept clean and free of foreign matter. Do
not at tempt to clean by inserting pointed
objects through openings.

Extension Cords

If an extension cord is

necessary, a cord with
adequate size conductors that is capable
of carrying the current necessary for your

to ol mus t be u s ed. This will prevent

excessive voltage drop, loss of power or
overheating. Grounded tools must use 3-wire
extension cords that have 3-prong plugs and
receptacles.

NOTE: The smaller the gauge number, the

higher the cord capacity.

18

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

RECOMMENDED SIZES OF EXTENSION CORDS

120 VOLT ALTERNATING CURRENT TOOLS

Cord Size in A.W.G. Wire Sizes in mm

Tool’s

Ampere

Rating

8-10
10-12
12-16

Cord Length in Feet Cord Length in Meters

25 50 100 150

3-6

18

16

16

6-8

18

16

18

16

16

16

14

12

14

14

12

14

12

14

12

–

–

15 30 60 120

0.75

0.75

1.0

1.0

2.5

1.5

2.5

2.5

4.0

–

–

0.75

0.75

1.0
–

2.5

4.0

4.0
–
–

2

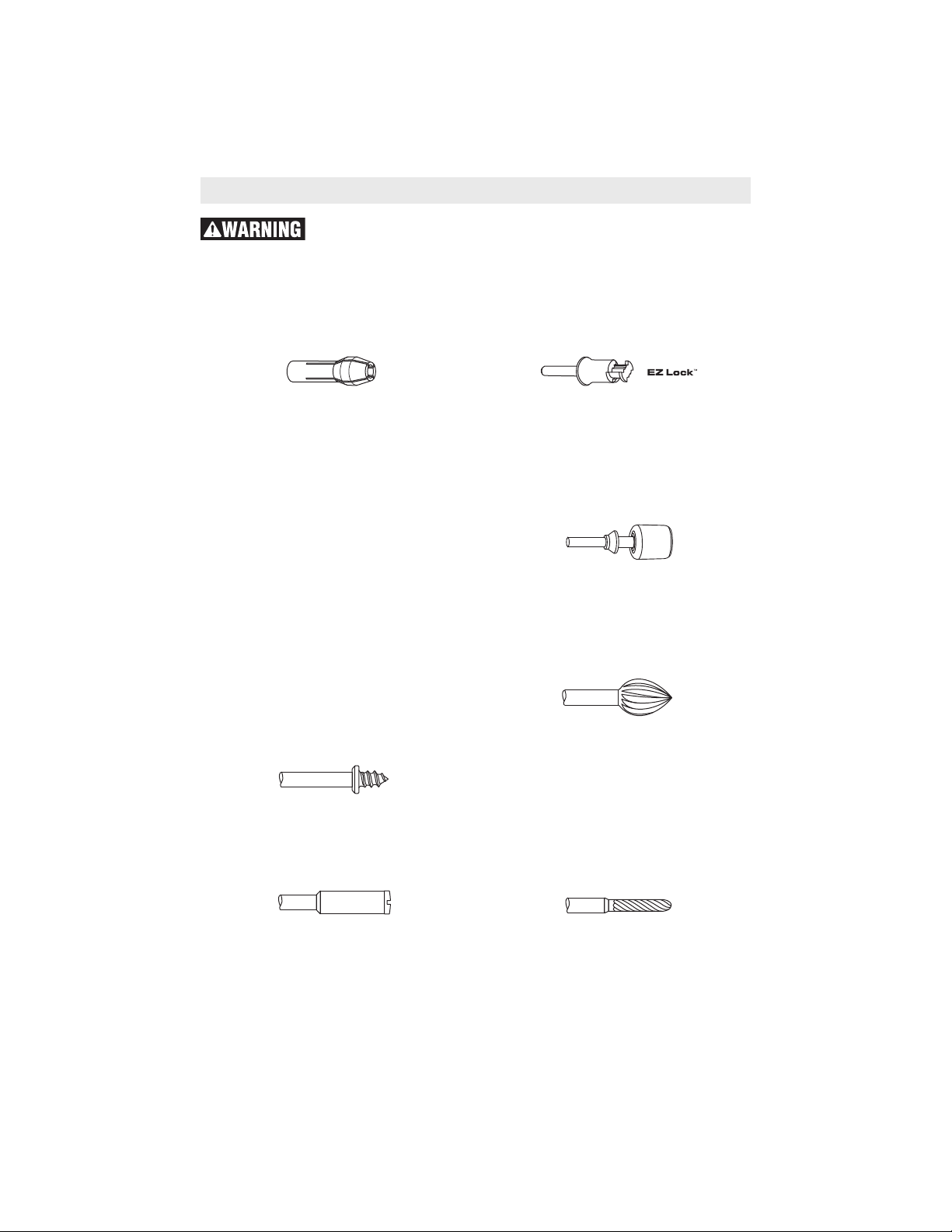

Dremel Accessories

Use only Dremel

not designed for this tool and may lead to personal injury or property damage.

Store accessories in a dry and temperate environment to avoid corrosion and deterioration.

The number and variety of accessories for the Rotary Tool are almost limitless. There is a category
suited to almost any job you might have to do and a variety of sizes and shapes within each
category which en ables you to get the perfect accessory for every need.

®

, high-performance accessories. Other accessories are

COLLETS

If you expect to use a variety of accessories,
we recommend that in the beginning you
purchase a complete set of four collets. Store
these so that you will have the proper size of
collet for any accessory or drill bit you want
to use. Currently, the 1/8", 3/32",1/32" and

1/16" collets accommodate all of the avail ­able Dremel accessories. 1/8" collets are
included in most rotary tool kits.

MANDRELS

A mandrel is a shank with a threaded or screw
head, which are required when you use
polishing accessories, cutting wheels, sanding
discs, and pol ish ing points. The reason
mandrels are used is that sanding discs,
cutting wheels and similar accesso ries must
be replaced frequently. The mandrel is a per ­manent shank, allowing you to replace only
the worn head when necessary, thus saving
the expense of replacing the shaft each time.

Screw Mandrel No 401

This is a screw mandrel used with the felt
polishing tip and felt polishing wheels. 1/8"
shank.

EZ Lock Mandrel No 402

The Dremel EZ Lock makes accessory
changes easy as PULL - TWIST - RELEASE.
The one-piece mandrel design simplifies the
process of changing cutting wheels, buffs
and detail abrasive brushes (EZ Lock
compatible accessories).

EZ Drum™ Mandrel No EZ407SA

The Dremel EZ Drum makes accessory
changes easy as PULL - INSERT - PRESS
DOWN. The one-piece mandrel design
simplifies the process of changing sanding
bands.

High Speed Cutters

Available in many shapes, high speed cutters
are used in carving, cutting and slotting in
wood, plastics and soft metals such as
aluminum, copper and brass. These are the
accessories to use for freehand routing or
carving in wood or plastic, and for precision
cutting. Made of high quality steel. 1/8"
shank.

Small Screw Mandrel No 402

This is a mandrel with a small screw at its tip,
and is used with emery and fiberglass cutting
wheels, sanding discs and polishing wheels.
1/8" shank.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

These are tough, long-lived cutters for use
on hard ened steel, fired ceramics and other
very hard ma terials. They can be used for
engraving on tools and garden equipment.
1/8" shanks.

Tungsten Carbide Cutters

19

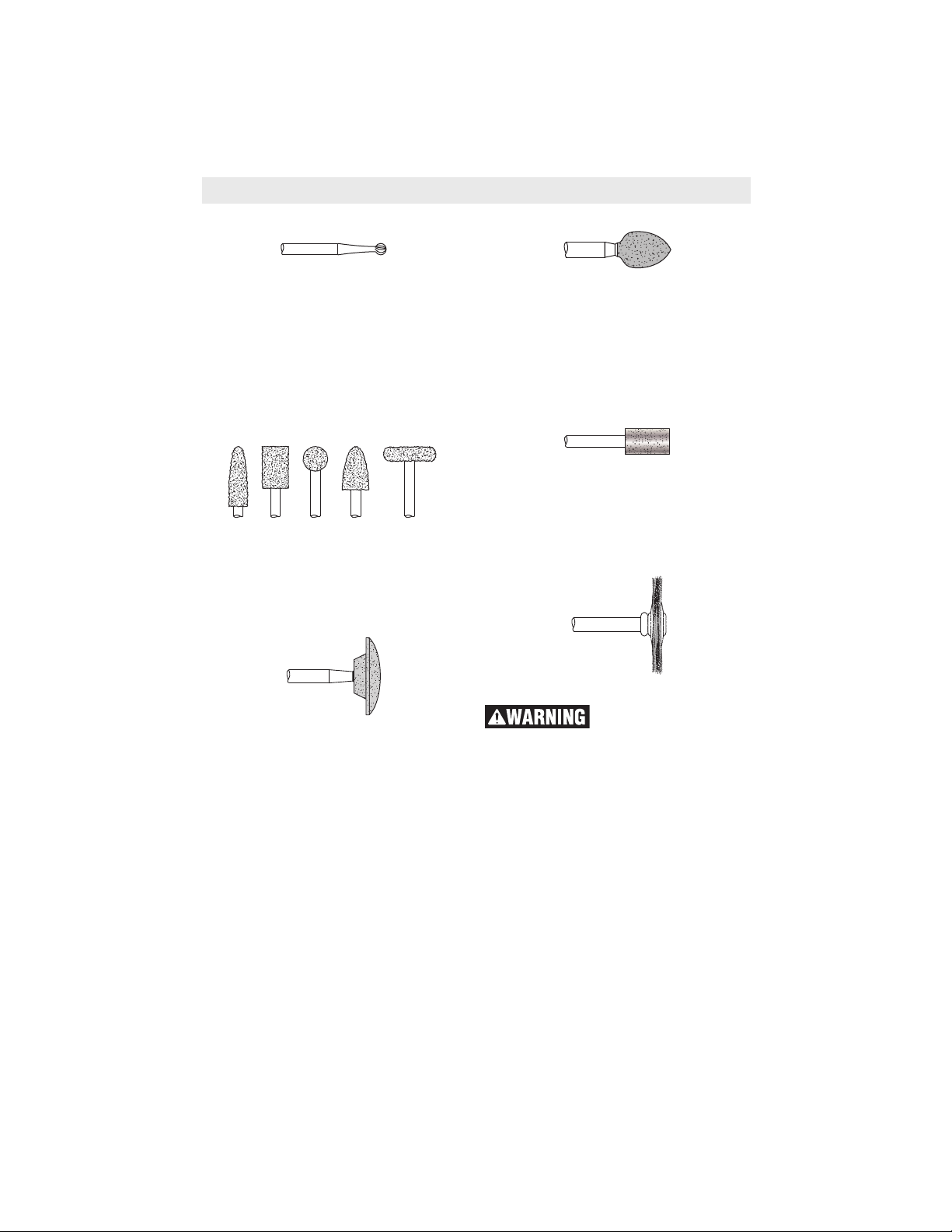

Dremel Accessories (Continued)

Engraving Cutters

This group has a wide variety of sizes and
shapes, and are made for intricate work on
ceramics (greenware), wood carvings,
jewelry and scrimshaw. They often are used
in making complicat ed printed circuit boards.
They should not be used on steel and other
very hard materials but are excellent on
wood, plastic and soft metals. 1/8" shank.

Structured Tooth

Tungsten Carbide Cutters

Fast cutting, needle-sharp teeth for greater
material removal with minimum loading. Use
on fiberglass, wood, plastic, epoxy and
rubber. 1/8" shank.

Aluminum Oxide Grinding Stones

(red/brown)

Round, pointed, flat — you name the shape
and there is one available in this category.
These are made of aluminum oxide and
cover virtually every possible kind of grinding
application. Use them for sharpening lawn
mower blades, screwdriver tips, knives,
scissors, chisels and other cutting tools. Use
to remove flash from metal castings,
deburring any metal after cutting, smoothing
welded joints, grinding off rivets and re mov ing
rust. These grinding stones can be resharped
with a dressing stone. In machine shops, high
speed drills and cut ters normally are ground
with aluminum oxide wheels. 1/8" shank.

Silicon Carbide Grinding Stones

(blue/green)

Tougher than aluminum oxide points, these
are made es pecially for use on hard
materials such as glass and ce ramics.
Typical uses might be the removal of stilt
marks and excess glaze on ceramics and
engraving on glass. 1/8" shank.

Diamond Wheel Points

Excellent for fine detail work on wood, jade,
ceramic, glass and other hard material. Bits
are covered with diamond particles. 1/8"
shanks. (Not recommended for drilling)

Wire Brushes

Max i m um opera t i ng
speed 15,000/min. Allow

brush to run at 15,000/min for one minute

before use. Refer to Operating Speeds

section for proper tool speed setting.
Three different shapes of wire brushes are

available. The three shapes come in three
different materials: stainless steel, brass and
carbon wire. The stainless steel perform well
on pewter, aluminum, stainless steel, and
other metals, without leaving "after-rust".
Brass brushes are non sparking, and softer
than steel; making them good for use on soft
metal like gold, copper and brass. The
carbon wire brushes are good for general
purpose cleaning.

20

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

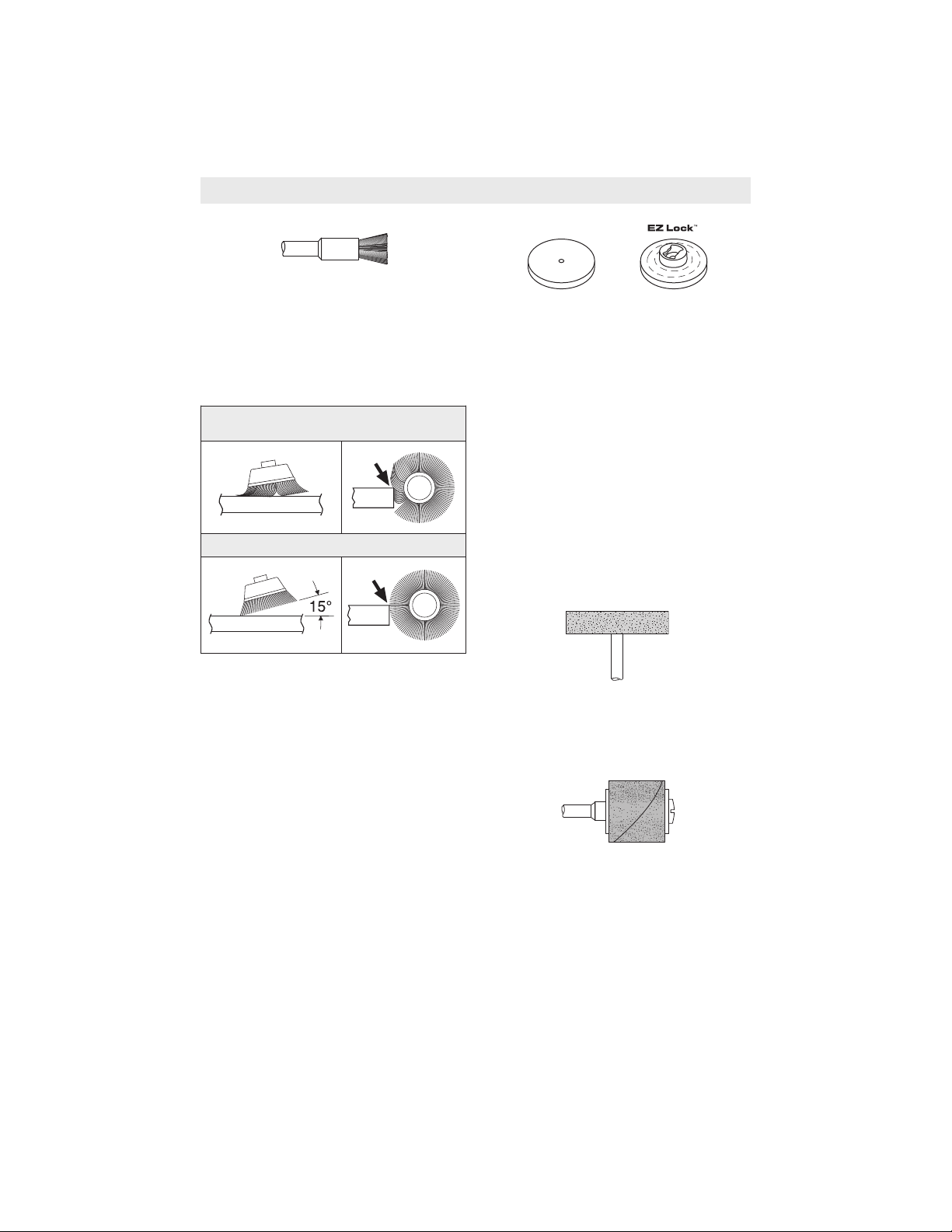

Dremel Accessories (Continued)

Bristle Brushes

These are excellent cleaning tools on
silverware, jew elry and antiques. The three
shapes make it possible to get into tight
corners and other difficult places. Bristle
brushes can be used with polishing
compound for faster cleaning or polishing.

INCORRECT:

Excessive pressure can cause wire breakage.

CORRECT: Wire tips doing the work.

Polishing Accessories

These include an impregnated polishing
point and an impregnated polishing wheel for
bringing metal sur faces to smooth finish; a
felt polishing tip and felt polish ing wheel, and
cloth polishing wheel, all used for polishing
plastics, metals, jewelry and small parts. Also
included in this group is a polishing
compound (No. 421) for use with the felt and
cloth polishers.
Polishing points make a very smooth
surface, but a high luster is obtained using
felt or cloth wheels and polishing compound.

For best results polishing accessories
should be used at speeds not greater than
15,000 RPM.

No polishing compound is needed when
using the 425 Polishing Wheel.

Brushing Pressure

1. Remember, the tips of a wire brush do the
work. Operate the brush with the lightest
pressure so only the tips of the wire come
in contact with the work.

2. If heavier pressures are used, the wires
will be overstressed, resulting in a wiping
action; and if this is continued, the life of
the brush will be shortened due to wire
fatigue.

3. Apply the brush to the work in such a way
that as much of the brush face as possible
is in full contact with the work. Applying the
side or edge of the brush to the work will
result in wire breakage and shortened
brush life.

Aluminum Oxide Abrasive Wheels

Use to remove paint, deburr metal, polish
stainless steel and other metals. Available in
medium grit. 1/8" shank.

Sanding Accessories

Sanding bands in fine, medium and coarse
grades are made to fit mandrel No. 402 and
EZ407. They can be used for nearly any
small sanding job you might have, from
model making to fine furniture finish ing. In
addition, there is the drum sander, a tiny
drum which fits into the Rotary Tool and
makes it possible to shape wood, smooth
fiberglass, sand inside curves and other diffi -

21

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

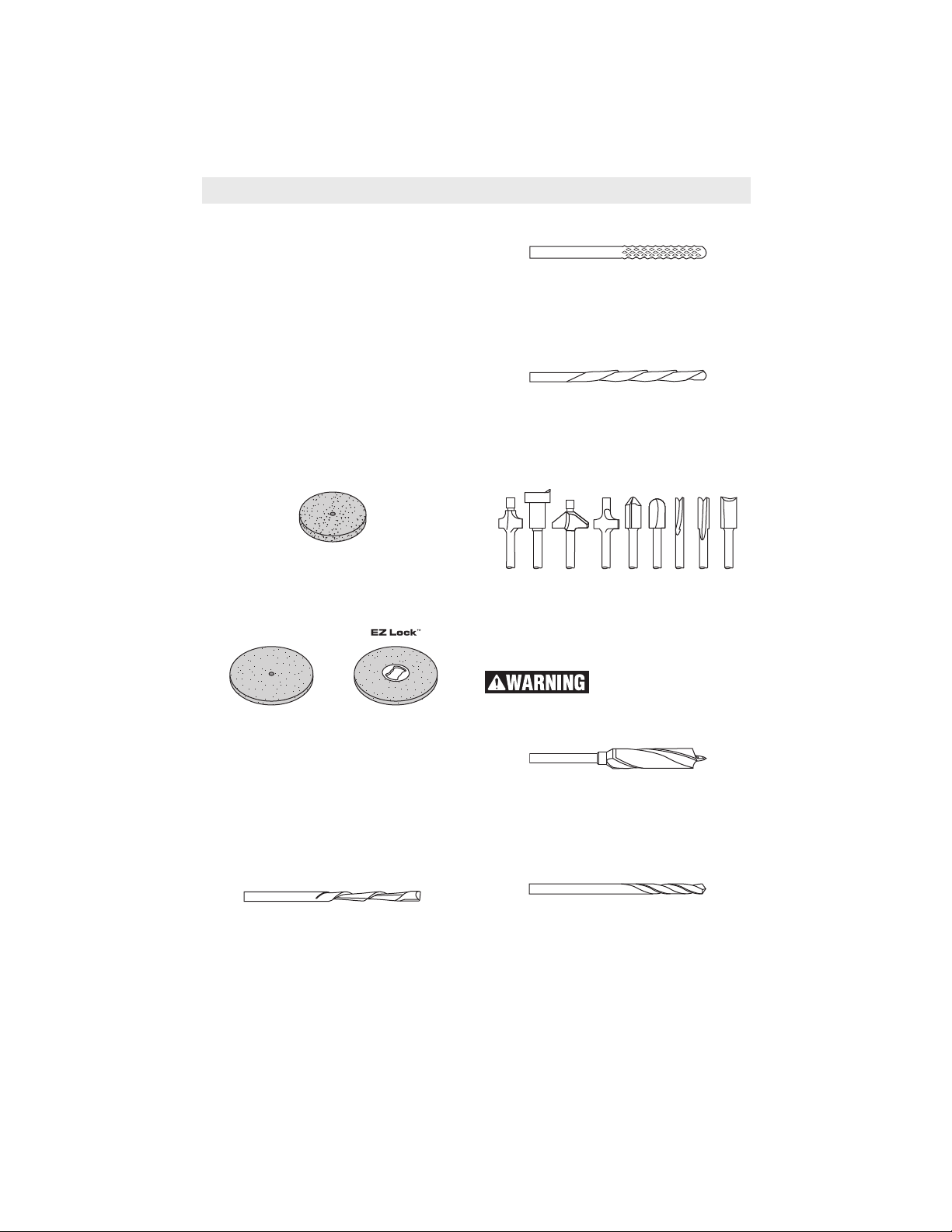

Dremel Accessories (Continued)

cult places, and other sanding jobs. You
replace the sanding bands on the drum as
they become worn and lose their grit. Bands
come in fine medium and coarse grades.
Flapwheels grind and polish flat or contoured
surfaces. They are used most effectively as a
finishing sander after heavier surface
sanding and material removal is completed.
Flapwheels come in fine and coarse grades.
Buffs are a great finishing accessory for
cleaning and light sanding. They work
effectively on metal, glass, wood, aluminum
and plastics. Coarse and medium buffs are
sold together. All buffs are sold individually.

Do not exceed 15,000 RPM in speed. 1/8"
shank.

Grinding Wheel

Use for deburring, removing rust, and general
purpose grinding. Use with Mandrel #402.

Cutting Wheels

These thin discs of emery or fiberglass are
used for slicing, cutting off and similar
operations. Use them for cutting off frozen
bolt heads and nuts, or to reslot a screw
head which has become so damaged that
the screwdriver won’t work in it. Fine for
cutting BX cable, small rods, tubing, cable
and cutting rectangular holes in sheet metal.

Tile Cutting Bit

Cuts ceramic wall tile, cement board, and
plaster. Use with Dremel No 565/566 Cutting
Guide attachment.

Spiral Cutting Bit

Cuts through all types of wood and wood
composites. Use with Dremel No 565/566
Cutting Guide attachment.

High Speed Router Bits

For routing, inlaying, and mortising in wood
and other soft materials. Use with Dremel
No. 335 Router attachment and No. 231
Shaper/Router table.

Do not use router bit with

th e Dr eme l chu ck. Bit

may become a projectile and cause serious
injury.

Brad Point Drill Bits

Titanium coated brad points stay on center
and begin drilling immediately. For use on
wood. Size 1/8”, 5/32”, 3/16”, ¼” . 1/8” shank.

Drywall Cutting Bit

Gives you fast, clean cuts in drywall. Use
with Dremel No 565/566 Cutting Guide
attachment.

22

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

HSS drill bit for use in metal and plastic. Size
1/8”, 7/64”, 3/32”, 5/64”, 1/16”, 3/64”, 1/32”.
Shank size matches the drill bit size.
Different collet size (481, 482, 483) or
Dremel chuck (4486) required according to
drill bit being used.

HSS Drill Bits

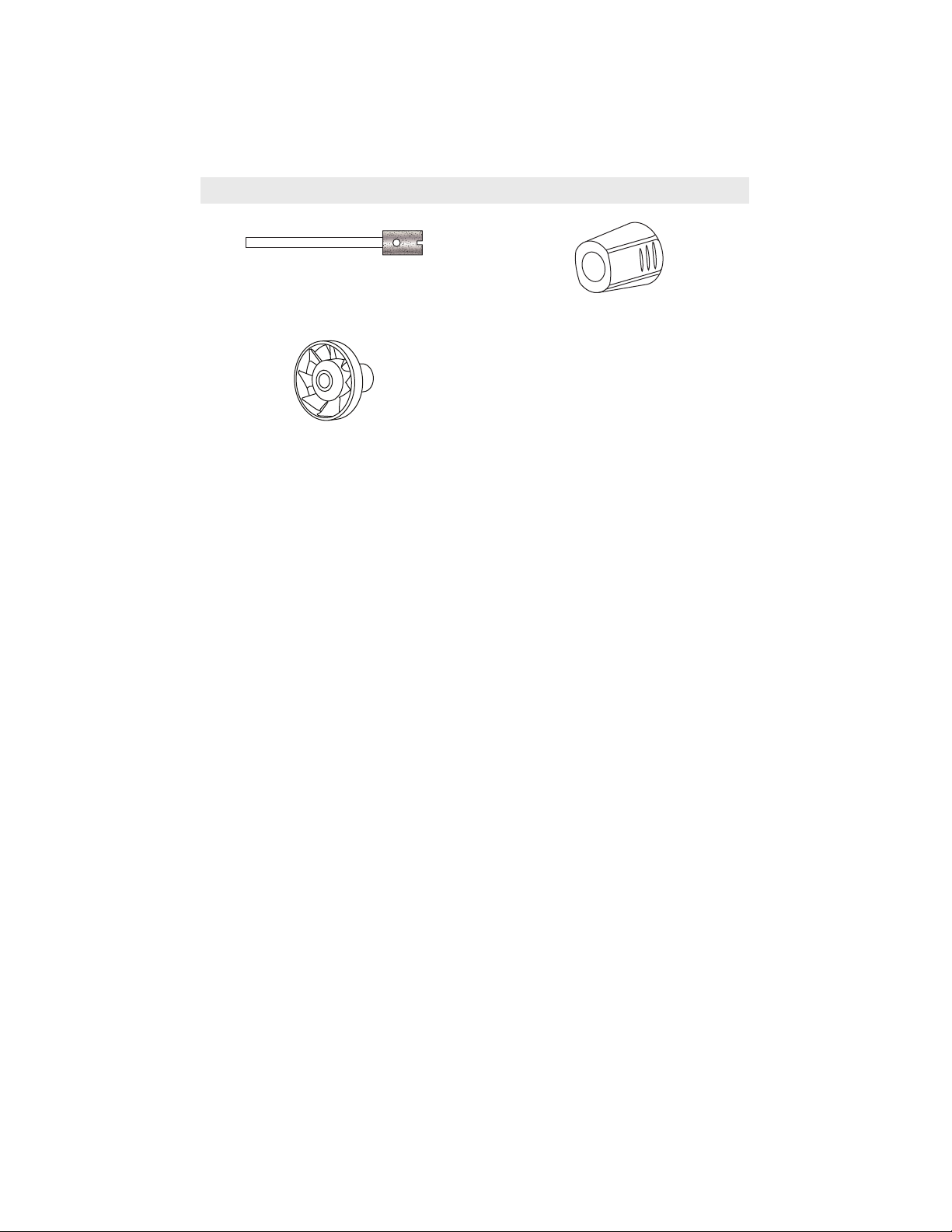

Dremel Accessories (Continued)

Glass Drill Bits

Diamond tipped drill bits for use on glass and
ceramic wall tile. Lubricant included.

Collet Fan

Blows dust away for greater visibility to work
piece. Great for sanding, engraving and
carving. Do not use dust blower to stop or
slow down the tool. Do not contact dust
blower with fingers or workpiece during use.

For performing precision tasks a separate nose

Detail Nose Piece

piece is available in some kits. It has a tapered
shape, which allows the user to pinch the nose
piece comfortably between thumb and
forefinger. It provides an excellent line of sight
for performing detailed etching, carving and
engraving work.

23

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

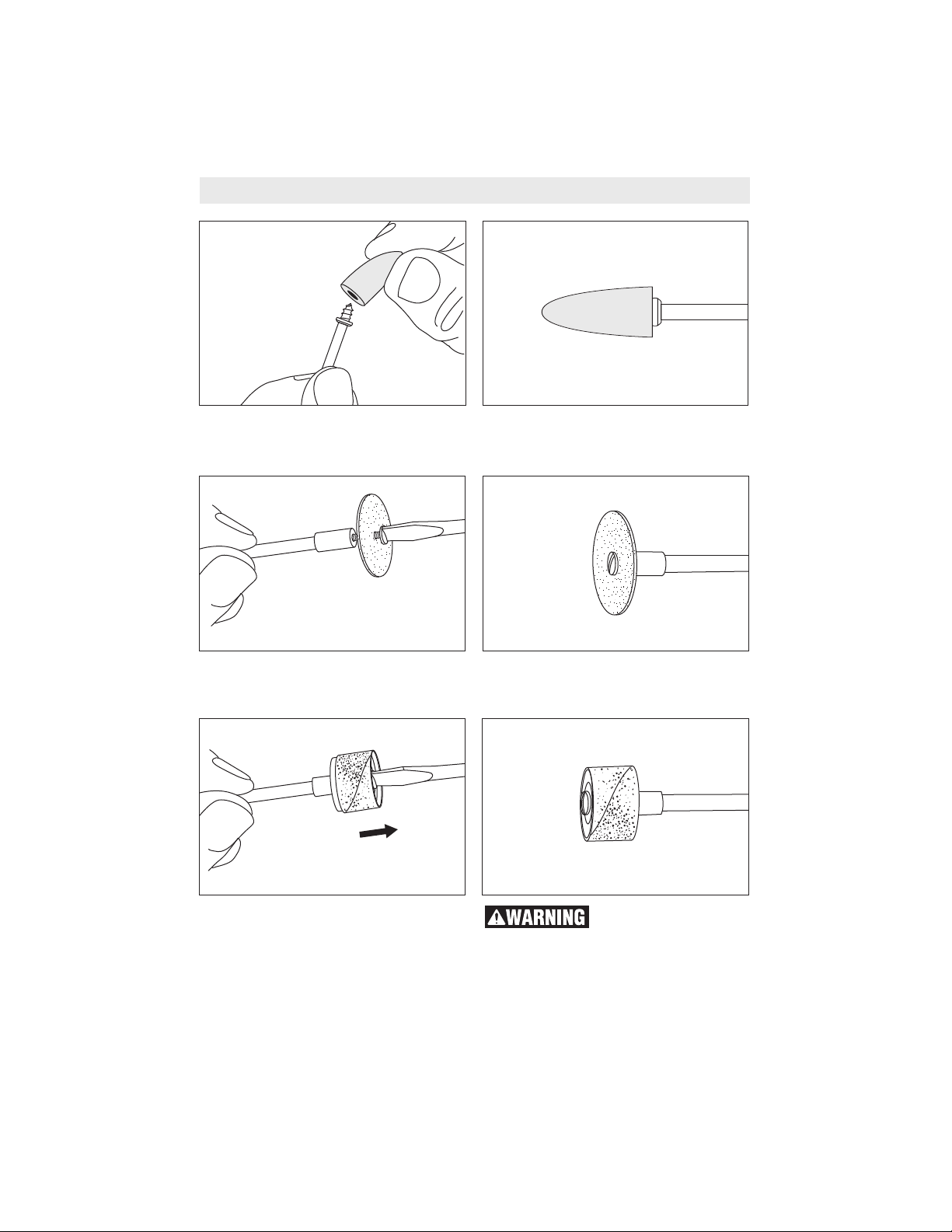

Replacing Screw Mandrel Accessories

Man d r el N o . 401 is used with the felt

polishing tip and wheels. Thread the tip on to
the screw carefully. The felt tip must thread

Mandrel N° 402 has a small screw at its tip,
and is used with emery cutting wheels and
sanding discs. Higher speeds, usually

down straight on the screw Mandrel, and be
turned all the way to the collar.

maximum, are best for most work, including
cutting steel. Which is shown here.

To replace a band on the Drum Sander, loosen
the screw without removing it to contract the
drum then slide the old band off. Slide the new
sanding band on and then expand the drum by
tightening the screw once again.

24

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

components are assembled to accessory
shank and that the drum is sufficiently

expanded to secure the band during use. If

sanding band is loose on the drum during
operation it may “fly” off and strike you or
bystanders.

Before each use, check
to make certain that all

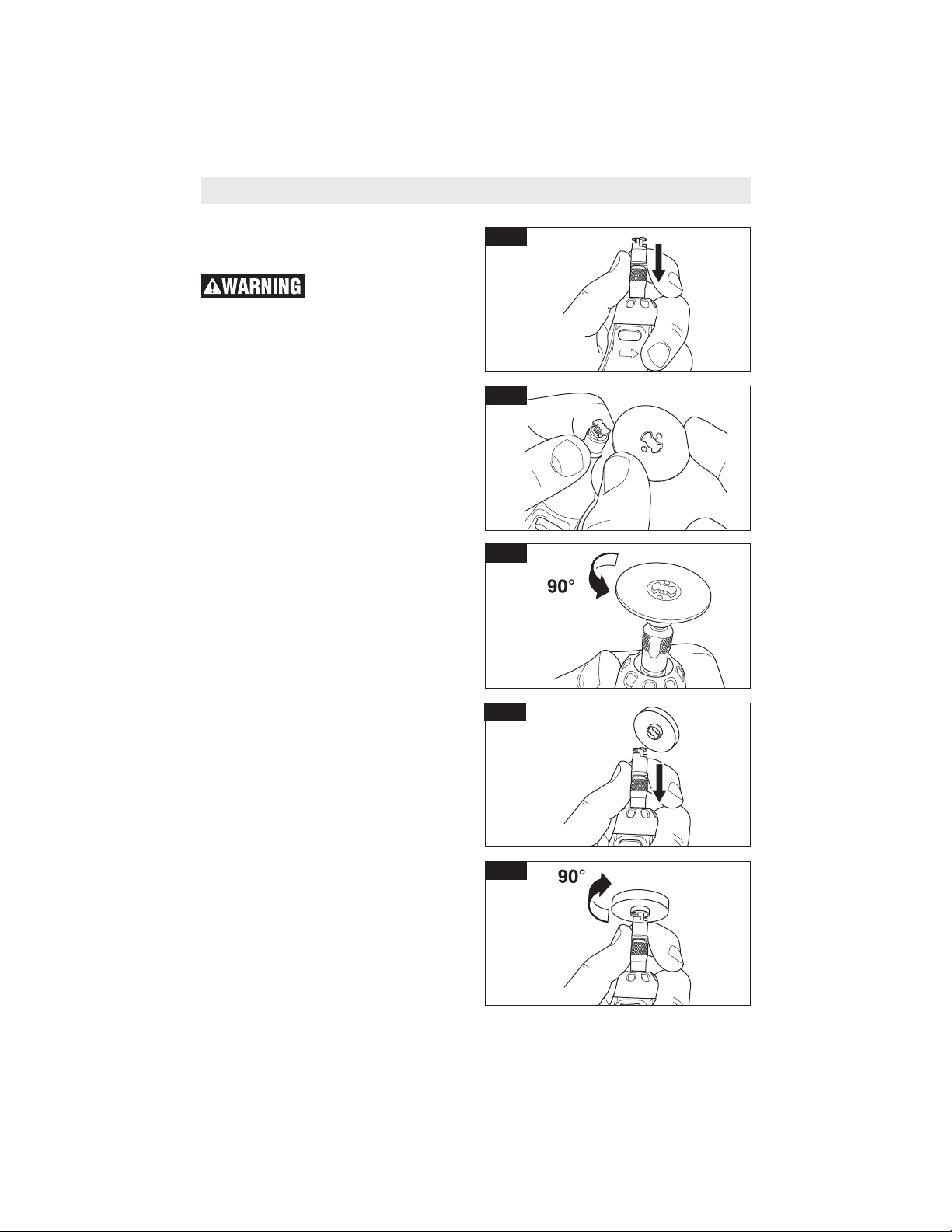

EZ Lock™Operating Instructions

EZ Lock™ Mandrel No. EZ402 has a spring

loaded sleeve and is used with cutting
wheels, abrasive buffs and polishing cloth.

Always make sure the

rotary tool is “OFF” and
dis c o nnec t the p l ug f r o m t h e powe r
source or the battery pack from the tool

bef o r e cha n ging a c cesso r i es. Such

preventative safety measures reduce the risk
of starting the power tool accidentally.

Always make sure accessory is properly

seated on mandrel before use. Incorrect

seating of accessory on mandrel may lead to
personal injury or property damage.

To load accessory:

1. Place EZ Lock™ mandrel into collet as

deep as possible and tighten collet nut.
Note : There is a blue spacer that will

bottom out on the collet nut, setting the
mandrel to the correct depth. When using
with Dremel chuck, back the mandrel out
slightly before tightening.

2. Pull spring-loaded sleeve DOWN towards

tool with one hand and hold. You can
brace the tool on the body or work-bench
for extra leverage (Fig. 1).

3. With the other hand, align bowtie shape on

cut-off wheel with mandrel and make sure
metal insert is facing away from the tool
(Fig. 2).

4. Place wheel on the mandrel to a point just

below the bowtie on the mandrel and twist
90 degrees until the bowtie shape on the
wheel aligns with the sleeve. Release
sleeve. Wheel should lock in place (Fig. 3).

5. When mounting sanding and polishing

accessories, align bowtie with metal insert
on bottom of accessory (Fig. 4 & 5).

To check for proper seating, hold shaft
loc k bu t t on a nd t wist acc e s sory.
Accessory will not be able to rotate on
mandrel.

To unload accessory:

1. Pull spring-loaded sleeve DOWN toward

tool with one hand (Fig. 1).

2. Hold sleeve down while twisting accessory

90 degrees.

3. Remove accessory.

During use

Avoid damage to EZ lock™ mandrel by not
letting it contact the workpiece.

FIG. 1

FIG. 2

FIG. 3

FIG. 4

FIG. 5

25

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

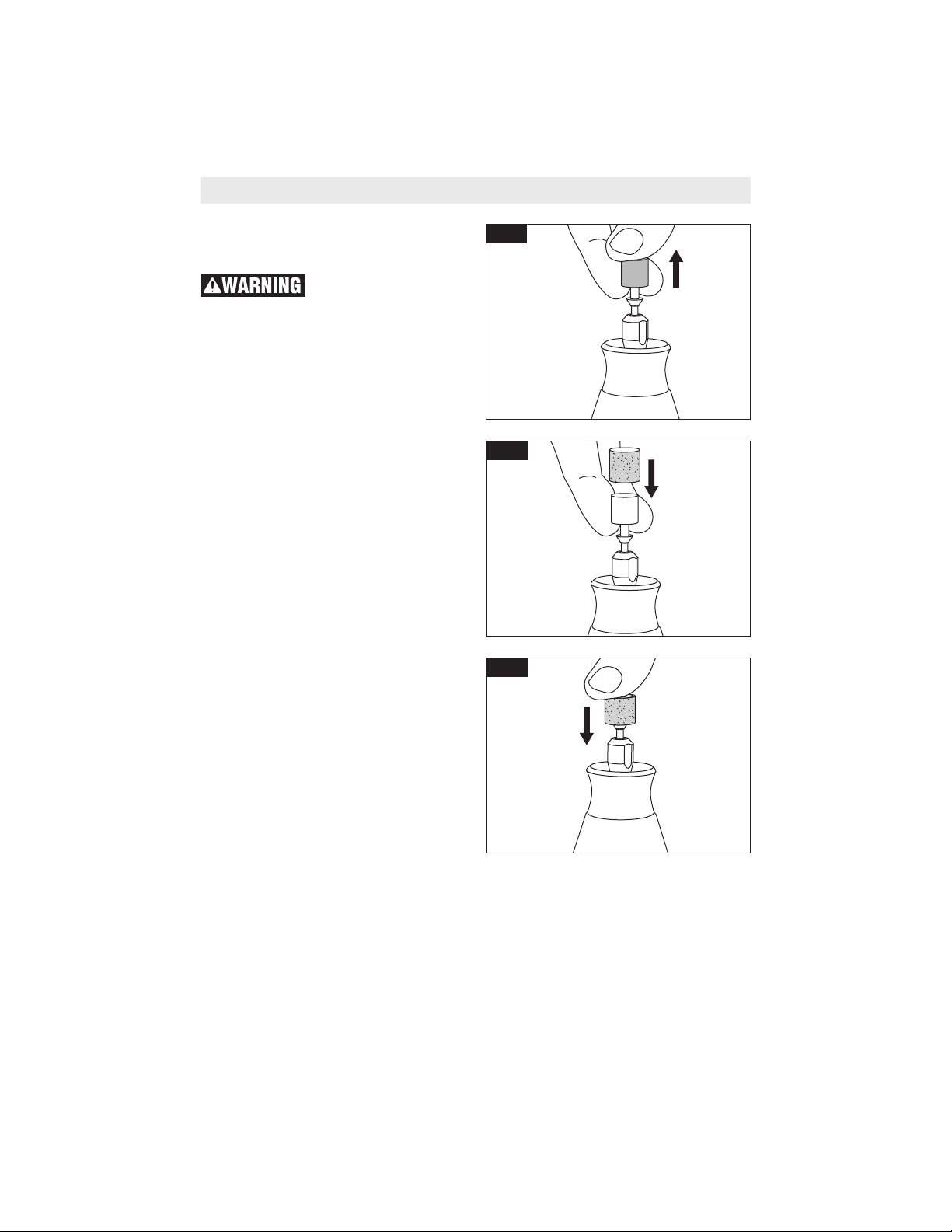

EZ Drum™Operating Instructions

EZ Drum™ Mandrel No. EZ407SA has a

spring loaded sleeve and is used with
sanding bands.

Always make sure the

rotary tool is “OFF” and
dis c o nnec t the p l ug f r o m t h e powe r
source or the battery pack from the tool

bef o r e cha n ging a c cesso r i es. Such

preventative safety measures reduce the risk
of starting the power tool accidentally.

Always make sure accessory is properly

seated on mandrel before use. Incorrect

seating of accessory on mandrel may lead to
personal injury or property damage.

To load accessory:

1. As indicated, place two fingers underneath

the mandrel and pull firmly up. This will
place the EZ Drum™ in the "unlocked"
position (Fig. 1).

2. Keeping two fingers beneath the mandrel,

slide the sanding band down until the
entire blue mandrel is covered (Fig. 2).

3. To return to "locked" position, press firmly

down on the top of the mandrel (Fig. 3).

Removing the sanding band on

the mandrel:

1. Place two fingers underneath the mandrel

and pull firmly up. This will place the EZ
Drum™ in the "unlocked" position (Fig. 1).

2. Sanding band will now easily slide off

mandrel (Fig. 2). Do not squeeze sanding
band when removing from EZ Drum™
mandrel. This can lead to rubber band
pulling off mandrel and becoming
inoperable.

FIG. 1

FIG. 2

FIG. 3

26

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Speed Settings

Note: Each number settings listed in the speed charts = x 1,000 RPMs

* Speed for light cuts, Caution - burning on deep grooves.

• Depending on cutting direction relative to grain.

High Speed Cutters

Catalog

Number

100, 121, 131 25-35 25-35 12-17 12-17 18-24 - - -

114,124, 134, 144 25-35 12-17 9-11 12-17 12-17 - - -

Soft

Wood

Hard

Wood

Laminates

/Plastics

Steel

Aluminum,
Brass, etc.

Shell/
Stone

Ceramic Glass

118, 190, 191, 192,

193, 194

116, 117, 125, 196 25-35 12-17 9-11 12-17 12-17 - - -

115 25-35 25-35 9-11 12-17 12-17 - - -

198, 199 25-35 18-24 9-11 12-17 12-17 - - -

25-35 25-35 9-11 12-17 25-35 - - -

Engraving Cutters

Catalog

Number

105, 108 25-35 25-35 18-24 9-11 12-17 - - -

106, 107, 109, 110 25-35 25-35 12-17 9-11 12-17 - - -

111 25-35* 25-35* 18-24* 9-11 12-17 - - -

112, 113 25-35* 25-35* 12-17* 9-11 12-17 - - -

Soft

Wood

Hard

Wood

Laminates

/Plastics

Steel

Aluminum,
Brass, etc.

Shell/
Stone

Ceramic Glass

Diamond Wheel Points

Catalog

Number

7103, 7105, 7117,
7120, 7122, 7123,

7134, 7144

Soft

Wood

25-35 18-24 - - - 25-35 25-35 25-35

Hard

Wood

Laminates

/Plastics

Steel

Aluminum,
Brass, etc.

Shell/
Stone

Ceramic Glass

Structured Tooth Tungsten Carbide Cutters

Catalog

Number

9931, 9932, 9933,

9934, 9935, 9936

Find Quality Products Online at: [e-mail]

Soft

Wood

25-35 18-24 9-11 - 12-17 - - -

Hard

Wood

Laminates

/Plastics

Steel

Aluminum,
Brass, etc.

Shell/
Stone

Ceramic Glass

www.GlobalTestSupply.com

27

Speed Settings (Continued)

Note: Each number settings listed in the speed charts = x 1,000 RPMs

* Speed for light cuts, Caution - burning on deep grooves.

• Depending on cutting direction relative to grain.

Tungsten Carbide Cutters

Catalog

Number

9901, 9902, 9903,
9904, 9905, 9906,

9912

9909, 9910, 9911 - - - - - 18-24 18-35 18-35

Catalog

Number

612, 640 25-35* 18-24• - - - - - ­615, 617, 618 25-35* 25-35• - - - - - ­650, 652, 654 25-35* 18-24• - - - - - -

Catalog

Number

83142, 83322,
83702, 84922,
85422, 85602,

85622

Soft

Hard

Wood

25-35 18-24 9-11 25-35 12-17 18-24 18-35 18-35

Wood

Laminates

/Plastics

Steel

Aluminum,
Brass, etc.

Shell/

Stone

Ceramic Glass

High Speed Router Bits

Soft

Hard

Wood

Wood

Laminates

/Plastics

Steel

Aluminum,
Brass, etc.

Shell/

Stone

Ceramic Glass

Silicon Carbide Grinding Stones (blue/green)

Soft

Hard

Wood

- - 12-17 25-35 9-11 12-17 25-35 25-35

Wood

Laminates

/Plastics

Steel

Aluminum,
Brass, etc.

Shell/

Stone

Ceramic Glass

Abrasive Wheels / Points

Catalog

Number

516 4-6 4-6 - 18-24 12-17 - - ­500 4-6 4-6 - 18-24 9-17 - - -

EZ541GR - - - 12-24 9-17 - - -

Soft

Wood

Hard

Wood

Laminates

/Plastics

Steel

Aluminum,
Brass, etc.

Shell/

Stone

Ceramic Glass

Aluminum oxide grinding stones (orange/brown)

Catalog

Number

541, 903, 911, 921,
932, 941, 945, 952,
953, 954, 971, 997,

8153, 8175, 8193,

8215

28

Soft

Hard

Wood

25-35 25-35 - 18-24 9-11 12-17 25-35 -

Wood

Laminates

/Plastics

Steel

Aluminum,
Brass, etc.

Shell/

Stone

Ceramic Glass

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Speed Settings (Continued)

Note: Each number settings listed in the speed charts = x 1,000 RPMs

* Speed for light cuts, Caution - burning on deep grooves.

• Depending on cutting direction relative to grain.

Chain Saw Sharpening Stones

Catalog

Number

453, 454, 455 - - - 25-35 - - - -

Catalog

Number

409, 420, 426, 540,

EZ409
543, EZ544 25-35 18-35 5-11 - - - - ­545, EZ545 18-35 18-24 - - - 12-24 12-24 -

560
561 12-35 12-35 5-11 - 25-35 - - -

562 - - - - - - 25-35 ­EZ456 - - - 25-35 25-35 - - ­EZ476 - - 5-11 - - - - -

Catalog

Number

461, 462, 463 - - - 18-24 18-24 18-24 18-24 18-24
414, 422, 429 - - - 12-17 12-17 12-17 12-17 12-17

425, 427 - - - 18-24 18-24 - - -

423E - - - 12-24 5-8 5-8 5-8 12-24

Soft

Hard

Wood

Wood

Laminates

/Plastics

Steel

Aluminum,
Brass, etc.

Shell/

Stone

Ceramic Glass

Cutting Accessories

Soft

Hard

Wood

- - 5-11 25-35 25-35 25-35 25-35 -

Laminates

Wood

/Plastics

For use on drywall. For best results, use at 30,000 rpm

Steel

Aluminum,
Brass, etc.

Shell/

Stone

Ceramic Glass

Polishing Accessories

Soft

Hard

Wood

Wood

Laminates

/Plastics

Steel

Aluminum,
Brass, etc.

Shell/

Stone

Ceramic Glass

Wire Brushes

Catalog

Number

403, 404, 405 9-11 9-11 5-11 12-17 5-8 - - ­428, 442, 443 9-11 9-11 5-8 9-11 9-11 - - ­530, 531, 532 - 9-11 - 9-11 - - - ­535, 536, 537 9-11 9-11 - 9-11 9-11 9-11 - -

Soft

Wood

Hard

Wood

Laminates

/Plastics

Steel

Aluminum,
Brass, etc.

Shell/

Stone

Ceramic Glass

Sanding Bands and Discs

Catalog

Number

407, 408, 430, 431,
432, 438, 439, 440,

444

411, 412, 413 12-17 12-17 5-8 - 5-8 - - -

Soft

Hard

Wood

5-35 5-35 5-17 25-35 25-35 5-35 5-35 -

Wood

Laminates

/Plastics

Steel

Aluminum,
Brass, etc.

Shell/

Stone

Ceramic Glass

29

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Speed Settings (Continued)

Note: Each number settings listed in the speed charts = x 1,000 RPMs

* Speed for light cuts, Caution - burning on deep grooves.

• Depending on cutting direction relative to grain.

Flapwheels

Catalog
Number

502, 503, 504, 505 25-35 18-24 5-8 25-35 18-35 - - -

Catalog
Number

511E, 512E 12-17 12-17 9-11 12-17 12-17 - - -

Catalog
Number

EZ471SA,
EZ472SA,

EZ473SA

Soft

Hard

Wood

Wood

Laminates

/Plastics

Steel

Aluminum,

Brass, etc.

Shell/

Stone

Ceramic Glass

Finishing Abrasive Buffs

Soft

Hard

Wood

Wood

Laminates

/Plastics

Steel

Aluminum,

Brass, etc.

Shell/

Stone

Ceramic Glass

Detail Abrasive Brushes

Soft

Hard

Wood

Wood

5-17 5-17 5-17 5-17 5-17 - - -

Laminates

/Plastics

Steel

Aluminum,

Brass, etc.

Shell/

Stone

Ceramic Glass

Drill Bit

Catalog
Number

150 25-35 18-35 5-11 - 12-17 - - -

Soft

Wood

Hard

Wood

Laminates

/Plastics

Steel

Aluminum,

Brass, etc.

Shell/

Stone

Ceramic Glass

Glass Drilling Bits

Catalog
Number

662DR, 663DR - - - - - 5-17 5-17 5-17

Soft

Wood

Hard

Wood

Laminates

/Plastics

Steel

Aluminum,

Brass, etc.

Shell/

Stone

Ceramic Glass

Grout Removal Bits

Catalog
Number

569, 570 For use on wall and floor grout - 12-24 -

30

Soft

Wood

Hard

Wood

Laminates

/Plastics

Steel

Aluminum,

Brass, etc.

Shell/

Stone

Ceramic Glass

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Dremel Attachments

The following attachments are not included with all kits.

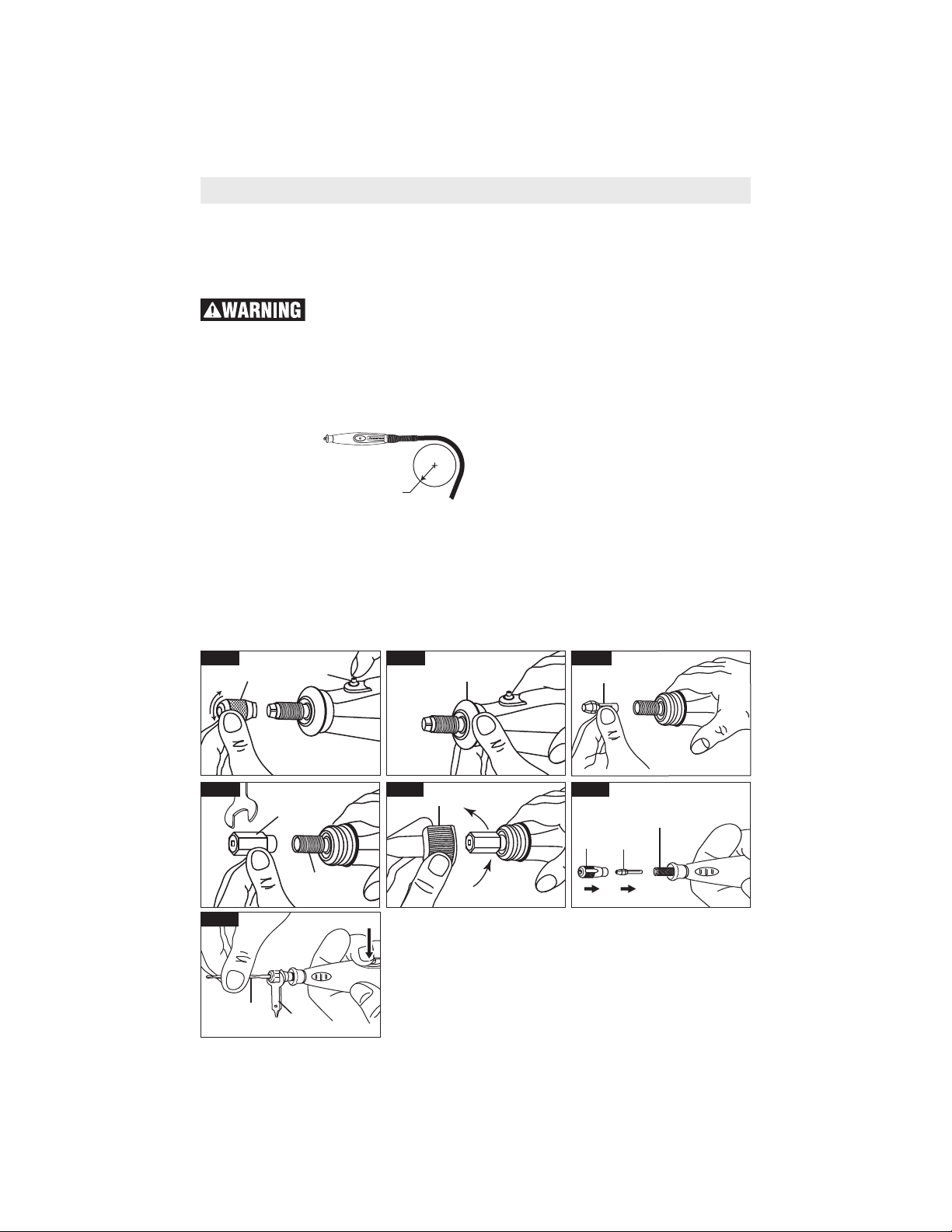

Flex Shaft Attachment Model 225

Safety Rules for Flex Shaft

Re ad the too l m anu al

for the use of this accessory with your tool.

Failure to follow all instructions listed below
may result in serious personal injury.

Wear ANSI compliant eye protection. The
operation of any powe r tool can result in
foreign objects being thrown into the eyes.

Do not operate the
flexible shaft with a
sharp or multiple
bends. Ensure that
there are no sharp
residual bends or
kinks in the flexible
shaft before operation. Over bending the

shaft can generate excessive heat on the
jacket or h and pi ec e and may caus e the
flexible shaft to disengage from tool. The
minimum recommended bend radius is 6”.

Always hold the hand piece firmly in your
hands during the start-up. The reaction

and these instructions

6" RADIUS

torque of the motor, as it accelerates to full
speed, can cause the shaft to twist.

No t for use wit h r o uter bit s o r oth er
large diameter (1” or larger) bits. Large

diameter bits can cause kickback and loss
of control when used with the flexible shaft.

Do not remove end ferrule while tool is
running. The cable will become loose from the

jacket and will uncontrollably whip or lash
around.

Installation Instructions

It is extremely important to carefully read and
follow the directions to assemble the flexible
shaft to your rotary tool below to ensure the
tool will function properly.

To pro perly a ttach t he Flex S haft to th e
rotary tool, THREE items must be removed
from the tool: the nose cap, Dremel Chuck or
collet nut and collet.

1. Press the Shaft lock button 1, unscrew and
remove the collet nut or Dremel Chuck 2
(Fig. A1).

FIG. A1 FIG. A2

2

FIG. A4

1

FIG. A5

5

6

FIG. A7

9

10

3

7

FIG. A3

4

FIG. A6

8

2

4

31

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

2. Unscrew the nose cap 3 from the tool (Fig.
A2).

3. Remove the collet 4 (Fig. A3).

Note : If the colle t nu t an d collet are no t
removed from the motor shaft, the tool will not
function properly.

4. Install the driver cap 5 on the motor shaft 6

and tighten (Fig. A4).

To preve nt d am age to

tool, do not overtighten

driver cap. Tighten the driver cap finger tight

and then tighten an additional 1/3 turn with the
wrench or nose cap. (Wrench included with
your rotary tool kit)

5. Attach by screwing the collar of the Flex

Shaft 7 to the rotary tool. Make sure the
square end of the center core engages the
sq uar e hol e socket in th e driv e r ca p
(Fig. A5).

6. Refer to “Dremel Chuck” and “Collets”
se ction s of th e rotar y tool manua l for
instructions on how to change accessories.

Do no t pull out center

co re to e nga ge in to

driver cap. This could cause disengagement

of center core from handpiece. If tool stops
when shaft is bent, center core may be lodged
in driver cap. Loosen shaft and remove core
from driver cap. Then screw flexible shaft onto
rotary tool housing again.

Operating Instructions

Run-In before Operation

For optimum performance, allow your new flex
shaft attachment to run at high speed on your
rotary tool in a vertical position for 2 minutes
before use (Fig. A7).

Disengagement of the Flex Shaft

The flexible shaft may become disengaged if
the motor of your rotary tool is not elevated
higher than the working end of the Flex Shaft.

Collet Removal and Replacement

Four different size collets to accommodate
different shank sizes, are sold separately for
your Flex Shaft. To install a different collet,
remove the collet nut 2 and remove the old
collet 4. Insert the unslotted end of the collet in
the hole in the end of the Flex Shaft 8. Replace
collet nut on the shaft (Fig. A5).

Flexible Shaft Lubrication

The Flex Shaft should be lubricated after every
25-30 hours of use. To lubricate, unscrew the
Flex Shaft assembly from the motor housing.
Pull the center core out of the Flex Shaft
assembly. Wipe a very thin film automotive
wheel bearing grease on to the center core and
reinsert it back into the shaft. To prevent

damage to tool do not over grease shaft.

To o m uch gr ease will ca use th e u nit to
overheat.

Reattach the Flex Shaft to the rotary tool.

FIG. A7

32

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

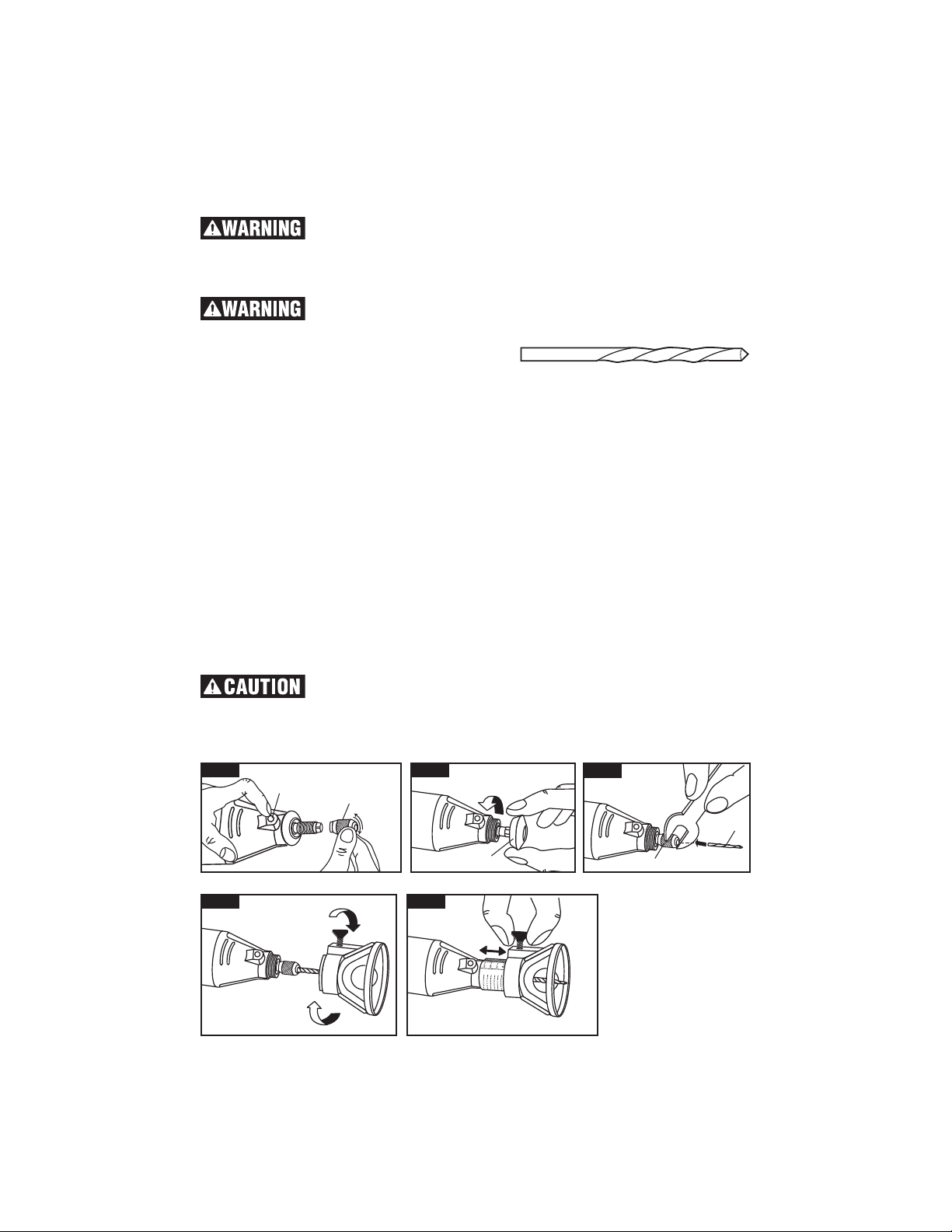

Cutting Guide attachment Models 565 and 566

Re ad the too l m anu al

and these instructions

for the use of this accessory with your tool.

Failure to follow all instructions listed below
may result in serious personal injury.

Do n o t use Dr e m el

chu c k w i th t his
attachment. Only use a collet and collet
nut.

The cutt i n g g u i de c o m es c o mplet e l y
assembled and ready to use on a variety of
materials up to 3/4" (19 mm) thick. Always
hold the too l firmly, using a slow steady
pressure to guide the tool through your work.
The speed of the tool will do the work.

IMP O R TANT : Al w a ys cut in clock w i se
direction except when following a template ,
then cut in counter clockwise direction.

Cutting Guide Attachment Installation

Instruction

1. Press the Shaft lock button 1, unscrew and

remove the collet nut 2 (Fig. B1).

2. Unscrew the nose cap 3 from the tool (Fig.

B2).

3. Place the collet nut 2 loosely on the end of

the rotary tool and insert the cutting bit 4.
Tighten collet nut 2 using the wrench or
nose cap (Fig. B3).

When inserting the #560,

#561 and #562 Cutting Bit
into your Dremel Rotary Tool, be sure that
the bit is securely inserted into the collet.
Alw a ys u se the wren c h o r no s e c a p t o

tighten the collet nut to prevent the bit from
loosening within the collet.

4. Thread the Cutting Guide Attachment 5
onto the exposed housing threads on the
rotary tool (Fig. B4).

5. A djus t the att achm ent to th e d esir ed
cutting depth (Fig. B5).

56 0
Drywall Cutting Bit – For use in drywall.

Use with 1/8" (3.2 mm) collet #480 and collet
nut.

When inserting the #560 bit into your rotary
tool, it is very important that at least 1/16” (1.6
mm) and no more than 1/8" (3.2 mm) of
smooth shank remains visible above the collet.
Leaving too much shank out of the tool can
cause the bit to spin unevenly and make the
tool difficult to control. The guide has a "0"
depth marking on it, however, when inserted
properly, the bit will stick out from the end of
the guide by 1/16” (1.6 mm) – 1/8" (3.2 mm).
The depth can be adjusted from that point on a
continuous slide up to 3/4" (19 mm).

When making freehand cuts in drywall – e. g.
Repairing a hole in drywall, you may use the
#560 Drywall Cutting Bit (cutting in a counter
clockwise direction) or the #561 Multipurpose
Cutting Bit (cutting in a clockwise direction).

When using a template (like an outlet box)
behind the drywall, use the drywall bit #560,
cutting in a counter clockwise direction. When

FIG. B1 FIG. B2

1

2

FIG. B3

4

3

FIG. B4

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

FIG. B5

2

33

using the #560 bit you will be able to cut in a
counter clockwise direction because the bit
has a piloted tip and won’t cut into the outlet
box. The maximum cutting depth is 3/4" (19
mm). Thicker materials may require a slower,
steadier cut. The recommended tool speed for
the Drywall Cutting bit is generally 25,000­35,000 rpm. Caution should be used when
making overhead cuts so debris is not getting
drawn into the tool.

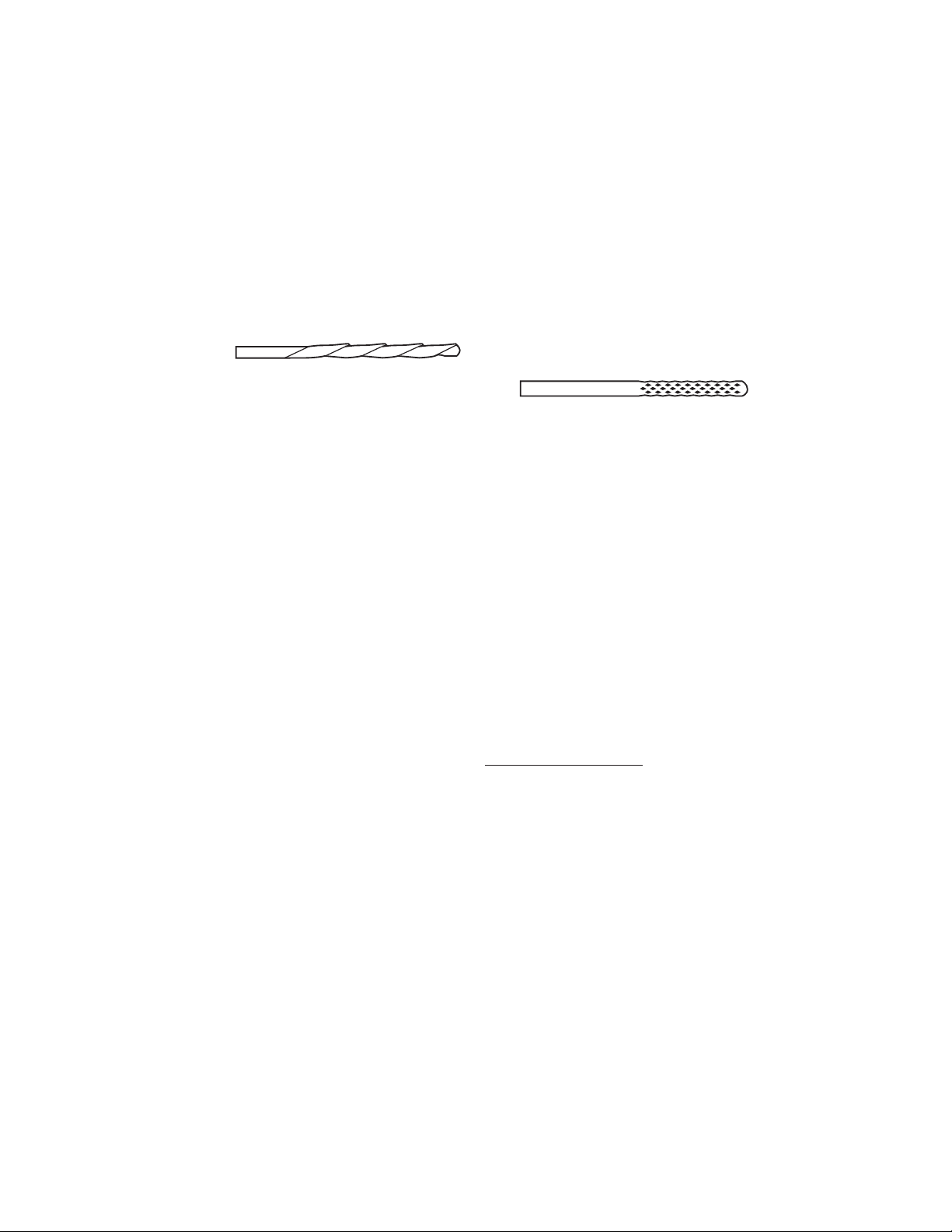

56 1
Multipurpose Cutting Bit – For use in wood,

pl ast ics , dr ywall, fibe rgl ass , vi nyl or
al umi num sidin g, ac ous tic al tile and
laminates.

Use with 1/8" (3.2 mm) collet #480 and collet
nut.

When inserting the #561 bit into your rotary
tool, it is very important that at least 1/16” (1.6
mm) and no more than 1/8" (3.2 mm) of
smooth shank remains visible above the collet.
Leaving too much shank out of the tool can
cause the bit to spin unevenly and make the
tool difficult to control. The guide has a "0"
depth marking on it, however, when inserted
properly, the bit will stick out from the end of
the guide by 1/16” (1.6 mm) – 1/8" (3.2 mm).
The depth can be adjusted from that point on a
continuous slide up to 3/4" (19 mm).

When making freehand cuts in drywall –ex.
re pai rin g a hol e in dr ywa ll, u se th e
multipurpose bit #561, cutting in clockwise
direction. When using a template (like an outlet
box) behind the drywall, use the drywall bit
#560, cutting in a counter-clockwise direction.
The maximum cutting depth is 3/4" (19 mm).
Th icker m ate rials m ay r equ ire a slo wer,
steadier cut.

Wh en plu nge -cu tting u sin g t he #56 1
Multipurpose Cutting Bit, start the bit into the

material at a 45 degree angle and then slowly
bring the bit and tool to a 90 degree angle to
begin cutting. Keep in mind the sides of the bit
are what actually do the cutting. Caution
should be used when making overhead cuts
so debris is not getting drawn into the tool.

Recommended tool speeds:

Plastics, Fiberglass

and Laminates . . . . . . . . . . . .10,000 – 15,000

Wood . . . . . . . . . . . . . . . . . . .20,000 – 35,000

Drywall, Vinyl or Aluminum

Siding and Acoustical Tile . . . . . . . . . . .35,000

56 2
Tile Cutting Bi t – For use on w al l tile ,

cement board and plaster

Use with 1/8" (3.2 mm) collet #480 and collet
nut.

When inserting the #562 bit into your rotary
tool, it is very important that at least 1/16”
(1.6 mm) and no more than 1/8" (3.2 mm) of
smooth shank remains visible abo ve the
collet. Leaving too much shank out of the tool
can cause the bit to spin unevenly and make
the tool difficult to control.

When pl unge-cutting us ing the #562 Tile
Cutting Bit, start the bit into the material at a
45 degree angle and then slowly bring the bit
an d t ool to a 90 degr ee angl e t o begi n
cutting. Keep in mind the sides of the bit are
what actually do the cutting. Caution should
be use d when making overh ead cuts so
debris is not getting drawn into the tool.

Recommended speed for this accessory is
35,000 RPM (high speed).

Not for Use on Floor Tile.

34

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

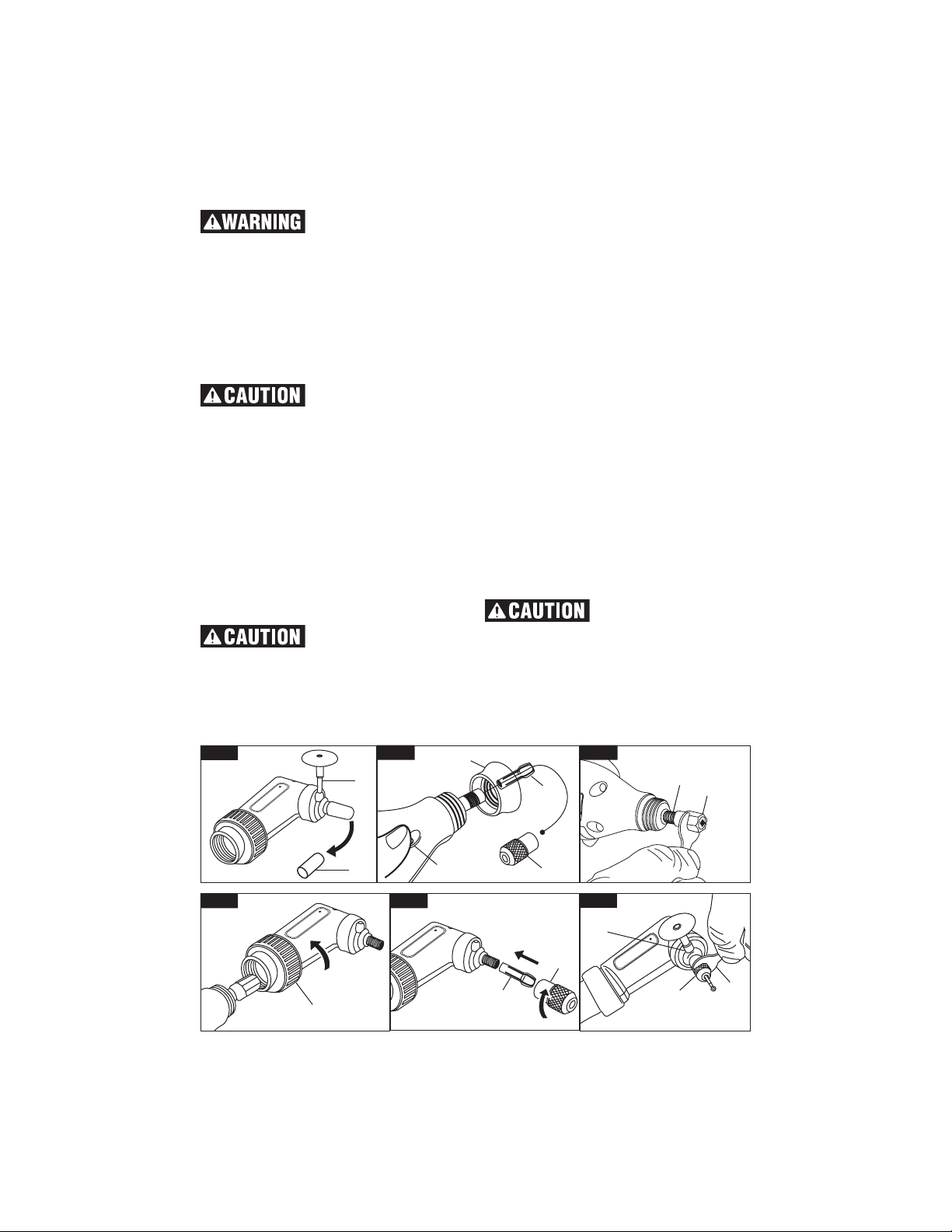

Model 575 Right Angle Attachment

DREMEL

DREMEL

DREMEL

DREMEL

Re ad the too l m anu al

and these instructions

for the use of this accessory with your tool.

Failure to follow all instructions listed below
may result in serious personal injury.

Before you begin, remove the black protective
cap 1 on your attachment. If cap does not slide
off easily, insert the shank portion of any
accessory 2 (1/8" recommended) through the
housing opening of the attachment to hold the
shaft from rotating. Then twist off. (Fig. C1)

Do not use the rotary tool

sh aft lock butt on to
tighten or loosen the collet nut or Dremel
chuck on the right angle attachment. Internal

damage to the attachment may occur.

1. R emove the nose cap 3 f rom you r

existing rotary tool as shown in Fig. C2.
Then press the shaft lock button 4 on your
rotary tool, unscrew the collet nut 5 and
remove the collet 6.

Set your collet nut 5 and collet 6 aside it will
be reinstalled later in step 4.

2. Install the drive adapter 7, included with your

right angle attachment, on the motor shaft 8
as shown in Fig. C3 and tighten.

Do not over tighten drive

adapter. Tighten the drive

ad apter fi nger tig ht and then ti ght en an
additional 1/3 turn with the wrench. (Wrench
included with your rotary tool kit.)

3. Screw the attachment 9 onto your rotary

tool. Hand tighten only (Fig. C4).

4. Reassemble the collet 6 and the collet nut 5
from step 1, on to the output shaft of the
attachment (Fig. C5).

The Right Angle Attachment can be oriented on
your rotary tool in 12 different positions. The
attachment should be positioned so the on/off
speed control switch is easy to access.

To reposition, unscrew the collar from the
at tachm ent until dis eng aged. Sli de t he
attachment off. Then, reposition, slide the
attachment back on the tool and retighten the
collar.

Insert the shank portion of any accessory 2
(1/8” recommended) through the housing
opening of the attachment to hold the shaft
from rotating (Fig. C6). Refer to “Dremel
Chuck” and “Collets” sections of the rotary tool
manual for instructions on how to change
accessories. With the shaft secured, tighten
the collet nut or Dremel chuck 5 using the
wrench or nose cap 10 (Fig. C6). Remove the
shank porti on o f th e ac cesso ry f rom the
housing opening before using the attachment
(Fig. C6).

Do not use the rotary tool

sh aft lock butt on to
tighten or loosen the collet nut or Dremel
ch uck on th e r ight angle attach ment.

Internal damage to the attachment may occur.

FIG. C1

FIG. C4

FIG. C2 FIG. C3

2

1

FIG. C5

3

8

6

4

5

FIG. C6

7

2

5

6

5

10

9

35

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

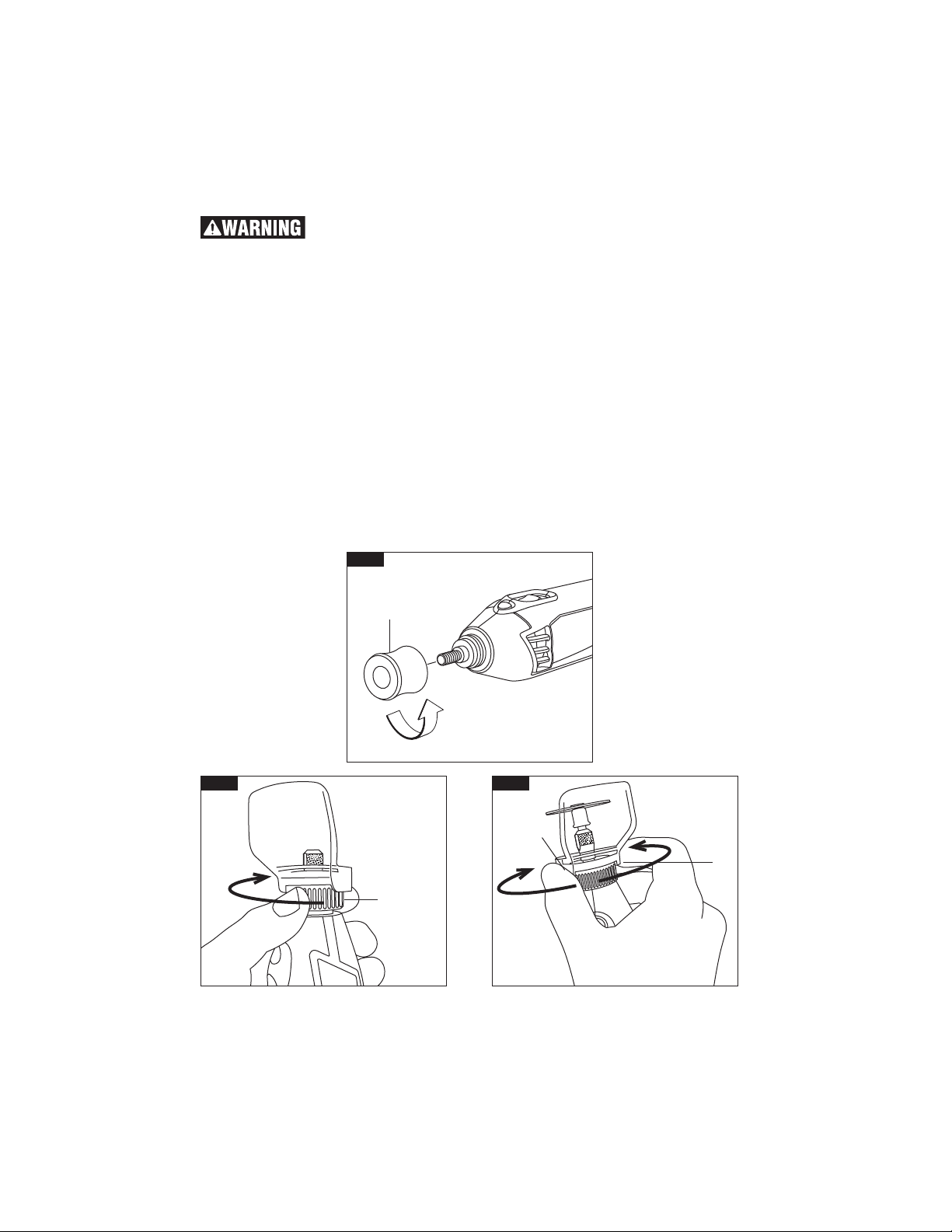

Shield Rotary Tool Attachment Model A550

Read the manual for the

use o f the tool with this
ac ces sor y. W ear eye an d re spi rat ory
protection. Replace Dremel Shield Rotary Tool
Attachment if spinning accessory is no longer
visible through the Shield during use.

The Dremel Shield is not recommended for
use carving, routing, and drilling accessories.
Please refer to the Dremel Rotary Tool’s
Owner’s Manual for usage and installation of
any Dremel Accessories.

Dremel Shield Rotary Tool Attachment

Installation Instructions:

1. Remove the nose cap A from the end of the

tool and set nose cap aside. The original
nose cap must be reinstalled when this
attachment is not used (Fig. D1).

2. Screw the Shield onto the tool using the

lock nut B (Fig. D2).

FIG. D1

A

3. Position the Shield such that it will redirect
debris, sparks, and dust away from the user
using the positioning tabs C (Fig. D3).

Using the Dremel Shield Rotary Tool

Attachment:

Always turn tool power off before adjusting
position, changing accessory, and removing
attachment. Dremel Rotary Tools cut, sand,
grind, and polish in many directions. To
ac com mod ate the D rem el Ro tar y Too ls’
maneuverability, the Dremel Shield can be
quickly positioned and repositioned with a turn
to the right or left. To extend the life of the
Dremel Shield periodically clean with a soft
bristle brush or compressed air.

FIG. D2 FIG. D3

C

C

B

36

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

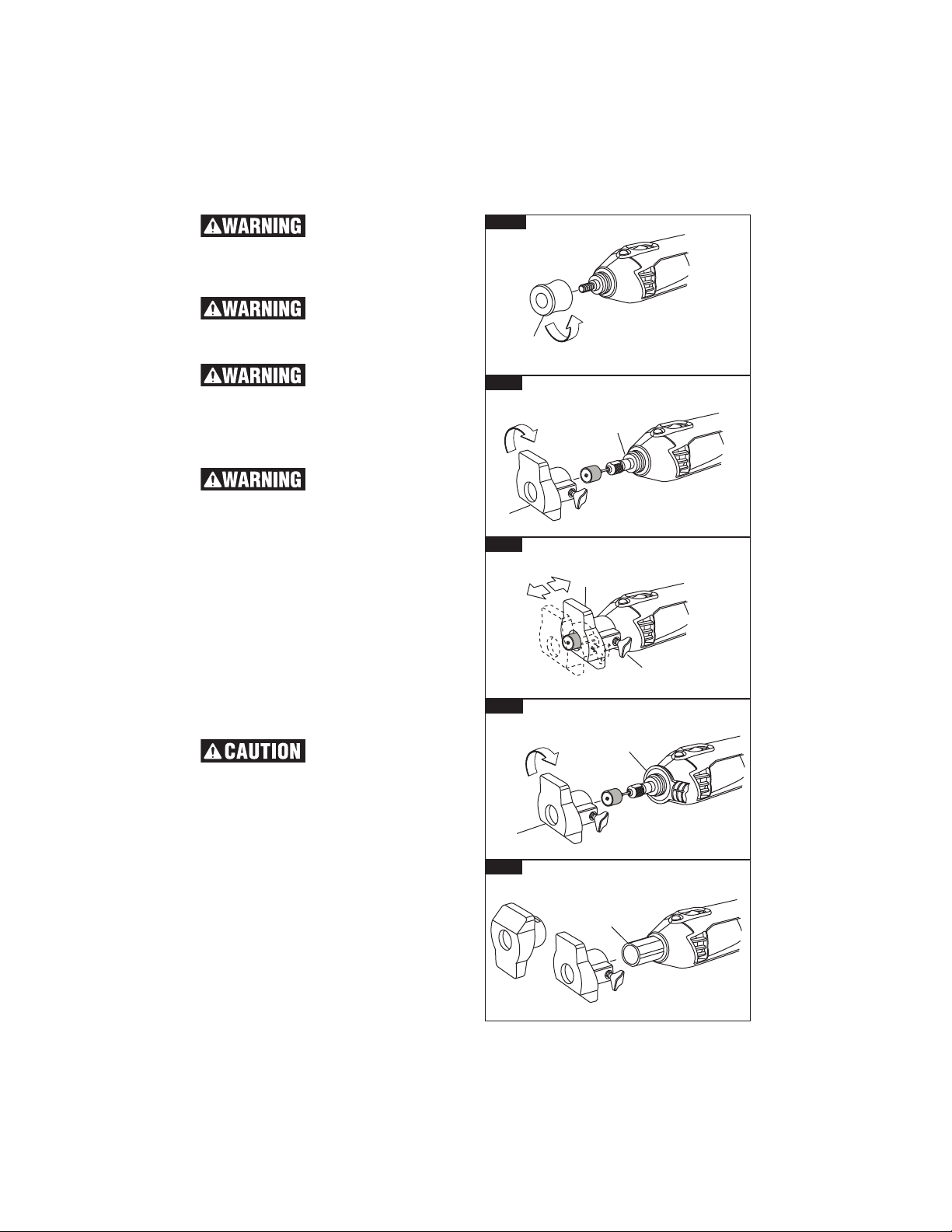

Sanding/Grinding Guide Attachment Model A576

Re ad the too l m anu al

and these instructions

for the use of this accessory with your tool.

Failure to follow all instructions listed below
may result in serious personal injury.

Do n o t use D r e mel

chu c k w i th this
attachment. Only use a collet and collet
nut.

For use with 1/2” or less

sanding and grinding stone
accessories only.

The guide comes completely assembled and
re ady to use for san din g an d gr ind ing
applications up to ½” ( 13 mm) thick.

Router bits are not allowed

fo r us e wit h th e
Sanding/Grinding Guide attachment.

Sanding/Grinding Guide Attachment

Installation instructions:

1. Remove the nose cap A from the end of

th e too l and set n ose c ap as ide. The
original nose cap must be reinstalled when
this attachment is not used (Fig. E1).

2 Loo sen th e collet nu t a nd place yo ur

ac ces sor y in an d tighten. Note: The
attachment is for ½” diameter accessories
or smaller. Please refer to the Rotary tool
instructions manual for proper collet nut
as sem bly ins tru cti ons and ac ces sor y
operation instructions.

When inserting a bit into

your Dremel Rotary Tool
be sure that the bit is securely inserted into the
collet. Always use the wrench to tighten the
collet nut to prevent the bit from loosening
within the collet.

3. Thread the attachment B onto the threaded

portion of the housing collar C (Fig. E2).

4. Adjust the attachment B to the desired

depth by loosening the wing knob D (Fig.
E3).

Using the Sanding/Grinding Guide

Attachment

The guide has a 90 and 45 degree bevel for
various sanding applications. The tool with the
guide attached can be taken to a secure work
piece or can be stationary in the Dremel Multi­Vise.

FIG. E1

A

FIG. E2

C

B

FIG. E3

B

D

FIG. E4

F

B

FIG. E5

E

37

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Installation instructions to Dremel Multi-

Vise:

The tool with the guide attached can be taken
to a secure workpiece or can be stationary in
th e Dre mel M ult i-V ise 2 500 -01 ( Sol d
Separately).

1. S et up Dremel Mul ti- Vis e on se cur e

workbench. Place the tool holder into the
Dremel Multi-Vise according to Dremel
Multi-Vise instructions.

2. Place tool with accessory secure through

the tool holder F (Fig. E4).

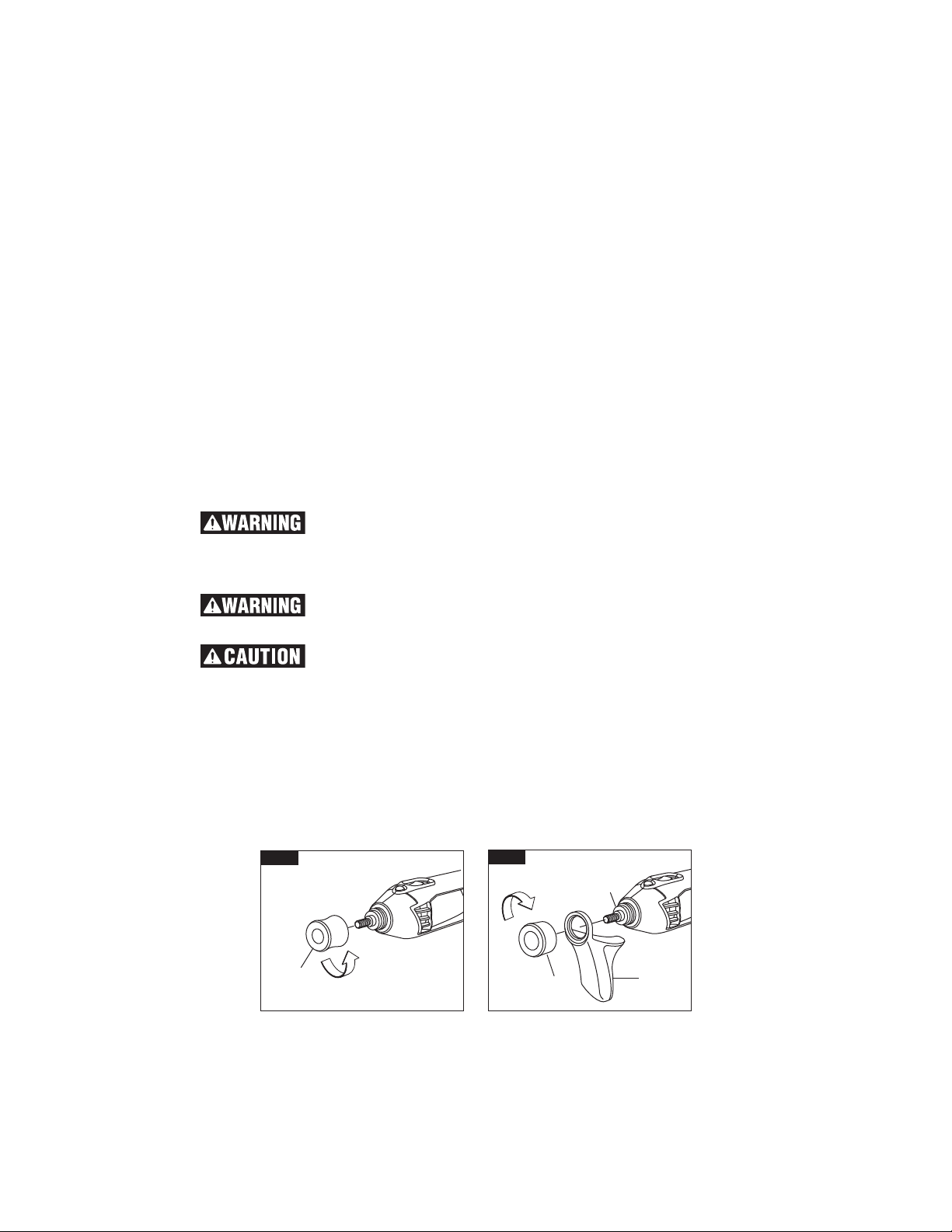

Detailer’s Grip Attachment Model A577

3. Hold the Sanding/Grinding Guide B firm
and thread onto front end of tool until tightly
secure (Fig. E4).

4. The guide can be adjusted from the 90
de gree si de to the 4 5 degre e sid e by
loosening the wing nut D and sliding the
attachment B off the cylinder E (Fig. E5).

5. Turn the attachment B 180 degrees and
slide the attachment B onto the cylinder E
and tighten wing knob D at desired depth
(Fig. E5).

Re ad the too l m anu al

and these instructions

for the use of this accessory with your tool.

Failure to follow all instructions listed below
may result in serious personal injury.

Pr eve nt fin ger s from

ma kin g con tac t wi th

rotating bit.

Do not tighten detailer’s
grip over shaft lock button.

The attachment comes with its own nose piece
to tighten the handle to the tool.

Detailer’s Grip Attachment

Installation Instructions

1. Remove the nose cap A from the end of the
tool and set nose cap aside. The original
nose cap must be reinstalled when this
attachment is not used (Fig. F1).

FIG. F1

2. Place handle B over housing collar C with
the handle in th e desired p os it io n and
securely tighten the handle B with the nose
piece D that’s provided with handle (Fig.
F2).

Make sure detailer’s grip is fully secured before
using tool.

Note: Attachment may not install flush onto
tool's housing.

Removing the Detailer’s

Grip Attachment

1. Hold the handle B firmly and twist the tool
until the nose piece D is loose. Remove
nose piece D and handle B from housing
collar C and reinstall original nose cap A
(Fig. F2).

FIG. F2

C

A

38

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

D

B

Introduction

This attachment is designed to give you the
ultimate precision and control when working on
your projects. It is designed for you to hold
and control the tool like a pencil, between your
thumb and forefing er . When held i n this
position you can hardly feel the weight of the
tool. It is meant to be an extension of your
hand. To be comfortable with the Detailer’s
Grip it is important to get the “feel” of it. (See
drawings for recommended way to hold)

The Dremel Detailer’s Grip is intended to be
used on applications such as finishing sanding,
engraving, carving, etching, polishing, and
cleaning, to name a few.

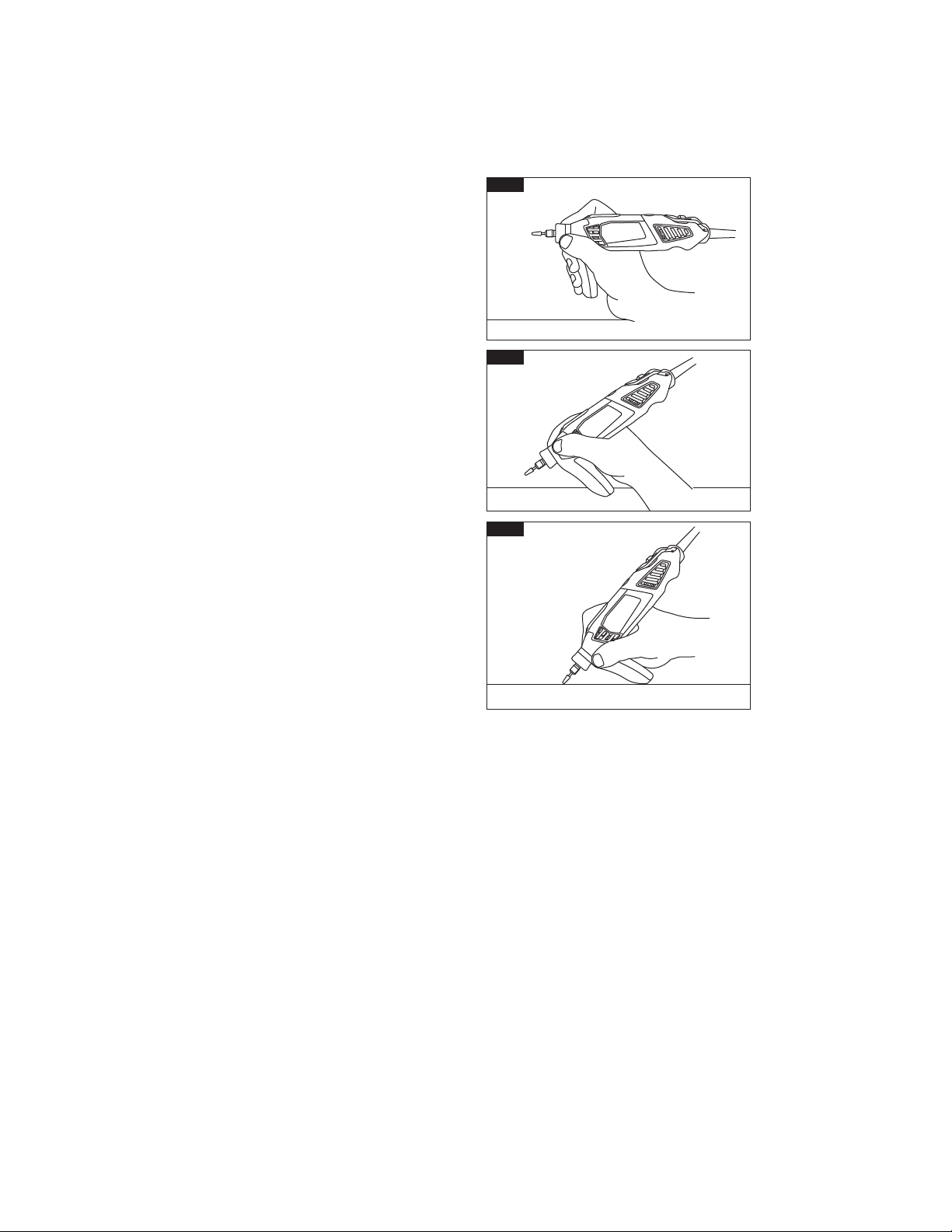

1. Pen cil Grip – Fo r best c ontrol of th e
Detailer’s Grip, hold the tool like a pencil
between your thumb and forefinger (Fig.
F3).

2. Side Grip – Rotate the tool sideways, with
the handle pointing out while resting your
hand on the table (Fig. F4).

3. Stable Grip – For ultimate stability, rest the
handle of t he tool on the tabl e to help
stabilize and control the accessory (Fig. F5).

FIG. F3

FIG. F4

FIG. F5

39

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

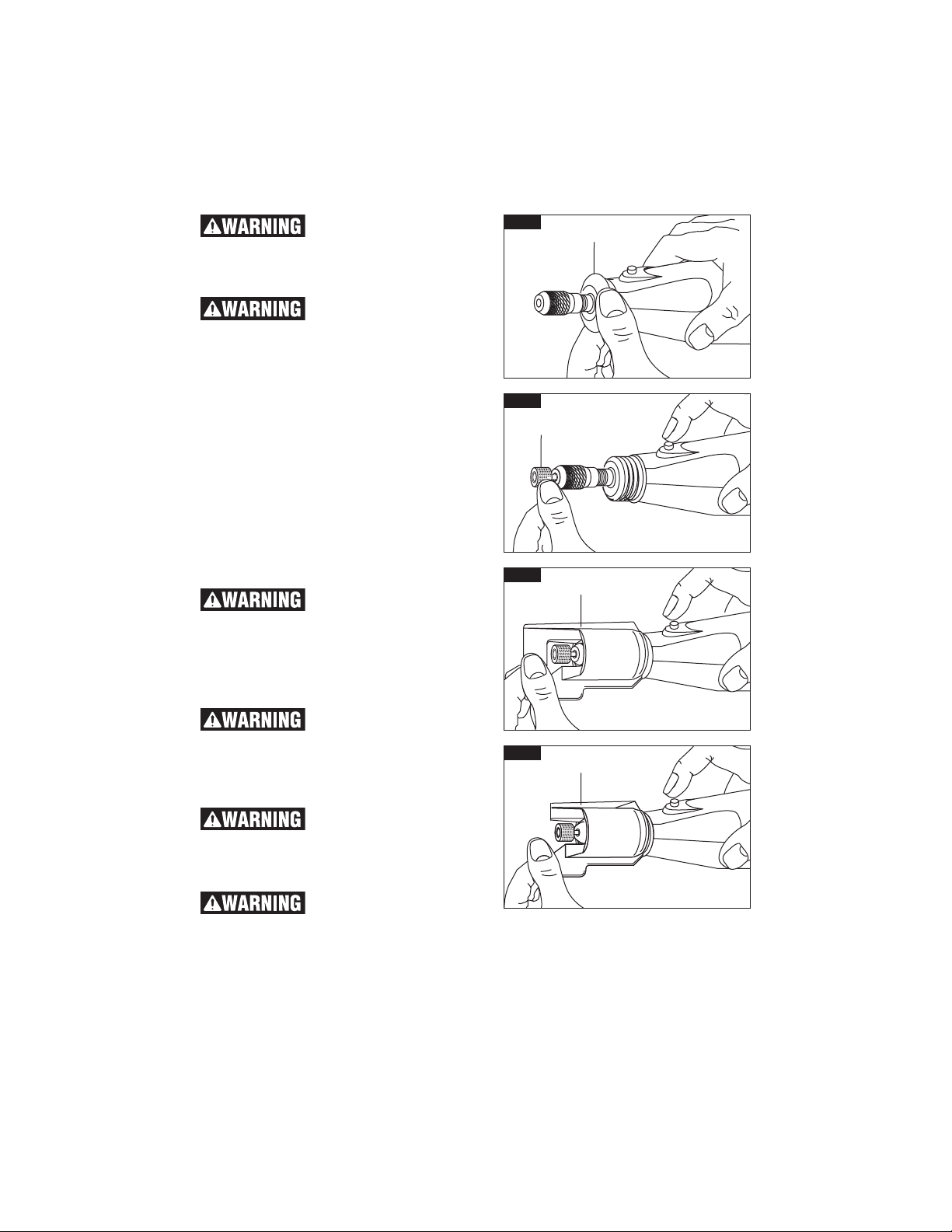

Lawn Mower and Garden Tool Sharpener Model 675

Re ad the too l m anu al

and these instructions

for the use of this accessory with your tool.

Failure to follow all instructions listed below
may result in serious personal injury.

Do n o t use Dr e m el

chu c k w i th t his
attachment. Only use a collet and collet
nut.

Use for sharpening rotary lawn mowe r
blades.

1. Unscrew the nose cap 1 from the tool.

Loosen collet nut. See figure G1.

2. Insert a new or newly dressed Dremel #932

Aluminum Oxide Grinding Stone 2 all the
way into the collet and tighten the collet nut.
The bit must be inserted far enough into the
collet so that the tip does not touch the
attachment. See figure G2.

3. Screw the lawn mower 4 or garden tool

sharpener attachment 3 onto the Dremel
Rotary Tool housing. See figure G3 and G4.

Us e on ly D rem el # 932

sharpening stone with
this attachment. Other stones may not fit

attachment or be properly sized or speed
rated.

Lawn Mower and Garden Tool Sharpener

Operation

Co nsu lt your l awn

mower owner’s manual
for blade maintenance, blade removal, and
reinstallation instructions. Cracks in blade

bo dy or imp rop er bla de removal an d
reinstallation may lead to serious injury.

In spe ct the bla de for

cr ack s or miss ing
sections. Replace blade if found cracked or

damaged. Cracked or damaged blades can
break apart under operation.

We ar eye pro tec tio n,

gloves, and a dust mask.

The operation of any power tool can result in
foreign objects being thrown into the eyes
which can result in eye damage. Lawn mower
blades have sharp edges which can lacerate
hands. Grinding operations generate particles
which can be inhaled.

FIG. G1

FIG. G2

1

2

FIG. G3

FIG. G4

Place removed blade into a vise or clamp.
Po sit ion s har pen er at tac hme nt over th e
beveled edge of the blade, keeping at the
angle of the guide following the angle of the
existing beveled edge. Turn on rotary tool and
pass over each end of the blade an equal

3

4

Sharpen Blade

40

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

number of ti mes, at the same speed a nd
pressure to keep the blade in balance until
edge is sharp.

Stone gr abbing on the

bl ade c orn er can kic k
back and cause loss of control.

Balance Blade

Drive a nail into a beam or wall. Leave about
one inch of straight nail exposed. Place the
center hole of the blade over the head of the
nail with the blade in a horizontal position. If
the blade is balanced, it should remain in a
horizontal position. If one side of the blade
moves downward, use the grinding stone
(without the guide) to remove small amounts of
material from the very end of that side of the
blade. Remove just enough material from the
end to bring the blade to a balanced stop on
the nail.

Sharpening other Garden Tools

The sharpener attachment may be used to
sharpen other non-motorized lawn and garden
tools s uc h as shovels, hoes and pruning
shea rs t hat will fi t in the gui de. Posit ion
sharpener attachment over beveled edge of
tool to be sharpened. Following the angle of
the existing beveled edge with the angle of the
guide, pass over the edge of the garden tool at
an even speed and pressure until it's sharp.

FIG. G5

FIG. G6

3

4

41

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

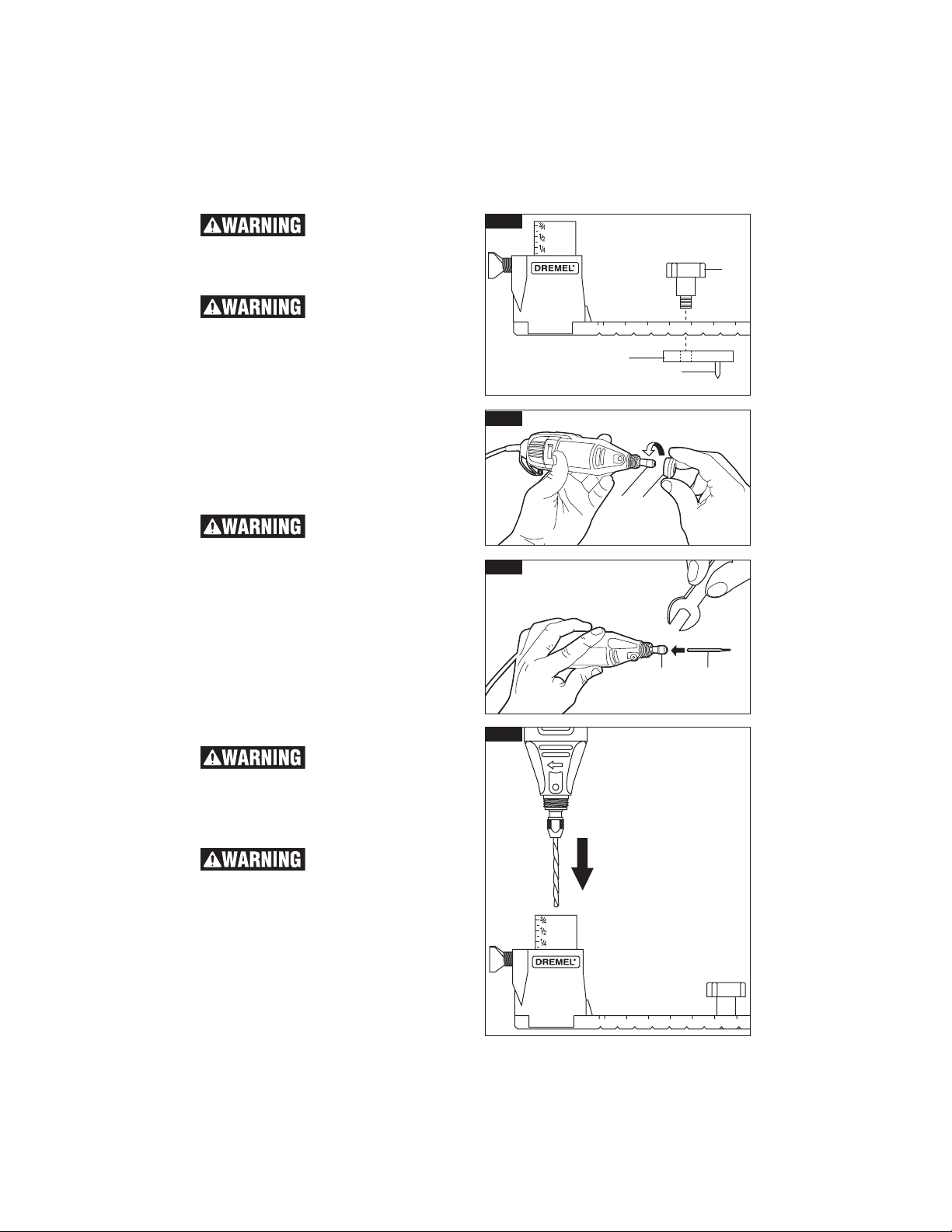

Circle Cutter and Straight Edge Guide Model 678

CM24 6 810121416182022CM

CM 2 4 6 8 10 12 14 16 18 20 22 CM

Re ad the too l m anu al

and these instructions
for the use of this accessory with your tool.

Failure to follow all instructions listed below
may result in serious personal injury.

Do n o t use Dr e m el

chu c k w i th t his
attachment. Only use a collet and collet
nut.

CIRCLE CUTTER INSTRUCTIONS
Step One: Assemble Circle Cutter
Unscrew pivot foot knob 1 and turn pivot foot

2 over so that center point 3 is down. For

holes 3/4"-9" (2cm-22cm), assemble with
center point 3 towards the tool. For holes 4"­12" (10cm-30cm), assemble with center point
3 away from tool. Reattach the pivot foot
knob 1 and pivot foot 2 (Fig. H1).

Dis c o nnec t t h e plug

from the power source
bef o r e m a king any as s e mbly,
adjustments o r chan gi ng accessories.

Such preventive safety measures reduce the
risk of starting the tool accidentally.

Step Two: Removing nose cap from the
Rotary Tool

If the Dremel chuck is installed, remove it
from the tool and replace it with the collet
and collet nut 4. Then remove nose cap 5
from your rotary tool and set nose cap aside.
The nose cap 5 must be reinstalled when this
attachment is not used (Fig. H2).

Do n o t use Dr e m el

chu c k w i th t his
attachment. Only use a collet and collet
nut.

Step Three: Insert a bit into the Rotary
Tool

The flutes on the bit are

sha r p and s h o uld be
handled with caution.

Insert the shank of the bit 6 into the collet so
that at least 1/8" of the smooth part of the
shank is visible above the collet, depress
shaft lock button and securely tighten collet
nut 4 (Fig. H3).

Step Four: Attaching guide to your Rotary
Tool

Hol d ing the circ l e c u tter by the plast i c

FIG. H1

FIG. H2

FIG. H3

FIG. H4

1

2

4

3

5

6

4

42

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

housing, thread the circle cutting guide onto

CM 2 4 6

CM 2 4 6 8 10 12 14 16 18 20 22 CM

CM 2 4 6 8 10 12 14 16 18 20 22 CM

the threaded portion of your Rotary To ol
clo c k wise u n til ti g ht. Do n ot ho l d the
att a c hmen t b y the m e t al ra i l durin g
installation. Do not overtighten (Fig. H4).

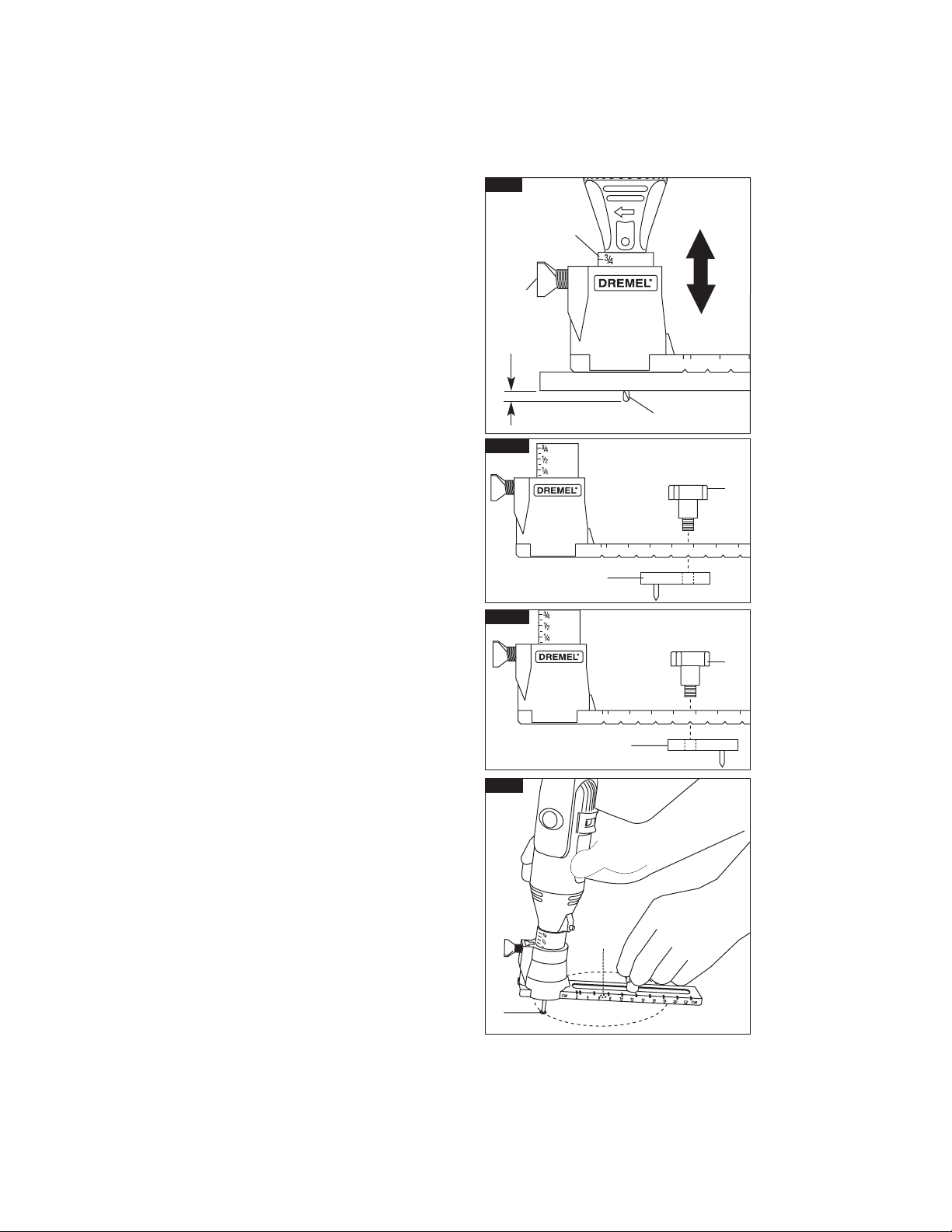

Step Five: Set depth guide to required
cutting depth

As shown (Fig. H5), loosen depth guide knob
7 and adjust the height of the depth guide 8
so that the bit 6 extends at least 1/8" more
than the material to be cut. Tighten depth
guide knob so depth guide is secure.

Step Six: Set the pivot foot knob to
diameter of hole to be cut

Loosen the pivot foot knob 1 and slide it to the
required diameter of hole to be cut. Line up the
knob with the diameter size of the circle you
wish to cut (Fig. H6a). For English (IN), use the
measurements on the top of the metal rule. For
Metric (CM) use the sides of the metal rule.

For holes 3/4"-9" (2cm-22cm), use the pivot
foot 2 as shown (Fig. H6a).

For holes 4"-12" (10cm-30cm), use the pivot
foot 2 as shown in drawing (Fig. H6b).

To change position of pivot foot, unscrew pivot
foot knob and remove pivot foot. Turn pivot
foot 180 degrees to alternate position and
tighten knob.

Step Seven: Drill a pilot hole for center of
circle and for cutting bit.

Drill a 1/8" pilot hole for center of circle (pivot
point) 9 and a pilot hole for cutting bit (outer
diameter) 10. When finished drilling each hole,
turn off the tool and remove it from the material
(Fig. H7).

Step Eight: Starting the circle cut

Note: the center point on the Circle Cutter pivot
foot is at the center of the circle you are about
to cut.

Place the tip of the center point in the opening
of the pilot hole and the bit in the opening of
the outer diameter pilot hole. Turn on the tool
and set to the desired speed. With one hand
on the tool, grasp the knob with the other
hand.

Step Nine: Cut out the circle

Start cutting in a clockwise direction using
consistent moderate pressure (Fig. H8). If you
need to reposition your hands, turn off the tool
first before changing hand positions.

FIG. H5

8

7

1/8”

3 mm

6

FIG. H6a

1

2

FIG. H6b

1

2

FIG. H7

9

10

43

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

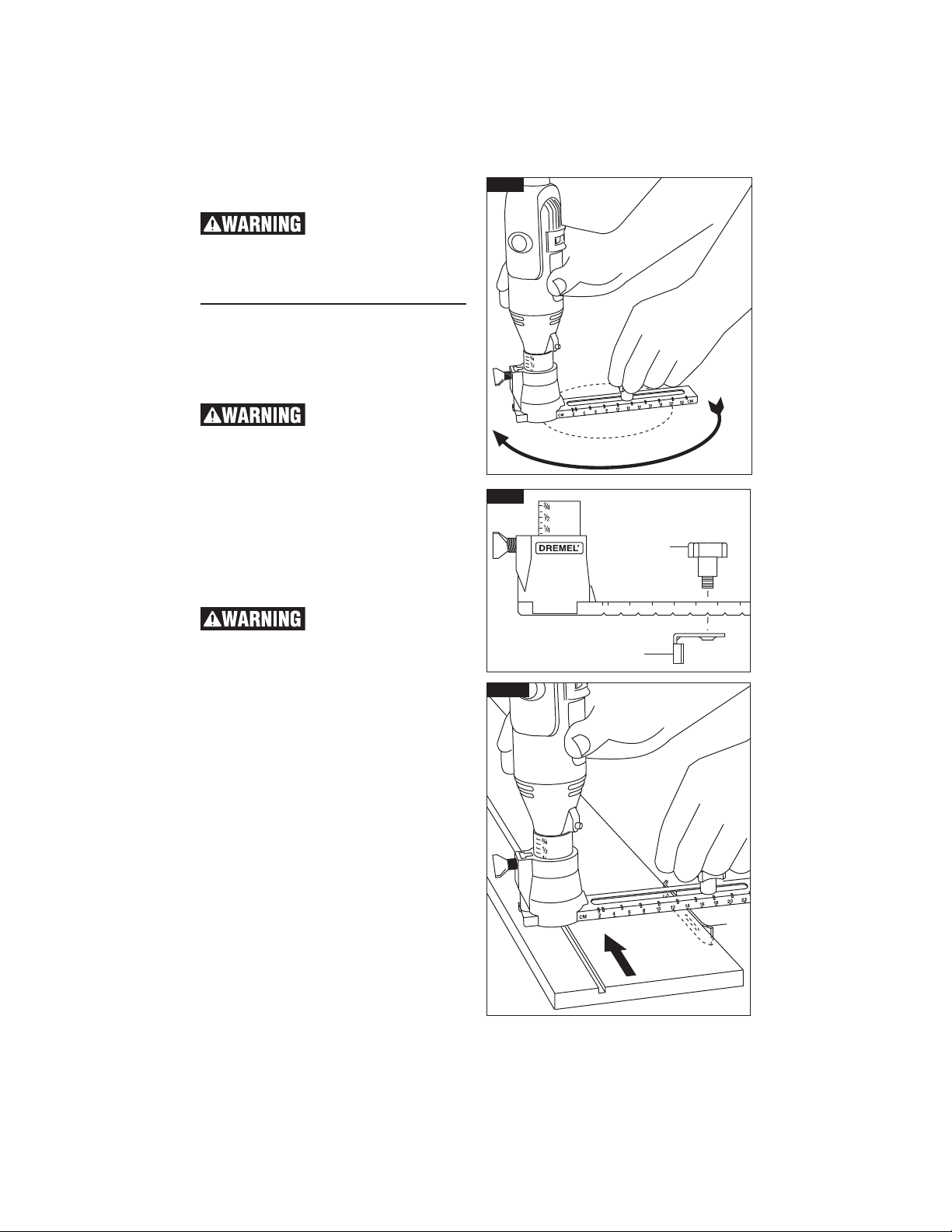

Continue cutting your circle until you have cut

CM 2 4 6 8 10 12 14 16 18 20 22 CM

the complete shape. Turn off the tool.

Do not use too much force

wh en c utting. It c an
shorten bit life and cause breakage and the
po rti on o f bit may f ly aw ay s tri kin g you,
bystanders or property.

STRAIGHT EDGE GUIDE INSTRUCTIONS

Step One: Remove Circ le C ut ter pivot
foot.

Unscrew pivot foot knob 1 and remove pivot
foot 2 (Fig. H1).

Dis c o nnec t t h e plug

from the power source
bef o r e m a king any as s e mbly,
adjustments o r chan gi ng accessories.

Such preventive safety measures reduce the
risk of starting the tool accidentally.

Step Two: Attach Straight Edge Guide.

Attach Straight Edge Guide 11 with bent edge
facing the depth indication rail of the Circle
Cutter (as shown) (Fig. H9).

Step Three: Insert a bit into the Rotary
Tool

The flutes on the bit are

sha r p and sh o uld be
handled with caution.

Insert the shank of the bit 6 into the collet so
that at least 1/8" of the smooth part of the
shank is visible above the collet, depress
shaft lock button and securely tighten collet
nut 4 (Fig. H3).

Step Four: Attach circle cutter guide to
Dremel Rotary Tool.

See Step 4 of Circle Cutter Instructions.

Step Five: Set the placement of the cut.

Place the flat edge of the guide 11 along the
edge of the material to be cut, and place tool in
desired location to start cut. Tighten the pivot foot
knob 1.

Step S ix: Set d epth gu ide to require d
cutting depth

See Step 5 of the Circle Cutter instructions.

Step Seven: Cut the material

Making sure the bit is not touching the material,
turn the tool on. Begin to cut from left to right, as
shown in the diagram (Fig. H10).

FIG. H8

FIG. H9

1

11

FIG. H10

11

44

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Dremel®Limited Warranty

Your Dremel product is warranted against defective material or workmanship for a period of two years from date of
purchase. In the event of a failure of a product to conform to this written warranty, please take the following action:

1. DO NOT return your product to the place of purchase.

2. Carefully package the product by itself, with no other items, and return it, freight prepaid, along

with:

A. A copy of your dated proof of purchase (please keep a copy for yourself).

B. A written statement about the nature of the problem.

C. Your name, address and phone number

We recommend that the package be insured against loss or in transit damage for which we cannot be responsible.
This warranty applies only to the original registered purchaser. DAMAGE TO THE PRODUCT RESULTING FROM

TAMPERING, ACCIDENT, ABUSE, NEGLIGENCE, UNAUTHORIZED REPAIRS OR ALTERATIONS, UNAPPROVED
ATTACHMENTS OR OTHER CAUSES UNRELATED TO PROBLEMS WITH MATERIAL OR WORKMANSHIP ARE NOT
COVERED BY THIS WARRANTY.

No employee, agent, dealer or other person is authorized to give any warranties on behalf of Dremel. If Dremel
inspection shows that the problem was caused by problems with material or workman ship within the limitations of
the warranty, Dremel will repair or replace the product free of charge and return product prepaid. Repairs made
necessary by normal wear or abuse, or repair for product outside the warranty period, if they can be made, will be
charged at regular factory prices.

DREMEL MAKES NO OTHER WARRANTY OF ANY KIND WHATEVER, EXPRESSED OR IMPLIED, AND ALL IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE WHICH EXCEED THE ABOVE
MENTIONED OBLIGATIO N ARE HEREBY DISCLAIME D BY DREMEL AND EXCLU DED FROM THIS LIMIT ED
WARRANTY.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state. The
obligation of the warrantor is solely to repair or replace the product. The warrantor is not liable for any incidental or
consequential damages due to any such alleged defect. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusion may not apply to you.

For prices and warranty fulfillment in the continental United States, contact your local Dremel distributor.

Printed in Mexico
1605A000K5 AB 03/2022

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com
