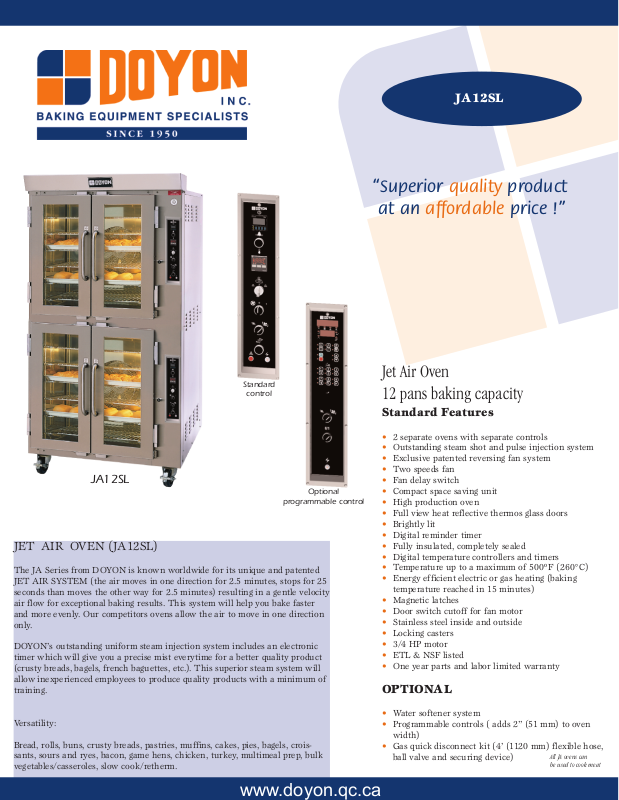

Doyon JA12SLG User Manual

JA12SL

“Superior quality product

at an affordable price !”

Standard

control

JA12SL

Optional

programmable control

JET AIR OVEN (JA12SL)

The JA Series from DOYON is known worldwide for its unique and patented
JET AIR S
seconds than mo
air flow for exceptional baking results. This system will help you bake faster
and more evenly. Our competitors ovens allow the air to move in one direction
only.

DO
timer which will give you a precise mist everytime for a better quality product
(crusty breads, bagels, french baguettes, etc.). This superior steam system will
allow inexperienced employees to produce quality products with a minimum of

aining.

tr

YSTEM (the air moves in one direction for 2.5 minutes, stops for 25

es the other w

v

ON’s outstanding uniform steam injection system includes an electronic

Y

ay for 2.5 minutes) resulting in a gentle velocity

Jet Air Oven
12 pans baking capacity

Standard Features

• 2 separate ovens with separate controls

• Outstanding steam shot and pulse injection system

• Exclusive patented reversing fan system

• Two speeds fan

• Fan delay switch

• Compact space saving unit

• High pr

• Full view heat reflective thermos glass doors

Brightly lit

•

• Digital reminder timer

• Fully insulated, completely sealed

• Digital temperature controllers and timers

• Temperature up to a maximum of 500ºF (260°C)

• Energy efficient electric or gas heating (baking

temper

• Magnetic latches

• Door switch cutoff for fan motor

• Stainless steel inside and outside

Locking casters

•

3/4 HP motor

•

• ETL & NSF listed

• One year parts and labor limited warranty

OPTIONAL

oduction oven

eached in 15 minutes)

e r

atur

Versatility:

ead, rolls, buns, crusty breads, pastries, muffins, cakes, pies, bagels, crois-

Br
sants, sours and ryes, bacon, game hens, chicken, turkey, multimeal prep, bulk
vegetables/casseroles, slow cook/retherm.

www.doyon.qc.ca

Water softener system

•

ogrammable controls ( adds 2” (51 mm) to oven

Pr

•

width)

• Gas quick disconnect kit (4’ (1120 mm) flexible hose,

ball valve and securing device)

All JA ovens can
be used to cook meat

JA12SLGJA12SL

37 5/8"

WATER INLET 1/4 NPT

ENTRÉE D'EAU 1/4 NPT

ELECTRIC INLET

ENTRÉE ÉLECTRIQUE

38 3/8"

73"

43 1/8"

2

2 3/8"

DRAFT HOOD 6" /

COUPE TIRAGE 6"

WATER INLET 1/4 NPT

ENTRÉE D'EAU 1/4 NPT

ELECTRIC INLET

ENTRÉE ÉLECTRIQUE

GAS INLET 1/2 NPT

ENTRÉE GAZ 1/2 NPT

86 1/4"

1

7 1/4"

38 3/8"

73"

OVERALL DIMENSIONS
JA12SL 38 3/8” W X 37 5/8” D X 73” H

(975 mm X 956 mm X 1854 mm)

JA12SLG 38 3/8” W X 43 1/8” D X 73” H

(975 mm X 1095 mm X 1854 mm)

OVEN INTERIOR DIMENSIONS
JA12SL 26 3/4” W X 19 1/2” D X 26 1/4” H

(679 mm X 495 mm X 667 mm)

JA12SLG 26 3/4” W X 18 1/2” D X 26 1/4” H

(679 mm X 470 mm X 667 mm)

Shelf spacing 3 1/2” (95 mm)

GAS SYSTEM (JA12SLG - Propane or natural)
BTU total: 130 000 (65 000 per section)
Voltage:
120/240V - 1PH - 9A - 2 kW - 3 wires - 60Hz
120/208V - 1PH - 9A - 2 kW - 3 wires - 60Hz

Gas inlet: 1/2” NPT
Draft hood : 6” (152 mm)

Recommended gas pressure:

Propane gas : 11” W.C.
Natural gas : 7” W.C.

ELECTRICAL SYSTEM (JA12SL)
1 Phase:
120/208V - 103 A - 21.5 kW - 3 wires - 60 Hz
120/240V - 90 A - 21.5 kW - 3 wires - 60 Hz
3 Phases:
120/208V - 66 A - 21.5 kW - 4 wires - 60 Hz
120/240V - 52 A - 21.5 kW - 4 wires - 60 Hz
Other voltages available

Water Inlet : 1/4” NPT

Minimum clearance from combustible material
1" (25 mm) side and back
4" (102 mm) bottom
12" (305 mm) top

CAPACITY
Standard sheet pans 18” X 26” (457 mm X 660 mm): 12 pans
Four-strapped bread pans: 24 loaves
9” (230 mm) pies: 84 pies

FINISH
Stainless steel

SHIPPING WEIGHT
JA12SL 1060 lb (481 kg) approximately
JA12SLG

Electrical service connection and water inlet are located at the back of the unit.
Specifications and design subject to change without notice

1255, rue Principale
Linière, Beauce, Québec, Canada G0M 1J0

elephone : [phone]

T
Canada : [phone]
E-Mail : [e-mail] Internet: http://www.doyon.qc.ca

1170 lb (531 kg) approximately

Fax: [phone]
U.S.: [phone]

.

our local distributor:

Y

Printed in Canada Rev: 012011h
