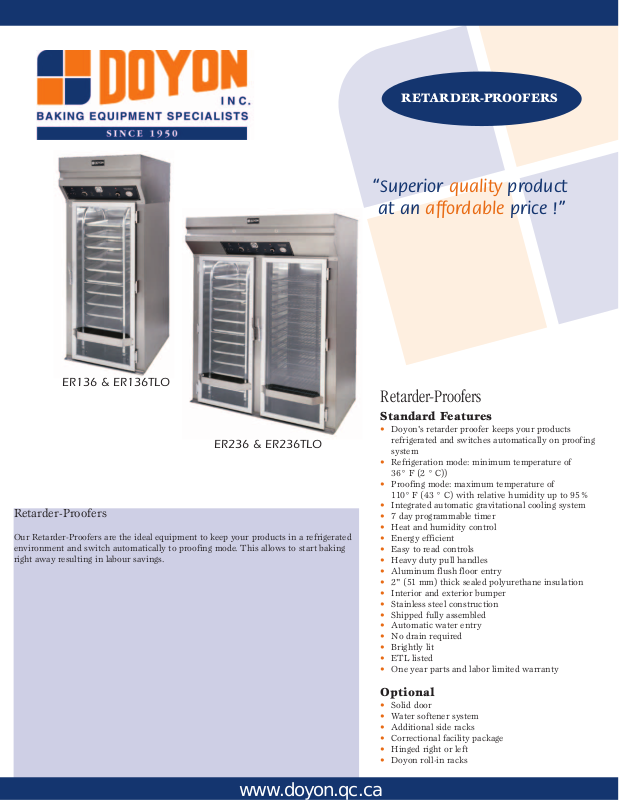

RETARDER-PROOFERS
ER136 & ER136TLO
Retarder-Proofers
Our Retarder-Proofers are the ideal equipment to keep your products in a refrigerated
environment and switch automatically to proofing mode. This allows to start baking
right away resulting in labour savings.
Retarder-Proofers
Standard Features
• Doyon's retarder proofer keeps your products
refrigerated and switches automatically on proofing
system
• Refrigeration mode: minimum temperature of
36° F (2 ° C))
• Proofing mode: maximum temperature of
110° F (43 ° C) with relative humidity up to 95%
• Integrated automatic gravitational cooling system
• 7 day programmable timer
• Heat and humidity control
• Energy efficient
• Easy to read controls
• Heavy duty pull handles
• Aluminum flush floor entry
• 2" (51 mm) thick sealed polyurethane insulation
• Interior and exterior bumper
• Stainless steel construction
• Shipped fully assembled
• Automatic water entry
• No drain required
• Brightly lit
• ETL listed
• One year parts and labor limited warranty
Optional
• Solid door
• Water softener system
• Additional side racks
• Correctional facility package
• Hinged right or left
• Doyon roll-in racks
“Superior quality product
at an affordable price !”
ER236 & ER236TLO
www.doyon.qc.ca
www.doyon.qc.ca
Conforms to
ANSI/UL 197
Certified to CSA C22.2 no.109
DIMENSIONS
ER136
37 1/2”W X 50 1/4”D X 89 3/4”H
(952 mm X 1275 mm X 2280 mm)
ER236
71”W X 44 1/4”D X 88”H
(1805 mm X 1125 mm X 2235 mm)
ER136TLO
37 1/2”W X 50 1/4”D X 96 1/4”H
(952 mm X 1275 mm X 2445 mm)
ER236TLO
71”W X 44 1/4”D X 94 1/2”H
(1805 mm X 1125 mm X 2400 mm)
DOOR OPENING
ER136 & ER236
27”W X 68 1/2”H
(686 mmX 1740 mm)
ER136TLO & ER236TLO
27”W X 73”H
(686 mmX 1855 mm)
ELECTRICAL SYSTEM
ER136 & ER136TLO
120/208V - 1 PH -27 A - 5.7 kW - 3 wires - 60 Hz
120/240V - 1 PH -24 A - 5.7 kW - 3 wires - 60 Hz
ER236 & ER236TLO
120/208V - 1 PH -35 A - 7.2 kW - 3 wires - 60 Hz
120/240V - 1 PH -30 A - 7.2 kW - 3 wires - 60 Hz
Other voltages available
Water inlet : 1/4” NPT
FINISH
Stainless steel inside and outside
SHIPPING WEIGHT
ER136 : 900 lb (409 kg) approximately
ER236 : 1000 lb (454 kg) approximately
ER136TLO : 900 lb (409 kg) approximately
ER236TLO : 1000 lb (454 kg) approximately
Electrical and water inlets are located on the top of the retarder-proofer, approximately in the center.
Specifications and design subject to change without notice.
1255, rue Principale
Linière, Beauce, Québec, Canada G0M 1J0
Telephone : (418) 685-3431 Fax: (418) 685-3948
Canada : (800) 463-1636 U.S.: (800) 463-4273
E-Mail : doyon@doyon.qc.ca Internet: http://www.doyon.qc.ca
Your local distributor:
Printed in Canada Rev: 112009d
45 3/4"
39 3/4"
D
ER136 & ER136TLO
ER236 & ER236TLO
H
D
H
W
W
