SeaLand
MACERATOR TOILET
OWNER’S MANUAL
SeaLand® 8800 Series All-Ceramic Toilets
8812 8818 8819
MASTERFLUSH™ TECHNOLOGY FEATURES
• Virtually silent ushing
• Three automatic ush cycle options:
- Normal (.82 gal., 3.1 L)
- Low (.42 gal., 1.6 L)
- Empty
• Powerful turbine macerator is virtually
clog-free; low electrical power draw
• Integral trapway (8818, 8819) pre
vents potential odor and noise from
entering living space
• Plumbs to pressurized fresh water
system (2.5 gpm/9.5 lpm ow rate) or
raw water system with remote pump
• Optional shut-down feature prevents
overlling of holding tank
®
-
Water
Supply
Discharge
Piping
Electrical
System
INSTALLATION SPECIFICATIONS
Water valve
Raw water
pump
Hose ID
Hose runs
Amp draw
(avg.)
Circuit breaker
Thread size 1/2 inch, 14 TPI
Flow rate at toilet 2.5 GPM/9.5 LPM
Hose ID 1/2 inch/13 mm
Raw water lters – 2 Coarse, Fine (100)
Standard 1.5 inch/38 mm
with opt. adapter 1 inch/25 mm
Max. horizontal run 98 ft./30 m
Max. vertical run
12 volts DC 10-13 amps
24 volts DC 5-7 amps
12 volts DC 15 amps*
24 volts DC 10 amps*
at 3.28 ft. (1 m) of pump discharge head
*
Dometic Sanitation Corporation
13128 State Rt. 226, P.O. Box 38, Big Prairie, OH 44611 USA
1
SeaLand Product Hotline 1-800-321-9886 (8-5 ET)
9.8 ft./3 m
TABLE OF CONTENTS
MasterFlush Technology Features .............. 1
Installation Specications ........................... 2
Toilet Specications, Dimensions ................2
Toilet Model Identication ............................3
Warnings ....................................................3
Toilet Start-Up and Operation ...................... 4
Installation - System Diagrams .................5-7
Installation - Toilet Components .............8-12
Proper Cleaning and Maintenance ............ 13
Extended Periods of Non-use.................... 14
Winterizing .................................................14
Troubleshooting .........................................15
Deodorants and Special Tissue ................ 16
Replacement Parts ..............................17-18
Accessories and Kits ................................. 19
Customer Service and Warranty ...............20
TOILET SPECIFICATIONS
Model Description Weight Color Voltage Item Number
12 VDC 304881211
24 VDC 304881221
12 VDC 304881213
24 VDC 304881223
12 VDC 304881811
24 VDC 304881821
12 VDC 304881813
24 VDC 304881823
12 VDC 304881911
24 VDC 304881921
12 VDC 304881913
24 VDC 304881923
8812
8818
8819
All-ceramic, low-prole
macerator toilet with fullsize seat and bowl.
All-ceramic, standard
height macerator toilet
with full-size seat and
bowl. Sloped back.
All-ceramic, standard
height macerator toilet
with full-size seat and
bowl.
Weights may vary ± 2-3%. Specications subject to change without notice.
38.6 lbs.
White
(17.5 Kg)
Bone
White
46.3 lbs.
(21 Kg)
Bone
White
56 lbs.
(25.4 Kg)
Bone
DIMENSIONS
Model 8812
All dimensions may vary ±
3/8-inch (10mm).
Model 8818
Model 8819
2
TOILET MODEL IDENTIFICATION
The model identication label is located on the
right side of the toilet.
DOMETIC CORPORATION
P.O. BOX 38, 13128 STATE RT 226 330-496-3211
BIG PRAIRIE, OH 44611 USA MADE IN FRANCE
MODEL NO. 8818
SERIAL NUMBER
1234567890
WARNINGS
The fol low ing cau ti o na ry s tat eme nts
must b e r ea d an d u nd ers to od bef or e
i n s t a l l i n g , s e r v i c i n g a n d / o r o p e r ating this prod uct. Modif icati on of this
product may result in property damage.
Dometic Sanitation Corporation recommends that
a qualied marine technician or electrician install
or service this product. Equipment damage, injury
to personnel or death could result from improper
installation. DOMETIC SANITATION CORPORATION ACCEPTS NO RESPONSIBILITY OR
LIABILITY FOR DAMAGE TO EQUIPMENT,
OR INJURY OR DEATH TO PERSONNEL THAT
MAY RESULT FROM IMPROPER INSTALLATION, SERVICE OR OPERATION OF THIS
PRODUCT.
WARNING!
HAZARD OF FLOODING
is connected to ANY through-the-hull ttings,
properly installed seacocks MUST be installed
in all piping connected to through-the-hull ttings. Seacocks MUST be easily accessible to
all users of the toilet or secondary valves tted
in hoses where they are easily accessible. All
valves MUST be full bore valves and of marine
quality. Screw-to-close gate valves are not recommended. Failure to do so can result in ooding which can cause loss of property and life.
WARNING!
HAZARD OF FLOODING
is connected to ANY through-the-hull ttings,
ALWAYS close seacocks when toilet is not in use
(even if boat is unattended for a brief period). All
passengers MUST be instructed on how to close
valves when the toilet is not in use. Failure to do
so can result in ooding which can cause loss of
property and life.
WARNING!
HAZARD OF FLOODING
connected to ANY through-the-hull ttings, ALL
exible hoses must be of marine sanitation quality and must be secured to ANY ttings (such as
those at seacock, vented loop or toilet) with two
stainless steel, worm-drive hose band clamps at
each connection. Connections MUST be checked
– If the toilet
– If toilet
– If toilet is
frequently for integrity. Failure to comply can
result in ooding which can cause loss of property
and life.
WARNING!
HAZARD OF FLOODING
– If toilet rim is
below the waterline at ANY time (during any conditions of heel, load or trim) and is connected to
ANY through-the-hull ttings, properly positioned
ventilated (vented) loops MUST be installed in
intake* or discharge piping to prevent potential
back siphonage of seawater into the boat. Failure
to do so can result in ooding which can cause
loss of property and life.
* if connected to raw water
WARNING!
HAZARD OF FLOODING
– If the toilet
uses fresh water for ushing and is connected
directly or indirectly to a shoreside municipal
water system at ANY time, shoreside water connections MUST be disconnected if the boat is
unattended (even if boat is unattended for a brief
period). Failure to do so can result in ooding
which can cause loss of property and life.
WARNING!
HAZARD OF FLOODING
– If toilet uses
raw water for ushing at ANY time, a raw water
pump controlled by an automatically operating
demand switch MUST NOT be installed. If the
onboard water valve or any plumbing connections
were to leak, the automatically operated pump
would start and could ood the boat. Failure to
comply can cause loss of property and life.
WARNING!
HAZARD OF FLOODING
– Bef ore
beginning any work on this product, be sure that
all electrical power to the unit has been turned
off and that seacocks are in the CLOSED or OFF
position. Failure to do so can result in ooding
which can cause loss of property and life.
WARNING!
HA ZA RD OF SHOCK OR FI RE
Always use recommended fuse, circuit breaker
and wire size. Failure to do so can result in re
that can cause the loss of property and life.
CAUTION
: Overlling the holding tank
can create serious damage to the sanitation system, such as rupturing the holding tank
and releasing tank contents into the bilge. To
prevent this possibility, Dometic strongly recommends the addition of a “full” tank safety shutdown relay to the toilet’s electronic control module
(a pre-wired base is provided for this relay inside
the module). The “full” signal from the holding
tank can be generated by the optional Tank “Full”
Float Assembly, or a TankWatch Level Monitor Kit
(see page 19) A “Power/Tank Full” lighted panel
is also available (see page 19).
3
–
TOILET START-UP
1. Open maintenance water valve completely
to assure good bowl rinse.
2. NORMAL Flush – Press NORMAL but
ton once. After about 9 seconds of water
ow, macerator pump will start and run for
about 6 seconds to clear bowl. It then takes
4 seconds to rell the bowl.
TOILET OPERATION
SeaLand macerator toilets are ushed by pressing one of three ush mode buttons:
NO RM AL
.82 gal. (3.1 L) per ush. Flush cycle lasts
19 seconds.
LOW
.42 gal. (1.6 L) per ush. Flush cycle lasts
13 seconds.
EMPTY
splashing during travel.
– Flushes solids. U se s on ly
– For liquid-only flushes. Uses only
– Empties water from bowl to avoid
3. Toss several sheets of toilet paper into
bowl and repeat the cycle. The bowl should
completely clear.
-
4. LOW Flush – Press LOW button twice.
After about 3 seconds of water ow, the
macerator will complete the discharge within
6 seconds. It then takes 4 seconds to rell
the bowl.
CAUTION!
D O N OT F L US H F OR E I GN
OBJECTS – SeaLand toilets are designed to
ush only water, bodily wastes and rapiddissolving toilet tissue. Do not ush wet
wipes, sanitary napkins, condoms, diapers,
razor blades, paper cups, cotton swabs,
food, hair or liquids such as oils or solvents
as clogging or damage to the toilet or sanitation system may occur.
Electronic touchpad
T he S e a L a nd t o u c hpad a c t ivate s a
powe r ful tur b i ne mac e r ator pu m p i n
e ach toil e t . T h e h i g h-s p e e d t u rbin e
siphons water and waste from the toilet bowl,
through the macerator pump, and into the
discharge line /holding tank.
CAUTION!
TURN OFF EL EC TRICI TY AND
WATER TO TOILET IF IDLE FOR LONG
PERIODS OF TIME – If people will not be
using the boat for a long time (vacations,
maintenance, off-season, etc.), or in the
event of a long interruption in electricity,
electrical power and water supply to the
toilet should be shut off. See additional
instructions on page 14 regarding “Extended
Periods of Non-Use – Laying Up Toilet.”
4
INSTALLATION – SYSTEM DIAGRAMS
FLUSH WATER OPTIONS
FRESH WATER SYSTEM – All SeaLand macerator toilets can operate with an onboard pressurized freshwater system with a minimum ow rate
of 2.5 gpm (9.5 lpm) at the toilet. Onboard freshwater demand systems include a water pump that
automatically draws water from a water storage
tank when a valve anywhere in the piping system
is opened. SeaLand toilets are equipped with
an electrically operated water valve that opens
during NORMAL and LOW flushing modes.
SeaLand toilets are equipped with an in-line
check valve or air gap to prevent contamination
of onboard potable supplies. See later sections
for specic information on connecting the water
line to the toilet.
INSTALLATION NOTES
• Use cold water only.
• Water supply line: 1/2” (13mm) ID; toilet inlet
• Requires 2.8 GPM (10.6 LPM) demand water
• Include shut-off valve in water line for
tting is 1/2” (13mm), 14 TPI.
pump or greater, depending on line restrictions.
maintenance purposes.
RAW WATER SYSTEM – SeaLand macerator toilets can ush on seawater but require a
separate pump for this purpose. The pump is
activated by the signal from the toilet’s electronic
control module that would operate the integral
water valve in a fresh water system. Since raw
water pumps operate at a higher amperage than
the freshwater water valve, a 12 or 24 volt DC
electrical relay must be inserted into the electrical
cables connected to the pump. A kit is available
to convert the standard freshwater toilet to raw
water. The kit contains the electrical relay, hose
insert adapter and related hardware.
INSTALLATION NOTES
• See Notes from Fresh Water System.
• Seacock must be full-ow, marine-quality valve (not
screw-to-close type).
• Use primary and secondary raw water lters.
• Raw water pump MUST NOT
is controlled by signal from Control Module near toilet.
• Position vented loop as shown between discharge
side of water pump and toilet. Must be equipped
with integral check valve that permits air into line to
prevent siphoning.
be demand type. Pump
Please contact your nearest Dometic Sanitation
sales ofce or distributor for complete details.
WARNING!
HAZARD OF FLOODING – If toilet
uses raw water for ushing at ANY time, a
raw water pump controlled by an automatically operating demand switch MUST NOT
be installed. If the onboard water valve or
any plumbing connections were to leak, the
automatically operated pump would start and
could ood the boat. Failure to comply with
this warning can cause loss of property and
life. See other WARNINGS (p. 3).
5
INSTALLATION – SYSTEM DIAGRAMS (cont’d)
DISCHARGE PIPING
SeaLand macerator toilets can be connected to
1-1/2-inch (38mm) ID exible sanitation hose or
adapted to 1-inch (25mm) ID hose with a 1-1/2”
x 1” adapter available from a SeaLand product
dealer. Connections can be made either through
the oor or out the rear of the toilet above the
oor.
Flexible hoses that contain sewage from any
marine toilet will create unpleasant odor that
permeates through the wall of the hose. Avoid
this condition by installing the tank in the lowest
position in the boat so that hose contents will drain
into the holding tank. Rigid PVC pipe can also be
installed in runs that hold trapped sewage. The
marine sanitation hose most resistant to odor
permeation is OdorSafe Plus® hose, available
from your local SeaLand product dealer.
NOTE: Vertical loops in discharge line of toilet are additive.
Total upward vertical distance must not exceed 9.8 ft. (3 m).
VENTED LOOPS
Ventilated or vented loops are intended to
prevent back siphonage of seawater into the
toilet. If the toilet rim is below the waterline at
ANY time in ANY conditions of heel, load or
trim, a vented loop MUST be installed in the
WARNING!
HAZAR D OF FLO OD
ING – If toilet rim is below the
waterline at ANY time (during any
conditions of heel, load or trim)
and is connected to ANY throughthe-hull ttings, properly positioned ventilated (vented) loops
MUST be in stall ed in intake*
or discharge piping to prevent
po te ntial back si ph on age of
seawater into the boat. Failure
to do so can result in ooding
which can cause loss of property
and life.
* if connected to raw water
-
hose run at a point at least 8-inch (20.3 cm) above
the waterline in all such conditions. See vented
loop tting manufacturer’s recommendation for
further information.
6
INSTALLATION – SYSTEM DIAGRAMS (cont’d)
HOLDING TANKS
SeaLand macerator toilets operate with most
holding tank or treatment systems. If installed
with a holding tank, however, the capacity of
the tank should be sufcient to avoid the inconvenience of discharging it too frequently. The
average ush volume is .96 gallons (3.6 liters)
including ushwater and waste. A 30-gallon tank
(114-liter) will become full in about 30 ushes.
CAUTION: Overlling the holding
tank can create serious damage to
the sanitation system, such as rupturing the
holding tank and releasing tank contents into
the bilge. To prevent this possibility, Dometic
strongly recommends the addition of a “Full”
tank safety shut-down relay to the toilet’s
electronic control module (a pre-wired base
is provided for this relay inside the box). The
“Full” signal from the holding tank can be
generated by any SeaLand TankWatch level
monitor system.
RISER STEP OR PLINTH
INSTALLATIONS (SEAT HEIGHT)
SeaLand macerator toilets are available in
three models to accommodate various spaces.
While the major factor in selecting a model for
a boat is the space provided to t the toilet
into the head compartment, seating height is
also important. A comfortable seating height is
about 20 inches (508 mm).
SEACOCKS
Seacocks are required by various marine regulations. Only full ow, marine quality valves are
recommended. Some regulations require the
seacocks be congured so they can be locked in
a closed position. Seacocks MUST be installed
according to the manufacturer’s instructions.
WARNING!
is connected to ANY through-the-hull ttings,
properly installed seacocks MUST be installed
in all piping connected to through-the-hull
ttings. Seacocks MUST be easily accessible
to all users of the toilet or secondary valves
tted in hoses where they are easily accessible. All valves MUST be full bore valves and
of marine quality. Screw-to-close gate valves
are not recommended. Failure to do so can
result in ooding which can cause loss of
property and life.
HAZARD OF FLOODING – If the toilet
Refer to the dimensional drawings on page 2
and the chart below to determine the optimum
toilet for a given installation.
Toilet Model Seating Height
8812
8818
8819
13.5 in. (343 mm)
17 in. (432 mm)
16.75 in. (425 mm)
7
INSTALLATION – TOILET COMPONENTS
MAJOR TOILET SYSTEM COMPONENTS
Ea ch Se aL an d toi let system w ith Mas terFlush technology includes the SeaLand Mac-
erator Toilet with integral turbine pump and
sole n oid w ate r v alv e. Th e E lec tr o nic
Control Module must be mounted in a easily
accessible location such as under the bathroom
sink or basin. All electrical connections are made
The connections from the electronic control
module to the toilet and to the ush touchpad
include cables with pre-wired connectors. Main
power leads are brought to the electronic control
module. Connections to remote level monitors
and raw water pumps are also made here. In
addition, the Flush Control Touchpad must be
mounted in a user-friendly location.
to this module.
WIRING / ELECTRONIC CONTROL MODULE CONNECTIONS
WARNING!
HAZARD OF SHOCK OR FIRE –
Always use recommen ded fuse, circ uit
breaker and wire size. Failure to do so can
result in fire that can cause the loss of
property and life.
IMPORTANT INSTALLATION NOTES
• Each toilet must have its own circuit breaker or fuse.
• Wire sizes must be appropriate for the installation. All
other installation factors must be in accordance with
ABYC/ISO electrical standards.
• Always use stranded copper wire (preferably tinned).
• Always use crimp-type wire connections. Do not use
wire nuts (they corrode).
WIRE SIZING CHART
Wire size per length of run* 0-50 ft. 51-100 ft. 100-150 ft. –
12 volts DC #12 #10 #8 –
0-30 ft. 31-100 ft. 101-175 ft. 176-250 ft.
24 volts DC #14 #12 #10 #8
* In marine applications, wire run equals total distance from circuit breaker to control module and ground.
CONVERSION TABLE
Wire – AWG to mm
AWG 14 12 10
2
mm
2
2.5 4.0 6.0 10.0 M 3.0 4.6 6.1 9.2 15.2 22.9 30.5 45.7
Feet to Meters
8 Ft. 10 15 20 30 50 75 100 150
8
INSTALLATION – TOILET COMPONENTS (cont’d)

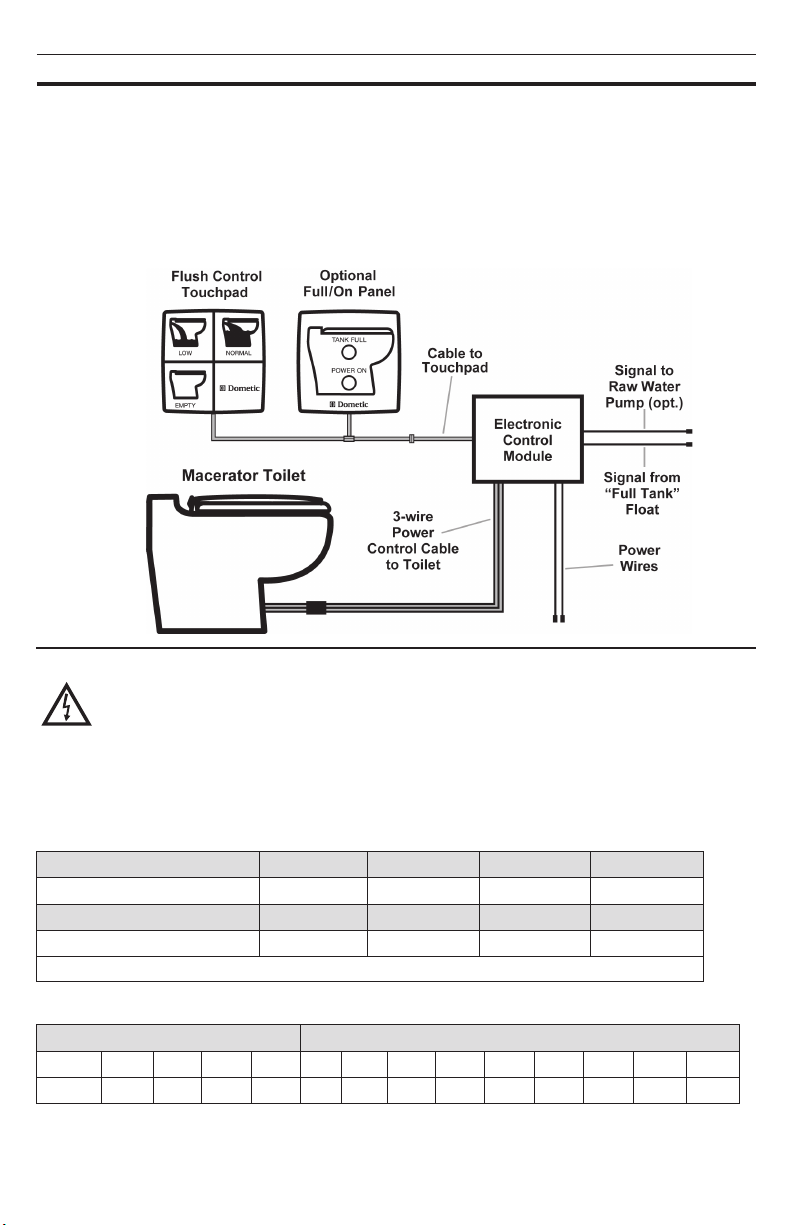

WIRING SCHEMATIC
SYSTEM COMPONENTS (included with toilet)
A B
G
A. Toilet
B. Flush Control Touchpad Kit
C. Water Line Adapter Kit
(models 8818, 8819)
D. Straight Discharge Adapter
E. Elbow Discharge Adapter (option)
D E
H
F. Electronic Control Module
G. Toilet Mounting Template
H. 1-inch (25mm) Discharge Adapter
I. Toilet Floor Bracket Kit
J. Wiring Diagram
C
F
I
J
(option)
9
INSTALLATION – TOILET COMPONENTS (cont’d)
TOOLS REQUIRED
• Hole saws – 1” (25 mm), 1.25” (32 mm),
2” (51 mm), 2.25” (57 mm) diameters
• Drill bit – 3/16” (4.8 mm)
THROUGH-THE-FLOOR CONNECTIONS
• Phillips head screwdriver
• 3/8” (10 mm) socket wrench
1
Place template in desired
location.
2
Center-punch holes and
mounting bracket corners.
3
4
With long hex-head screws
from toilet oor bracket kit,
fasten oor brackets with 3/8”
(10 mm) socket wrench using
corner marks as guides.
NOTE: Do not completely
tighten hex-head screws to
oor – let brackets move freely. Brackets will tighten when
mounting toilet to brackets
(see step 15, next page).
Plan locations of touchpad
panel and electronic control
module and optional accessories so that all electrical
connections can be made.
Refer to Electrical Assembly
drawing for supplied wire
lengths.
5
6
Fasten touchpad bracket and
gasket to wall, making sure
mounting tabs are at top and
bottom.
7
Route ribbon cable into wall
and snap touchpad panel onto
bracket mounting tabs.
8
Drill hole centers as shown on
template. Do not drill mounting bracket corners.
Mount electronic control
module in cool, dry place.
Drill 2.25” (57 mm) hole for
touchpad panel.
10
INSTALLATION – TOILET COMPONENTS (cont’d)
9
Connect ribbon cables from
touchpad panel and control
module, and secure with waterproof connection enclosure.
10
Route power control cable
from control module to toilet.
Route water supply and
discharge plumbing to toilet
according to system require-
ments (see front cover of
manual).
12
Place toilet into position,
making sure to see the oor
brackets through holes at
bottom of toilet. Clamp
discharge hose from toilet
to discharge tting.
13
Connect water supply to toilet
inlet tting.
14
Complete power connections
from circuit breaker to control
module using proper electrical
wire gauge and components.
Complete plumbing system
with proper supply and
discharge components.
Turn on water supply and
electrical power to toilet.
Check for proper toilet opera-
tion by pressing the “Normal”
ush button to allow water into
bowl and through macerator.
Repeat ushing cycle as many
times as desired to assure
proper operation and that no
leaks exist in supply and discharge lines and connections.
15
Insert plastic adapters from
Toilet Floor Bracket Kit into
holes at bottom of toilet.
Fasten toilet to oor brackets
with screws.
16
11
Cut discharge hose from toilet
to accommodate discharge
connection.
Cover oor bracket screws
with white or chrome covers.
Connect power control cables
from control module and toilet.
11
INSTALLATION – TOILET COMPONENTS (cont’d)

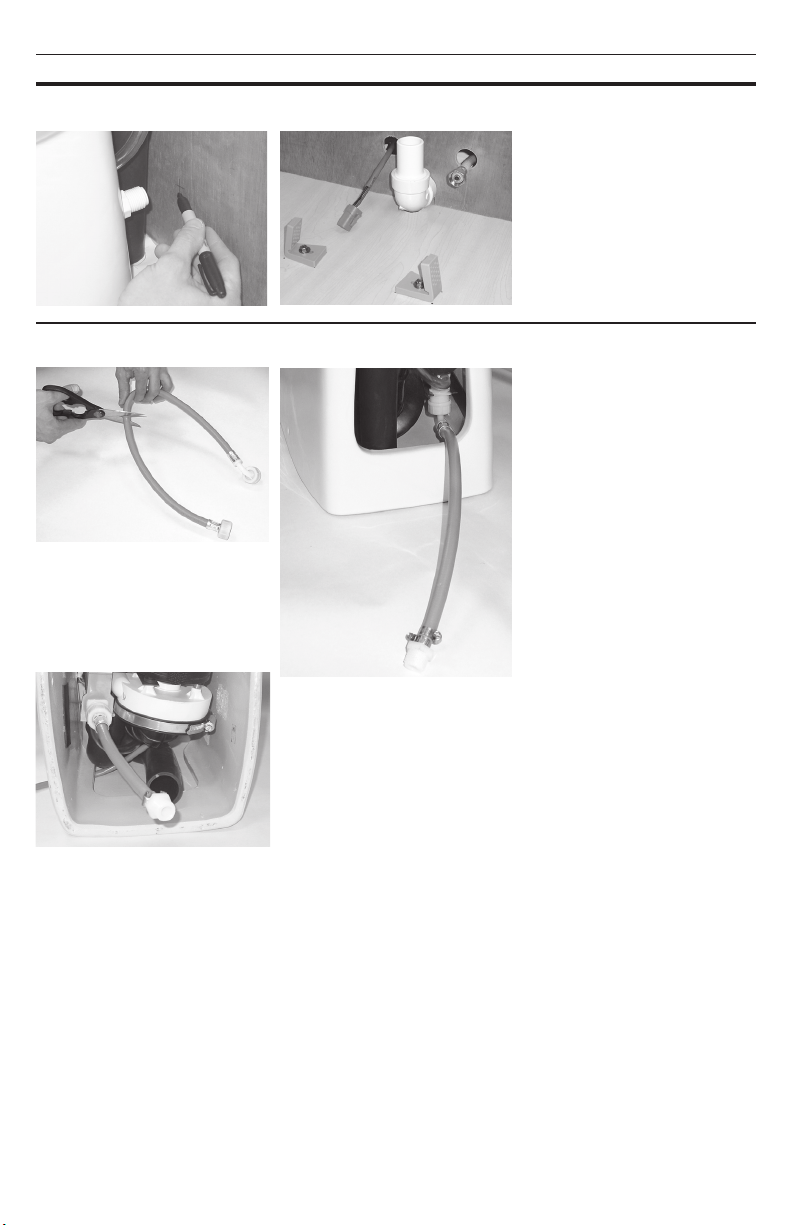

THROUGH-THE-WALL CONNECTIONS
8819 WATER LINE CONNECTION OPTIONS
Gray water line has both a
90-degree and straight connector at its ends. Select best
connector for your installa-
tion, then measure and cut
water line.
To route wiring and plumbing
connections through the wall,
use oor template to locate
vertical centerline of each
hole, then put toilet in proper
position and mark horizontal
centerlines. Drill hole sizes as
indicated on template. Route
wiring and plumbing through
holes, and then install toilet.
Connect straight tting to
water valve for through-theoor connection.
Connect elbow tting to water
valve for through-the-wall
connection.
12

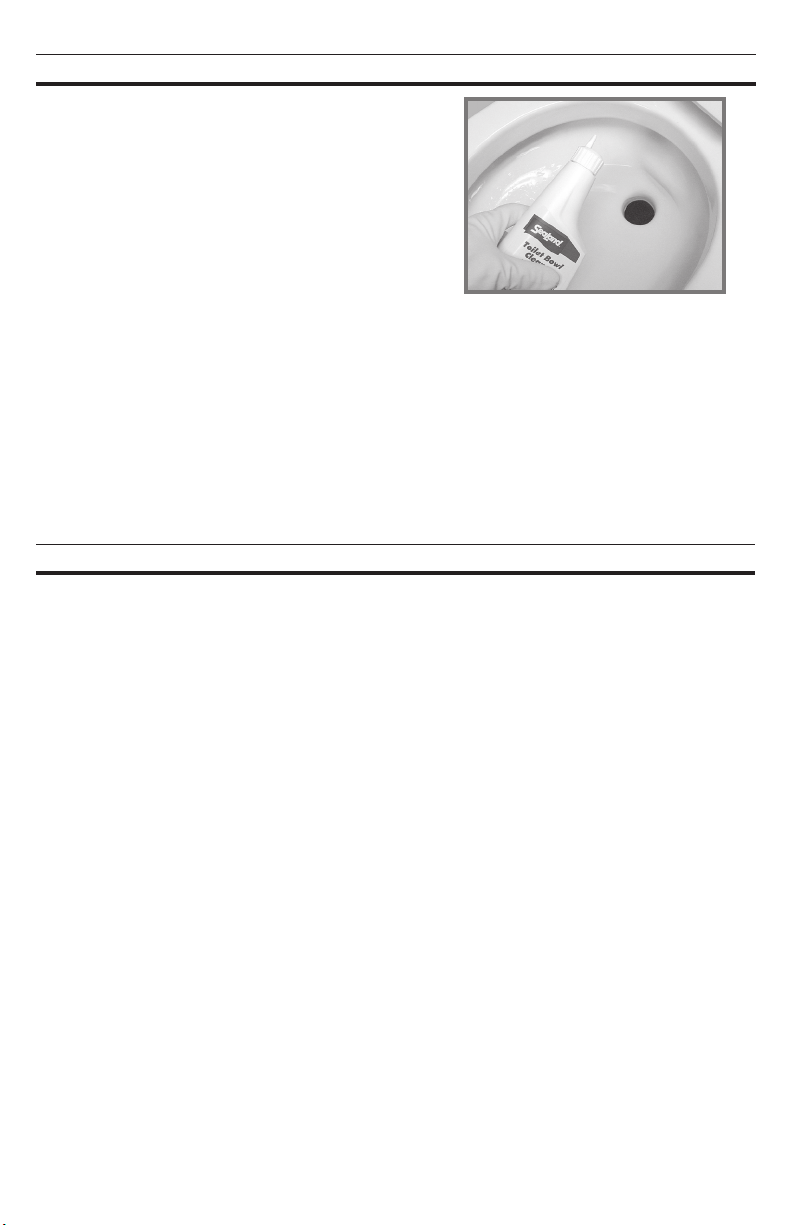

PROPER BOWL CLEANING
For stubborn bowl stains, use SeaLand® Toilet Bowl
Cleaner (Fig. A). It’s manufactured especially for use
with SeaLand macerator toilets. In certain locations
where water is hard, a build-up of lime may dull the toilet
bowl nish. Restore the shine with this SeaLand cleaner.
If you cannot nd it in your area, contact Dometic for
your nearest dealer. If the SeaLand Toilet Bowl Cleaner
is not available, you can also use most non-abrasive
bathroom and toilet bowl cleaners (Bar Keeper's Friend®
spray cleaner, Clorox® toilet bowl cleaner, SaniFlush®
toilet bowl cleaner, etc.). Please follow label instructions.
To avoid damaging the internal seals,
DO NOT USE
– abrasives (Comet
– caustic chemicals (Drano
– lubricants and cleaners containing alcohols or petroleum distillates
(Pam
® Bar Keepers Friend is a registered trademark of SerVaas
Laboratories Inc.
® Clorox, Pine-Sol and Soft Scrub are registered trademarks
of The Clorox Co.
® Comet is a registered trademark of Prestige Brands Inter-
national.
:
®
cooking spray, Pine-Sol® cleaner, WD-40® lubricant, etc.).
®
, Soft Scrub® cleansers etc.)
®
clog remover, etc.)
® Drano is a registered trademark of S.C. Johnson & Son Inc.
® Pam is a registered trademark of ConAgra Foods.
® Sani-Flush is a registered trademark of Reckitt Benckiser
Inc.
® Teon is a registered trademark of DuPont Co.
® WD-40 is a registered trademark of WD-40 Company.
Fig. A
ROUTINE TOILET MAINTENANCE
MONTHLY:
1. Inspect toilet, plumbing and plumbing connections, wires and wiring connections.
2. Open and close all valves, including seacocks.
3. Check in-line water lters and vented loops for blockage.
YEARLY:
1. Check internal lter in water valve. Also check lter when water ow into toilet bowl becomes
insufcient.
13
EXTENDED PERIODS OF NON-USE – LAYING UP TOILET
The macerator pump and sanitation hoses should be treated if toilet will not be needed for an
extended period of time (more than two weeks and especially in hotter weather).
1. Flush toilet in “Normal” mode and add 4 oz. (120 ml) of liquid biodegradable laundry detergent
(should NOT contain bleach or environmentally harmful substances). Note: If using sea water
for ushing, shut off power to sea water pump and add fresh water by pouring directly into the
bowl during the ush cycle.
2. Flush toilet at least ve times.
3. Turn off water supply to toilet.
4. Flush the toilet without water. Repeat three times. (This procedure will minimize any remaining
water in the macerator pump.)
5. Turn off power to the toilet (and water supply pump if ushing with sea water).
6. Close all seacocks.
If system will be subjected to freezing temperatures, please follow above procedure, and then
winterize system as described below.
WINTERIZING
At the end of each season, the SeaLand macerator toilet should be winterized for storage by using
potable water-safe antifreeze (if boat or vehicle will be exposed to freezing temperatures).
NOTE: Use nontoxic antifreeze designated for potable water systems. (See boat or vehicle
owner’s manual.)
CAUTION: Never use automotive-type antifreeze in freshwater systems.
PRESSURIZED FRESH WATER SYSTEM
1. Drain potable water tank and empty holding tank.
2. Add freshwater antifreeze to potable water tank.
3. Flush potable water antifreeze and water mixture through toilet(s) and into entire system,
including the waste holding tank, diverter valve connections, discharge pumps, etc. Turn off
power to toilet.
Each installation is different, so amounts may vary. User discretion is required to assure
adequate protection.
RAW WATER SYSTEM
Parts required: • 1-1/2-inch (38mm) ID hose, about 3-feet (1m) long
• 5/8-inch (16mm) ID hose, about 3-feet (1m) long
• two containers
1. Close intake and discharge seacocks. See Hazard of Flooding risks on page 3.
2. Turn off power to toilet.
3. Disconnect and drain intake hose, discharge hose, and in-line lters.
4. Connect 5/8-inch (16mm) ID hose to raw water pump intake and 1-1/2-inch (38mm) ID hose to
toilet discharge.
5. Place one container under hose connected to toilet’s discharge.
6. Place hose connected to intake pump into bucket with antifreeze and pour antifreeze in other
container.
7. Turn on power to toilet and ush until antifreeze is removed from toilet.
8. Disconnect power to toilet and reconnect all intake and drain hoses.
14
TROUBLESHOOTING GUIDE
Problem Possible Cause Service Instructions
1. Flush cycle operates correctly
but water in the bowl empties
slowly or not at all.
2. Macerator pump makes
unusually loud noise or
continually trips breaker.
3. Flush cycle is not activated
after pushing on ush button.
4. Insufcient or no water enters
the bowl.
5. Fresh water demand pump
turns on and off repeatedly
during toilet operation.
a. Discharge piping is pinched or
kinked.
b. Discharge piping is too high.
(Remember, all upward vertical
loops and should not exceed a
total of 9.8 feet (3 m) in height.)
c. The macerator pump or
discharge piping is blocked.
a. Foreign material in pump
chamber.
a. Holding tank is full and signal
from tank has shut down
electrical power to toilet.
b. Electrical power to toilet is shut
off or disrupted.
c. Flush Control Touchpad is
malfunctioning.
d. Circuit board in Electronic Control
Module is malfunctioning.
a. Water supply line is pinched or
kinked.
b. Screen in water valve is blocked.
c. Intake water lters are blocked
(in raw water system).
d. Water valve is malfunctioning.
a. Pump cut-out pressure is too low
(25 PSI or less).
b. Pump GPM output exceeds water
valve input.
c. Water valve screen is blocked.
d. Water valve is malfunctioning.
a. Check discharge piping.
b. Reroute discharge piping.
c. Close seacocks and clear
blockage.
a. Close seacocks and clear
foreign material.
a. Empty holding tank.
b. Check wiring and circuit
breakers (or fuses).
c. Replace touchpad.
d. Replace control module.
a. Check water supply line.
b. Clear blockage at water valve.
c. Clear water lters.
d. Replace water valve.
a. Install an in-line water
accumulator tank or upgrade
the water pump.
b. Install an in-line water
accumulator tank.
c. Clear blockage at water valve
screen.
d. Replace water valve.
15
DEODORANTS AND SPECIAL TISSUE
Your SeaLand toilet requires the regular addition of a deodorant product to reduce malodors and to
help break down holding tank contents. Several factors should be considered in selecting a deodorant product.
Liquid or Granulated. Liquid products work more quickly by readily going into solution.
Granulated powder formulations have the advantage of requiring less storage space and are less
likely to leak if the package is inadvertently damaged.
Formaldehyde versus Non-Formaldehyde.
Generally speaking, formaldehyde formulas control odor very effectively at all temperatures and
with all degrees of water hardness. Both SeaLand® Environment-Friendly and Clean ‘n Green™
brands, which are formaldehyde free, are similarly effective.
How Much Deodorant and How to Add It.
then ushed into the holding tank. Follow bottle or package instructions. Conditions of extremely
warm weather, longer waste holding time and larger tank capacities may require more deodorant
treatment. Also, to maintain optimum efciency in odor control, the waste holding tank should be
cleaned thoroughly at least once or more each season depending on use.
Why Not Use Household Toilet Paper in Your Toilet. Household tissues often contain adhesives
which bond together the paper bers from which the tissue is made. The adhesives prevent the
tissue from breaking apart, and their use in “ultra-low ow” systems can cause system clogging.
SeaLand tissue is especially designed for use in low water toilet systems. Its rapid dissolving
properties minimize the amount of residual paper in the holding tank and allow deodorizers to work
more efciently.
SeaLand Brand versus Other Brands. We constantly strive to provide our system owners with
effective products that have minimal environmental impact and good value. Many deodorant
products do not measure up to our standards of performance and value.
Dometic manufactures both types of deodorants.
The deodorant is added directly into the toilet bowl,
SeaLand®
Rapid-Dissolving
Toilet Tissue
Four 400-sheet rolls
Part No. 379441204
SeaLand®
Cleaner
16-oz. bottle
Part No.
379314016
SeaLand®
Clean ‘n Green
Bowl Cleaner/Tank
Deodorant
12-2 oz. drop-in pouches
Part No. 379512602
16
SeaLand® Liquid
Deodorant -
Environment Friendly
32-oz. bottle
Part No.
379114032

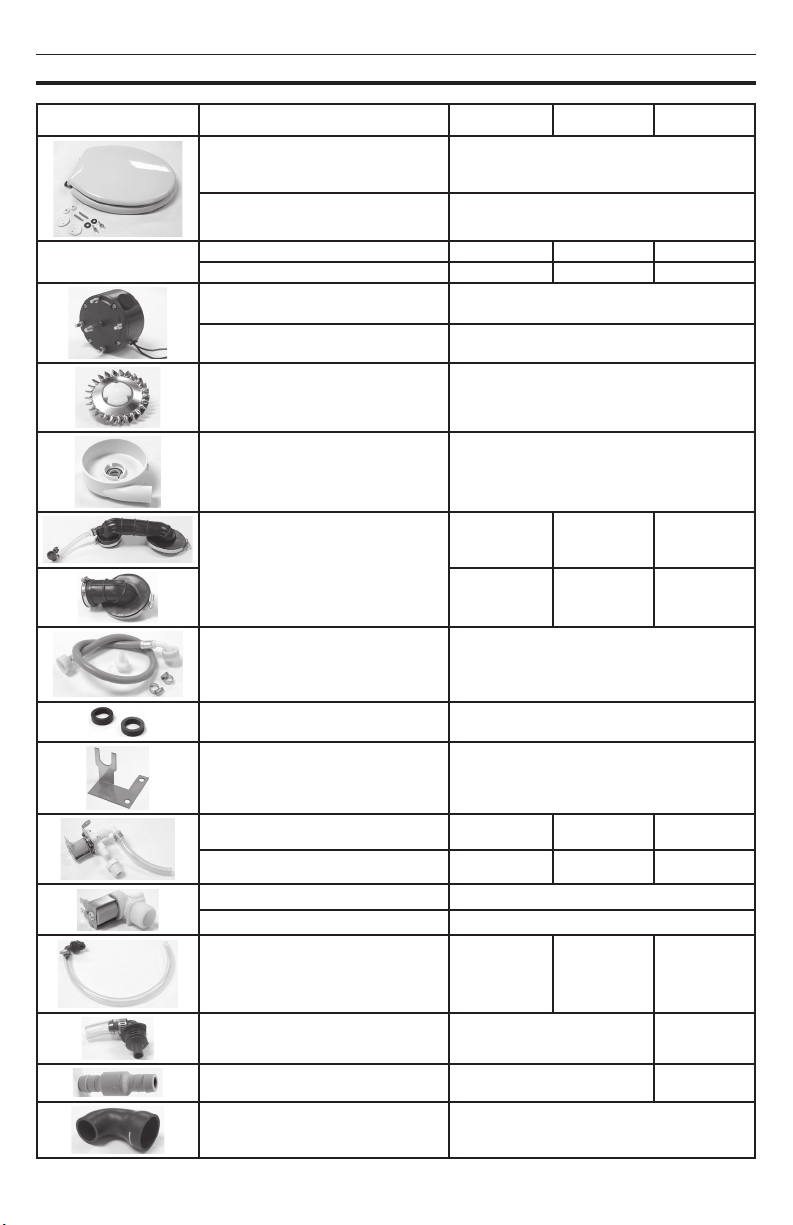

REPLACEMENT PARTS
Description 8812 8818 8819
Seat assembly - white 385880001
Seat assembly - bone 385880002
–
Ceramic toilet bowl only - white 385880003 385880005 385880007
Ceramic toilet bowl only - bone 385880004 385880006 385880008
Motor - 12 VDC 385880009
Motor - 24 VDC 385880010
Macerator blade assembly 385880011
Macerator blade housing 385880012
– 385880013 385880014
Bowl-to-macerator adapter
385880015 – –
Water line adapter kit 385880016
Water valve bracket spacers 385880017
Water valve bracket 385880018
Water valve assembly, 12 VDC 385880021 NA NA
Water valve assembly, 24 VDC 385880022 NA NA
Water valve, 12 VDC 385880023
Water valve, 24 VDC 385880024
Water valve-to-bowl assembly
with long hose
Water valve-to-bowl assembly
with short hose
Water line check valve 385880032 NA
Discharge elbow adapter 385880034
17
NA NA 385880029
385880030 NA

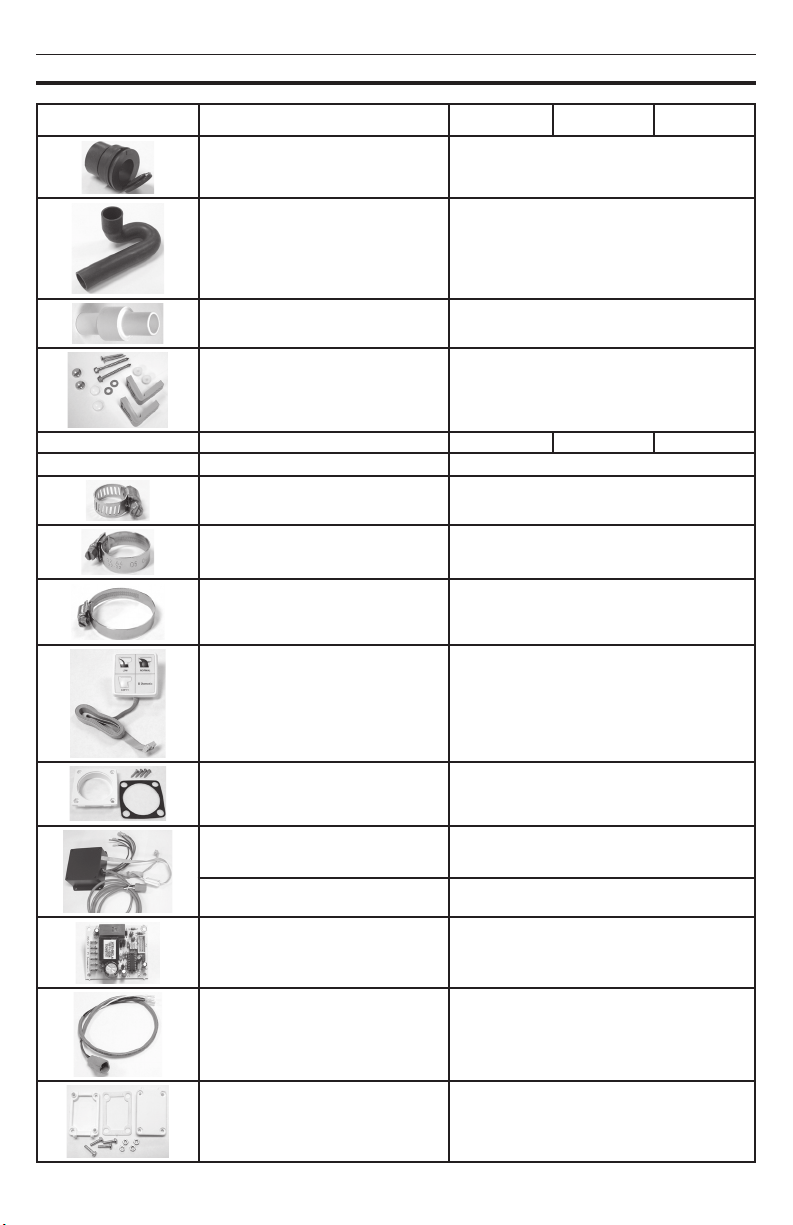

REPLACEMENT PARTS (cont’d)
Description 8812 8818 8819
Discharge non-return valve 385880035
Anti-siphon discharge loop 385880036
Straight discharge adapter 385880039
Floor mounting hardware kit 385880040
– Mounting template 385880041 385880042 385880043
– Owner’s manual 385880044
Small clamp 385880045
1.25-in. (32 mm) band clamp 385880046
2-in. (51 mm) band clamp 385880047
Touchpad control panel 385880048
Touchpad mounting hardware 385880049
Electronic control module –
12 VDC
Electronic control module –
24 VDC
Replacement circuit board
- 12/24 VDC
Replacement toilet control
harness
Ribbon cable waterproof
connection enclosure
18
385880050
385880051
385880052
385880053
385880054
ACCESSORIES and KITS
Description 8812 8818 8819
5-ft. (1.5 m) ribbon cable
extension
Reducing discharge adapter -
1.5-in. to 1-in. (38 mm to 25 mm)
Elbow discharge adapter 385880056
Power/Tank Full panel kit,
12 VDC
Power/Tank Full panel kit,
24 VDC
Tank “Full” oat assembly,
grommet-style
Tank “Full” oat assembly, MPT 313900100
TankWatch “Full” level monitor
kit for 12 or 24 VDC systems
385880055
307341113
385880057
385880058
313900101
313000312
Raw water adaption kit, 12 VDC 385880059
Raw water adaption kit, 24 VDC 385880060
19
CUSTOMER SERVICE
There is a strong, worldwide network to assist
in servicing and maintaining your sanitation
system. For the Authorized Service Center near
you, please call from 8:00 a.m. to 5:00 p.m.
(ET) Monday through Friday.
Telephone: 1 800-321-9886 U.S.A. and Canada
330-496-3211 International
Fax: 330-496-3097 U.S.A. and Canada
330-496-3220 International
Web site: http://www.DometicSanitation.com
http://www.DometicSanitation.com/locate.asp
You may also contact or have your local dealer
contact the Parts Distributor nearest you for
quick response to your replacement parts
needs. They carry a complete inventory for the
SeaLand product line.
MANUFACTURER’S TWO-YEAR LIMITED WARRANTY
Dometic Sanitation Corporation warrants, to the original purchaser only, that this SeaLand macerator toilet, if used for
personal, family or household-like purposes, and if installed according to Dometic’s recommended procedures, is free
from defects in material and workmanship for a period of two (2) years from the date of purchase.
If this Dometic product is placed in commercial or business use, it will be warranted, to the original purchaser only, to
be free of defects in material and workmanship for a period of ninety (90) days from the date of purchase.
Dometic reserves the right to replace or repair any part of this product that proves, upon inspection by Dometic, to be
defective in material or workmanship. All labor and transportation costs or charges incidental to warranty service are
to be borne by the purchaser-user.
EXCLUSIONS
IN NO EVENT SHAL L DOMETIC BE LIABLE FOR INCID ENTAL OR CONS EQUEN TIAL DAMAG ES, FOR
DAMAGES RESULTING FROM IMPROPER INSTALLATION, OR FOR DAMAGES CAUSED BY NEGLECT, ABUSE, ALTERATION, FOREIGN OBJECTS DEPOSITED IN THE TOILET, OR USE OF UNAUTHORIZED COMPONENTS. THIS
INCLUDES FAILURES WHICH MAY RESULT FROM NOT FOLLOWING THE WINTERIZATION OR CLEANING PROCEDURES AS DESCRIBED IN THIS MANUAL. ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED TO A PERIOD OF TWO (2)
YEARS FROM DATE OF PURCHASE.
IMPLIED WARRANTIES
No person is authorized to change, add to, or create any warranty or obligation other than that set forth herein.
Implied warranties, including those of merchantability and tness for a particular purpose, are limited to two (2) years
from the date of purchase for products used for personal, family or household-like purposes, and ninety (90) days from
the date of purchase for products placed in commercial or business use.
OTHER RIGHTS
Some states do not allow limitations on the duration of an implied warranty, and some states do not allow exclusions
or limitations regarding incidental or consequential damages; so, the above limitations may not apply to you. This
warranty gives you specic legal rights, and you may have other rights which vary from state to state.
To obtain warranty service, rst contact your local dealer from whom you purchased this product.
Dometic is a customer-driven, world-leading provider
of innovative leisure products for the caravan,
motorhome and marine markets. Dometic offers a
complete range of air conditioners, refrigerators,
awnings, cookers, sanitation systems, lighting, windows, doors and other equipment that makes leisure
life more comfortable away from home.
Dometic also provides refrigerators for specic use
in hotel rooms, ofces and for storage of medical
products and wine. Dometic’s products are sold in
almost 100 countries and are produced mainly in
Dometic’s own production facilities around the world.
Dometic has more than 4,400 employees.
600345326 1/07
Dometic Sanitation Corporation
13128 State Rt 226, PO Box 38
Big Prairie, OH 44611
SeaLand Product Customer Service: 1-800-321-9886
(8:00 a.m. - 5:00 p.m. ET)
Email: sealand@dometicusa.com
www.DometicSanitation.com
® Registered; ™ Trademark of Dometic Corporation
Dometic Corporation
20
Loading...
