Dolmar PS-7910 H, PS-7310H, PS-7910, PS-7310 User Manual
Operator’s and Safety Manual
for Gasoline Chain Saws (page 2 - 37)
Manuel d’emploi et de sécurité
de tronçonneuses thermiques (page 38 - 73)
WARNING!
Read and understand this Manual. Always follow safety precautions in the Operator’s and Safety Manual. Improper use can cause serious injury! Preserve this Manual carefully!
WARNING!
FUELS WITH MORE THAN 10% ETHANOL ARE NOT APPROVED FOR USE IN DOLMAR 2-STROKE ENGINES!
Use of alternative fuels, such as E-20 (20% ethanol), E-85 (85% ethanol) or any fuels not meeting DOLMAR requirements are not approved for use in DOLMAR 2-stroke gasoline engines!
USE OF ALTERNATIVE FUELS CAN CAUSE THE FOLLOWING PROBLEMS:
Poor engine performance, loss of power, overheating, fuel vapor lock, improper clutch engagement, premature deterioration of fuel lines, premature deterioration of gaskets,
premature deterioration of carburetors.
USING ALTERNATIVE FUELS AND/OR 2-STROKE OILS NOT ACCORDING TO JASO FC OR ISO-L-EGD IN DOLMAR 2-STROKE ENGINES WILL VOID YOUR ENGINE WARRANTY!
ATTENTION!
Suivez toujours les conseils de sécurité du présent manuel d’emploi et de sécurité. Une utilisation incorrecte de la tronçonneuse peut entraîner des blessures graves!
Lisez et comprenez ce manuel. Conservez avec soin ce manuel!
ATTENTION!
LES CARBURANTS CONTENANT PLUS DE 10 % D’ÉTHANOL NE SONT PAS AUTORISÉS POUR L’UTILISATION DANS LES MOTEURS 2 TEMPS!
Les carburants alternatifs, tels que E-20 (20 % d‘éthanol), E-85 (85 % d’éthanol) ou tout autre carburant n’étant pas conformes aux exigences DOLMAR ne sont pas autorisés
pour l’utilisation dans les moteurs essence à 2 temps DOLMAR!
L’UTILISATION DE CARBURANTS ALTERNATIFS PEUT CAUSER LES PROBLÈMES SUIVANTS:
Faible performance moteur, Perte de puissance, Surchauffe, Bouchons de vapeur dans la conduite d’essence, Embrayage incorrect, Détérioration prématurée des conduites
d’essence, Détérioration prématurée des joints d’étanchéité, Détérioration prématurée des carburateurs.
L’UTILISATION DE CARBURANTS ALTERNATIFS ET/OU D’HUILES 2 TEMPS NON-CONFORMES À LA NORME JASO FC OU ISO-L-EGD DANS LES MOTEURS À 2 TEMPS
DOLMAR ANNULERA VOTRE GARANTIE MOTEUR!
PS-7310, PS-7310 H
PS-7910, PS-7910 H
2
EMISSIONS COMPONENT DEFECT WARRANTY COVERAGE
DOLMAR warrant to the initial retail purchaser and each subsequent owner, that this utility equipment was designed, built, and
equipped to conform at the time of initial sale to all applicable regulations of the U.S. Environmental Protection Agency (EPA), and
that the engine is free of defects in materials and workmanship which would cause this engine to fail to conform with EPA regulations
during its warranty period.
For the components listed under PARTS COVERED, the service dealer authorized by DOLMAR will, at no cost to you, make the
necessary diagnosis, repair, or replacement necessary to ensure that the engine complies with applicable U.S. EPA regulations.
EMISSION COMPONENT DEFECT WARRANTY PERIOD
The warranty period for this engine begins on the date of sale to the initial purchaser and continues for a period of 2 years.
PARTS COVERED
Listed below are the parts covered by the Emission Components Defect Warranty. Some of the parts listed below may require
scheduled maintenance and are warranted up to the rst scheduled replacement point for that part.
Fuel Metering System Ignition System
Carburetor and internal parts Spark plug
Fuel lter, if applicable Flywheel Magneto
Throttle stopper, if applicable Ignition Coil
Choke System, if applicable
Air Induction System Miscellaneous Items Used in Above Systems
Pre lter, if exist Fuel hoses, clamps and sealing gaskets
Air lter, Air lter case, Intake manifold
Components with evaporative emissions
Fuel tank, Fuel tank cap
OBTAINING WARRANTY SERVICE
To obtain warranty service, take your engine to the nearest DOLMAR service Center authorized by DOLMAR. Bring your sales receipts indicating date of purchase for this engine. The dealer of service authorized by DOLMAR will perform the necessary repairs or
adjustments within a reasonable amount of time and furnish you with a copy of the repair order. All parts and accessories replaced
under this warranty become the property of DOLMAR.
WHAT IS NOT COVERED
• Conditions resulting from tampering, misuse, improper adjustment (unless they were made by the service dealer authorized by
DOLMAR during a warranty repair), alteration, accident, failure to use the recommended fuel and oil, or not performing required
maintenance services.
• The replacement parts used for required maintenance services.
• Consequential damages such as loss of time, inconvenience, loss of use of the engine or equipment, etc.
• Diagnosis and inspection charges that do not result in warranty-eligible service being performed.
• Any non-authorized replacement part, or malfunction of authorized parts due to use of non-authorized parts.
OWNER’S WARRANTY RESPONSIBILITIES
As the engine owner, you are responsible for the performance of the required maintenance listed in your operator’s manual.
DOLMAR recommends that you retain all receipts covering maintenance on your engine, but DOLMAR cannot deny warranty solely
for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. As the engine owner, you should
however be aware that DOLMAR may deny warranty coverage if your engine or a part has failed due to abuse, neglect, improper
maintenance or unapproved modications.
You are responsible for presenting your engine to the nearest service dealer authorized by DOLMAR when a problem exists.
If you have any questions regarding your warranty rights and responsibilities, you should contact the DOLMAR Warranty service
Department at 1-888-OPE-PART or info@dolmar.com for the information.
THINGS YOU SHOULD KNOW ABOUT THE EMISSION CONTROL SYSTEM WARRANTY:
MAINTENANCE AND REPAIRS
You are responsible for the proper maintenance of the engine. You should keep all receipts and maintenance records covering the
performance of regular maintenance in the event questions arise. These receipts and maintenance records should be transferred to
each subsequent owner of the engine. DOLMAR reserves the right to deny warranty coverage if the engine has not been properly
maintained. Warranty claims will not be denied, however, solely because of the lack of required maintenance or failure to keep
maintenance records.
MAINTENANCE, REPLACEMENT OR REPAIR OF EMISSION CONTROL DEVICES AND SYSTEMS MAY BE PERFORMED BY
ANY REPAIR ESTABLISHMENT OR INDIVIDUAL; HOWEVER, WARRANTY REPAIRS MUST BE PERFORMED BY A SERVICE
DEALER AUTHORIZED BY DOLMAR. THE USE OF PARTS THAT ARE NOT EQUIVALENT IN PERFORMANCE AND DURABILITY TO AUTHORIZED PARTS MAY IMPAIR THE EFFECTIVENESS OF THE EMISSION CONTROL SYSTEM AND MAY HAVE A
BEARING ON THE OUTCOME OF A WARRANTY CLAIM.
If other than the parts authorized by DOLMAR are used for maintenance replacements or for the repair of components affecting emission control, you should assure yourself that such parts are warranted by their manufacturer to be equivalent to the parts authorized
by DOLMAR in their performance and durability.
HOW TO MAKE A CLAIM
All repair qualifying under this limited warranty must be performed by a service dealer authorized by DOLMAR. In the event that any
emission-related part is found to be defective during the warranty period, you shall notify DOLMAR Warranty service Department at
1-888-OPE-PART or info@dolmar.com and you will be advised of the appropriate warranty service dealer or service providers where
the warranty repair can be performed.
WARNING !
Careless or improper use of this product can cause serious or even fatal injury.
Before operating a chain saw or other DOLMAR products it is important that you read, fully understand and
carefully follow the instructions outlined in this operator’s manual. Kickback may cause severe or fatal injury
and is one of many potential dangers in operating a chain saw. Kickback and other safety related precautions
are described in detail within this operator’s manual. Additional operator’s manuals are available from DOLMAR
POWER PRODUCTS, PO Box 5007, Alpharetta, GA, 30005-5007, USA, Telephone 1-888-OPE-PART or info@
dolmar.com
This product complies with: American National Standard Institute B 175.1-2000 chain saw safety standard.
Canadian Standards Association Z62.1-03 chain saw safety standard.
Z62.3-04 chain saw kickback standard.
Society of Automotive Engineers SAEJ 335-Jun 95 „Multiposition small
engine exhaust system re ignition
suppression”
The Emissions Compliance Period referred to on the emission Compliance label indicates the number of operat-
ing hours for which the engine has been shown to meet federal emissions requirements. Category C= 50 hours,
B= 125 hours, and A= 300 hours.
With the purchase of this chain saw you have chosen a German quality product. Important instructions for the assembly and operation of this saw are given in this manual. For your own safety, we ask you to read the accident
prevention instructions very carefully before putting your chain saw into operation, as incorrect handling can,
despite all precautions, lead to accidents. With a little care and attention you will have good service and lasting
satisfaction from this rst-rate product.
PS-7310, PS-7910
Contents Page
Delivery inventory .................................................... 4
Symbols ...................................................................4
Safety precautions ..............................................5-16
Denomination of components ................................17
Technical data........................................................ 18
Mounting the guide bar and saw chain .............19-21
Chain brake ........................................................... 21
Fuel / Refuelling................................................22-23
Chain lubrication ....................................................24
Starting the engine ................................................25
Stopping the engine............................................... 25
Checking the chain brake ...................................... 25
Adjusting the carburetor ........................................26
Working in summer / winter ................................... 26
Handle heating
(only on “H” model saws) ..............27
Sharpening the saw chain ................................ 27-28
Cleaning the brake band and sprocket interior ......29
Contents
Page
Cleaning the guide bar ..........................................30
Replacing the saw chain........................................ 30
Replacing the fuel lter .......................................... 30
Cleaning the air lter.............................................. 31
Replacing the spark plug ....................................... 32
Replacing the starter cable ....................................33
Replacing the return spring ...................................33
Mounting the fan housing ...................................... 34
Cleaning the cylinder area .....................................34
Replacing / cleaning the spark arrester screen ..... 34
Instructions for daily and periodic maintenance ....35
Service, spare parts and guarantee .................35-36
Troubleshooting .....................................................36
Extract from the spare parts list .............................37
The PS-7310 and PS-7910 will be delivered in a protective cardboard box to prevent transport damage. Cardboard
is a basic raw material and is consequently reuseable or suitable for recycling (waste paper recycling).
3
4
Delivery inventory
1
4
5 6 7
32
8
1 Chain saw
2 Guide bar
3 Saw chain
4 Chain protection cover
5 Universal wrench
6 Wrench
7 Screw driver for carburetor adjustment
8 Cylinderncleaner
9 Operator’s and Safety Manual (not shown)
In case one of the parts listed should not be included in the
delivery inventory, please consult your sales agent.
Symbols
You will notice the following symbols on the chain saw and in the Operator’s and Safety Manual.
Further symbols see page 6.
Read Operator’s and Safety
Manual and follow the warningand safety precautions!
Particular care and caution!
Forbidden!
Wear protective helmet, eye and
ear protection!
Wear protective gloves!
No smoking!
Noopenre!
Caution, kickback!
Chain brake
Fuel and oil mixture
Working in summer / winter
Handle heating
Carburetor adjustment
Stop engine!
Push the starting valve
Engine - manual start
On/Off (I/O) switch
Chainoilll/oilpump
Saw chain oil
adjustment screw
First aid
Do not touch hot surfaces!
Recycling
Safety precautions for chain saw operators
Additional safety precautions
While operating the chain saw please observe the
following rules:
a) Contact of the guide bar nose with any object
should be avoided.
b) Tip contact may cause the guide bar to move
suddenly upward and backward, which may
cause serious or fatal injury.
c) Always operate the chain saw with both hands.
WARNING!
Read and follow all safety precautions in the
operator’s manual. Failure to follow instructions
could result in serious injury. It is recommended to
lend the chain saw only to people who are experienced in working with chain saws. Always hand
over the Operator’s and Safety Manual.
WARNING!
This chain saw is capable of severe kickback that
could result in serious injury to the operator. Do
not operate this chain saw unless you have extraordinary cutting needs and experience in and
special training for dealing with kickback. Chain
saws with signicantly reduced kickback potential
are available.
WARNING!
Kickback may occur when the nose or tip of the
guide bar touches an object, or when the wood
closes in and pinches the saw chain in the cut.
This contact may abruptly stop the saw chain and
in some cases may cause a lightning fast reverse
reaction, kicking the guide bar up and back towards
the user, or push the guide bar back towards the
operator. Kickback may cause you to lose control
of the saw.
As a chain saw user, you can take several steps to
reduce the risk of a kickback and potential injury.
A. With a basic understanding of kickback, you
can reduce or eliminate the element of surprise. It is a sudden surprise that contributes
to accidents.
B. Keep a good rm grip on the saw with both
hands, your right hand on the rear grip and
your left hand on the tubular handle, when the
engine is running. Use a rm grip with thumbs
and ngers encircling the chain saw handles. A
rm grip can neutralize kickback and help you
maintain control of the saw. Don’t let go!
C. Make sure that the area in which you are cut
ting is free from obstructions. Do not let the
nose of the guide bar contact the log, branch,
or any other obstructions which could be hit
while you are operating the saw.
D. Do not overreach or cut above shoulder
height.
E. Follow manufacturer’s sharpening and main-
tenance instructions for the saw chain.
F. Only use replacement bars and chains speci-
ed by the manufacturer or the equivalent.
-
The following additional safety precautions must be
observed by all users of chain saws:
1. Do not operate a chain saw when you are fati
gued.
2. Use safety footwear; snug-tting clothing; protec
tive gloves; and eye, hearing, and head protection
devices.
3. Use caution when handling fuel. Move the chain
saw at least 10 feet (3 m) from the fueling point
before starting the engine.
4. Do not allow other persons to be near the chain saw
when starting or cutting with the chain saw. Keep
bystanders and animals out of the work area.
5. Do not start cutting until you have a clear work
area, secure footing, and a planned retreat path
from the falling tree.
6. Keep all parts of your body away from the saw
chain when the engine is running.
7. Before you start the engine, make sure that the
saw chain is not contacting anything.
8. Carry the chain saw with the engine stopped, the
guide bar and saw chain to the rear, and the mufer
away from your body.
9. Do not operate a chain saw that is damaged,
is improperly adjusted, or is not completely and
securely assembled. Be sure that the saw chain
stops moving when the throttle control trigger is
released.
10. Shut off the engine before setting it down.
11. Use extreme caution when cutting small size brush
and saplings because slender material may catch
the saw chain and be whipped toward you or pull
you off balance.
12. When cutting a limb that is under tension be alert
for springback so that you will not be struck when
the tension on the wood bers is released.
13. Keep the handles dry, clean, and free of oil or fuel
mixture.
14. Operate the chain saw only in well-ventilated
areas.
15. Do not operate a chain saw in a tree unless you
have been specically trained to do so.
16. All chain saw service, other than the items listed
in the operator’s manual maintenance instructions,
should be performed by DOLMAR . (For example,
if improper tools are used to remove the ywheel
or if an improper tool is used to hold the ywheel
in order to remove the clutch structural damage to
the ywheel could occur and could subsequently
cause the ywheel to burst.)
17. When transporting your chain saw, use the chain
protection cover.
18. Low kickback bars and low kickback chains are
designed to reduce the risk of kickback injury. Ask
your DOLMAR dealer about these devices.
-
-
5
6
General Safety Precautions
XXX.YYY.ZZZ
XXX.YYY.ZZZ
max. CKA 45
O
max. CKA 40
O
The use of any chain saw may be hazardous. At full
throttle chain speed can reach 45 mph (20 m/s). It is
important that you read; fully understand and observe
the following safety precautions and warnings. Read
the Operator’s Manual and the safety instructions
periodically.
Maximum Computed Kickback Angle
(CKA)* without using the chain brake when
using the recommended bar and chain
combinations (In this example the CKA is 45°).
Ma ximumCompu ted Kick back Angle
(CKA)* with using the chain brake when
using the recommended bar and chain
combinations (In this example the CKA is 40°).
WARNING !
Reactive forces, including kickback, can be dangerous. Careless or improper use of any chain saw
may cause serious or fatal injury.
Have your DOLMAR dealer show you how to operate your chain saw. Observe all applicable local
safety regulations, standards and ordinances.
1
WARNING!
Minors should never be allowed to use a chain
saw.
Bystanders, especially children and animals should
not be allowed in the area where a chain saw is
in use (g. 1).
Never let the saw run unattended.
Store it in a locked place away from children. Fill
the fuel tank to 7/8 th full (see storing the saw).
Do not lend your chain saw without this Operator’s
and Safety Manual. Be sure that anyone using your
saw understands the information given.
Contact of the guide bar tip with
any object should be avoided!
Tip contact may cause the guide
bar to move suddenly upward
and backward, which may cause
serious injury!
Always use two hands when
operating the chain saw!
Reduced Kickback Bar and
Chain combination that has been
evaluated with the power head
to achieve kickback protection
(according to ANSI and CSA
standards).
* The Computed Kickback Angle is a calculated value
from energies measured on a test bench.It is not the
angle of the guide bar moved upward in case of a
KICKBACK.
The operator
Physical Condition
You must be in good physical condition and mental
health and not under the inuence of any substance
(drugs, alcohol), which might impair vision, dexterity
or judgment.
2
Proper use of a chain saw involves
1. the operator
2. the saw
3. the use of the saw.
Discription of symbols used on chain
saws:
CSA Standards Z62.1-03
Class 1A Z62.3-04
ANSI Standard B175.1-2000
SAE Standard SAE J335
WARNING !
Prolonged use of chain saws exposing the operator
to vibrations may produce Whitenger disease (Ray-
naud’s phenomenon). This phenomenon reduces
the hand’s ability to feel and regulate temperature,
produces numbness and burning sensations and
may cause nerve and circulation damage and
tissue necrosis.
All DOLMAR saws are therefore provided with an
antivibration system which is essential for those
using chain saws on a regular or sustained basis.
Antivibration systems do not guarantee that you
will not sustain Whitenger disesase, however, they
reduce this danger considerably. Nevertheless,
continual and regular users should observe their
hands and ngers and in case of any abnormal
symptoms, seek medical advice immediately.
Proper clothing
The saw
Clothing must be sturdy and snug-tting, but allow
complete freedom of movement. Avoid loose-tting
jackets, scarfs, neckties, jewelry, ared or cuffed pants,
or anything that could become entangled with the saw
or brush. Wear overalls or jeans with a reinforced cutting
resistant insert (g. 3).
Protect your hands with gloves when handling saw and
saw chain. Heavy-duty, nonslip gloves improve your
grip and protect your hands.
Parts of the chain saw: illustrations and description of
parts see page 17.
WARNING !
Never modify a chain saw in any way. Only at-
tachments supplied by DOLMAR or expressly
approved by DOLMAR for use with the specic
saw are authorized.
WARNING !
Bow guide bars substantially increase the potential
for kickback and severe or fatal injury due to the
greater kickback zone of the bow design. Bow guide
bars are not recommended for use on DOLMAR
chain saws nor are they approved by the ANSI B
175.1-2000 chain saw safety standard.
The use of the saw
Transporting the chain saw
3
Good footing is most important in chain saw work.
Wear sturdy boots with nonslip soles. Steel-toed safety
boots are recommended.
Proper eye protection is a must. Non-fogging, vented
goggles and a face screen is recommended. Their
use reduces the risk of eye and facial injury.
Wear an approved safety hard hat to protect your
head. Chain saw noise may damage your hearing.
Always wear noise protection equipment (ear plugs
or ear muffs) to protect your hearing.
Continual and regular users should have their
hearing checked regularly.
WARNING!
Always stop the engine before putting a chain
saw down or carrying it. Carrying a chain saw
with the engine running is extremely dangerous.
Accidental acceleration of the engine can cause
the chain to rotate.
Avoid touching the hot mufer.
4
By hand: When carrying your saw by hand, the
engine must be stopped and the saw must be in
the proper position.
The chain protection cover should be over the
chain and the guide bar must point backwards.
When carrying your saw the bar should be behind
you (g. 4).
Wear protective helmet,
eye and ear protection!
By vehicle: When transporting in a vehicle, keep
chain and bar covered with the chain guard. Properly
secure your saw to prevent turnover, fuel spillage
and damage to the saw. Make sure the saw in not
exposed to heat or sparks.
7
8
Chain saw operating instructions
For assembly follow the procedure in the appropriate
section "Mounting Guide Bar and Chain" of this manual.
DOLMAR chain, guide bar and sprocket must match each
other (see the appropriate section in this manual).
WARNING!
Proper tension of the chain is extremely important. In order to avoid false setting the tensioning
procedure must be followed as described in this
manual. Always make sure the hexagonal nut(s)
for the sprocket guard is (are) tightened securely
after tensioning the chain. Check chain tension once
more after having tightened the nuts and thereafter
at regular intervals (always before starting to work).
If the chain becomes loose while cutting, shut off
the engine and then tighten. Never try to tighten
the chain while the engine is running!
Fueling
Your DOLMAR saw uses on oil-gasoline mixture for
fuel (see chapter "Fuel" of this manual).
Wipe off any spilled fuel before starting your saw and
check for leakage.
Check for fuel leakage while refueling and during operation. If fuel or oil leakage is found, do not start or run
the engine until leak is xed and spilled fuel has been
wiped away. Clothing with fuel on it has to be changed
immediately (this is a danger to your life!).
Avoid skin contact with fuel. Never loosen or remove
the cap of the fuel tank while the engine is running.
Starting
Do not drop start. This method is very dangerous be-
cause you may lose control of the saw (g. 6).
5
WARNING!
Gasoline is an extremely ammable fuel. Use extreme caution when handling gasoline or fuel mix.
Do not smoke or bring any sparks or ame near
the fuel (g. 5).
Fueling instructions
Fuel your chain saw in well ventilated areas or outdoors. Always shut off the engine and allow it to cool
before refueling. Select bare ground for fueling and
move the chain saw at least 10 feet (3 m) from fueling
spot before starting the engine (g. 5a).
6
6a
Place the chain saw on rm ground or other solid
surface in an open area. Maintain a good balance and
secure footing. Place your right foot through the rear
handle opening and rmly grasp the front handle with
your left hand (g. 6a).
Be absolutely sure that guide bar and chain are clear
of you or all other obstructions and objects, including
the ground, because when the engine starts in semithrottle position, engine speed will be fast enough for
the clutch to engage the sprocket and turn the chain
which may cause a kickback.
Never attempt to start the saw when the guide bar is
in a cut or kerf.
When you pull the starter grip, don’t wrap the starter
rope around your hands. Do not allow the grip to snap
10 feet
back, but guide the starter rope slowly back to permit
the rope to rewind properly. Failure to follow this pro-
cedure may result in injury to hand or ngers and may
damage the starter mechanism.
5a
Important adjustments
WARNING!
At correct idle speed, chain should not turn. For directions to adjust idle speed, see the appropriate
section of this operator’s manual.
Do not use a saw with incorrect idle speed adjustment. Adjust the idle speed yourself according to
the appropriate section of this manual.
Have your DOLMAR dealer check your saw and
make proper adjustments or repairs.
Wrap your ngers tightly around the handles, keeping
the handles cradled between your thumb and forenger (g. 7). With your hands in this position, you can
best oppose and absorb the push, pull and kickback
forces of your saw without having it slip out of your
grip (see section of reactive forces). Make sure your
chain saw handle and grip are in good condition and
free of moisture, pitch, oil or grease.
Always start a cut with the chain running at full speed
and the spike bar in contact with the wood.
Check the saw chain tension frequently, especially
just after installing a new chain. New chains may
stretch more during their initial use. A properly adjusted saw chain can be pulled freely around the
guide bar by hand without sagging. Always stop
the engine and wear gloves when checking or adjusting the chain tension.
Working conditions
Operate your chain saw only outdoors. Operate the saw
under good visibility and daylight conditions only.
WARNING!
Take extreme care in wet and freezing weather
(rain, snow, ice). Put off the work when the weather
is windy, stormy or rainfall is heavy. Clear the area
where you are working.
WARNING!
Avoid stumbling on obstacles such as stumps,
roots or rocks and watch out for holes or ditches.
Be extremely cautious when working on slopes or
uneven ground. There is increased danger of slipping on freshly debarked logs.
WARNING!
Never use the saw with one hand. You cannot
control reactive forces (see pages 10 to 12) and
may lose control of the saw.
8
WARNING!
Do not operate your chain saw in semi-throttle
position. Cutting in this position does not permit
the operator proper control of the saw or chain
speed.
WARNING!
Never come too close to a rotating chain with your
hands or body.
Cutting instructions
Always hold the saw rmly with both hands when the
engine is running. Place your left hand on the tubular
handle and your right hand on grip and throttle lever.
Left-handers should follow these instructions too.
7
WARNING!
Do not cut any material other than wood or
wooden objects.
Use your chain saw for cutting only. It is not designed for prying or shoveling away limbs, roots
or other objects.
When sawing, make sure that the saw chain does
not touch any foreign materials such as rocks, nails
and the like (g. 8). Such objects may be ung
off, damage the saw chain or cause the saw to
kickback.
9
10
9
In order to keep control of your saw, always maintain
a rm foothold. Never work on a ladder, in a tree or on
any other insecure support. Never use the saw above
shoulder height (g. 9).
10
Position the chain saw in such a way that your body is
clear of the cutting attachment whenever the engine
is running (g. 10).
Don’t put pressure on the saw when reaching the end
of a cut. The pressure may cause the bar and rotating
chain to pop out of the cut or kerf, go out of control
and strike the operator or some other object. If the
rotating chain strikes some other object a reactive
force (see pages 11 to 13 ) may cause the chain to
strike the operator.
Reactive forces during the cut, including kickback
WARNING!
Reactive forces, that may occur during any cut are
kickback, pushback and pull-in. Reactive forces
can be dangerous! In any chain saw, the powerful
force used to cut wood can be reversed (and work
against the operator).
If the rotating chain is suddenly stopped by contact with any solid object like a log or branch or is
pinched, the reactive forces instantly occur. These
reactive forces may result in loss of control which
may, in turn, cause serious or fatal injury. An understanding of the causes of these reactive forces
may help you avoid loss of control.
The most common reactive forces are
- kickback,
- pushback,
- pull-in.
11
Kickback:
Kickback occurs when the upper quadrant of the bar
nose contacts a solid object in the wood or is pinched
(g. 11). The reaction of the cutting force of the chain
causes a rotational force of the chain saw in the direc
tion opposite to the chain movement, mainly in the plane
of the bar. This may ing the bar in an uncontrolled arc
towards the operator.
12
This reaction can occur in a fraction of a second and
under some circumstances, cause the guide bar and
chain to strike the operator with enough force to cause
severe or fatal injury. It may also occur during limbing. It
also occurs when the nose of the guide bar is pinched
unexpectedly, unintentionally contacts solid material
in the wood (g.12) or is incorrectly used to begin a
plunge or boring cut.
The greater the force of the kickback reaction, the
more difcult it becomes for the operator to control
the saw.
Many factors inuence the occurence and force of
the kickback reaction. The type of bar and saw chain you
use is a factor in the force of the kickback reaction.
The speed of contact at which the cutter contacts
the object.
Kickback force increase with the rate of impact.
The contact angle between the nose of the bar
and the foreign object (g. 11).
Kickback is most pronounced in the upper quadrant
of the bar nose.
DOLMAR chain types are designed to reduce kickback
forces.
The depth gauges:
Improper lowering of the depth gauges also increases
the risk of a kickback.
Saw chain cutter sharpness:
13
To avoid kickback
The best protection from personal-injury that may result
from kickback is to avoid kickback situations:
1. Hold the chain saw rmly with both hands and
maintain a secure grip.
2. Be aware of the location of the guide bar nose at
all times.
WARNING!
A dull improperly sharpened chain may increase
the risk of kickback. Always cut with a properly
sharpened chain.
Devices for reducing the risk of kickback injury
DOLMAR have developed a special chain brake to
reduce the risk of kickbacks.
This chain brake increases the safety factor on the
job, e.g. when the saw suddenly bucks upwards the
chain stops rotating within a fraction of a second. A
deection guard on the disengaging lever of the chain
brake and a scoop rear handle ensure that the operator’s hands are fully protected at all times.
Kickback tendency increases as the radius or size of
the guide bar nose increases. DOLMAR have developed guide bars with small nose radius, to reduce the
kickback tendency.
WARNING!
No chain brake prevents kickback.
These brakes are designed only to stop the chain,
if activated.
To ensure a proper operation of the chain brake, it
must be properly maintained. Furthermore, there
must be a sufcient distance between the operator and the bar to ensure that the chain brake has
sufcient time to activate and stop the chain before
potential contact with the operator.
3. Never bring the nose of the guide bar in contact
with any object. Do not cut limbs with the nose of
the guide bar. Be especially careful with small,
tough limbs, small size brush and saplings which
may easily catch the chain.
4. Don’t overreach.
5. Don’t cut above shoulder height.
6. Begin cutting and continue at full throttle.
7. Cut only one log at a time.
8. Use extreme caution when re-entering a previous
cut.
9. Do not attempt plunge cuts (see page 13) if you are
not experienced with these cutting techniques.
10. Be alert for shifting of the log or other forces that
may cause the cut to close and pinch the chain.
11. Maintain saw chain properly. Cut with a correct-
ly sharpened, properly tensioned chain at all
times.
12. Stand to the side of the cutting path of the chain
saw.
11
12
Pushback:
To avoid pull-in
Pushback occurs when the chain on the top of the
bar is suddenly stopped when it is pinched, caught
or encounters a foreign object in the wood. The reaction of the chain drives the saw straight back toward
the operator causing loss of saw control. Pushback
fre-quently occurs when the top of the bar is used for
cutting (g. 14).
14
To avoid pushback
1. Be alert to forces or situations that may cause
material to pinch the top of the chain.
2. Do not cut more than one log at a time.
3. Do not twist the saw when withdrawing the bar
from a plunge cut or under buck cut (gures 25 to
27 and 33, pages 13 and 15), because the chain
can pinch.
Pull-in:
Pull-in occurs when the chain on the bottom of the bar
is suddenly stopped. The chain on the bottom of the
bar stops when it is pinched, caught or encounters a
foreign object in the wood (see g. 15). The reaction of
the chain pulls the saw forward, causing the operator
to lose control.
1. Always start a cut with the chain rotating at full speed
and the spike bar in contact with the wood.
2. Pull-in may also be prevented by using plastic
wedges to open the kerf or cut.
Cutting techniques
Felling
Felling is cutting down a tree.
Before felling a tree, consider carefully all conditions
which may affect the direction of fall, including:
The intended direction of the fall.
The neutral lean of the tree.
Any unusually heavy limb structure.
Surrounding trees and obstacles.
The wind direction and speed.
WARNING!
Always observe the general condition of the tree.
Look for decay and rot in the trunk. If it is rotted
inside, it could snap and fall toward the operator
while being cut.
Also look for broken or dead branches which could
vibrate loose and fall on the operator. When felling on a slope, the operator should stand on the
up-hill side.
Pull-in frequently occurs when the spike bar of the
saw is not held securely against the tree or limb and
when the chain is not rotating at full speed before it
contacts the wood.
15
WARNING!
Use extreme caution when cutting small size brush
and saplings which may easily catch the chain and
pull you off balance.
16
When felling in the vicinity of roads, railways and
power lines, etc., take extra precautions (see g.
16). Inform the police, utility company or railway
authority before beginning to cut.
45°
1/10∅
1/5∅
11/
2
"
(4cm)
1
2
2
45°
= cutting down area
17
When felling, maintain a distance of at least 2 1/2 tree
lengths from the nearest person (see g. 17).
Note:
The noise of your engine may drown any warning call.
Felling instructions:
First cut
Second cut
20
If the tree has large buttress roots, cut into the largest
buttresses vertically rst (horizontally next) and remove
(g. 20).
Direction of fall
21
18
First clear the tree base and work area from interfering limbs and brush and clean its lower portion an
axe (see g. 18).
45°
19
Then, establish a path of escape and remove all obstacles. This path should be opposite to the planned
direction of the fall of the tree and at a 45° angle (g.
19). An alternate path must also be selected. Place
all tools and equipment a safe distance away from the
tree, but not on the escape path.
Felling cut
Hinge
Felling notch
22
Felling notch
Hinge
23
Then, determine the placement of the felling notch
(g. 21). The felling notch when properly placed de-
termines the direction in which the tree will fall. It is
made perpendicular to the line of fall and should be as
close to the ground as possible. Cut the felling notch
to a depth of about one-fth to one-fourth of the trunk
diameter (g. 22). It should be in no case higher than
it is deep. Make the felling notch very carefully.
13
14
1
2
3
Begin the felling cut slighty higher than the felling notch
and on the opposite side of the tree (g. 22). Then cut
horizontally through towards the felling notch. Apply
the chain saw with its spikes directly behind the uncut
portion of wood and cut toward the notch (g. 23).
Leave approximately 1/10 of the tree diameter uncut!
This is the hinge (g. 23). Do not cut through the hinge
because you could lose control of the direction of the
fall. Drive wedges into the felling cut where necessary
to control the direction of the fall. Wedges should be of
wood, light alloy or plastic - never of steel, which can
cause kickback and damage to the chain.
Always keep to the side of the falling tree. When the
tree starts to fall, shut off the engine, withdraw the
bar and walk away on the pre-planned escape path.
Watch out for falling limbs.
WARNING!
Be extremely careful with partially fallen trees which
are poorly supported.
Plunge-Cut Method
Timber having a diameter more than twice the length
of the guide bar reauires the use of the plunge-cut
method before making the felling cut.
First, cut a large, wide notch. Make a plunge cut in the
center of the notch.
The plunge cut is made with the guide bar nose. Begin
the plunge cut by applying the lower portion of the
guide bar nose to the tree at an angle (g. 25). Cut until
depth of the kerf is about the same as the width of the
guide bar (g. 26). Next, align the saw in the direction
When the tree hangs or for some other reason does
not fall completely, set the saw aside and pull the
tree down with a cable winch, block and tackle or
tractor. If you try to cut it down with your saw, you
may be injured.
Sectioning Method
WARNING!
Felling a tree that has a diameter greater than the
length of the guide bar requires use of either the
sectioning or plunge-cut method. These methods
are extremely dangerous because they involve
the use of the nose of the guide bar and can result
in kickback. Only properly trained professionals
should attempt these techniques.
25
in which the recess is to be cut. With the saw at full
throttle, insert the guide bar in the trunk (g. 27).
Enlarge the plunge cut as shown in illustration (g. 28)
26
24
For the sectioning method (g. 24) make the rst cut
with the guide bar fanning in toward the hinge. Then,
using the bumper spike as a pivot, reposition the saw
for the next cut. Avoid repositioning the saw more than
necessary. When repositioning for the next cut, keep
the guide bar fully engaged in the kerf to keep the
felling cut straight. If the saw begins to pinch, insert
a wedge to open the cut. On the last cut, do not cut
the hinge.
27
28
1
2
3
29
Bucking
Bucking is cutting a log into sections.
WARNING!
There is an extreme danger of kickback at this
point. Extra caution must be taken to maintain
control of the saw. To make the felling cut, follow
the sectioning method described previously (g.
29). If you are inexperienced with a chain saw
plunge-cutting should not be attempted. Seek the
help of a professional.
Limbing
Limbing is removing the branches from a fallen tree.
WARNING!
There is an extreme danger of kickback during the
limbing operation. Do not work with the nose of the
bar. Be extremely cautious and avoid contacting
the log or other limbs with the nose of the guide
bar. Do not stand on a log while limbing it - you
may slip or the log may roll.
31
WARNING!
1. When bucking, do not stand on the log. Make
sure the log will not roll down-hill. If on a slope,
stand on the up-hill side of the log (see g. 31).
Watch out for rolling logs.
WARNING!
2. Cut only one log at a time.
WARNING!
3. Shattered wood should be cut very carefully.
Sharp slivers of wood may be caught and ung
in the direction of the operator of the saw.
30
Start limbing by leaving the lower limbs to support
the log off the ground (g. 30). Always cut from
the top of the limb. Do not underbuck freely hanging limbs. A pinch may result or the limb may fall,
causing loss of control. If a pinch occurs, stop the
engine and remove the saw, by lifting the limb.
Be extremely cautious when cutting limbs under
tension. The limbs could spring back toward the
operator and cause loss of control of the saw or
injury to the operator.
WARNING!
32
WARNING!
4. When cutting small logs, use a sawhorse (g.
32). Never permit another person to hold the
log. Never hold the log with your leg or foot.
15
16
33
Maintenance and Repair
Never operate a chain saw that is damaged, improperly
adjusted or not completely or securely assembled.
Follow the maintenance and repair instructions in the
appropriate section of this manual.
WARNING !
Always stop the engine and make sure that the chain
is stopped before commencing any maintenance
or repair work or cleaning the saw. Allow the chain
saw to cool off before doing any maintenance work
(burn hazard)!
Do not attempt any maintenance or repair work not
described in this manual. Have such work performed
by your DOLMAR service shop only.
Maintaining and storing the saw
34
WARNING!
5. Logs under strain require special attention to
prevent the saw from pinching. The rst cut is
made on the compression side to relieve the
stress on the log (see g. 33, 34). The bucking
cut is then made as shown. If the saw pinches,
stop the engine and remove it from the log.
35
Keep the chain, bar and sprocket clean and lubricated;
replace worn sprockets or chains.
Keep the chain sharp. You can spot a dull chain when
easy-to-cut wood becomes hard to cut and burn marks
appear on the wood.
Keep the chain at proper tension. Tighten all nuts, bolts
and screws except the carburetor adjustment screws
after each use.
Keep spark plug and wire connection tight and
clean.
Store saws in a high or locked place, away from children.
WARNING!
6. Only properly trained professionals should work
in an area where the logs, limbs and roots are
tangled (i. e. a blowdown area, g. 35). Working
in blowdown areas is extremely hazardous.
WARNING!
7. Drag the logs into a clear area before cutting.
Pull out exposed and cleared logs rst.
Denomination of components
2 3 41
6
7
5
8
9
1126
27
12
10
24
13
25
14 15
16 17
18 19
23
202122
24" (600mm)
2012.01 123456
415.060.655
XXX.XXX.XXX Typ 038
528.099.084
DOLMAR GmbH, 22045 Hamburg, Germany
Made in Germany
4a
Identicationplate
Serial no.
Year of manufacture
Indicate when ordering spare parts!
1 Handle
2 Filter cover
3 Filter hood clip
4 Tubular handle (4a model with wrap around handle)
5 Hand guard (release for chain brake)
6 Mufer with spark arrester screen
15 Adjusting screws "S-L-H" for carburetor
16
I/STOP-switch
17 Choke lever
18 Throttle lever
19 Throttle stopper
20 Hand guard
7 Spike bar
8 Chain tensioning screw
9 Retaining nuts
10 Chain catch
11 Sprocket guard
12 Identication plate
13 Decompression valve
14 Starter grip
(toothed stop for holding saw steady against wood)
21 Fuel tank cap
22 Fan housing with starting assembly
23 Oil tank cap
24 Guide bar
25 Chain
26 Adjusting screw for oil pump (bottom side)
27 Switch for Handle heating
(only on “H” model saws)
17
18
Technical data
Stroke volume cu. in (cm3)
PS-7310 PS-7910
4.4 (72.6) 4.8 (78.5)
Bore inch (mm) 1.97 (50) 2.04 (52)
Stroke inch (mm) 1.45 (37) 1.45 (37)
Max. power at speed hp / rpm 5.4 / 10,000 5.7 / 10,000
Max. torque at speed Nm / rpm 4.5 / 7,000 4.7 / 7,000
Limit speed with guide bar and chain rpm 12,800 12,800
Idling speed rpm 2,500 2,500
Coupling speed rpm 3,200 3,200
Sound Pressure Level at the operator‘s ear
at full load according to ANSI B 175.1 db(A) 101.4 101.4
Sound Pressure Level at the bystander‘s position
(50 ft/15 m distance) according to ANSI B 175.1 db(A) 78.7 78.7
Carburetor (diaphragm carburetor) Type ZAMA with limiter caps
Ignition system Type electronic
Spark plug Type NGK BPMR 7A
Electrode gap inch (mm) .020 (0.5)
or spark plug Type BOSCH WSR-6F
Fuel consumption at max. load per ISO 7293 kg/h 1.9 2.0
Specic consumption at max. load per ISO 7293 g/kWh 460 460
Fuel tank capacity oz 25.36
Chain oil tank capacity oz 14.20
Mixture ratio (fuel/two-stroke oil)
- when using DOLMAR High Performance oil 50:1
- when using other synthetic oils
(oil quality must be JASO FC or ISO-L-EGD)
50:1
Chain brake engages manually or in case of kickback
Sprocket pitch inch 3/8
Number of teeth Z 7
Chain type (see the Extract from the spare-parts list) 099
Pitch / Driving element strength inch 3/8 / .058
Guide bar, length of a cut inch 15 / 18 / 20 / 24 / 28
Guide-bar type (see the Extract from the spare-parts list)
Weight (fuel tank empty, without chain and guide bar) lbs 14.7 / 15.2
1)
/ 15.6 2) 14.7 / 15.2 1) / 15.6
2)
1)
With handle heating.
2)
With handle heating and wrap around handle.
WARNING:
This chain saw is capable of severe kickback that coult result in serious injury to the user. Do not operate this chain
saw unless you have extraordinary cutting needs and experience and specialized training for dealing with kickback.
Chain saws with signicantly reduced kickback potential are available.
5
7
6
45
1
2
3
A
PUTTING INTO OPERATION
CAUTION:
Before doing any work on the guide bar or chain, always
switch off the engine and pull the plug cap off the spark
plug (see "Replacing the spark plug"). Always wear protective gloves!
CAUTION:
Start the chain saw only after having assembled it completely and inspected.

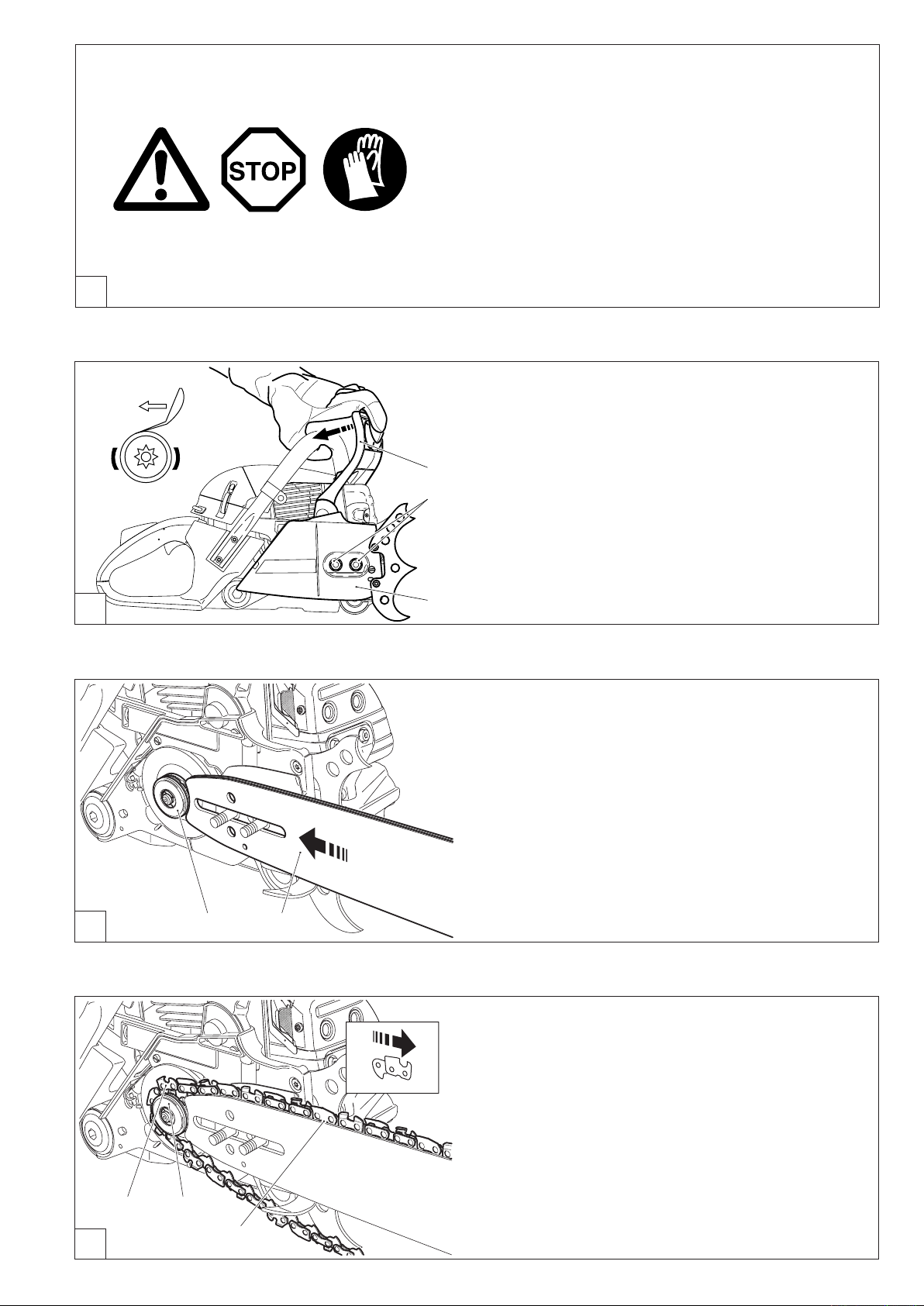

Mounting the guide bar and saw chain
Use the universal wrench delivered with the chain saw for the
following work.
Put the chain saw on a stable surface and carry out the following
steps for mounting the guide bar and saw chain:
Release the chain brake by pulling the hand guard (1) in direction of arrow.
Unscrew retaining nuts (2).
Pull off the sprocket guard (3).
B
C
Position the guide bar (4) and push against the sprocket (5)
as shown by the arrow.
Lift the chain (6) over the sprocket (5). Using your right hand, guide
the chain into the top guide groove on the guide bar (7).
CAUTION:
Note that the cutting edges along the top of the chain must
point in the direction of the arrow!
D
19
20
9 10
2
13
3
11
12
6 8
Pull the chain (6) around the sprocket nose (8) of the guide
bar in the direction of the arrow.
Guide the chain over the chain catch (9).
Pull the guide bar as shown by the arrow to take the slack
out of the chain, so that it comes up to the bottom edge of the
guide bar (10).
E
Line up the holes in the sprocket guard (3) with the bolts (11).
Turn the chain tensioning screw (H/13) until the chain
tensioning bolt (12) is aligned with the hole in the guide bar.
Replace the sprocket guard.
Manually tighten the retaining nuts (H/2).
Tightening the saw chain
Slightly lift the end of the guide bar and turn the chain adjusting
screw (13) to the right (clockwise) until the chain rests against
the bottom side of the guide bar.
While still holding up the tip of the guide bar, tighten the retaining
nuts (2) with the universal wrench.
F
G
H
STOP
2
13
12
1
Checking the chain tension
The tension of the chain is correct if the chain rests against
the bottom side of the guide bar and can still be easily turned
by hand.
While doing so the chain brake must be released.
Check the chain tension frequently - new chains tend to get
longer during use!
When checking the chain tension the engine must be switched
off.
NOTE:
It is recommended to use 2-3 chains alternatively.
In order to guarantee uniform wear of the guide bar the bar
should be turned over whenever replacing the chain.
Retightening the saw chain
Loosen the nuts (2) about one turn with the universal wrench.
Raise the tip of the guide bar a little and turn the chain tensioning
screw (13) to the right (clockwise) until the saw chain is again
up against the bottom edge of the guide bar (see circle).
While keeping the tip of the guide bar raised, tighten the nuts
(2) again with the universal wrench.
A
B
Chain brake
The PS-7310 and PS-7910 comes with an inertia chain brake
as standard equipment. If kickback occurs due to contact of the
guide-bar tip with wood (see SAFETY PRECAUTIONS, page
10, 11), the chain brake will stop the chain through inertia if the
kickback is sufciently strong.
The chain will stop within a fraction of a second.
The chain brake is installed to block the saw chain before
starting it and to stop it immediately in case of an emergency.
IMPORTANT: NEVER run the saw with the chain brake activated (except for testing, see “Testing chain brake”)! Doing so
can very quickly cause extensive engine damage!
ALWAYS release the chain brake before starting the
work!
C
Engaging the chain brake (braking)
If the kickback is strong enough the sudden acceleration of the
guide bar combined with the inertia of the hand guard (1) will
automatically actuate the chain brake.
To engage the chain brake manually, simply push the hand
guard (1) forward (towards the tip of the saw) with your left
hand (arrow 1).
Releasing the chain brake
Pull the hand guard (1) towards you (arrow 2) until you feel it
catch. The brake is now released.
21
22
OIL
OIL
50:1
DOLMAR
Fuel
CAUTION:
This saw is powered by petroleum products (gasoline
(petrol) and oil).
Be especially careful when handling gasoline (petrol).
Donotsmoke.Keeptoolwellawayfromopenames,spark,
(explosion hazard).
orre
Gasoline
50:1
DOLMAR oil other oil
50:1
Fuel mixture
This tool is powered by a high-performance air-cooled two-stroke
engine. It runs on a mixture of gasoline and two-stroke engine
oil.
The engine is designed for unleaded regular gasoline with a
min. octane value of 91 (R+M)/2. In case no such fuel is available, you can use fuel with a higher octane value. This will not
affect the engine.
In order to obtain an optimum engine output and to protect
your health and the environment use unleaded fuel only.
To lubricate the engine, use a synthetic oil for two-stroke aircooled engines (quality grade: JASO FC or ISO-L-EGD), which
has to be added to the fuel. The engine has been designed for
use of DOLMAR High Performance two-stroke engine oil and a
mixture ratio of ONLY 50:1 to protect the environment. In addition,
a long service life and reliable operation with a minimum emis-
sion of exhaust gases are ensured. DOLMAR High Performance
two-stroke engine oil is available in the following sizes:
2.6 oz order number 986 100 100
6.4 oz order number 986 100 101
In case DOLMAR High Performance two-stroke engine oil is not
available, it is recommended to use a mixture ratio of 50:1 with
other synthetic two-stroke engine oils, as otherwise optimum
operation of the engine cannot be guaranteed.
The correct mixture ratio:
50:1 when using DOLMAR High Performance two-stroke
engine oil, i. e. mix 50 parts gasoline with 1 part oil.
when using other synthetic two-stroke engine oils (qual-
50:1
ity grade JASO FC or ISO-L-EGD), i. e. mix 50 parts
gasoline with 1 part oil.
NOTE:
For preparing the fuel-oil mixture rst mix the entire oil quantity with
half of the fuel required, then add the remaining fuel. Thoroughly
shake the mixture before lling it into the chain saw tank.
Itisnotwisetoaddmoreengineoilthanspeciedtoensure
safe operation. This will only result in a higher production of
+
1.0 Us-gal. (3.7 l)
2.5 Us-gal. (9.4 l)
5.0 Us-gal. (18.9 l)
2.6 oz. (75 cm3)
6.4 oz. (189 cm3)
12.8 oz. (378 cm3)
combus-tion residues which will pollute the environment
and clog the exhaust channel in the cylinder as well as
themufer.Inaddition,fuelconsumption will riseand
performance will decrease.
The Storage of Fuel
Fuels have a limited storage life. Fuel and fuel mixtures
age through evaporation, especially at high temperatures.
Aged fuel and fuel mixtures can cause starting problems
and damage the engine.Purchase only that amount of fuel,
which will be consumed over the next few months. At high
temperatures, once fuel has been mixed it should be used
up in 6-8 weeks.
Use only approved and marked containers for transport
and storage. Store fuel only in dry, cool and secure
locations!
AVOID SKIN AND EYE CONTACT
Mineral oil products degrease your skin. If your skin comes in
contact with these substances repeatedly and for an extended
period of time, it will desiccate. Various skin deseases may
result. In addition, allergic reactions are known to occur.
Eyes can be irritated by contact with oil. If oil comes into your
eyes, immediately wash them with clear water.
If your eyes are still irritated, see a doctor immediately!
D
Chain oil
Use an oil with adhesive additive for lubricating the chain and
guide bar. The adhesive additive prevents the oil from being
ung off the chain too quickly.
We recommend the use of chain oil which is bio-degradable in
order to protect the environment. The use of bio-degradable oil
may even be required by local regulations.
The chain oil BIOTOP sold by DOLMAR is made of special
vegetable oils and is 100% bio-degradable. BIOTOP has been
granted the "blue angel" (Blauer Umweltschutz-Engel) for being
particularly environment-friendly (RAL UZ 48).
BIOTOP chain oil is available in the following sizes:
1 l order number 980 008 210
5 l order number 980 008 211
20 l order number 980 008 213
Bio-degradable oil is stable only for a limited period of
time. It should be used within 2 years from the date of
manufacture (printed on the container).
E
Important note on bio-degradable chain oils
If you are not planning to use the saw again for an extended period of time, empty the oil tank and put in a small
amount of regular engine oil (SAE 30), and then run the
saw for a time. This is necessary to ush out all remaining bio-degradable oil from the oil tank, oil-feed system,
chain and guide bar, as many such oils tend to leave sticky
residues over time, which can cause dam-
waste oil
age to the oil pump or other parts.
The next time you use the saw, ll the tank with BIOTOP
chain oil again. In case of damage caused by using waste
oil or unappropriate chain oil the product guarantee will be
null and void.
Your salesman will inform you about the use of chain oil.
NEVER USE WASTE OIL
Waste oil is very dangerous for the environment.
Waste oil contains high amounts of carcinogenic substances.
Residues in waste oil result in a high degree of wear and tear
at the oil pump and the sawing device.
In case of damage caused by using waste oil or unappropriate
chain oil the product guarantee will be null and void.
Your salesman will inform you about the use of chain oil.
AVOID SKIN AND EYE CONTACT
Mineral oil products degrease your skin. If your skin comes in
contact with these substances repeatedly and for an extended
period of time, it will desiccate. Various skin deseases may result.
In addition, allergic reactions are known to occur.
Eyes can be irritated by contact with oil. If oil comes into your
eyes, immediately wash them with clear water.
If your eyes are still irritated, see a doctor immediately!
A
Refuelling
FOLLOW THE SAFETY PRECAUTIONS!
Be careful and cautious when handling fuels.
The engine must be switched off! Allow the chain saw to
cool off before refuelling!
Thoroughly clean the area around the caps, to prevent dirt
from getting into the fuel or oil tank.
Unscrew the cap and ll the tank with fuel (fuel/oil mixture)
or chain oil as the case may be. Fill up to the bottom edge
of the ller neck. Be careful not to spill fuel or chain oil!
Tightly screw on the cap.
After refuelling, clean screw cap, tank and check for lekages.
B
chain oil fuel/oil mixture
Lubricating the chain
During operation there must always be sufcient chain oil in
the chain-oil tank to provide good chain lubrication. One lling
is sufcient for about one half-hour of continuous operation.
While working make sure there is enough chain oil in the tank.
If necessary, add oil. The engine must be switched off!
23
Loading...
