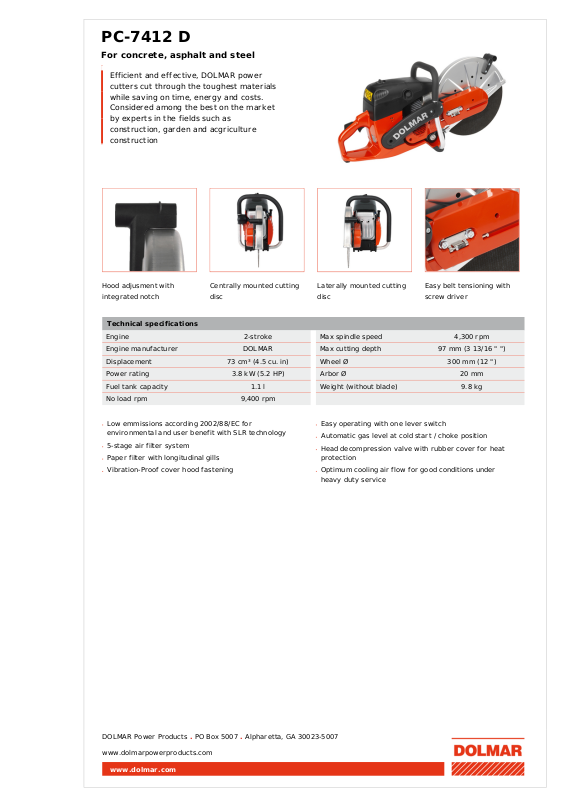

Dolmar PC-7412 D Technical specifications

PC-7412 D

For concrete, asphalt and steel

Efficient and effective, DOLMAR power
cutters cut through the toughest materials
while saving on time, energy and costs.
Considered among the best on the market
by experts in the fields such as
construction, garden and acgriculture
construction

Hood adjusment with
integrated notch

Technical specifications

Engine 2-stroke Max spindle speed 4,300 rpm
Engine manufacturer DOLMAR Max cutting depth 97 mm (3 13/16 " ")
Displacement 73 cm³ (4.5 cu. in) Wheel Ø 300 mm (12 ")
Power rating 3.8 kW (5.2 HP) Arbor Ø 20 mm
Fuel tank capacity 1.1 l Weight (without blade) 9.8 kg
No load rpm 9,400 rpm

Low emmissions according 2002/88/EC for
environmental and user benefit with SLR technology

5-stage air filter system
Paper filter with longitudinal gills
Vibration-Proof cover hood fastening

Centrally mounted cutting
disc

Laterally mounted cutting
disc

Easy operating with one lever switch
Automatic gas level at cold start / choke position
Head decompression valve with rubber cover for heat

protection
Optimum cooling air flow for good conditions under

heavy duty service

Easy belt tensioning with
screw driver
